1 NET 323 NETWORKS PROTOCOLS Networks and Communication Systems Department Subnetting Exercises

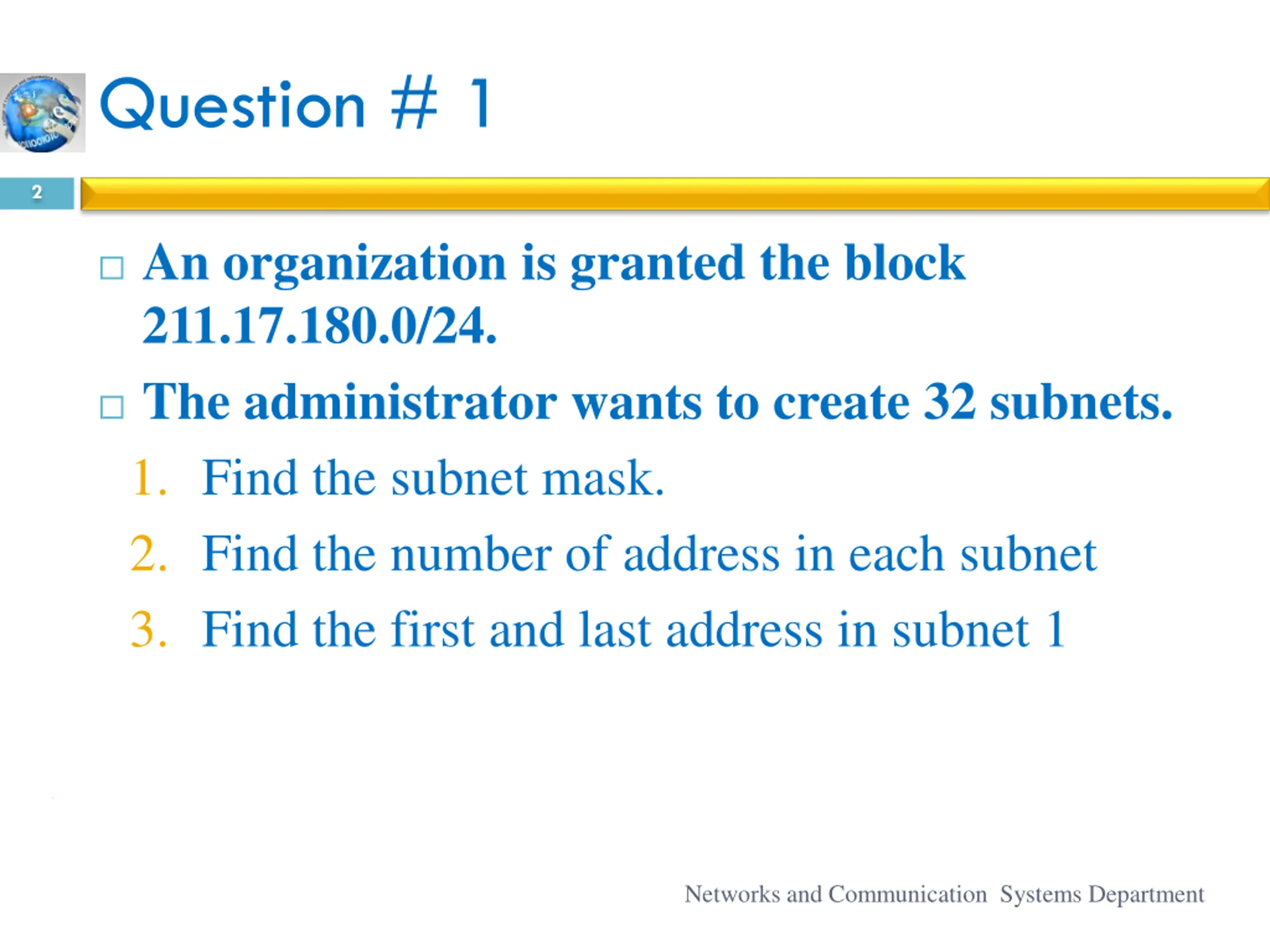

Question # 1 2 An organization is granted the block 211.17.180.0/24. The administrator wants to create 32 subnets. 1. Find the subnet mask. 2. Find the number of address in each subnet 3. Find the first and last address in subnet 1 Networks and Communication Systems Department

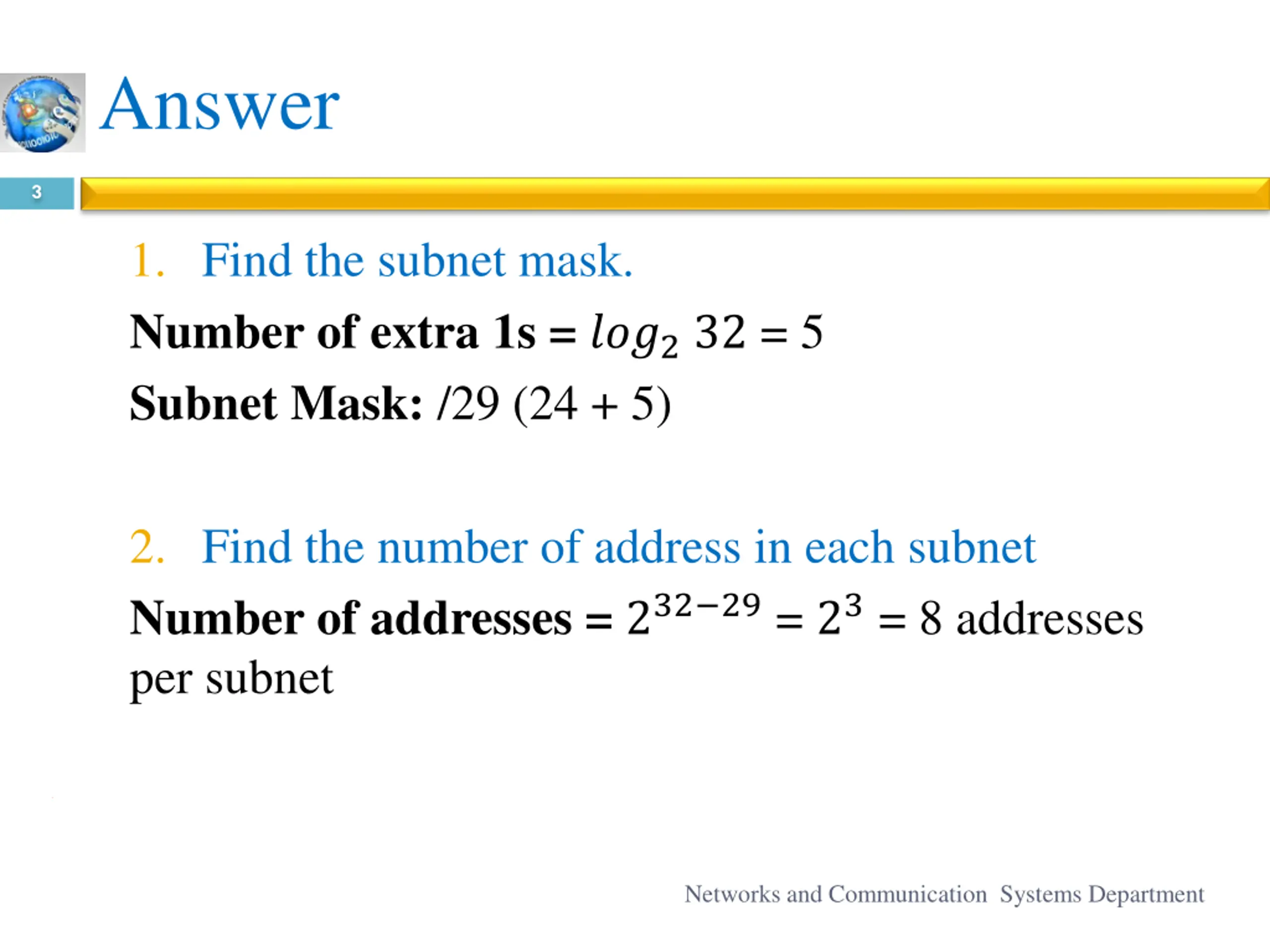

Answer 3 1. Find the subnet mask. Number of extra 1s =???2 32 = 5 Subnet Mask: /29 (24 + 5) 2. Find the number of address in each subnet Number of addresses = 232 29 = 23 = 8 addresses per subnet Networks and Communication Systems Department

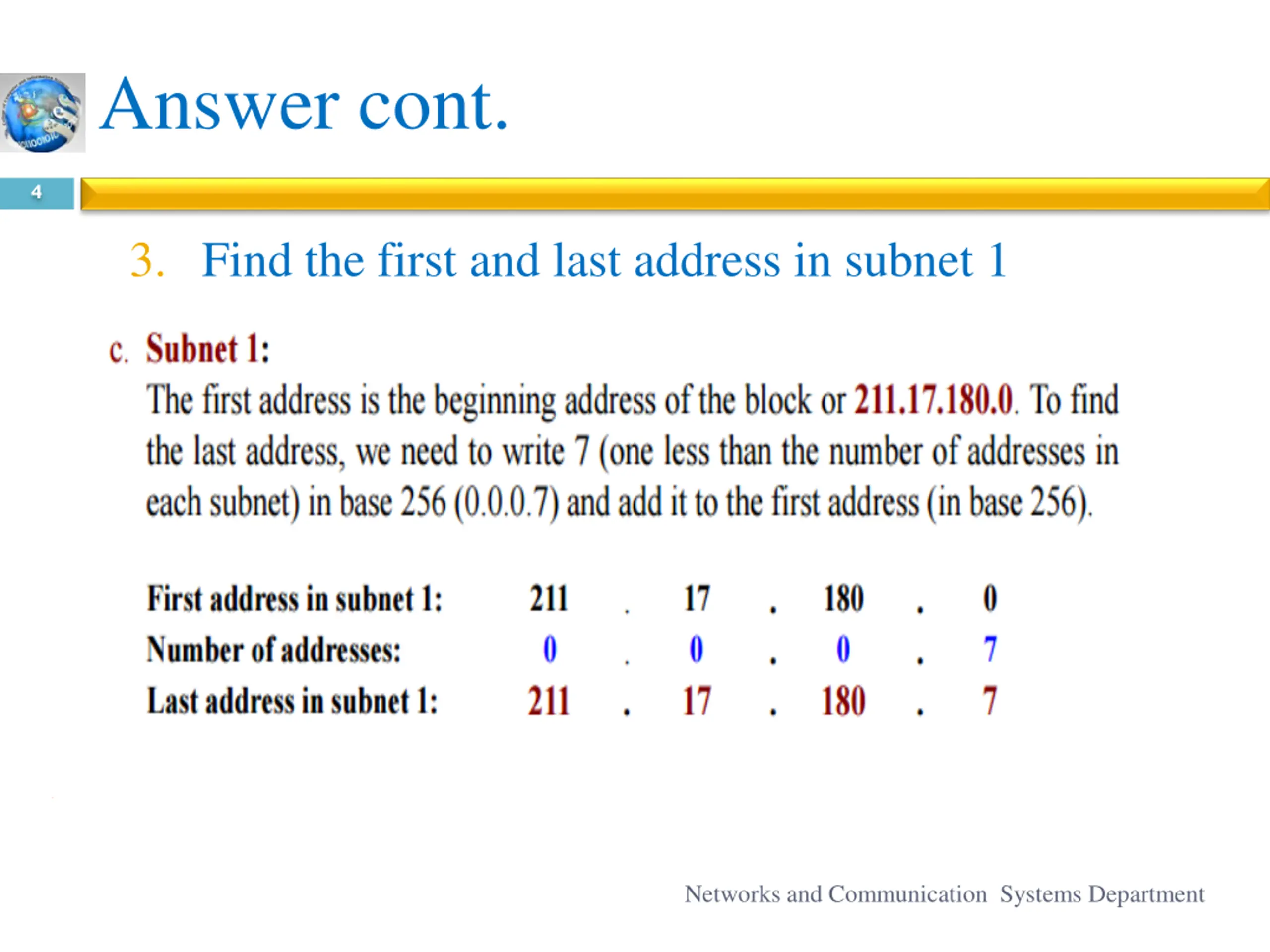

Answer cont. 4 3. Find the first and last address in subnet 1 Networks and Communication Systems Department

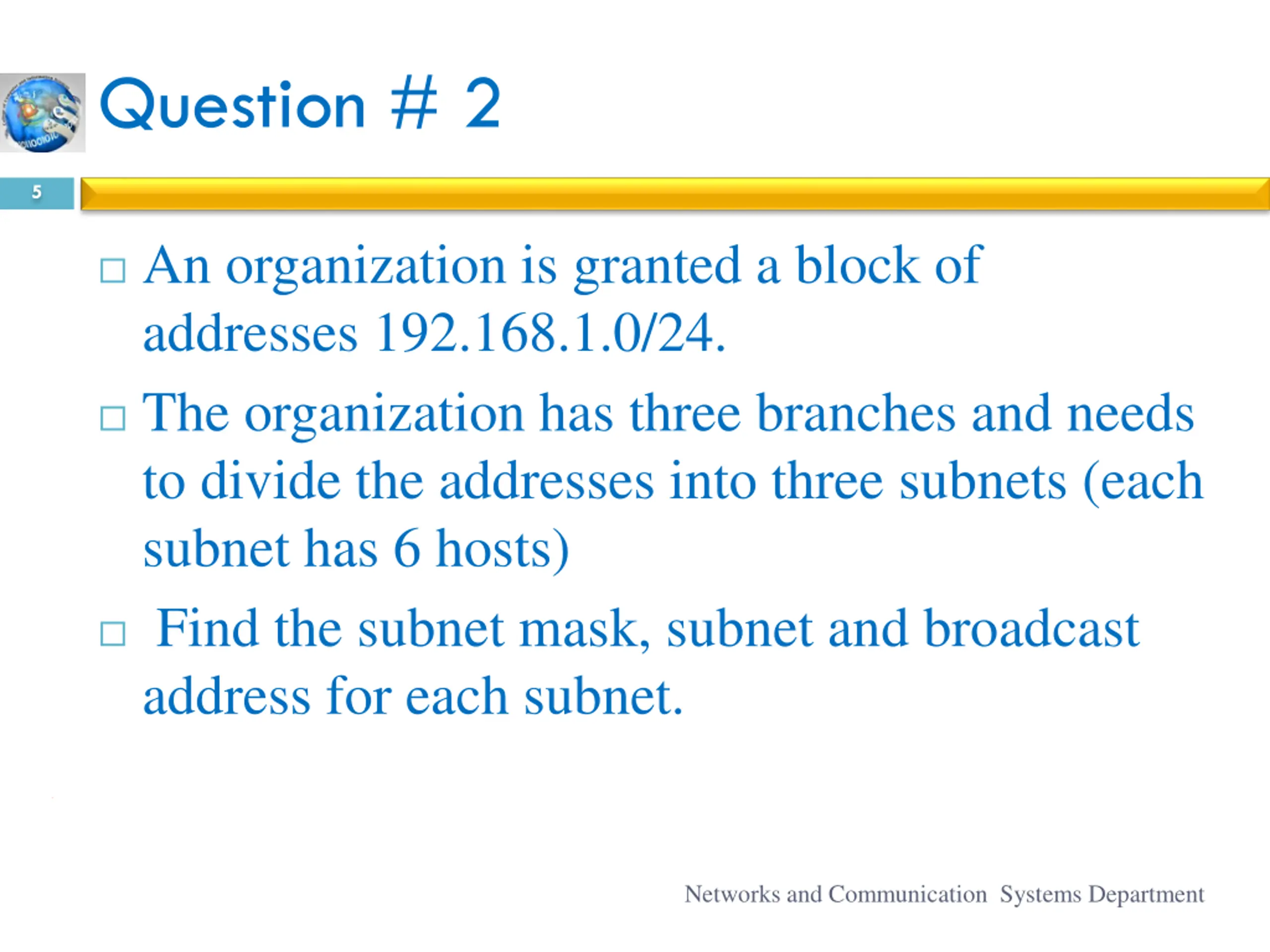

Question # 2 5 An organization is granted a block of addresses 192.168.1.0/24. The organization has three branches and needs to divide the addresses into three subnets (each subnet has 6 hosts) Find the subnet mask, subnet and broadcast address for each subnet. Networks and Communication Systems Department
Answer 6 Subnet mask for the three subnets: # of address= 232 ? 8 = 232 ? 23 = 232 ? 3= 32-n n= 32-3 = 29 Subnet mask = /29 # of address in each subnet = 23= 8 Networks and Communication Systems Department

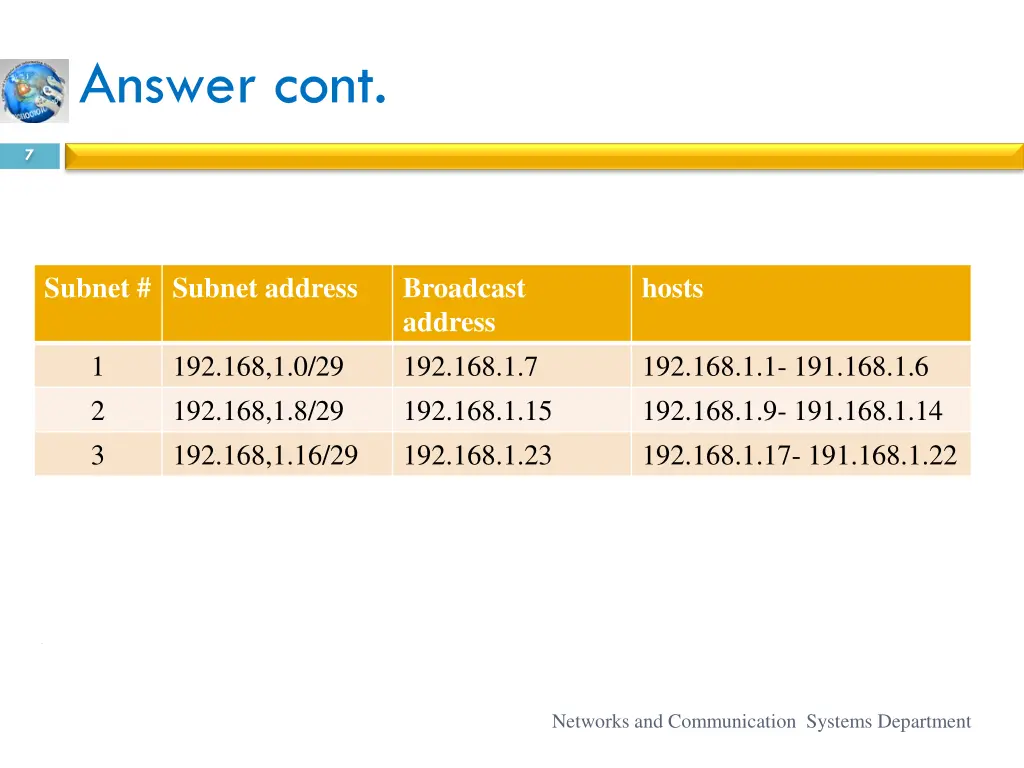

Answer cont. 7 Subnet # Subnet address Broadcast address 192.168.1.7 192.168.1.15 192.168.1.23 hosts 1 2 3 192.168,1.0/29 192.168,1.8/29 192.168,1.16/29 192.168.1.1- 191.168.1.6 192.168.1.9- 191.168.1.14 192.168.1.17- 191.168.1.22 Networks and Communication Systems Department

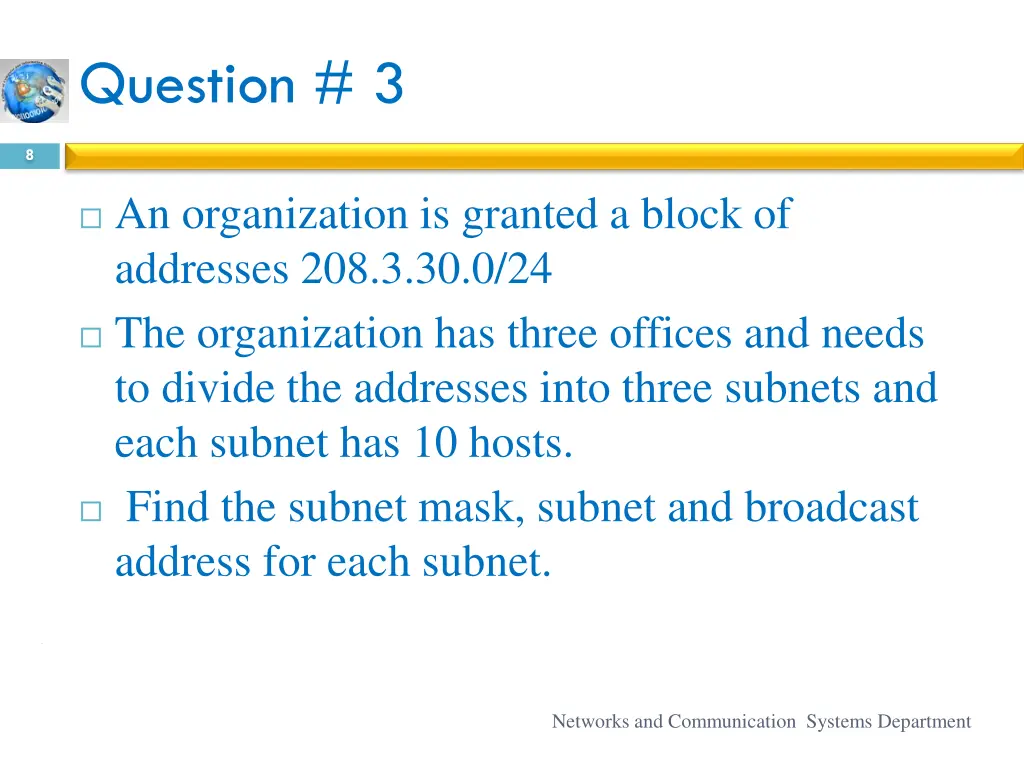

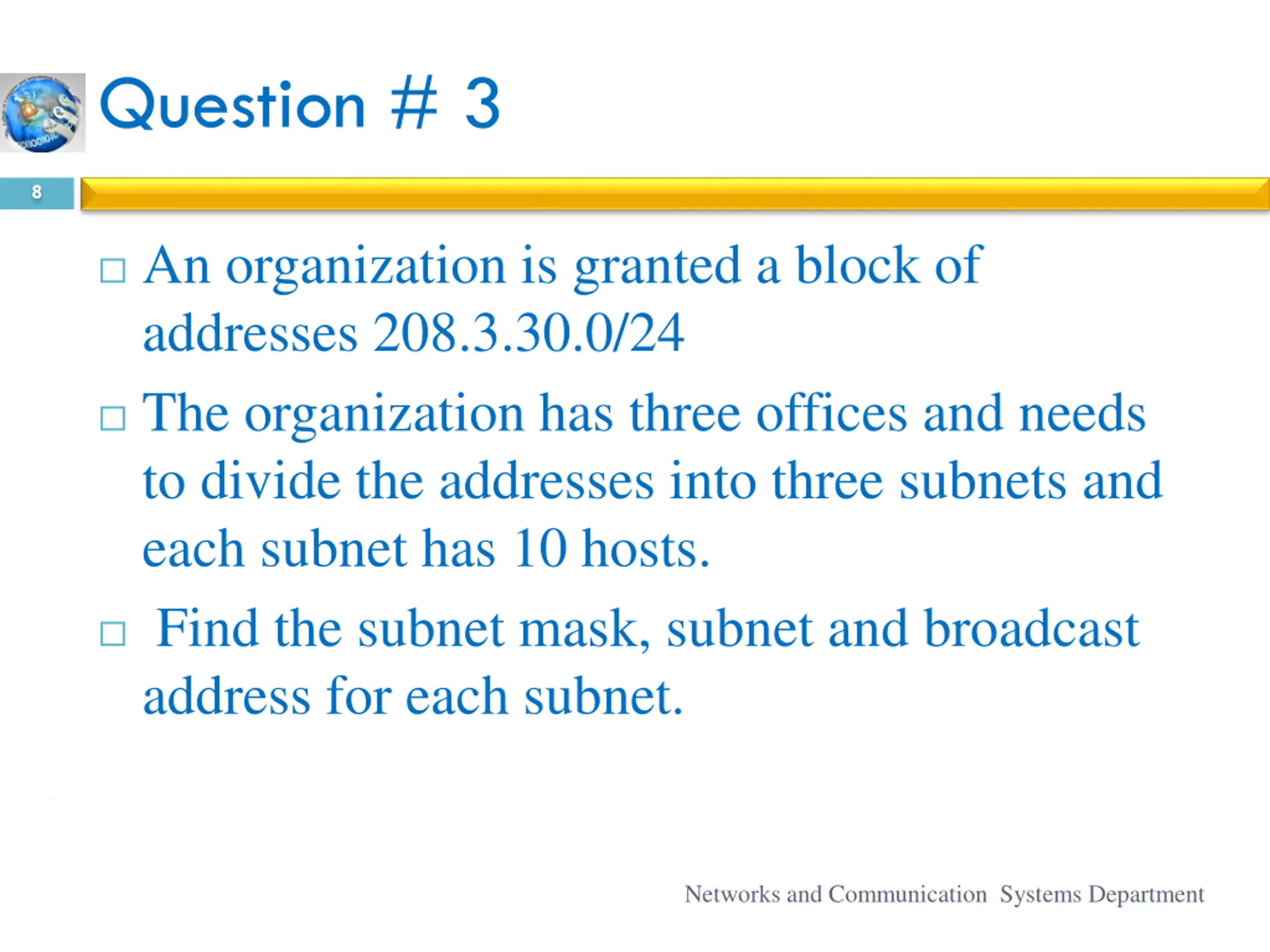

Question # 3 8 An organization is granted a block of addresses 208.3.30.0/24 The organization has three offices and needs to divide the addresses into three subnets and each subnet has 10 hosts. Find the subnet mask, subnet and broadcast address for each subnet. Networks and Communication Systems Department

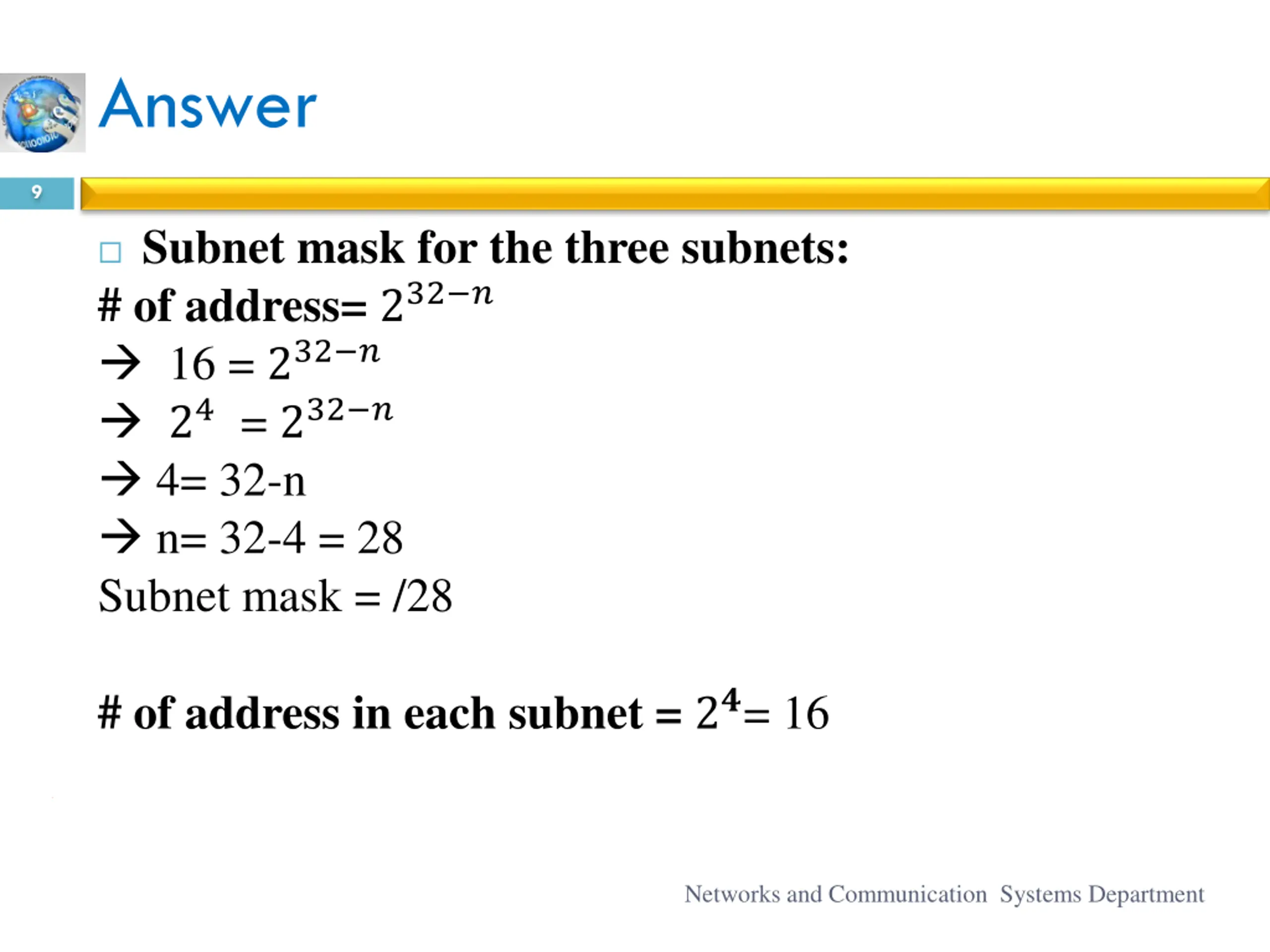

Answer 9 Subnet mask for the three subnets: # of address= 232 ? 16 = 232 ? 24 = 232 ? 4= 32-n n= 32-4 = 28 Subnet mask = /28 # of address in each subnet = 2?= 16 Networks and Communication Systems Department

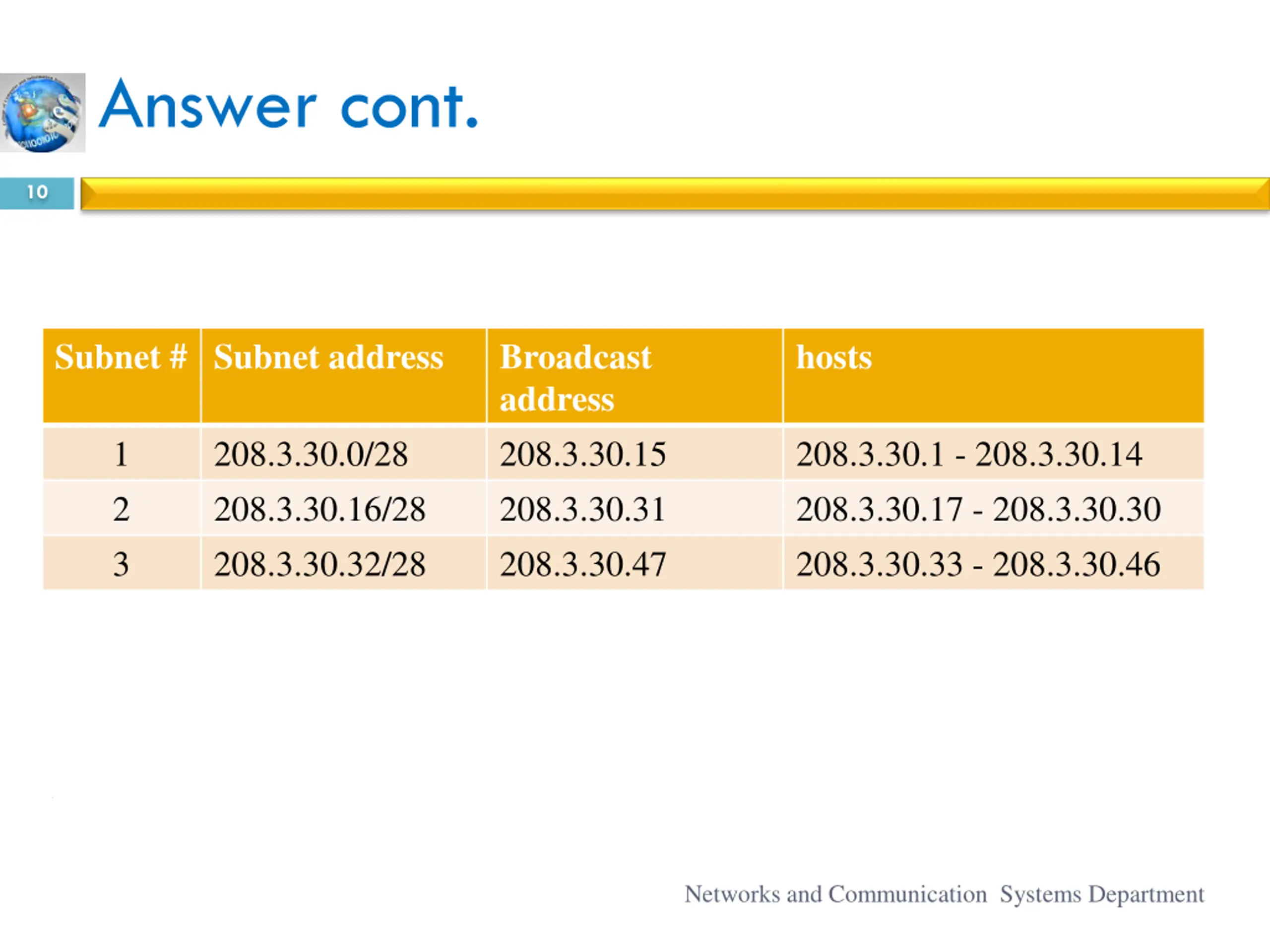

Answer cont. 10 Subnet # Subnet address Broadcast address 208.3.30.15 208.3.30.31 208.3.30.47 hosts 1 2 3 208.3.30.0/28 208.3.30.16/28 208.3.30.32/28 208.3.30.1 - 208.3.30.14 208.3.30.17 - 208.3.30.30 208.3.30.33 - 208.3.30.46 Networks and Communication Systems Department

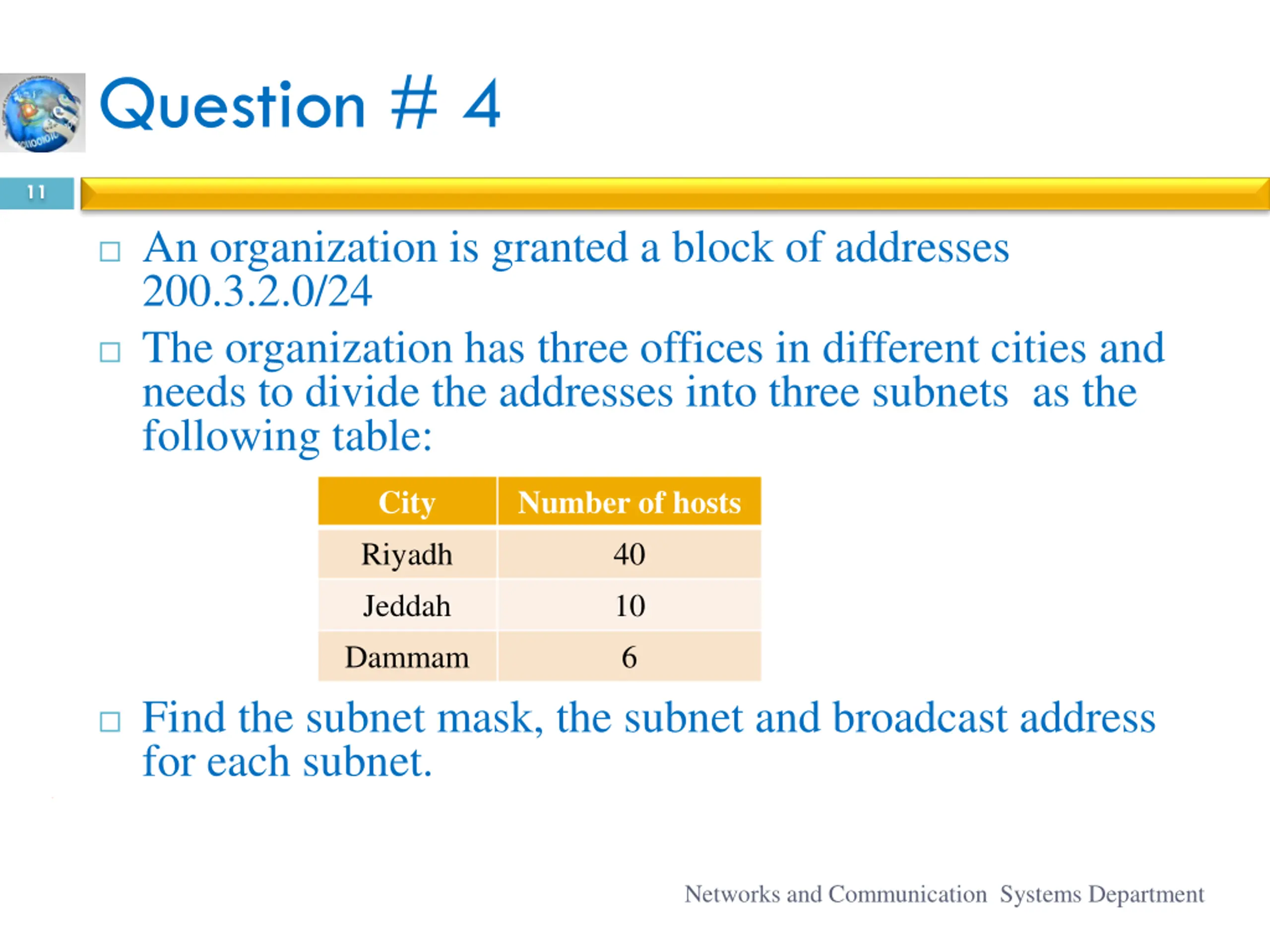

Question # 4 11 An organization is granted a block of addresses 200.3.2.0/24 The organization has three offices in different cities and needs to divide the addresses into three subnets as the following table: City Riyadh Jeddah Dammam Number of hosts 40 10 6 Find the subnet mask, the subnet and broadcast address for each subnet. Networks and Communication Systems Department

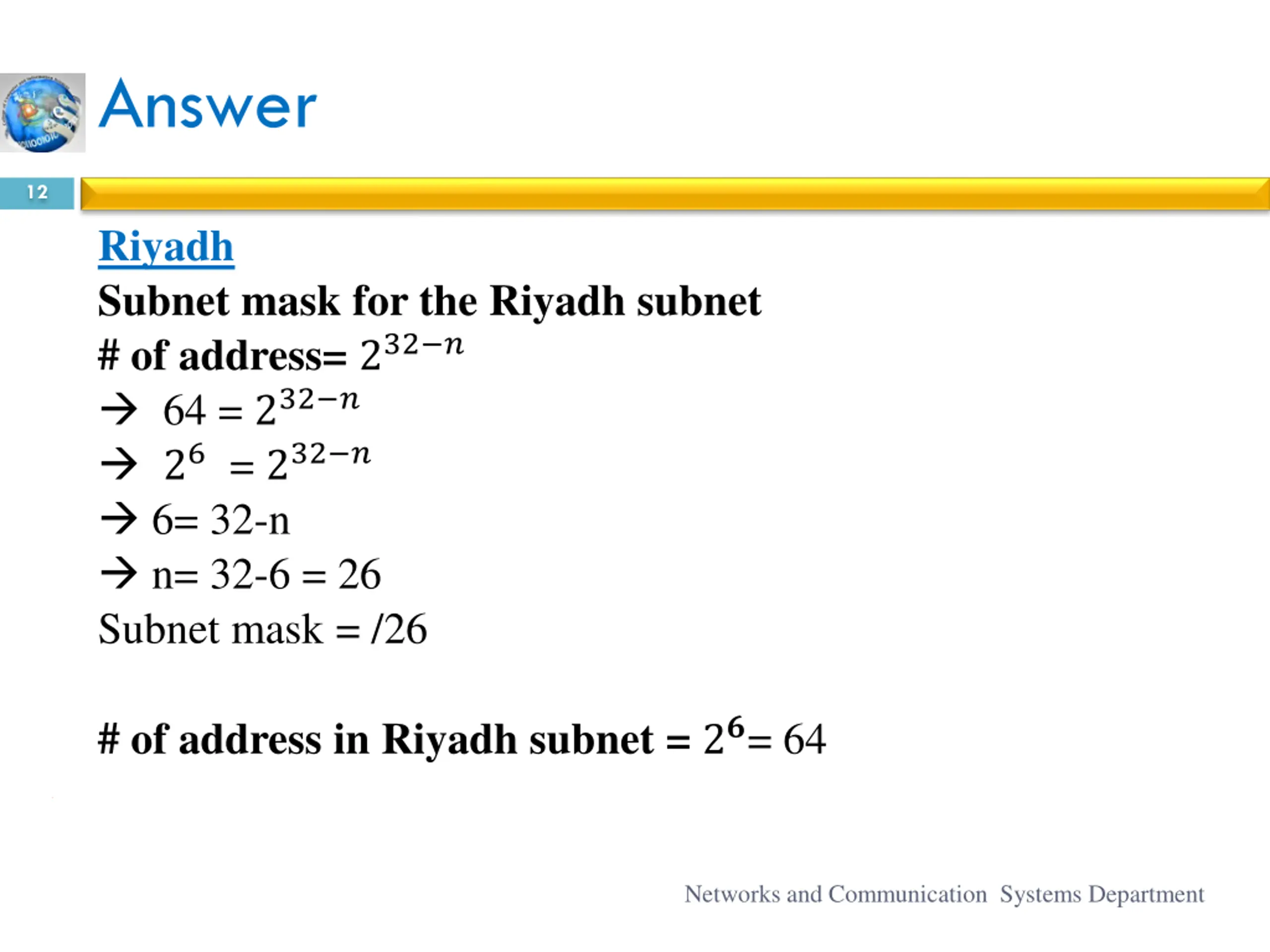

Answer 12 Riyadh Subnet mask for the Riyadh subnet # of address= 232 ? 64 = 232 ? 26 = 232 ? 6= 32-n n= 32-6 = 26 Subnet mask = /26 # of address in Riyadh subnet = 2?= 64 Networks and Communication Systems Department

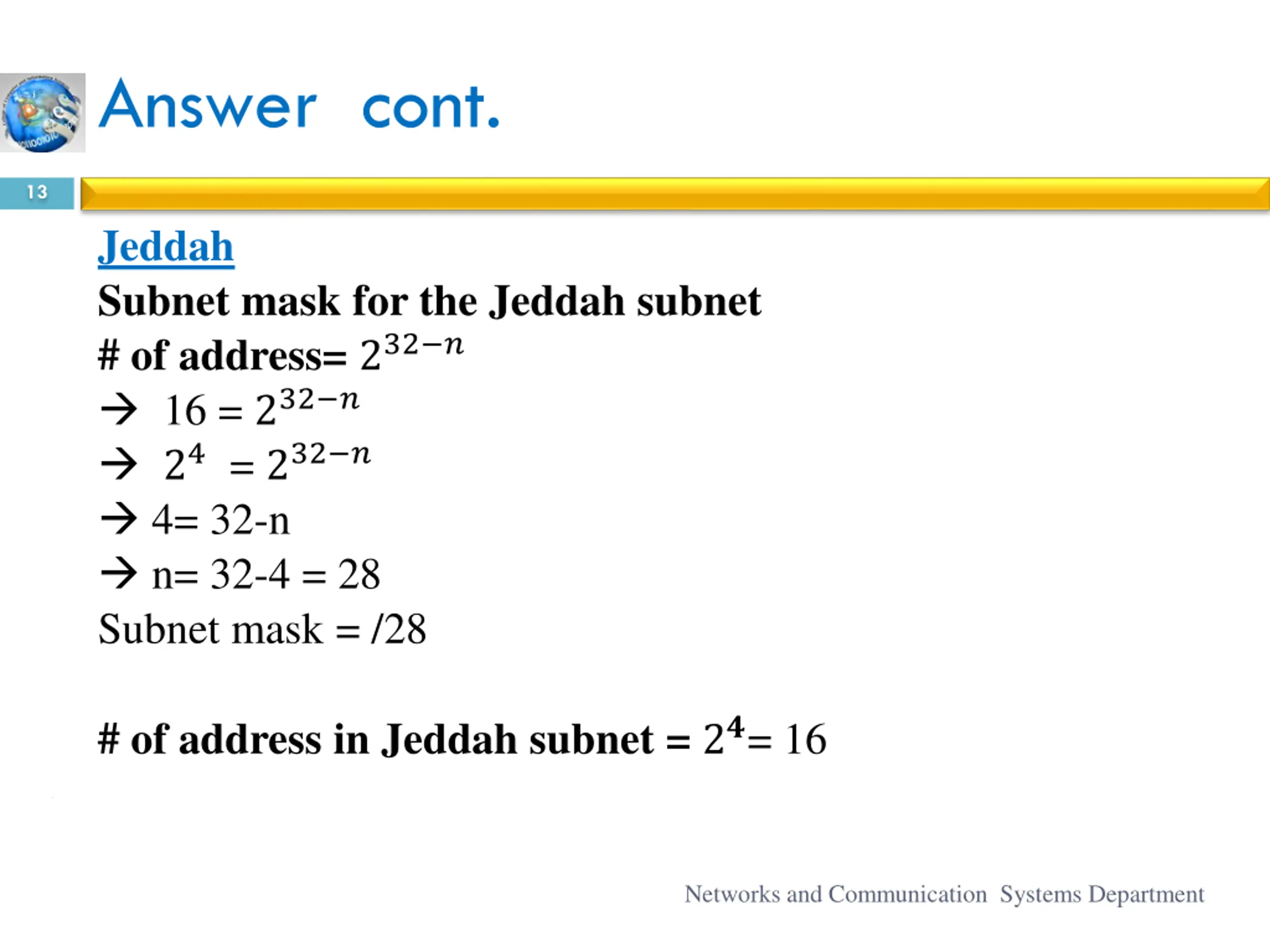

Answer cont. 13 Jeddah Subnet mask for the Jeddah subnet # of address= 232 ? 16 = 232 ? 24 = 232 ? 4= 32-n n= 32-4 = 28 Subnet mask = /28 # of address in Jeddah subnet = 2?= 16 Networks and Communication Systems Department
Answer cont. 14 Dammam Subnet mask for the Dammam subnet # of address= 232 ? 8 = 232 ? 23 = 232 ? 3= 32-n n= 32-3 = 29 Subnet mask = /29 # of address in Dammam subnet = 23= 8 Networks and Communication Systems Department

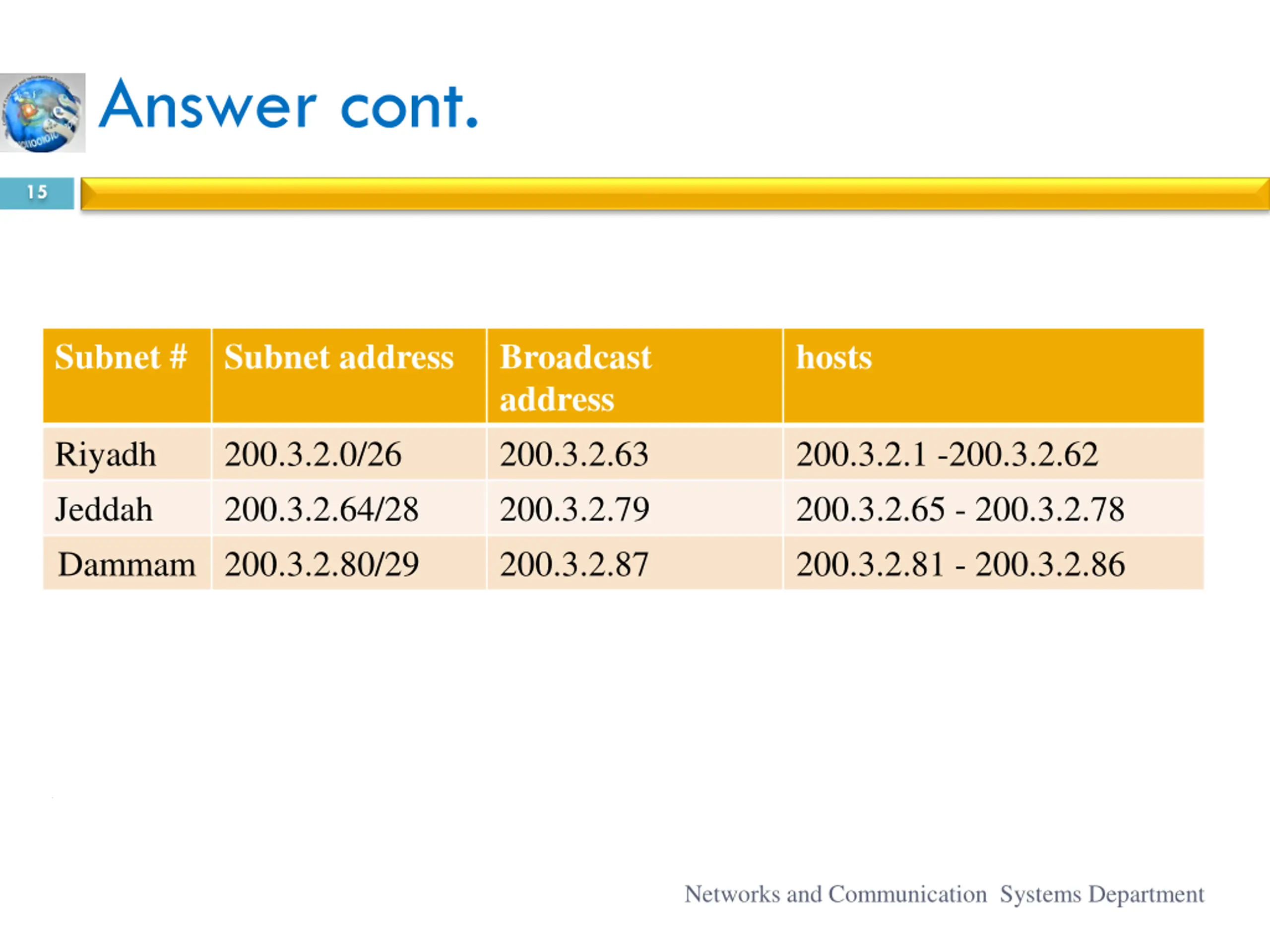

Answer cont. 15 Subnet # Subnet address Broadcast address 200.3.2.63 200.3.2.79 200.3.2.87 hosts Riyadh Jeddah Dammam 200.3.2.80/29 200.3.2.0/26 200.3.2.64/28 200.3.2.1 -200.3.2.62 200.3.2.65 - 200.3.2.78 200.3.2.81 - 200.3.2.86 Networks and Communication Systems Department
