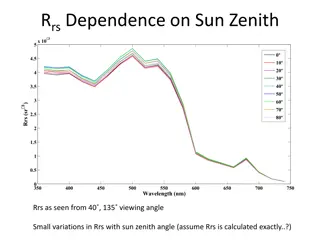

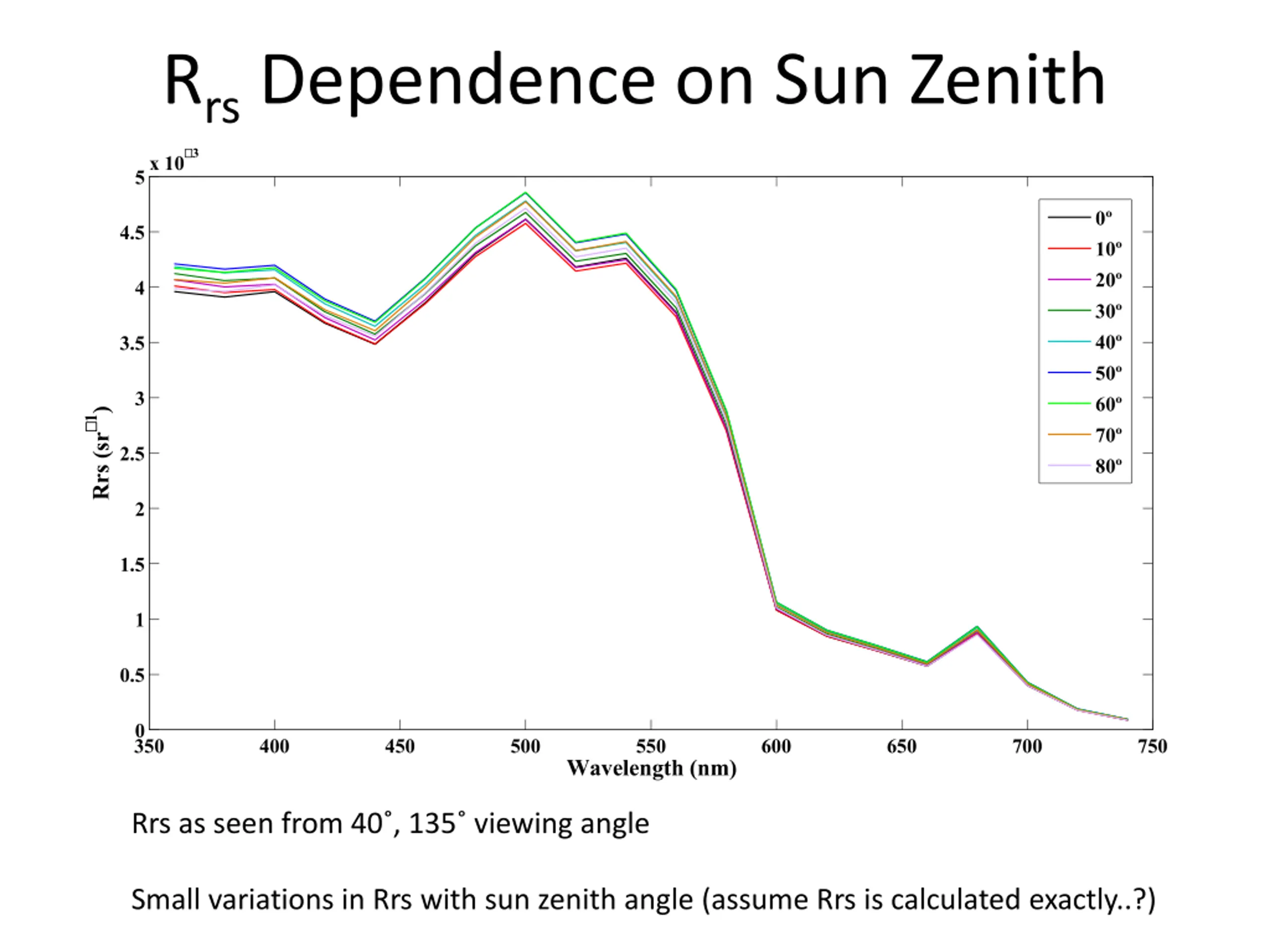

RrsDependence on Sun Zenith 3 5x 10 0 10 20 30 40 50 60 70 80 4.5 4 3.5 3 Rrs (sr 1) 2.5 2 1.5 1 0.5 0 350 400 450 500 550 600 650 700 750 Wavelength (nm) Rrs as seen from 40 , 135 viewing angle Small variations in Rrs with sun zenith angle (assume Rrs is calculated exactly..?)

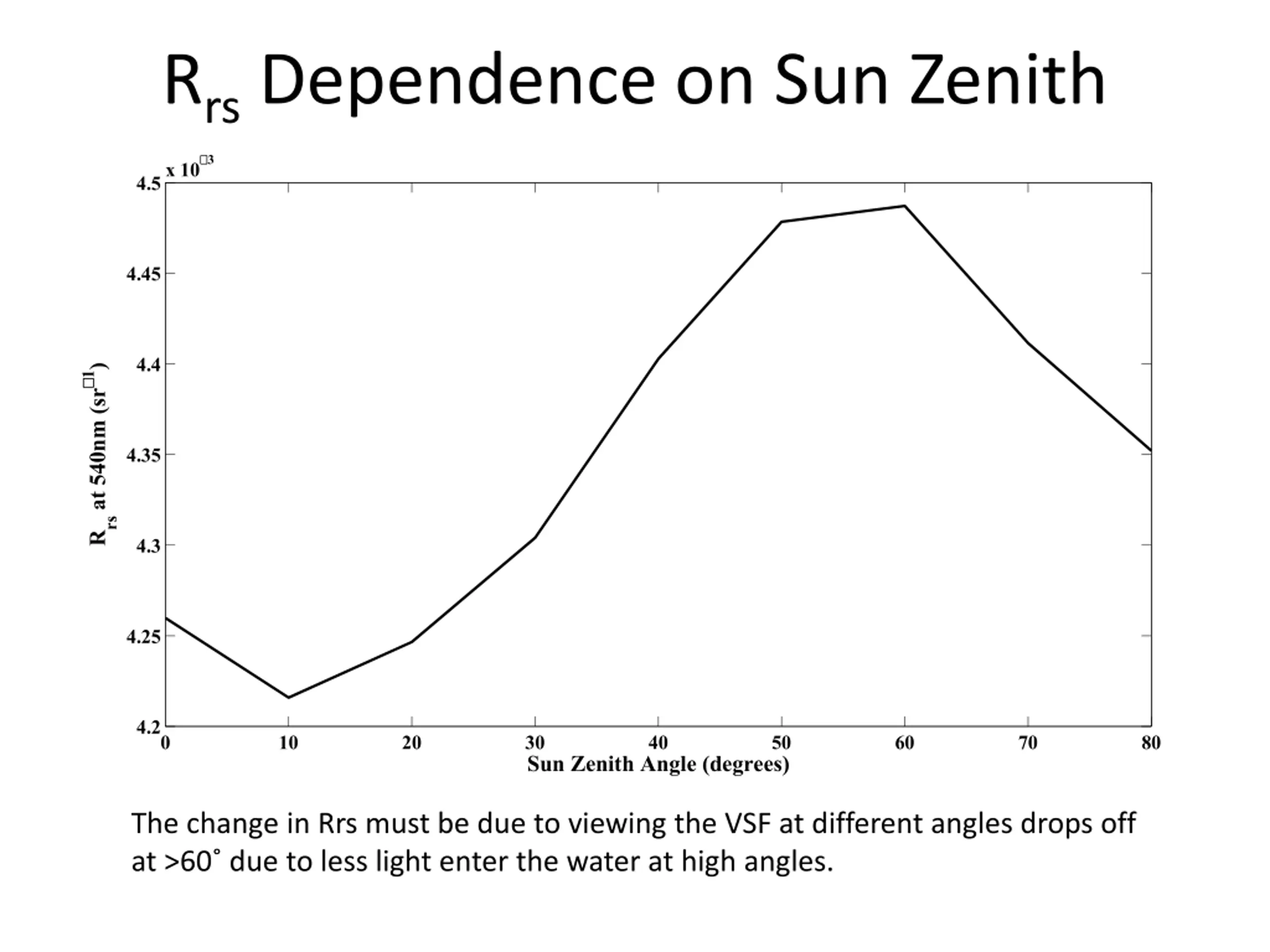

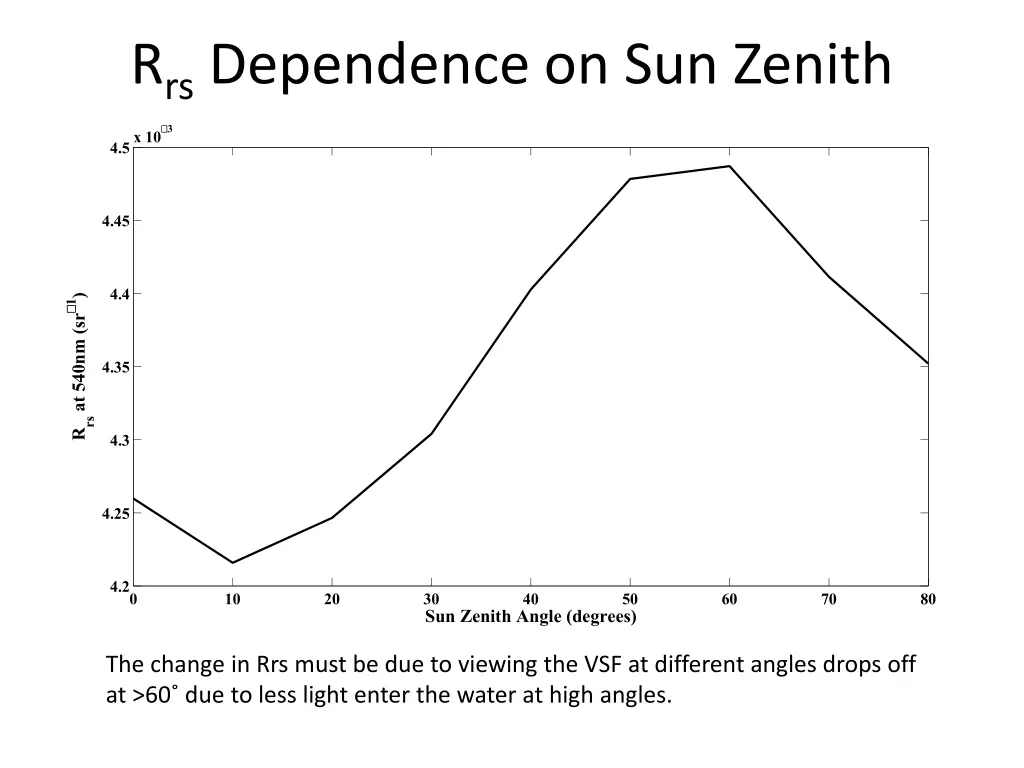

Rrs Dependence on Sun Zenith 3 4.5x 10 4.45 4.4 Rrs at 540nm (sr 1) 4.35 4.3 4.25 4.2 0 10 20 30 Sun Zenith Angle (degrees) 40 50 60 70 80 The change in Rrs must be due to viewing the VSF at different angles drops off at >60 due to less light enter the water at high angles.

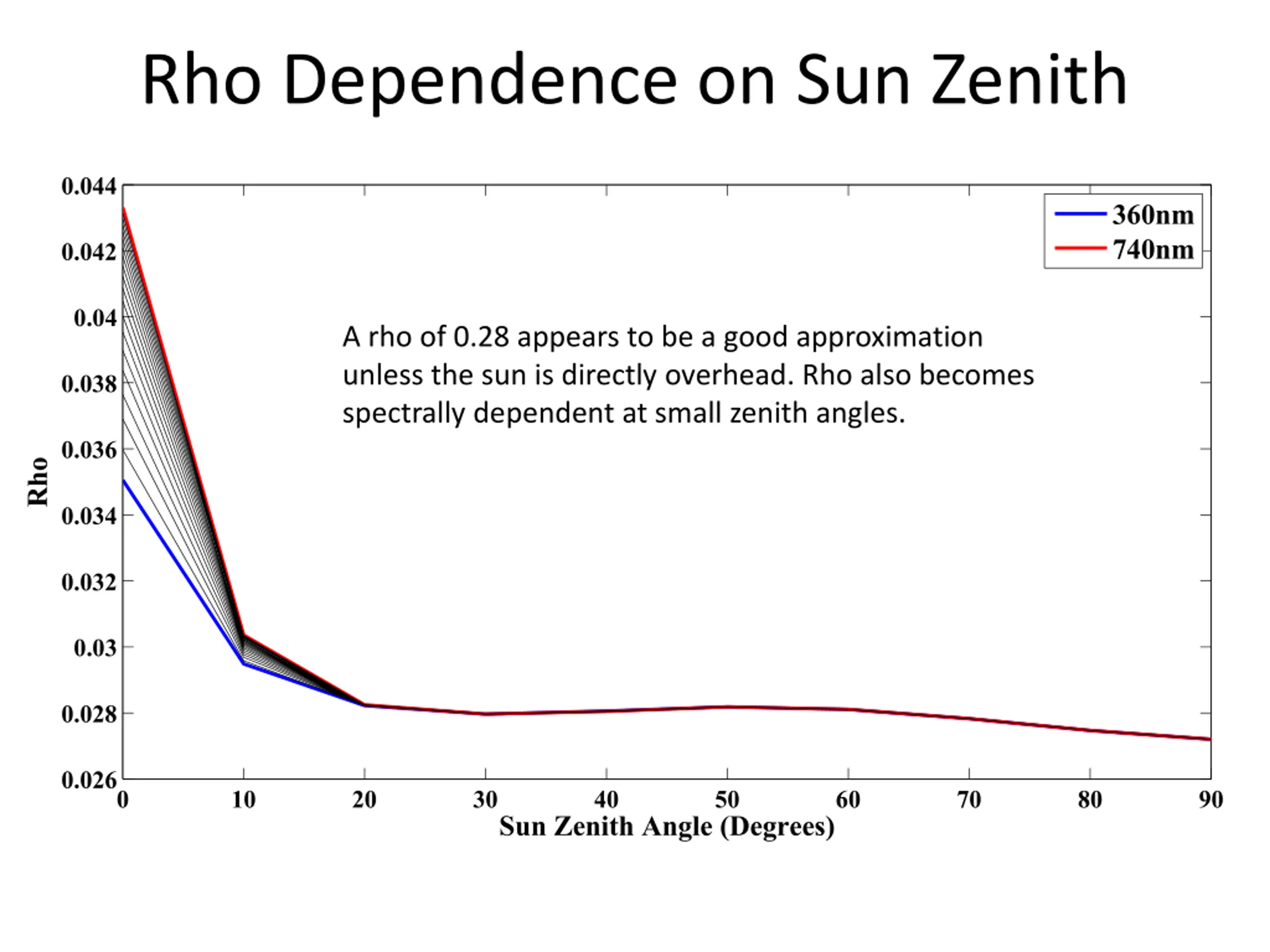

Rho Dependence on Sun Zenith 0.044 360nm 740nm 0.042 0.04 A rho of 0.28 appears to be a good approximation unless the sun is directly overhead. Rho also becomes spectrally dependent at small zenith angles. 0.038 0.036 Rho 0.034 0.032 0.03 0.028 0.026 0 10 20 30 40 50 60 70 80 90 Sun Zenith Angle (Degrees)

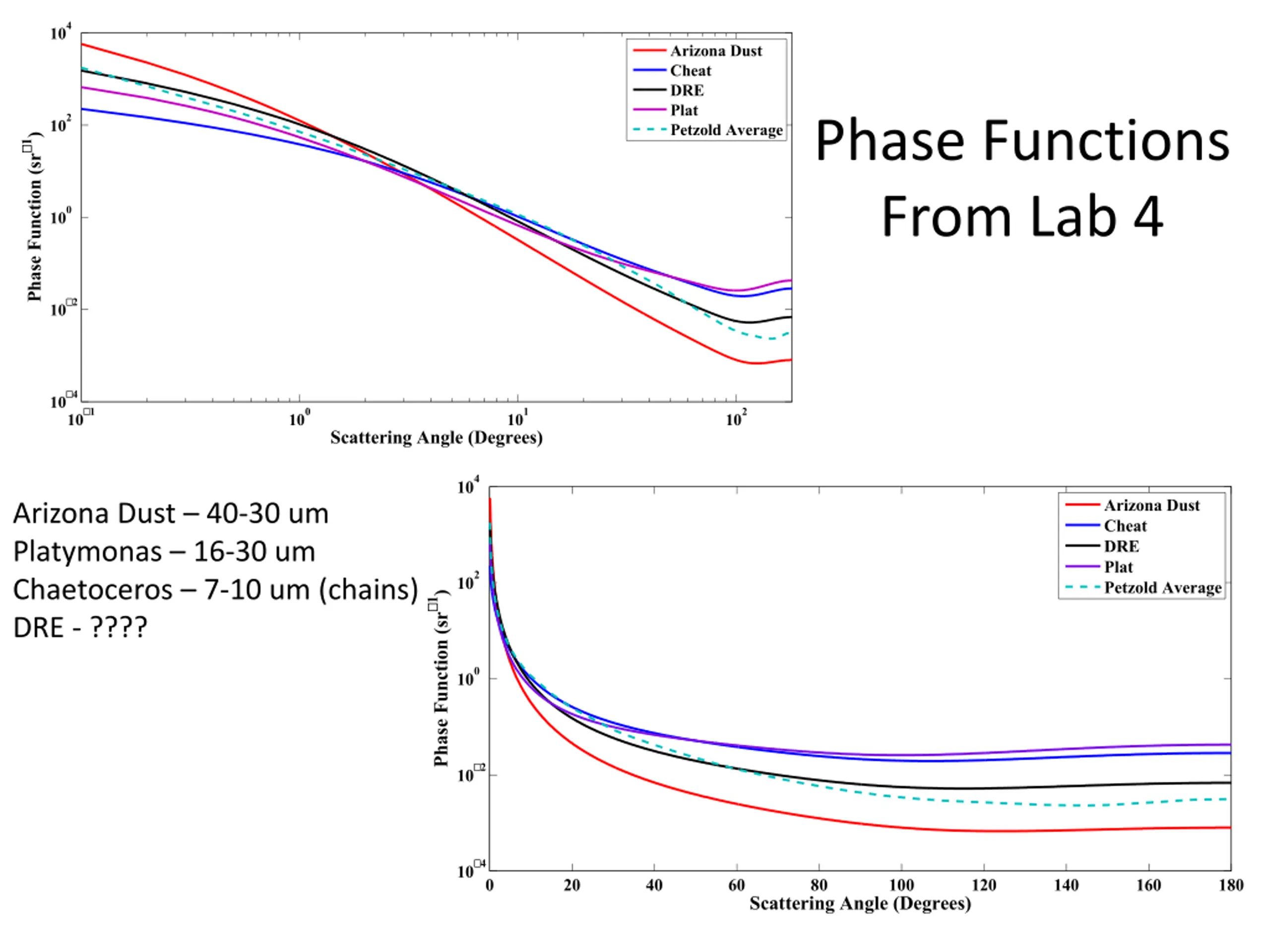

4 10 Arizona Dust Cheat DRE Plat Petzold Average 2 Phase Functions From Lab 4 10 Phase Function (sr 1) 0 10 2 10 4 10 1 0 1 2 10 10 10 10 Scattering Angle (Degrees) 4 10 Arizona Dust Cheat DRE Plat Petzold Average Arizona Dust 40-30 um Platymonas 16-30 um Chaetoceros 7-10 um (chains) DRE - ???? 2 10 Phase Function (sr 1) 0 10 2 10 4 10 0 20 40 60 80 100 120 140 160 180 Scattering Angle (Degrees)

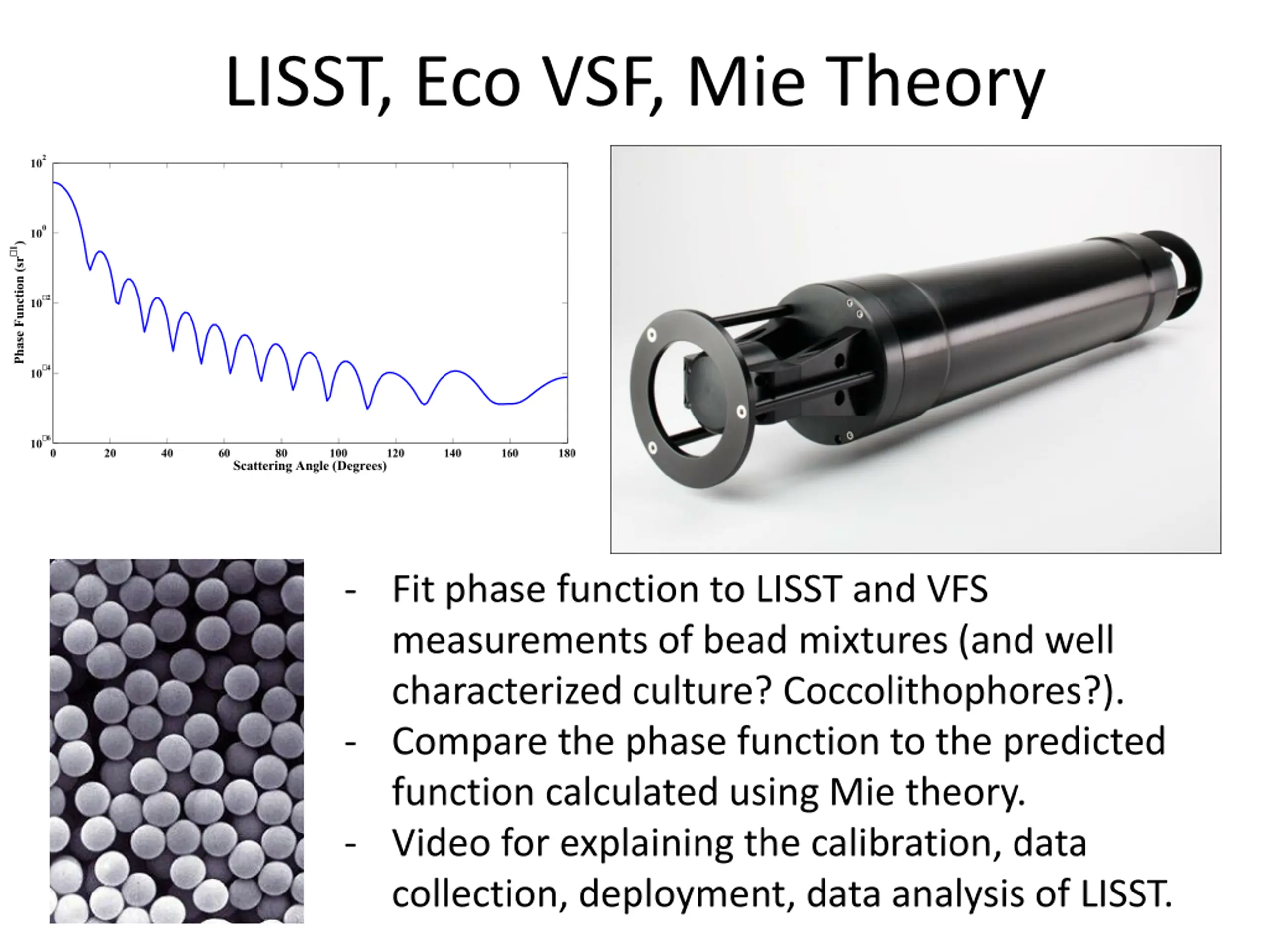

LISST, Eco VSF, Mie Theory 2 10 0 10 Phase Function (sr 1) 2 10 4 10 6 10 0 20 40 60 80 100 120 140 160 180 Scattering Angle (Degrees) - Fit phase function to LISST and VFS measurements of bead mixtures (and well characterized culture? Coccolithophores?). - Compare the phase function to the predicted function calculated using Mie theory. - Video for explaining the calibration, data collection, deployment, data analysis of LISST.
