Surrogate Modeling for Fission Cross Sections and Criticality Studies using Artificial Neural Networks (ANNs) Christian Brazell Texas A&M University, LLNL With Kay Kolos & Andrew Ratkiewicz Jan 29, 2021 LLNL-PRES-813688 This work was performed under the auspices of the U.S. Department of Energy by Lawrence Livermore National Laboratory under contract DE-AC52-07NA27344. Lawrence Livermore National Security, LLC

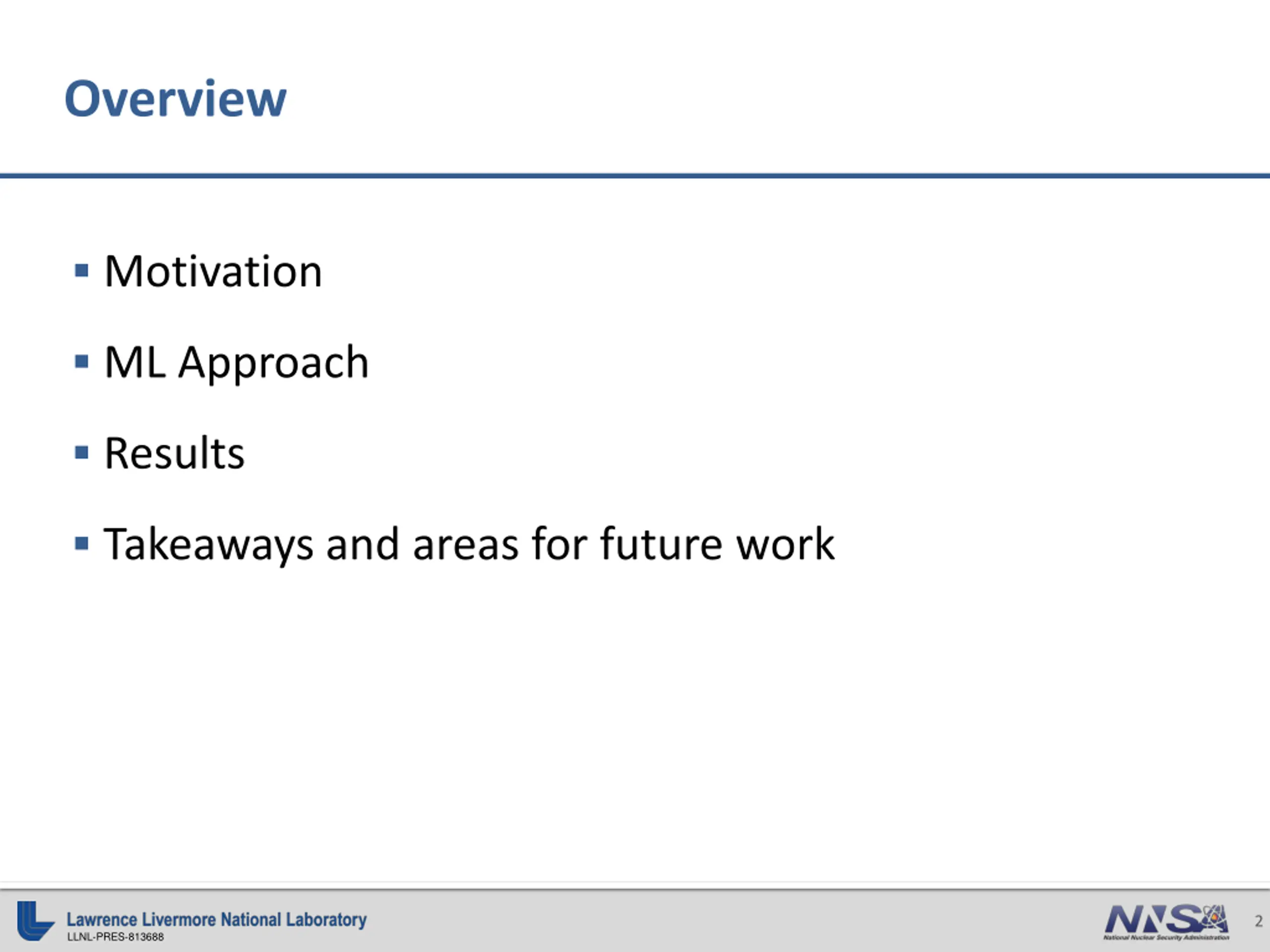

Overview Motivation ML Approach Results Takeaways and areas for future work 2 LLNL-PRES-813688

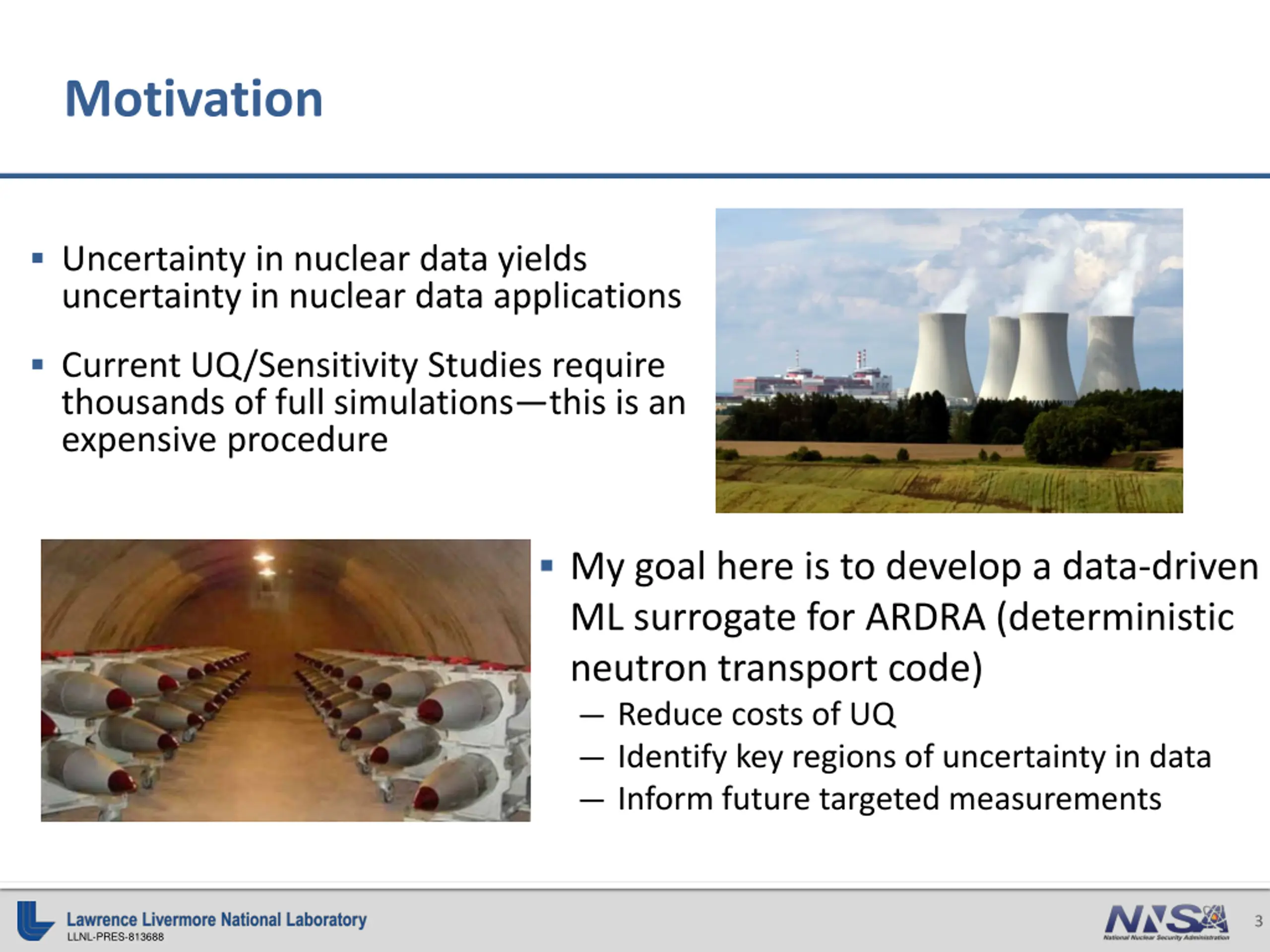

Motivation Uncertainty in nuclear data yields uncertainty in nuclear data applications Current UQ/Sensitivity Studies require thousands of full simulations this is an expensive procedure My goal here is to develop a data-driven ML surrogate for ARDRA (deterministic neutron transport code) Reduce costs of UQ Identify key regions of uncertainty in data Inform future targeted measurements 3 LLNL-PRES-813688

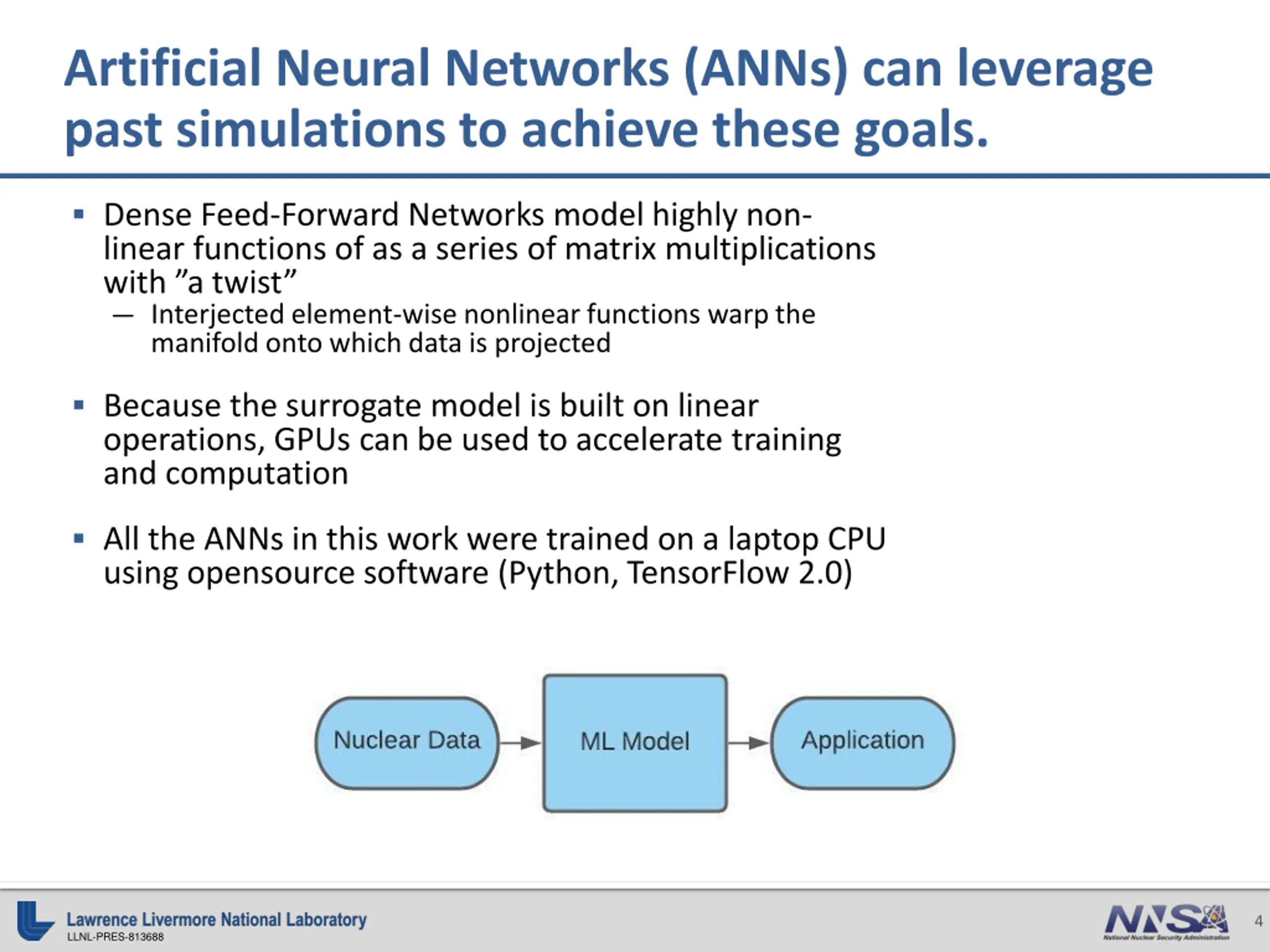

Artificial Neural Networks (ANNs) can leverage past simulations to achieve these goals. Dense Feed-Forward Networks model highly non- linear functions of as a series of matrix multiplications with a twist Interjected element-wise nonlinear functions warp the manifold onto which data is projected Because the surrogate model is built on linear operations, GPUs can be used to accelerate training and computation All the ANNs in this work were trained on a laptop CPU using opensource software (Python, TensorFlow 2.0) 4 LLNL-PRES-813688

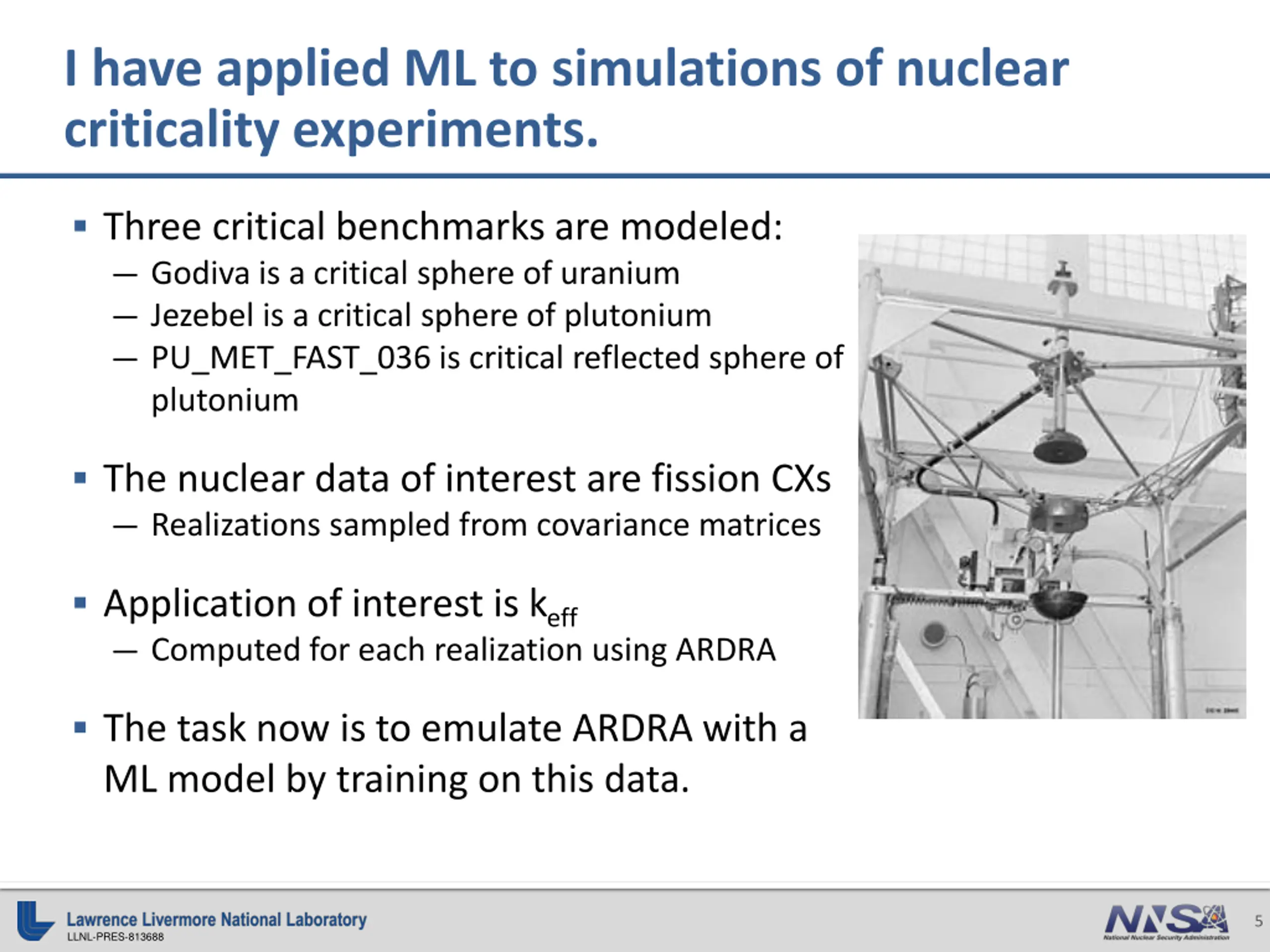

I have applied ML to simulations of nuclear criticality experiments. Three critical benchmarks are modeled: Godiva is a critical sphere of uranium Jezebel is a critical sphere of plutonium PU_MET_FAST_036 is critical reflected sphere of plutonium The nuclear data of interest are fission CXs Realizations sampled from covariance matrices Application of interest is keff Computed for each realization using ARDRA The task now is to emulate ARDRA with a ML model by training on this data. 5 LLNL-PRES-813688

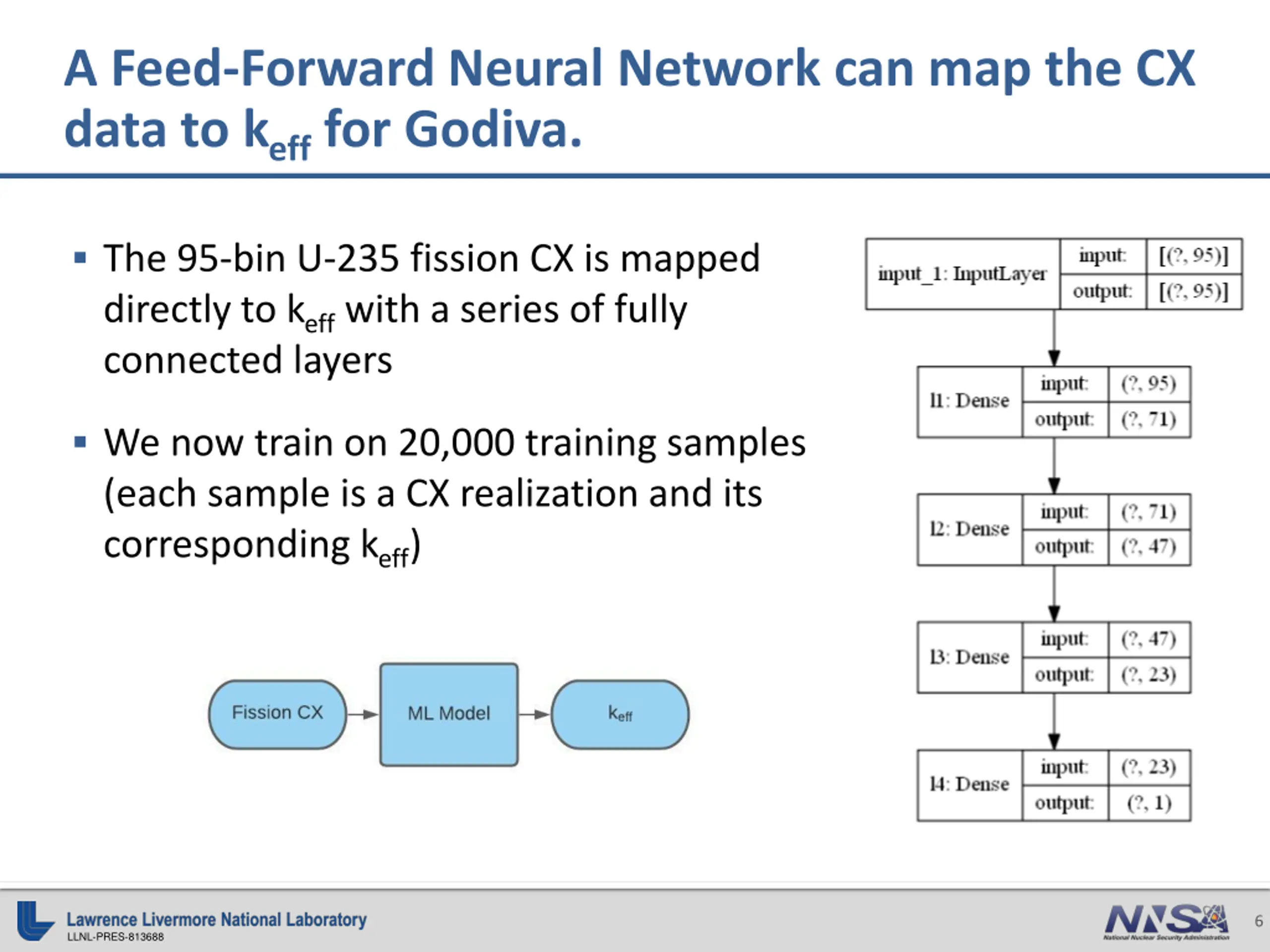

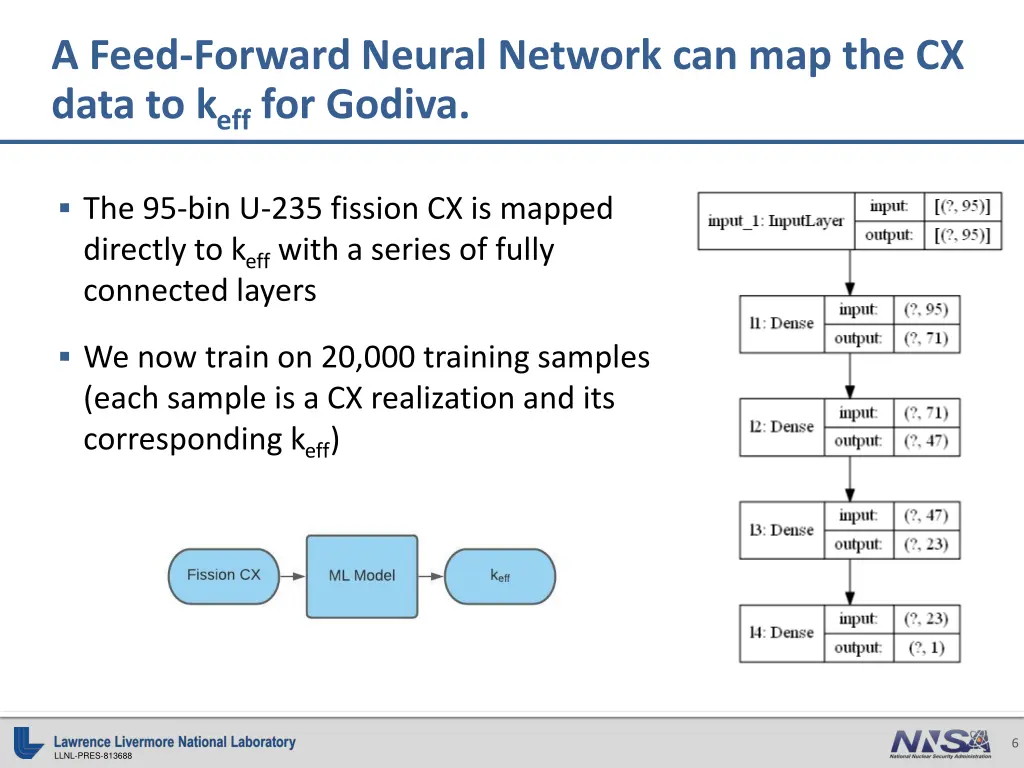

A Feed-Forward Neural Network can map the CX data to keff for Godiva. The 95-bin U-235 fission CX is mapped directly to keff with a series of fully connected layers We now train on 20,000 training samples (each sample is a CX realization and its corresponding keff) 6 LLNL-PRES-813688

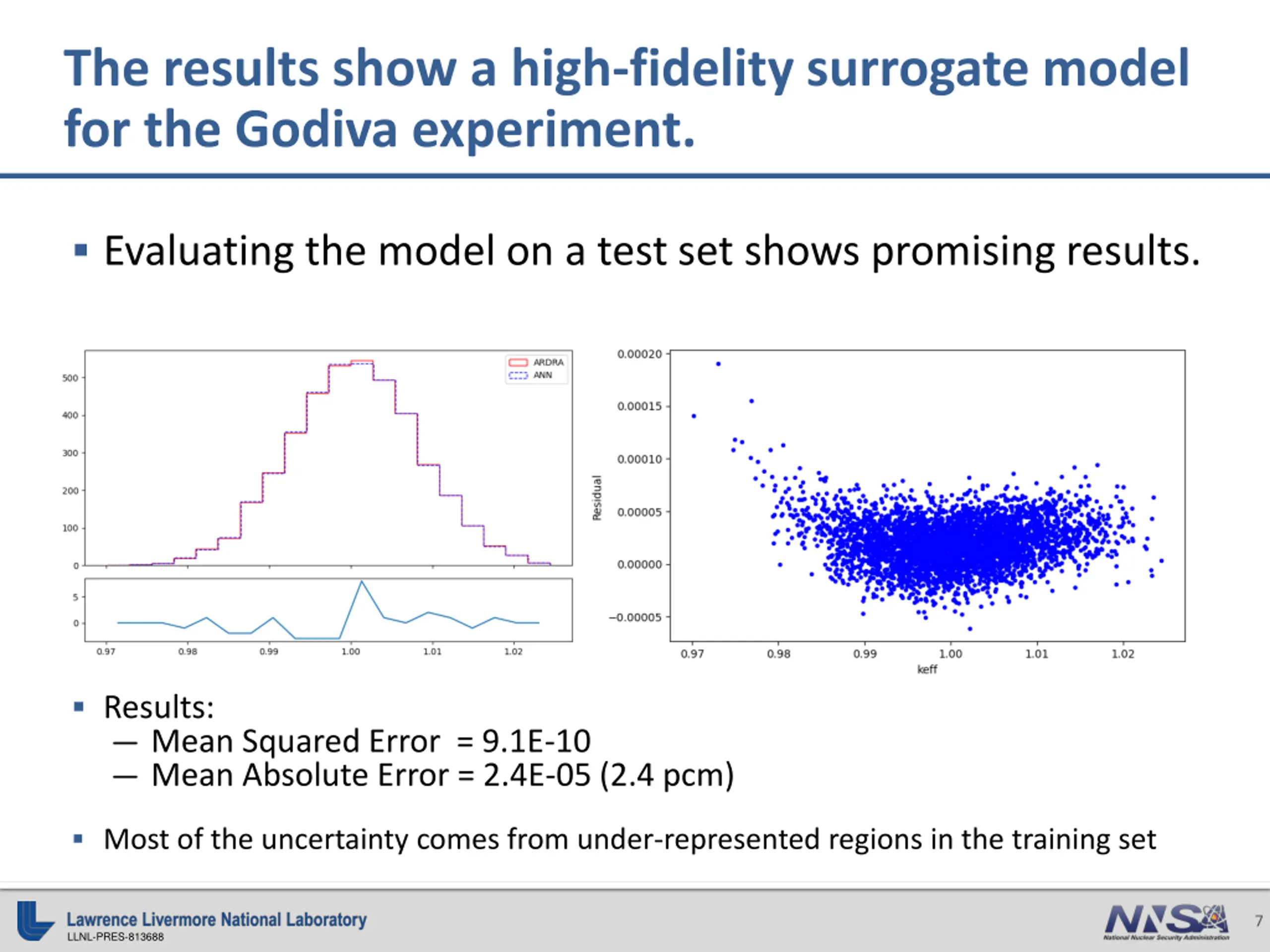

The results show a high-fidelity surrogate model for the Godiva experiment. Evaluating the model on a test set shows promising results. Results: Mean Squared Error = 9.1E-10 Mean Absolute Error = 2.4E-05 (2.4 pcm) Most of the uncertainty comes from under-represented regions in the training set 7 LLNL-PRES-813688

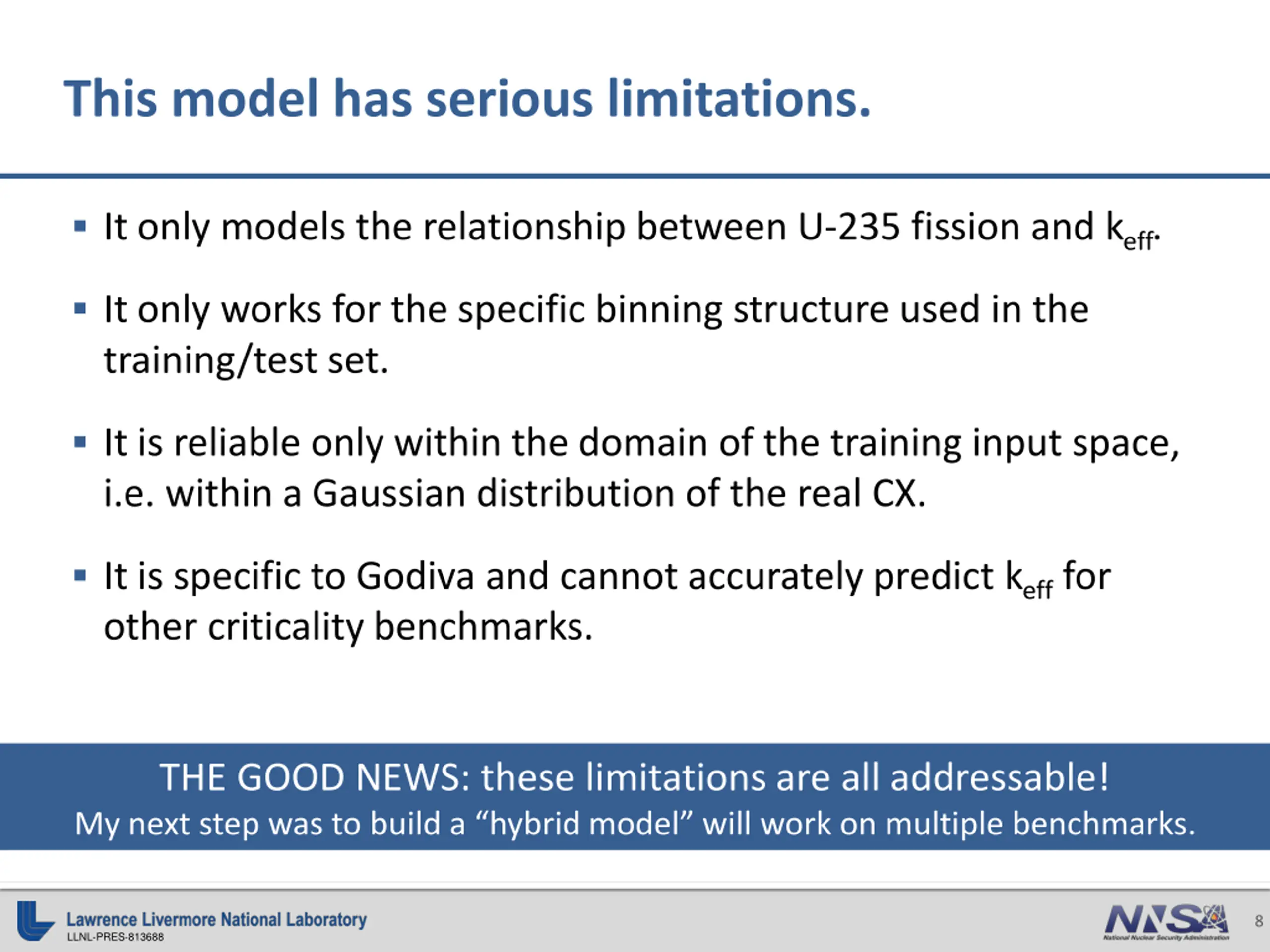

This model has serious limitations. It only models the relationship between U-235 fission and keff. It only works for the specific binning structure used in the training/test set. It is reliable only within the domain of the training input space, i.e. within a Gaussian distribution of the real CX. It is specific to Godiva and cannot accurately predict keff for other criticality benchmarks. THE GOOD NEWS: these limitations are all addressable! My next step was to build a hybrid model will work on multiple benchmarks. 8 LLNL-PRES-813688

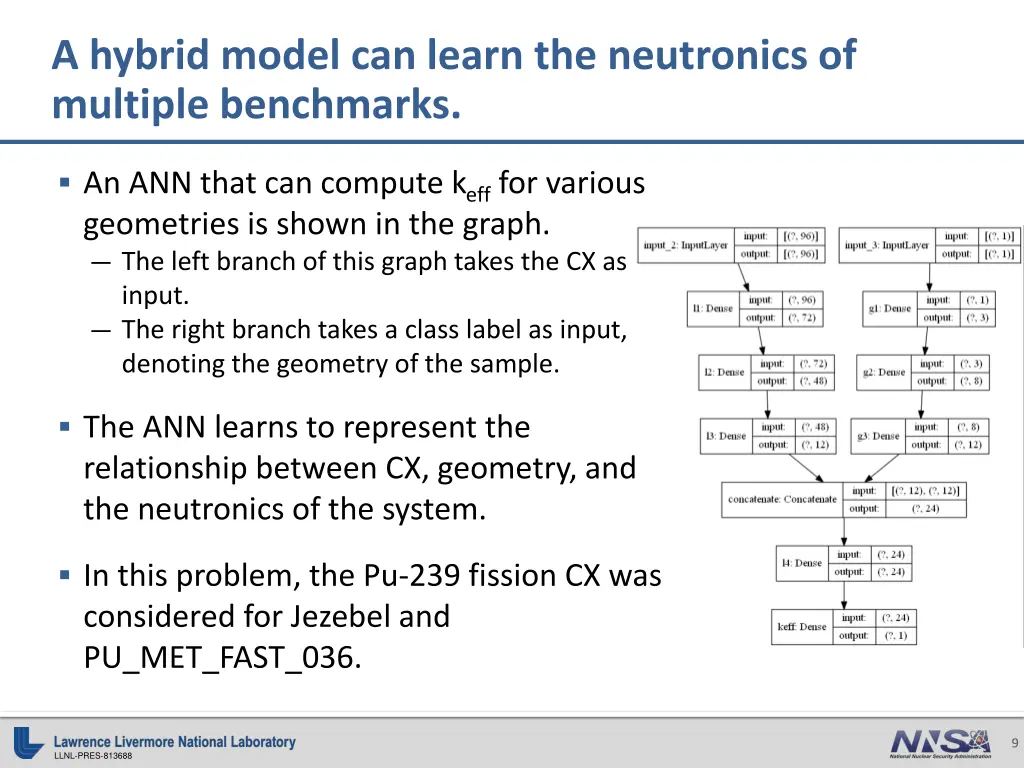

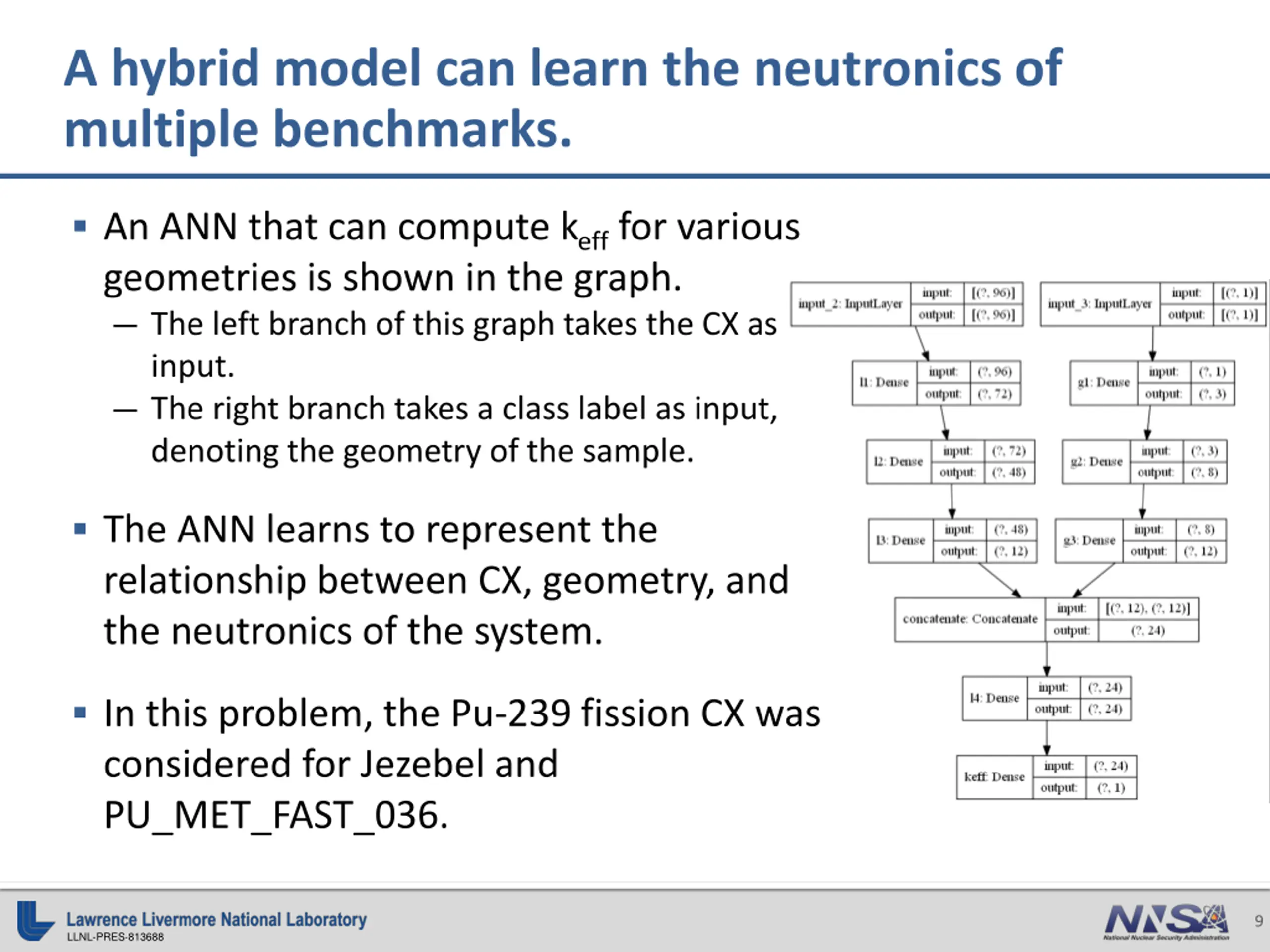

A hybrid model can learn the neutronics of multiple benchmarks. An ANN that can compute keff for various geometries is shown in the graph. The left branch of this graph takes the CX as input. The right branch takes a class label as input, denoting the geometry of the sample. The ANN learns to represent the relationship between CX, geometry, and the neutronics of the system. In this problem, the Pu-239 fission CX was considered for Jezebel and PU_MET_FAST_036. 9 LLNL-PRES-813688

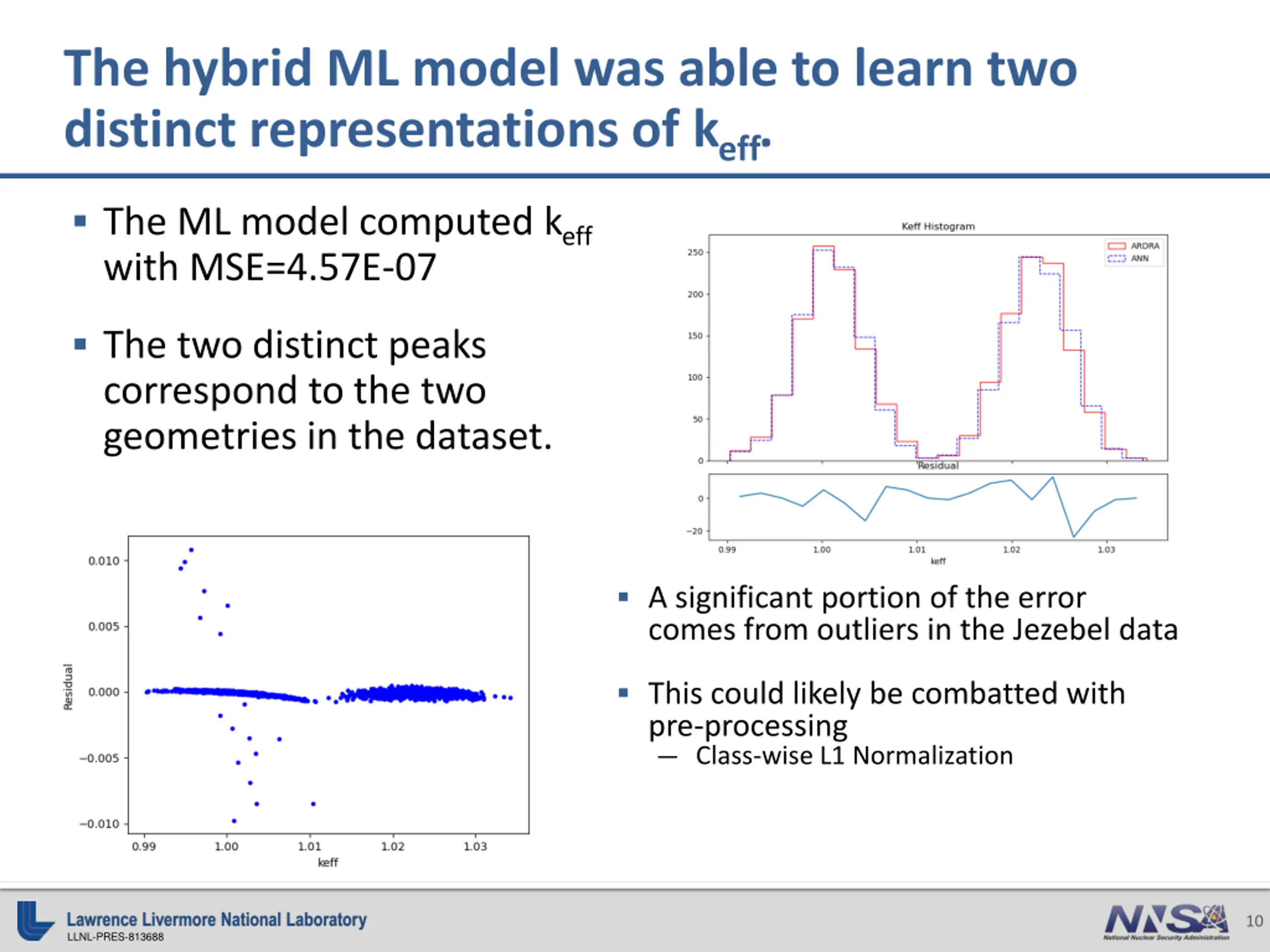

The hybrid ML model was able to learn two distinct representations of keff. The ML model computed keff with MSE=4.57E-07 The two distinct peaks correspond to the two geometries in the dataset. A significant portion of the error comes from outliers in the Jezebel data This could likely be combatted with pre-processing Class-wise L1 Normalization 10 LLNL-PRES-813688

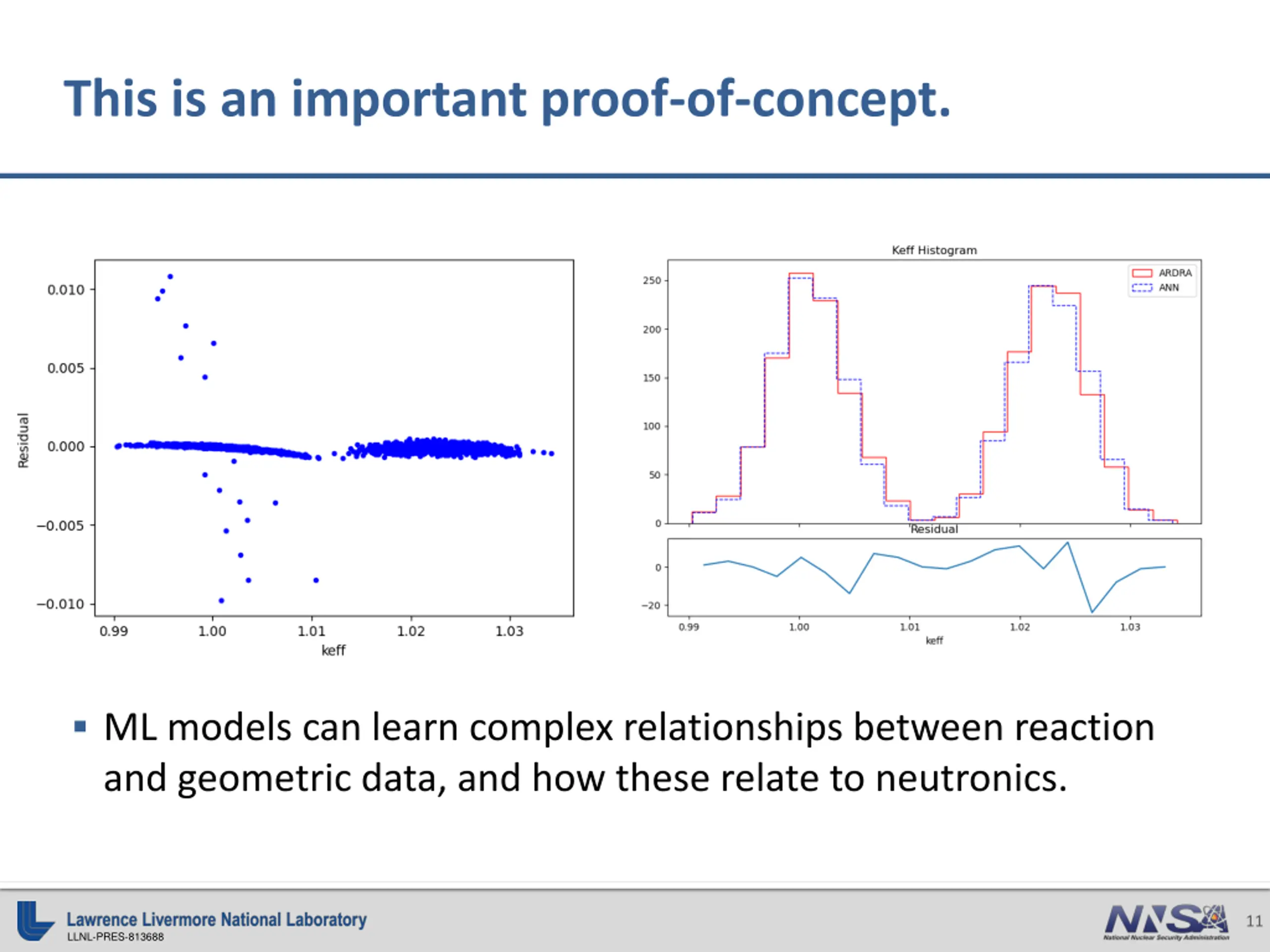

This is an important proof-of-concept. ML models can learn complex relationships between reaction and geometric data, and how these relate to neutronics. 11 LLNL-PRES-813688

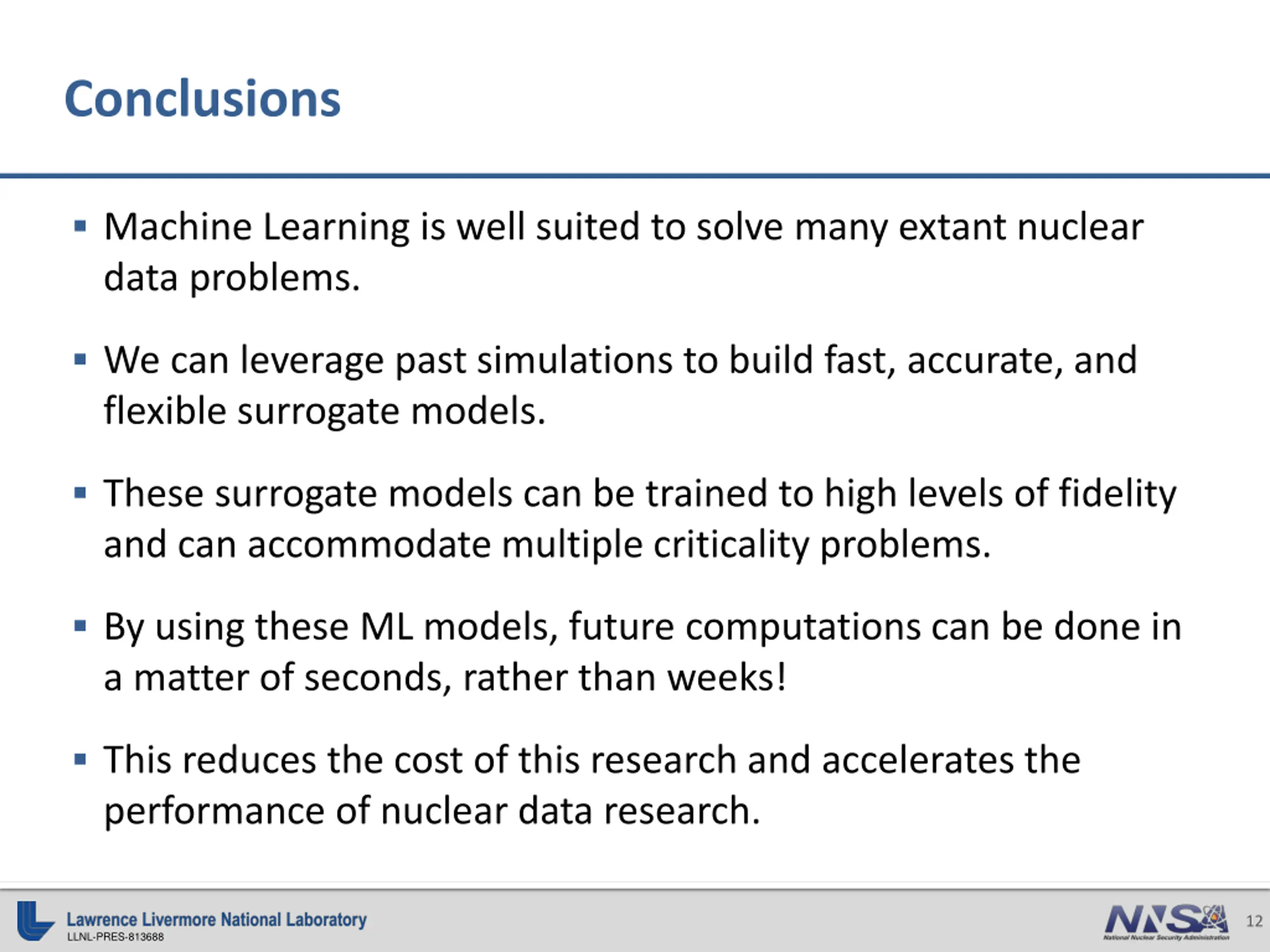

Conclusions Machine Learning is well suited to solve many extant nuclear data problems. We can leverage past simulations to build fast, accurate, and flexible surrogate models. These surrogate models can be trained to high levels of fidelity and can accommodate multiple criticality problems. By using these ML models, future computations can be done in a matter of seconds, rather than weeks! This reduces the cost of this research and accelerates the performance of nuclear data research. 12 LLNL-PRES-813688

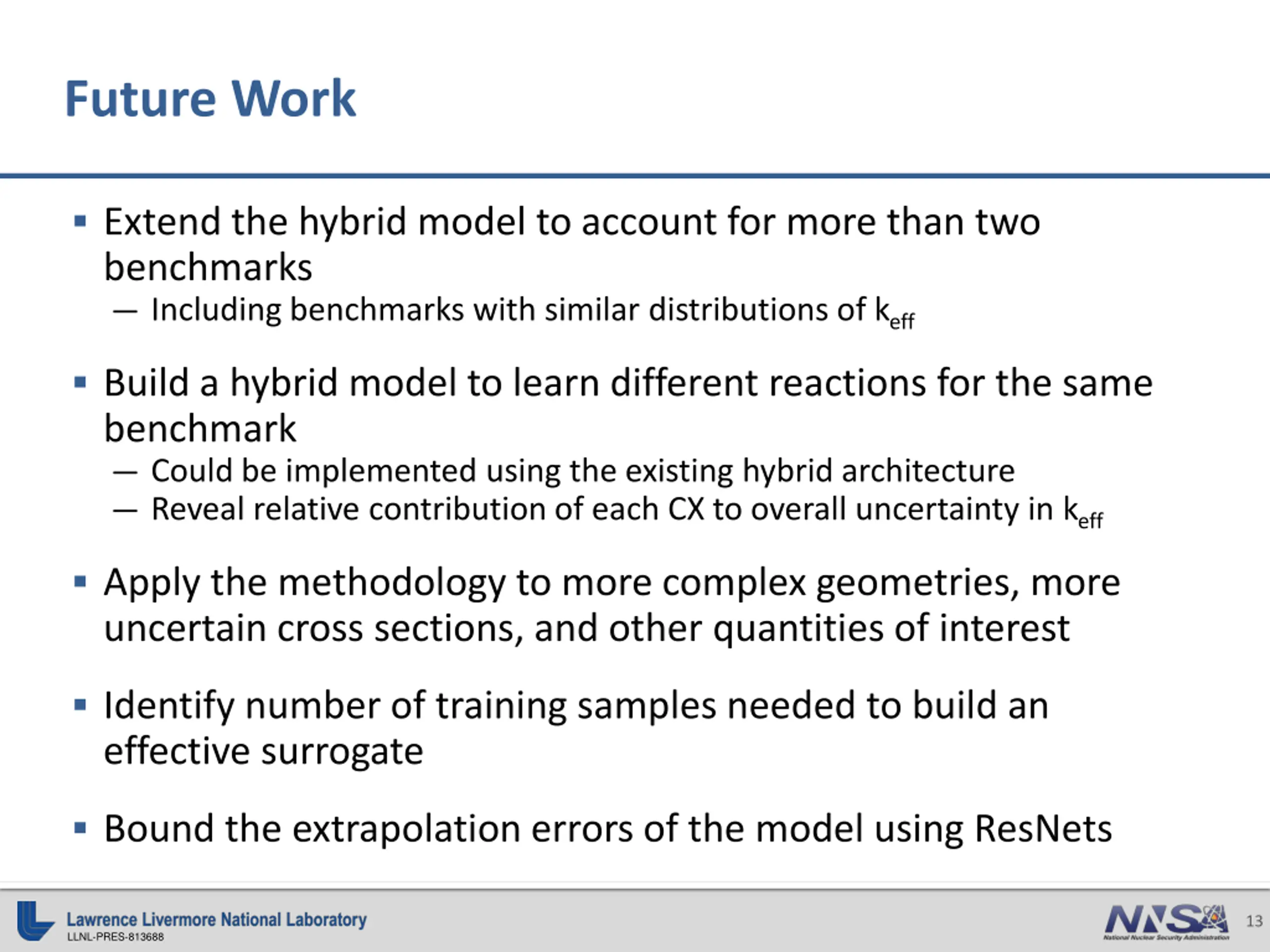

Future Work Extend the hybrid model to account for more than two benchmarks Including benchmarks with similar distributions of keff Build a hybrid model to learn different reactions for the same benchmark Could be implemented using the existing hybrid architecture Reveal relative contribution of each CX to overall uncertainty in keff Apply the methodology to more complex geometries, more uncertain cross sections, and other quantities of interest Identify number of training samples needed to build an effective surrogate Bound the extrapolation errors of the model using ResNets 13 LLNL-PRES-813688

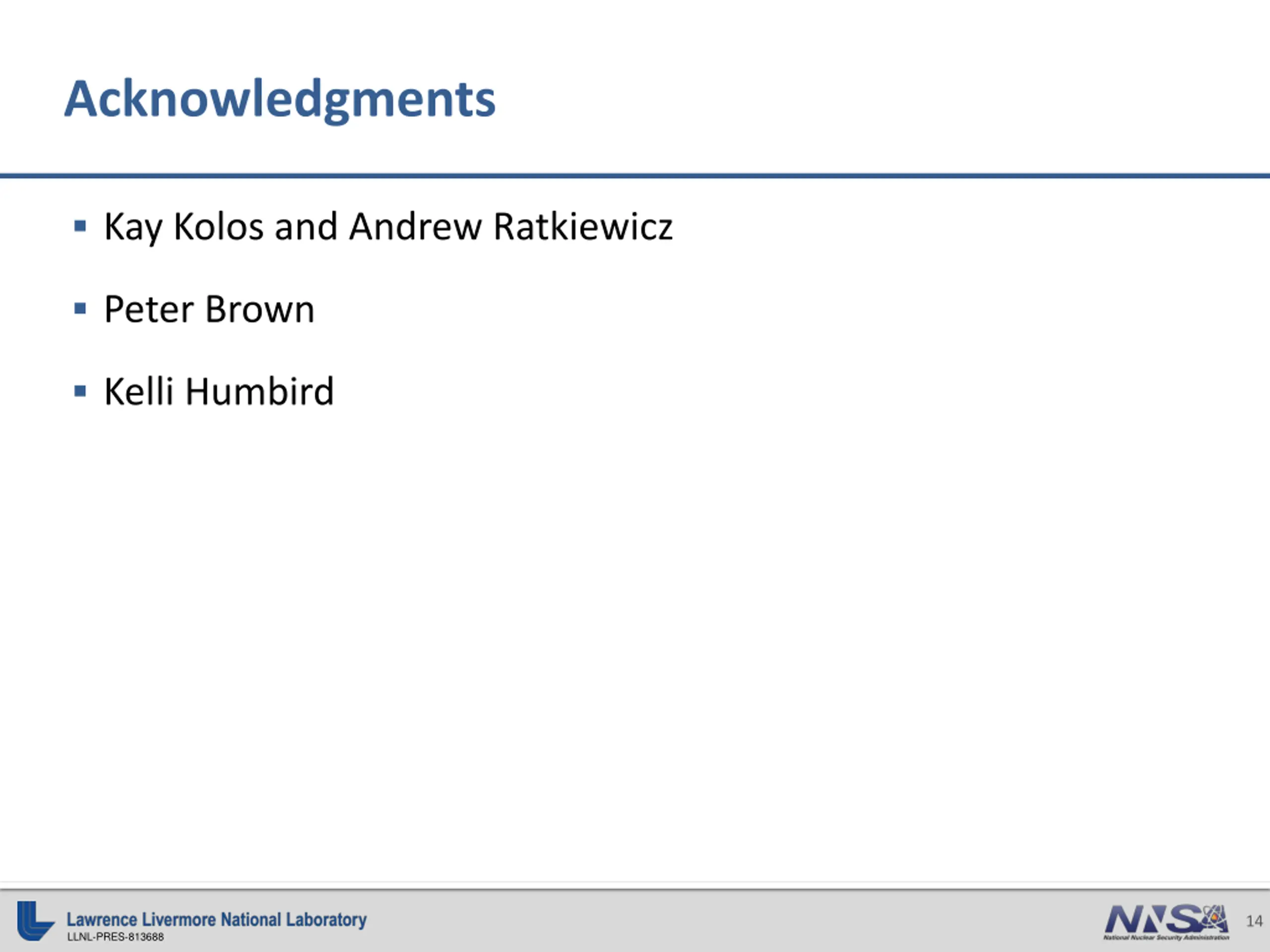

Acknowledgments Kay Kolos and Andrew Ratkiewicz Peter Brown Kelli Humbird 14 LLNL-PRES-813688

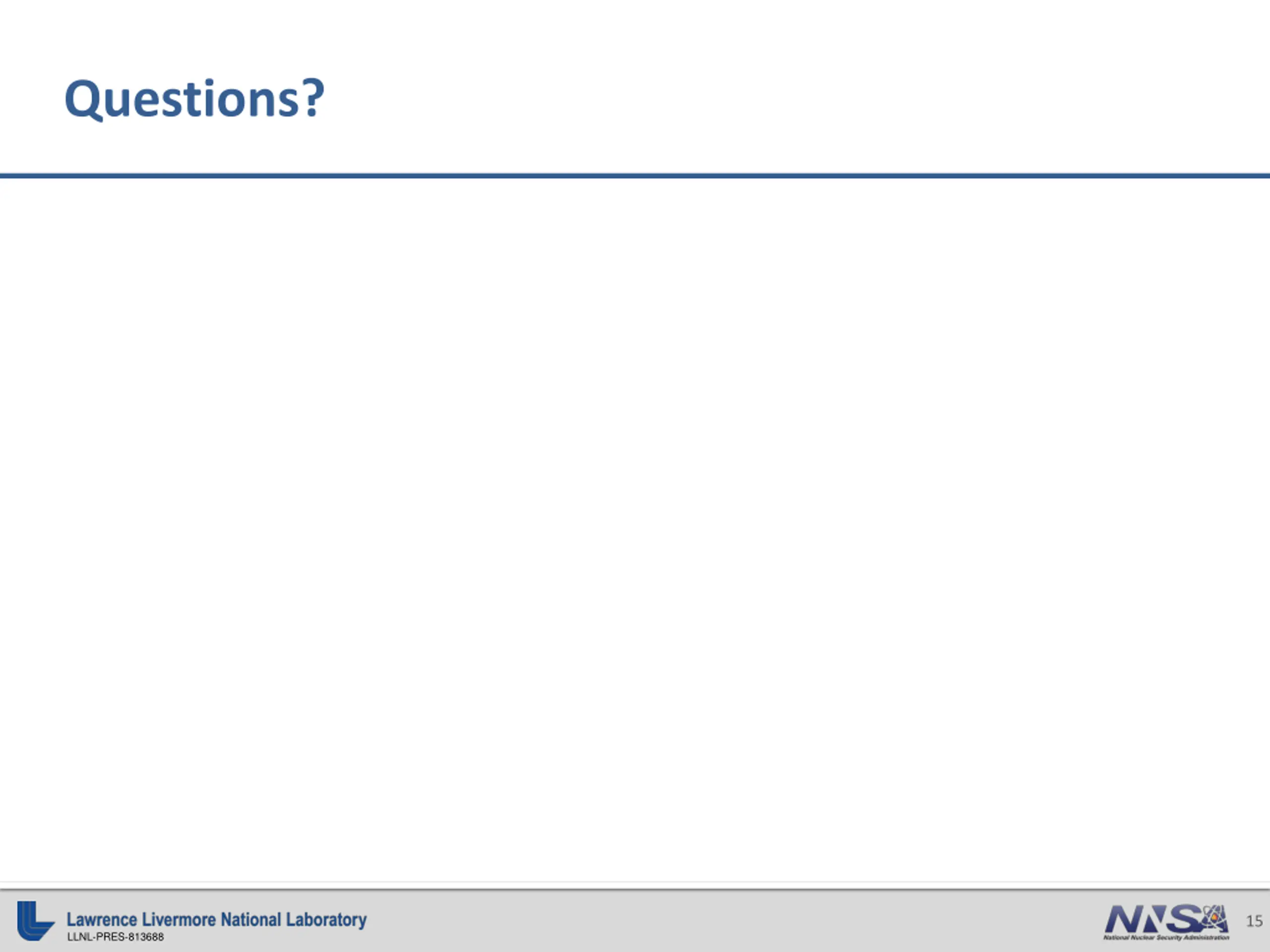

Questions? 15 LLNL-PRES-813688
