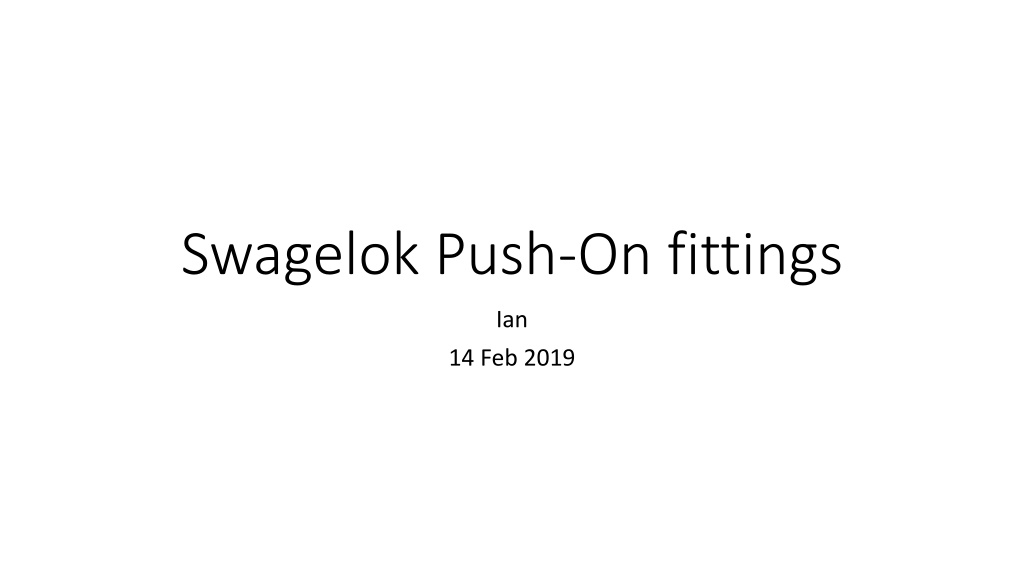

Swagelok Push-On fittings Ian 14 Feb 2019

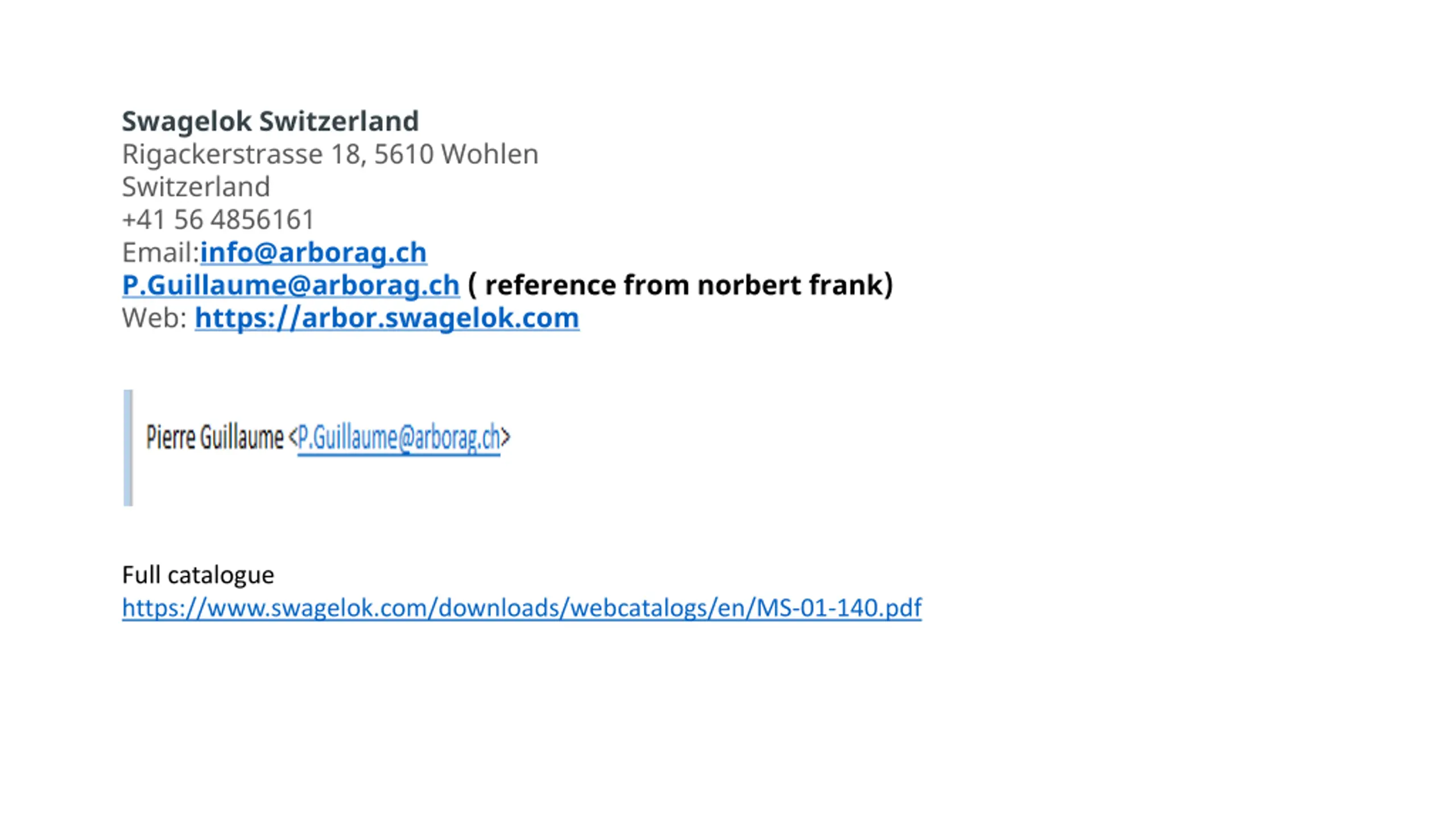

Swagelok Switzerland Rigackerstrasse 18, 5610 Wohlen Switzerland +41 56 4856161 Email:info@arborag.ch P.Guillaume@arborag.ch ( reference from norbert frank) Web: https://arbor.swagelok.com Full catalogue https://www.swagelok.com/downloads/webcatalogs/en/MS-01-140.pdf

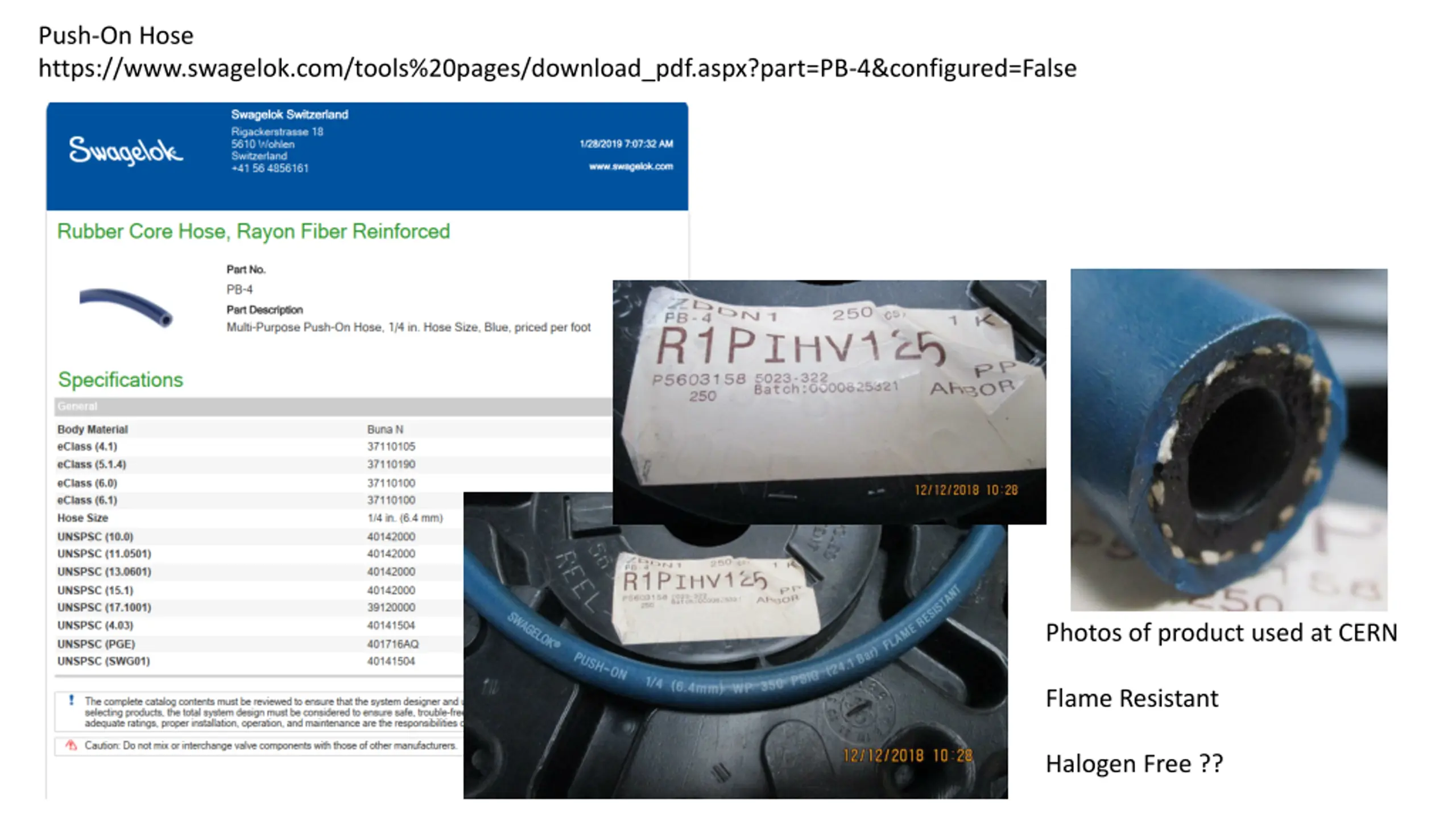

Push-On Hose https://www.swagelok.com/tools%20pages/download_pdf.aspx?part=PB-4&configured=False Photos of product used at CERN Flame Resistant Halogen Free ??

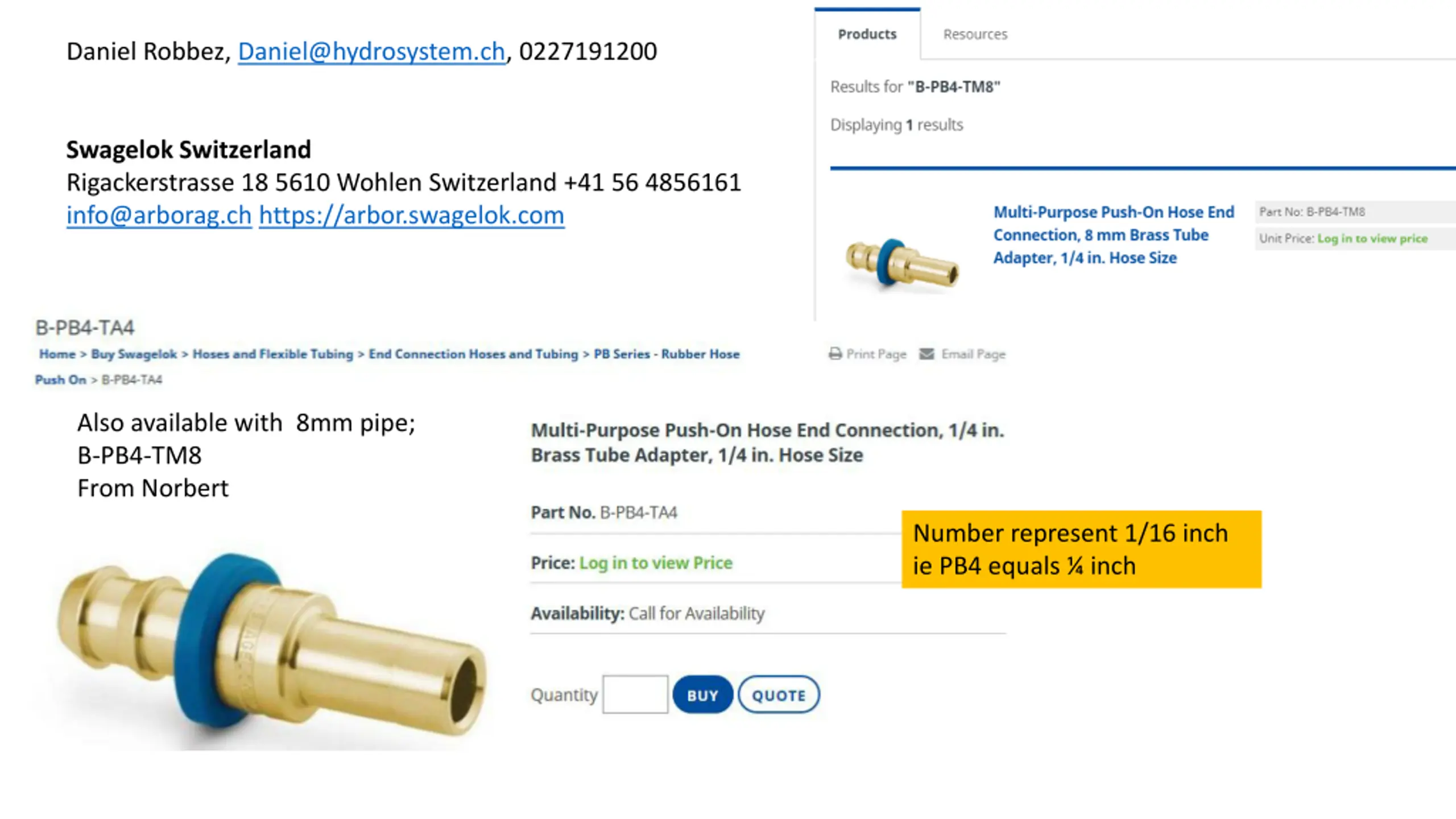

Daniel Robbez, Daniel@hydrosystem.ch, 0227191200 Swagelok Switzerland Rigackerstrasse 18 5610 Wohlen Switzerland +41 56 4856161 info@arborag.ch https://arbor.swagelok.com Also available with 8mm pipe; B-PB4-TM8 From Norbert Number represent 1/16 inch ie PB4 equals inch

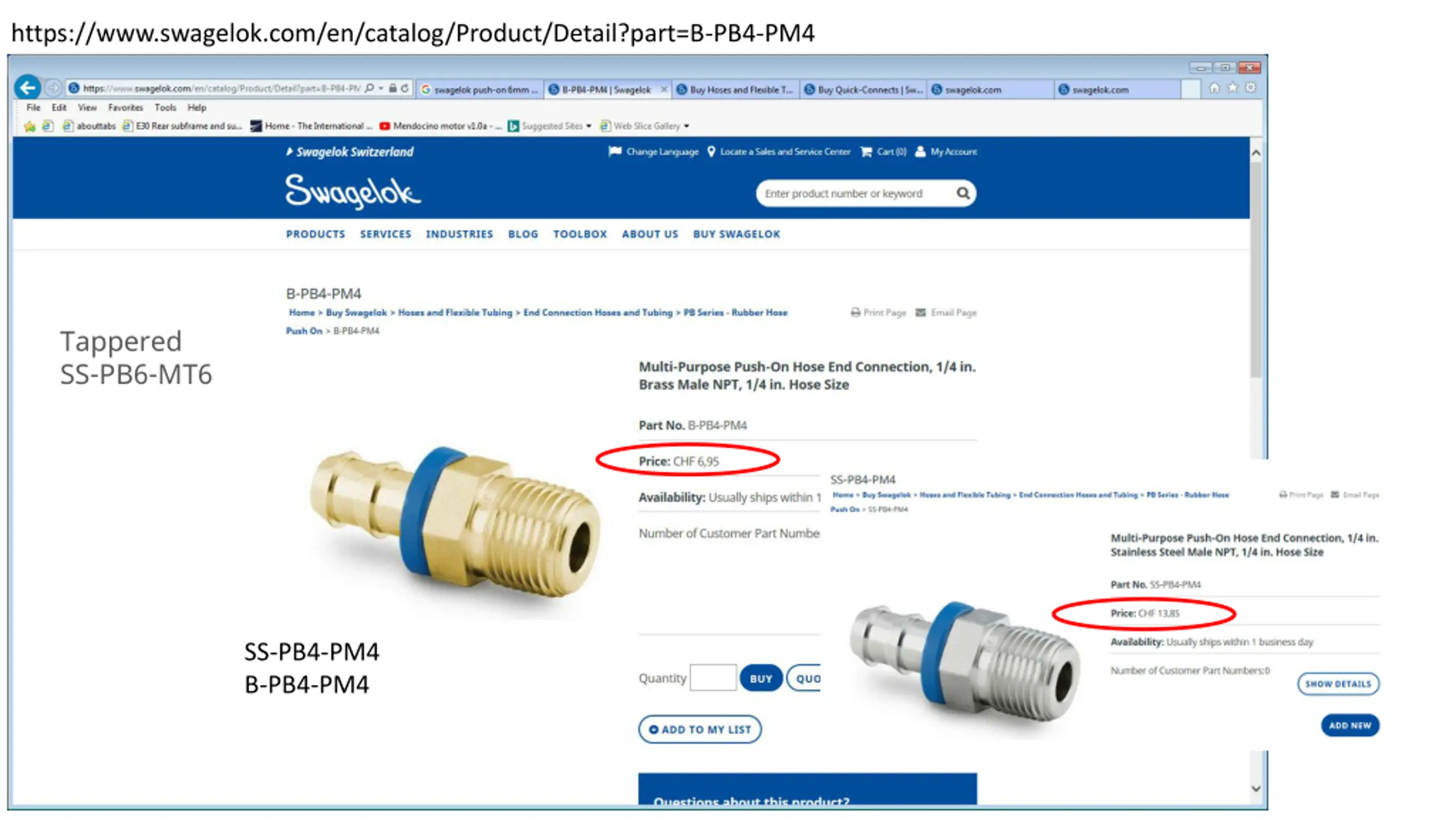

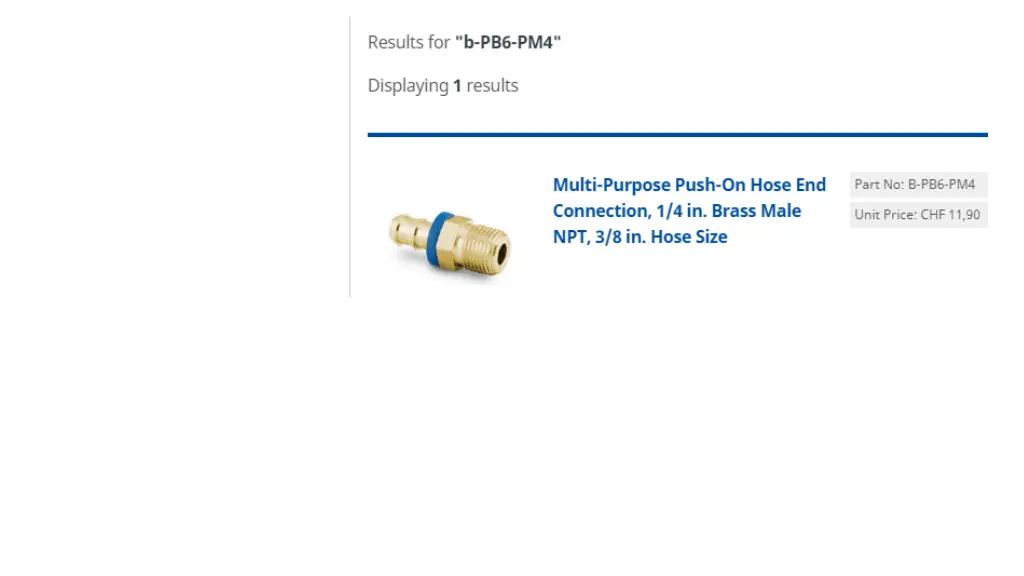

https://www.swagelok.com/en/catalog/Product/Detail?part=B-PB4-PM4https://www.swagelok.com/en/catalog/Product/Detail?part=B-PB4-PM4 Tappered SS-PB6-MT6 SS-PB4-PM4 B-PB4-PM4

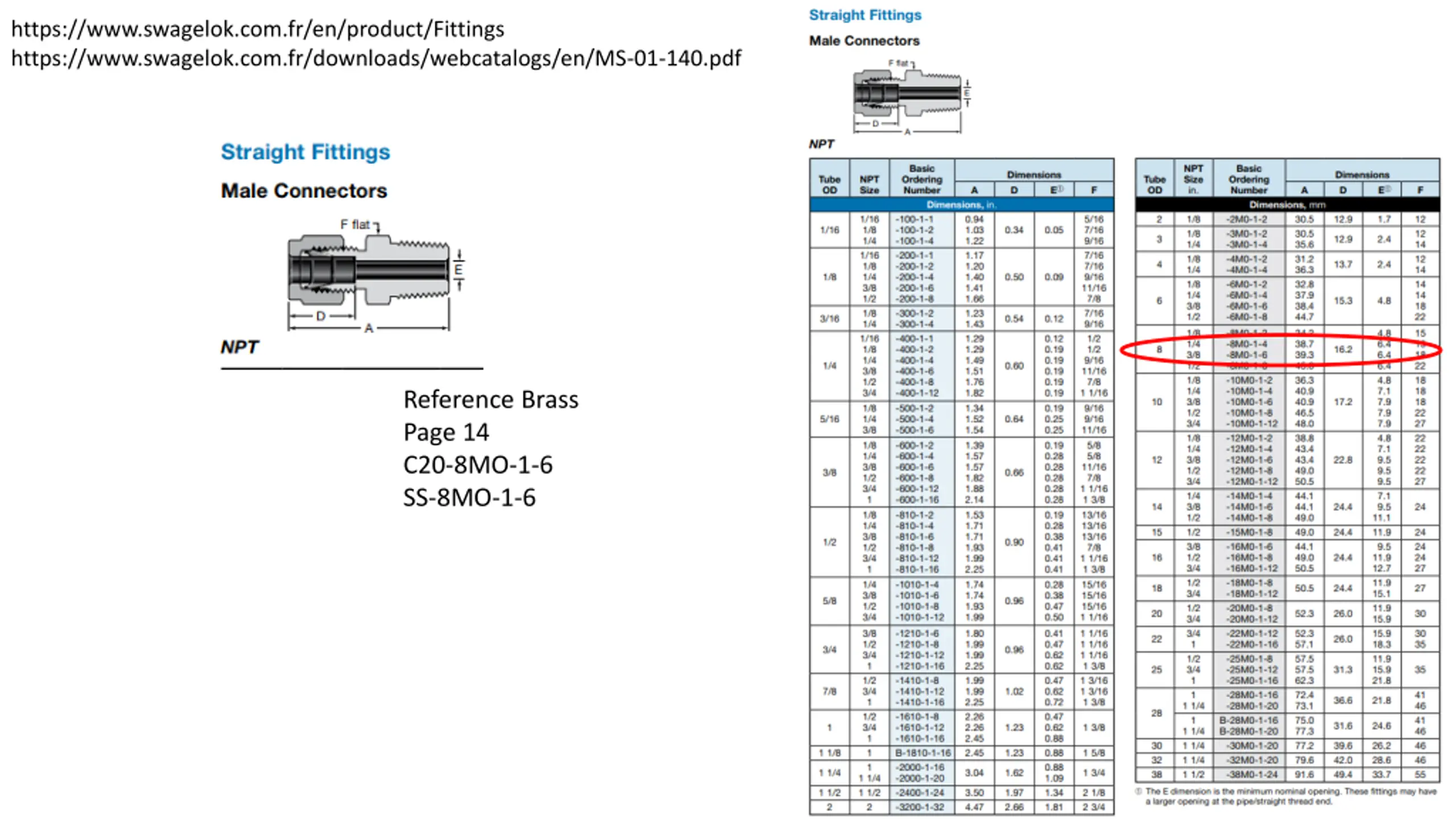

https://www.swagelok.com.fr/en/product/Fittings https://www.swagelok.com.fr/downloads/webcatalogs/en/MS-01-140.pdf Reference Brass Page 14 C20-8MO-1-6 SS-8MO-1-6

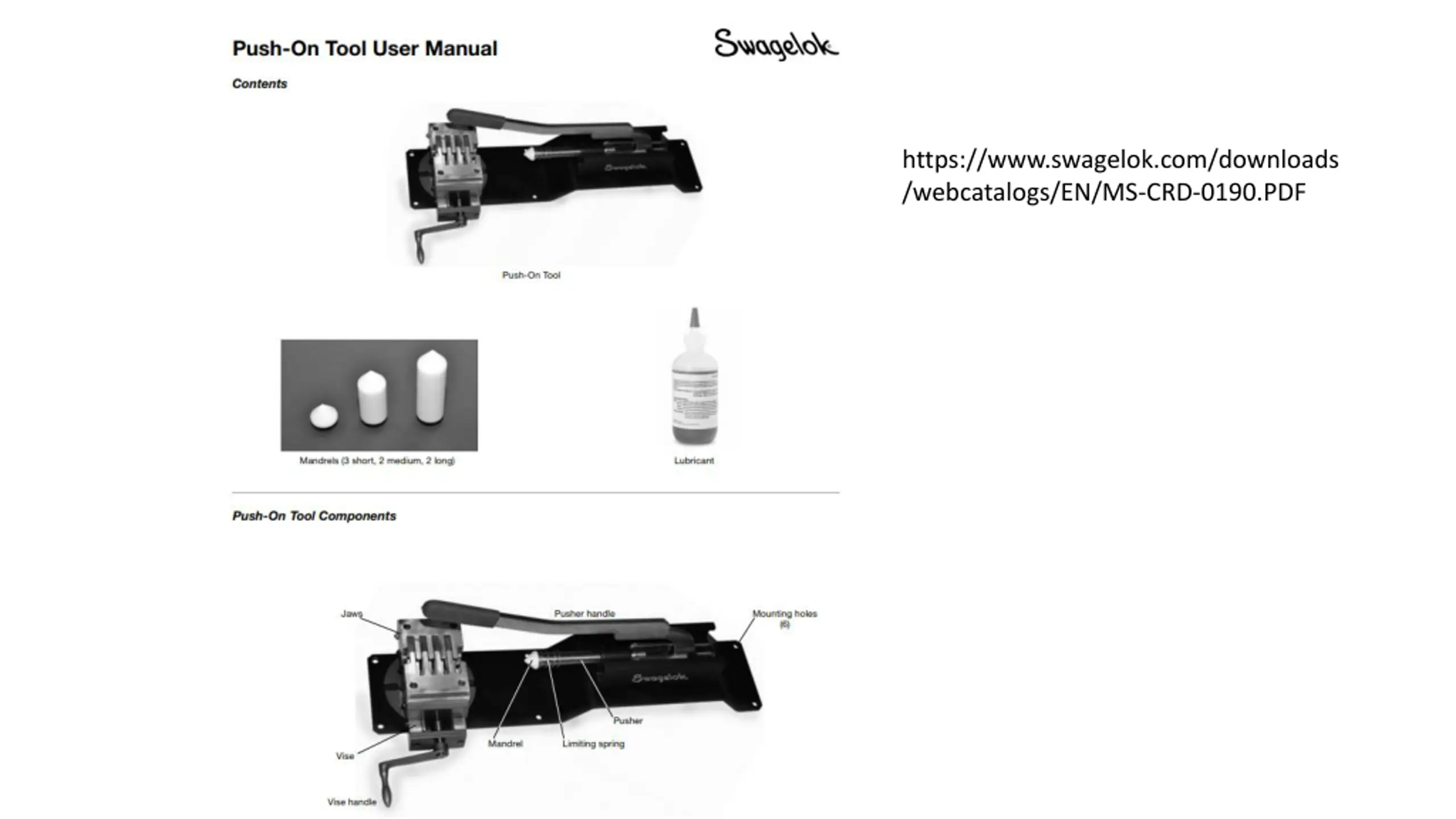

https://www.swagelok.com/downloads /webcatalogs/EN/MS-CRD-0190.PDF

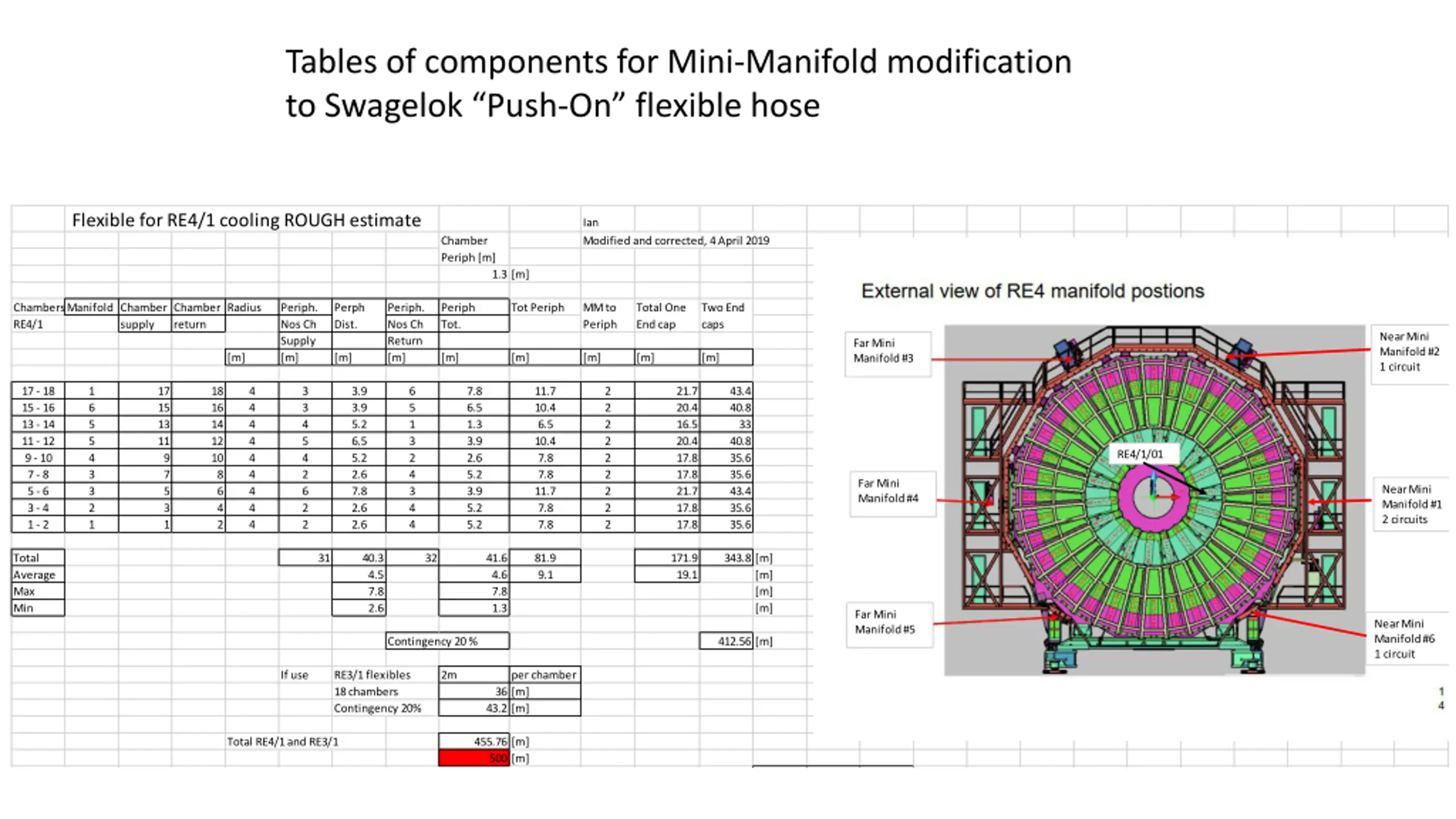

Tables of components for Mini-Manifold modification to Swagelok Push-On flexible hose Flexible for RE4/1 cooling ROUGH estimate Ian Modified and corrected, 4 April 2019 Chamber Periph [m] 1.3 [m] ChambersManifold Chamber Chamber Radius RE4/1 supply Periph. Nos Ch Supply [m] Perph Dist. Periph. Nos Ch Return [m] Periph Tot. Tot Periph MM to Periph Total One End cap Two End caps return Near Mini Manifold #2 1 circuit Far Mini Manifold #3 [m] [m] [m] [m] [m] [m] [m] 17 - 18 15 - 16 13 - 14 11 - 12 9 - 10 7 - 8 5 - 6 3 - 4 1 - 2 1 6 5 5 4 3 3 2 1 17 15 13 11 9 7 5 3 1 18 16 14 12 10 8 6 4 2 4 4 4 4 4 4 4 4 4 3 3 4 5 4 2 6 2 2 3.9 3.9 5.2 6.5 5.2 2.6 7.8 2.6 2.6 6 5 1 3 2 4 3 4 4 7.8 6.5 1.3 3.9 2.6 5.2 3.9 5.2 5.2 11.7 10.4 6.5 10.4 7.8 7.8 11.7 7.8 7.8 2 2 2 2 2 2 2 2 2 21.7 20.4 16.5 20.4 17.8 17.8 21.7 17.8 17.8 43.4 40.8 33 40.8 35.6 35.6 43.4 35.6 35.6 RE4/1/01 Far Mini Manifold #4 Near Mini Manifold #1 2 circuits Total Average Max Min 31 40.3 4.5 7.8 2.6 32 41.6 4.6 7.8 1.3 81.9 9.1 171.9 19.1 343.8 [m] [m] [m] [m] Far Mini Manifold #5 Near Mini Manifold #6 1 circuit Contingency 20 % 412.56 [m] If use RE3/1 flexibles 18 chambers Contingency 20% 2m per chamber 36 [m] 43.2 [m] Total RE4/1 and RE3/1 455.76 [m] 500 [m]
