SWAN Wave Model Implementation for Mediterranean Wave Forecasting

This project focuses on implementing the SWAN model for high-resolution wave forecasting in the Mediterranean region. Led by Joel Azzopardi from the University of Malta, the aim is to enhance the CMEMS forecasting system with nesting capabilities using SWAN Version 41. The simulation covers two domains - Monastir and the Bay of Tunis, providing hourly forecasts up to 120 hours ahead. The use of Skiron for meteorological forcing and boundary conditions ensures accurate predictions for coastal areas in Tunisia.

• SWAN model
• Wave forecasting
• Mediterranean sea
• CMEMS system
• University of Malta

davontayd Follow

Uploaded on Mar 04, 2025 | 0 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.

Presentation Transcript

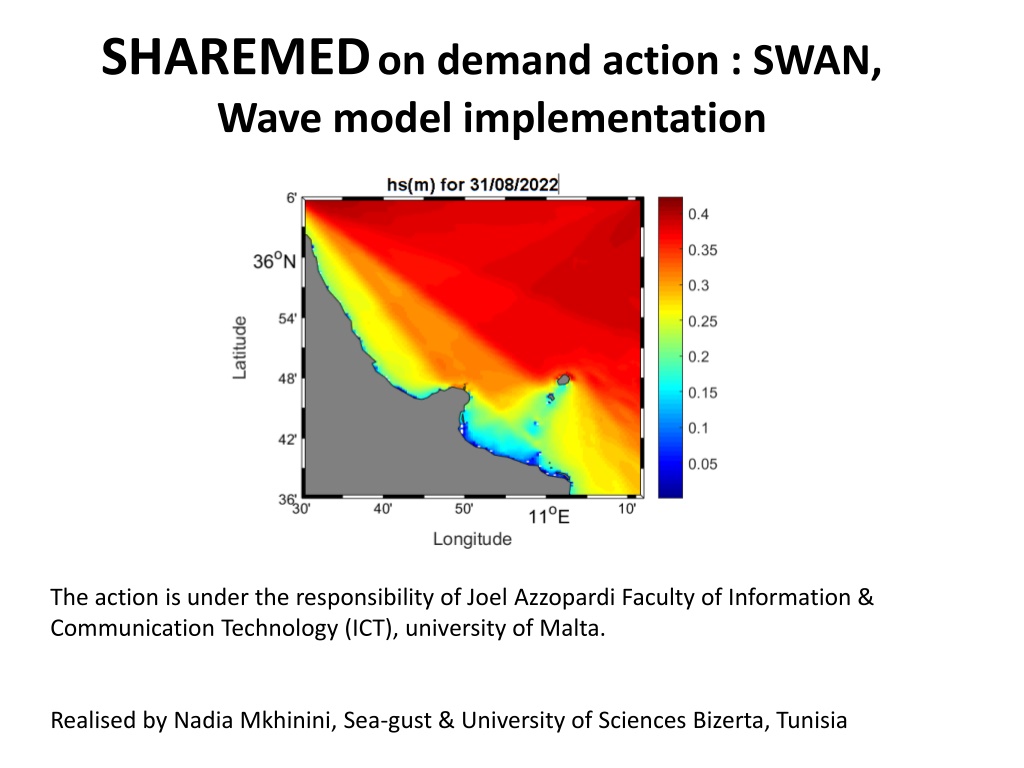

1. SHAREMEDon demand action : SWAN, Wave model implementation The action is under the responsibility of Joel Azzopardi Faculty of Information & Communication Technology (ICT), university of Malta. Realised by Nadia Mkhinini, Sea-gust & University of Sciences Bizerta, Tunisia

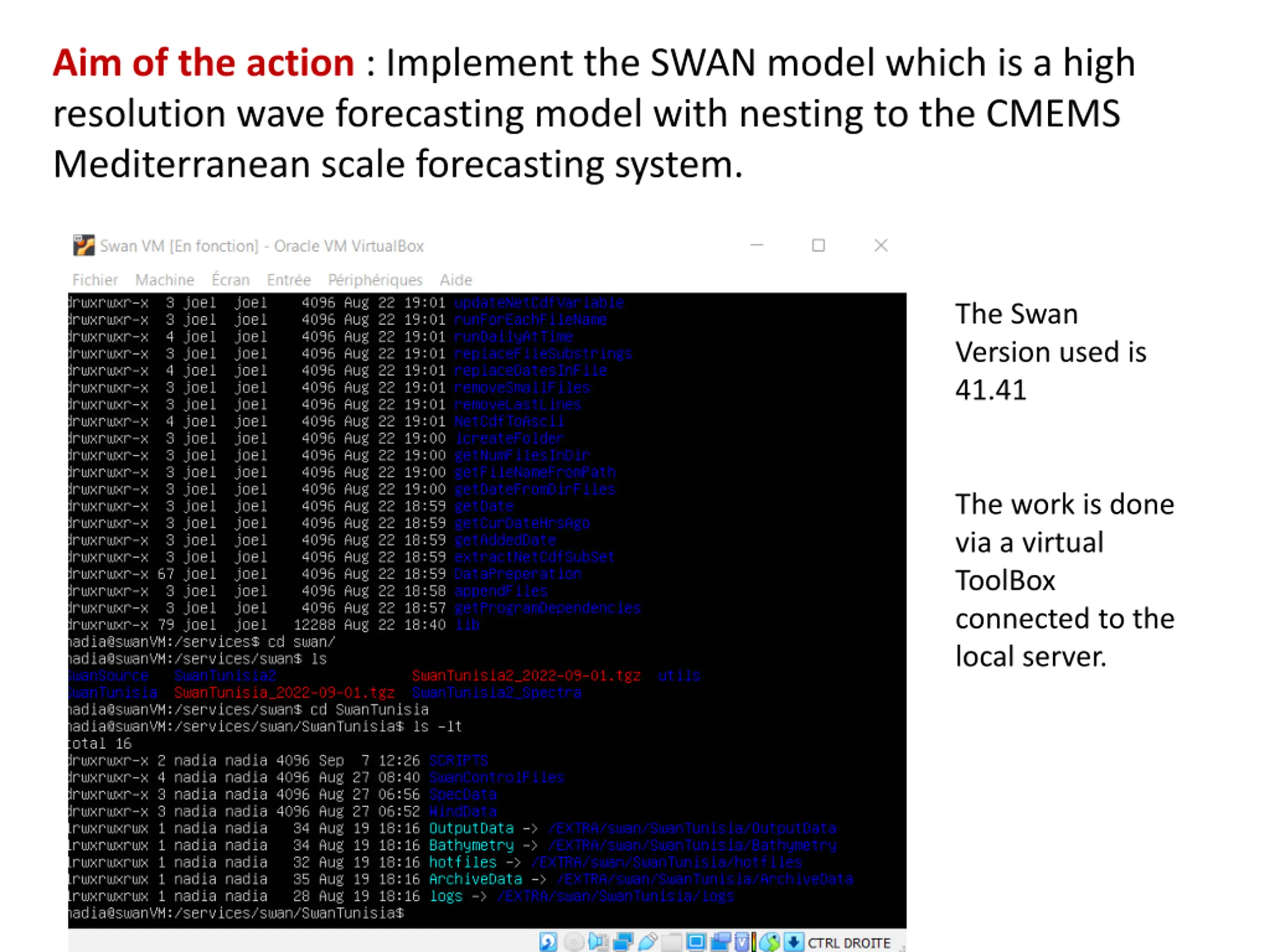

2. Aim of the action : Implement the SWAN model which is a high resolution wave forecasting model with nesting to the CMEMS Mediterranean scale forecasting system. The Swan Version used is 41.41 The work is done via a virtual ToolBox connected to the local server.

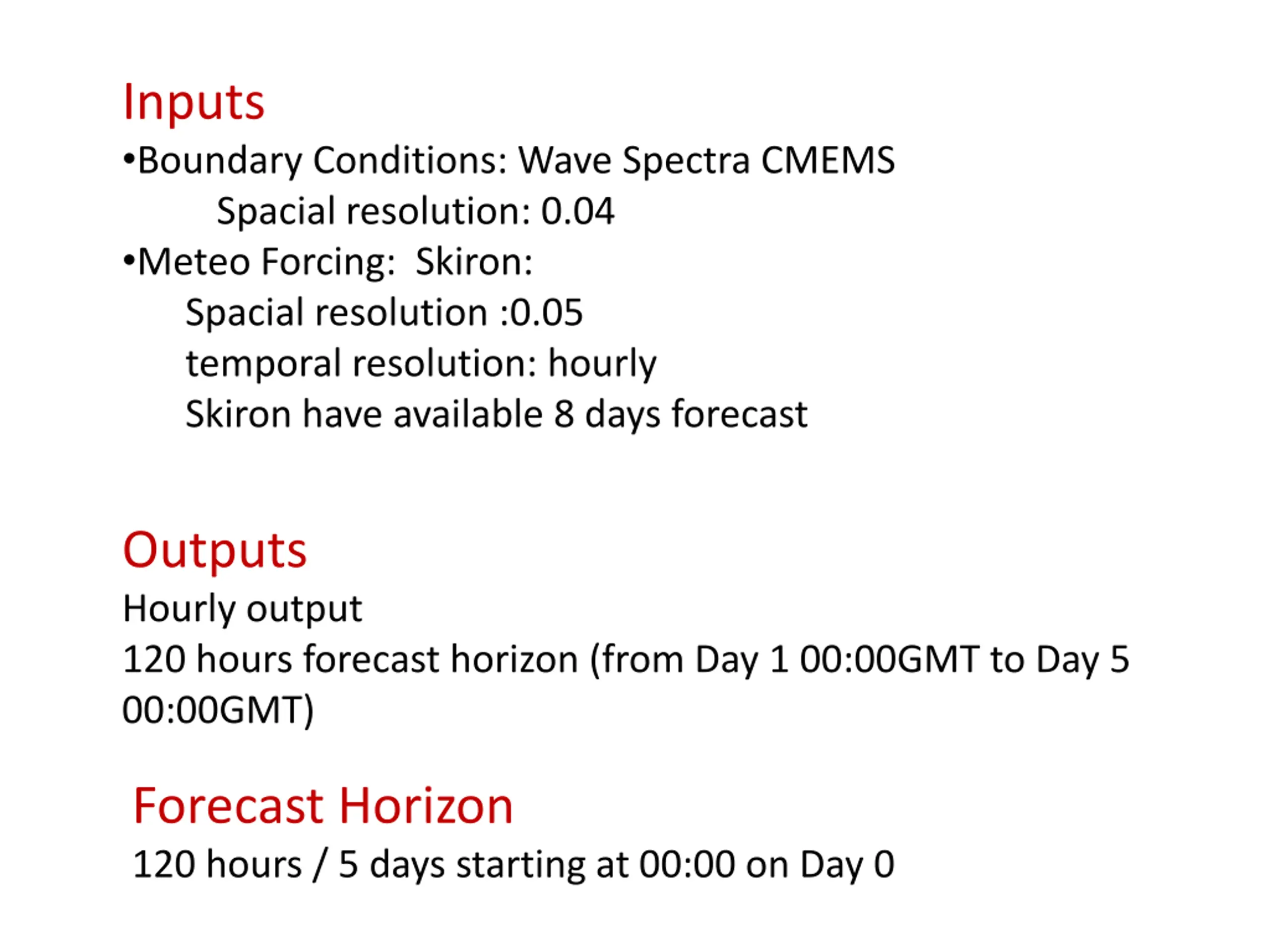

3. Inputs Boundary Conditions: Wave Spectra CMEMS Spacial resolution: 0.04 Meteo Forcing: Skiron: Spacial resolution :0.05 temporal resolution: hourly Skiron have available 8 days forecast Outputs Hourly output 120 hours forecast horizon (from Day 1 00:00GMT to Day 5 00:00GMT) Forecast Horizon 120 hours / 5 days starting at 00:00 on Day 0

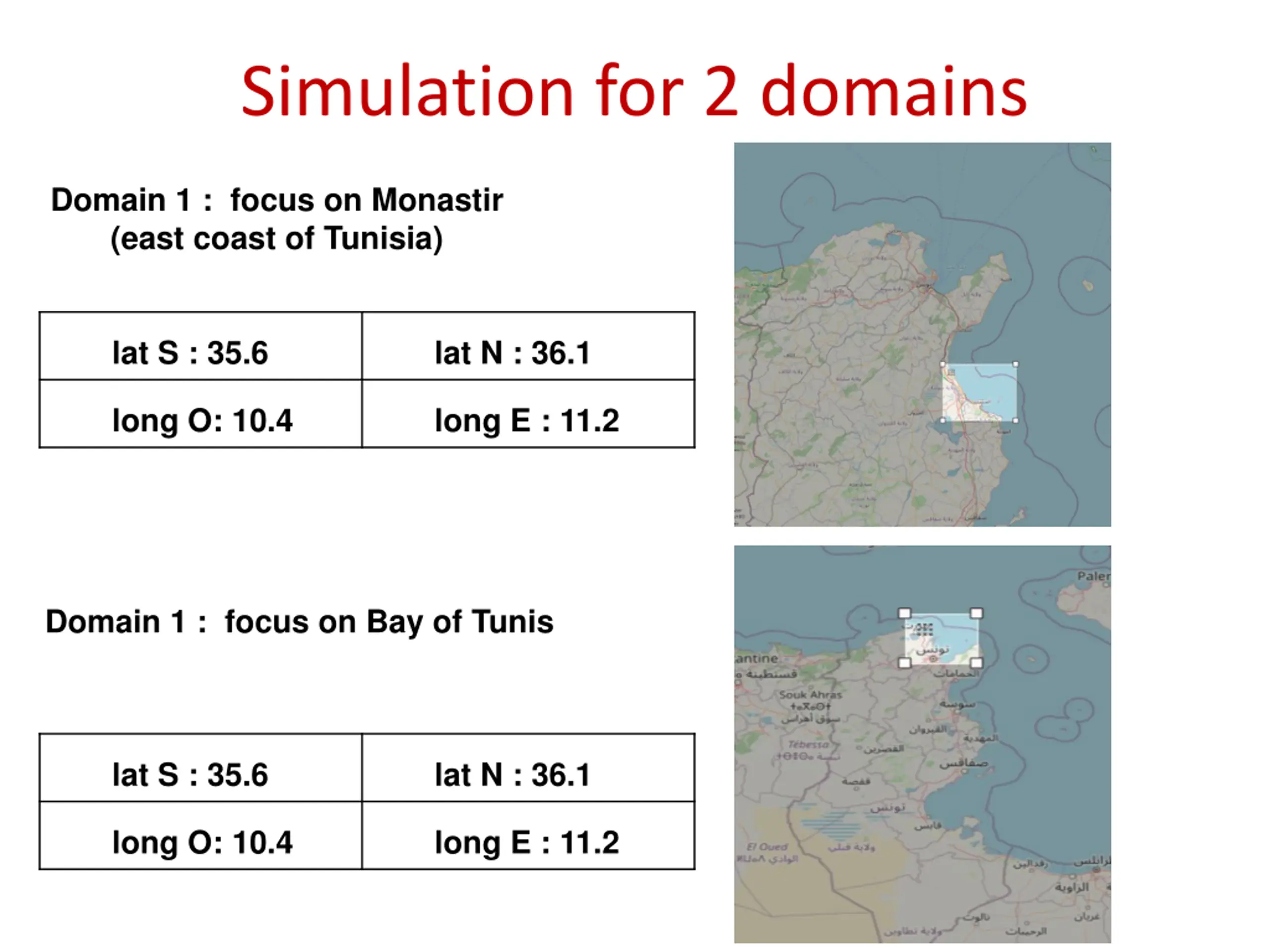

4. Simulation for 2 domains Domain 1 : focus on Monastir (east coast of Tunisia) lat S : 35.6 lat N : 36.1 long O: 10.4 long E : 11.2 Domain 1 : focus on Bay of Tunis lat S : 35.6 lat N : 36.1 long O: 10.4 long E : 11.2

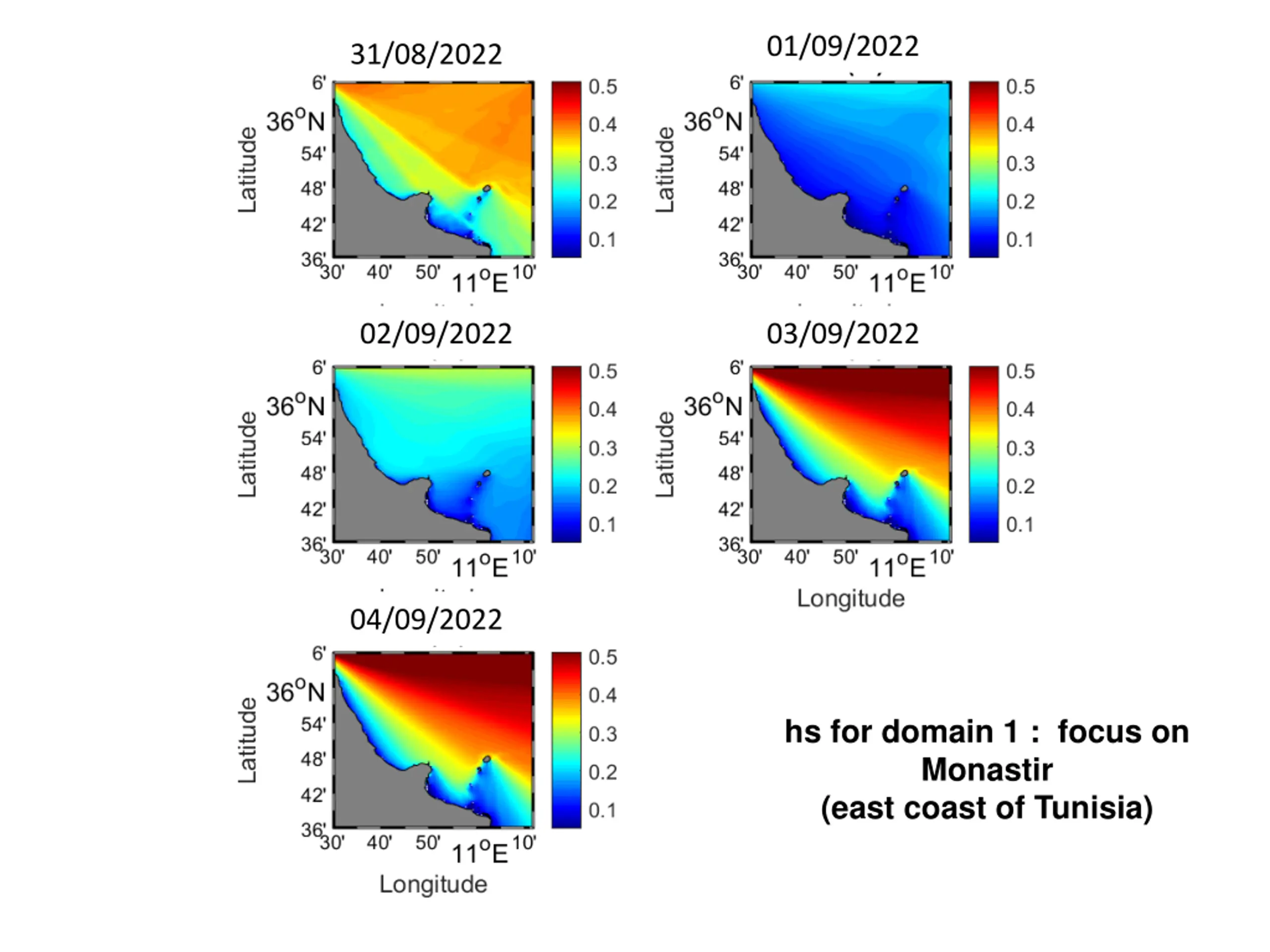

5. 01/09/2022 31/08/2022 02/09/2022 03/09/2022 04/09/2022 hs for domain 1 : focus on Monastir (east coast of Tunisia)

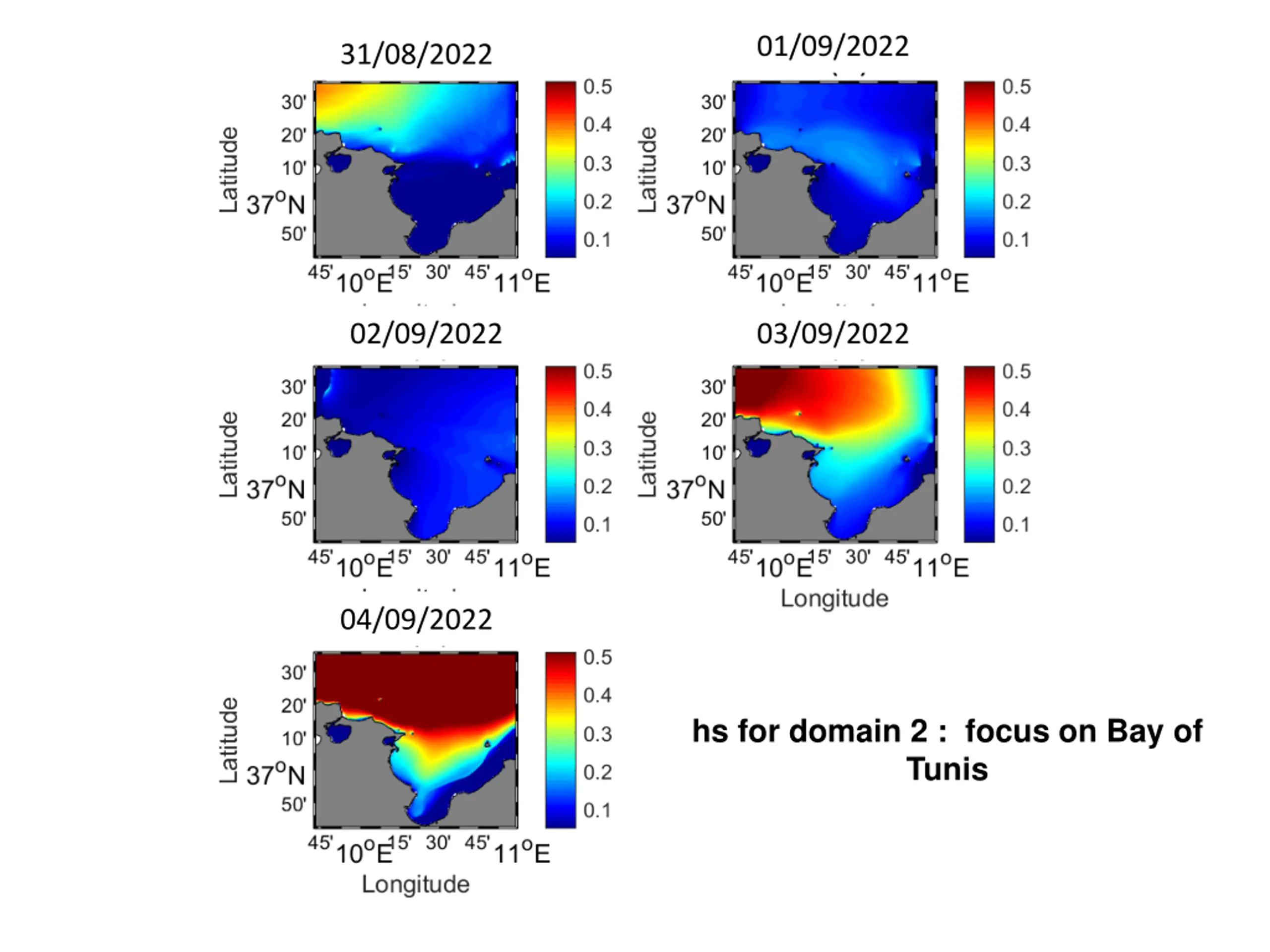

6. 01/09/2022 31/08/2022 02/09/2022 03/09/2022 04/09/2022 hs for domain 2 : focus on Bay of Tunis
