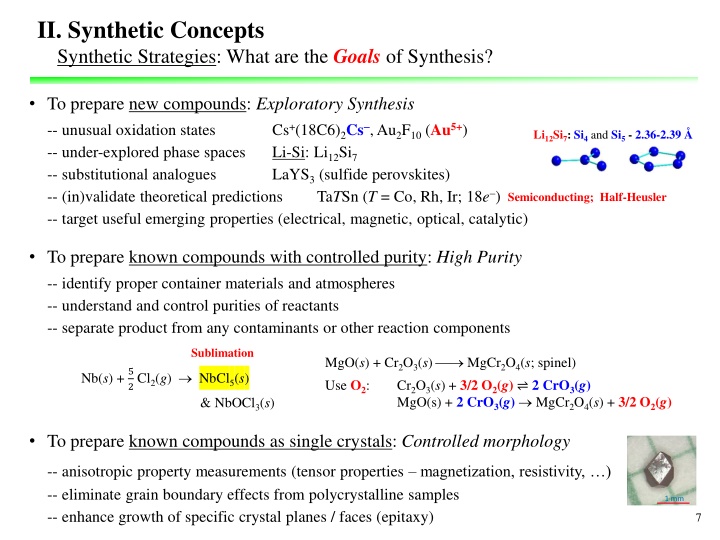

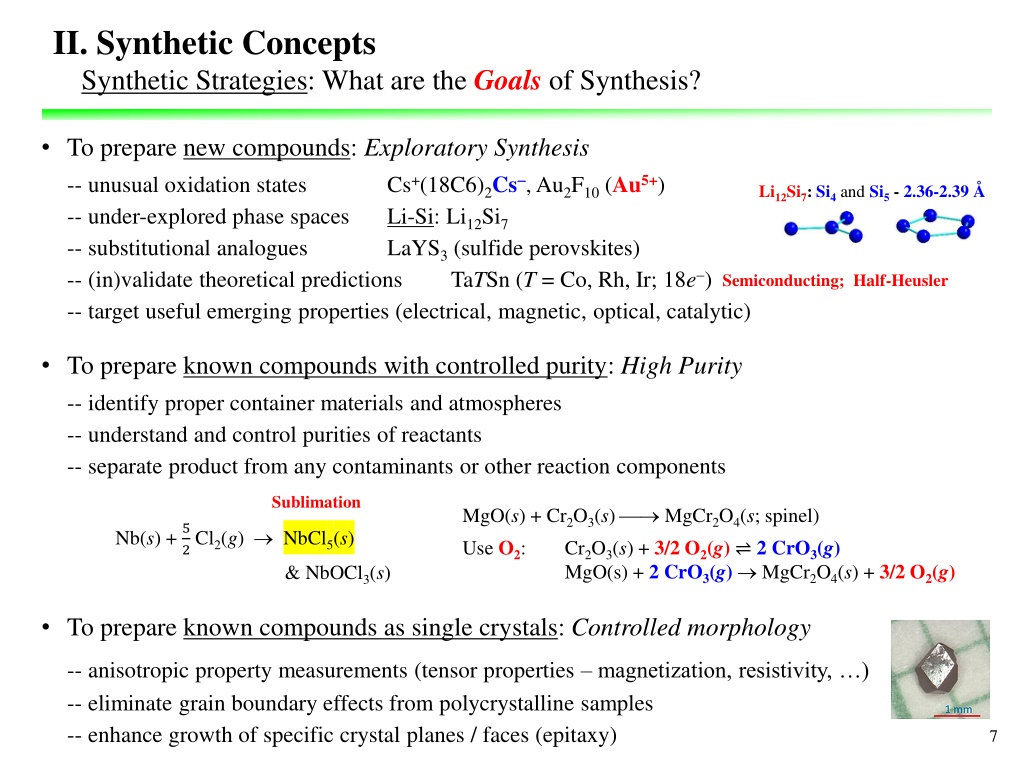

II. Synthetic Concepts Synthetic Strategies: What are the Goals of Synthesis? To prepare new compounds: Exploratory Synthesis -- unusual oxidation states -- under-explored phase spaces -- substitutional analogues -- (in)validate theoretical predictions -- target useful emerging properties (electrical, magnetic, optical, catalytic) Cs+(18C6)2Cs , Au2F10 (Au5+) Li-Si: Li12Si7 LaYS3 (sulfide perovskites) TaTSn (T = Co, Rh, Ir; 18e ) Li12Si7: Si4and Si5 - 2.36-2.39 Semiconducting; Half-Heusler To prepare known compounds with controlled purity: High Purity -- identify proper container materials and atmospheres -- understand and control purities of reactants -- separate product from any contaminants or other reaction components Sublimation MgO(s) + Cr2O3(s) MgCr2O4(s; spinel) Use O2: Cr2O3(s) + 3/2 O2(g) 2 CrO3(g) MgO(s) + 2 CrO3(g) MgCr2O4(s) + 3/2 O2(g) Nb(s) + 5 2 Cl2(g) NbCl5(s) & NbOCl3(s) To prepare known compounds as single crystals: Controlled morphology -- anisotropic property measurements (tensor properties magnetization, resistivity, ) -- eliminate grain boundary effects from polycrystalline samples -- enhance growth of specific crystal planes / faces (epitaxy) 7

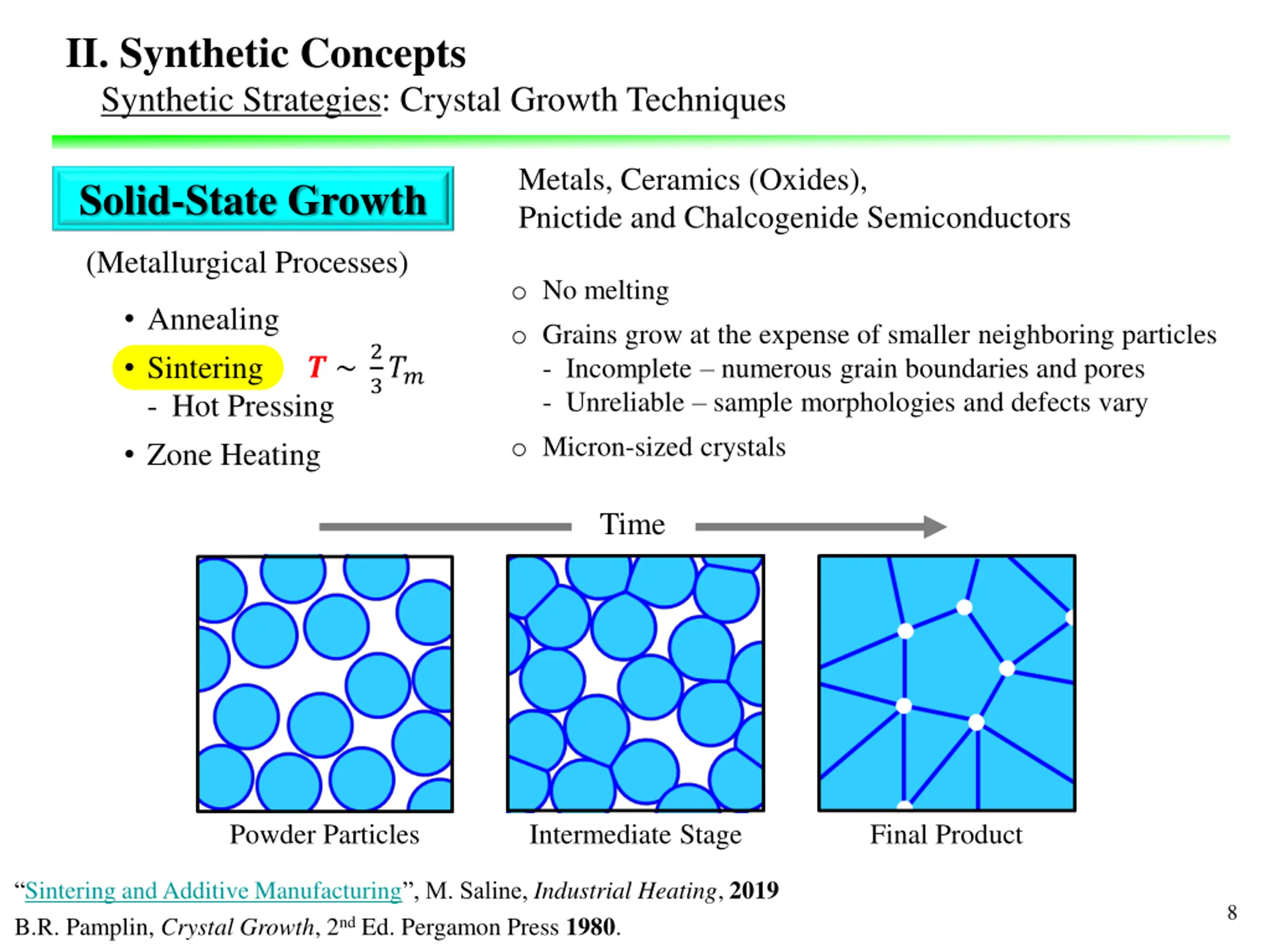

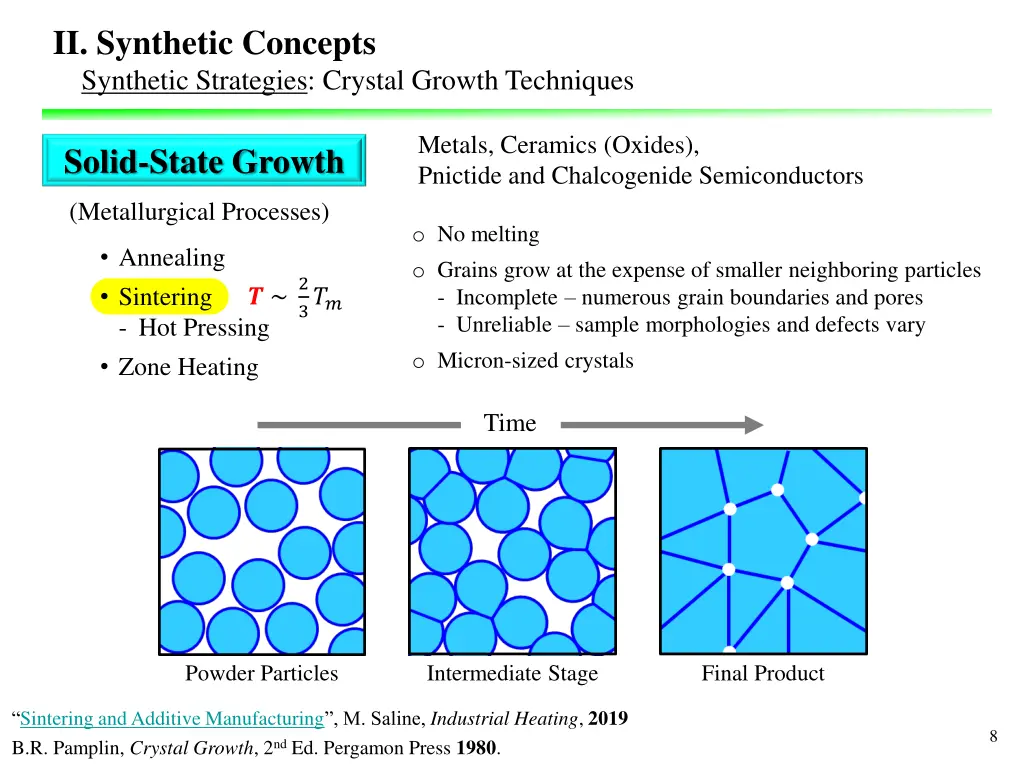

II. Synthetic Concepts Synthetic Strategies: Crystal Growth Techniques Metals, Ceramics (Oxides), Pnictide and Chalcogenide Semiconductors Solid-State Growth (Metallurgical Processes) o No melting o Grains grow at the expense of smaller neighboring particles - Incomplete numerous grain boundaries and pores - Unreliable sample morphologies and defects vary o Micron-sized crystals Annealing Sintering - Hot Pressing Zone Heating 2 3?? ? ~ Time Powder Particles Intermediate Stage Final Product Sintering and Additive Manufacturing , M. Saline, Industrial Heating, 2019 8 B.R. Pamplin, Crystal Growth, 2nd Ed. Pergamon Press 1980.

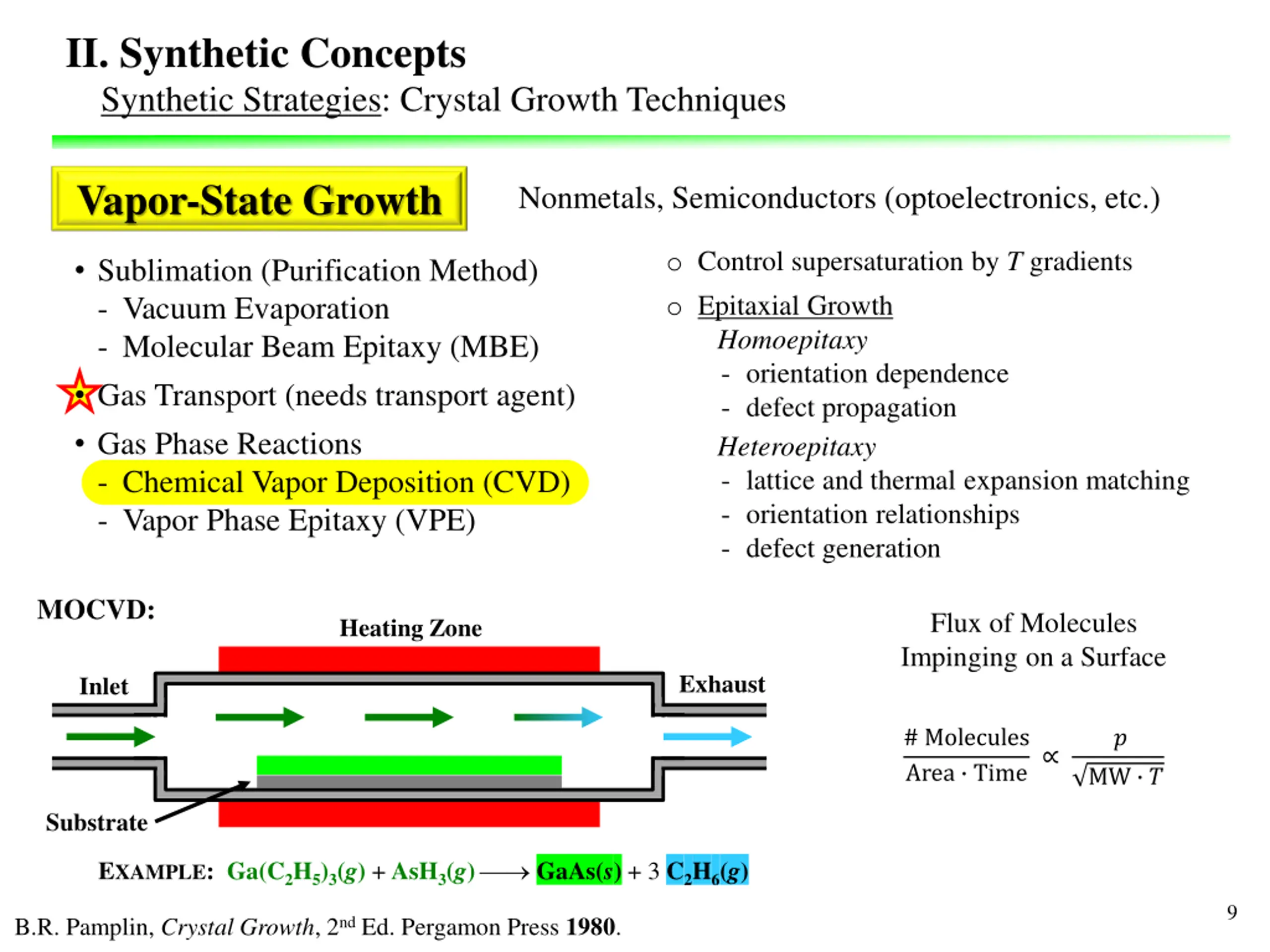

II. Synthetic Concepts Synthetic Strategies: Crystal Growth Techniques Vapor-State Growth Nonmetals, Semiconductors (optoelectronics, etc.) o Control supersaturation by T gradients o Epitaxial Growth Homoepitaxy - orientation dependence - defect propagation Heteroepitaxy - lattice and thermal expansion matching - orientation relationships - defect generation Sublimation (Purification Method) - Vacuum Evaporation - Molecular Beam Epitaxy (MBE) Gas Transport (needs transport agent) Gas Phase Reactions - Chemical Vapor Deposition (CVD) - Vapor Phase Epitaxy (VPE) MOCVD: Flux of Molecules Impinging on a Surface Heating Zone Exhaust Inlet # Molecules Area Time ? MW ? Substrate EXAMPLE:Ga(C2H5)3(g) + AsH3(g) GaAs(s) + 3 C2H6(g) EXAMPLE:Ga(C2H5)3(g) + AsH3(g) 9 B.R. Pamplin, Crystal Growth, 2nd Ed. Pergamon Press 1980.

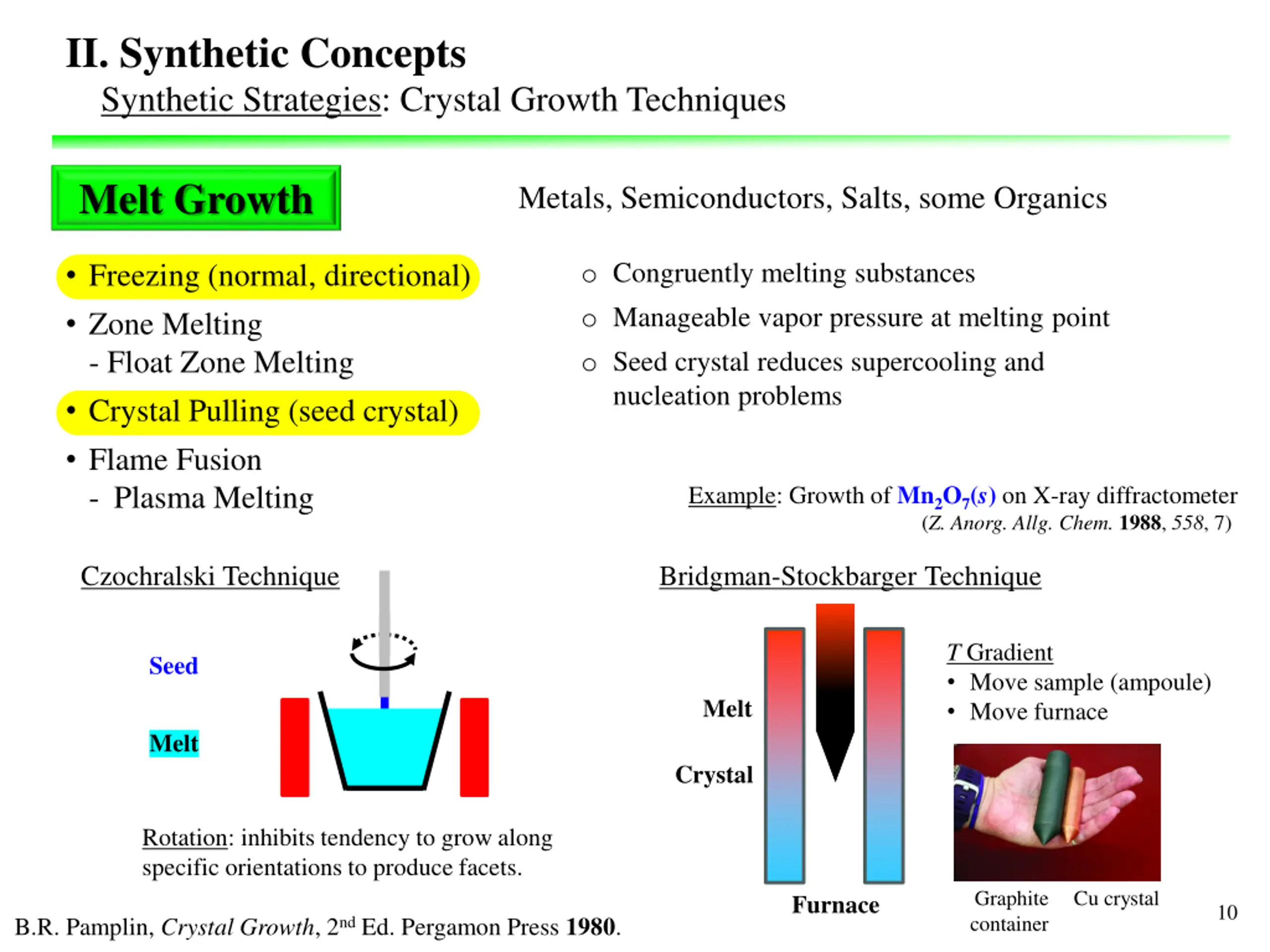

II. Synthetic Concepts Synthetic Strategies: Crystal Growth Techniques Melt Growth Metals, Semiconductors, Salts, some Organics o Congruently melting substances o Manageable vapor pressure at melting point o Seed crystal reduces supercooling and nucleation problems Freezing (normal, directional) Zone Melting - Float Zone Melting Crystal Pulling (seed crystal) Flame Fusion - Plasma Melting Example: Growth of Mn2O7(s) on X-ray diffractometer (Z. Anorg. Allg. Chem. 1988, 558, 7) Czochralski Technique Bridgman-Stockbarger Technique T Gradient Move sample (ampoule) Move furnace Seed Melt Melt Crystal Rotation: inhibits tendency to grow along specific orientations to produce facets. Graphite container Cu crystal Furnace 10 B.R. Pamplin, Crystal Growth, 2nd Ed. Pergamon Press 1980.

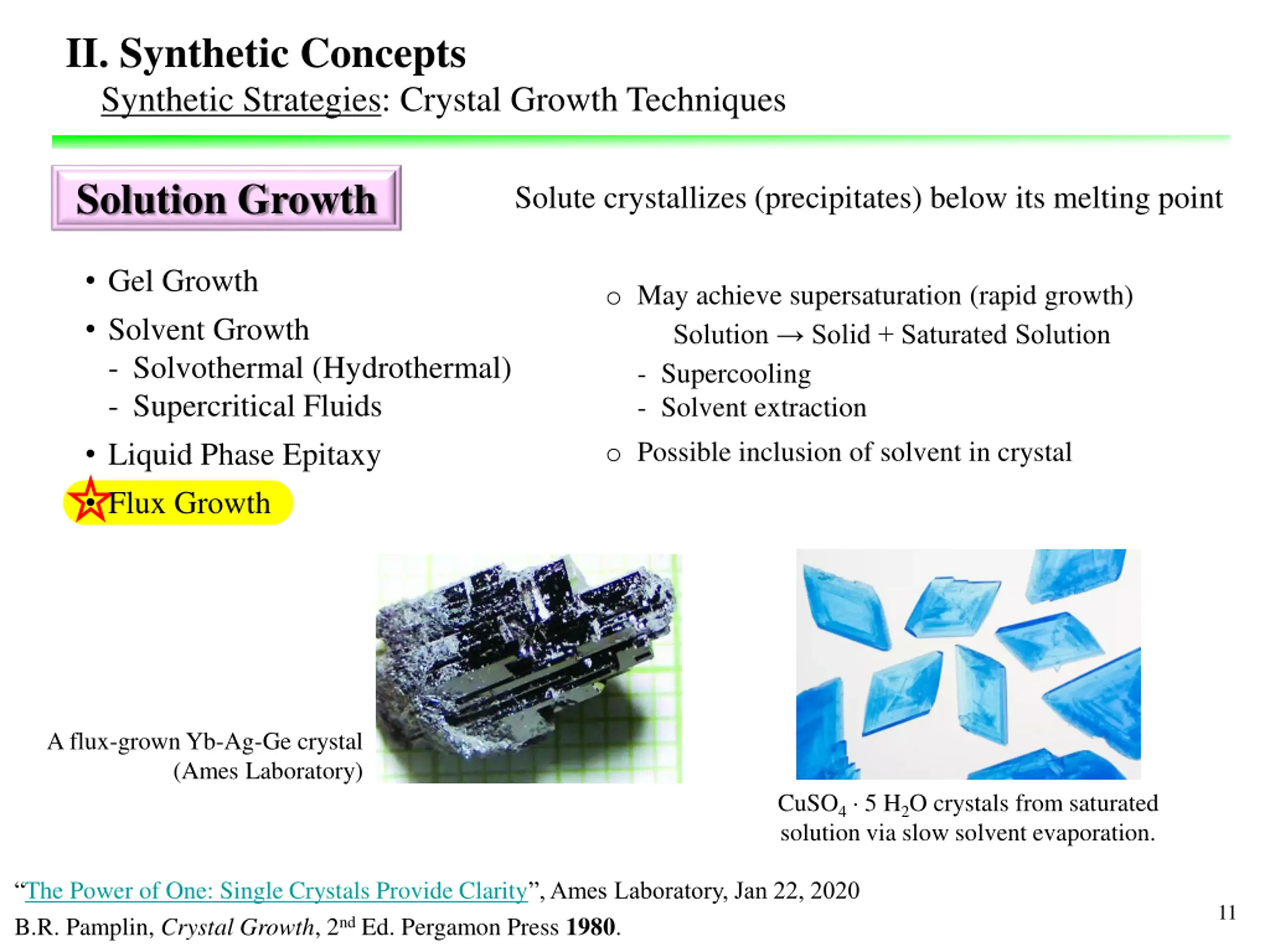

II. Synthetic Concepts Synthetic Strategies: Crystal Growth Techniques Solution Growth Solute crystallizes (precipitates) below its melting point Gel Growth Solvent Growth - Solvothermal (Hydrothermal) - Supercritical Fluids Liquid Phase Epitaxy Flux Growth o May achieve supersaturation (rapid growth) Solution Solid + Saturated Solution - Supercooling - Solvent extraction o Possible inclusion of solvent in crystal A flux-grown Yb-Ag-Ge crystal (Ames Laboratory) CuSO4 5 H2O crystals from saturated solution via slow solvent evaporation. The Power of One: Single Crystals Provide Clarity , Ames Laboratory, Jan 22, 2020 11 B.R. Pamplin, Crystal Growth, 2nd Ed. Pergamon Press 1980.

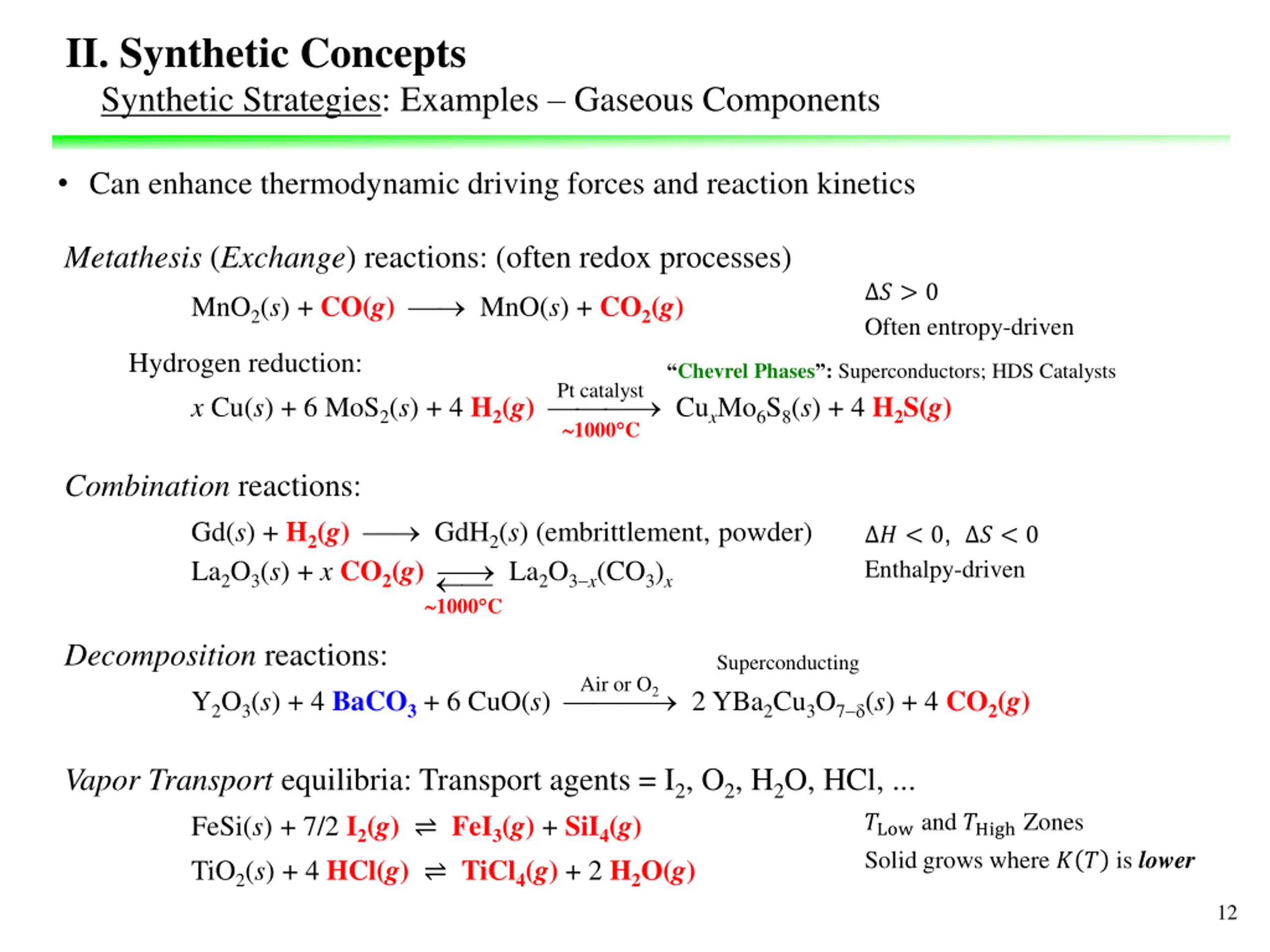

II. Synthetic Concepts Synthetic Strategies: Examples Gaseous Components Can enhance thermodynamic driving forces and reaction kinetics Metathesis (Exchange) reactions: (often redox processes) MnO2(s) + CO(g) MnO(s) + CO2(g) ? > 0 Often entropy-driven Hydrogen reduction: x Cu(s) + 6 MoS2(s) + 4 H2(g) CuxMo6S8(s) + 4 H2S(g) Chevrel Phases : Superconductors; HDS Catalysts Pt catalyst 1000 C Combination reactions: Gd(s) + H2(g) GdH2(s) (embrittlement, powder) La2O3(s) + xCO2(g) La2O3 x(CO3)x 1000 C ? < 0, ? < 0 Enthalpy-driven Decomposition reactions: Y2O3(s) + 4 BaCO3 + 6 CuO(s) 2 YBa2Cu3O7 (s) + 4 CO2(g) Superconducting Air or O2 Vapor Transport equilibria: Transport agents = I2, O2, H2O, HCl, ... FeSi(s) + 7/2 I2(g) FeI3(g) + SiI4(g) TiO2(s) + 4 HCl(g) TiCl4(g) + 2 H2O(g) ?Low and ?High Zones Solid grows where ? ? is lower 12

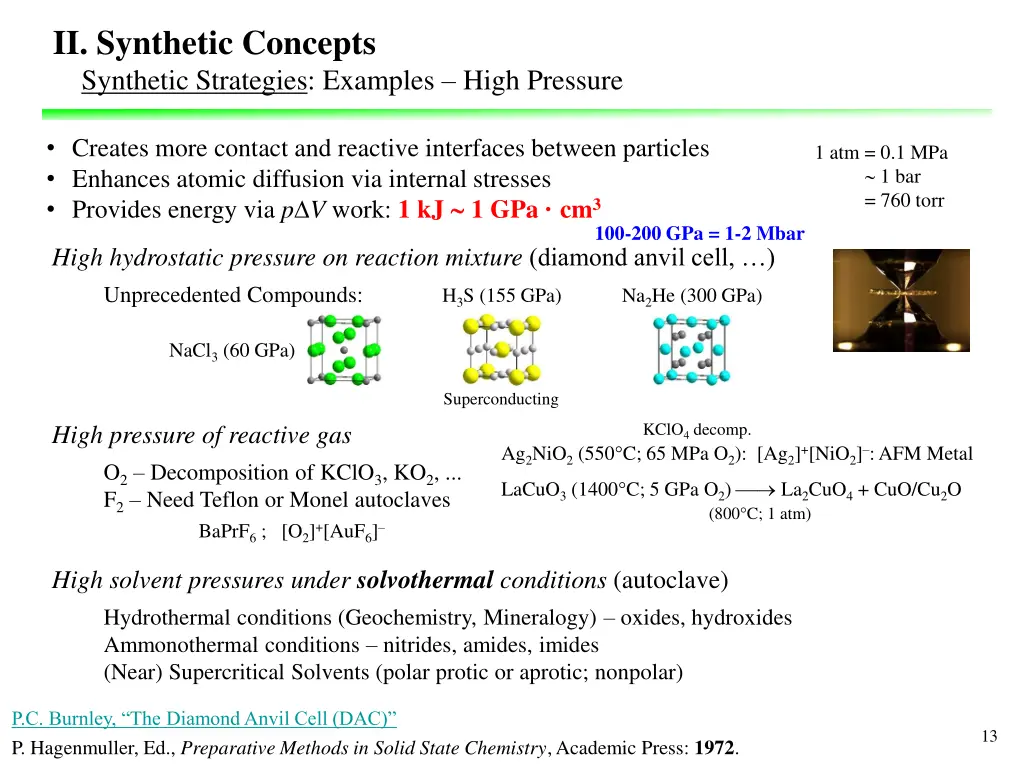

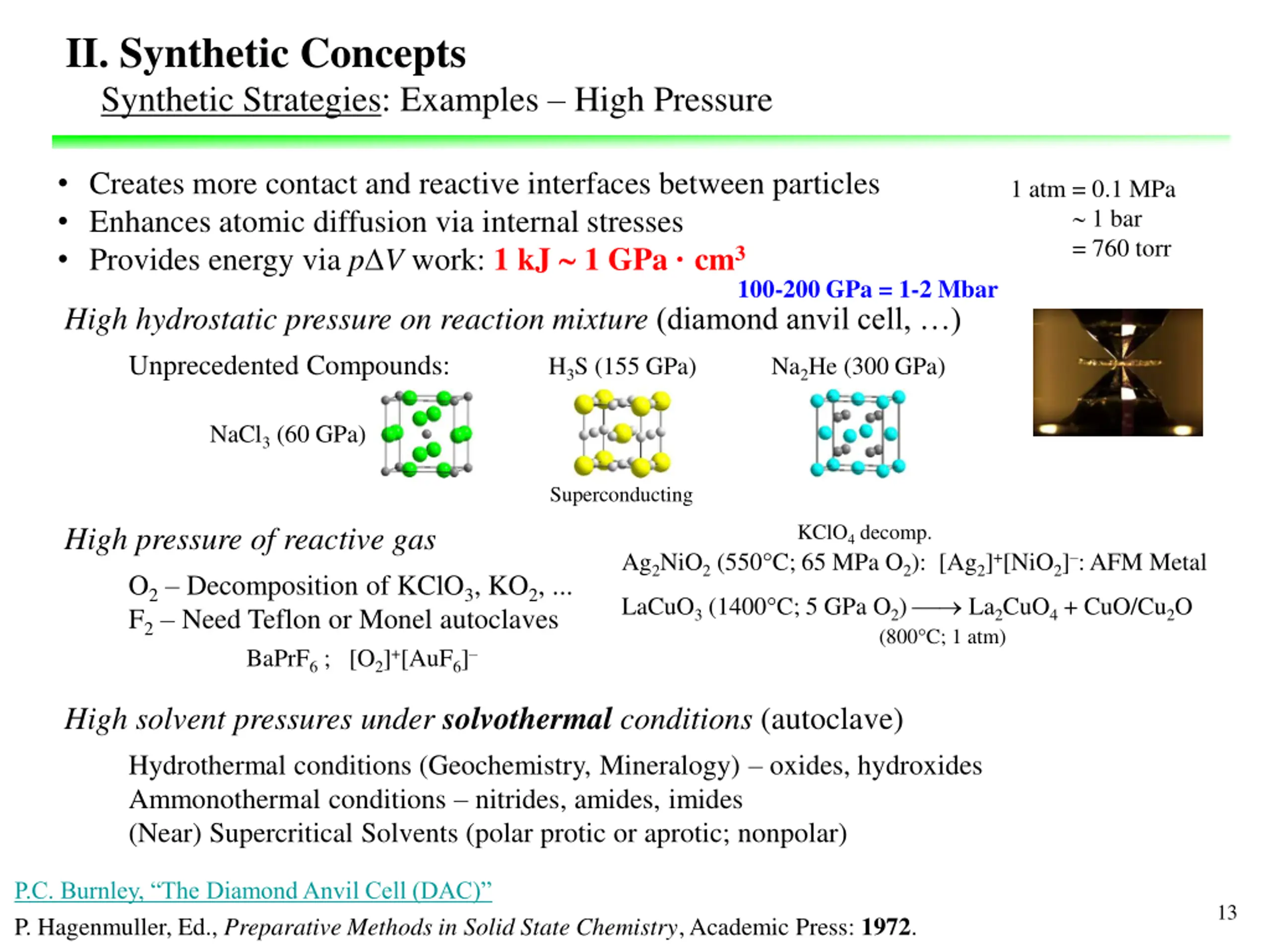

II. Synthetic Concepts Synthetic Strategies: Examples High Pressure Creates more contact and reactive interfaces between particles Enhances atomic diffusion via internal stresses Provides energy via p V work 1 atm = 0.1 MPa 1 atm 1 bar 1 atm = 760 torr 1 atm = 0.1 MPa : 1 kJ 1 GPa cm3 100-200 GPa = 1-2 Mbar High hydrostatic pressure on reaction mixture(diamond anvil cell, ) Unprecedented Compounds: H3S (155 GPa) Na2He (300 GPa) NaCl3 (60 GPa) Superconducting KClO4 decomp. High pressure of reactive gas O2 Decomposition of KClO3, KO2, ... F2 Need Teflon or Monel autoclaves BaPrF6 ; [O2]+[AuF6] Ag2NiO2 (550 C; 65 MPa O2): [Ag2]+[NiO2] : AFM Metal Ag2NiO2 (550 C; 65 MPa O2) LaCuO3 (1400 C; 5 GPa O2) La2CuO4 + CuO/Cu2O LaCuO3 (1400 C; 5 GPa O2) (800 C; 1 atm) High solvent pressures under solvothermal conditions (autoclave) Hydrothermal conditions (Geochemistry, Mineralogy) oxides, hydroxides Ammonothermal conditions nitrides, amides, imides (Near) Supercritical Solvents (polar protic or aprotic; nonpolar) P.C. Burnley, The Diamond Anvil Cell (DAC) 13 P. Hagenmuller, Ed., Preparative Methods in Solid State Chemistry, Academic Press: 1972.

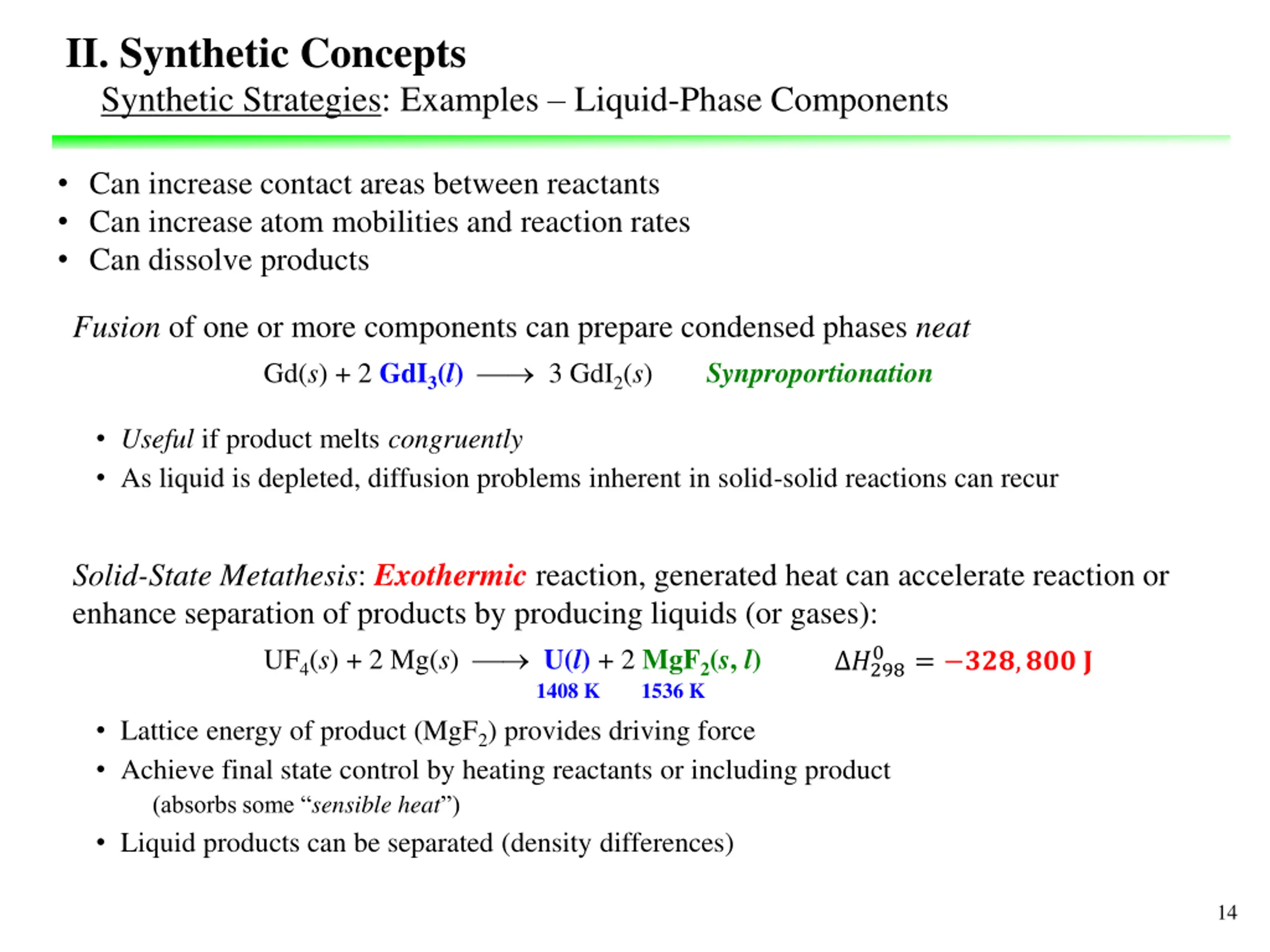

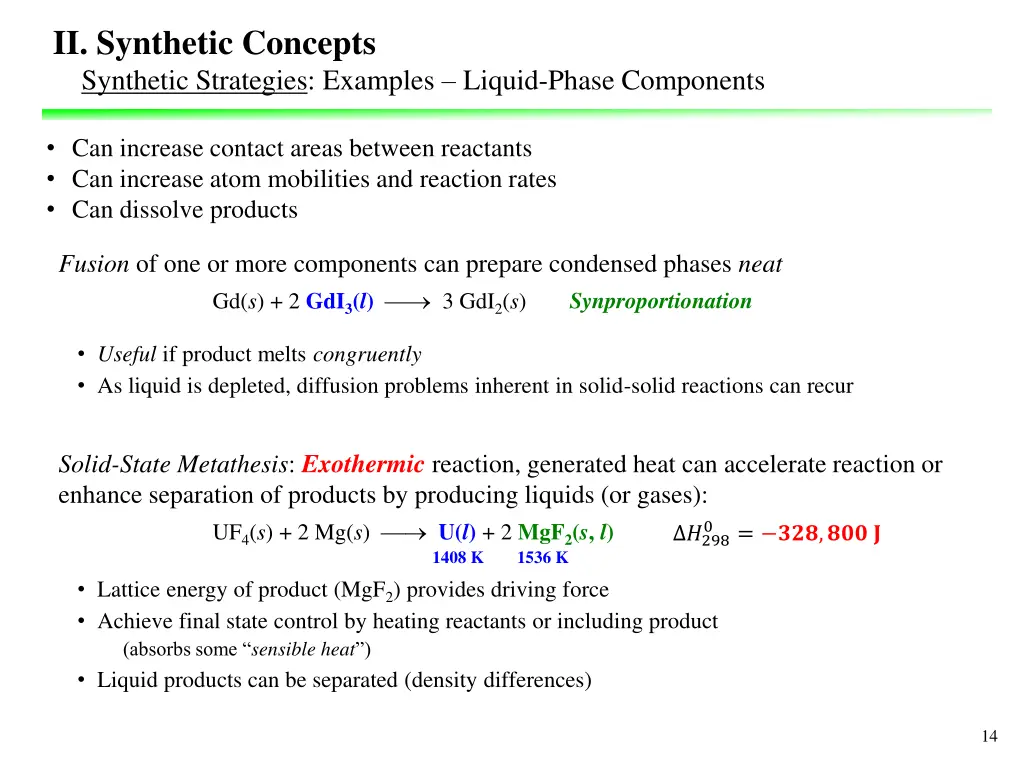

II. Synthetic Concepts Synthetic Strategies: Examples Liquid-Phase Components Can increase contact areas between reactants Can increase atom mobilities and reaction rates Can dissolve products Fusion of one or more components can prepare condensed phases neat Gd(s) + 2 GdI3(l) 3 GdI2(s) Synproportionation Useful if product melts congruently As liquid is depleted, diffusion problems inherent in solid-solid reactions can recur Solid-State Metathesis: Exothermic reaction, generated heat can accelerate reaction or enhance separation of products by producing liquids (or gases): UF4(s) + 2 Mg(s) U(s) + 2 MgF2(s) U(l) + 2 MgF2(s, l) 1408 K 0 ?298 = ???,??? ? 1536 K Lattice energy of product (MgF2) provides driving force Achieve final state control by heating reactants or including product (absorbs some sensible heat ) Liquid products can be separated (density differences) 14

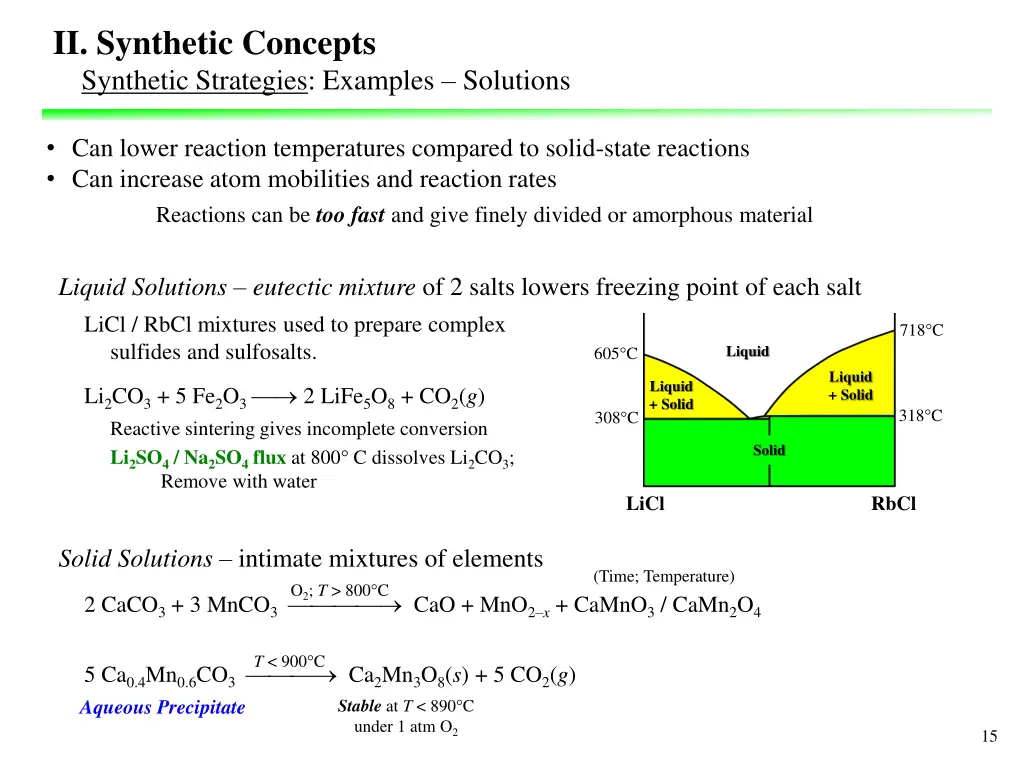

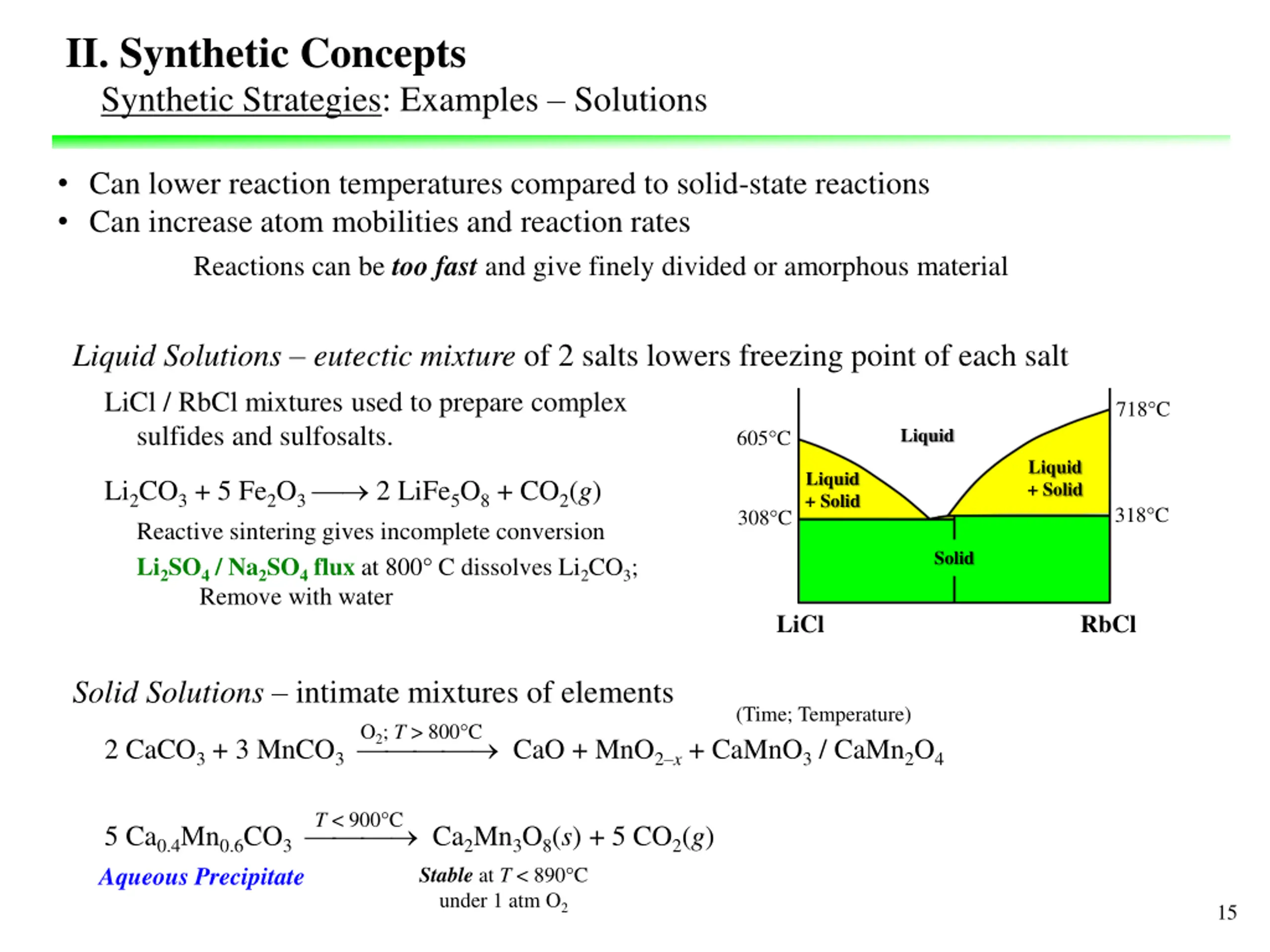

II. Synthetic Concepts Synthetic Strategies: Examples Solutions Can lower reaction temperatures compared to solid-state reactions Can increase atom mobilities and reaction rates Reactions can be too fast and give finely divided or amorphous material Liquid Solutions eutectic mixture of 2 salts lowers freezing point of each salt LiCl / RbCl mixtures used to prepare complex sulfides and sulfosalts. 718 C 605 C Liquid Liquid + Solid Liquid + Solid Li2CO3 + 5 Fe2O3 2 LiFe5O8 + CO2(g) Reactive sintering gives incomplete conversion Li2SO4 / Na2SO4 flux at 800 C dissolves Li2CO3; Remove with water 318 C 308 C Solid LiCl RbCl Solid Solutions intimate mixtures of elements Solid Solutions intimate mixtures of elements O2; T > 800 C (Time; Temperature) 2 CaCO3 + 3 MnCO3 CaO + MnO2 x + CaMnO3 / CaMn2O4 2 CaCO3 + 3 MnCO3 T < 900 C 5 Ca0.4Mn0.6CO3 Ca2Mn3O8(s) + 5 CO2(g) 5 Ca0.4Mn0.6CO3 Aqueous Precipitate Stable at T < 890 C under 1 atm O2 15

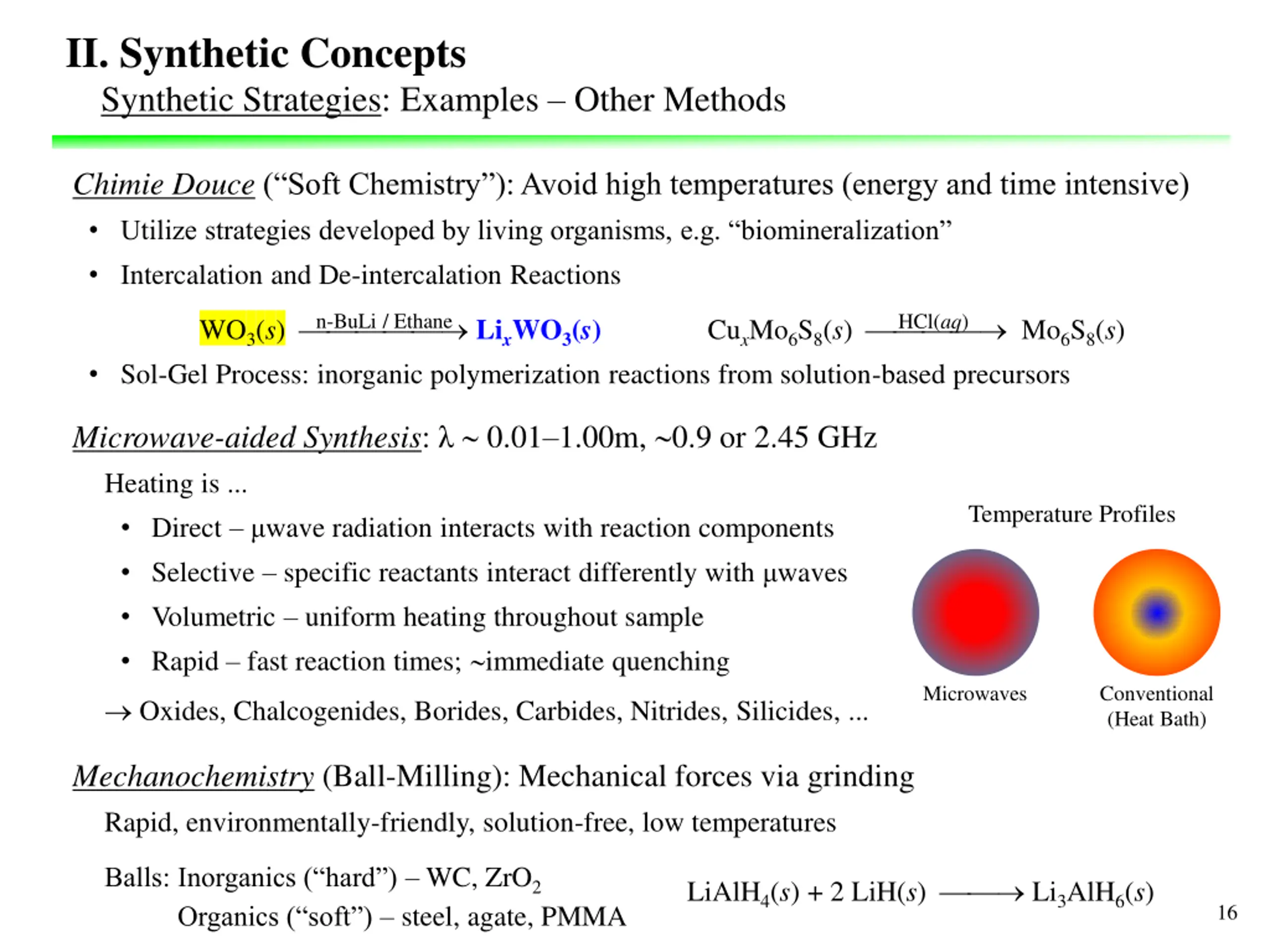

II. Synthetic Concepts Synthetic Strategies: Examples Other Methods Chimie Douce ( Soft Chemistry ): Avoid high temperatures (energy and time intensive) Utilize strategies developed by living organisms, e.g. biomineralization Intercalation and De-intercalation Reactions n-BuLi / Ethane HCl(aq) WO3(s) LixWO3(s) Sol-Gel Process: inorganic polymerization reactions from solution-based precursors CuxMo6S8(s) Mo6S8(s) Microwave-aided Synthesis: 0.01 1.00m, 0.9 or 2.45 GHz Heating is ... Direct wave radiation interacts with reaction components Selective specific reactants interact differently with waves Volumetric uniform heating throughout sample Rapid fast reaction times; immediate quenching Temperature Profiles Microwaves Conventional (Heat Bath) Oxides, Chalcogenides, Borides, Carbides, Nitrides, Silicides, ... Mechanochemistry (Ball-Milling): Mechanical forces via grinding Rapid, environmentally-friendly, solution-free, low temperatures Balls: Inorganics ( hard ) WC, ZrO2 Balls: Organics ( soft ) steel, agate, PMMA LiAlH4(s) + 2 LiH(s) Li3AlH6(s) 16

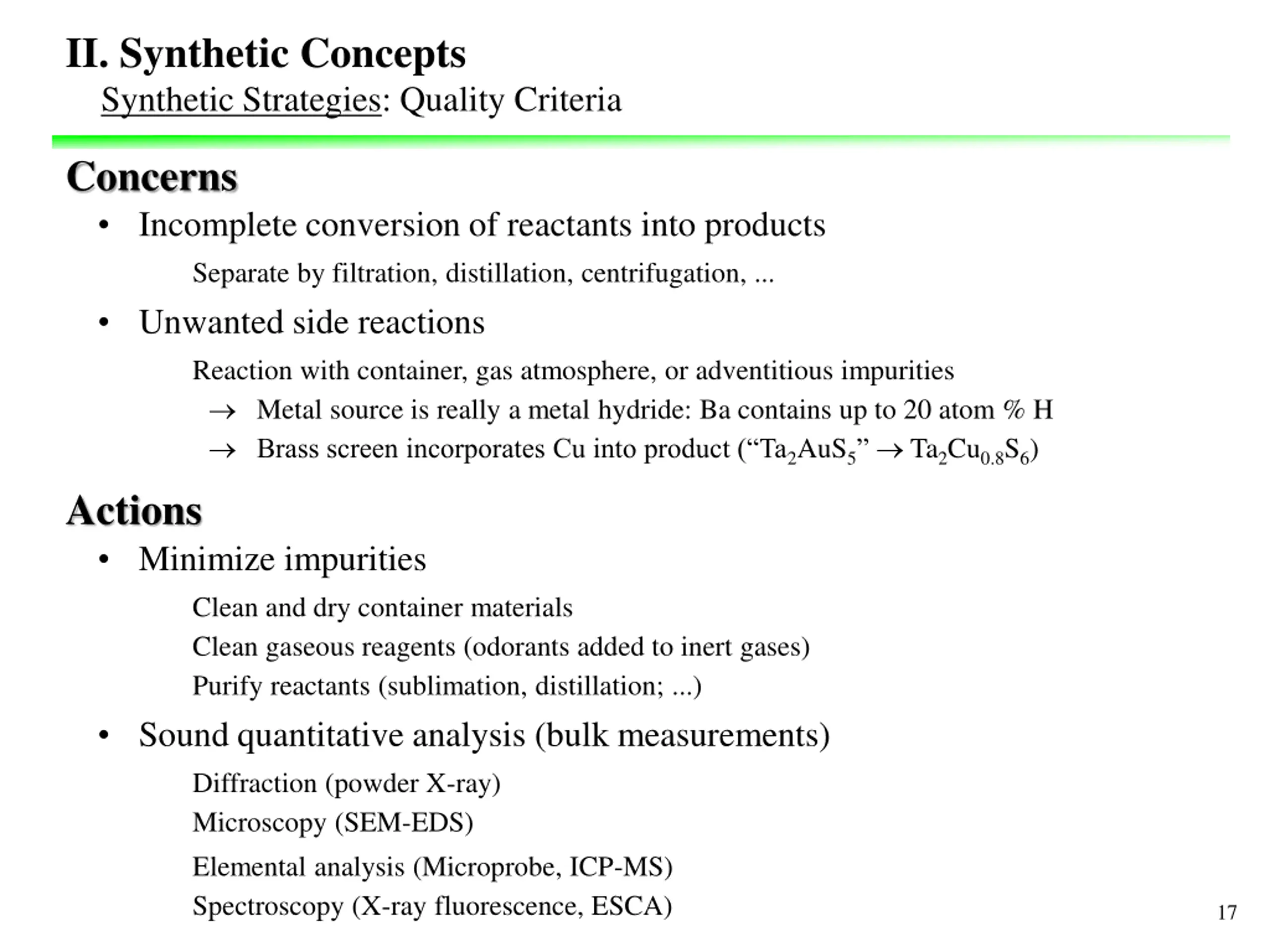

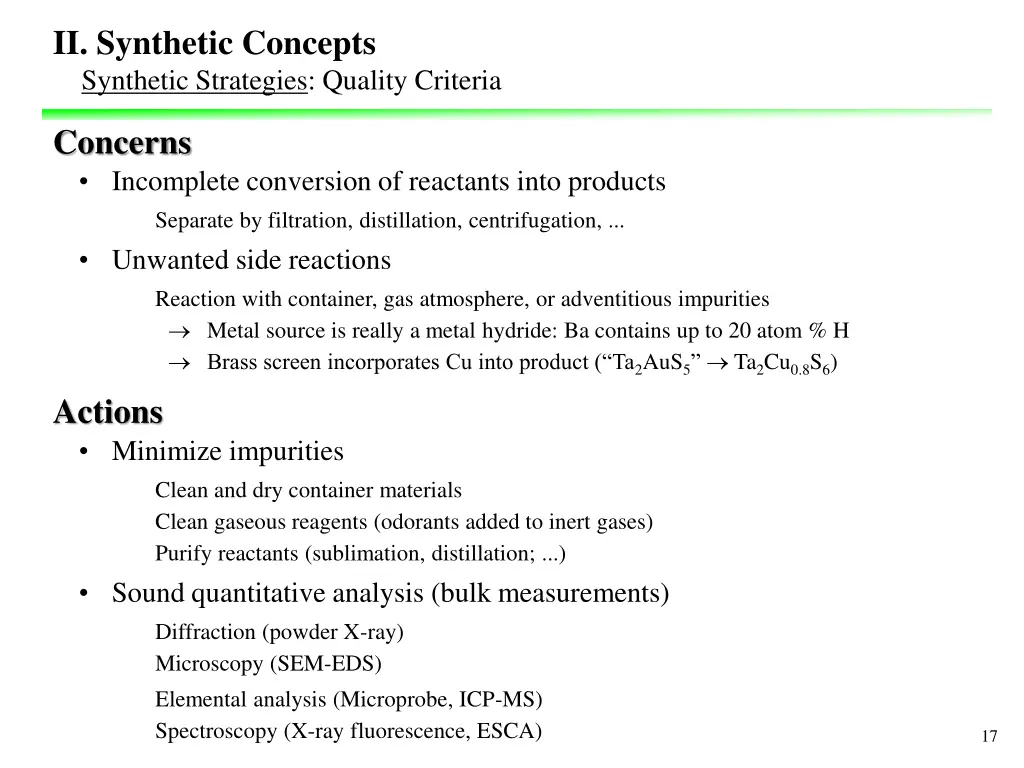

II. Synthetic Concepts Synthetic Strategies: Quality Criteria Concerns Incomplete conversion of reactants into products Separate by filtration, distillation, centrifugation, ... Unwanted side reactions Reaction with container, gas atmosphere, or adventitious impurities Metal source is really a metal hydride: Ba contains up to 20 atom % H Brass screen incorporates Cu into product ( Ta2AuS5 Ta2Cu0.8S6) Actions Minimize impurities Clean and dry container materials Clean gaseous reagents (odorants added to inert gases) Purify reactants (sublimation, distillation; ...) Sound quantitative analysis (bulk measurements) Diffraction (powder X-ray) Microscopy (SEM-EDS) Elemental analysis (Microprobe, ICP-MS) Spectroscopy (X-ray fluorescence, ESCA) 17

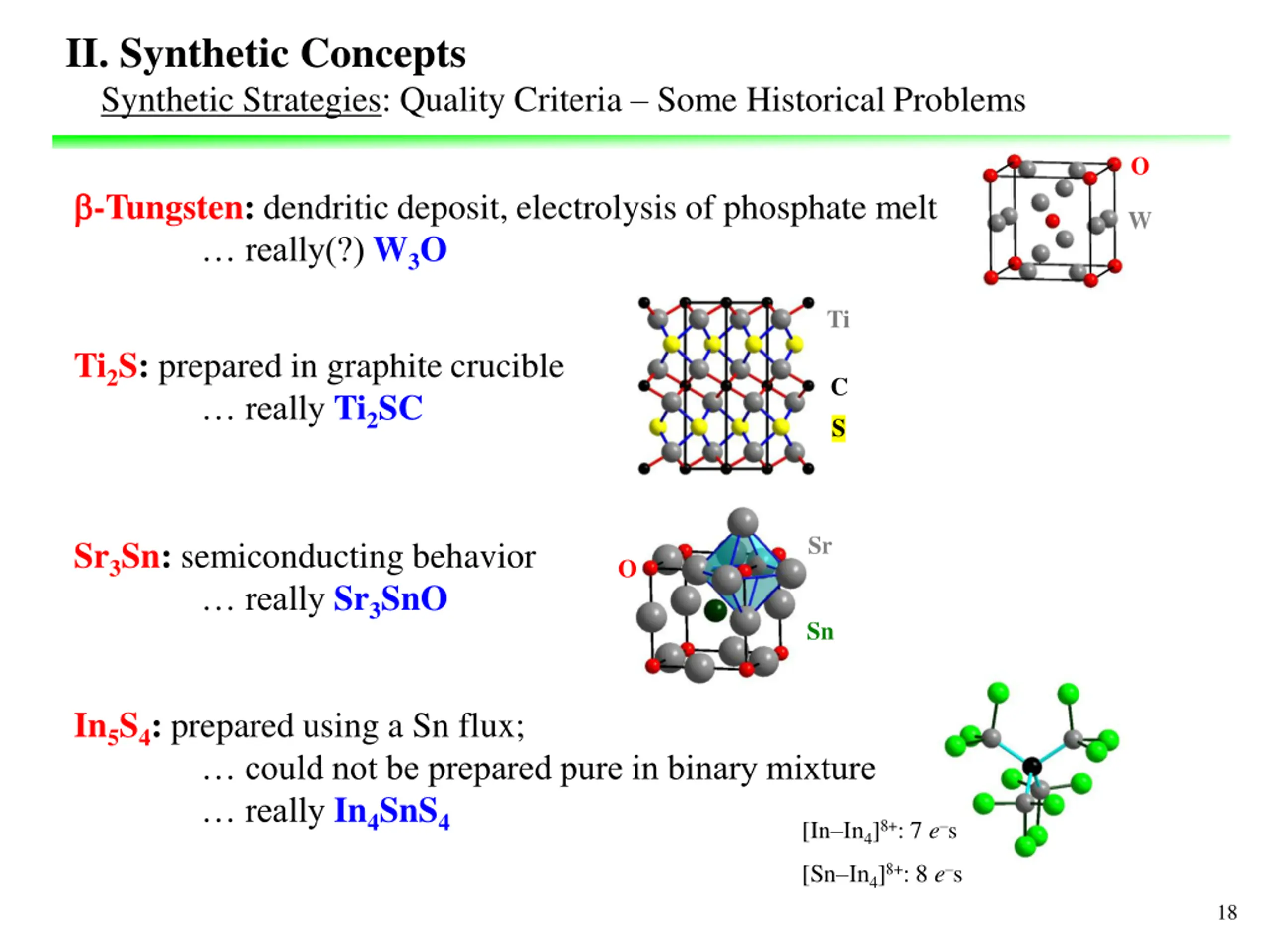

II. Synthetic Concepts Synthetic Strategies: Quality Criteria Some Historical Problems O -Tungsten: dendritic deposit, electrolysis of phosphate melt really(?) W3O W Ti Ti2S: prepared in graphite crucible really Ti2SC C S Sr Sr3Sn: semiconducting behavior really Sr3SnO O Sn In5S4: prepared using a Sn flux; could not be prepared pure in binary mixture really In4SnS4 [In In4]8+: 7 e s [Sn In4]8+: 8 e s 18
