Systems Software Verification Summer School Chapter 9 Chapter 9 Advanced Refinement Advanced Refinement Manos Kapritsos, University of Michigan Jon Howell, VMWare Research Rob Johnson, VMWare Research

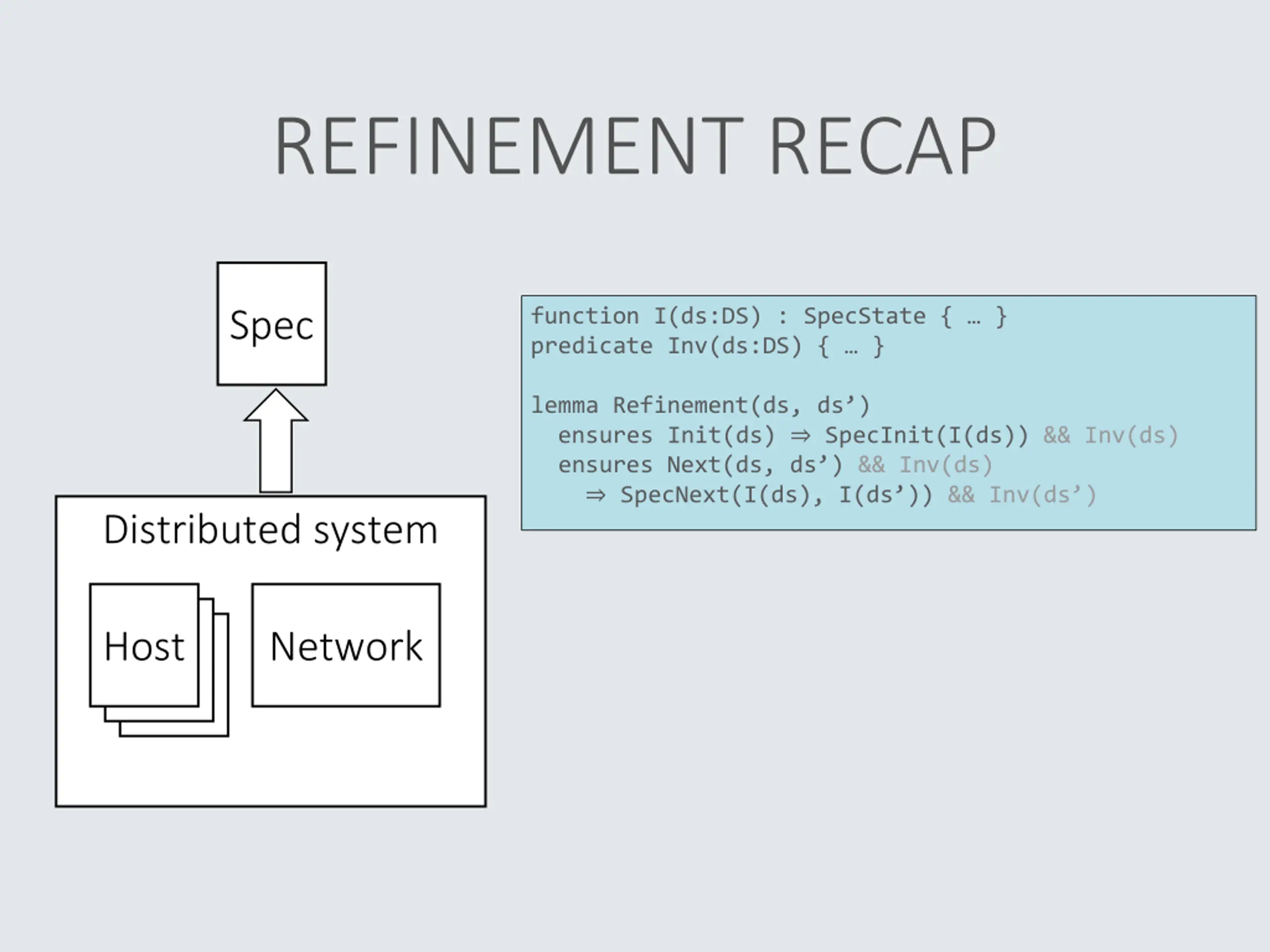

REFINEMENT RECAP function I(ds:DS) : SpecState { } predicate Inv(ds:DS) { } Spec lemma Refinement(ds, ds ) ensures Init(ds) SpecInit(I(ds)) && Inv(ds) ensures Next(ds, ds ) && Inv(ds) SpecNext(I(ds), I(ds )) && Inv(ds ) Distributed system Host Network Host Host

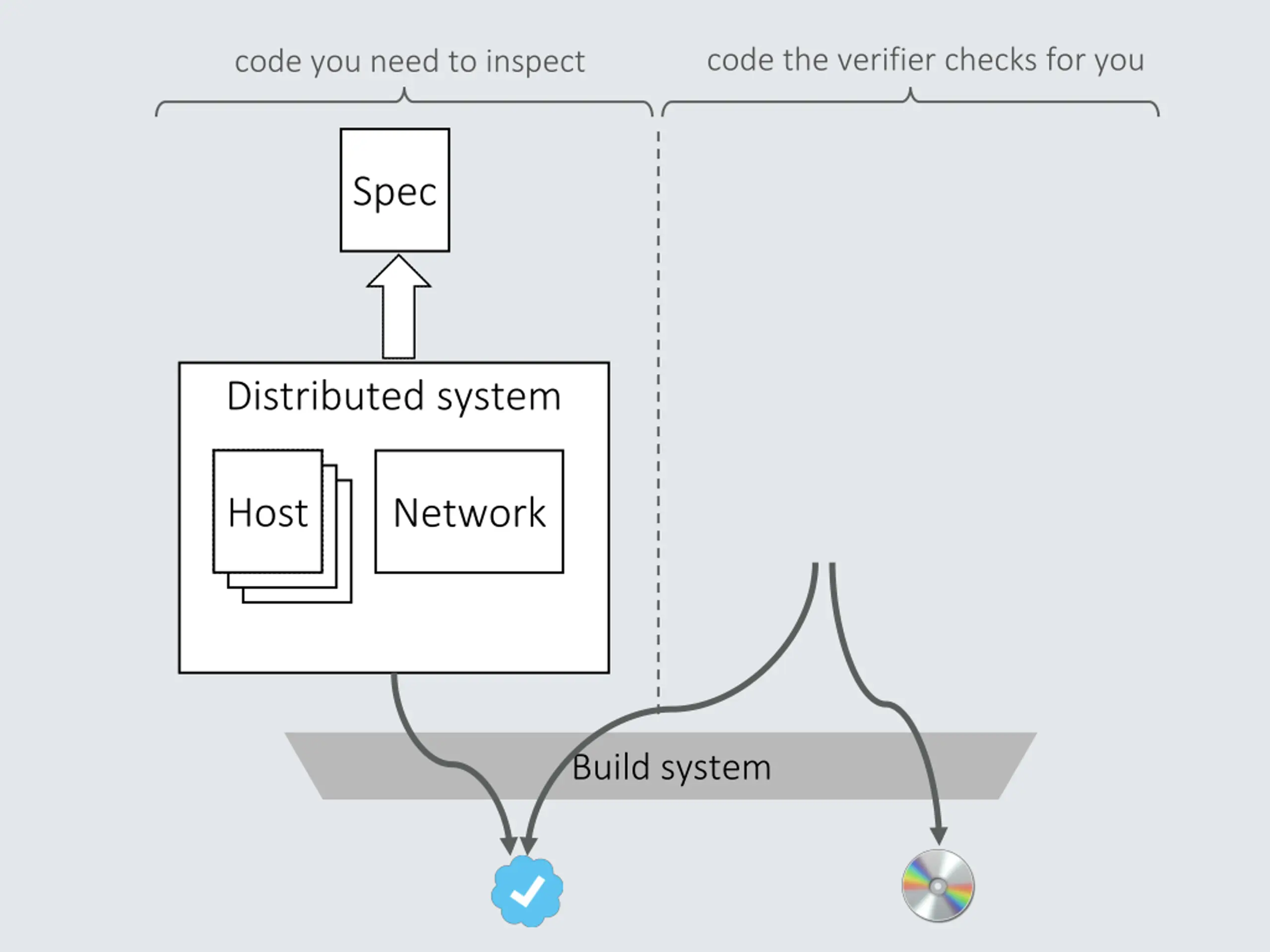

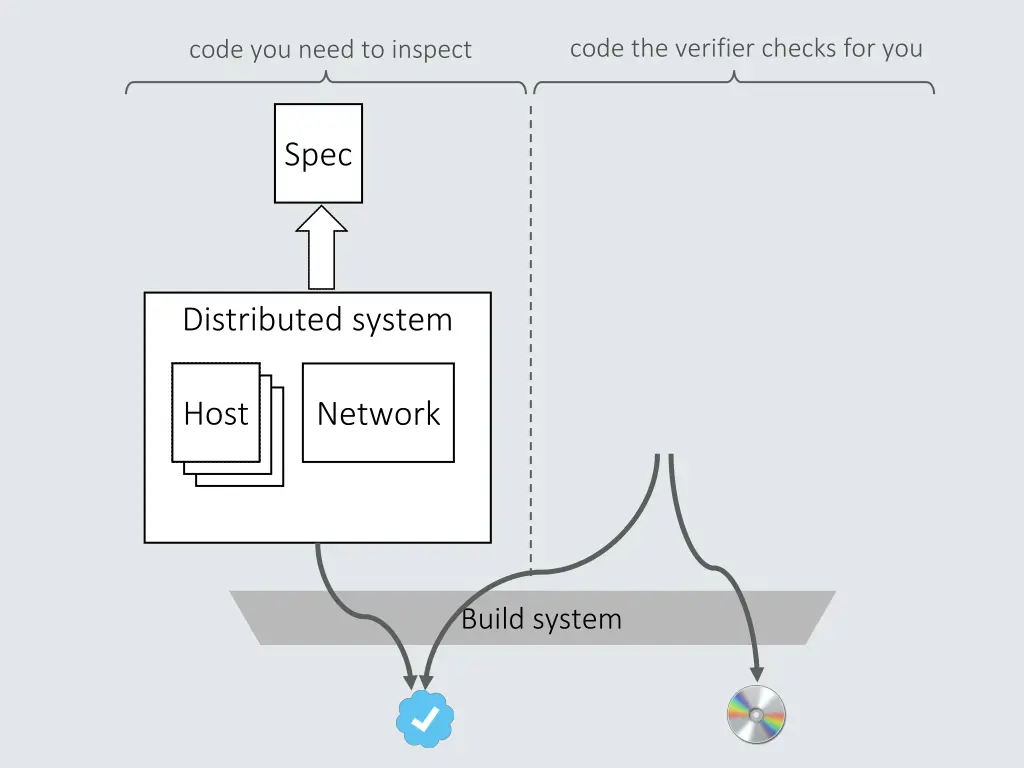

code the verifier checks for you code you need to inspect Spec Distributed system Host Network Host Host Build system

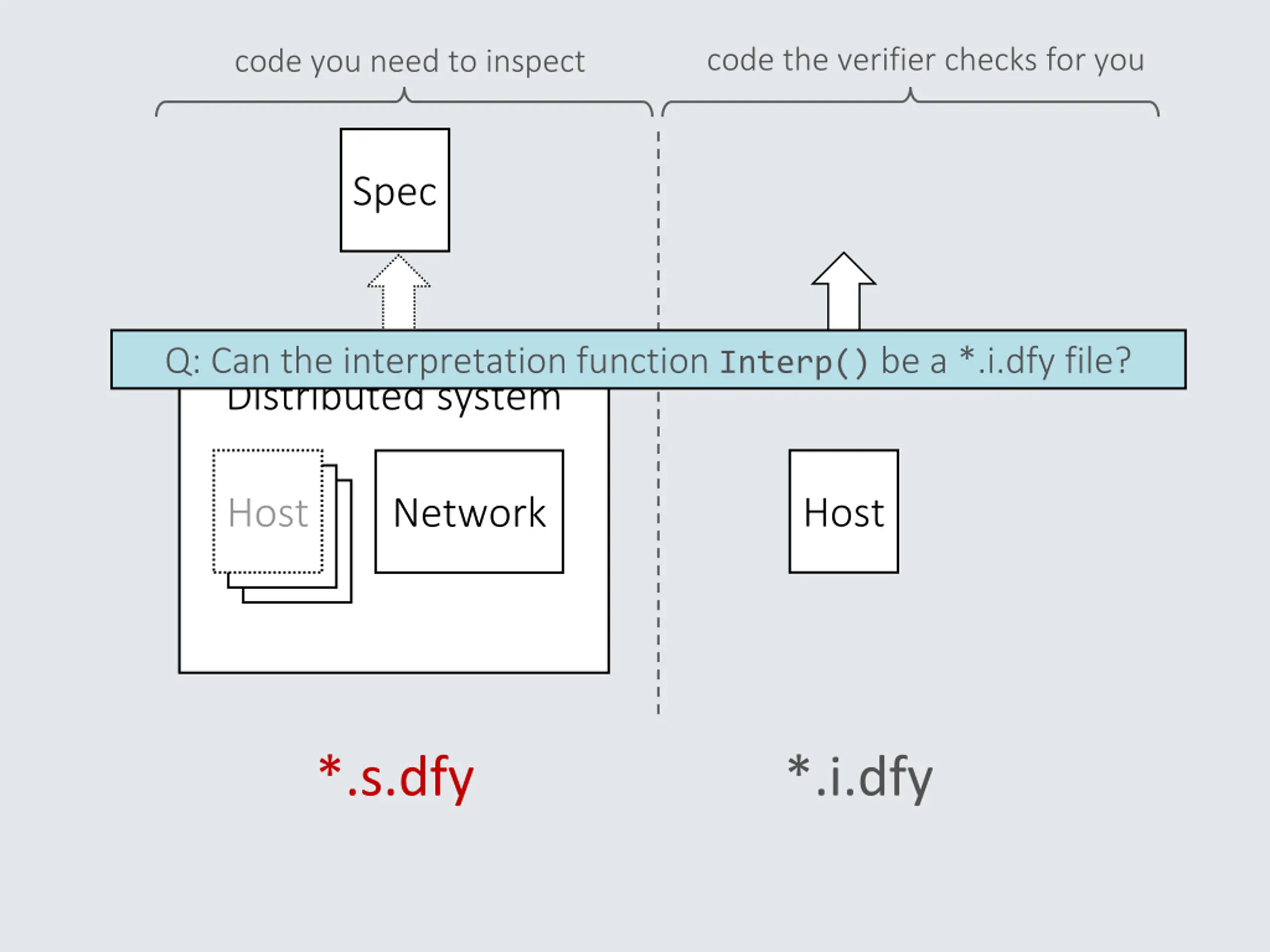

code the verifier checks for you code you need to inspect Spec Q: Can the interpretation function Interp() be a *.i.dfy file? Distributed system Host Network Host Host *.s.dfy *.i.dfy

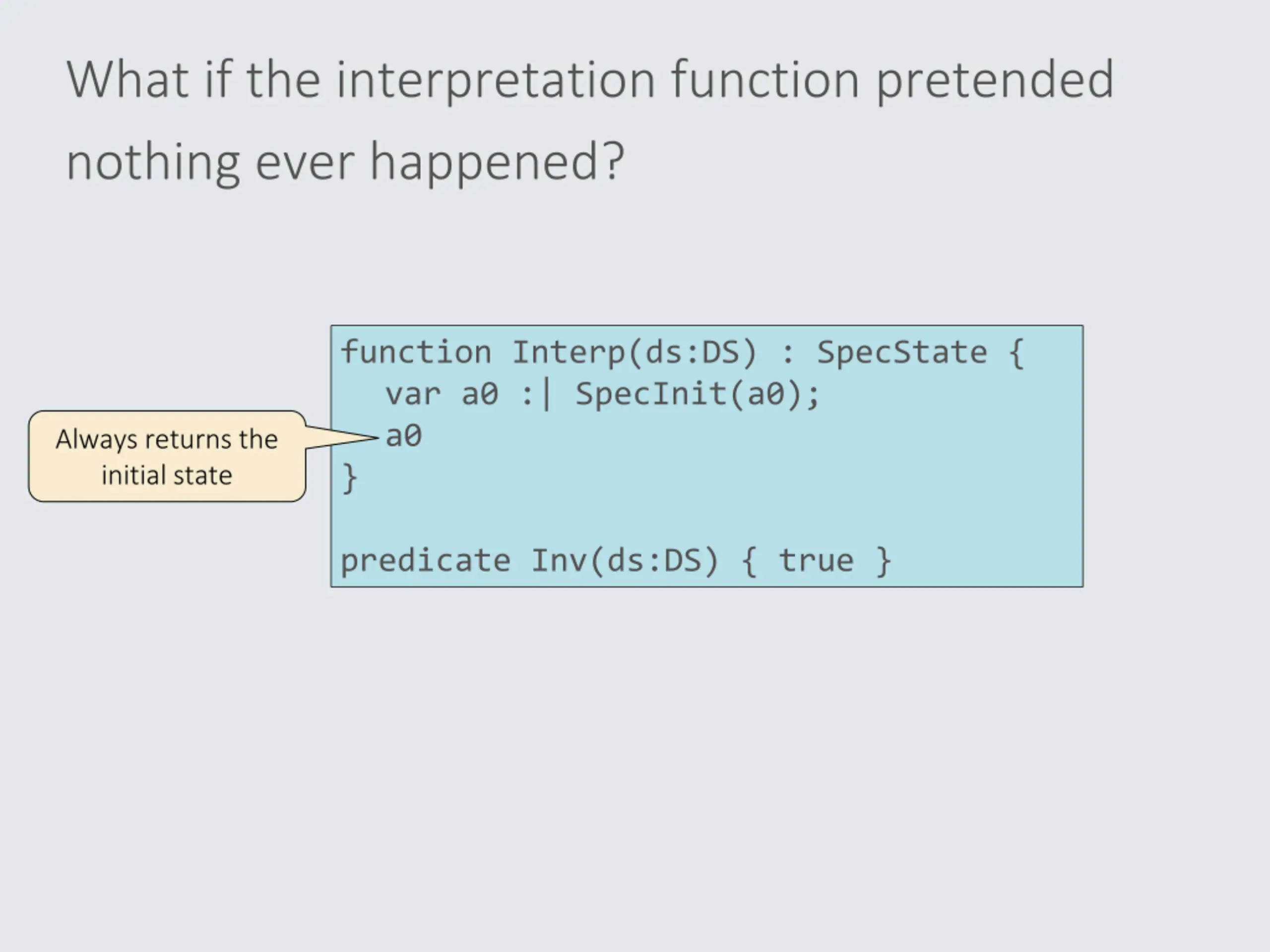

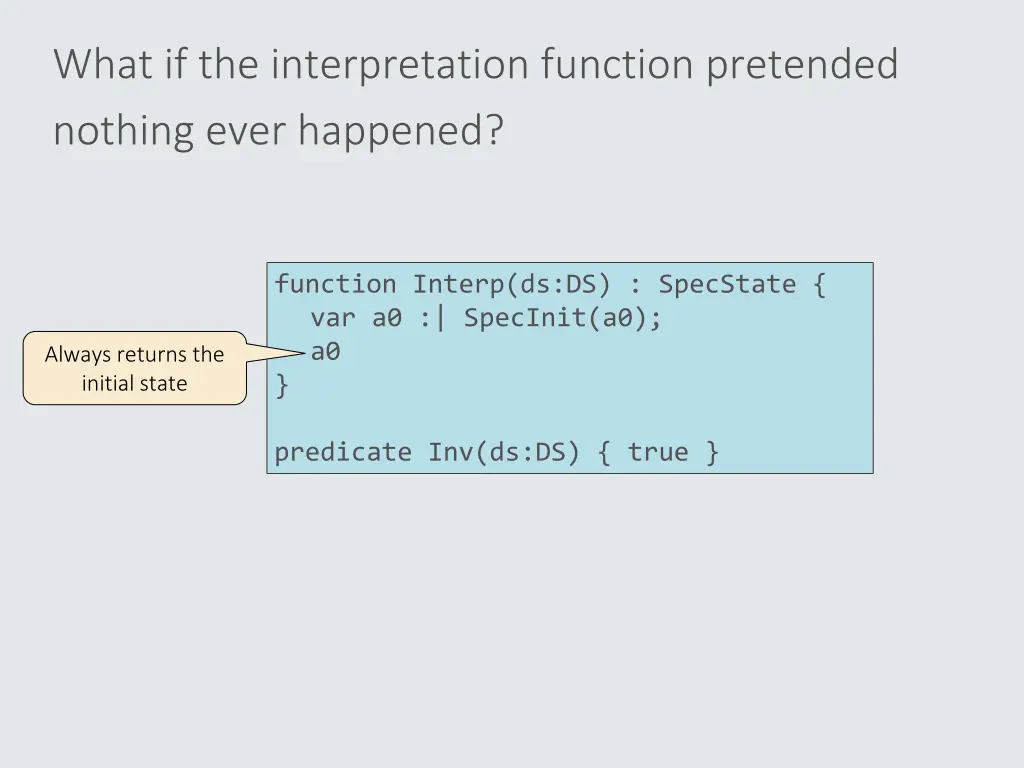

What if the interpretation function pretended nothing ever happened? function Interp(ds:DS) : SpecState { var a0 :| SpecInit(a0); a0 } Always returns the initial state predicate Inv(ds:DS) { true }

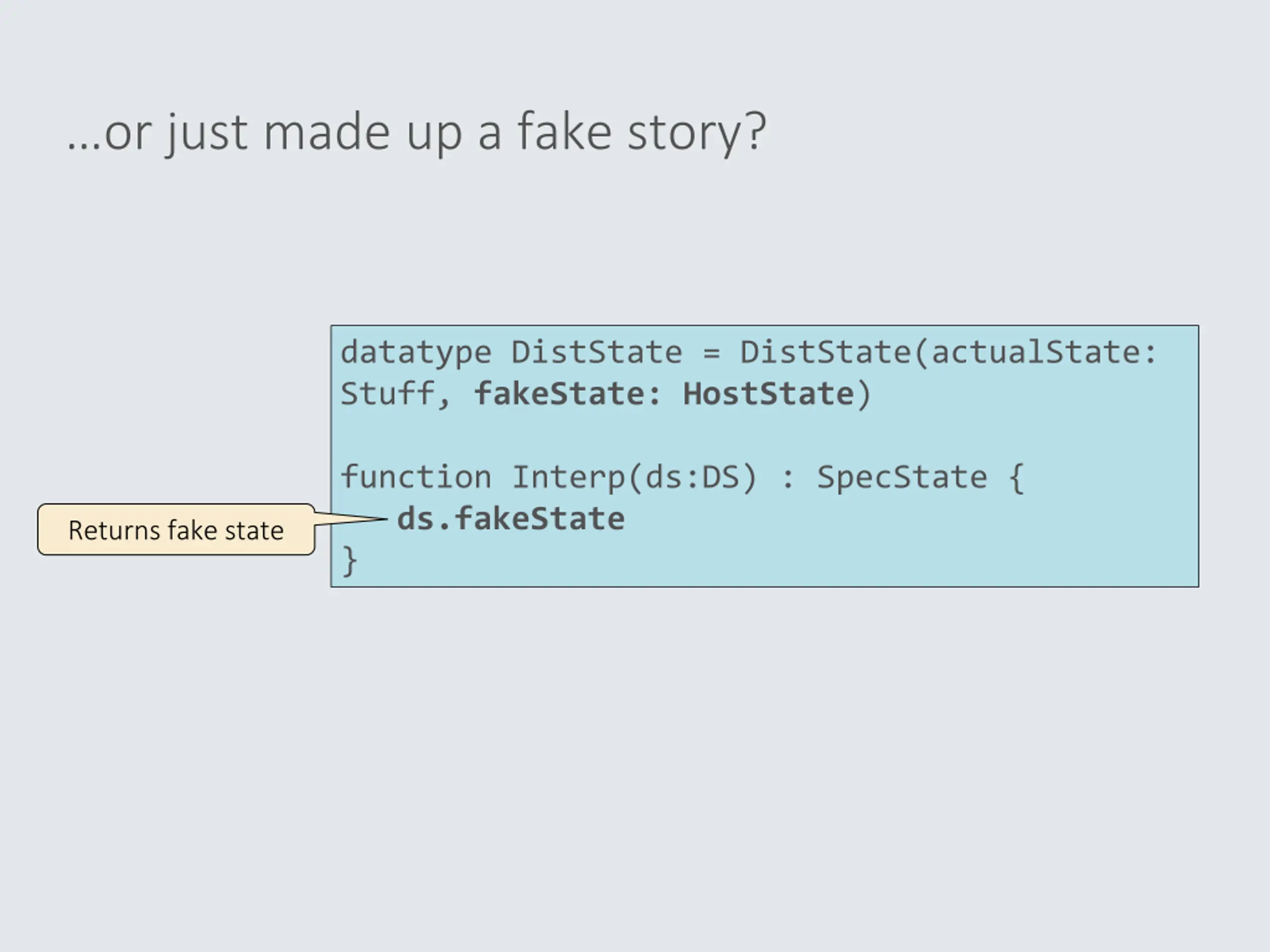

or just made up a fake story? datatype DistState = DistState(actualState: Stuff, fakeState: HostState) function Interp(ds:DS) : SpecState { ds.fakeState } Returns fake state

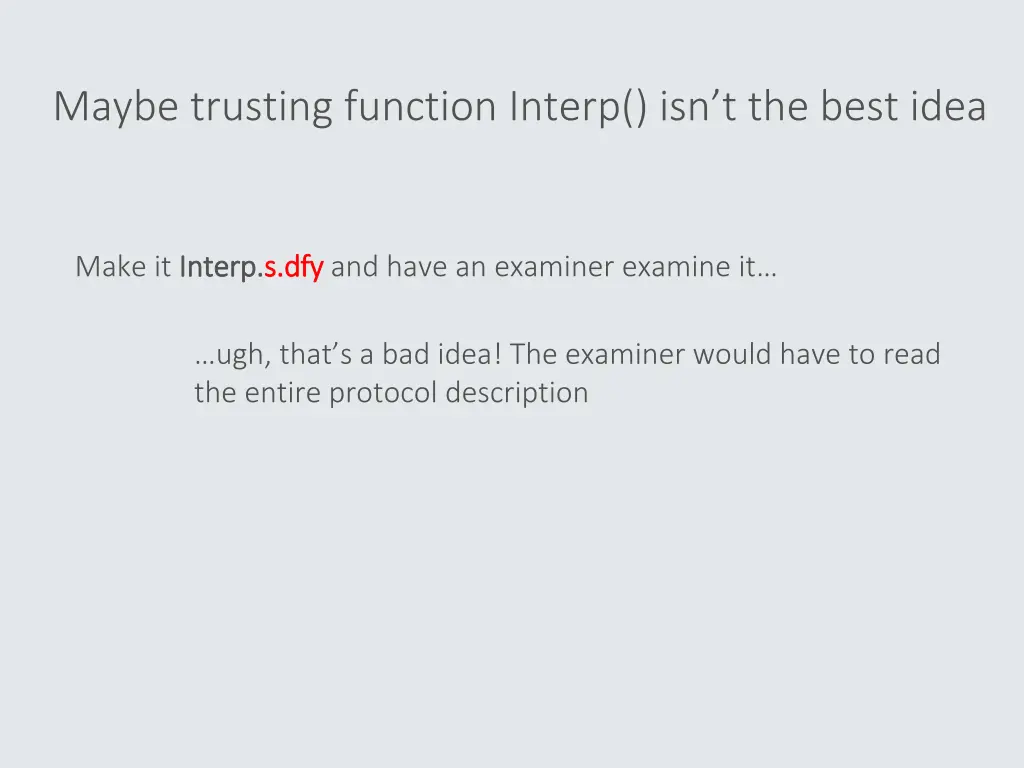

Maybe trusting function Interp() isnt the best idea Make it Interp. Interp.s.dfy s.dfy and have an examiner examine it ugh, that s a bad idea! The examiner would have to read the entire protocol description

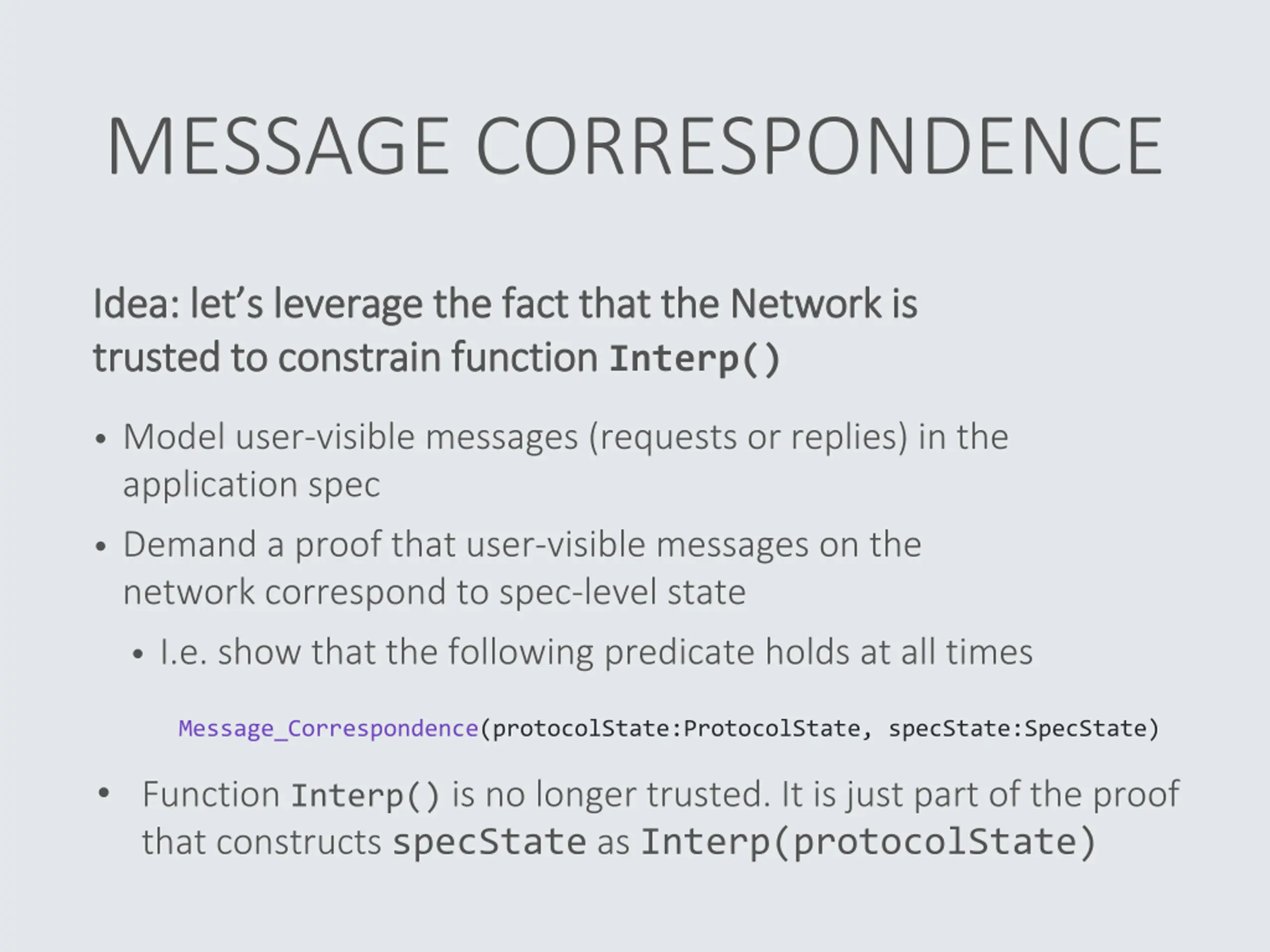

MESSAGE CORRESPONDENCE Idea: let s leverage the fact that the Network is Idea: let s leverage the fact that the Network is trusted to constrain function trusted to constrain function Interp() Model user-visible messages (requests or replies) in the application spec Demand a proof that user-visible messages on the network correspond to spec-level state I.e. show that the following predicate holds at all times Message_Correspondence(protocolState:ProtocolState, specState:SpecState) Function Interp() is no longer trusted. It is just part of the proof that constructs specState as Interp(protocolState)

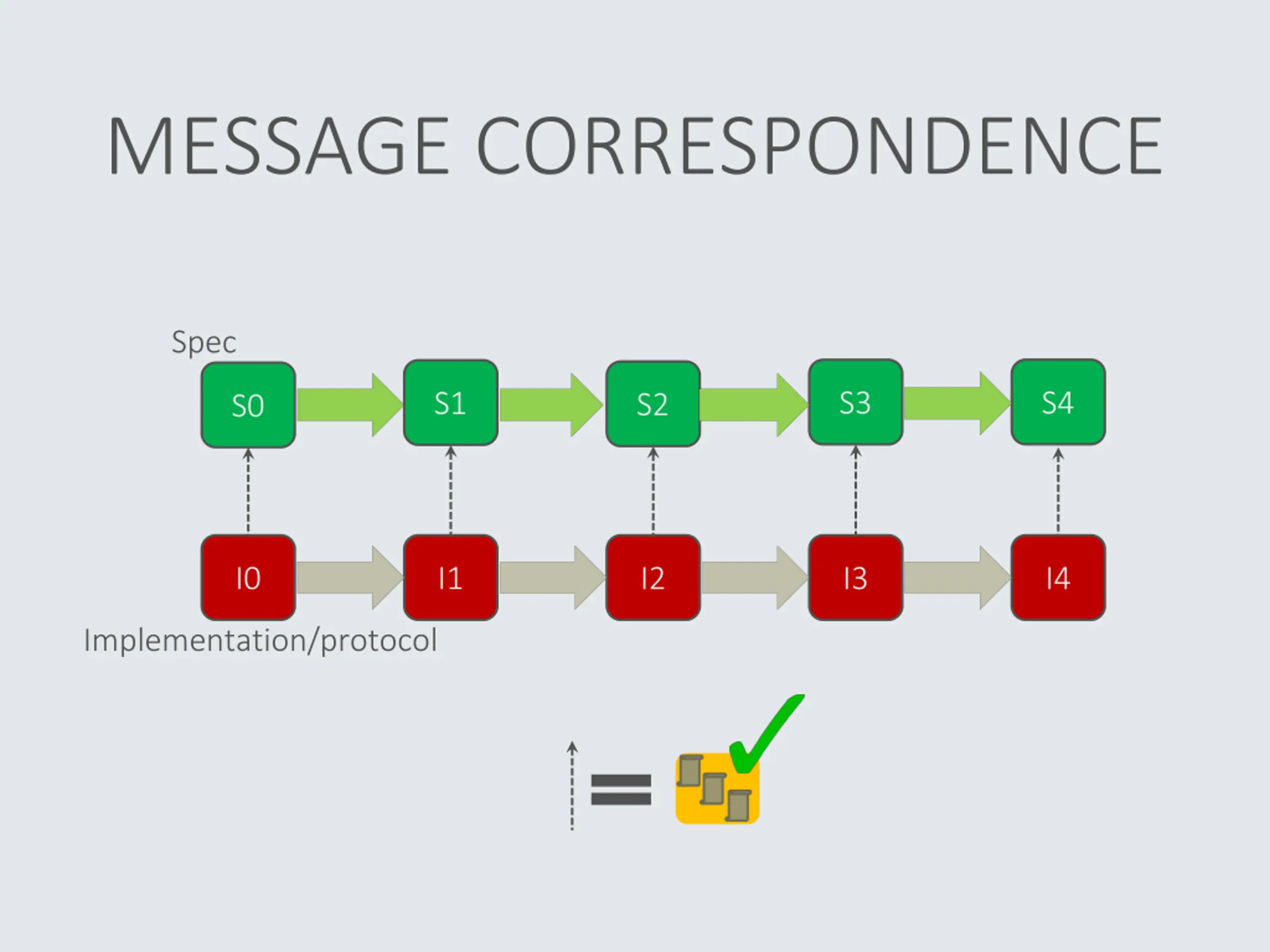

MESSAGE CORRESPONDENCE Spec S4 S3 S1 S2 S0 I0 I1 I2 I3 I4 Implementation/protocol

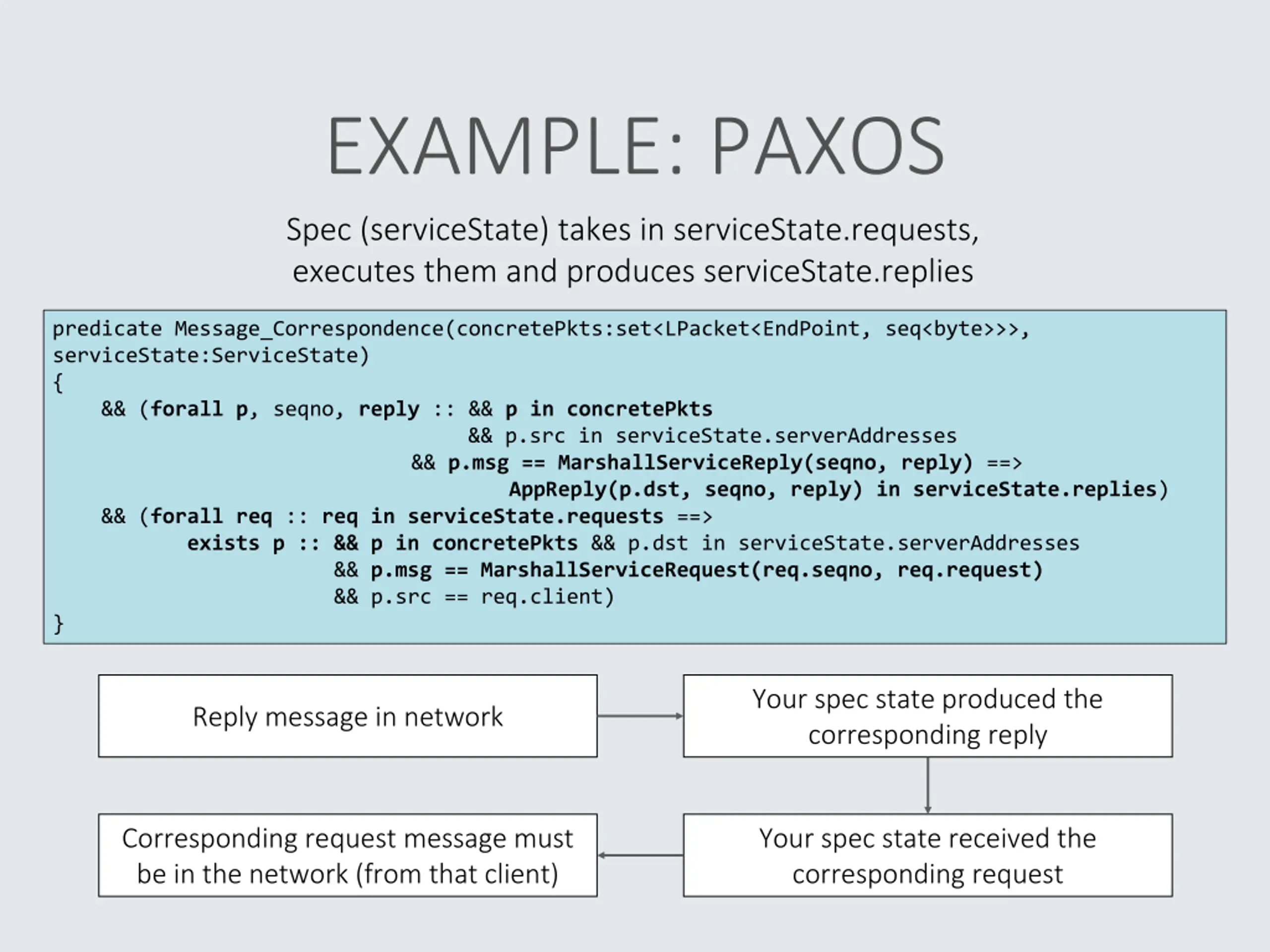

EXAMPLE: PAXOS Spec (serviceState) takes in serviceState.requests, executes them and produces serviceState.replies predicate Message_Correspondence(concretePkts:set<LPacket<EndPoint, seq<byte>>>, serviceState:ServiceState) { && (forall p, seqno, reply :: && p in concretePkts && p.src in serviceState.serverAddresses && p.msg == MarshallServiceReply(seqno, reply) ==> AppReply(p.dst, seqno, reply) in serviceState.replies) && (forall req :: req in serviceState.requests ==> exists p :: && p in concretePkts && p.dst in serviceState.serverAddresses && p.msg == MarshallServiceRequest(req.seqno, req.request) && p.src == req.client) } Your spec state produced the corresponding reply Reply message in network Corresponding request message must be in the network (from that client) Your spec state received the corresponding request

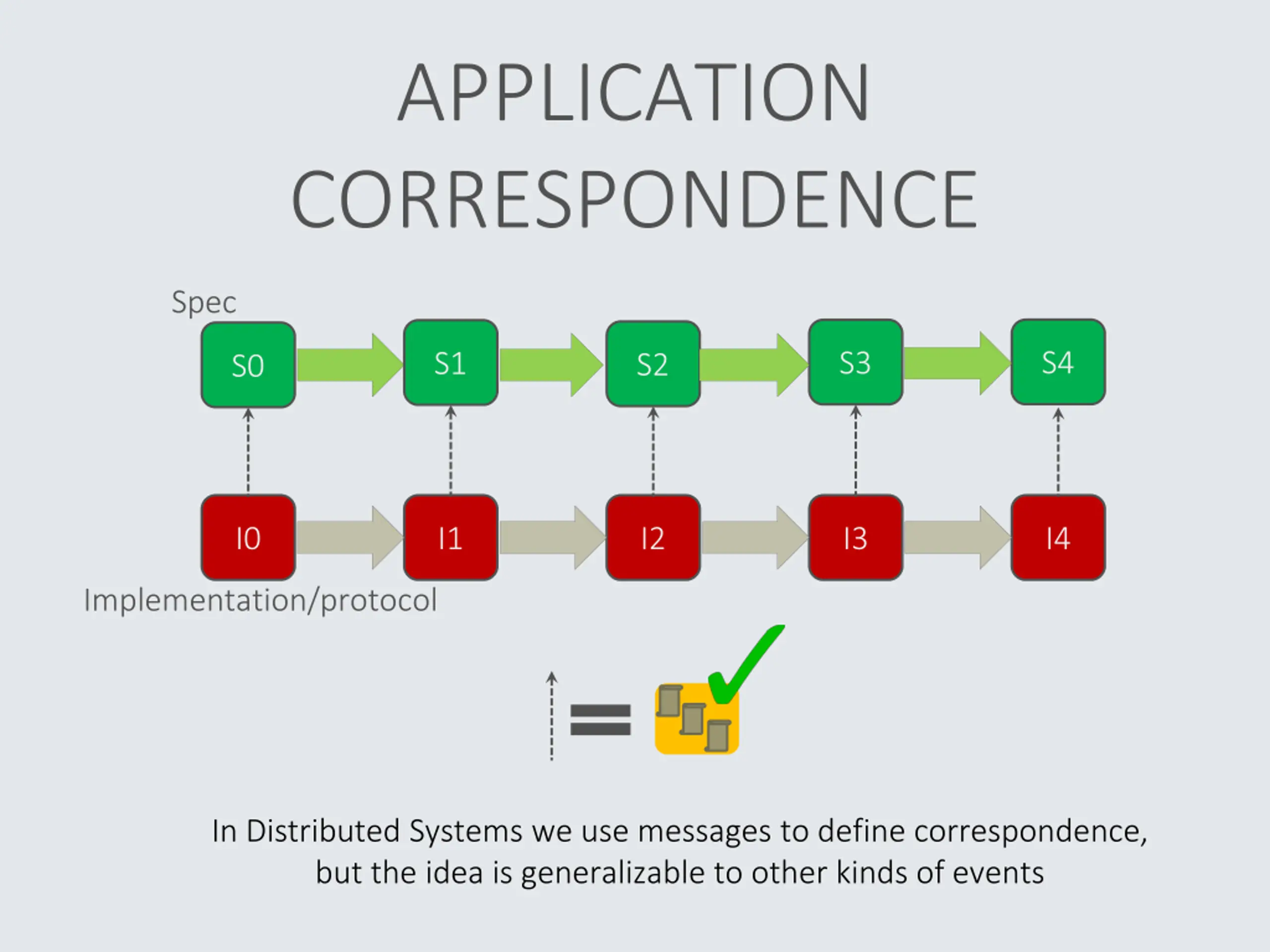

APPLICATION CORRESPONDENCE Spec S4 S3 S1 S2 S0 I0 I1 I2 I3 I4 Implementation/protocol In Distributed Systems we use messages to define correspondence, but the idea is generalizable to other kinds of events
