Layer 4 The Transport Layer David Ferry CSCI 3500 Operating Systems Saint Louis University St. Louis, MO 63103 1

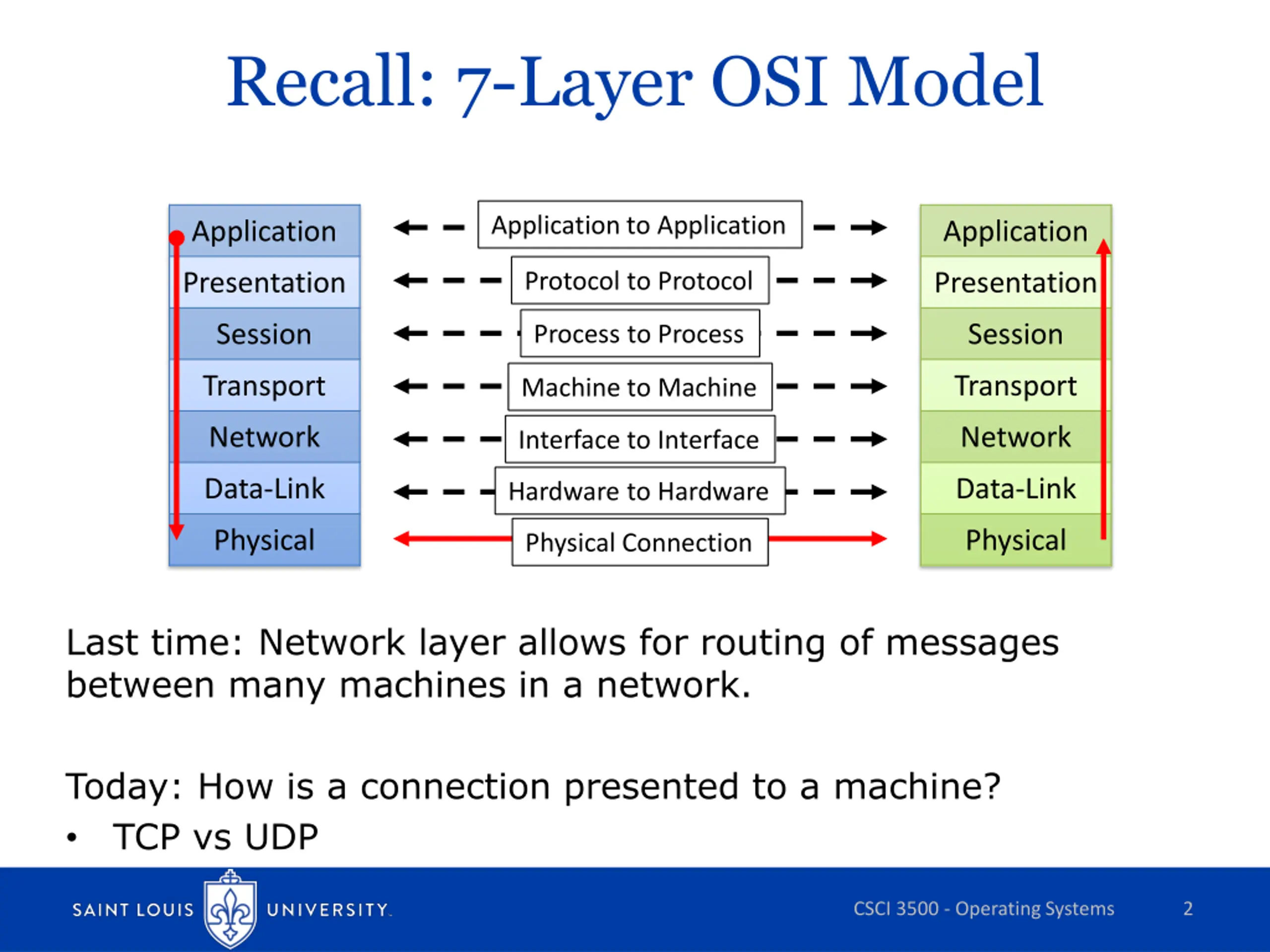

Recall: 7-Layer OSI Model Application to Application Application Application Protocol to Protocol Presentation Presentation Session Session Process to Process Transport Transport Machine to Machine Network Network Interface to Interface Data-Link Data-Link Hardware to Hardware Physical Physical Physical Connection Last time: Network layer allows for routing of messages between many machines in a network. Today: How is a connection presented to a machine? TCP vs UDP CSCI 3500 - Operating Systems 2

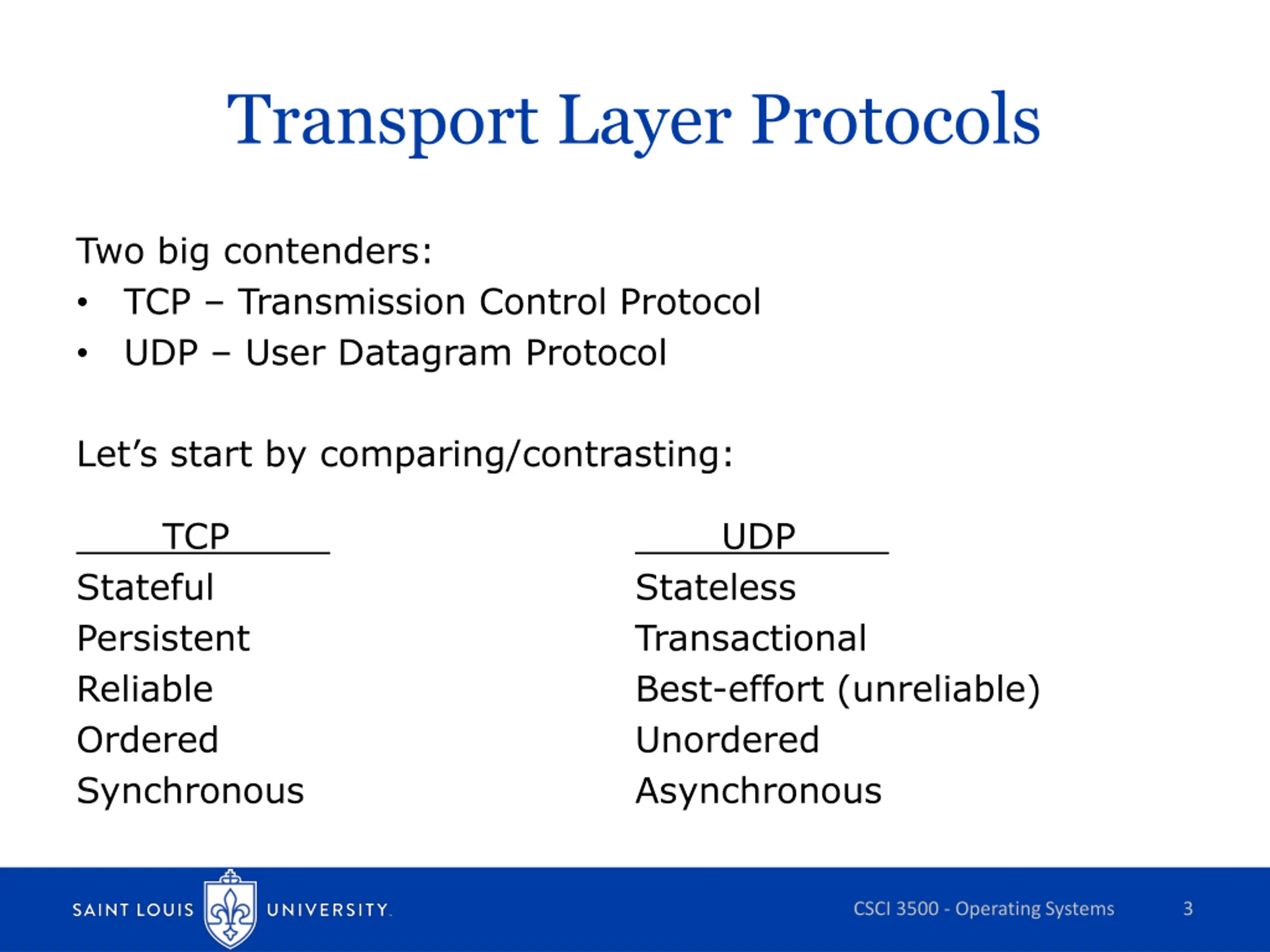

Transport Layer Protocols Two big contenders: TCP Transmission Control Protocol UDP User Datagram Protocol Let s start by comparing/contrasting: TCP Stateful Persistent Reliable Ordered Synchronous UDP Stateless Transactional Best-effort (unreliable) Unordered Asynchronous CSCI 3500 - Operating Systems 3

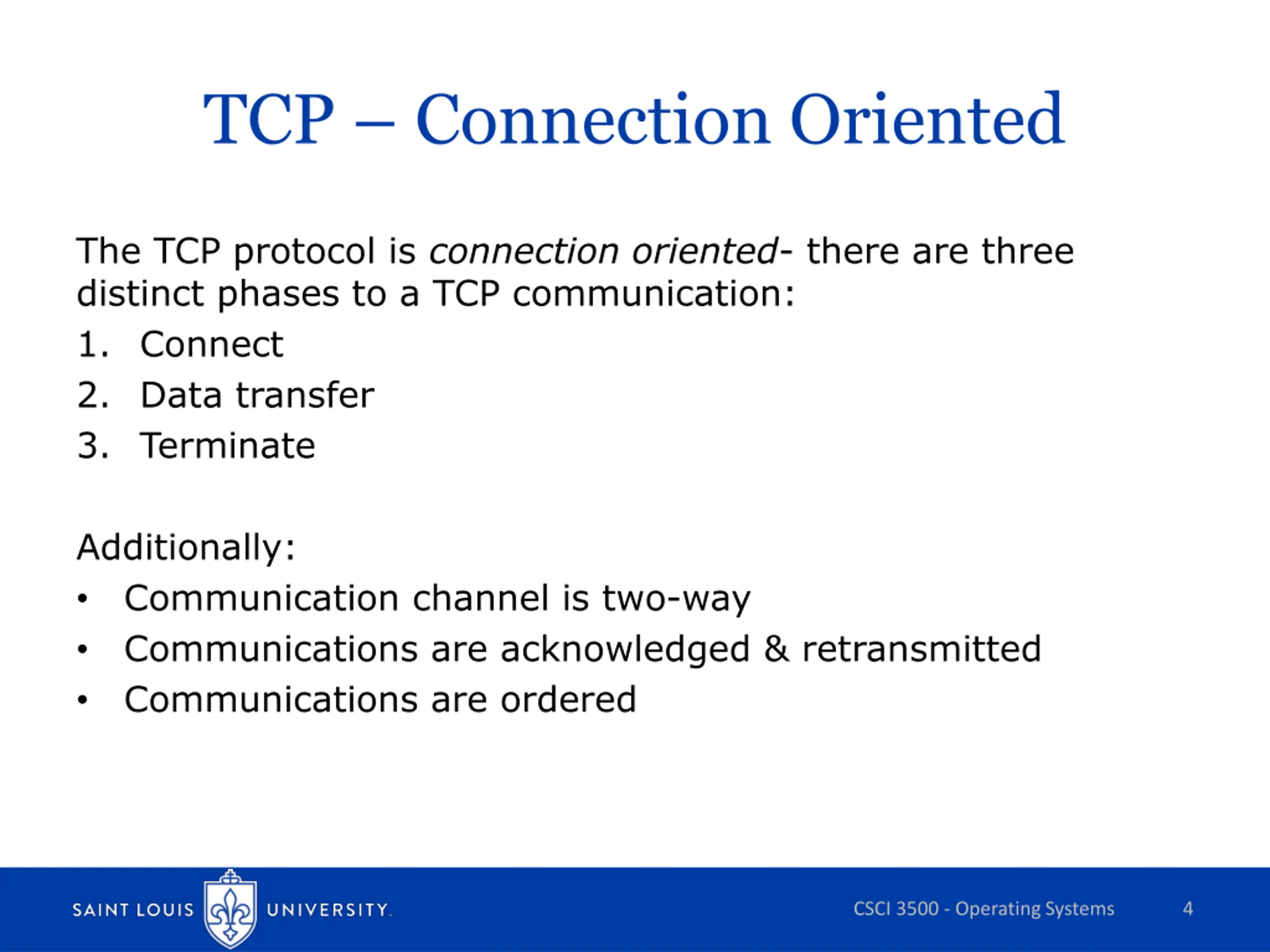

TCP Connection Oriented The TCP protocol is connection oriented- there are three distinct phases to a TCP communication: 1. Connect 2. Data transfer 3. Terminate Additionally: Communication channel is two-way Communications are acknowledged & retransmitted Communications are ordered CSCI 3500 - Operating Systems 4

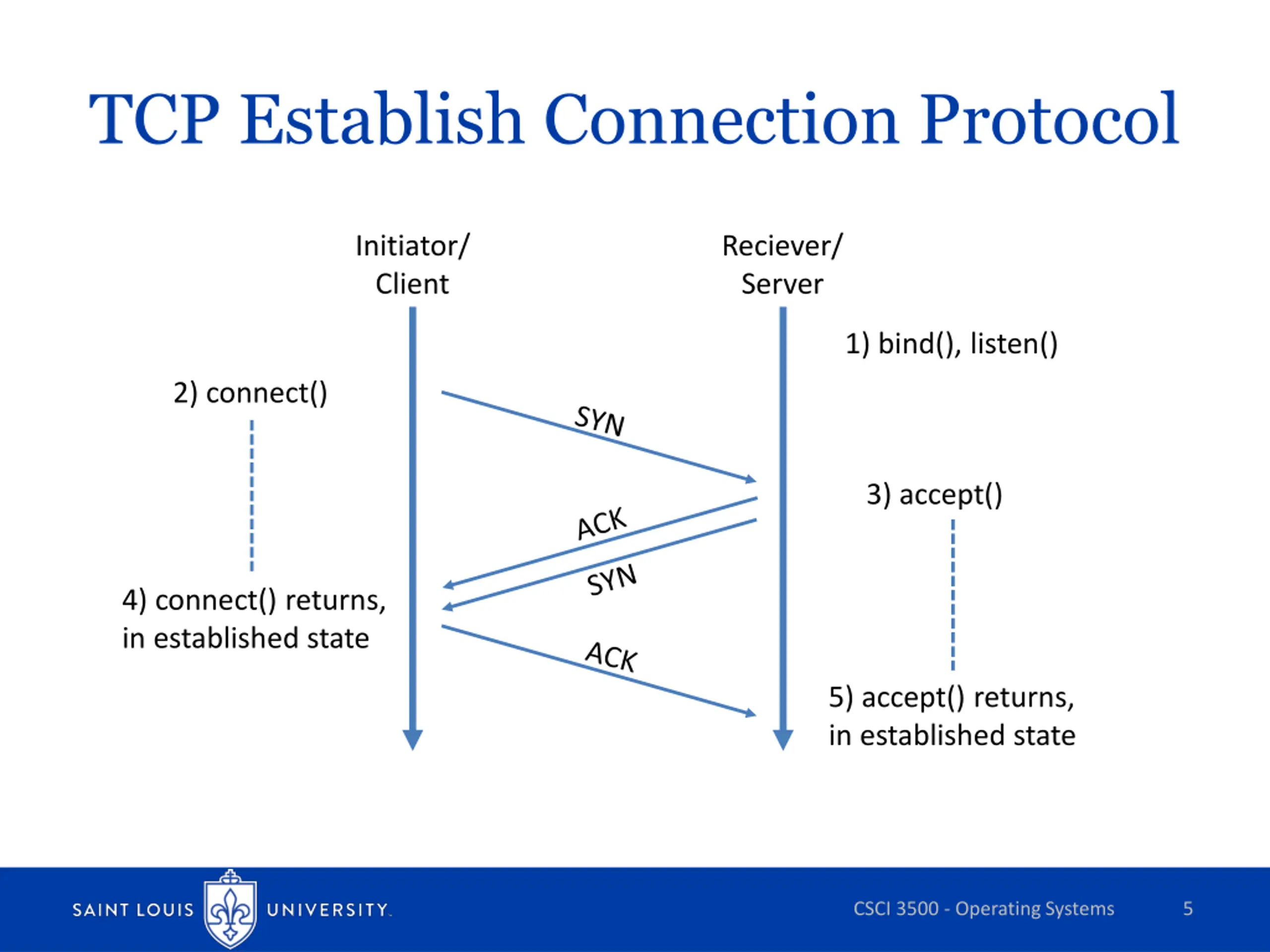

TCP Establish Connection Protocol Initiator/ Client Reciever/ Server 1) bind(), listen() 2) connect() 3) accept() 4) connect() returns, in established state 5) accept() returns, in established state CSCI 3500 - Operating Systems 5

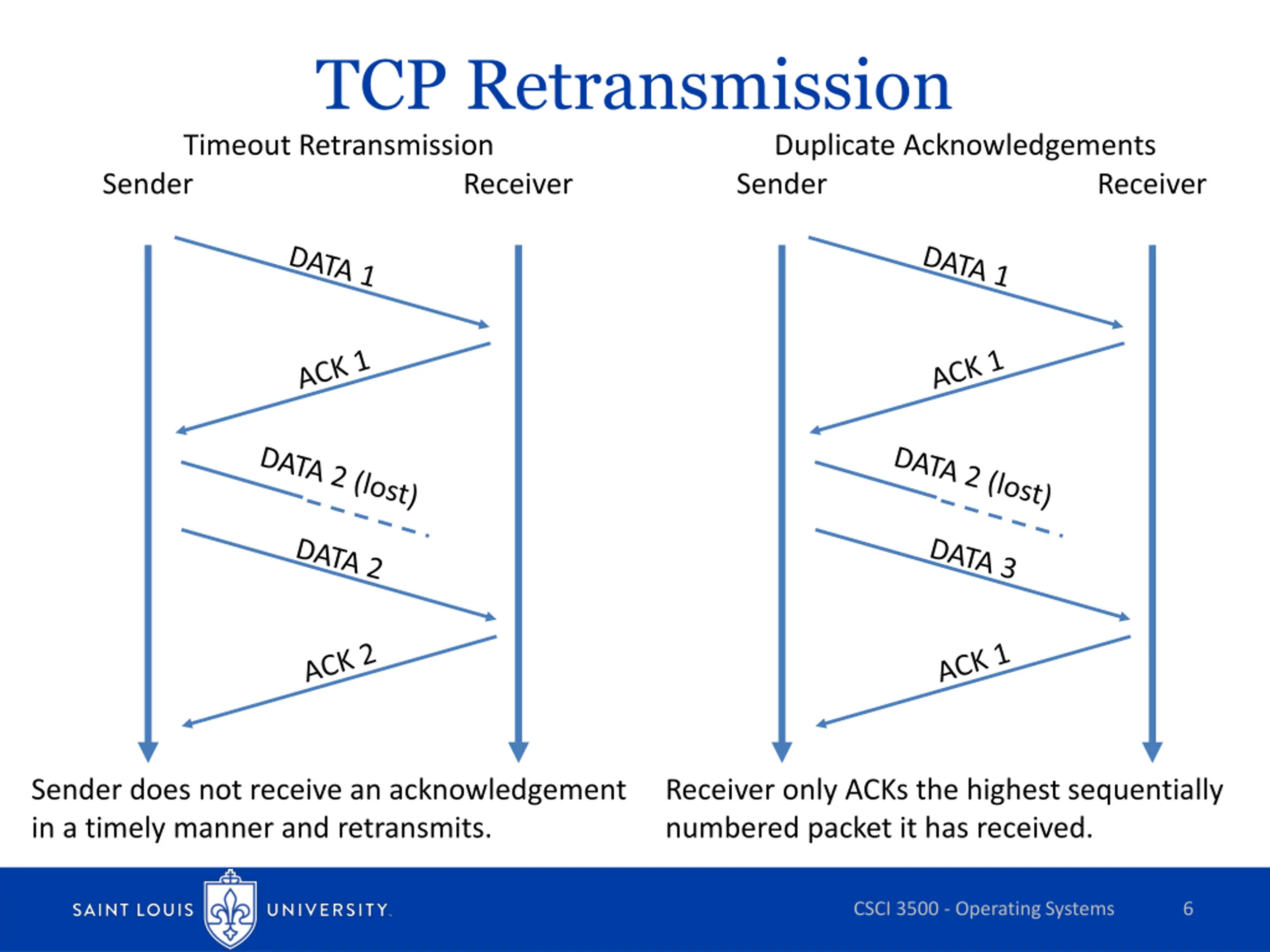

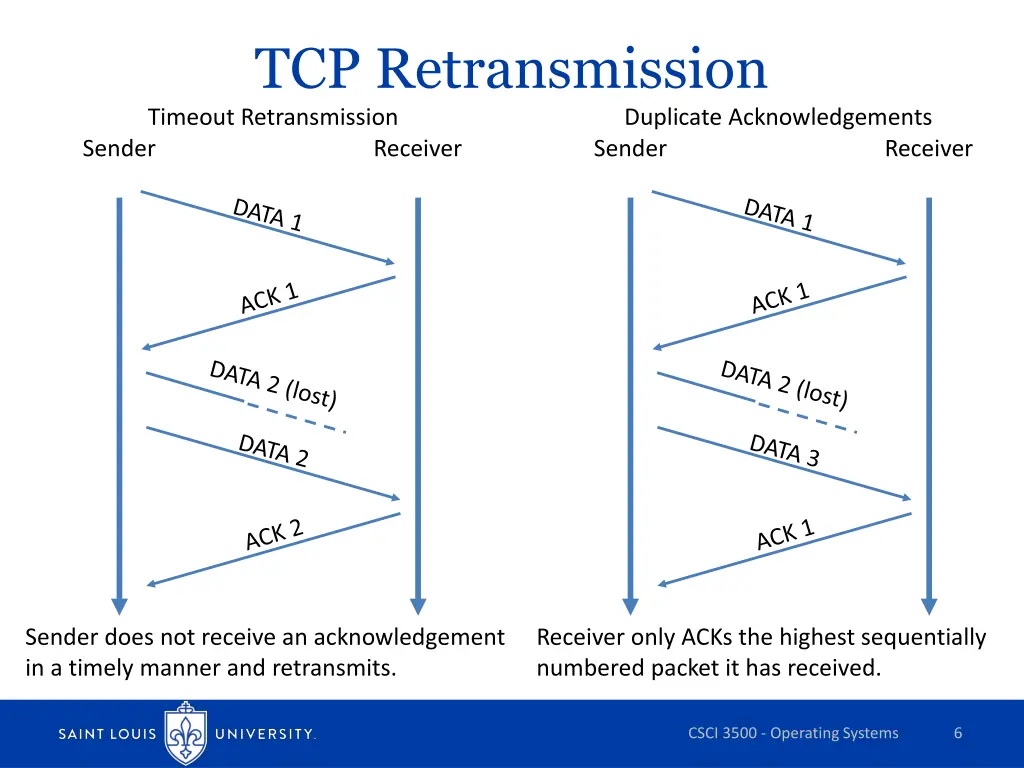

TCP Retransmission Timeout Retransmission Duplicate Acknowledgements Sender Receiver Sender Receiver Sender does not receive an acknowledgement in a timely manner and retransmits. Receiver only ACKs the highest sequentially numbered packet it has received. CSCI 3500 - Operating Systems 6

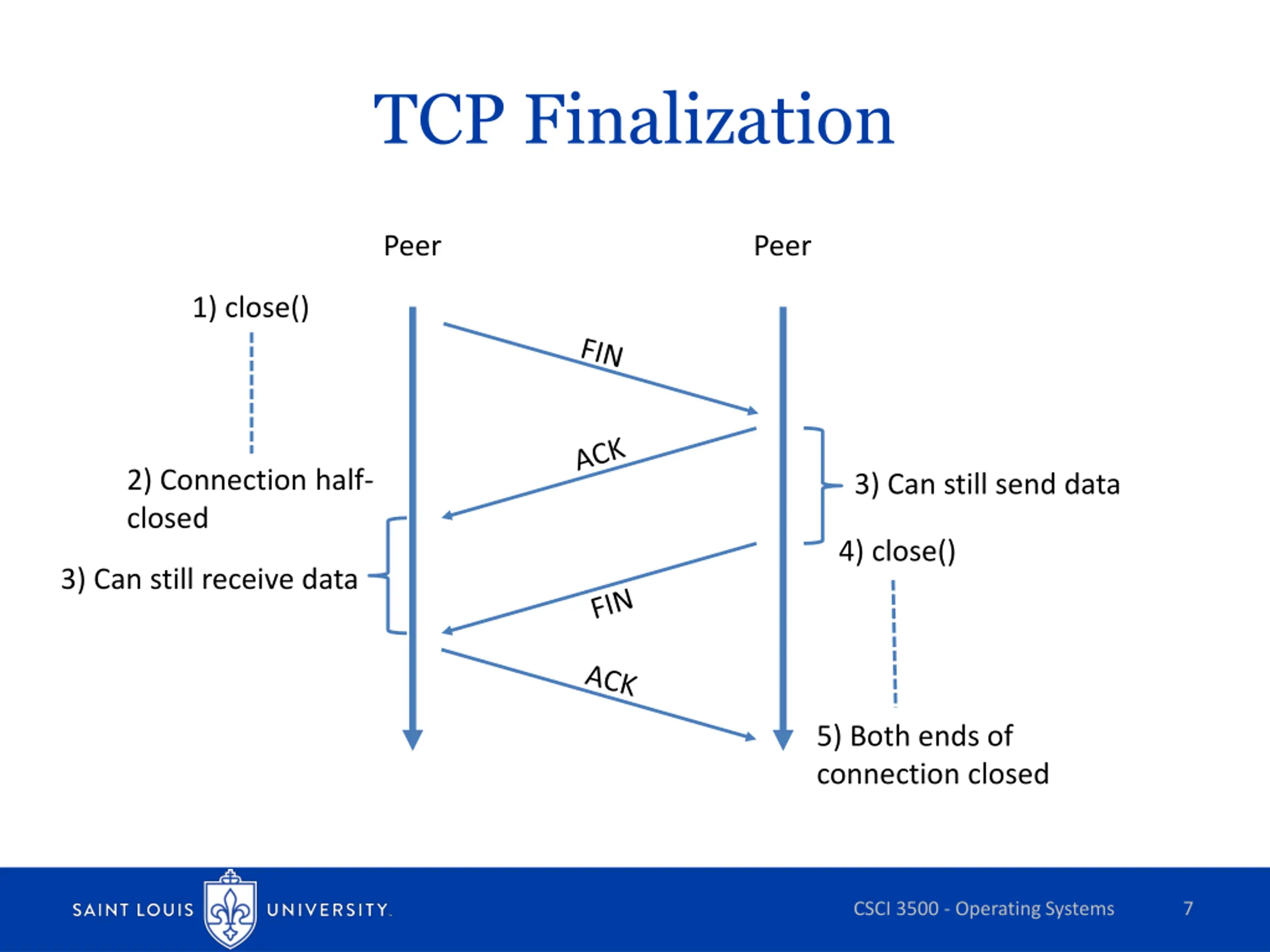

TCP Finalization Peer Peer 1) close() 2) Connection half- closed 3) Can still send data 4) close() 3) Can still receive data 5) Both ends of connection closed CSCI 3500 - Operating Systems 7

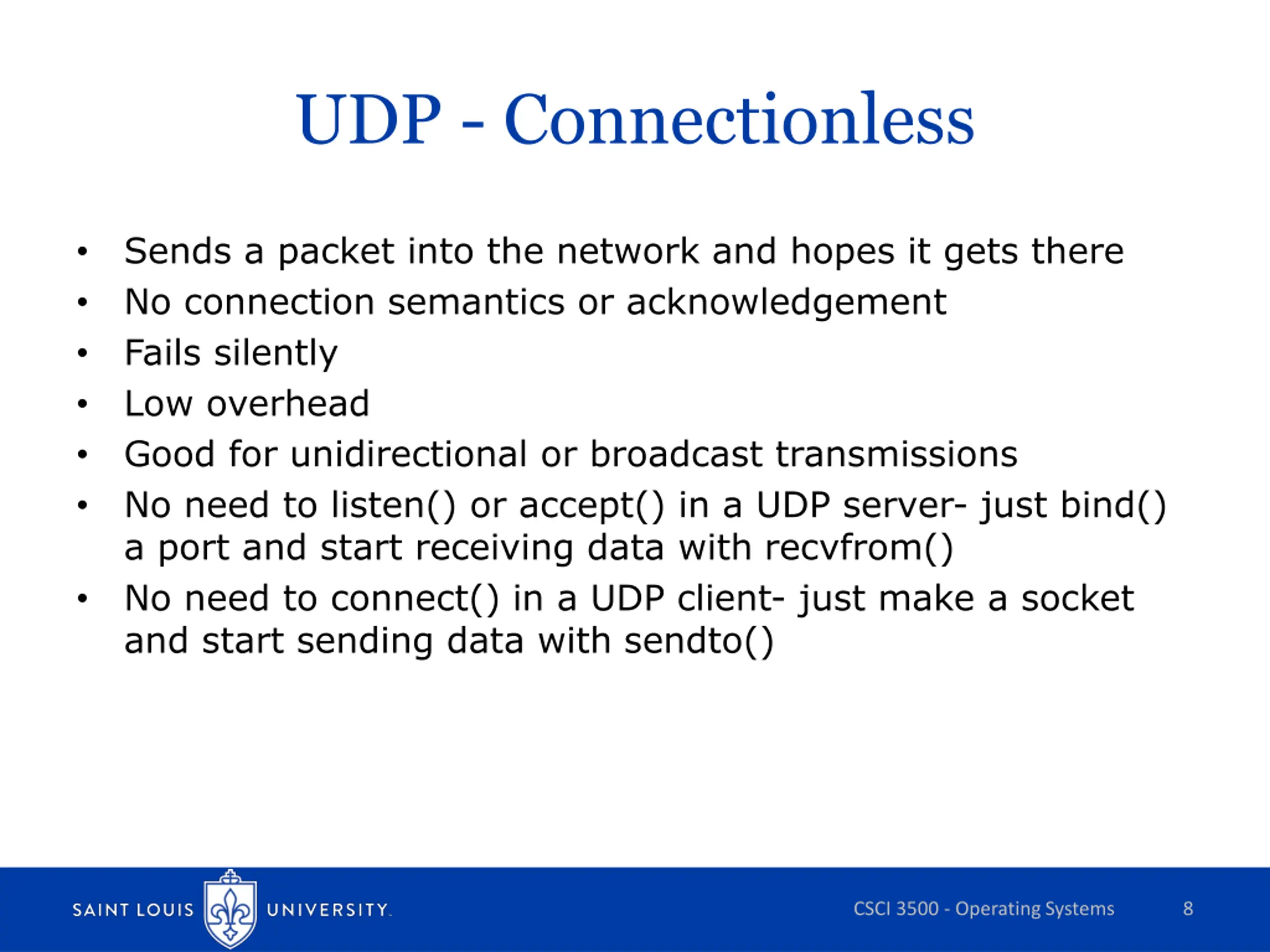

UDP - Connectionless Sends a packet into the network and hopes it gets there No connection semantics or acknowledgement Fails silently Low overhead Good for unidirectional or broadcast transmissions No need to listen() or accept() in a UDP server- just bind() a port and start receiving data with recvfrom() No need to connect() in a UDP client- just make a socket and start sending data with sendto() CSCI 3500 - Operating Systems 8

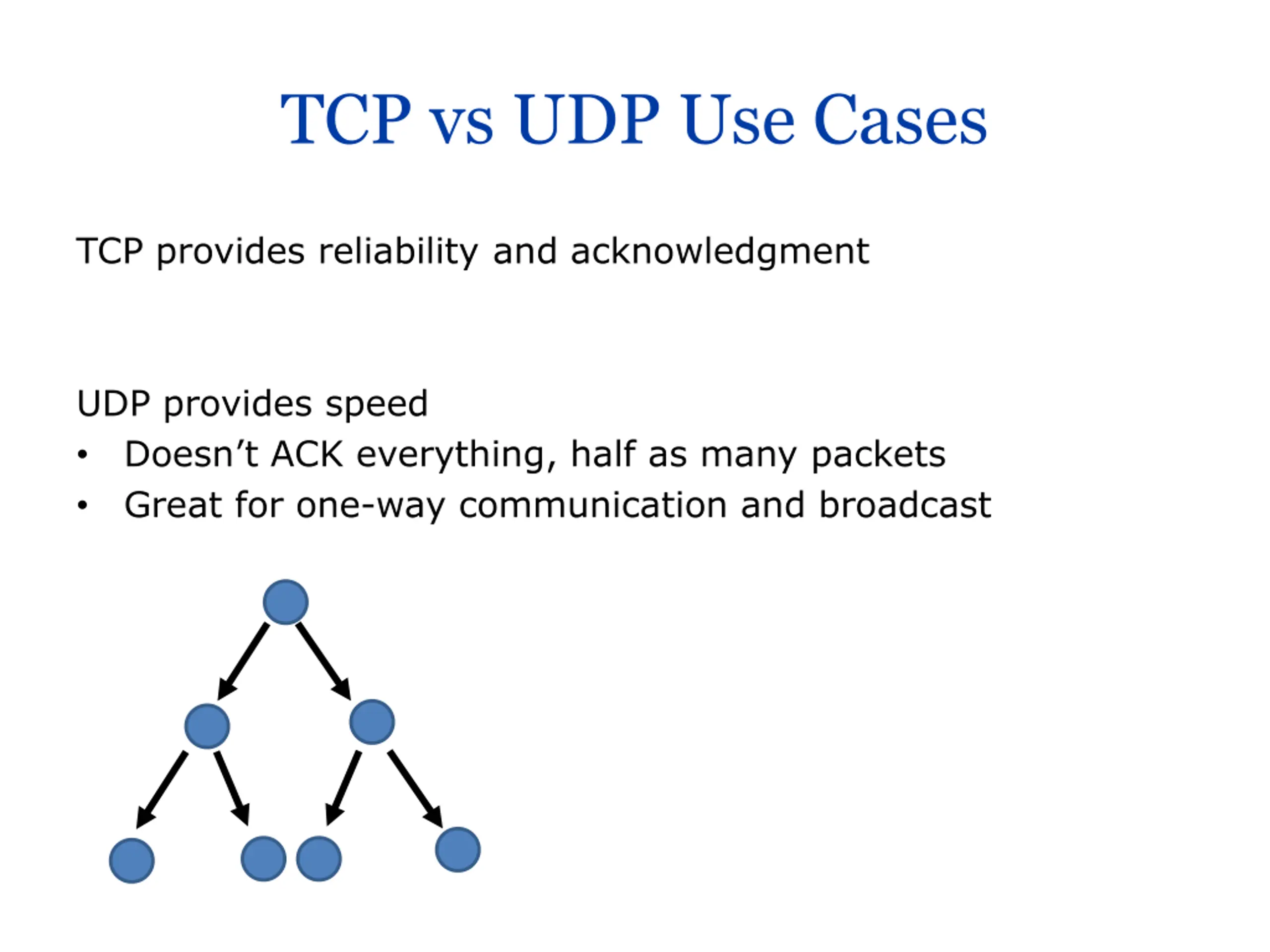

TCP vs UDP Use Cases TCP provides reliability and acknowledgment UDP provides speed Doesn t ACK everything, half as many packets Great for one-way communication and broadcast
