Temperature Yan 02/26/2020

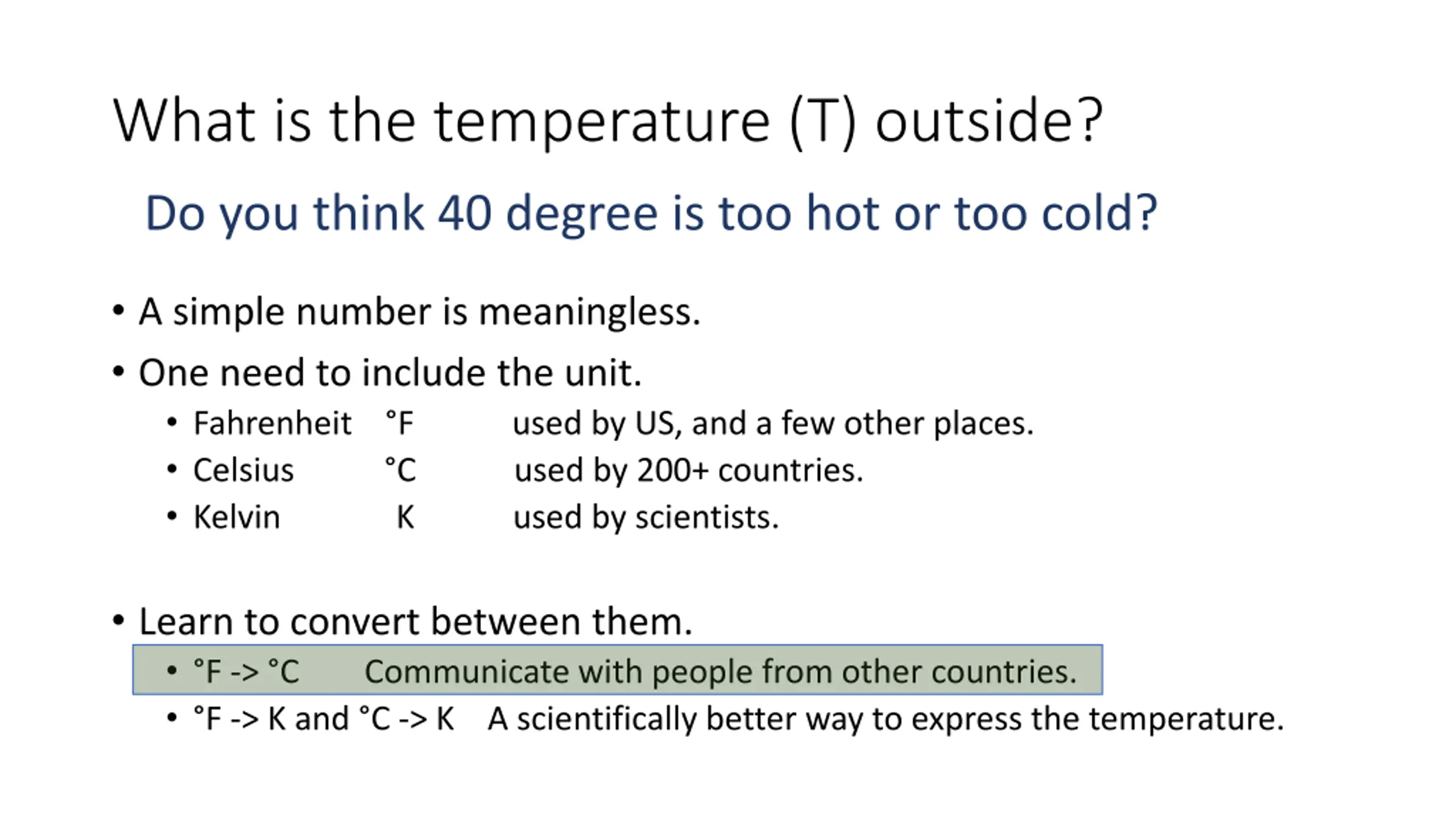

What is the temperature (T) outside? Do you think 40 degree is too hot or too cold? A simple number is meaningless. One need to include the unit. Fahrenheit F used by US, and a few other places. Celsius C used by 200+ countries. Kelvin K used by scientists. Learn to convert between them. F -> C Communicate with people from other countries. F -> K and C -> K A scientifically better way to express the temperature.

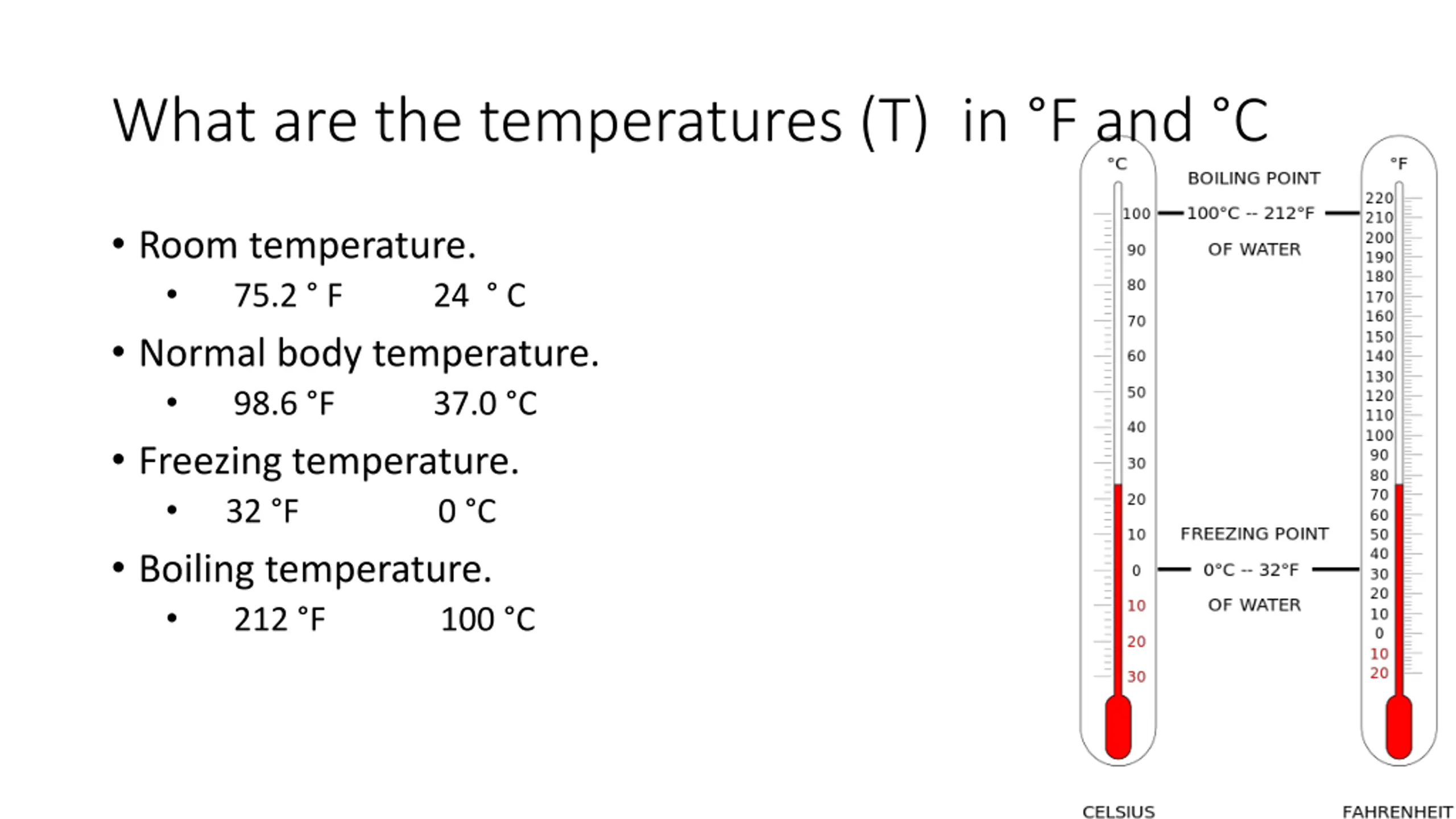

What are the temperatures (T) in F and C Room temperature. 75.2 F 24 C Normal body temperature. 98.6 F 37.0 C Freezing temperature. 32 F 0 C Boiling temperature. 212 F 100 C

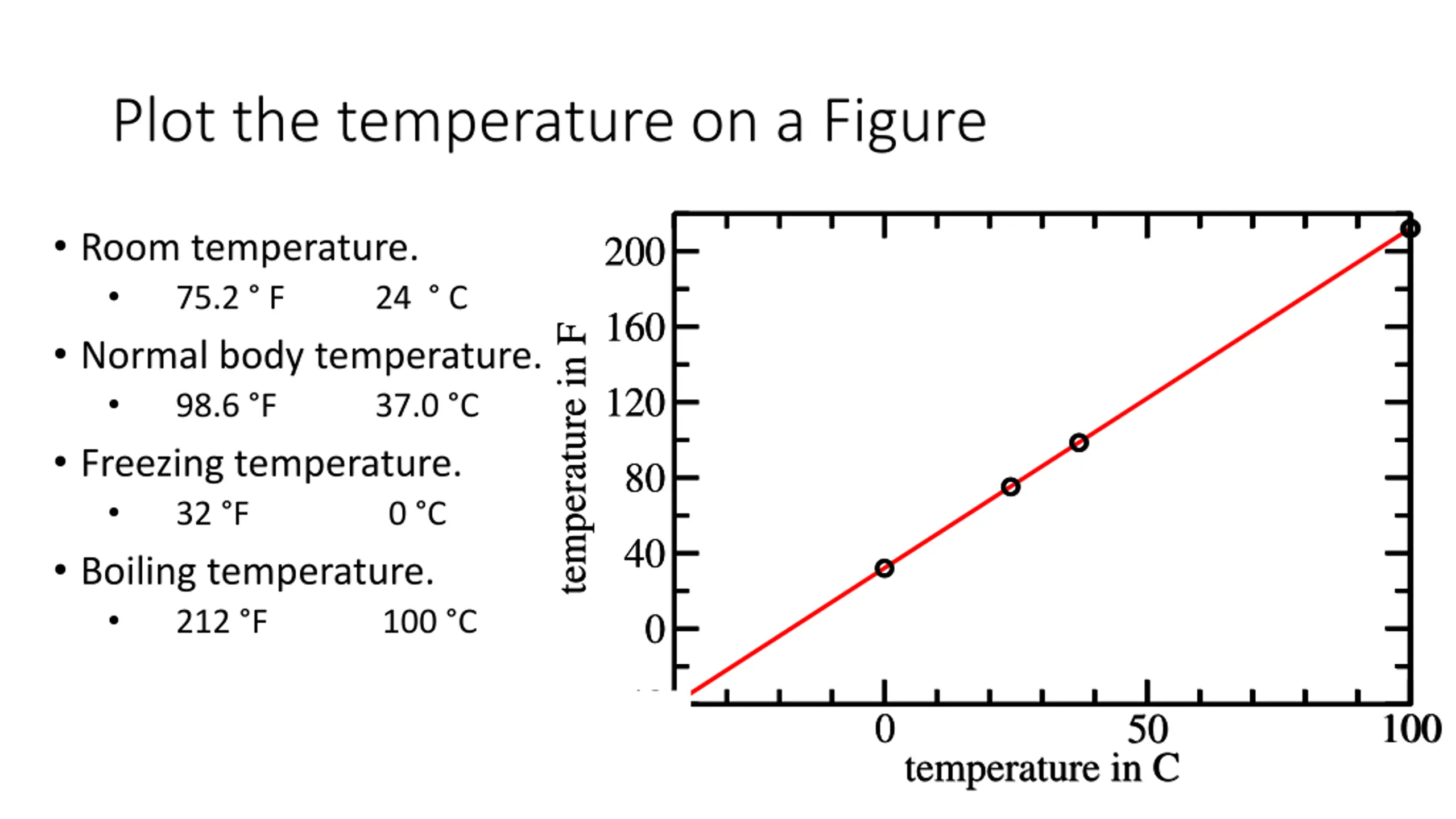

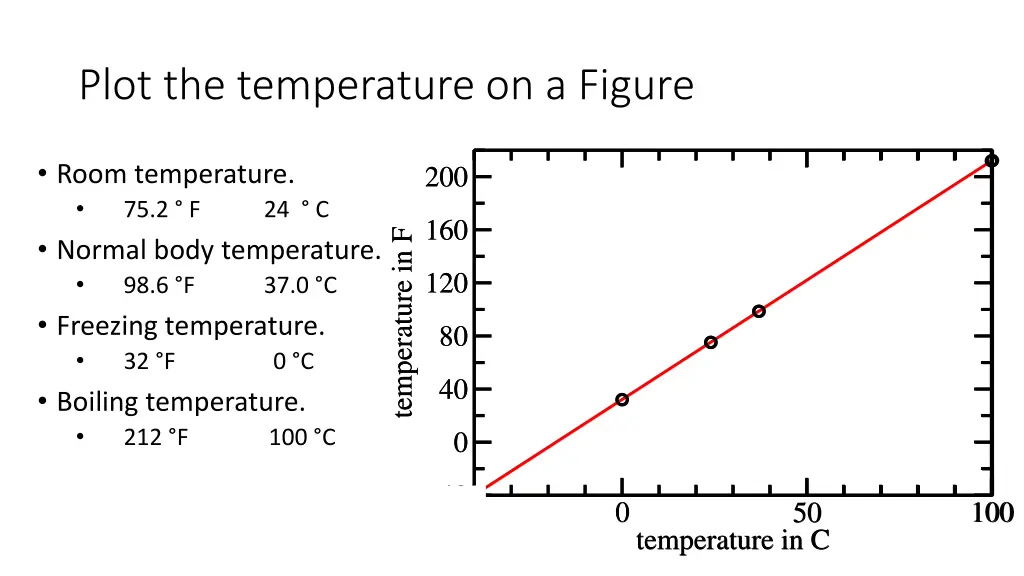

Plot the temperature on a Figure Room temperature. 75.2 F 24 C Normal body temperature. 98.6 F 37.0 C Freezing temperature. 32 F 0 C Boiling temperature. 212 F 100 C 200 200 160 160 temperature in F temperature in F 120 120 80 80 40 40 0 0 -40 -40 0 0 100 100 50 50 temperature in C temperature in C

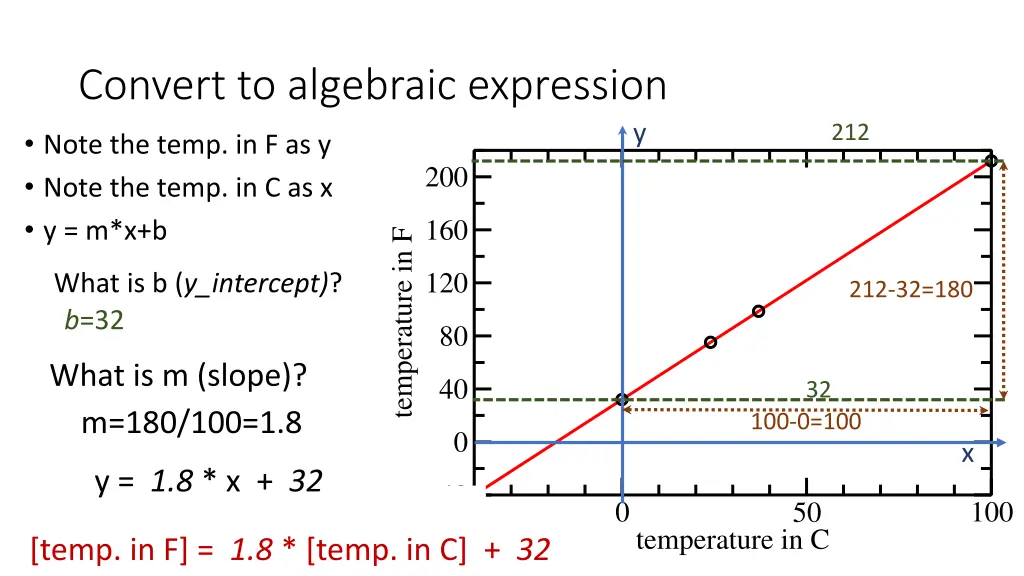

Convert to algebraic expression y 212 Note the temp. in F as y Note the temp. in C as x y = m*x+b 200 160 temperature in F 120 What is b (y_intercept)? b=32 212-32=180 80 What is m (slope)? m=180/100=1.8 40 32 100-0=100 0 x y = 1.8 * x + 32 -40 0 100 50 temperature in C [temp. in F] = 1.8 * [temp. in C] + 32

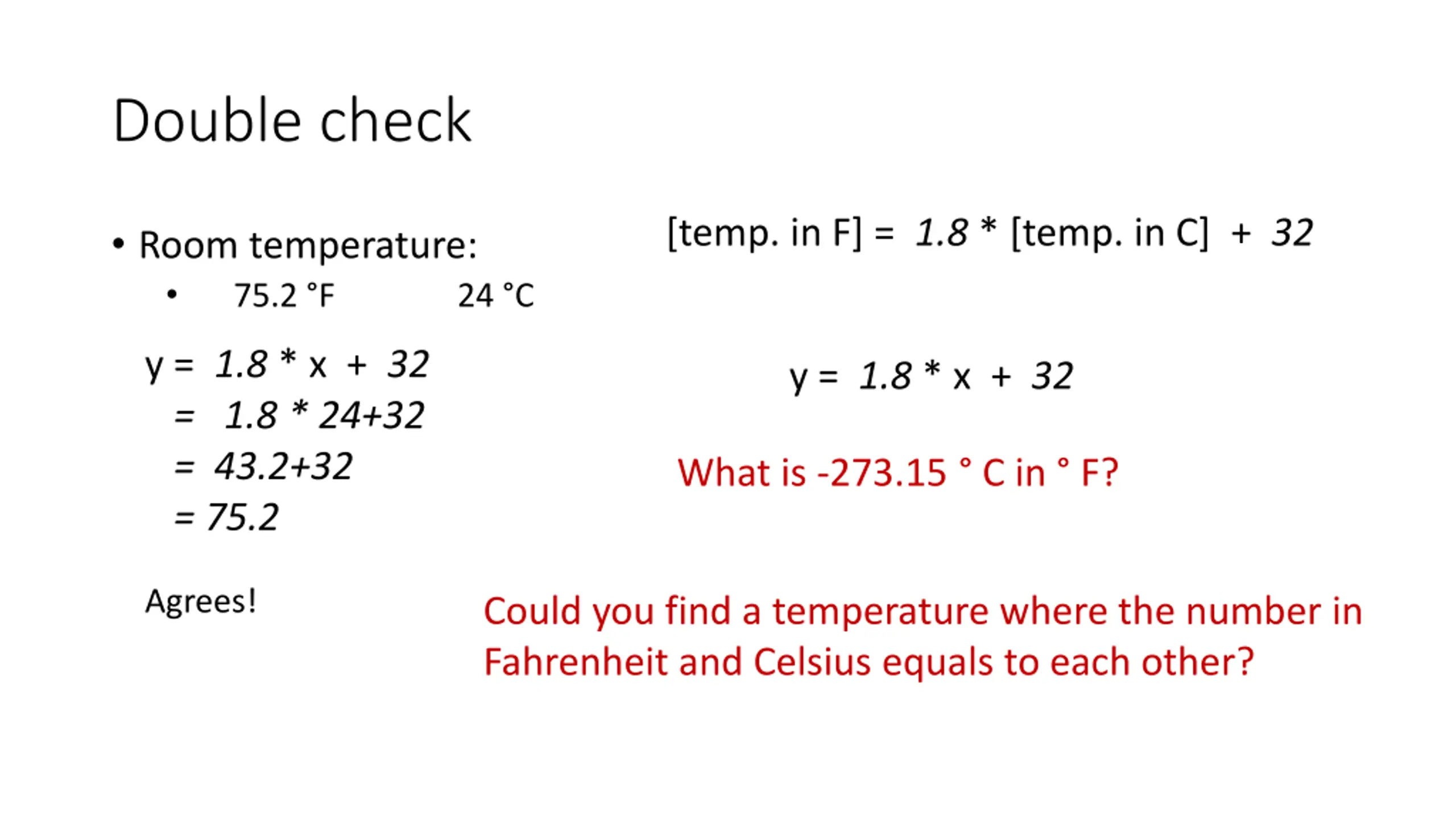

Double check [temp. in F] = 1.8 * [temp. in C] + 32 Room temperature: 75.2 F 24 C y = 1.8 * x + 32 = 1.8 * 24+32 = 43.2+32 = 75.2 y = 1.8 * x + 32 What is -273.15 C in F? Agrees! Could you find a temperature where the number in Fahrenheit and Celsius equals to each other?

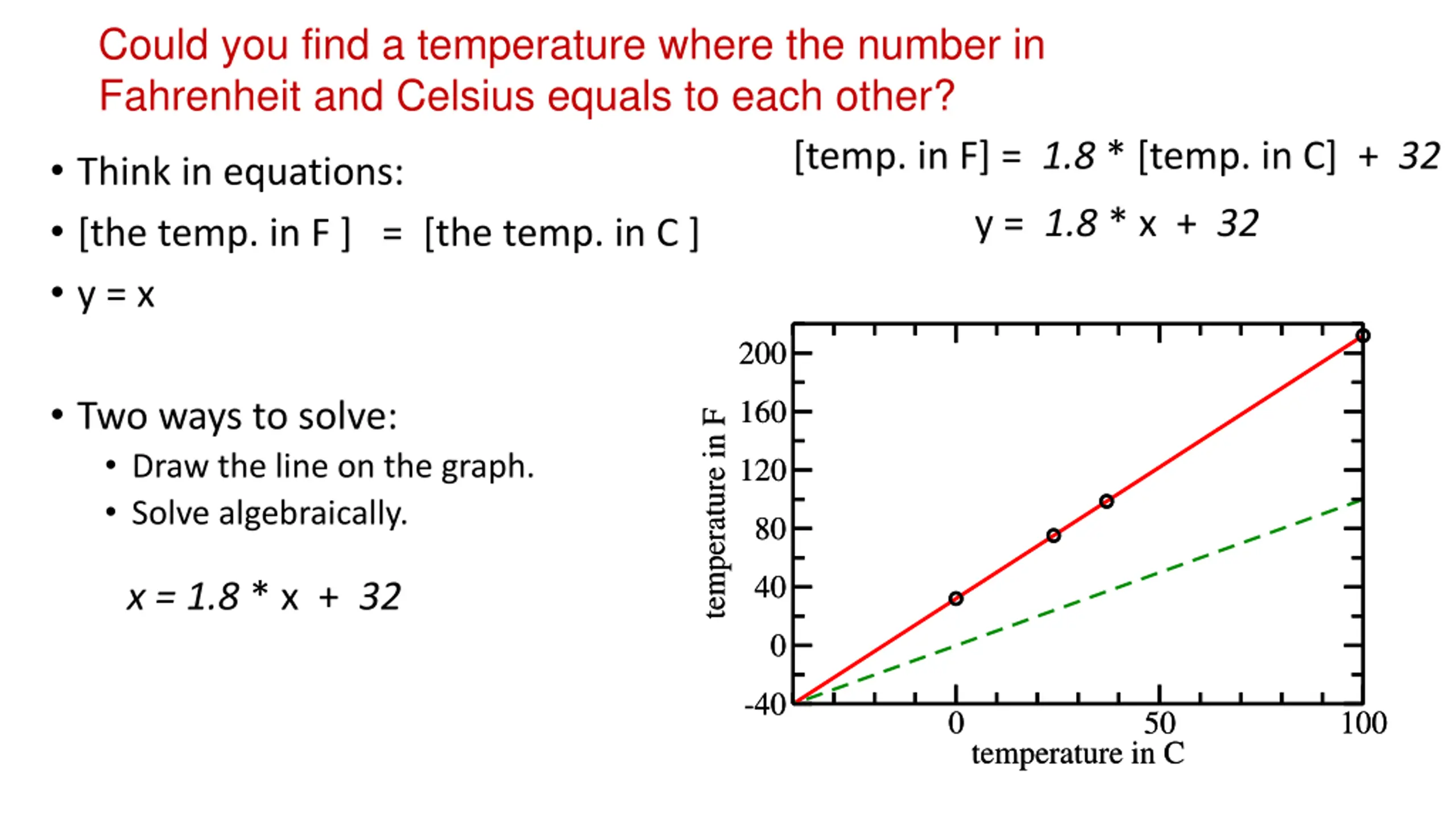

Could you find a temperature where the number in Fahrenheit and Celsius equals to each other? [temp. in F] = 1.8 * [temp. in C] + 32 Think in equations: [the temp. in F ] = [the temp. in C ] y = x y = 1.8 * x + 32 200 200 Two ways to solve: Draw the line on the graph. Solve algebraically. 160 160 temperature in F temperature in F 120 120 80 80 40 40 x = 1.8 * x + 32 0 0 -40 -40 0 0 100 100 50 50 temperature in C temperature in C

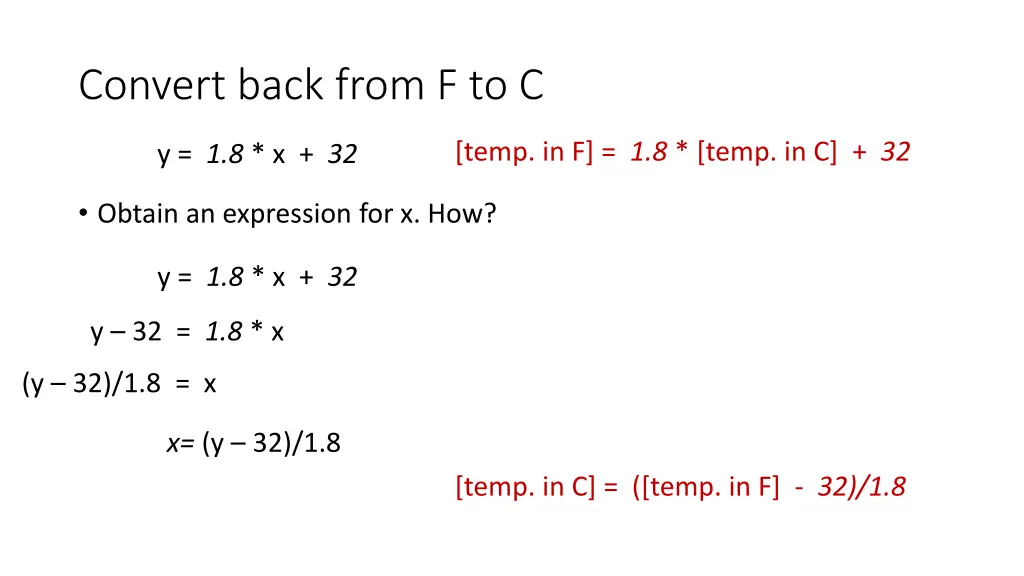

Convert back from F to C [temp. in F] = 1.8 * [temp. in C] + 32 y = 1.8 * x + 32 Obtain an expression for x. How? y = 1.8 * x + 32 y 32 = 1.8 * x (y 32)/1.8 = x x= (y 32)/1.8 [temp. in C] = ([temp. in F] - 32)/1.8

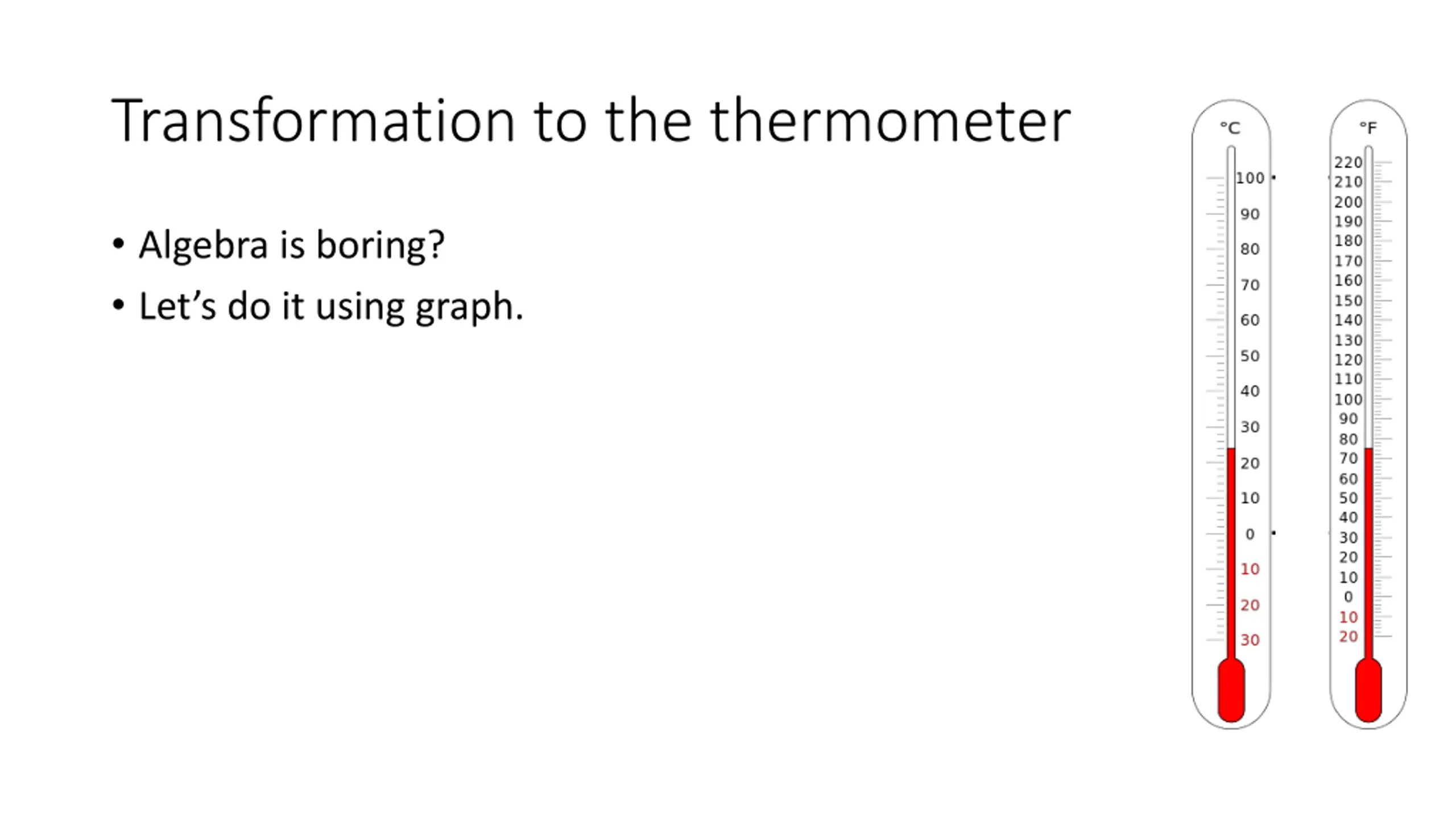

Transformation to the thermometer Algebra is boring? Let s do it using graph.

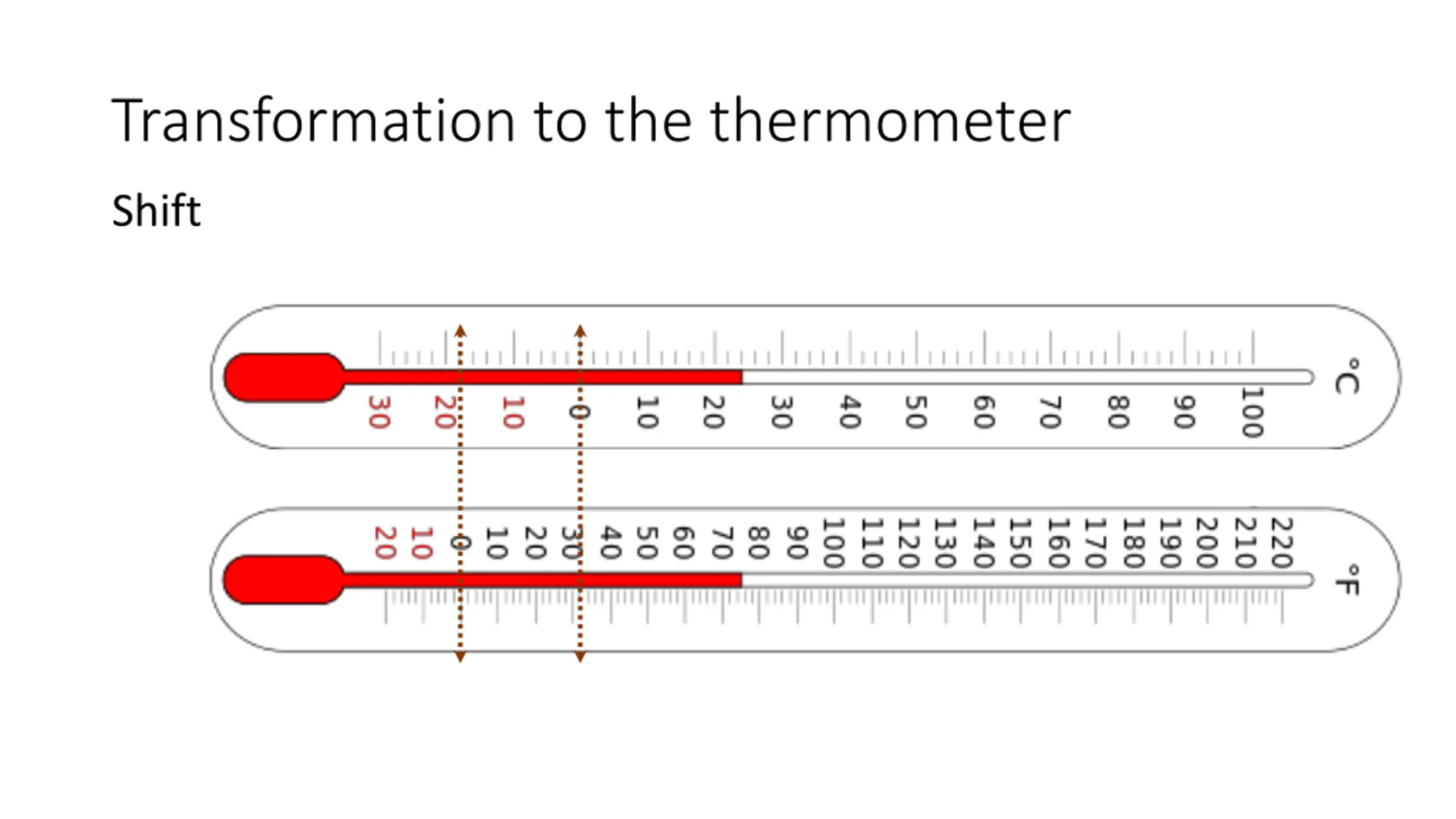

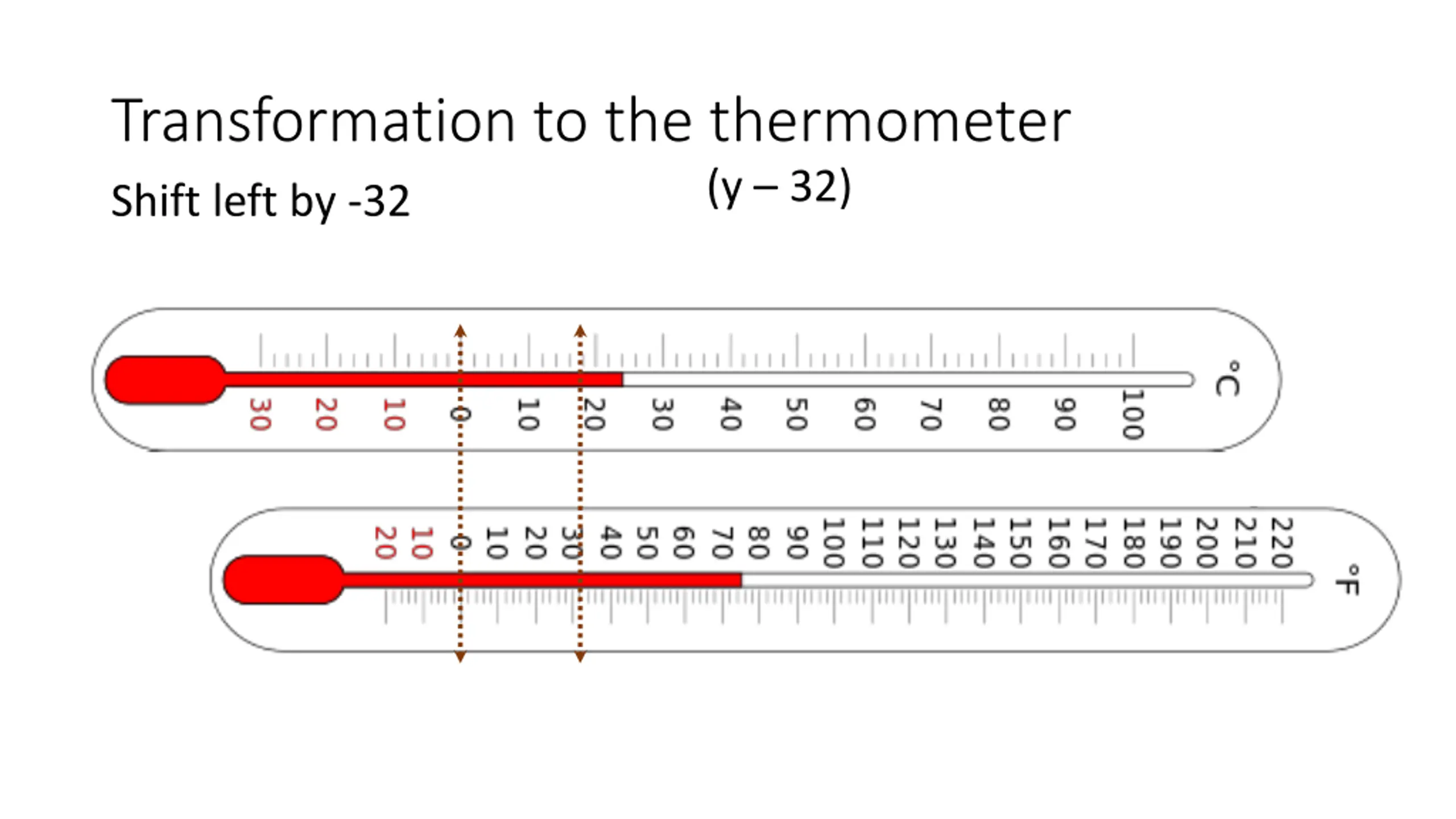

Transformation to the thermometer Shift left by -32 (y 32)

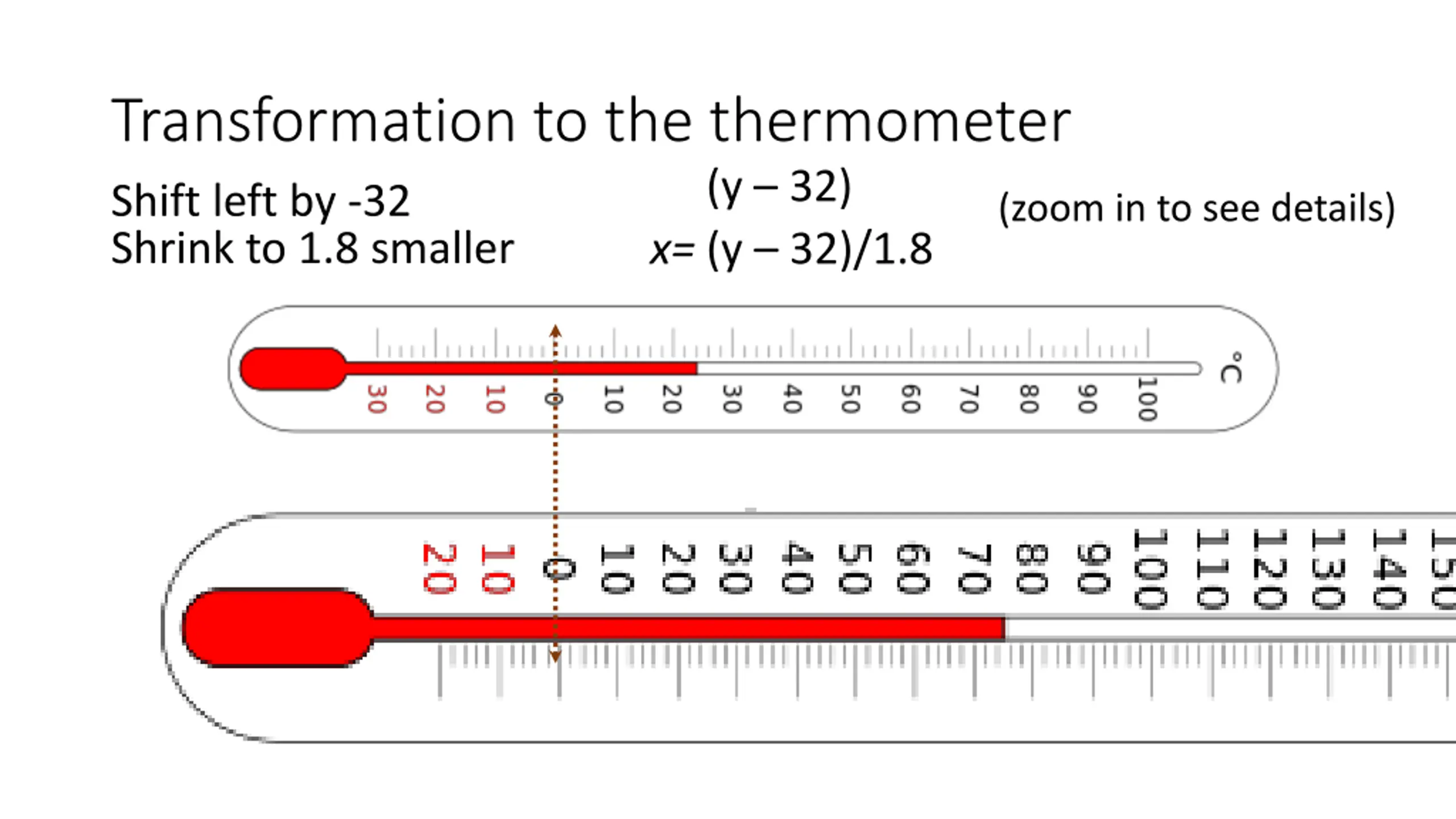

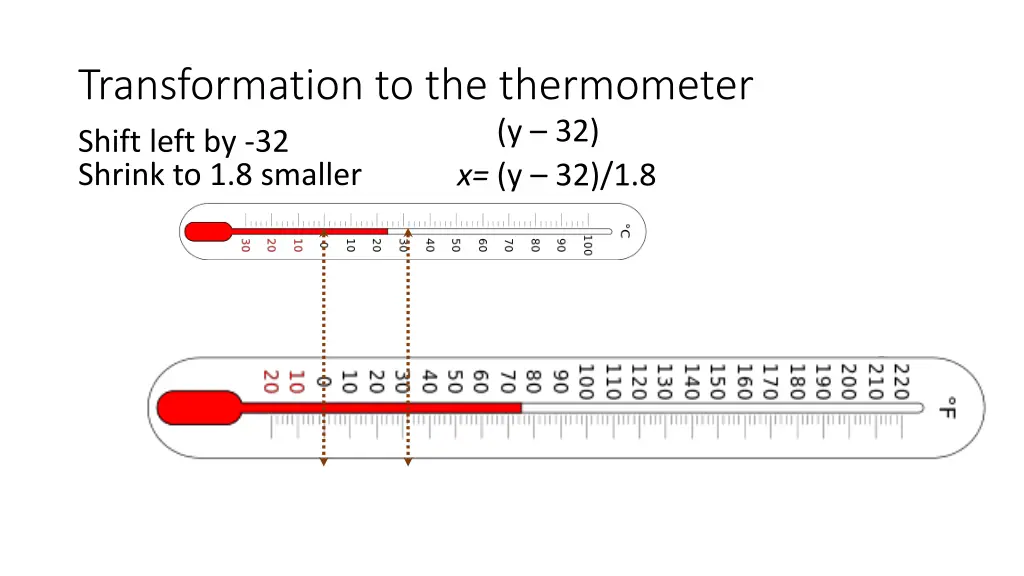

Transformation to the thermometer Shift left by -32 (y 32) Shrink to 1.8 smaller x= (y 32)/1.8
Transformation to the thermometer Shift left by -32 (y 32) (zoom in to see details) Shrink to 1.8 smaller x= (y 32)/1.8

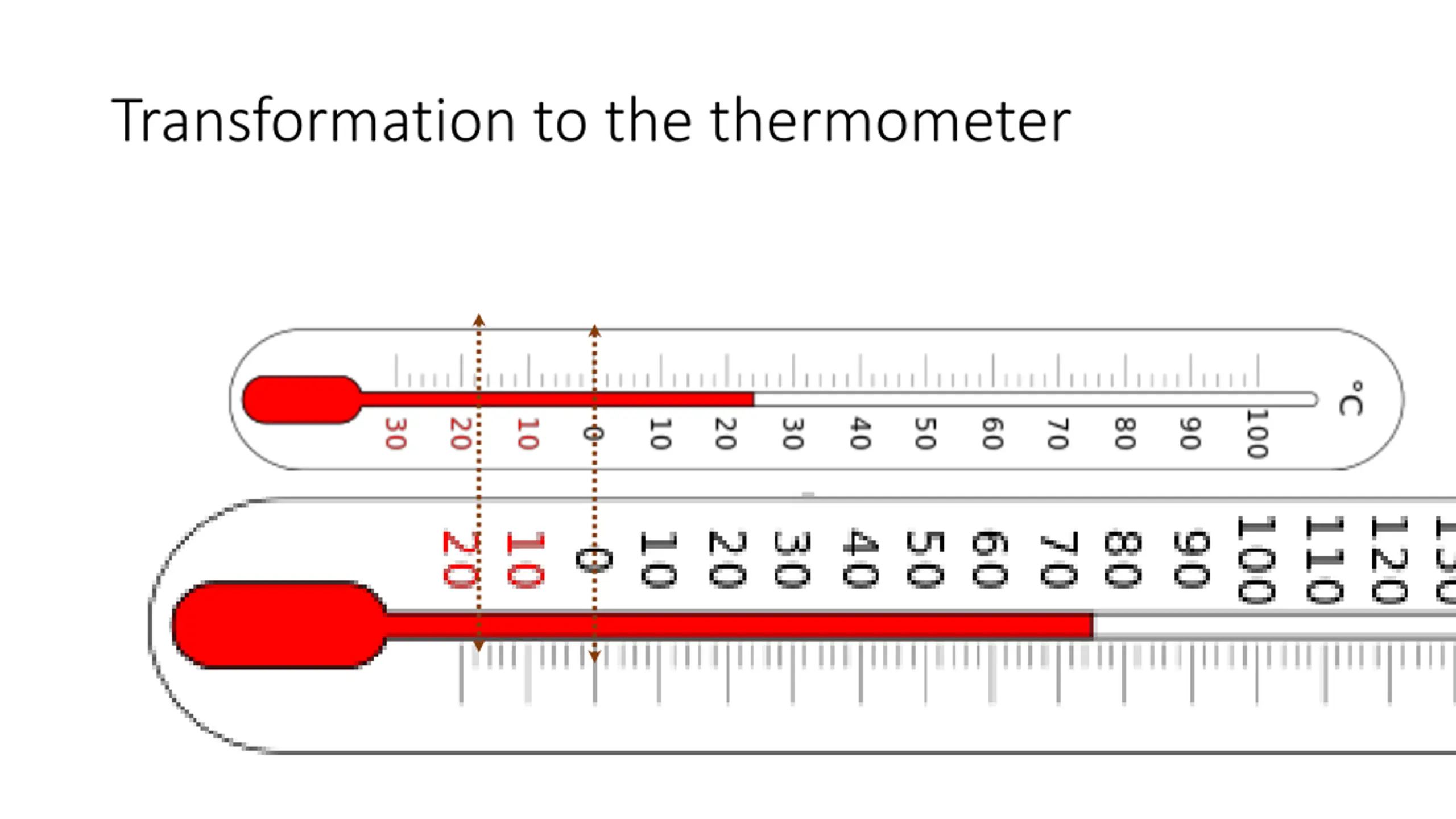

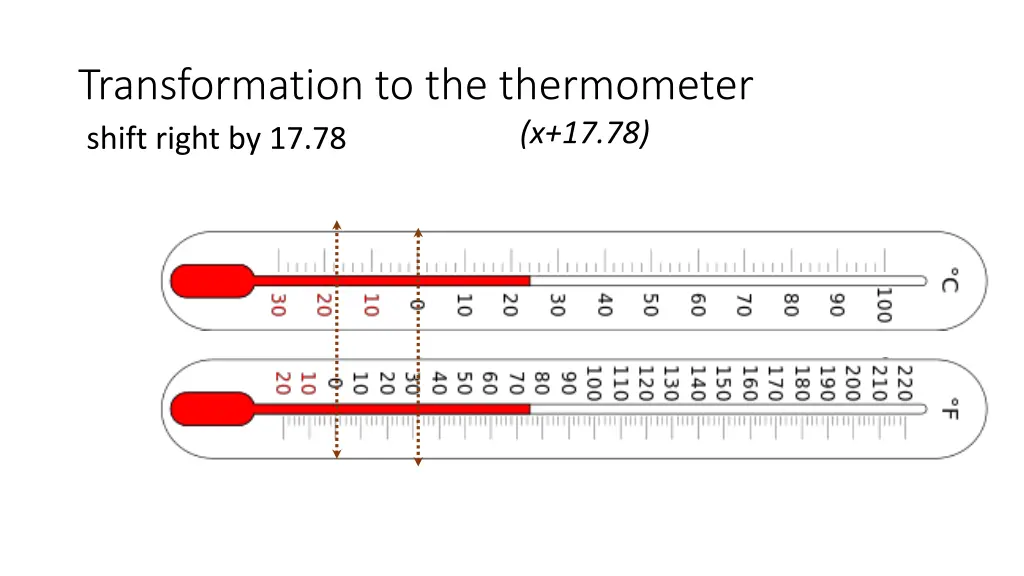

Transformation to the thermometer shift right by 17.78 (x+17.78)

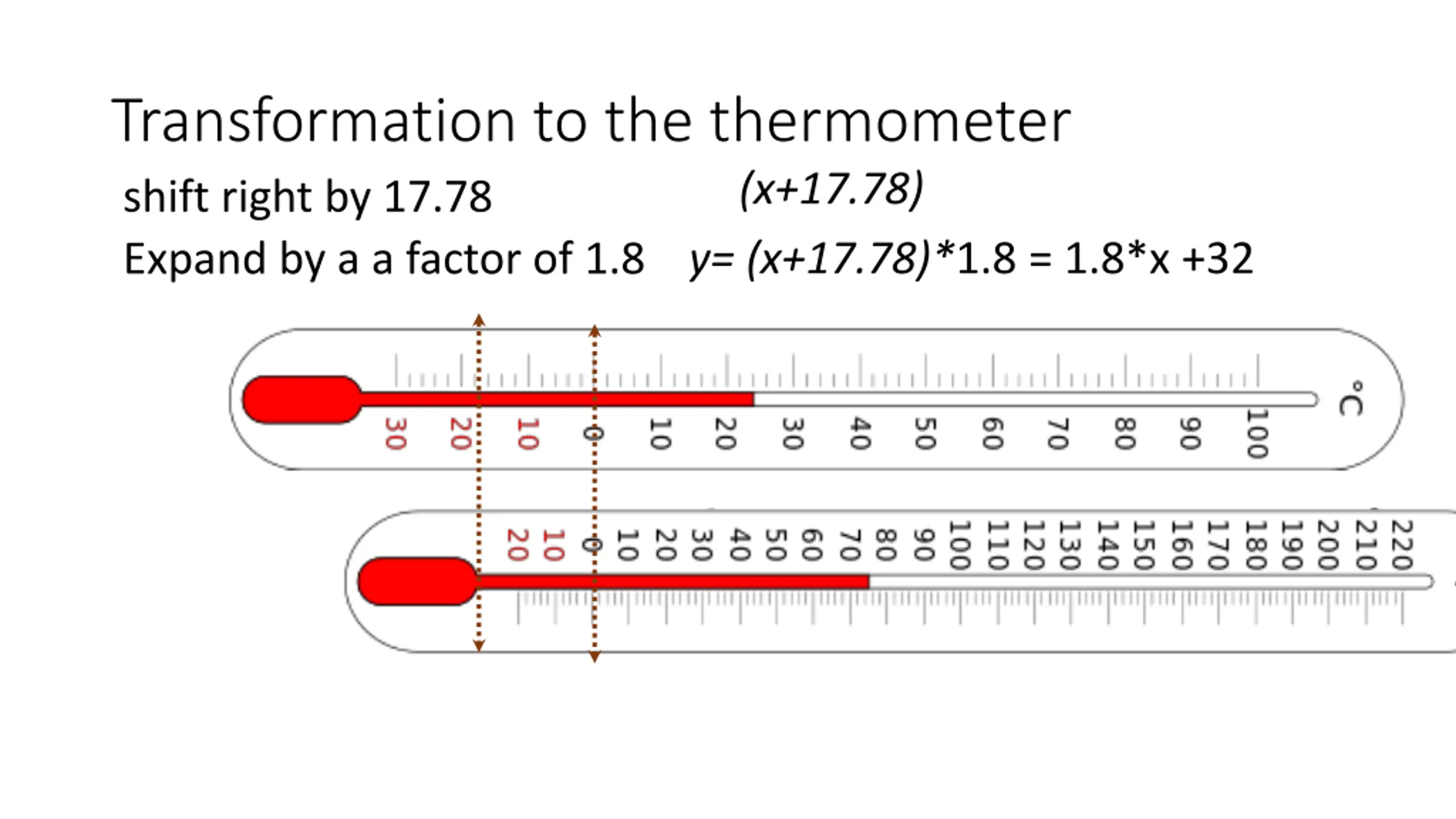

Transformation to the thermometer shift right by 17.78 Expand by a a factor of 1.8 y= (x+17.78)*1.8 = 1.8*x +32 (x+17.78)
