Threat analysis Tuomas Aura CSE-C3400 Information security Aalto University, autumn 2014

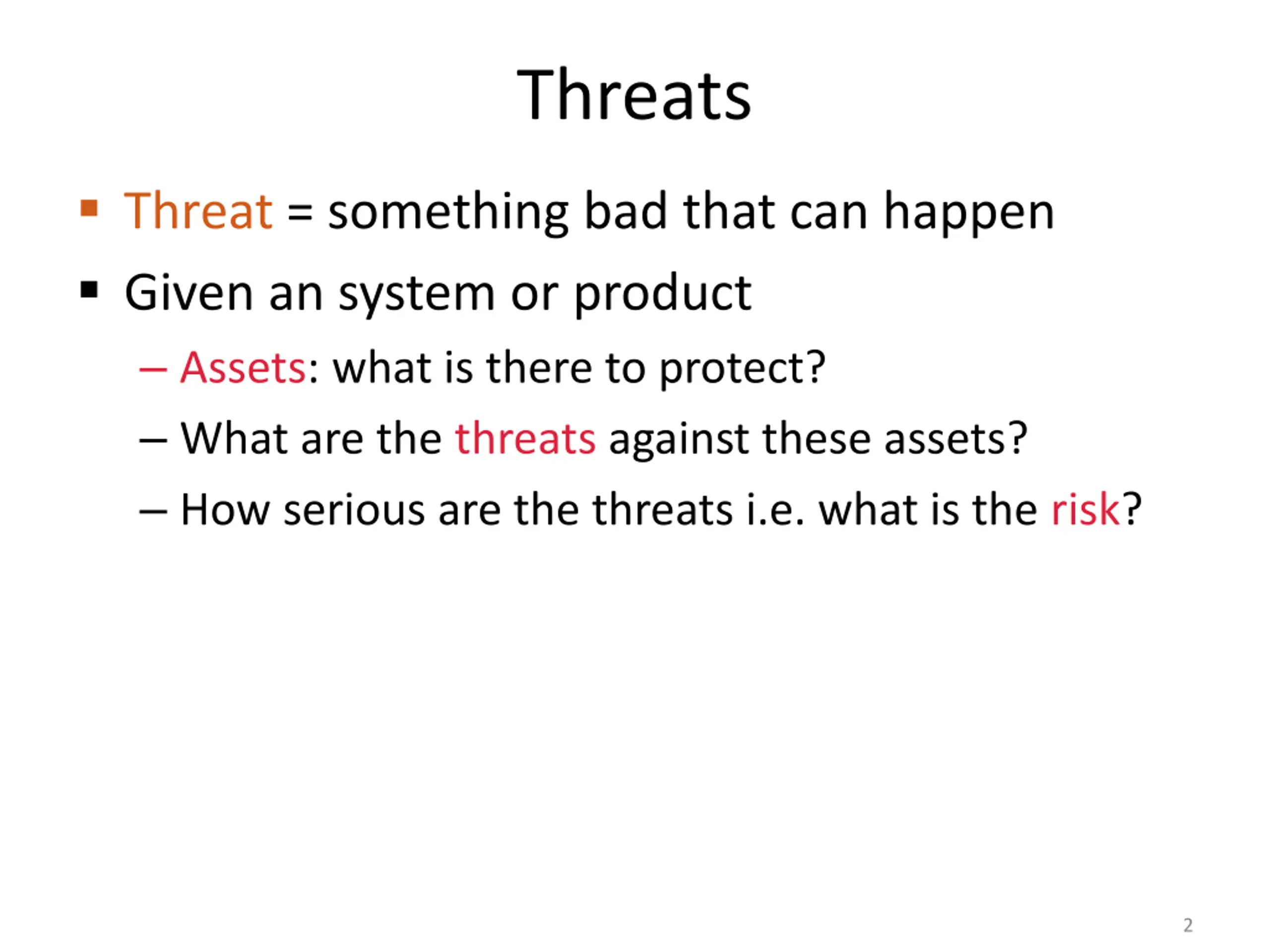

Threats Threat = something bad that can happen Given an system or product Assets: what is there to protect? What are the threats against these assets? How serious are the threats i.e. what is the risk? 2

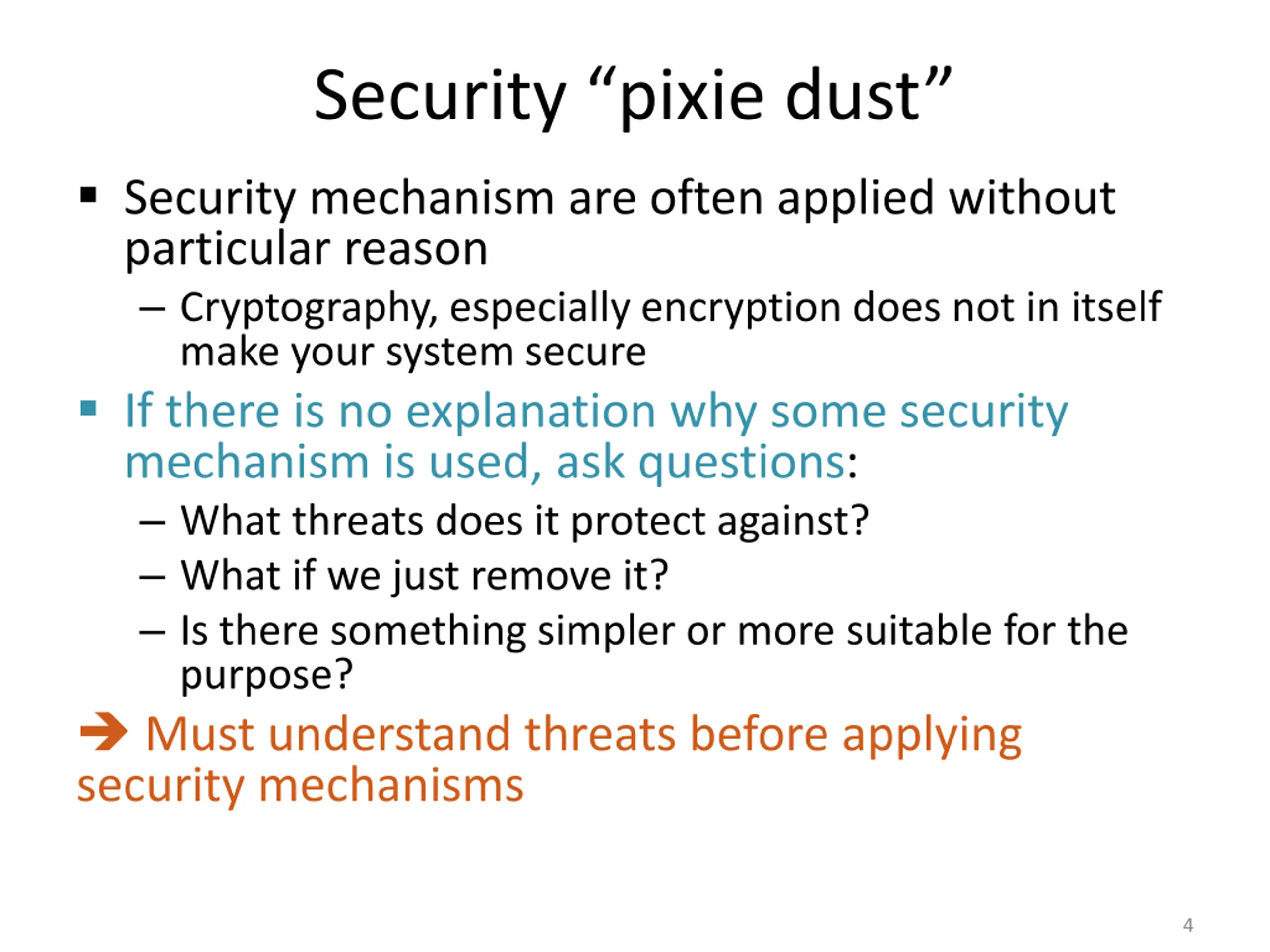

Security pixie dust Security mechanism are often applied without particular reason Cryptography, especially encryption does not in itself make your system secure If there is no explanation why some security mechanism is used, ask questions: What threats does it protect against? What if we just remove it? Is there something simpler or more suitable for the purpose? Must understand threats before applying security mechanisms 4

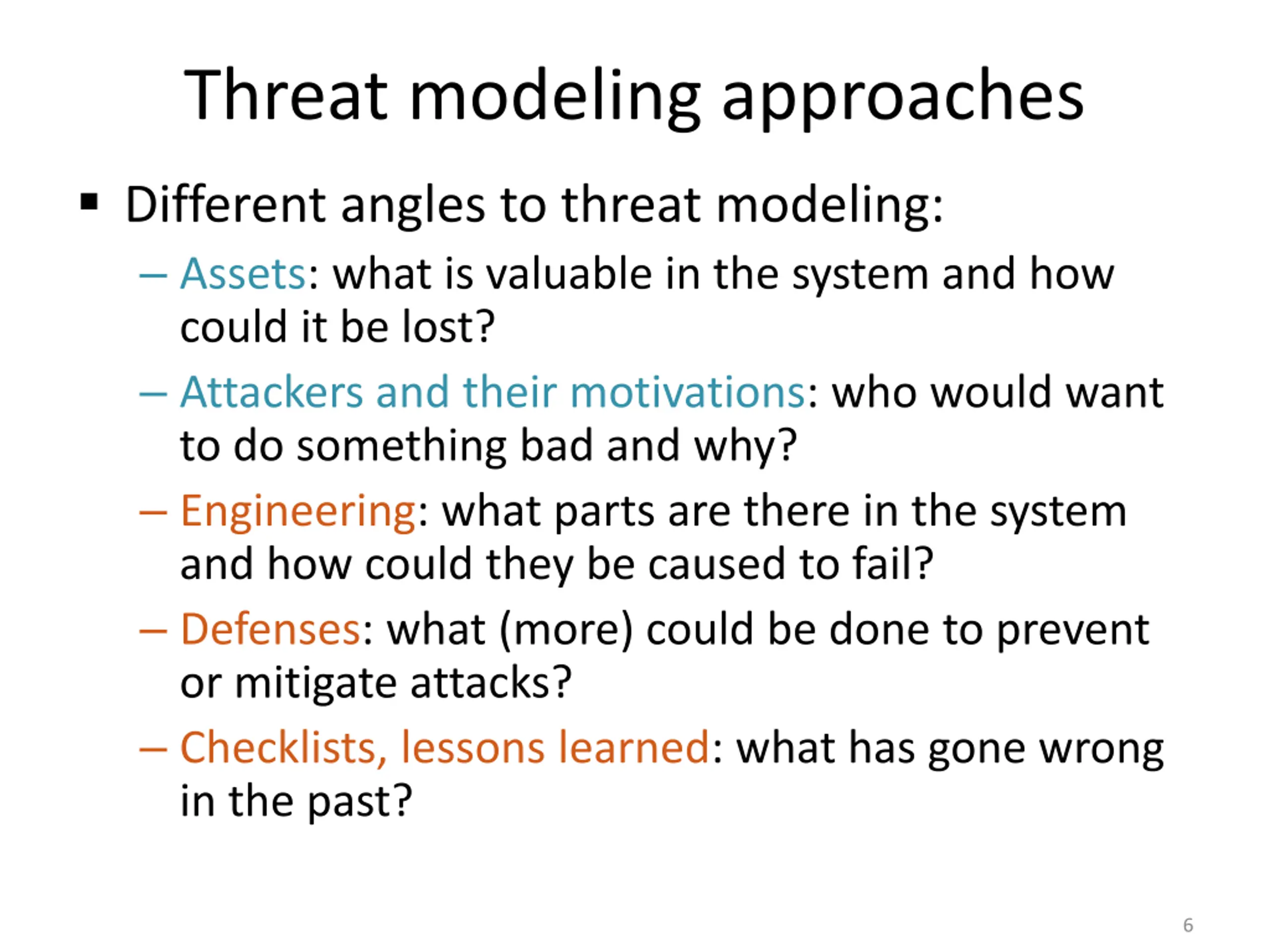

Threat modeling approaches Different angles to threat modeling: Assets: what is valuable in the system and how could it be lost? Attackers and their motivations: who would want to do something bad and why? Engineering: what parts are there in the system and how could they be caused to fail? Defenses: what (more) could be done to prevent or mitigate attacks? Checklists, lessons learned: what has gone wrong in the past? 6

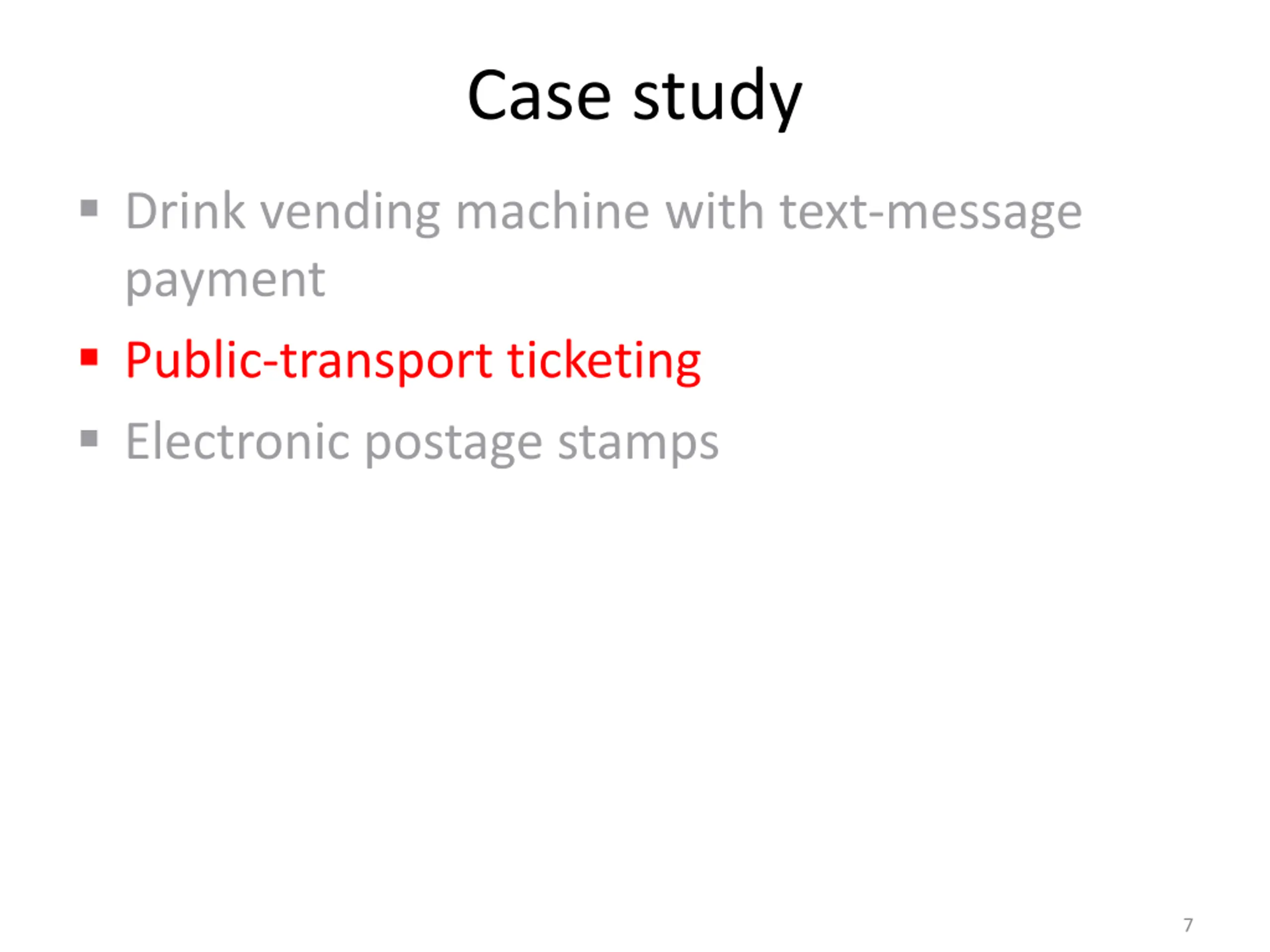

Case study Drink vending machine with text-message payment Public-transport ticketing Electronic postage stamps 7

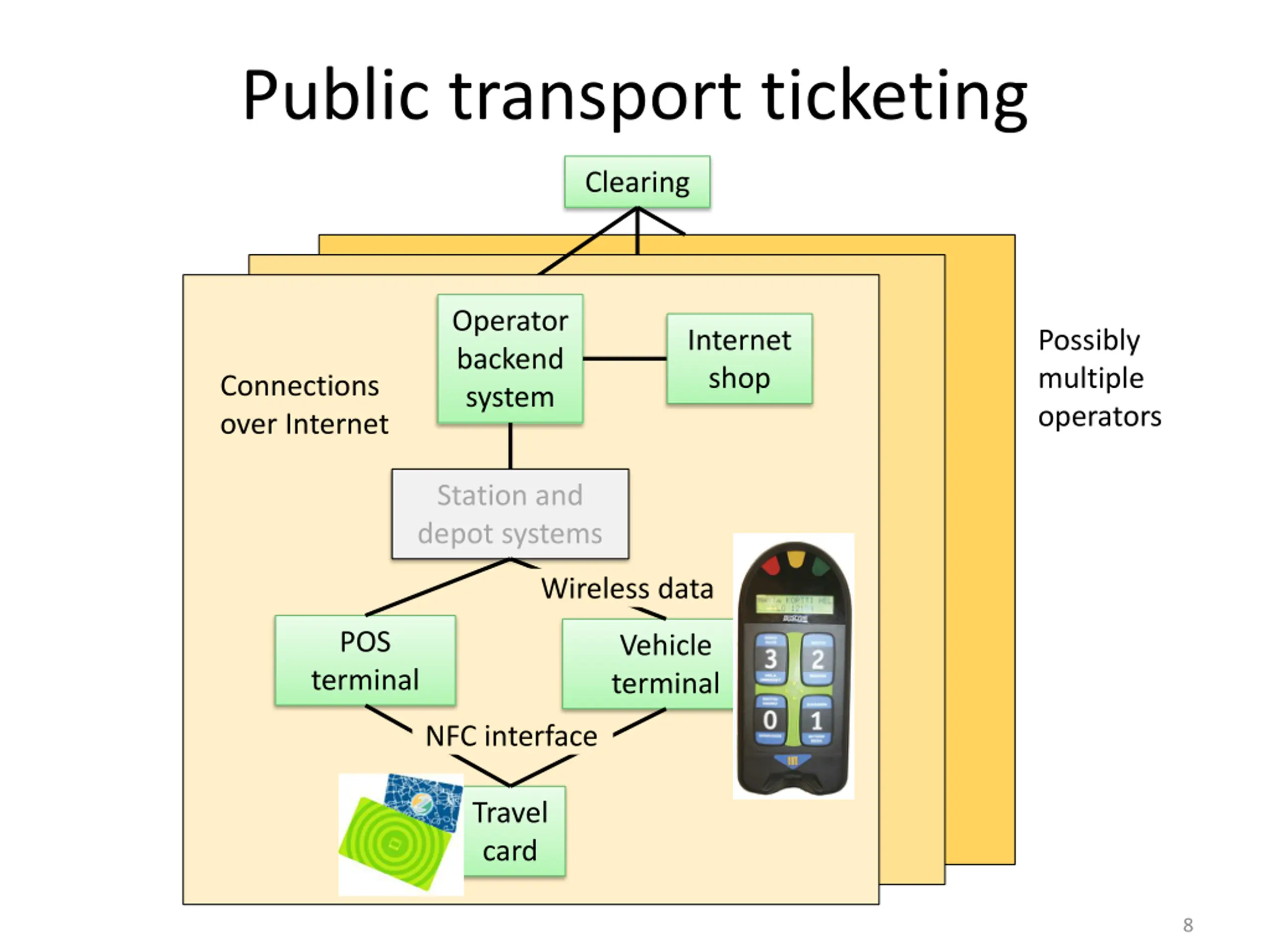

Public transport ticketing Clearing Operator backend system Internet shop Possibly multiple operators Connections over Internet Station and depot systems Wireless data POS terminal Vehicle terminal NFC interface Travel card 8

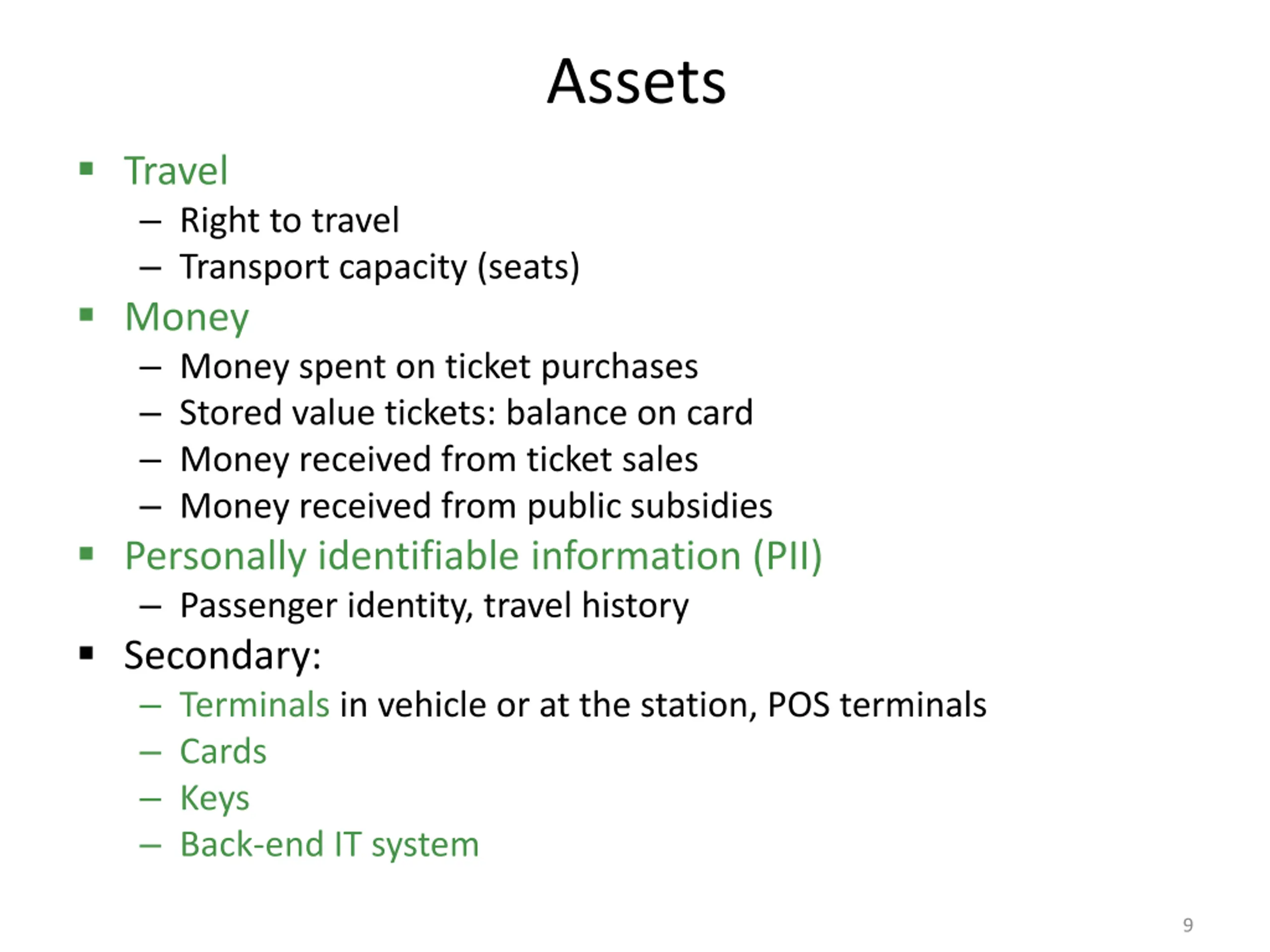

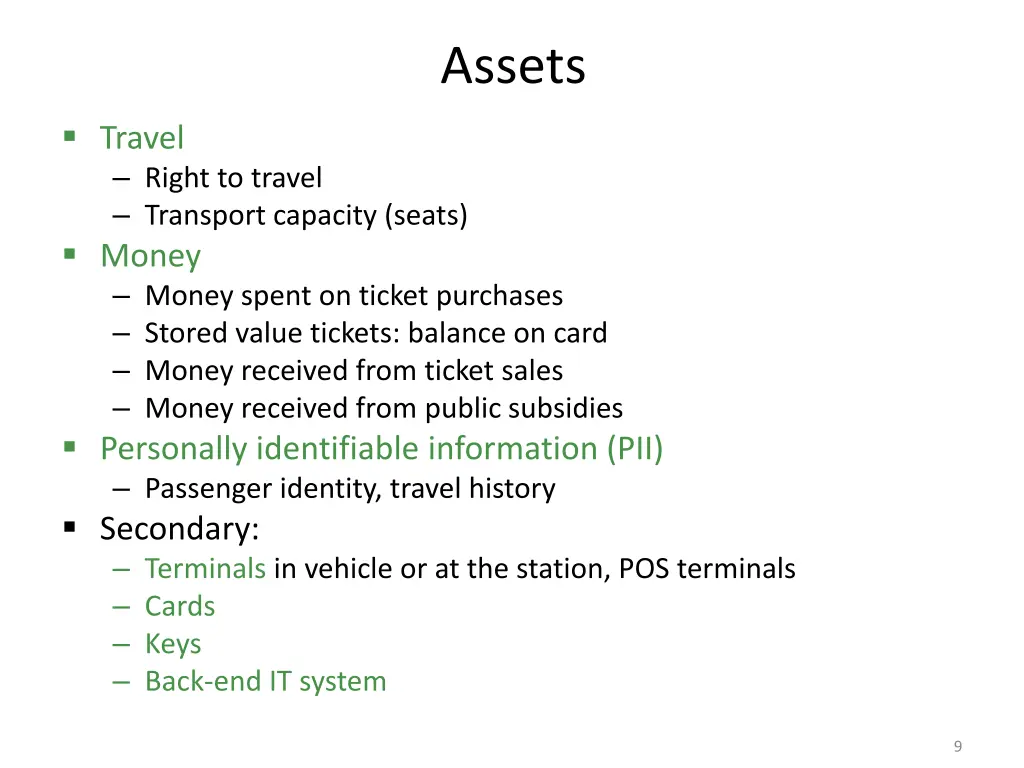

Assets Travel Right to travel Transport capacity (seats) Money Money spent on ticket purchases Stored value tickets: balance on card Money received from ticket sales Money received from public subsidies Personally identifiable information (PII) Passenger identity, travel history Secondary: Terminals in vehicle or at the station, POS terminals Cards Keys Back-end IT system 9

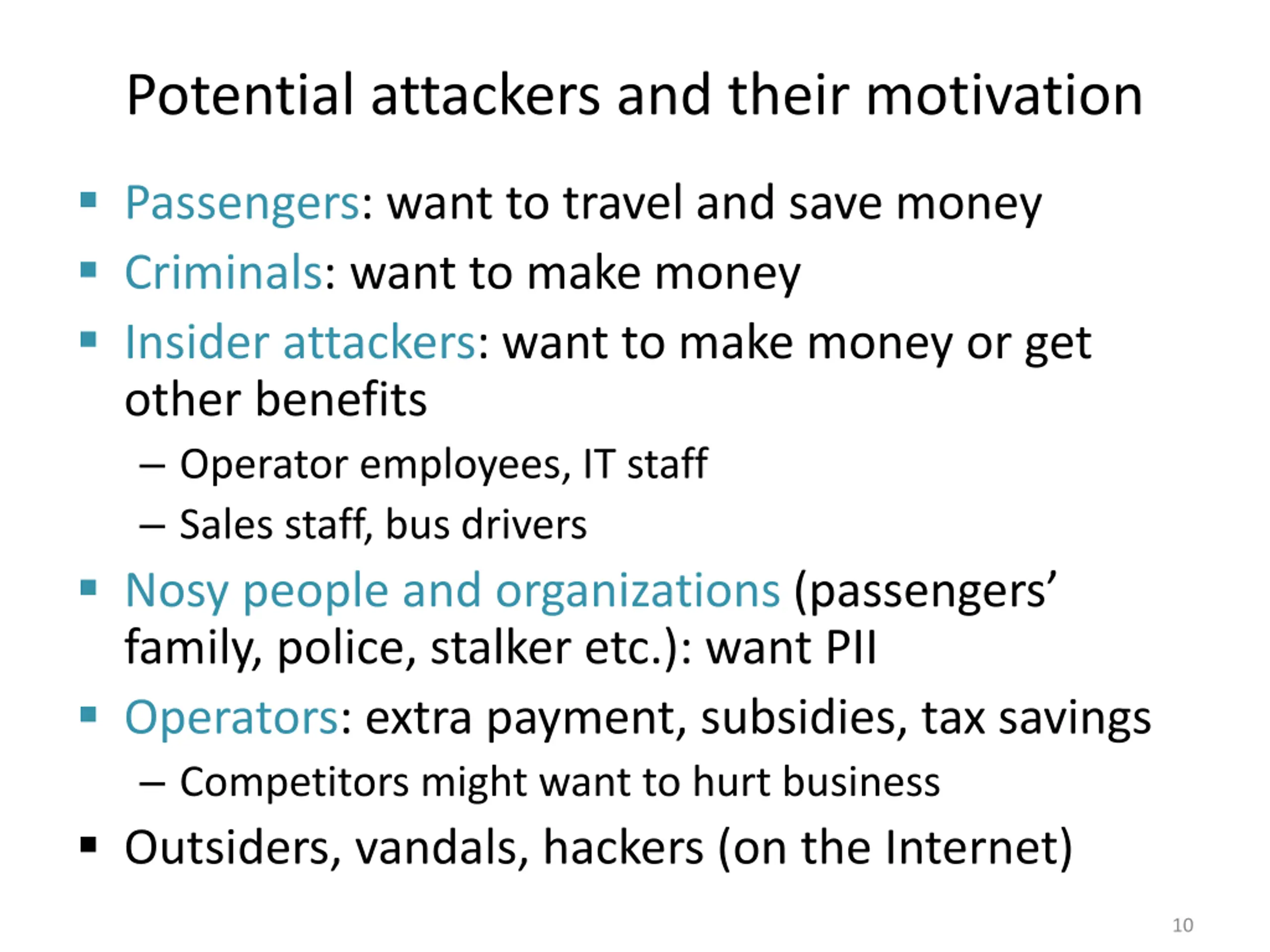

Potential attackers and their motivation Passengers: want to travel and save money Criminals: want to make money Insider attackers: want to make money or get other benefits Operator employees, IT staff Sales staff, bus drivers Nosy people and organizations (passengers family, police, stalker etc.): want PII Operators: extra payment, subsidies, tax savings Competitors might want to hurt business Outsiders, vandals, hackers (on the Internet) 10

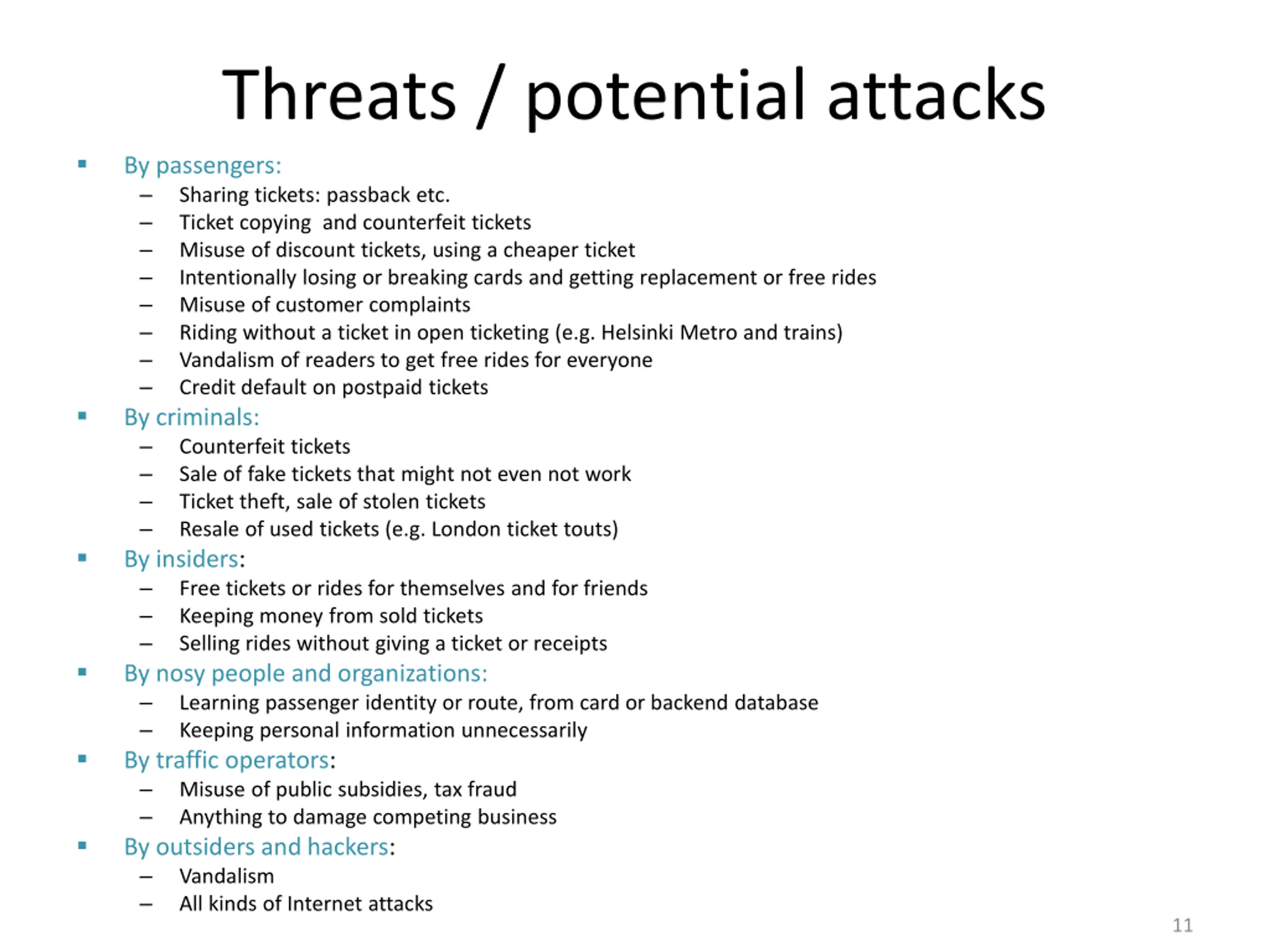

Threats / potential attacks By passengers: Sharing tickets: passback etc. Ticket copying and counterfeit tickets Misuse of discount tickets, using a cheaper ticket Intentionally losing or breaking cards and getting replacement or free rides Misuse of customer complaints Riding without a ticket in open ticketing (e.g. Helsinki Metro and trains) Vandalism of readers to get free rides for everyone Credit default on postpaid tickets By criminals: Counterfeit tickets Sale of fake tickets that might not even not work Ticket theft, sale of stolen tickets Resale of used tickets (e.g. London ticket touts) By insiders: Free tickets or rides for themselves and for friends Keeping money from sold tickets Selling rides without giving a ticket or receipts By nosy people and organizations: Learning passenger identity or route, from card or backend database Keeping personal information unnecessarily By traffic operators: Misuse of public subsidies, tax fraud Anything to damage competing business By outsiders and hackers: Vandalism All kinds of Internet attacks 11

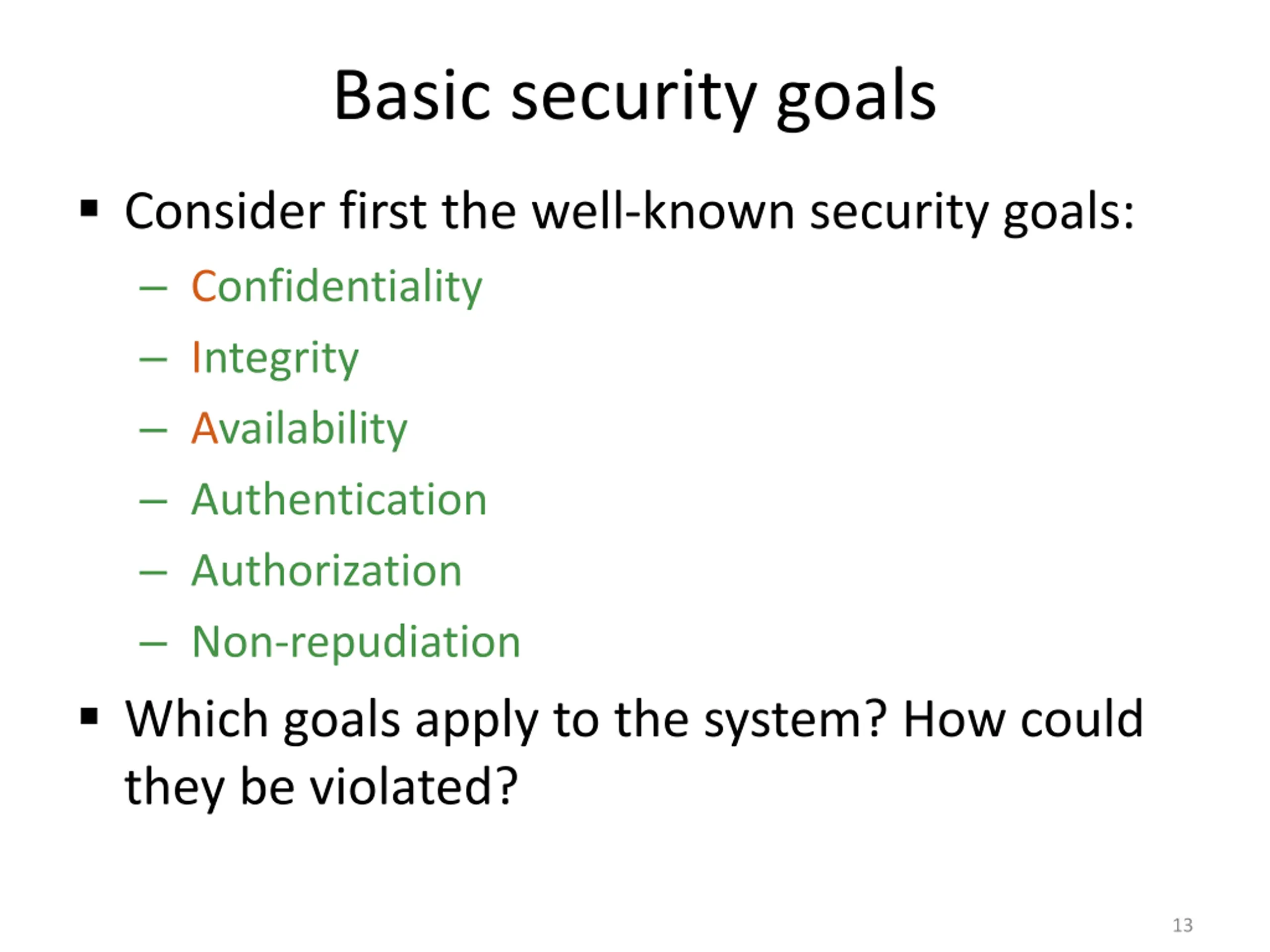

Basic security goals Consider first the well-known security goals: Confidentiality Integrity Availability Authentication Authorization Non-repudiation Which goals apply to the system? How could they be violated? 13

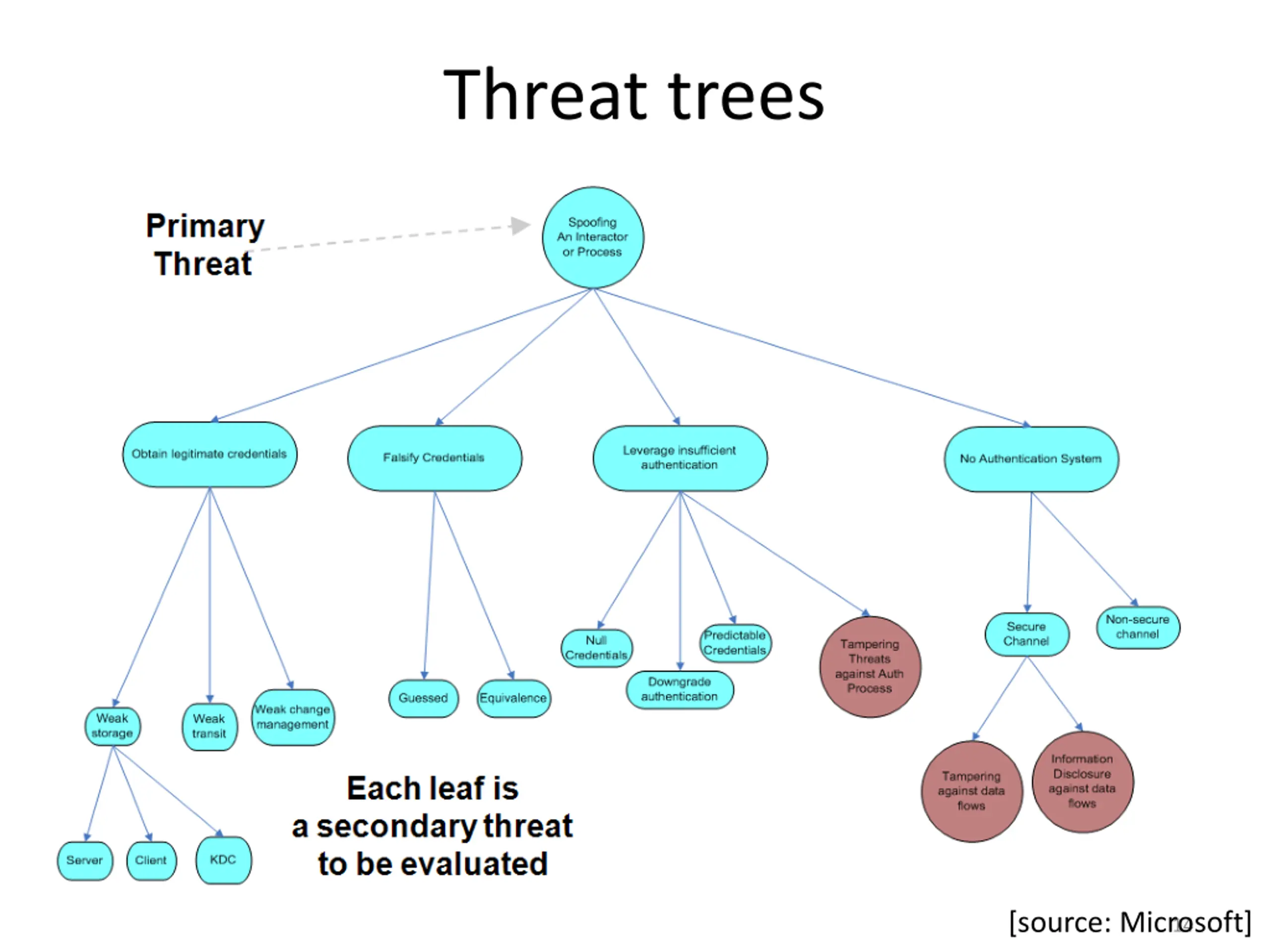

Threat trees [source: Microsoft] 14
STRIDE STRIDE model used at Microsoft: Spoofing vs. authentication Tampering vs. integrity Repudiation vs. non-repudiation Information disclosure vs. confidentiality Denial of service vs. availability Elevation of privilege vs. authorization Idea: divide the system into components and analyze each component for these threats Note: security of components is necessary but not sufficient for the security of the system 15

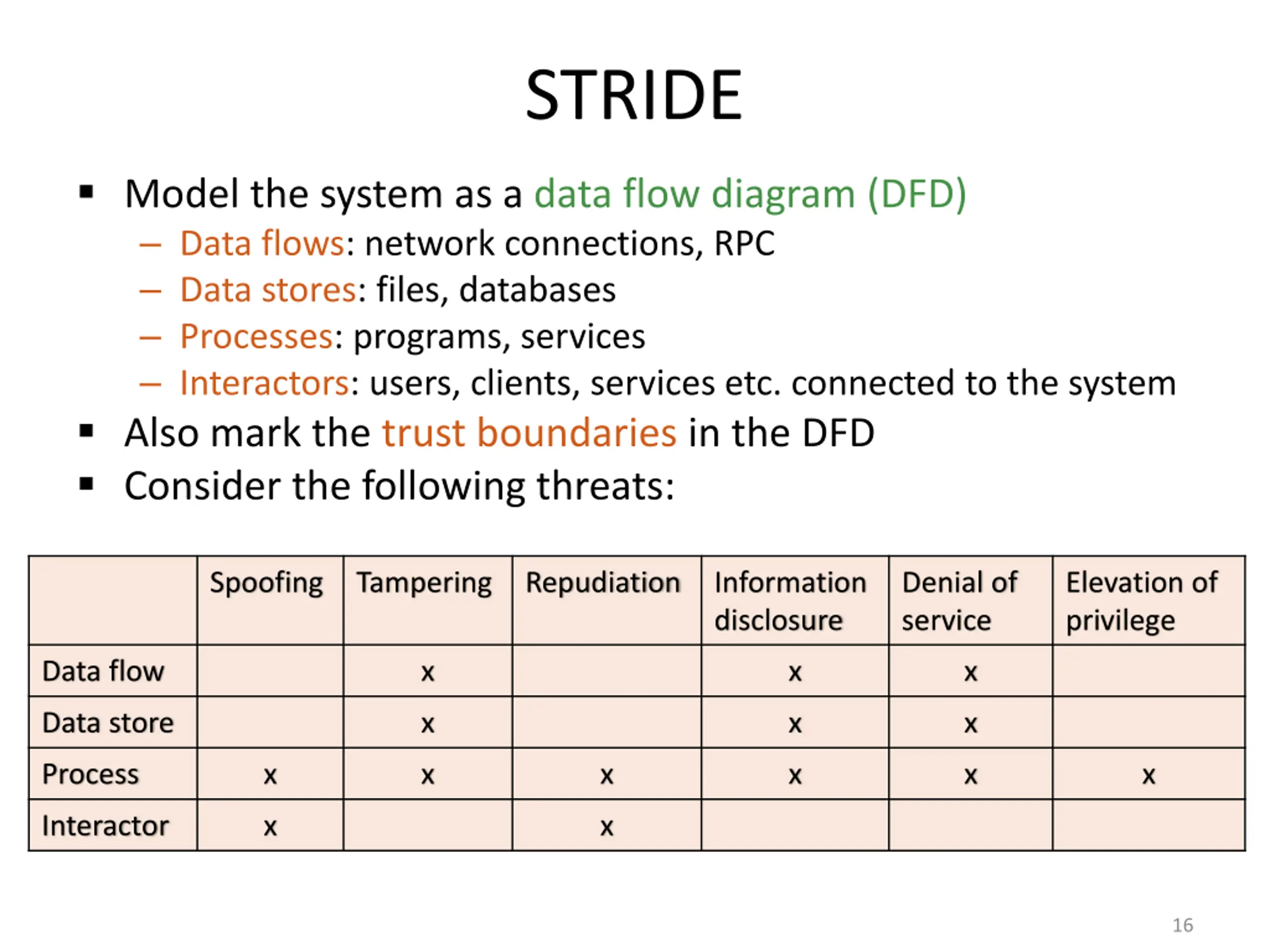

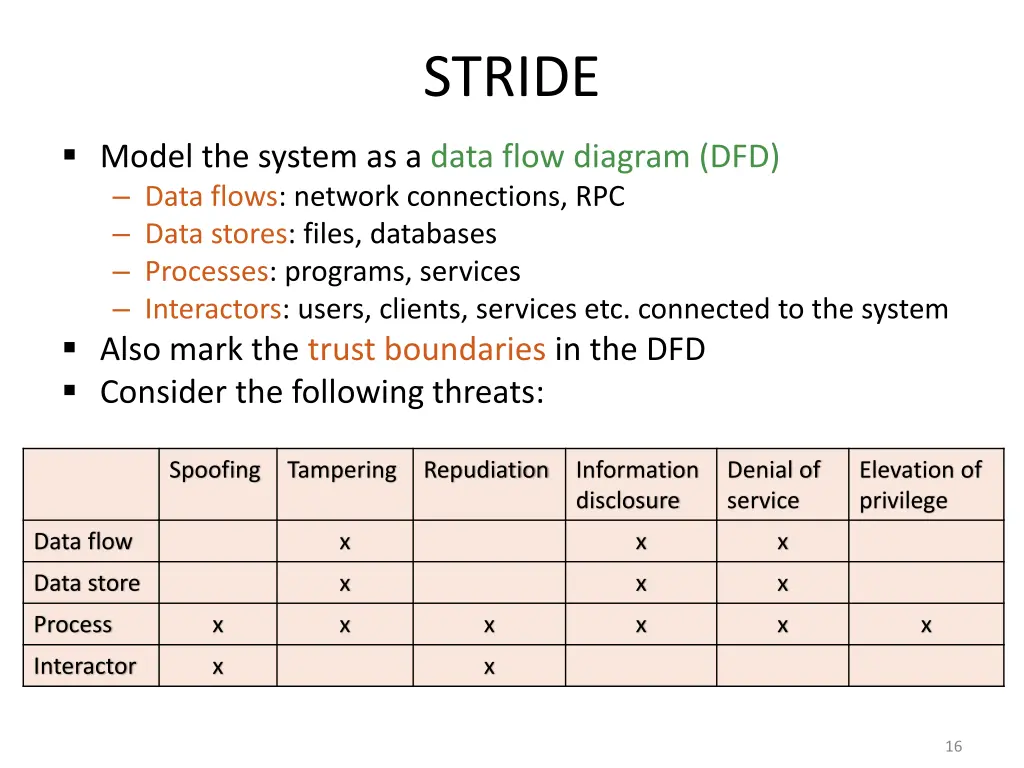

STRIDE Model the system as a data flow diagram (DFD) Data flows: network connections, RPC Data stores: files, databases Processes: programs, services Interactors: users, clients, services etc. connected to the system Also mark the trust boundaries in the DFD Consider the following threats: Spoofing Tampering Repudiation Information disclosure Denial of service Elevation of privilege Data flow x x x Data store x x x Process x x x x x x Interactor x x 16

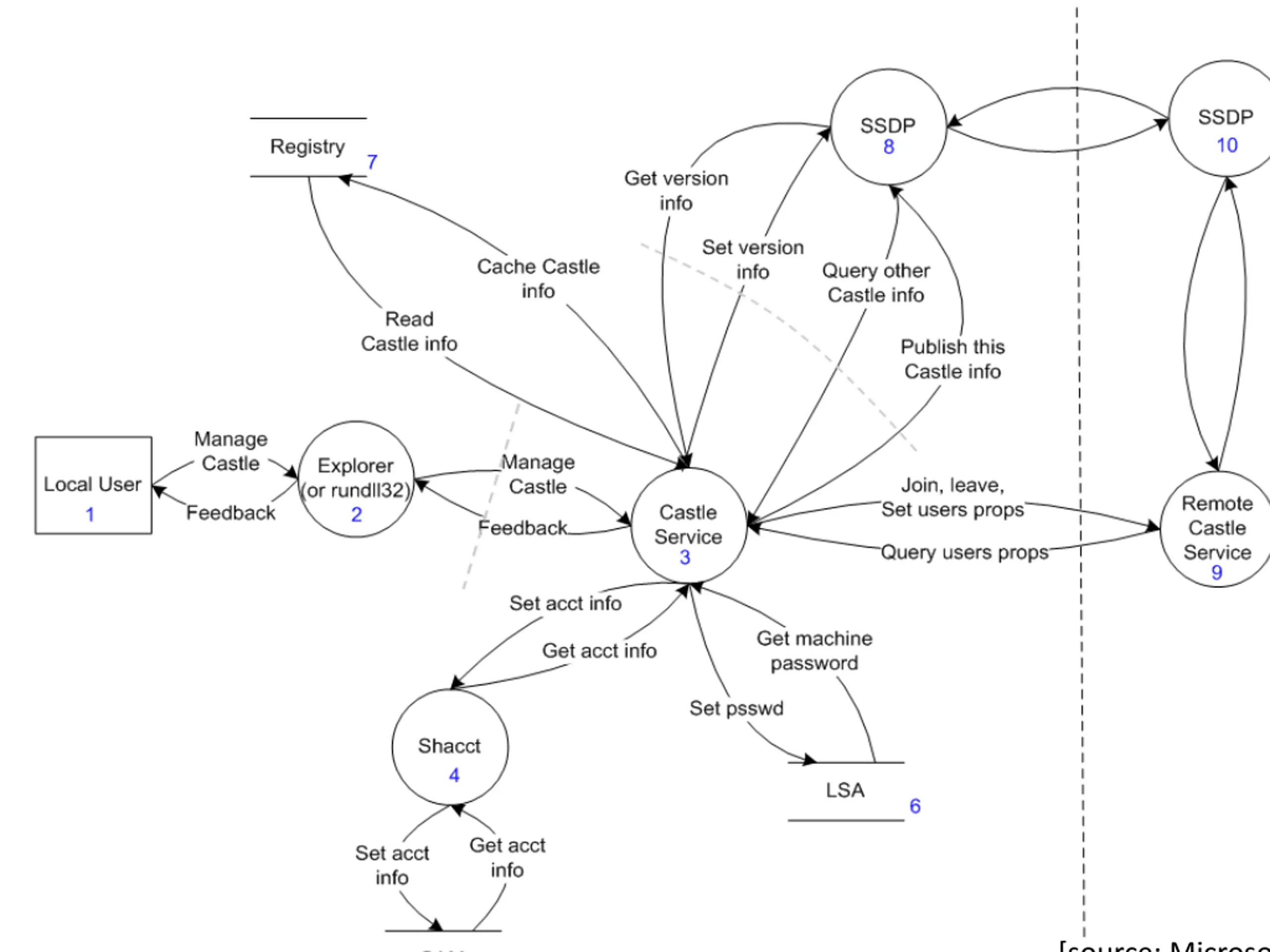

17 [source: Microsoft]

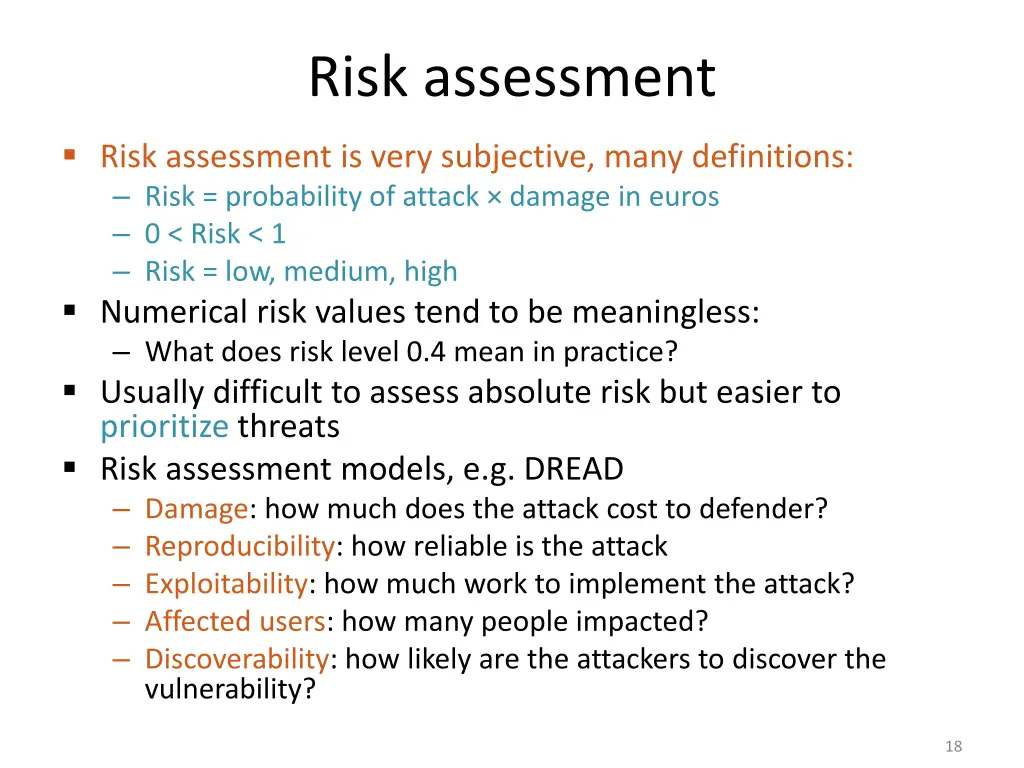

Risk assessment Risk assessment is very subjective, many definitions: Risk = probability of attack damage in euros 0 < Risk < 1 Risk = low, medium, high Numerical risk values tend to be meaningless: What does risk level 0.4 mean in practice? Usually difficult to assess absolute risk but easier to prioritize threats Risk assessment models, e.g. DREAD Damage: how much does the attack cost to defender? Reproducibility: how reliable is the attack Exploitability: how much work to implement the attack? Affected users: how many people impacted? Discoverability: how likely are the attackers to discover the vulnerability? 18

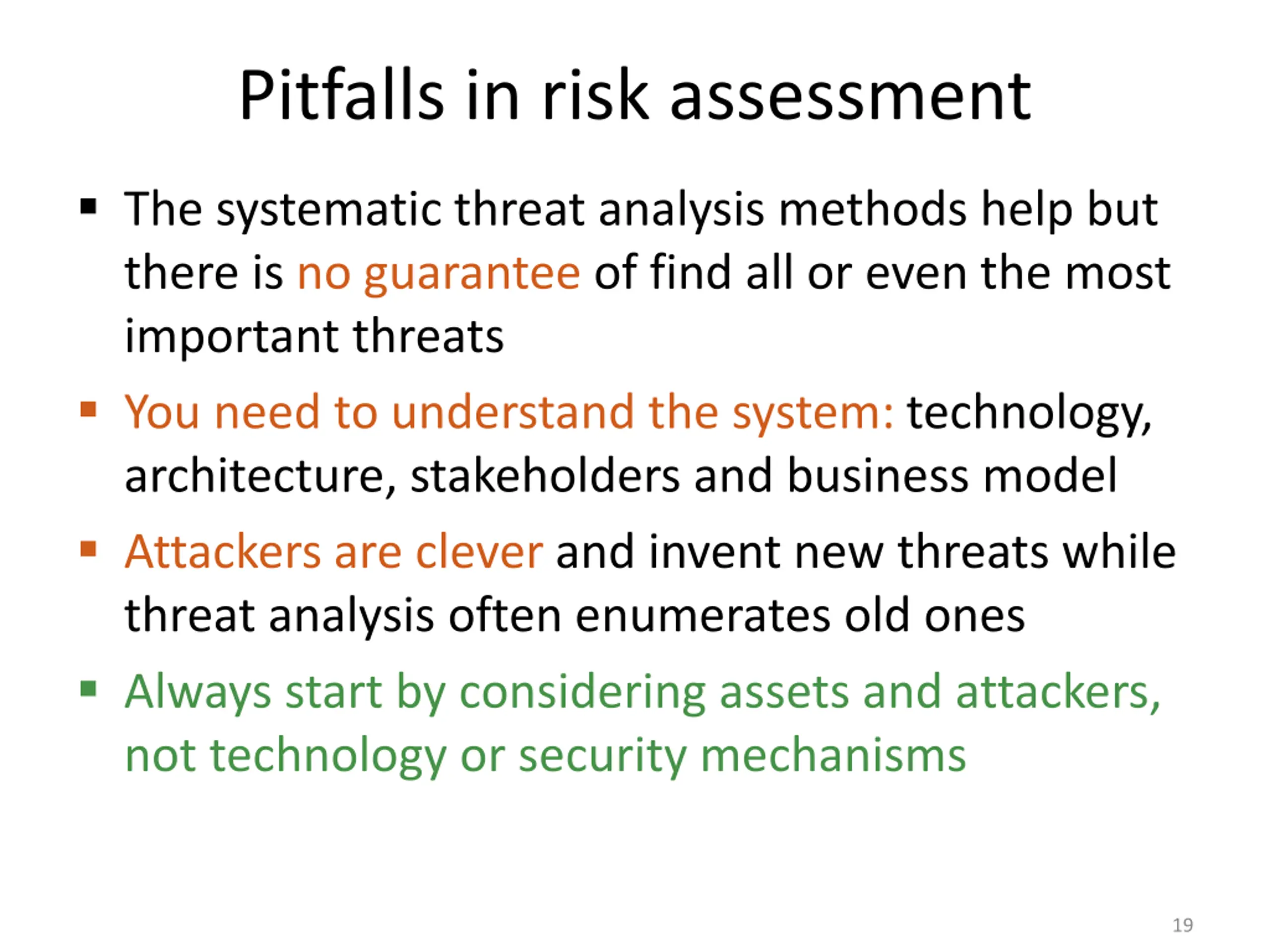

Pitfalls in risk assessment The systematic threat analysis methods help but there is no guarantee of find all or even the most important threats You need to understand the system: technology, architecture, stakeholders and business model Attackers are clever and invent new threats while threat analysis often enumerates old ones Always start by considering assets and attackers, not technology or security mechanisms 19

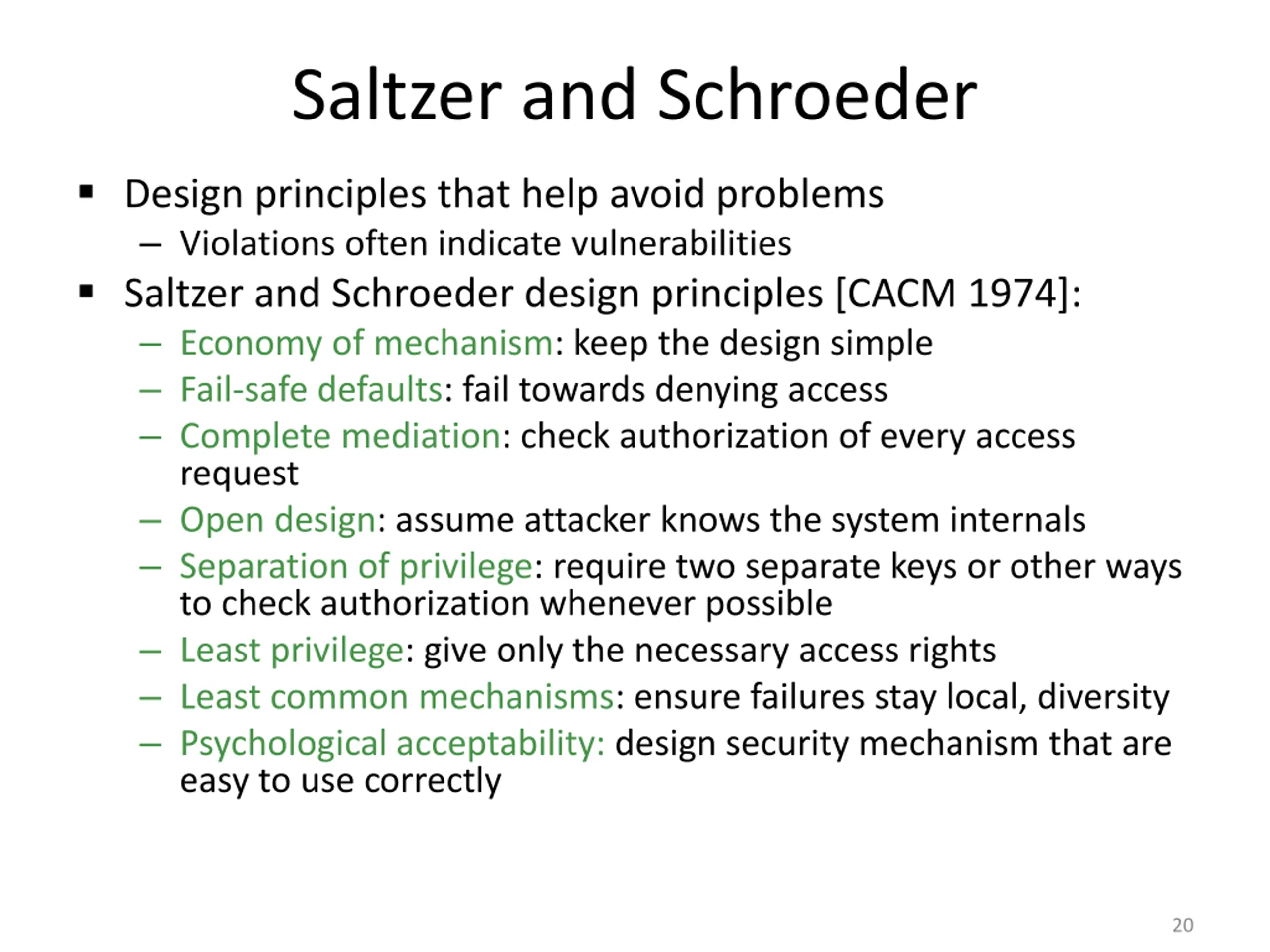

Saltzer and Schroeder Design principles that help avoid problems Violations often indicate vulnerabilities Saltzer and Schroeder design principles [CACM 1974]: Economy of mechanism: keep the design simple Fail-safe defaults: fail towards denying access Complete mediation: check authorization of every access request Open design: assume attacker knows the system internals Separation of privilege: require two separate keys or other ways to check authorization whenever possible Least privilege: give only the necessary access rights Least common mechanisms: ensure failures stay local, diversity Psychological acceptability: design security mechanism that are easy to use correctly 20

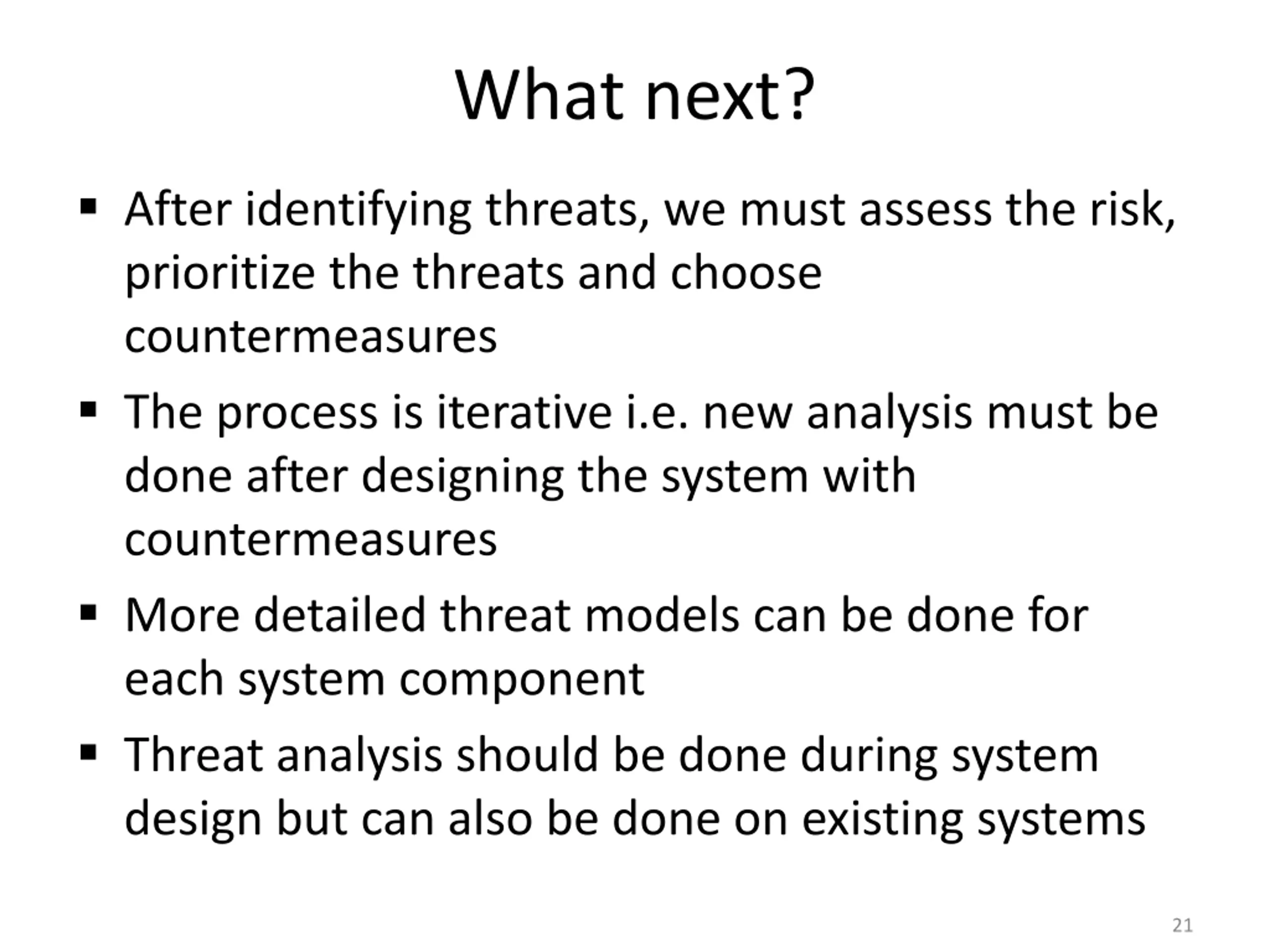

What next? After identifying threats, we must assess the risk, prioritize the threats and choose countermeasures The process is iterative i.e. new analysis must be done after designing the system with countermeasures More detailed threat models can be done for each system component Threat analysis should be done during system design but can also be done on existing systems 21

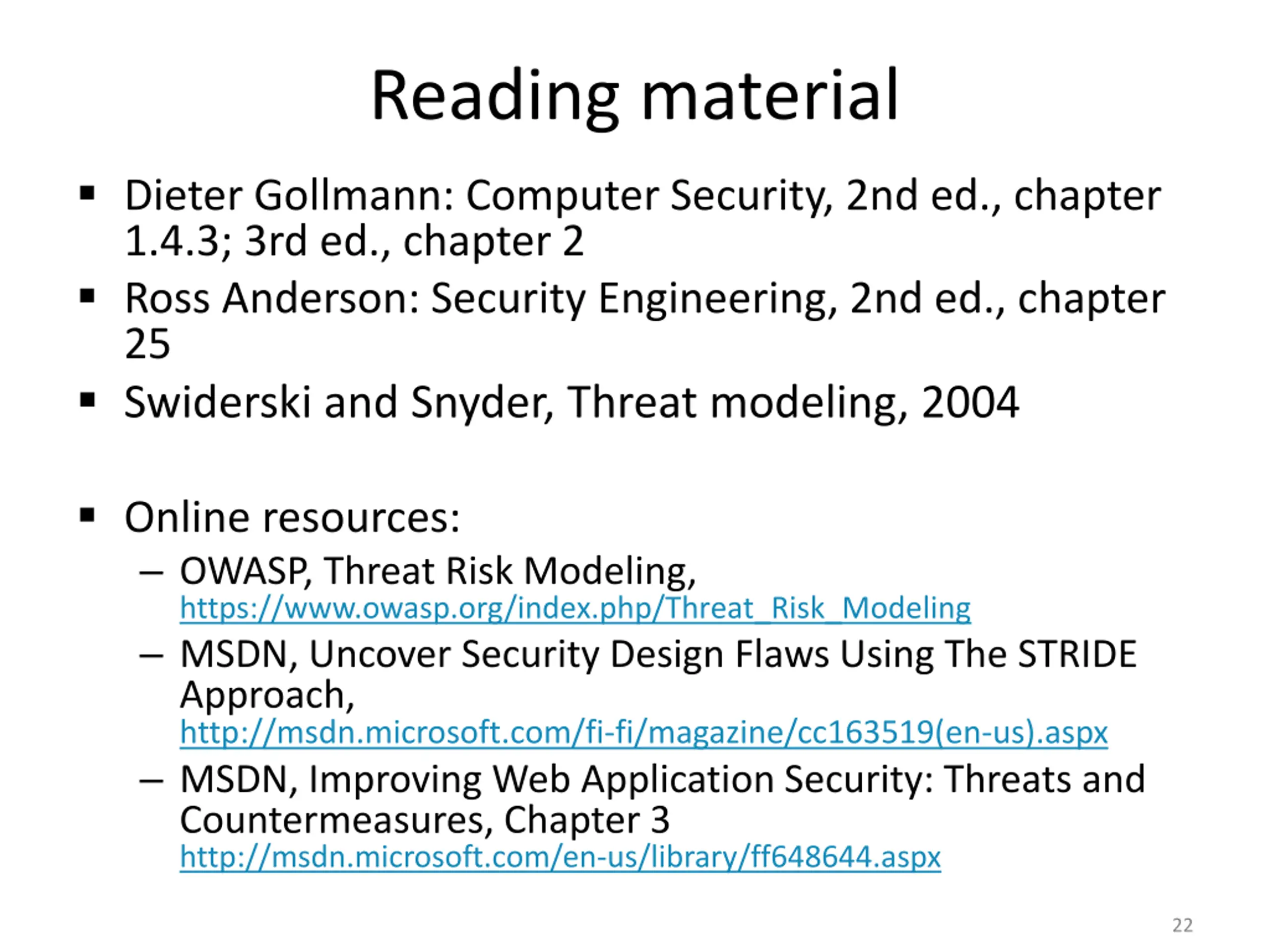

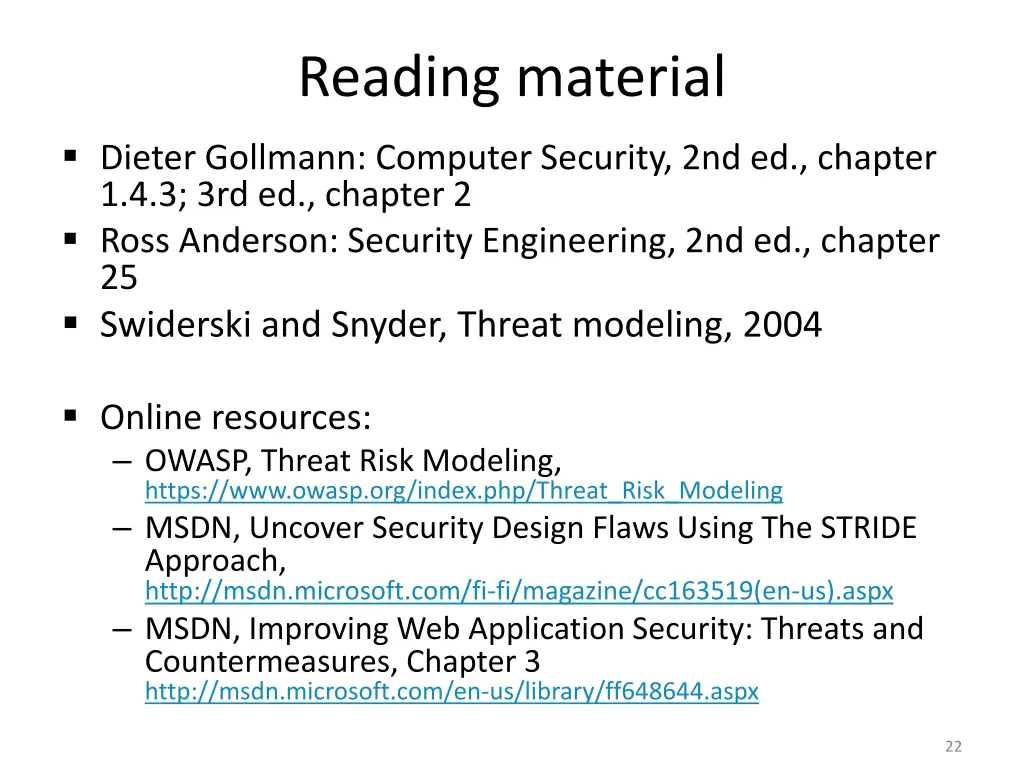

Reading material Dieter Gollmann: Computer Security, 2nd ed., chapter 1.4.3; 3rd ed., chapter 2 Ross Anderson: Security Engineering, 2nd ed., chapter 25 Swiderski and Snyder, Threat modeling, 2004 Online resources: OWASP, Threat Risk Modeling, https://www.owasp.org/index.php/Threat_Risk_Modeling MSDN, Uncover Security Design Flaws Using The STRIDE Approach, http://msdn.microsoft.com/fi-fi/magazine/cc163519(en-us).aspx MSDN, Improving Web Application Security: Threats and Countermeasures, Chapter 3 http://msdn.microsoft.com/en-us/library/ff648644.aspx 22

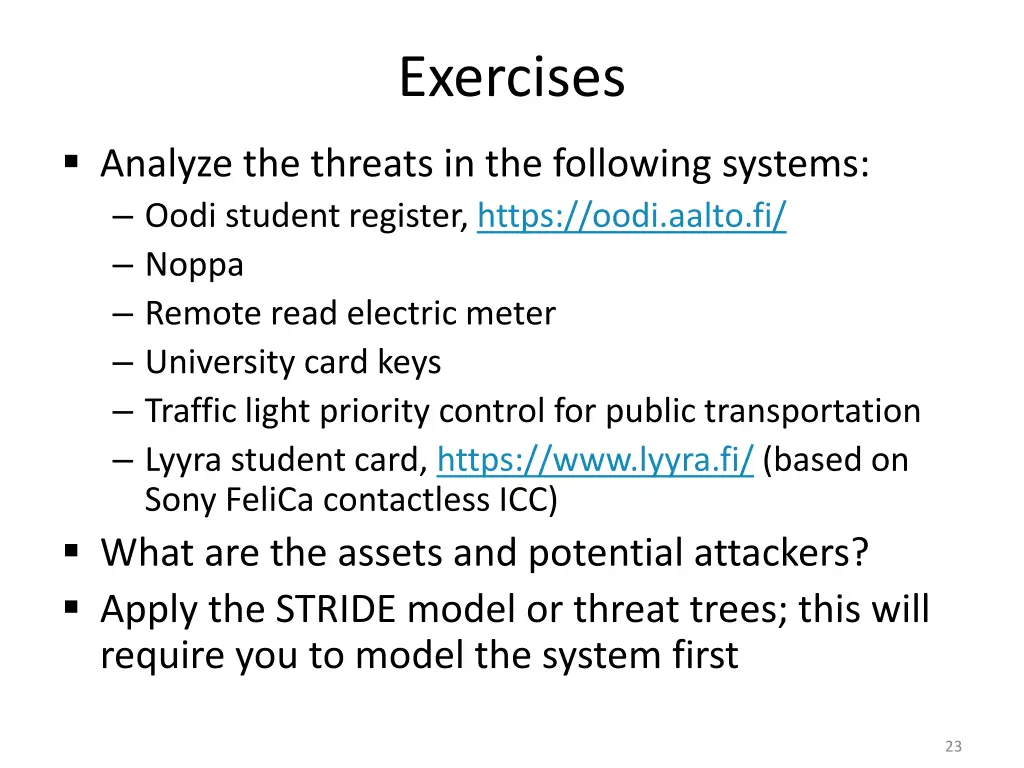

Exercises Analyze the threats in the following systems: Oodi student register, https://oodi.aalto.fi/ Noppa Remote read electric meter University card keys Traffic light priority control for public transportation Lyyra student card, https://www.lyyra.fi/ (based on Sony FeliCa contactless ICC) What are the assets and potential attackers? Apply the STRIDE model or threat trees; this will require you to model the system first 23
