TLS, Crypto, & ULPs Dave Watson davejwatson@fb.com

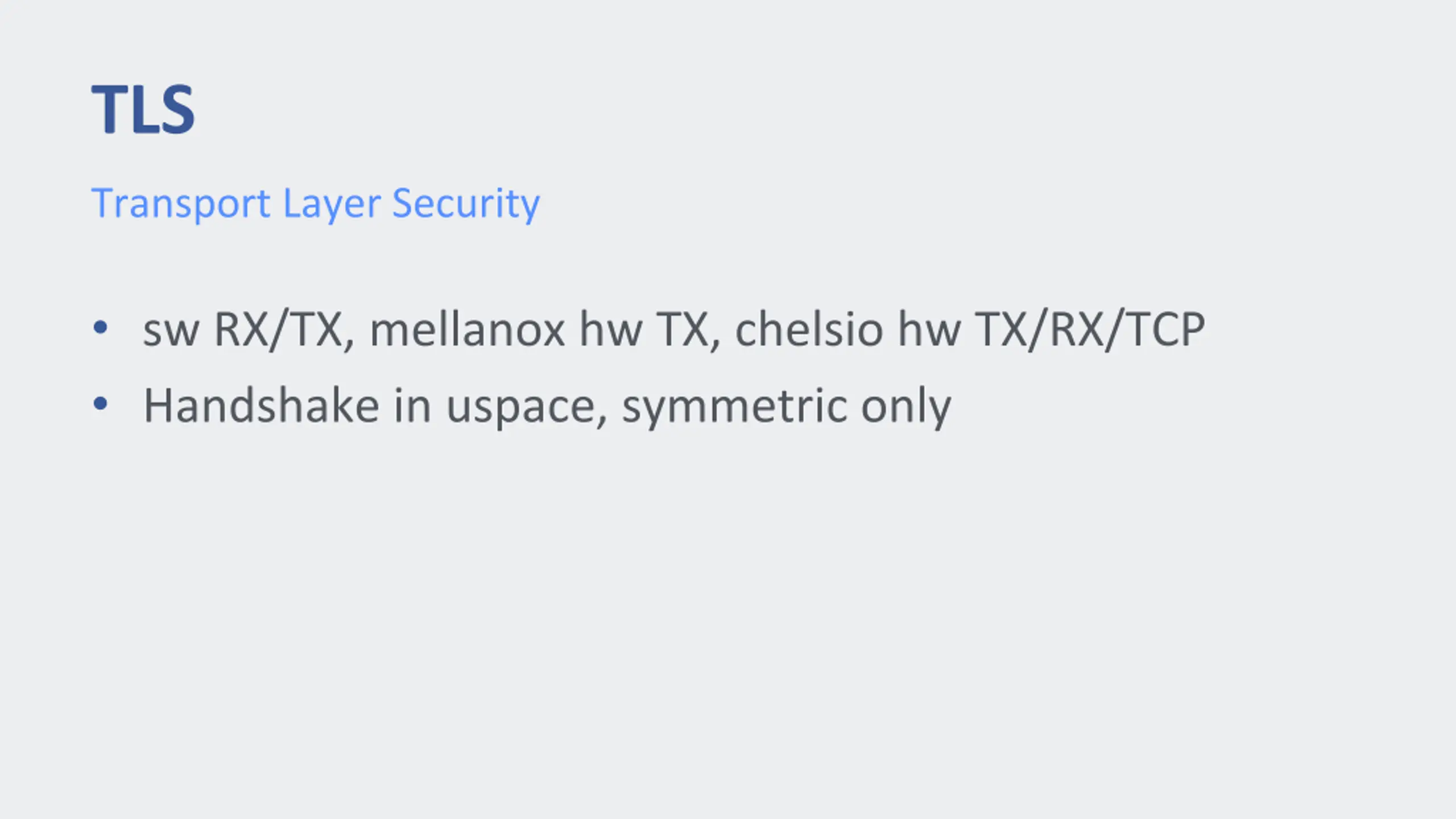

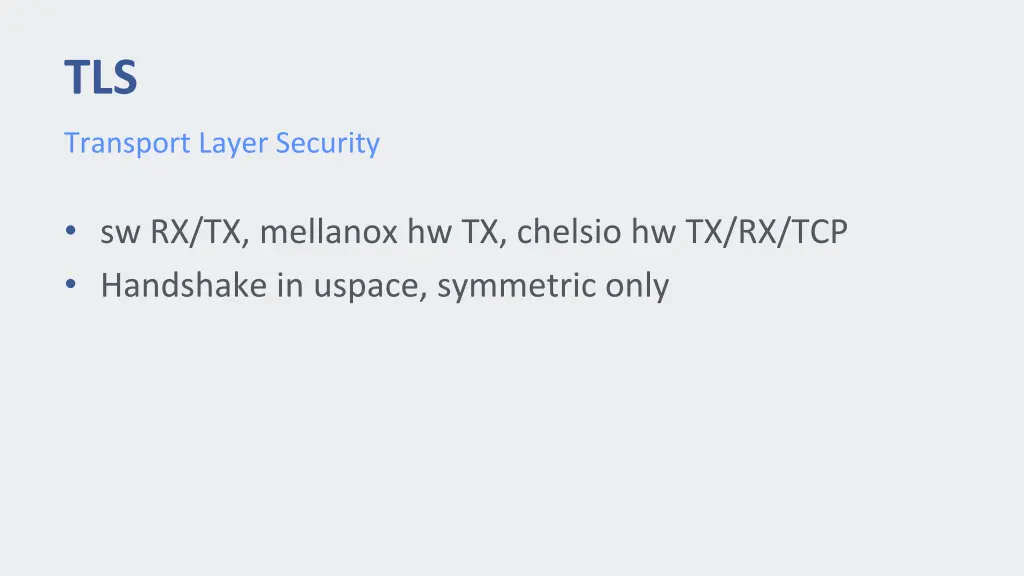

TLS Transport Layer Security sw RX/TX, mellanox hw TX, chelsio hw TX/RX/TCP Handshake in uspace, symmetric only

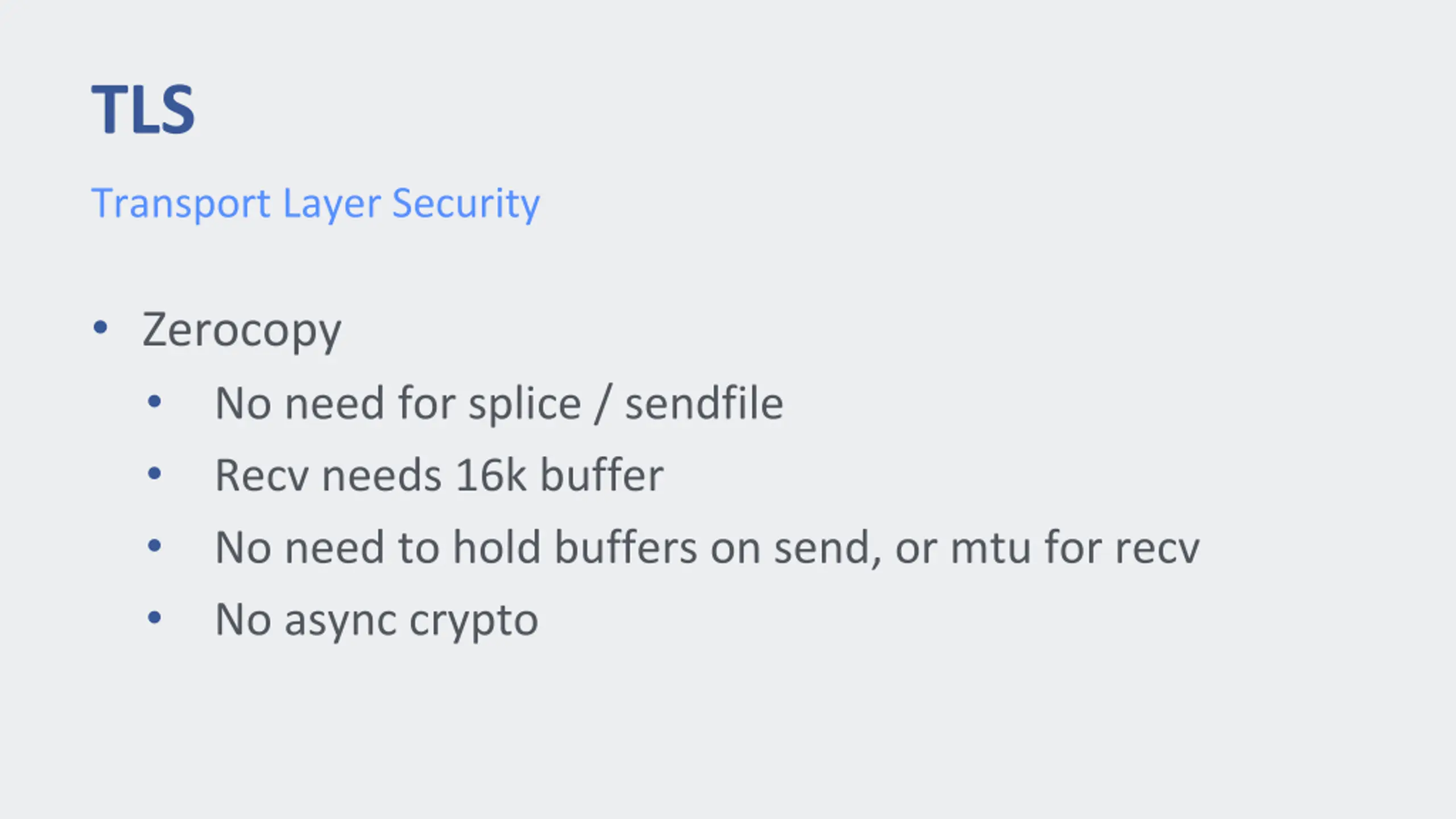

TLS Transport Layer Security Zerocopy No need for splice / sendfile Recv needs 16k buffer No need to hold buffers on send, or mtu for recv No async crypto

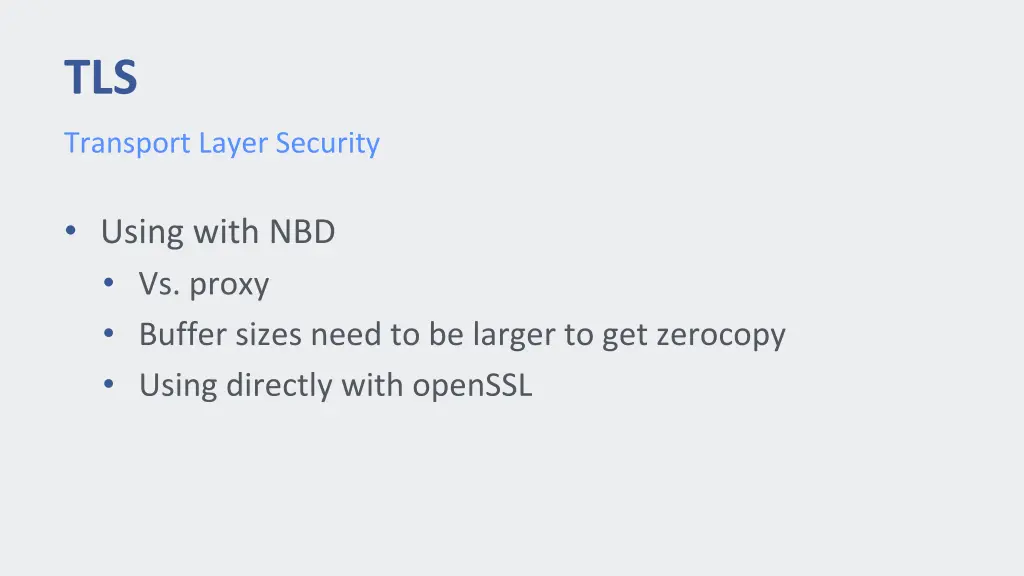

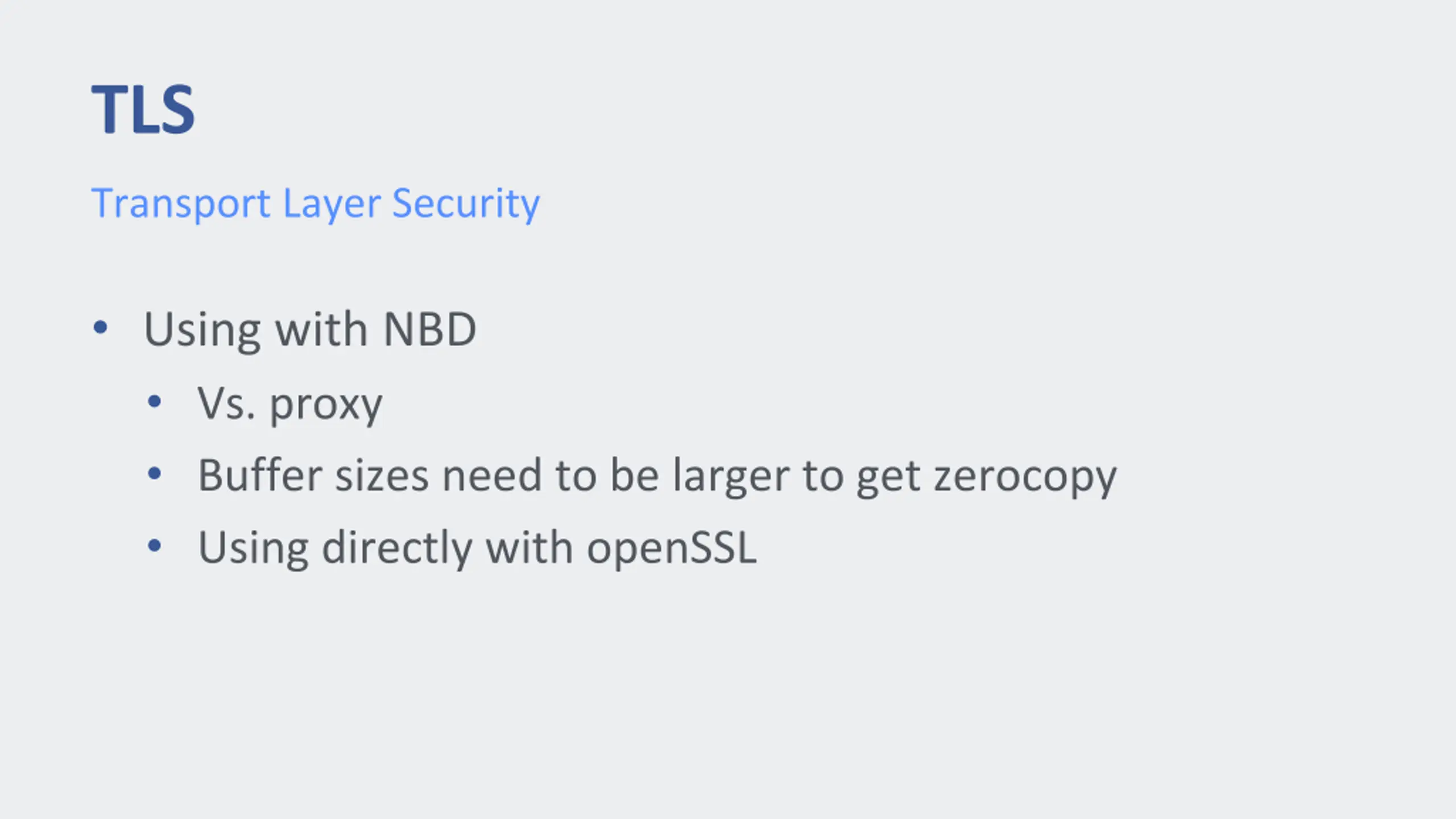

TLS Transport Layer Security Using with NBD Vs. proxy Buffer sizes need to be larger to get zerocopy Using directly with openSSL

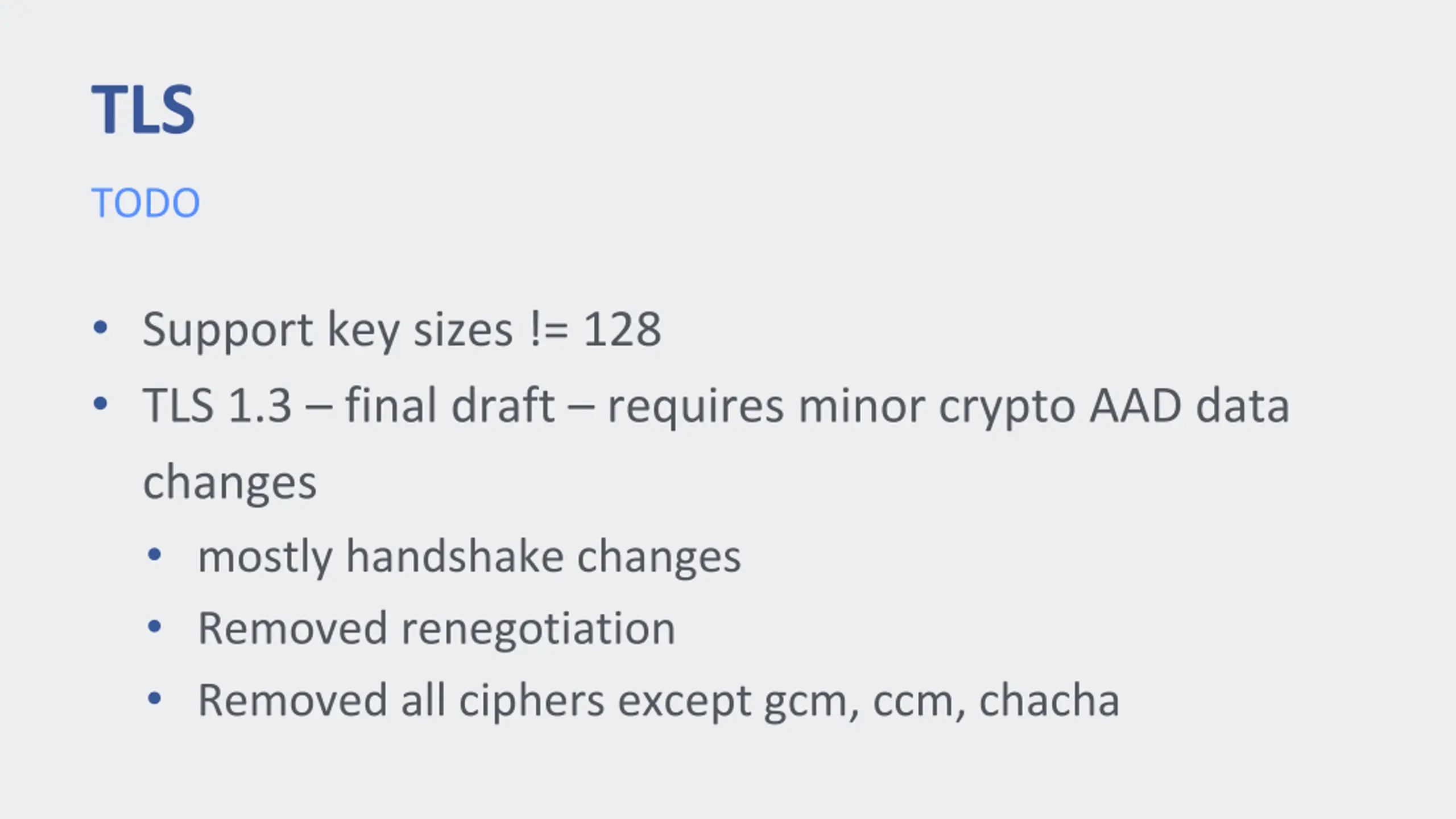

TLS TODO Support key sizes != 128 TLS 1.3 final draft requires minor crypto AAD data changes mostly handshake changes Removed renegotiation Removed all ciphers except gcm, ccm, chacha

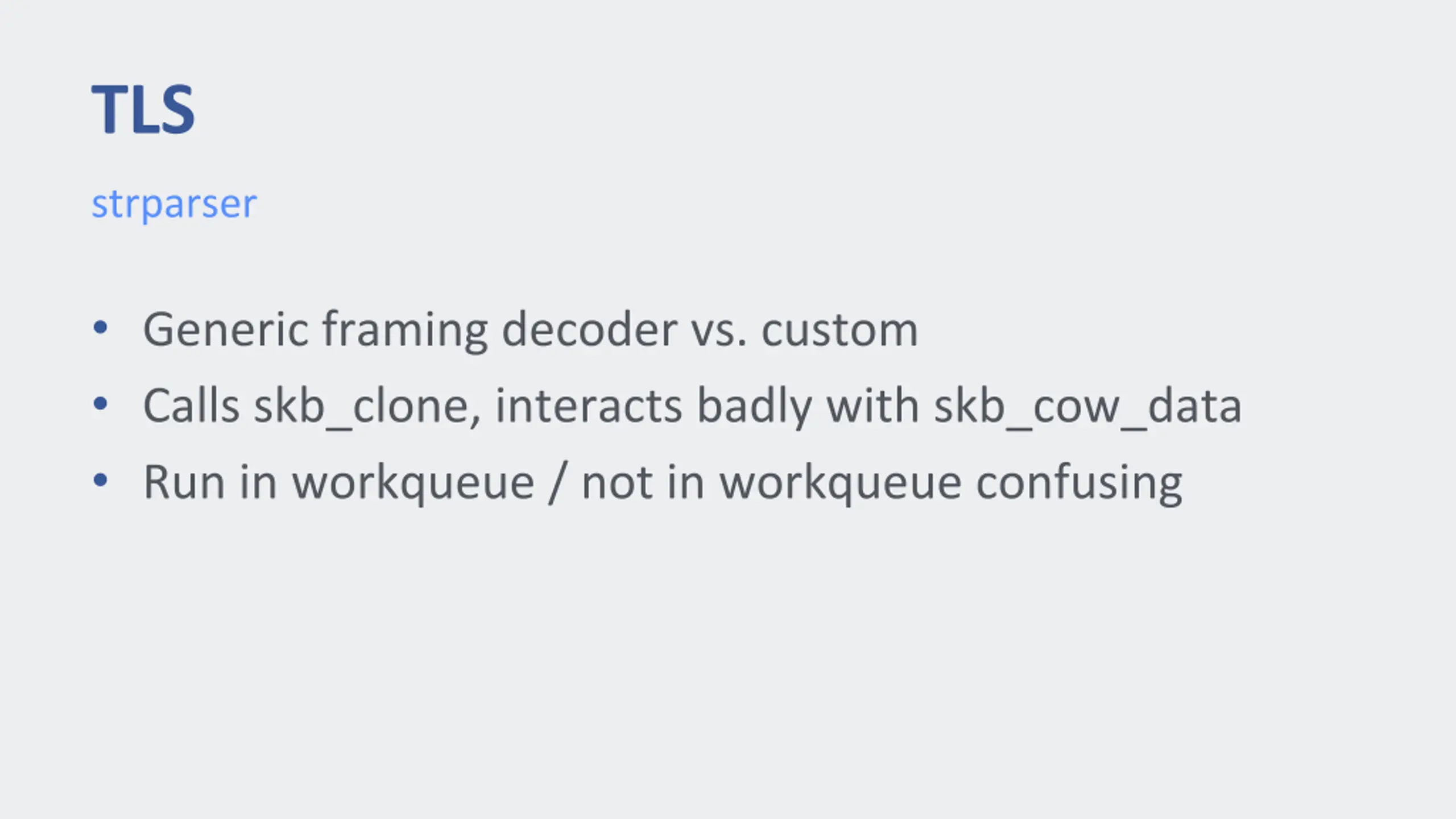

TLS strparser Generic framing decoder vs. custom Calls skb_clone, interacts badly with skb_cow_data Run in workqueue / not in workqueue confusing
Crypto TLS, IPSec, Macsec Almost everywhere uses GCM ~10 years old C any key size, scatter/gather, slow SSE any key size, recent scatter/gather support AVX 128bit only, no scatter/gather

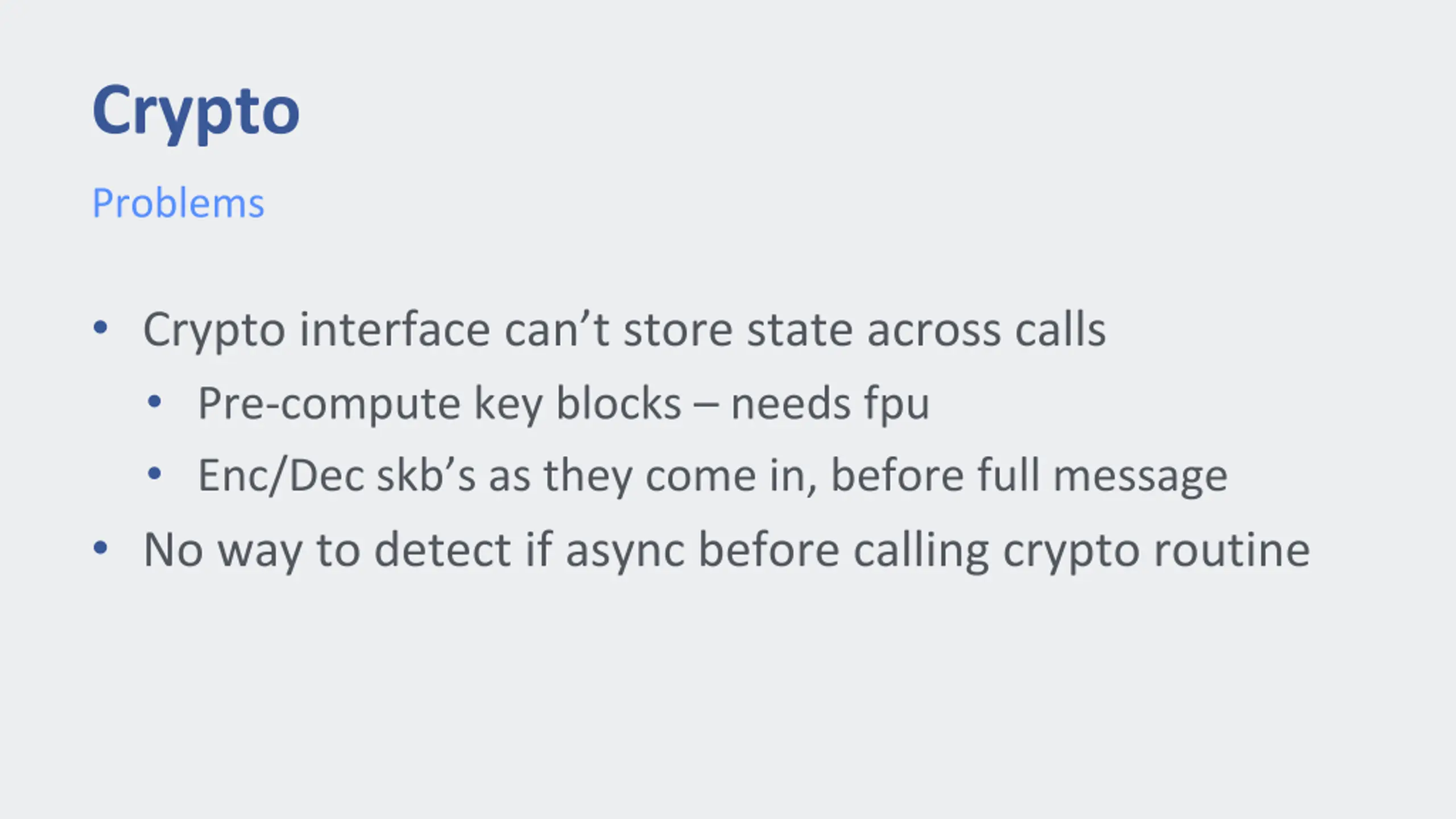

Crypto Problems Crypto interface can t store state across calls Pre-compute key blocks needs fpu Enc/Dec skb s as they come in, before full message No way to detect if async before calling crypto routine

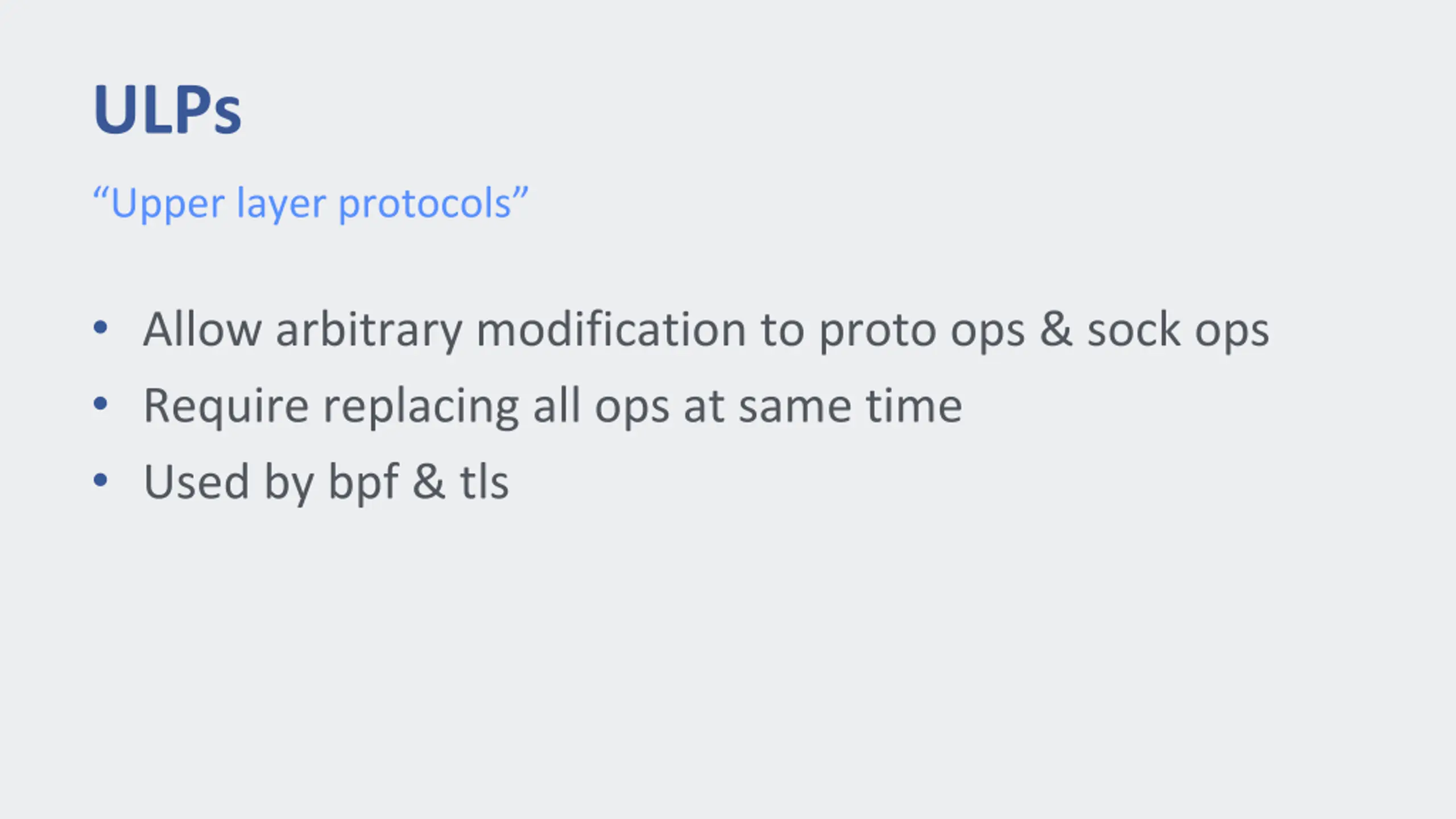

ULPs Upper layer protocols Allow arbitrary modification to proto ops & sock ops Require replacing all ops at same time Used by bpf & tls

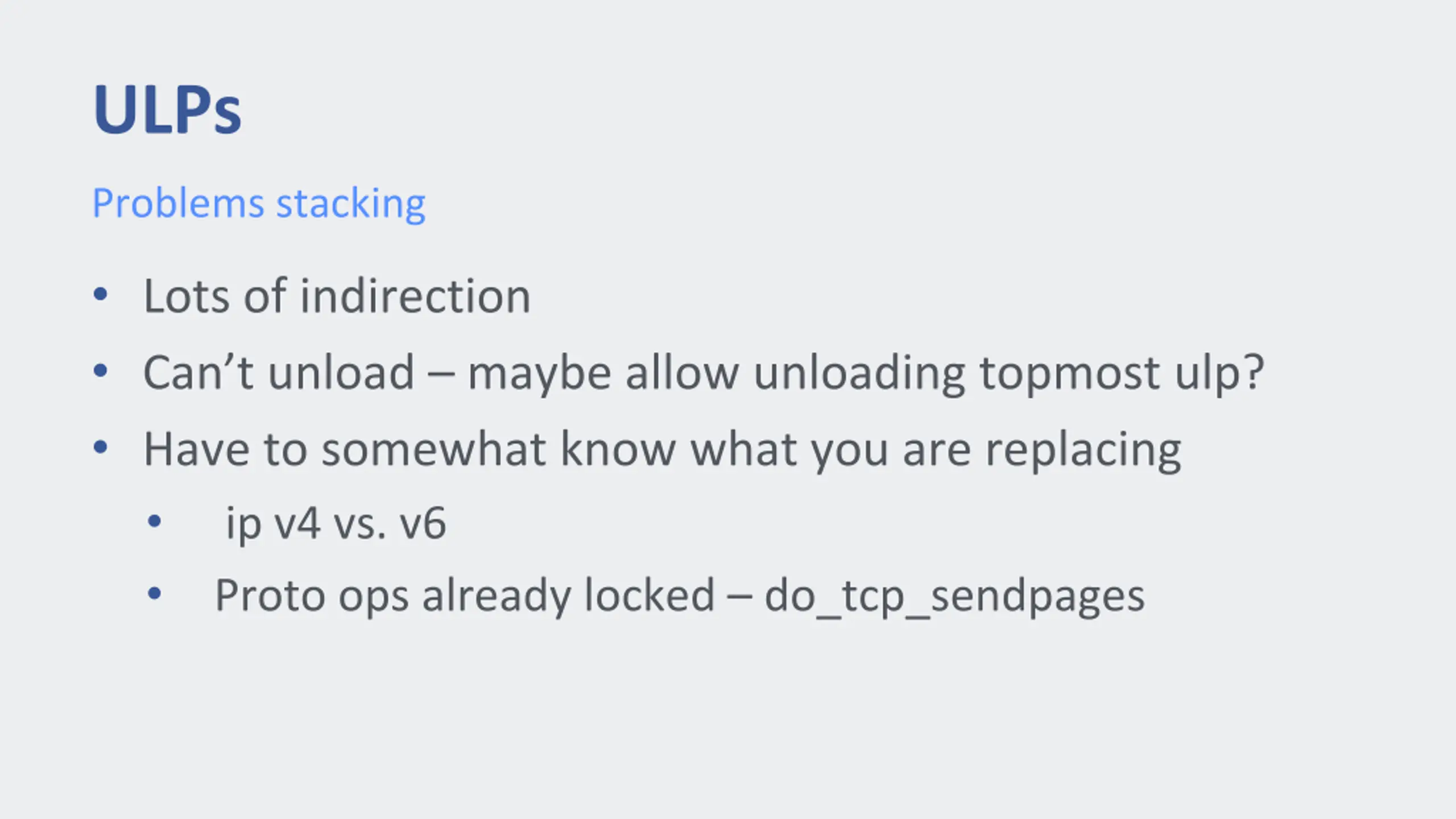

ULPs Problems stacking Lots of indirection Can t unload maybe allow unloading topmost ulp? Have to somewhat know what you are replacing ip v4 vs. v6 Proto ops already locked do_tcp_sendpages

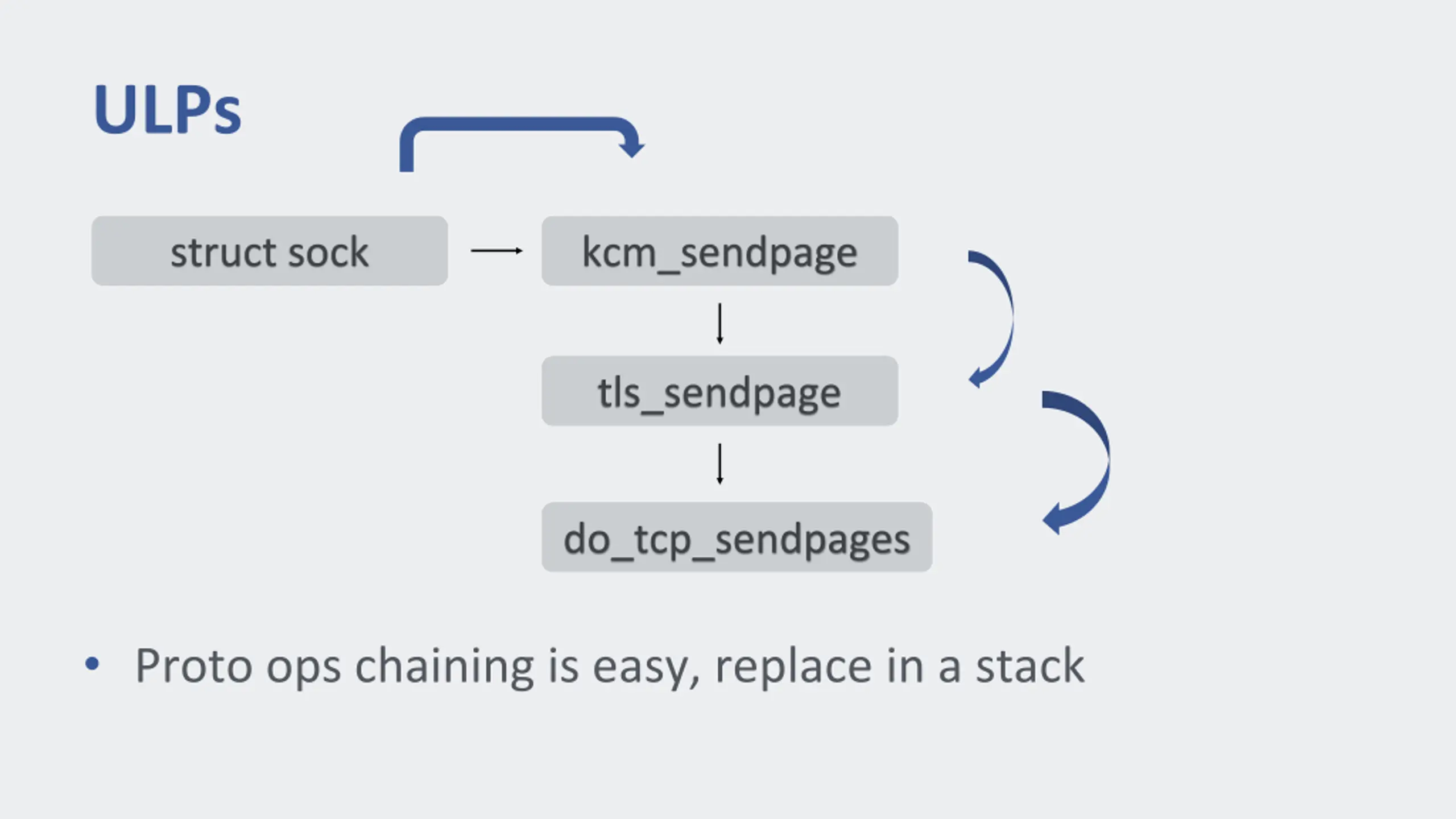

ULPs struct sock kcm_sendpage tls_sendpage do_tcp_sendpages Proto ops chaining is easy, replace in a stack

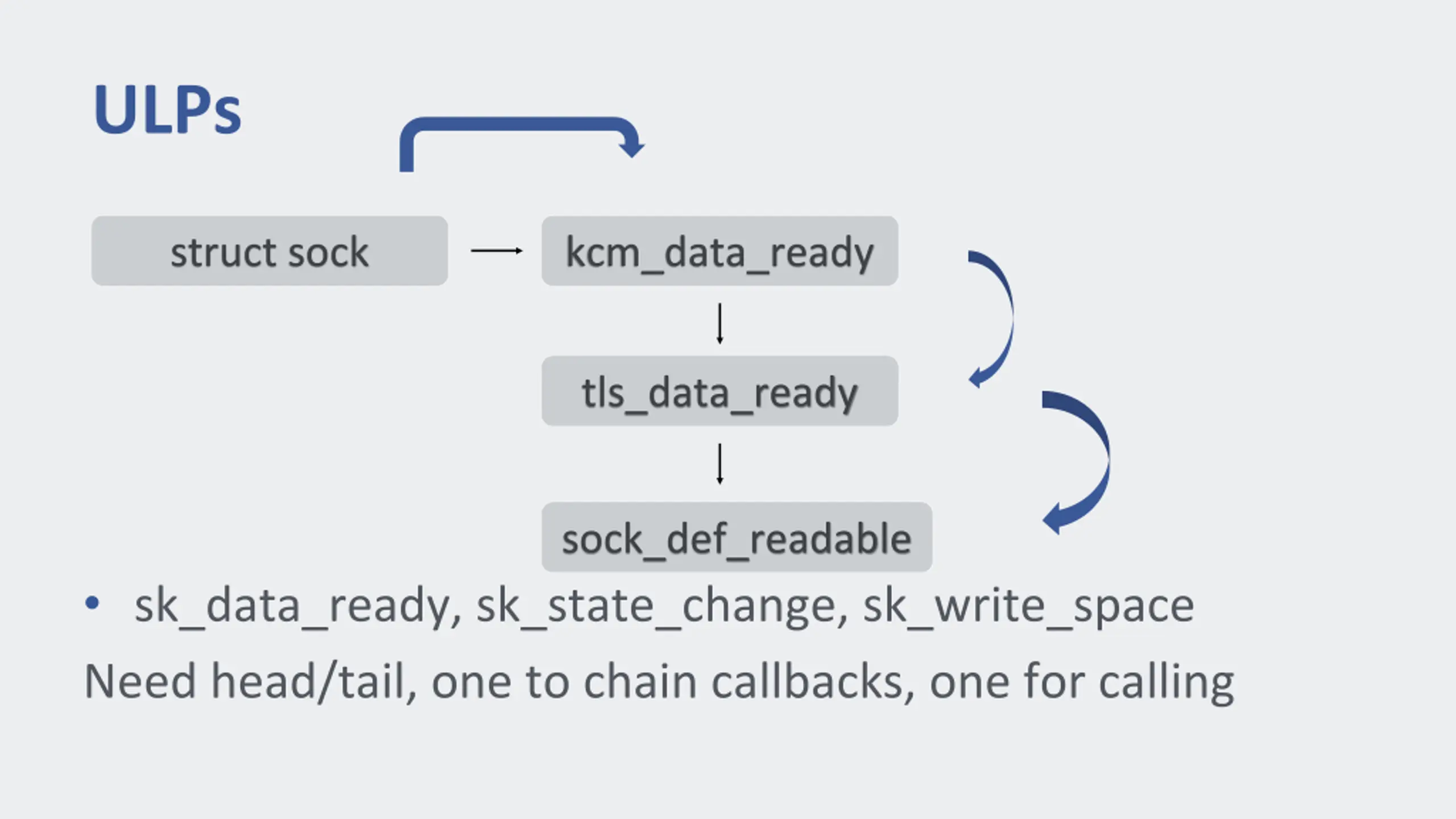

ULPs struct sock kcm_data_ready tls_data_ready sock_def_readable sk_data_ready, sk_state_change, sk_write_space Need head/tail, one to chain callbacks, one for calling

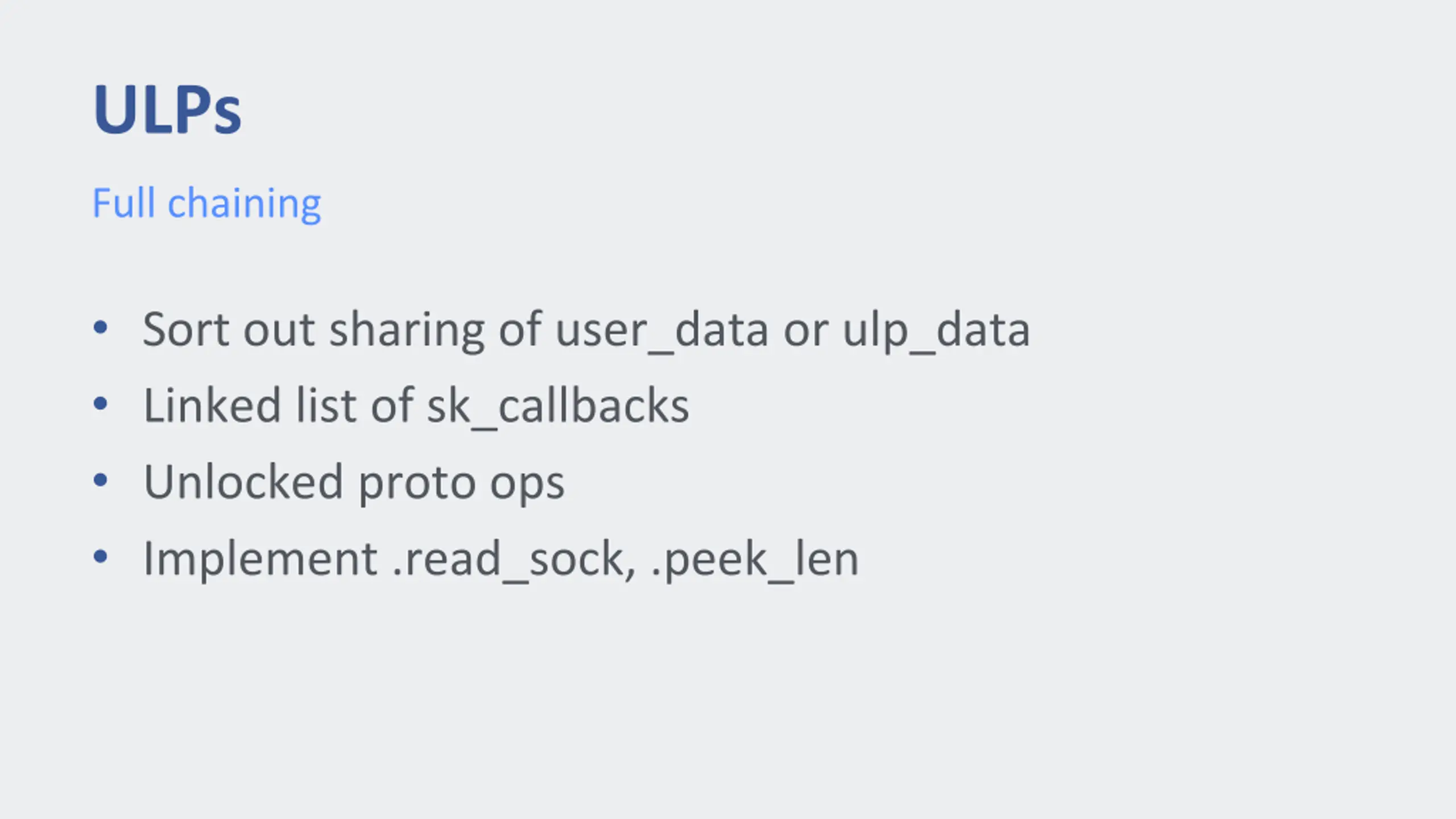

ULPs Full chaining Sort out sharing of user_data or ulp_data Linked list of sk_callbacks Unlocked proto ops Implement .read_sock, .peek_len
