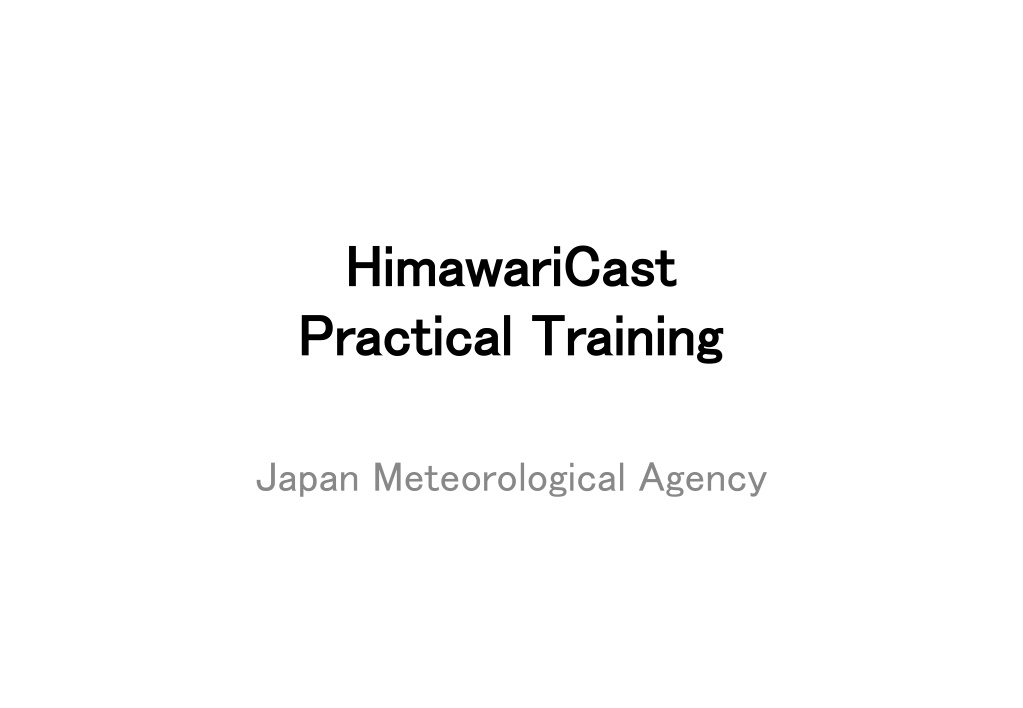

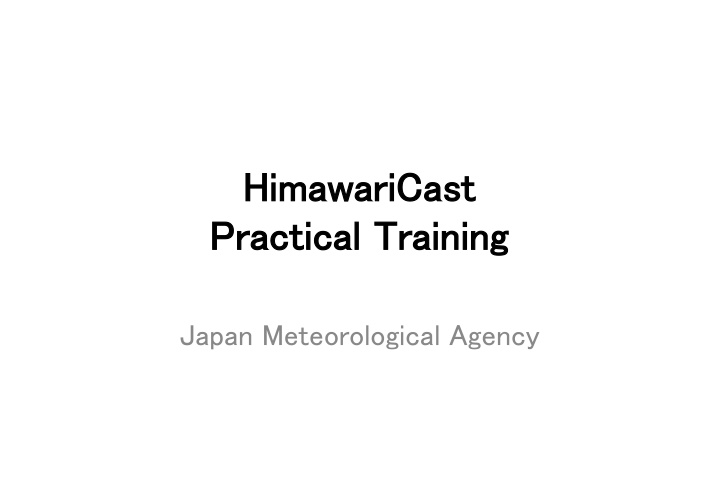

HimawariCast HimawariCast Practical Training Practical Training Japan Meteorological Agency

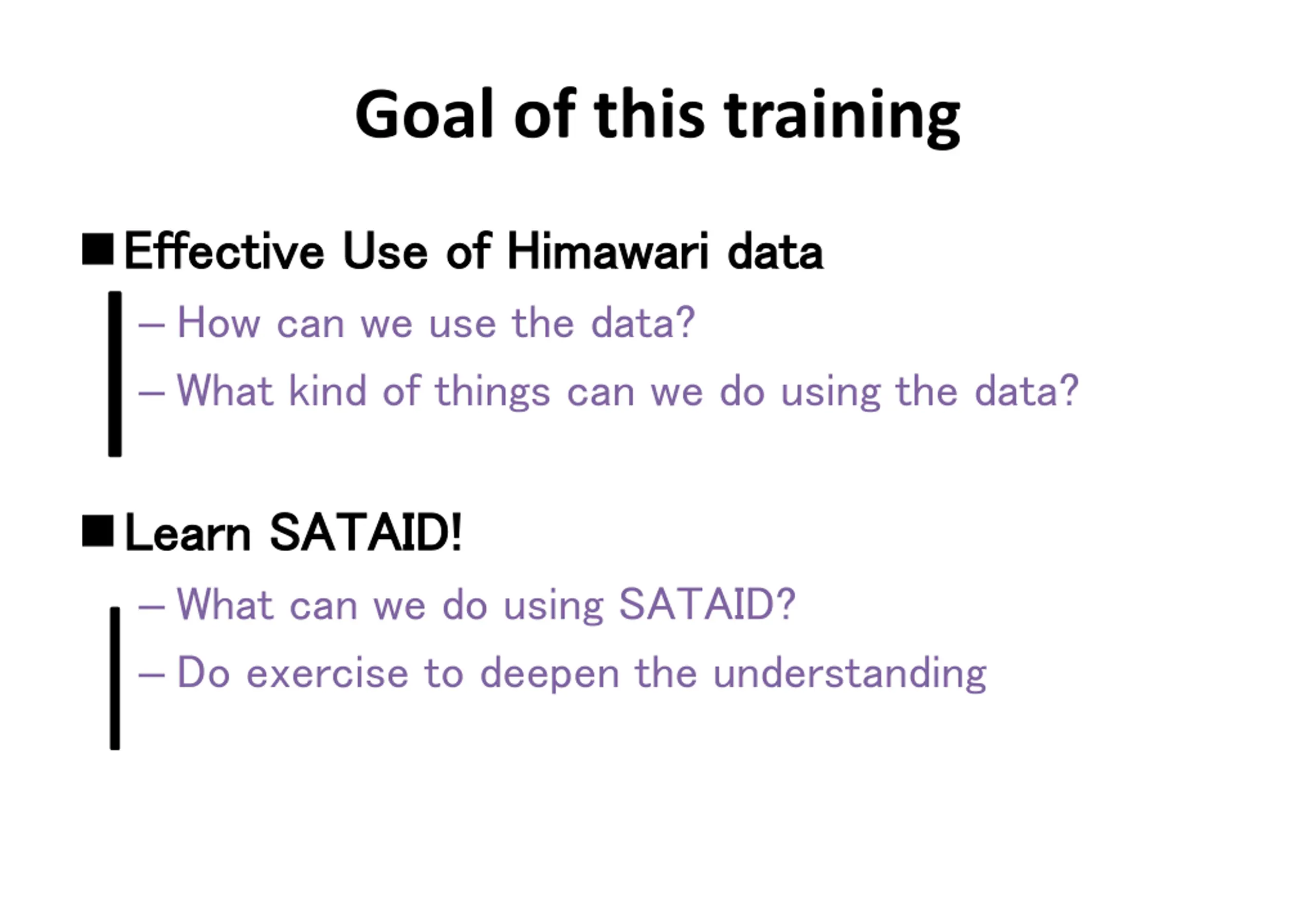

Goal of this training Effective Use of Himawari data Effective Use of Himawari data How can we use the data? What kind of things can we do using the data? Learn SATAID! Learn SATAID! What can we do using SATAID? Do exercise to deepen the understanding

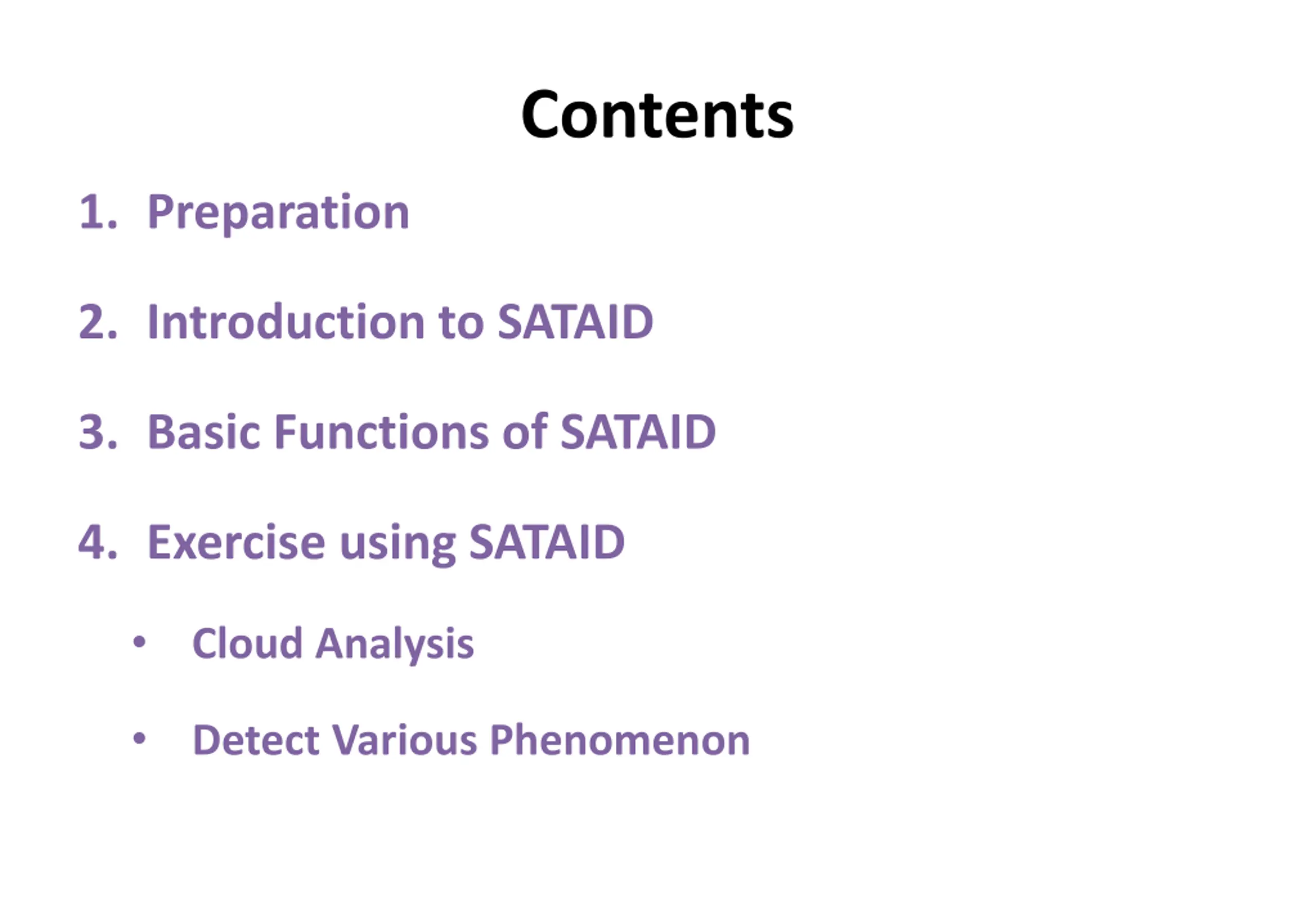

Contents 1. Preparation 2. Introduction to SATAID 3. Basic Functions of SATAID 4. Exercise using SATAID Cloud Analysis Detect Various Phenomenon

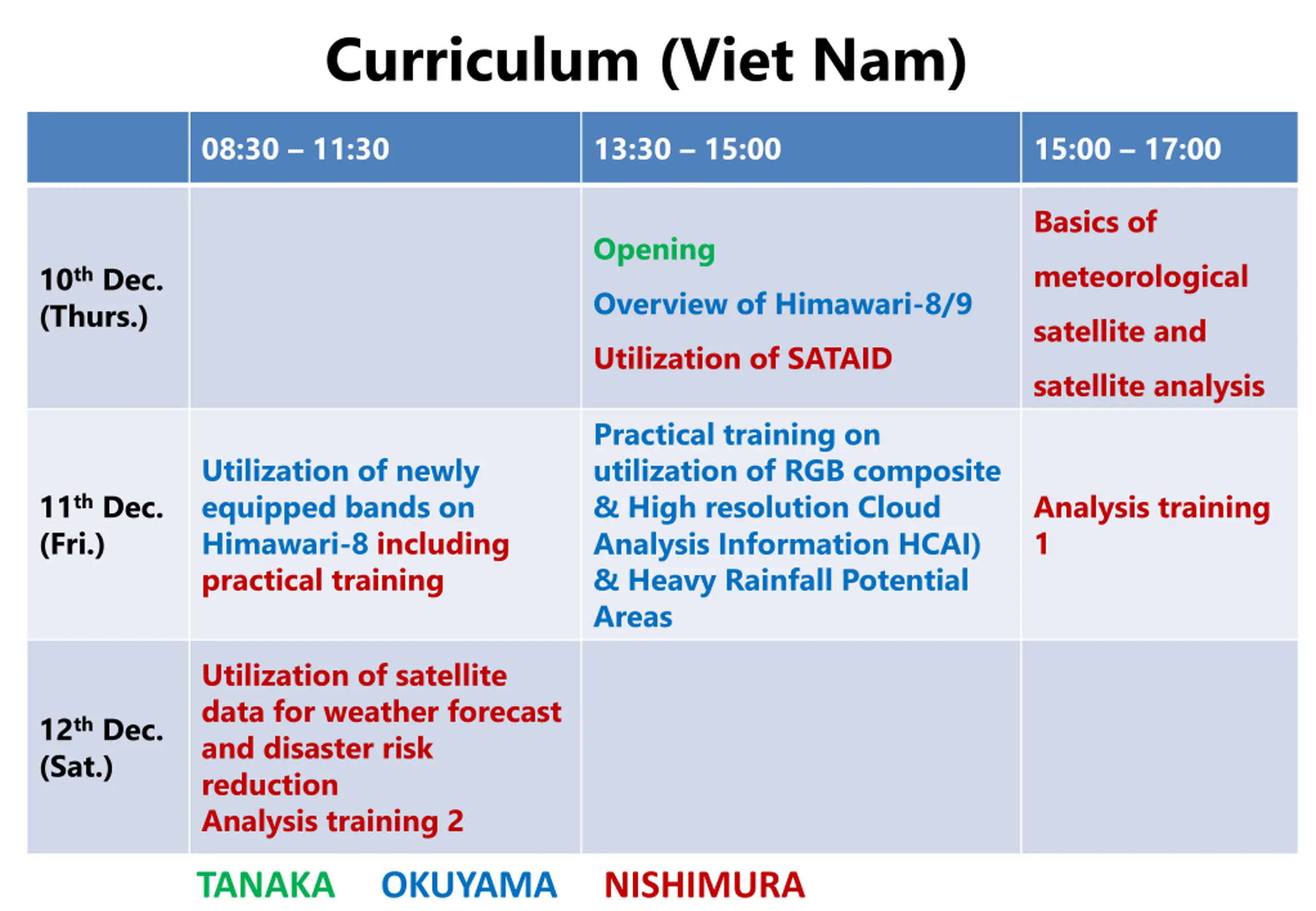

Curriculum (Viet Nam) 08:30 11:30 13:30 15:00 15:00 17:00 Basics of meteorological satellite and satellite analysis Opening Overview of Himawari-8/9 Utilization of SATAID 10thDec. (Thurs.) Practical training on utilization of RGB composite & High resolution Cloud Analysis Information HCAI) & Heavy Rainfall Potential Areas Utilization of newly equipped bands on Himawari-8 including practical training 11thDec. (Fri.) Analysis training 1 Utilization of satellite data for weather forecast and disaster risk reduction Analysis training 2 12thDec. (Sat.) TANAKA OKUYAMA NISHIMURA

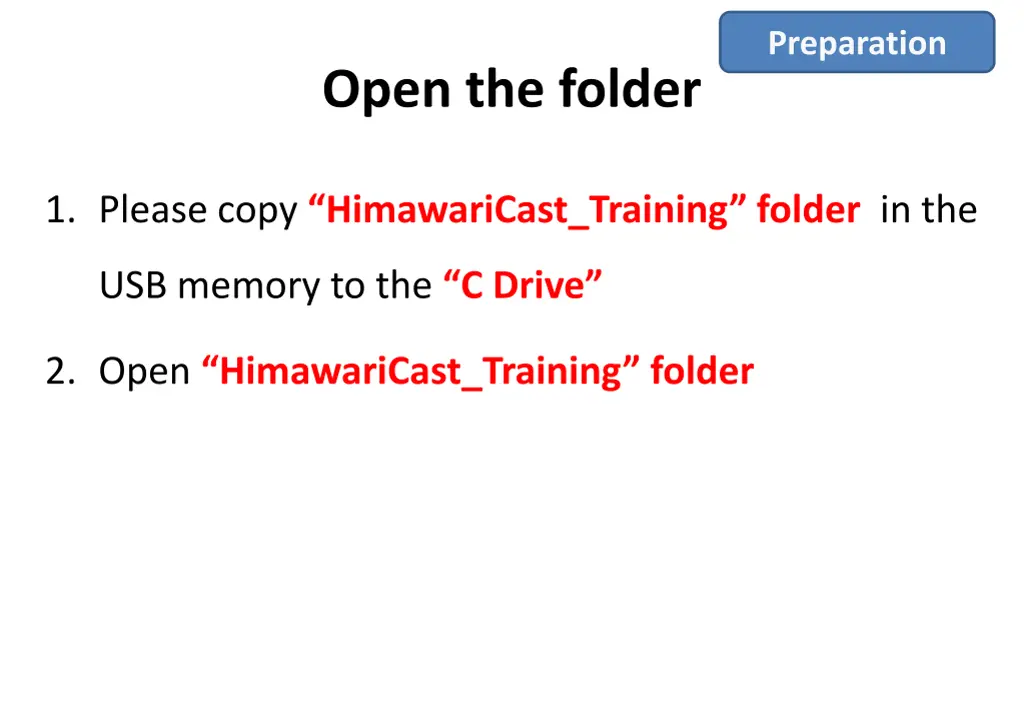

Preparation Open the folder 1. Please copy HimawariCast_Training folder in the USB memory to the C Drive 2. Open HimawariCast_Training folder

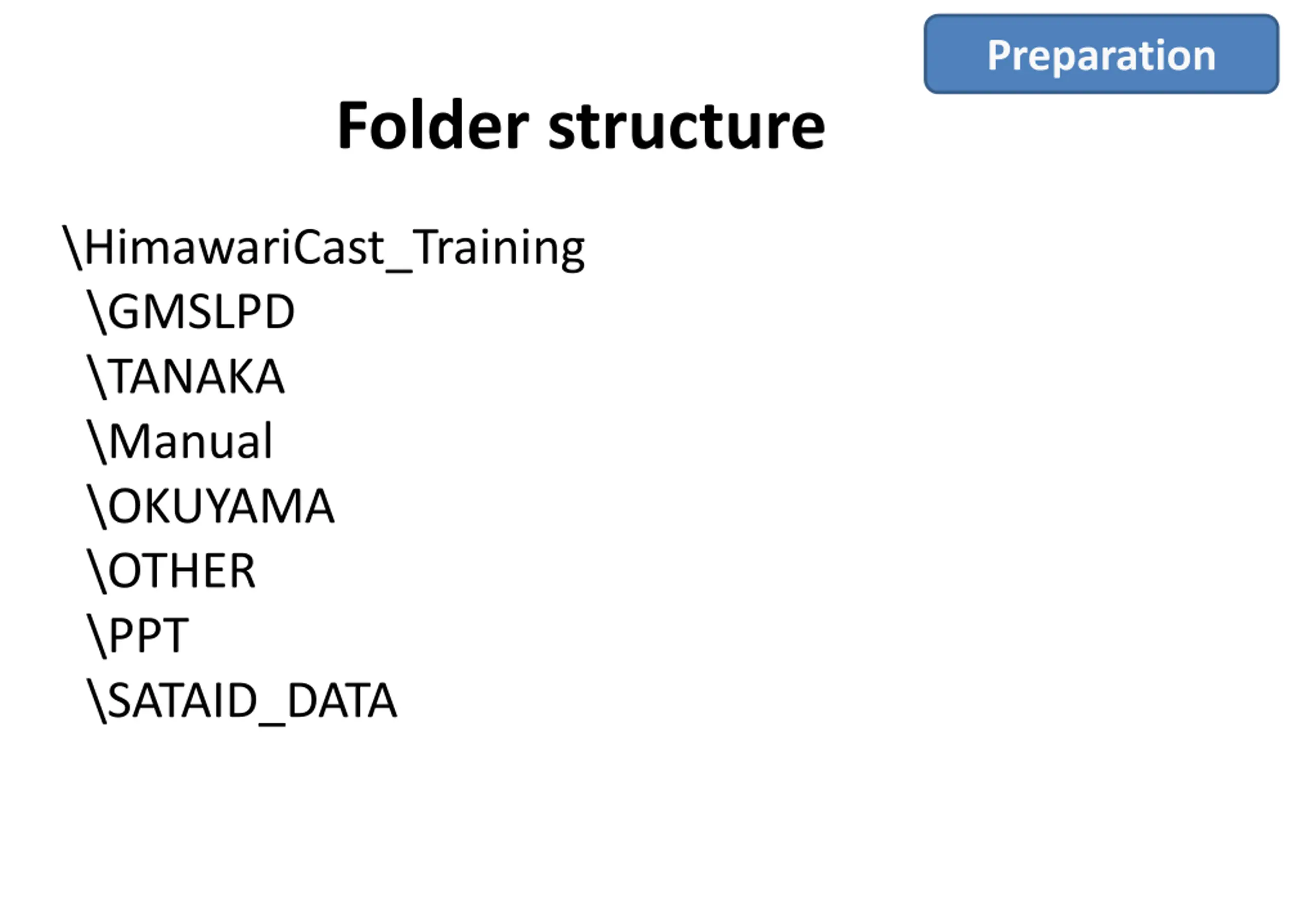

Preparation Folder structure \HimawariCast_Training \GMSLPD \TANAKA \Manual \OKUYAMA \OTHER \PPT \SATAID_DATA

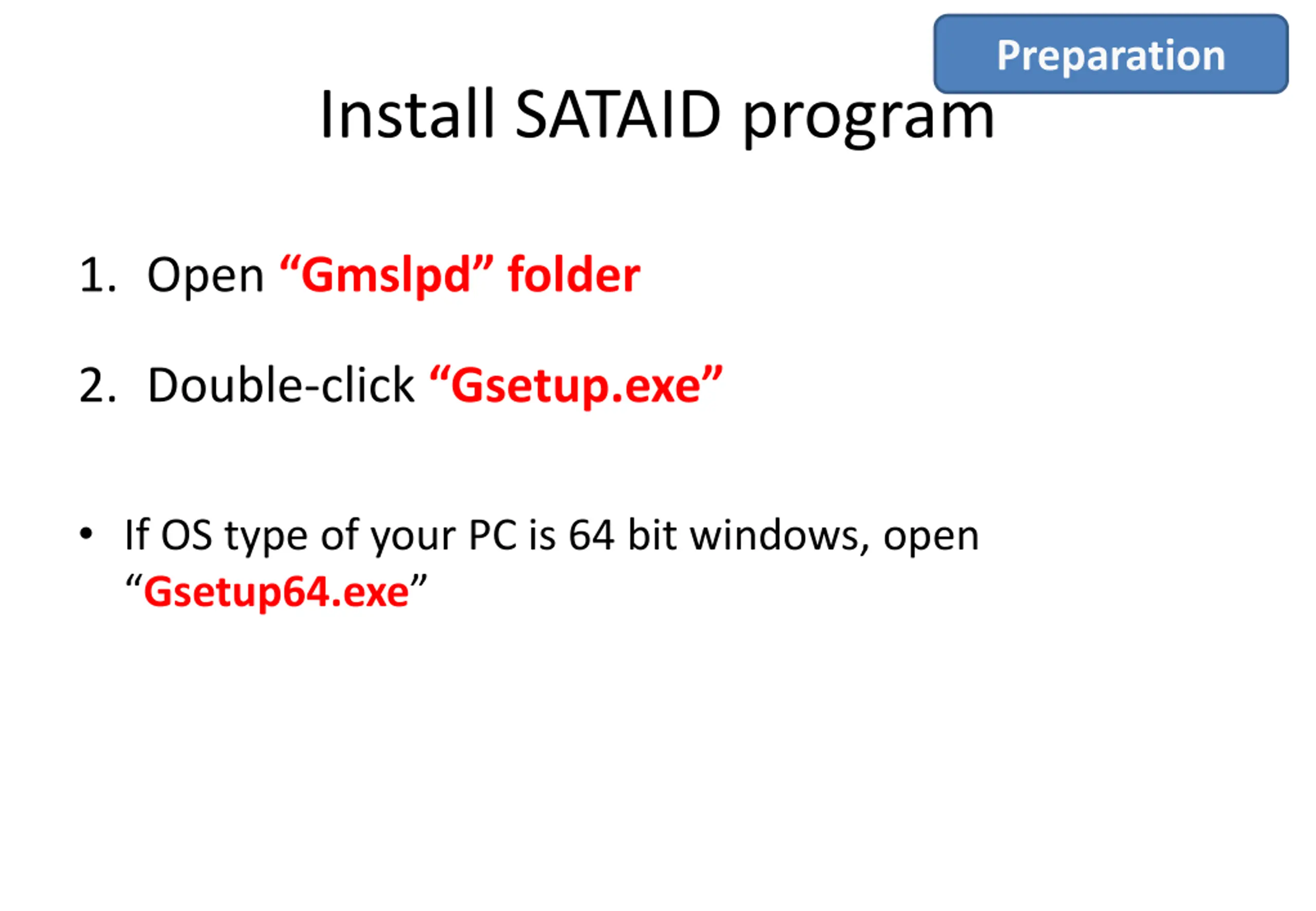

Preparation Install SATAID program 1. Open Gmslpd folder 2. Double-click Gsetup.exe If OS type of your PC is 64 bit windows, open Gsetup64.exe

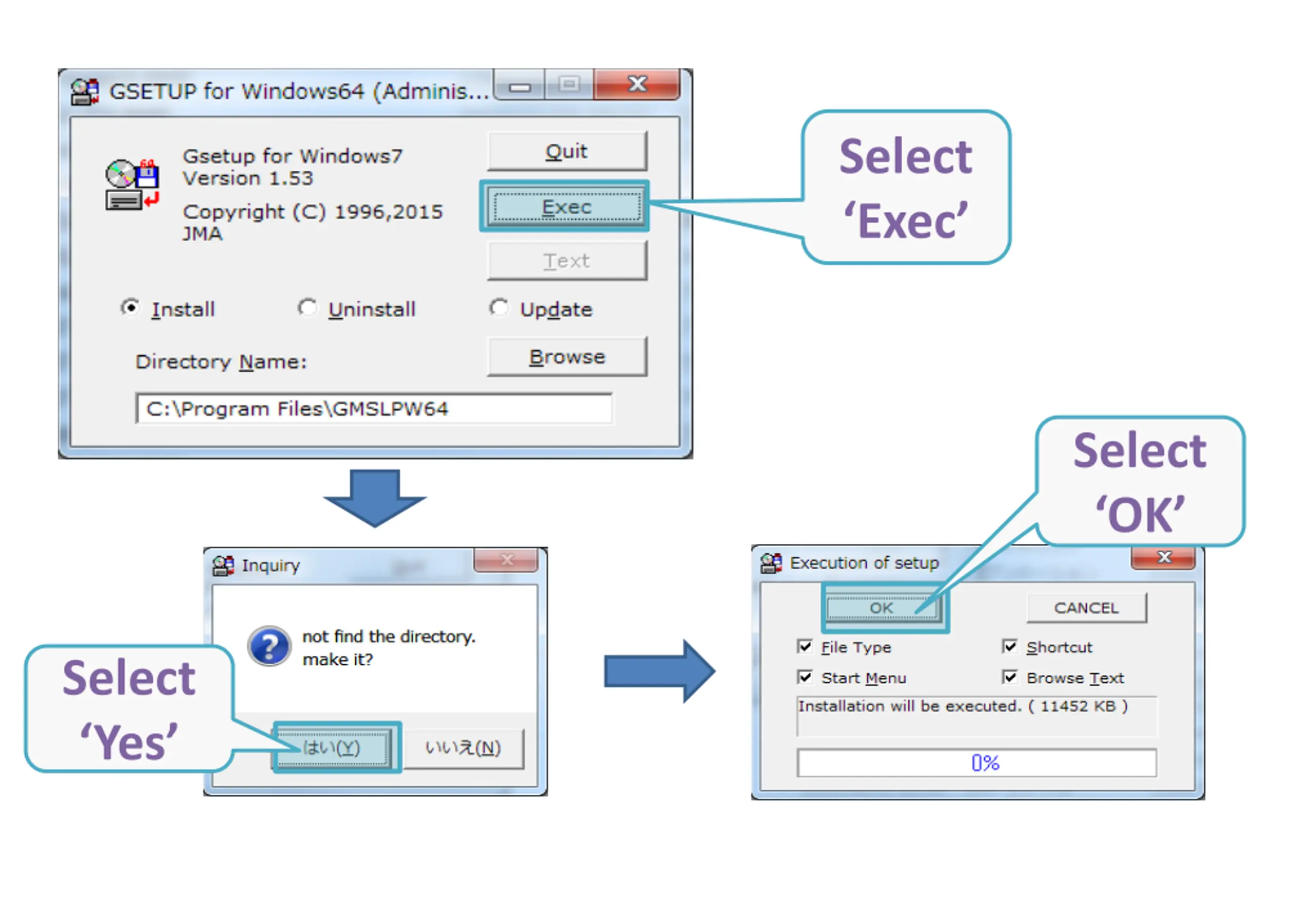

Select Exec Select OK Select Yes

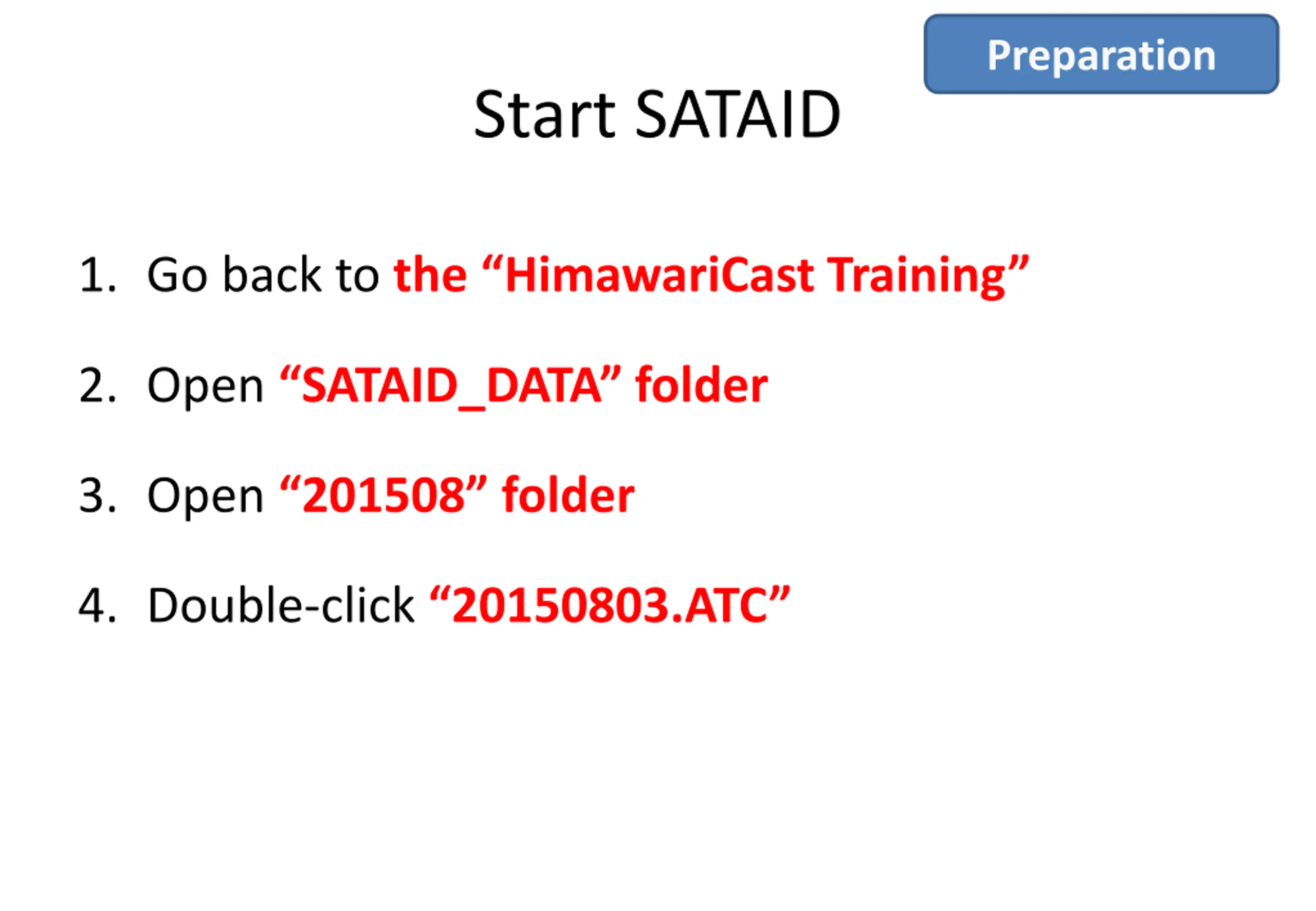

Preparation Start SATAID 1. Go back to the HimawariCast Training 2. Open SATAID_DATA folder 3. Open 201508 folder 4. Double-click 20150803.ATC

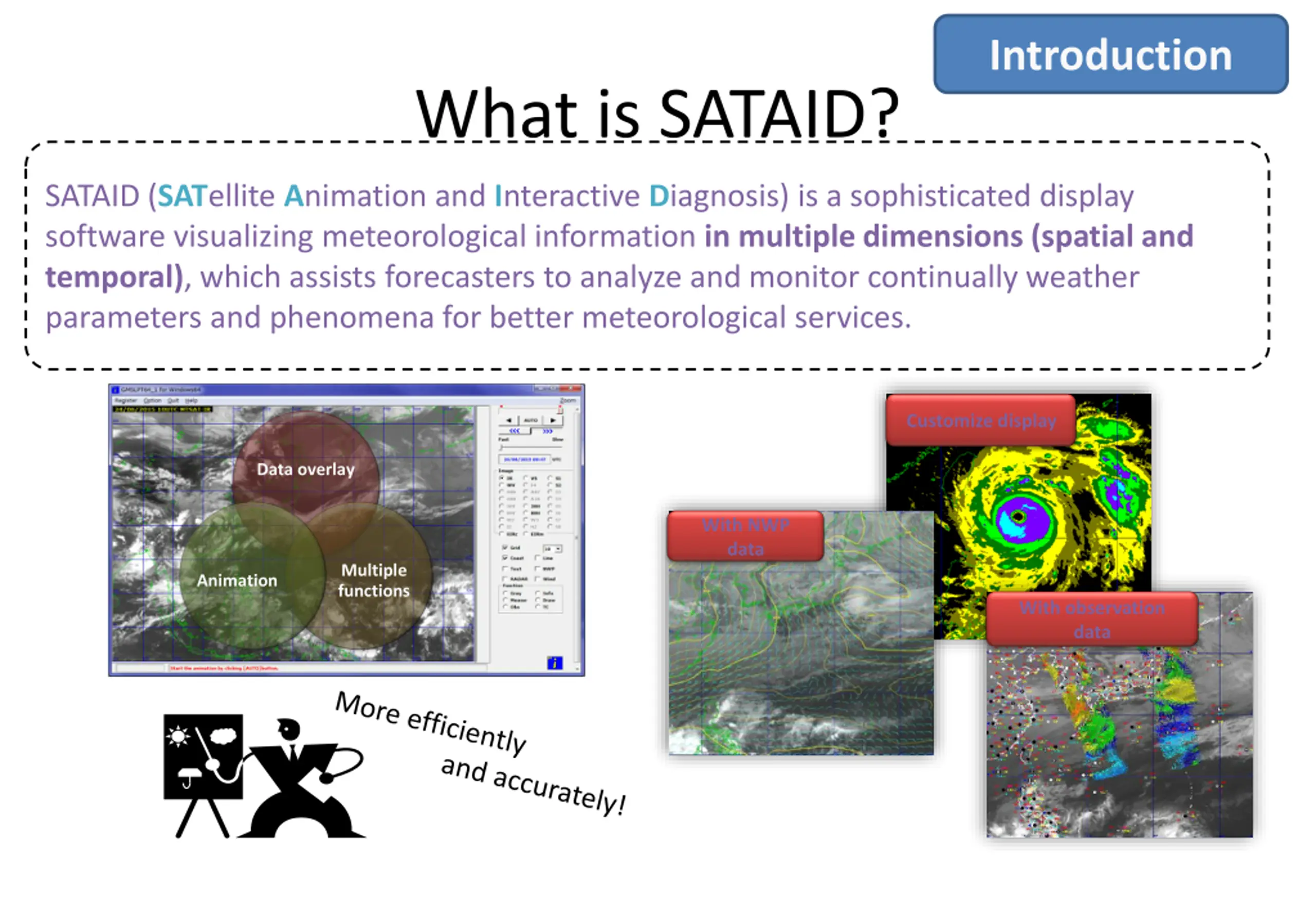

Introduction What is SATAID? SATAID (SATellite Animation and Interactive Diagnosis) is a sophisticated display software visualizing meteorological information in multiple dimensions (spatial and temporal), which assists forecasters to analyze and monitor continually weather parameters and phenomena for better meteorological services. Customize display Data overlay With NWP data Multiple functions Animation With observation data

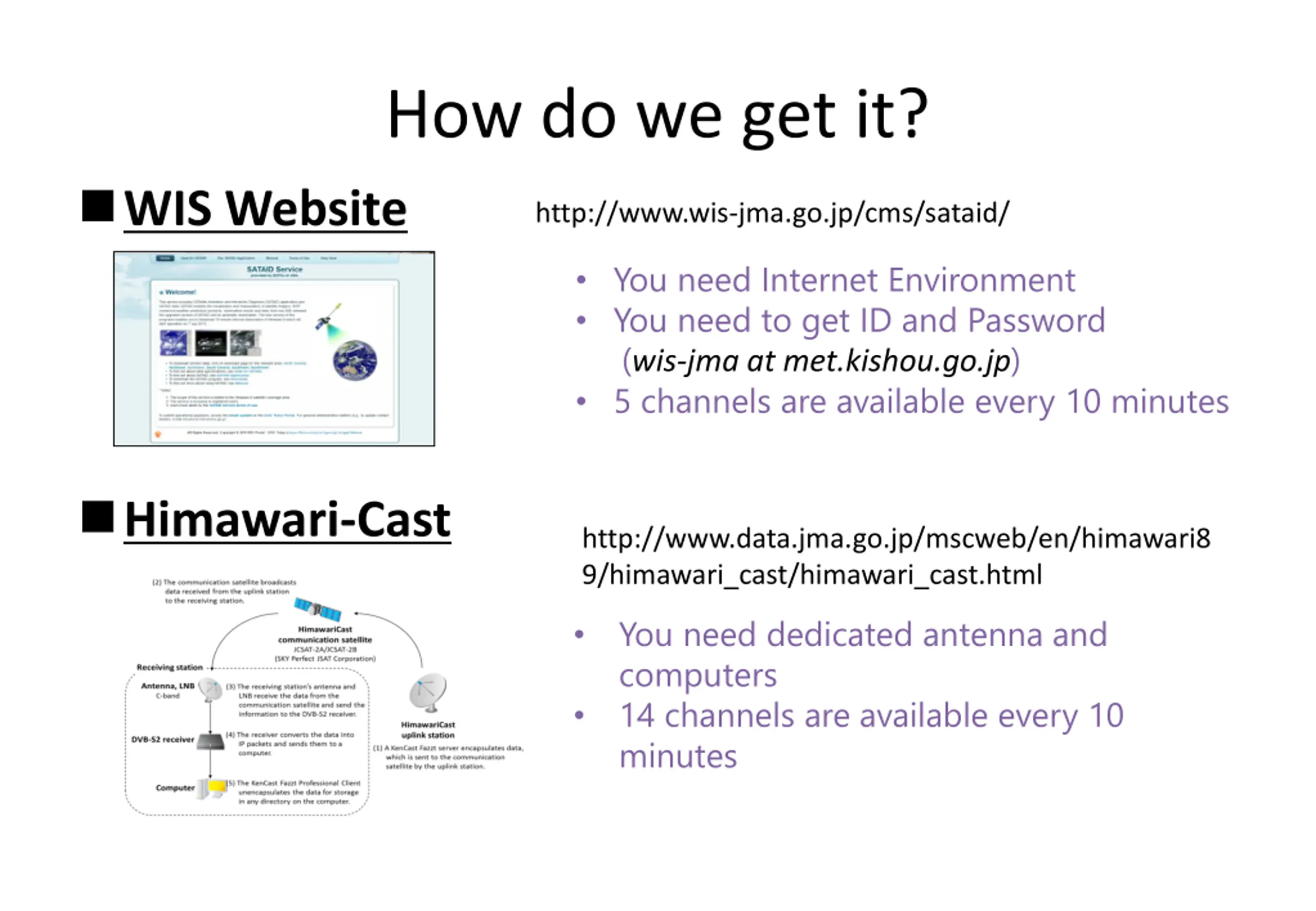

How do we get it? WIS Website http://www.wis-jma.go.jp/cms/sataid/ You need Internet Environment You need to get ID and Password (wis-jma at met.kishou.go.jp) 5 channels are available every 10 minutes Himawari-Cast http://www.data.jma.go.jp/mscweb/en/himawari8 9/himawari_cast/himawari_cast.html You need dedicated antenna and computers 14 channels are available every 10 minutes

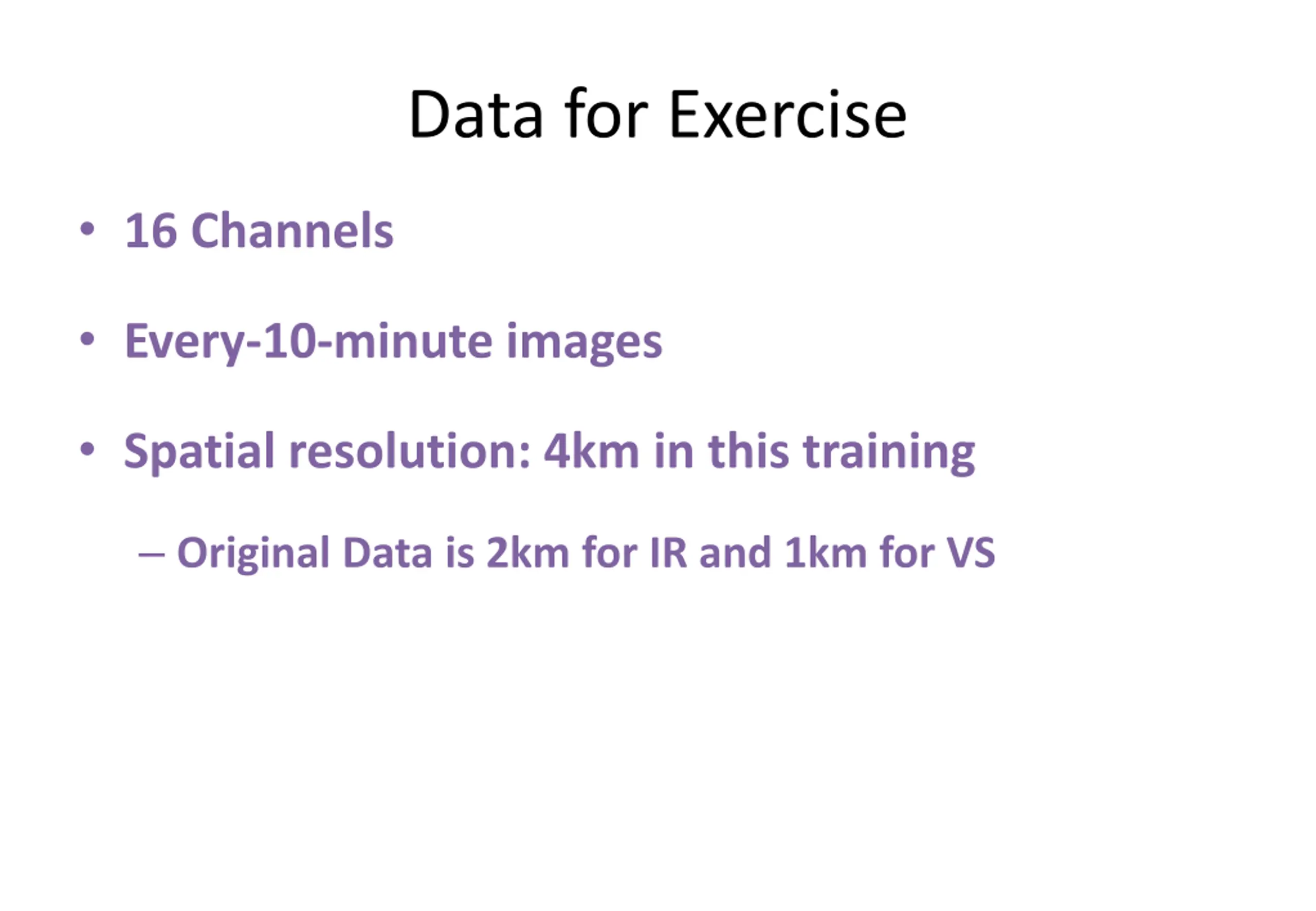

Data for Exercise 16 Channels Every-10-minute images Spatial resolution: 4km in this training Original Data is 2km for IR and 1km for VS

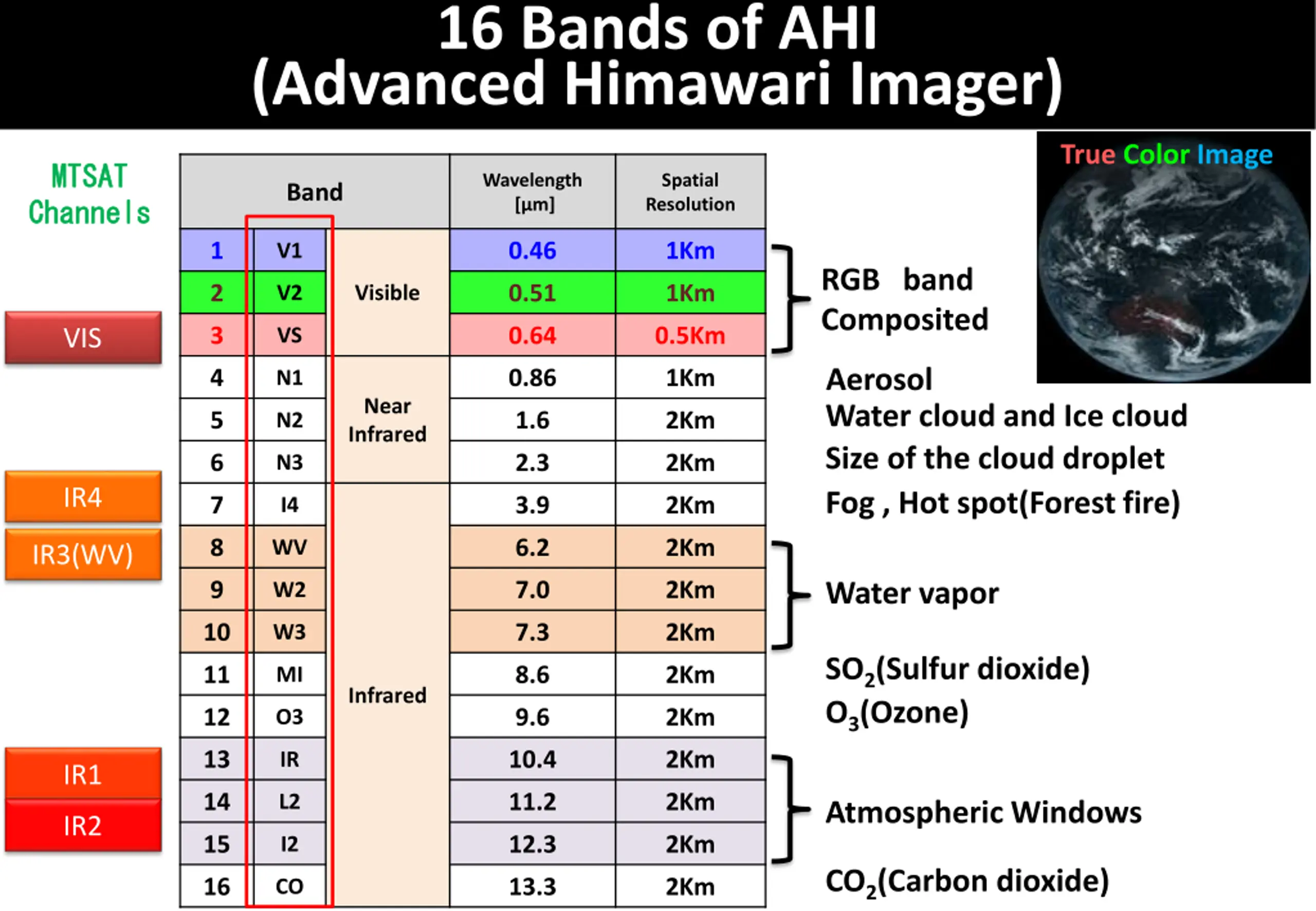

16 Bands of AHI (Advanced Himawari Imager) 13 True Color Image MTSAT MTSAT Channels Channels Wavelength [ m] Spatial Resolution Band 1 0.46 1Km V1 RGB band Composited 2 0.51 1Km V2 Visible 3 0.64 0.5Km VIS VS Aerosol Water cloud and Ice cloud Size of the cloud droplet Fog , Hot spot(Forest fire) 4 0.86 1Km N1 Near Infrared 5 1.6 2Km N2 6 2.3 2Km N3 IR4 7 3.9 2Km I4 8 6.2 2Km WV IR3(WV) 9 7.0 2Km Water vapor W2 10 7.3 2Km W3 SO2(Sulfur dioxide) 11 8.6 2Km MI Infrared O3(Ozone) 12 9.6 2Km O3 13 10.4 2Km IR IR1 14 11.2 2Km L2 Atmospheric Windows IR2 15 12.3 2Km I2 CO2(Carbon dioxide) 16 13.3 2Km CO

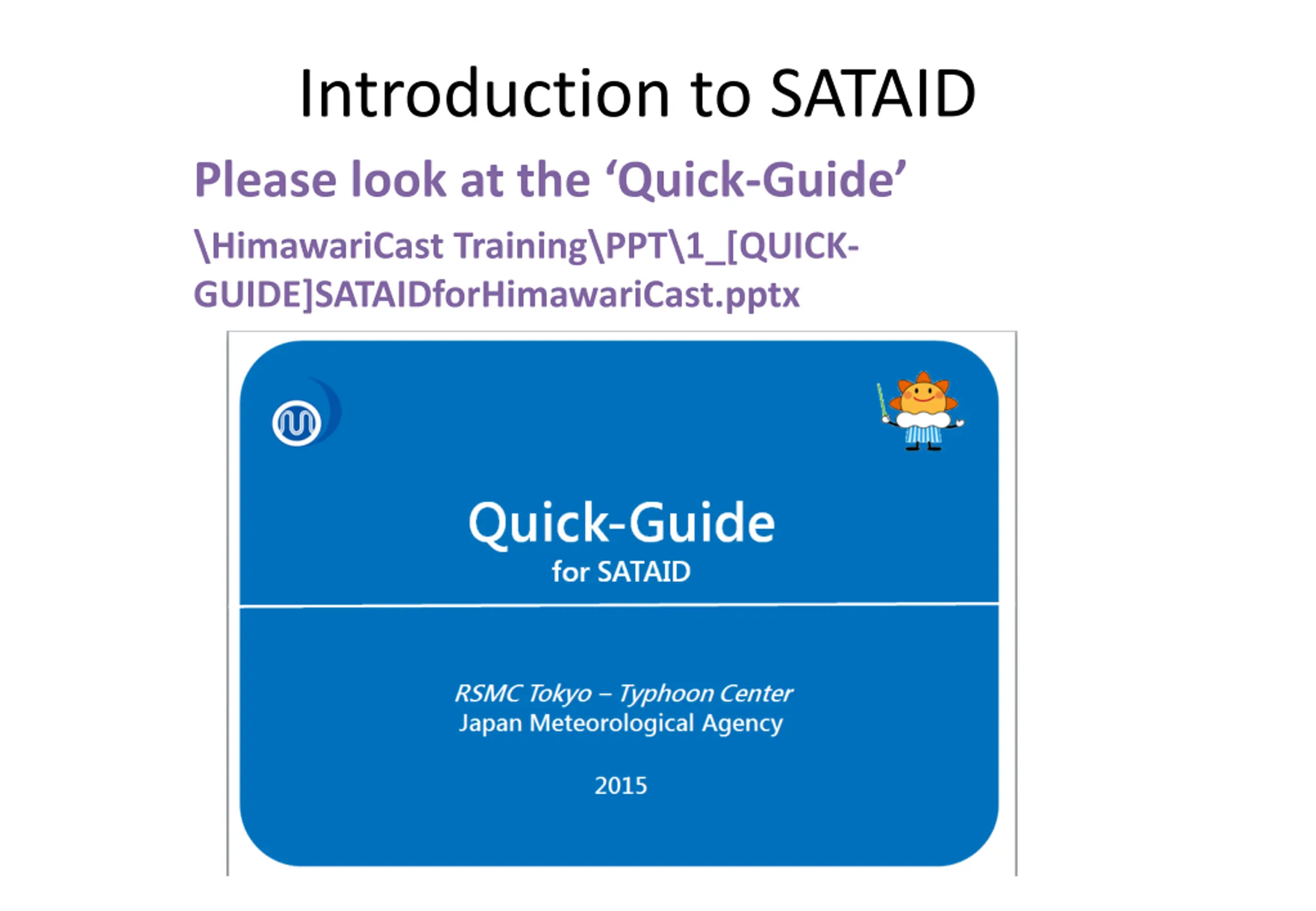

Introduction to SATAID Please look at the Quick-Guide \HimawariCast Training\PPT\1_[QUICK- GUIDE]SATAIDforHimawariCast.pptx
