Presentation Transcript
K.S. SCHOOL OF ENGINEERING AND MANAGEMENT, BENGALURU-560109 DEPARTMENT OF ELECTRICAL AND ELECTRONICS ENGINEERING SESSION: 2020-21(ODD SEMESTER) TRANSFORMERS AND GENERATORS 18EE33 Mrs. Prathiksha Assistant Professor Dept. of EEE

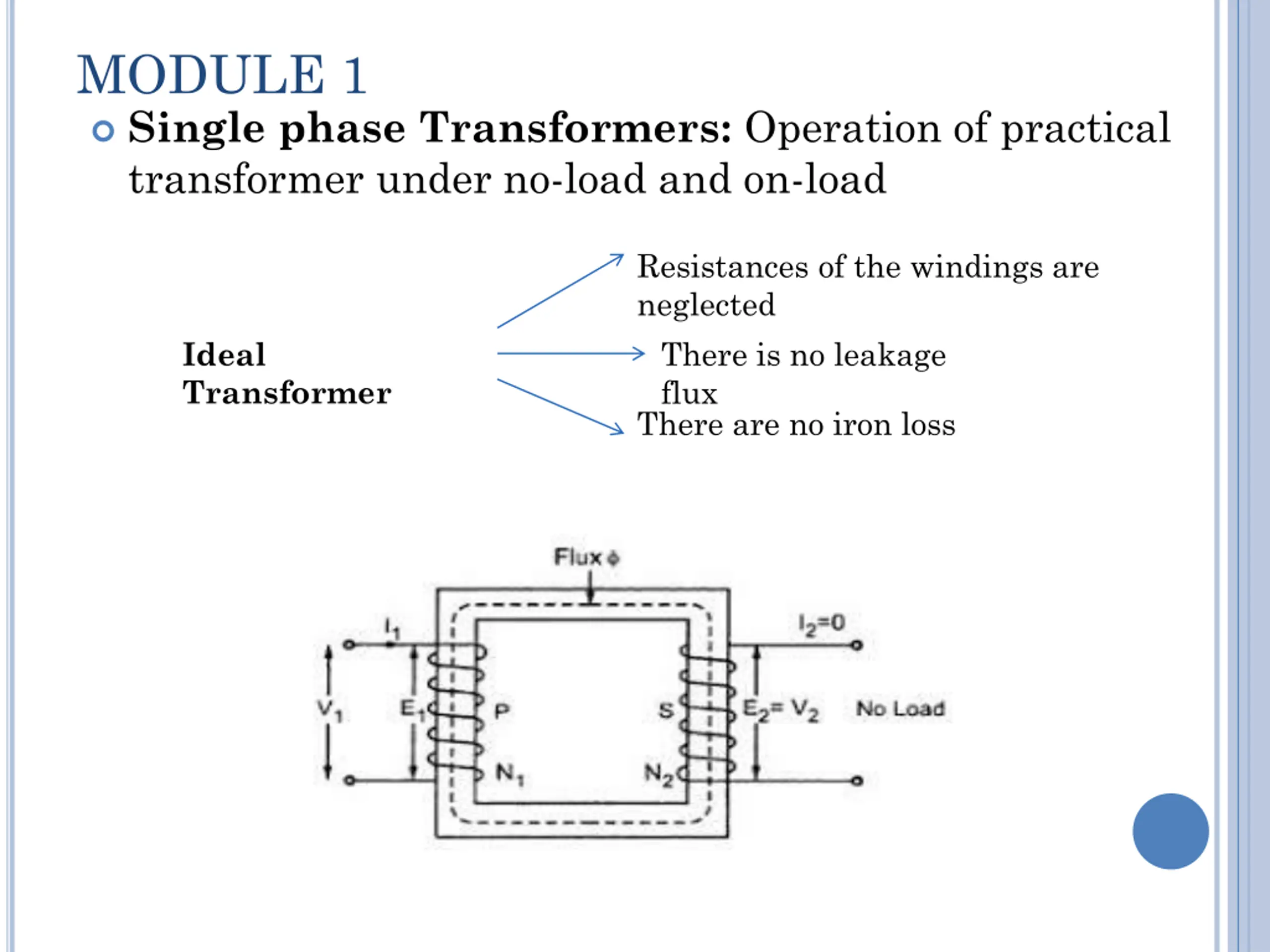

MODULE 1 Single phase Transformers: Operation of practical transformer under no-load and on-load Resistances of the windings are neglected There is no leakage flux There are no iron loss Ideal Transformer

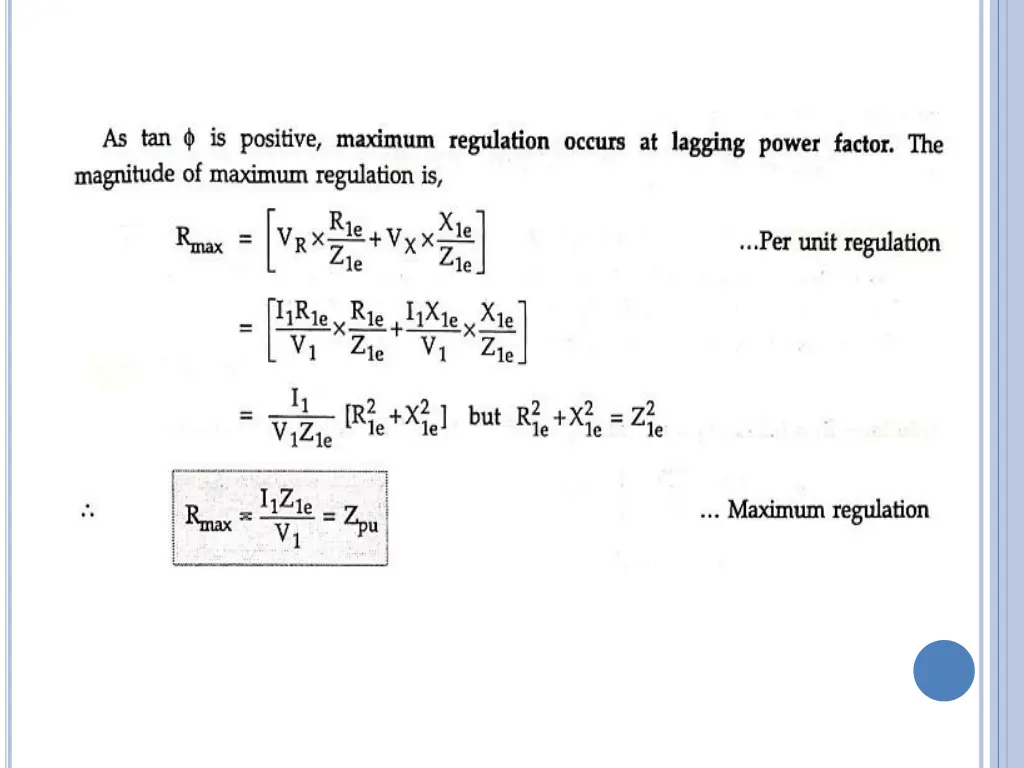

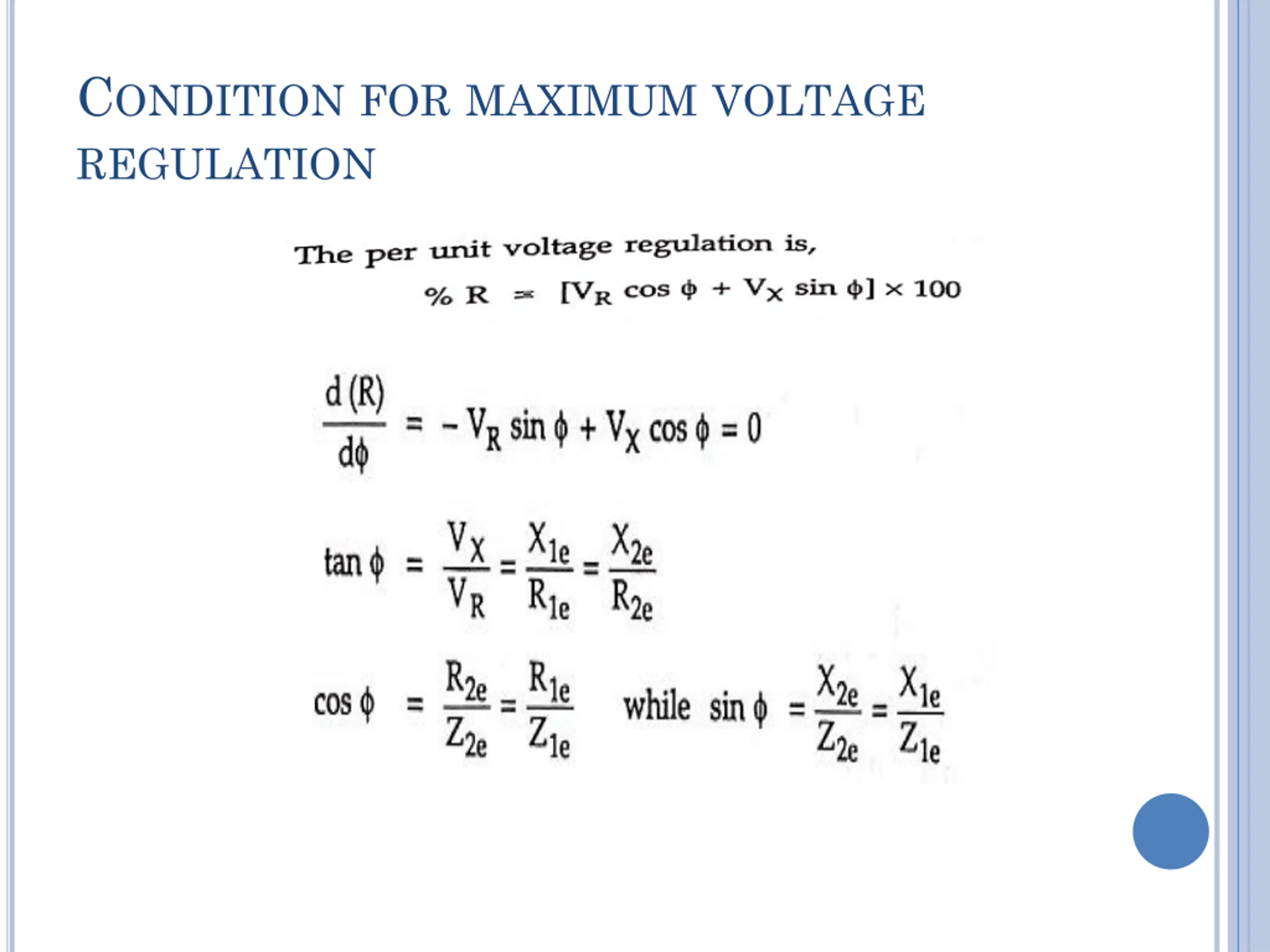

CONDITIONFORMAXIMUMVOLTAGE REGULATION

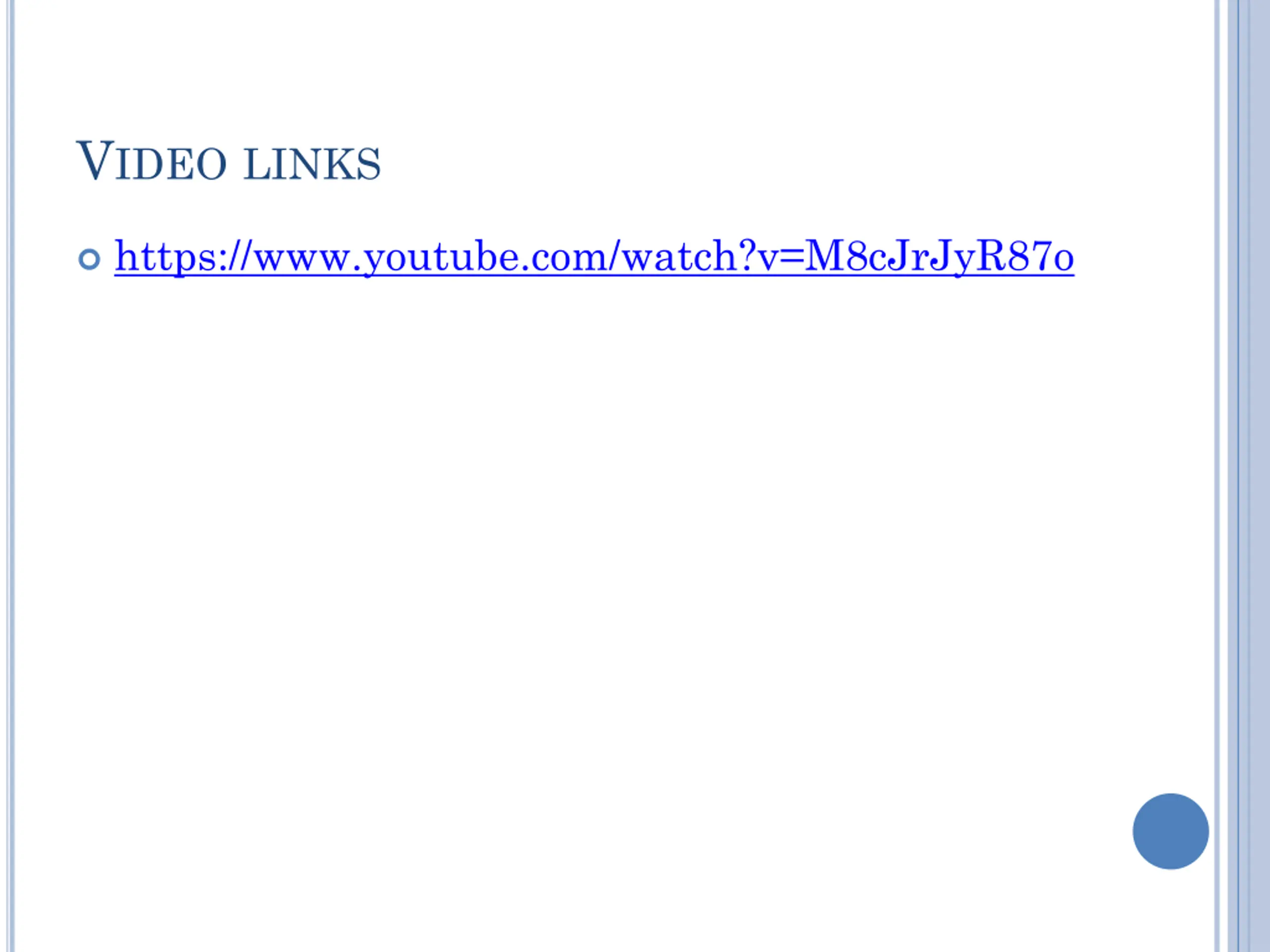

VIDEOLINKS https://www.youtube.com/watch?v=M8cJrJyR87o
