COMP541 Transistors and all that a brief overview Montek Singh Feb {7, 12}, 2018 1

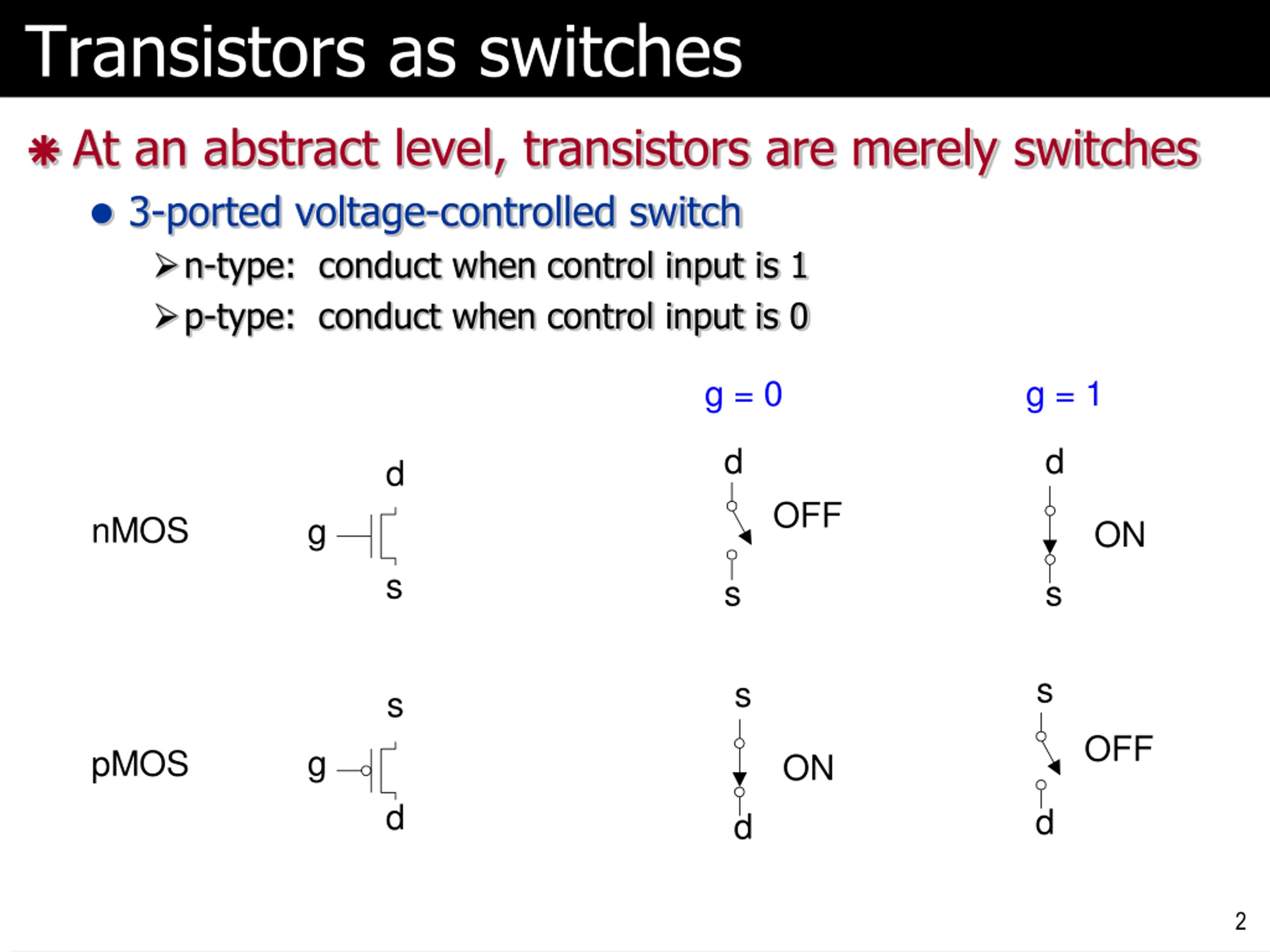

Transistors as switches At an abstract level, transistors are merely switches 3-ported voltage-controlled switch n-type: conduct when control input is 1 p-type: conduct when control input is 0 g = 0 g = 1 d d d OFF nMOS g ON s s s s s s OFF g pMOS ON d d d 2

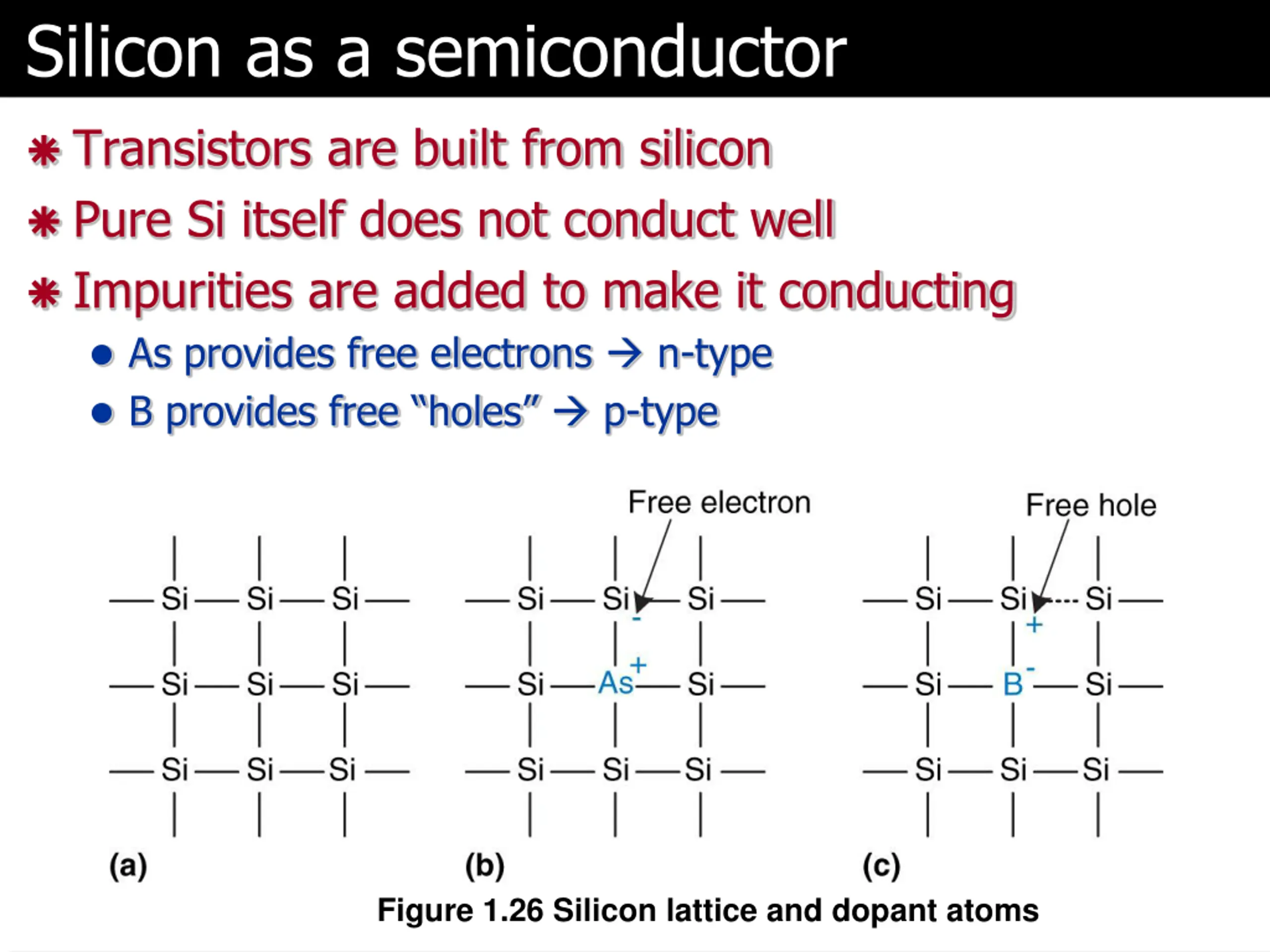

Silicon as a semiconductor Transistors are built from silicon Pure Si itself does not conduct well Impurities are added to make it conducting As provides free electrons n-type B provides free holes p-type Figure 1.26 Silicon lattice and dopant atoms

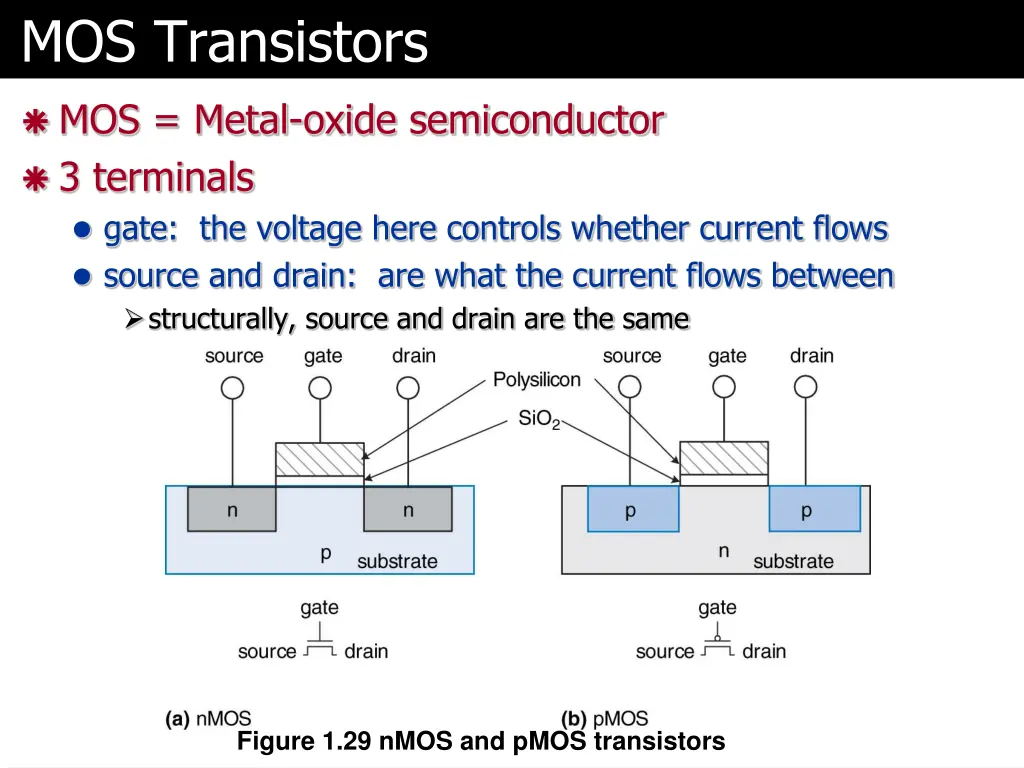

MOS Transistors MOS = Metal-oxide semiconductor 3 terminals gate: the voltage here controls whether current flows source and drain: are what the current flows between structurally, source and drain are the same Figure 1.29 nMOS and pMOS transistors

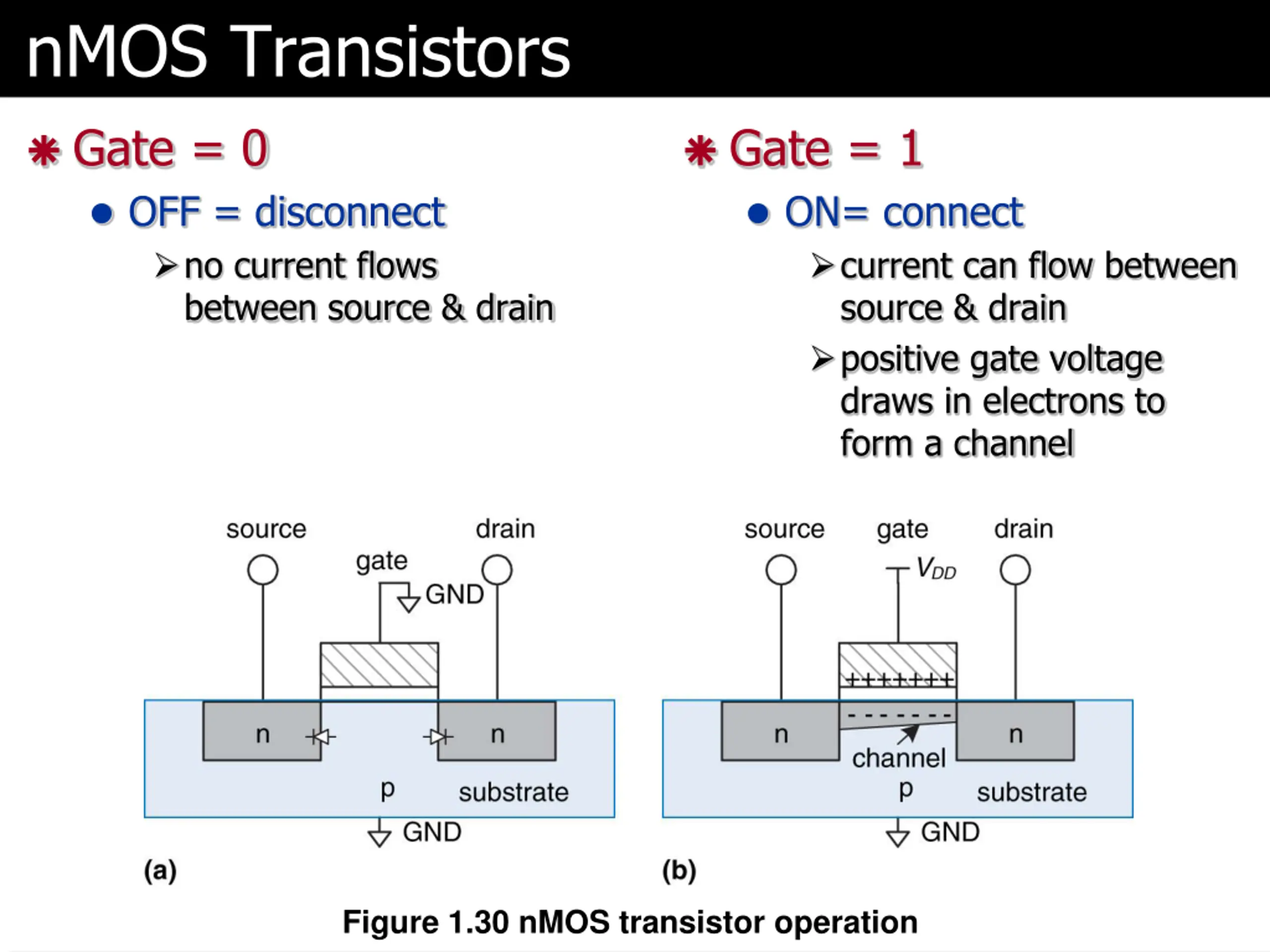

nMOS Transistors Gate = 0 OFF = disconnect no current flows between source & drain Gate = 1 ON= connect current can flow between source & drain positive gate voltage draws in electrons to form a channel Figure 1.30 nMOS transistor operation

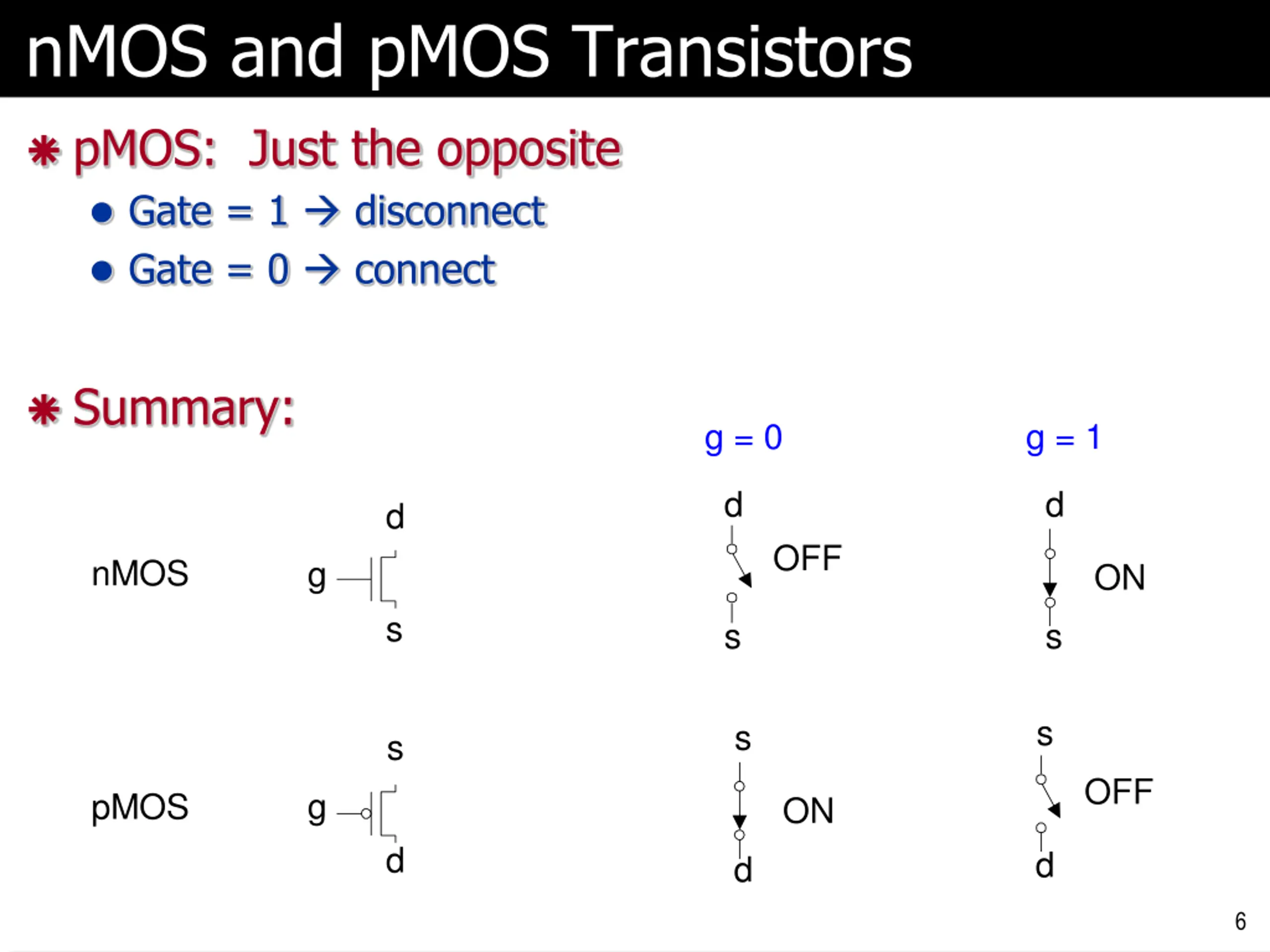

nMOS and pMOS Transistors pMOS: Just the opposite Gate = 1 disconnect Gate = 0 connect Summary: g = 0 g = 1 d d d OFF nMOS g ON s s s s s s OFF g pMOS ON d d d 6

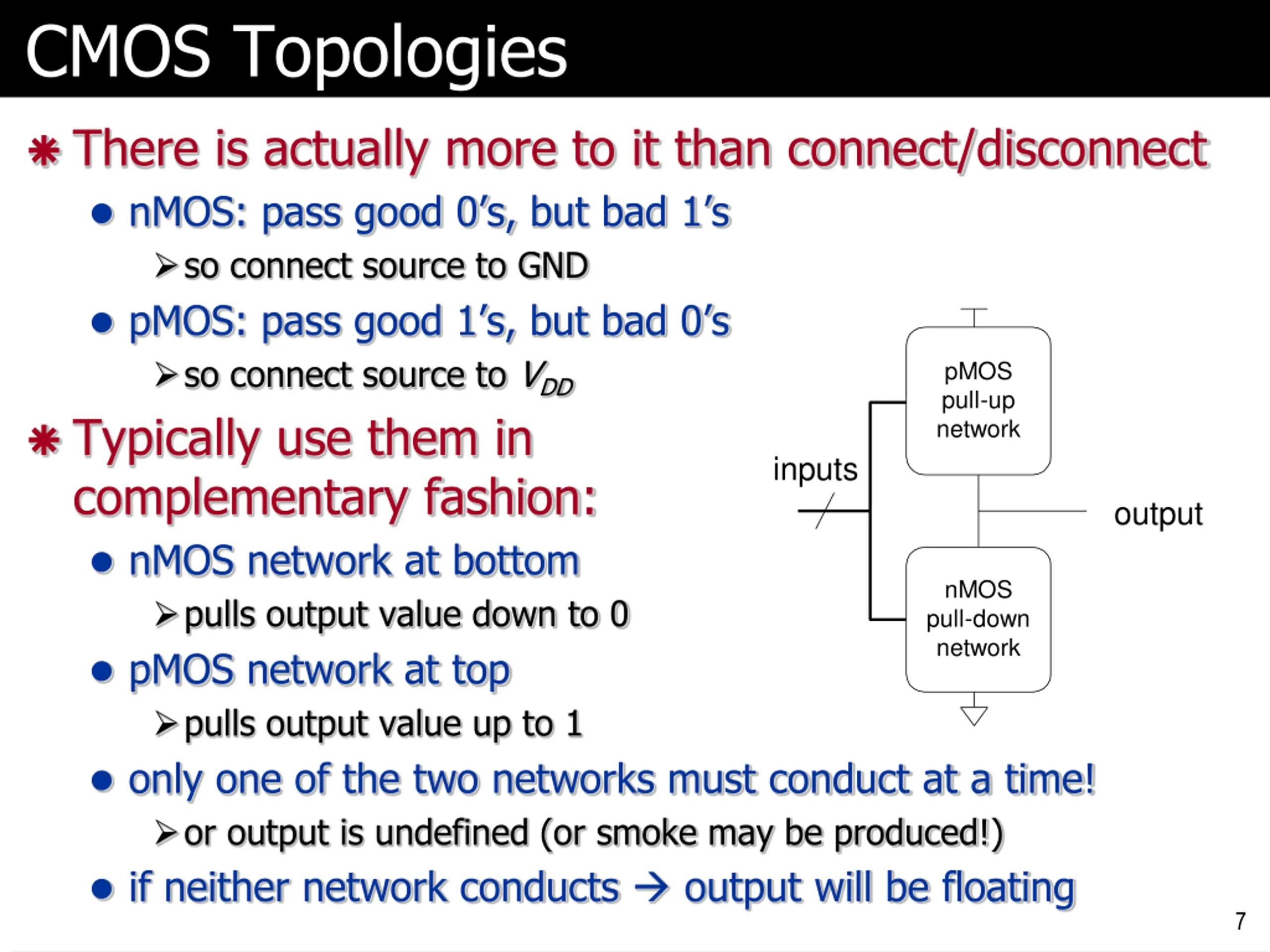

CMOS Topologies There is actually more to it than connect/disconnect nMOS: pass good 0 s, but bad 1 s so connect source to GND pMOS: pass good 1 s, but bad 0 s so connect source to VDD Typically use them in complementary fashion: nMOS network at bottom pulls output value down to 0 pMOS network at top pulls output value up to 1 only one of the two networks must conduct at a time! or output is undefined (or smoke may be produced!) if neither network conducts output will be floating pMOS pull-up network inputs output nMOS pull-down network 7

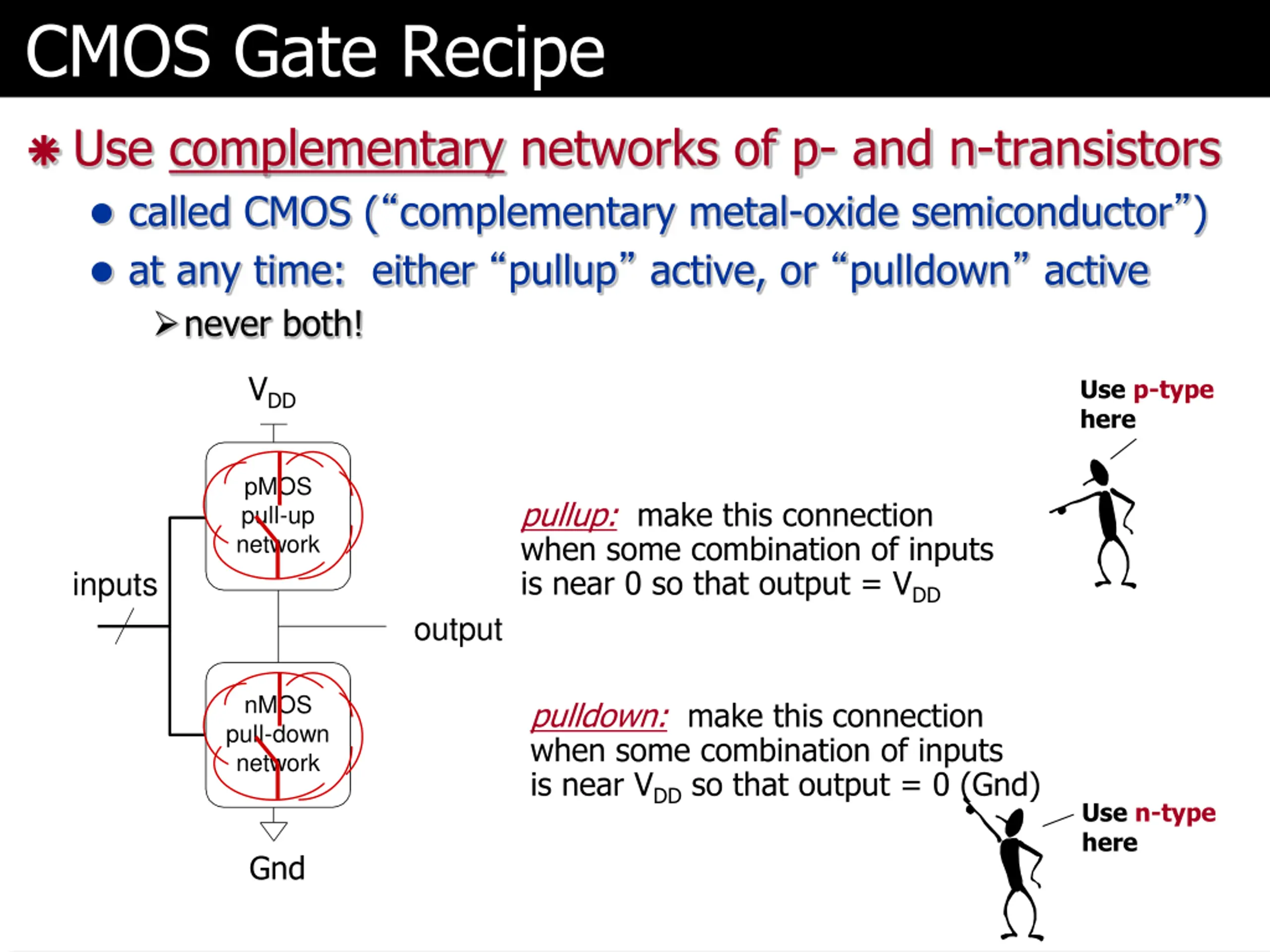

CMOS Gate Recipe Use complementary networks of p- and n-transistors called CMOS ( complementary metal-oxide semiconductor ) at any time: either pullup active, or pulldown active never both! VDD Use p-type here pMOS pull-up network pullup: make this connection when some combination of inputs is near 0 so that output = VDD inputs output nMOS pull-down network pulldown: make this connection when some combination of inputs is near VDD so that output = 0 (Gnd) Use n-type here Gnd

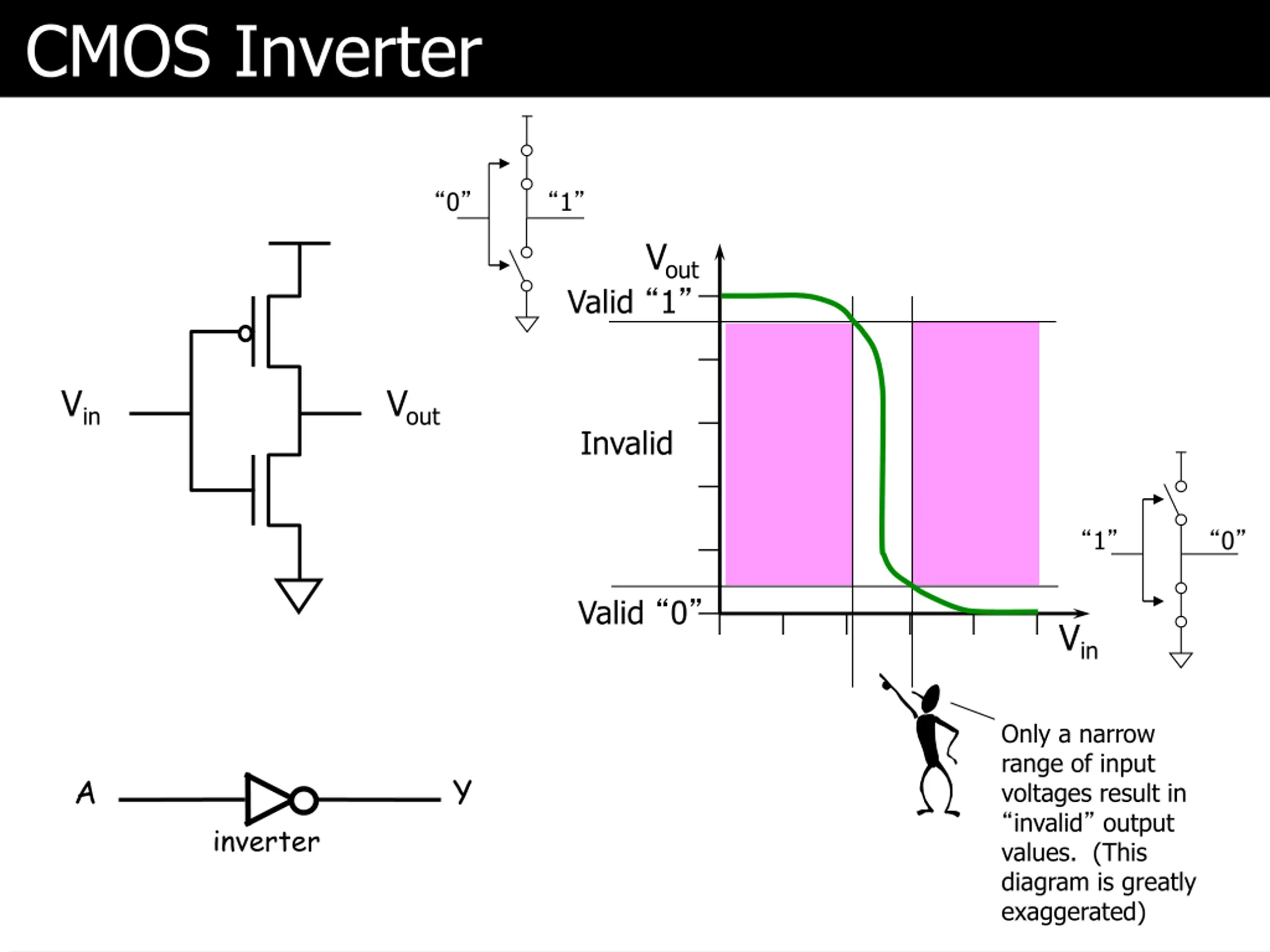

CMOS Inverter 0 1 Vout Valid 1 Vin Vout Invalid 1 0 Valid 0 Vin Only a narrow range of input voltages result in invalid output values. (This diagram is greatly exaggerated) A Y inverter

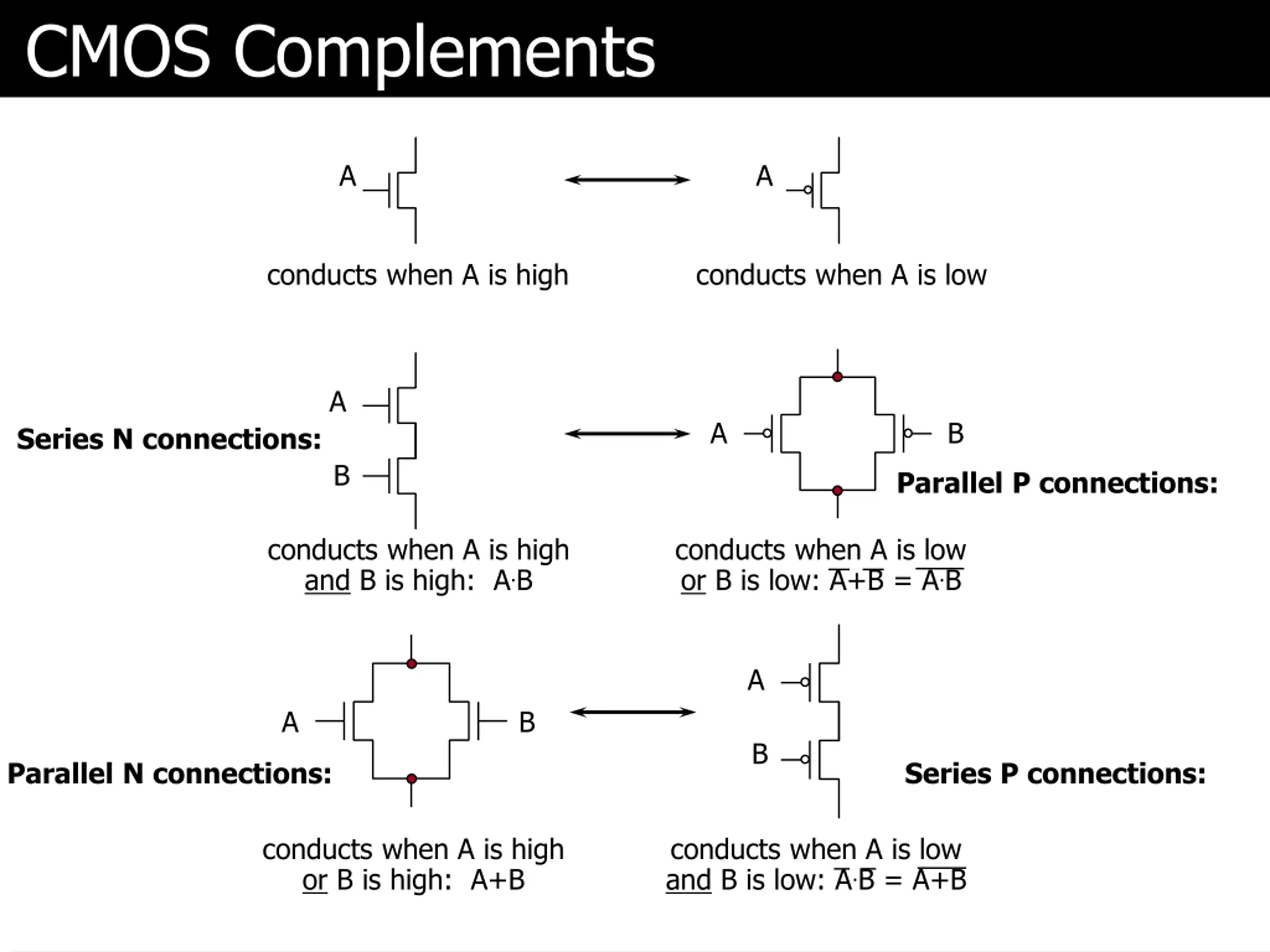

CMOS Complements A A conducts when A is high conducts when A is low A A B Series N connections: B Parallel P connections: conducts when A is high and B is high: A.B conducts when A is low or B is low: A+B = A.B A A B B Parallel N connections: Series P connections: conducts when A is high or B is high: A+B conducts when A is low and B is low: A.B = A+B

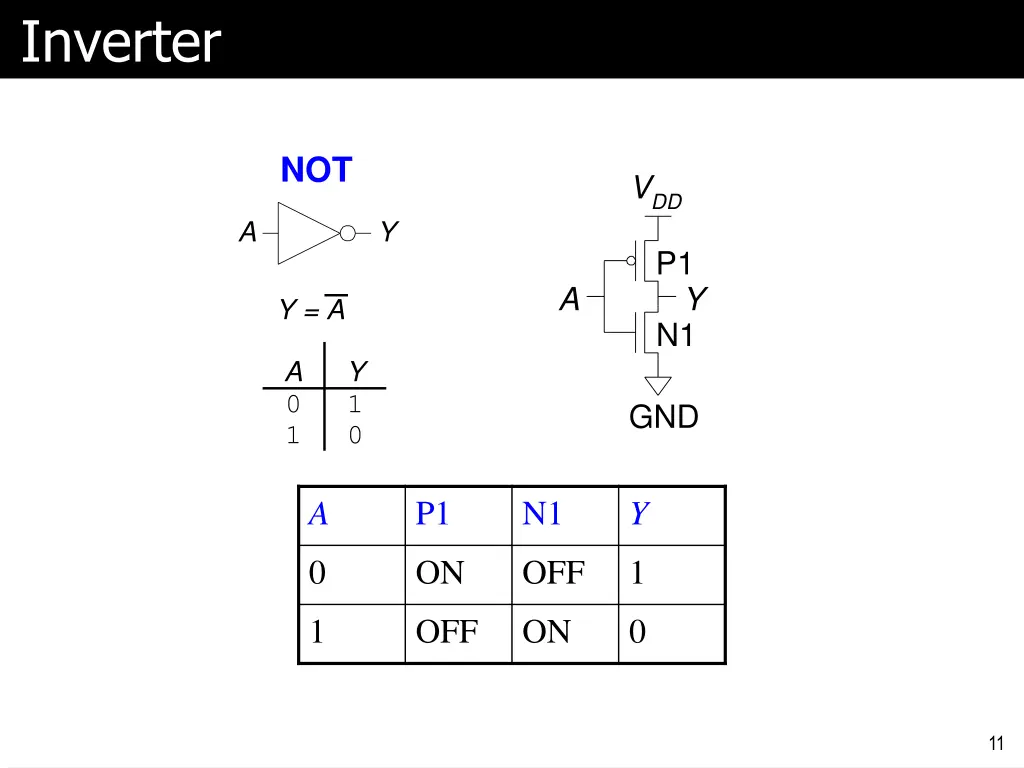

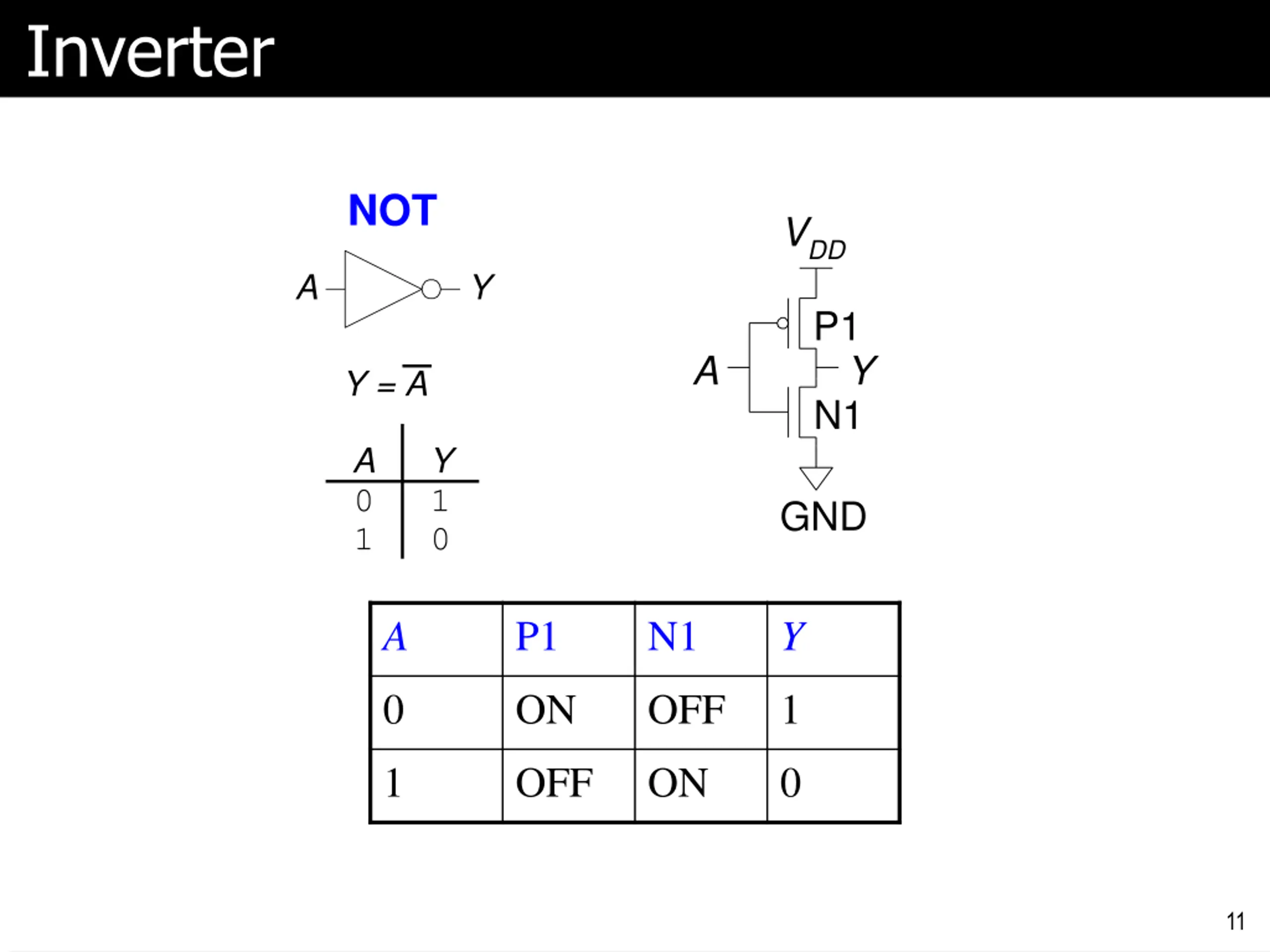

Inverter NOT VDD A Y P1 A Y Y = A N1 A 0 1 Y 1 0 GND P1 N1 A Y 0 ON OFF 1 1 OFF ON 0 11

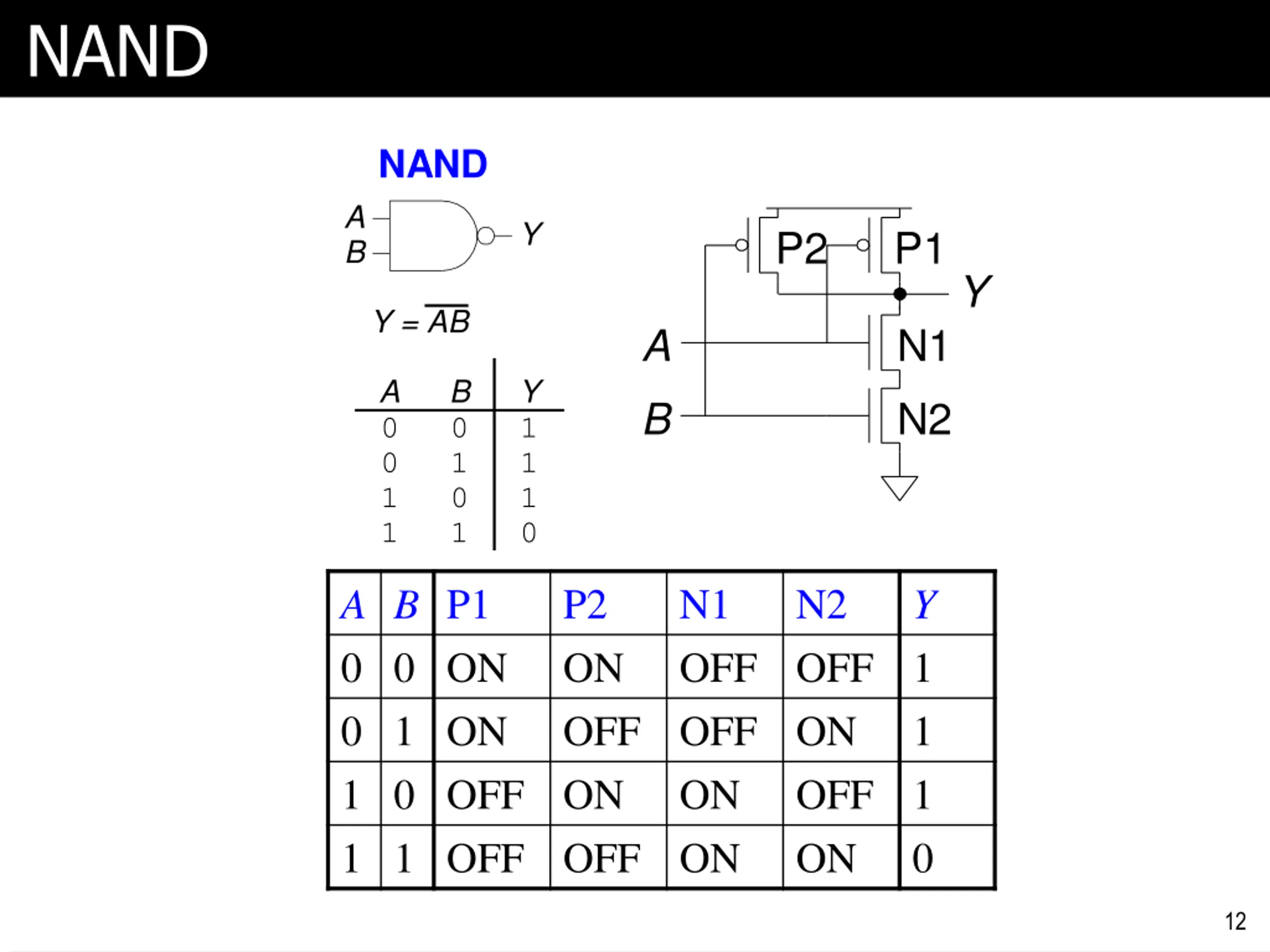

NAND NAND A B Y P2 P1 Y Y = AB A N1 A 0 0 1 1 B 0 1 0 1 Y 1 1 1 0 B N2 A B P1 0 0 ON 0 1 ON 1 0 OFF 1 1 OFF P2 ON OFF ON OFF N1 OFF OFF ON ON N2 OFF ON OFF ON Y 1 1 1 0 12

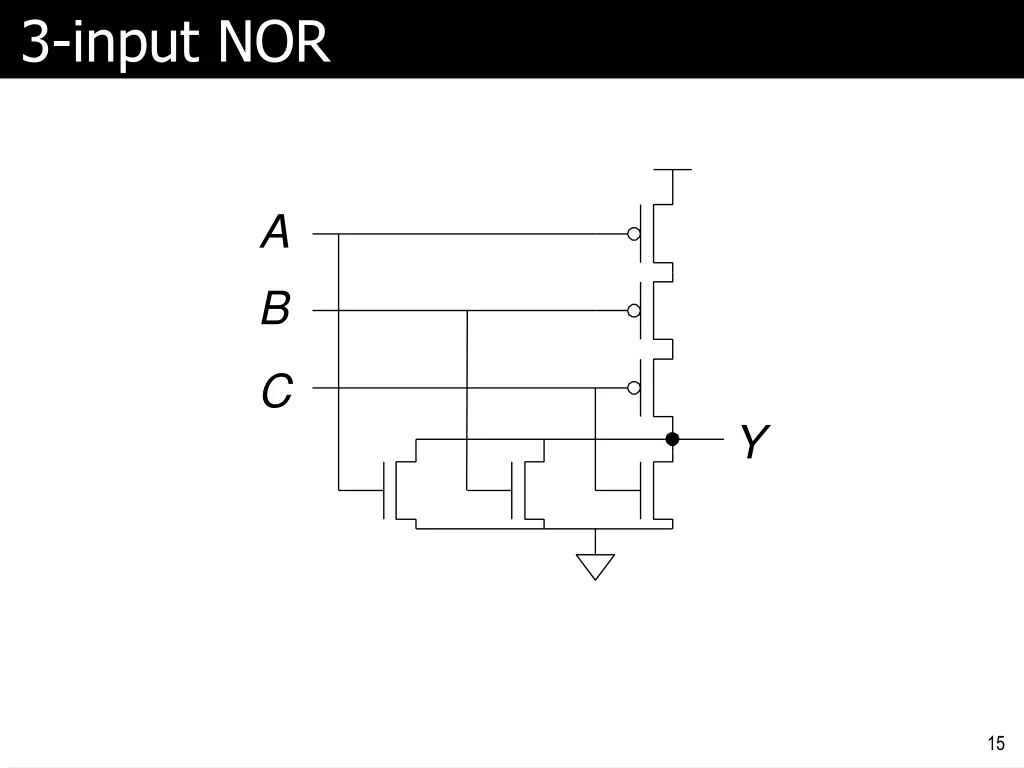

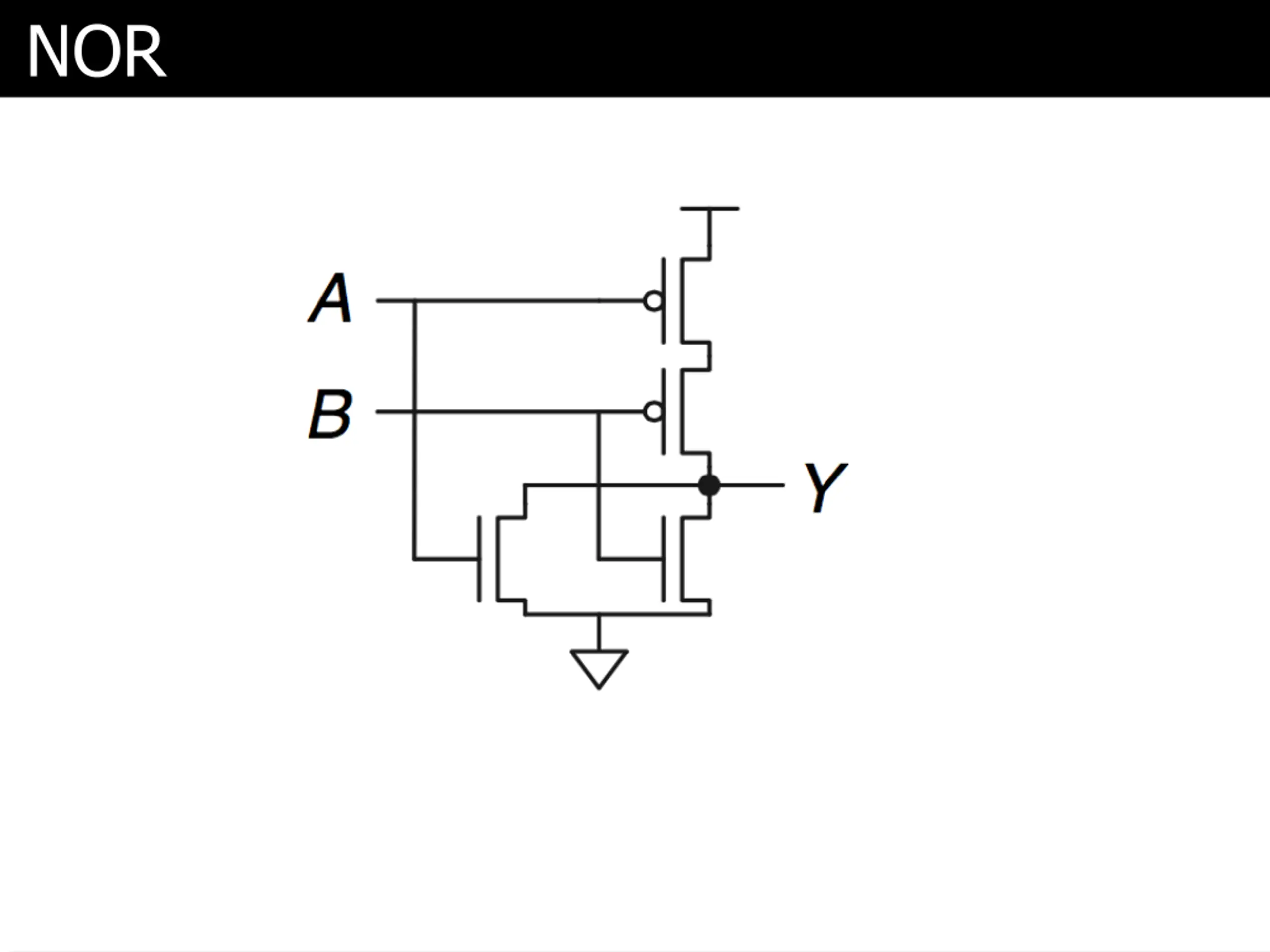

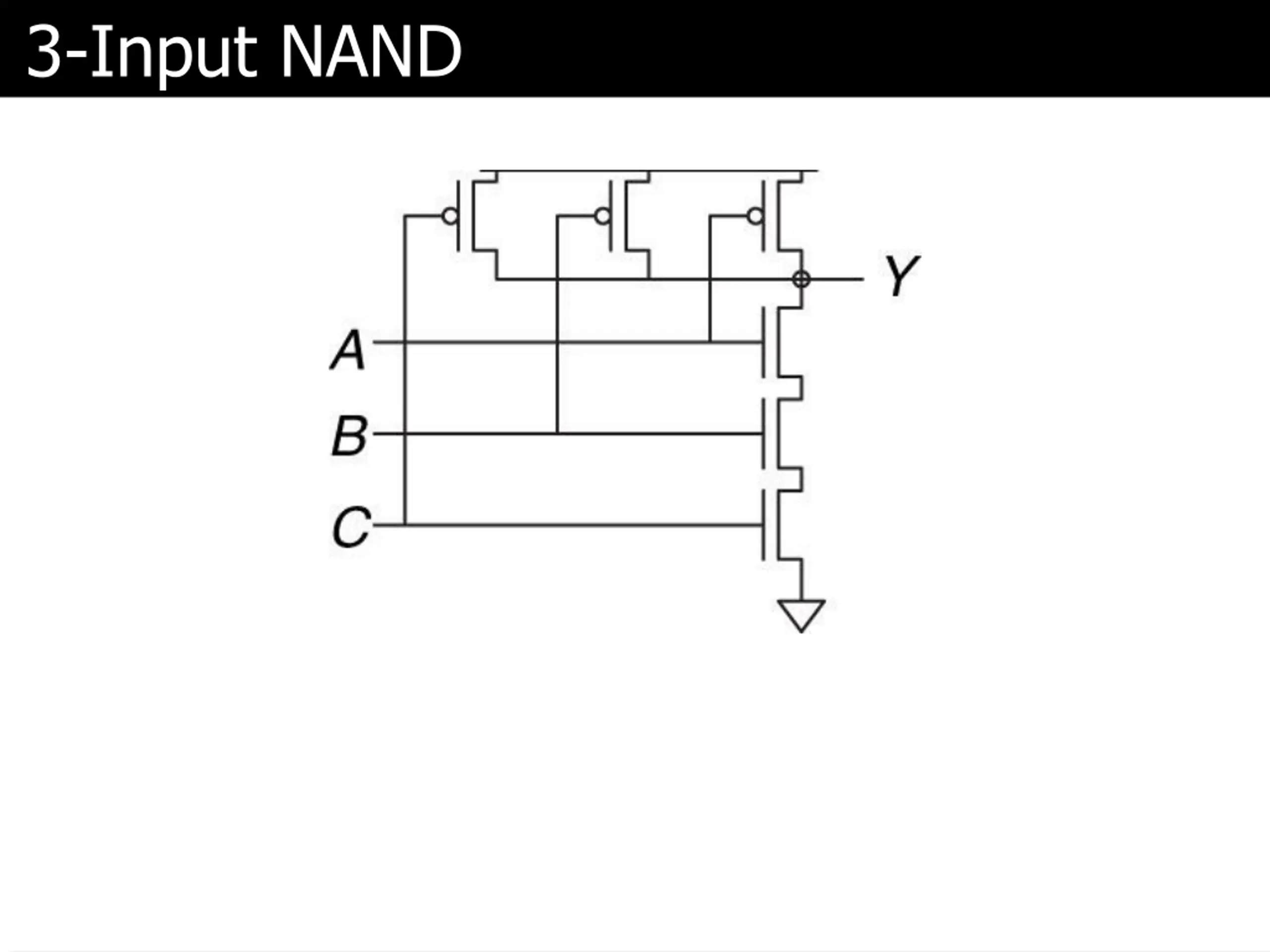

3-input NOR A B C Y 15

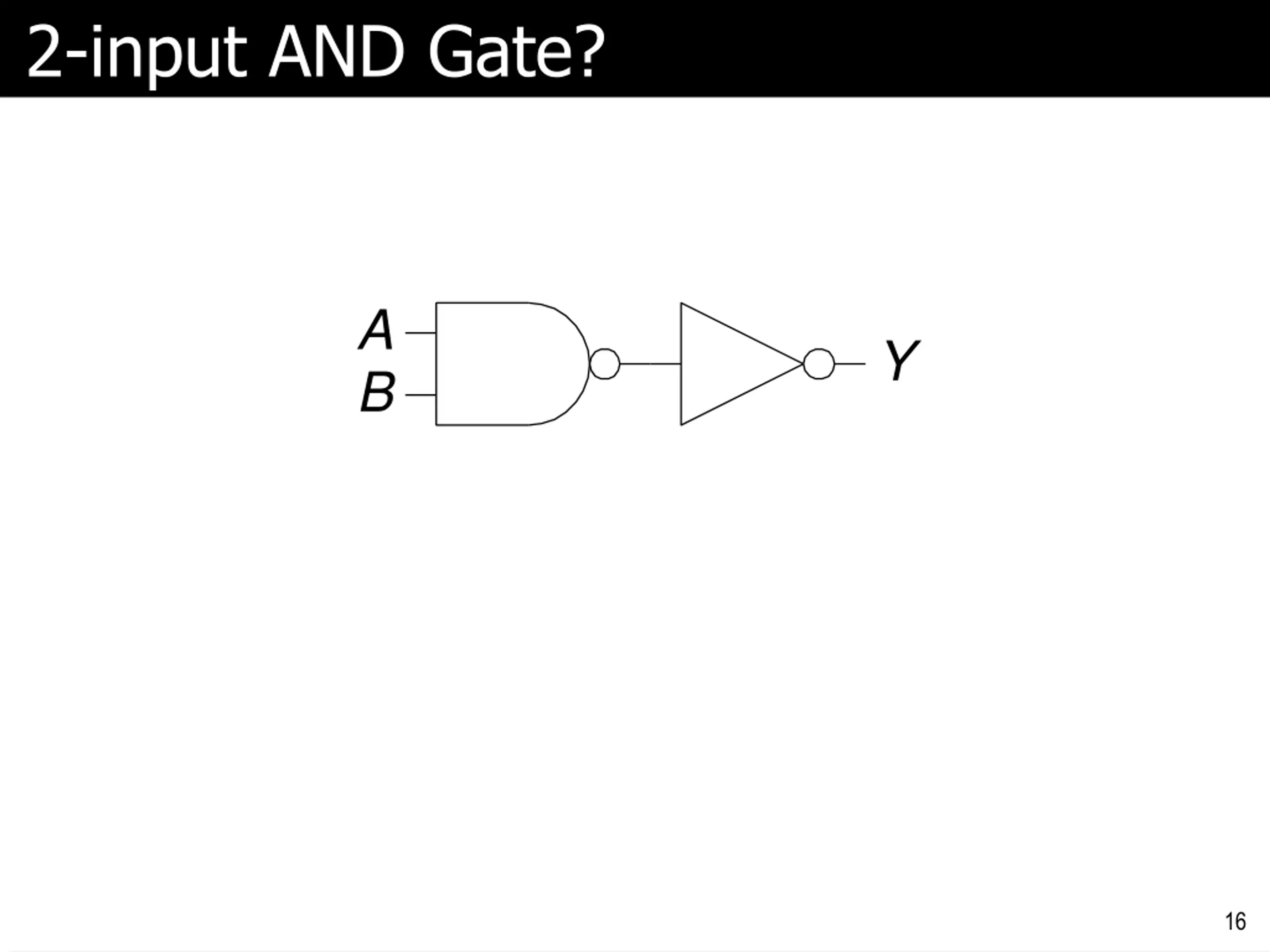

2-input AND Gate? A B Y 16

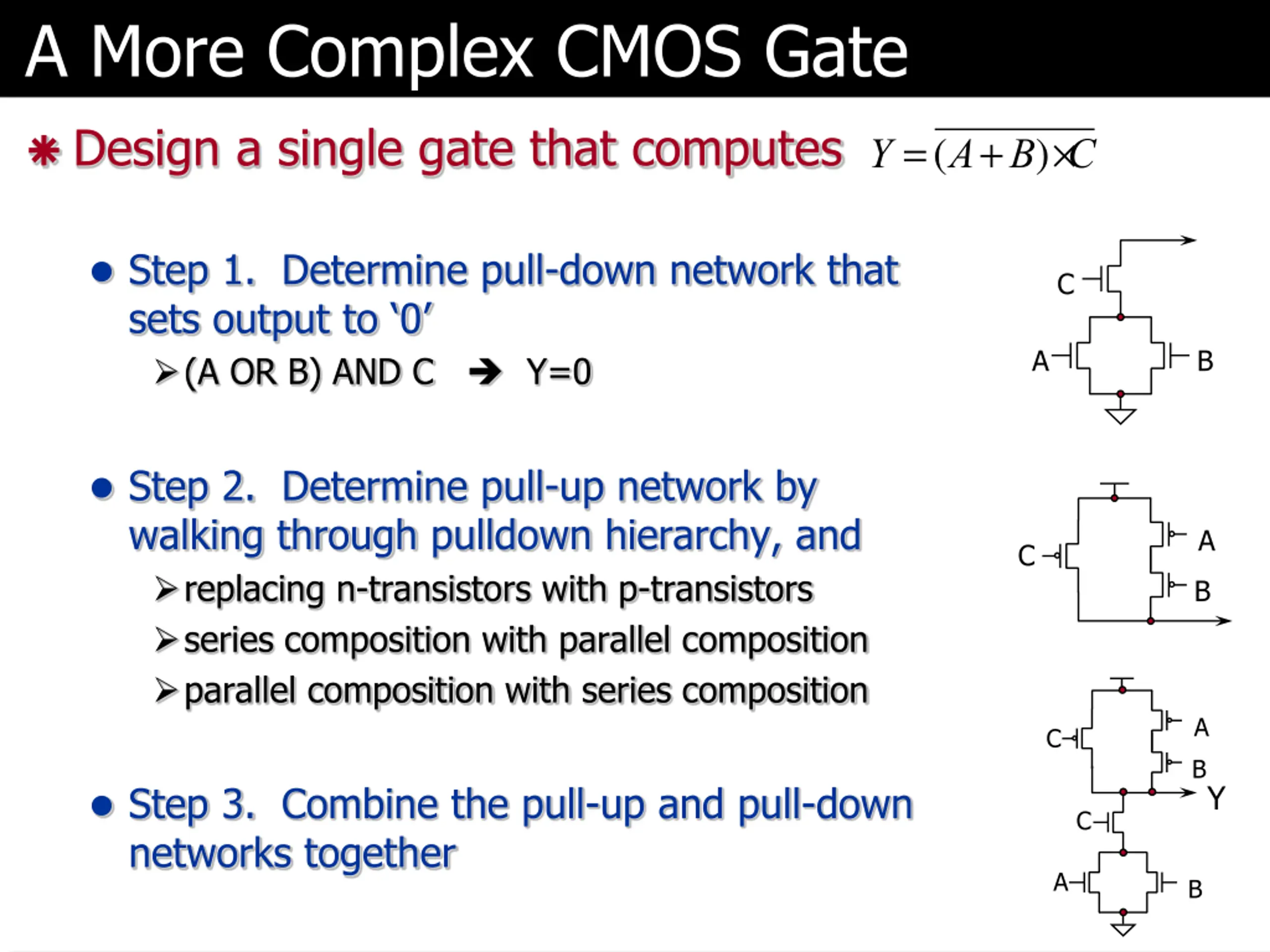

A More Complex CMOS Gate Design a single gate that computes Y =(A+B) C Step 1. Determine pull-down network that sets output to 0 (A OR B) AND C Y=0 C A B Step 2. Determine pull-up network by walking through pulldown hierarchy, and replacing n-transistors with p-transistors series composition with parallel composition parallel composition with series composition A C B A B C Step 3. Combine the pull-up and pull-down networks together Y C A B

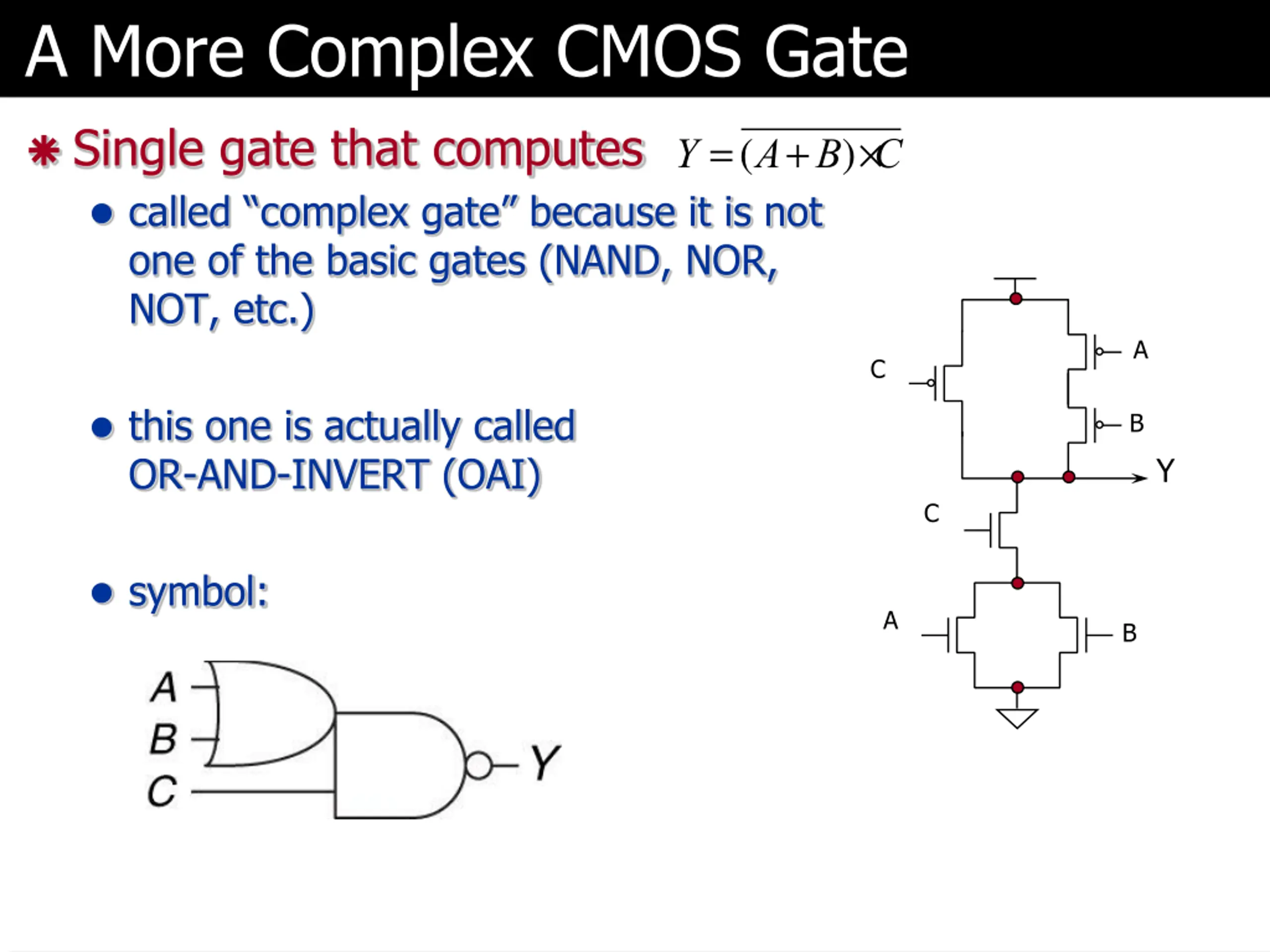

A More Complex CMOS Gate Single gate that computes called complex gate because it is not one of the basic gates (NAND, NOR, NOT, etc.) Y =(A+B) C A C this one is actually called OR-AND-INVERT (OAI) B Y C symbol: A B

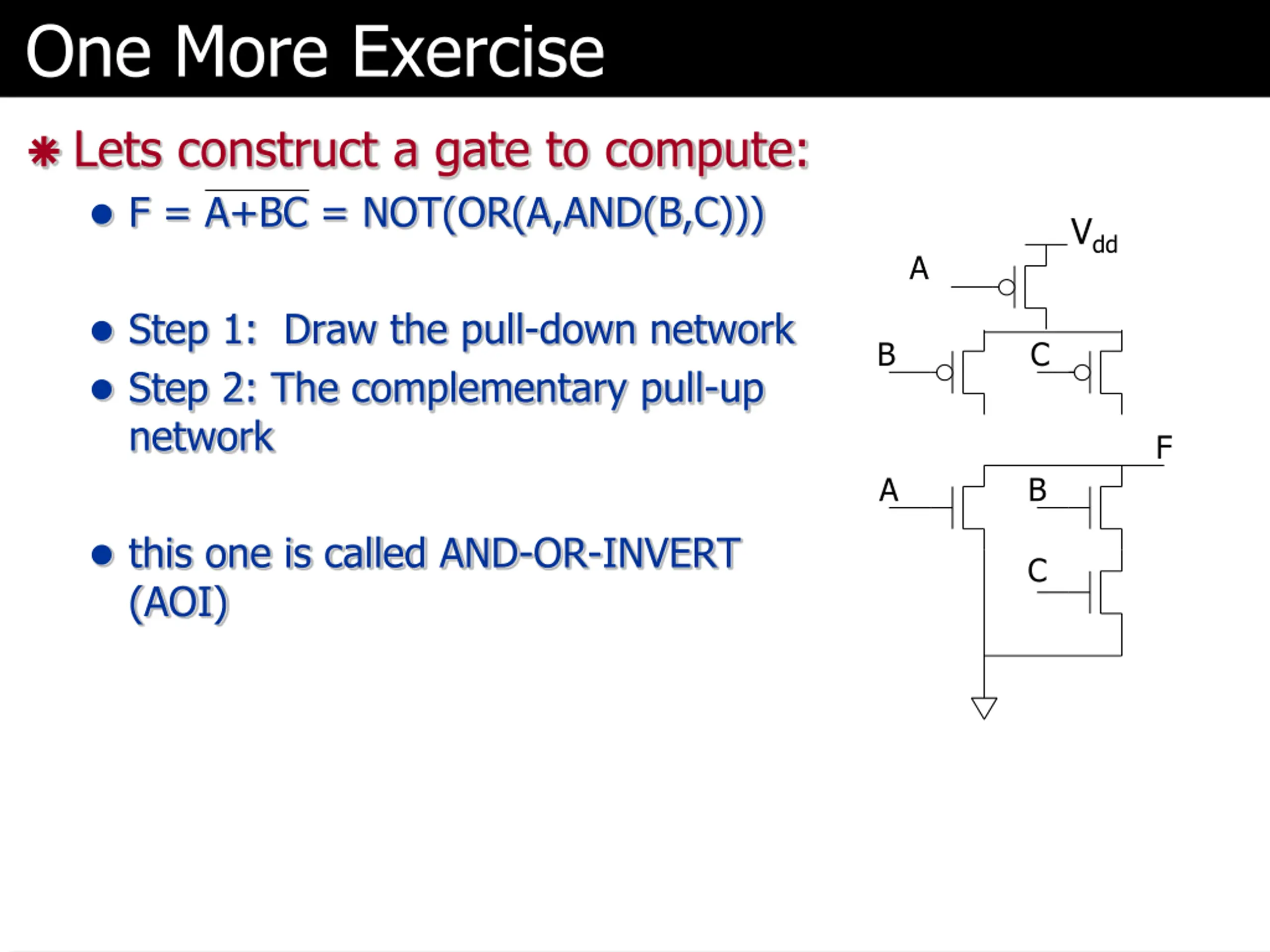

One More Exercise Lets construct a gate to compute: F = A+BC = NOT(OR(A,AND(B,C))) Vdd A Step 1: Draw the pull-down network Step 2: The complementary pull-up network B C F A B this one is called AND-OR-INVERT (AOI) C

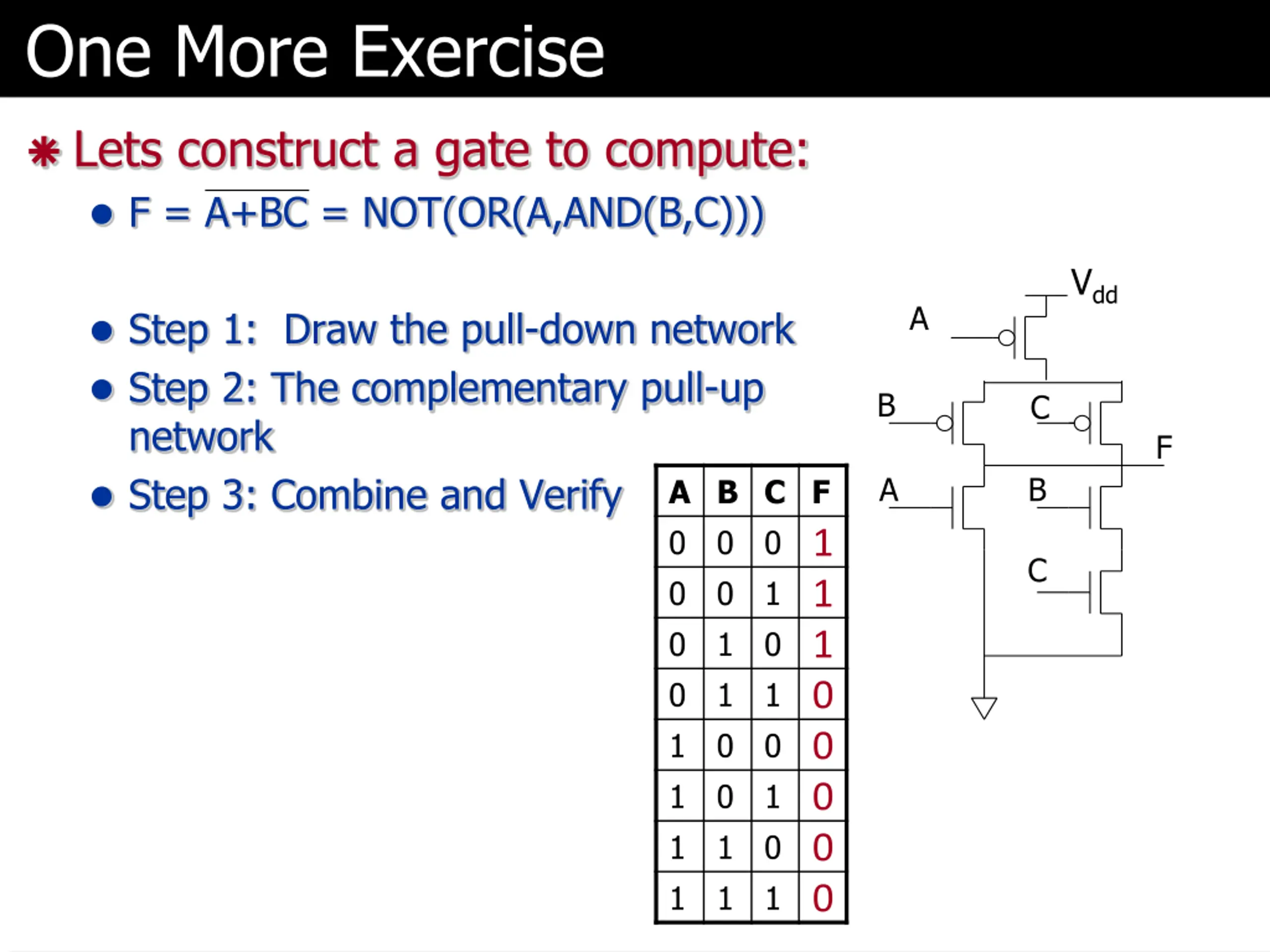

One More Exercise Lets construct a gate to compute: F = A+BC = NOT(OR(A,AND(B,C))) Vdd A Step 1: Draw the pull-down network Step 2: The complementary pull-up network Step 3: Combine and Verify B C F A B A B C F 0 0 0 0 0 1 0 1 1 0 1 0 1 1 1 1 0 1 0 1 0 1 0 1 1 1 1 0 0 0 0 0 C

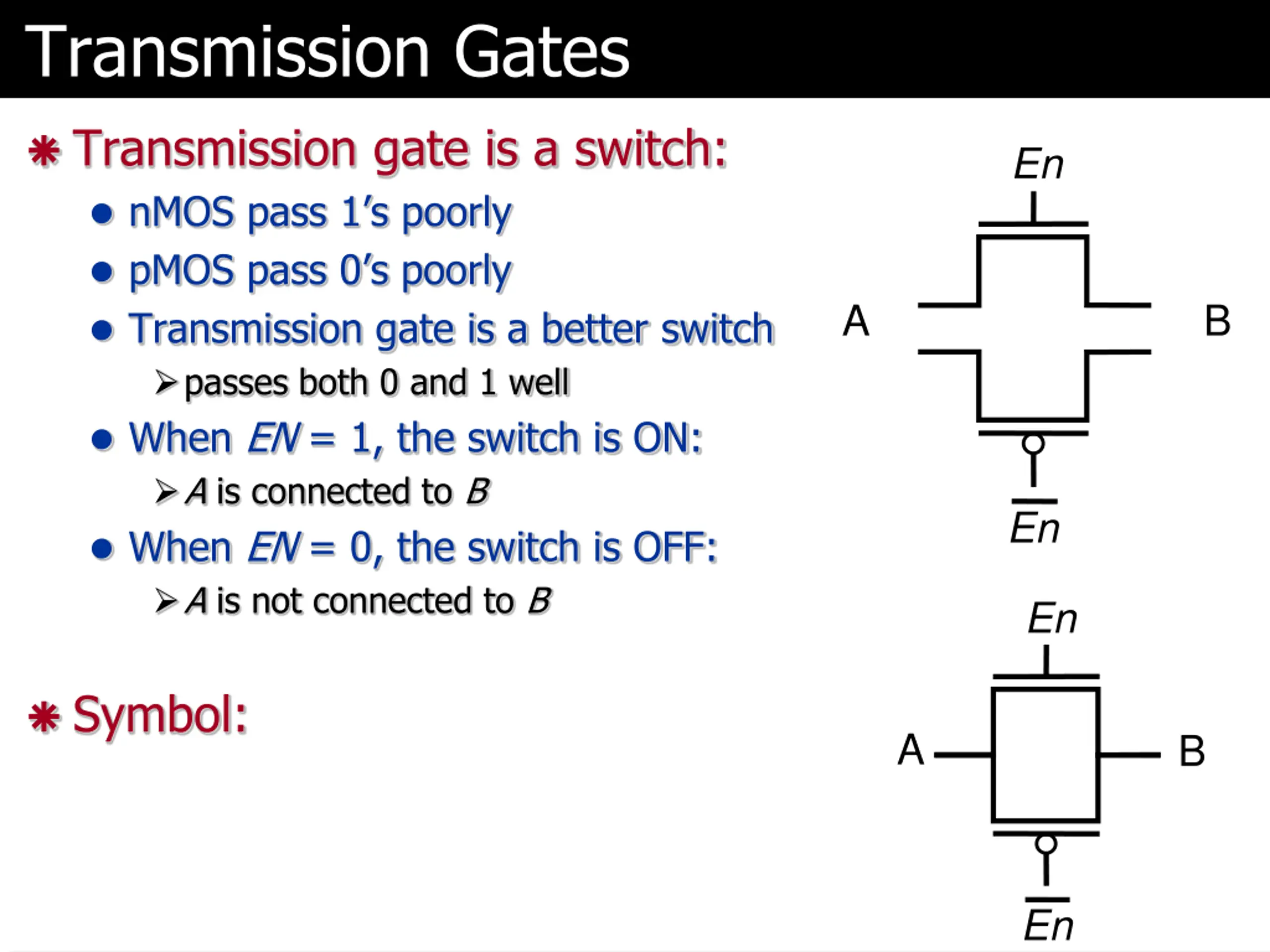

Transmission Gates Transmission gate is a switch: nMOS pass 1 s poorly pMOS pass 0 s poorly Transmission gate is a better switch passes both 0 and 1 well When EN = 1, the switch is ON: A is connected to B When EN = 0, the switch is OFF: A is not connected to B En A B En En Symbol: A B En

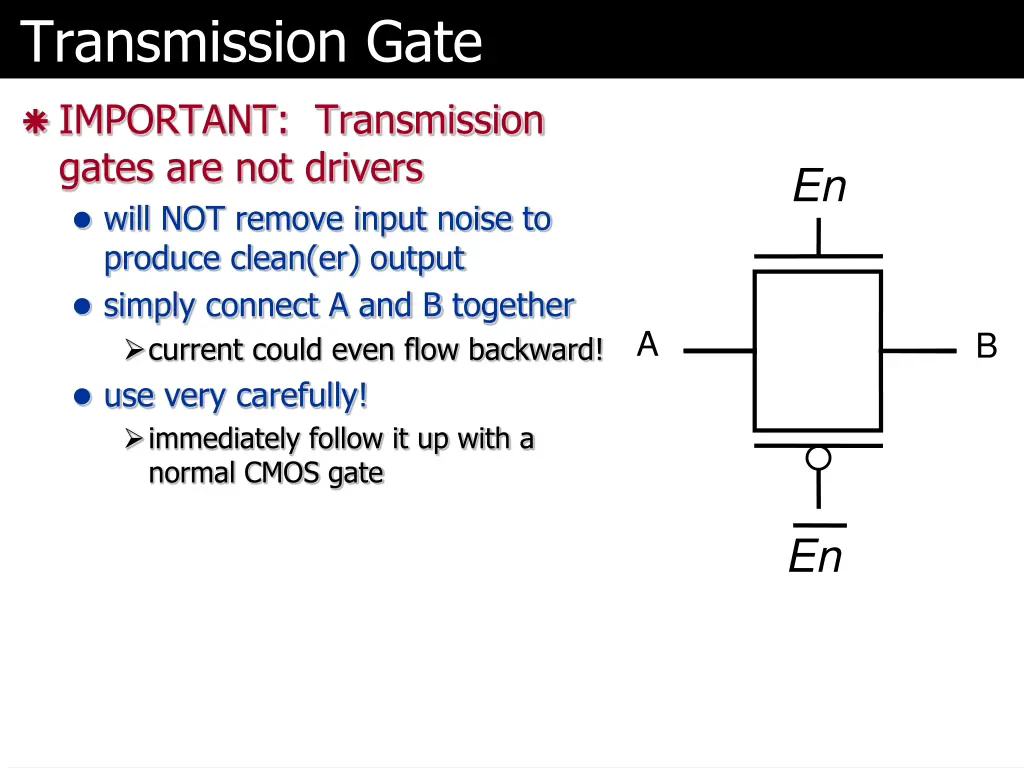

Transmission Gate IMPORTANT: Transmission gates are not drivers will NOT remove input noise to produce clean(er) output simply connect A and B together current could even flow backward! use very carefully! immediately follow it up with a normal CMOS gate En A B En

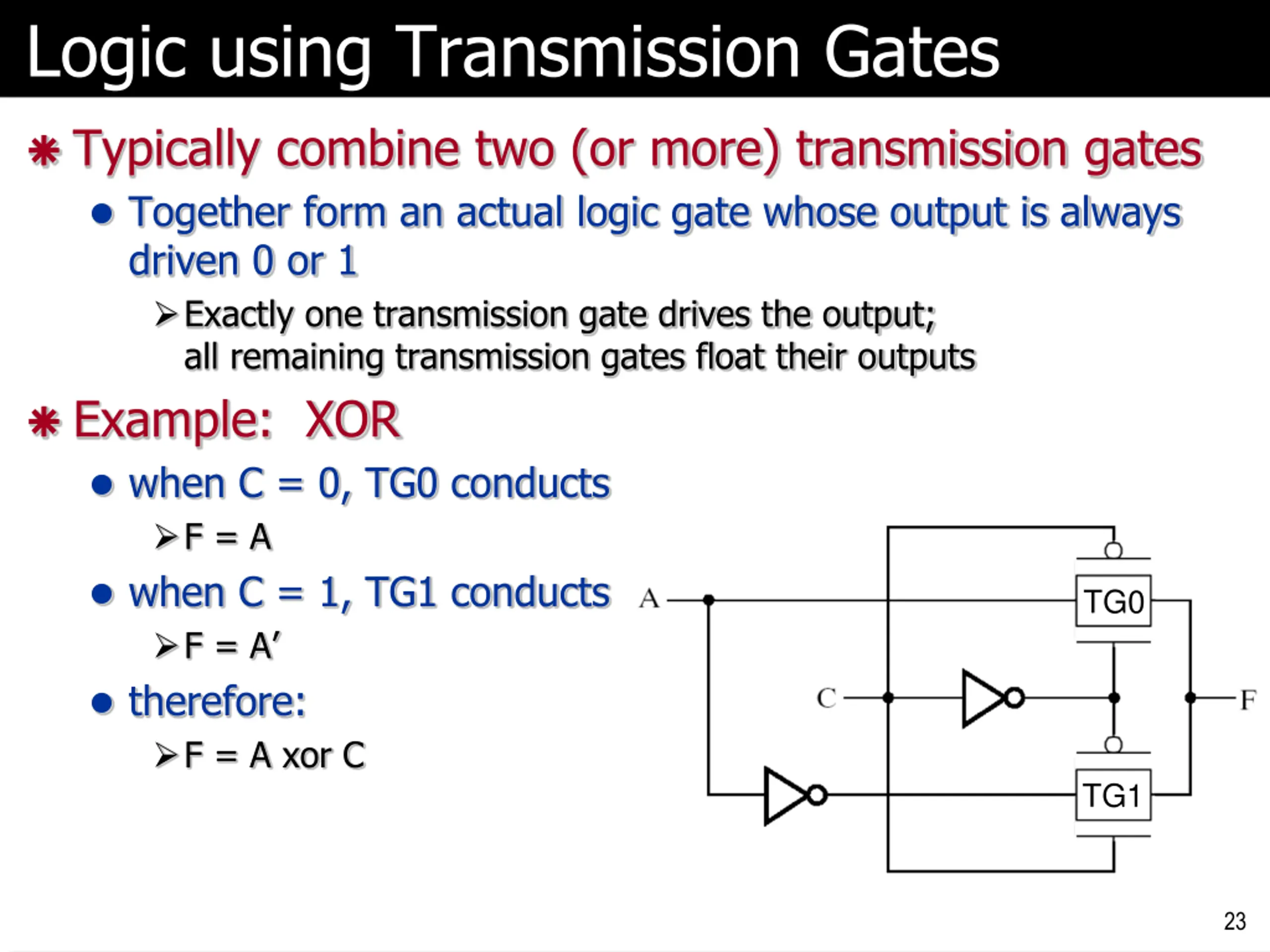

Logic using Transmission Gates Typically combine two (or more) transmission gates Together form an actual logic gate whose output is always driven 0 or 1 Exactly one transmission gate drives the output; all remaining transmission gates float their outputs Example: XOR when C = 0, TG0 conducts F = A when C = 1, TG1 conducts F = A therefore: F = A xor C TG0 TG1 23

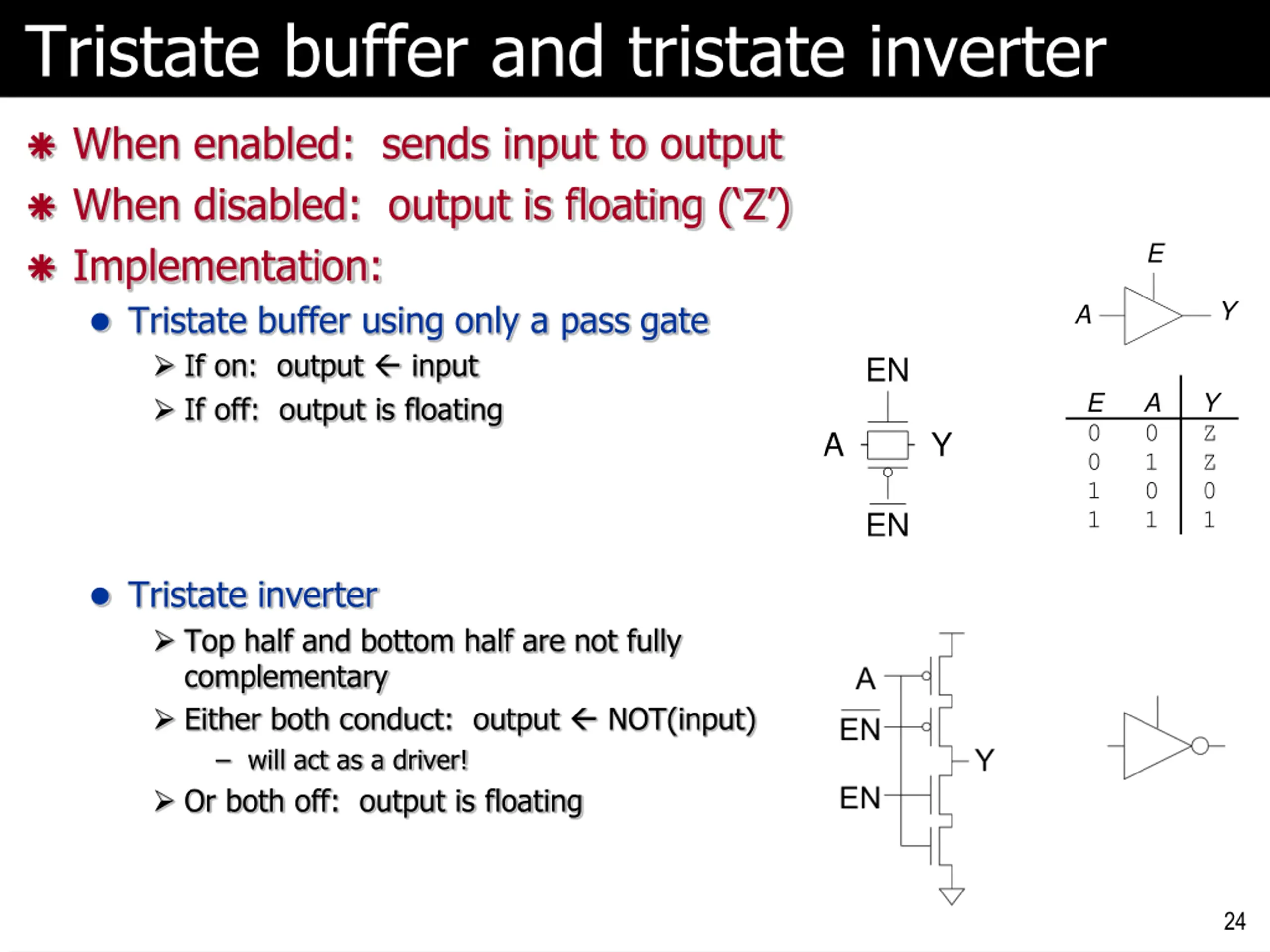

Tristate buffer and tristate inverter When enabled: sends input to output When disabled: output is floating ( Z ) Implementation: Tristate buffer using only a pass gate If on: output input If off: output is floating E Y A EN E 0 0 1 1 A 0 1 0 1 Y Z Z 0 1 A Y EN Tristate inverter Top half and bottom half are not fully complementary Either both conduct: output NOT(input) will act as a driver! Or both off: output is floating 24

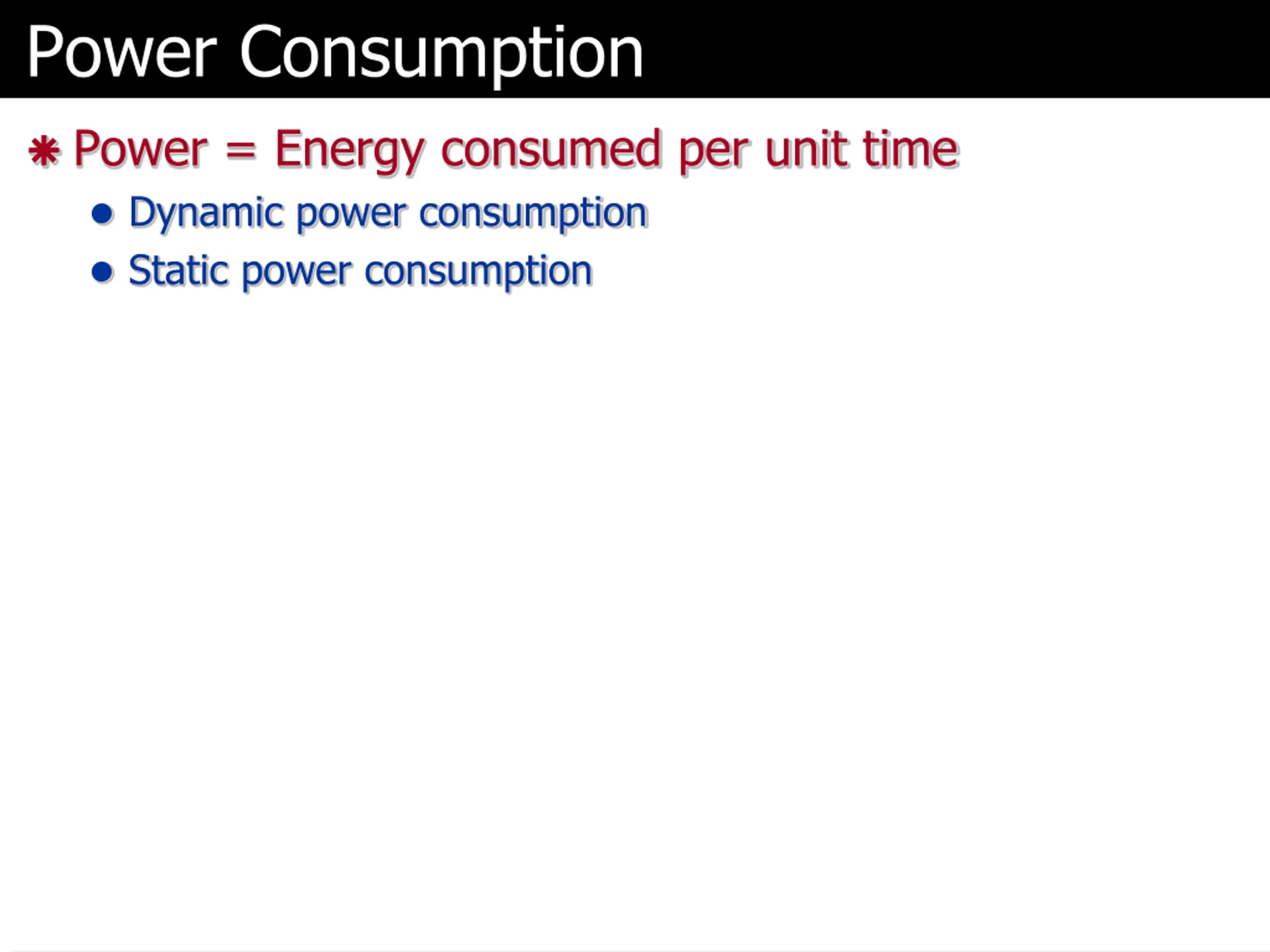

Power Consumption Power = Energy consumed per unit time Dynamic power consumption Static power consumption

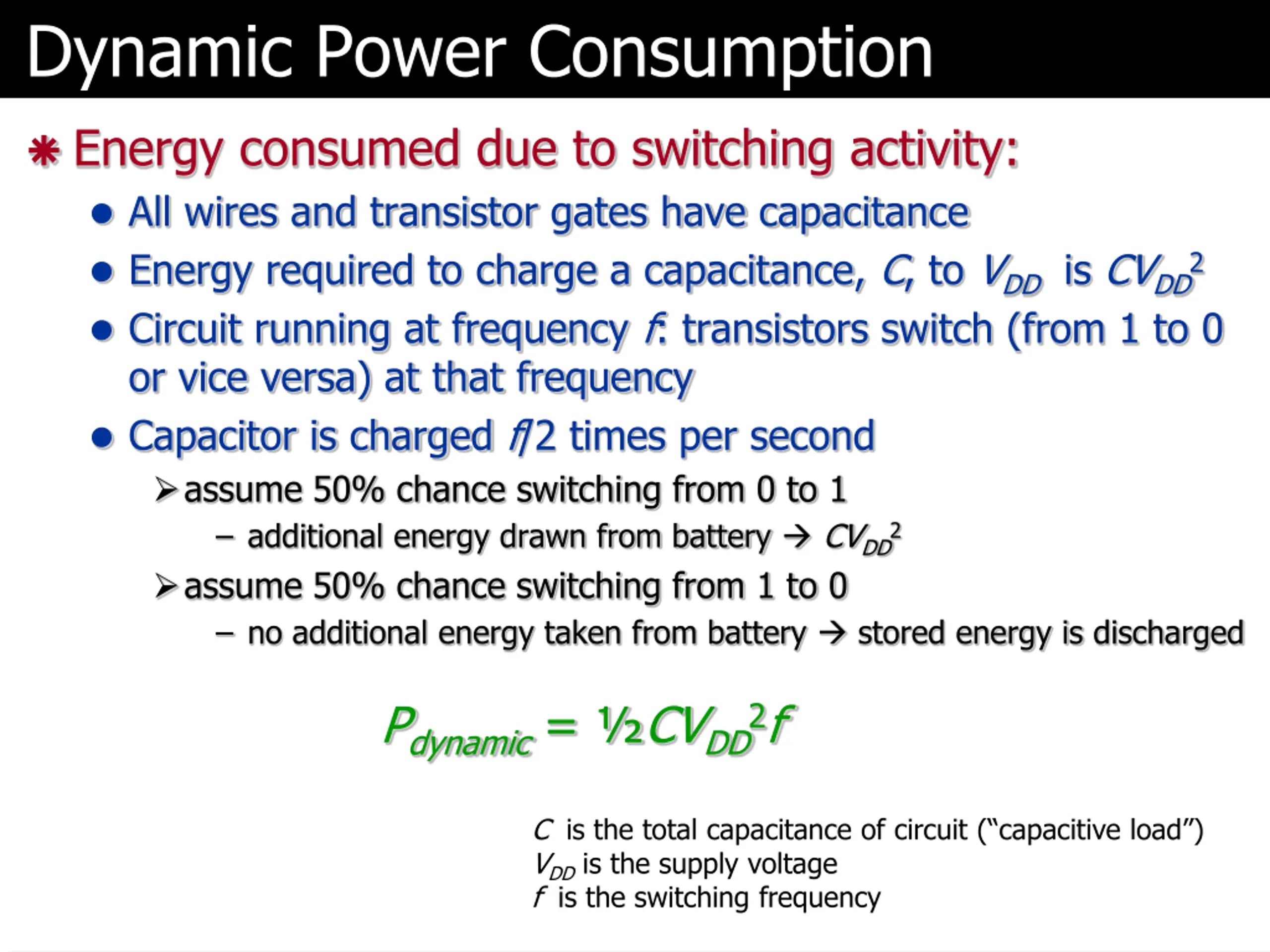

Dynamic Power Consumption Energy consumed due to switching activity: All wires and transistor gates have capacitance Energy required to charge a capacitance, C, to VDD is CVDD2 Circuit running at frequency f: transistors switch (from 1 to 0 or vice versa) at that frequency Capacitor is charged f/2 times per second assume 50% chance switching from 0 to 1 additional energy drawn from battery CVDD2 assume 50% chance switching from 1 to 0 no additional energy taken from battery stored energy is discharged Pdynamic = CVDD2f C is the total capacitance of circuit ( capacitive load ) VDD is the supply voltage f is the switching frequency

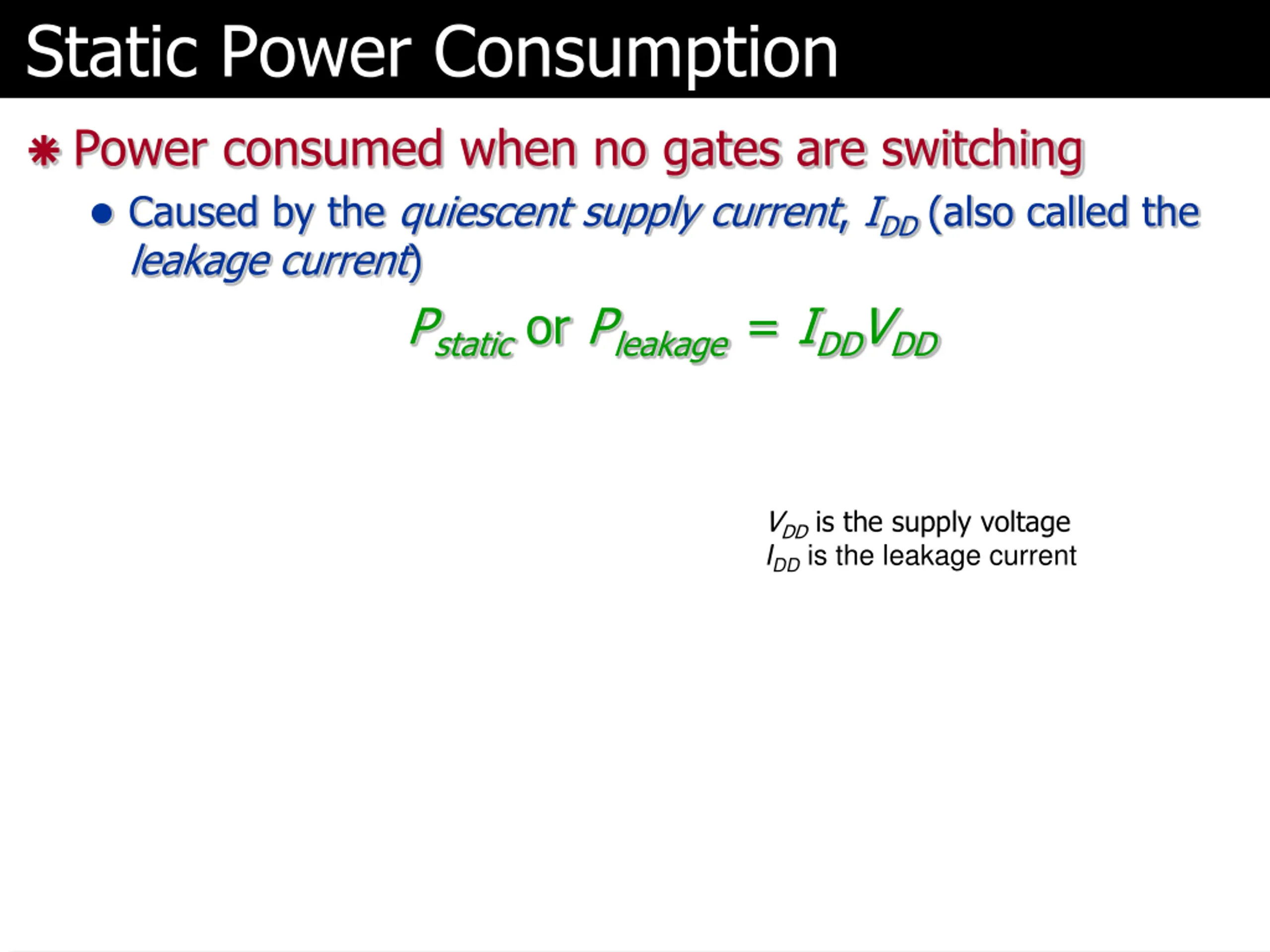

Static Power Consumption Power consumed when no gates are switching Caused by the quiescent supply current, IDD (also called the leakage current) Pstatic or Pleakage = IDDVDD VDD is the supply voltage IDD is the leakage current

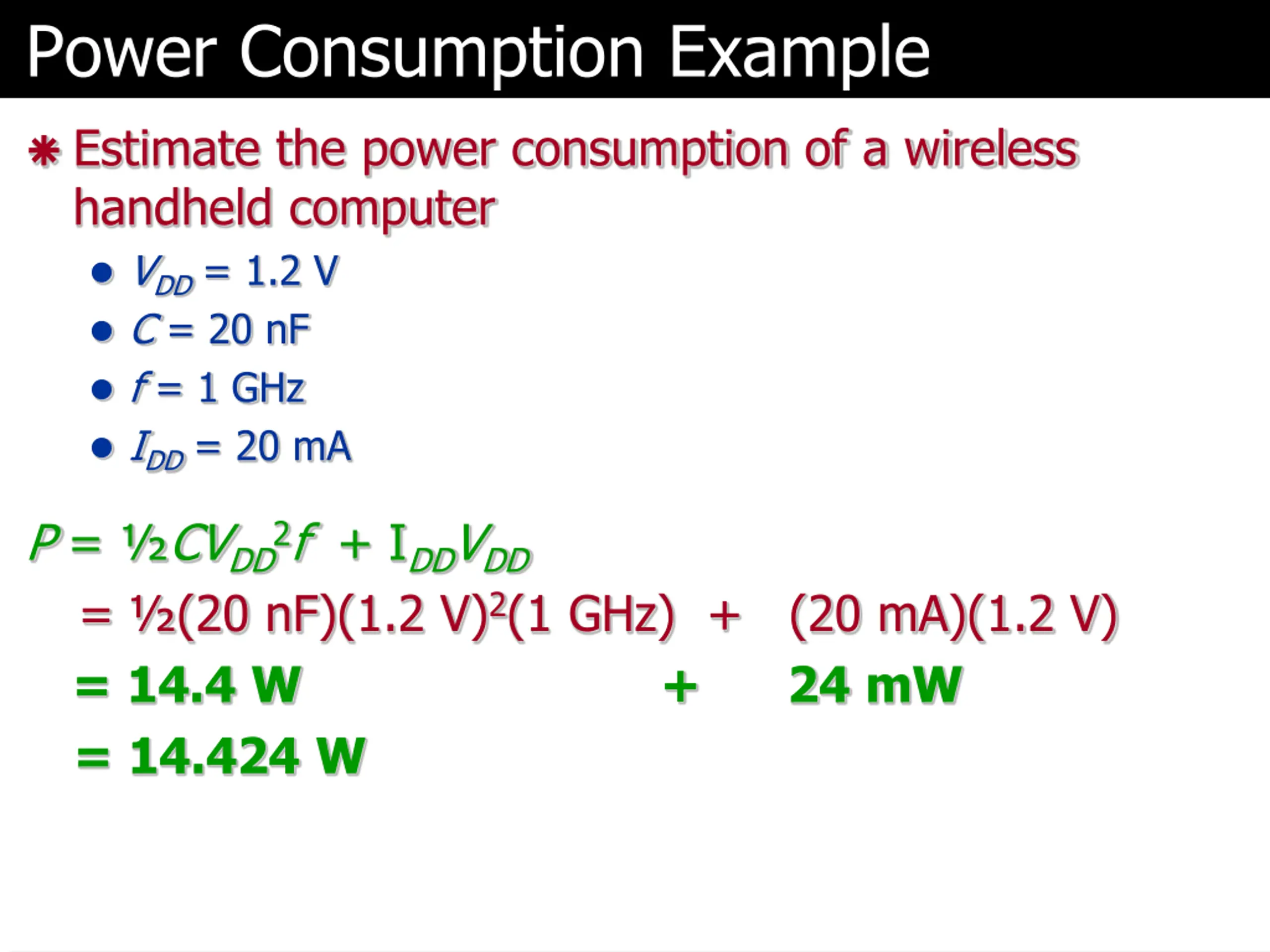

Power Consumption Example Estimate the power consumption of a wireless handheld computer VDD = 1.2 V C = 20 nF f = 1 GHz IDD = 20 mA P = CVDD2f + IDDVDD = (20 nF)(1.2 V)2(1 GHz) + (20 mA)(1.2 V) = 14.4 W = 14.424 W + 24 mW
