TRANSMISSION LINE PLAN FOR DISTT. KARGIL(J&K) ZANSKAR AND SURU VALLEY By-: KMN ENGINEERING CONSULTANTS PVT. LTD.

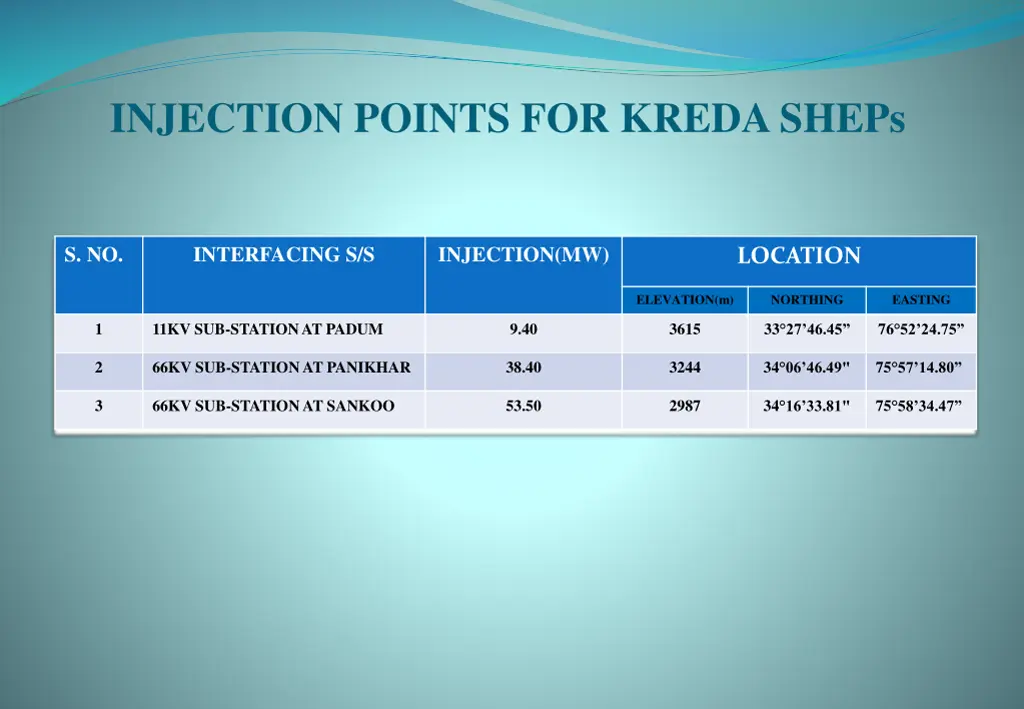

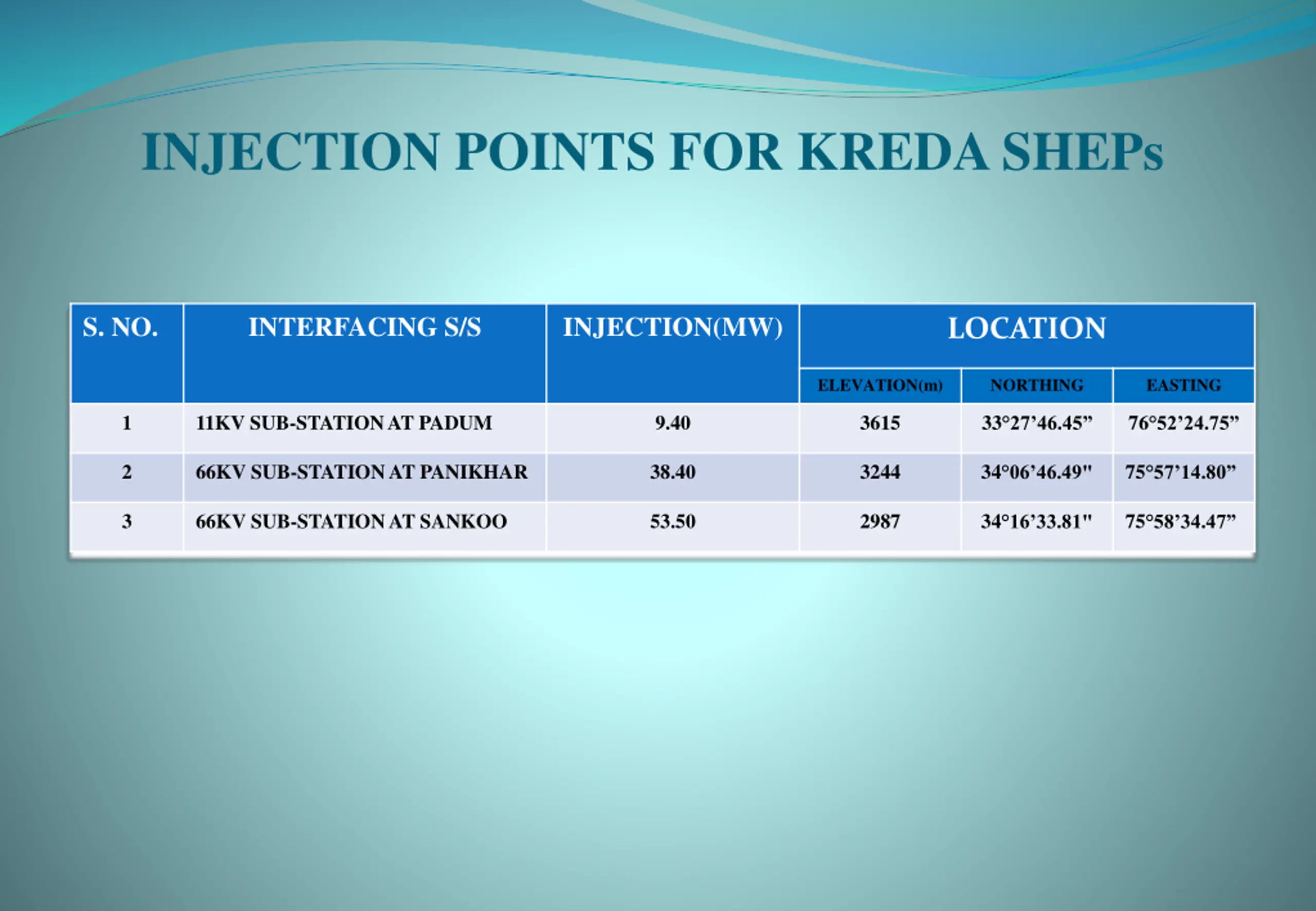

INJECTION POINTS FOR KREDA SHEPs S. NO. INTERFACING S/S INJECTION(MW) LOCATION ELEVATION(m) NORTHING EASTING 1 11KV SUB-STATIONAT PADUM 9.40 3615 33 27 46.45 76 52 24.75 2 66KV SUB-STATION AT PANIKHAR 38.40 3244 34 06 46.49" 75 57 14.80 3 66KV SUB-STATION AT SANKOO 53.50 2987 34 16 33.81" 75 58 34.47

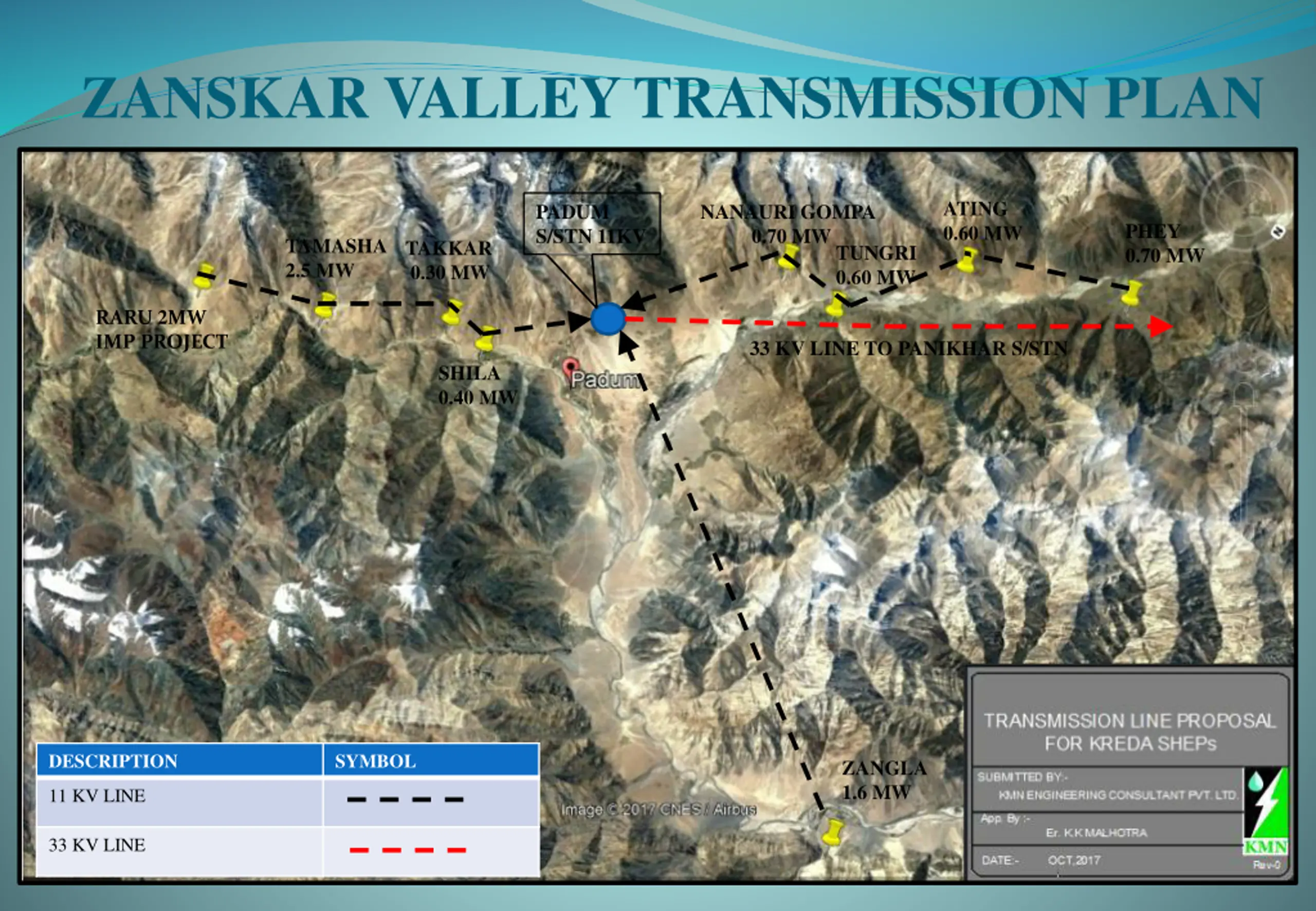

ZANSKAR VALLEY TRANSMISSION PLAN ATING 0.60 MW PADUM S/STN 11KV NANAURI GOMPA 0.70 MWTUNGRI PHEY 0.70 MW TAMASHA 2.5 MW TAKKAR 0.30 MW 0.60 MW RARU 2MW IMP PROJECT 33 KV LINE TO PANIKHAR S/STN SHILA 0.40 MW DESCRIPTION SYMBOL ZANGLA 1.6 MW 11 KV LINE 33 KV LINE

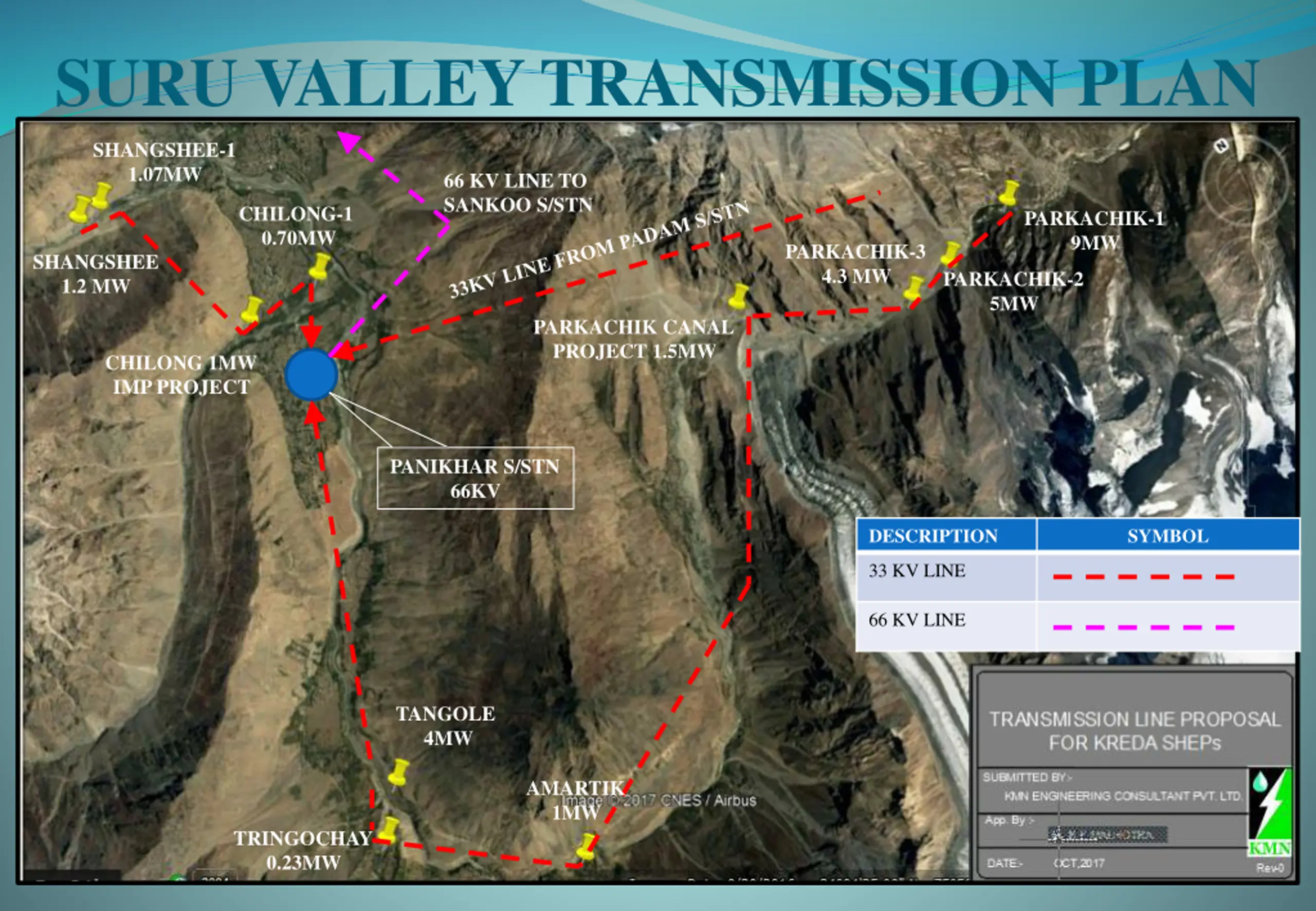

SURU VALLEY TRANSMISSION PLAN SHANGSHEE-1 1.07MW 66 KV LINE TO SANKOO S/STN CHILONG-1 0.70MW PARKACHIK-1 9MW PARKACHIK-3 4.3 MW SHANGSHEE 1.2 MW PARKACHIK-2 5MW PARKACHIK CANAL PROJECT 1.5MW CHILONG 1MW IMP PROJECT PANIKHAR S/STN 66KV DESCRIPTION SYMBOL 33 KV LINE 66 KV LINE TANGOLE 4MW AMARTIK 1MW TRINGOCHAY 0.23MW

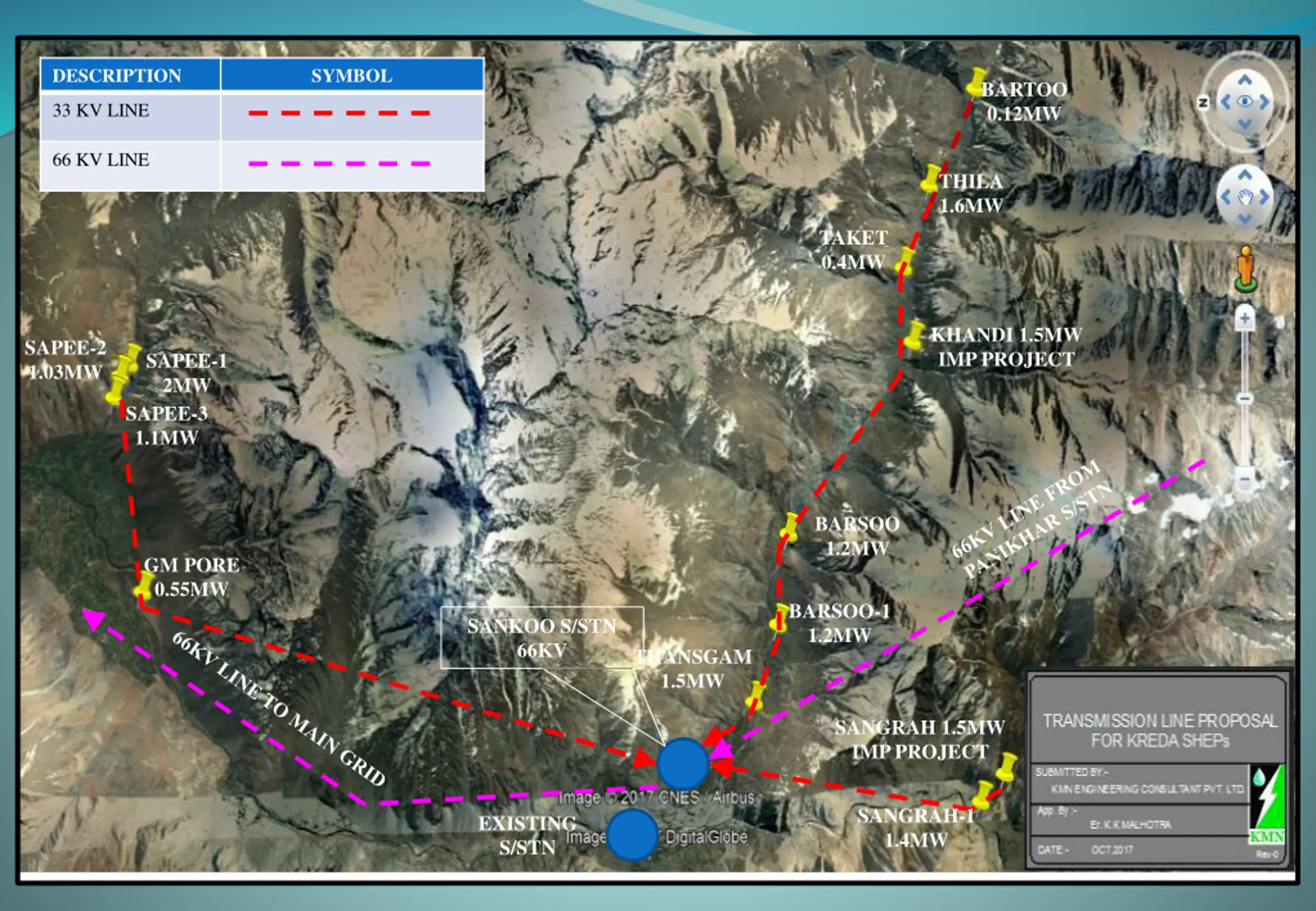

DESCRIPTION SYMBOL BARTOO 0.12MW 33 KV LINE 66 KV LINE THILA 1.6MW TAKET 0.4MW KHANDI 1.5MW IMP PROJECT SAPEE-2 1.03MW SAPEE-1 2MW SAPEE-3 1.1MW BARSOO 1.2MW GM PORE 0.55MW BARSOO-1 1.2MW SANKOO S/STN 66KV THANSGAM 1.5MW SANGRAH 1.5MW IMP PROJECT SANGRAH-1 1.4MW EXISTING S/STN

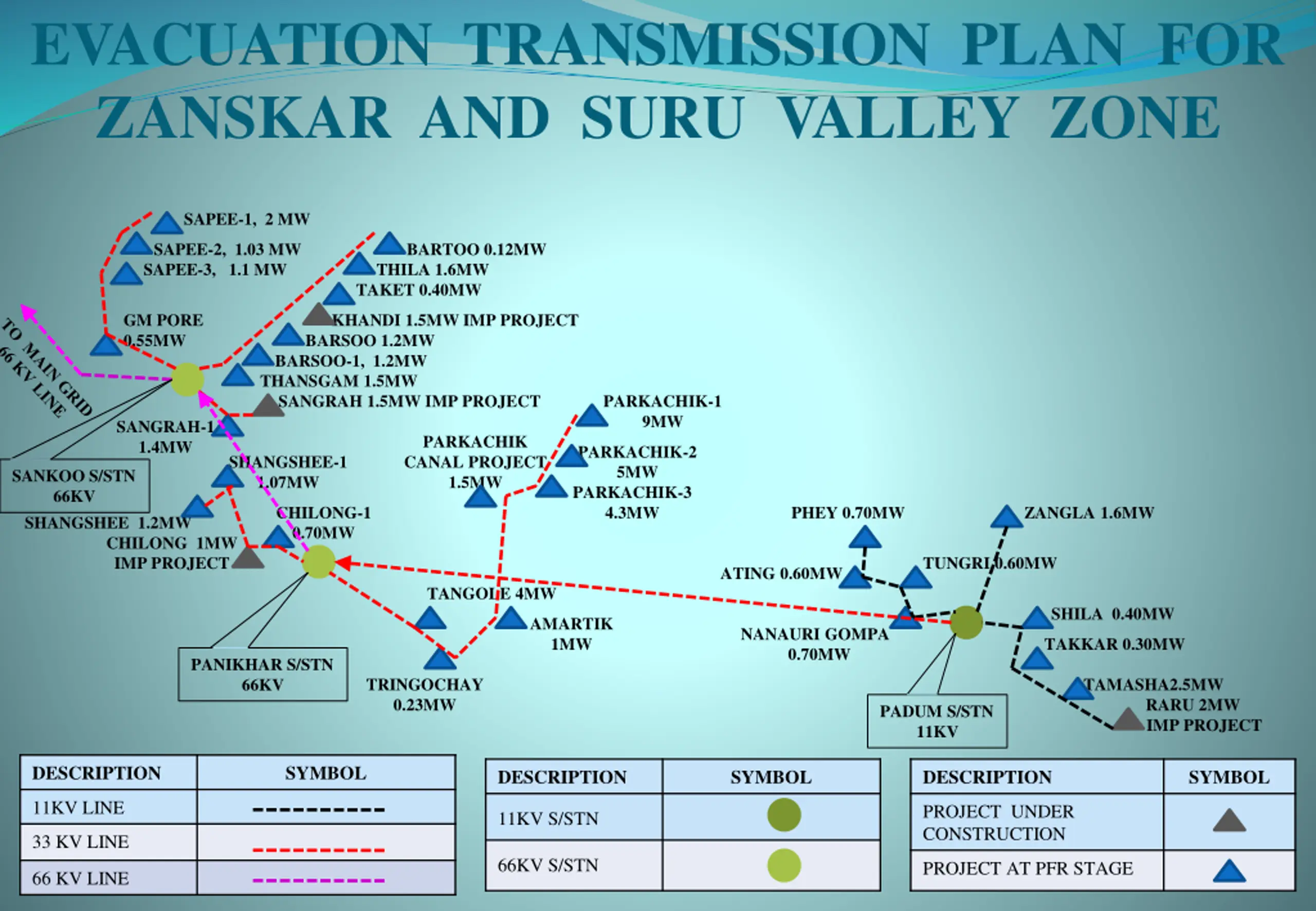

EVACUATION TRANSMISSION PLAN FOR ZANSKAR AND SURU VALLEY ZONE SAPEE-1, 2 MW SAPEE-2, 1.03 MW SAPEE-3, 1.1 MW BARTOO 0.12MW THILA 1.6MW TAKET 0.40MW GM PORE 0.55MW KHANDI 1.5MW IMP PROJECT BARSOO 1.2MW BARSOO-1, 1.2MW THANSGAM 1.5MW SANGRAH 1.5MW IMP PROJECT PARKACHIK-1 9MW SANGRAH-1 1.4MW PARKACHIK CANAL PROJECT 1.5MW PARKACHIK-2 5MW PARKACHIK-3 4.3MW SHANGSHEE-1 1.07MW SANKOO S/STN 66KV CHILONG-1 0.70MW PHEY 0.70MW ZANGLA 1.6MW SHANGSHEE 1.2MW CHILONG 1MW IMP PROJECT TUNGRI 0.60MW ATING 0.60MW TANGOLE 4MW SHILA 0.40MW AMARTIK 1MW NANAURI GOMPA 0.70MW TAKKAR 0.30MW PANIKHAR S/STN 66KV TRINGOCHAY 0.23MW TAMASHA2.5MW RARU 2MW IMP PROJECT PADUM S/STN 11KV DESCRIPTION SYMBOL DESCRIPTION SYMBOL DESCRIPTION SYMBOL 11KV LINE PROJECT UNDER CONSTRUCTION 11KV S/STN 33 KV LINE 66KV S/STN PROJECT AT PFR STAGE 66 KV LINE
