Transmission Media Presented by Ms. Bobade Swati Bhaskar Department of Computer Sci. & IT Deogiri College, Aurangabad Maharashtra, 431 005 1

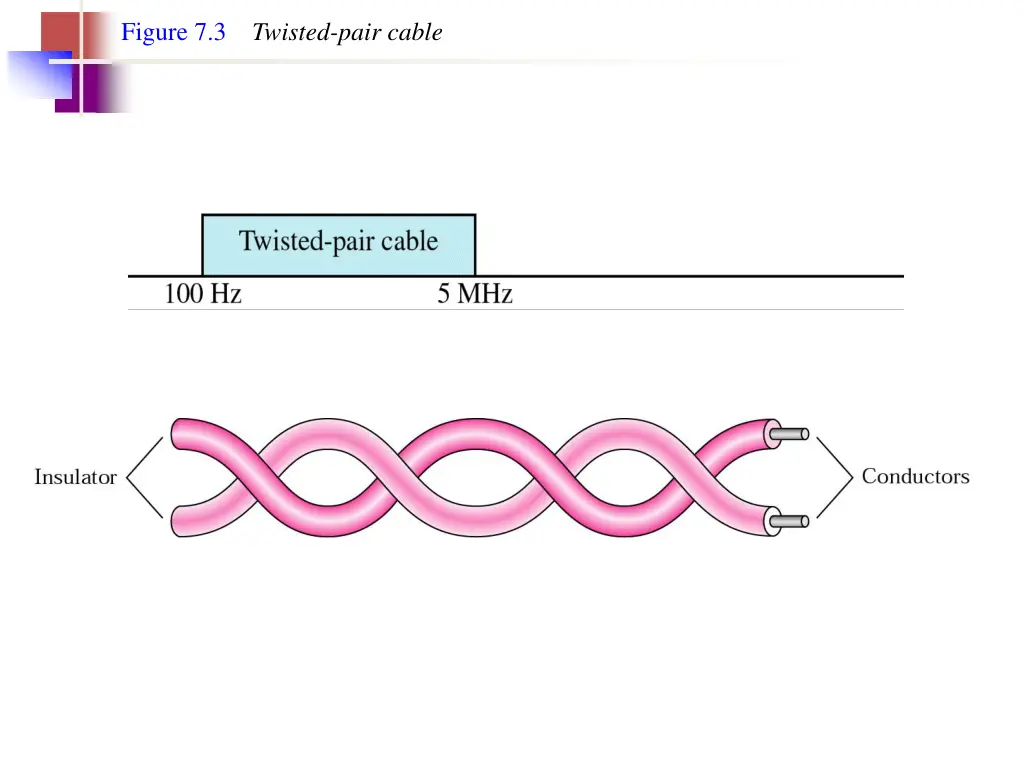

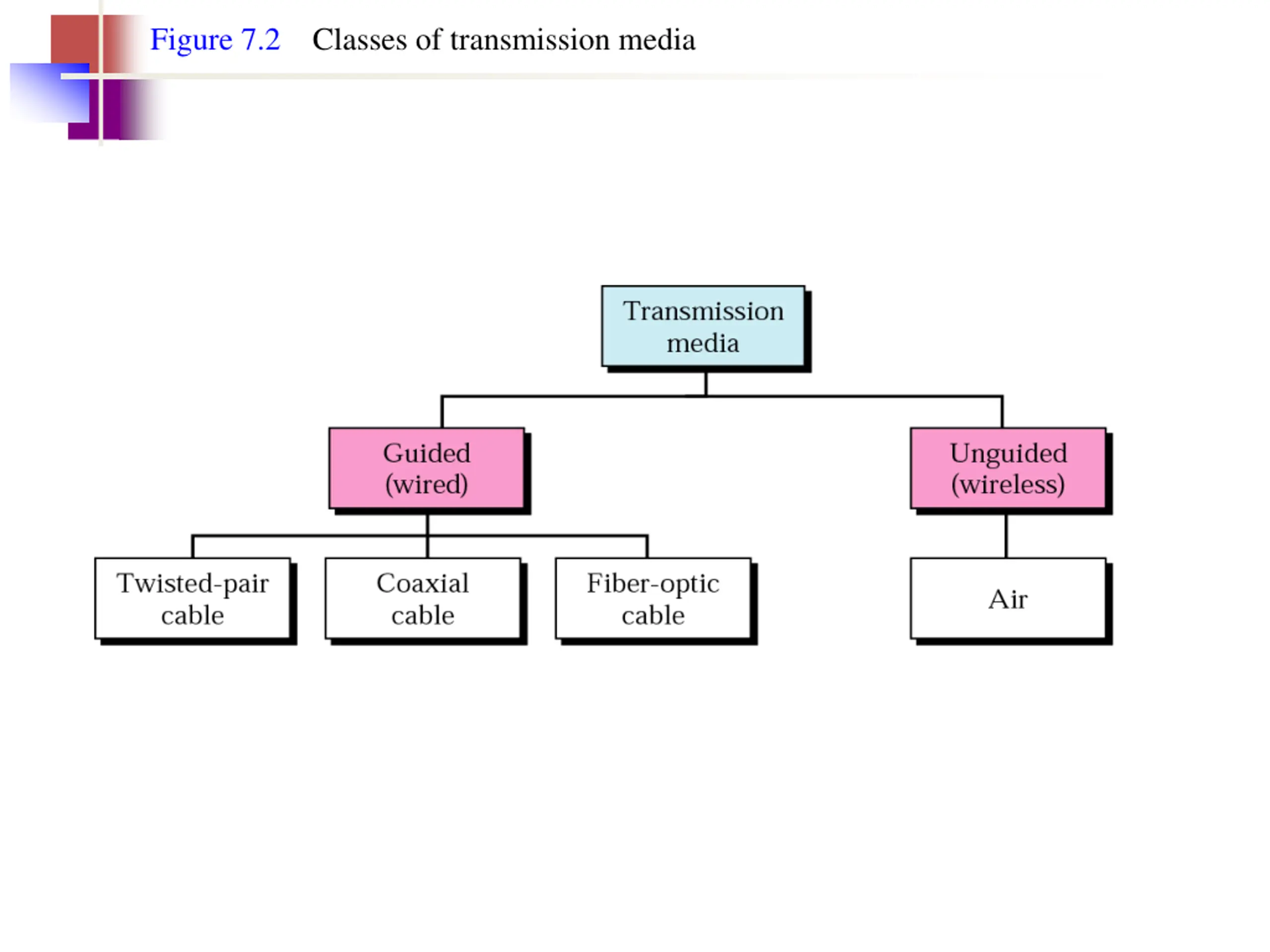

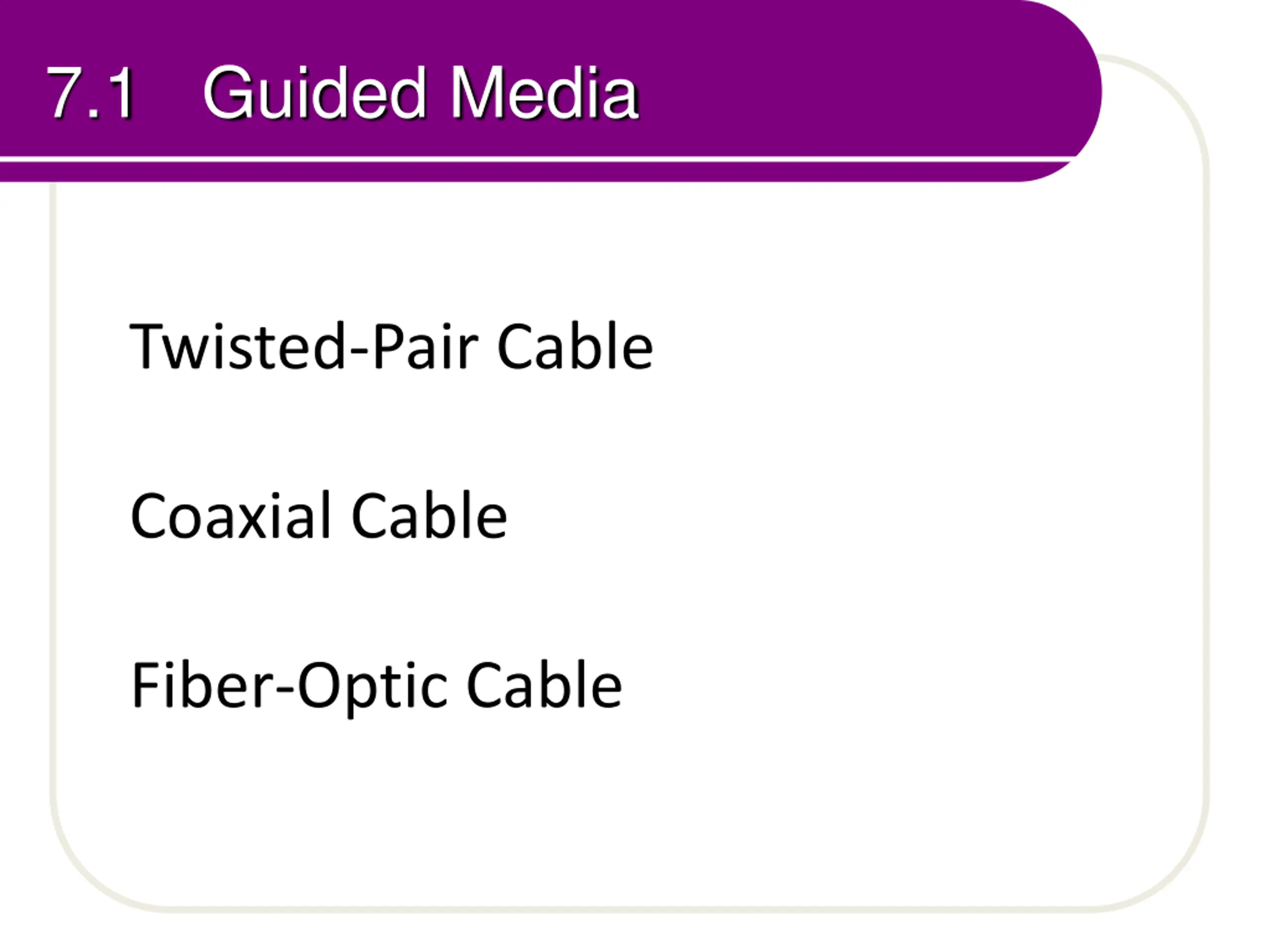

7.1 Guided Media Twisted-Pair Cable Coaxial Cable Fiber-Optic Cable

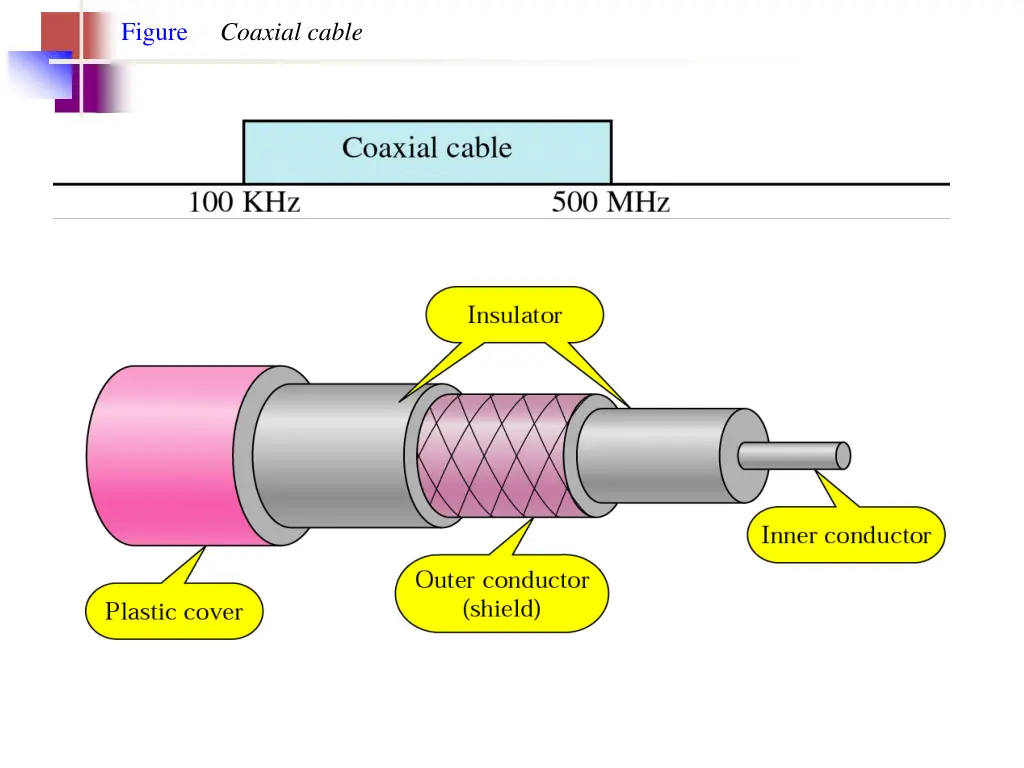

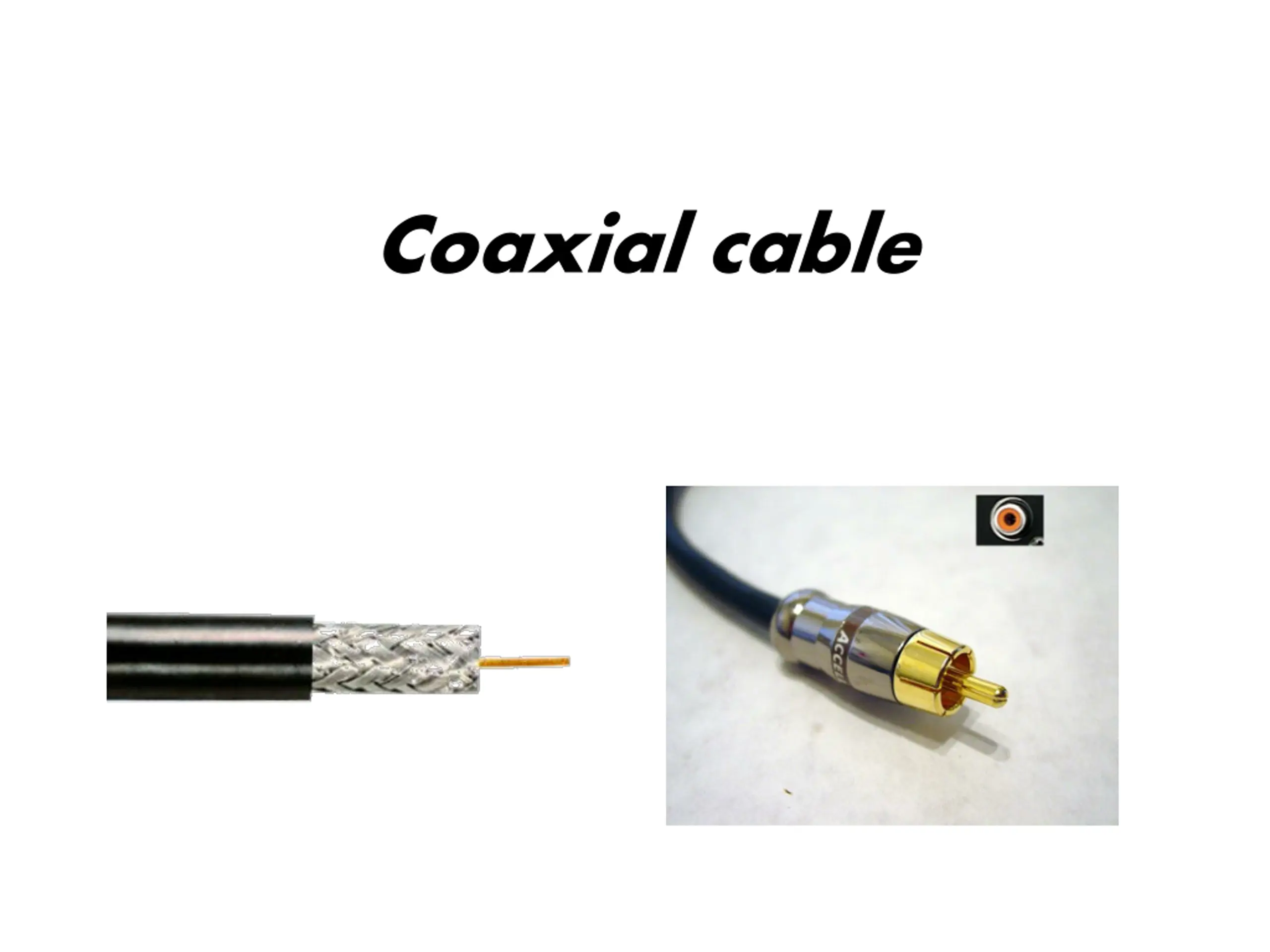

Figure Coaxial cable

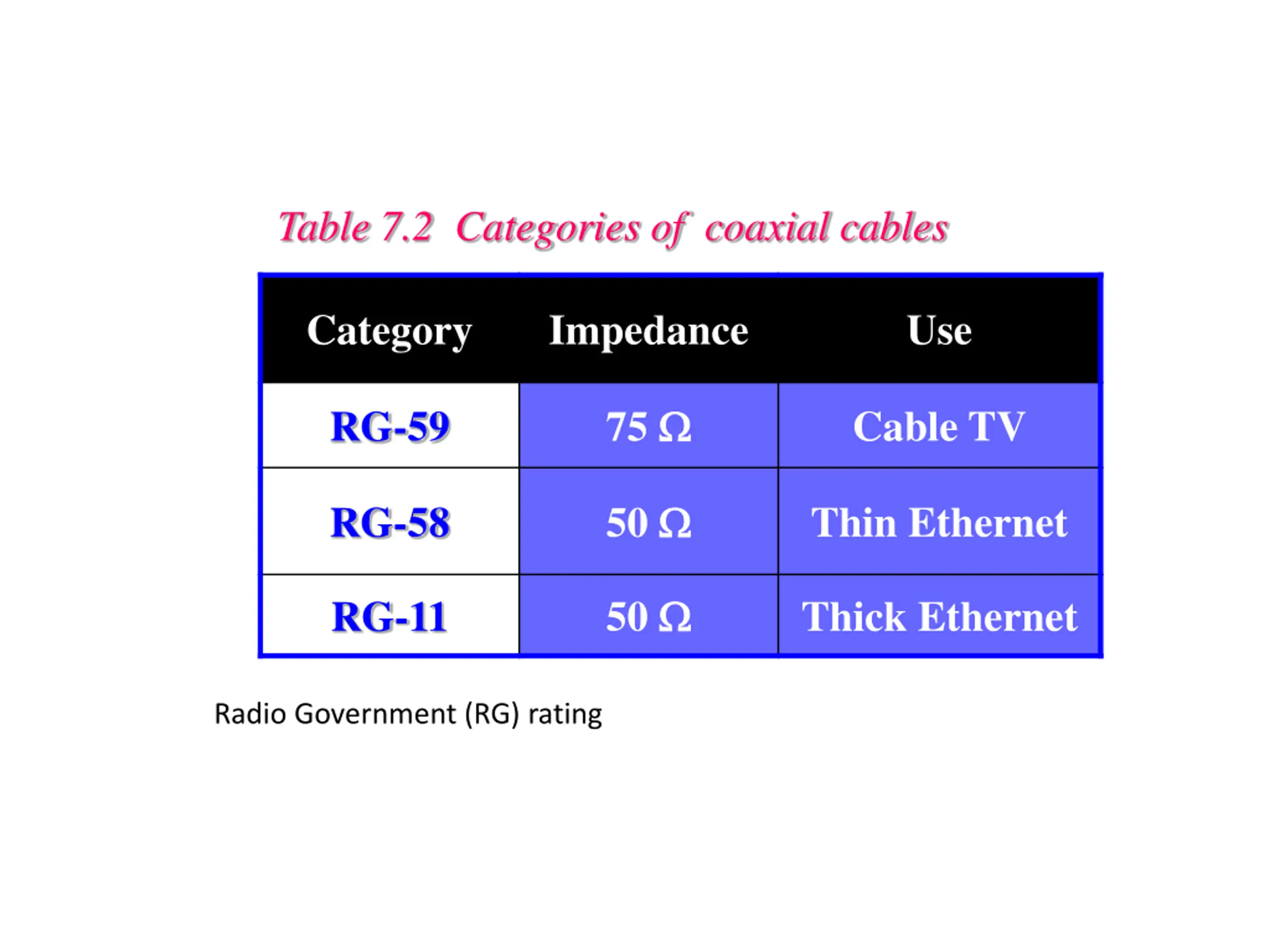

Table 7.2 Categories of coaxial cables Category Impedance Use 75 RG-59 Cable TV 50 RG-58 Thin Ethernet 50 RG-11 Thick Ethernet Radio Government (RG) rating
