Transmission Media Presented by Ms. Bobade Swati Bhaskar Department of Computer Sci. & IT Deogiri College, Aurangabad Maharashtra, 431 005 1

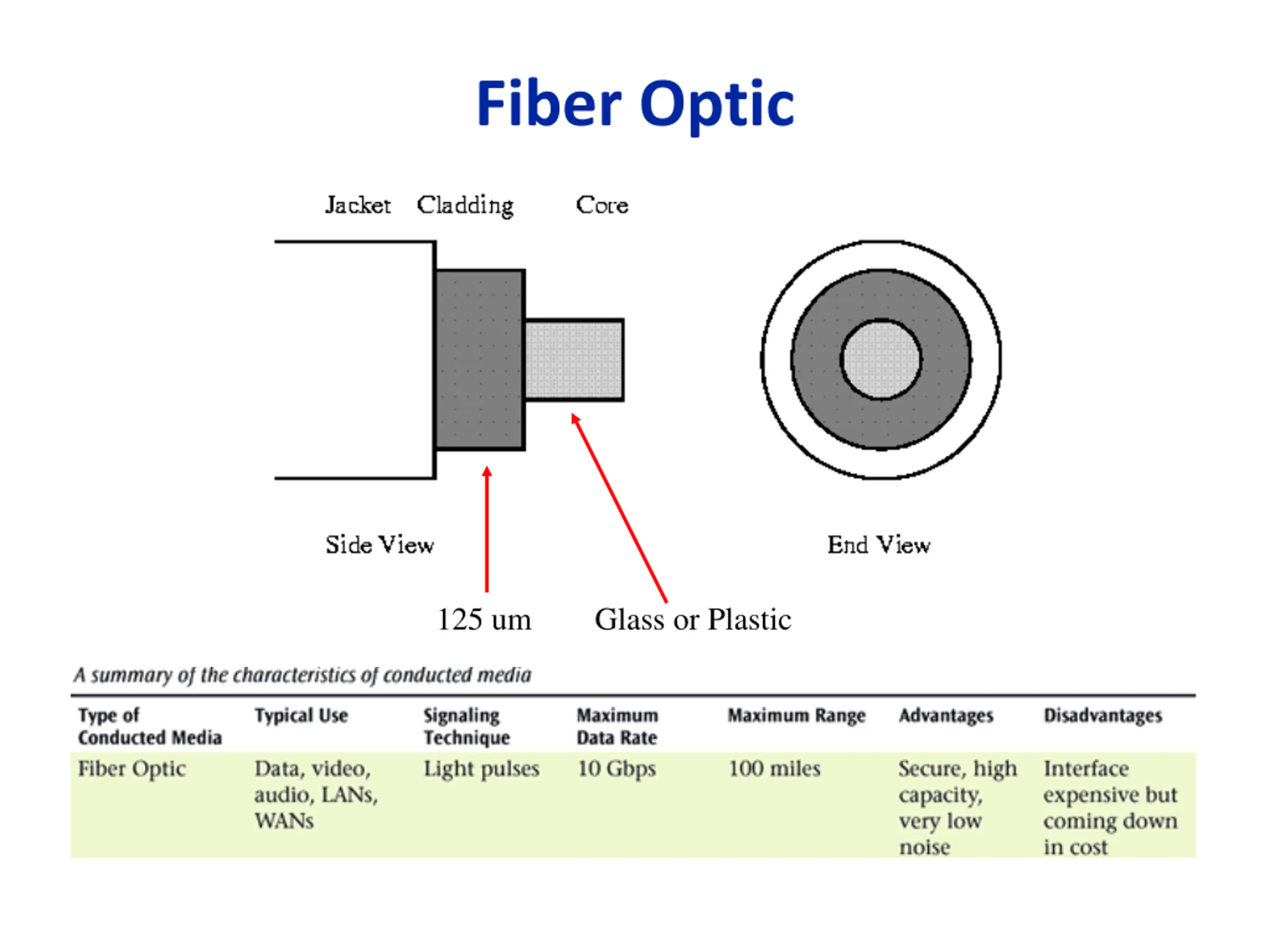

Fiber Optic 125 um Glass or Plastic

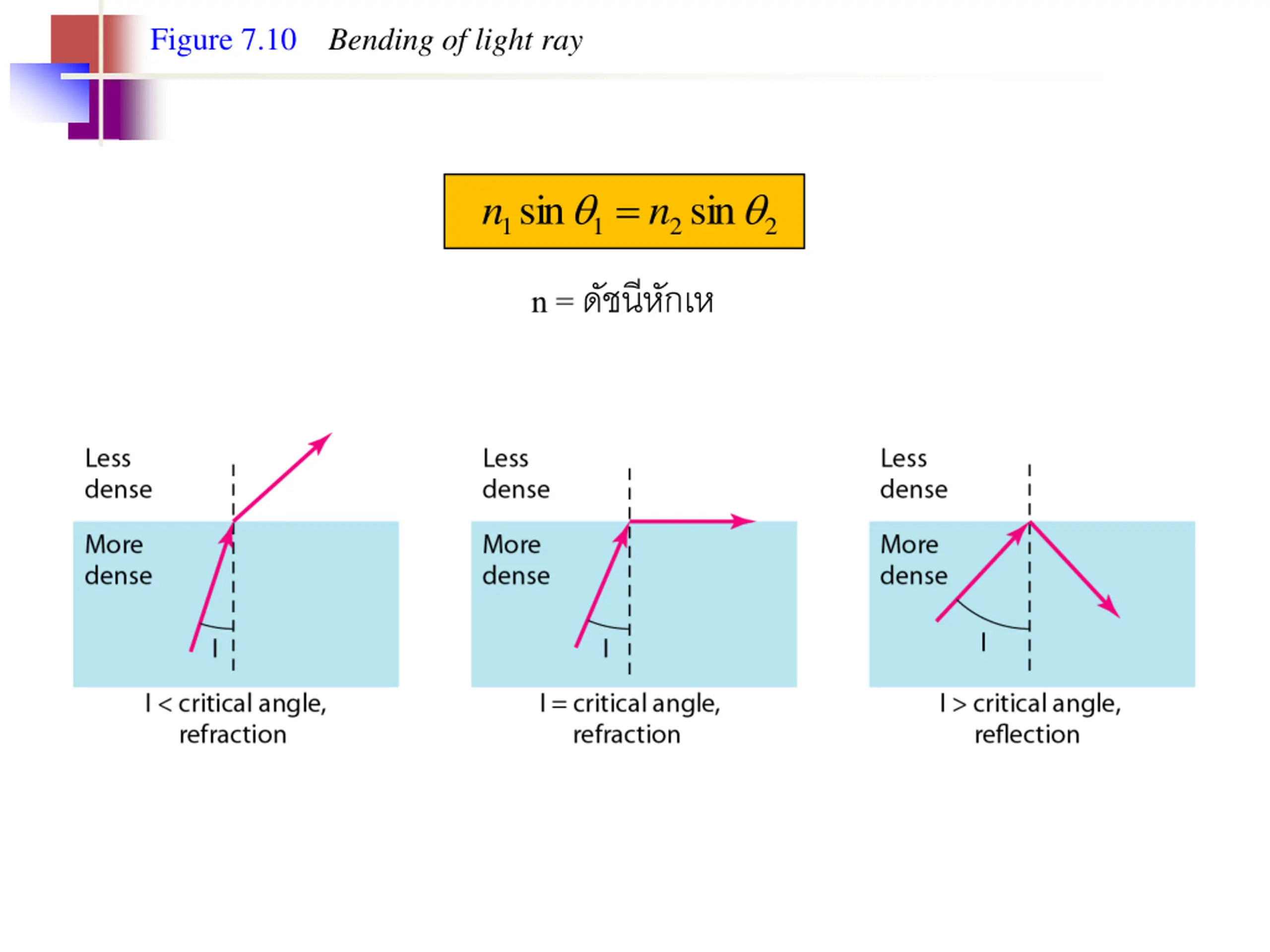

Figure 7.10 Bending of light ray = sin sin n n 1 1 2 2 n =

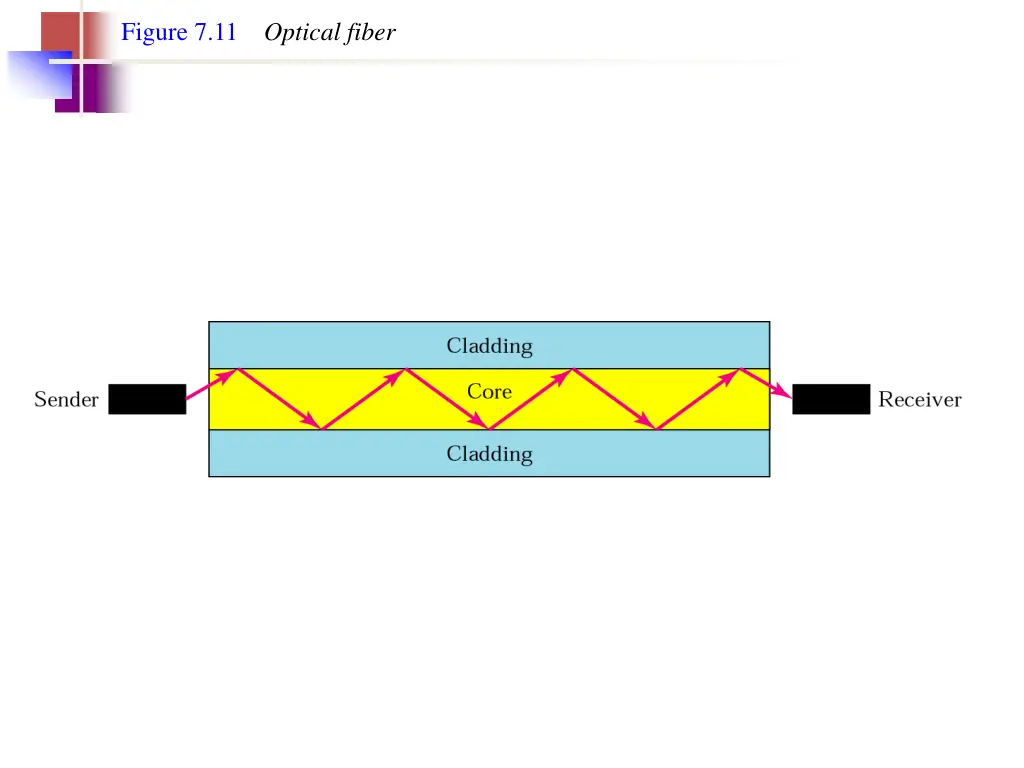

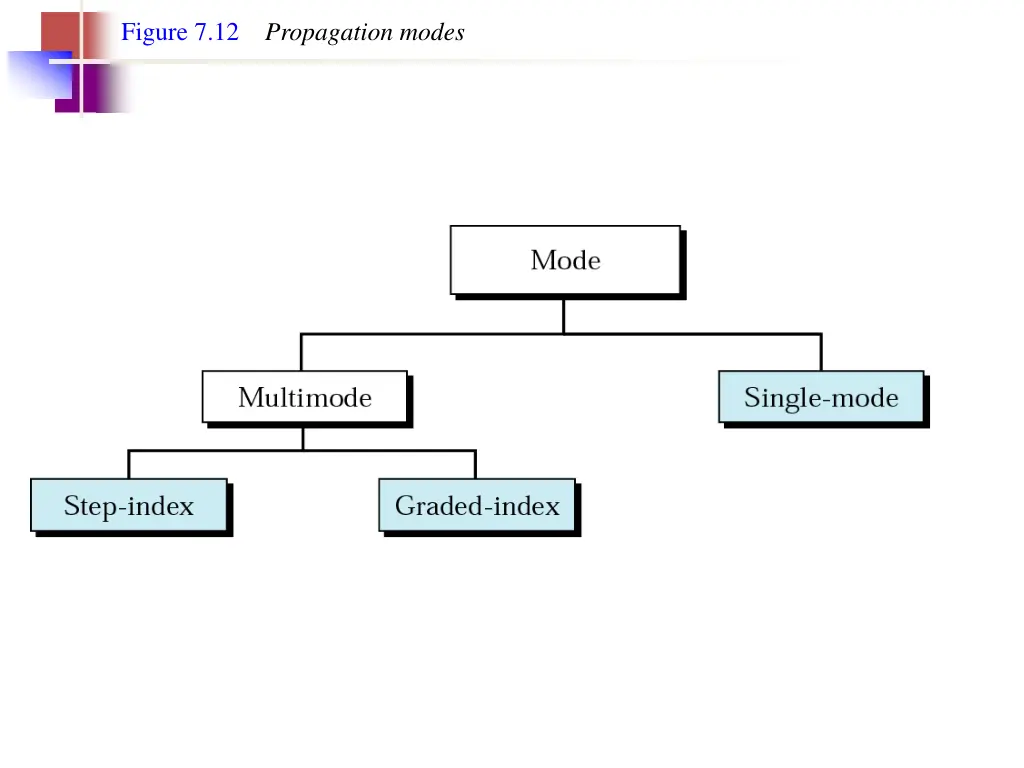

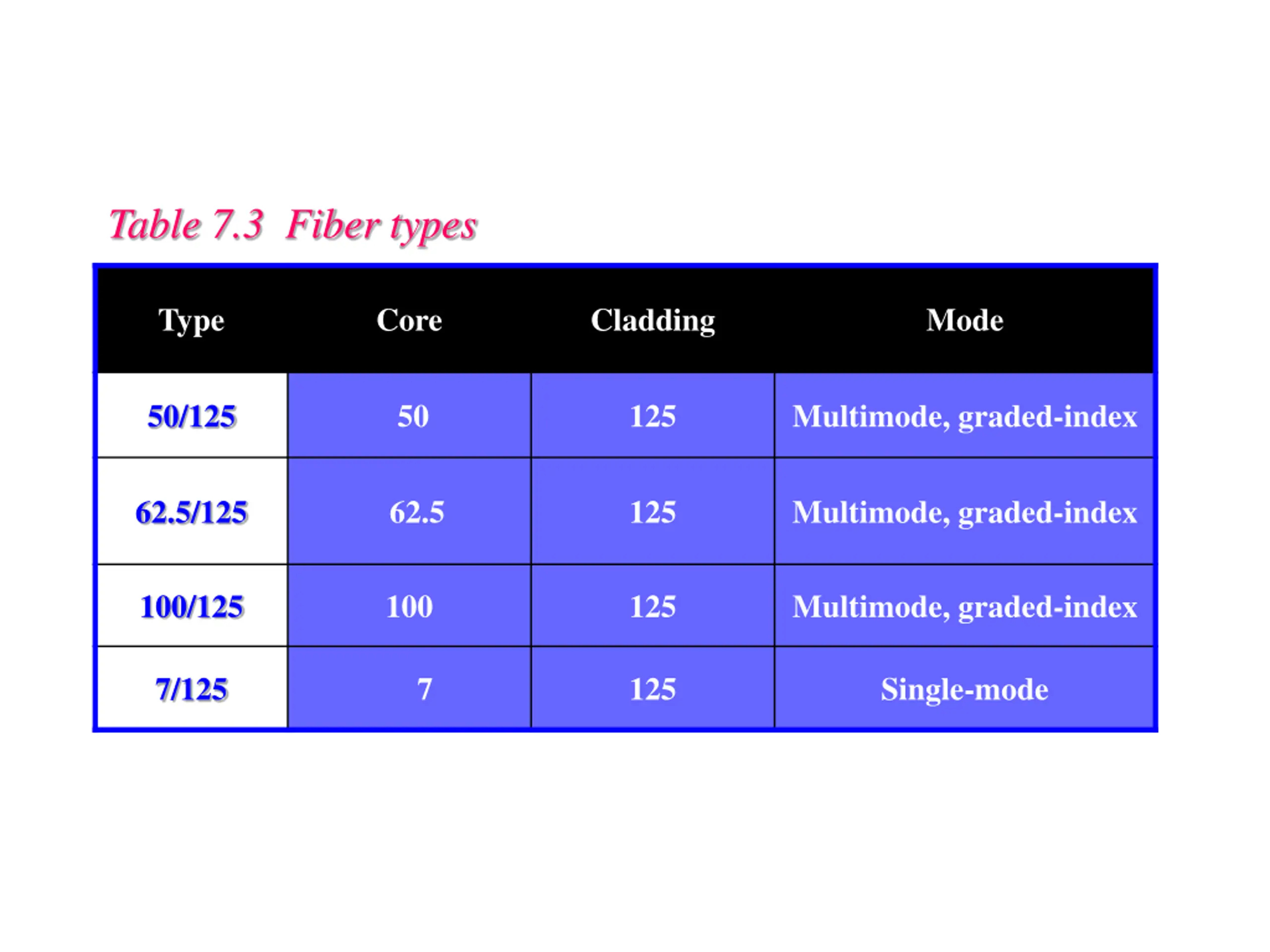

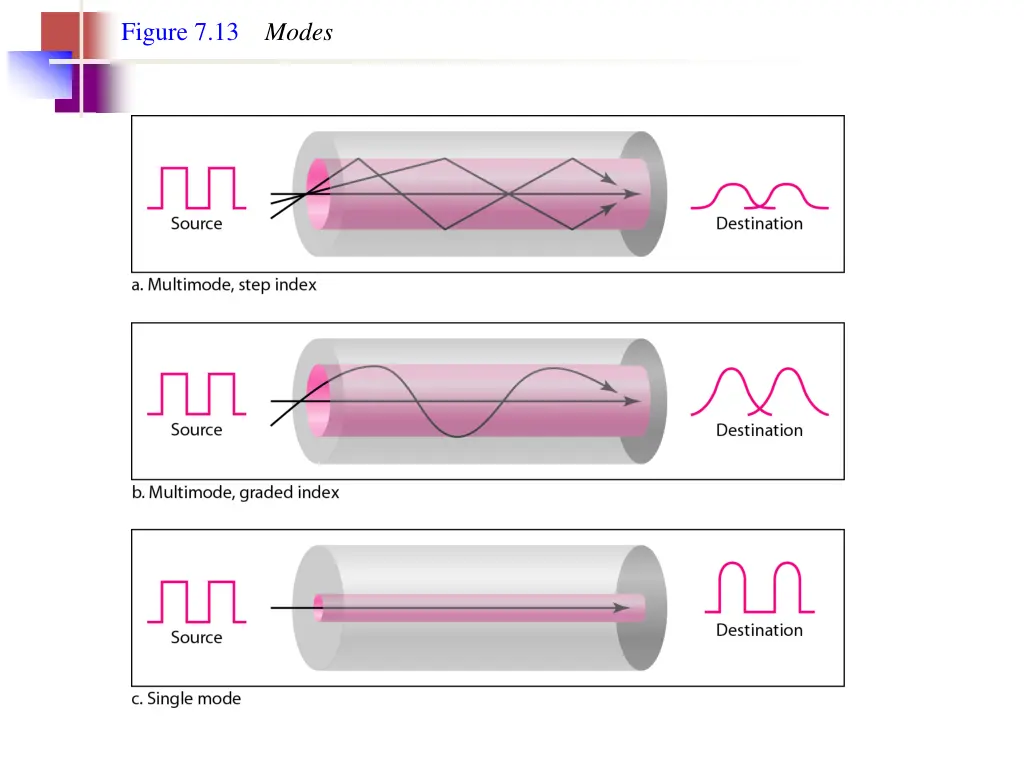

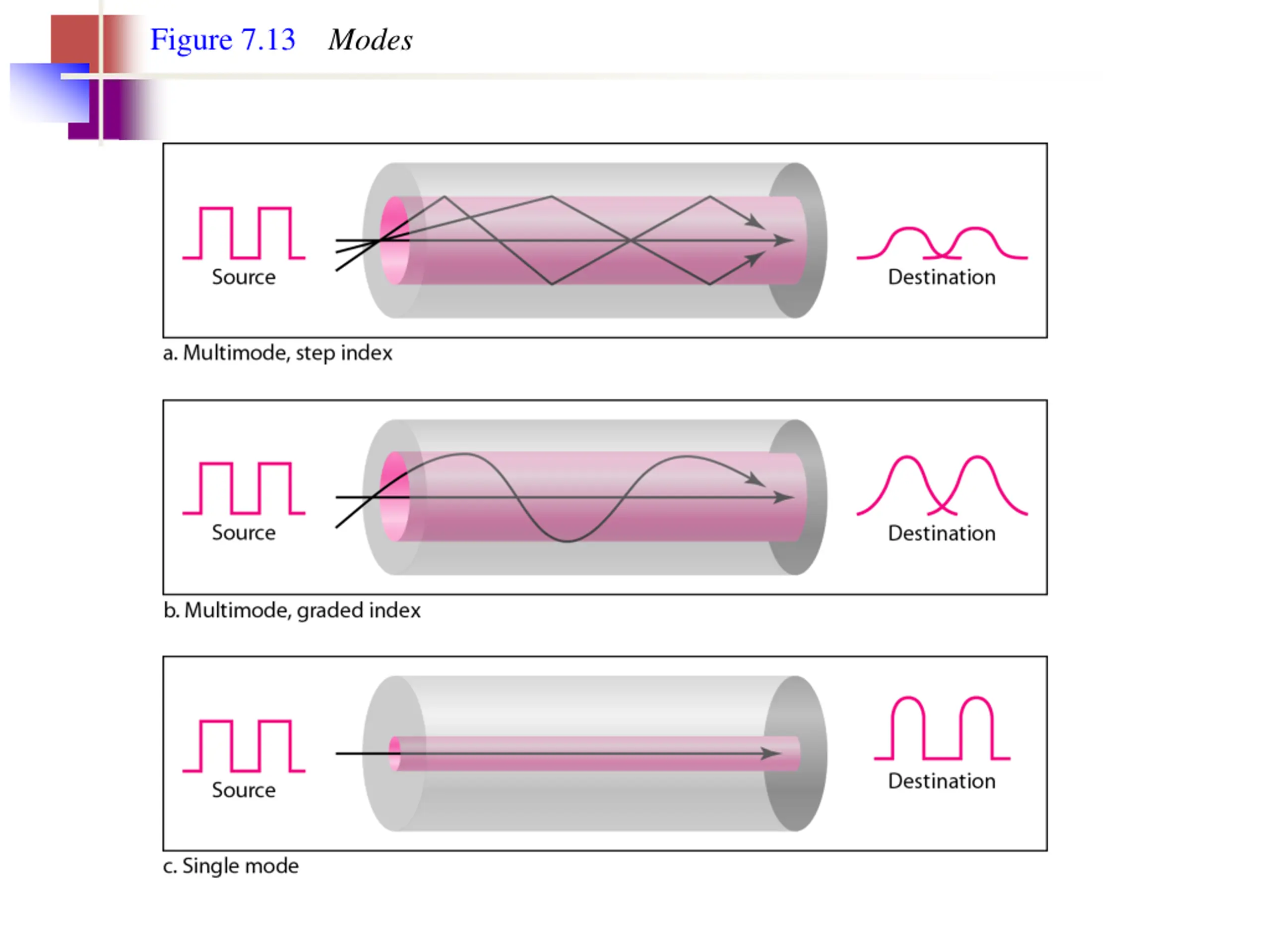

Table 7.3 Fiber types Type Core Cladding Mode 50/125 50 125 Multimode, graded-index 62.5/125 62.5 125 Multimode, graded-index 100/125 100 125 Multimode, graded-index 7/125 7 125 Single-mode

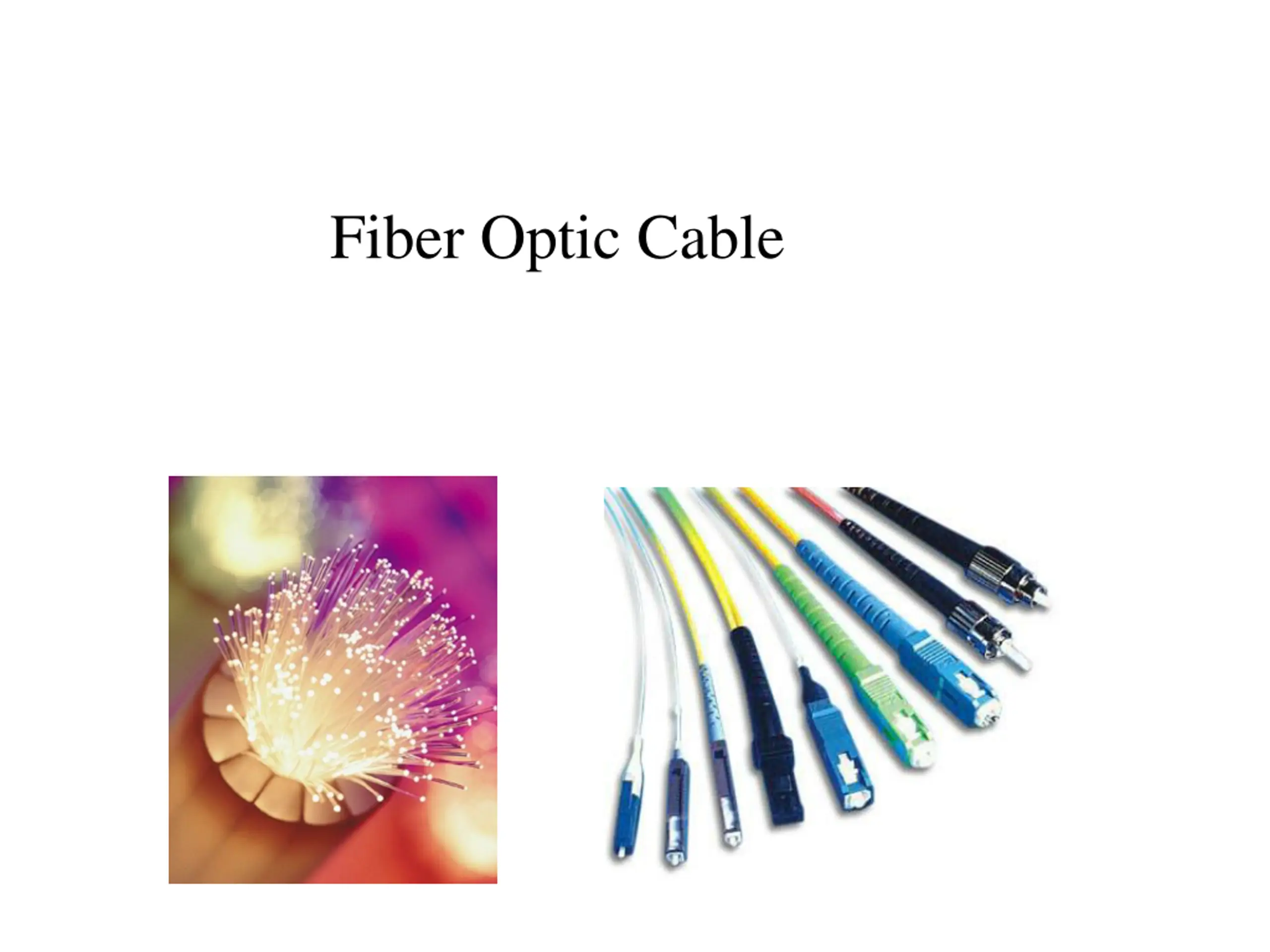

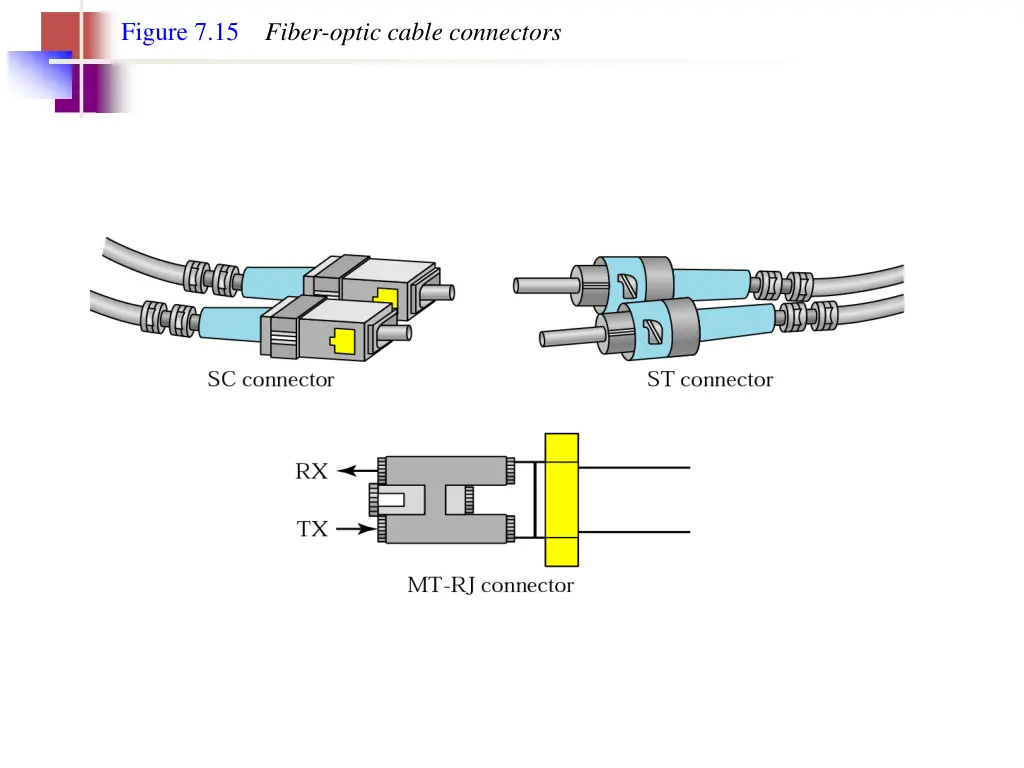

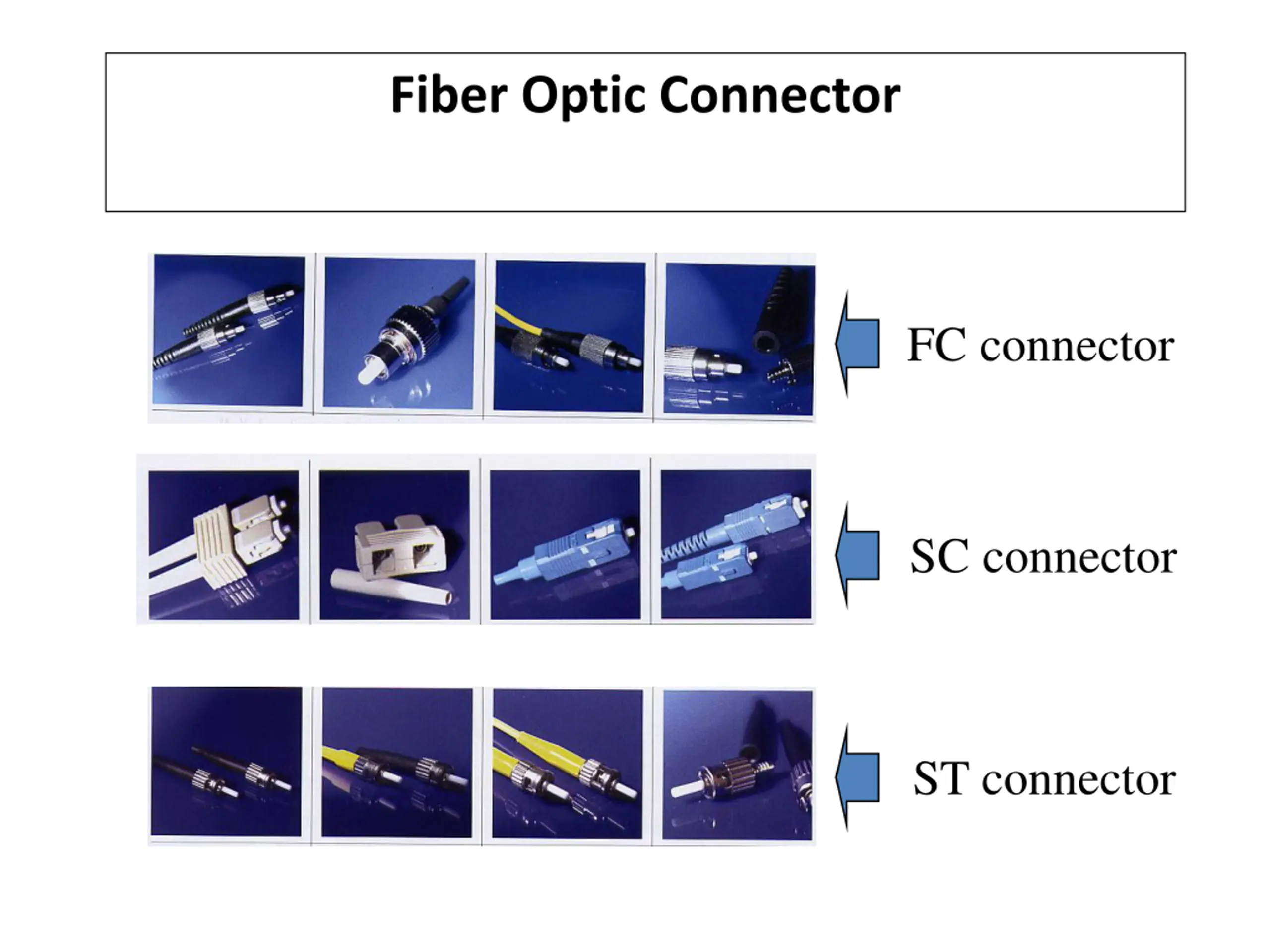

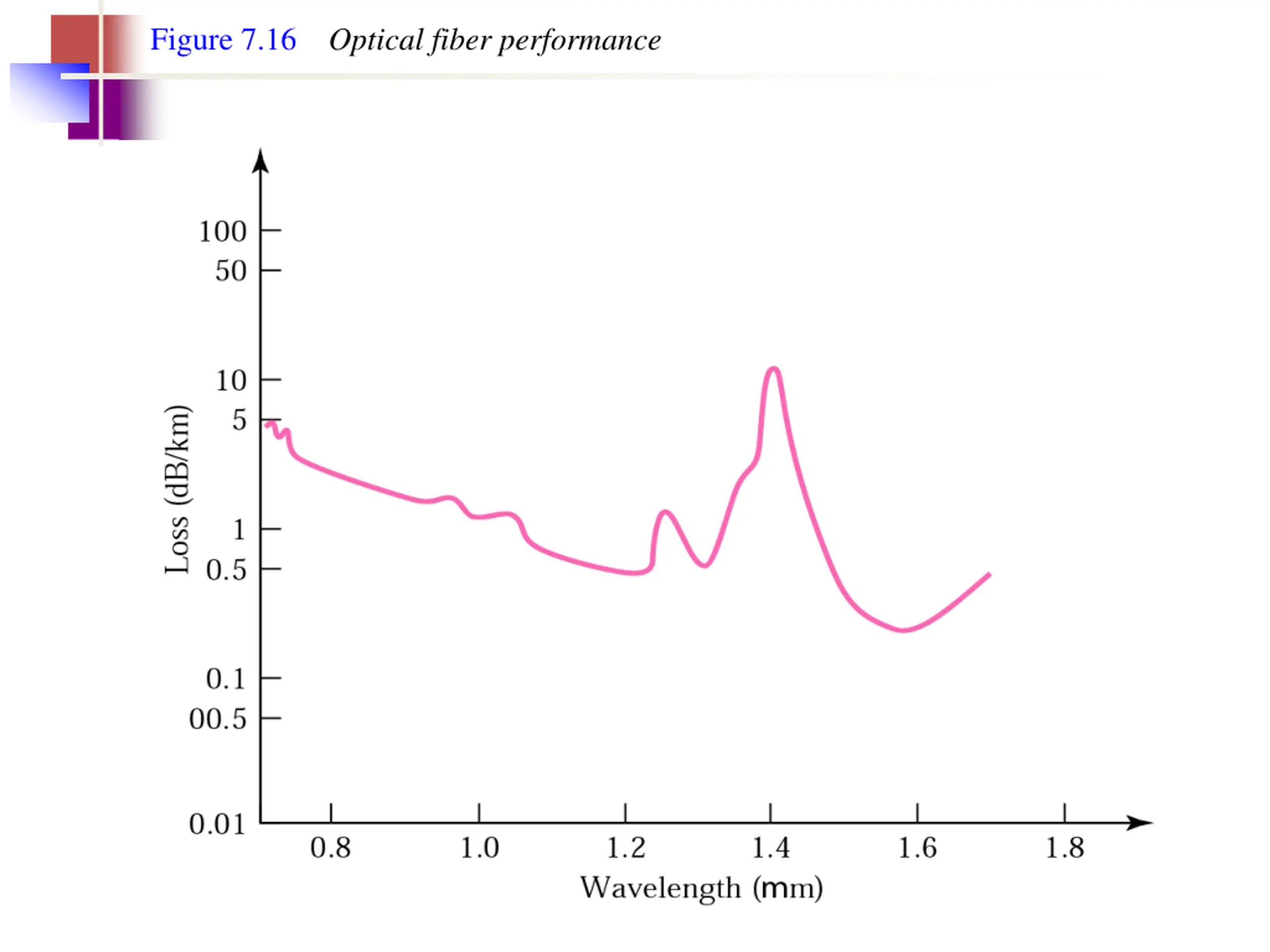

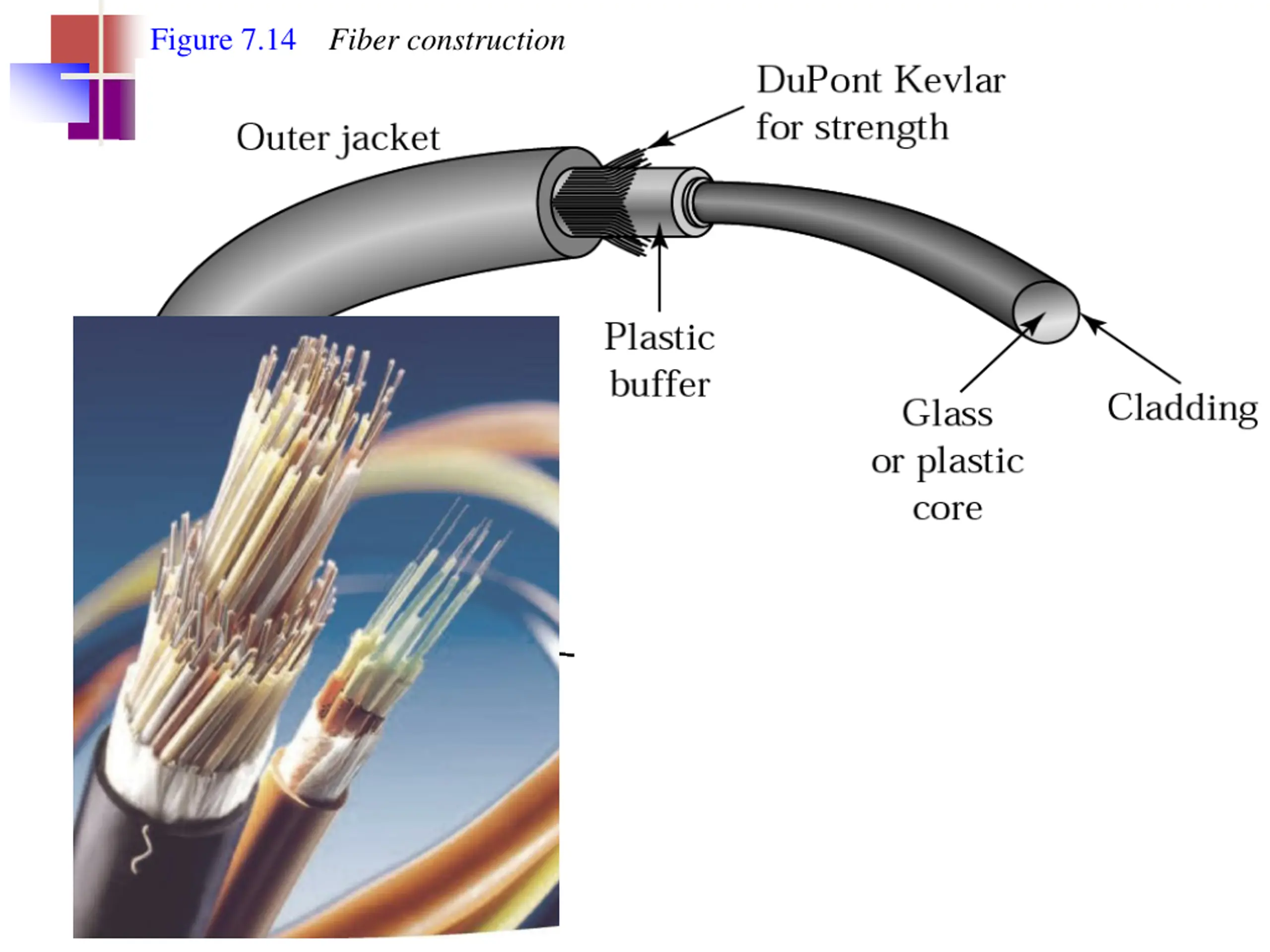

Fiber Optic Connector FC connector SC connector ST connector

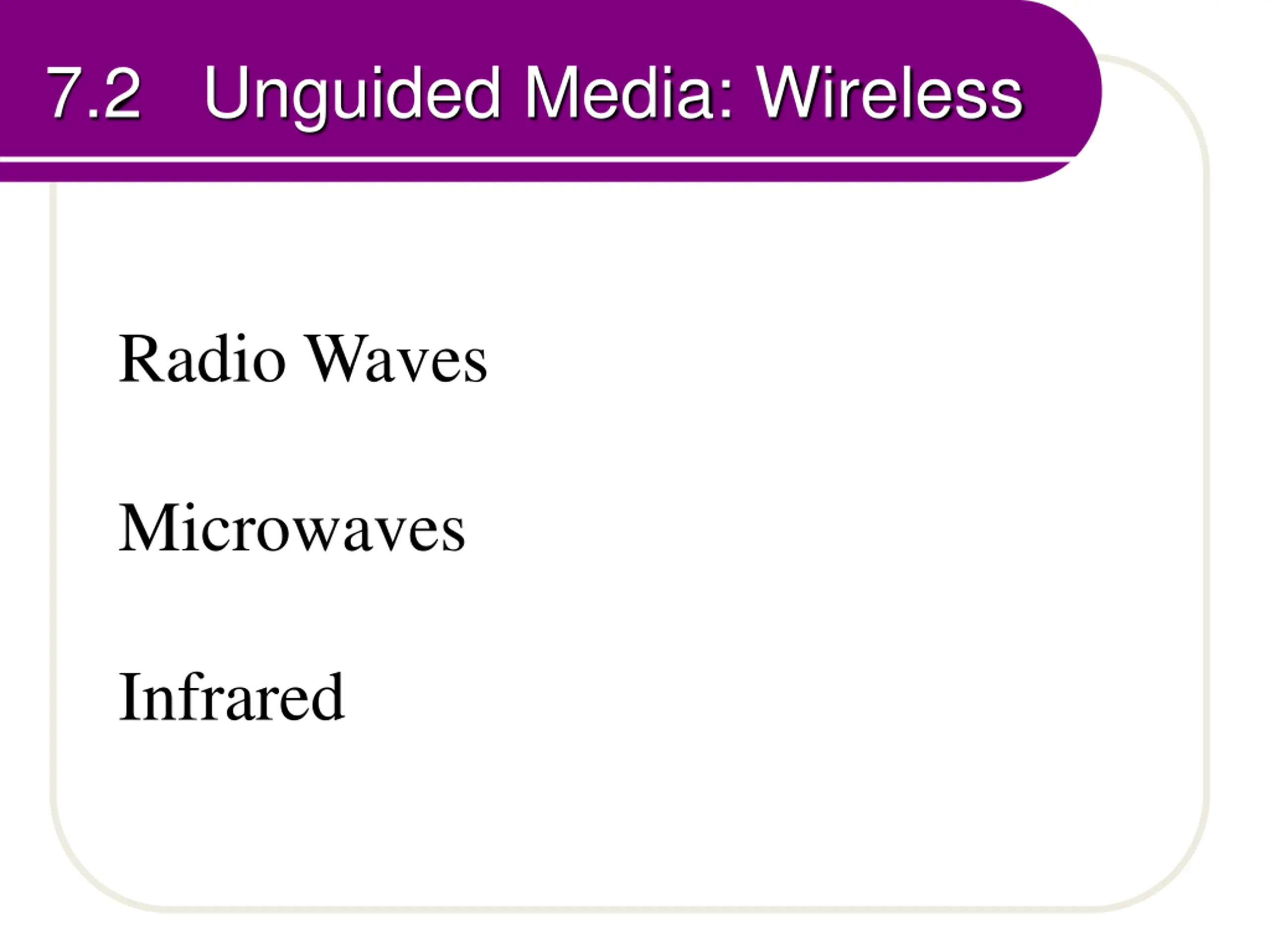

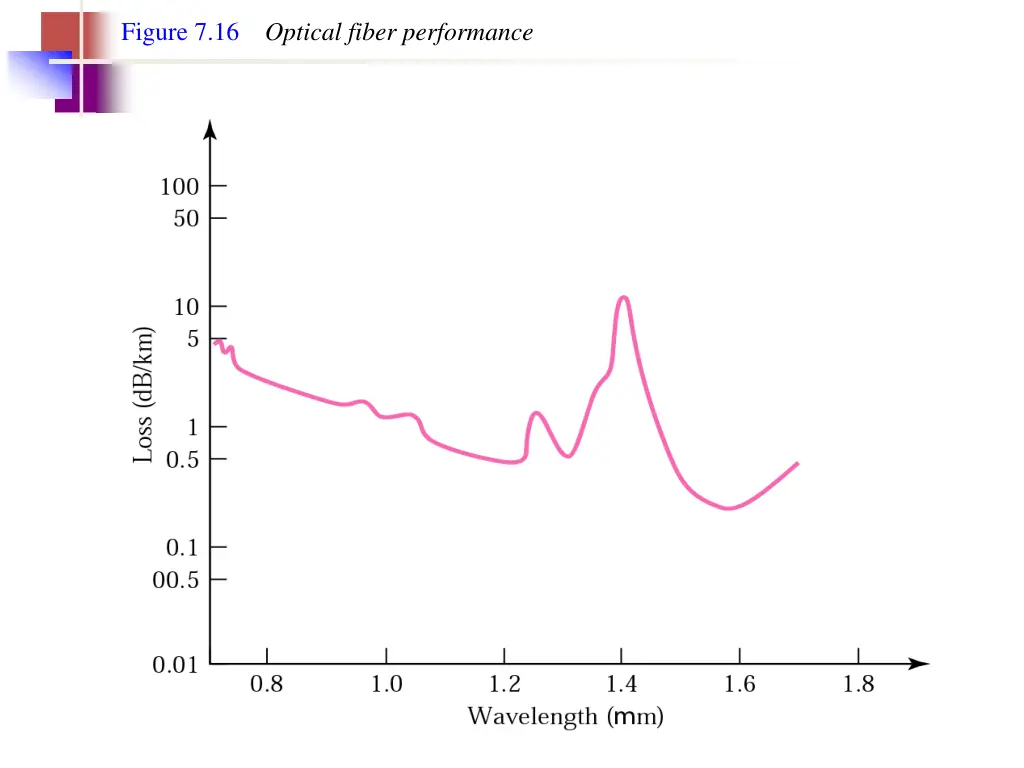

7.2 Unguided Media: Wireless Radio Waves Microwaves Infrared

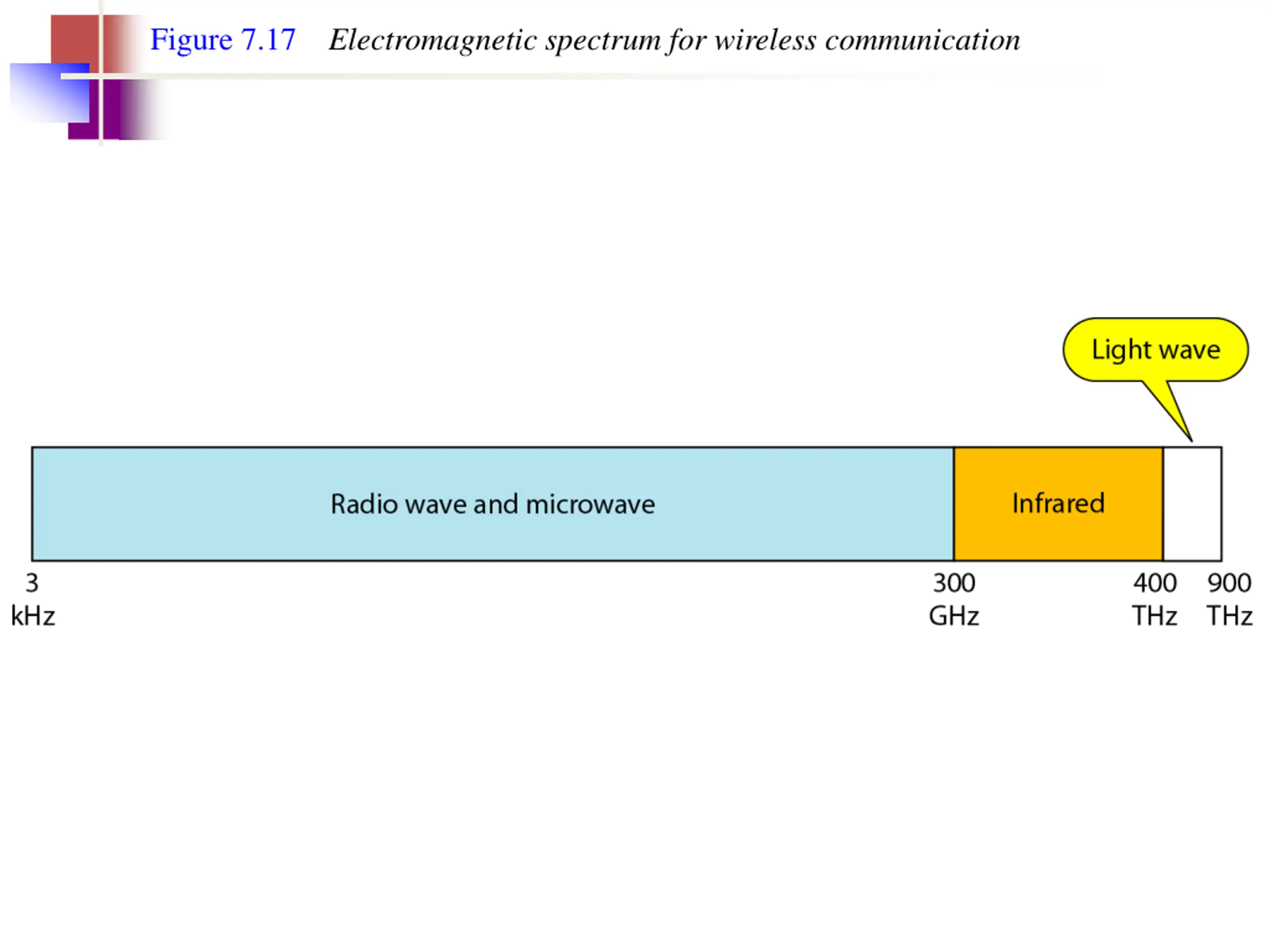

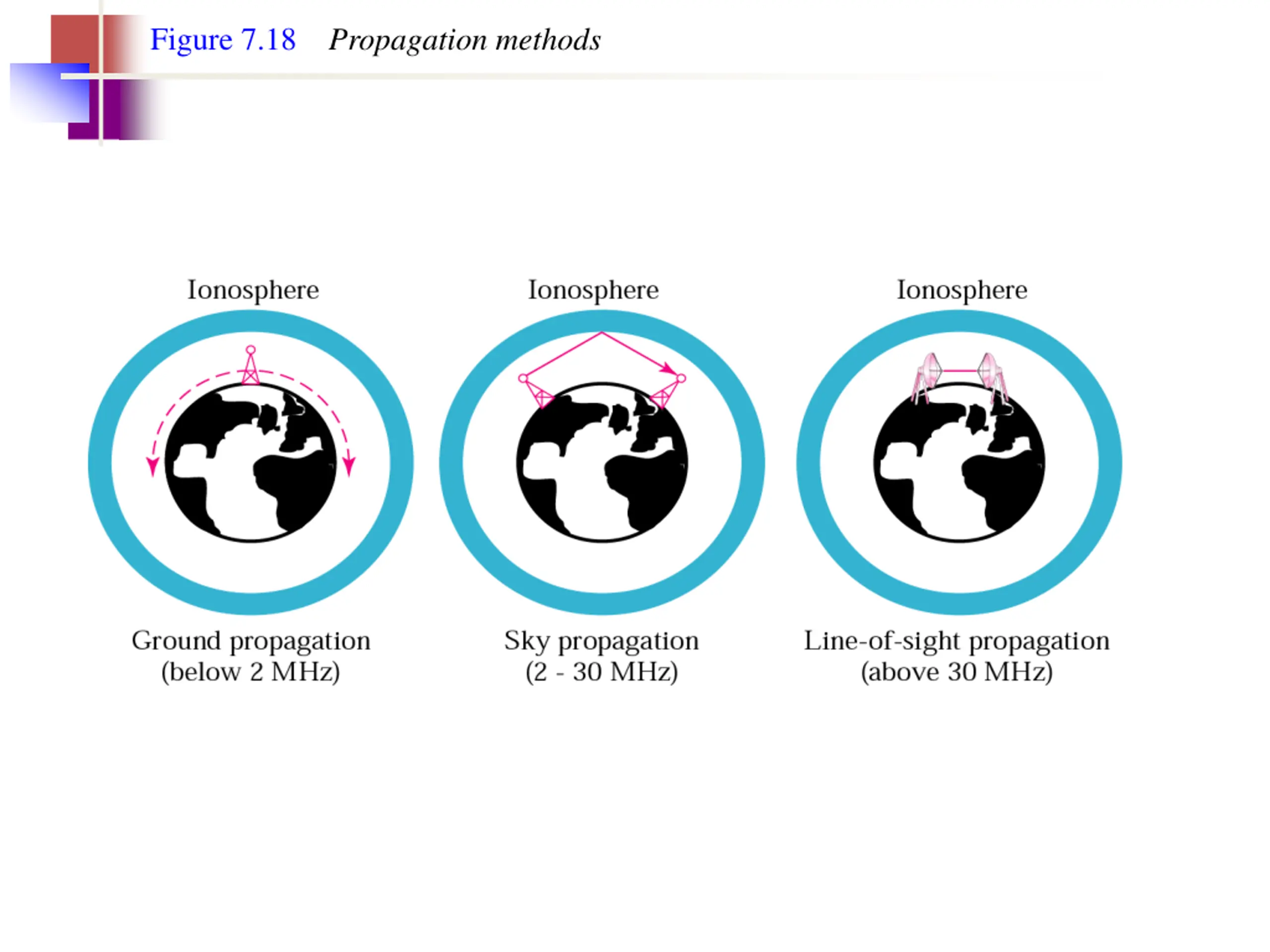

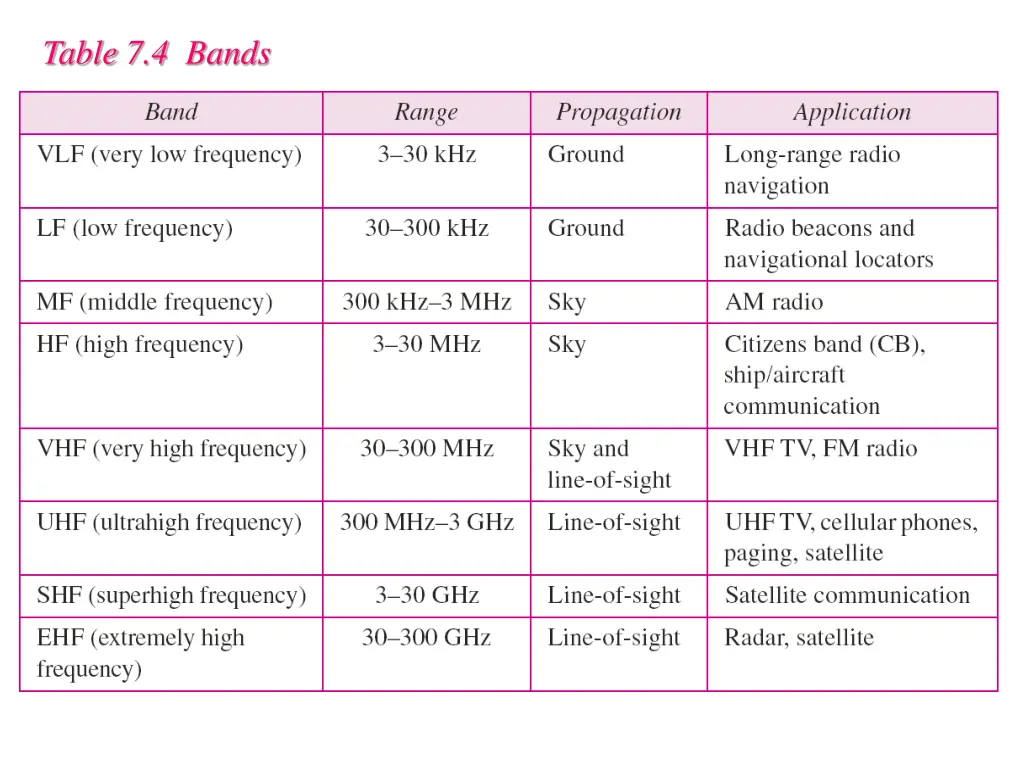

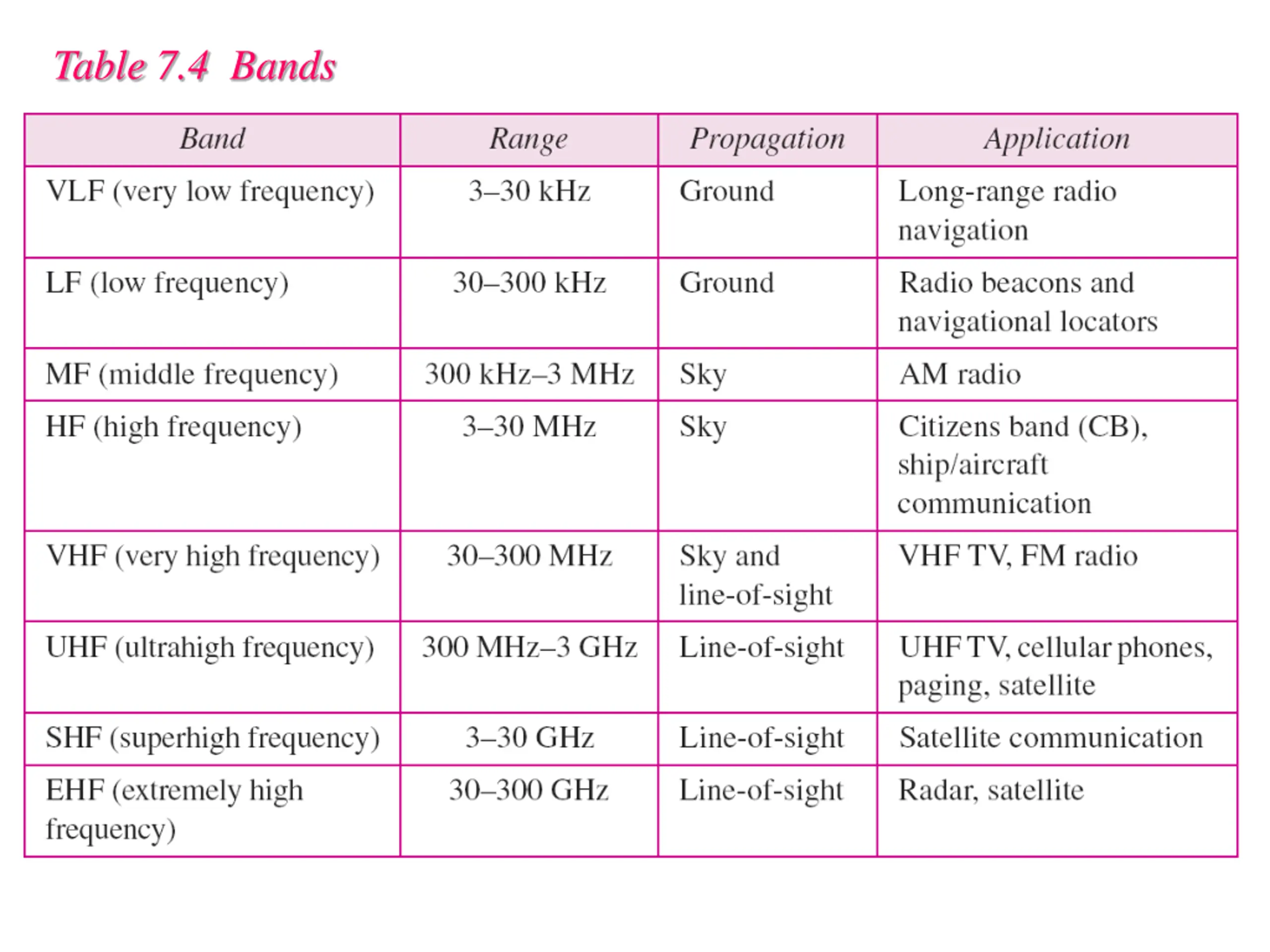

Figure 7.17 Electromagnetic spectrum for wireless communication
