Transparent Display OCC Link for Location Specific Information Delivery
This document introduces the V2X OCC Link design consideration for Transparent Display OCC link that delivers location-specific information on water environmental conditions. The proposed solution can be applied in various services like ITS, ADAS, road conditions monitoring, and digital signage with connected information services. It discusses the use of a glass-bottom boat equipped with a transparent display for underwater sightseeing and information delivery through smart buoy data transmission.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

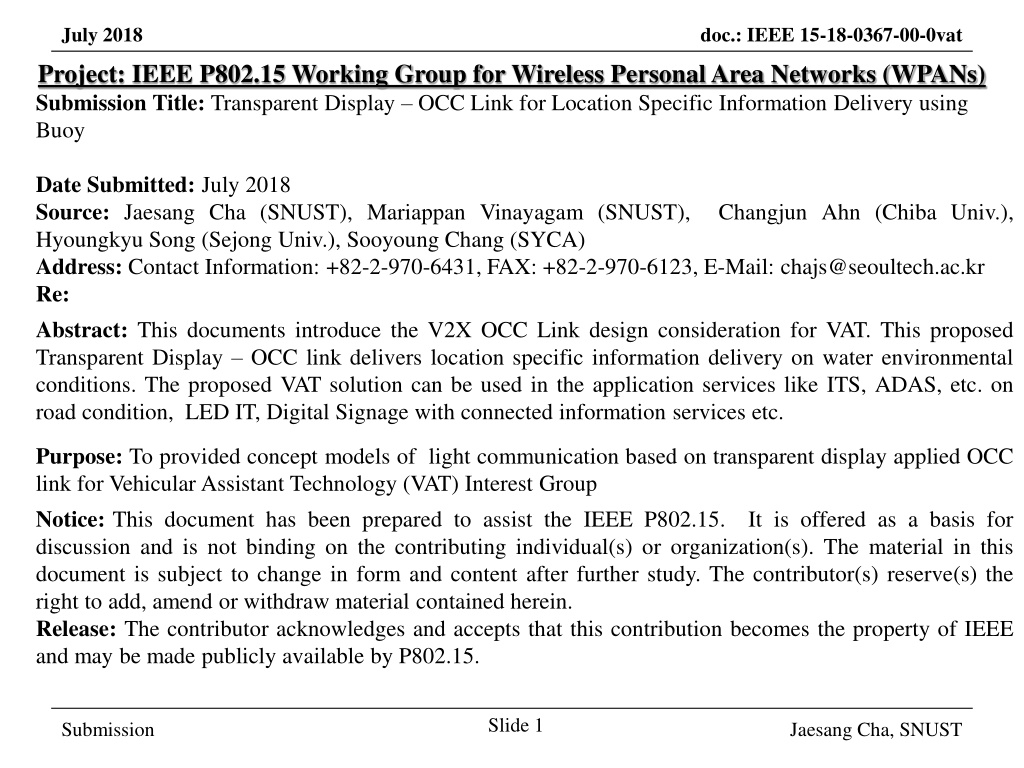

July 2018 Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: Transparent Display OCC Link for Location Specific Information Delivery using Buoy doc.: IEEE 15-18-0367-00-0vat Date Submitted: July 2018 Source: Jaesang Cha (SNUST), Mariappan Vinayagam (SNUST), Changjun Ahn (Chiba Univ.), Hyoungkyu Song (Sejong Univ.), Sooyoung Chang (SYCA) Address: Contact Information: +82-2-970-6431, FAX: +82-2-970-6123, E-Mail: chajs@seoultech.ac.kr Re: Abstract: This documents introduce the V2X OCC Link design consideration for VAT. This proposed Transparent Display OCC link delivers location specific information delivery on water environmental conditions. The proposed VAT solution can be used in the application services like ITS, ADAS, etc. on road condition, LED IT, Digital Signage with connected information services etc. Purpose: To provided concept models of light communication based on transparent display applied OCC link for Vehicular Assistant Technology (VAT) Interest Group Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Slide 1 Submission Jaesang Cha, SNUST

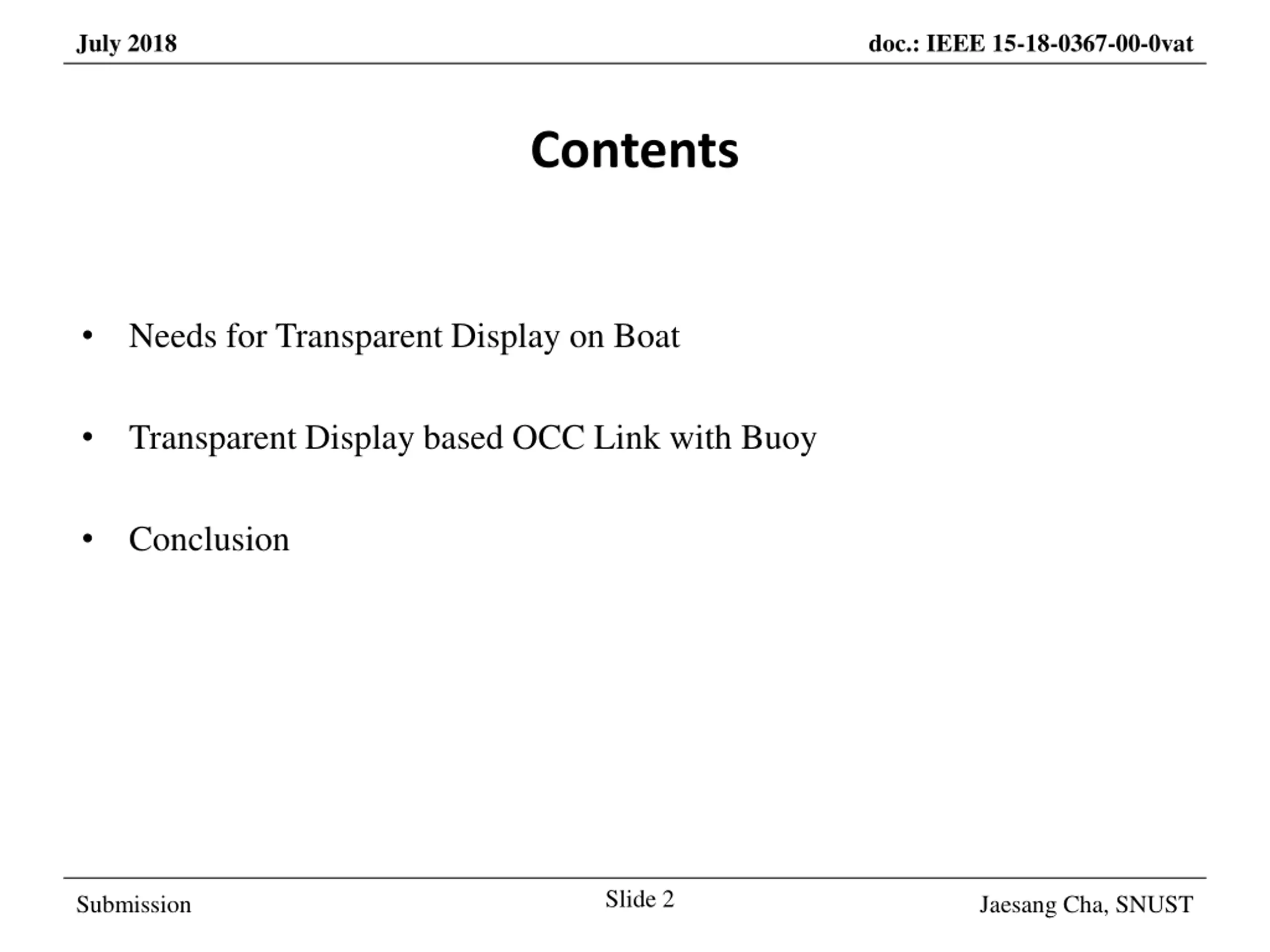

July 2018 doc.: IEEE 15-18-0367-00-0vat Contents Needs for Transparent Display on Boat Transparent Display based OCC Link with Buoy Conclusion Slide 2 Submission Jaesang Cha, SNUST

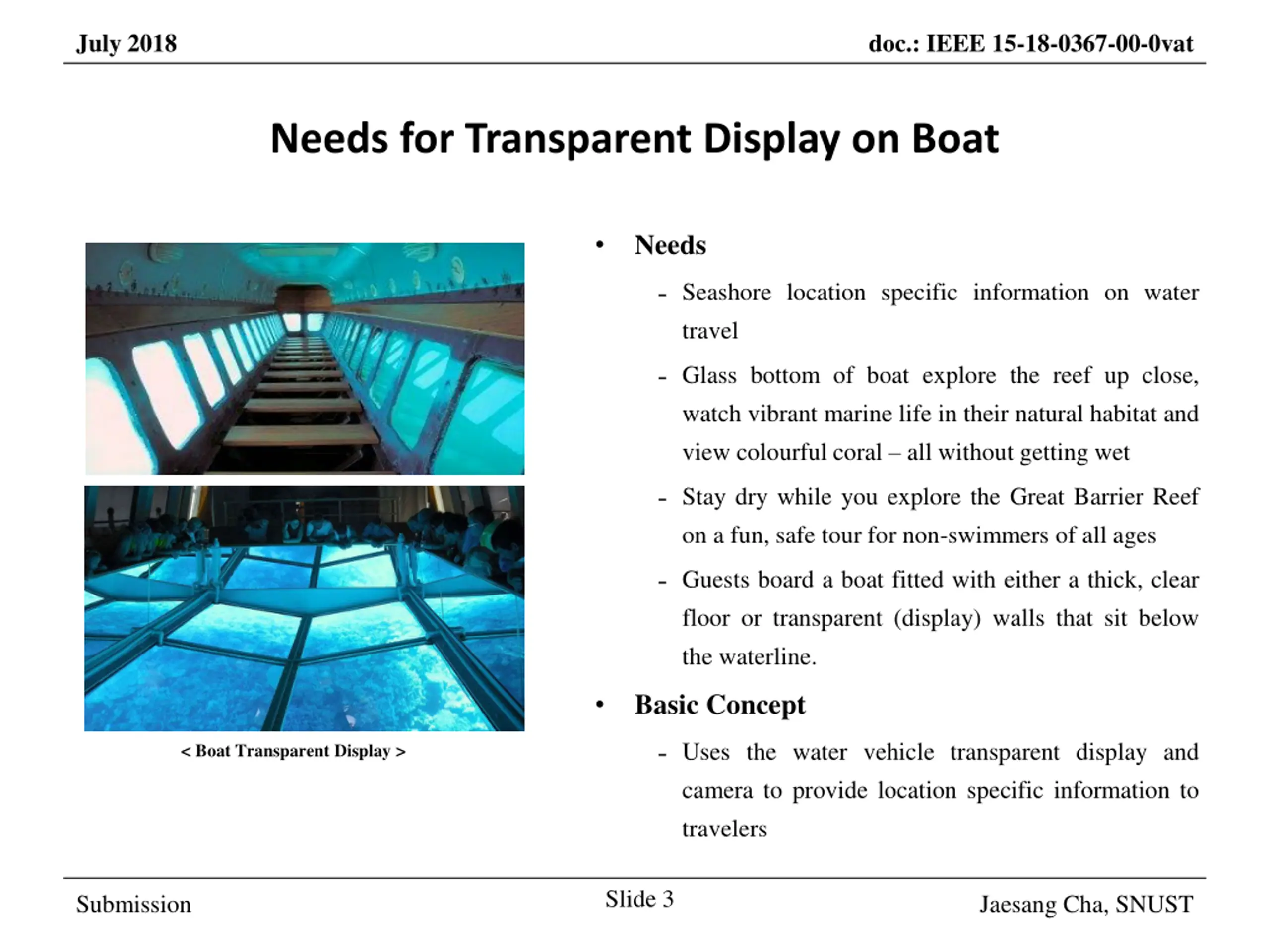

July 2018 doc.: IEEE 15-18-0367-00-0vat Needs for Transparent Display on Boat Needs Seashore location specific information on water travel Glass bottom of boat explore the reef up close, watch vibrant marine life in their natural habitat and view colourful coral all without getting wet Stay dry while you explore the Great Barrier Reef on a fun, safe tour for non-swimmers of all ages Guests board a boat fitted with either a thick, clear floor or transparent (display) walls that sit below the waterline. Basic Concept Uses the water vehicle transparent display and camera to provide location specific information to travelers < Boat Transparent Display > Slide 3 Submission Jaesang Cha, SNUST

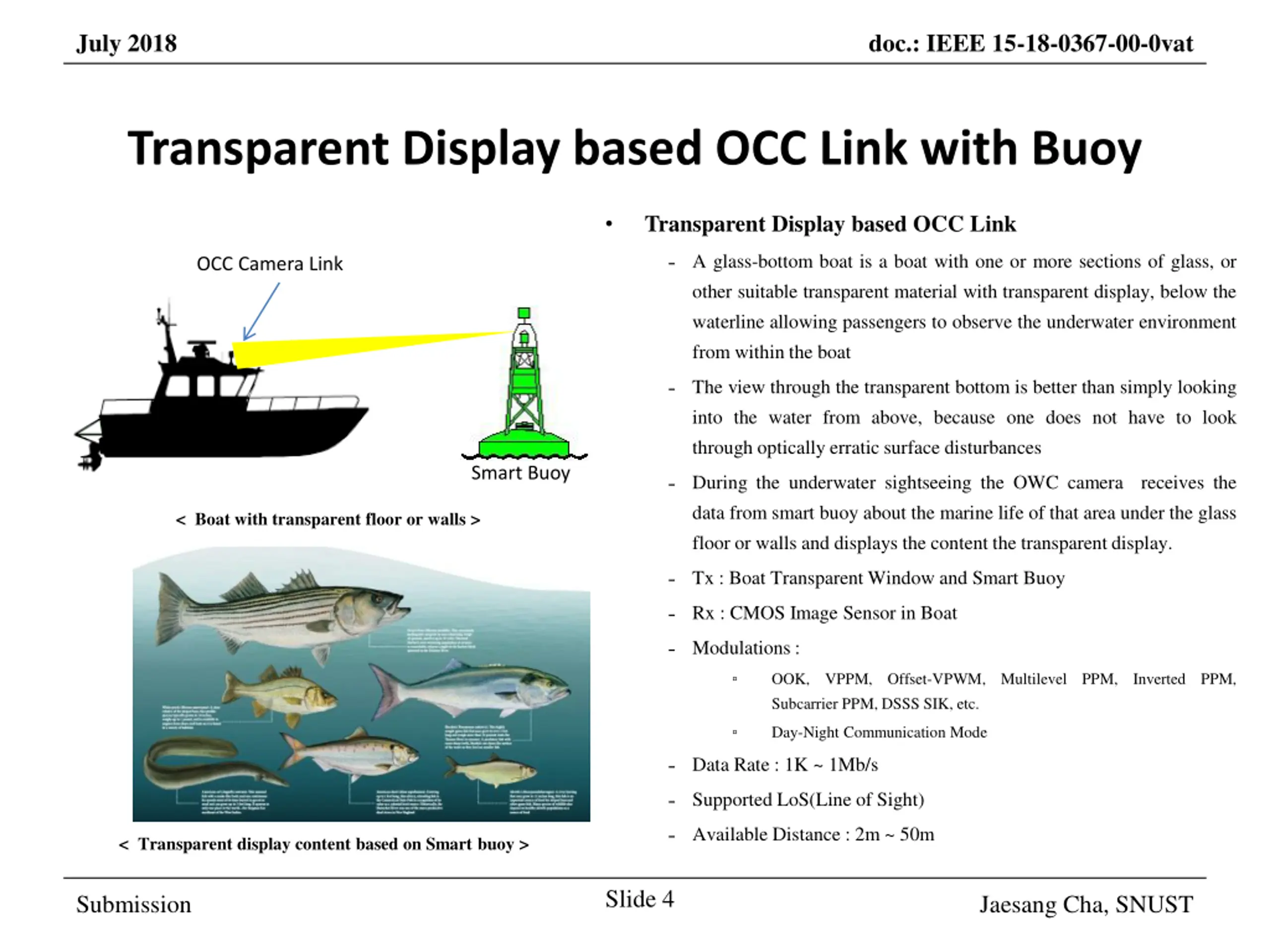

July 2018 doc.: IEEE 15-18-0367-00-0vat Transparent Display based OCC Link with Buoy Transparent Display based OCC Link A glass-bottom boat is a boat with one or more sections of glass, or other suitable transparent material with transparent display, below the waterline allowing passengers to observe the underwater environment from within the boat OCC Camera Link The view through the transparent bottom is better than simply looking into the water from above, because one does not have to look through optically erratic surface disturbances Smart Buoy During the underwater sightseeing the OWC camera receives the data from smart buoy about the marine life of that area under the glass floor or walls and displays the content the transparent display. < Boat with transparent floor or walls > Tx : Boat Transparent Window and Smart Buoy Rx : CMOS Image Sensor in Boat Modulations : OOK, VPPM, Offset-VPWM, Multilevel PPM, Inverted PPM, Subcarrier PPM, DSSS SIK, etc. Day-Night Communication Mode Data Rate : 1K ~ 1Mb/s Supported LoS(Line of Sight) Available Distance : 2m ~ 50m < Transparent display content based on Smart buoy > Slide 4 Submission Jaesang Cha, SNUST

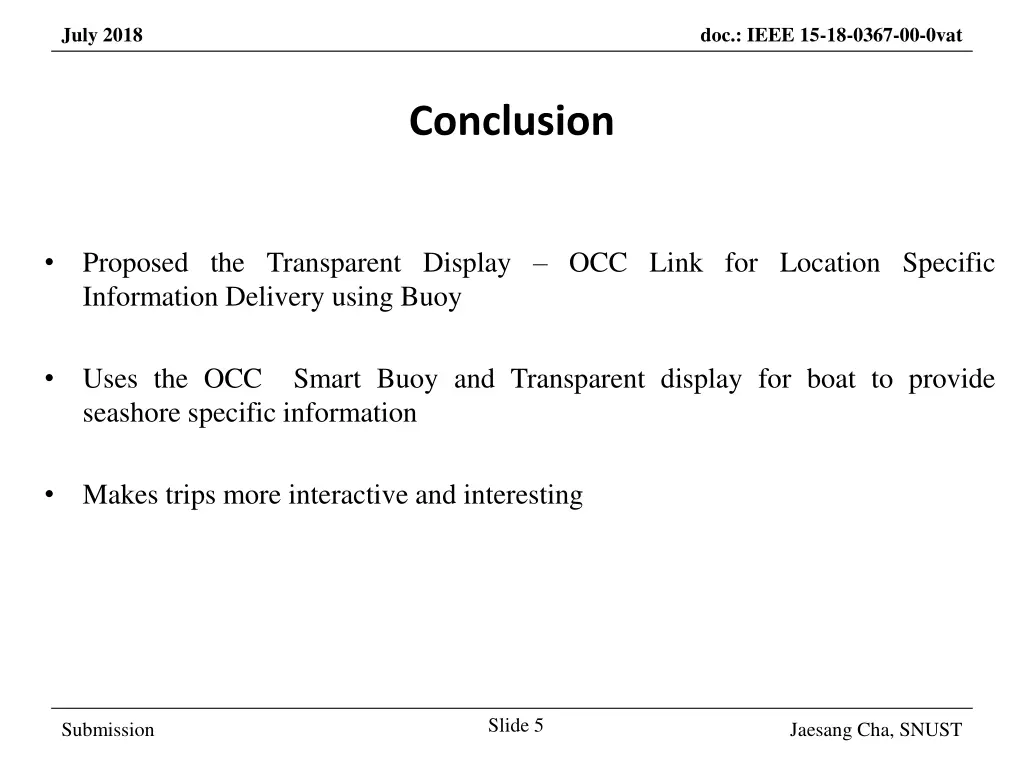

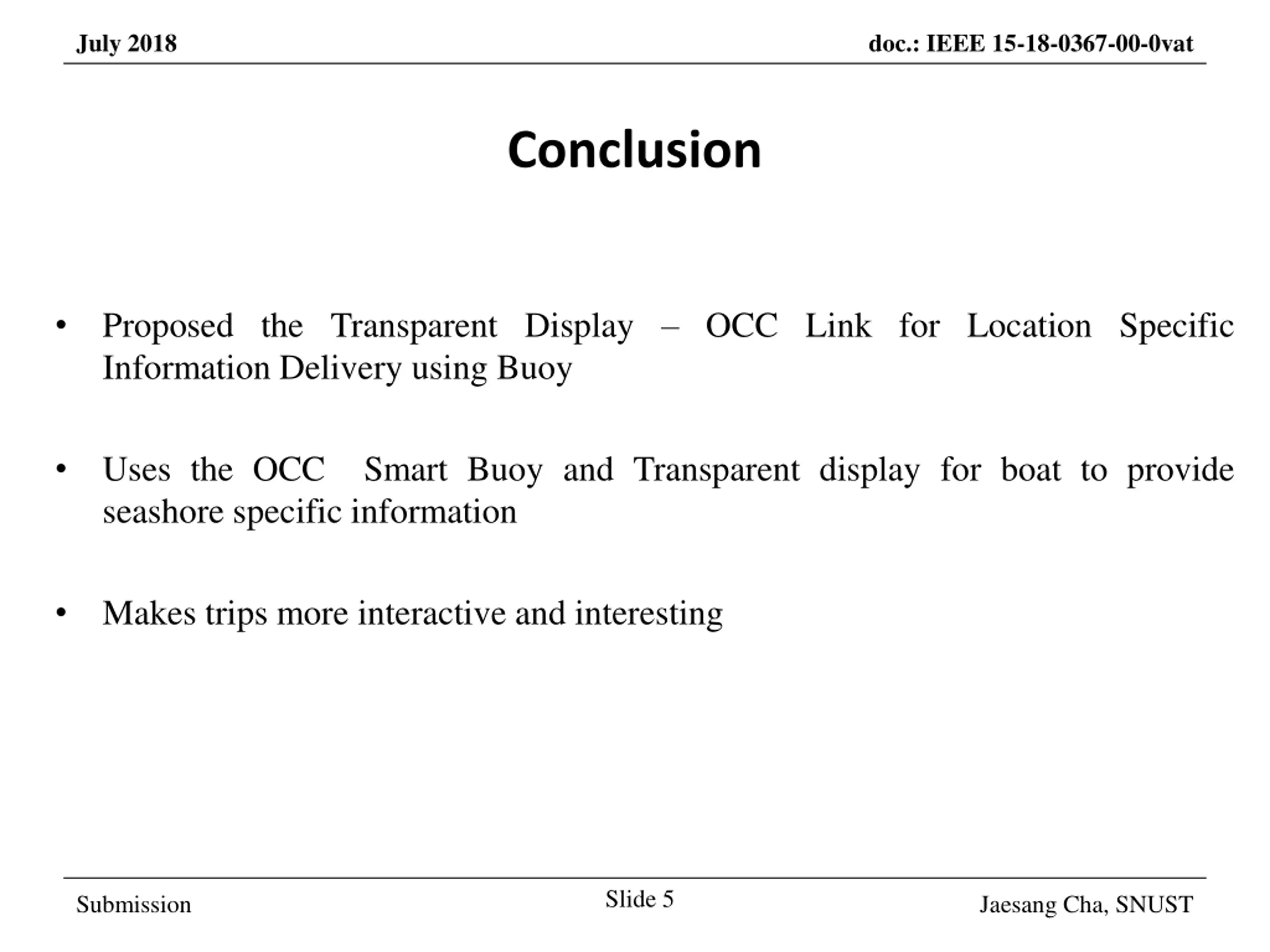

July 2018 doc.: IEEE 15-18-0367-00-0vat Conclusion Proposed the Transparent Display OCC Link for Location Specific Information Delivery using Buoy Uses the OCC Smart Buoy and Transparent display for boat to provide seashore specific information Makes trips more interactive and interesting Slide 5 Submission Jaesang Cha, SNUST
