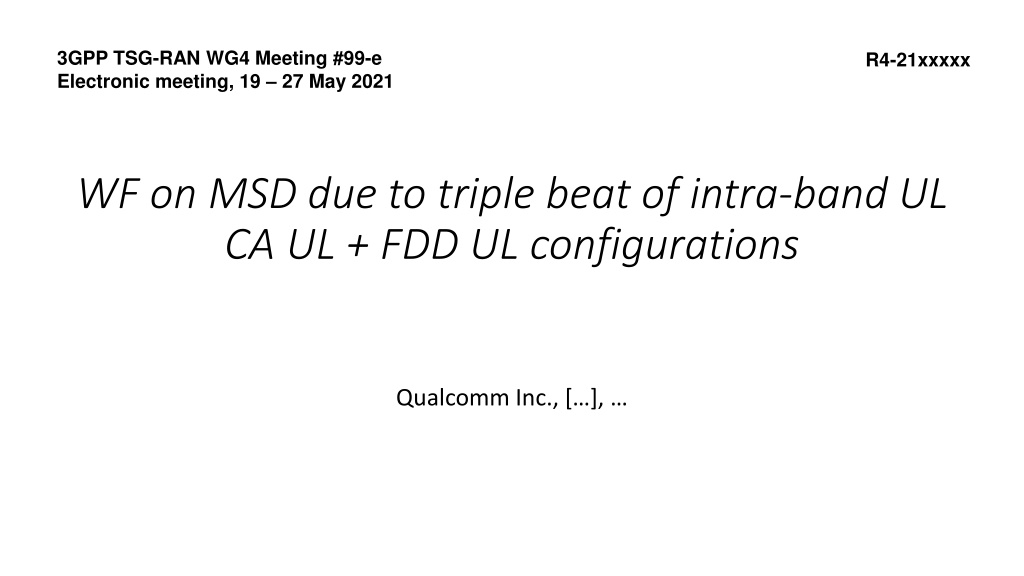

3GPP TSG-RAN WG4 Meeting #99-e Electronic meeting, 19 27 May 2021 R4-21xxxxx WF on MSD due to triple beat of intra-band UL CA UL + FDD UL configurations Qualcomm Inc., [ ],

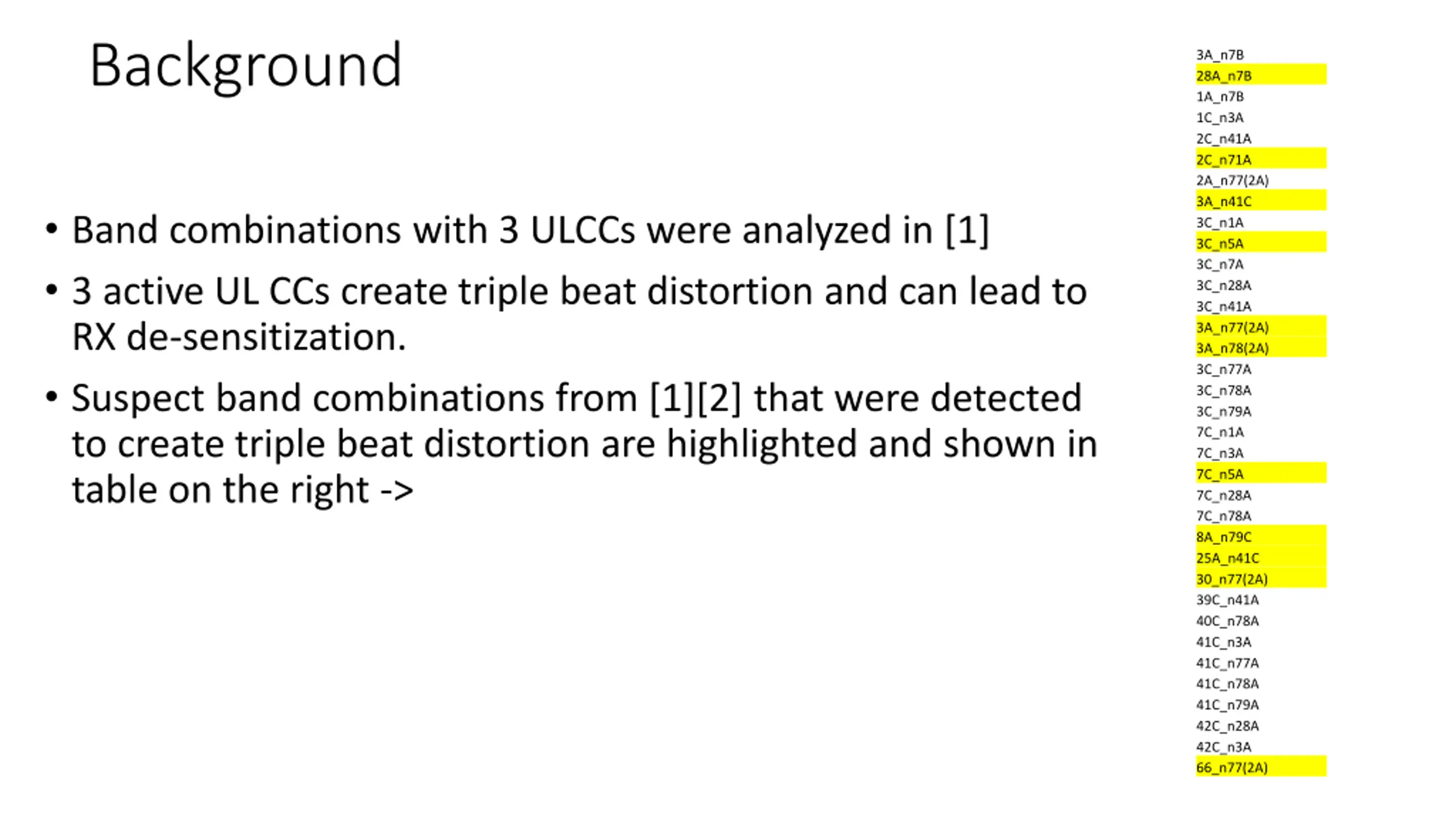

Background 3A_n7B 28A_n7B 1A_n7B 1C_n3A 2C_n41A 2C_n71A 2A_n77(2A) 3A_n41C 3C_n1A 3C_n5A 3C_n7A 3C_n28A 3C_n41A 3A_n77(2A) 3A_n78(2A) 3C_n77A 3C_n78A 3C_n79A 7C_n1A 7C_n3A 7C_n5A 7C_n28A 7C_n78A 8A_n79C 25A_n41C 30_n77(2A) 39C_n41A 40C_n78A 41C_n3A 41C_n77A 41C_n78A 41C_n79A 42C_n28A 42C_n3A 66_n77(2A) Band combinations with 3 ULCCs were analyzed in [1] 3 active UL CCs create triple beat distortion and can lead to RX de-sensitization. Suspect band combinations from [1][2] that were detected to create triple beat distortion are highlighted and shown in table on the right ->

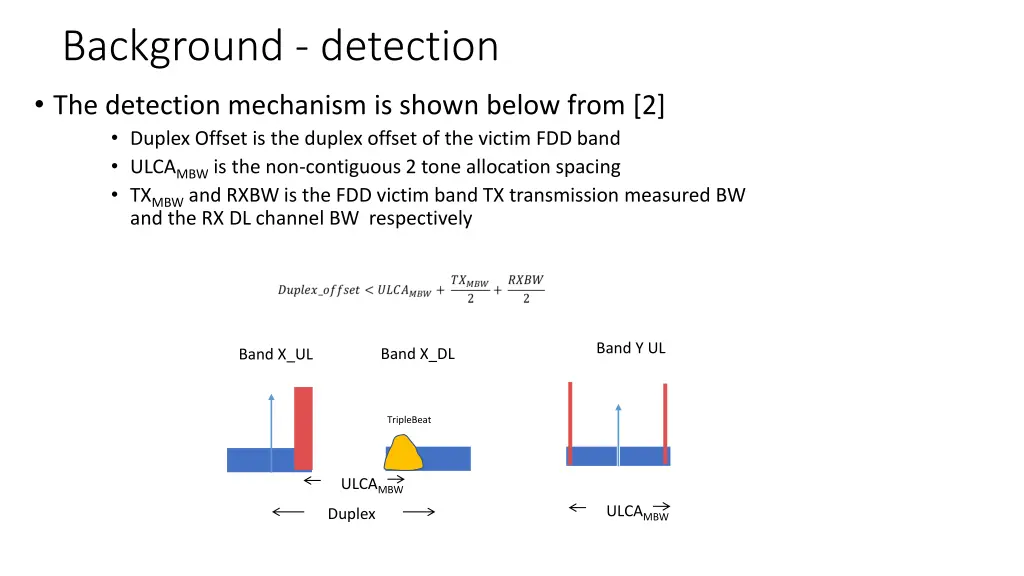

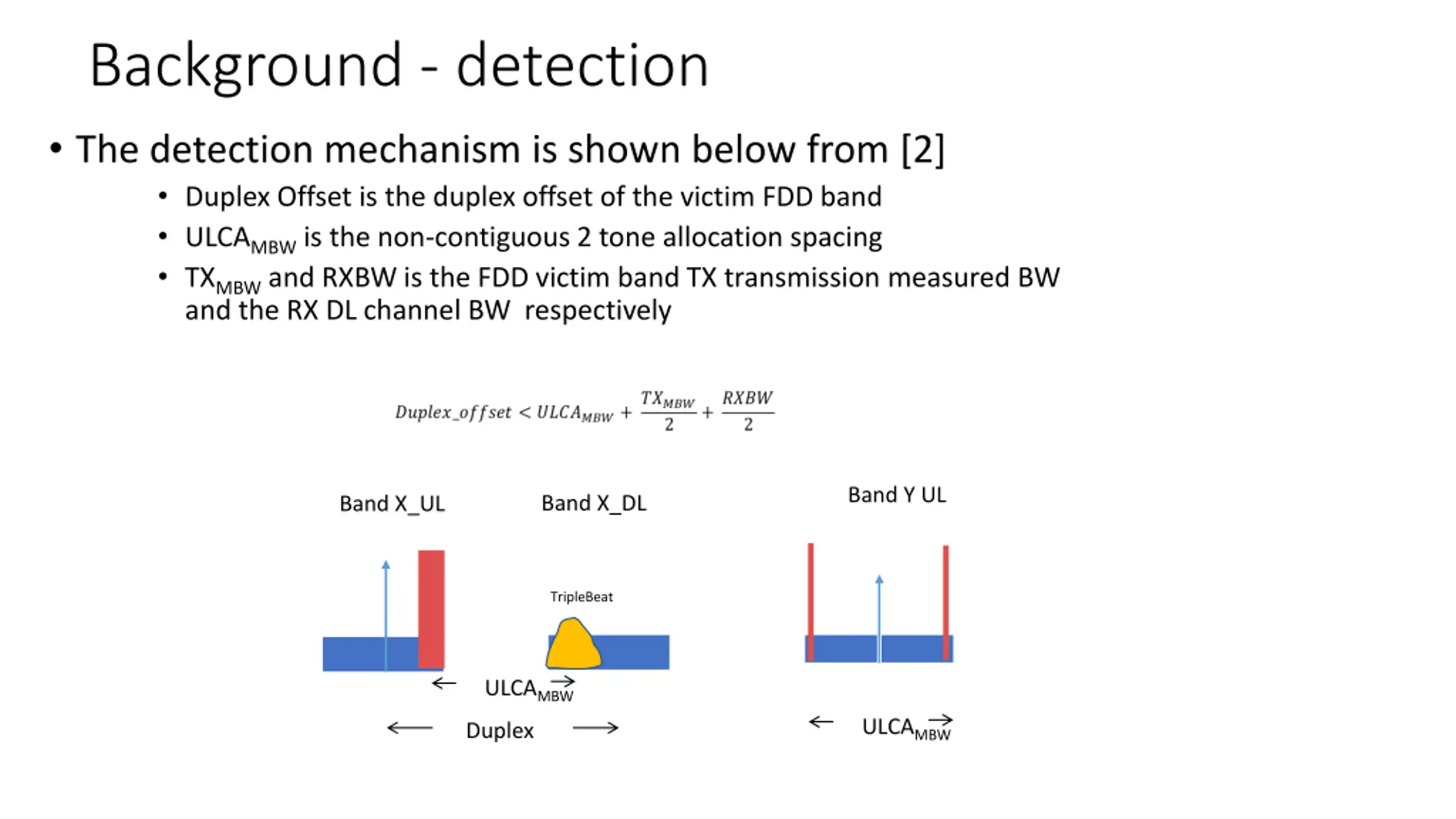

Background - detection The detection mechanism is shown below from [2] Duplex Offset is the duplex offset of the victim FDD band ULCAMBWis the non-contiguous 2 tone allocation spacing TXMBWand RXBW is the FDD victim band TX transmission measured BW and the RX DL channel BW respectively Band Y UL Band X_DL Band X_UL TripleBeat ULCAMBW ULCAMBW Duplex

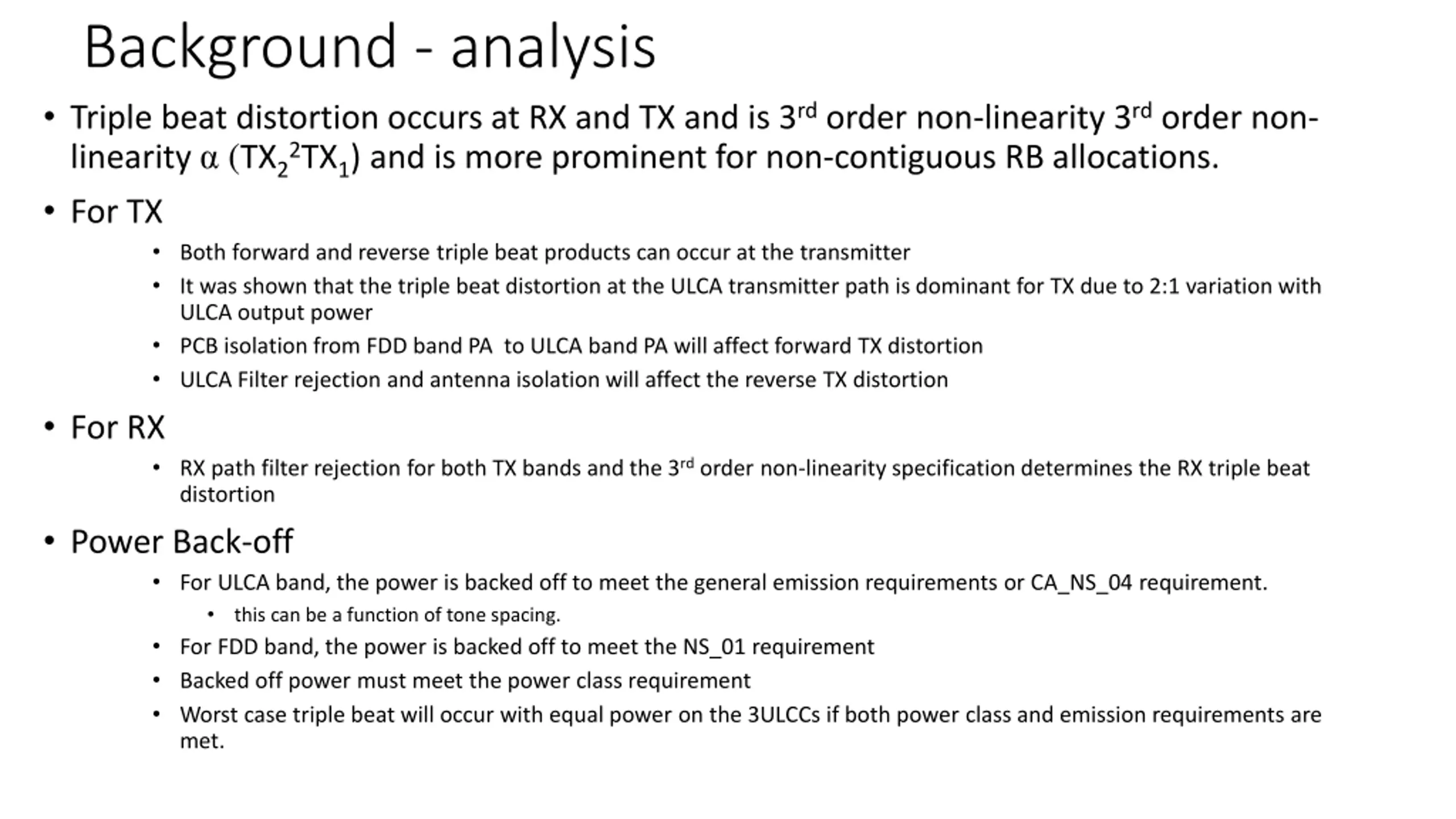

Background - analysis Triple beat distortion occurs at RX and TX and is 3rdorder non-linearity 3rdorder non- linearity (TX22TX1) and is more prominent for non-contiguous RB allocations. For TX Both forward and reverse triple beat products can occur at the transmitter It was shown that the triple beat distortion at the ULCA transmitter path is dominant for TX due to 2:1 variation with ULCA output power PCB isolation from FDD band PA to ULCA band PA will affect forward TX distortion ULCA Filter rejection and antenna isolation will affect the reverse TX distortion For RX RX path filter rejection for both TX bands and the 3rdorder non-linearity specification determines the RX triple beat distortion Power Back-off For ULCA band, the power is backed off to meet the general emission requirements or CA_NS_04 requirement. this can be a function of tone spacing. For FDD band, the power is backed off to meet the NS_01 requirement Backed off power must meet the power class requirement Worst case triple beat will occur with equal power on the 3ULCCs if both power class and emission requirements are met.

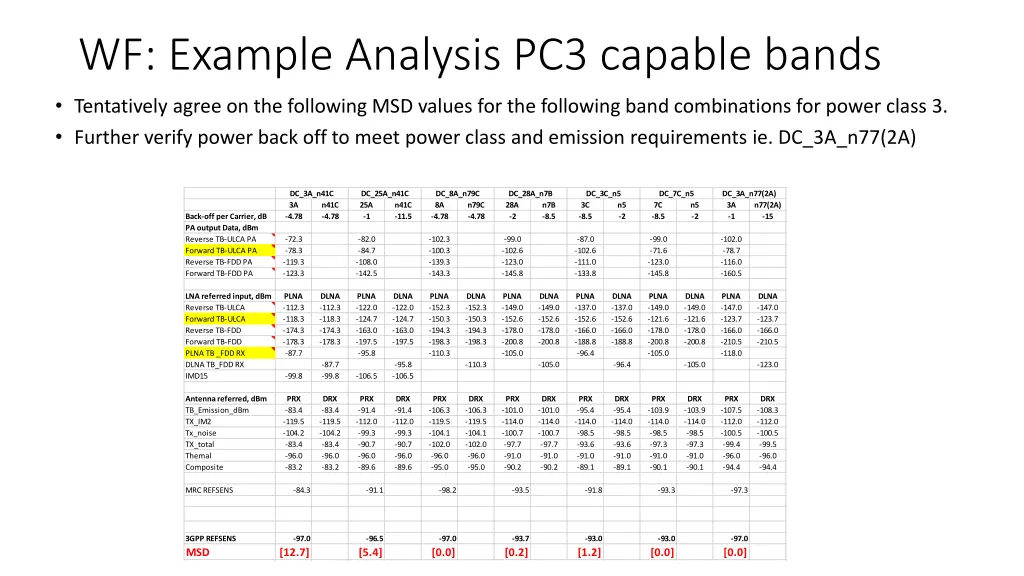

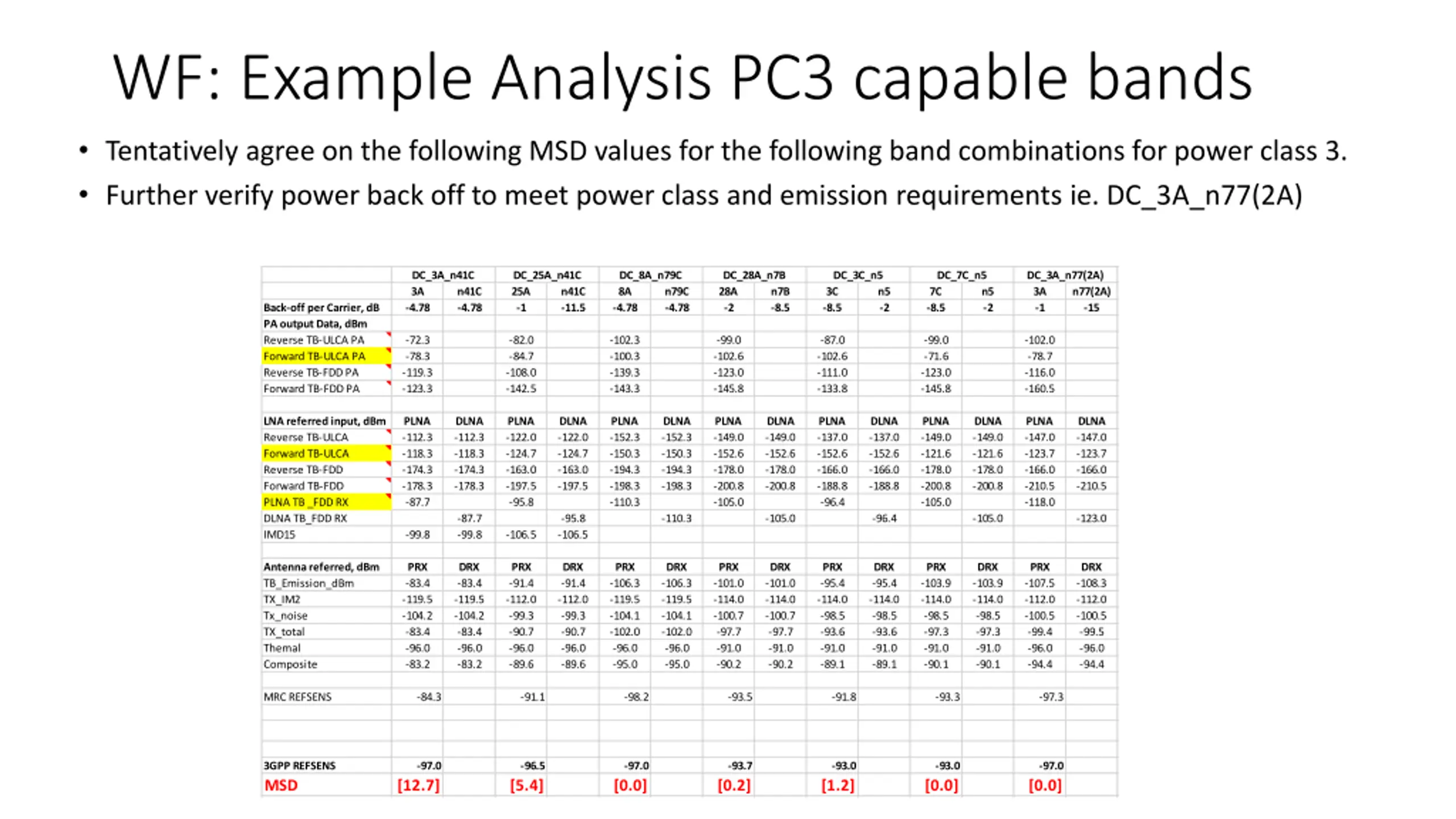

WF: Example Analysis PC3 capable bands Tentatively agree on the following MSD values for the following band combinations for power class 3. Further verify power back off to meet power class and emission requirements ie. DC_3A_n77(2A) DC_3A_n41C DC_25A_n41C DC_8A_n79C DC_28A_n7B DC_3C_n5 DC_7C_n5 DC_3A_n77(2A) 3A -4.78 n41C -4.78 25A -1 n41C -11.5 8A -4.78 n79C -4.78 28A -2 n7B -8.5 3C -8.5 n5 -2 7C -8.5 n5 -2 3A -1 n77(2A) -15 Back-off per Carrier, dB PA output Data, dBm Reverse TB-ULCA PA Forward TB-ULCA PA Reverse TB-FDD PA Forward TB-FDD PA -72.3 -78.3 -119.3 -123.3 -82.0 -84.7 -108.0 -142.5 -102.3 -100.3 -139.3 -143.3 -99.0 -102.6 -123.0 -145.8 -87.0 -102.6 -111.0 -133.8 -99.0 -71.6 -123.0 -145.8 -102.0 -78.7 -116.0 -160.5 LNA referred input, dBm Reverse TB-ULCA Forward TB-ULCA Reverse TB-FDD Forward TB-FDD PLNA TB _FDD RX DLNA TB_FDD RX IMD15 PLNA -112.3 -118.3 -174.3 -178.3 -87.7 DLNA -112.3 -118.3 -174.3 -178.3 PLNA -122.0 -124.7 -163.0 -197.5 -95.8 DLNA -122.0 -124.7 -163.0 -197.5 PLNA -152.3 -150.3 -194.3 -198.3 -110.3 DLNA -152.3 -150.3 -194.3 -198.3 PLNA -149.0 -152.6 -178.0 -200.8 -105.0 DLNA -149.0 -152.6 -178.0 -200.8 PLNA -137.0 -152.6 -166.0 -188.8 -96.4 DLNA -137.0 -152.6 -166.0 -188.8 PLNA -149.0 -121.6 -178.0 -200.8 -105.0 DLNA -149.0 -121.6 -178.0 -200.8 PLNA -147.0 -123.7 -166.0 -210.5 -118.0 DLNA -147.0 -123.7 -166.0 -210.5 -87.7 -99.8 -95.8 -106.5 -110.3 -105.0 -96.4 -105.0 -123.0 -99.8 -106.5 Antenna referred, dBm TB_Emission_dBm TX_IM2 Tx_noise TX_total Themal Composite PRX -83.4 -119.5 -104.2 -83.4 -96.0 -83.2 DRX -83.4 -119.5 -104.2 -83.4 -96.0 -83.2 PRX -91.4 -112.0 -99.3 -90.7 -96.0 -89.6 DRX -91.4 -112.0 -99.3 -90.7 -96.0 -89.6 PRX -106.3 -119.5 -104.1 -102.0 -96.0 -95.0 DRX -106.3 -119.5 -104.1 -102.0 -96.0 -95.0 PRX -101.0 -114.0 -100.7 -97.7 -91.0 -90.2 DRX -101.0 -114.0 -100.7 -97.7 -91.0 -90.2 PRX -95.4 -114.0 -98.5 -93.6 -91.0 -89.1 DRX -95.4 -114.0 -98.5 -93.6 -91.0 -89.1 PRX -103.9 -114.0 -98.5 -97.3 -91.0 -90.1 DRX -103.9 -114.0 -98.5 -97.3 -91.0 -90.1 PRX -107.5 -112.0 -100.5 -99.4 -96.0 -94.4 DRX -108.3 -112.0 -100.5 -99.5 -96.0 -94.4 MRC REFSENS -84.3 -91.1 -98.2 -93.5 -91.8 -93.3 -97.3 3GPP REFSENS MSD -97.0 -96.5 [5.4] -97.0 [0.0] -93.7 [0.2] -93.0 [1.2] -93.0 [0.0] -97.0 [0.0] [12.7]

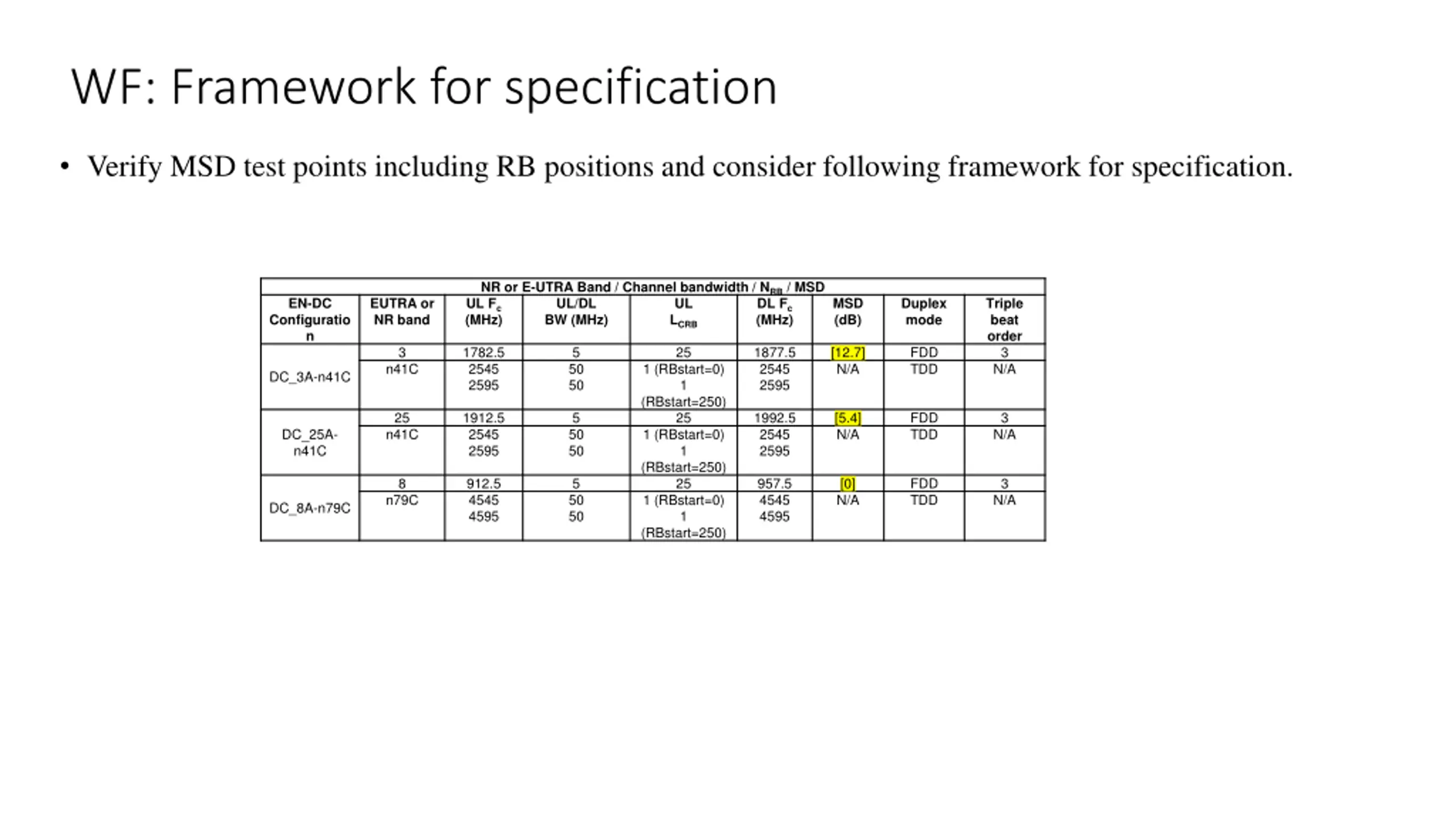

WF: Framework for specification Verify MSD test points including RB positions and consider following framework for specification. NR or E-UTRA Band / Channel bandwidth / NRB/ MSD UL Fc (MHz) BW (MHz) EN-DC Configuratio n EUTRA or NR band UL/DL UL LCRB DL Fc (MHz) MSD (dB) Duplex mode Triple beat order 3 N/A 3 1782.5 2545 2595 5 25 1877.5 2545 2595 [12.7] N/A FDD TDD n41C 50 50 1 (RBstart=0) 1 (RBstart=250) 25 1 (RBstart=0) 1 (RBstart=250) 25 1 (RBstart=0) 1 (RBstart=250) DC_3A-n41C 25 1912.5 2545 2595 5 1992.5 2545 2595 [5.4] N/A FDD TDD 3 DC_25A- n41C n41C 50 50 N/A 8 912.5 4545 4595 5 957.5 4545 4595 [0] N/A FDD TDD 3 n79C 50 50 N/A DC_8A-n79C

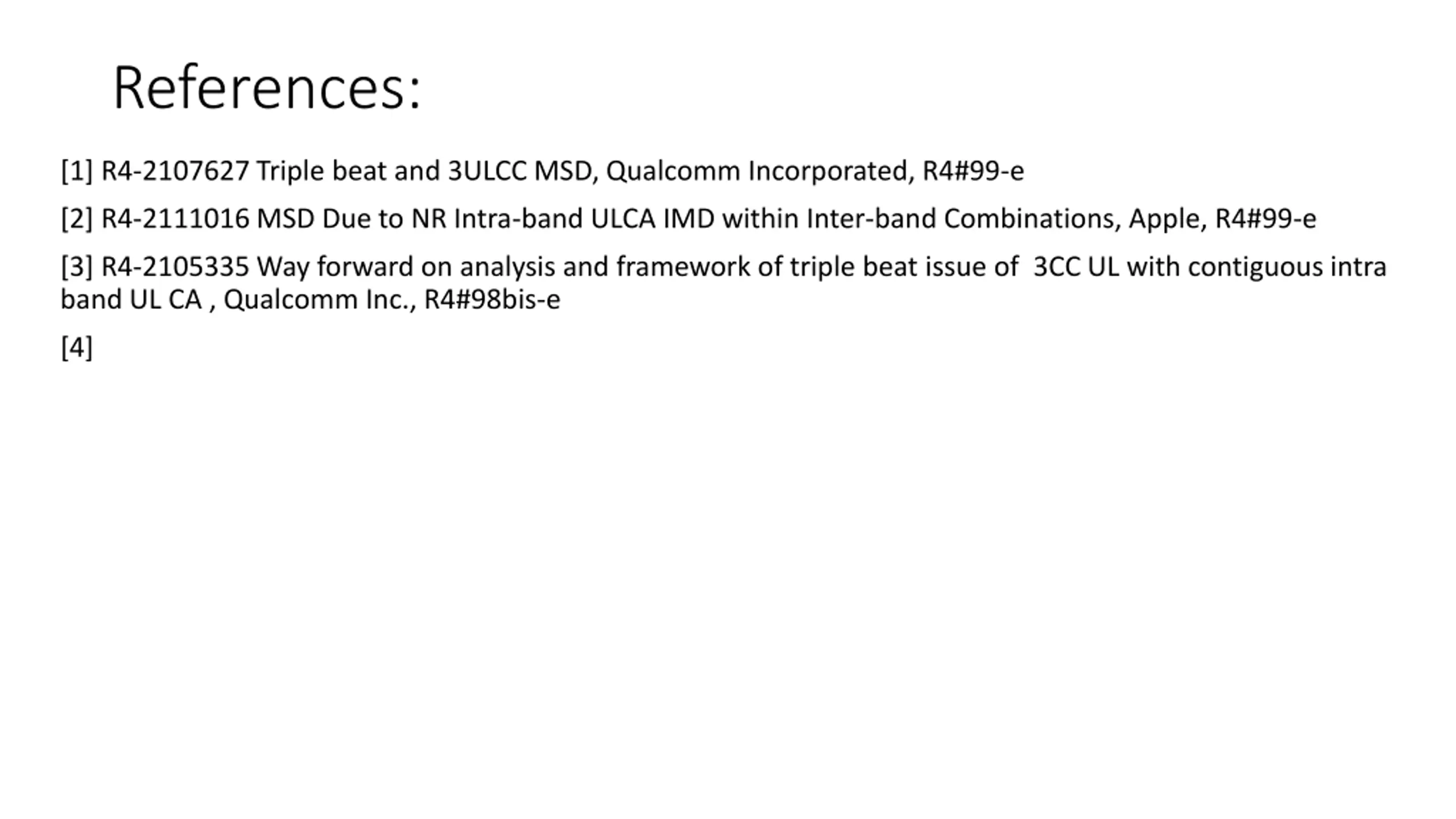

References: [1] R4-2107627 Triple beat and 3ULCC MSD, Qualcomm Incorporated, R4#99-e [2] R4-2111016 MSD Due to NR Intra-band ULCA IMD within Inter-band Combinations, Apple, R4#99-e [3] R4-2105335 Way forward on analysis and framework of triple beat issue of 3CC UL with contiguous intra band UL CA , Qualcomm Inc., R4#98bis-e [4]
