Troubleshooting AM3357 Ethernet Communication Issue
Customer reported an issue with AM3357 and TLK105 PHY where Ethernet communication stops when the LAN cable is disconnected or disturbed, leading to MII_TXEN signal not being sent. Register dump comparisons show differences during the issue. Need to investigate CPSW operation and reasons for TXEN stoppage in TI SDK-based custom firmware.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

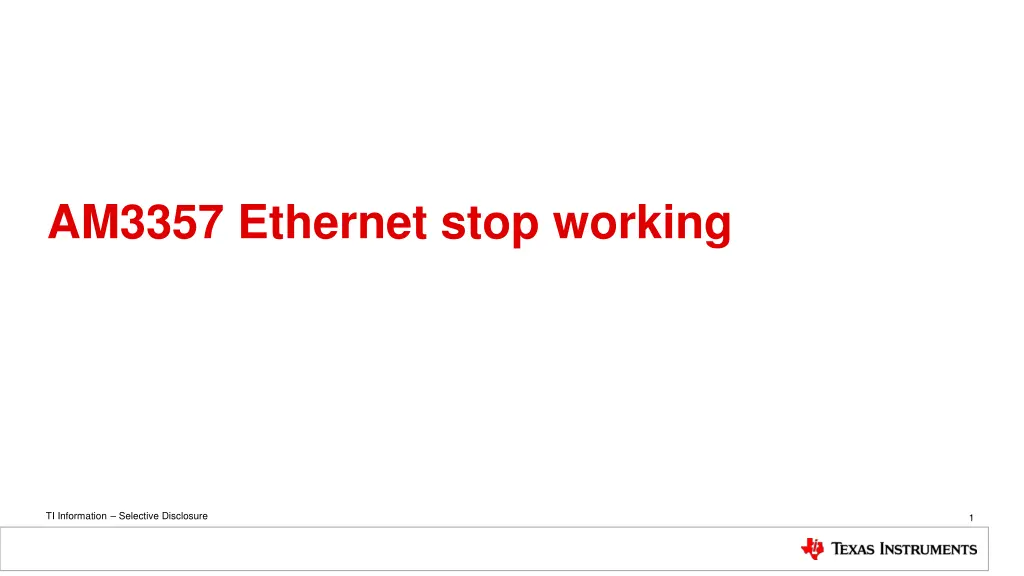

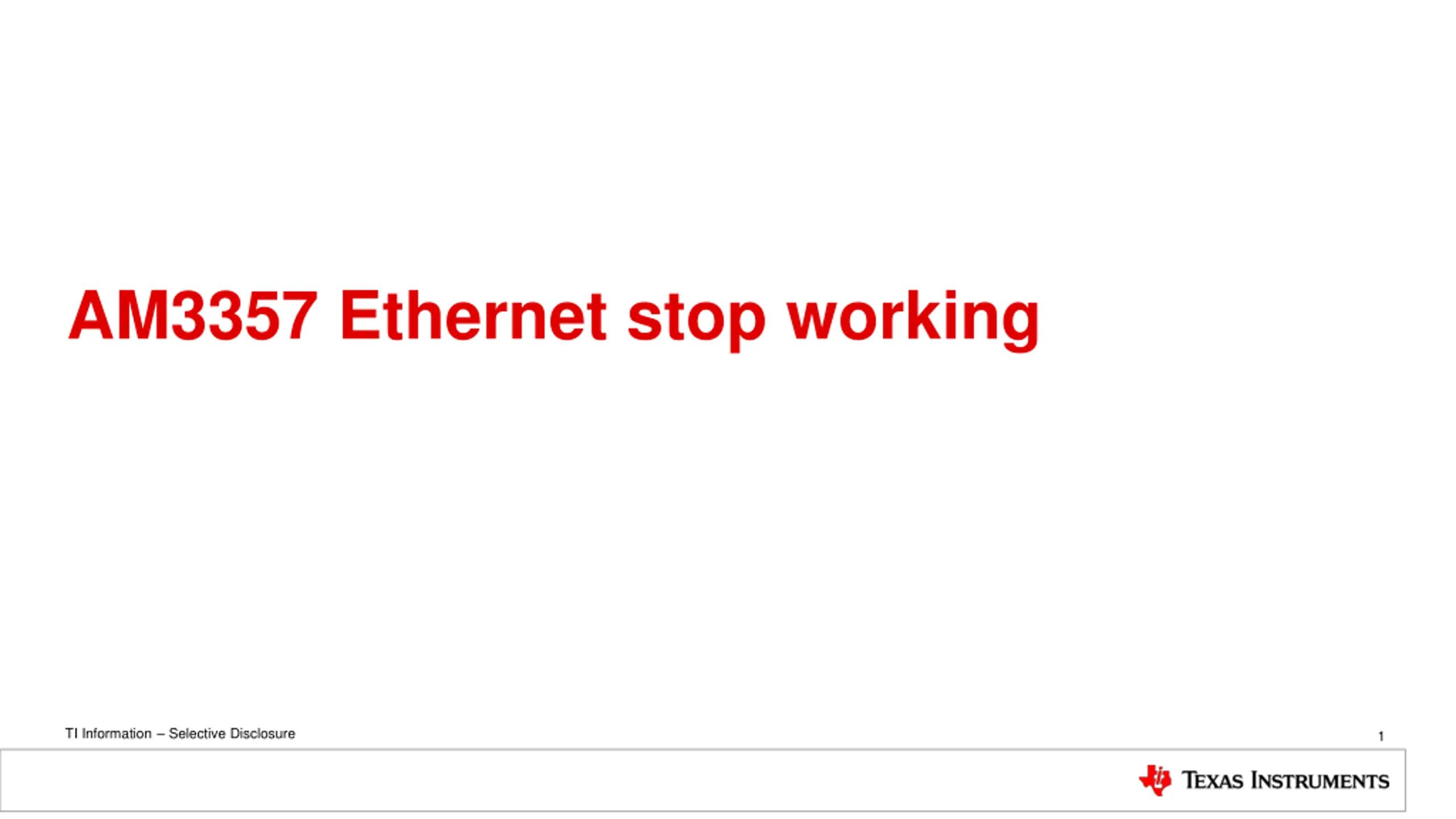

AM3357 Ethernet stop working TI Information Selective Disclosure 1

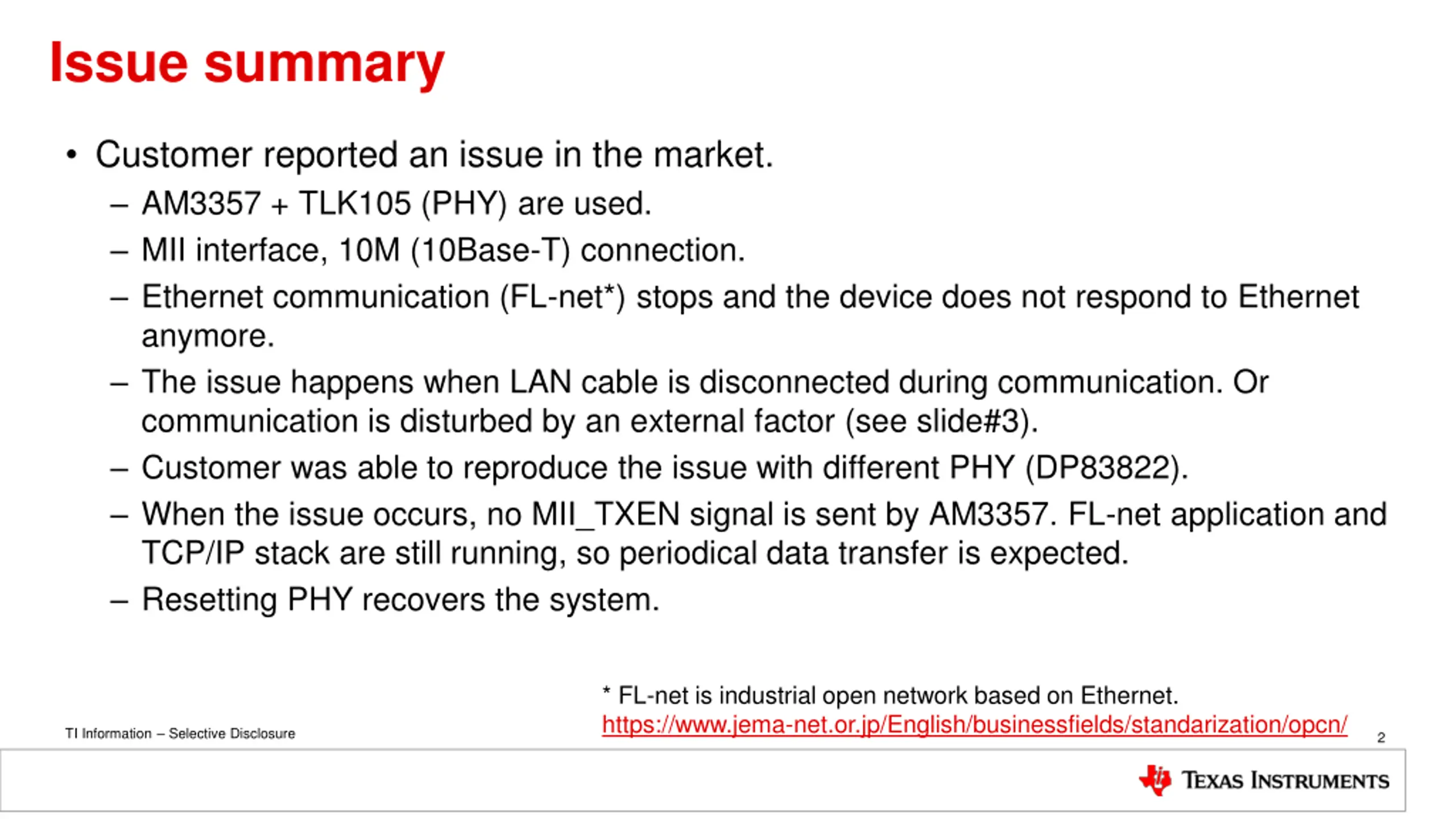

Issue summary Customer reported an issue in the market. AM3357 + TLK105 (PHY) are used. MII interface, 10M (10Base-T) connection. Ethernet communication (FL-net*) stops and the device does not respond to Ethernet anymore. The issue happens when LAN cable is disconnected during communication. Or communication is disturbed by an external factor (see slide#3). Customer was able to reproduce the issue with different PHY (DP83822). When the issue occurs, no MII_TXEN signal is sent by AM3357. FL-net application and TCP/IP stack are still running, so periodical data transfer is expected. Resetting PHY recovers the system. * FL-net is industrial open network based on Ethernet. https://www.jema-net.or.jp/English/businessfields/standarization/opcn/ TI Information Selective Disclosure 2

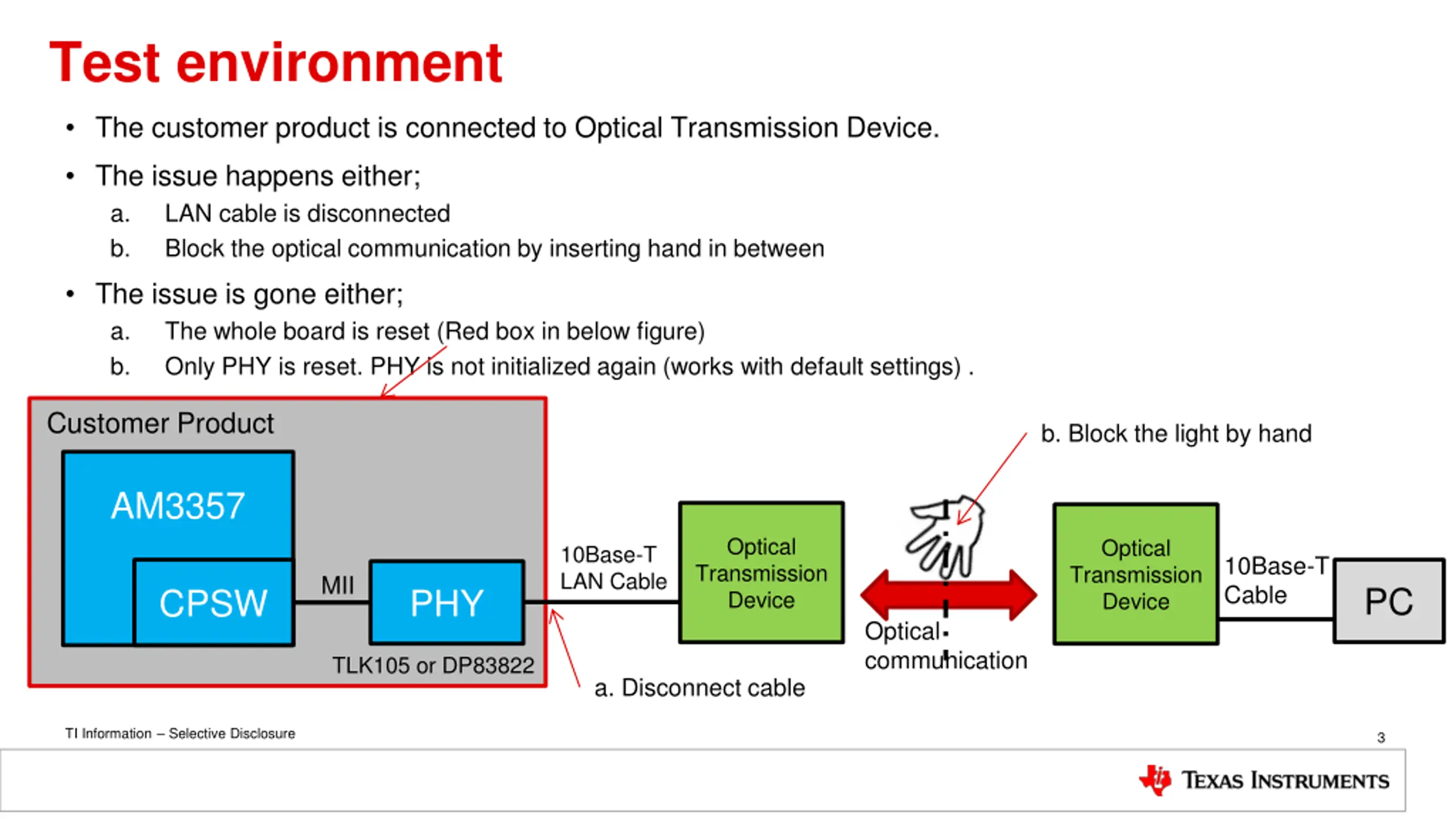

Test environment The customer product is connected to Optical Transmission Device. The issue happens either; a. LAN cable is disconnected b. Block the optical communication by inserting hand in between The issue is gone either; a. The whole board is reset (Red box in below figure) b. Only PHY is reset. PHY is not initialized again (works with default settings) . Customer Product b. Block the light by hand AM3357 Optical Transmission Device Optical Transmission Device 10Base-T LAN Cable 10Base-T Cable MII PC CPSW PHY Optical communication TLK105 or DP83822 a. Disconnect cable TI Information Selective Disclosure 3

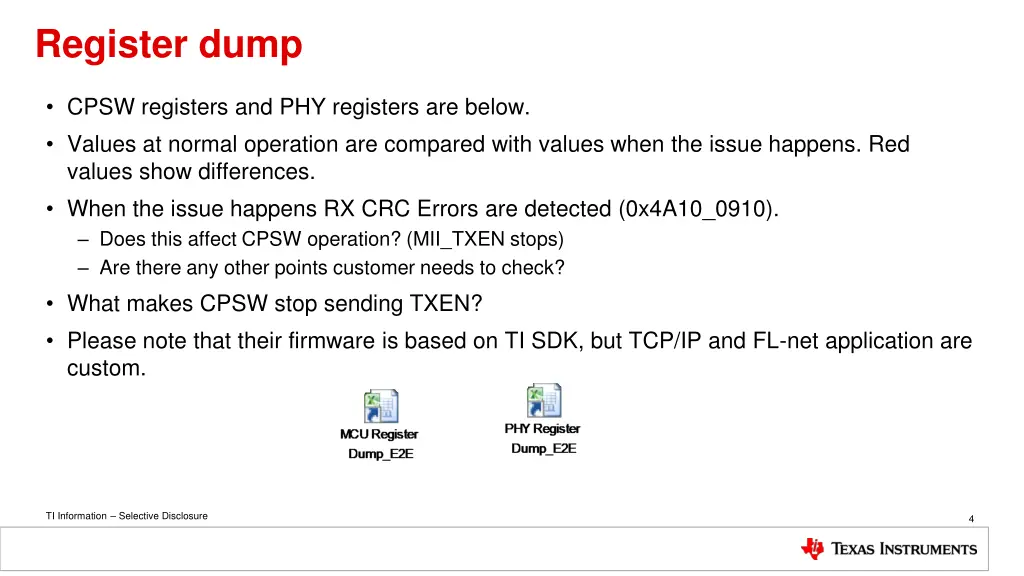

Register dump CPSW registers and PHY registers are below. Values at normal operation are compared with values when the issue happens. Red values show differences. When the issue happens RX CRC Errors are detected (0x4A10_0910). Does this affect CPSW operation? (MII_TXEN stops) Are there any other points customer needs to check? What makes CPSW stop sending TXEN? Please note that their firmware is based on TI SDK, but TCP/IP and FL-net application are custom. TI Information Selective Disclosure 4
