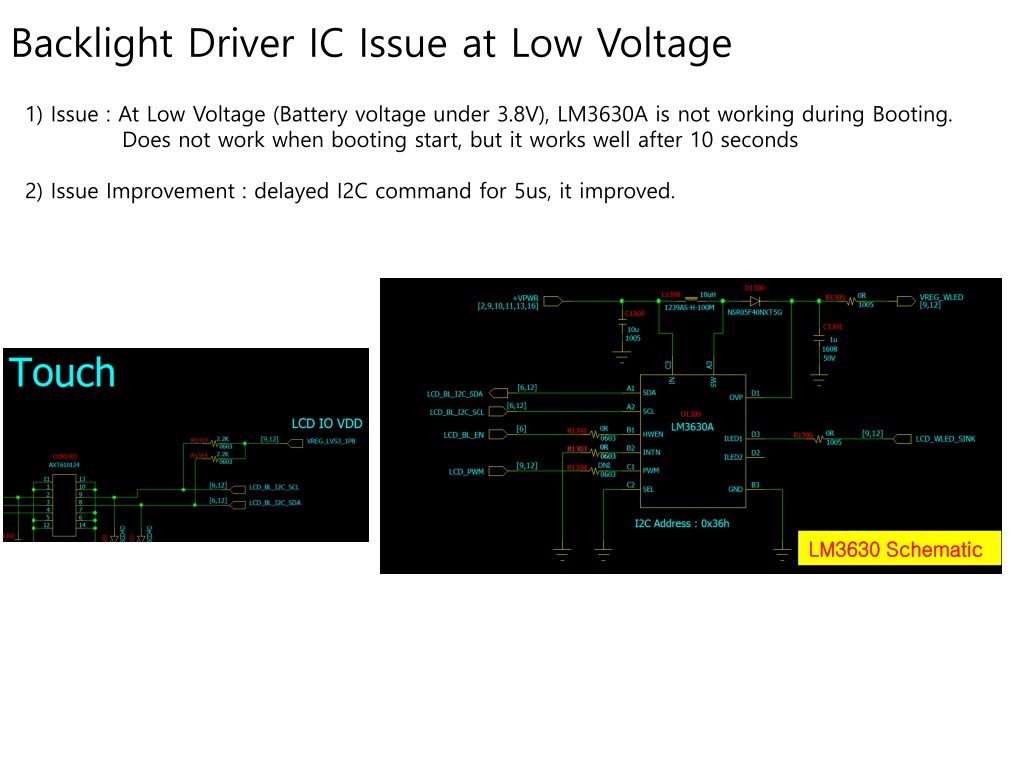

Backlight Driver IC Issue at Low Voltage 1) Issue : At Low Voltage (Battery voltage under 3.8V), LM3630A is not working during Booting. Does not work when booting start, but it works well after 10 seconds 2) Issue Improvement : delayed I2C command for 5us, it improved. LM3630 Schematic LM3630 Schematic

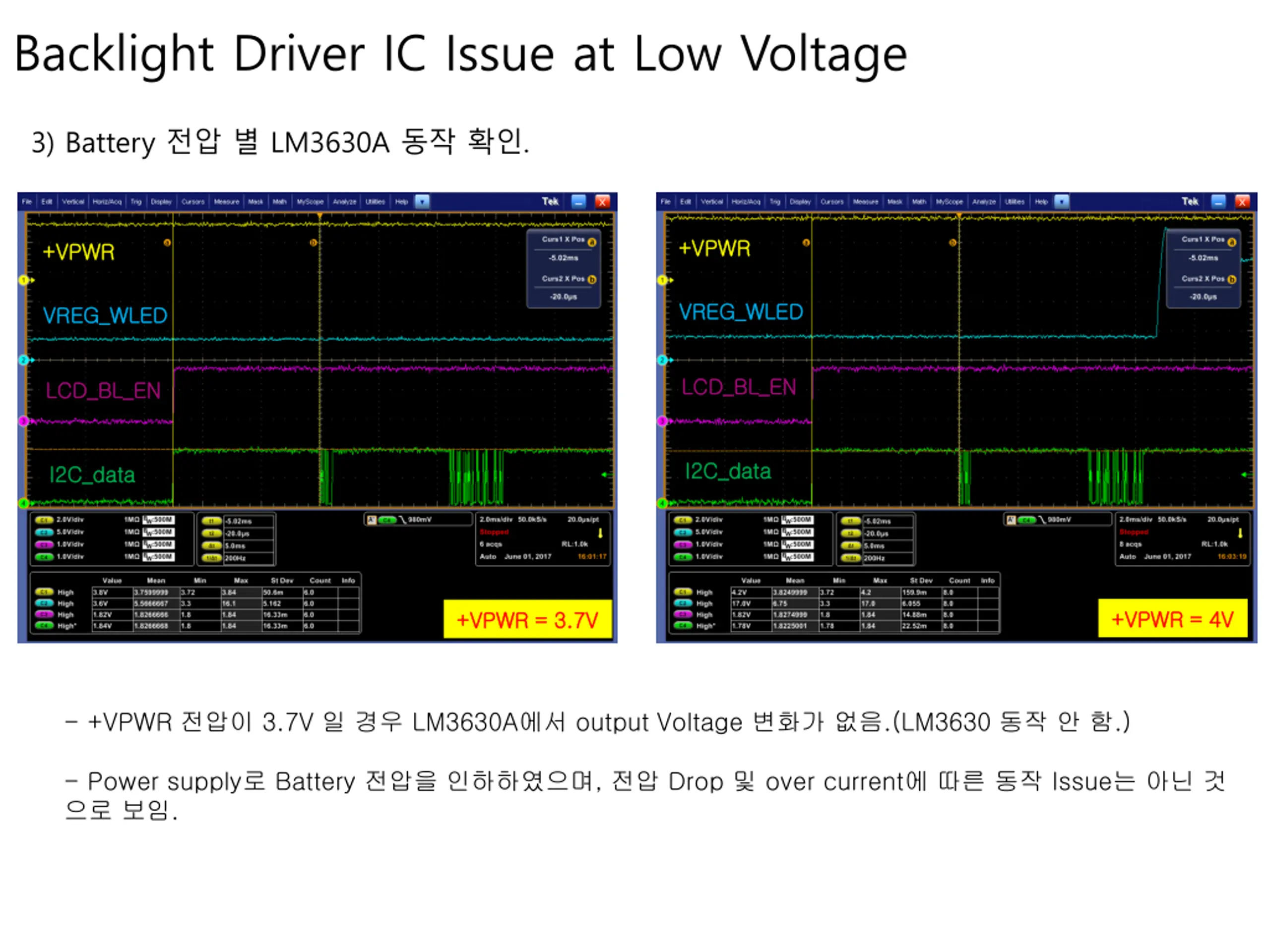

Backlight Driver IC Issue at Low Voltage 3) Battery LM3630A . +VPWR +VPWR +VPWR +VPWR VREG_WLED VREG_WLED VREG_WLED VREG_WLED LCD_BL_EN LCD_BL_EN LCD_BL_EN LCD_BL_EN I2C_data I2C_data I2C_data I2C_data +VPWR = 4V +VPWR = 4V +VPWR = 3.7V +VPWR = 3.7V - +VPWR 3.7V LM3630A output Voltage .(LM3630 .) - Power supply Battery , Drop over current Issue .

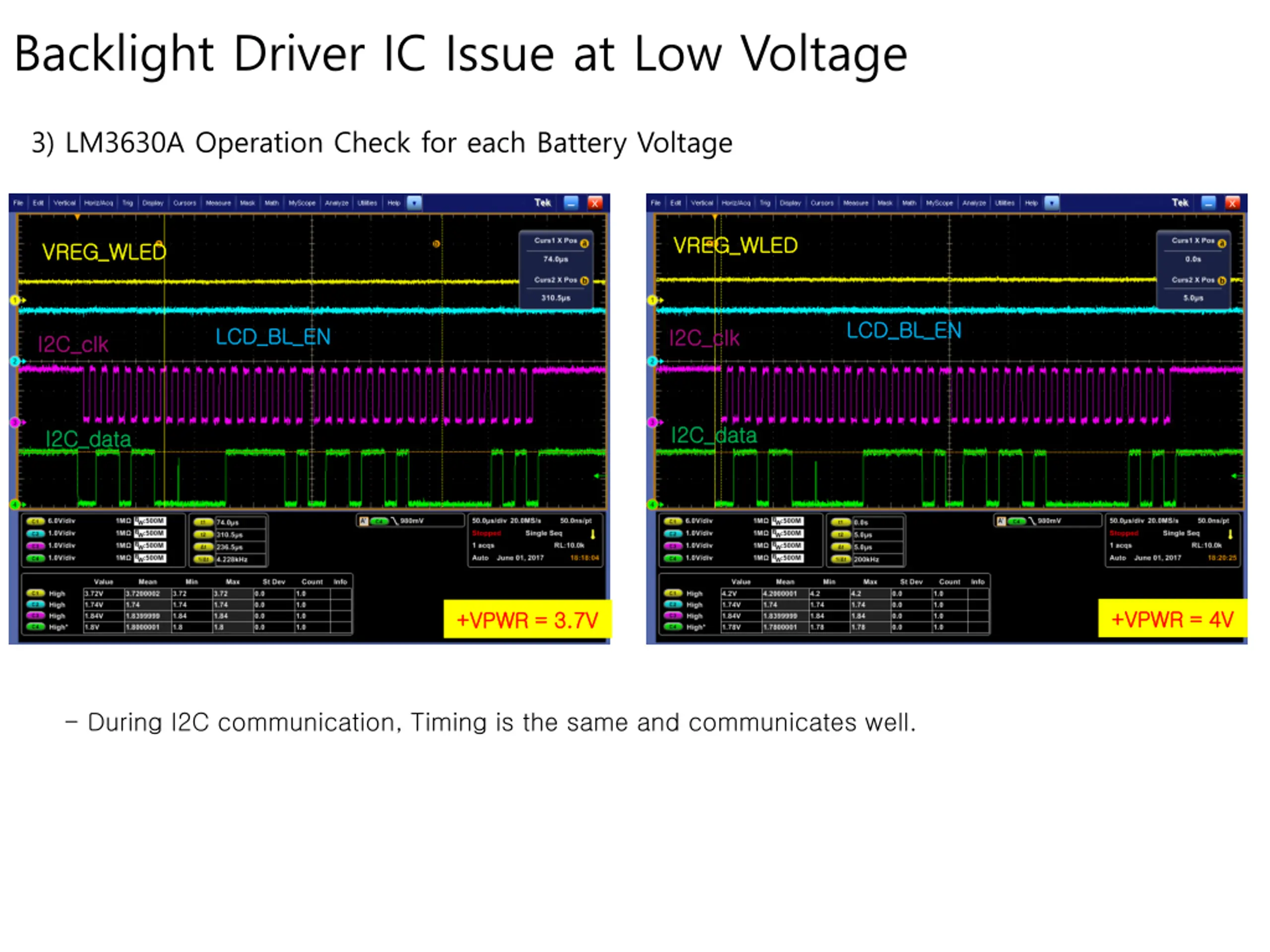

Backlight Driver IC Issue at Low Voltage 3) LM3630A Operation Check for each Battery Voltage VREG_WLED VREG_WLED VREG_WLED VREG_WLED LCD_BL_EN LCD_BL_EN LCD_BL_EN LCD_BL_EN I2C_clk I2C_clk I2C_clk I2C_clk I2C_data I2C_data I2C_data I2C_data +VPWR = 4V +VPWR = 4V +VPWR = 3.7V +VPWR = 3.7V - During I2C communication, Timing is the same and communicates well.

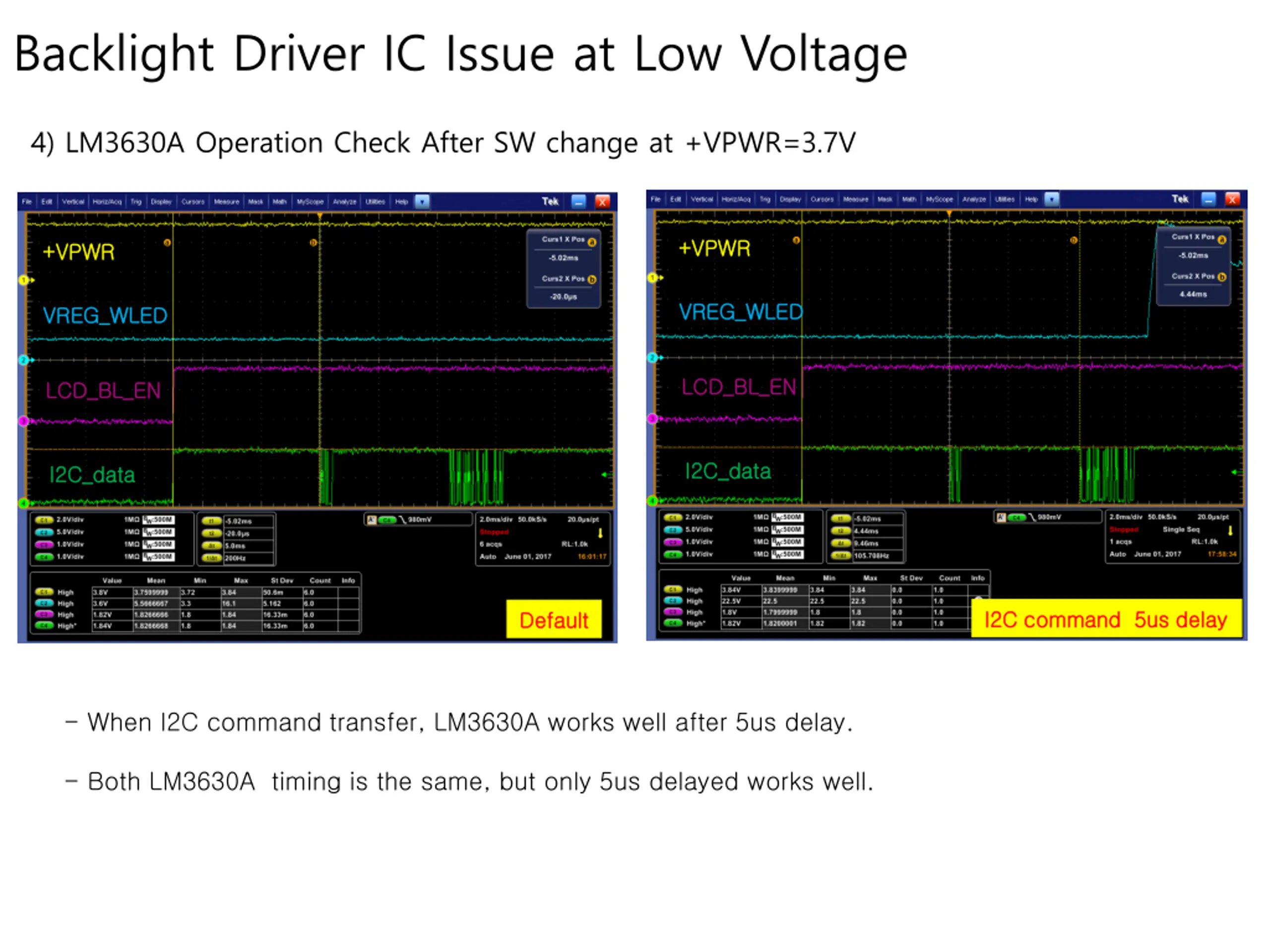

Backlight Driver IC Issue at Low Voltage 4) LM3630A Operation Check After SW change at +VPWR=3.7V +VPWR +VPWR +VPWR +VPWR VREG_WLED VREG_WLED VREG_WLED VREG_WLED LCD_BL_EN LCD_BL_EN LCD_BL_EN LCD_BL_EN I2C_data I2C_data I2C_data I2C_data I2C command 5us delay I2C command 5us delay Default Default - When I2C command transfer, LM3630A works well after 5us delay. - Both LM3630A timing is the same, but only 5us delayed works well.

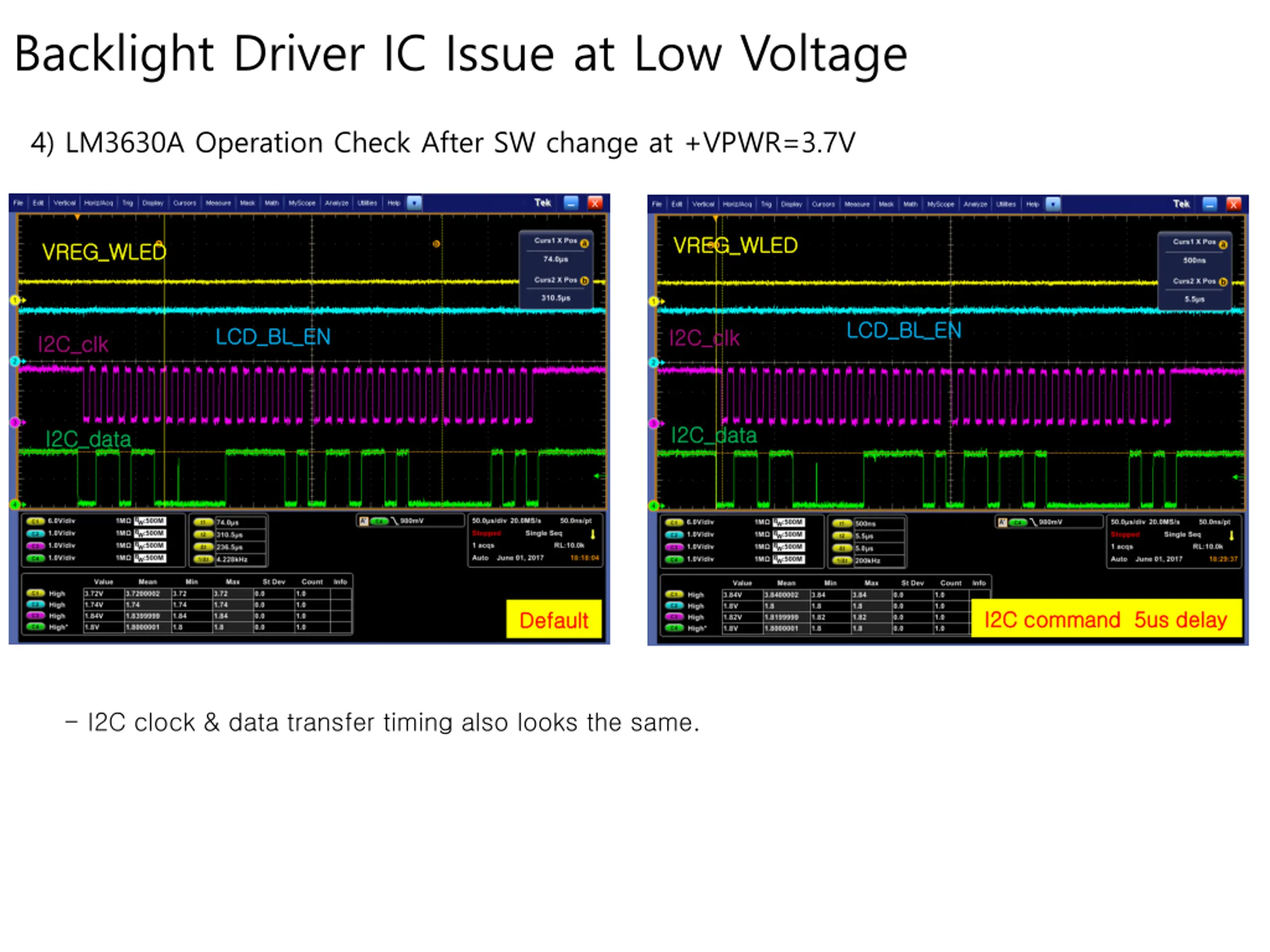

Backlight Driver IC Issue at Low Voltage 4) LM3630A Operation Check After SW change at +VPWR=3.7V VREG_WLED VREG_WLED VREG_WLED VREG_WLED LCD_BL_EN LCD_BL_EN LCD_BL_EN LCD_BL_EN I2C_clk I2C_clk I2C_clk I2C_clk I2C_data I2C_data I2C_data I2C_data I2C command 5us delay I2C command 5us delay Default Default - I2C clock & data transfer timing also looks the same.
