Troubleshooting Sinusoidal Pixel Clock Signal on AM3352 Design
You have observed a sinusoidal signal instead of the expected square wave on the pixel clock coming from the AM3352 in your design. Despite bypassing the 33-ohm resistor and trying different setups, the signal remains sinusoidal and doesn't hit 0V or 3.3V. With scope shots and varied configurations, you're exploring potential reasons for this behavior, such as drive strength control and stack-up issues.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

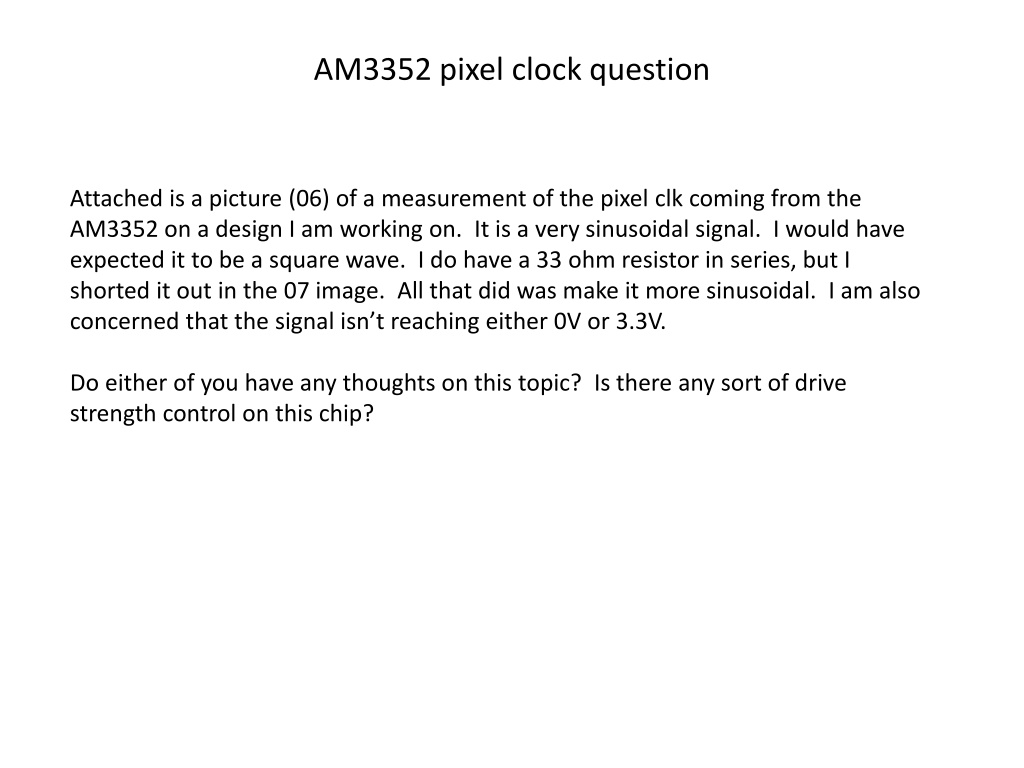

AM3352 pixel clock question Attached is a picture (06) of a measurement of the pixel clk coming from the AM3352 on a design I am working on. It is a very sinusoidal signal. I would have expected it to be a square wave. I do have a 33 ohm resistor in series, but I shorted it out in the 07 image. All that did was make it more sinusoidal. I am also concerned that the signal isn t reaching either 0V or 3.3V. Do either of you have any thoughts on this topic? Is there any sort of drive strength control on this chip?
AM3352 pixel clock question Picture #6, 33 ohm resistor in series

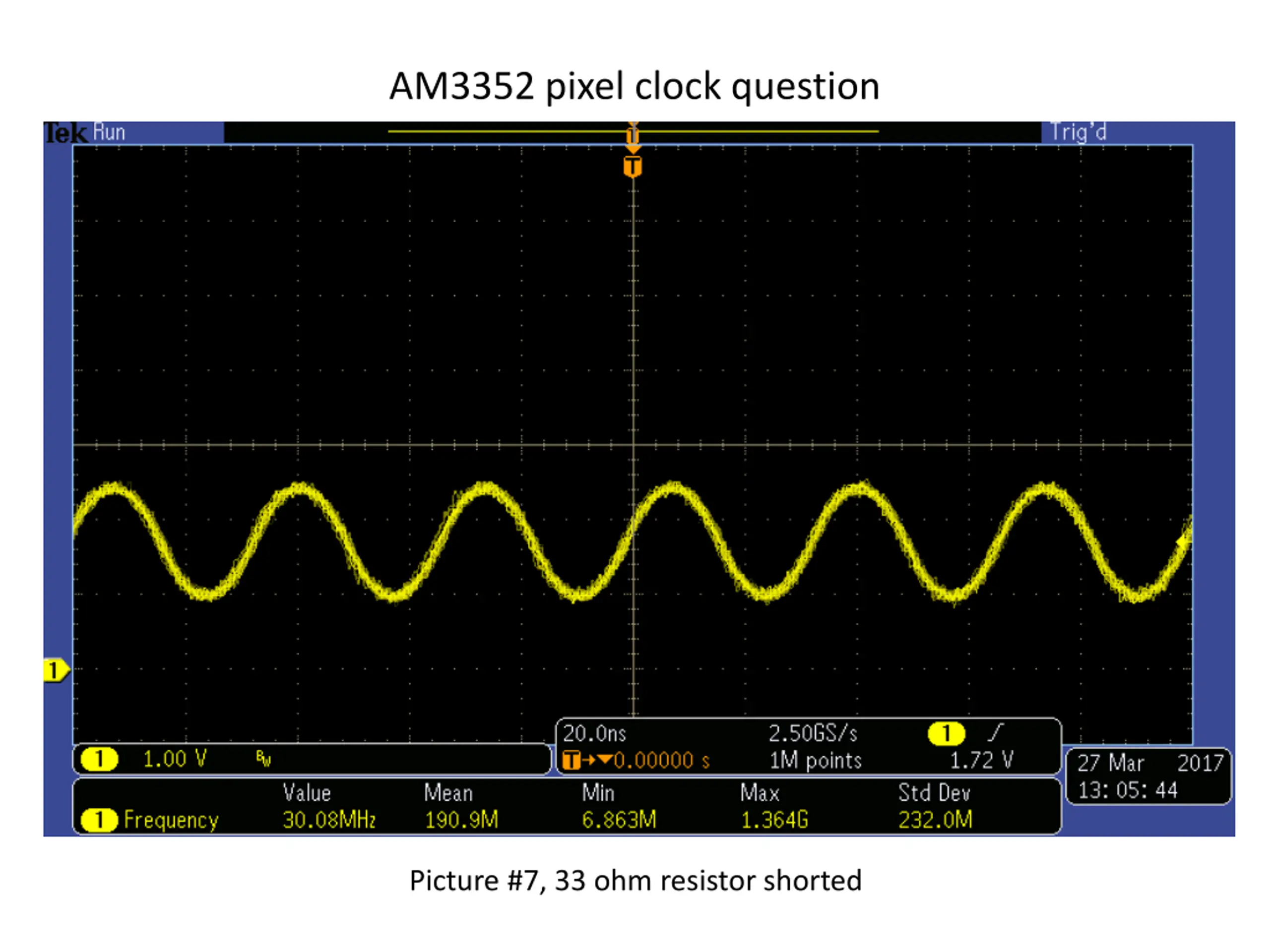

AM3352 pixel clock question Picture #7, 33 ohm resistor shorted
AM3352 pixel clock question Good question, the new scope shots are on a 300MHz scope full bandwidth. I was using a 100MHz scope not on full bandwidth. The 100MHz scope still can t get a good read on the signal at full bandwidth though. Picture 08 has the 33 ohm and 09 is without the 33 ohm. 10 is without the LCD attached and no 33ohm. In 12 I bypassed the PCLK trace with 30 AWG wire, so I don t think it is the stack up. Single ended 10x passive probe (tek P6139B), DC coupling Picture #8, with series 33 ohm resistor

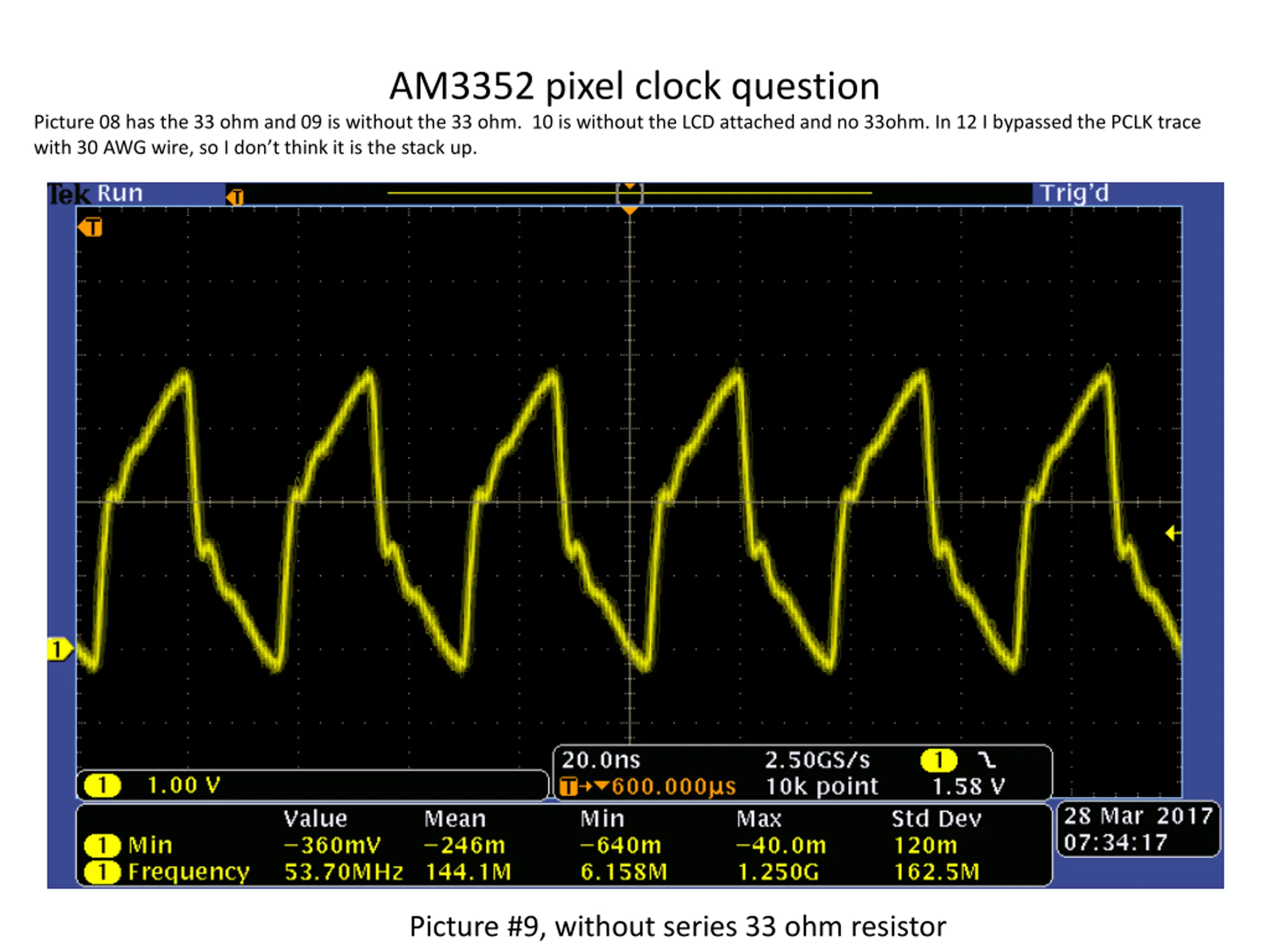

AM3352 pixel clock question Picture 08 has the 33 ohm and 09 is without the 33 ohm. 10 is without the LCD attached and no 33ohm. In 12 I bypassed the PCLK trace with 30 AWG wire, so I don t think it is the stack up. Picture #9, without series 33 ohm resistor

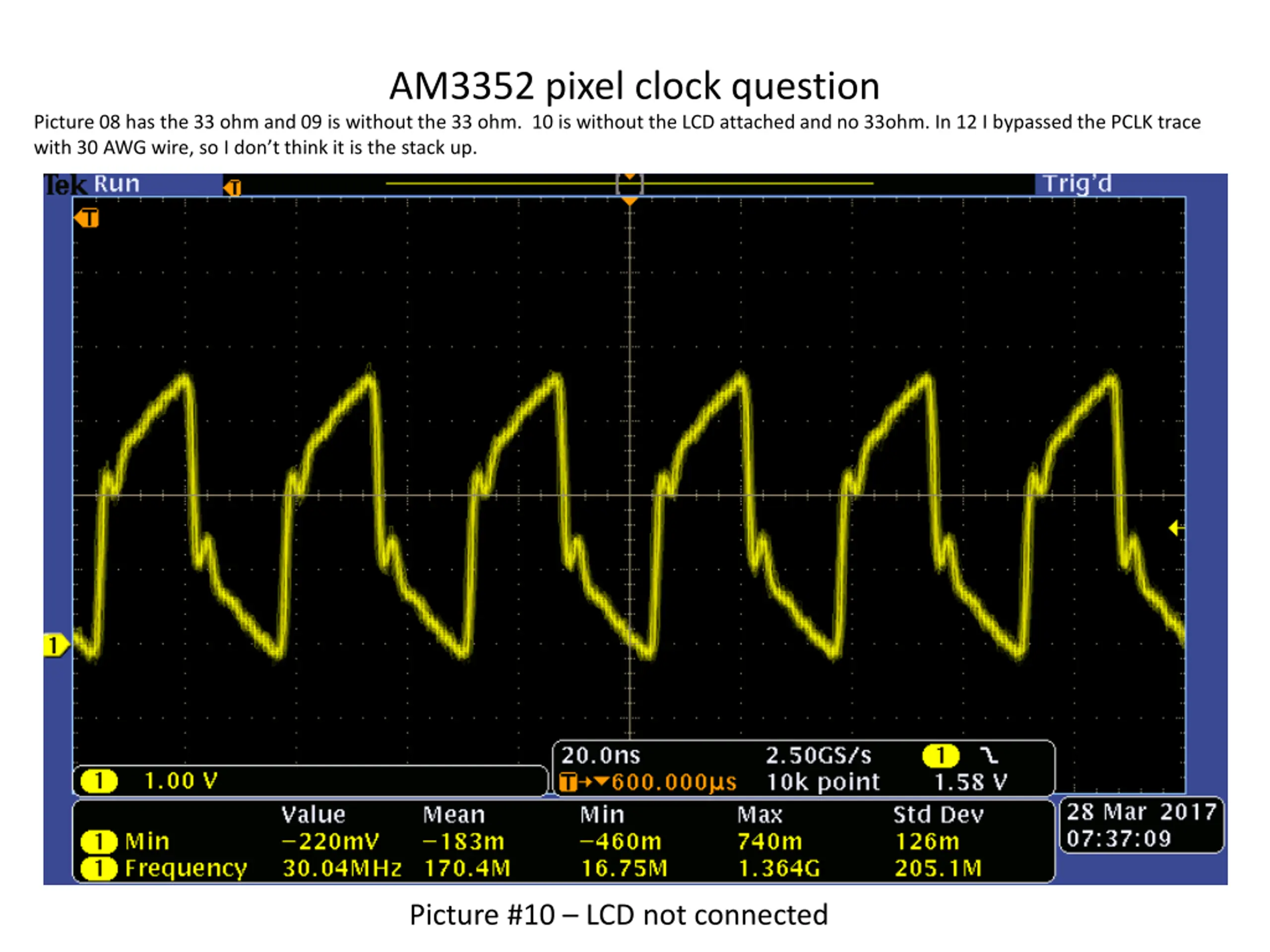

AM3352 pixel clock question Picture 08 has the 33 ohm and 09 is without the 33 ohm. 10 is without the LCD attached and no 33ohm. In 12 I bypassed the PCLK trace with 30 AWG wire, so I don t think it is the stack up. Picture #10 LCD not connected

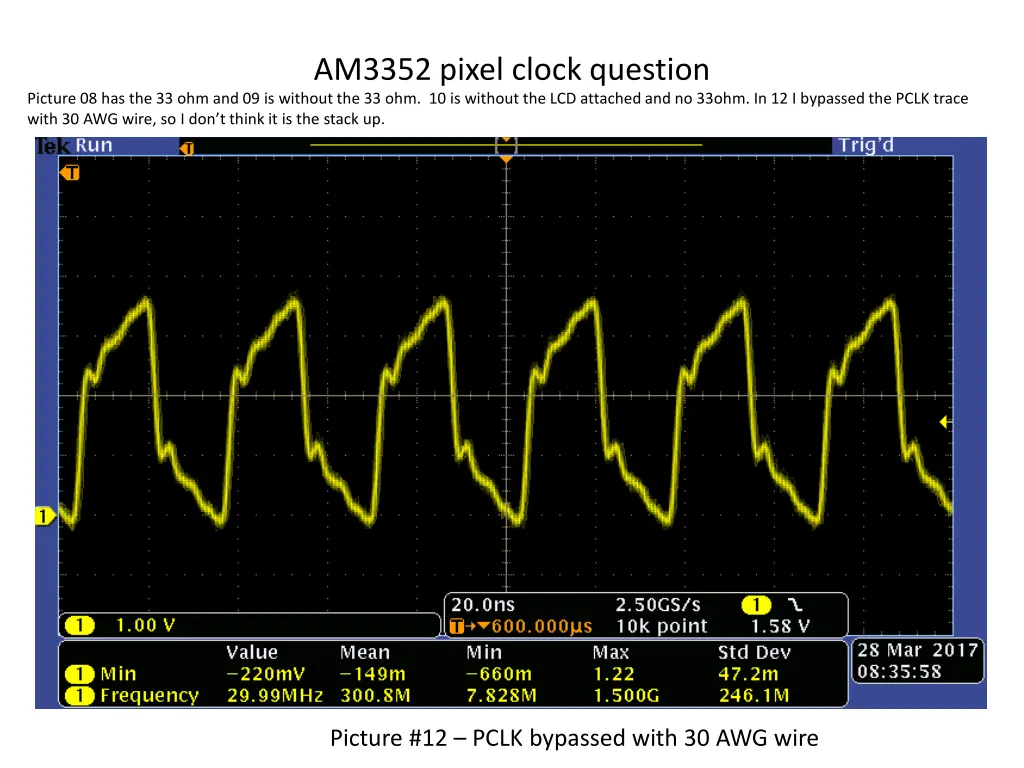

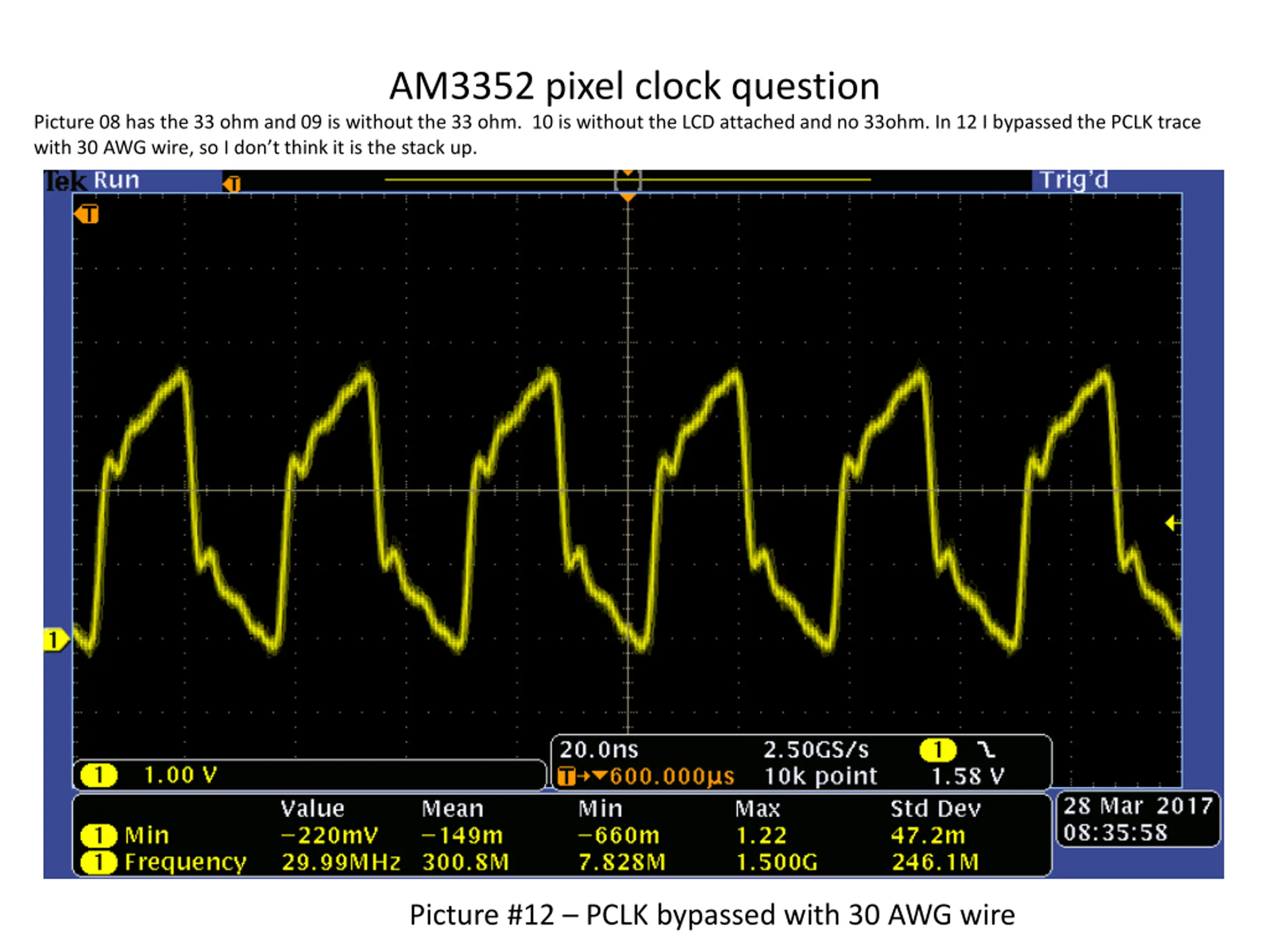

AM3352 pixel clock question Picture 08 has the 33 ohm and 09 is without the 33 ohm. 10 is without the LCD attached and no 33ohm. In 12 I bypassed the PCLK trace with 30 AWG wire, so I don t think it is the stack up. Picture #12 PCLK bypassed with 30 AWG wire
