Tutorial of iCn3D Structure Viewer - Part 1 Jiyao Wang Staff Scientist NIH/NCBI 5/27/2021 (more details at iCn3D page, more features at gallery)

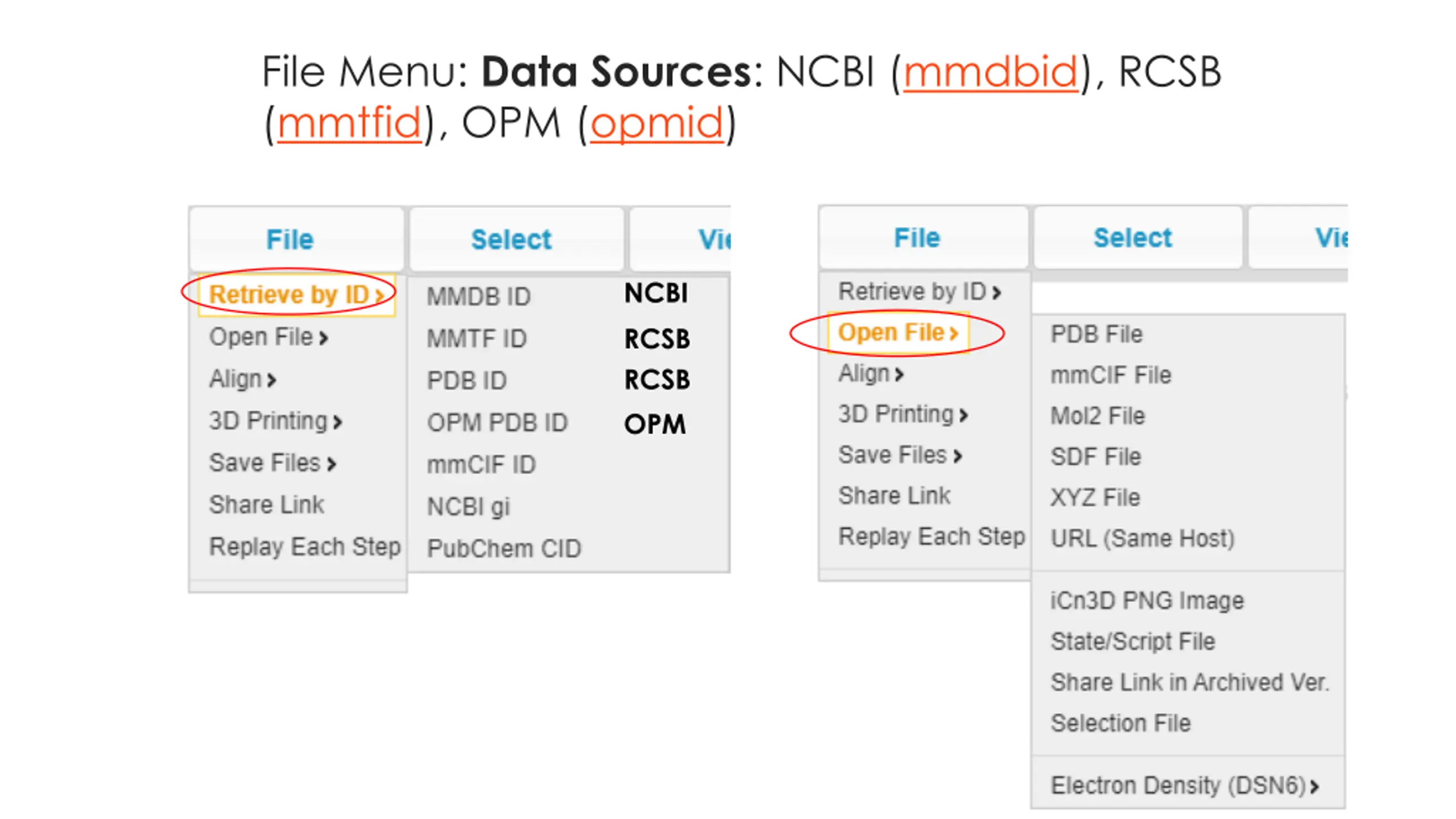

File Menu: Data Sources: NCBI (mmdbid), RCSB (mmtfid), OPM (opmid) NCBI RCSB RCSB OPM

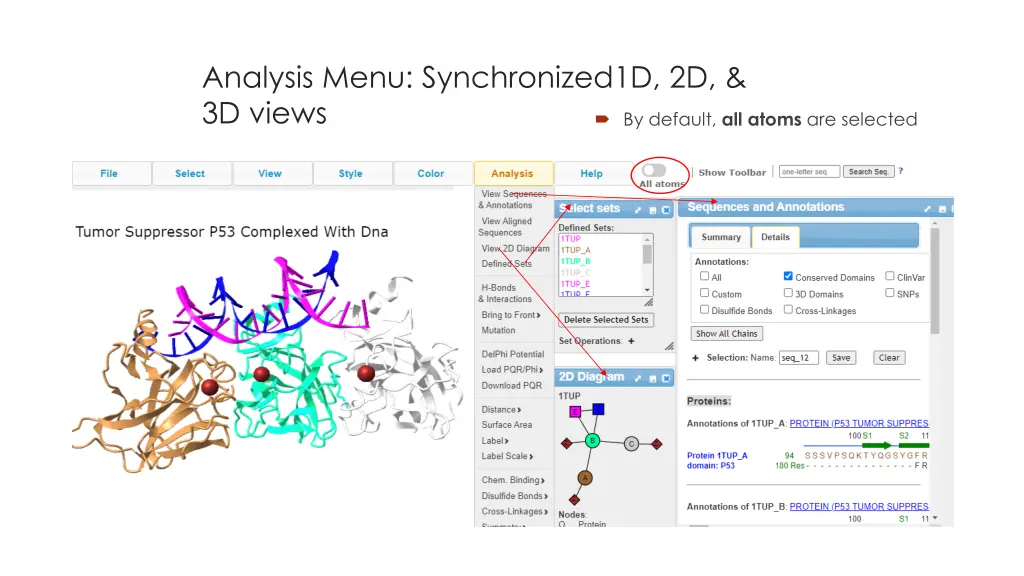

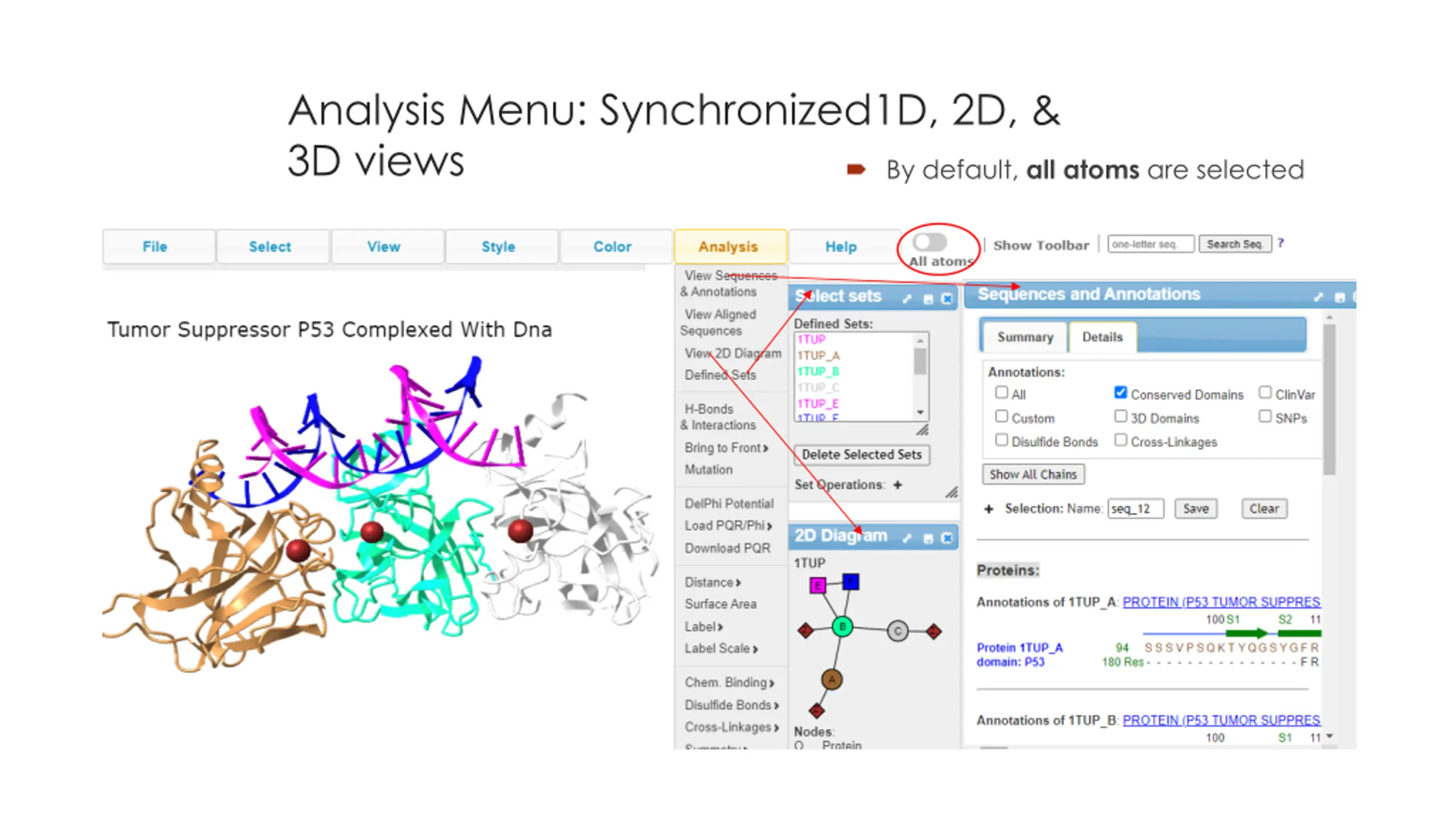

Analysis Menu: Synchronized1D, 2D, & 3D views By default, all atoms are selected
After selection, all actions will be on the selection (see the toggle) Select Menu: Select on 3D, by Distance, Toggle Highlight, etc.

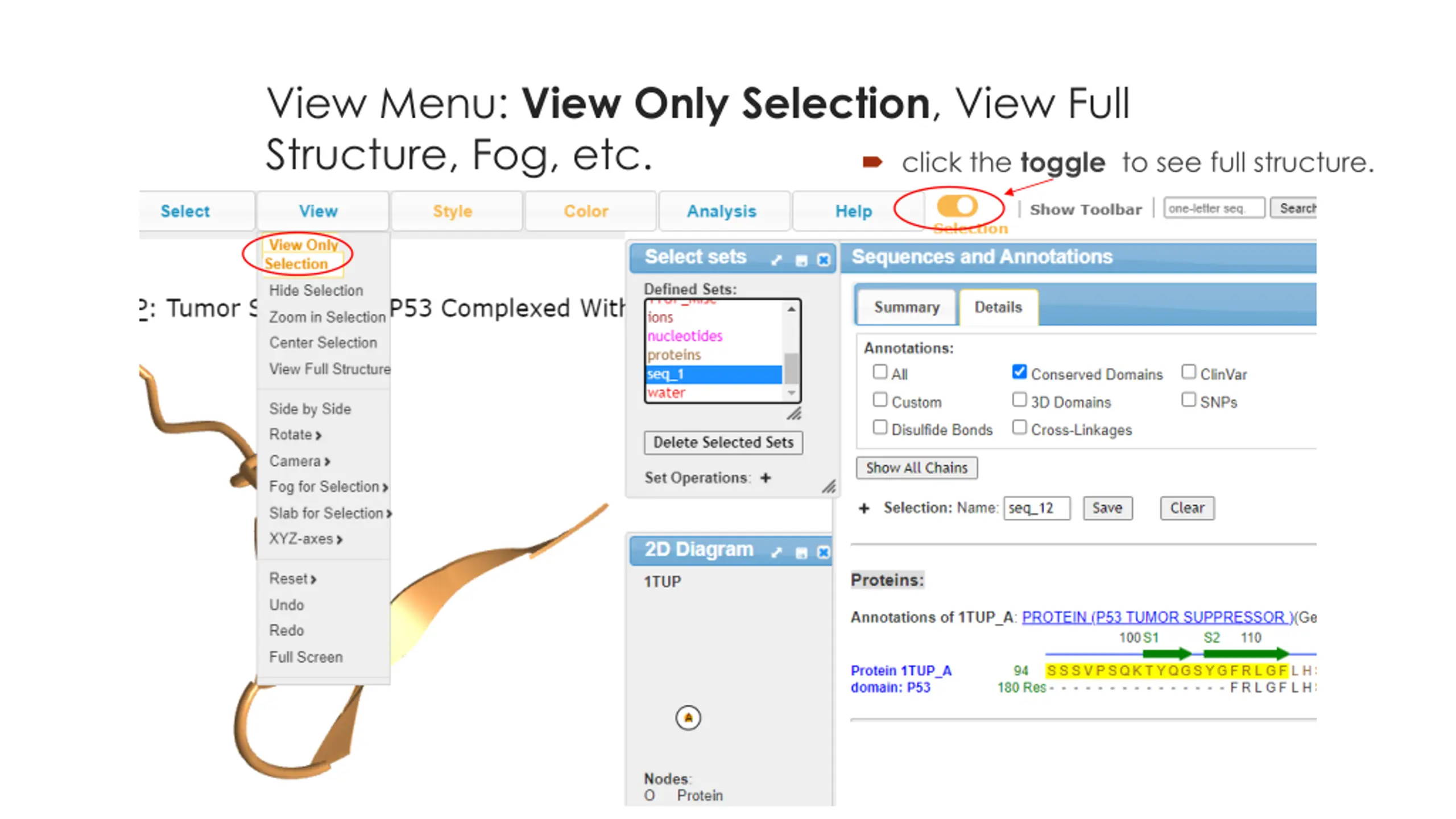

View Menu: View Only Selection, View Full Structure, Fog, etc. click the toggle to see full structure.

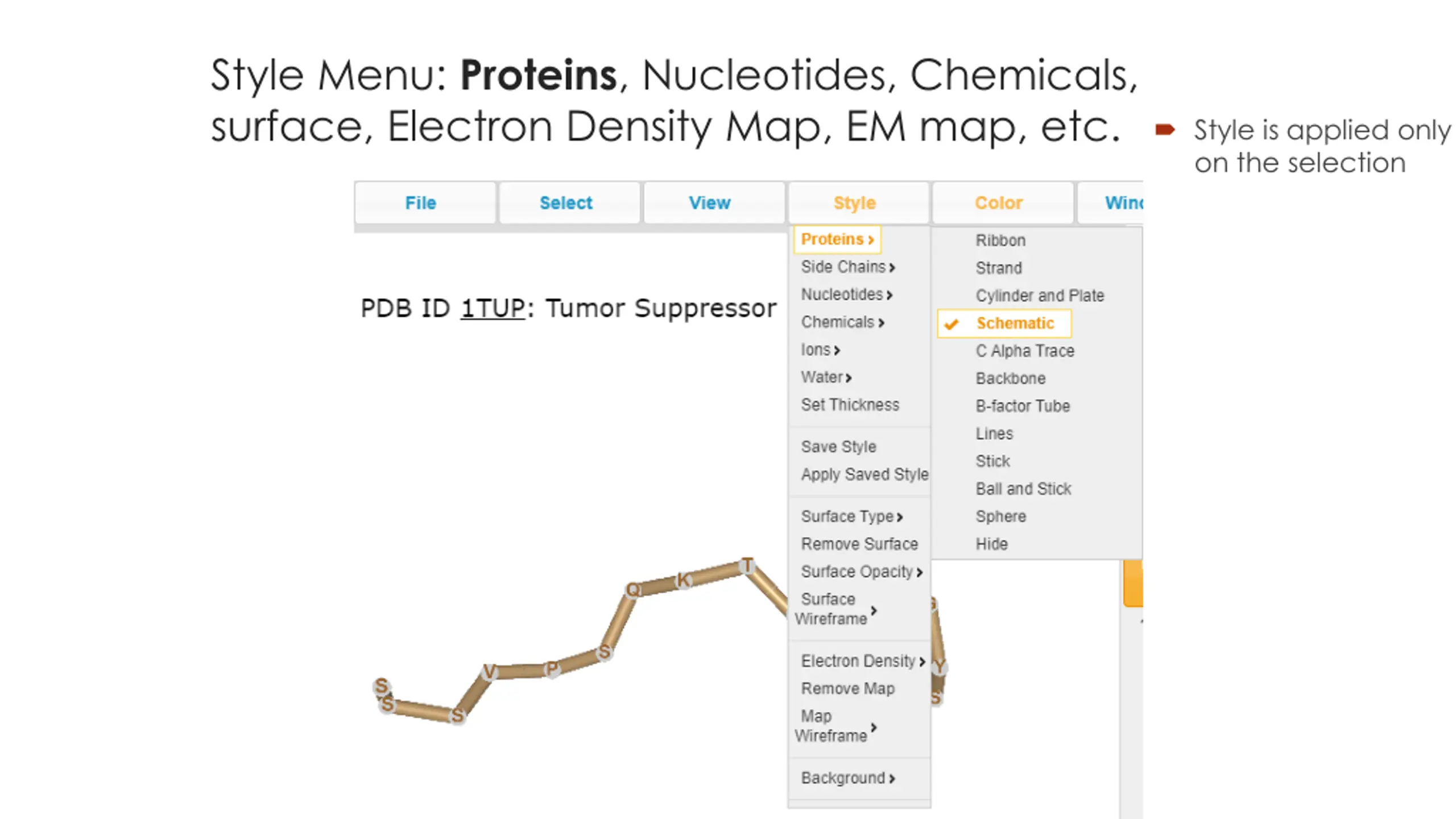

Style Menu: Proteins, Nucleotides, Chemicals, surface, Electron Density Map, EM map, etc. Style is applied only on the selection

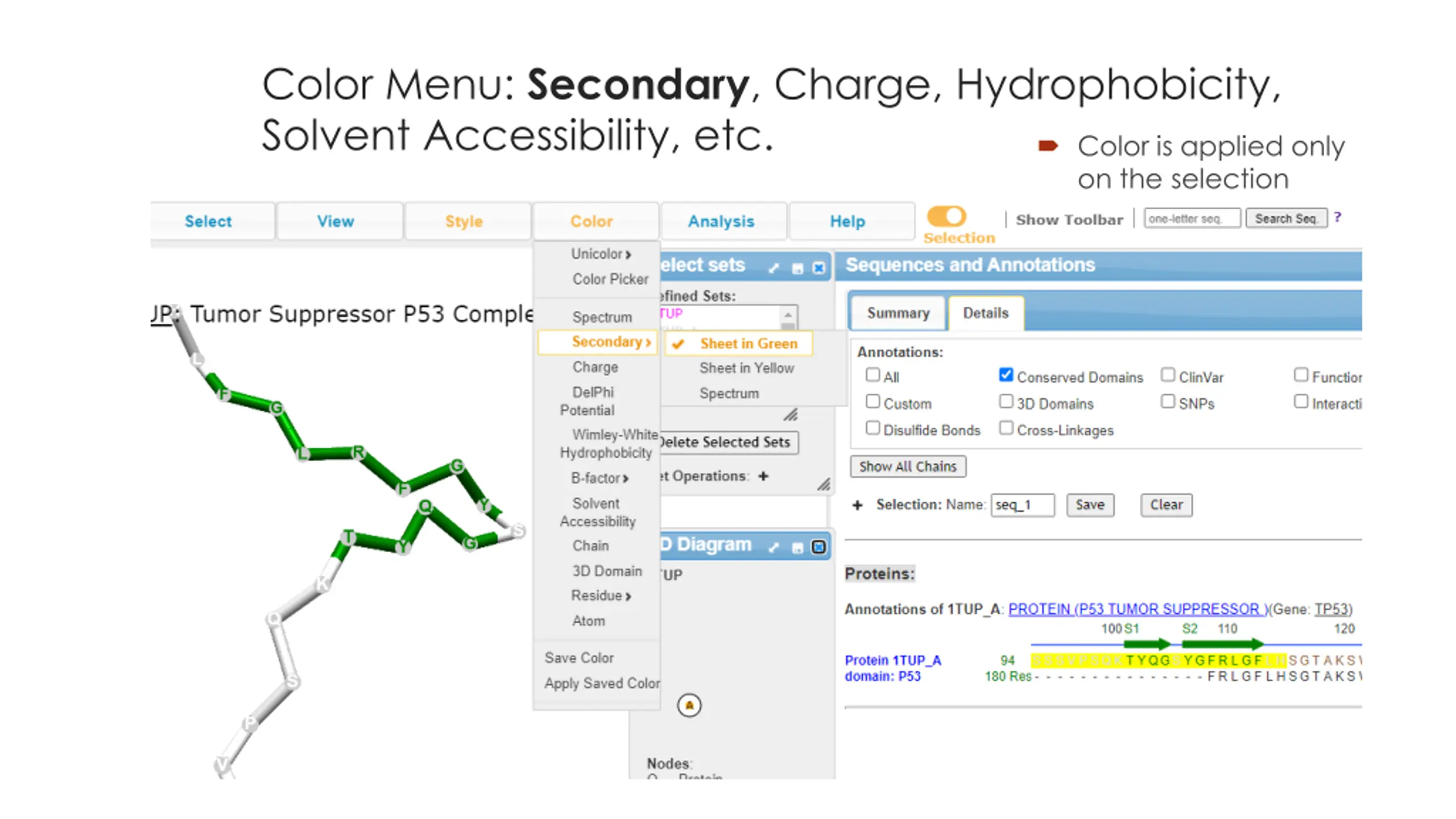

Color Menu: Secondary, Charge, Hydrophobicity, Solvent Accessibility, etc. Color is applied only on the selection

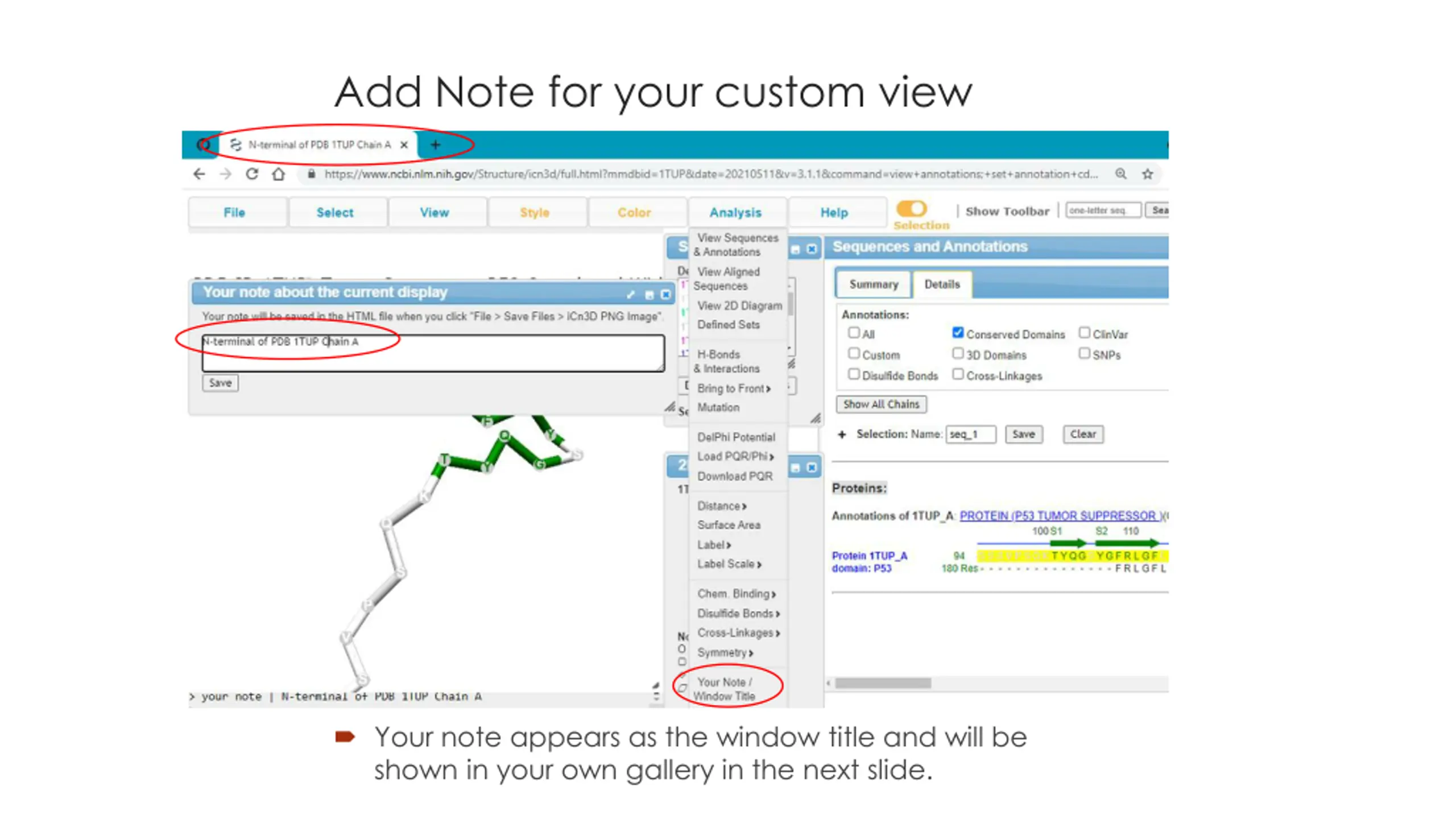

Add Note for your custom view Your note appears as the window title and will be shown in your own gallery in the next slide.

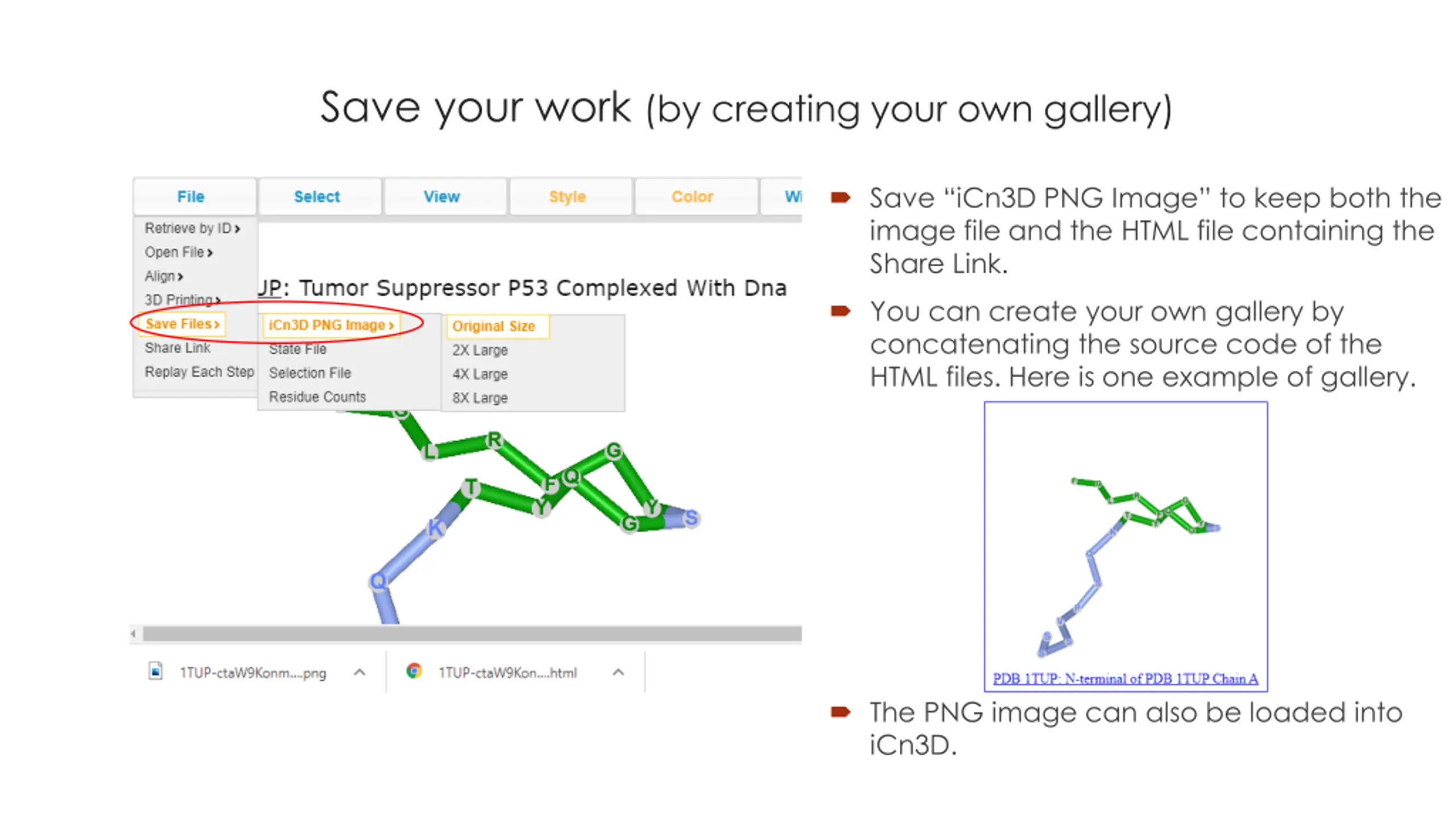

Save your work (by creating your own gallery) Save iCn3D PNG Image to keep both the image file and the HTML file containing the Share Link. You can create your own gallery by concatenating the source code of the HTML files. Here is one example of gallery. The PNG image can also be loaded into iCn3D.

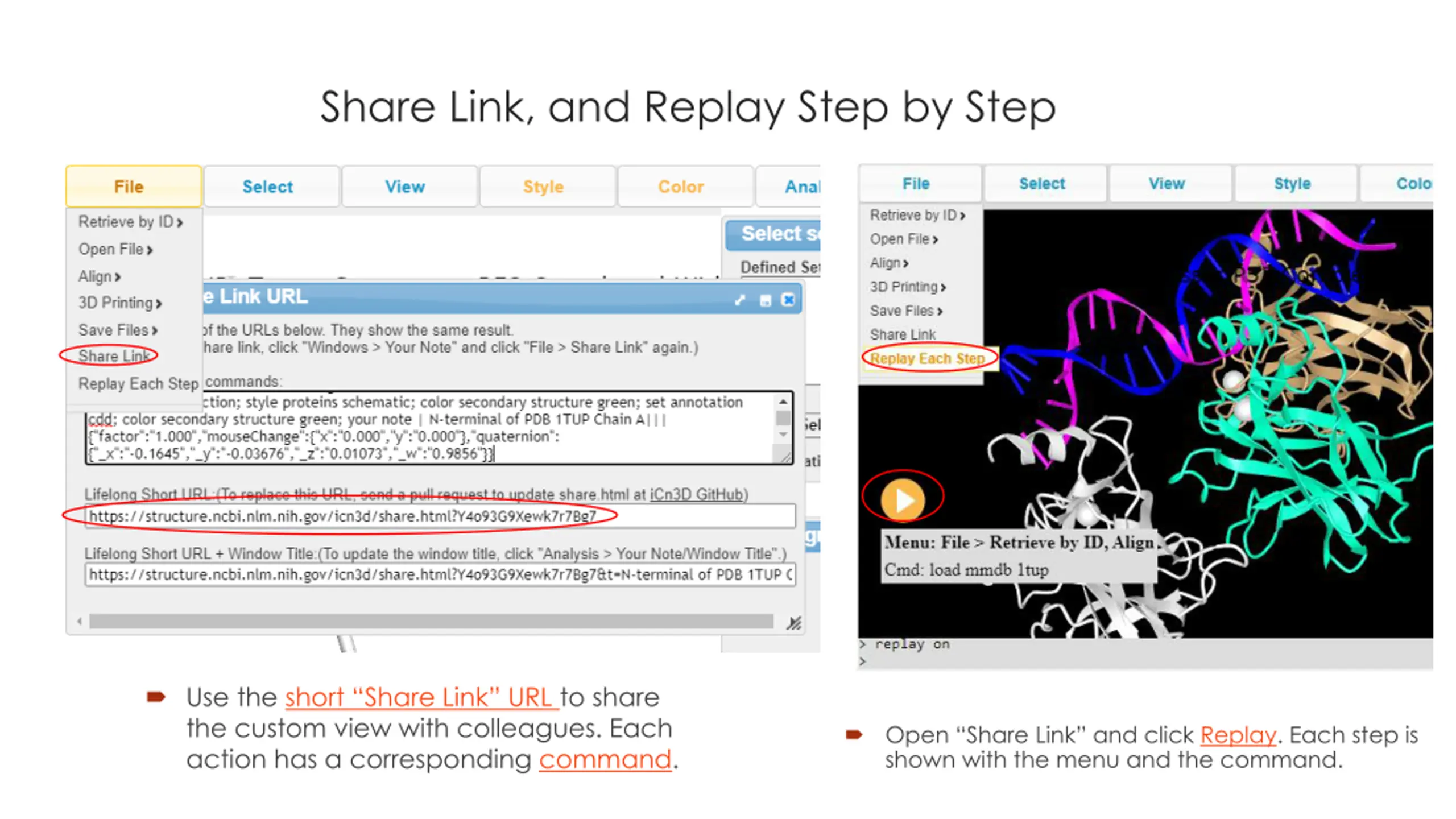

Share Link, and Replay Step by Step Use the short Share Link URL to share the custom view with colleagues. Each action has a corresponding command. Open Share Link and click Replay. Each step is shown with the menu and the command.
