Community detection for the Twitter social network. Team Members: Nikhil Chadda Anupam Prakash Achal Soni

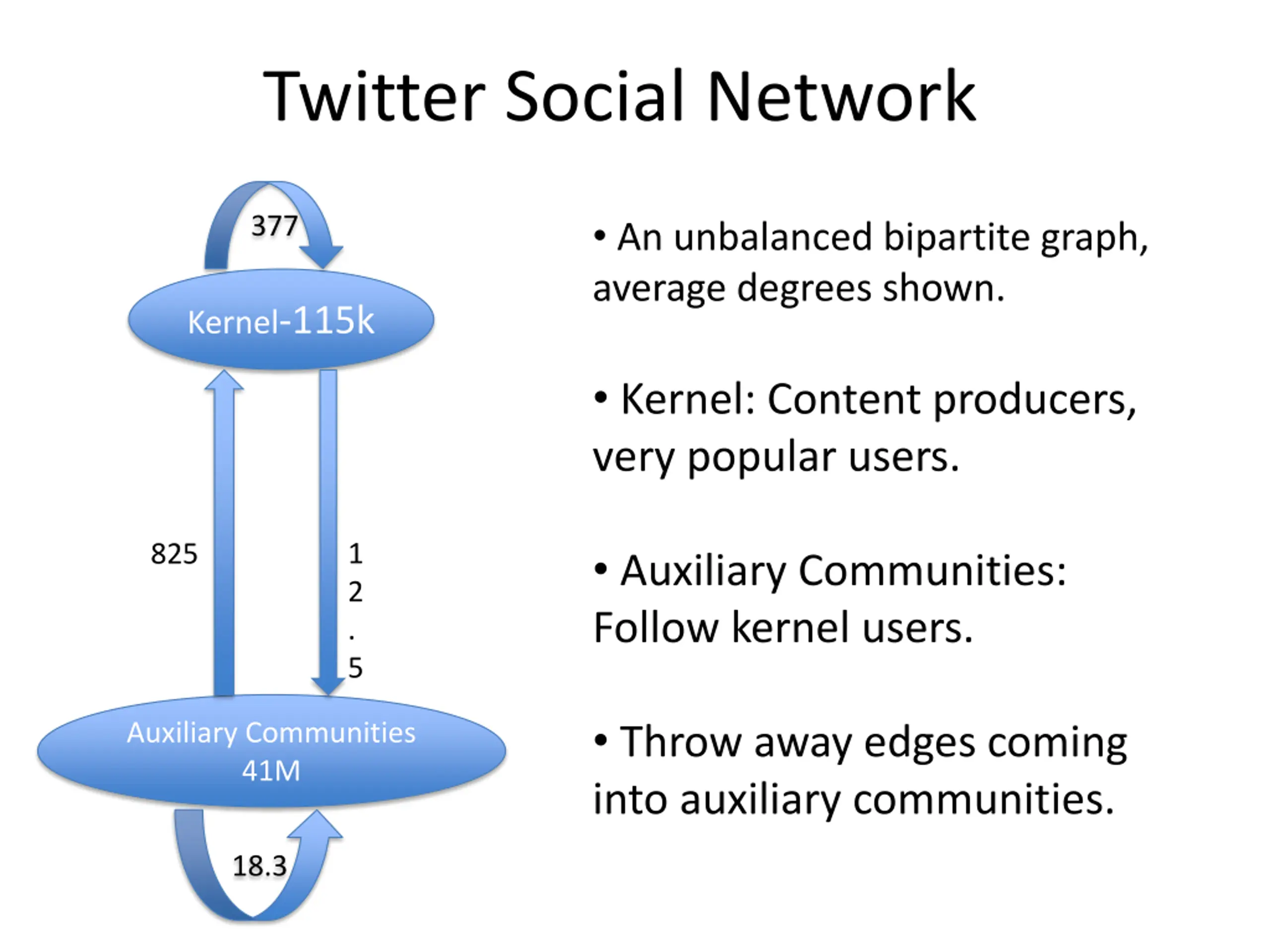

Twitter Social Network An unbalanced bipartite graph, average degrees shown. 377 Kernel-115k Kernel: Content producers, very popular users. 1 2 . 5 825 Auxiliary Communities: Follow kernel users. Throw away edges coming into auxiliary communities. Auxiliary Communities 41M 18.3

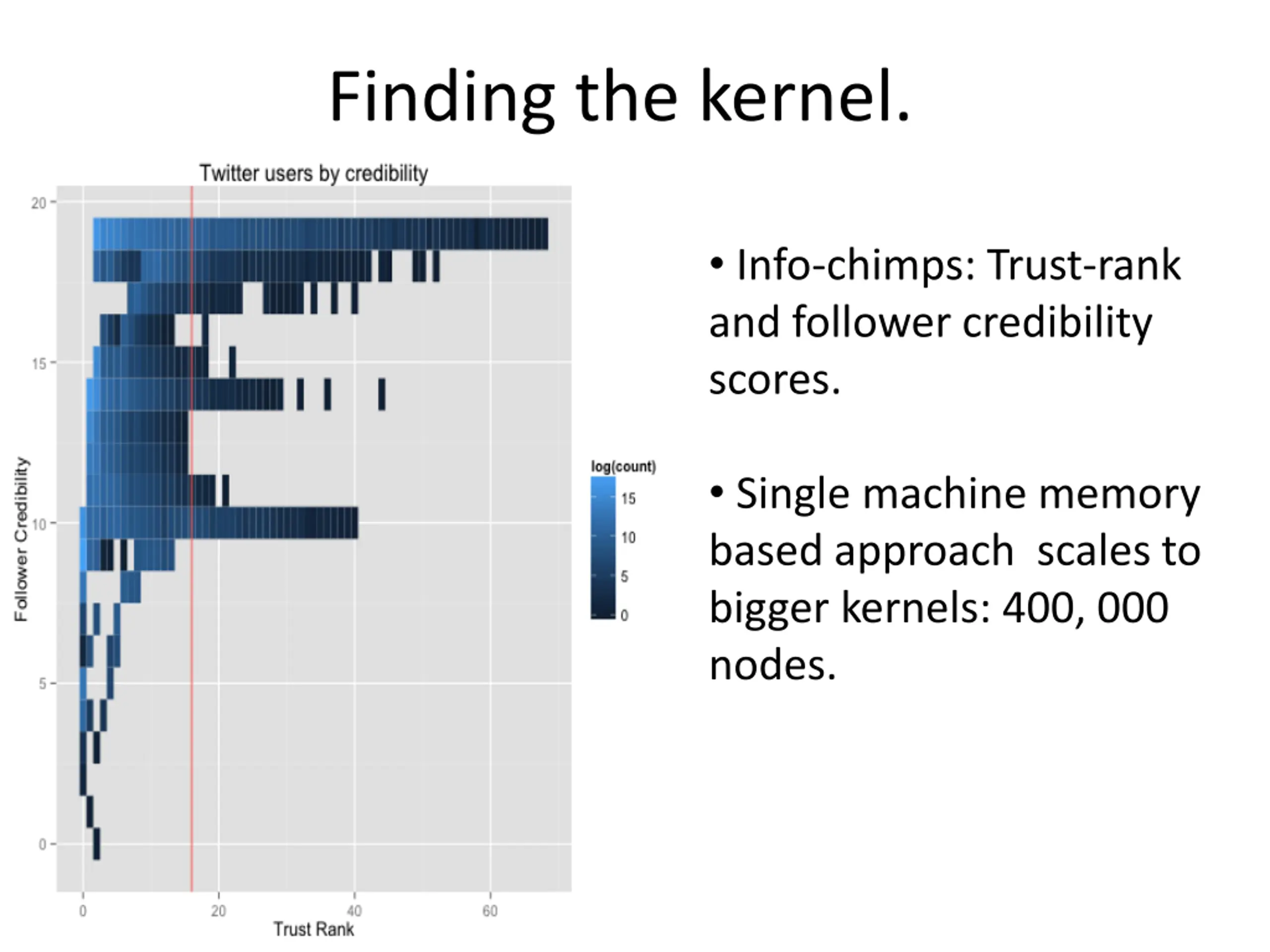

Finding the kernel. Info-chimps: Trust-rank and follower credibility scores. Single machine memory based approach scales to bigger kernels: 400, 000 nodes.

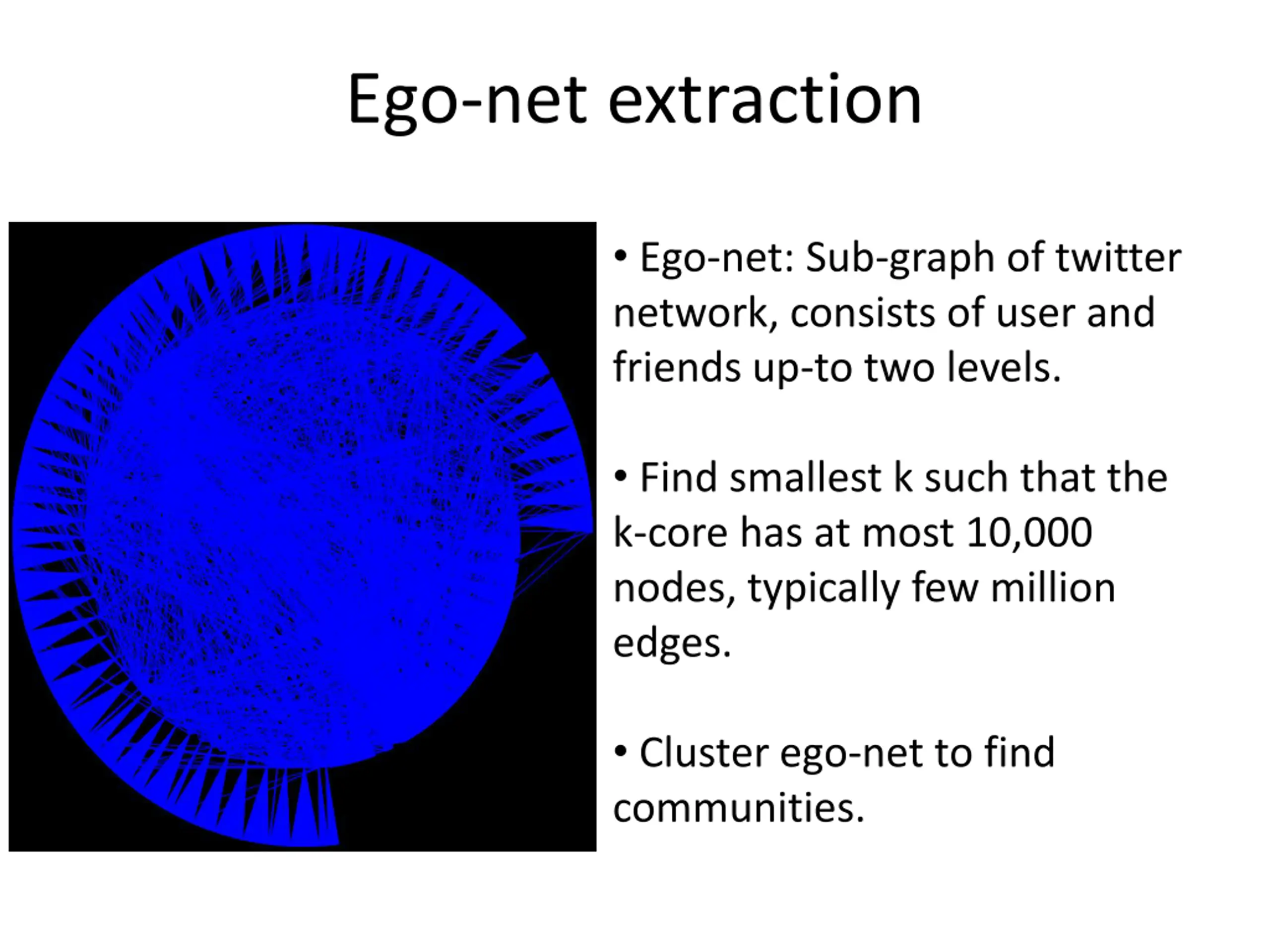

Ego-net extraction Ego-net: Sub-graph of twitter network, consists of user and friends up-to two levels. Find smallest k such that the k-core has at most 10,000 nodes, typically few million edges. Cluster ego-net to find communities.

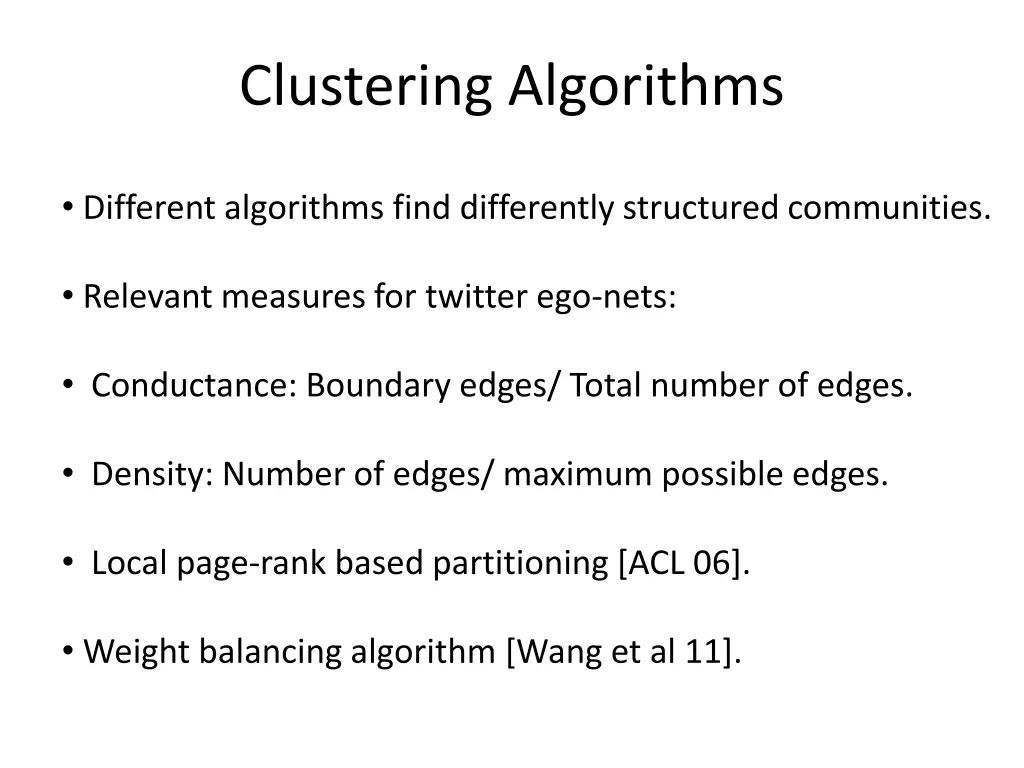

Clustering Algorithms Different algorithms find differently structured communities. Relevant measures for twitter ego-nets: Conductance: Boundary edges/ Total number of edges. Density: Number of edges/ maximum possible edges. Local page-rank based partitioning [ACL 06]. Weight balancing algorithm [Wang et al 11].

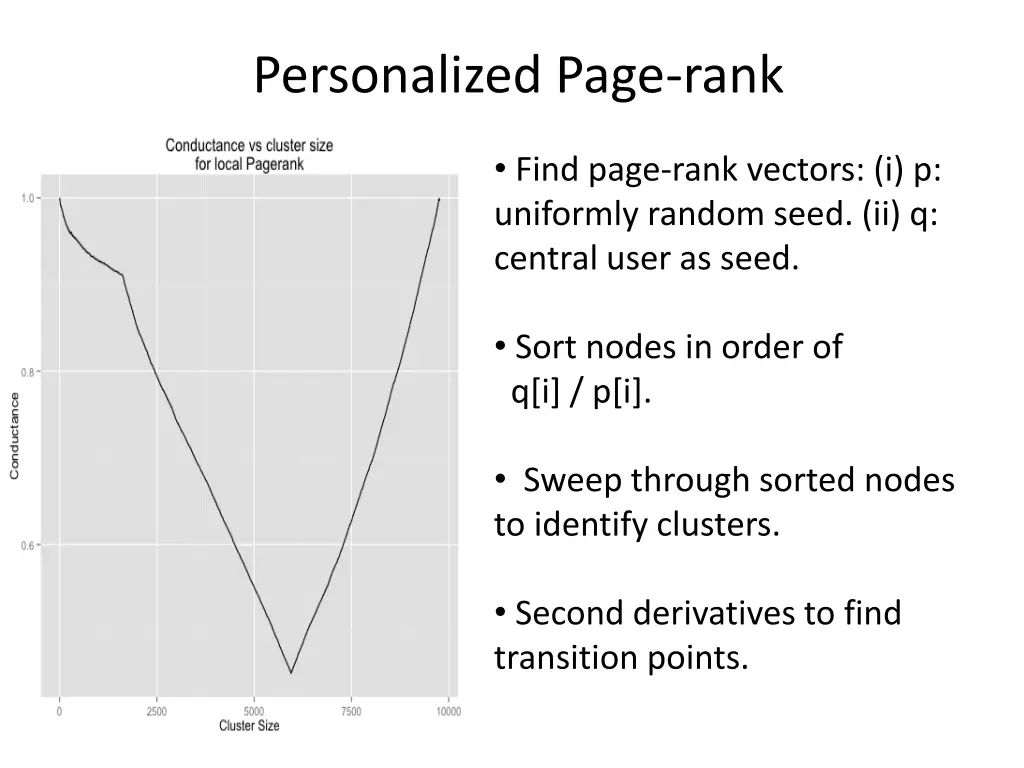

Personalized Page-rank Find page-rank vectors: (i) p: uniformly random seed. (ii) q: central user as seed. Sort nodes in order of q[i] / p[i]. Sweep through sorted nodes to identify clusters. Second derivatives to find transition points.

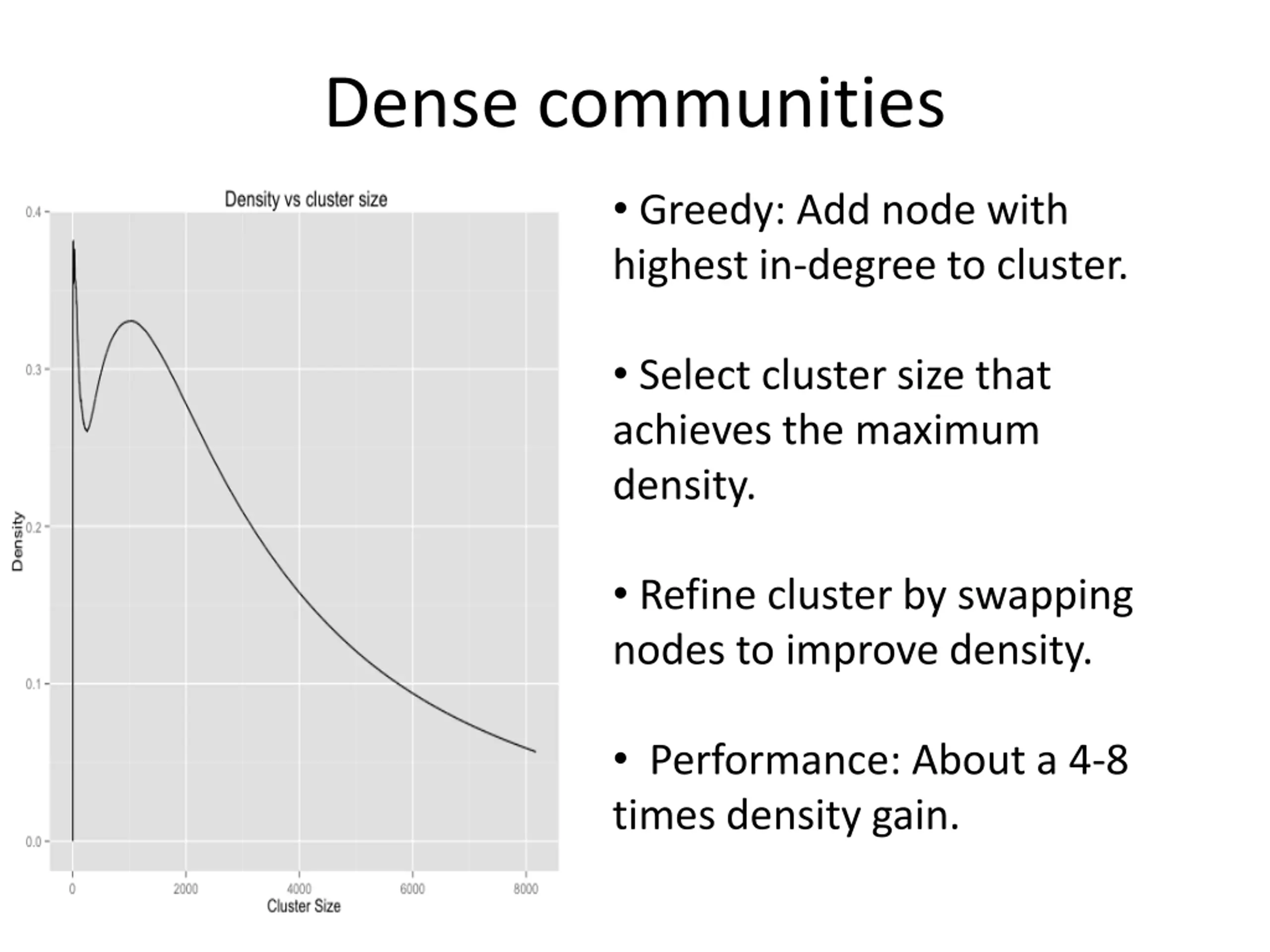

Dense communities Greedy: Add node with highest in-degree to cluster. Select cluster size that achieves the maximum density. Refine cluster by swapping nodes to improve density. Performance: About a 4-8 times density gain.

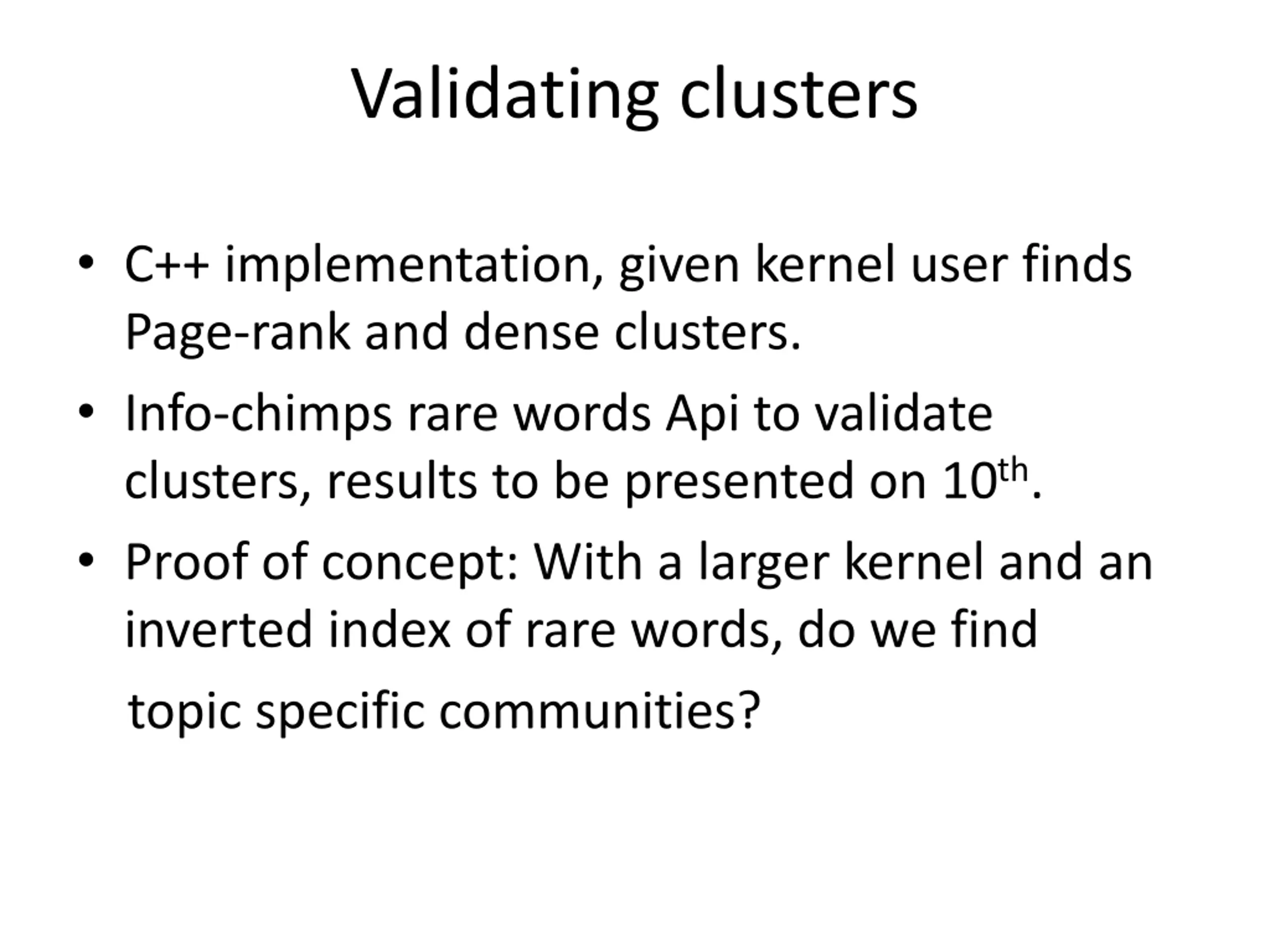

Validating clusters C++ implementation, given kernel user finds Page-rank and dense clusters. Info-chimps rare words Api to validate clusters, results to be presented on 10th. Proof of concept: With a larger kernel and an inverted index of rare words, do we find topic specific communities?

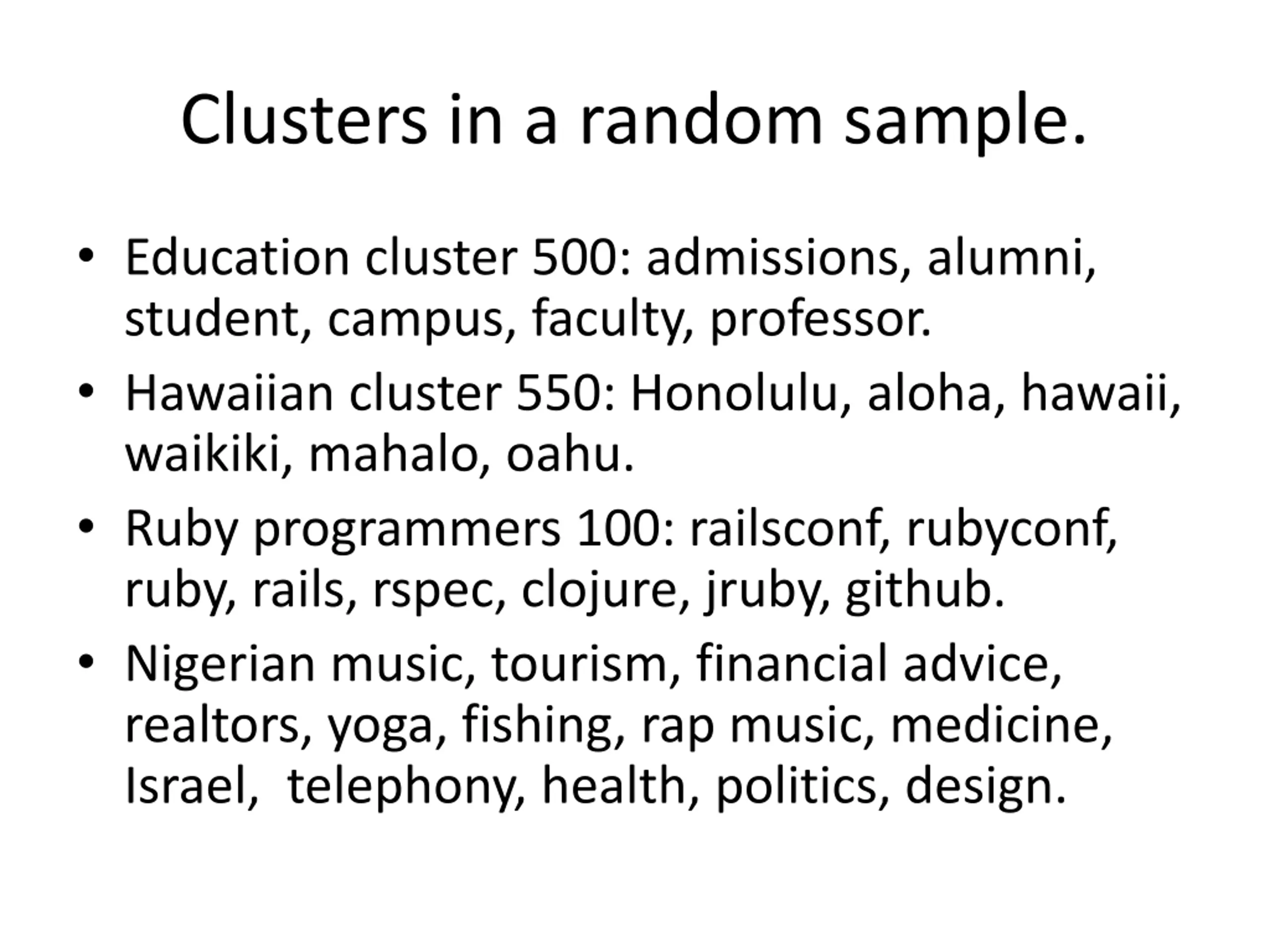

Clusters in a random sample. Education cluster 500: admissions, alumni, student, campus, faculty, professor. Hawaiian cluster 550: Honolulu, aloha, hawaii, waikiki, mahalo, oahu. Ruby programmers 100: railsconf, rubyconf, ruby, rails, rspec, clojure, jruby, github. Nigerian music, tourism, financial advice, realtors, yoga, fishing, rap music, medicine, Israel, telephony, health, politics, design.
Thank You Questions?
