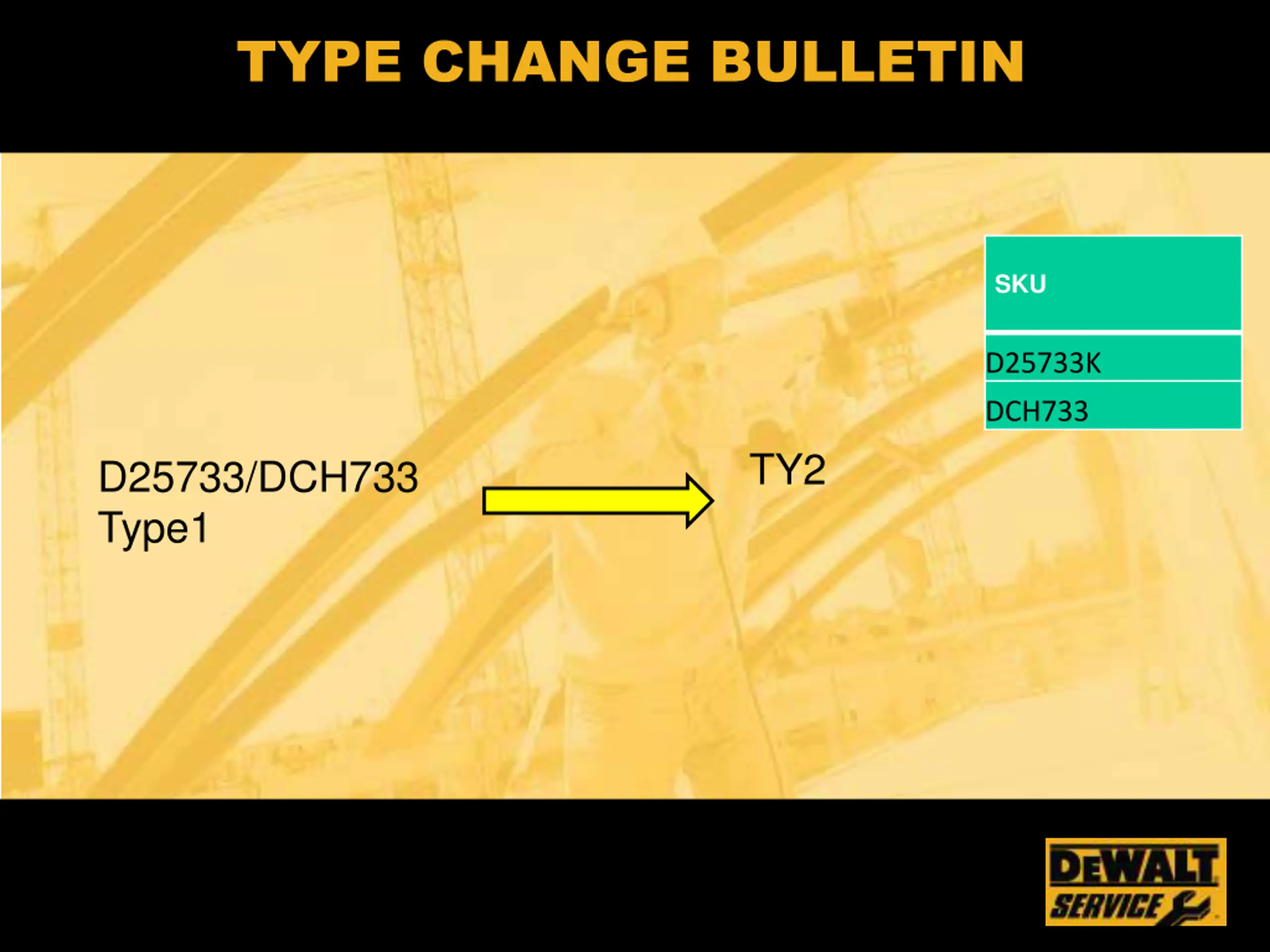

TYPE CHANGE BULLETIN SKU D25733K DCH733 TY2 D25733/DCH733 Type1

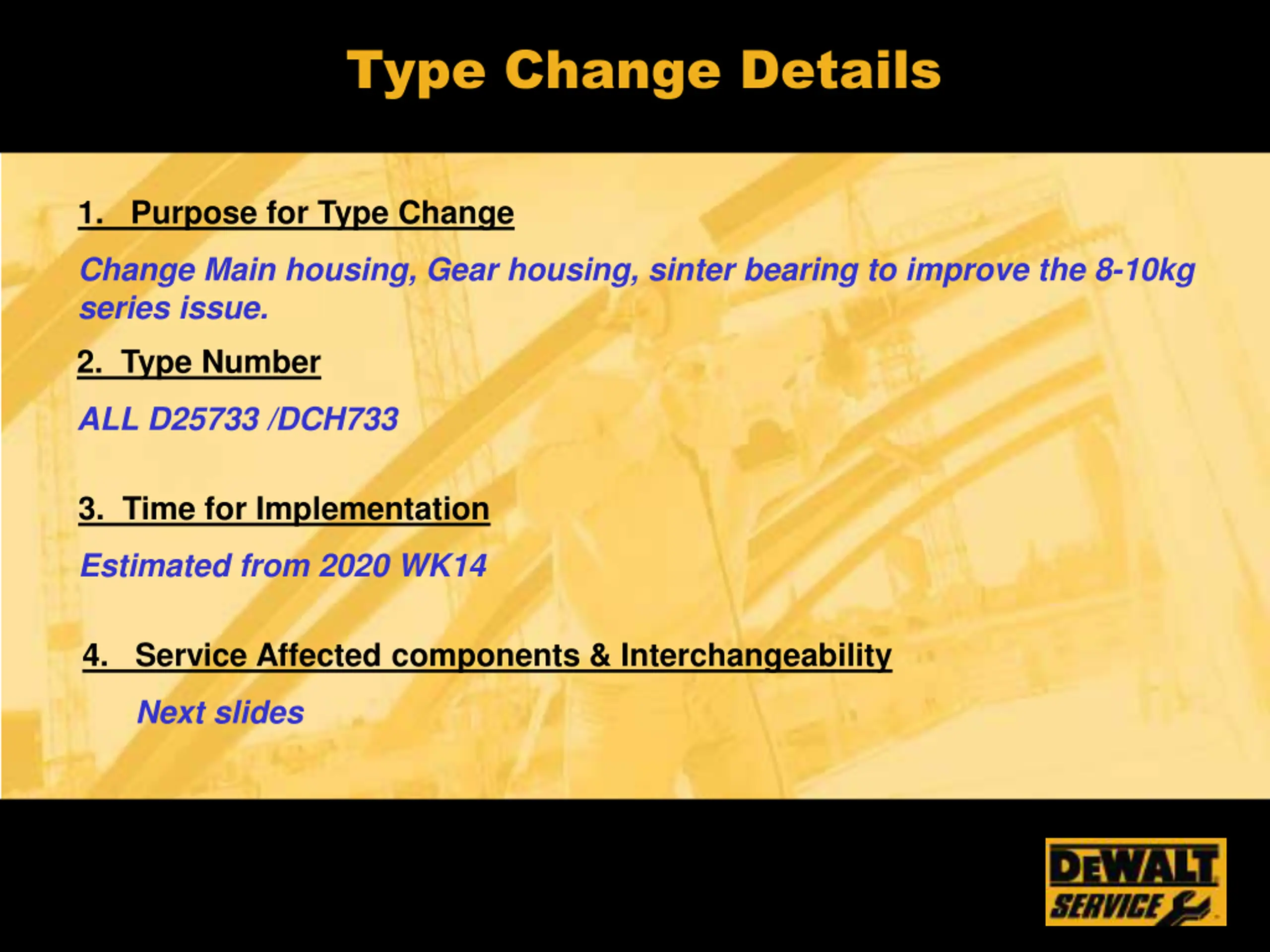

Type Change Details 1. Purpose for Type Change Change Main housing, Gear housing, sinter bearing to improve the 8-10kg series issue. 2. Type Number ALL D25733 /DCH733 3. Time for Implementation Estimated from 2020 WK14 4. Service Affected components & Interchangeability Next slides

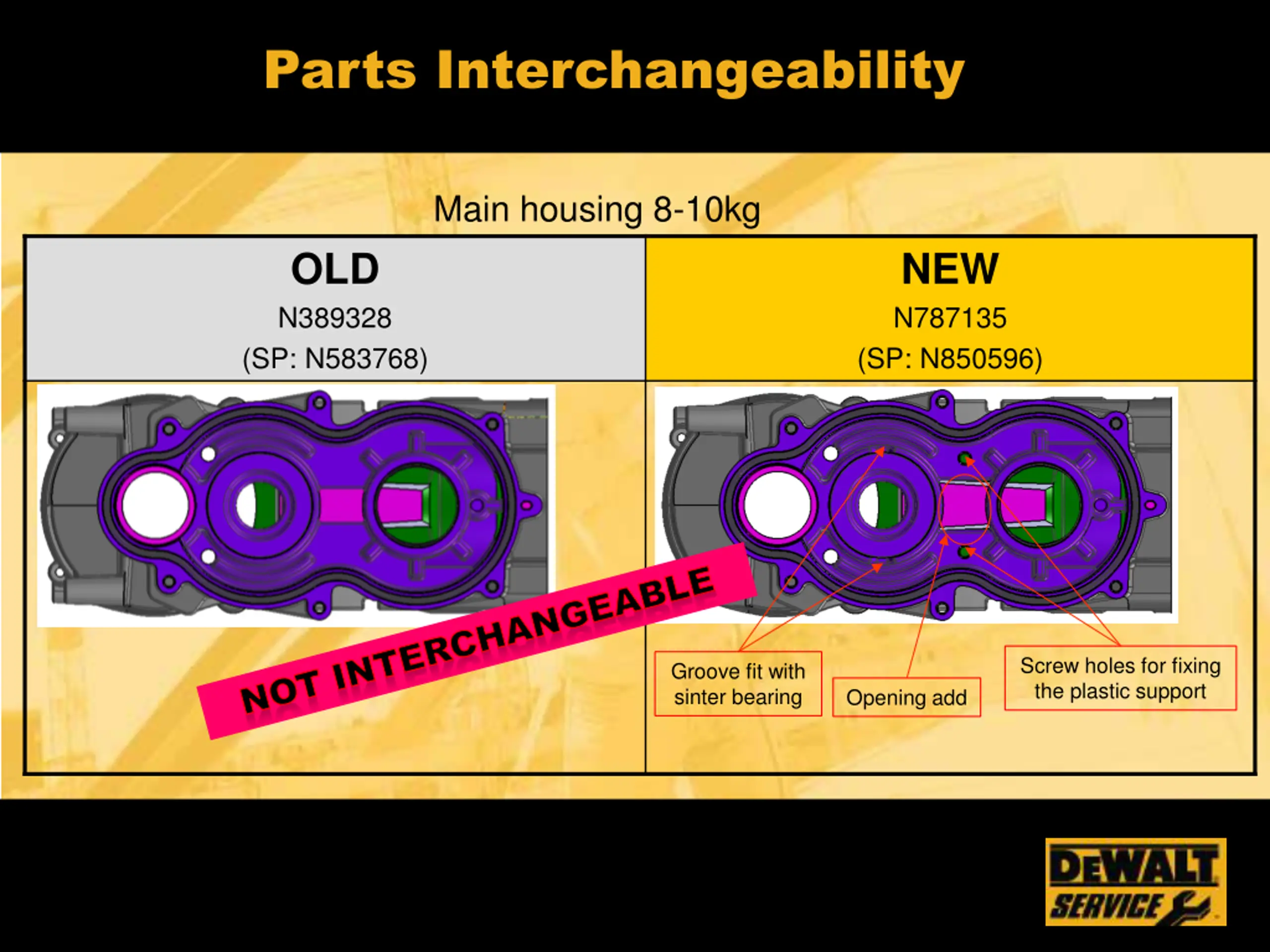

Parts Interchangeability Main housing 8-10kg OLD N389328 (SP: N583768) NEW N787135 (SP: N850596) NOT INTERCHANGEABLE NOT INTERCHANGEABLE Screw holes for fixing the plastic support Groove fit with sinter bearing Opening add

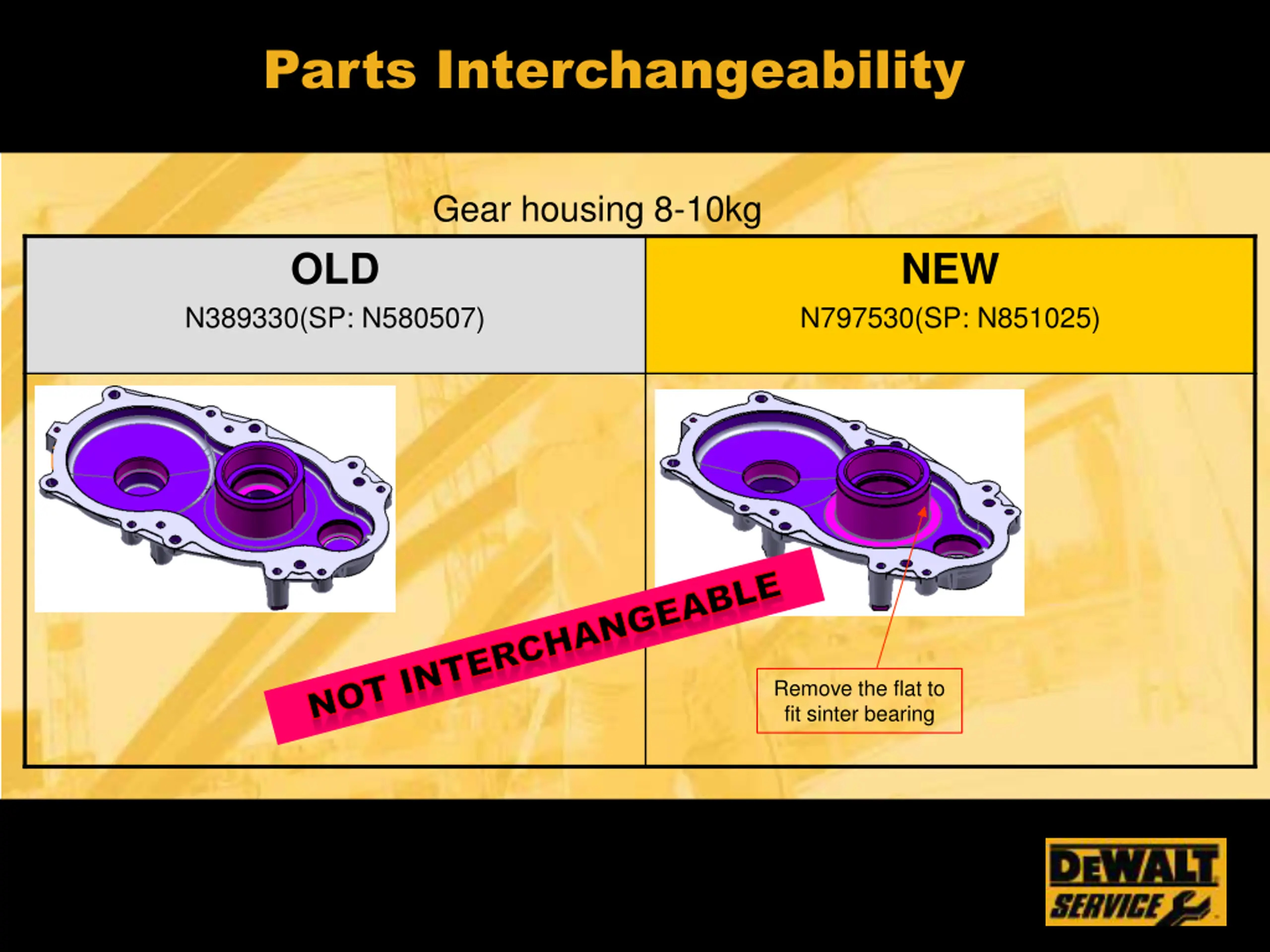

Parts Interchangeability Gear housing 8-10kg OLD NEW N389330(SP: N580507) N797530(SP: N851025) NOT INTERCHANGEABLE NOT INTERCHANGEABLE Remove the flat to fit sinter bearing

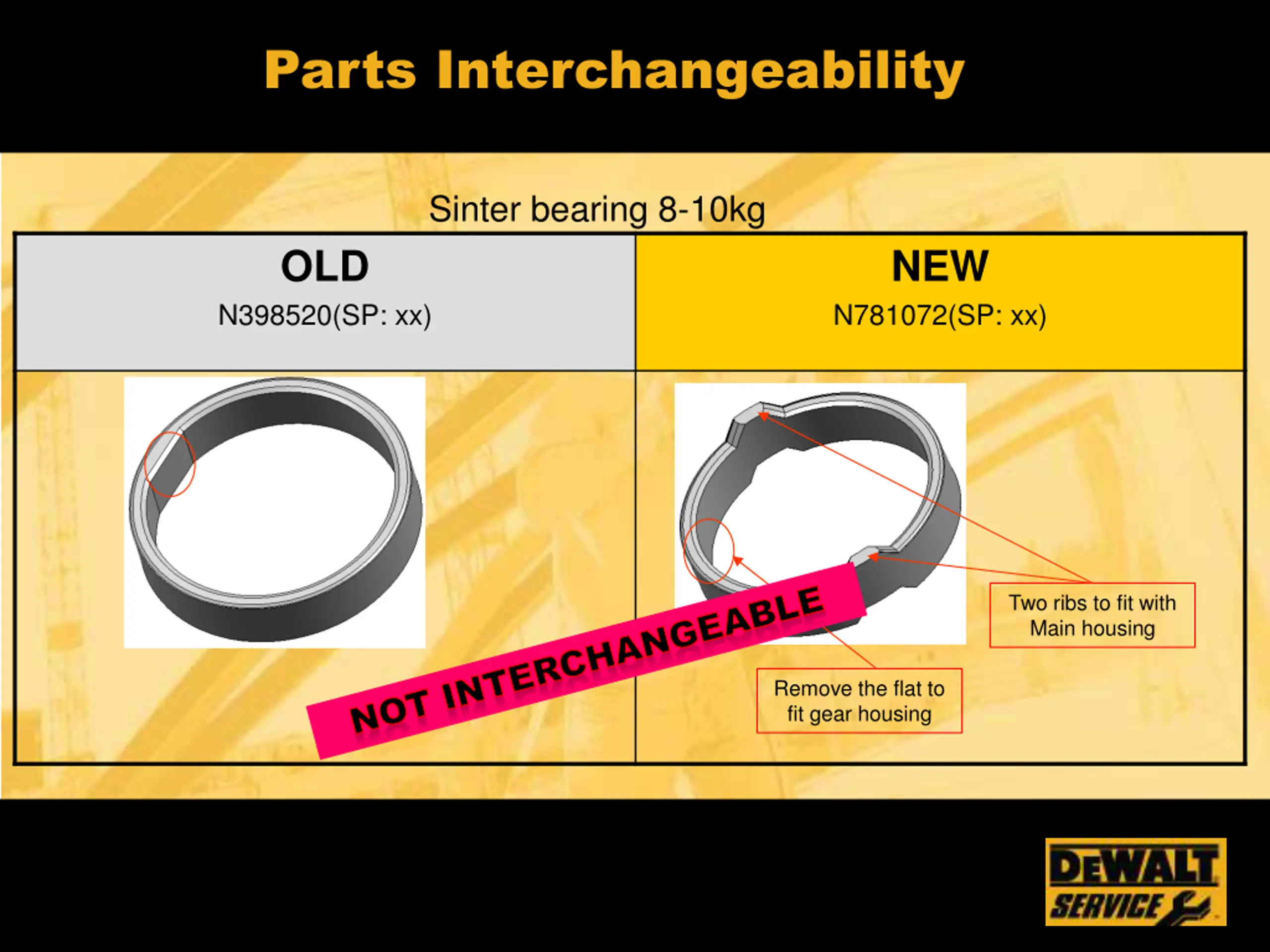

Parts Interchangeability Sinter bearing 8-10kg OLD NEW N398520(SP: xx) N781072(SP: xx) NOT INTERCHANGEABLE NOT INTERCHANGEABLE Two ribs to fit with Main housing Remove the flat to fit gear housing
