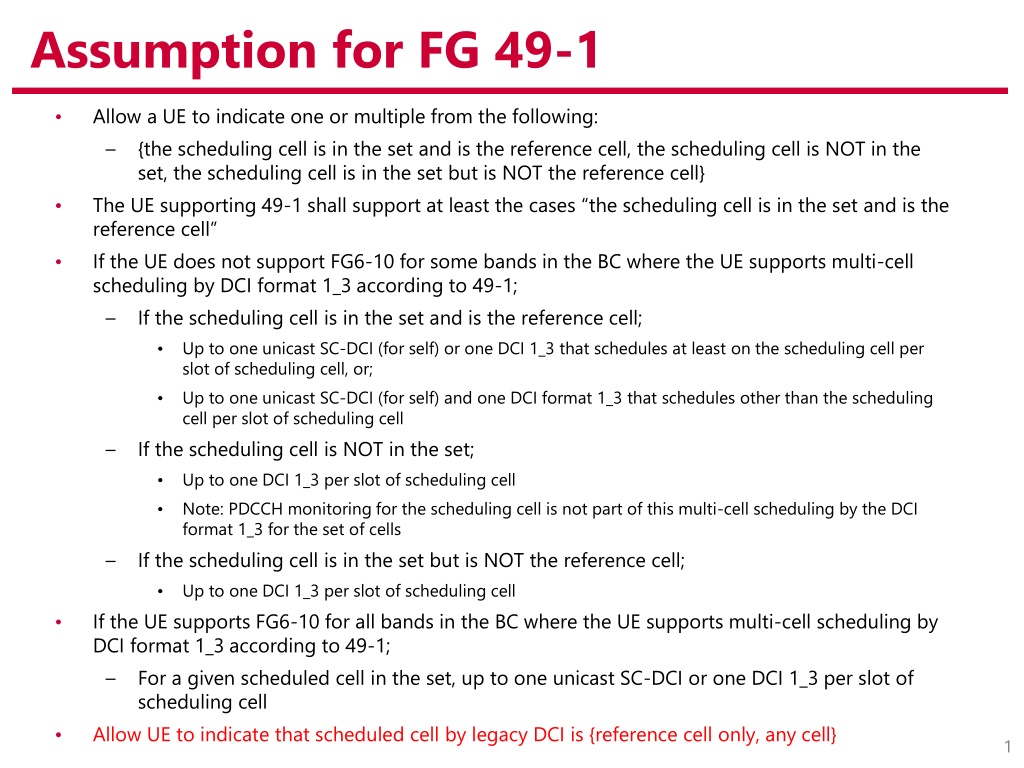

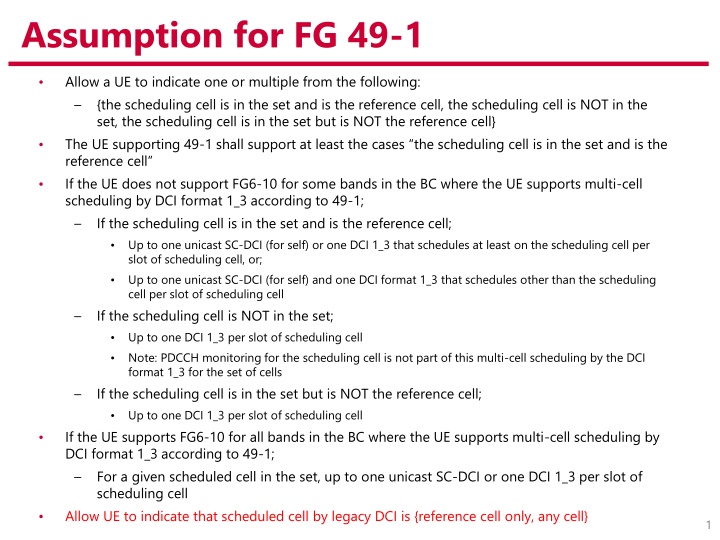

Assumption for FG 49-1 Allow a UE to indicate one or multiple from the following: {the scheduling cell is in the set and is the reference cell, the scheduling cell is NOT in the set, the scheduling cell is in the set but is NOT the reference cell} The UE supporting 49-1 shall support at least the cases the scheduling cell is in the set and is the reference cell If the UE does not support FG6-10 for some bands in the BC where the UE supports multi-cell scheduling by DCI format 1_3 according to 49-1; If the scheduling cell is in the set and is the reference cell; Up to one unicast SC-DCI (for self) or one DCI 1_3 that schedules at least on the scheduling cell per slot of scheduling cell, or; Up to one unicast SC-DCI (for self) and one DCI format 1_3 that schedules other than the scheduling cell per slot of scheduling cell If the scheduling cell is NOT in the set; Up to one DCI 1_3 per slot of scheduling cell Note: PDCCH monitoring for the scheduling cell is not part of this multi-cell scheduling by the DCI format 1_3 for the set of cells If the scheduling cell is in the set but is NOT the reference cell; Up to one DCI 1_3 per slot of scheduling cell If the UE supports FG6-10 for all bands in the BC where the UE supports multi-cell scheduling by DCI format 1_3 according to 49-1; For a given scheduled cell in the set, up to one unicast SC-DCI or one DCI 1_3 per slot of scheduling cell Allow UE to indicate that scheduled cell by legacy DCI is {reference cell only, any cell} 1

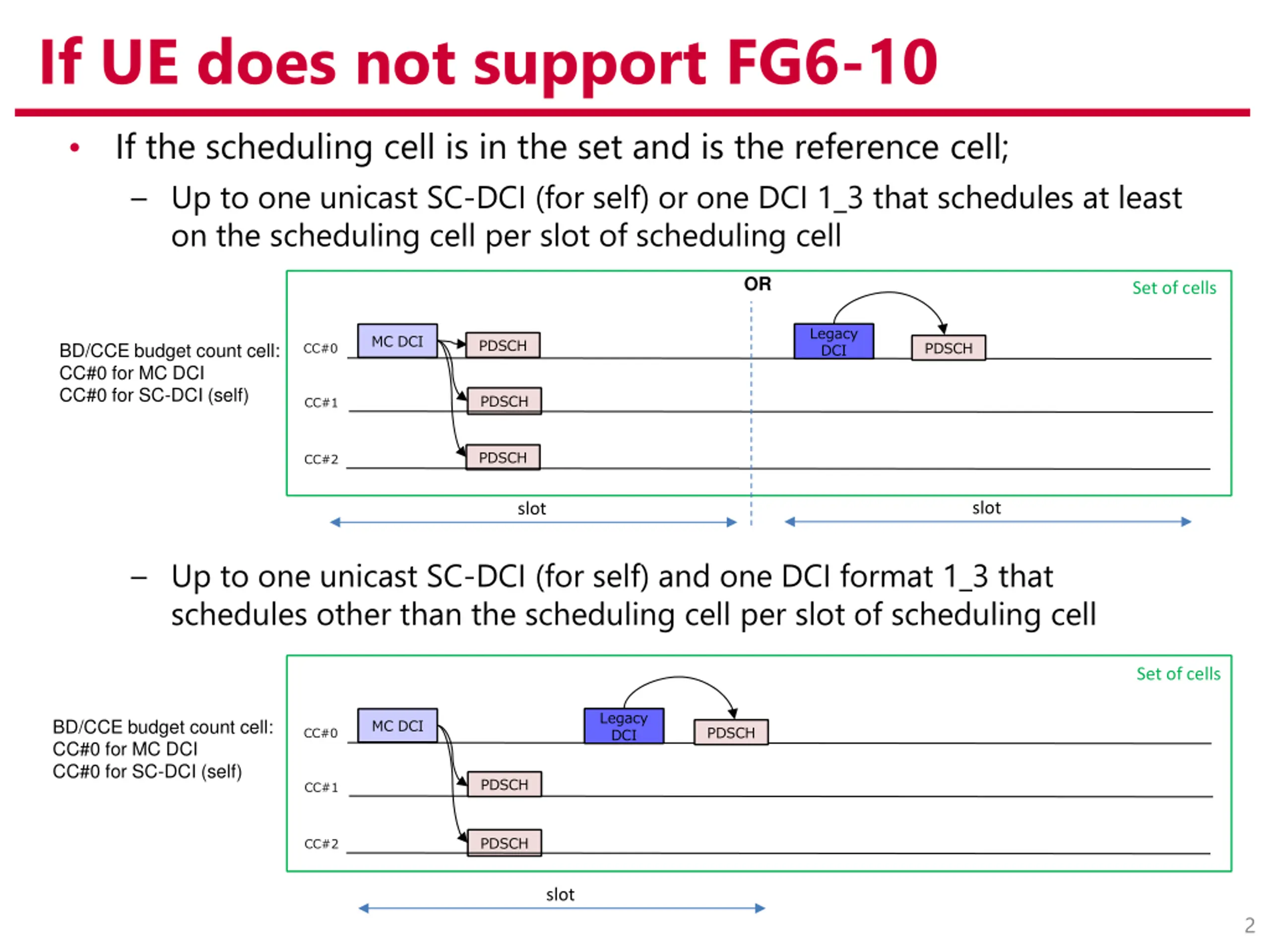

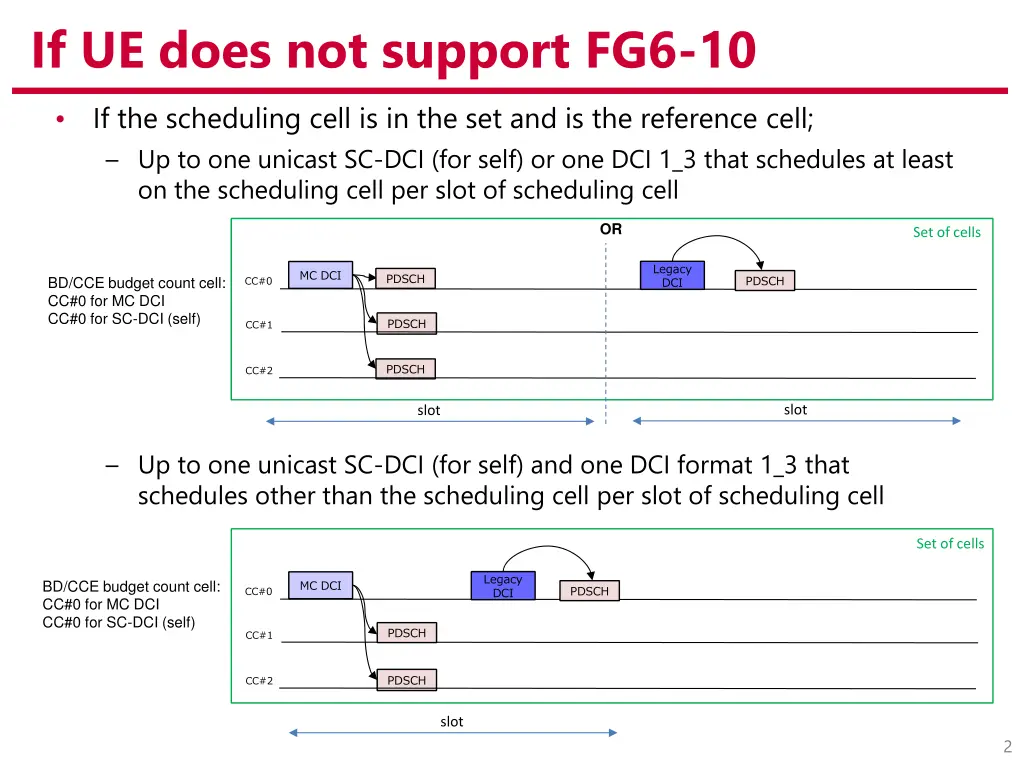

If UE does not support FG6-10 If the scheduling cell is in the set and is the reference cell; Up to one unicast SC-DCI (for self) or one DCI 1_3 that schedules at least on the scheduling cell per slot of scheduling cell OR Set of cells Legacy DCI MC DCI PDSCH PDSCH BD/CCE budget count cell: CC#0 for MC DCI CC#0 for SC-DCI (self) CC#0 PDSCH CC#1 PDSCH CC#2 slot slot Up to one unicast SC-DCI (for self) and one DCI format 1_3 that schedules other than the scheduling cell per slot of scheduling cell Set of cells Legacy DCI BD/CCE budget count cell: CC#0 for MC DCI CC#0 for SC-DCI (self) MC DCI PDSCH CC#0 PDSCH CC#1 PDSCH CC#2 slot 2

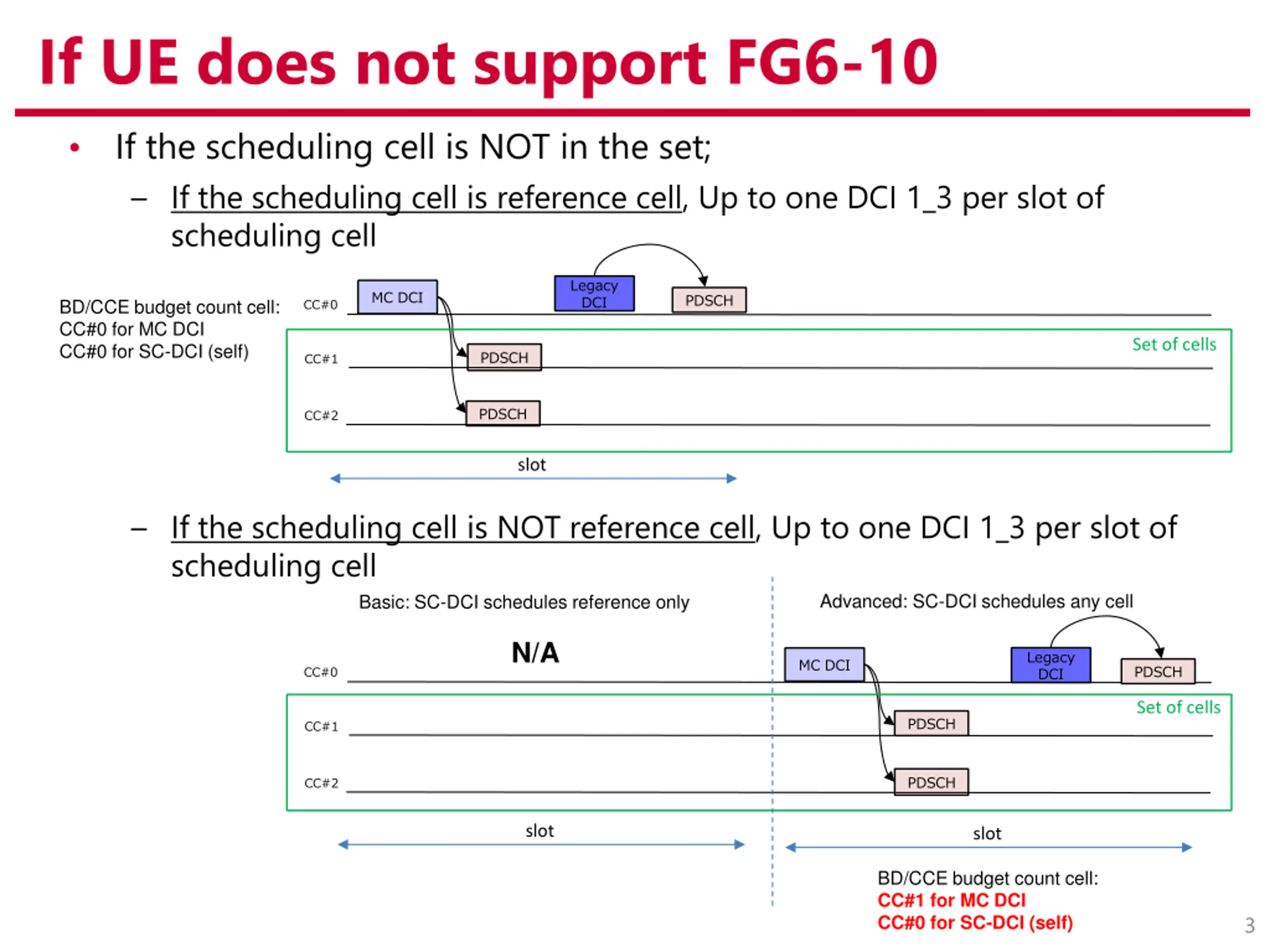

If UE does not support FG6-10 If the scheduling cell is NOT in the set; If the scheduling cell is reference cell, Up to one DCI 1_3 per slot of scheduling cell Legacy DCI MC DCI PDSCH BD/CCE budget count cell: CC#0 for MC DCI CC#0 for SC-DCI (self) CC#0 Set of cells PDSCH CC#1 PDSCH CC#2 slot If the scheduling cell is NOT reference cell, Up to one DCI 1_3 per slot of scheduling cell Basic: SC-DCI schedules reference only Advanced: SC-DCI schedules any cell N/A Legacy DCI MC DCI PDSCH CC#0 Set of cells PDSCH CC#1 PDSCH CC#2 slot slot BD/CCE budget count cell: CC#1 for MC DCI CC#0 for SC-DCI (self) 3

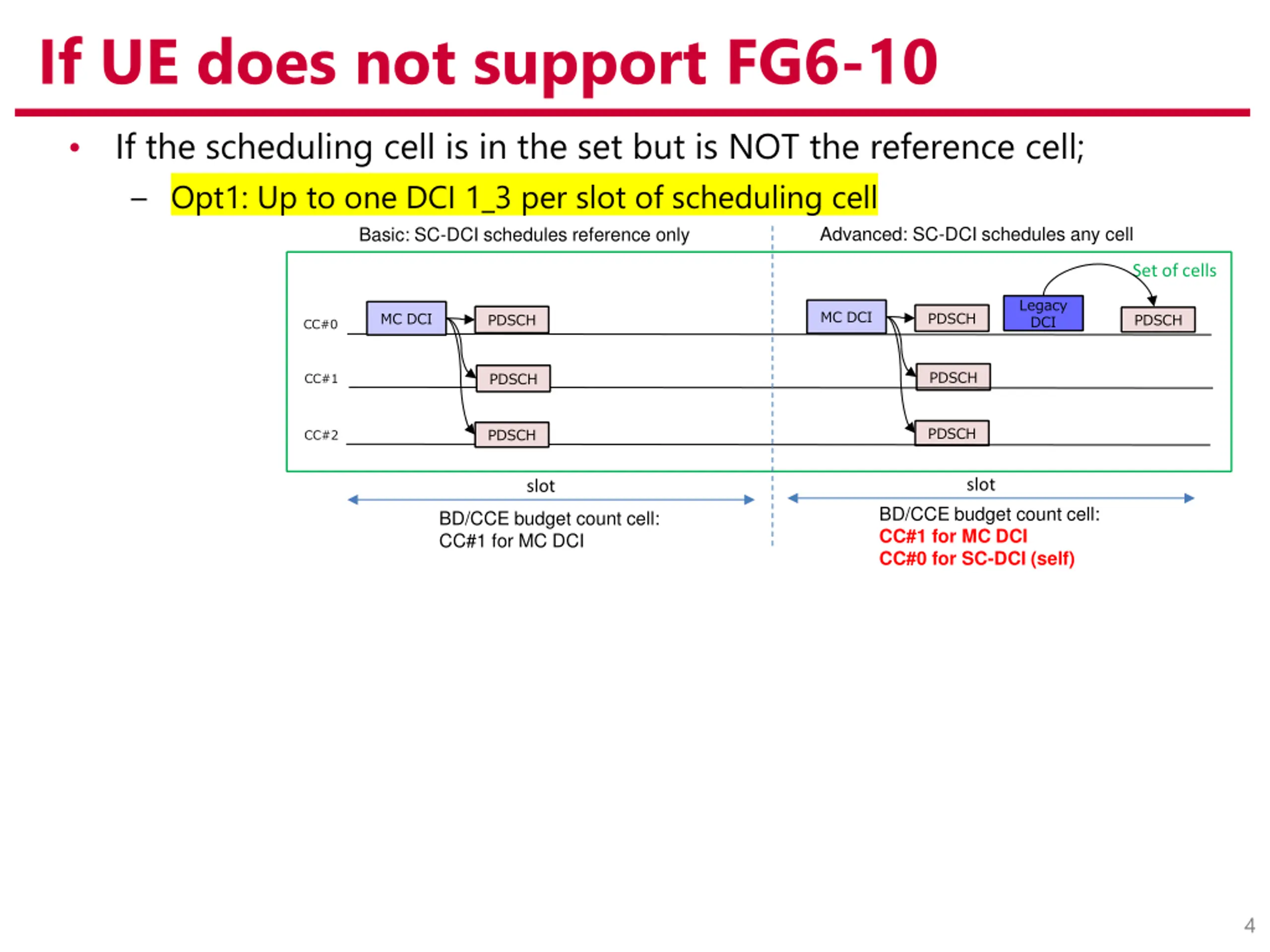

If UE does not support FG6-10 If the scheduling cell is in the set but is NOT the reference cell; Opt1: Up to one DCI 1_3 per slot of scheduling cell Basic: SC-DCI schedules reference only Advanced: SC-DCI schedules any cell Set of cells Legacy DCI MC DCI PDSCH MC DCI PDSCH PDSCH CC#0 PDSCH PDSCH CC#1 PDSCH PDSCH CC#2 slot slot BD/CCE budget count cell: CC#1 for MC DCI CC#0 for SC-DCI (self) BD/CCE budget count cell: CC#1 for MC DCI 4

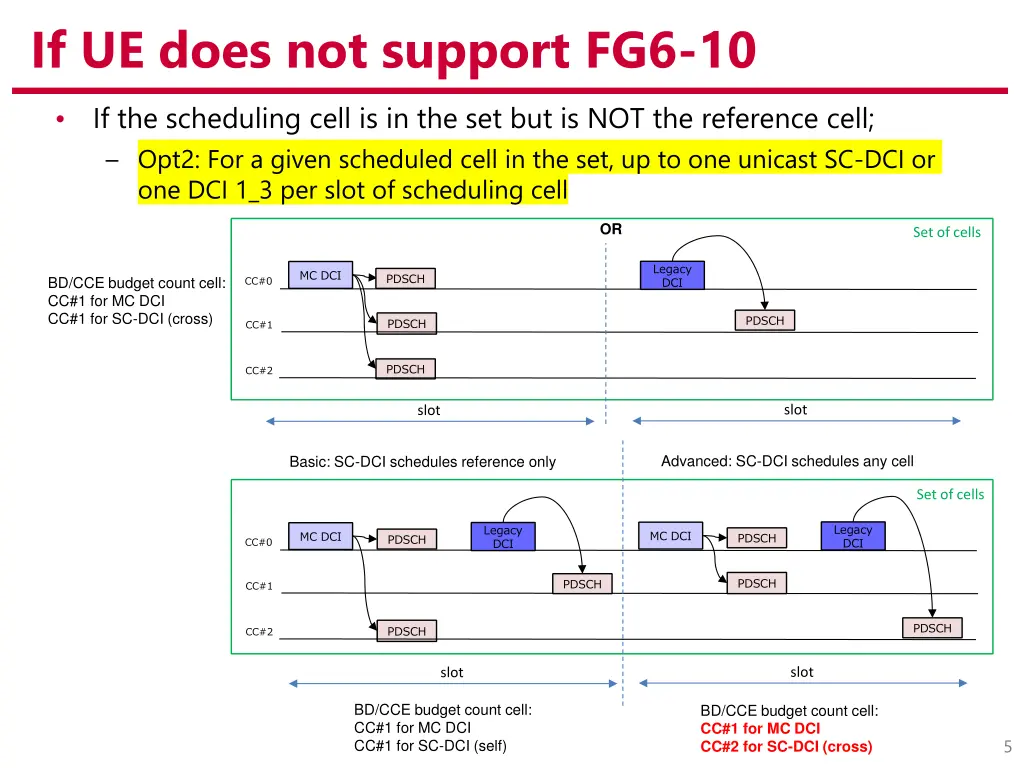

If UE does not support FG6-10 If the scheduling cell is in the set but is NOT the reference cell; Opt2: For a given scheduled cell in the set, up to one unicast SC-DCI or one DCI 1_3 per slot of scheduling cell OR Set of cells Legacy DCI MC DCI PDSCH BD/CCE budget count cell: CC#1 for MC DCI CC#1 for SC-DCI (cross) CC#0 PDSCH PDSCH CC#1 PDSCH CC#2 slot slot Advanced: SC-DCI schedules any cell Basic: SC-DCI schedules reference only Set of cells Legacy DCI Legacy DCI MC DCI MC DCI PDSCH PDSCH CC#0 PDSCH PDSCH CC#1 PDSCH PDSCH CC#2 slot slot BD/CCE budget count cell: CC#1 for MC DCI CC#1 for SC-DCI (self) BD/CCE budget count cell: CC#1 for MC DCI CC#2 for SC-DCI (cross) 5

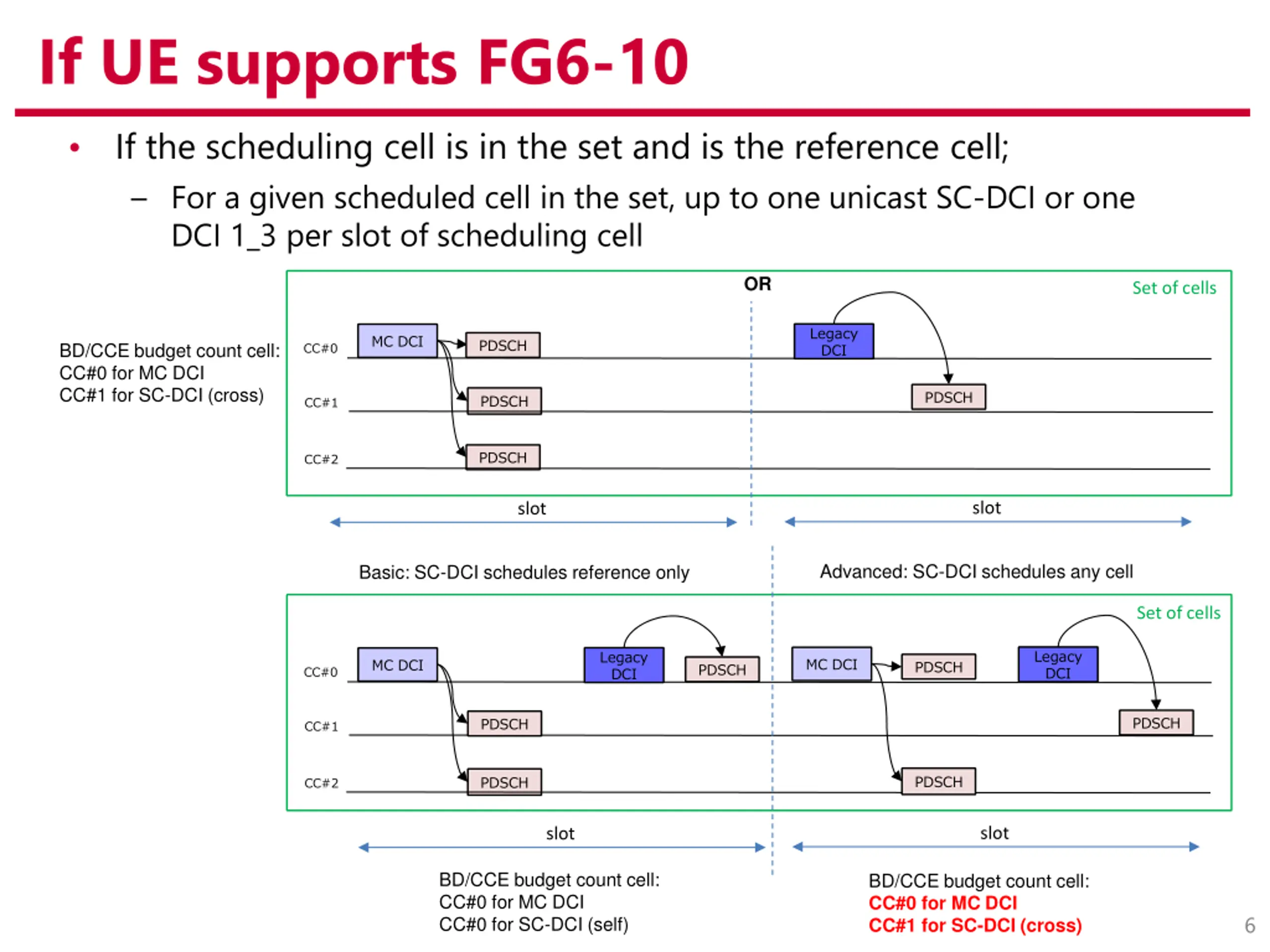

If UE supports FG6-10 If the scheduling cell is in the set and is the reference cell; For a given scheduled cell in the set, up to one unicast SC-DCI or one DCI 1_3 per slot of scheduling cell OR Set of cells Legacy DCI MC DCI PDSCH BD/CCE budget count cell: CC#0 for MC DCI CC#1 for SC-DCI (cross) CC#0 PDSCH PDSCH CC#1 PDSCH CC#2 slot slot Advanced: SC-DCI schedules any cell Basic: SC-DCI schedules reference only Set of cells Legacy DCI Legacy DCI MC DCI MC DCI PDSCH PDSCH CC#0 PDSCH PDSCH CC#1 PDSCH PDSCH CC#2 slot slot BD/CCE budget count cell: CC#0 for MC DCI CC#0 for SC-DCI (self) BD/CCE budget count cell: CC#0 for MC DCI CC#1 for SC-DCI (cross) 6

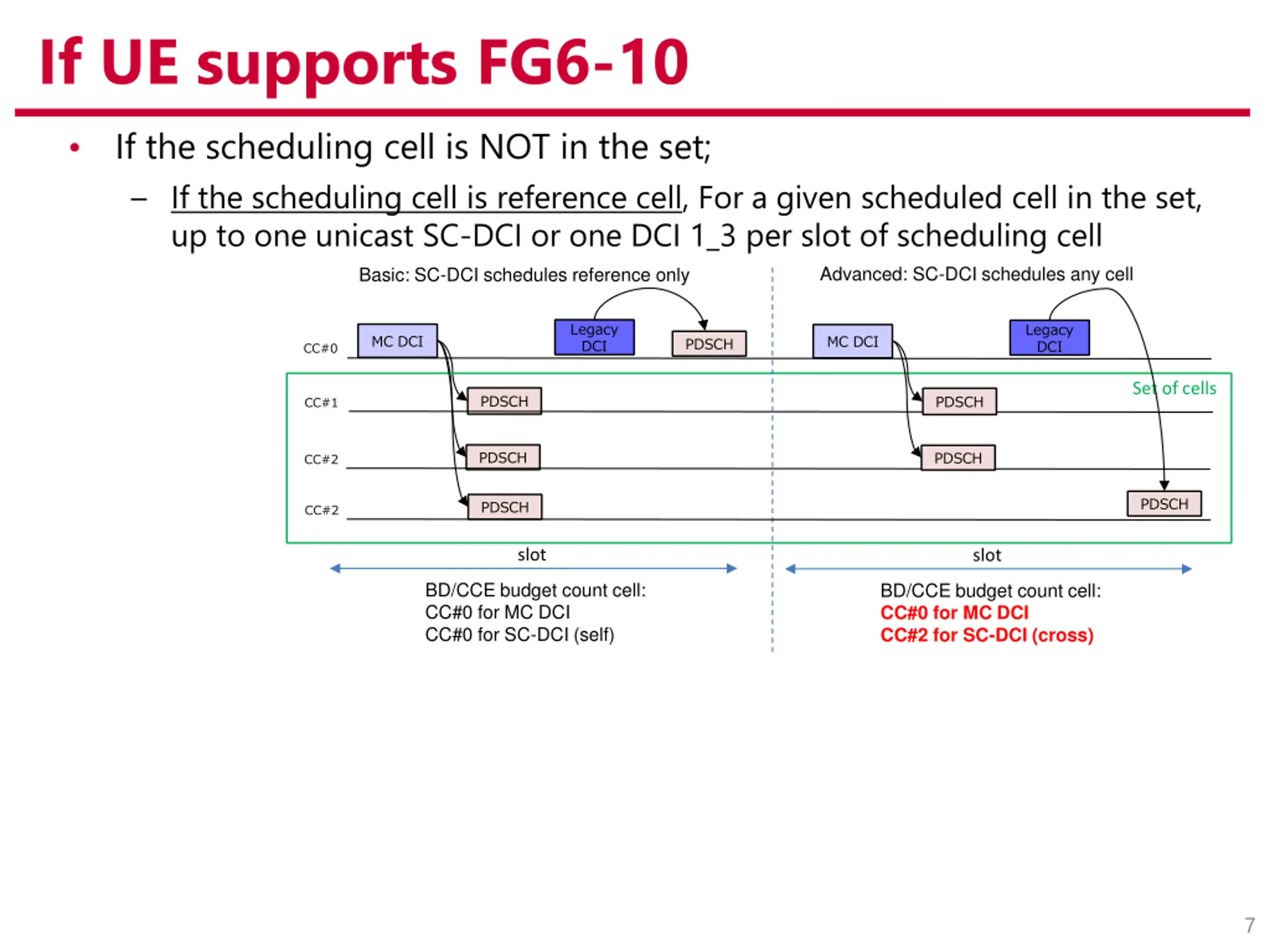

If UE supports FG6-10 If the scheduling cell is NOT in the set; If the scheduling cell is reference cell, For a given scheduled cell in the set, up to one unicast SC-DCI or one DCI 1_3 per slot of scheduling cell Basic: SC-DCI schedules reference only Advanced: SC-DCI schedules any cell Legacy DCI Legacy DCI MC DCI MC DCI PDSCH CC#0 Set of cells PDSCH PDSCH CC#1 PDSCH PDSCH CC#2 PDSCH PDSCH CC#2 slot slot BD/CCE budget count cell: CC#0 for MC DCI CC#0 for SC-DCI (self) BD/CCE budget count cell: CC#0 for MC DCI CC#2 for SC-DCI (cross) 7

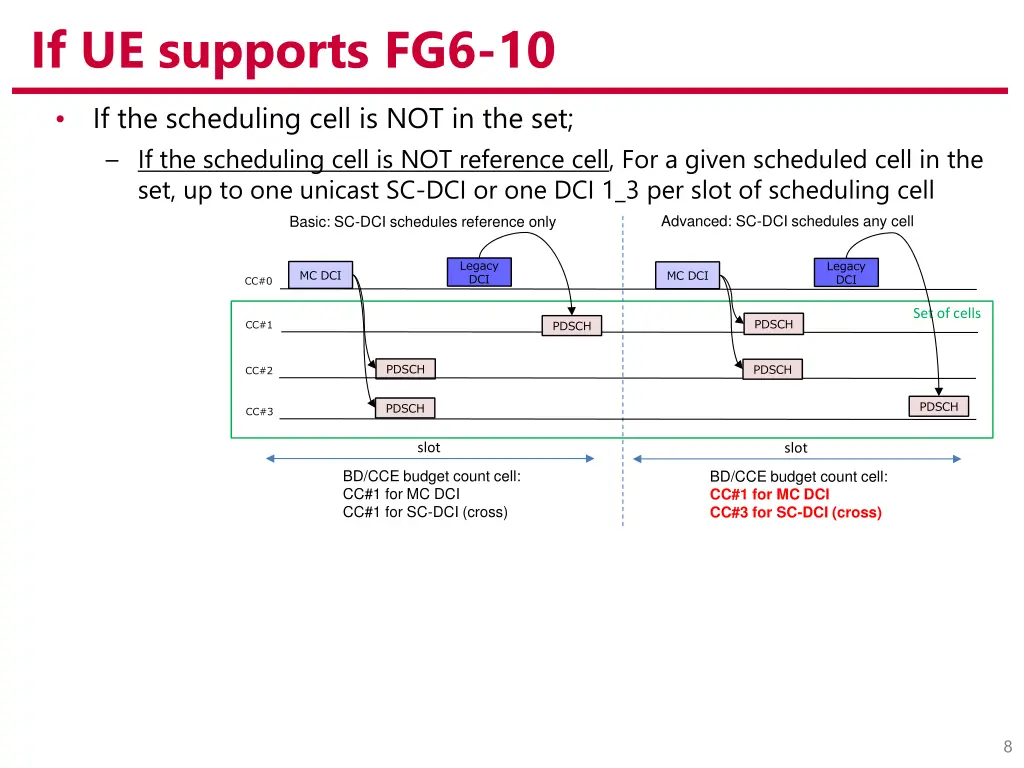

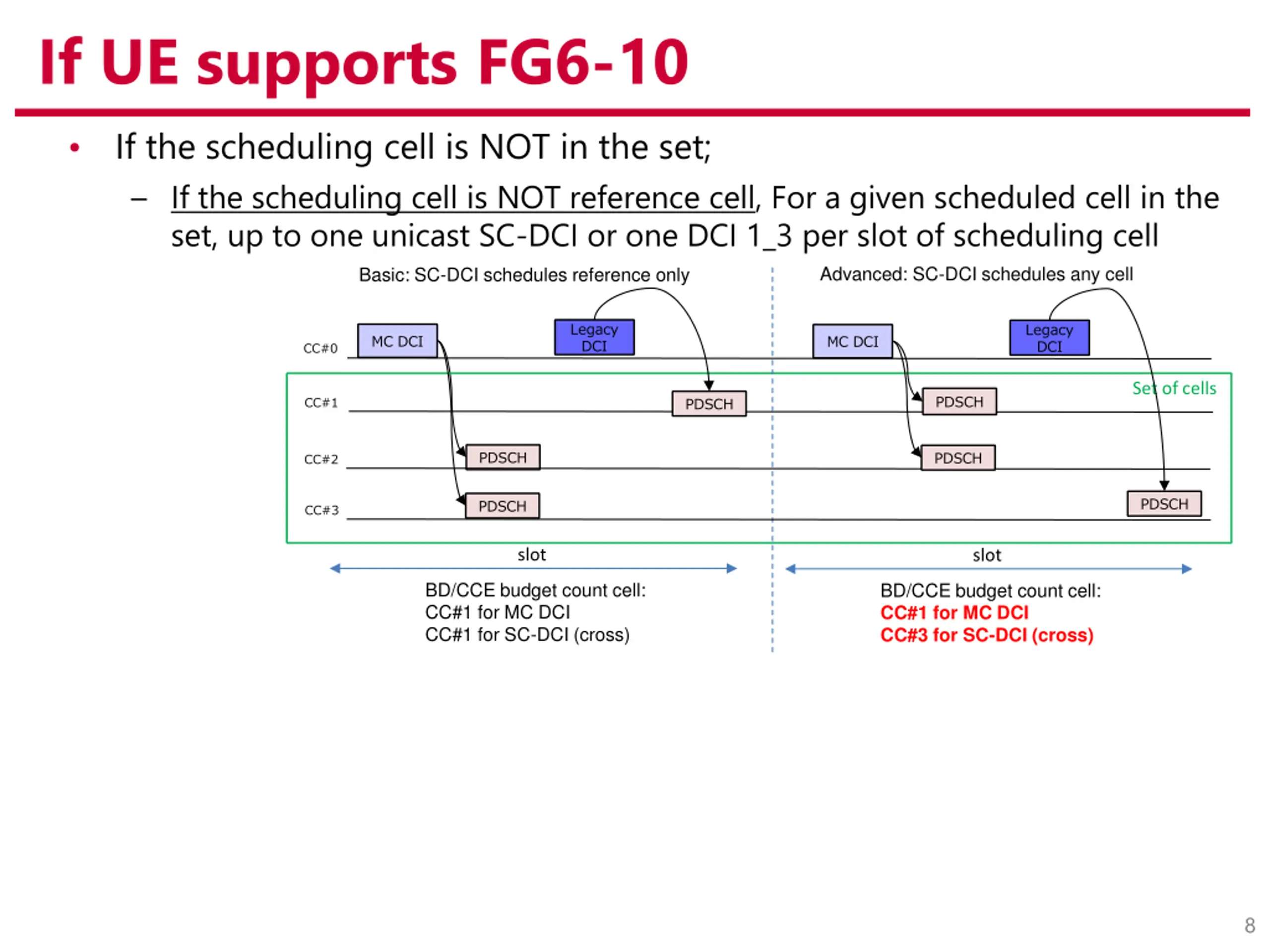

If UE supports FG6-10 If the scheduling cell is NOT in the set; If the scheduling cell is NOT reference cell, For a given scheduled cell in the set, up to one unicast SC-DCI or one DCI 1_3 per slot of scheduling cell Basic: SC-DCI schedules reference only Advanced: SC-DCI schedules any cell Legacy DCI Legacy DCI MC DCI MC DCI CC#0 Set of cells PDSCH CC#1 PDSCH PDSCH PDSCH CC#2 PDSCH PDSCH CC#3 slot slot BD/CCE budget count cell: CC#1 for MC DCI CC#1 for SC-DCI (cross) BD/CCE budget count cell: CC#1 for MC DCI CC#3 for SC-DCI (cross) 8

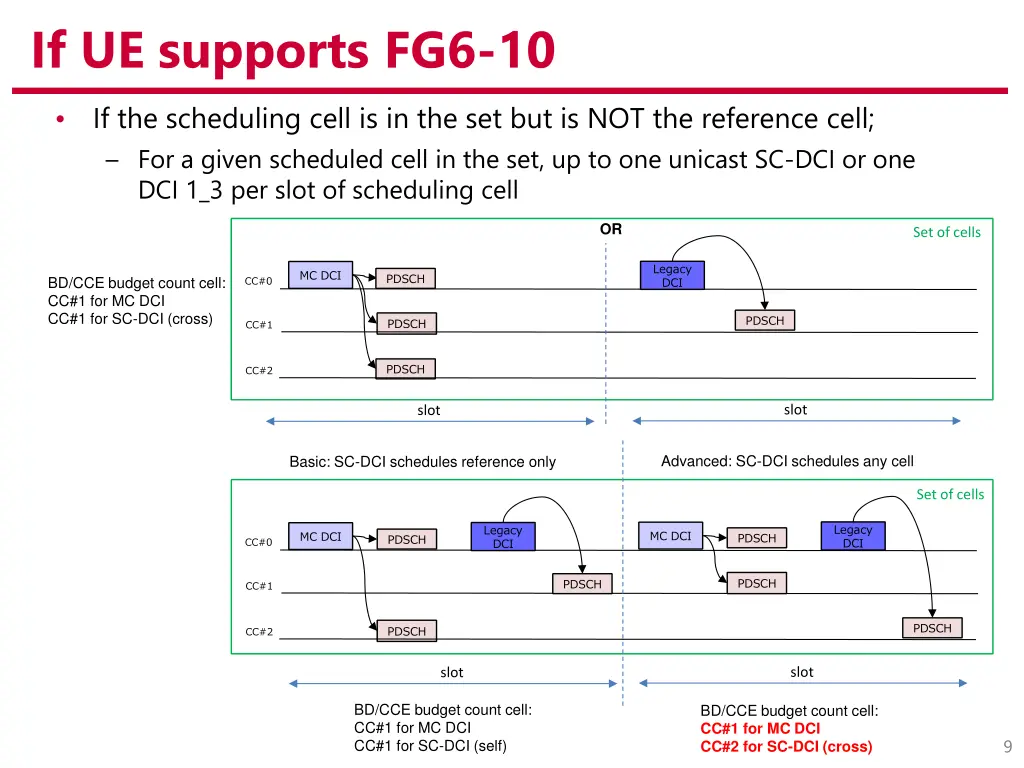

If UE supports FG6-10 If the scheduling cell is in the set but is NOT the reference cell; For a given scheduled cell in the set, up to one unicast SC-DCI or one DCI 1_3 per slot of scheduling cell OR Set of cells Legacy DCI MC DCI PDSCH BD/CCE budget count cell: CC#1 for MC DCI CC#1 for SC-DCI (cross) CC#0 PDSCH PDSCH CC#1 PDSCH CC#2 slot slot Advanced: SC-DCI schedules any cell Basic: SC-DCI schedules reference only Set of cells Legacy DCI Legacy DCI MC DCI MC DCI PDSCH PDSCH CC#0 PDSCH PDSCH CC#1 PDSCH PDSCH CC#2 slot slot BD/CCE budget count cell: CC#1 for MC DCI CC#1 for SC-DCI (self) BD/CCE budget count cell: CC#1 for MC DCI CC#2 for SC-DCI (cross) 9
