Clicker frequency: CA CSE 20 DISCRETE MATH Prof. Shachar Lovett http://cseweb.ucsd.edu/classes/wi15/cse20-a/

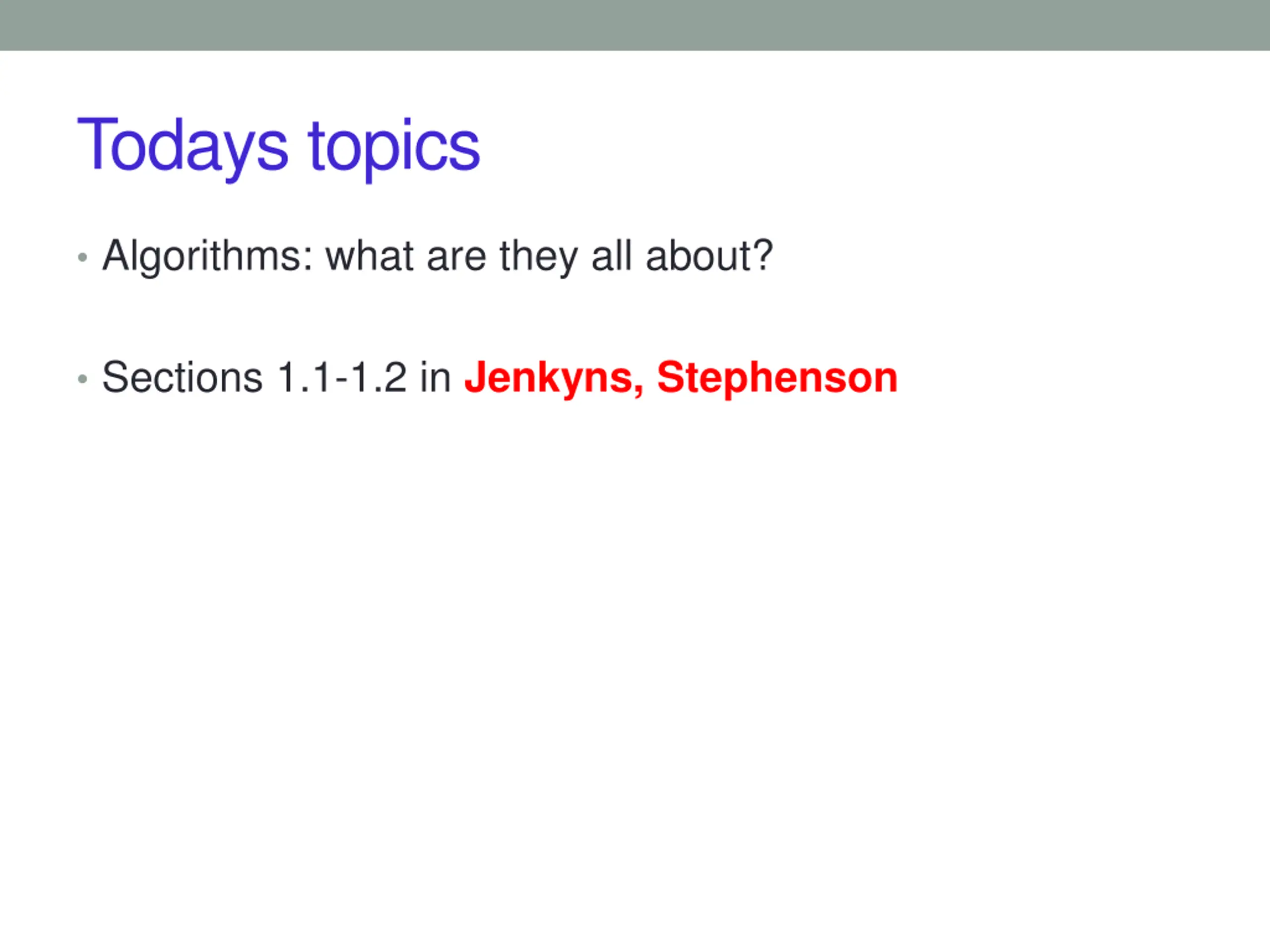

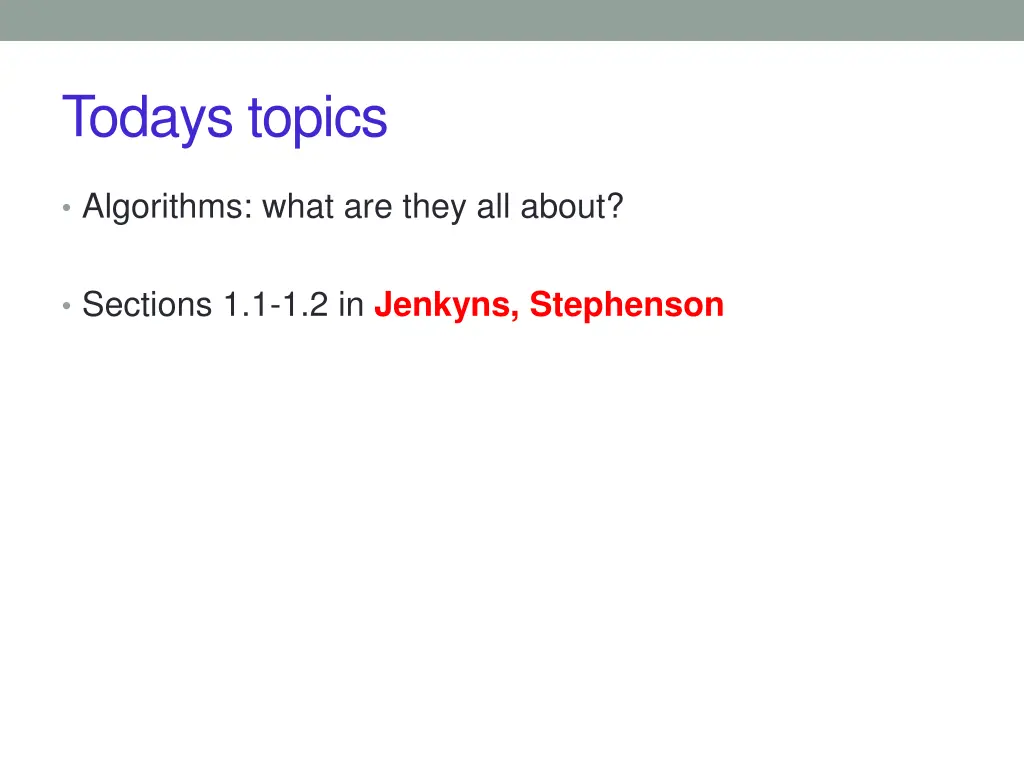

Todays topics Algorithms: what are they all about? Sections 1.1-1.2 in Jenkyns, Stephenson

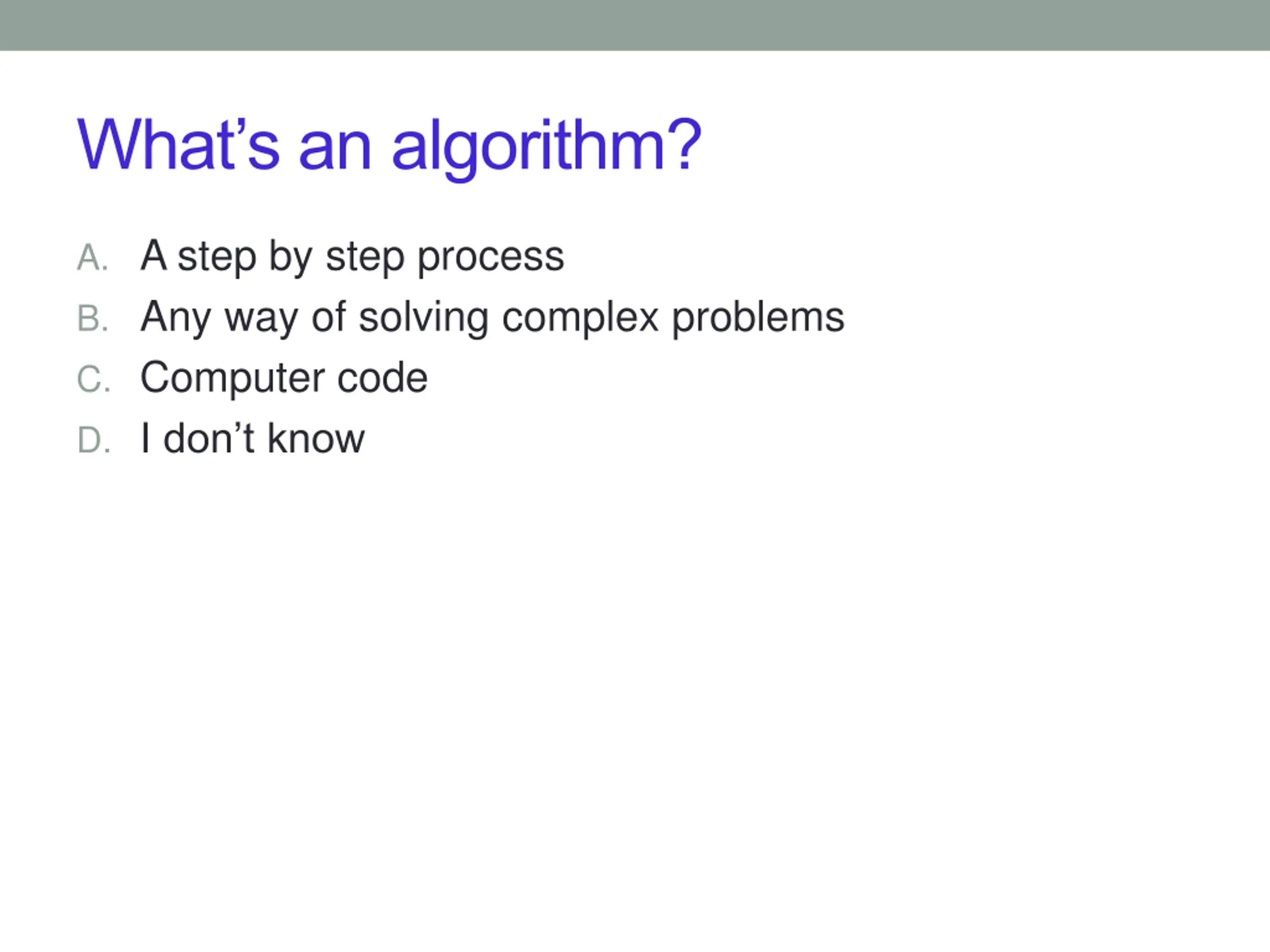

Whats an algorithm? A. A step by step process B. Any way of solving complex problems C. Computer code D. I don t know

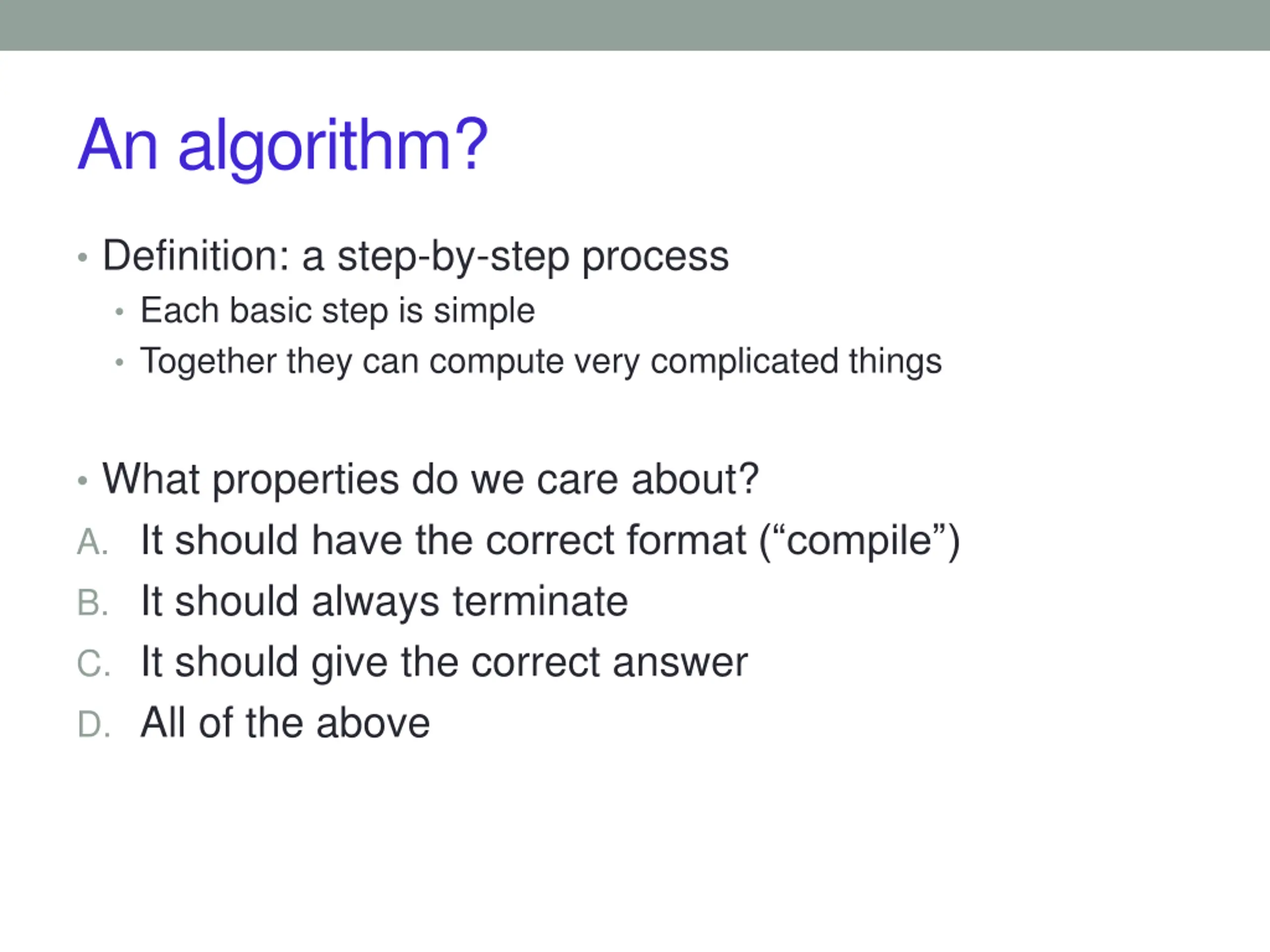

An algorithm? Definition: a step-by-step process Each basic step is simple Together they can compute very complicated things What properties do we care about? A. It should have the correct format ( compile ) B. It should always terminate C. It should give the correct answer D. All of the above

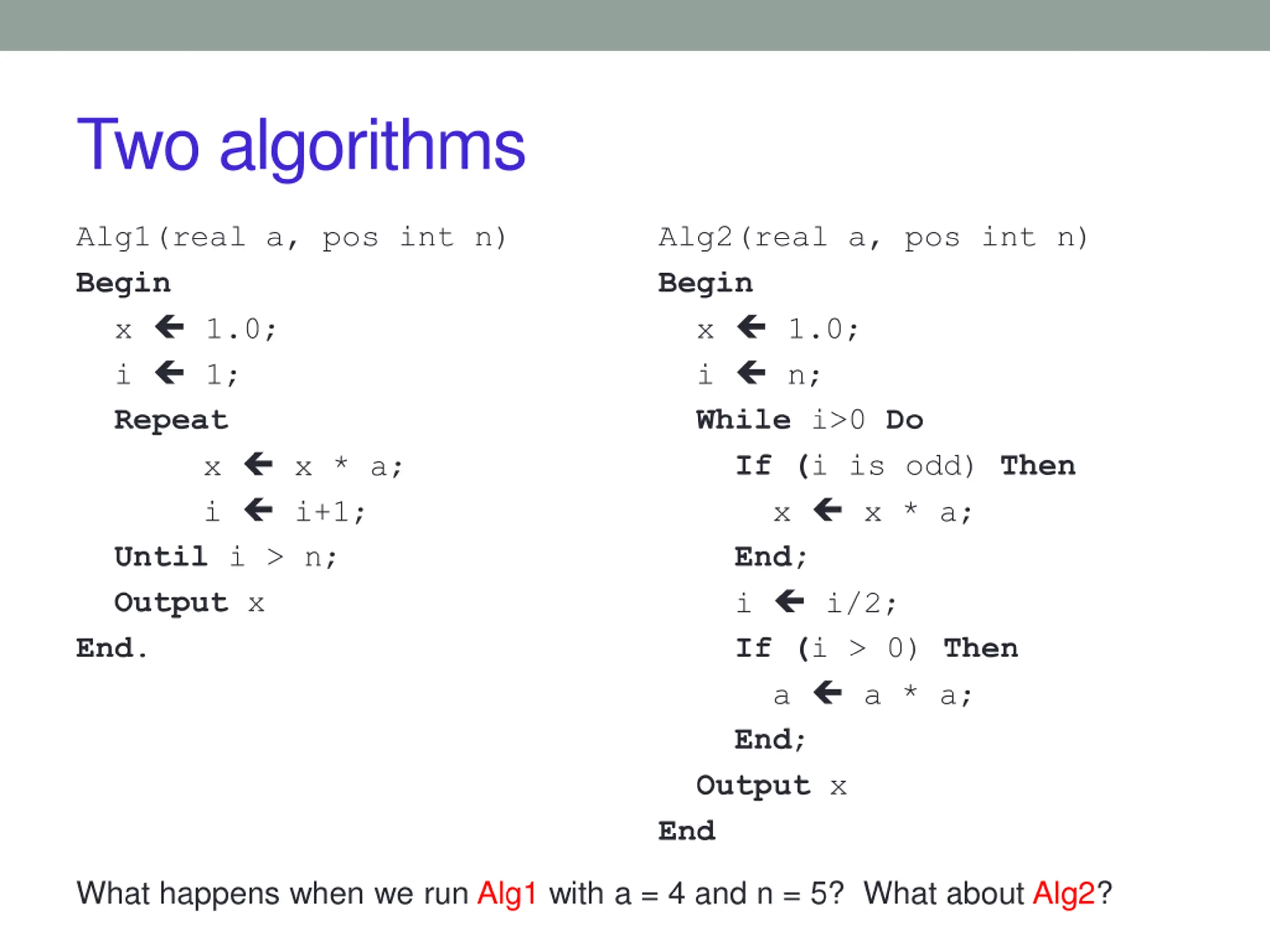

Two algorithms Alg1(real a, pos int n) Begin x 1.0; i 1; Repeat x x * a; i i+1; Until i > n; Output x End. Alg2(real a, pos int n) Begin x 1.0; i n; While i>0 Do If (i is odd) Then x x * a; End; i i/2; If (i > 0) Then a a * a; End; Output x End What happens when we run Alg1 with a = 4 and n = 5? What about Alg2?

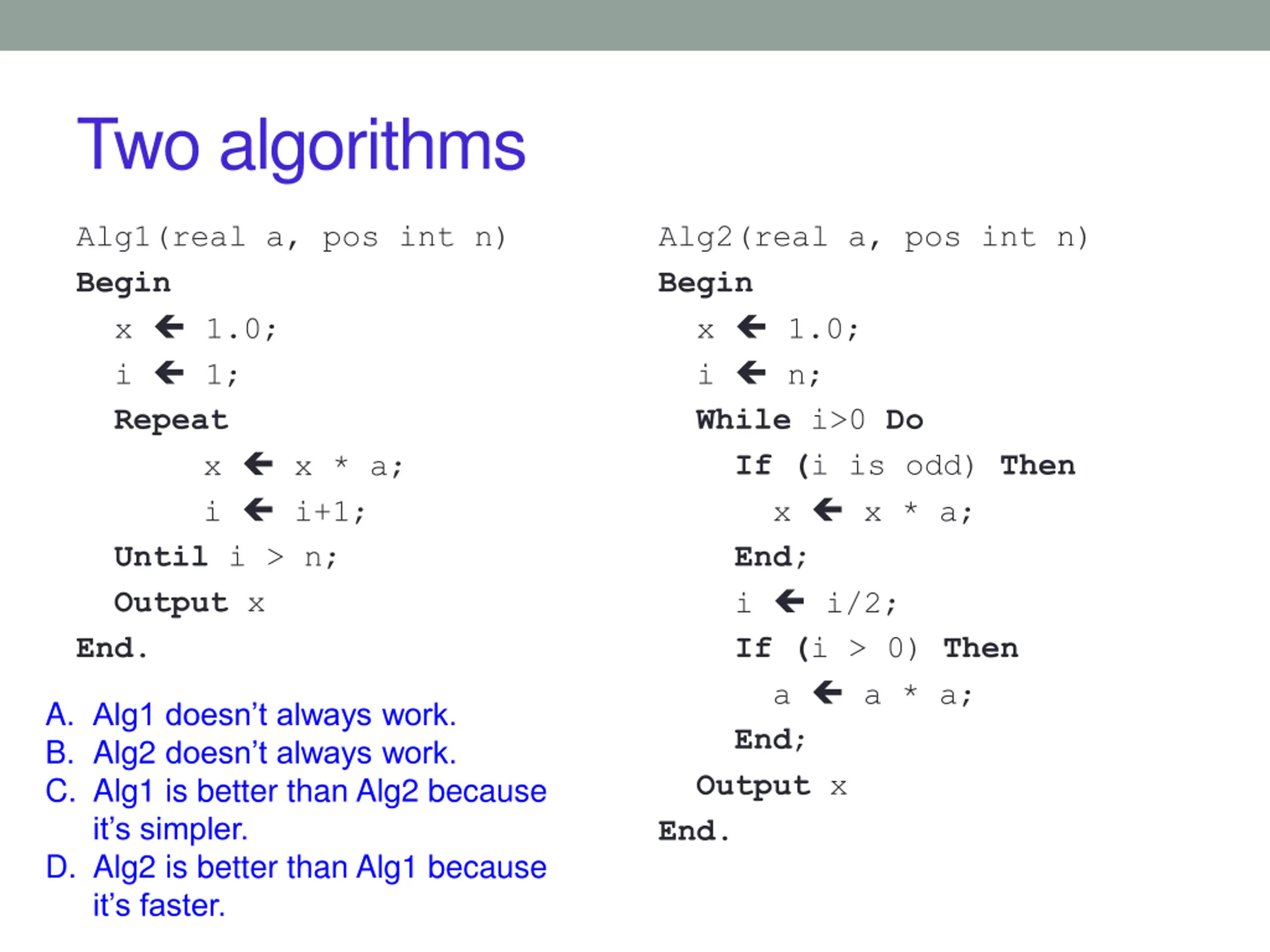

Two algorithms Alg1(real a, pos int n) Begin x 1.0; i 1; Repeat x x * a; i i+1; Until i > n; Output x End. Alg2(real a, pos int n) Begin x 1.0; i n; While i>0 Do If (i is odd) Then x x * a; End; i i/2; If (i > 0) Then a a * a; End; Output x End. A. Alg1 doesn t always work. B. Alg2 doesn t always work. C. Alg1 is better than Alg2 because it s simpler. D. Alg2 is better than Alg1 because it s faster.

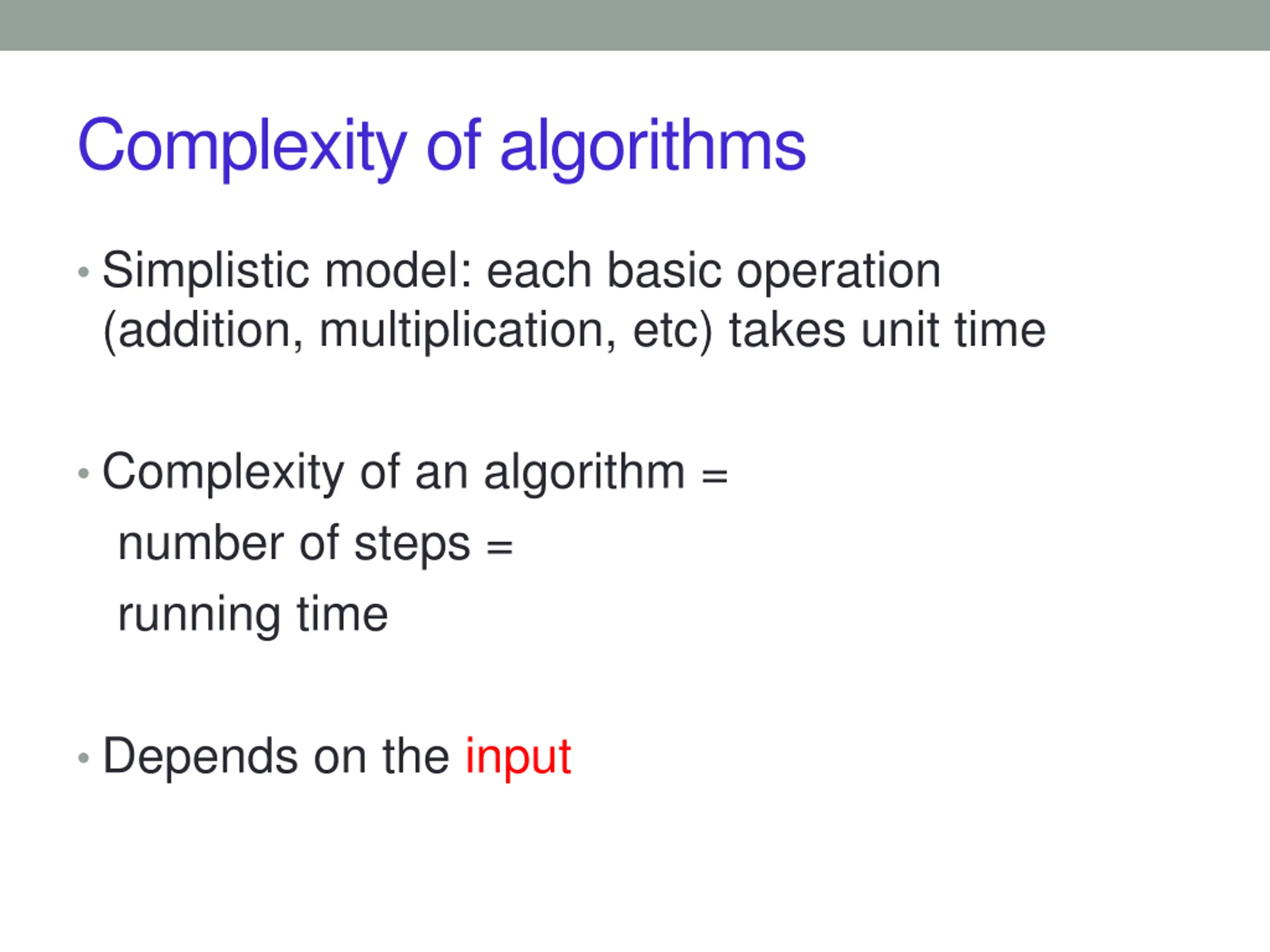

Complexity of algorithms Simplistic model: each basic operation (addition, multiplication, etc) takes unit time Complexity of an algorithm = number of steps = running time Depends on the input

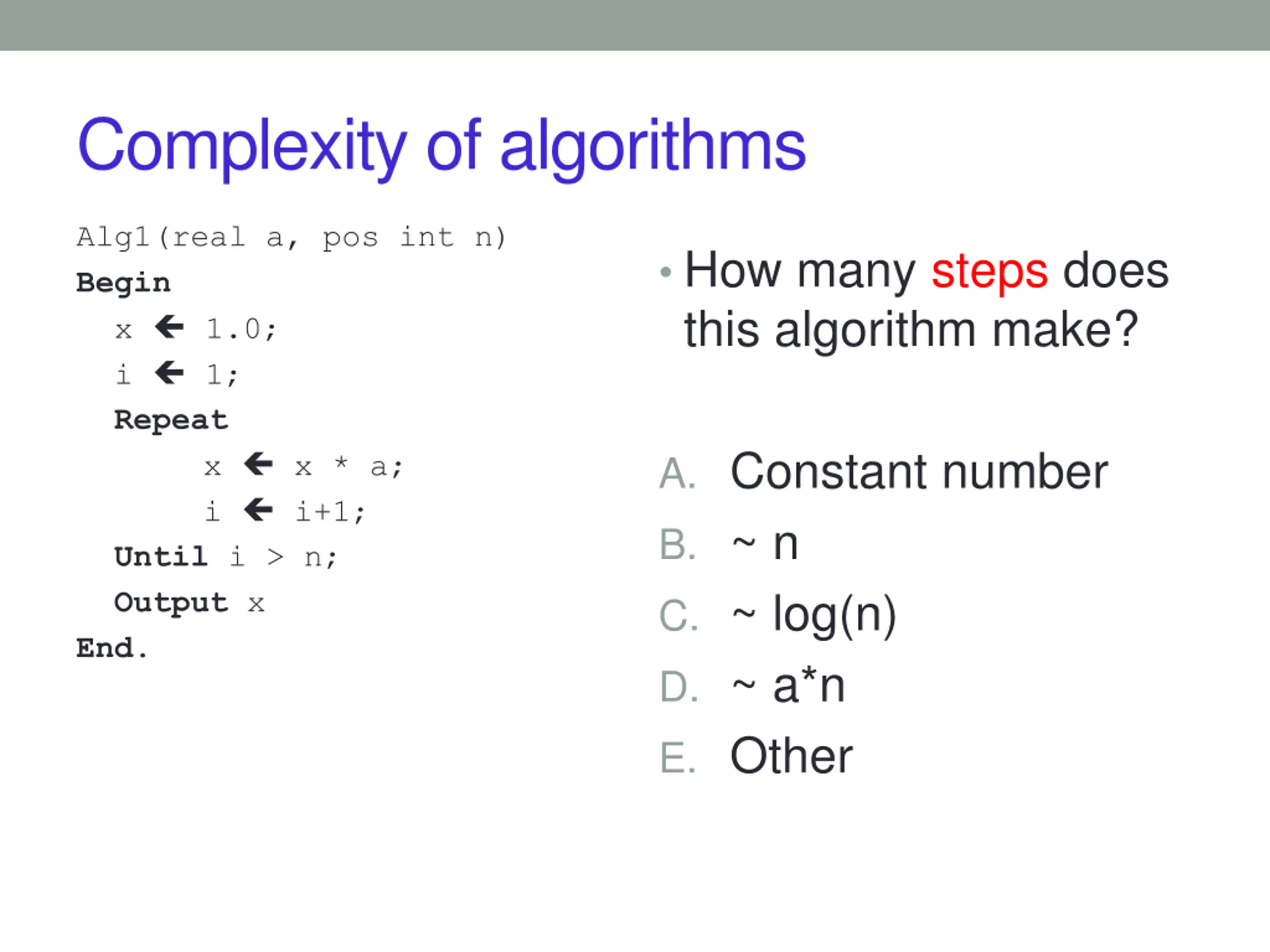

Complexity of algorithms Alg1(real a, pos int n) Begin x 1.0; i 1; Repeat x x * a; i i+1; Until i > n; Output x End. How many steps does this algorithm make? A. Constant number B. ~ n C. ~ log(n) D. ~ a*n E. Other

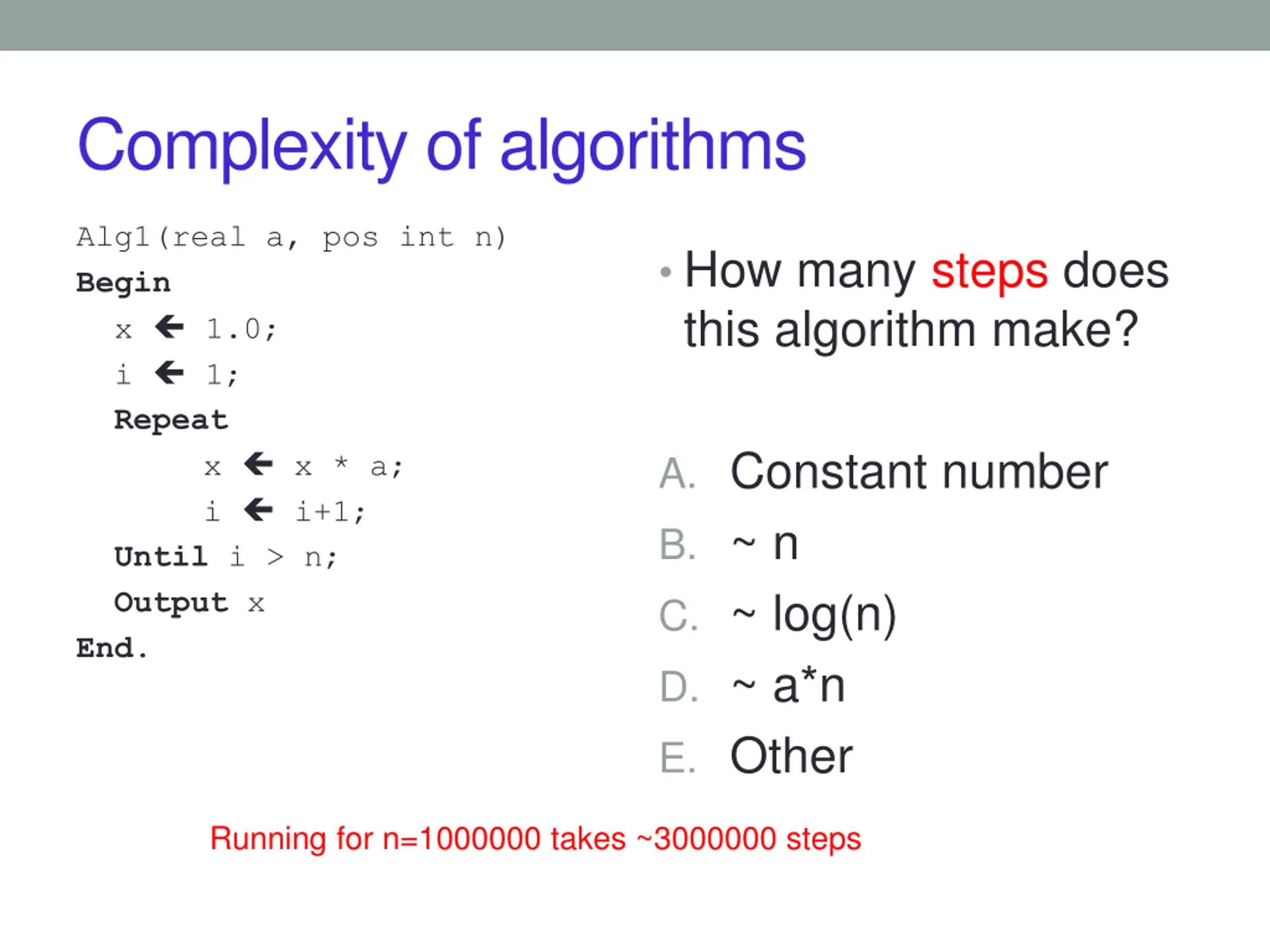

Complexity of algorithms Alg1(real a, pos int n) Begin x 1.0; i 1; Repeat x x * a; i i+1; Until i > n; Output x End. How many steps does this algorithm make? A. Constant number B. ~ n C. ~ log(n) D. ~ a*n E. Other Running for n=1000000 takes ~3000000 steps

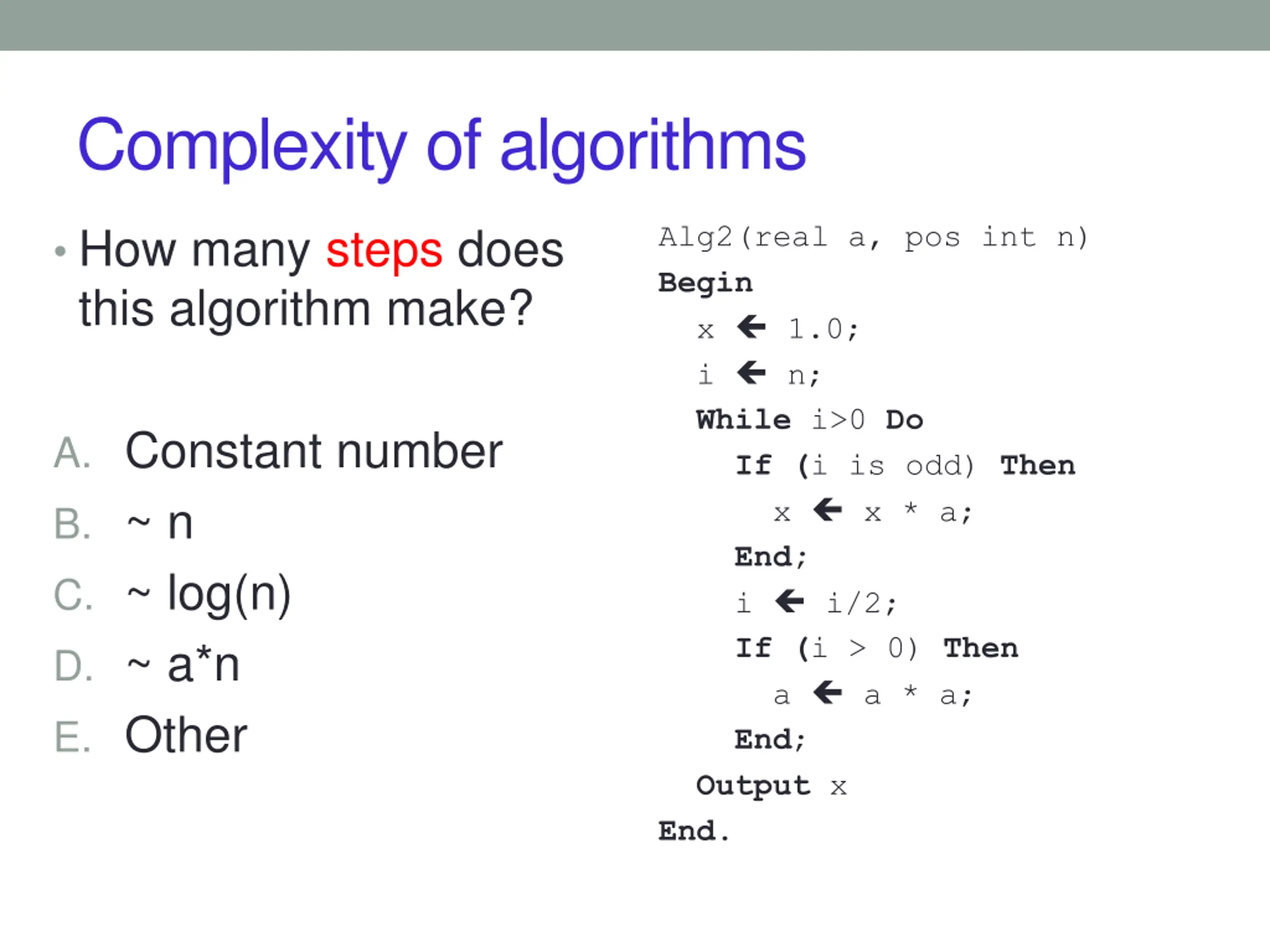

Complexity of algorithms How many steps does this algorithm make? Alg2(real a, pos int n) Begin x 1.0; i n; While i>0 Do If (i is odd) Then x x * a; End; i i/2; If (i > 0) Then a a * a; End; Output x End. A. Constant number B. ~ n C. ~ log(n) D. ~ a*n E. Other

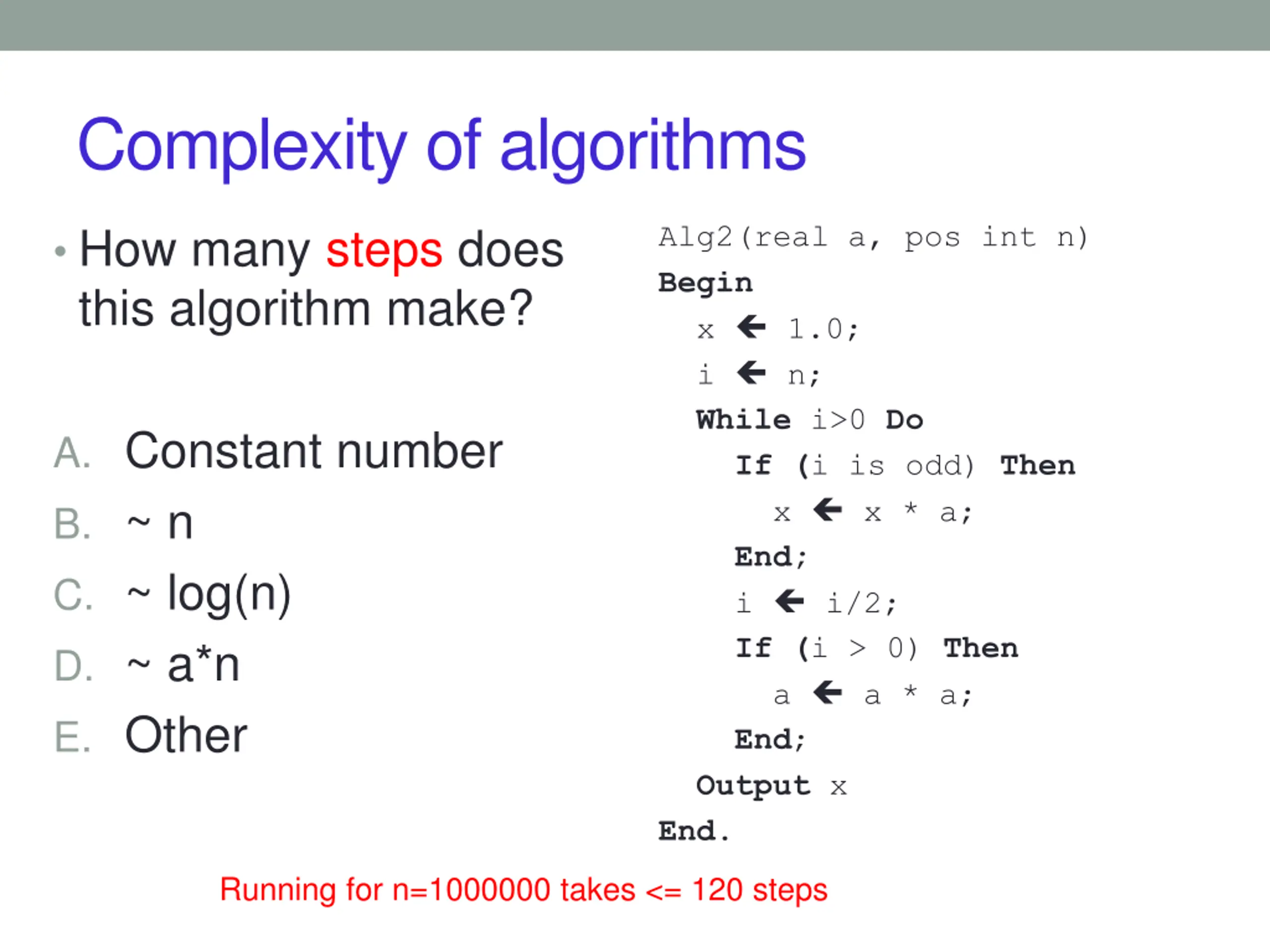

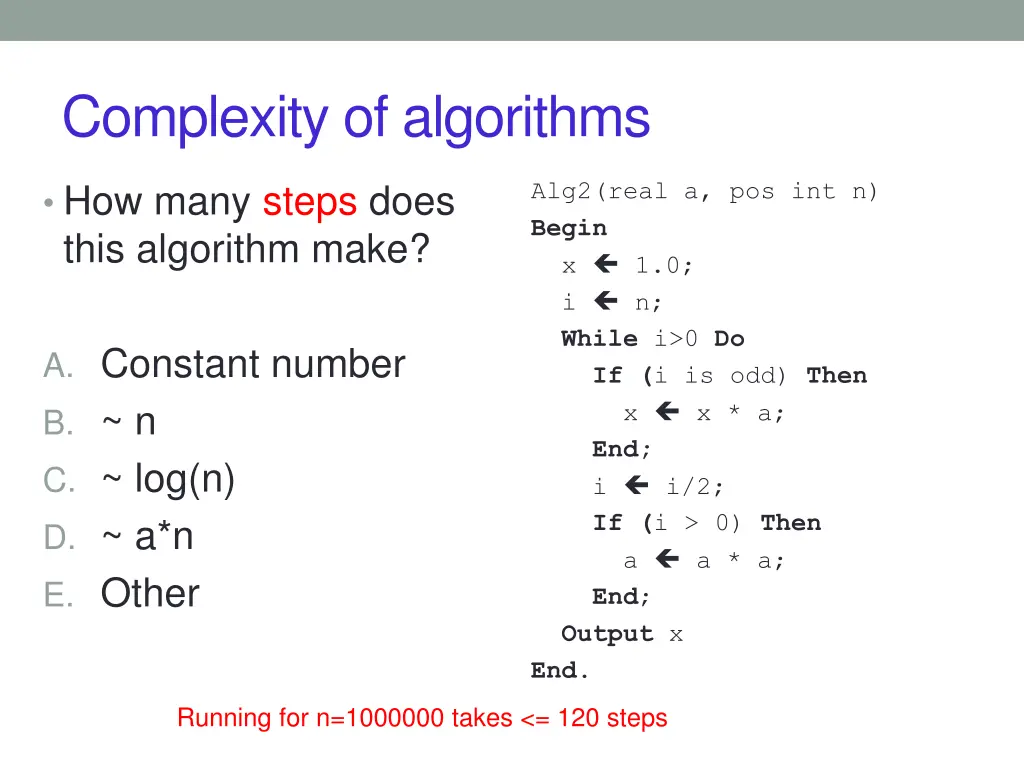

Complexity of algorithms How many steps does this algorithm make? Alg2(real a, pos int n) Begin x 1.0; i n; While i>0 Do If (i is odd) Then x x * a; End; i i/2; If (i > 0) Then a a * a; End; Output x End. A. Constant number B. ~ n C. ~ log(n) D. ~ a*n E. Other Running for n=1000000 takes <= 120 steps

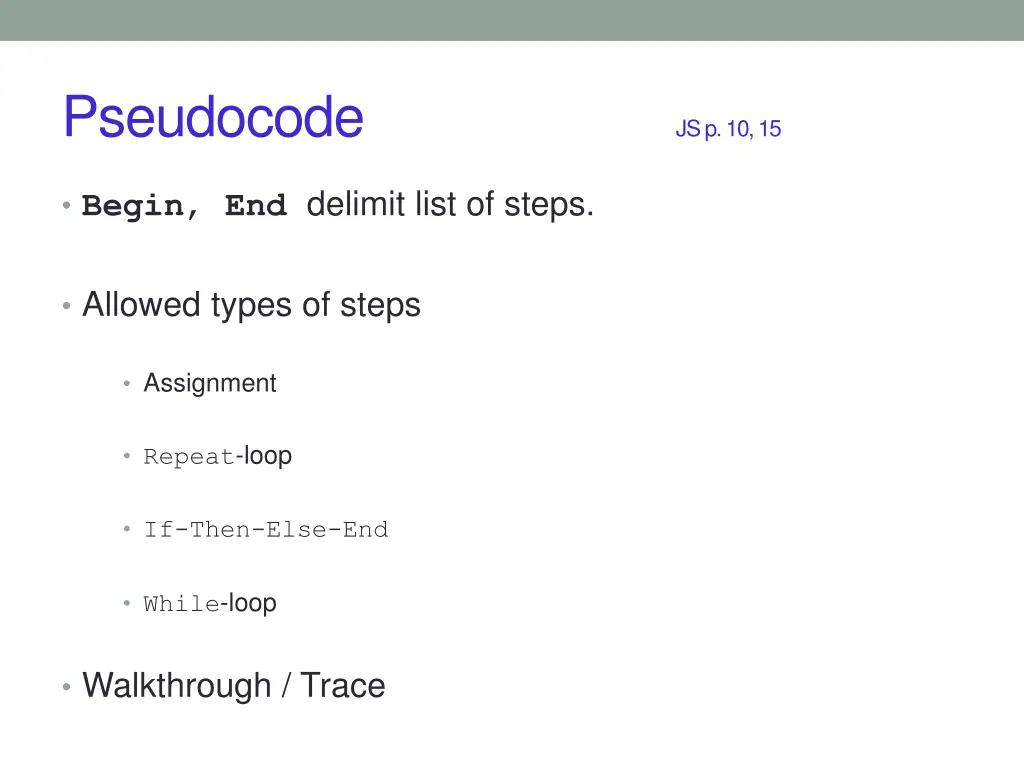

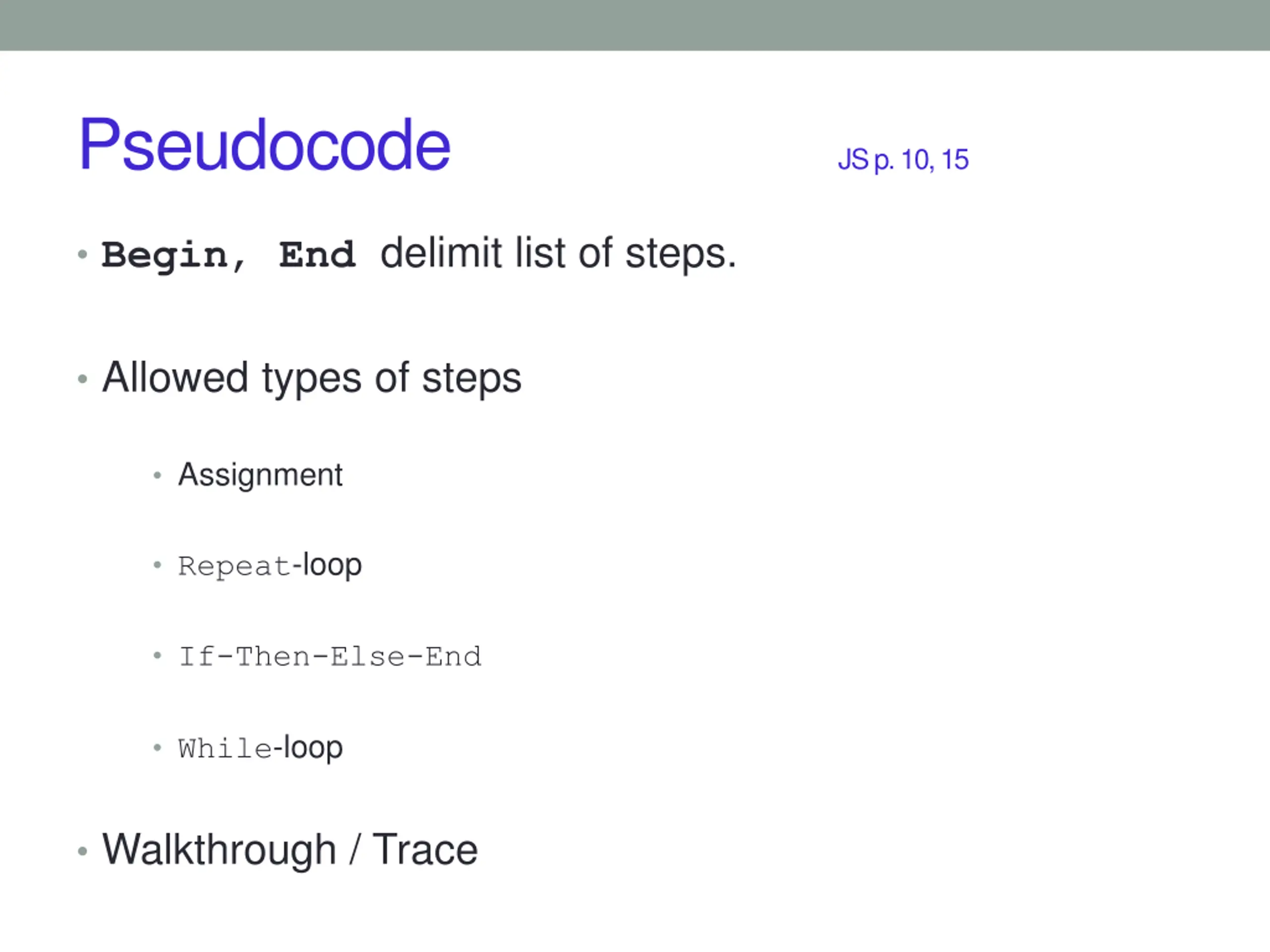

Pseudocode JS p. 10, 15 Begin, End delimit list of steps. Allowed types of steps Assignment Repeat-loop If-Then-Else-End While-loop Walkthrough / Trace

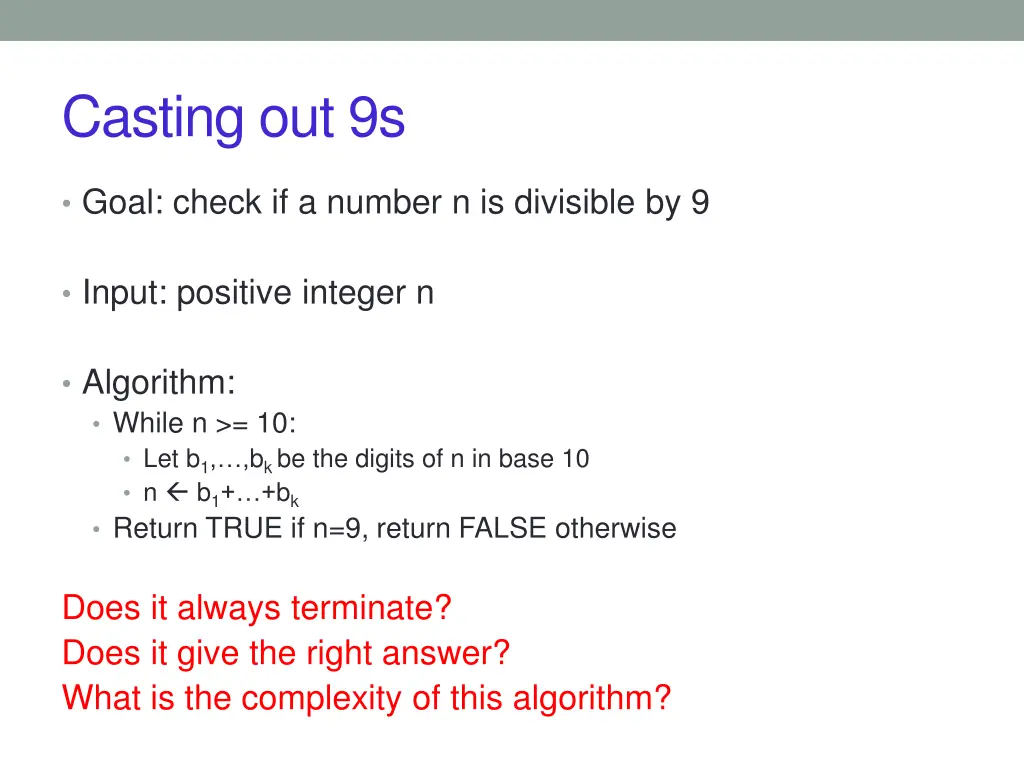

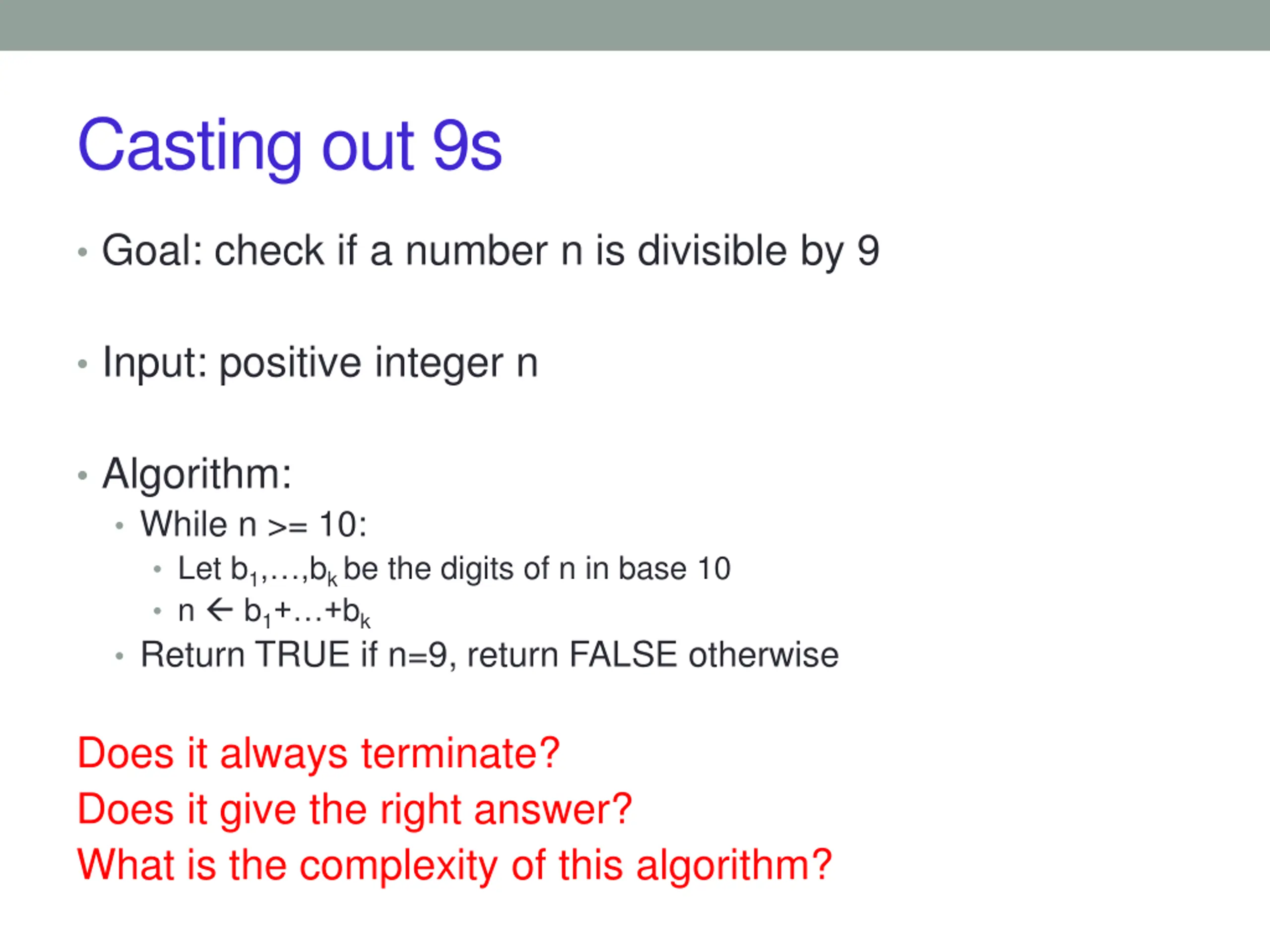

Casting out 9s Goal: check if a number n is divisible by 9 Input: positive integer n Algorithm: While n >= 10: Let b1, ,bk be the digits of n in base 10 n b1+ +bk Return TRUE if n=9, return FALSE otherwise Does it always terminate? Does it give the right answer? What is the complexity of this algorithm?

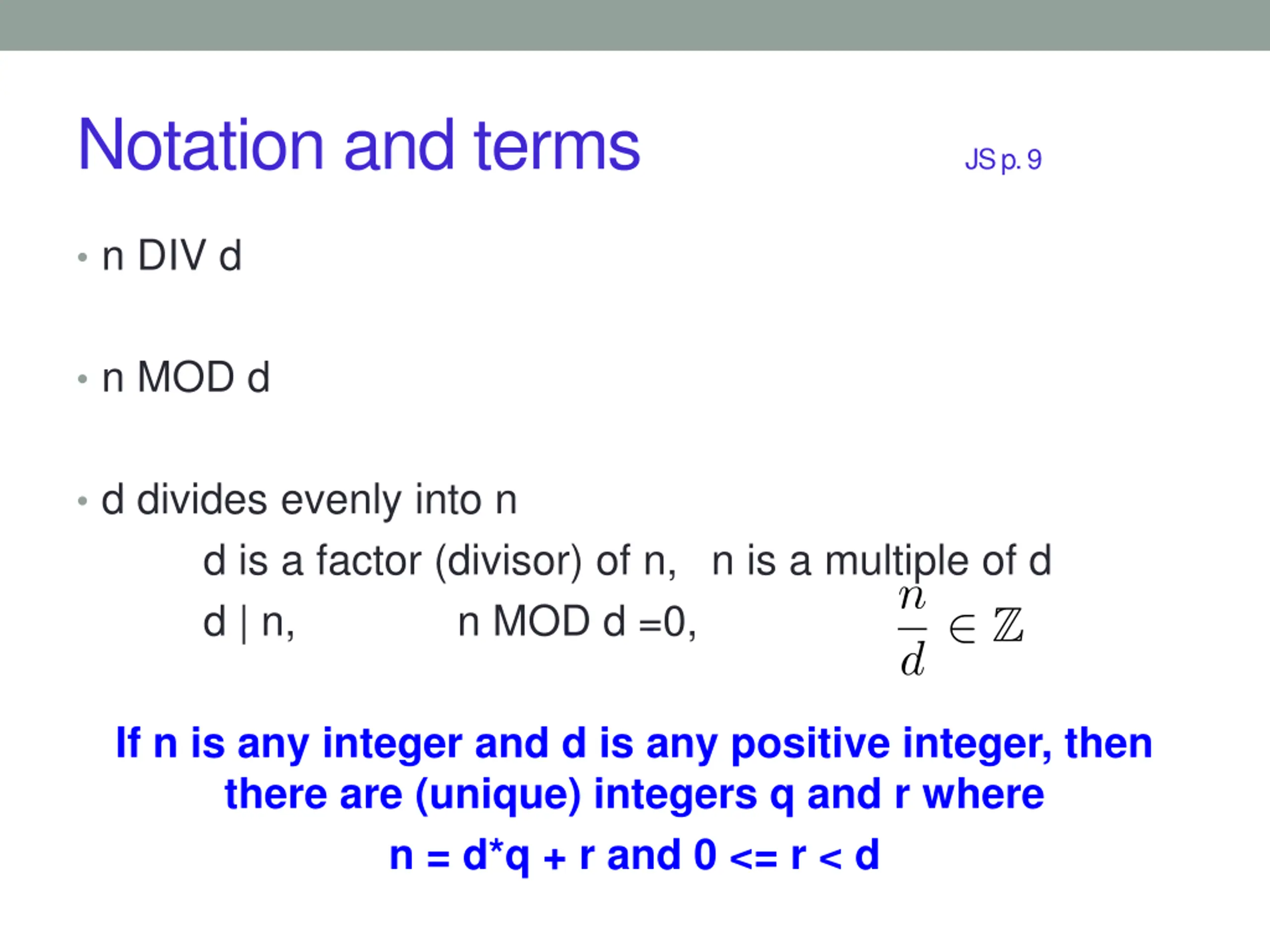

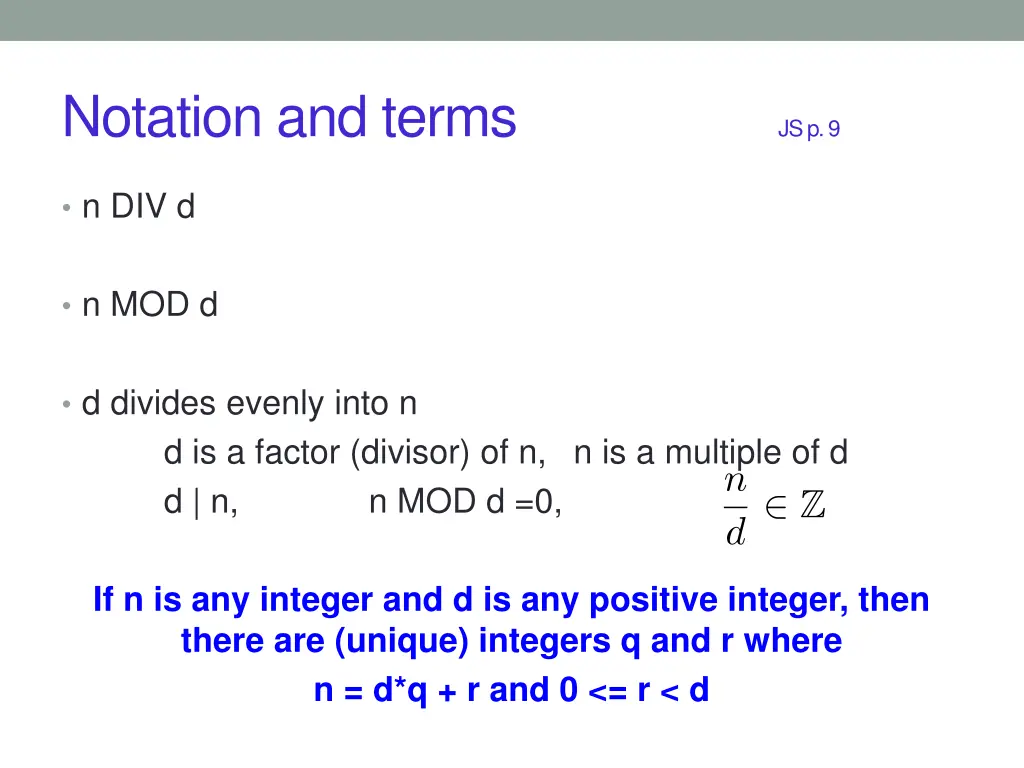

Notation and terms JS p. 9 n DIV d n MOD d d divides evenly into n d is a factor (divisor) of n, n is a multiple of d d | n, n MOD d =0, If n is any integer and d is any positive integer, then there are (unique) integers q and r where n = d*q + r and 0 <= r < d

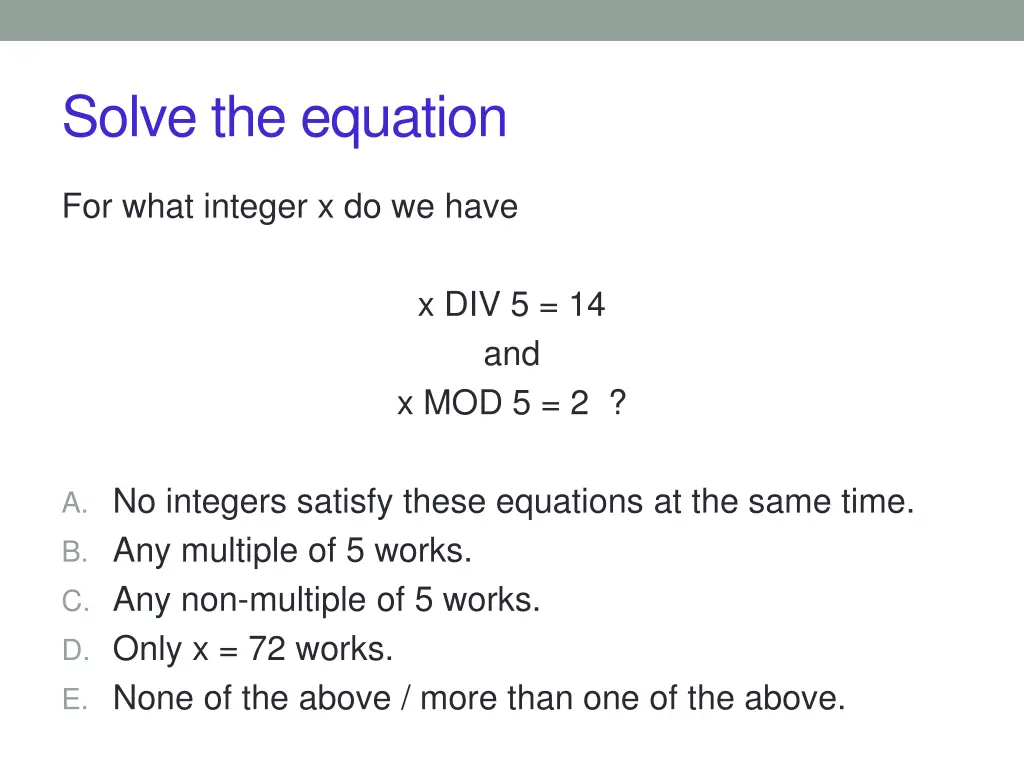

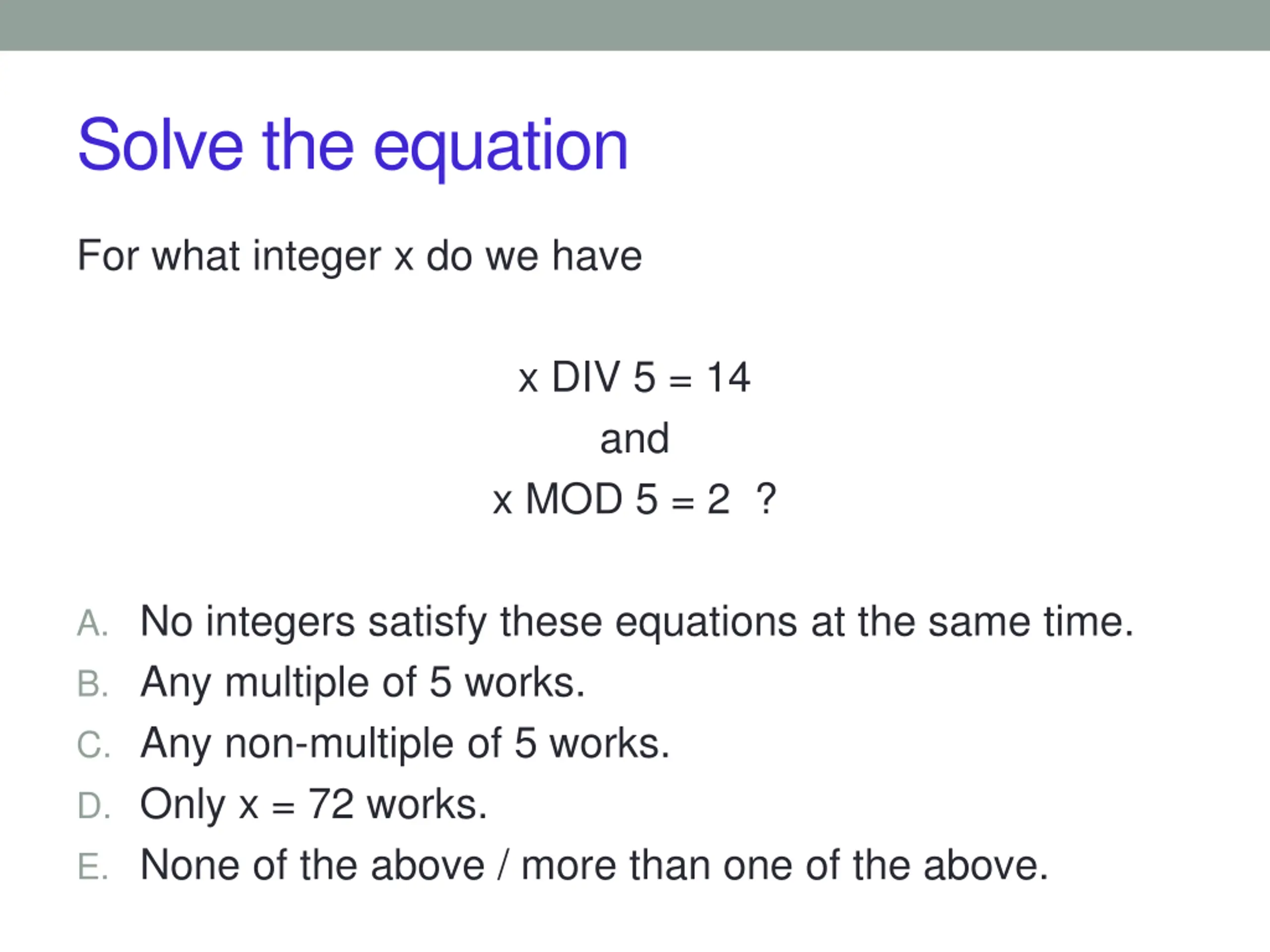

Solve the equation For what integer x do we have x DIV 5 = 14 and x MOD 5 = 2 ? A. No integers satisfy these equations at the same time. B. Any multiple of 5 works. C. Any non-multiple of 5 works. D. Only x = 72 works. E. None of the above / more than one of the above.

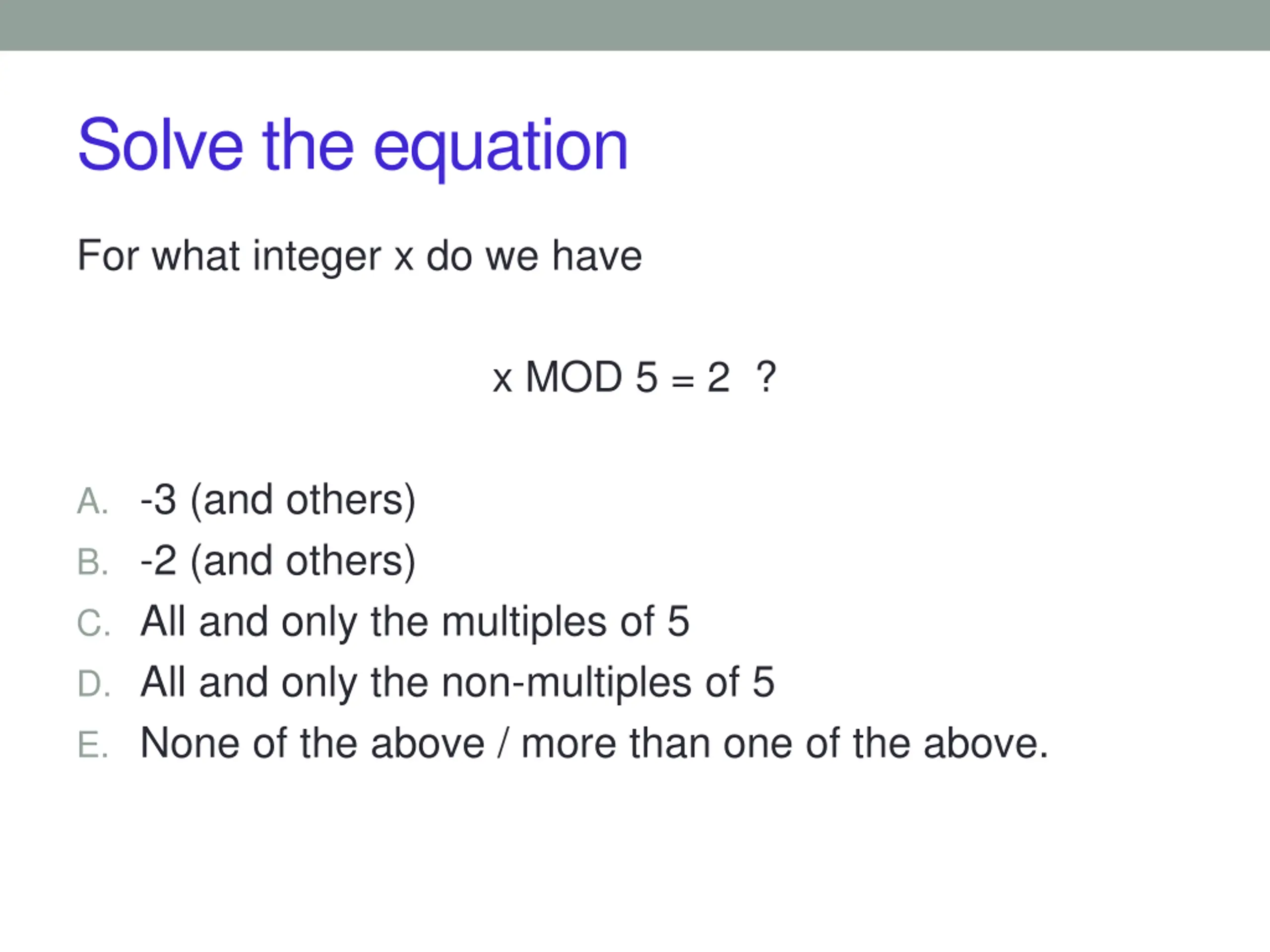

Solve the equation For what integer x do we have x MOD 5 = 2 ? A. -3 (and others) B. -2 (and others) C. All and only the multiples of 5 D. All and only the non-multiples of 5 E. None of the above / more than one of the above.

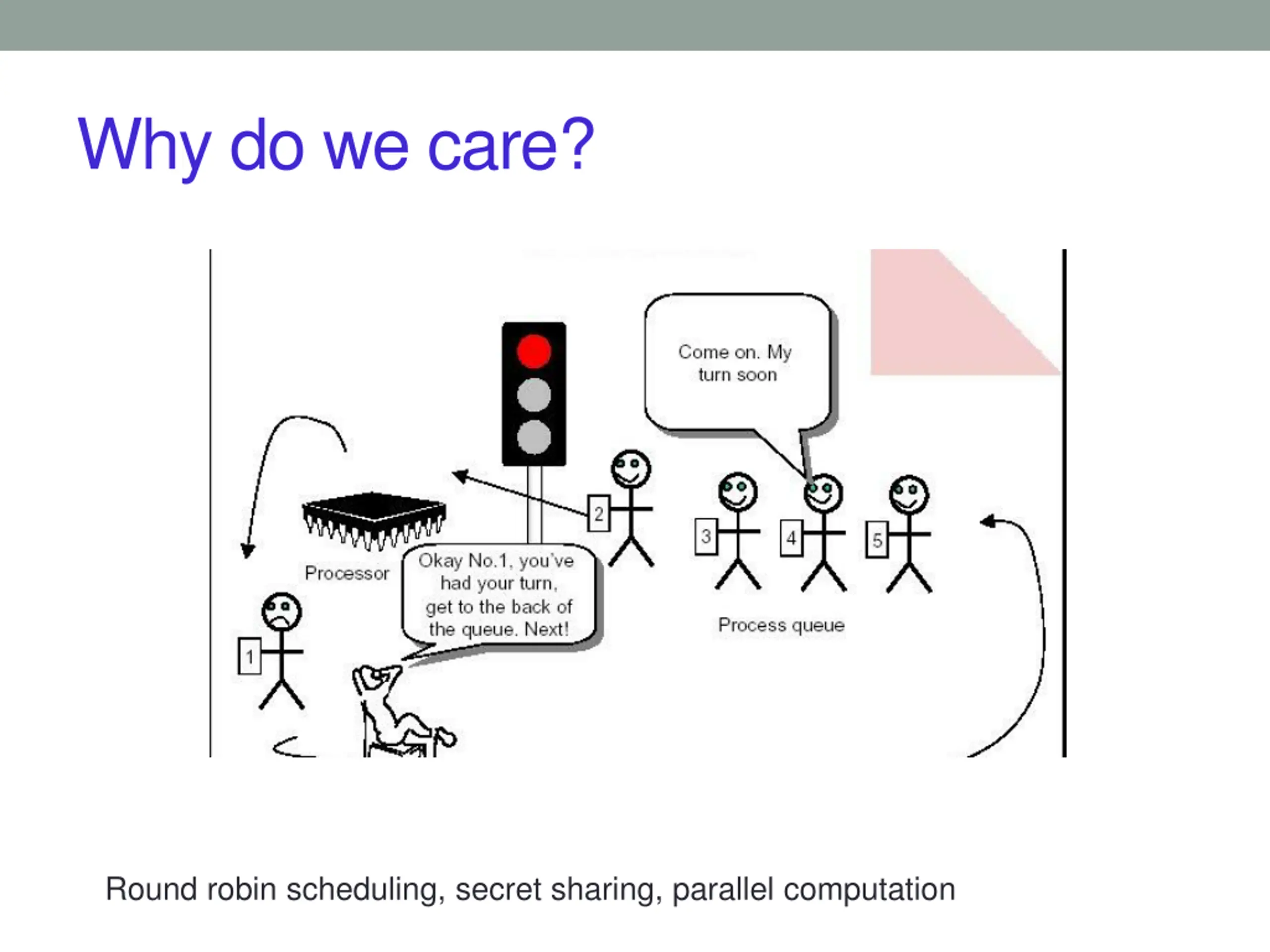

Why do we care? Round robin scheduling, secret sharing, parallel computation

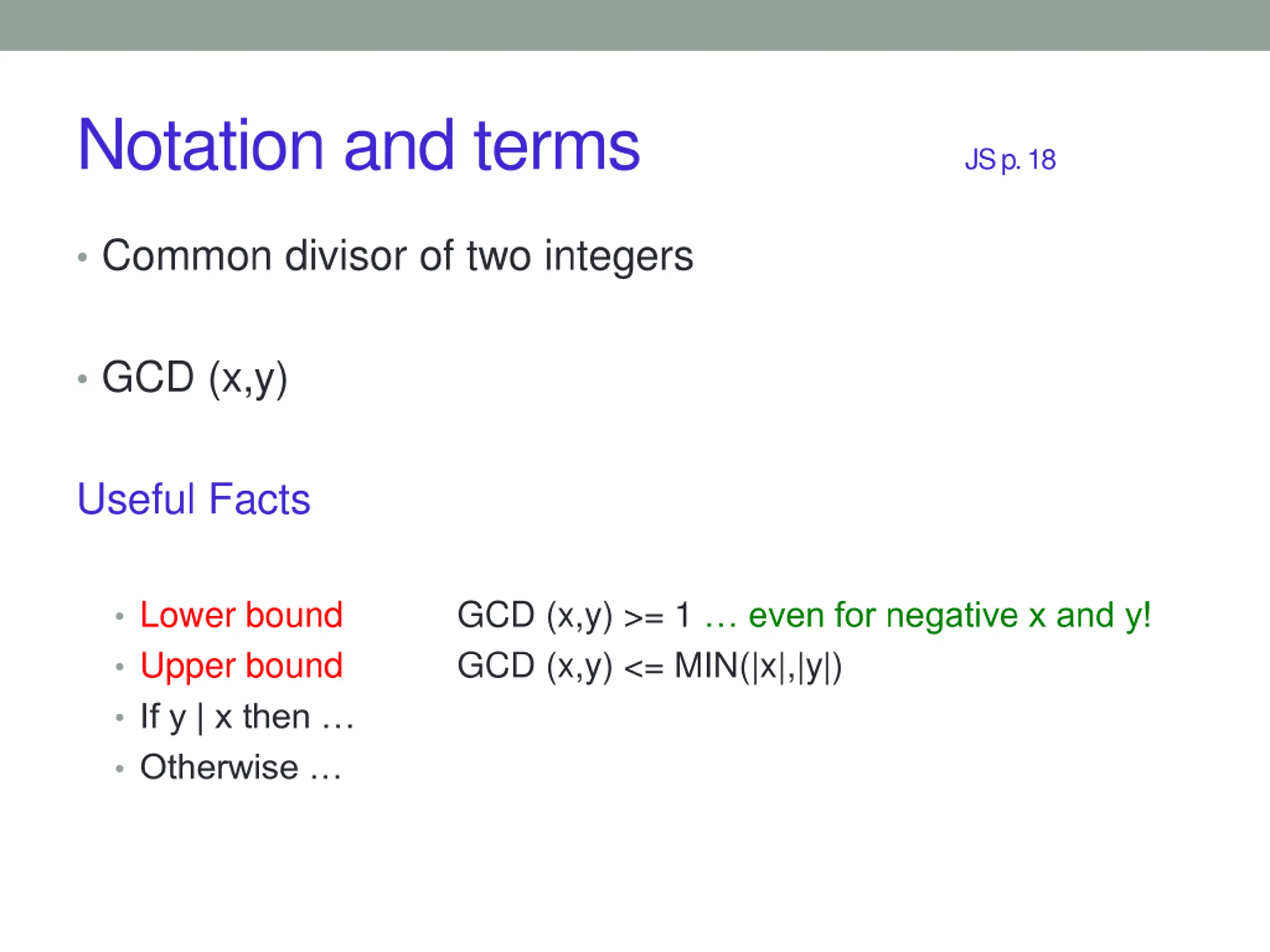

Notation and terms JS p. 18 Common divisor of two integers GCD (x,y) Useful Facts Lower bound Upper bound If y | x then Otherwise GCD (x,y) >= 1 even for negative x and y! GCD (x,y) <= MIN(|x|,|y|)

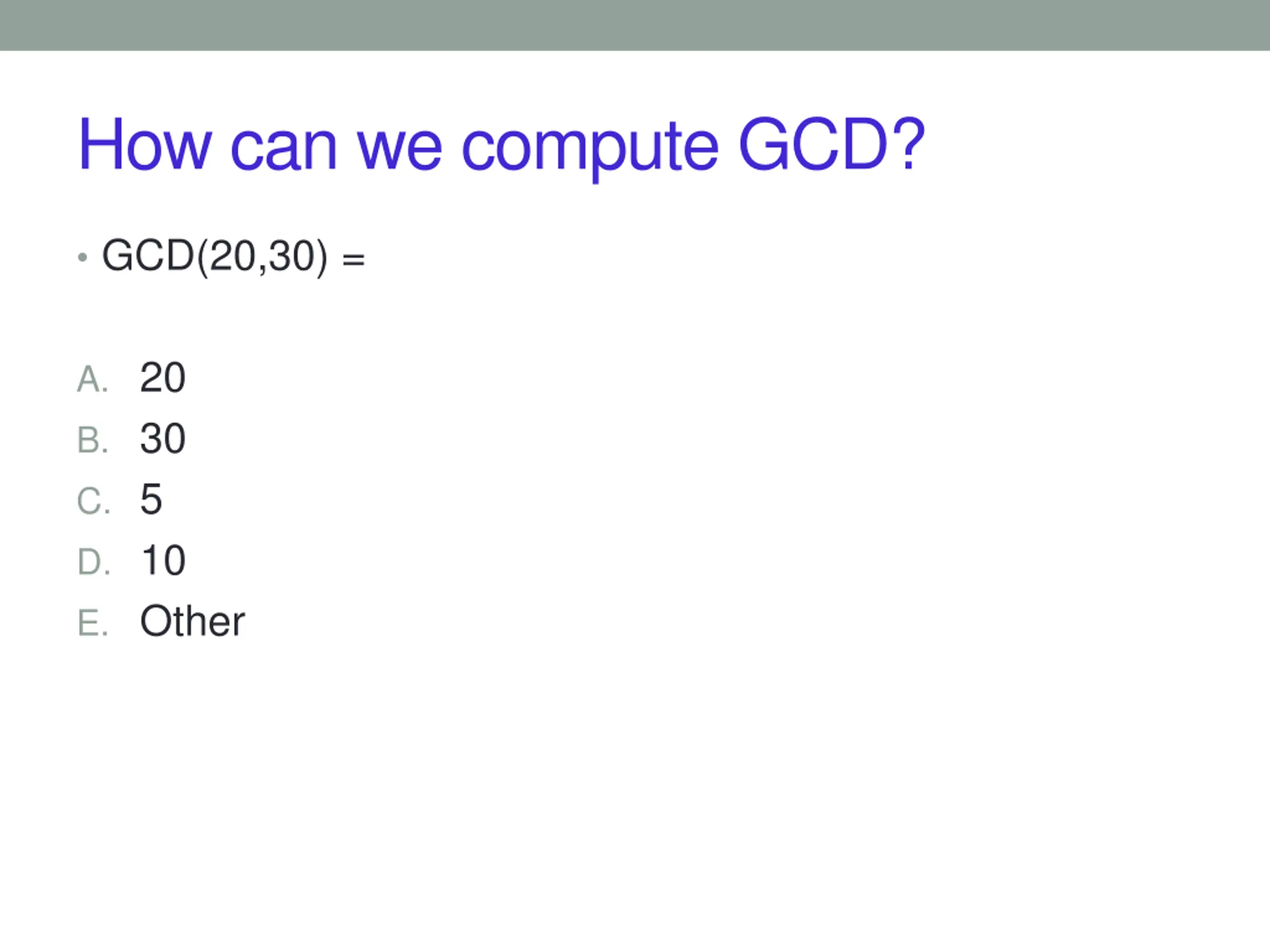

How can we compute GCD? GCD(20,30) = A. 20 B. 30 C. 5 D. 10 E. Other

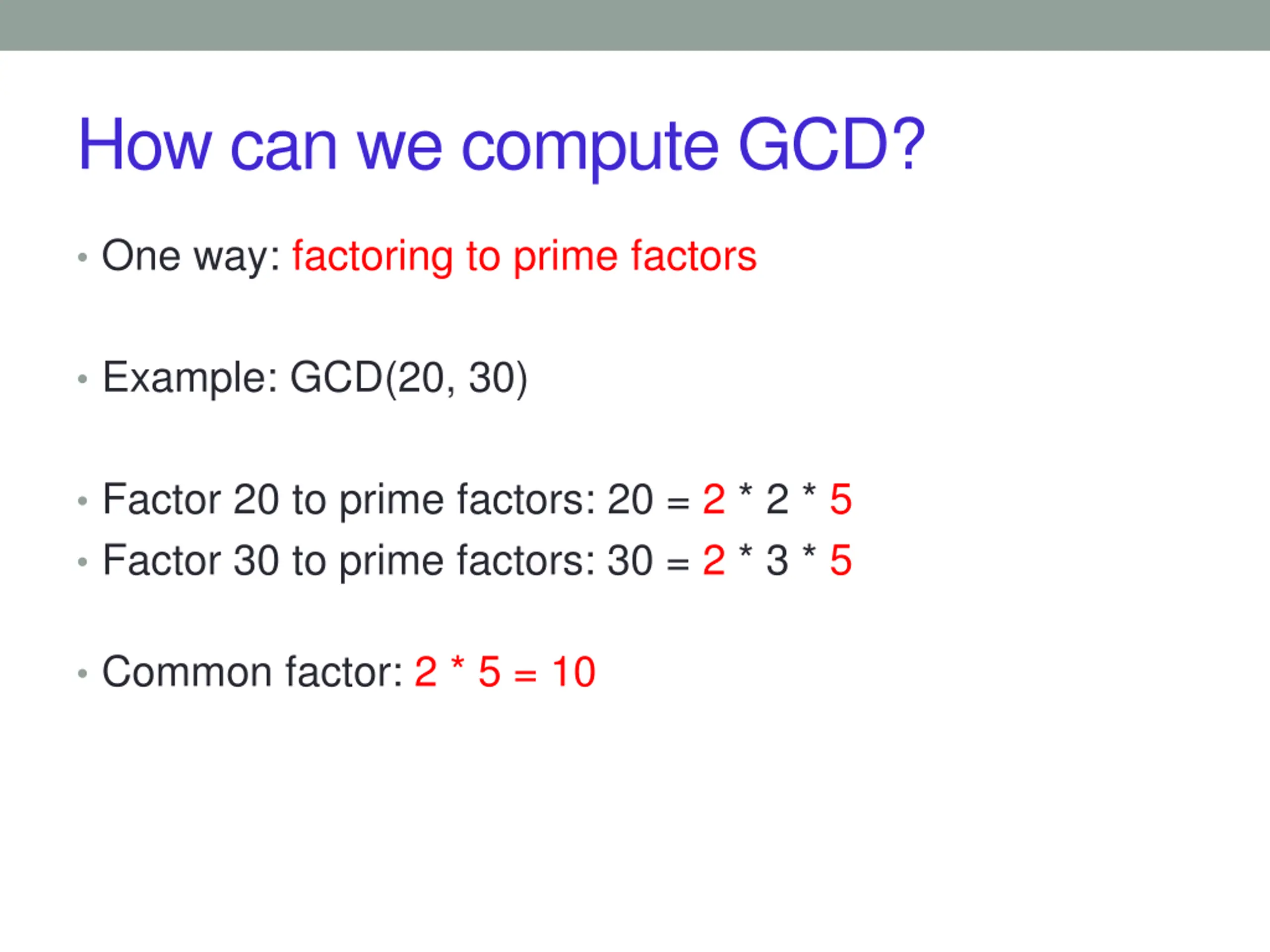

How can we compute GCD? One way: factoring to prime factors Example: GCD(20, 30) Factor 20 to prime factors: 20 = 2 * 2 * 5 Factor 30 to prime factors: 30 = 2 * 3 * 5 Common factor: 2 * 5 = 10

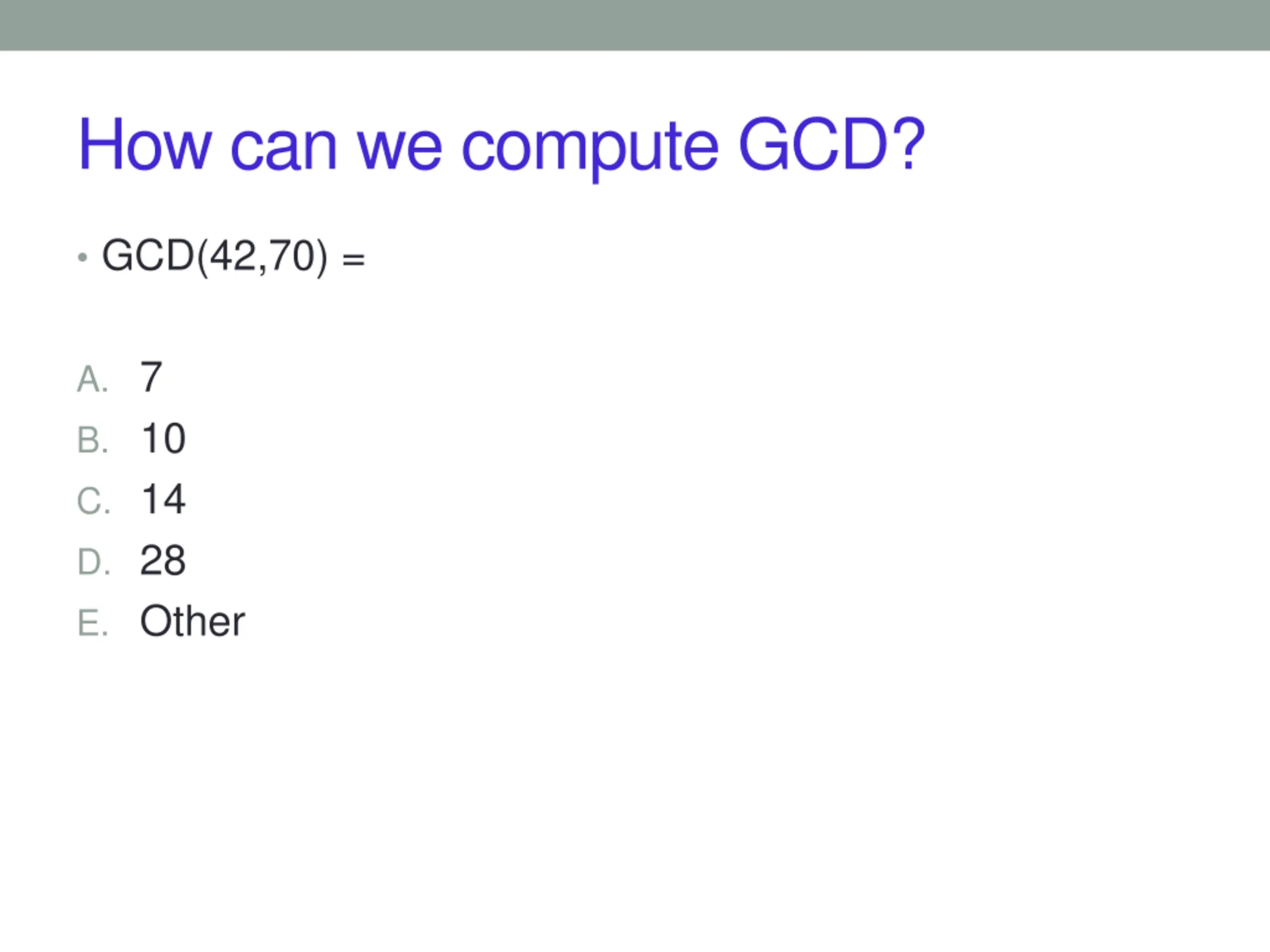

How can we compute GCD? GCD(42,70) = A. 7 B. 10 C. 14 D. 28 E. Other

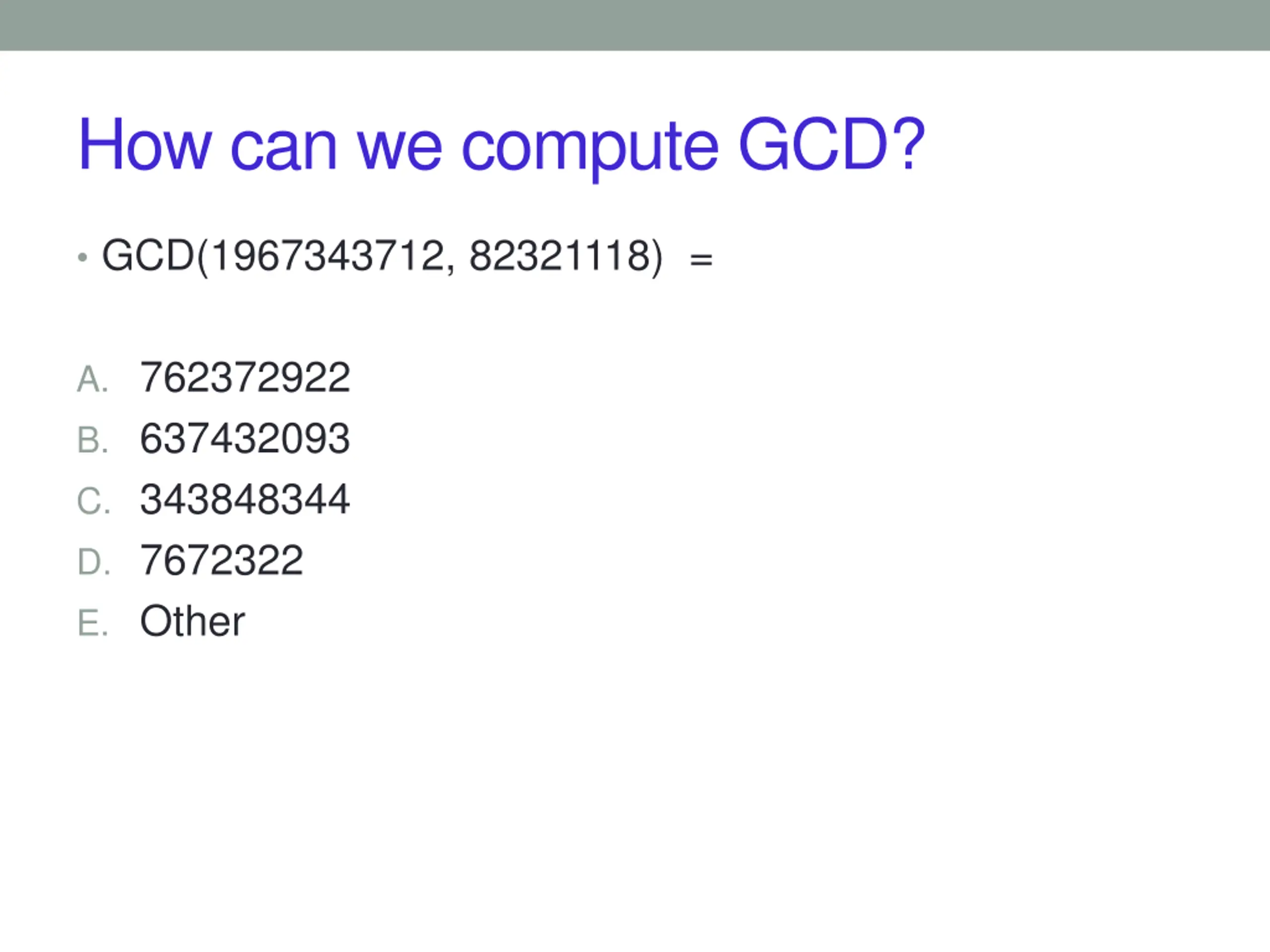

How can we compute GCD? GCD(1967343712, 82321118) = A. 762372922 B. 637432093 C. 343848344 D. 7672322 E. Other

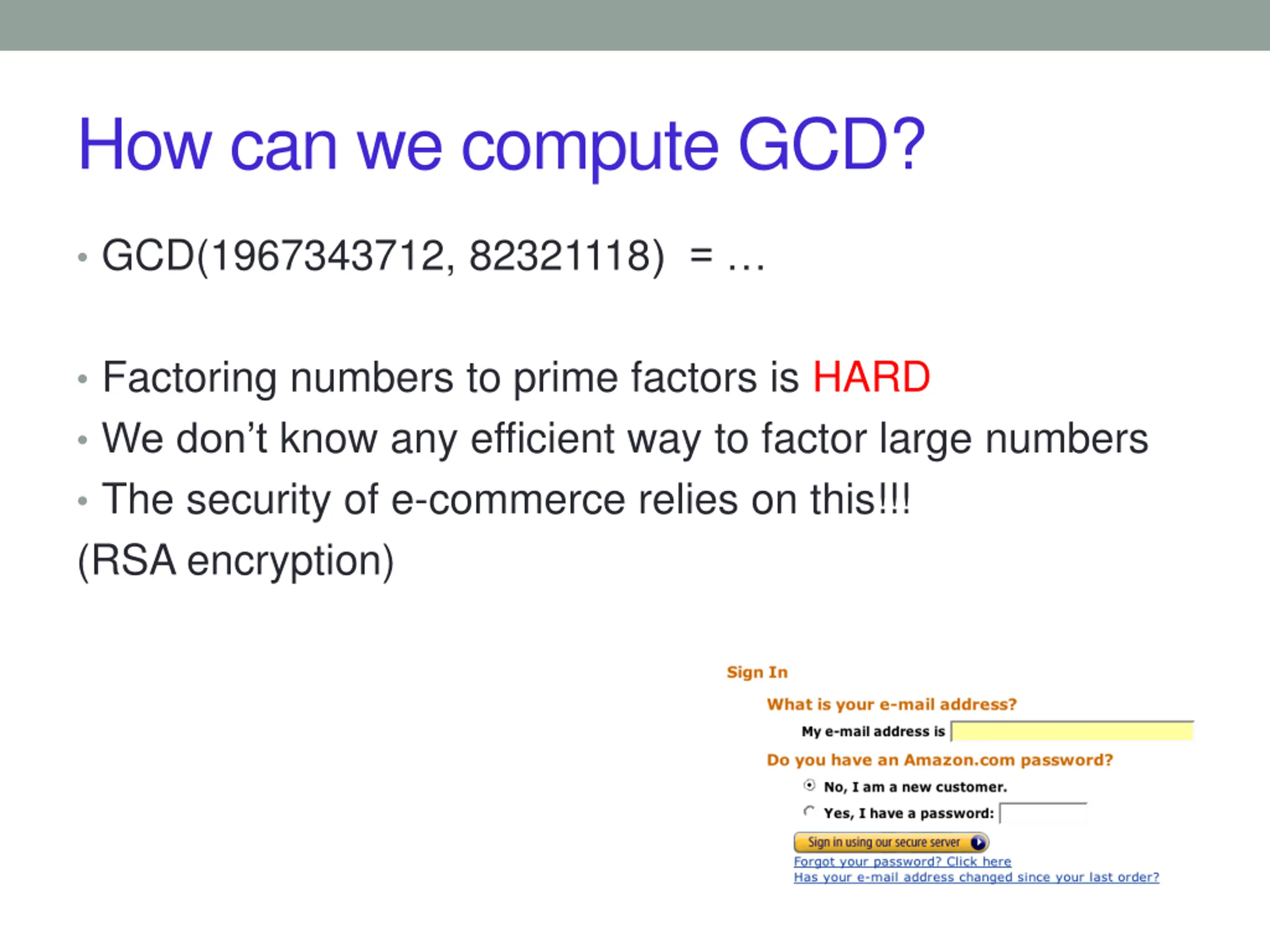

How can we compute GCD? GCD(1967343712, 82321118) = Factoring numbers to prime factors is HARD We don t know any efficient way to factor large numbers The security of e-commerce relies on this!!! (RSA encryption)

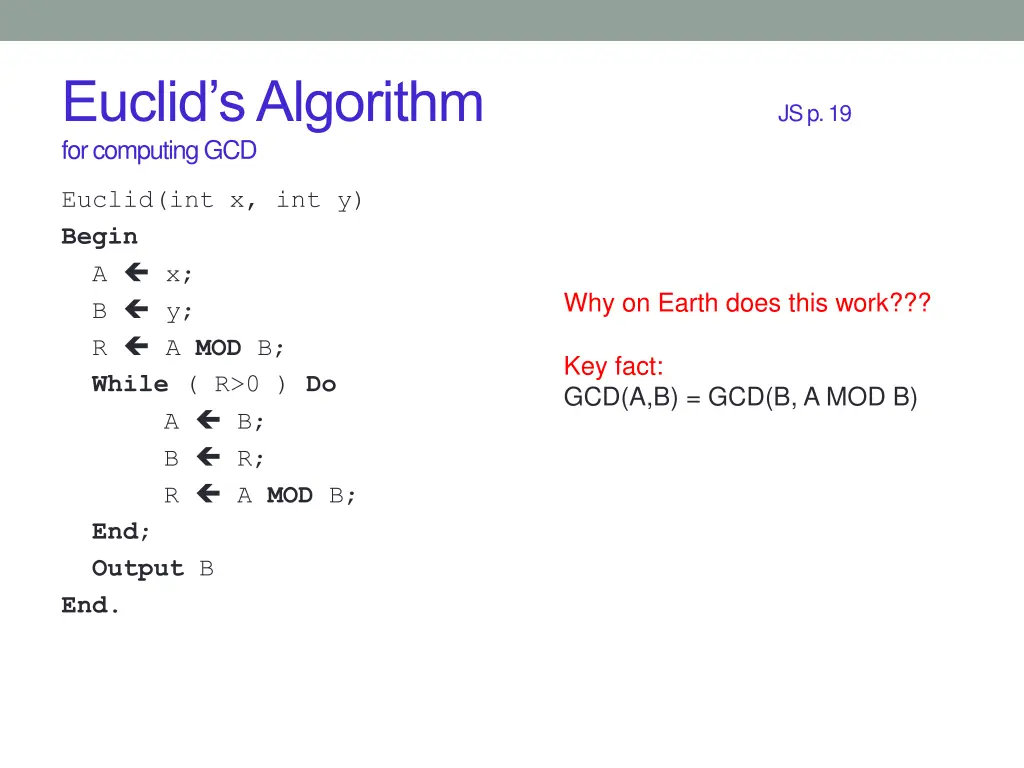

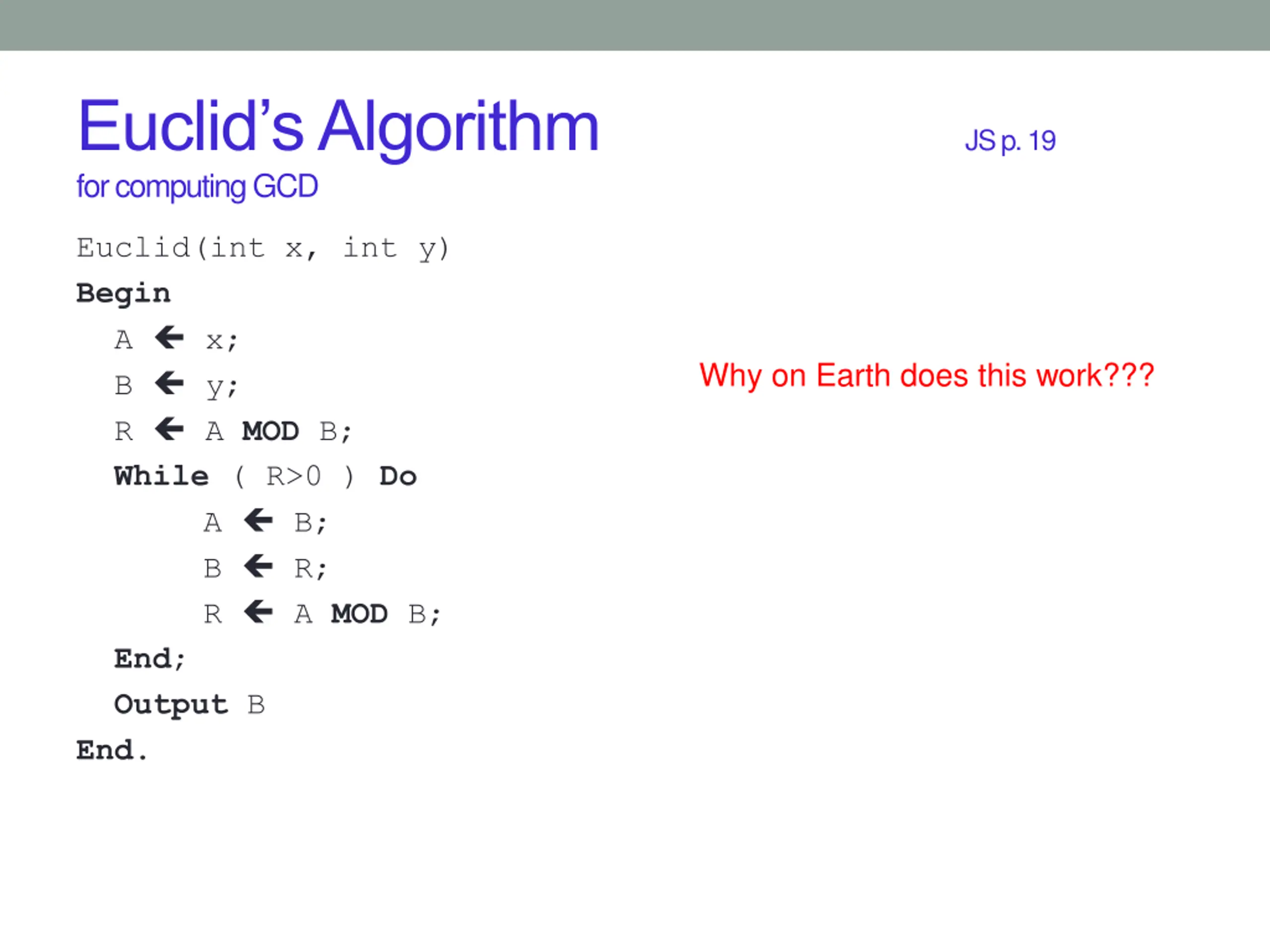

Euclids Algorithm for computing GCD JS p. 19 Euclid(int x, int y) Begin A x; B y; R A MOD B; While ( R>0 ) Do A B; B R; R A MOD B; End; Output B End. Why on Earth does this work???

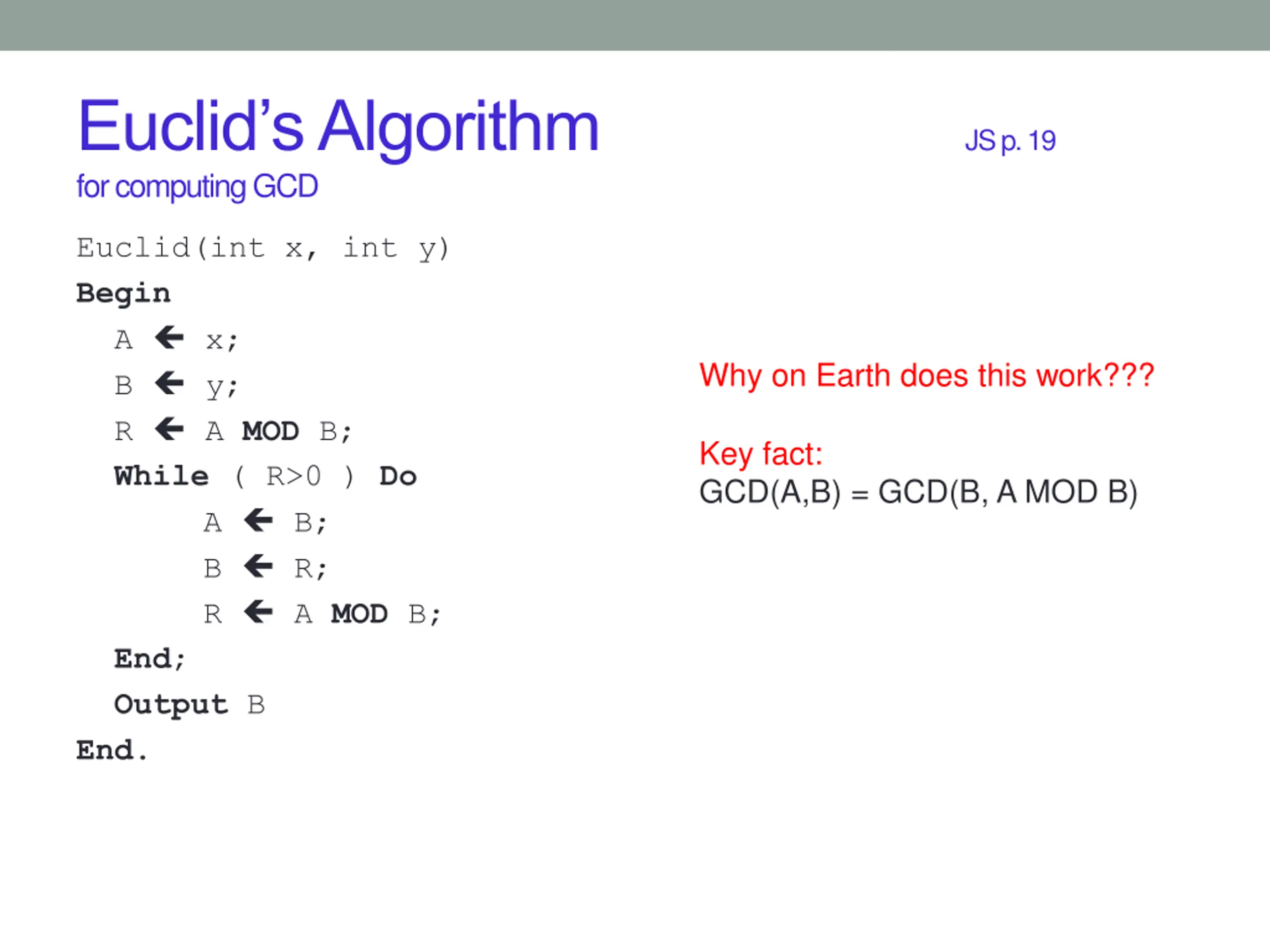

Euclids Algorithm for computing GCD JS p. 19 Euclid(int x, int y) Begin A x; B y; R A MOD B; While ( R>0 ) Do A B; B R; R A MOD B; End; Output B End. Why on Earth does this work??? Key fact: GCD(A,B) = GCD(B, A MOD B)

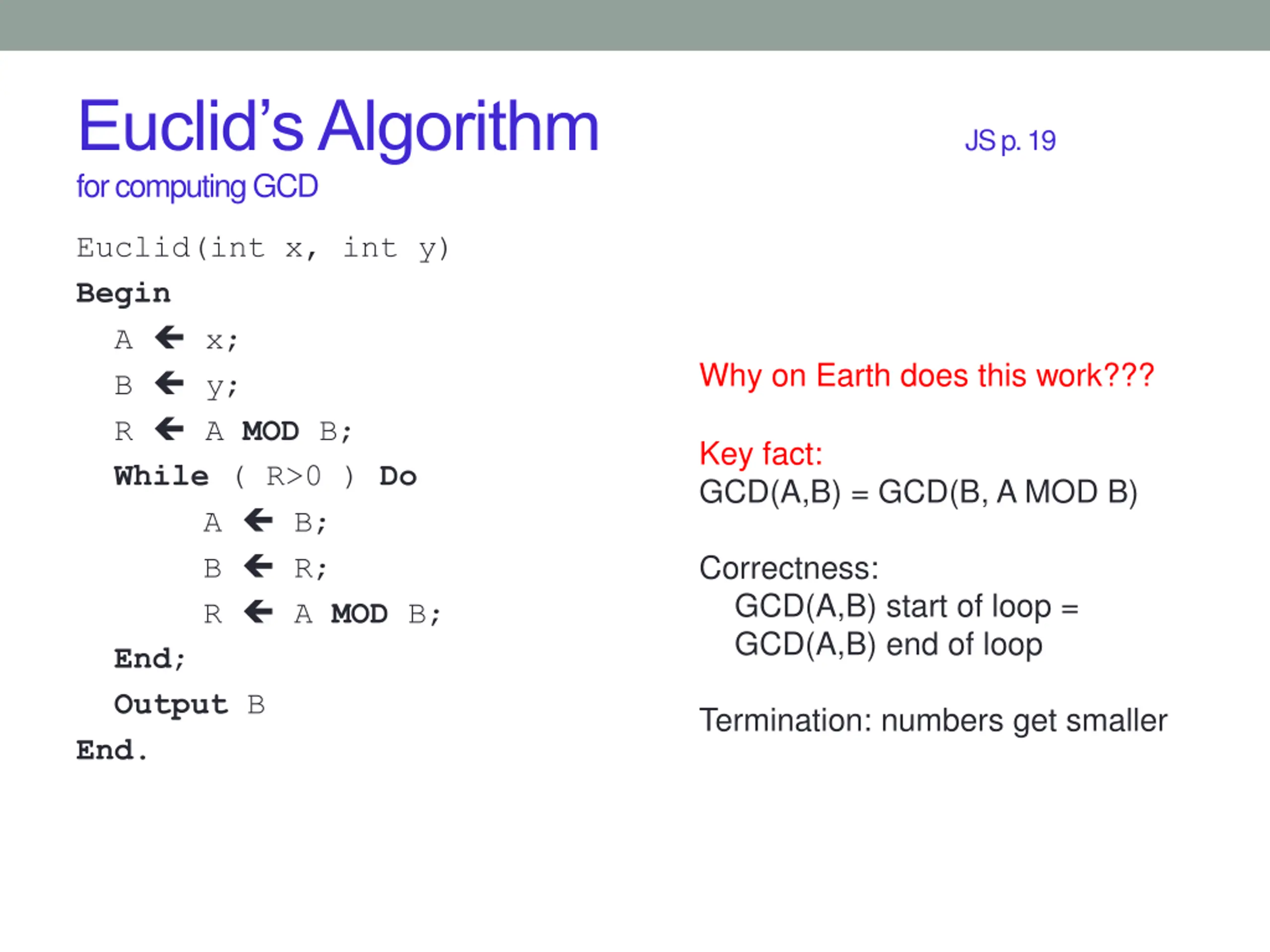

Euclids Algorithm for computing GCD JS p. 19 Euclid(int x, int y) Begin A x; B y; R A MOD B; While ( R>0 ) Do A B; B R; R A MOD B; End; Output B End. Why on Earth does this work??? Key fact: GCD(A,B) = GCD(B, A MOD B) Correctness: GCD(A,B) start of loop = GCD(A,B) end of loop Termination: numbers get smaller

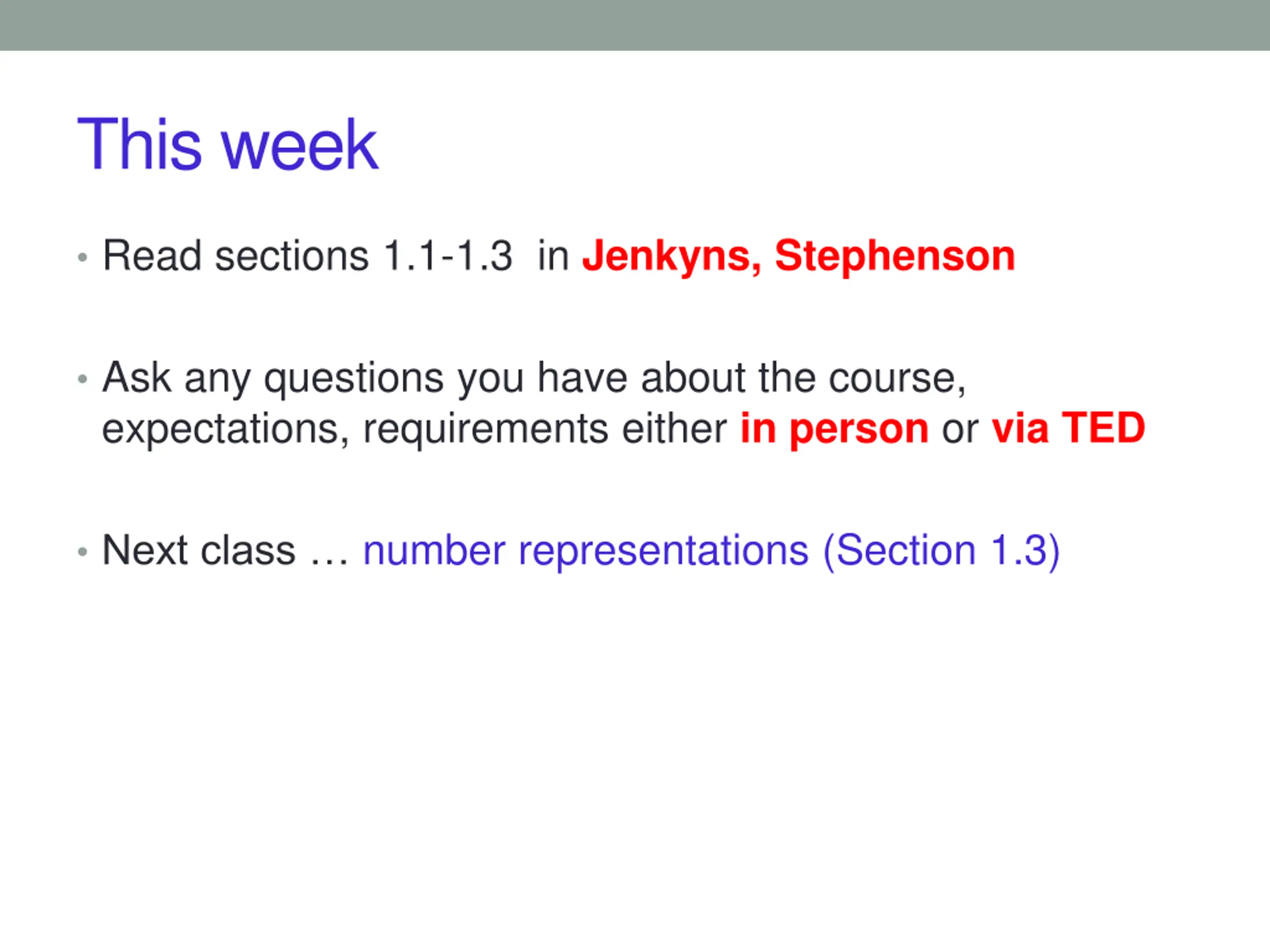

This week Read sections 1.1-1.3 in Jenkyns, Stephenson Ask any questions you have about the course, expectations, requirements either in person or via TED Next class number representations (Section 1.3)
