Understanding ARC Architecture Basics

ITEC 352 Lecture 13 ISA(4)

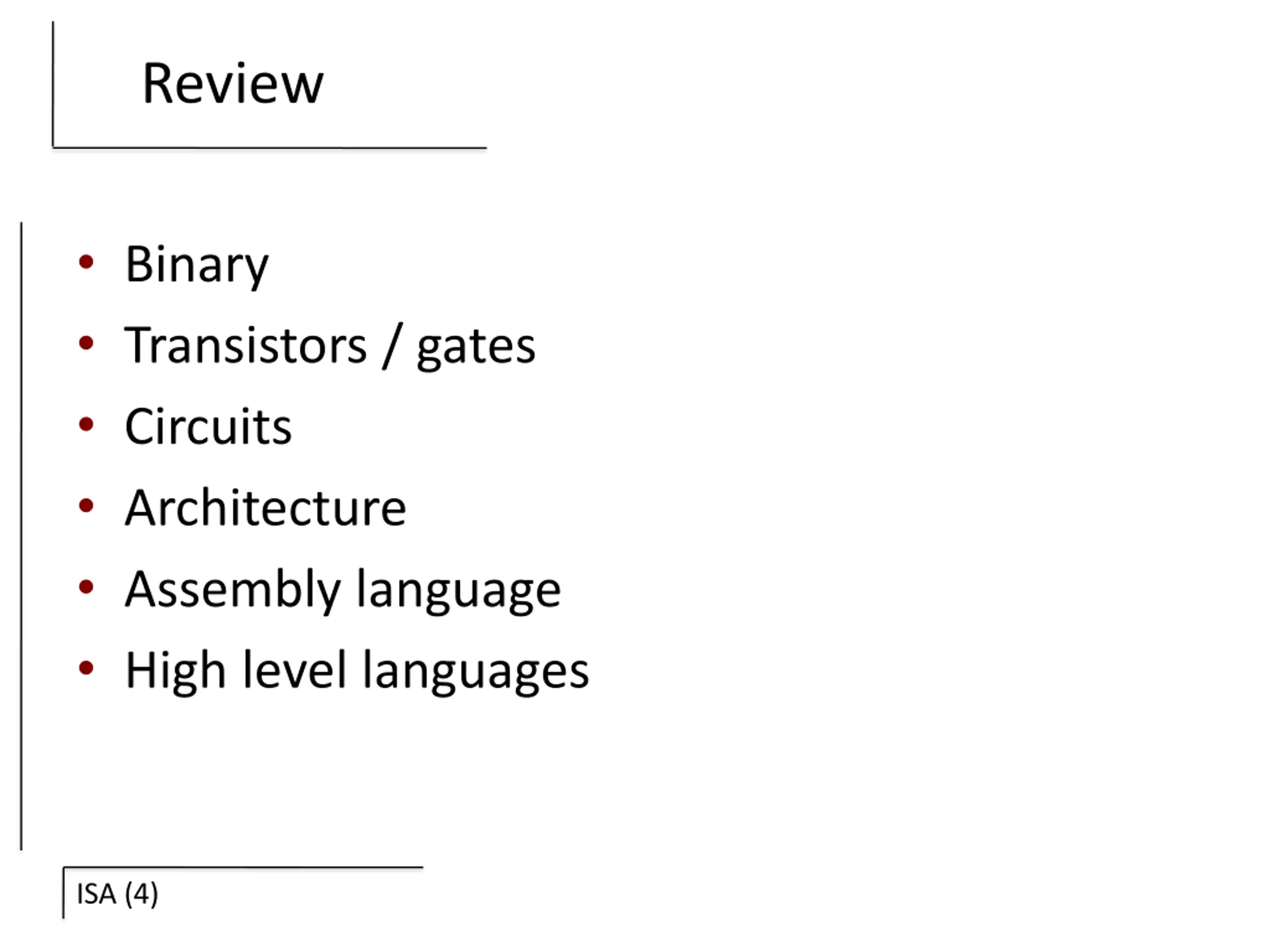

Review Binary Transistors / gates Circuits Architecture Assembly language High level languages ISA (4)

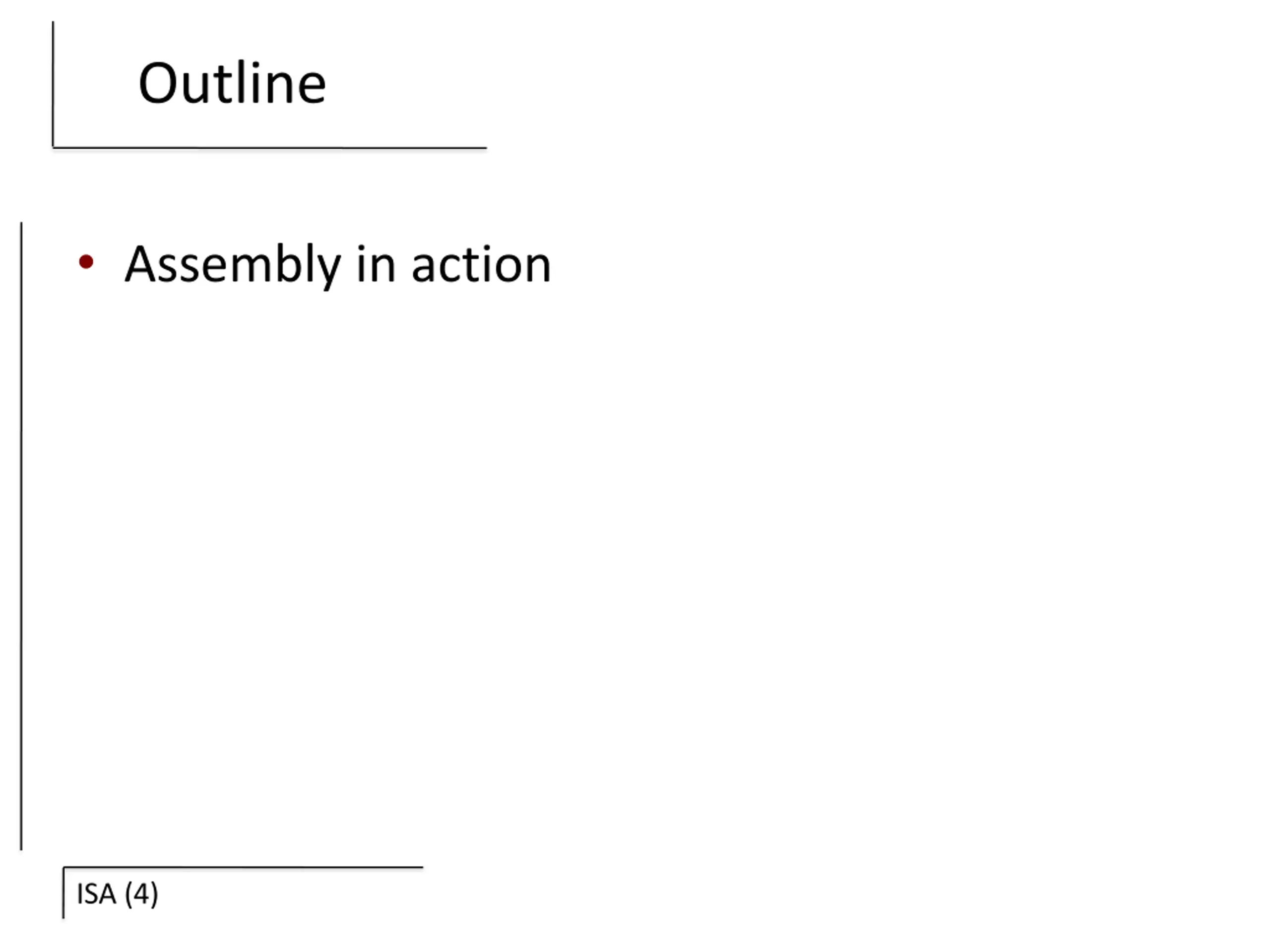

Outline Assembly in action ISA (4)

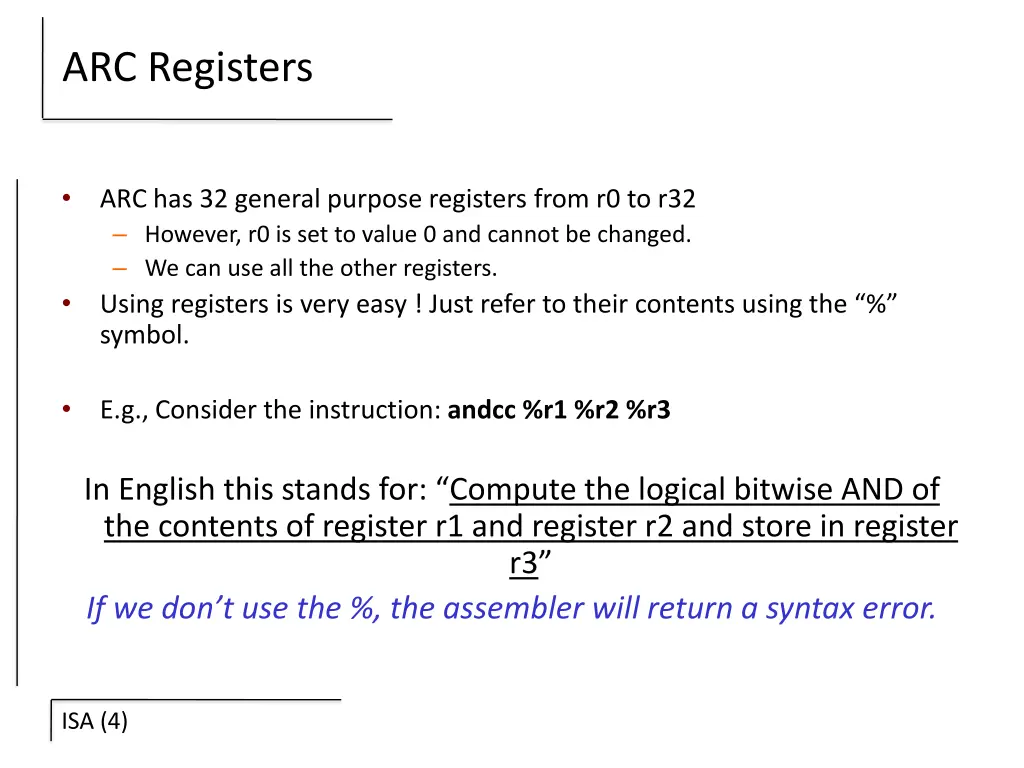

ARC Registers ARC has 32 general purpose registers from r0 to r32 However, r0 is set to value 0 and cannot be changed. We can use all the other registers. Using registers is very easy ! Just refer to their contents using the % symbol. E.g., Consider the instruction: andcc %r1 %r2 %r3 In English this stands for: Compute the logical bitwise AND of the contents of register r1 and register r2 and store in register r3 If we don t use the %, the assembler will return a syntax error. ISA (4)

User-Visible Registers PC: program counter, next instruction to execute ISA (4) Stack Pointer: we will study later.

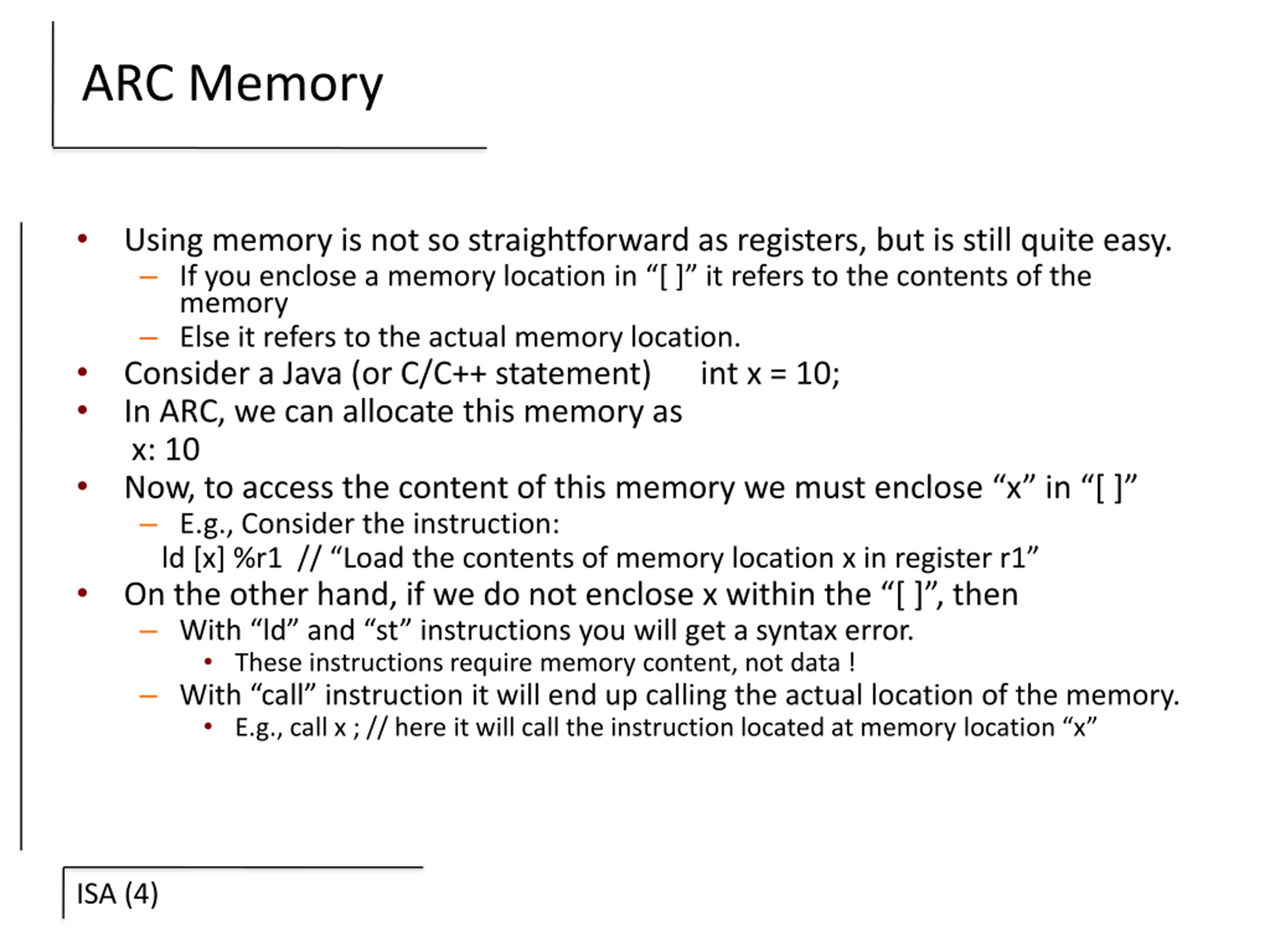

ARC Memory Using memory is not so straightforward as registers, but is still quite easy. If you enclose a memory location in [ ] it refers to the contents of the memory Else it refers to the actual memory location. Consider a Java (or C/C++ statement) int x = 10; In ARC, we can allocate this memory as x: 10 Now, to access the content of this memory we must enclose x in [ ] E.g., Consider the instruction: ld [x] %r1 // Load the contents of memory location x in register r1 On the other hand, if we do not enclose x within the [ ] , then With ld and st instructions you will get a syntax error. These instructions require memory content, not data ! With call instruction it will end up calling the actual location of the memory. E.g., call x ; // here it will call the instruction located at memory location x ISA (4)

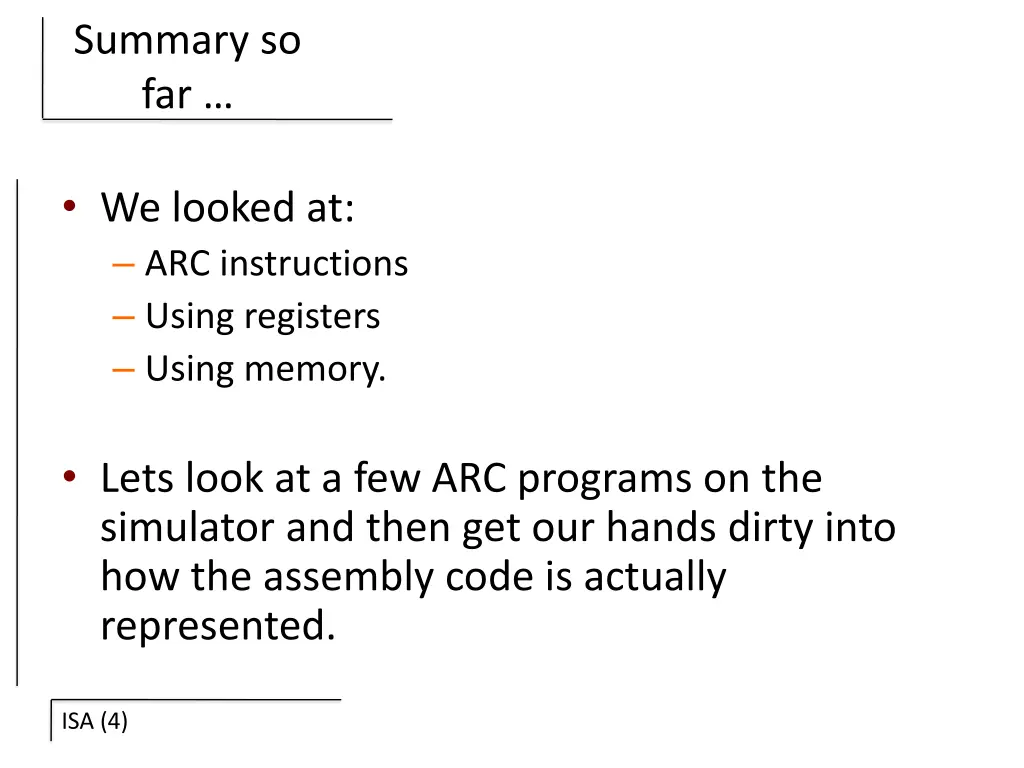

Summary so far We looked at: ARC instructions Using registers Using memory. Lets look at a few ARC programs on the simulator and then get our hands dirty into how the assembly code is actually represented. ISA (4)

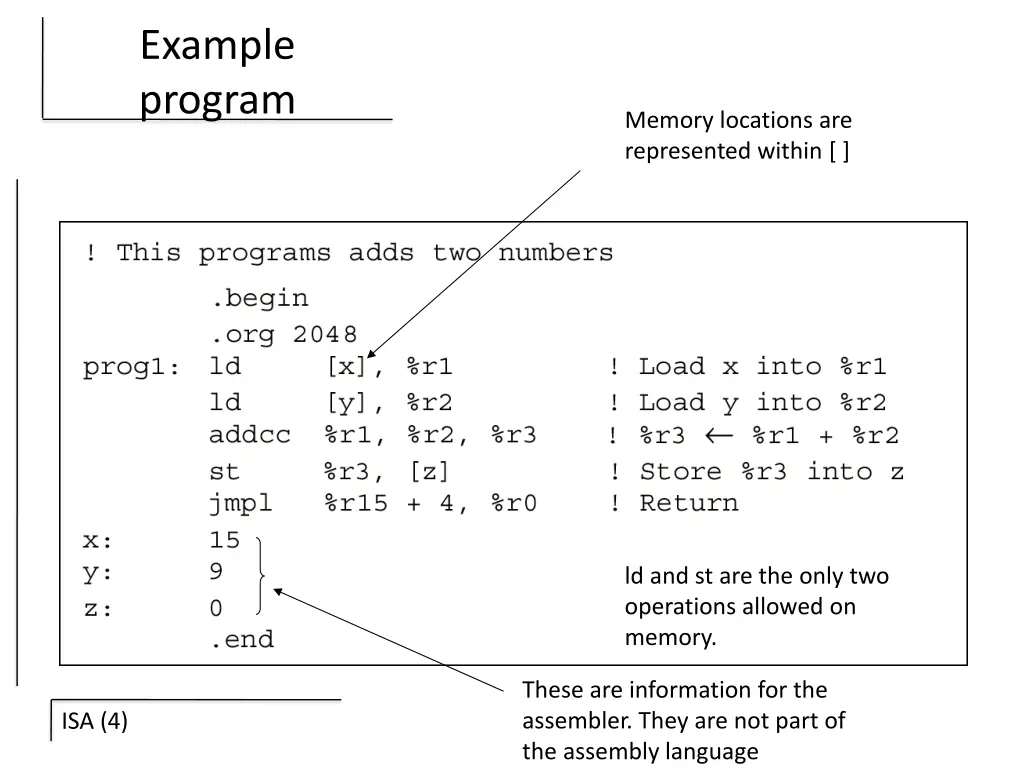

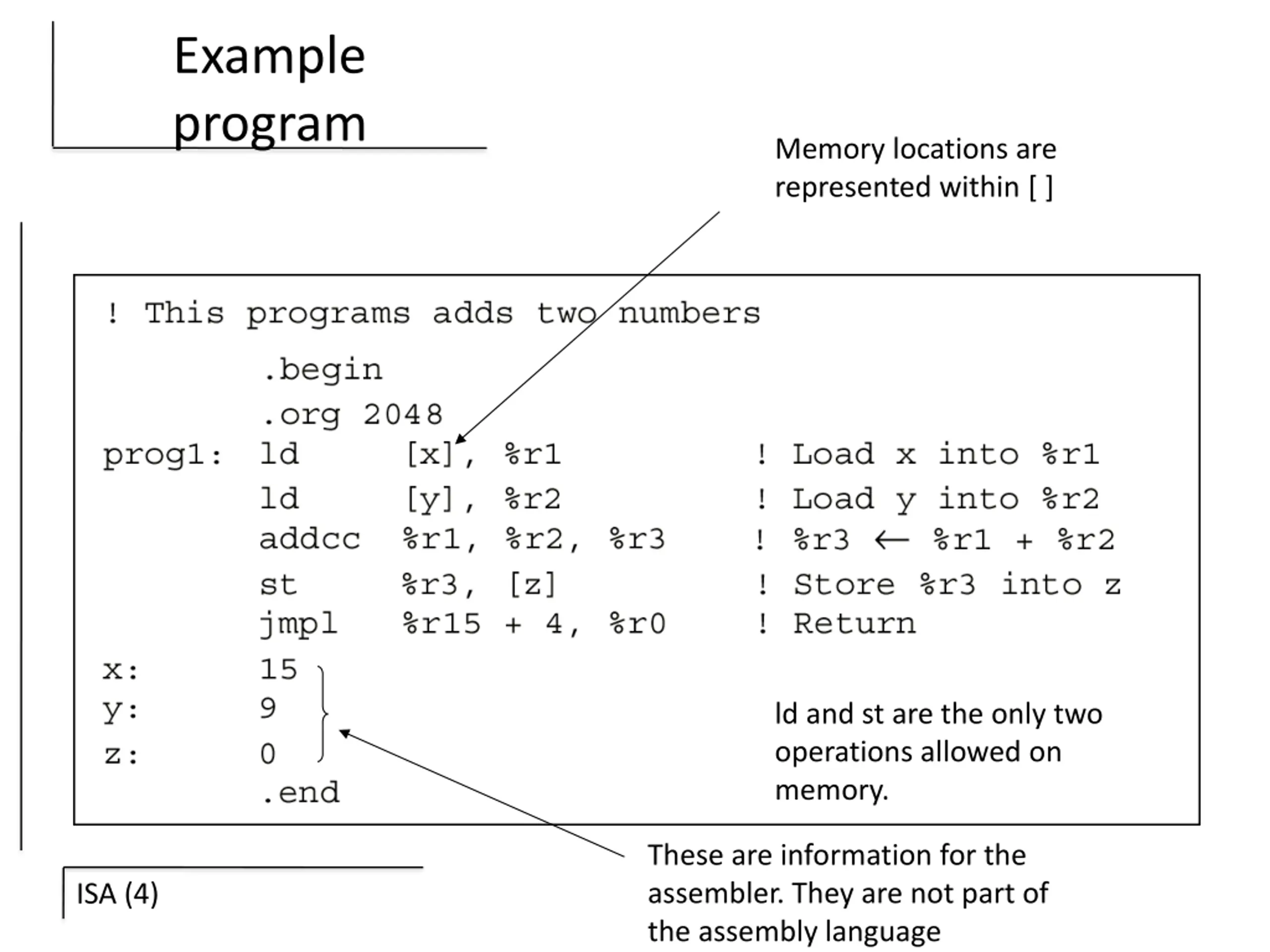

Example program Memory locations are represented within [ ] ld and st are the only two operations allowed on memory. These are information for the assembler. They are not part of the assembly language ISA (4)

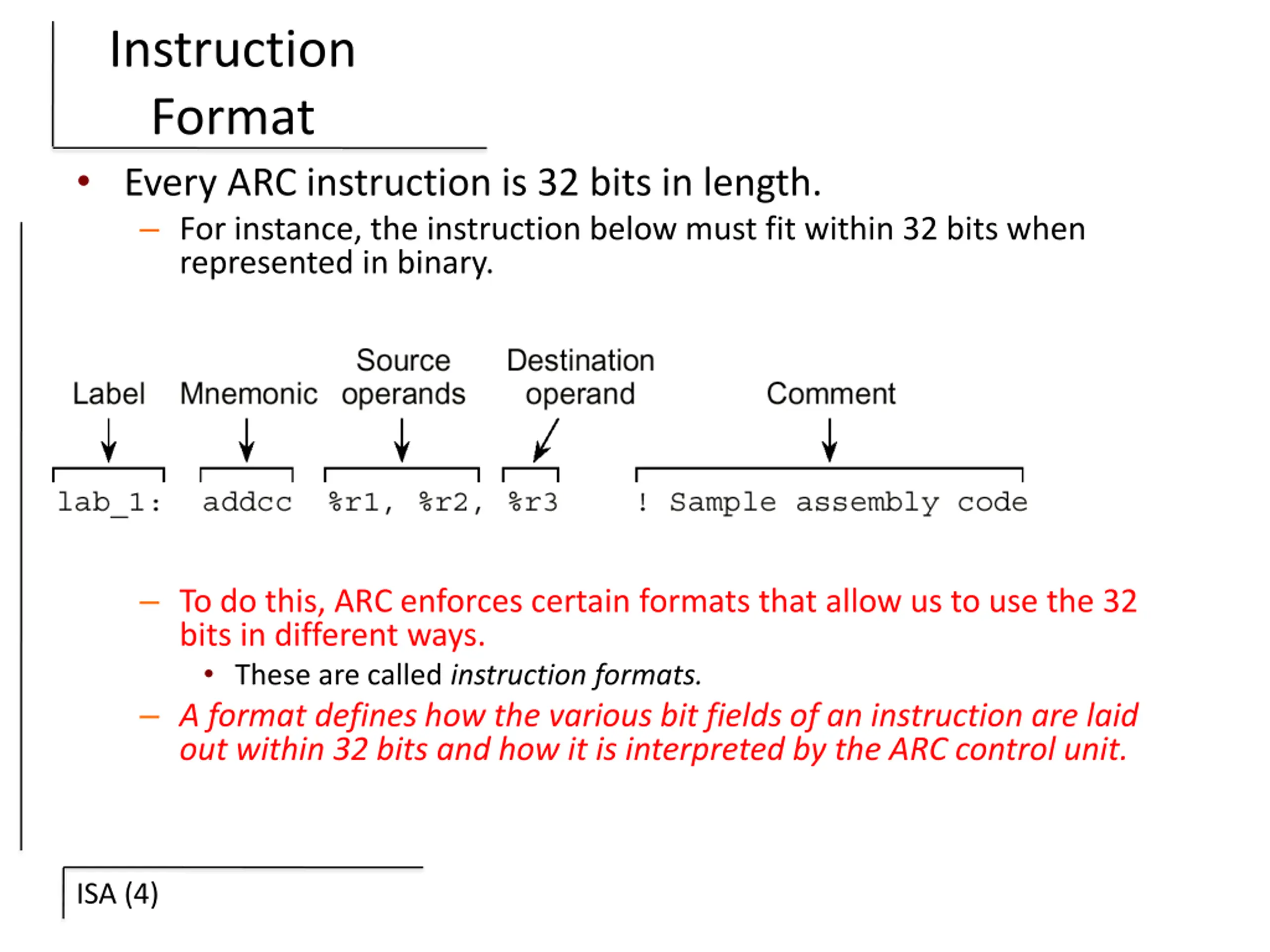

Instruction Format Every ARC instruction is 32 bits in length. For instance, the instruction below must fit within 32 bits when represented in binary. To do this, ARC enforces certain formats that allow us to use the 32 bits in different ways. These are called instruction formats. A format defines how the various bit fields of an instruction are laid out within 32 bits and how it is interpreted by the ARC control unit. ISA (4)

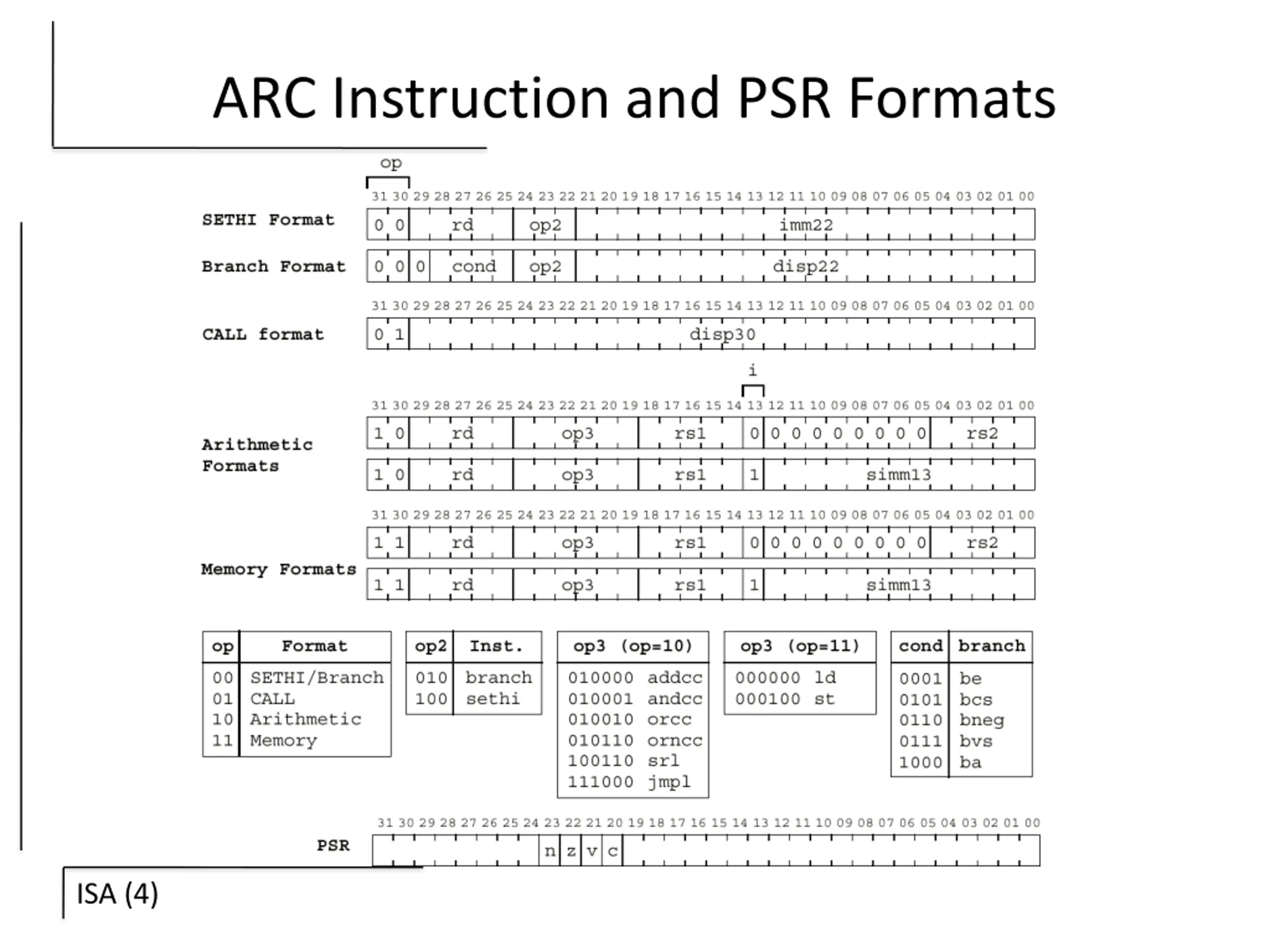

ARC Instruction and PSR Formats ISA (4)

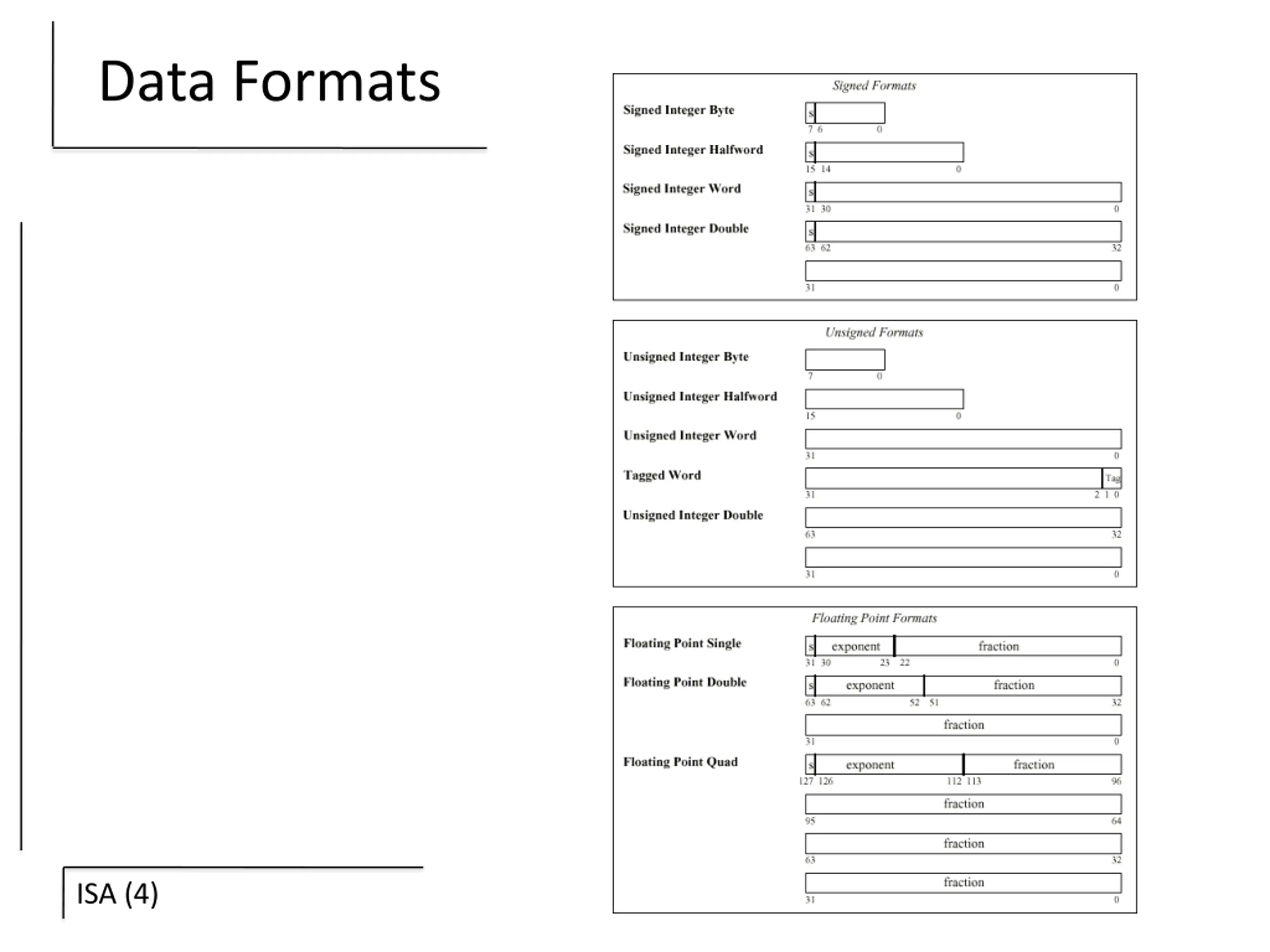

Data Formats ISA (4)

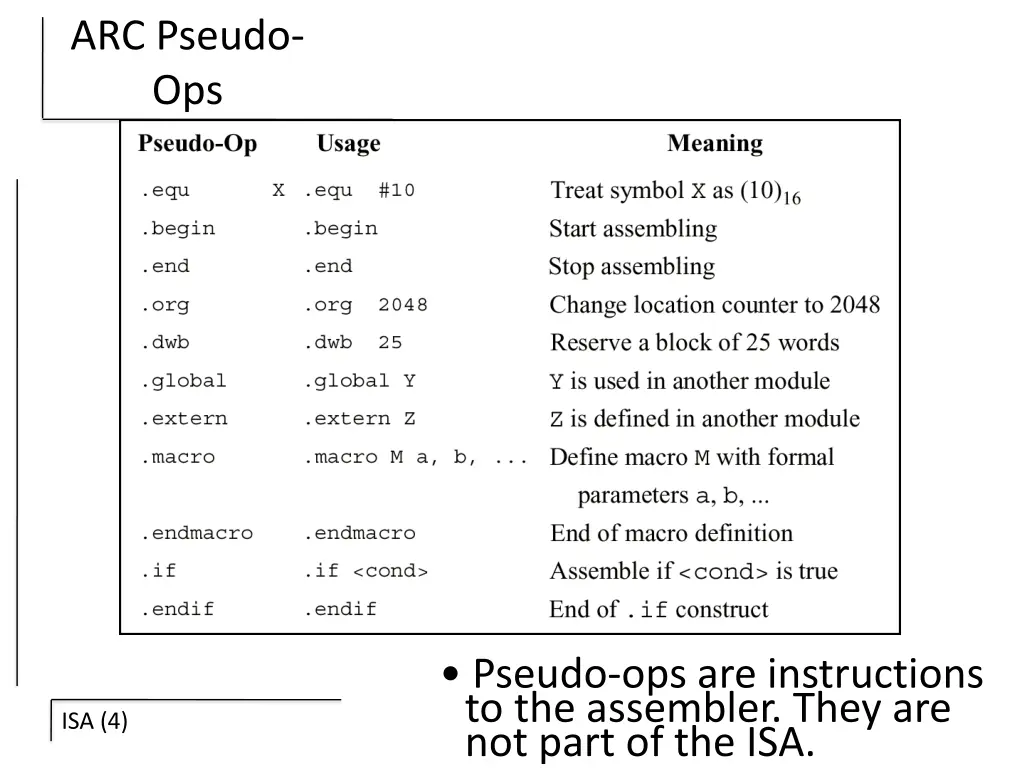

ARC Pseudo- Ops Pseudo-ops are instructions to the assembler. They are not part of the ISA. ISA (4)

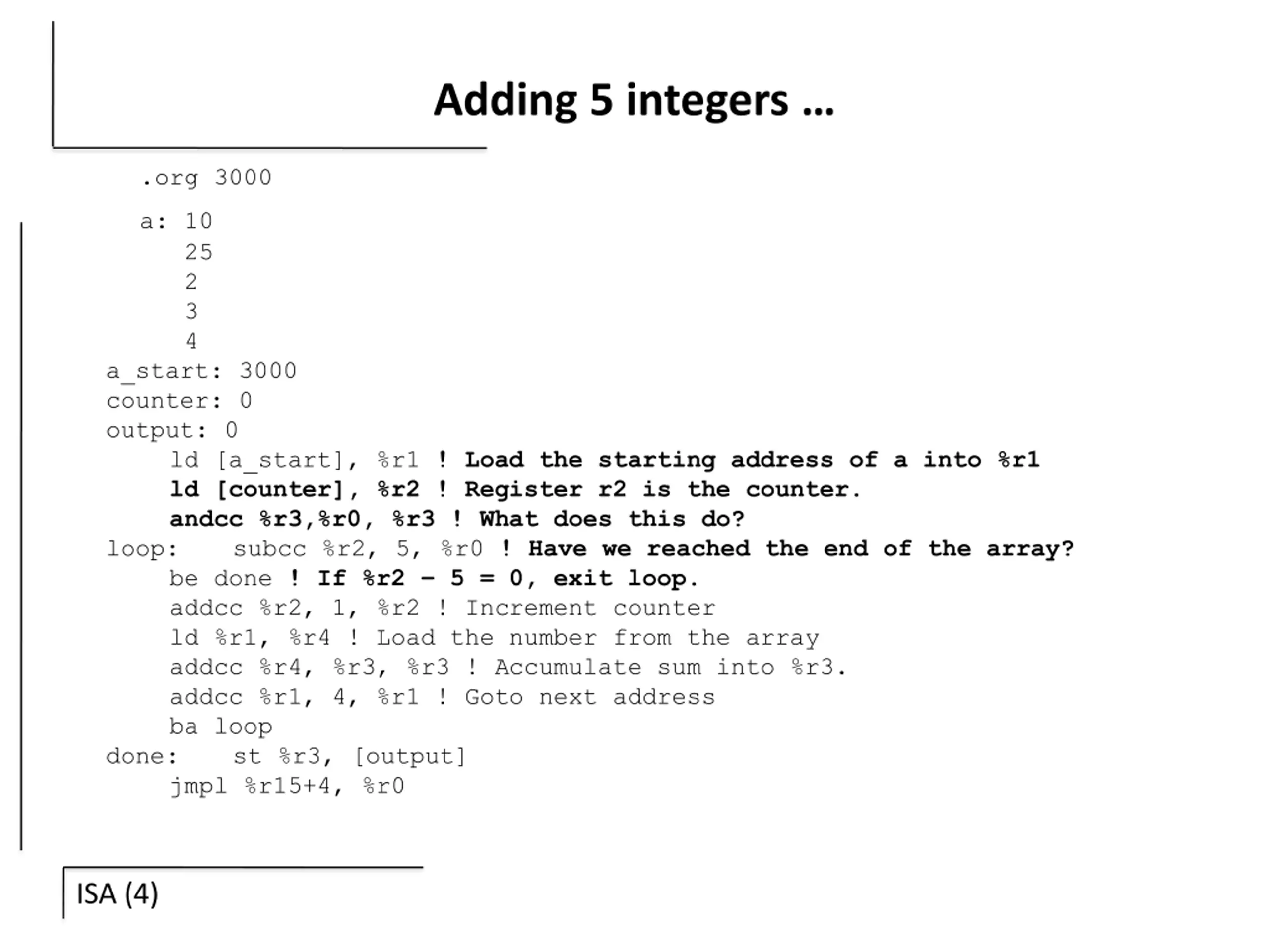

Adding 5 integers .org 3000 a: 10 25 2 3 4 a_start: 3000 counter: 0 output: 0 ld [a_start], %r1 ! Load the starting address of a into %r1 ld [counter], %r2 ! Register r2 is the counter. andcc %r3,%r0, %r3 ! What does this do? loop: subcc %r2, 5, %r0 ! Have we reached the end of the array? be done ! If %r2 5 = 0, exit loop. addcc %r2, 1, %r2 ! Increment counter ld %r1, %r4 ! Load the number from the array addcc %r4, %r3, %r3 ! Accumulate sum into %r3. addcc %r1, 4, %r1 ! Goto next address ba loop done: st %r3, [output] jmpl %r15+4, %r0 ISA (4)

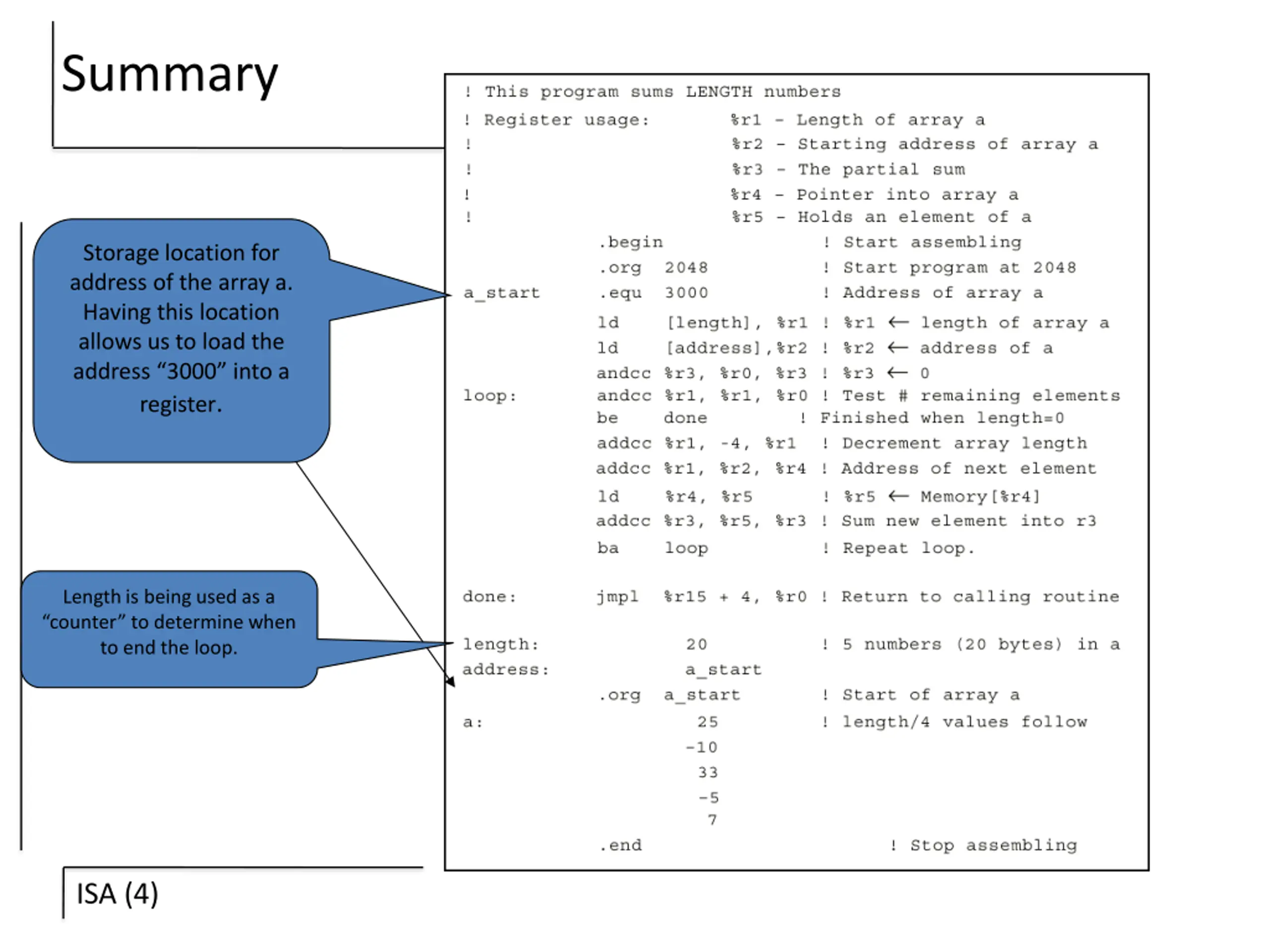

Summary Storage location for address of the array a. Having this location allows us to load the address 3000 into a register. Length is being used as a counter to determine when to end the loop. ISA (4)

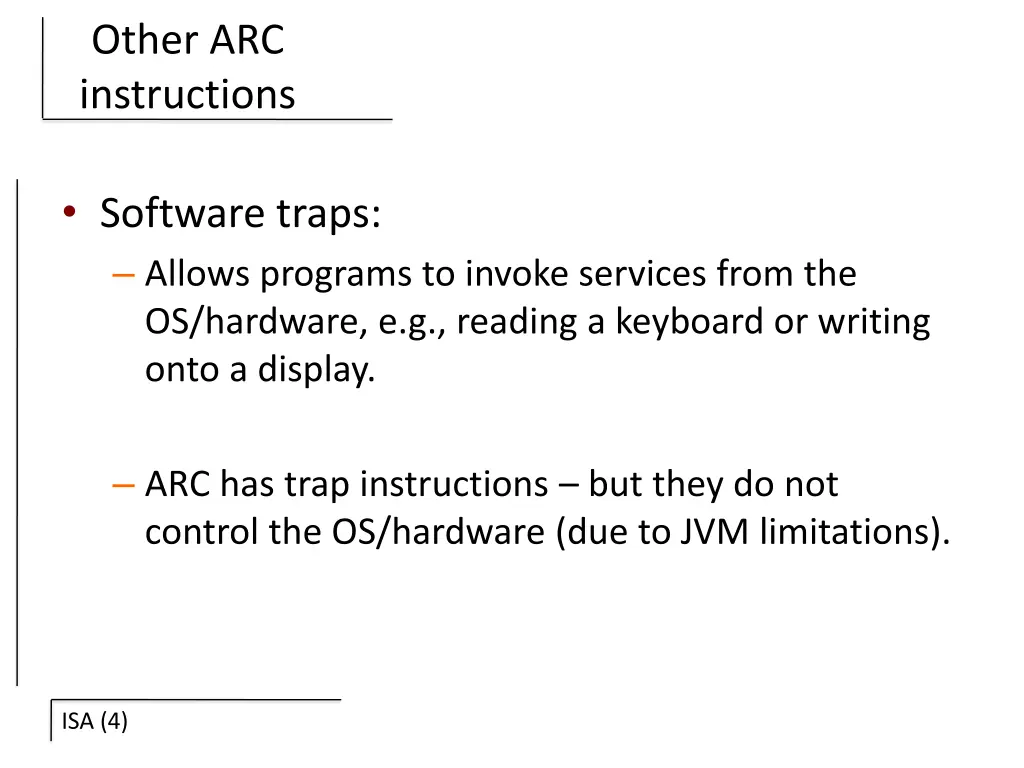

Other ARC instructions Software traps: Allows programs to invoke services from the OS/hardware, e.g., reading a keyboard or writing onto a display. ARC has trap instructions but they do not control the OS/hardware (due to JVM limitations). ISA (4)

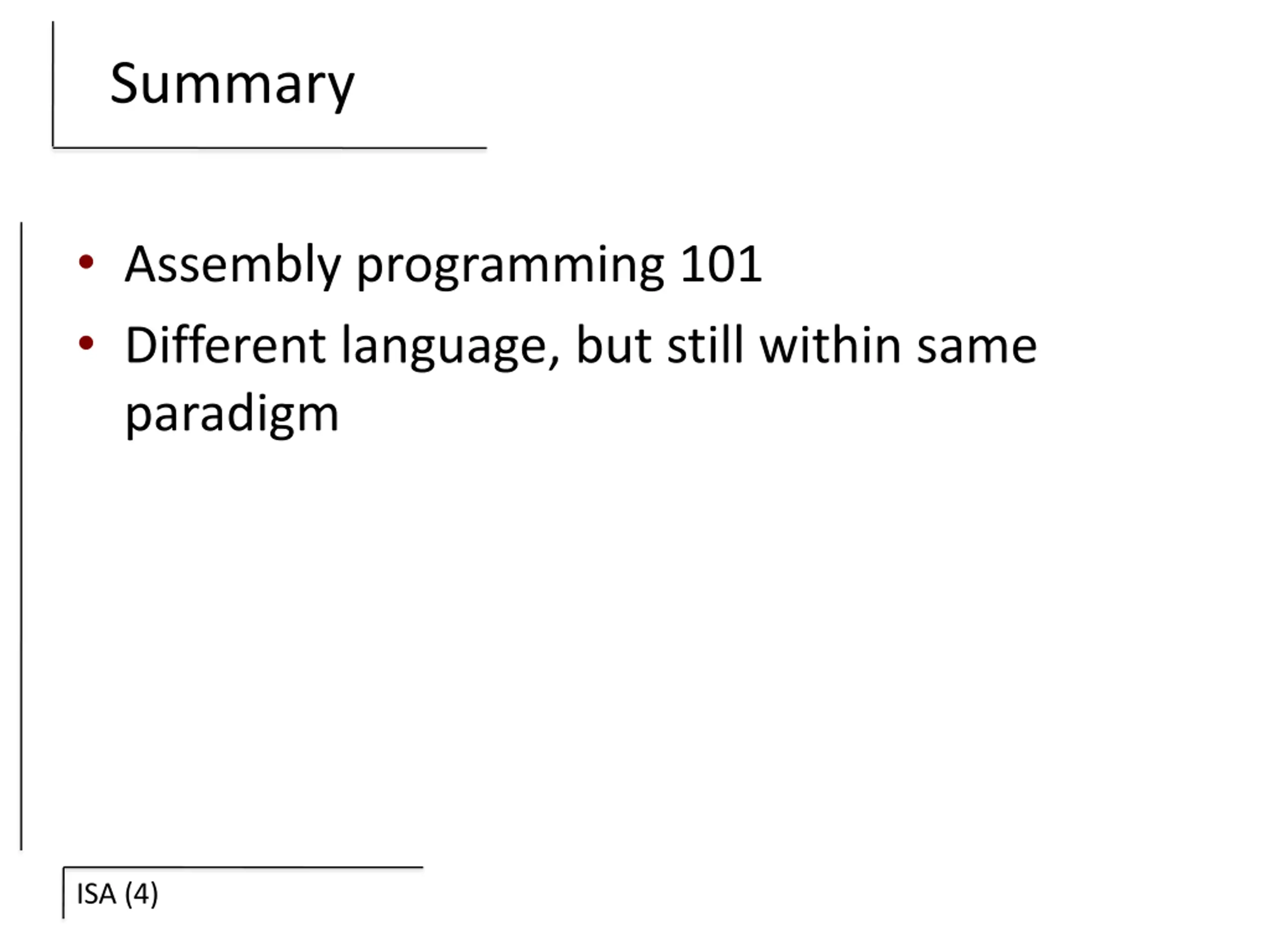

Summary Assembly programming 101 Different language, but still within same paradigm ISA (4)
