ADStream module Bruce Hill SLAC National Accelerator Lab 9/18/16

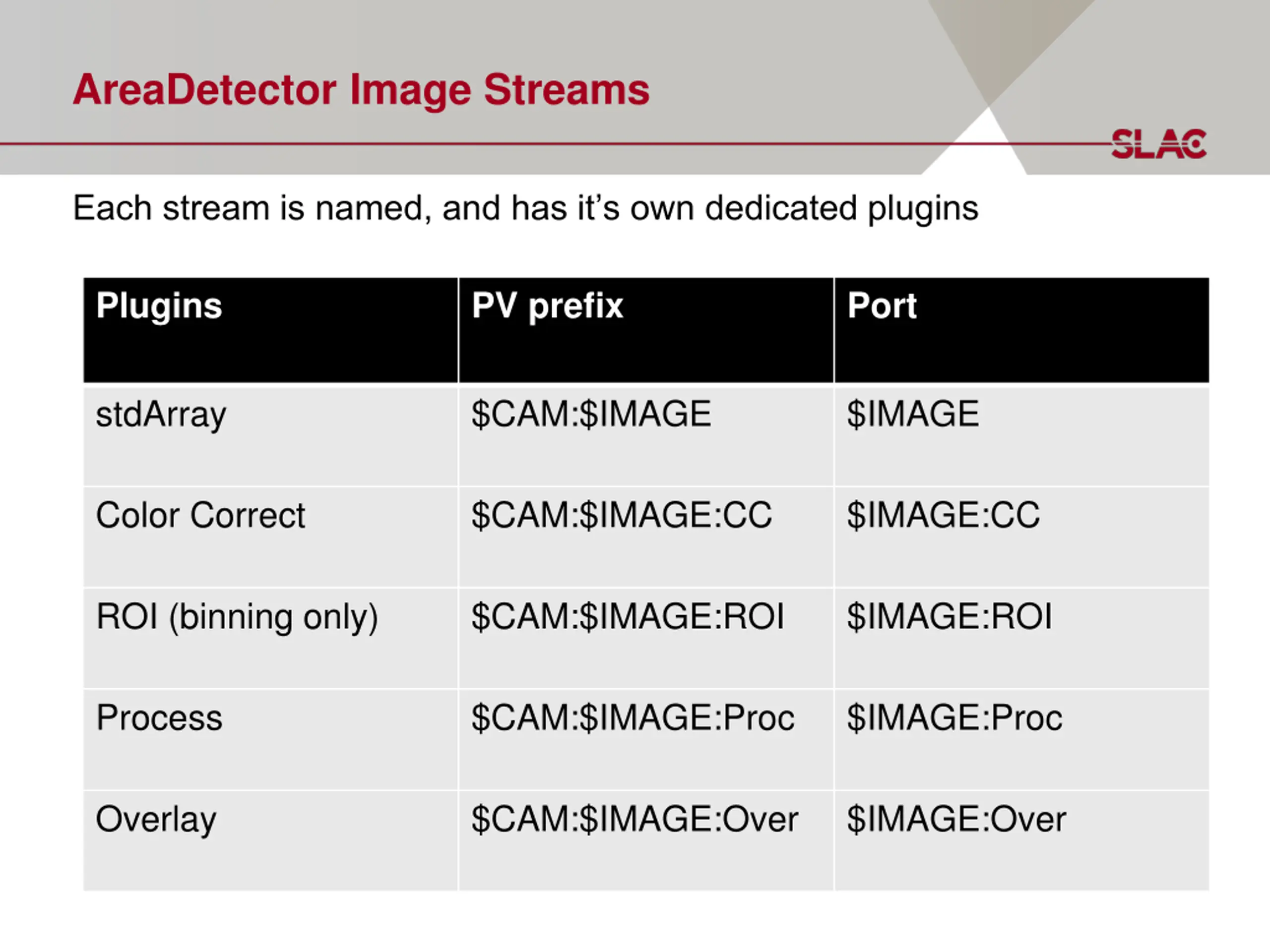

AreaDetector Image Streams Each stream is named, and has it s own dedicated plugins Plugins PV prefix Port stdArray $CAM:$IMAGE $IMAGE Color Correct $CAM:$IMAGE:CC $IMAGE:CC ROI (binning only) $CAM:$IMAGE:ROI $IMAGE:ROI Process $CAM:$IMAGE:Proc $IMAGE:Proc Overlay $CAM:$IMAGE:Over $IMAGE:Over

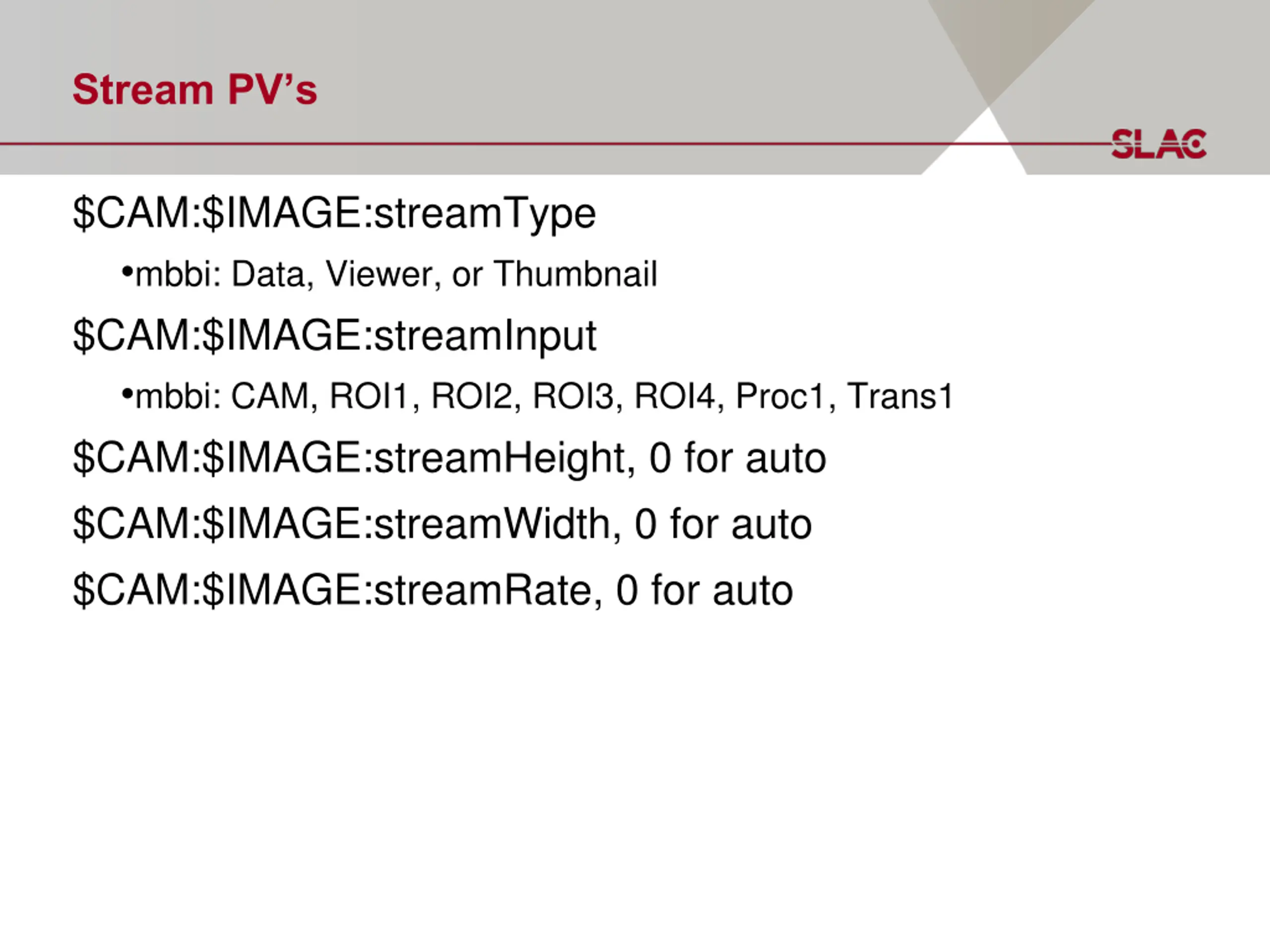

Stream PVs $CAM:$IMAGE:streamType mbbi: Data, Viewer, or Thumbnail $CAM:$IMAGE:streamInput mbbi: CAM, ROI1, ROI2, ROI3, ROI4, Proc1, Trans1 $CAM:$IMAGE:streamHeight, 0 for auto $CAM:$IMAGE:streamWidth, 0 for auto $CAM:$IMAGE:streamRate, 0 for auto

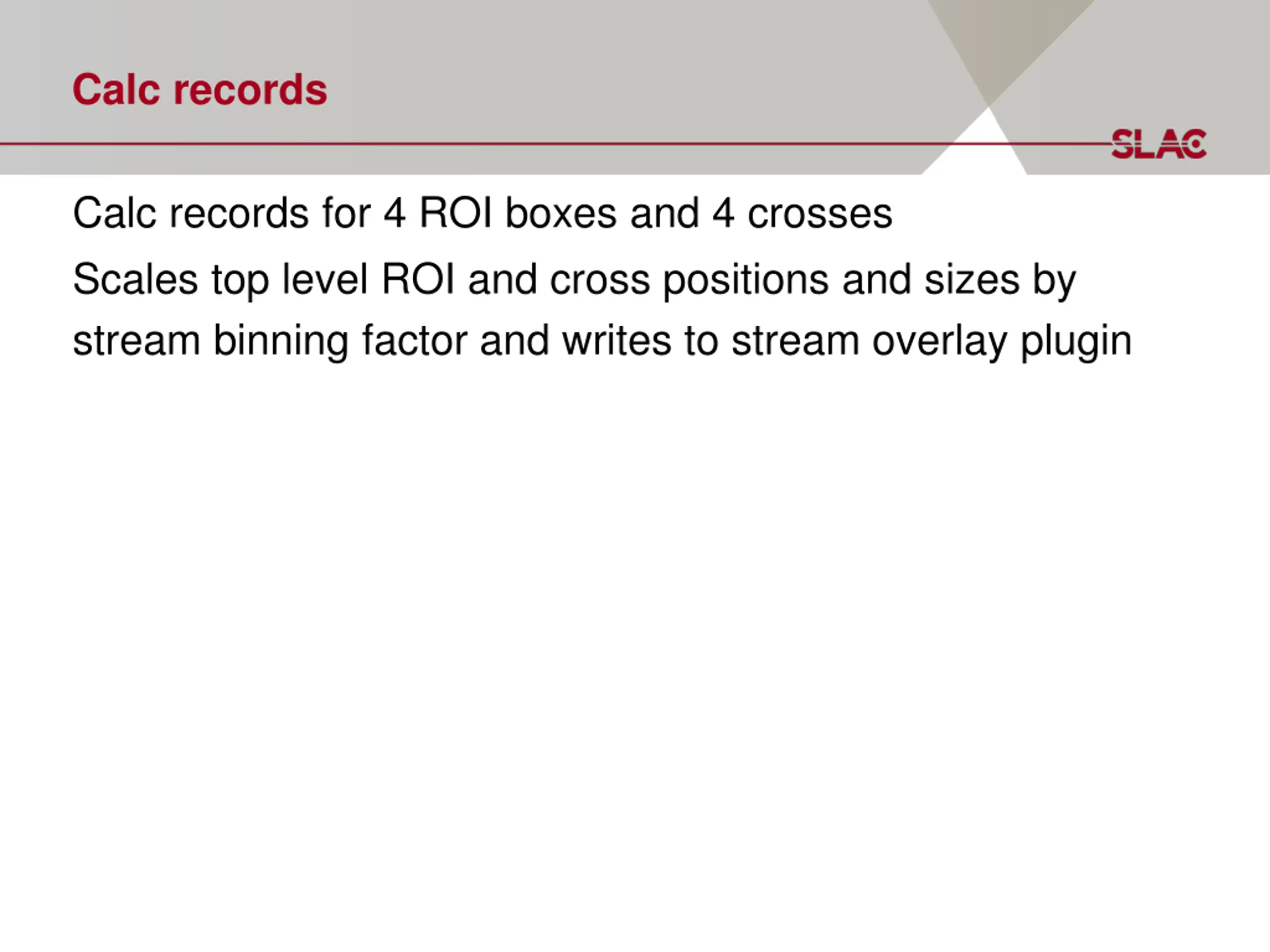

Calc records Calc records for 4 ROI boxes and 4 crosses Scales top level ROI and cross positions and sizes by stream binning factor and writes to stream overlay plugin

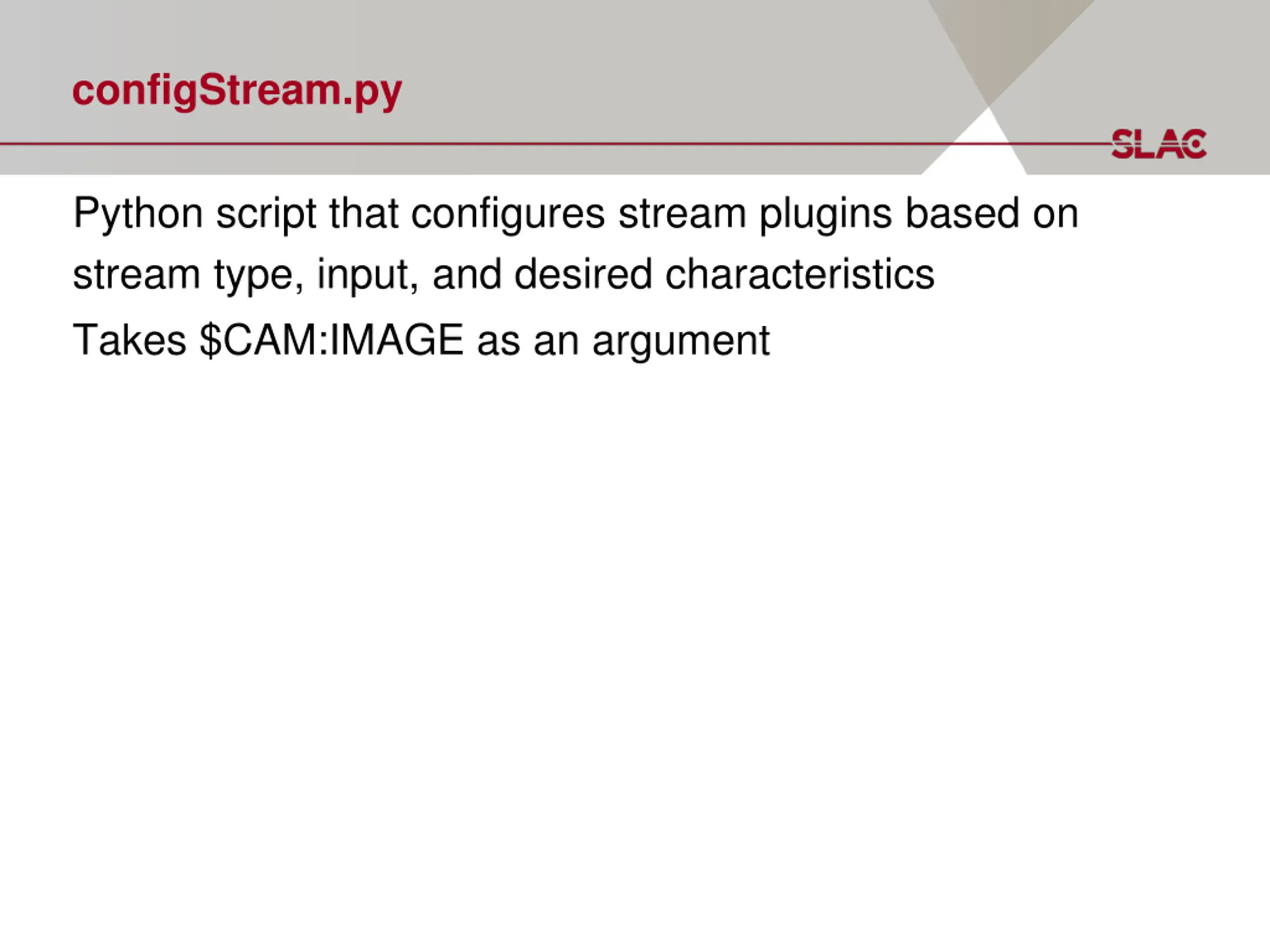

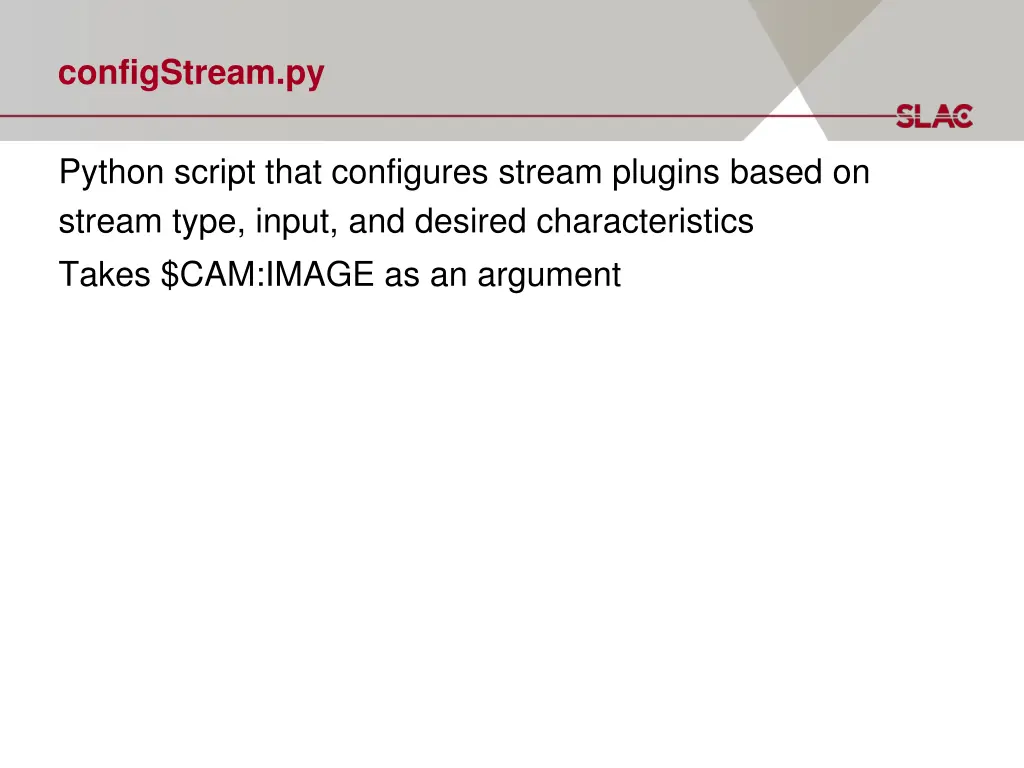

configStream.py Python script that configures stream plugins based on stream type, input, and desired characteristics Takes $CAM:IMAGE as an argument

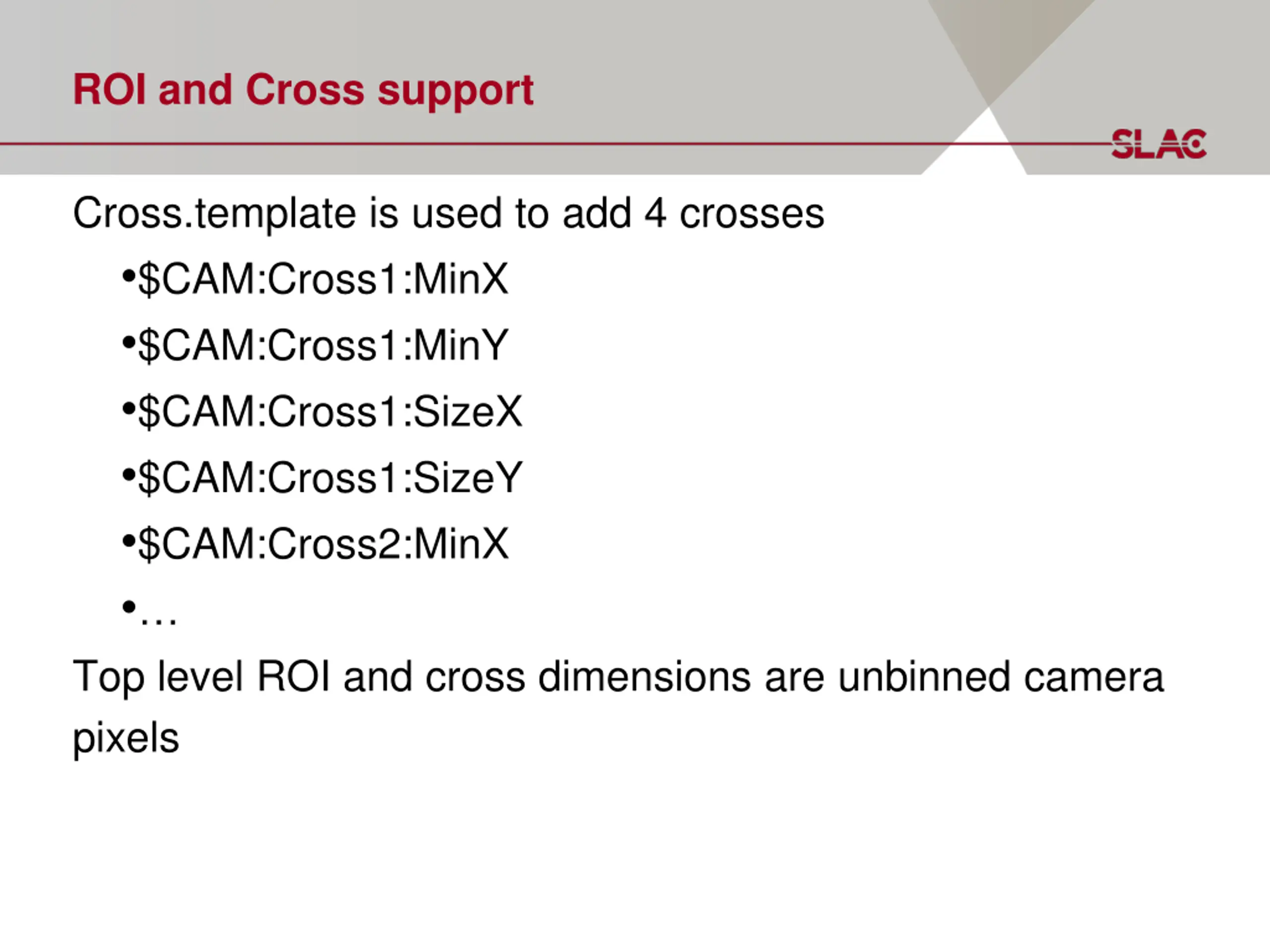

ROI and Cross support Cross.template is used to add 4 crosses $CAM:Cross1:MinX $CAM:Cross1:MinY $CAM:Cross1:SizeX $CAM:Cross1:SizeY $CAM:Cross2:MinX Top level ROI and cross dimensions are unbinned camera pixels

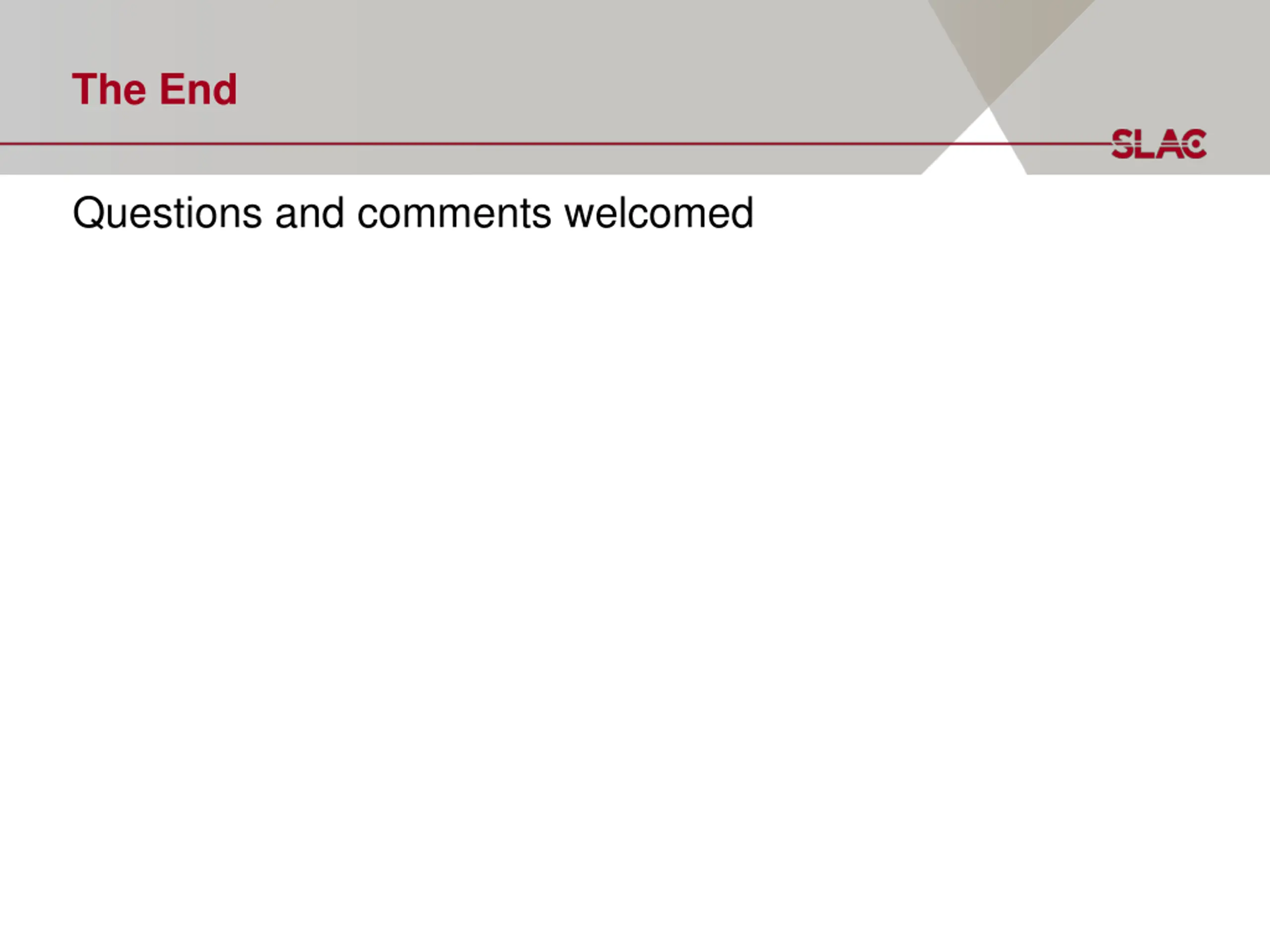

The End Questions and comments welcomed
