COM101B LECTURE 15: BITWISE OPERATIONS ASST. PROF. DR. HACER YALIM KELE REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

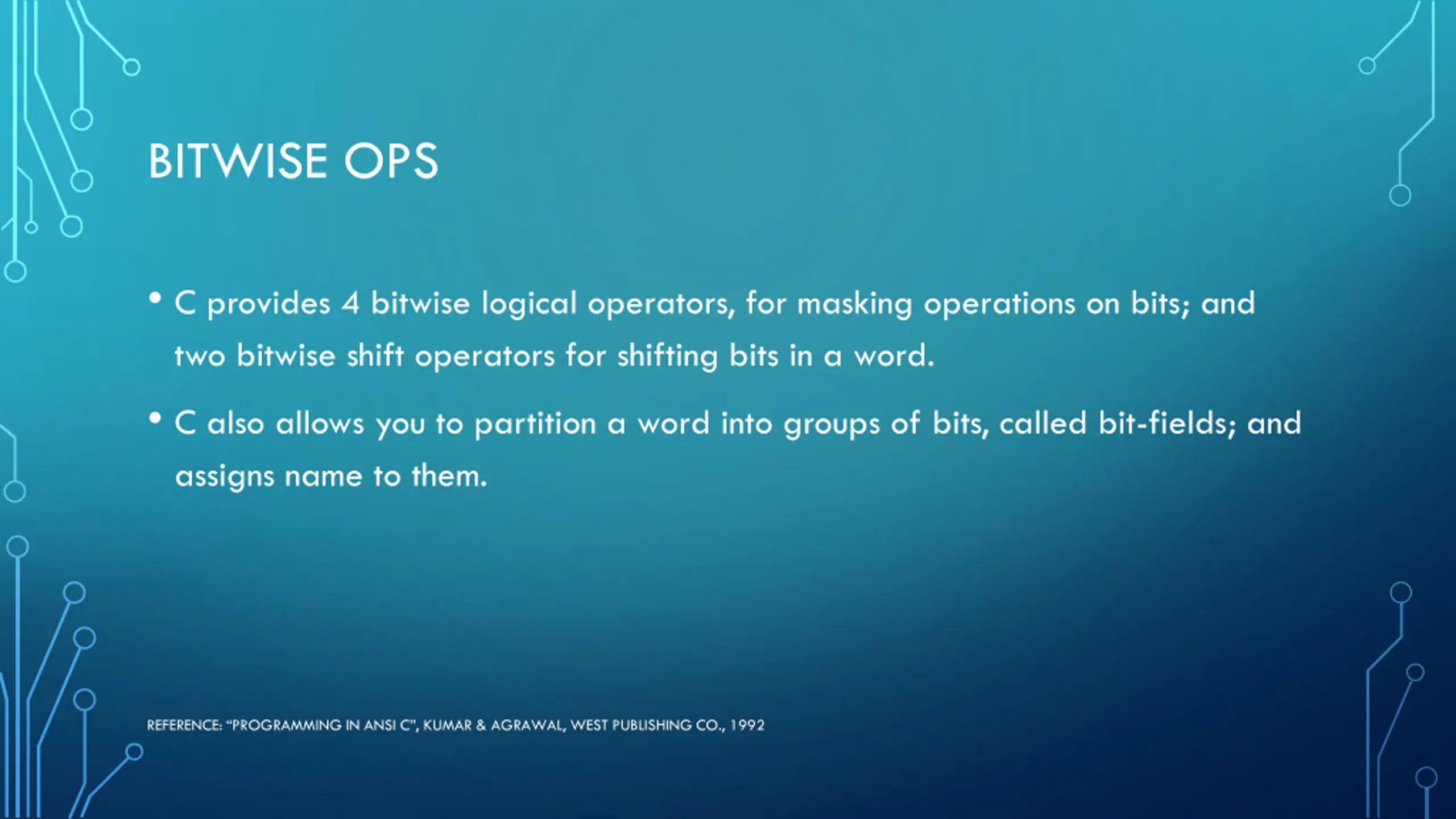

BITWISE OPS C provides 4 bitwise logical operators, for masking operations on bits; and two bitwise shift operators for shifting bits in a word. C also allows you to partition a word into groups of bits, called bit-fields; and assigns name to them. REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

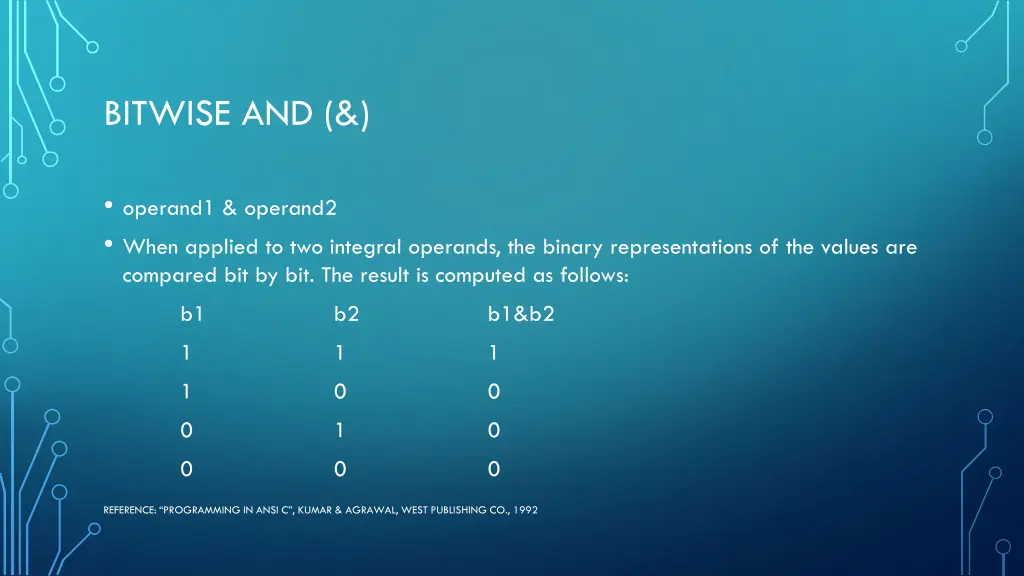

BITWISE AND (&) operand1 & operand2 When applied to two integral operands, the binary representations of the values are compared bit by bit. The result is computed as follows: b1 b2 b1&b2 1 1 1 1 0 0 0 1 0 0 0 0 REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

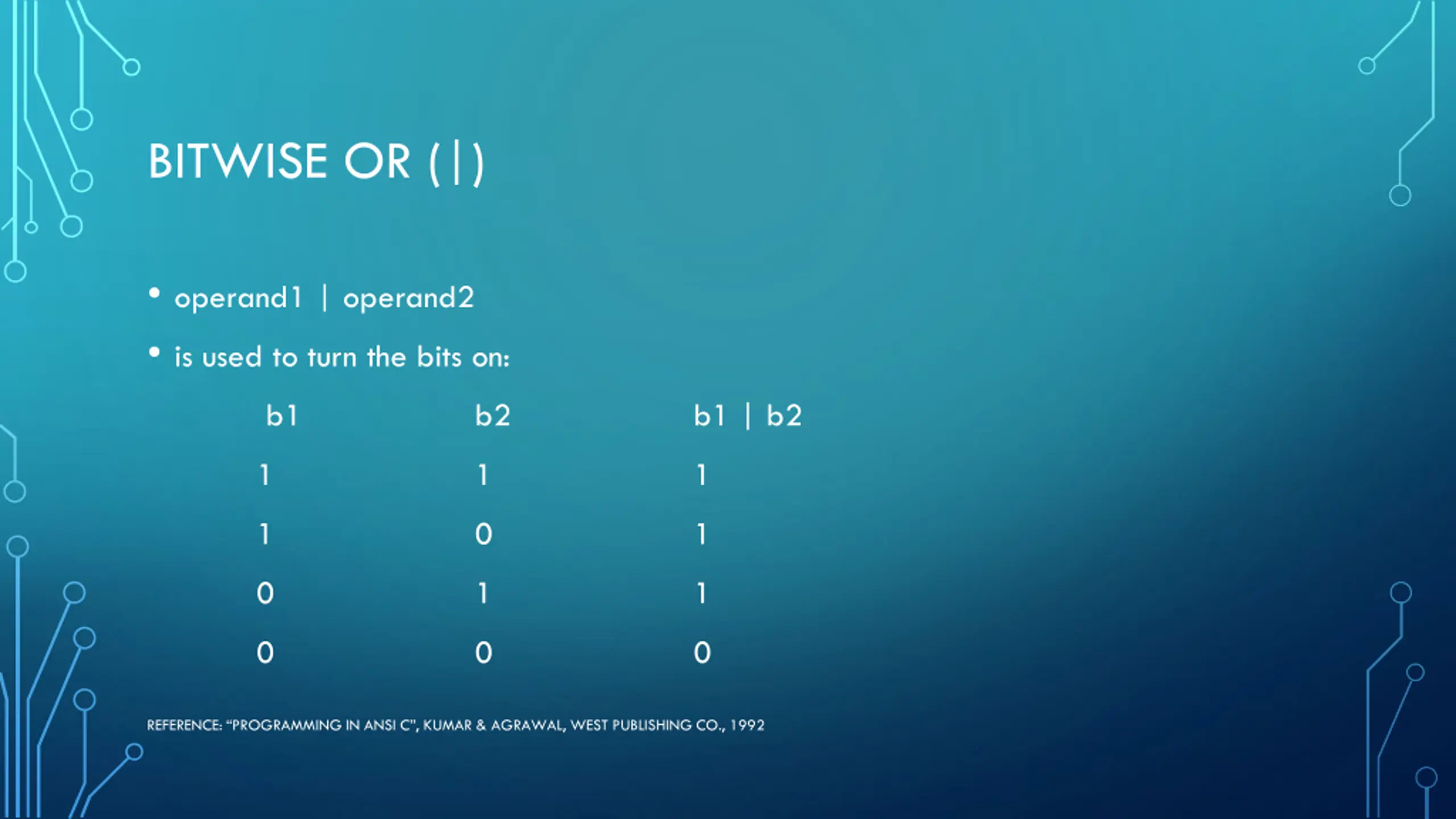

BITWISE OR (|) operand1 | operand2 is used to turn the bits on: b1 b2 b1 | b2 1 1 1 1 0 1 0 1 1 0 0 0 REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

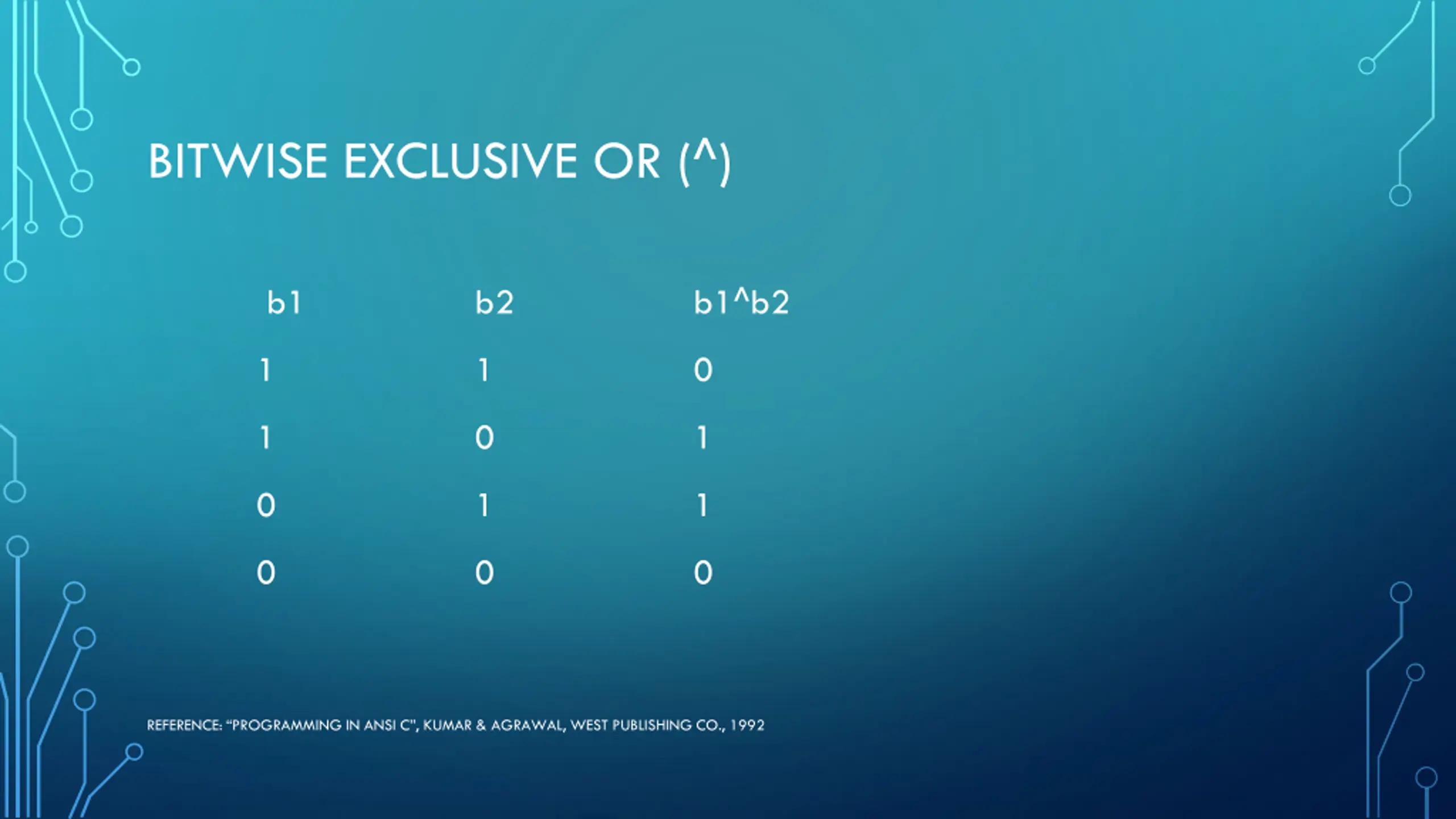

BITWISE EXCLUSIVE OR (^) b1 b2 b1^b2 1 1 0 1 0 1 0 1 1 0 0 0 REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

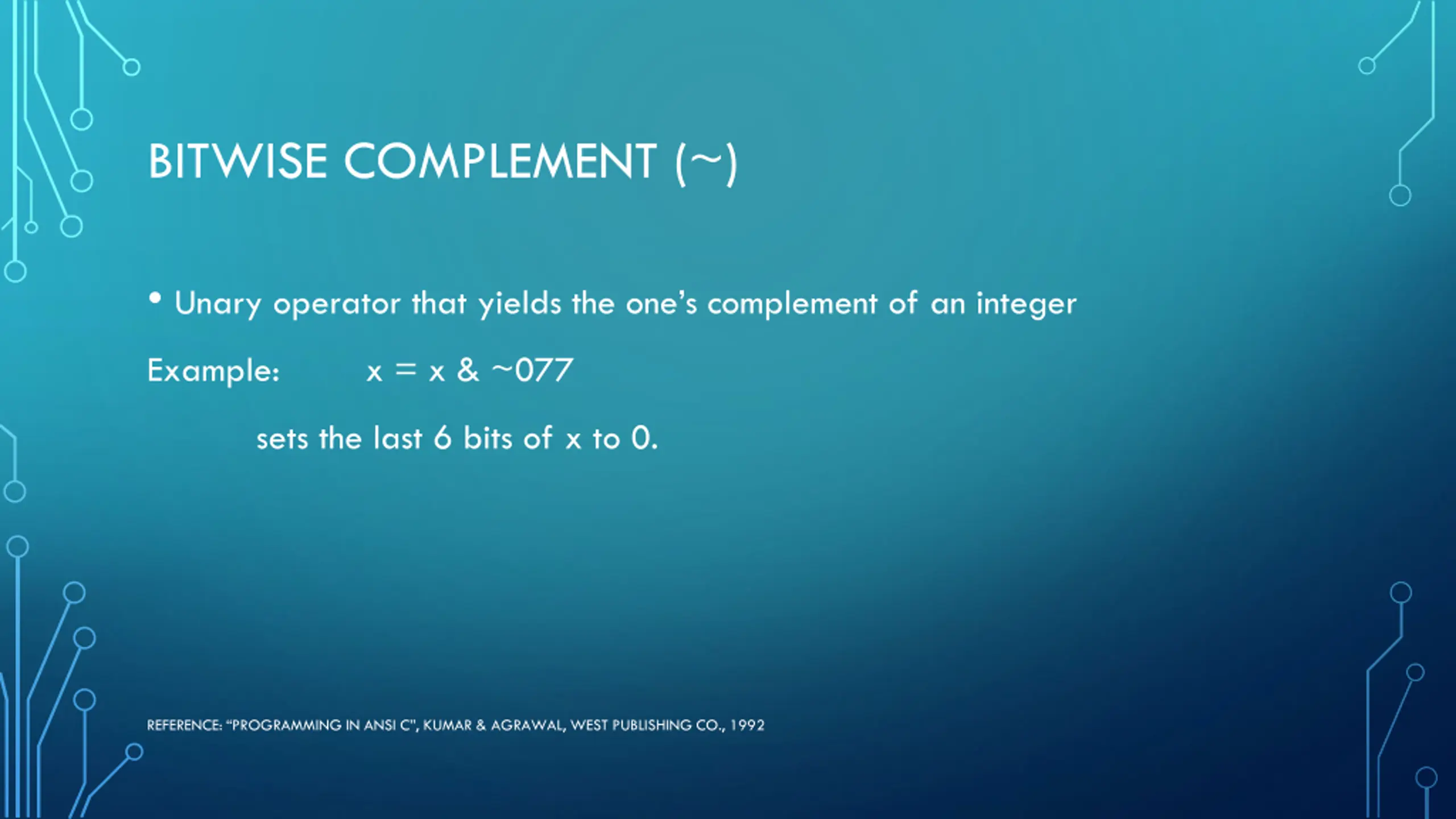

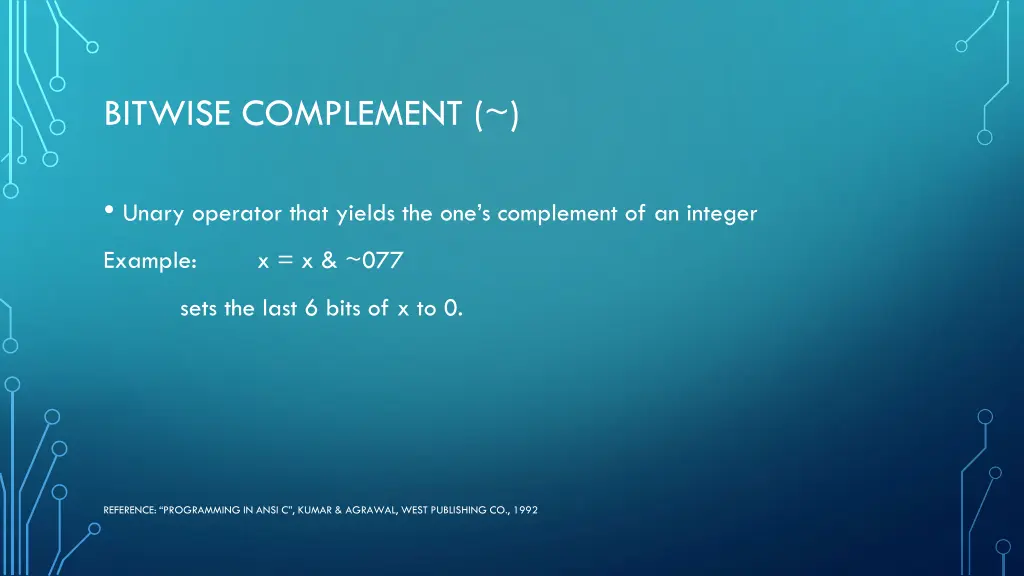

BITWISE COMPLEMENT (~) Unary operator that yields the one s complement of an integer Example: x = x & ~077 sets the last 6 bits of x to 0. REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

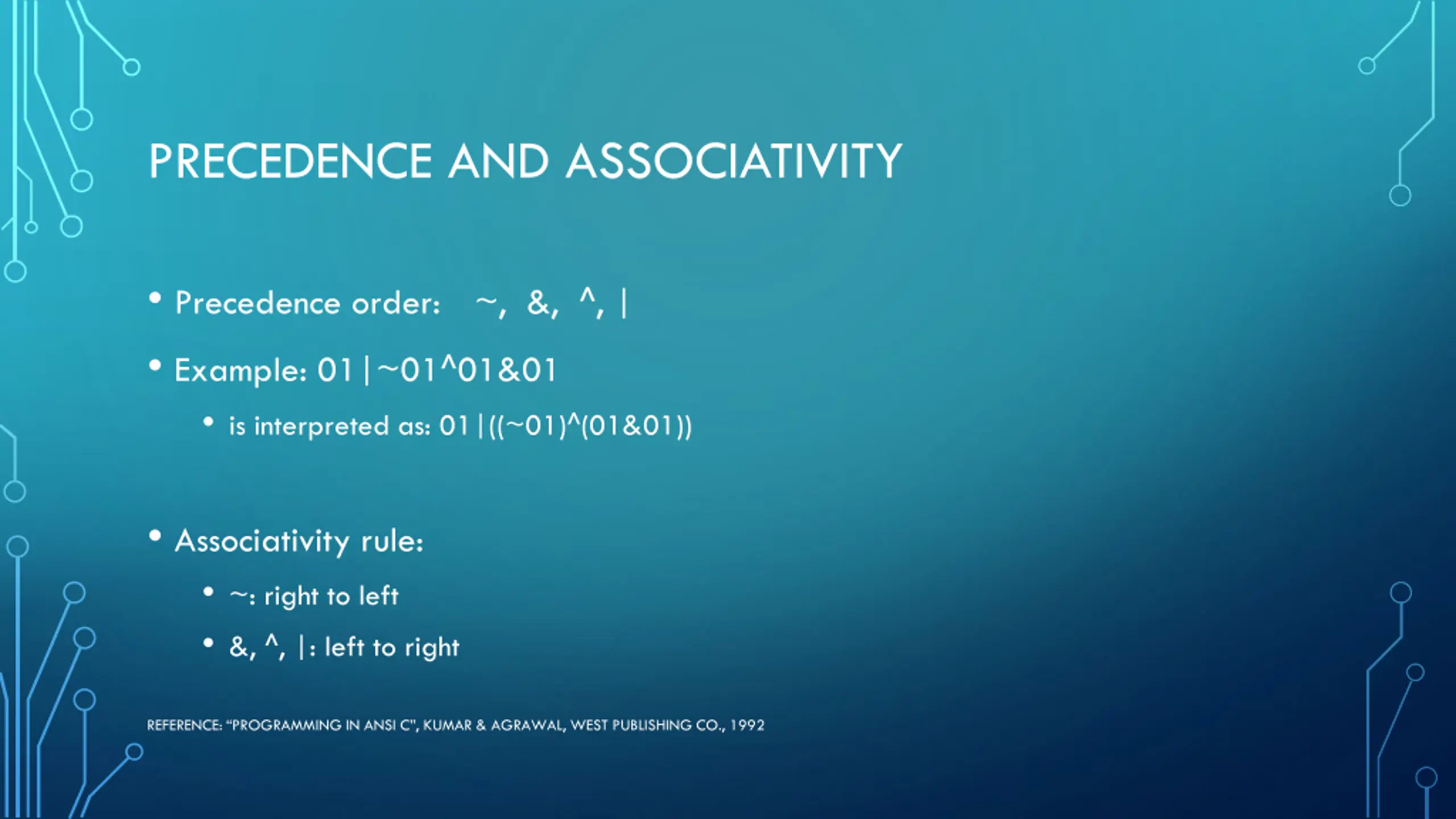

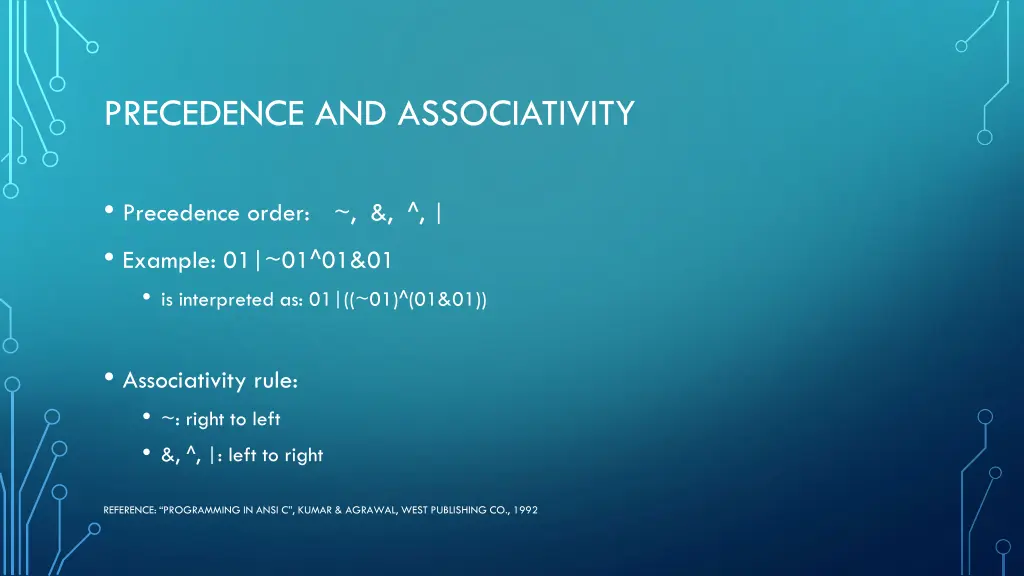

PRECEDENCE AND ASSOCIATIVITY Precedence order: ~, &, ^, | Example: 01|~01^01&01 is interpreted as: 01|((~01)^(01&01)) Associativity rule: ~: right to left &, ^, |: left to right REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

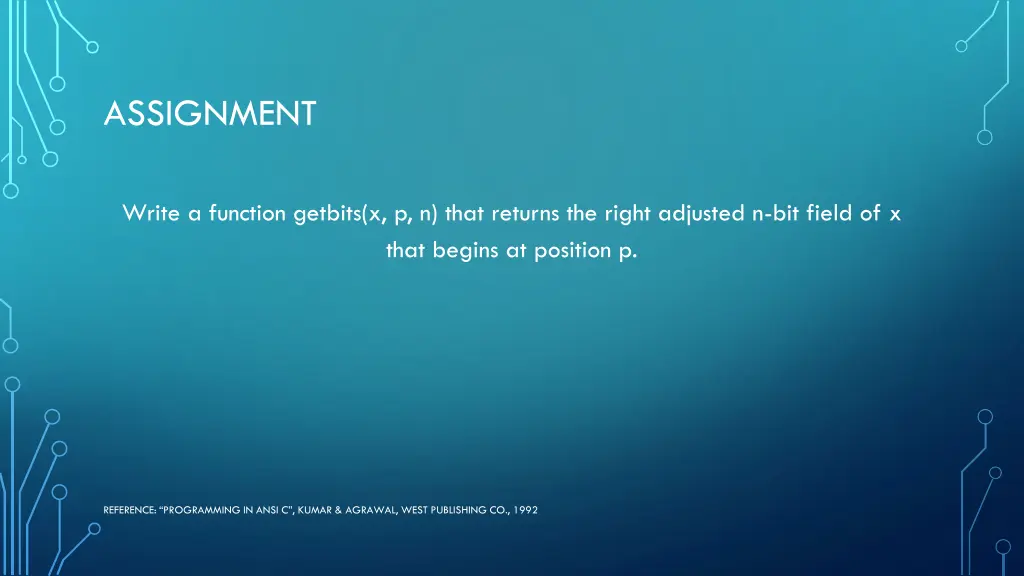

ASSIGNMENT Write a function getbits(x, p, n) that returns the right adjusted n-bit field of x that begins at position p. REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

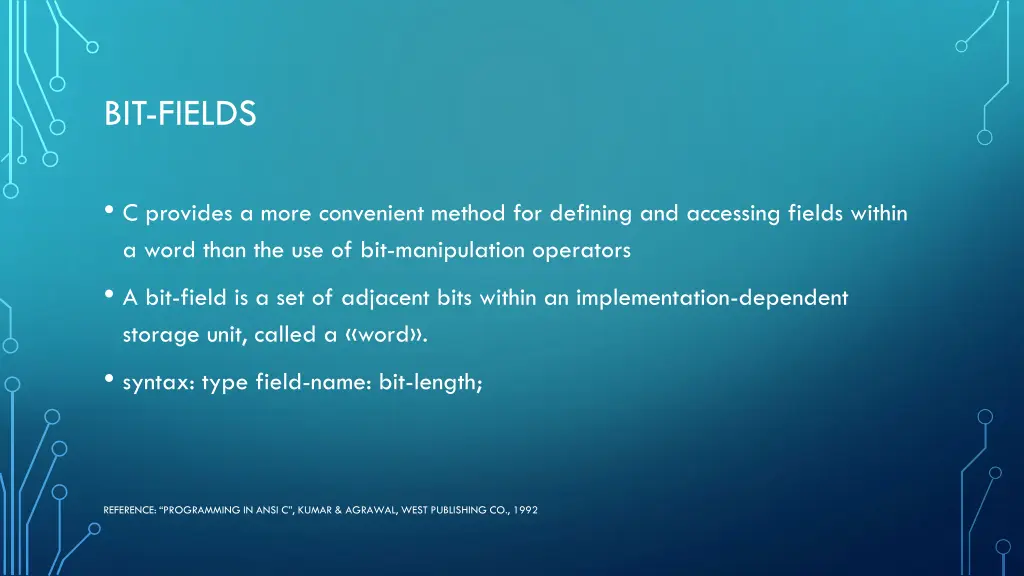

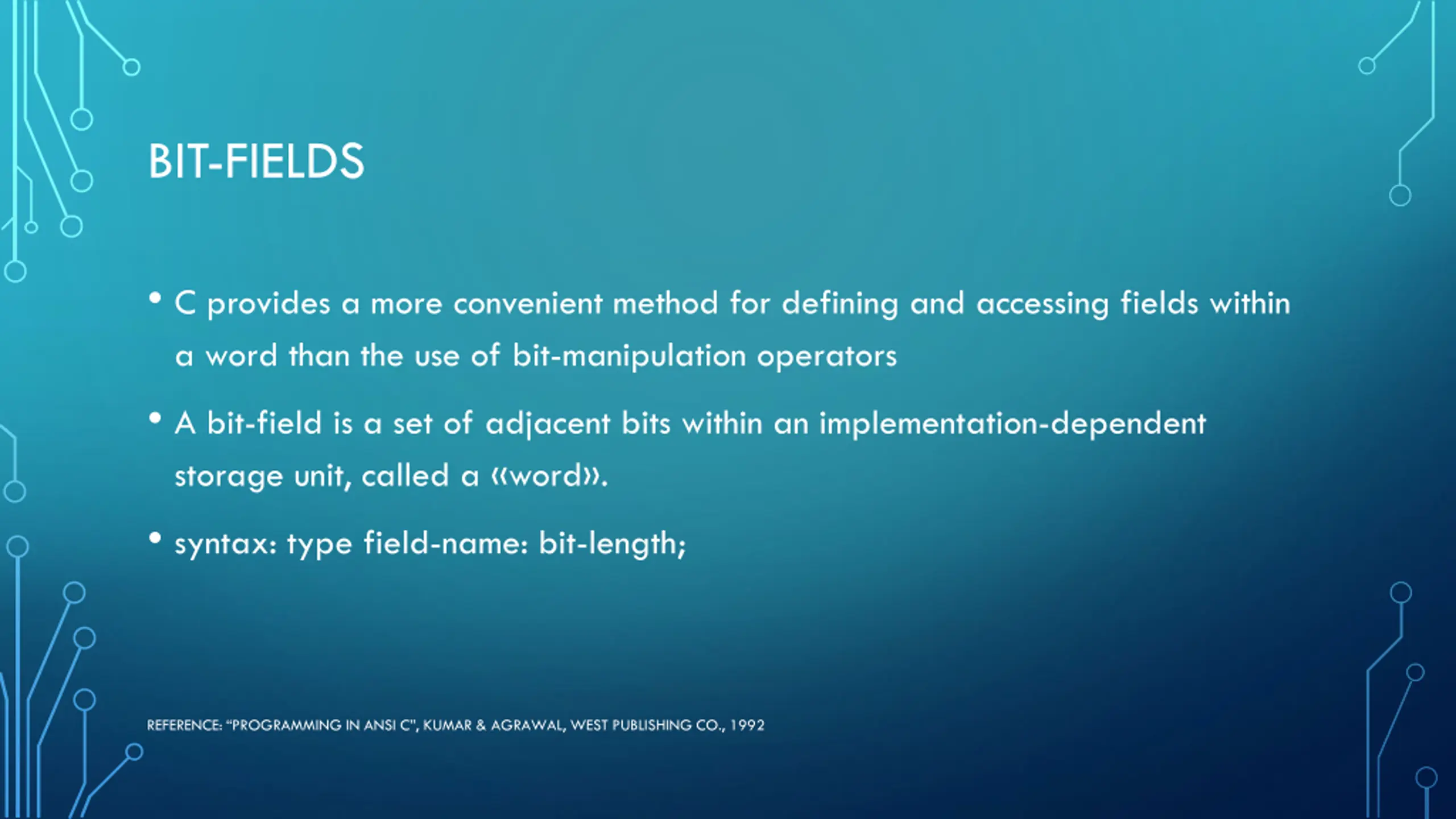

BIT-FIELDS C provides a more convenient method for defining and accessing fields within a word than the use of bit-manipulation operators A bit-field is a set of adjacent bits within an implementation-dependent storage unit, called a word . syntax: type field-name: bit-length; REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

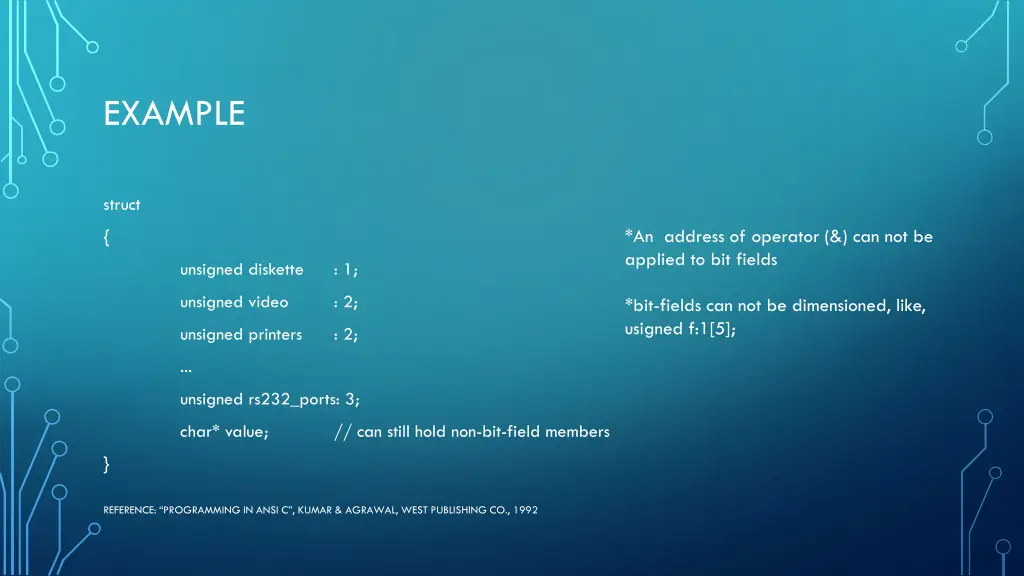

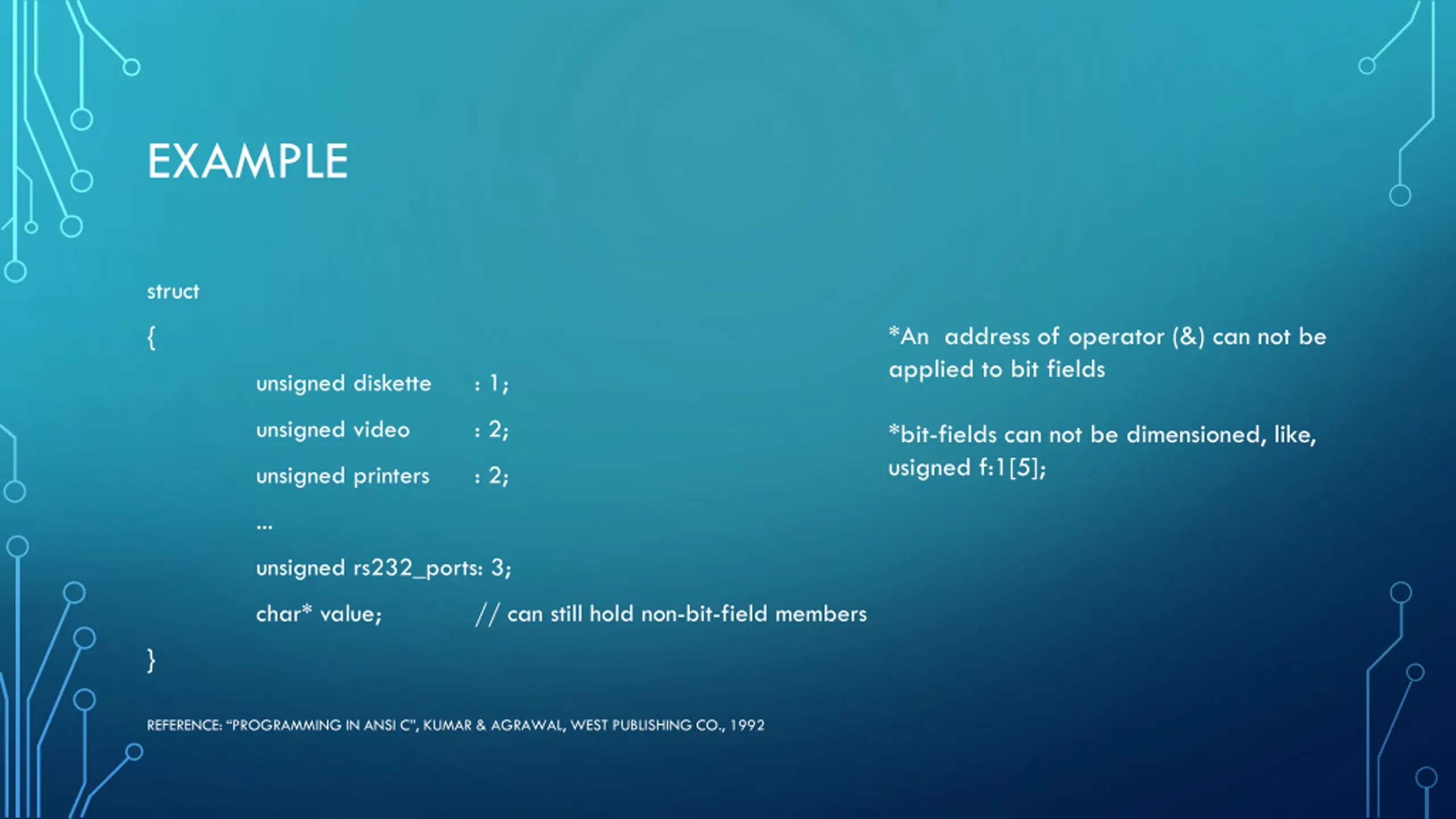

EXAMPLE struct *An address of operator (&) can not be applied to bit fields { unsigned diskette : 1; unsigned video : 2; *bit-fields can not be dimensioned, like, usigned f:1[5]; unsigned printers : 2; ... unsigned rs232_ports: 3; char* value; // can still hold non-bit-field members } REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992
