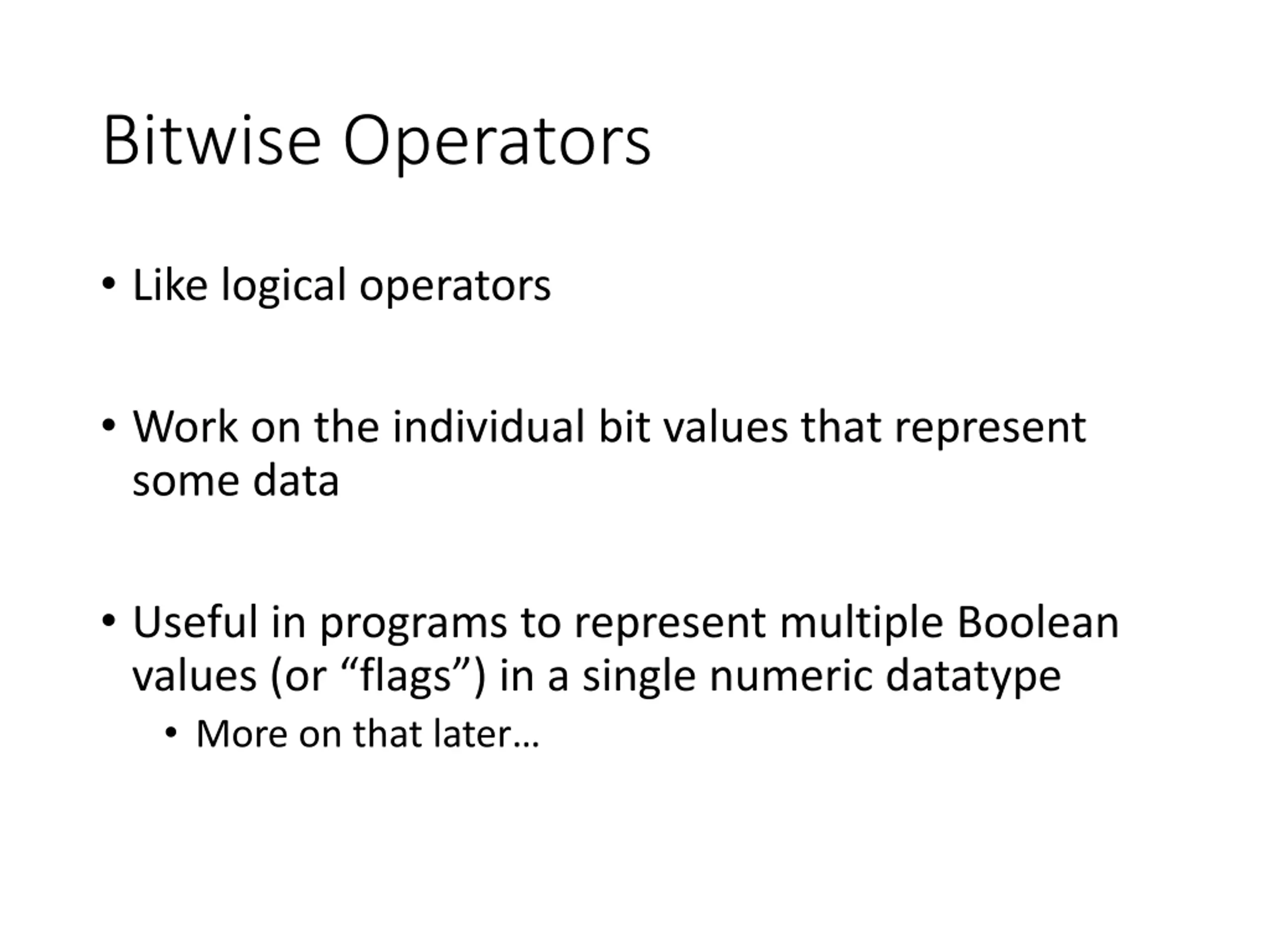

Bitwise Operators Like logical operators Work on the individual bit values that represent some data Useful in programs to represent multiple Boolean values (or flags ) in a single numeric datatype More on that later

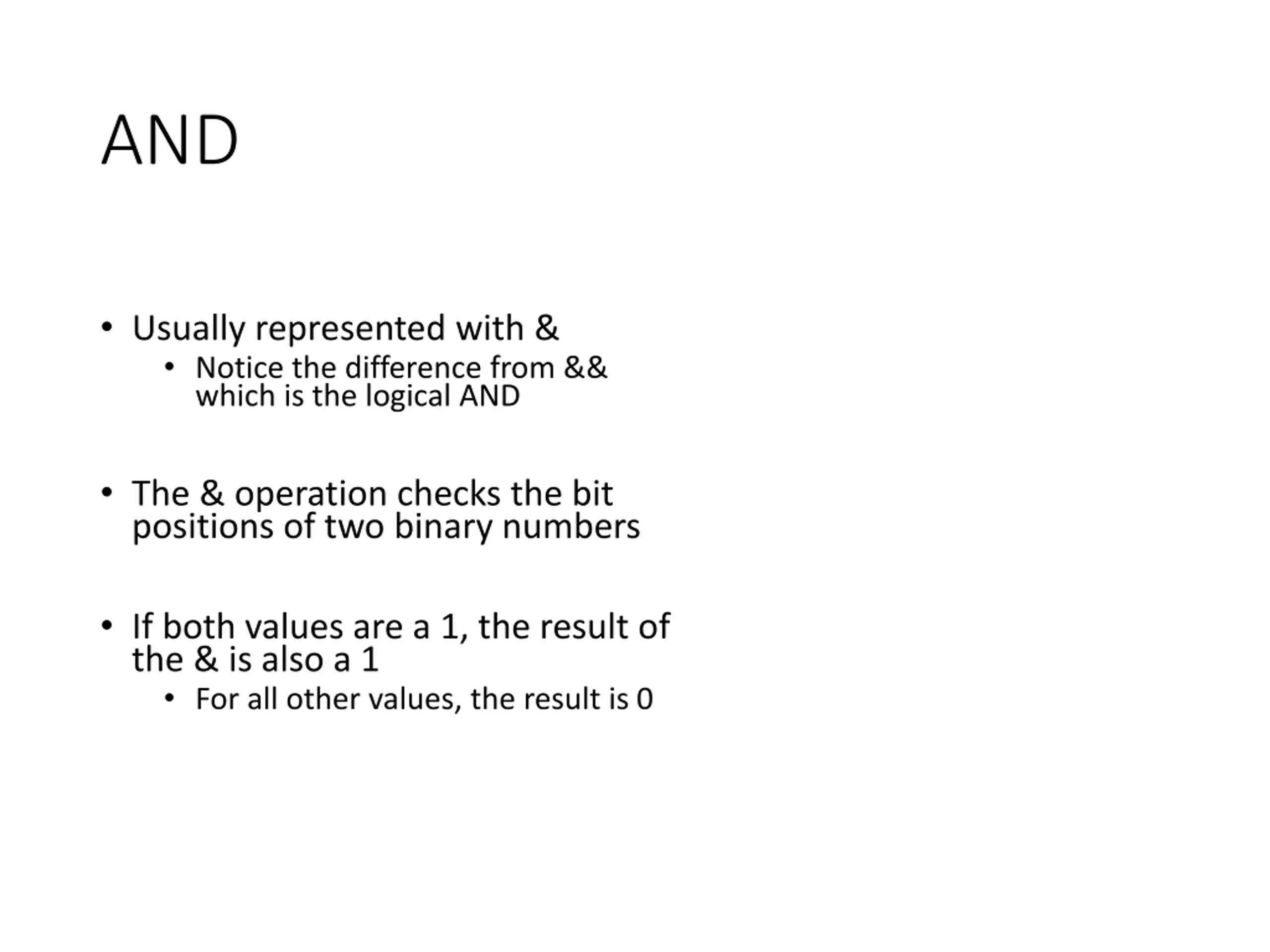

AND Usually represented with & Notice the difference from && which is the logical AND The & operation checks the bit positions of two binary numbers If both values are a 1, the result of the & is also a 1 For all other values, the result is 0

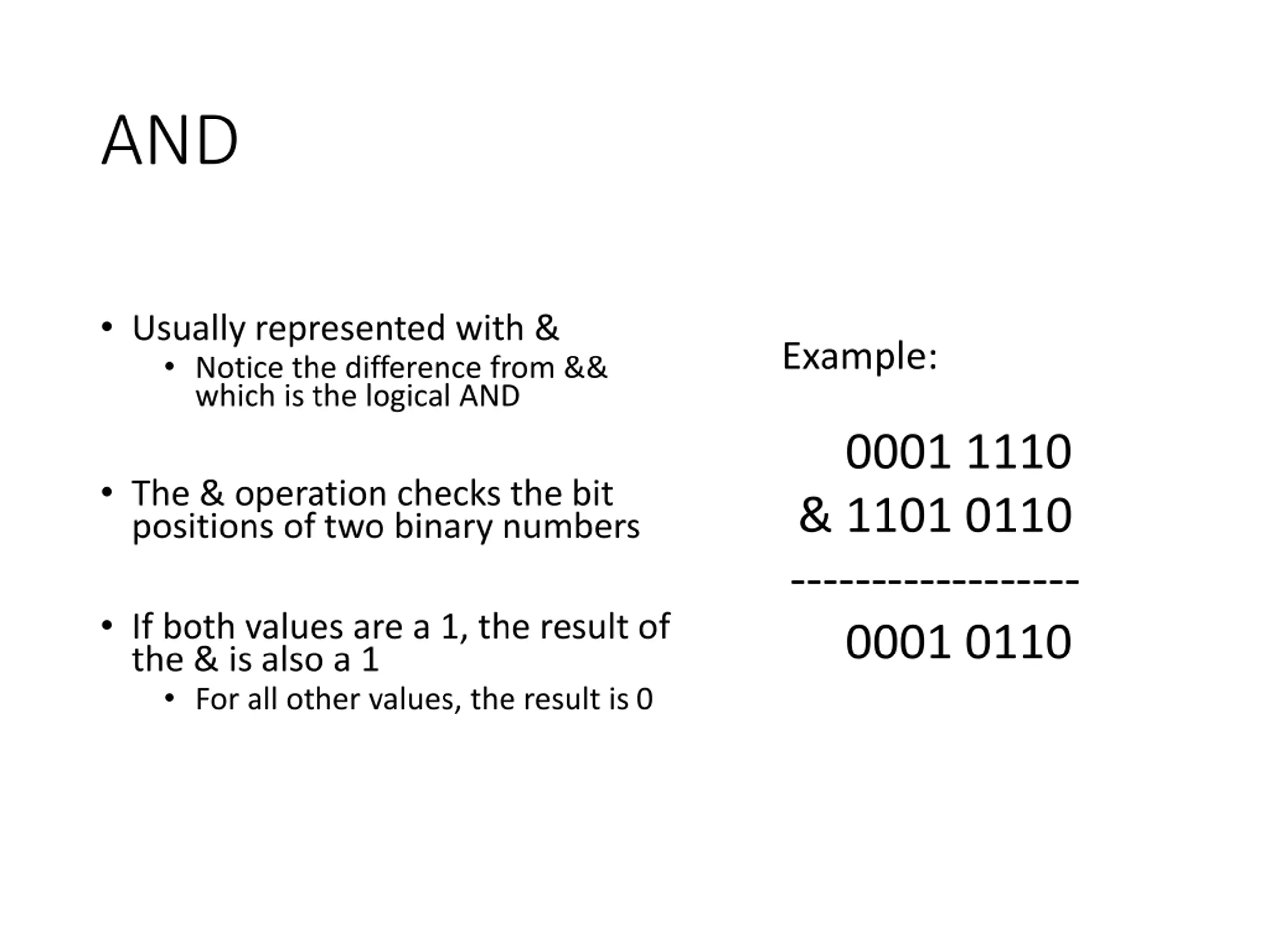

AND Usually represented with & Notice the difference from && which is the logical AND Example: 0001 1110 & 1101 0110 ------------------ 0001 0110 The & operation checks the bit positions of two binary numbers If both values are a 1, the result of the & is also a 1 For all other values, the result is 0

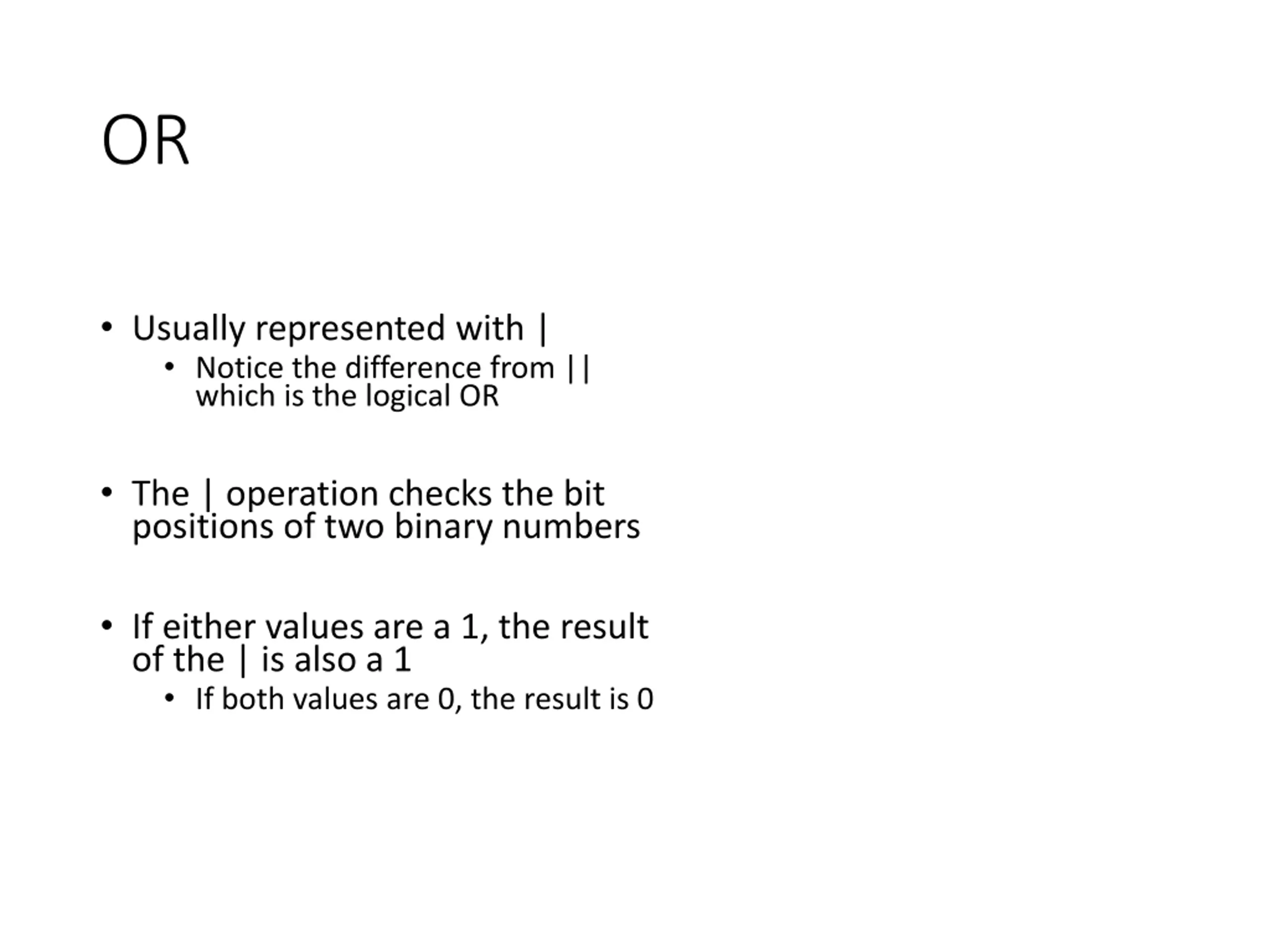

OR Usually represented with | Notice the difference from || which is the logical OR The | operation checks the bit positions of two binary numbers If either values are a 1, the result of the | is also a 1 If both values are 0, the result is 0

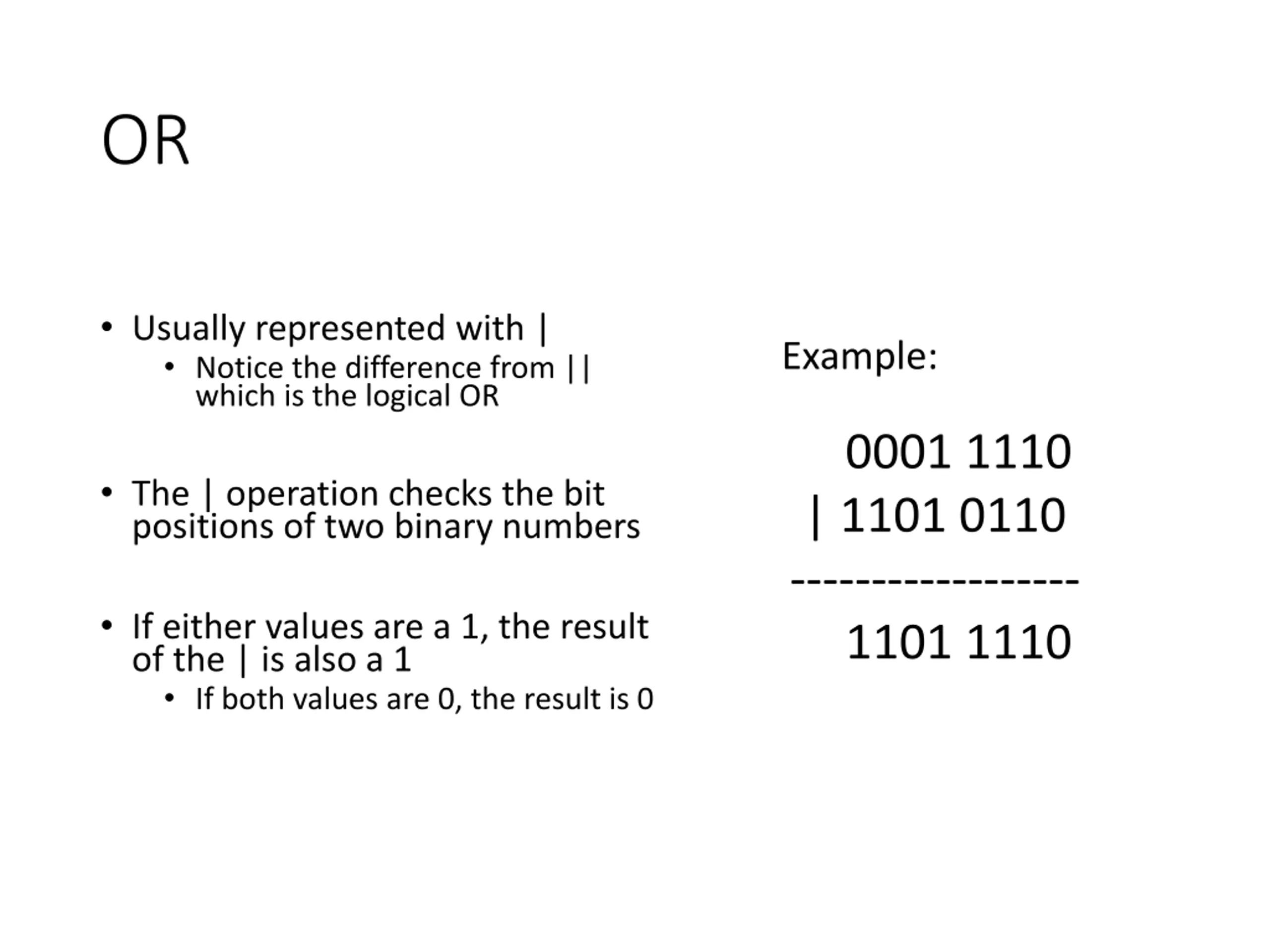

OR Usually represented with | Notice the difference from || which is the logical OR Example: 0001 1110 | 1101 0110 ------------------ 1101 1110 The | operation checks the bit positions of two binary numbers If either values are a 1, the result of the | is also a 1 If both values are 0, the result is 0

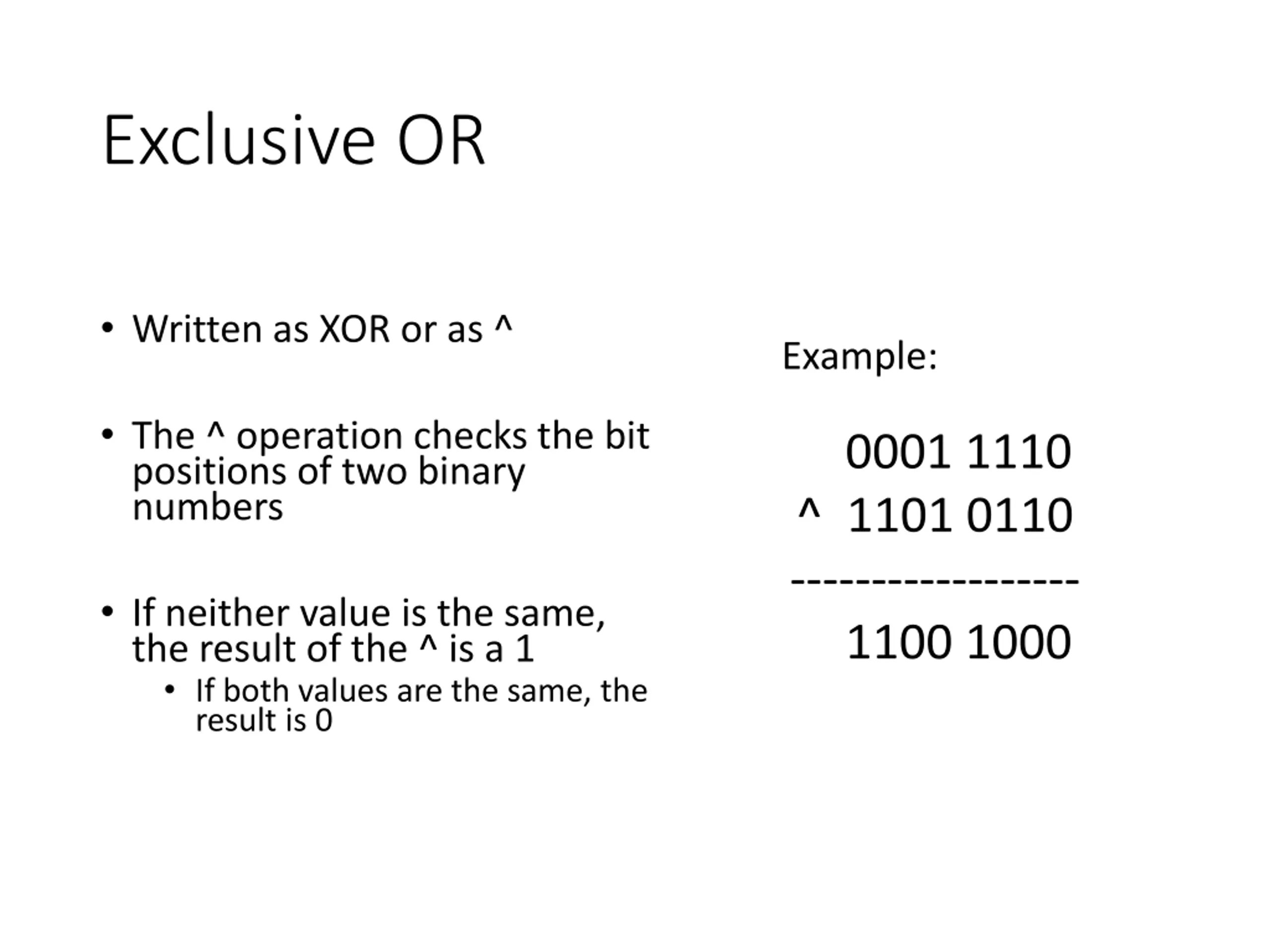

Exclusive OR Written as XOR or as ^ Example: The ^ operation checks the bit positions of two binary numbers 0001 1110 ^ 1101 0110 ------------------ 1100 1000 If neither value is the same, the result of the ^ is a 1 If both values are the same, the result is 0

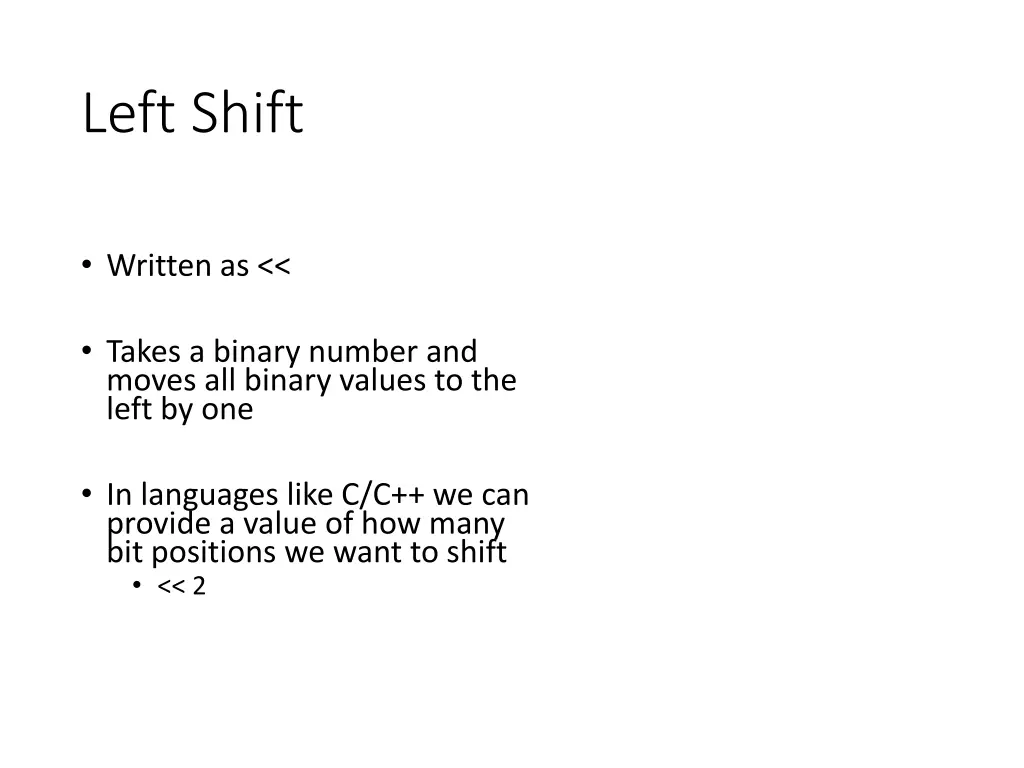

Left Shift Written as << Takes a binary number and moves all binary values to the left by one In languages like C/C++ we can provide a value of how many bit positions we want to shift << 2

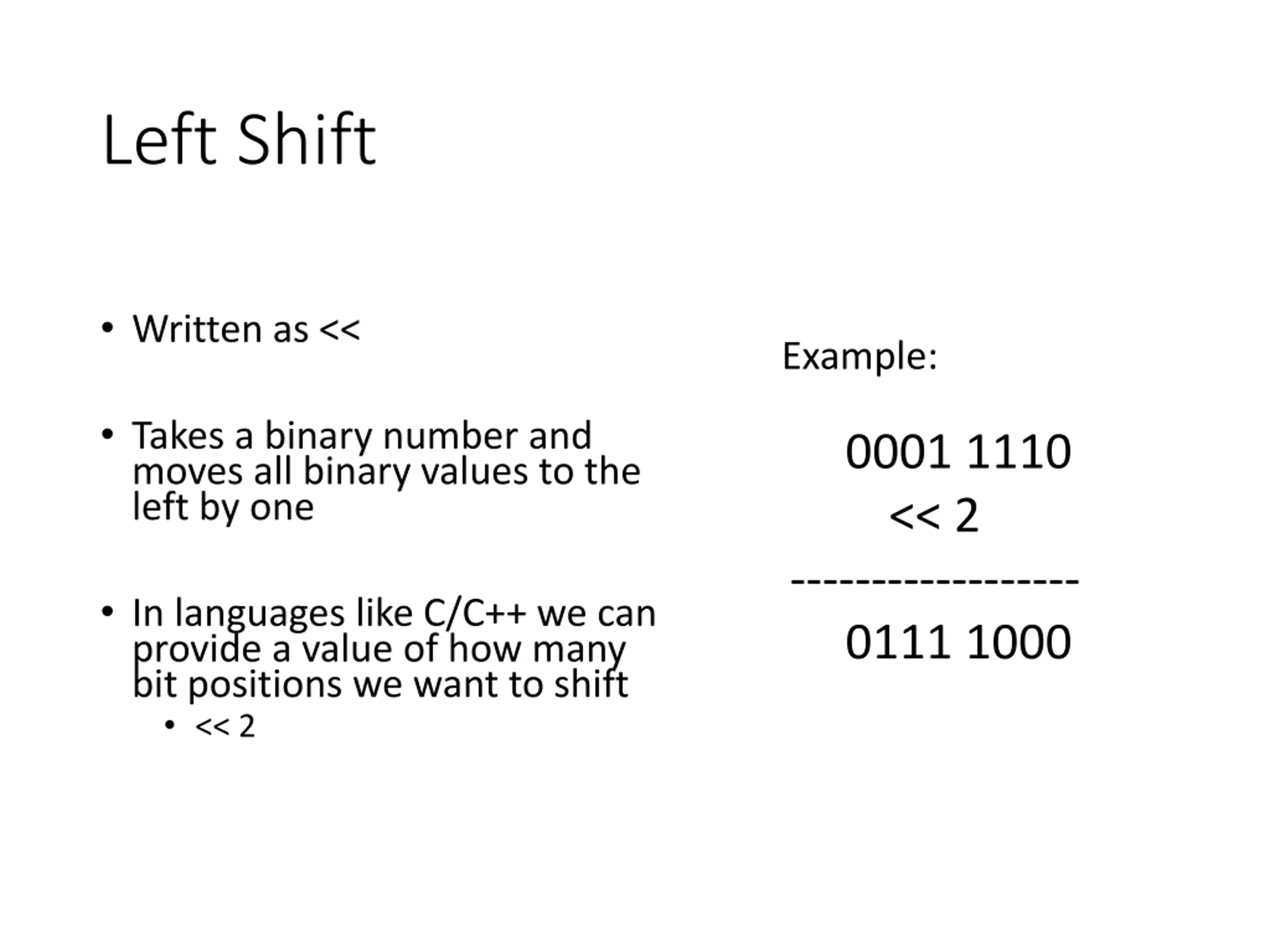

Left Shift Written as << Example: Takes a binary number and moves all binary values to the left by one 0001 1110 << 2 ------------------ 0111 1000 In languages like C/C++ we can provide a value of how many bit positions we want to shift << 2

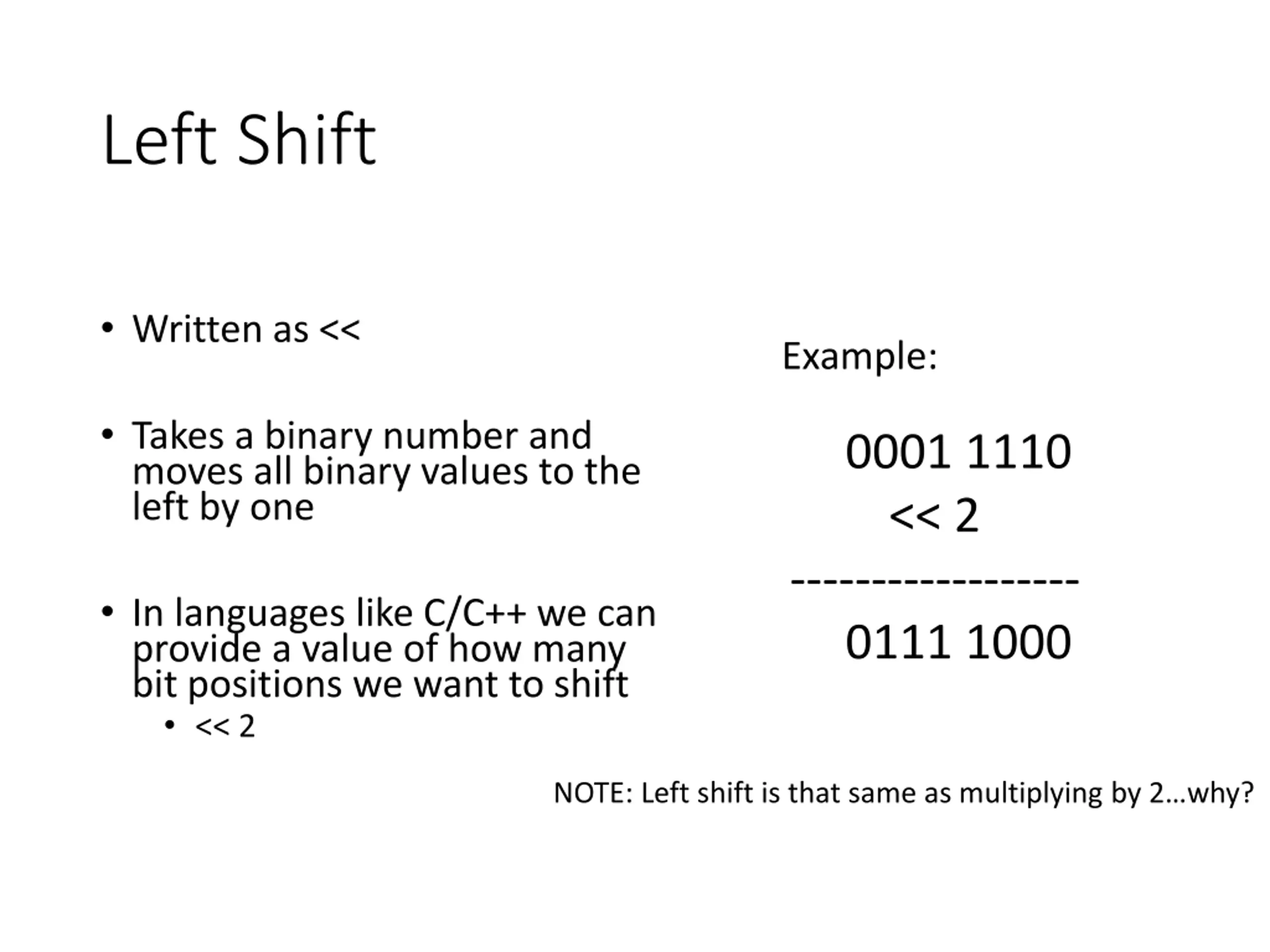

Left Shift Written as << Example: Takes a binary number and moves all binary values to the left by one 0001 1110 << 2 ------------------ 0111 1000 In languages like C/C++ we can provide a value of how many bit positions we want to shift << 2 NOTE: Left shift is that same as multiplying by 2 why?

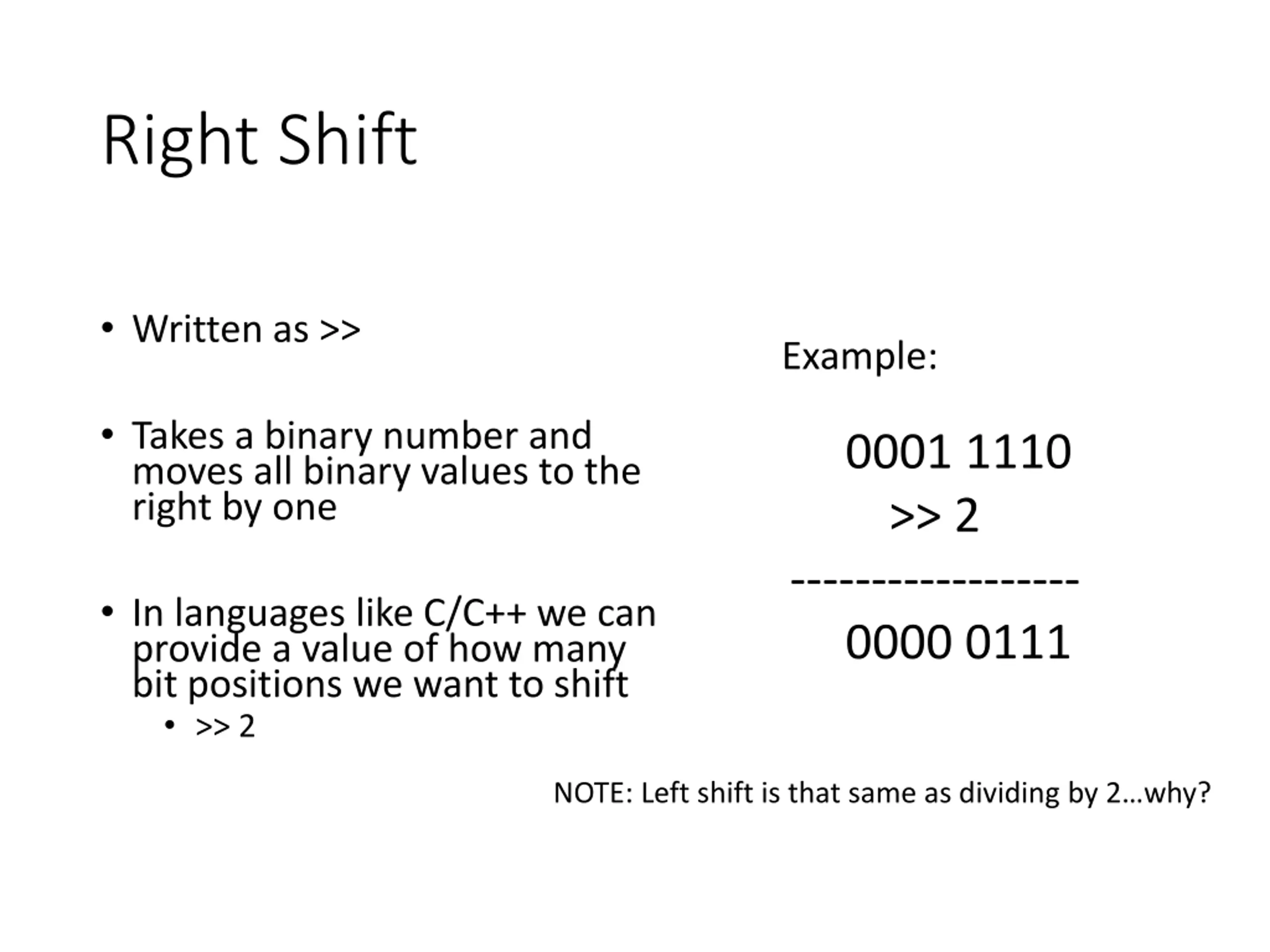

Right Shift Written as >> Example: Takes a binary number and moves all binary values to the right by one 0001 1110 >> 2 ------------------ 0000 0111 In languages like C/C++ we can provide a value of how many bit positions we want to shift >> 2 NOTE: Left shift is that same as dividing by 2 why?

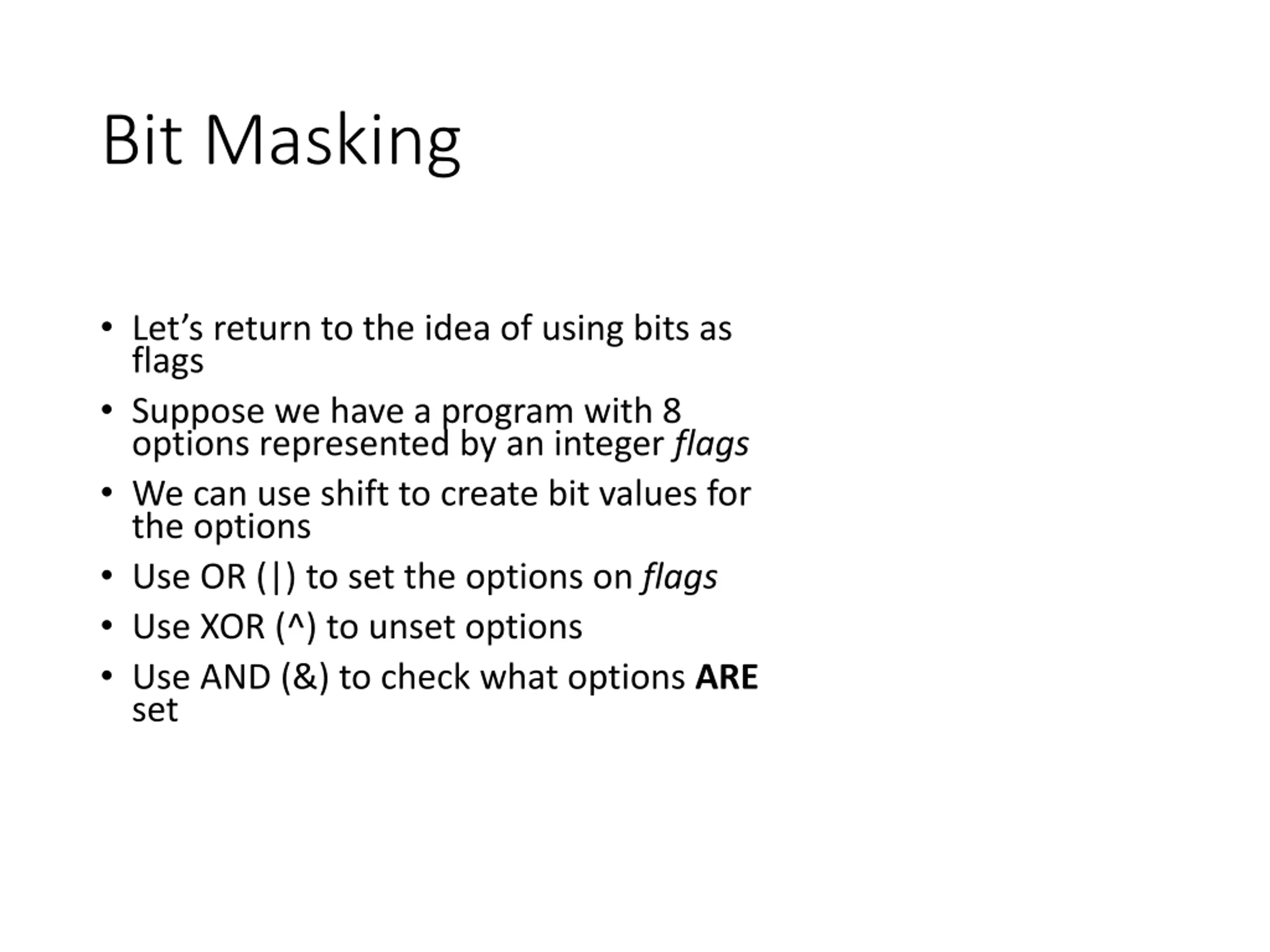

Bit Masking Let s return to the idea of using bits as flags Suppose we have a program with 8 options represented by an integer flags We can use shift to create bit values for the options Use OR (|) to set the options on flags Use XOR (^) to unset options Use AND (&) to check what options ARE set
