Presentation Transcript

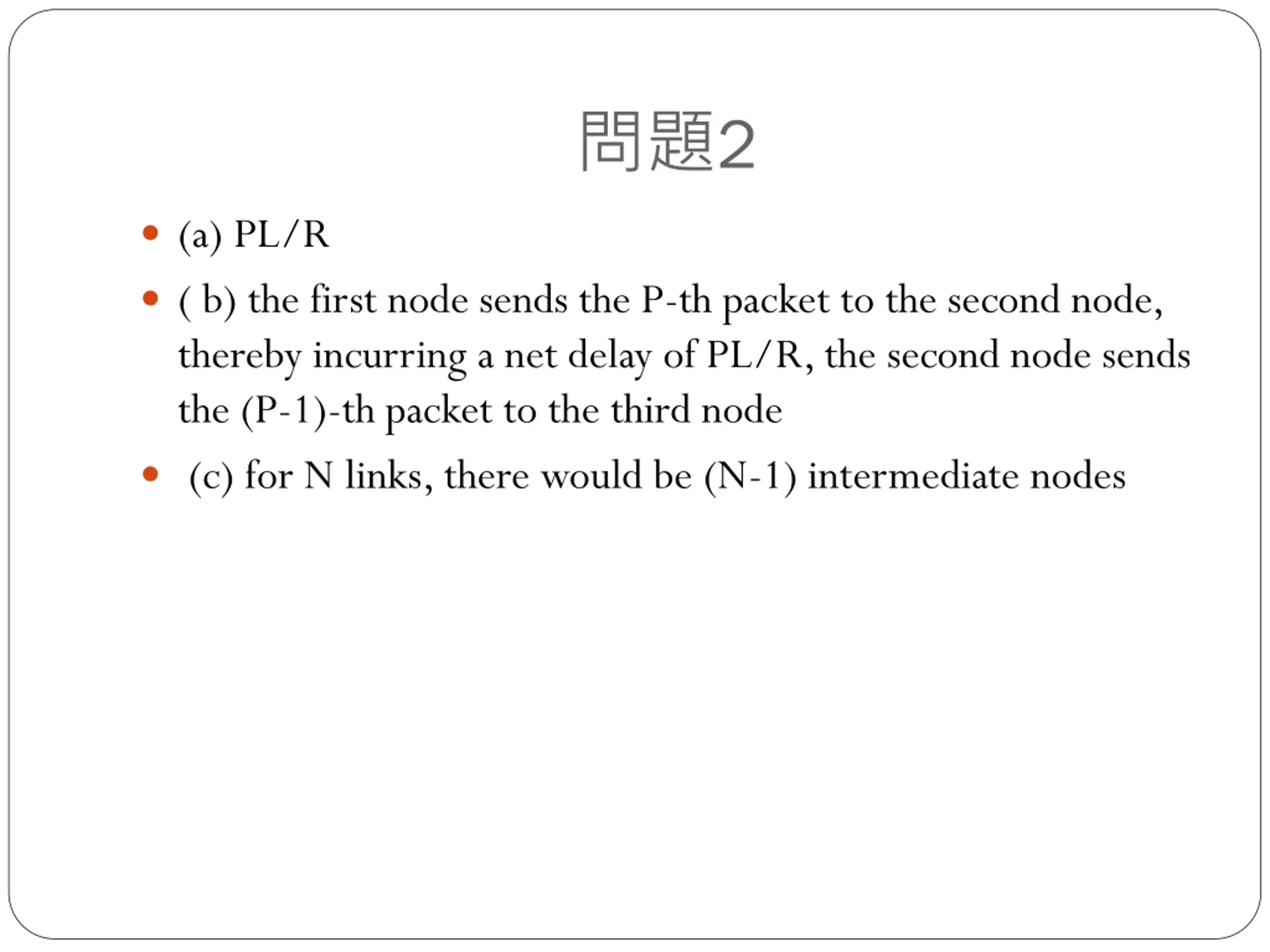

2 (a) PL/R ( b) the first node sends the P-th packet to the second node, thereby incurring a net delay of PL/R, the second node sends the (P-1)-th packet to the third node (c) for N links, there would be (N-1) intermediate nodes

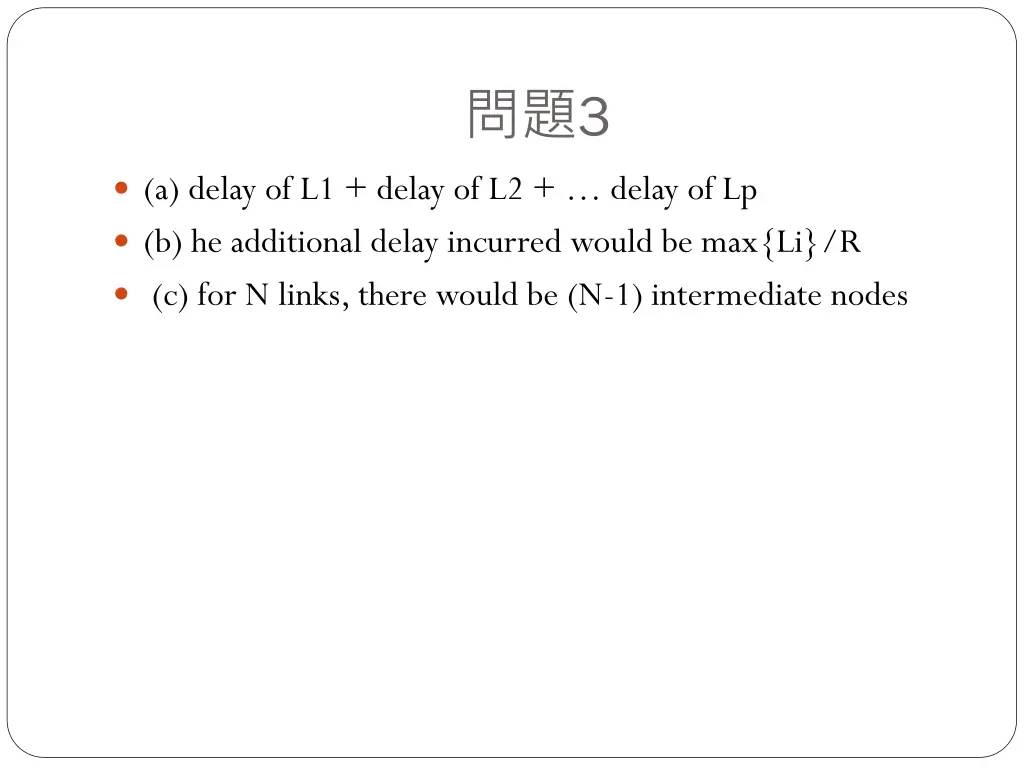

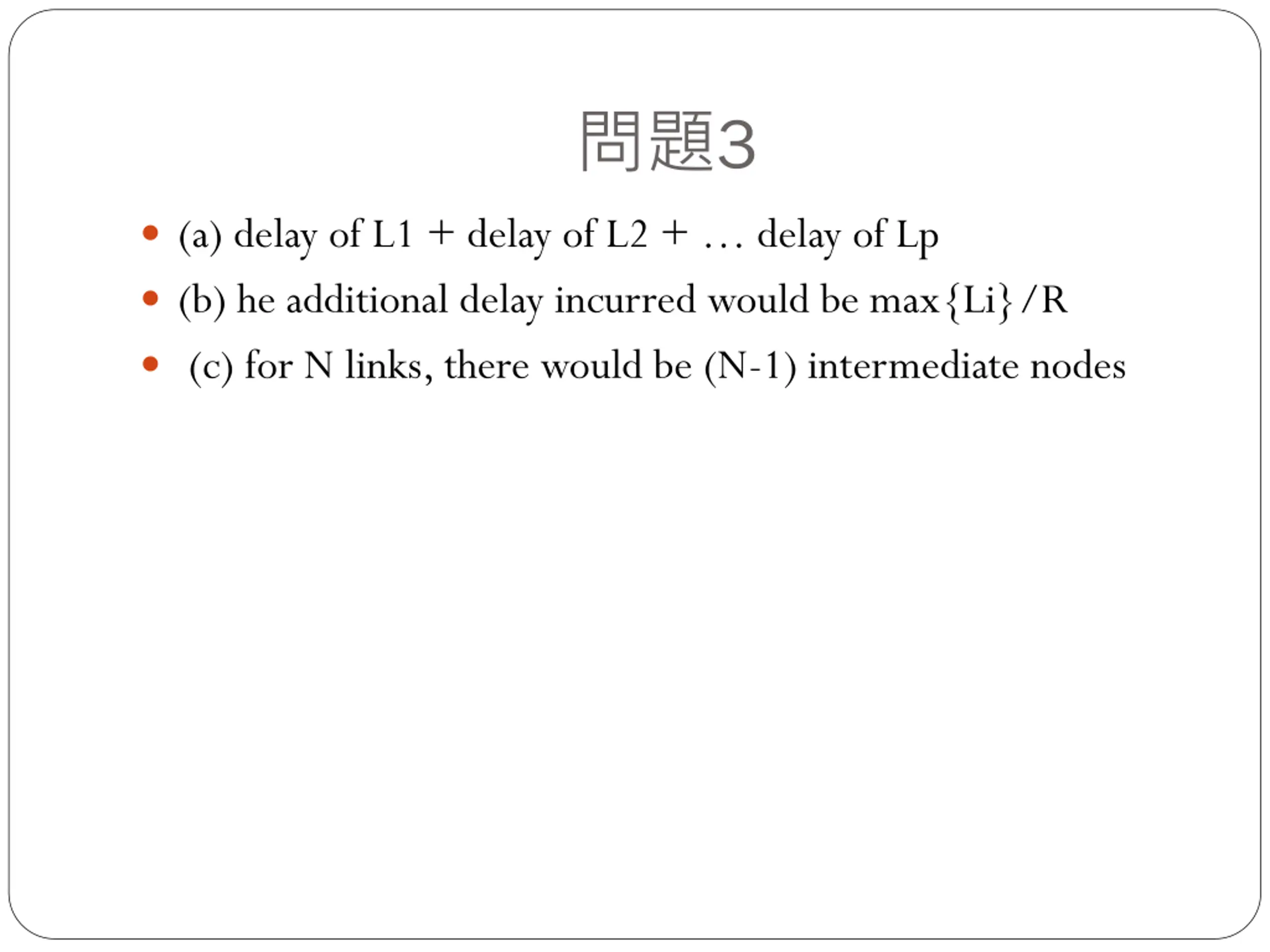

3 (a) delay of L1 + delay of L2 + delay of Lp (b) he additional delay incurred would be max{Li}/R (c) for N links, there would be (N-1) intermediate nodes

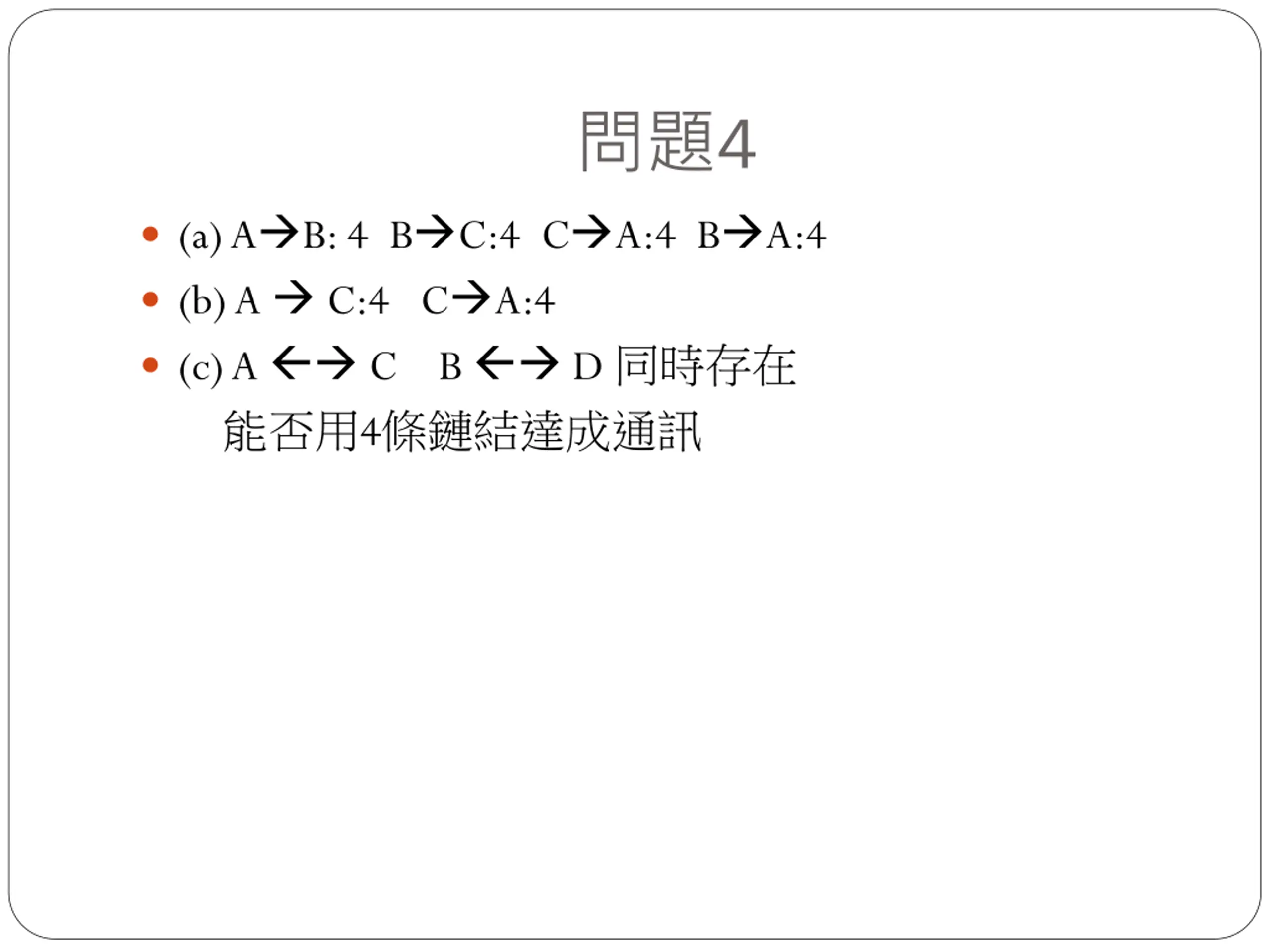

4 (a) A B: 4 B C:4 C A:4 B A:4 (b) A C:4 C A:4 (c) A C B D 4

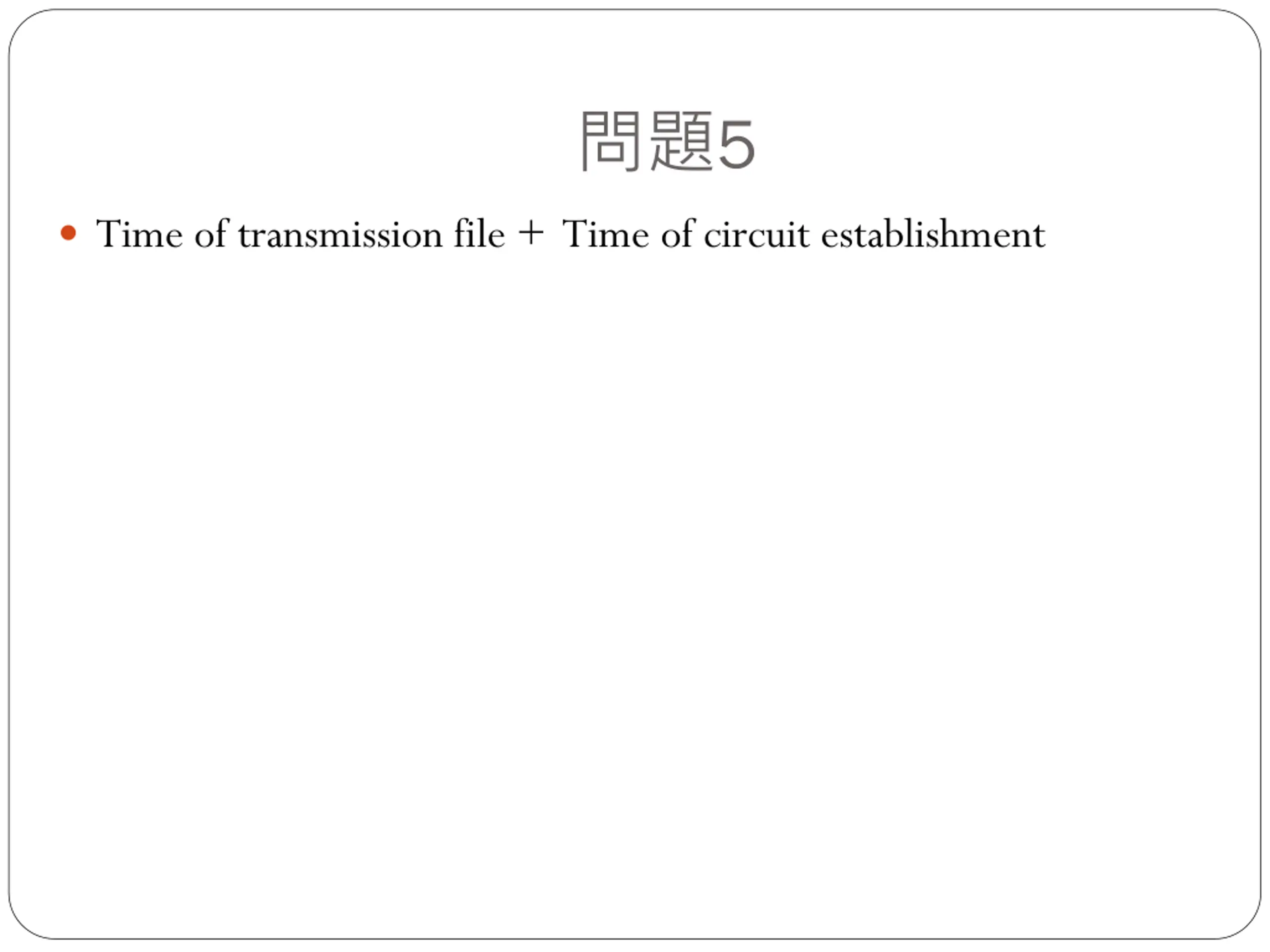

5 Time of transmission file + Time of circuit establishment

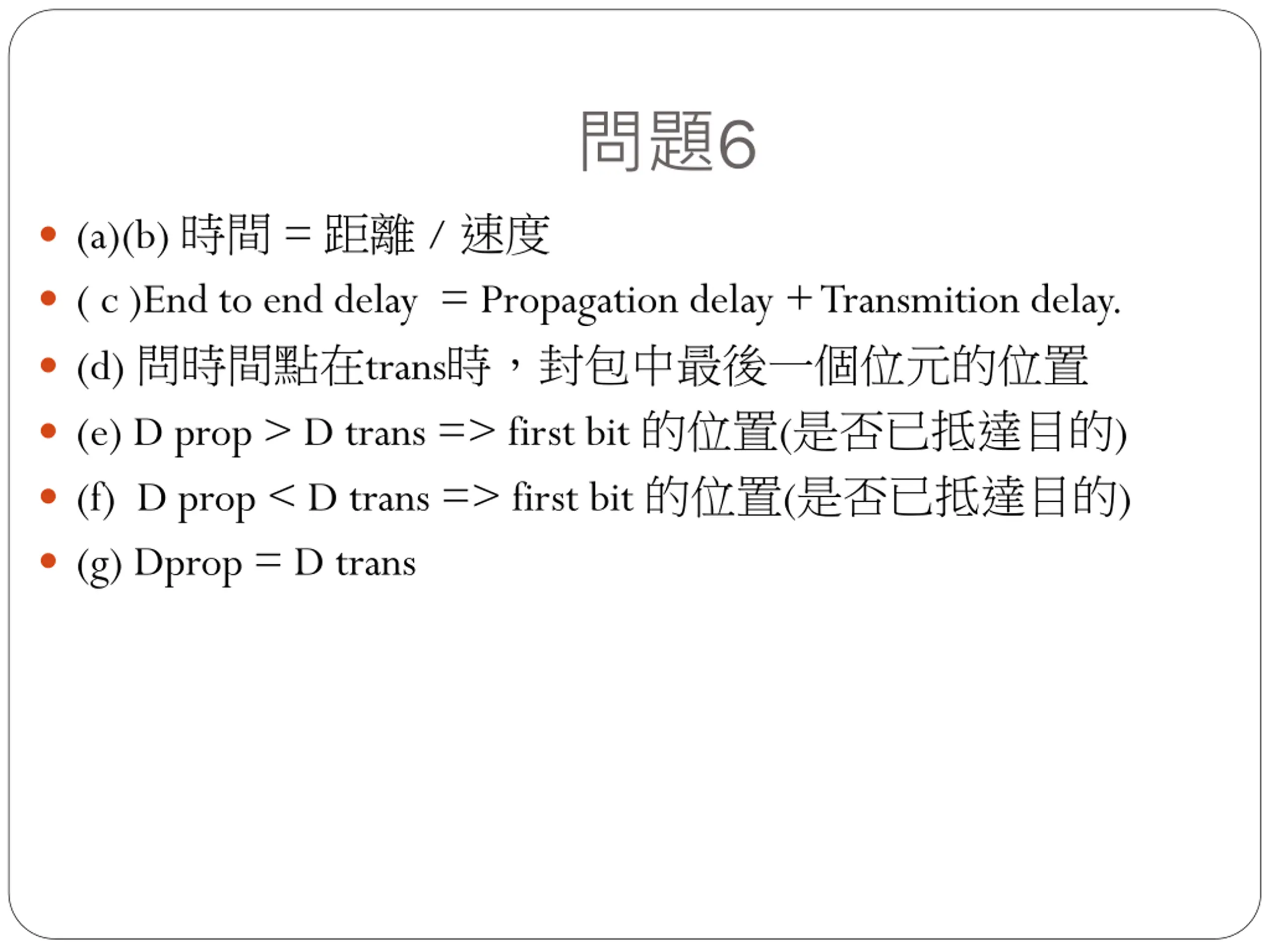

6 (a)(b) = / ( c )End to end delay = Propagation delay +Transmition delay. (d) trans (e) D prop > D trans => first bit ( ) (f) D prop < D trans => first bit ( ) (g) Dprop = D trans

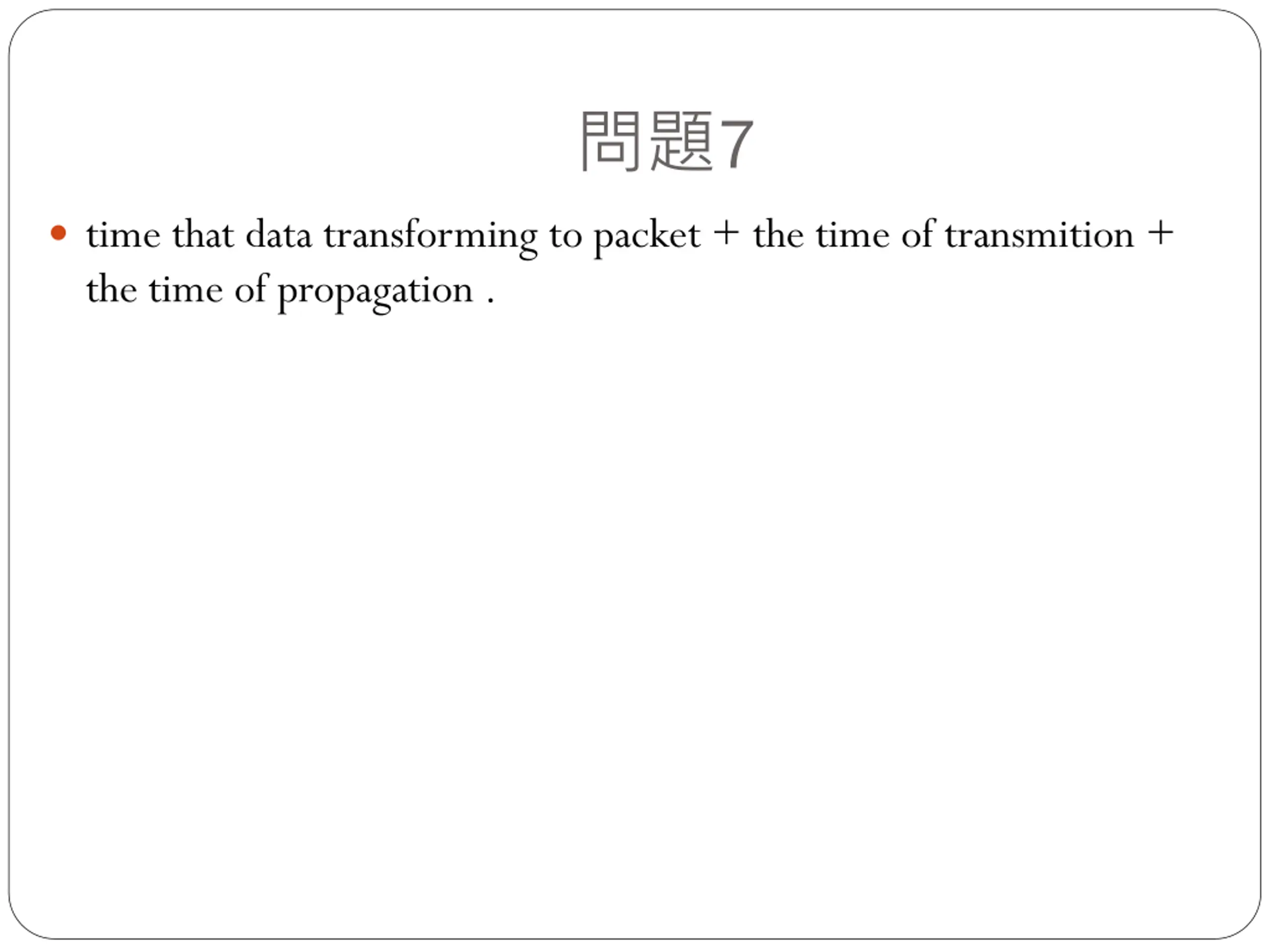

7 time that data transforming to packet + the time of transmition + the time of propagation .

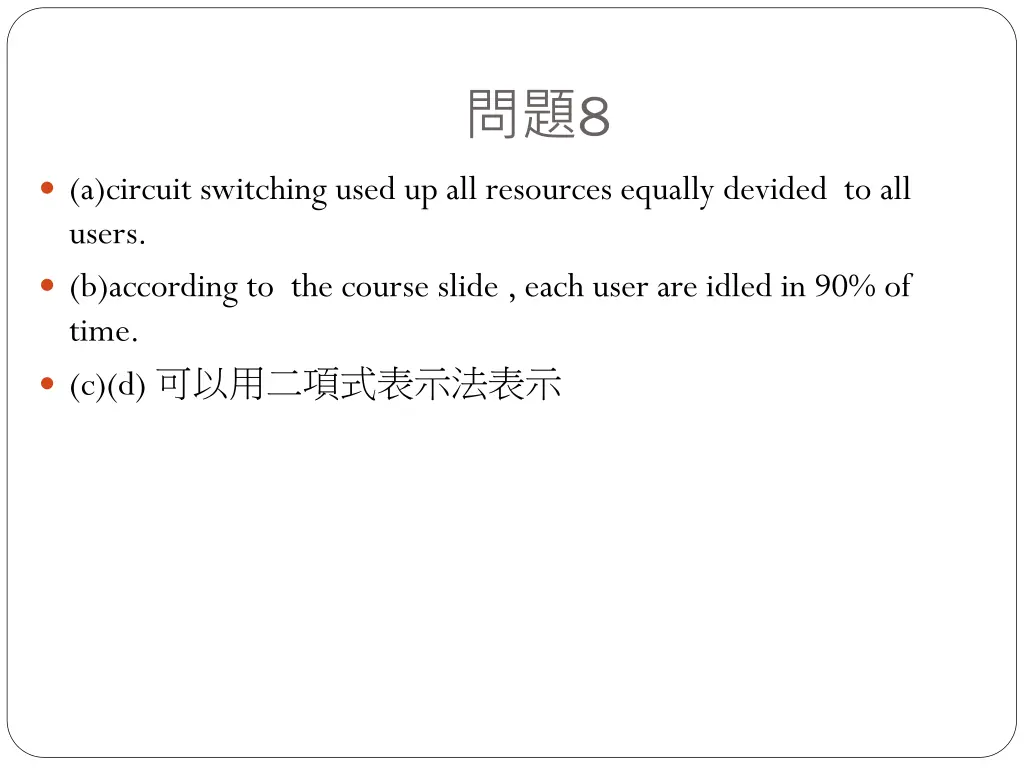

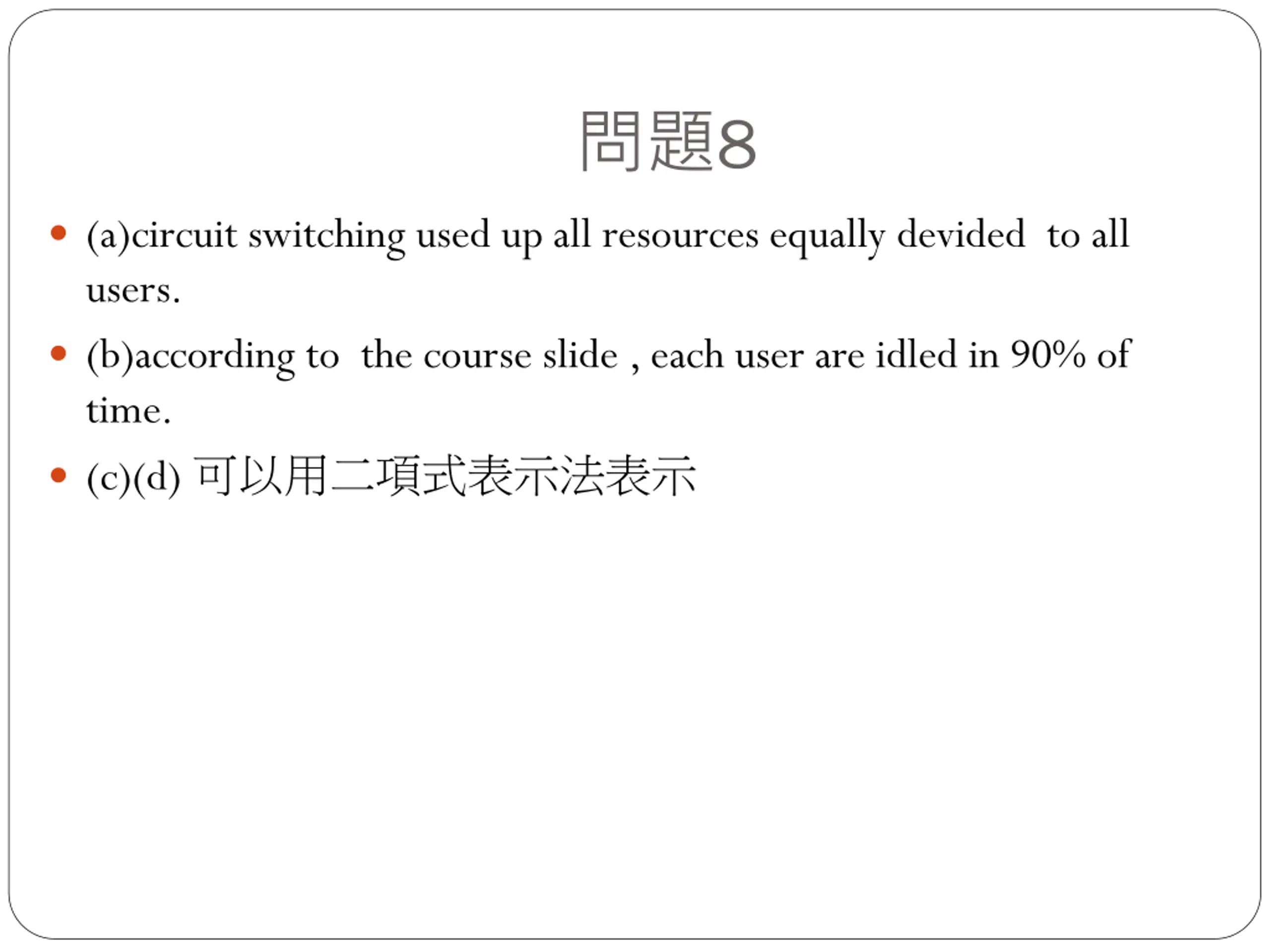

8 (a)circuit switching used up all resources equally devided to all users. (b)according to the course slide , each user are idled in 90% of time. (c)(d)

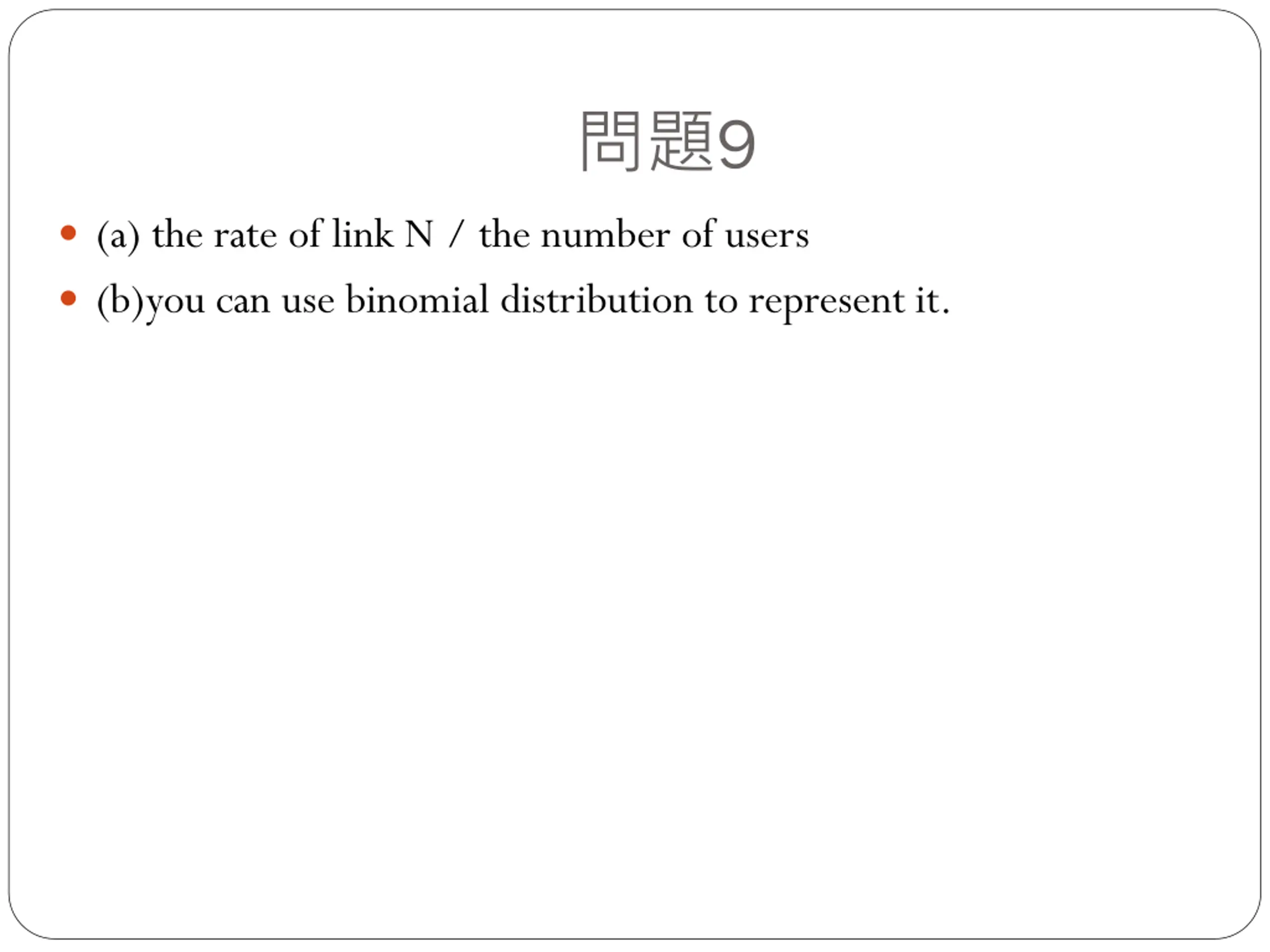

9 (a) the rate of link N / the number of users (b)you can use binomial distribution to represent it.

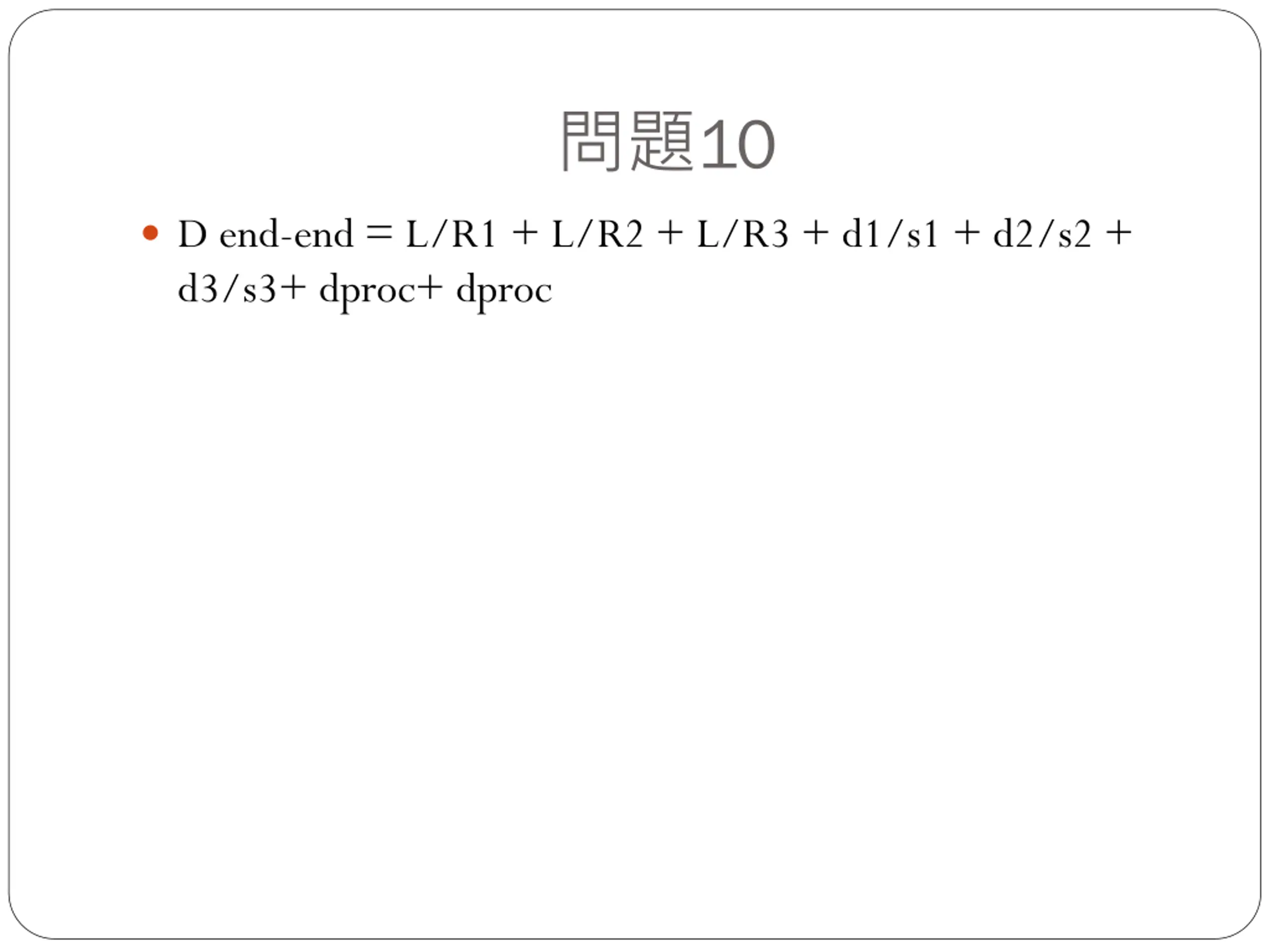

10 D end-end = L/R1 + L/R2 + L/R3 + d1/s1 + d2/s2 + d3/s3+ dproc+ dproc

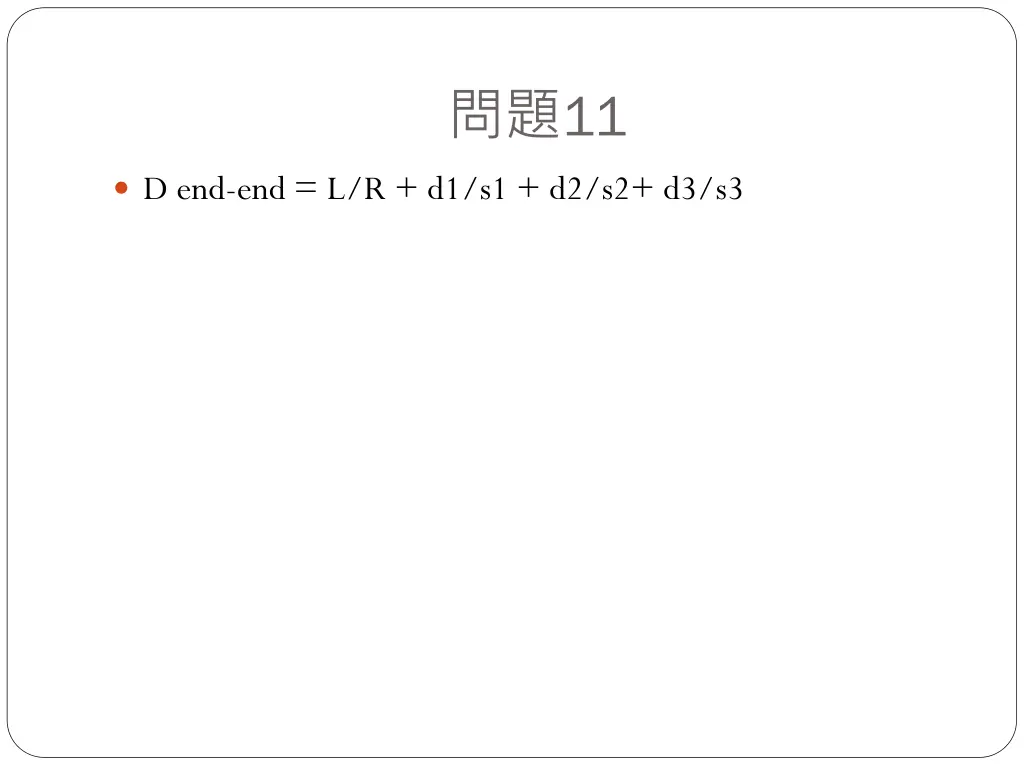

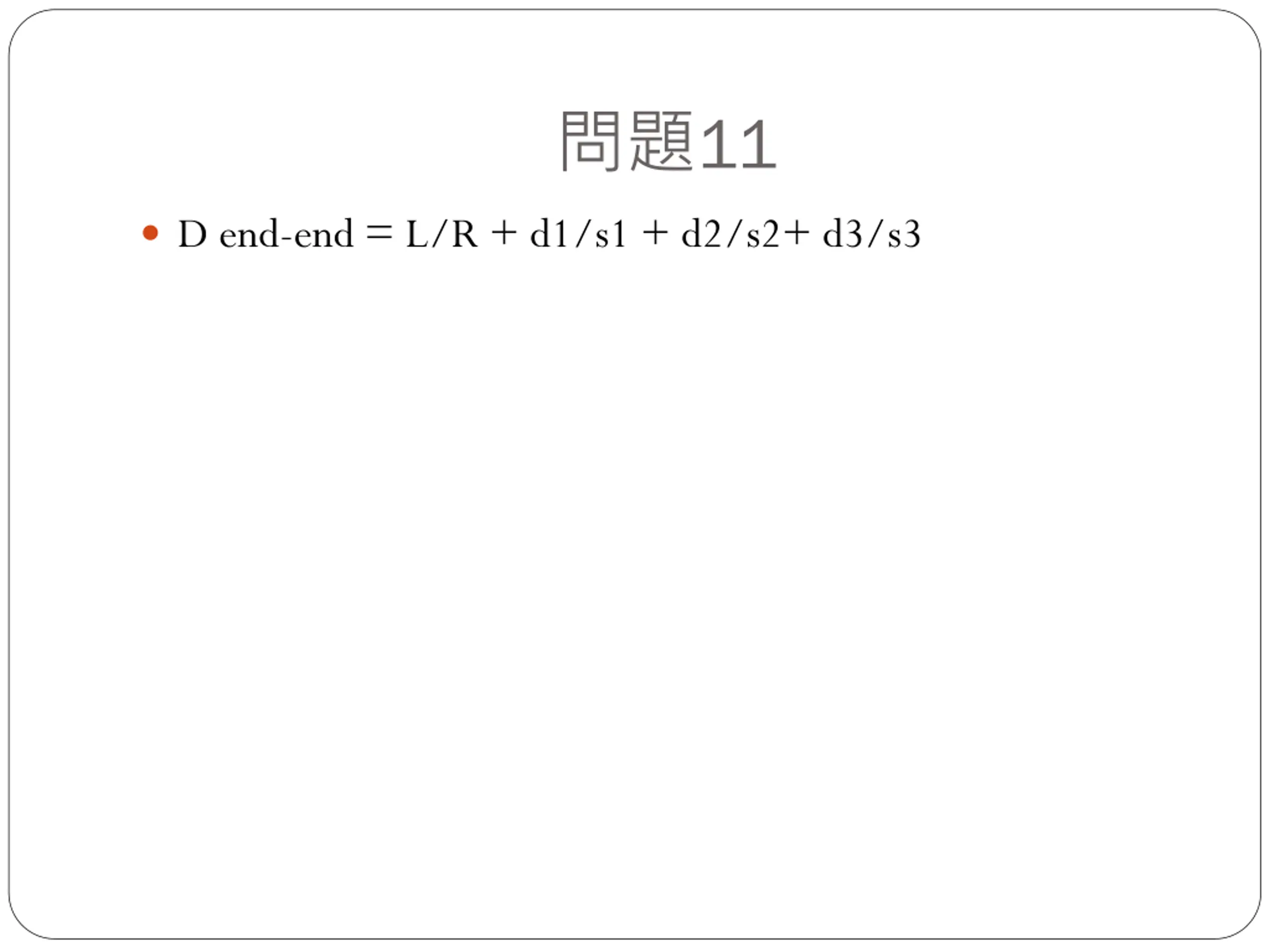

11 D end-end = L/R + d1/s1 + d2/s2+ d3/s3

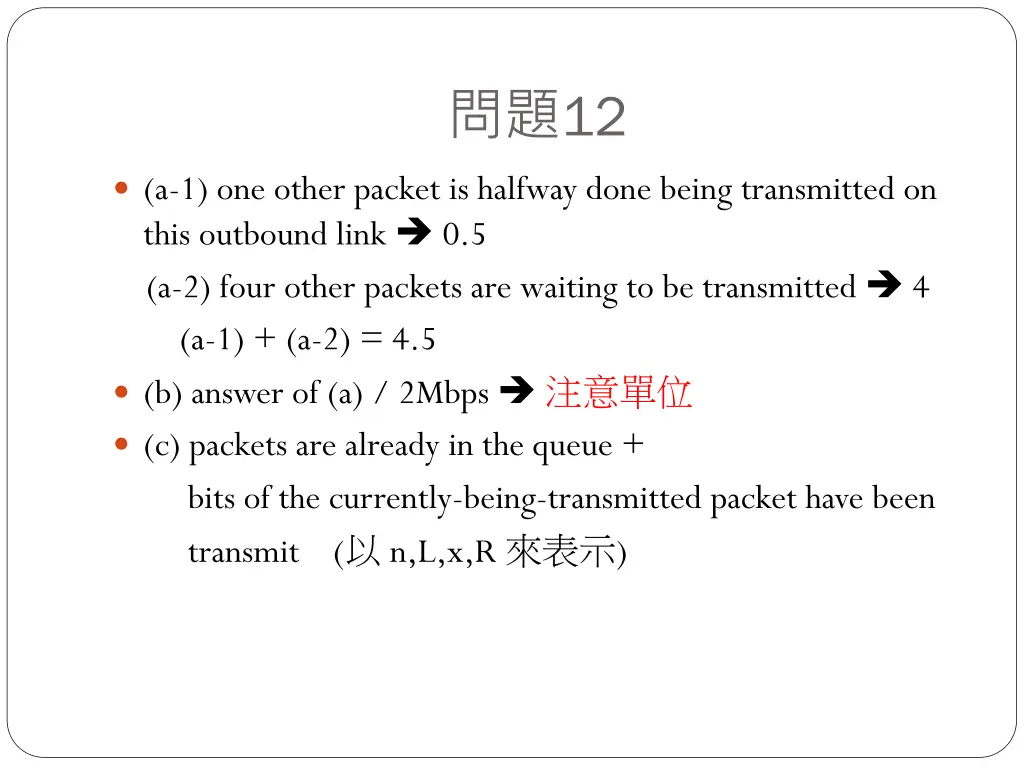

12 (a-1) one other packet is halfway done being transmitted on this outbound link 0.5 (a-2) four other packets are waiting to be transmitted 4 (a-1) + (a-2) = 4.5 (b) answer of (a) / 2Mbps (c) packets are already in the queue + bits of the currently-being-transmitted packet have been transmit ( n,L,x,R )

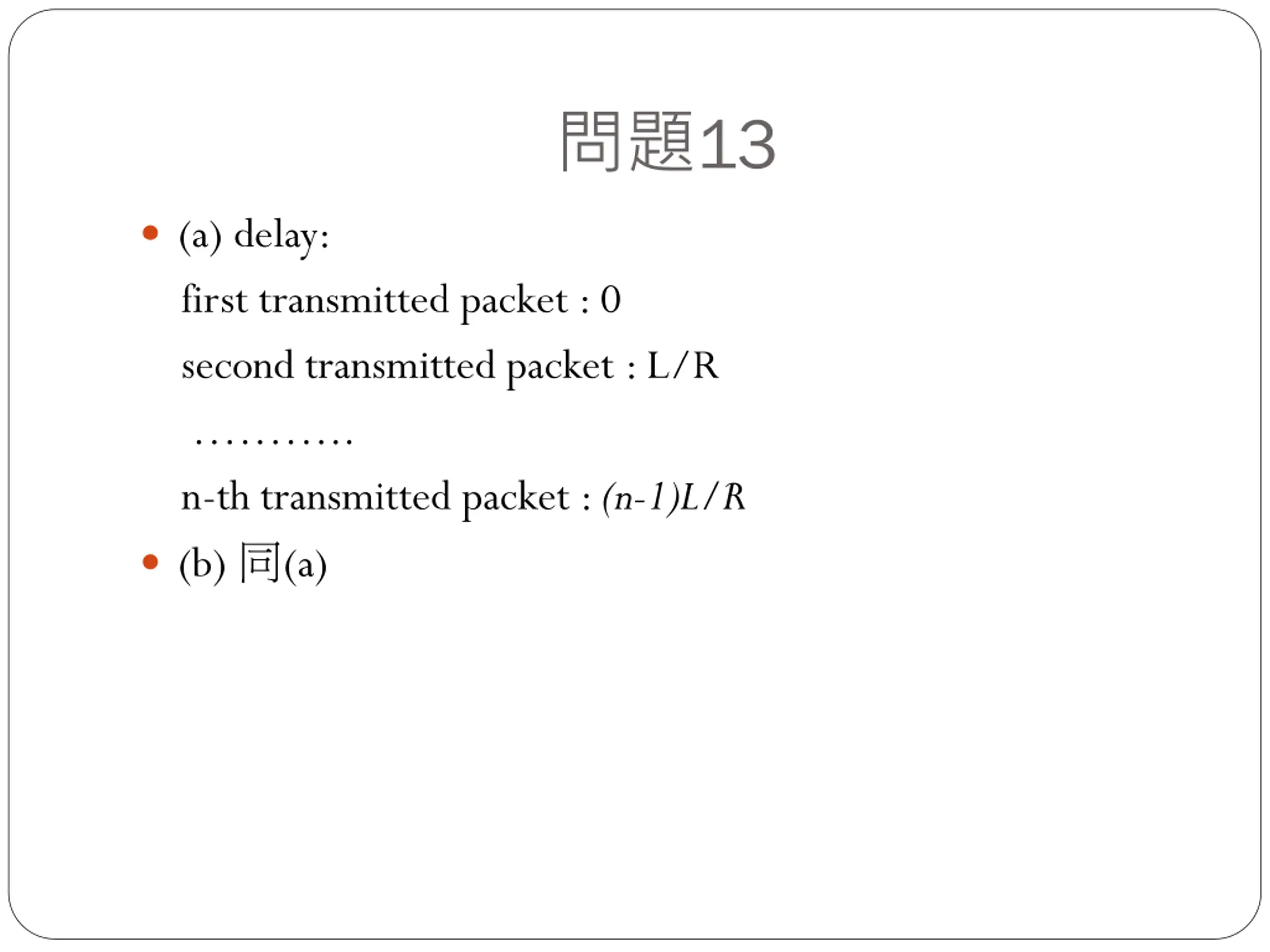

13 (a) delay: first transmitted packet : 0 second transmitted packet : L/R .. n-th transmitted packet : (n-1)L/R (b) (a)

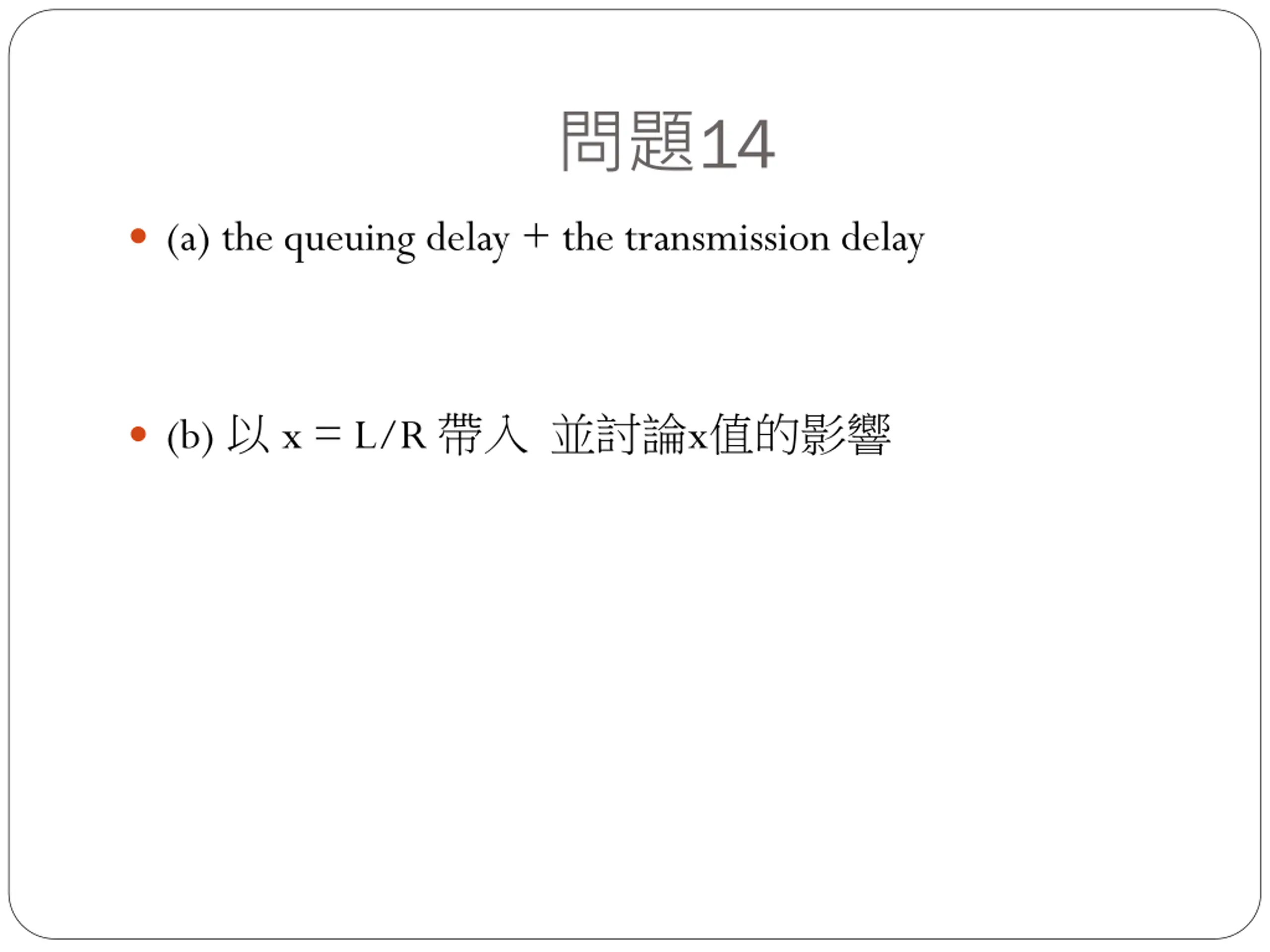

14 (a) the queuing delay + the transmission delay (b) x = L/R x

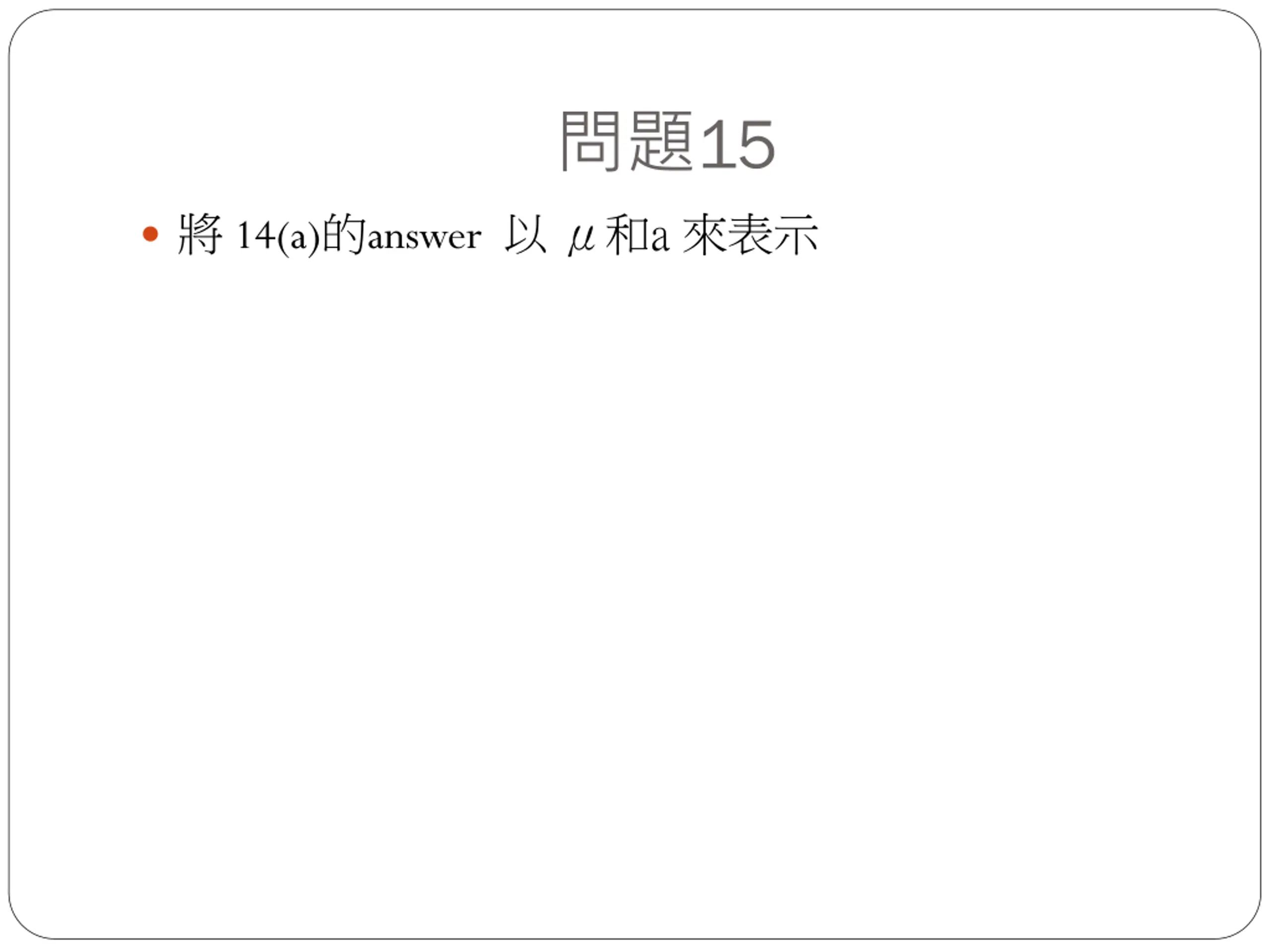

15 14(a) answer a

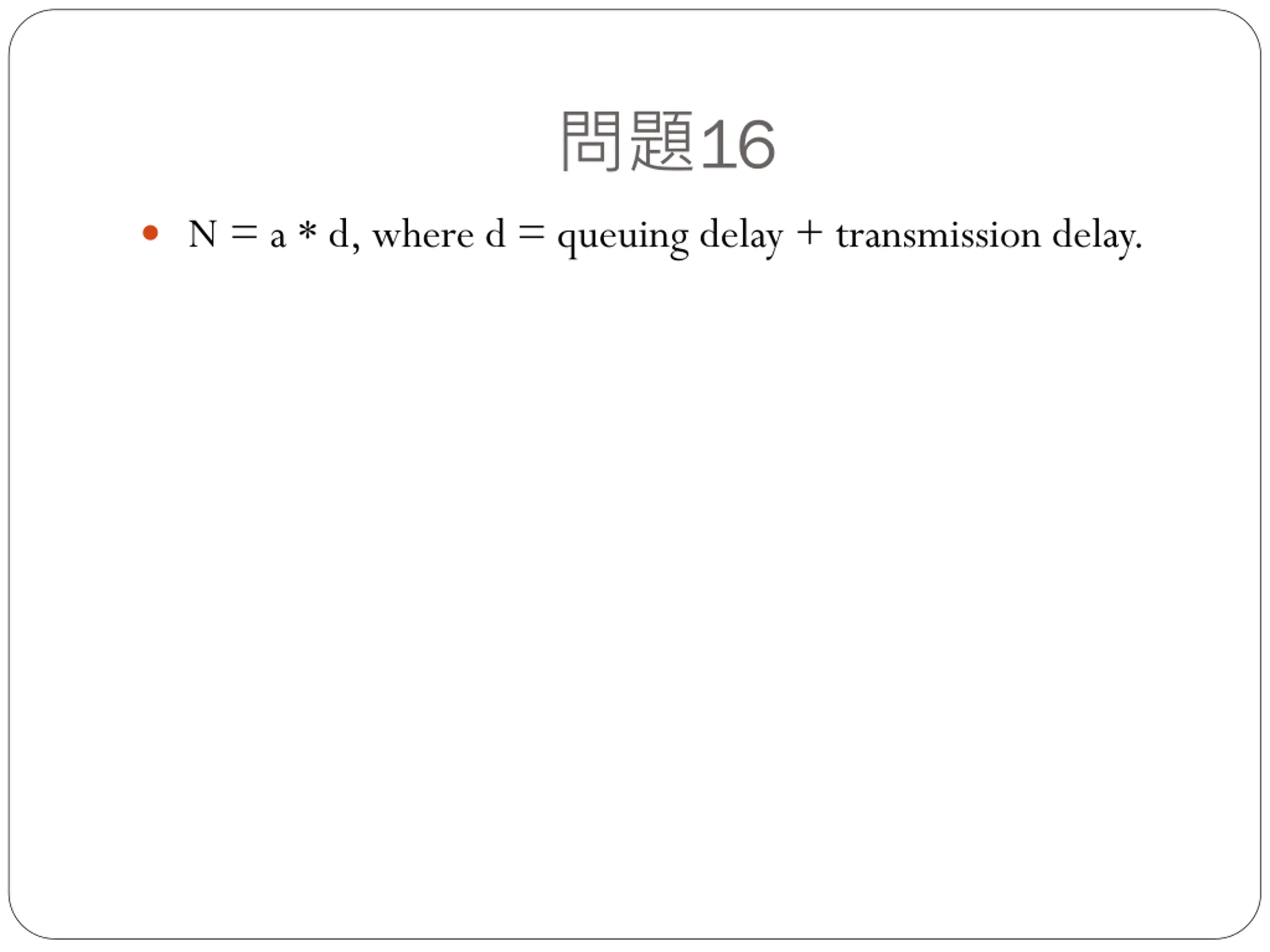

16 N = a * d, where d = queuing delay + transmission delay.

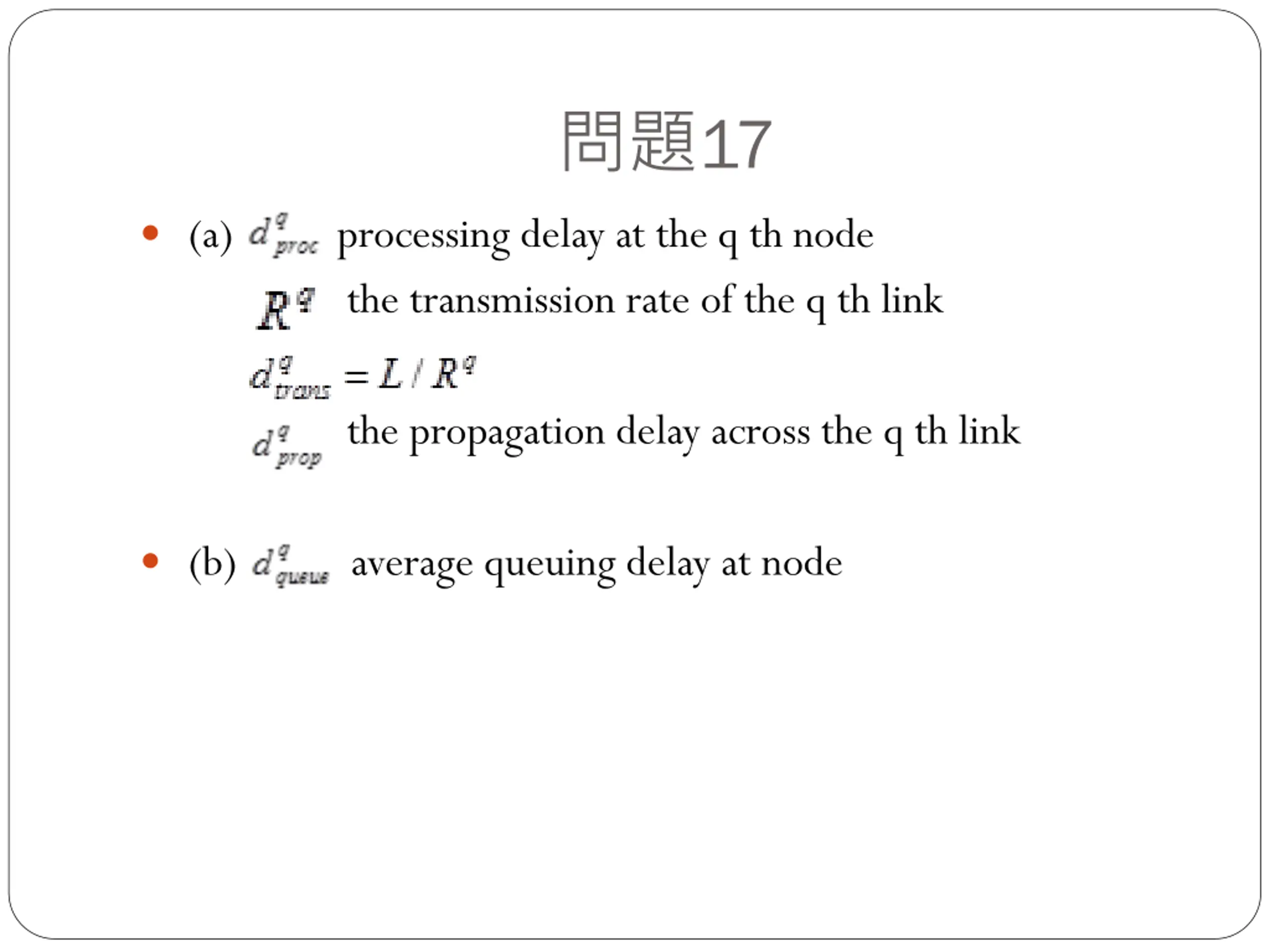

17 (a) processing delay at the q th node the transmission rate of the q th link the propagation delay across the q th link (b) average queuing delay at node

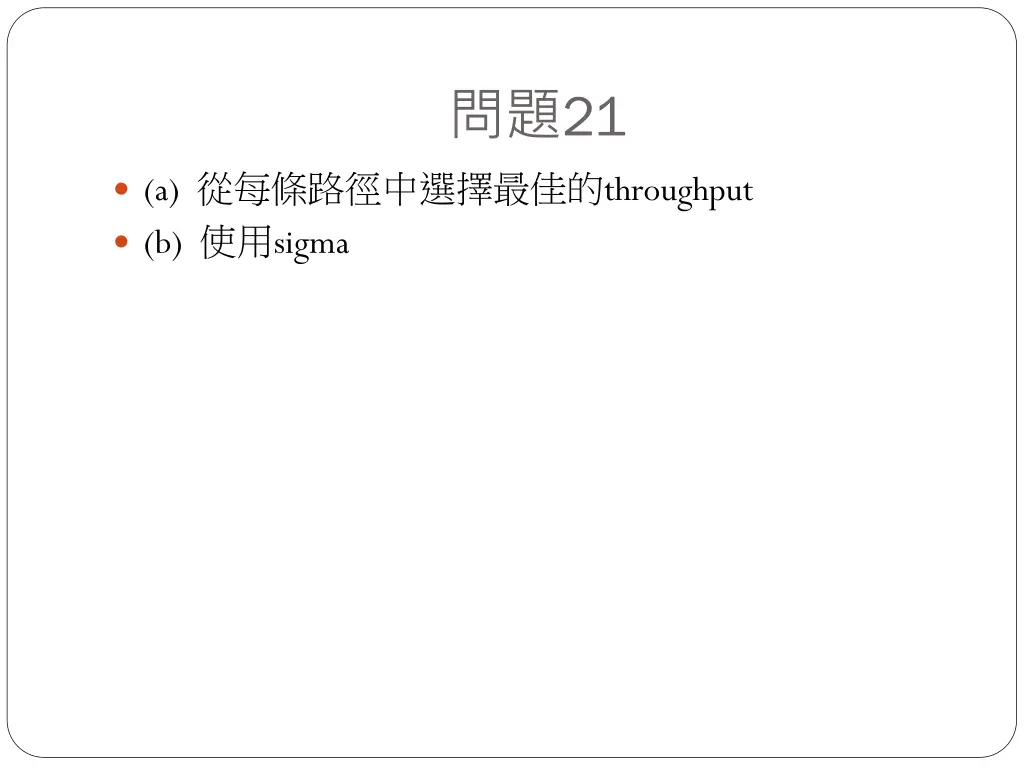

21 (a) throughput (b) sigma

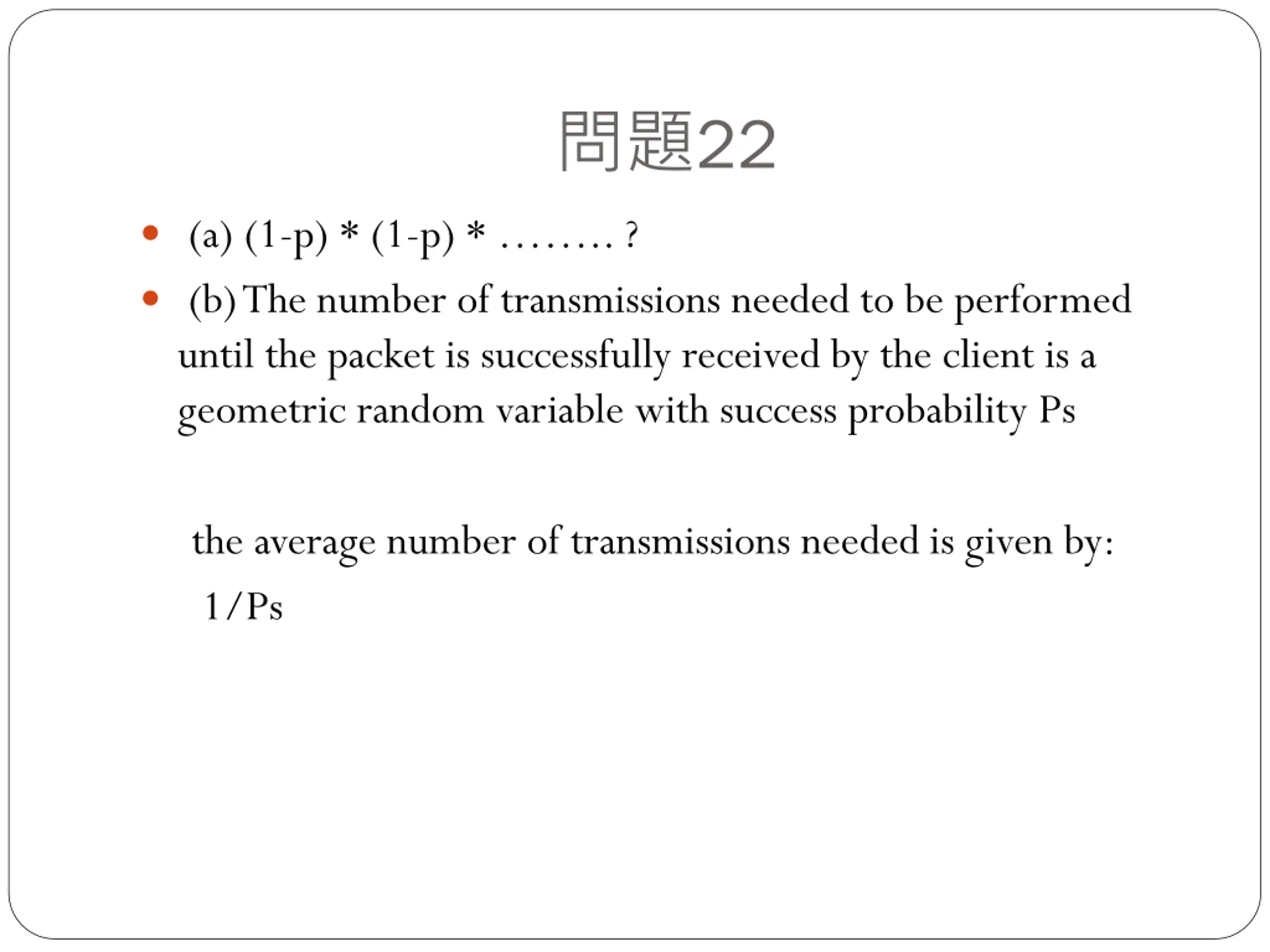

22 (a) (1-p) * (1-p) * .. ? (b) The number of transmissions needed to be performed until the packet is successfully received by the client is a geometric random variable with success probability Ps the average number of transmissions needed is given by: 1/Ps

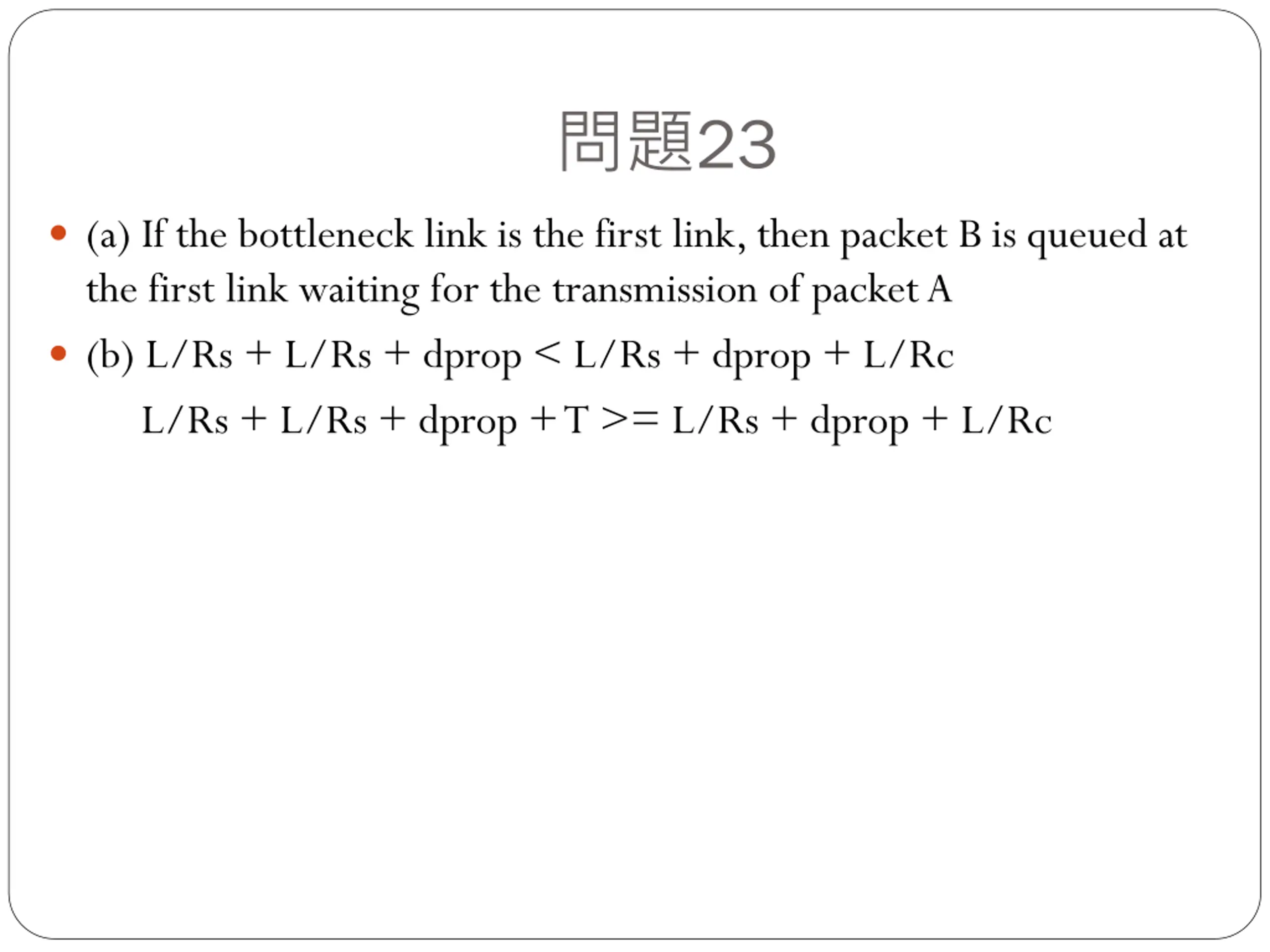

23 (a) If the bottleneck link is the first link, then packet B is queued at the first link waiting for the transmission of packet A (b) L/Rs + L/Rs + dprop < L/Rs + dprop + L/Rc L/Rs + L/Rs + dprop + T >= L/Rs + dprop + L/Rc

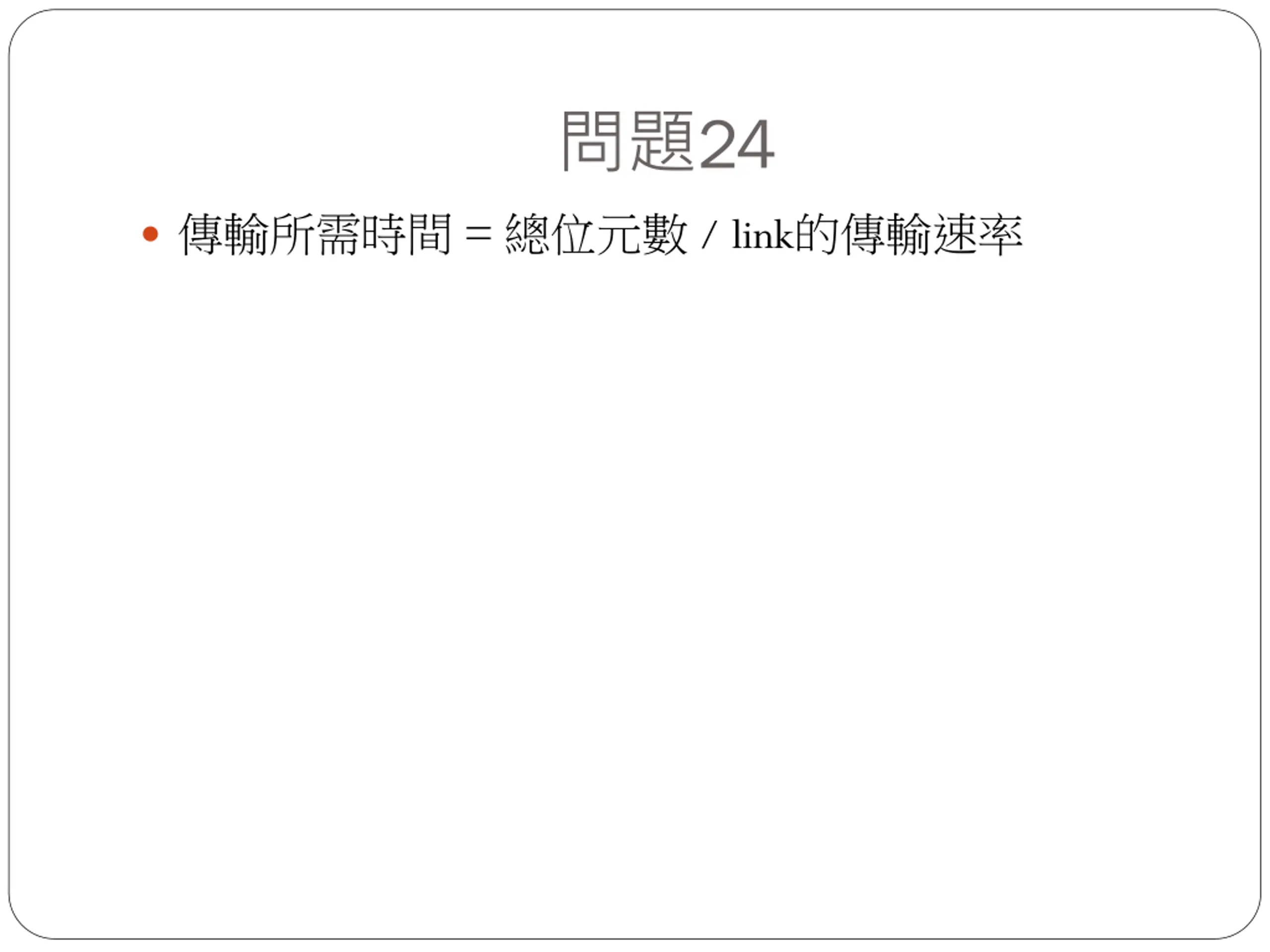

24 = / link

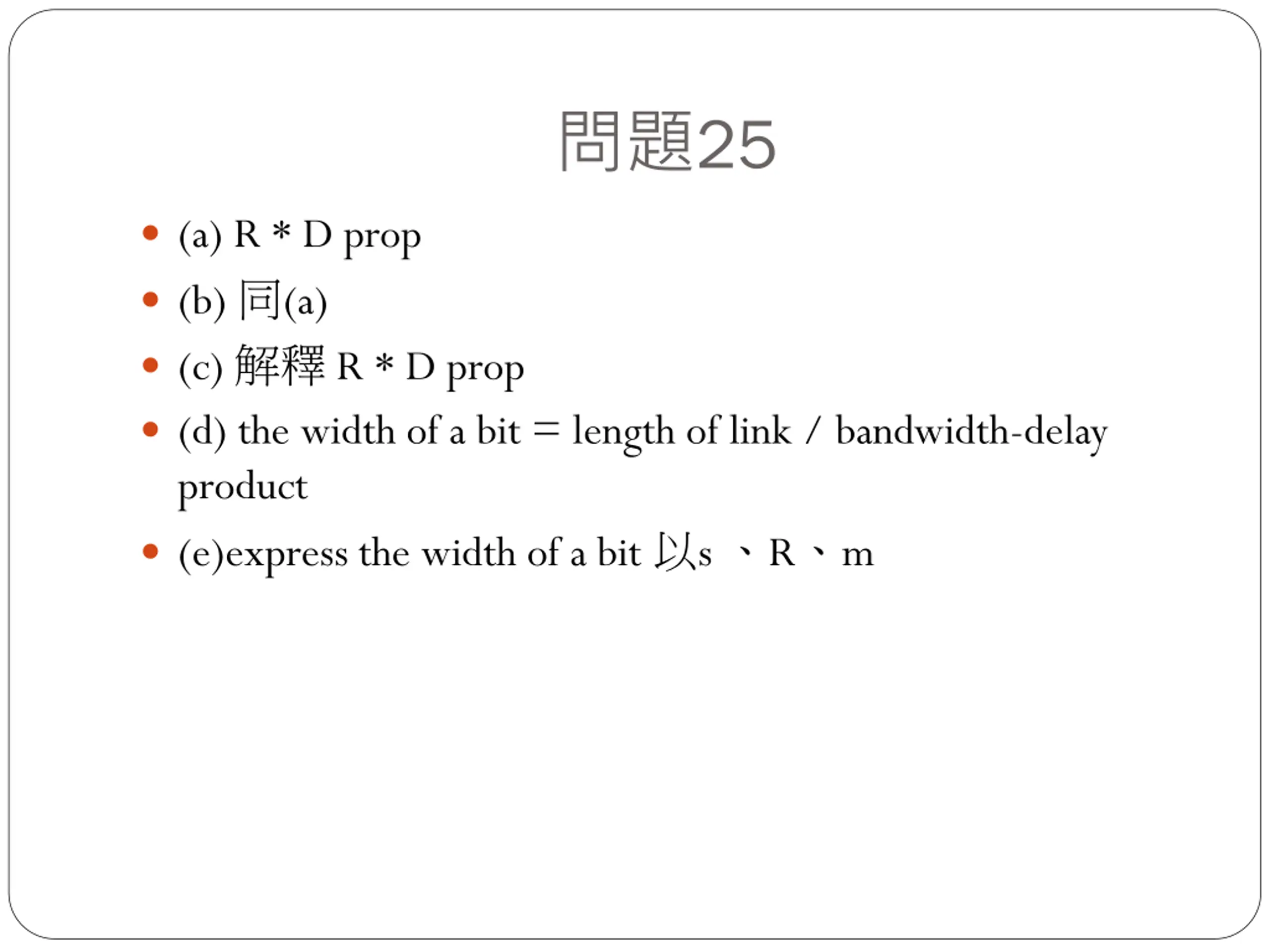

25 (a) R * D prop (b) (a) (c) R * D prop (d) the width of a bit = length of link / bandwidth-delay product (e)express the width of a bit s R m

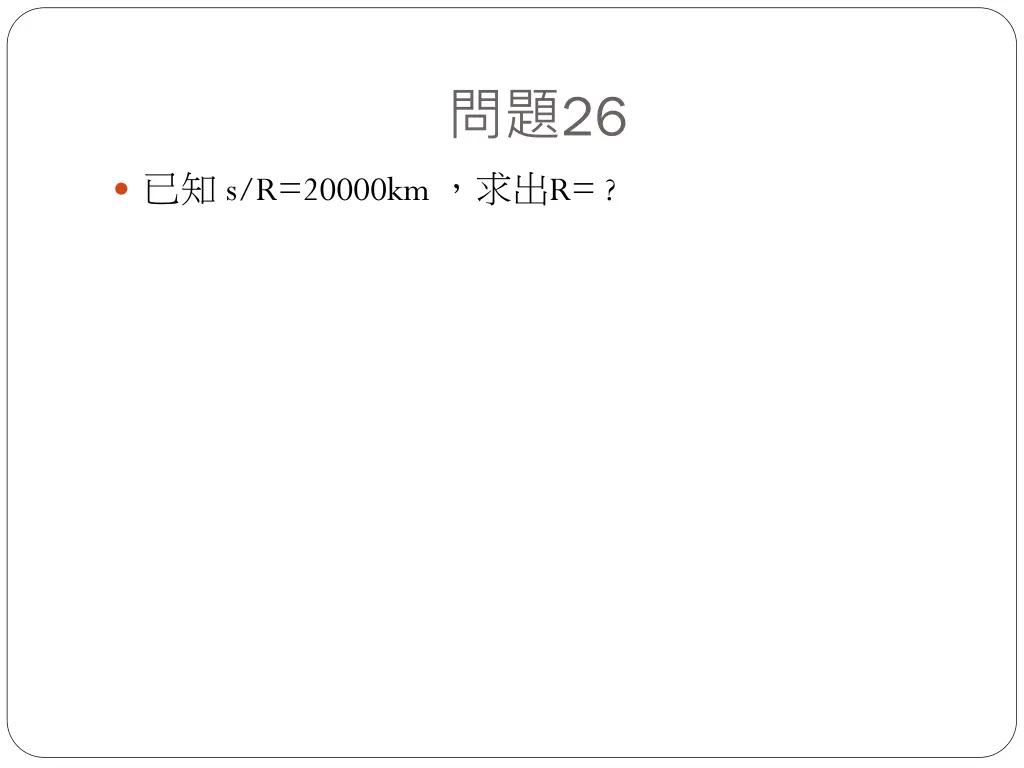

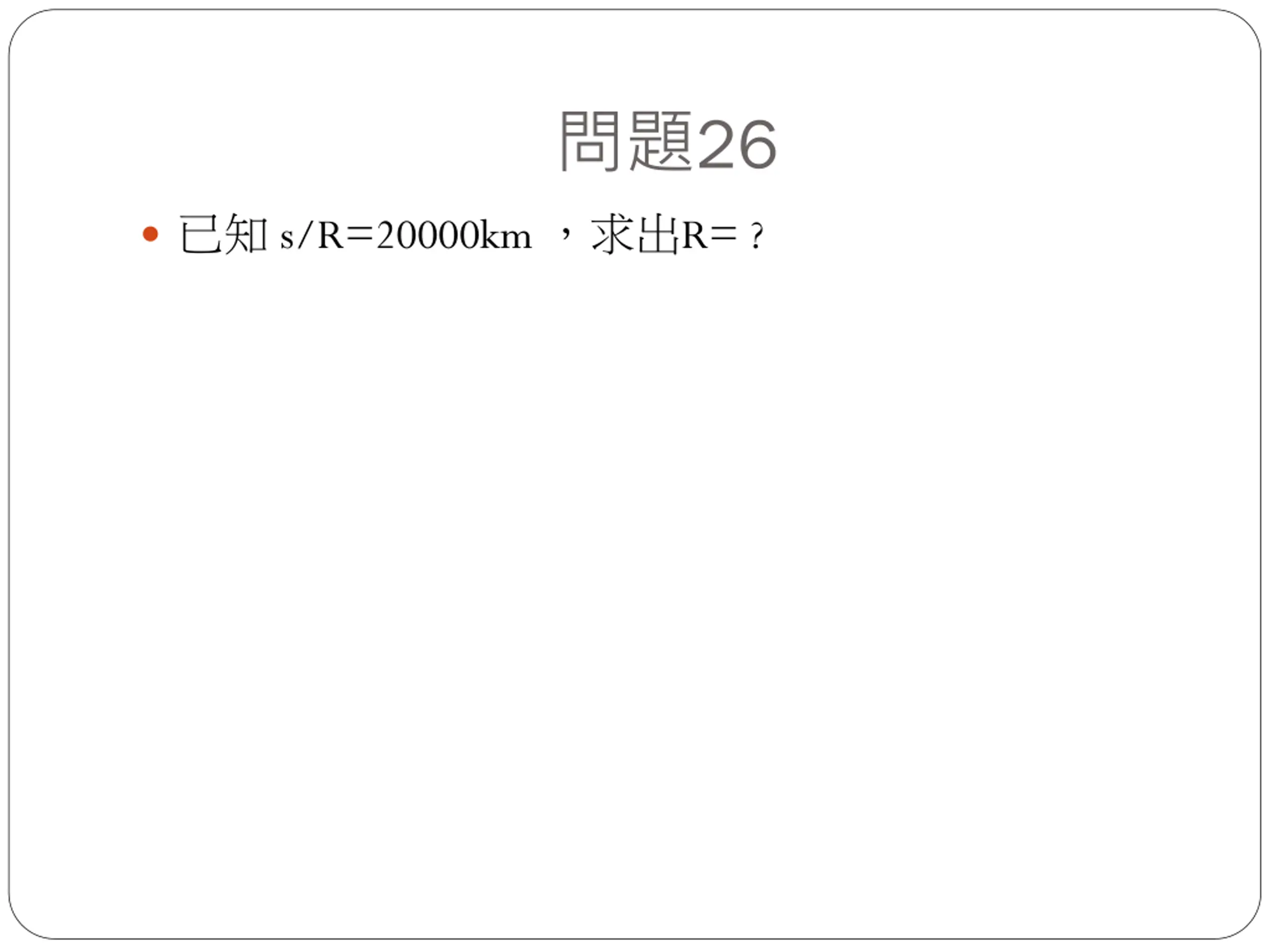

26 s/R=20000km R= ?

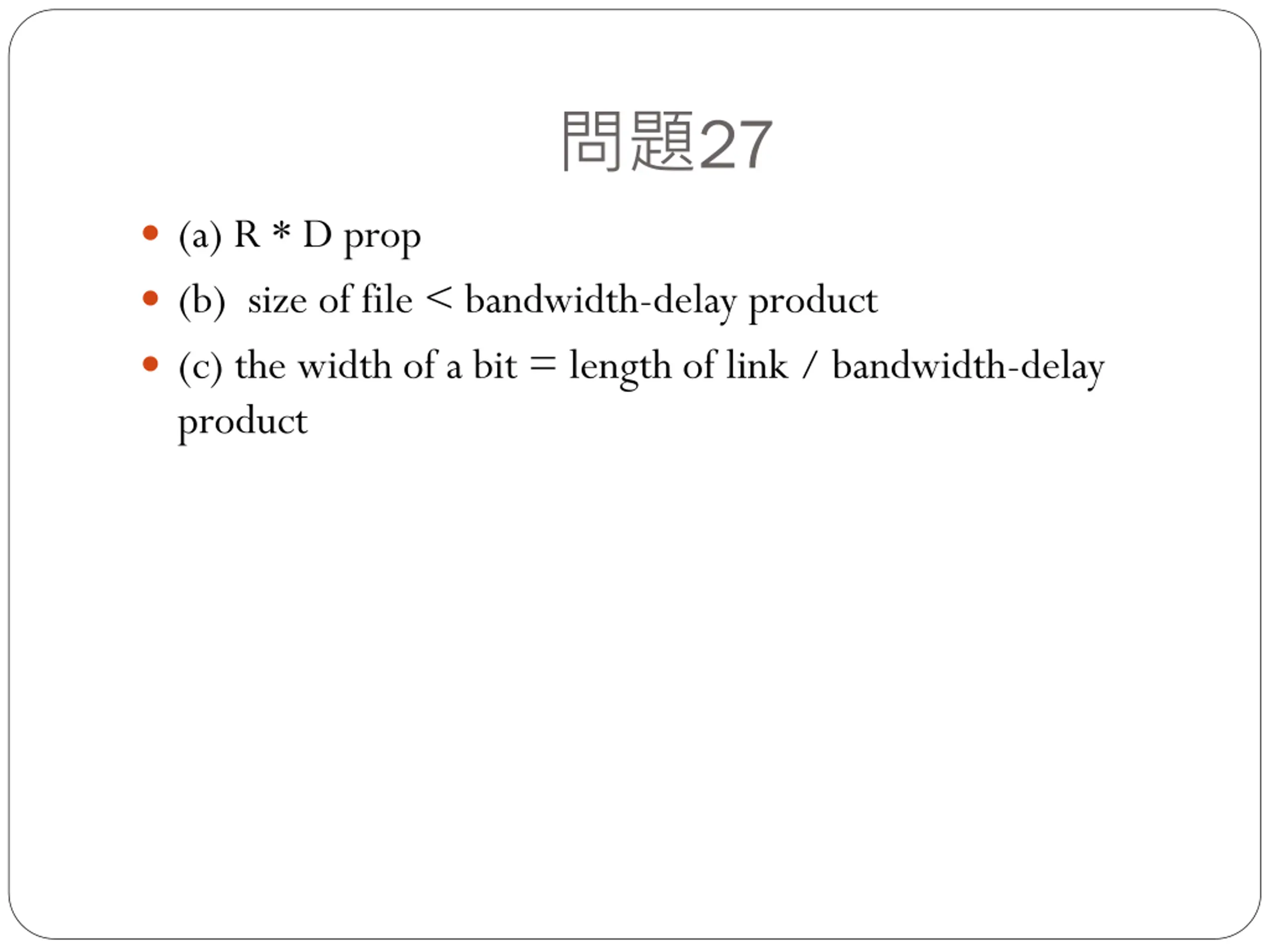

27 (a) R * D prop (b) size of file < bandwidth-delay product (c) the width of a bit = length of link / bandwidth-delay product

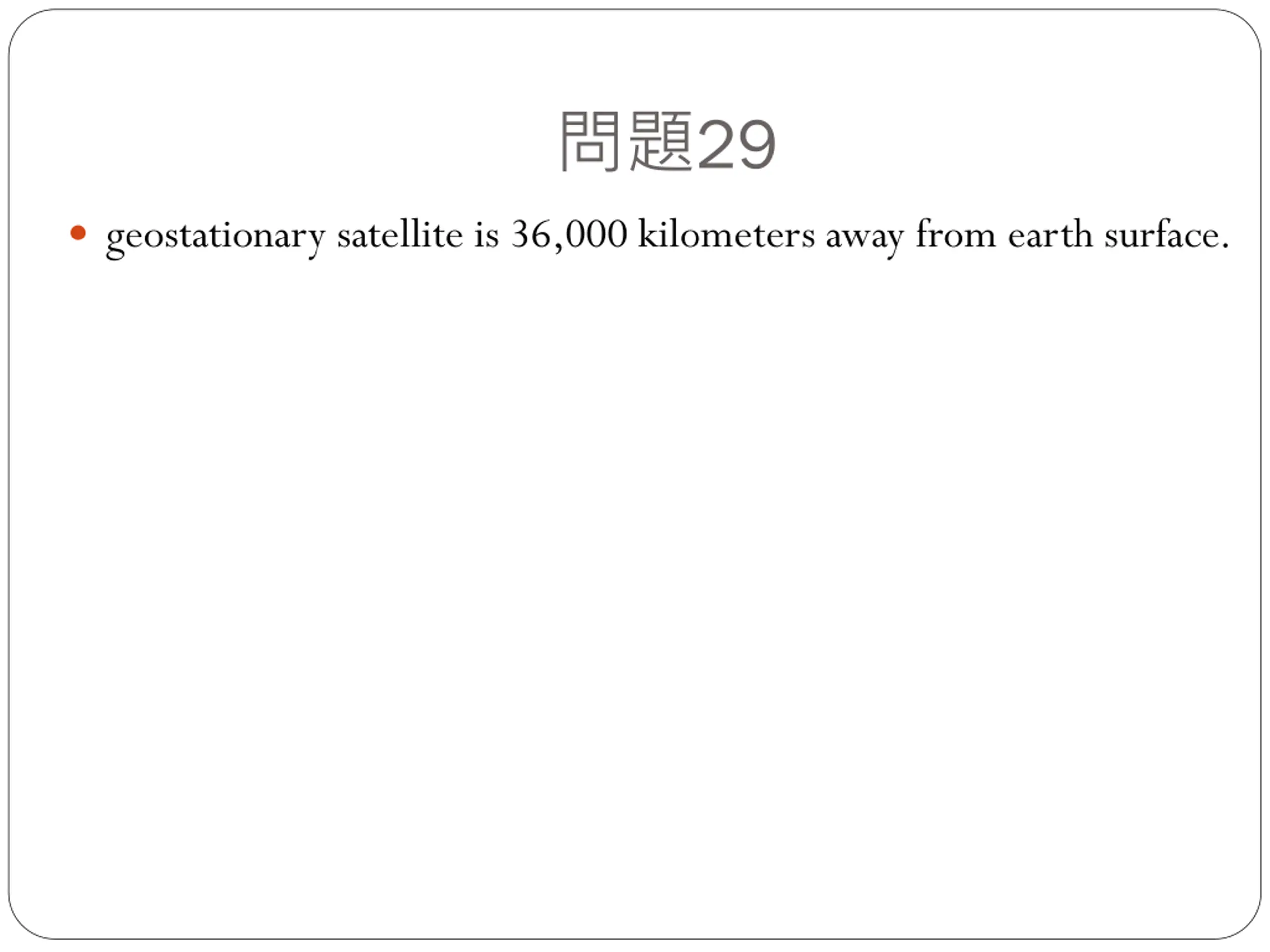

29 geostationary satellite is 36,000 kilometers away from earth surface.

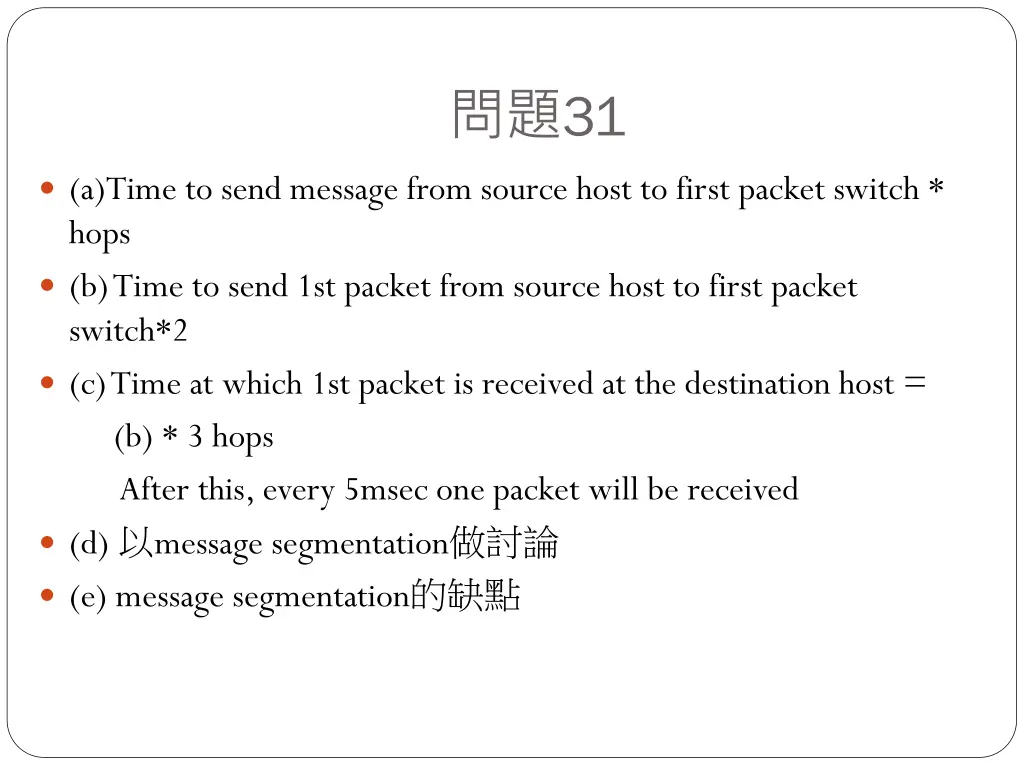

31 (a)Time to send message from source host to first packet switch * hops (b) Time to send 1st packet from source host to first packet switch*2 (c) Time at which 1st packet is received at the destination host = (b) * 3 hops After this, every 5msec one packet will be received (d) message segmentation (e) message segmentation

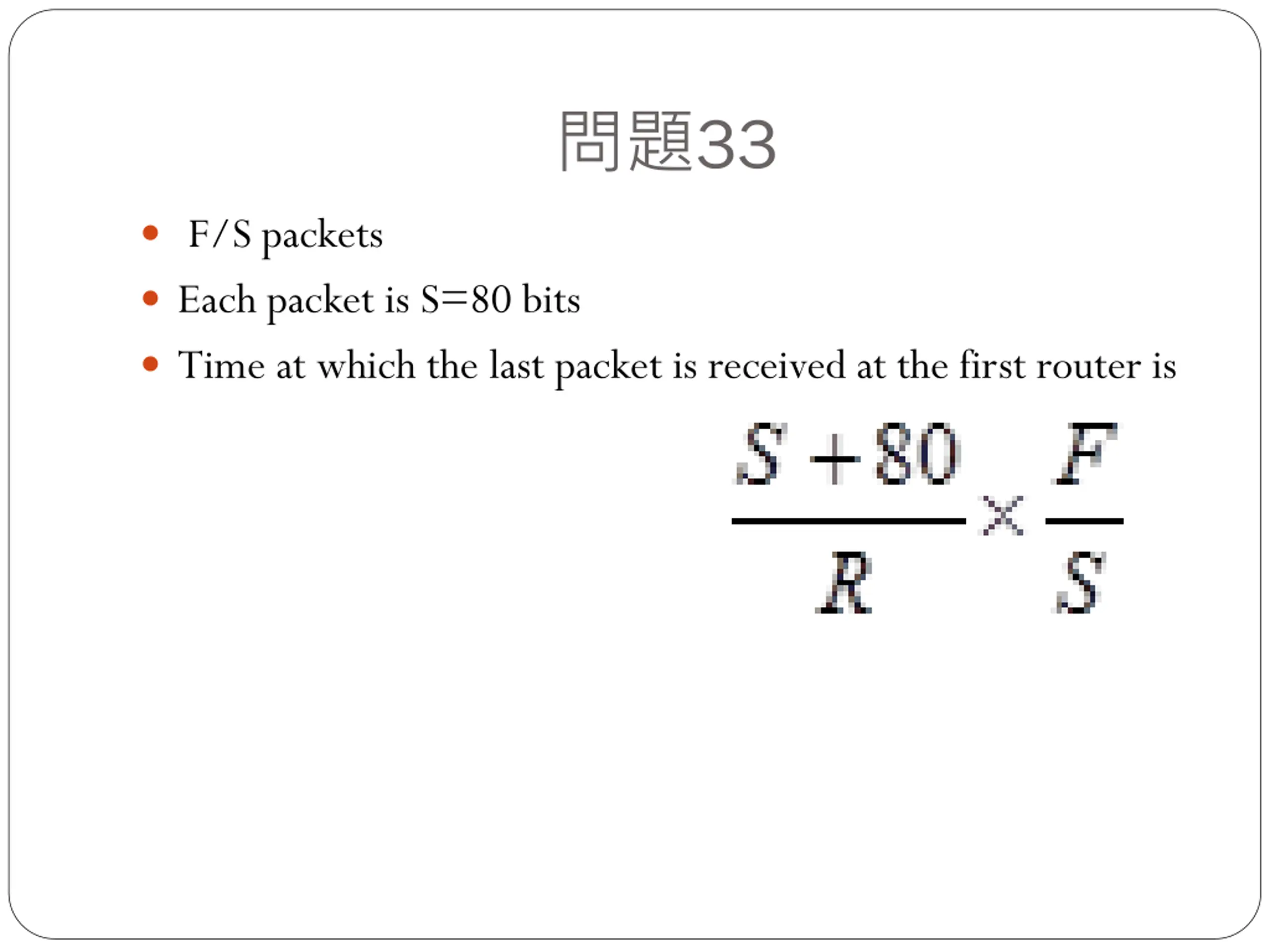

33 F/S packets Each packet is S=80 bits Time at which the last packet is received at the first router is
