  1. CSCE-608 Database Systems Spring 2025 Instructor: Jianer Chen Office: PETR 428 Phone: 845-4259 Email: chen@cse.tamu.edu Notes 37: Concurrency Control

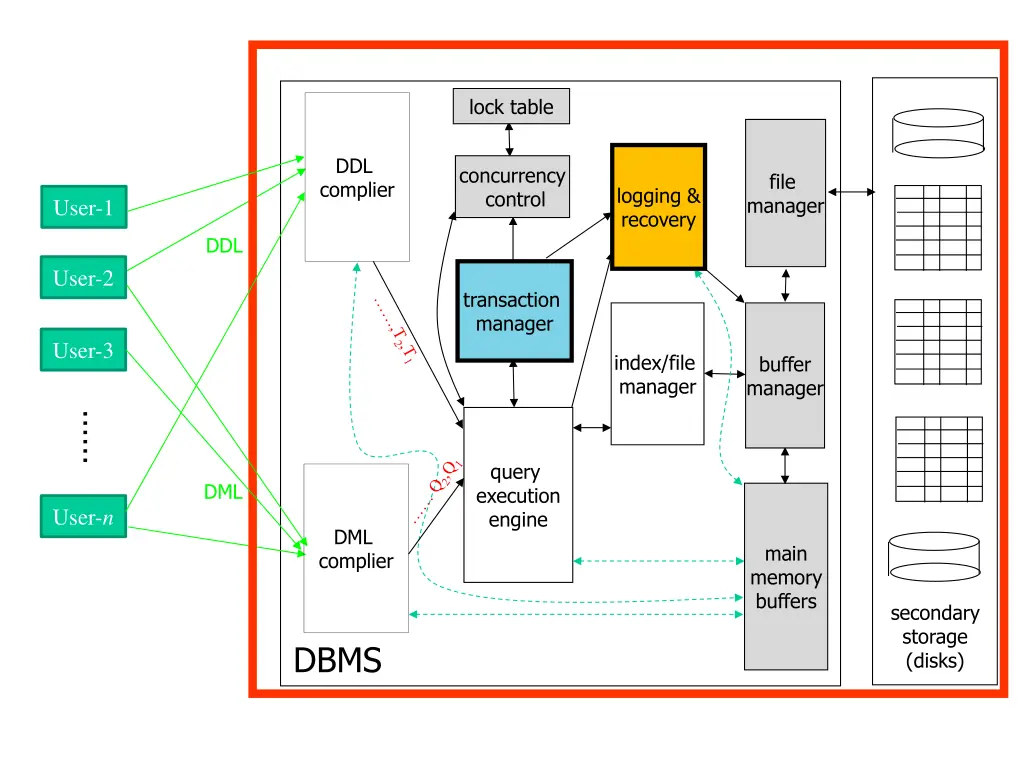

  2. lock table DDL complier concurrency control file logging & recovery manager User-1 DDL User-2 transaction manager User-3 index/file manager buffer manager query execution engine DML User-n DML complier main memory buffers secondary storage (disks) DBMS

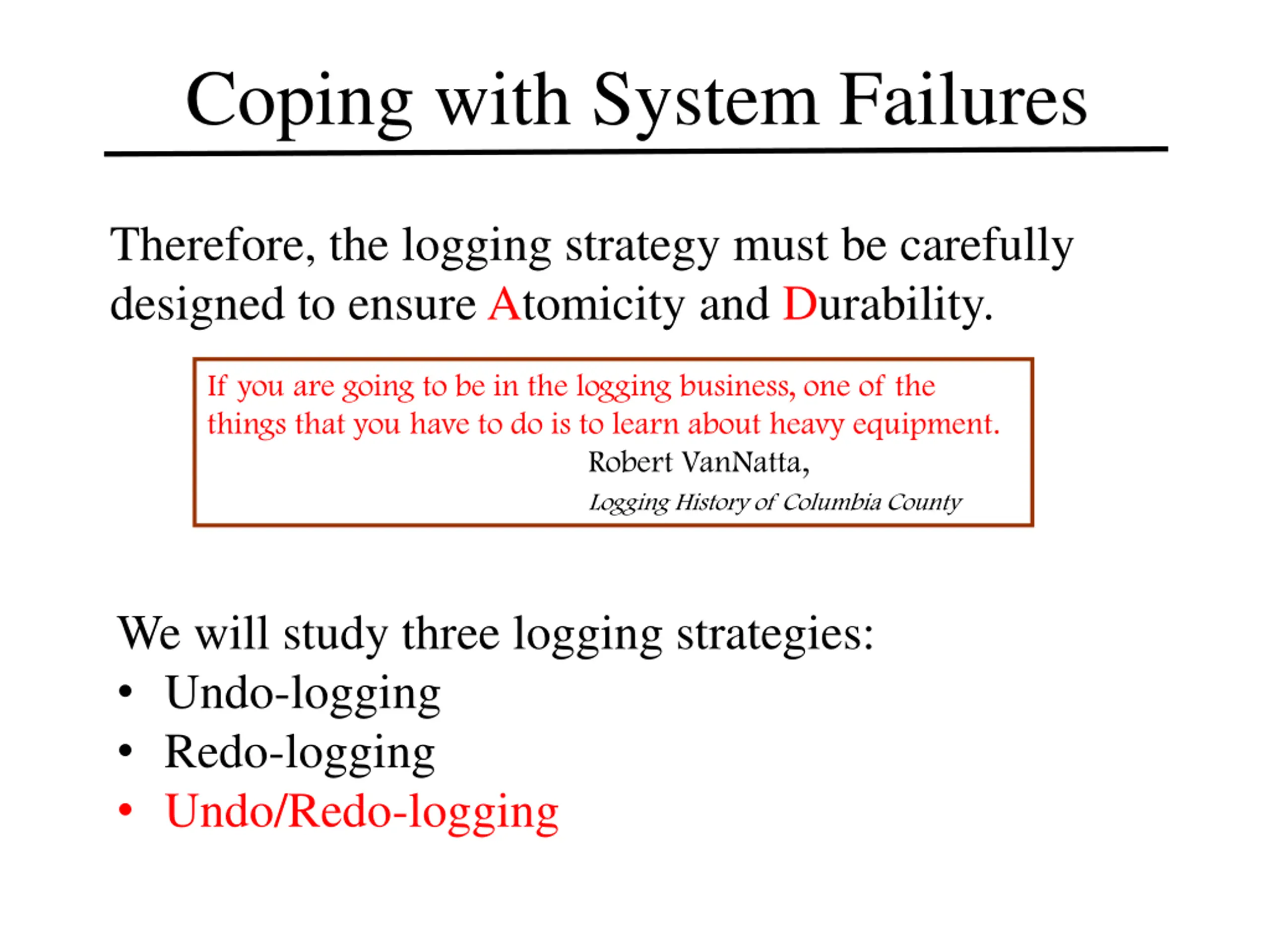

  3. Coping with System Failures Therefore, the logging strategy must be carefully designed to ensure Atomicity and Durability. If you are going to be in the logging business, one of the things that you have to do is to learn about heavy equipment. Robert VanNatta, Logging History of Columbia County We will study three logging strategies: Undo-logging Redo-logging Undo/Redo-logging

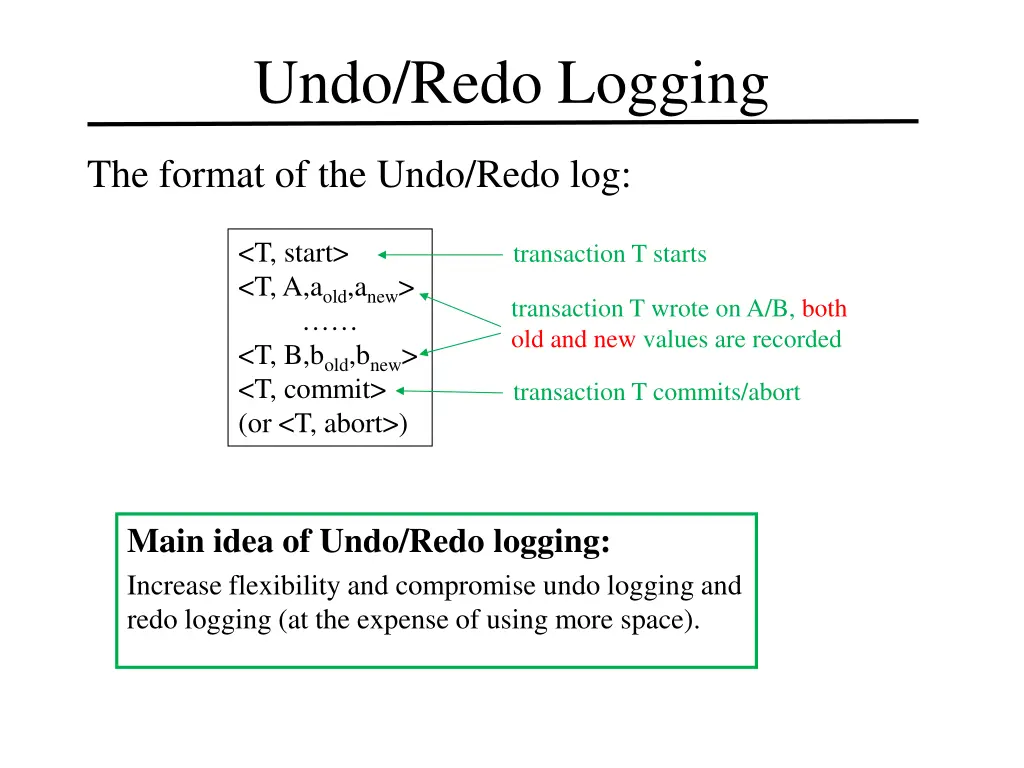

  4. Undo/Redo Logging The format of the Undo/Redo log: <T, start> <T, A,aold,anew> <T, B,bold,bnew> <T, commit> (or <T, abort>) transaction T starts transaction T wrote on A/B, both old and new values are recorded transaction T commits/abort Main idea of Undo/Redo logging: Increase flexibility and compromise undo logging and redo logging (at the expense of using more space).

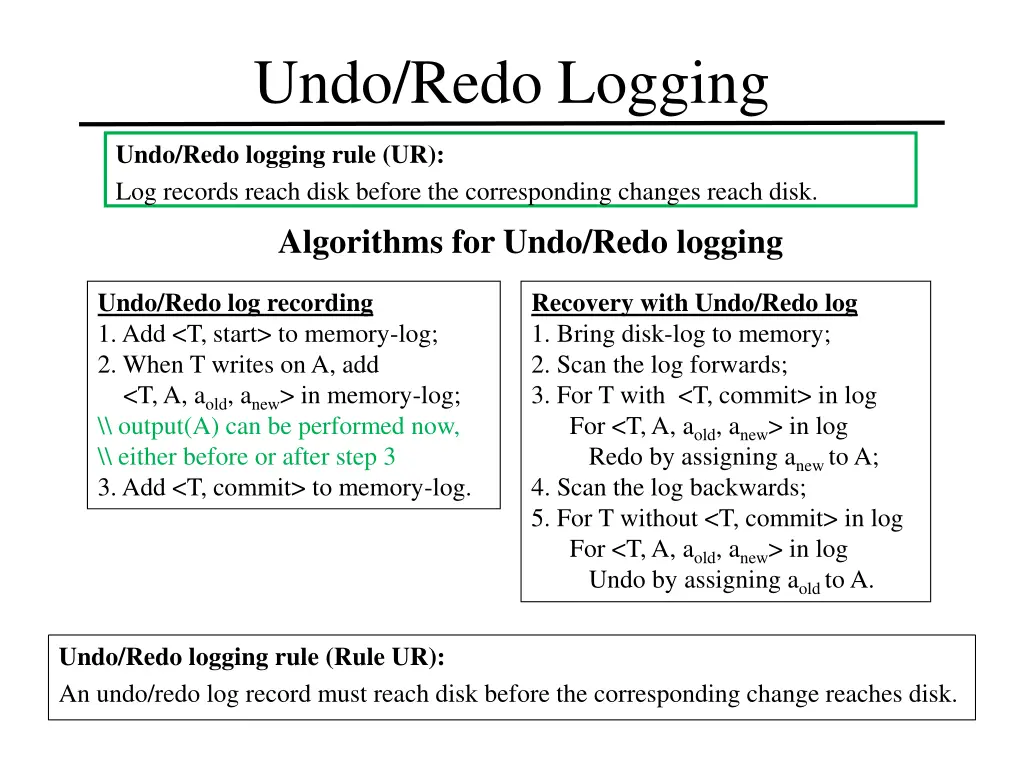

  5. Undo/Redo Logging Undo/Redo logging rule (UR): Log records reach disk before the corresponding changes reach disk. Algorithms for Undo/Redo logging Undo/Redo log recording 1. Add <T, start> to memory-log; 2. When T writes on A, add <T, A, aold, anew> in memory-log; \\ output(A) can be performed now, \\ either before or after step 3 3. Add <T, commit> to memory-log. Recovery with Undo/Redo log 1. Bring disk-log to memory; 2. Scan the log forwards; 3. For T with <T, commit> in log For <T, A, aold, anew> in log Redo by assigning anew to A; 4. Scan the log backwards; 5. For T without <T, commit> in log For <T, A, aold, anew> in log Undo by assigning aold to A. Undo/Redo logging rule (Rule UR): An undo/redo log record must reach disk before the corresponding change reaches disk.

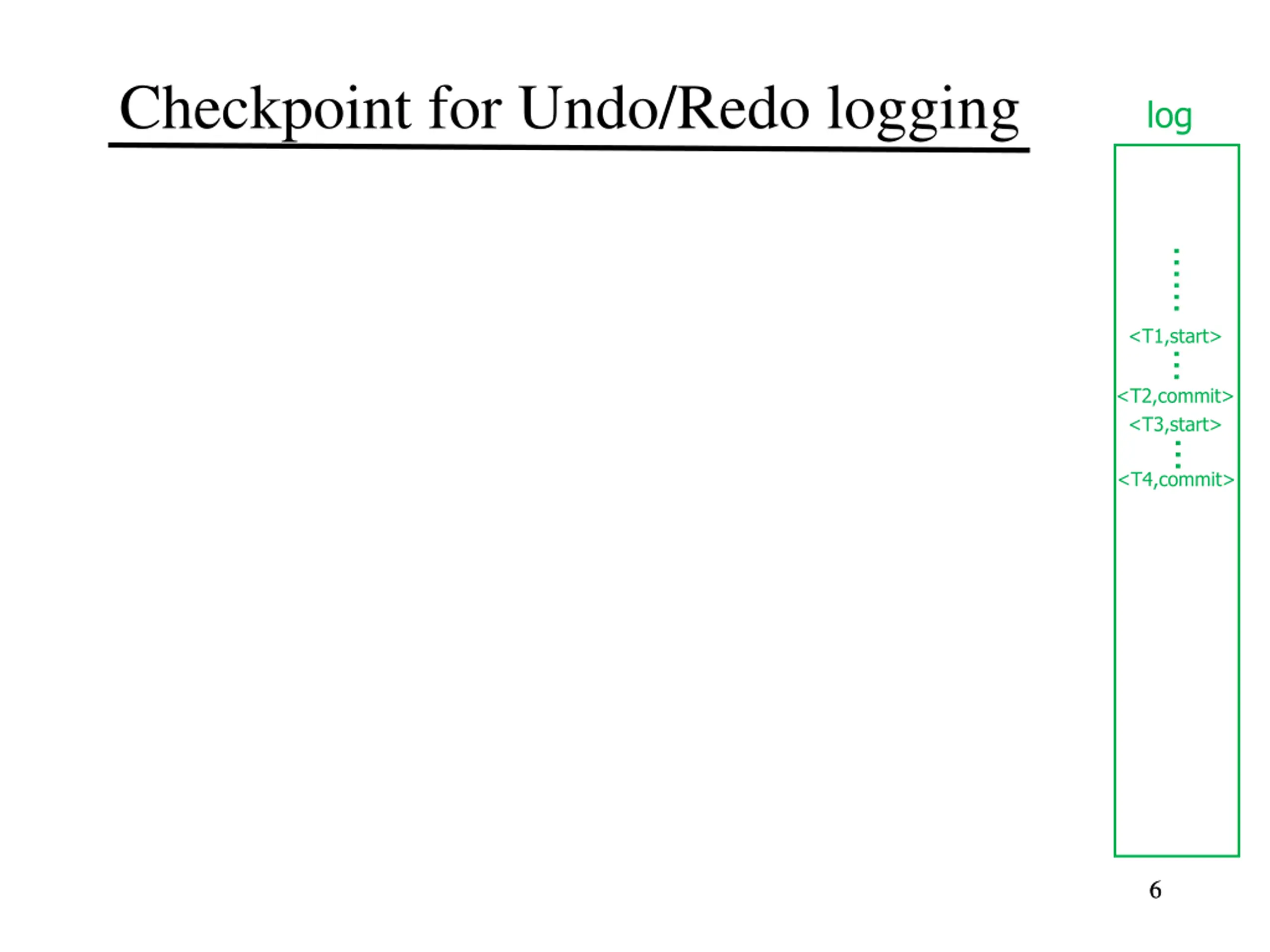

  6. Checkpoint for Undo/Redo logging log <T1,start> <T2,commit> <T3,start> <T4,commit> 6 6

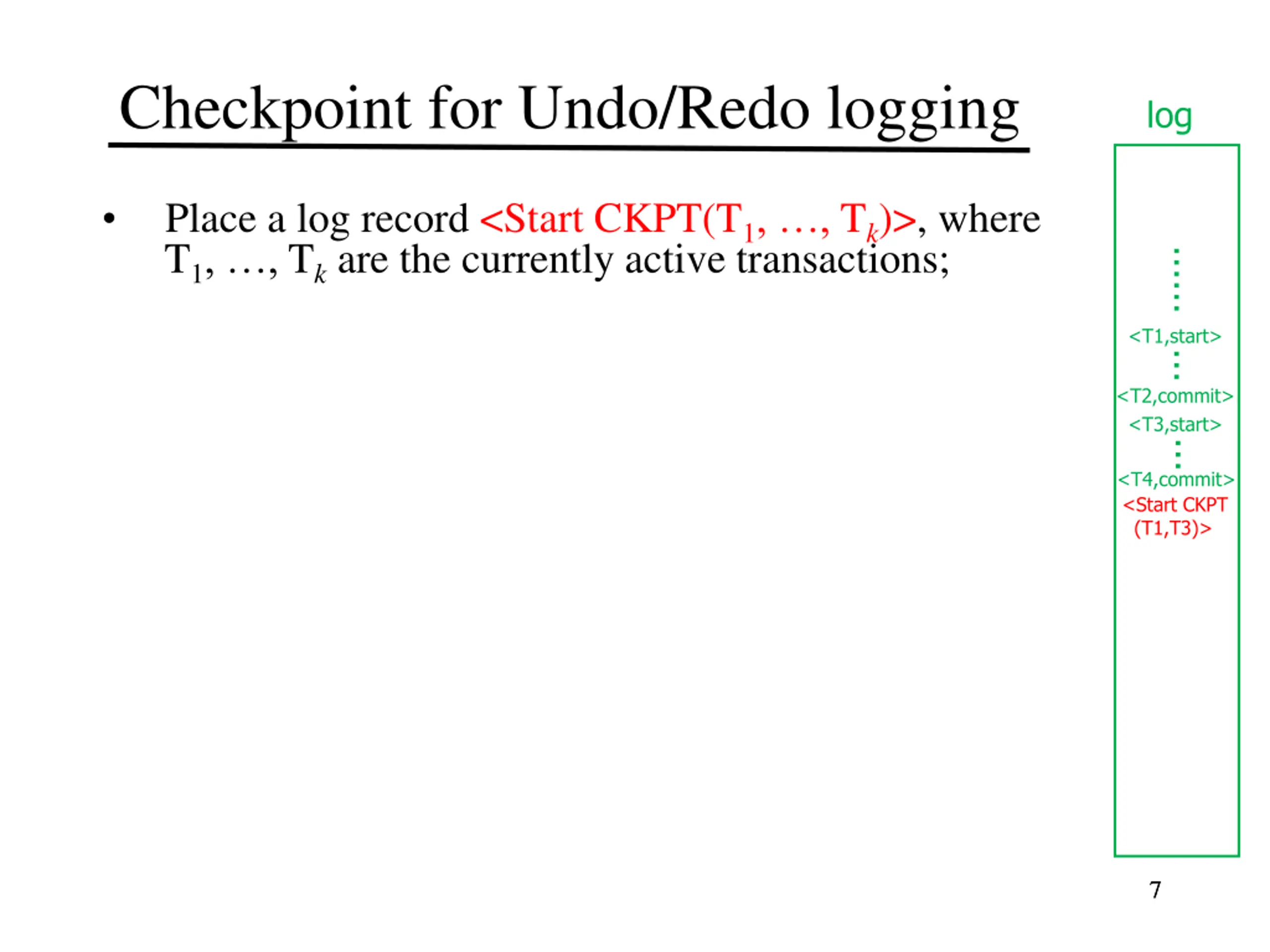

  7. Checkpoint for Undo/Redo logging log Place a log record <Start CKPT(T1, , Tk)>, where T1, , Tk are the currently active transactions; <T1,start> <T2,commit> <T3,start> <T4,commit> <Start CKPT (T1,T3)> 7 7

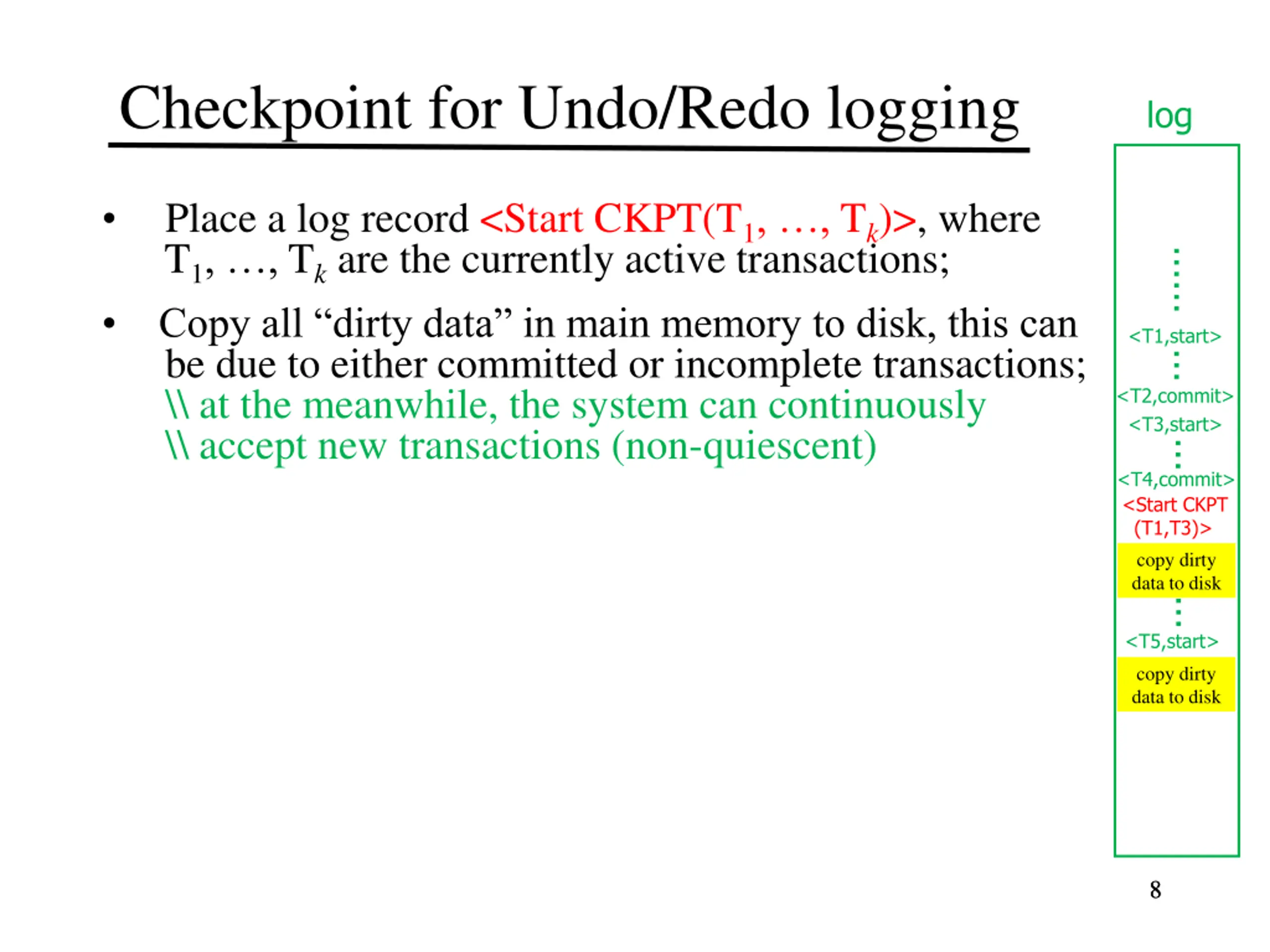

  8. Checkpoint for Undo/Redo logging log Place a log record <Start CKPT(T1, , Tk)>, where T1, , Tk are the currently active transactions; Copy all dirty data in main memory to disk, this can be due to either committed or incomplete transactions; \\ at the meanwhile, the system can continuously \\ accept new transactions (non-quiescent) <T1,start> <T2,commit> <T3,start> <T4,commit> <Start CKPT (T1,T3)> copy dirty data to disk <T5,start> copy dirty data to disk 8 8

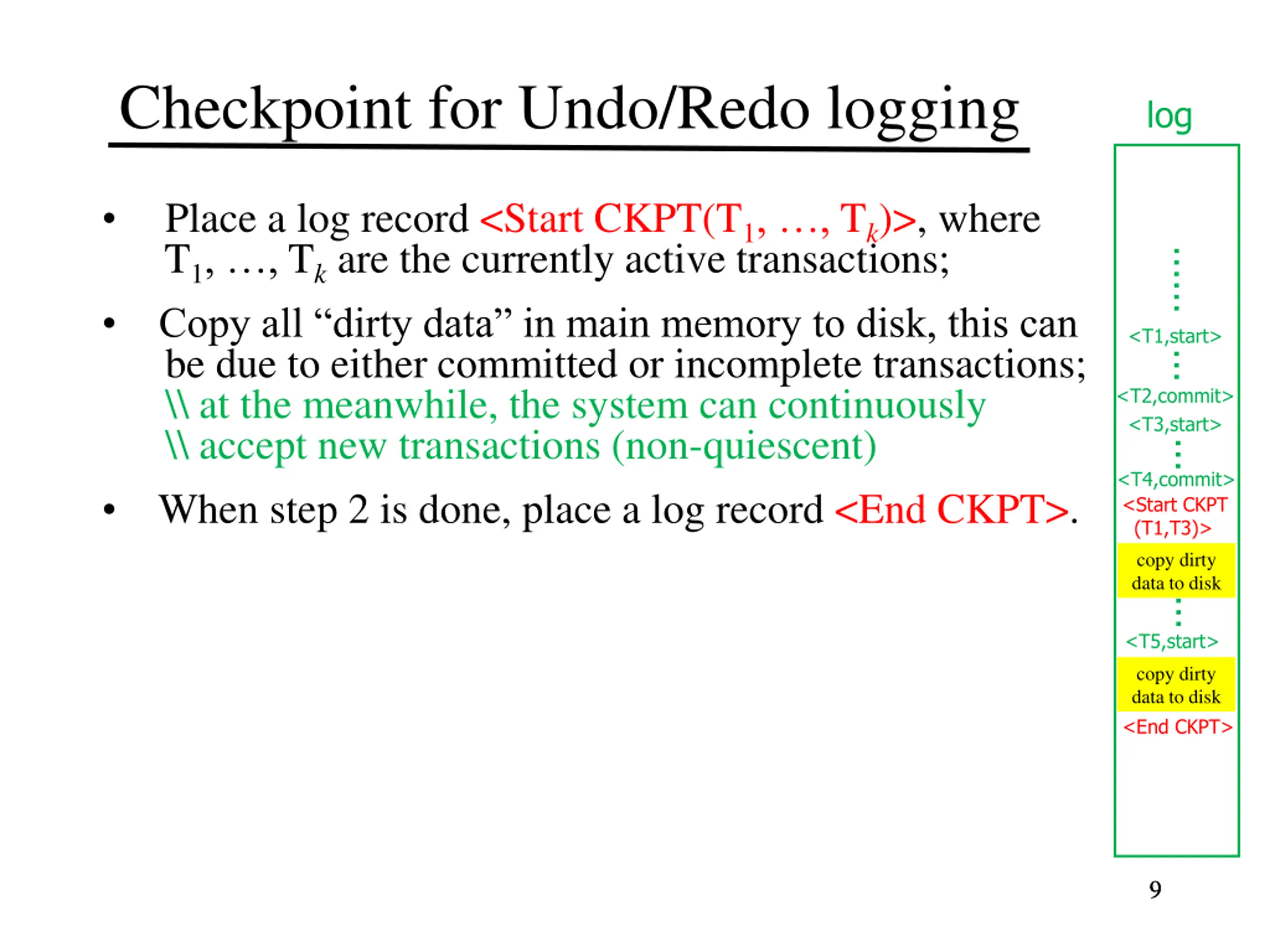

  9. Checkpoint for Undo/Redo logging log Place a log record <Start CKPT(T1, , Tk)>, where T1, , Tk are the currently active transactions; Copy all dirty data in main memory to disk, this can be due to either committed or incomplete transactions; \\ at the meanwhile, the system can continuously \\ accept new transactions (non-quiescent) When step 2 is done, place a log record <End CKPT>. <T1,start> <T2,commit> <T3,start> <T4,commit> <Start CKPT (T1,T3)> copy dirty data to disk <T5,start> copy dirty data to disk <End CKPT> 9 9

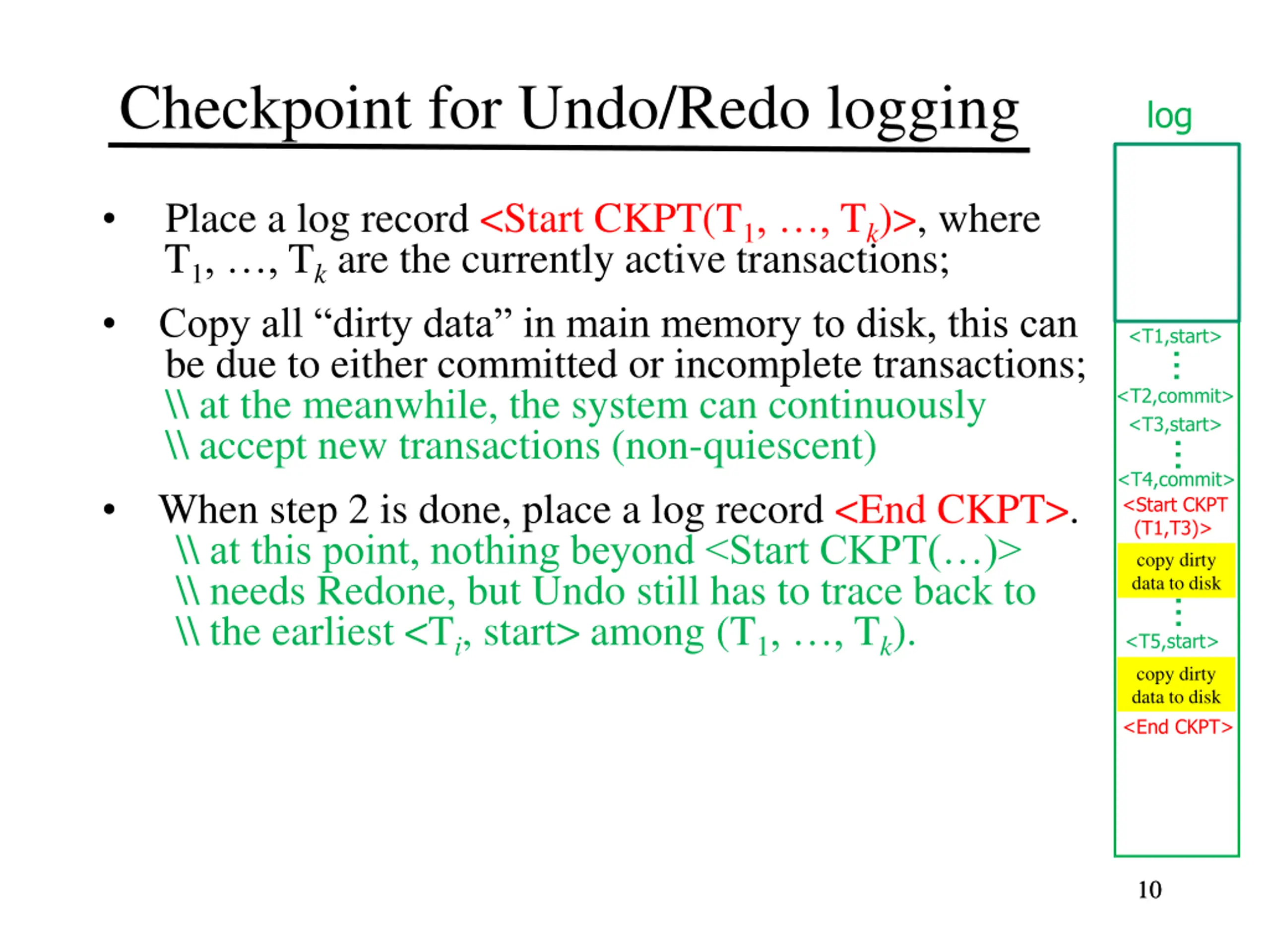

  10. Checkpoint for Undo/Redo logging log Place a log record <Start CKPT(T1, , Tk)>, where T1, , Tk are the currently active transactions; Copy all dirty data in main memory to disk, this can be due to either committed or incomplete transactions; \\ at the meanwhile, the system can continuously \\ accept new transactions (non-quiescent) When step 2 is done, place a log record <End CKPT>. \\ at this point, nothing beyond <Start CKPT( )> \\ needs Redone, but Undo still has to trace back to \\ the earliest <Ti, start> among (T1, , Tk). <T1,start> <T2,commit> <T3,start> <T4,commit> <Start CKPT (T1,T3)> copy dirty data to disk <T5,start> copy dirty data to disk <End CKPT> 10 10

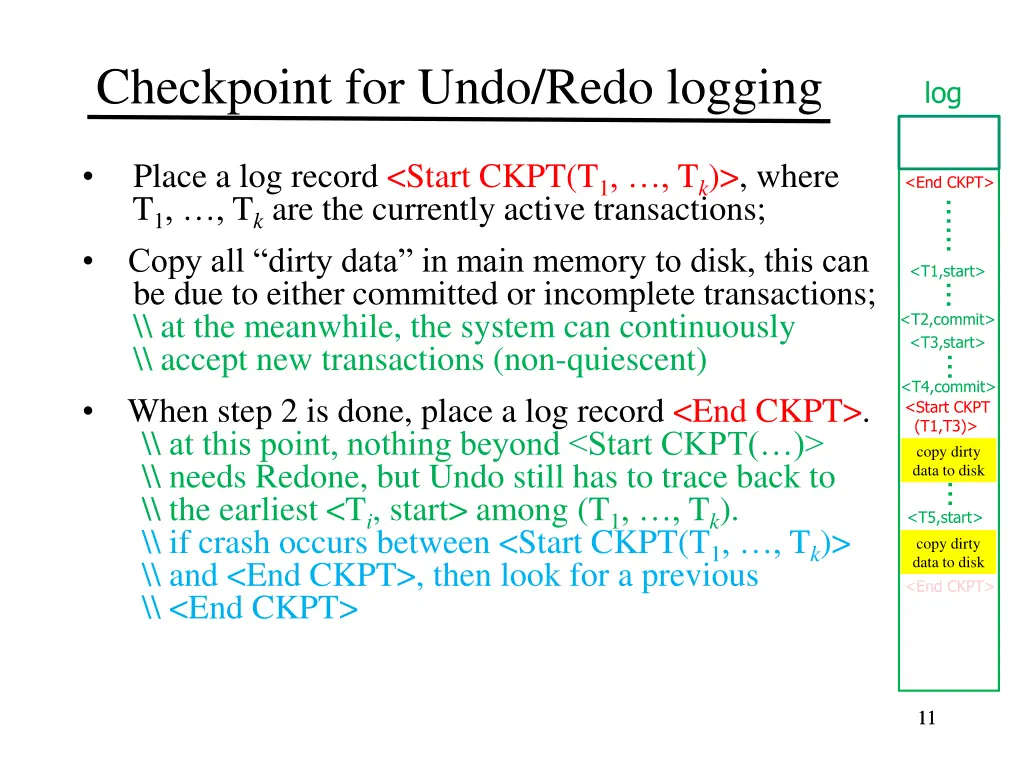

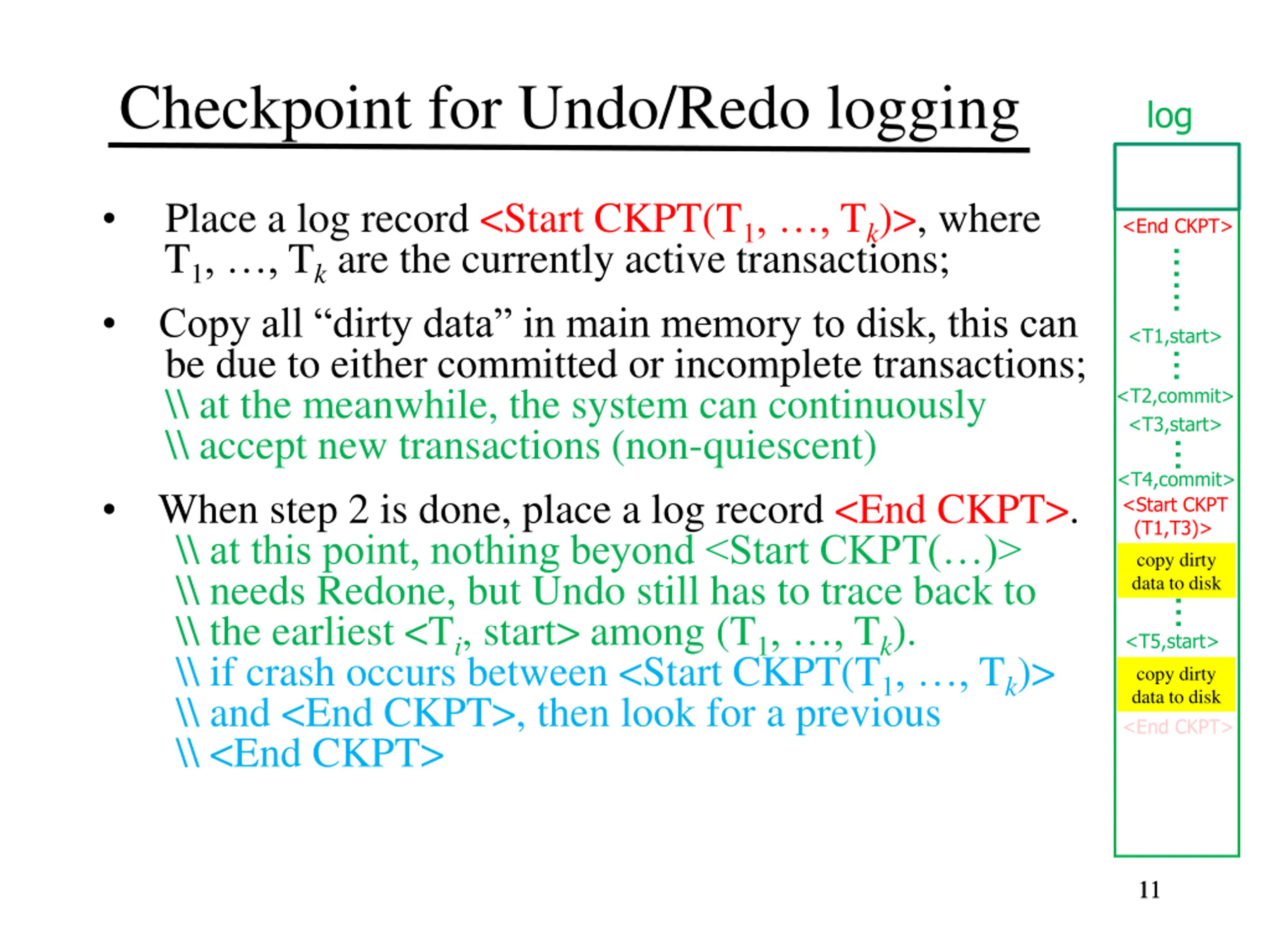

  11. Checkpoint for Undo/Redo logging log Place a log record <Start CKPT(T1, , Tk)>, where T1, , Tk are the currently active transactions; Copy all dirty data in main memory to disk, this can be due to either committed or incomplete transactions; \\ at the meanwhile, the system can continuously \\ accept new transactions (non-quiescent) When step 2 is done, place a log record <End CKPT>. \\ at this point, nothing beyond <Start CKPT( )> \\ needs Redone, but Undo still has to trace back to \\ the earliest <Ti, start> among (T1, , Tk). \\ if crash occurs between <Start CKPT(T1, , Tk)> \\ and <End CKPT>, then look for a previous \\ <End CKPT> <End CKPT> <T1,start> <T2,commit> <T3,start> <T4,commit> <Start CKPT (T1,T3)> copy dirty data to disk <T5,start> copy dirty data to disk <End CKPT> 11 11

  12. Coping with System Failures Therefore, the logging strategy must be carefully designed to ensure Atomicity and Durability. If you are going to be in the logging business, one of the things that you have to do is to learn about heavy equipment. Robert VanNatta, Logging History of Columbia County We have studied three logging strategies: Undo-logging Redo-logging Undo/Redo-logging

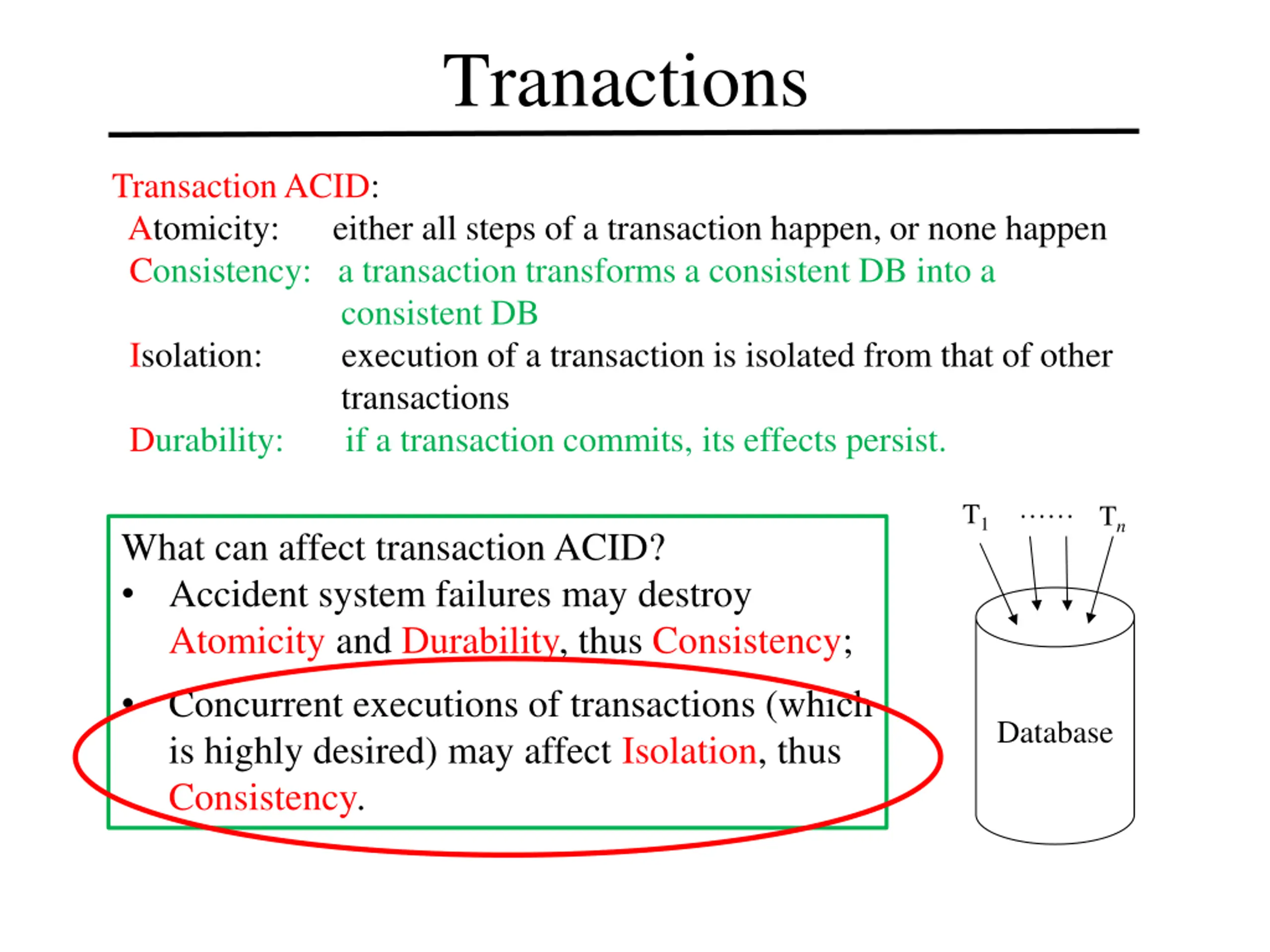

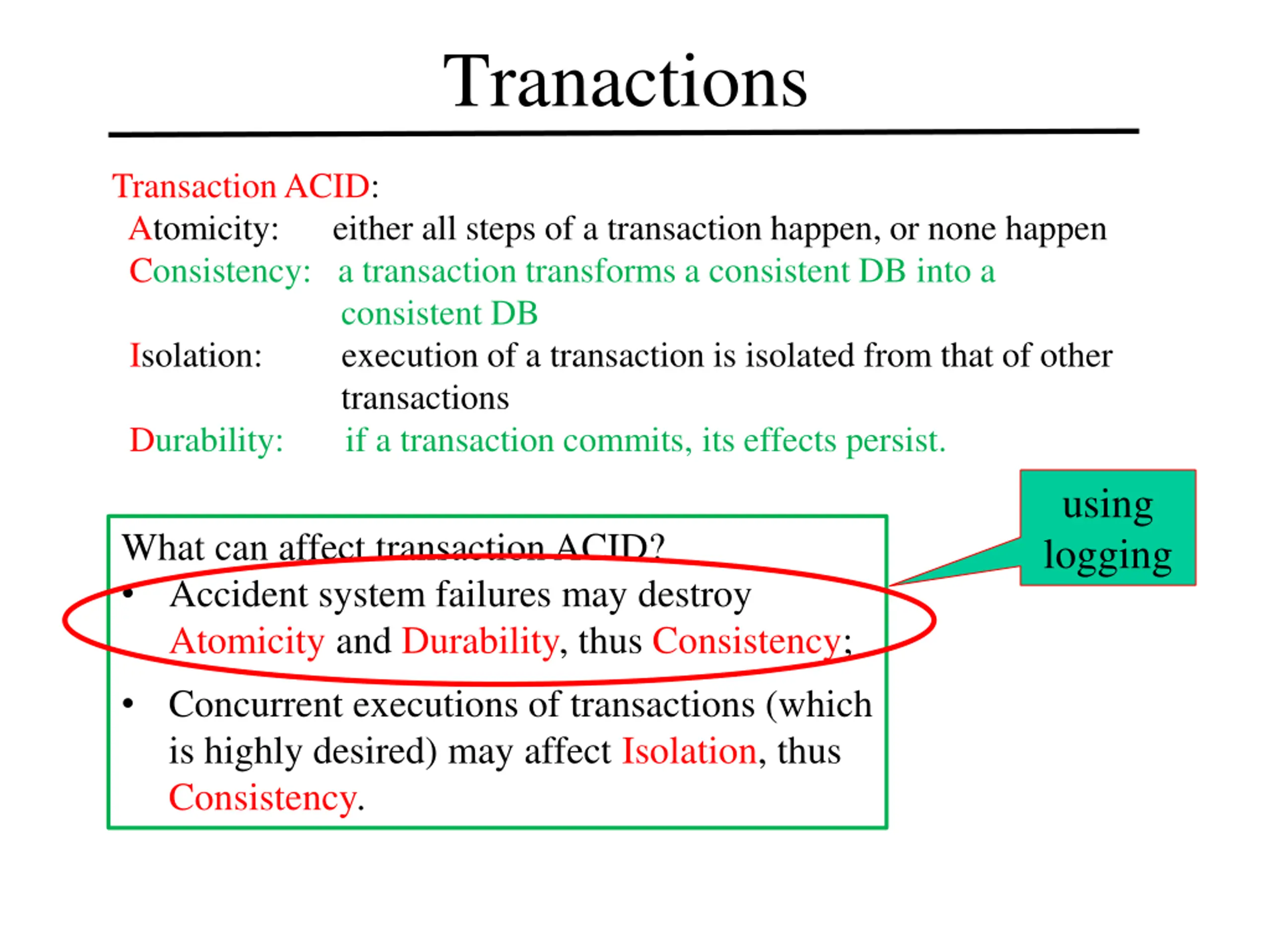

  13. Tranactions Transaction ACID: Atomicity: either all steps of a transaction happen, or none happen Consistency: a transaction transforms a consistent DB into a consistent DB Isolation: execution of a transaction is isolated from that of other transactions Durability: if a transaction commits, its effects persist. using logging What can affect transaction ACID? Accident system failures may destroy Atomicity and Durability, thus Consistency; Concurrent executions of transactions (which is highly desired) may affect Isolation, thus Consistency.

  14. Tranactions Transaction ACID: Atomicity: either all steps of a transaction happen, or none happen Consistency: a transaction transforms a consistent DB into a consistent DB Isolation: execution of a transaction is isolated from that of other transactions Durability: if a transaction commits, its effects persist. T1 Tn What can affect transaction ACID? Accident system failures may destroy Atomicity and Durability, thus Consistency; Concurrent executions of transactions (which is highly desired) may affect Isolation, thus Consistency. Database

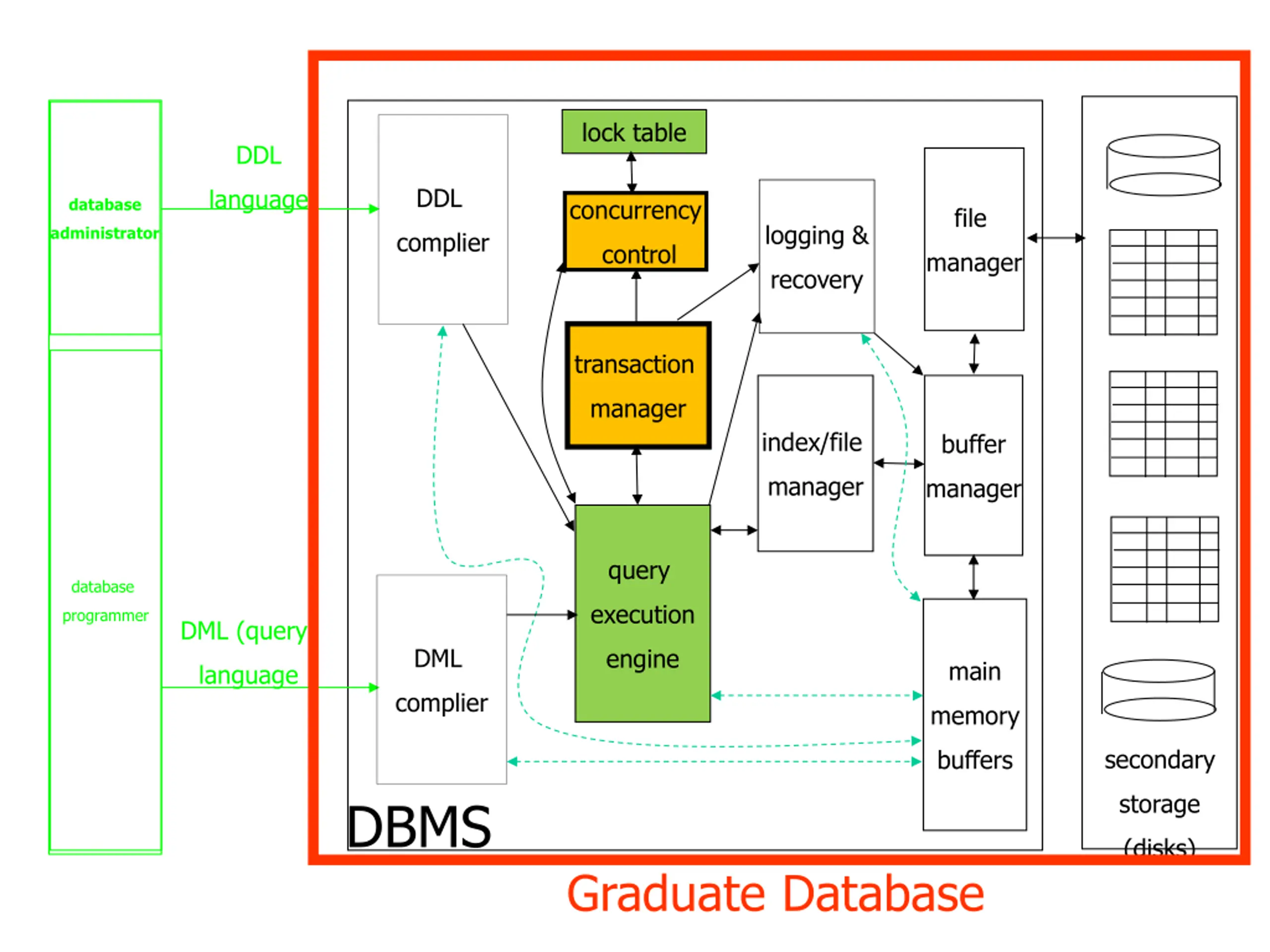

  15. lock table DDL DDL language concurrency database file logging & administrator complier control manager recovery transaction manager index/file buffer manager manager query database execution programmer DML (query) DML engine main language complier memory secondary buffers storage DBMS (disks) Graduate Database

  16. lock table DDL DDL language concurrency database file logging & administrator complier control manager recovery transaction manager index/file buffer manager manager query database execution programmer DML (query) DML engine main language complier memory secondary buffers storage DBMS (disks) Graduate Database

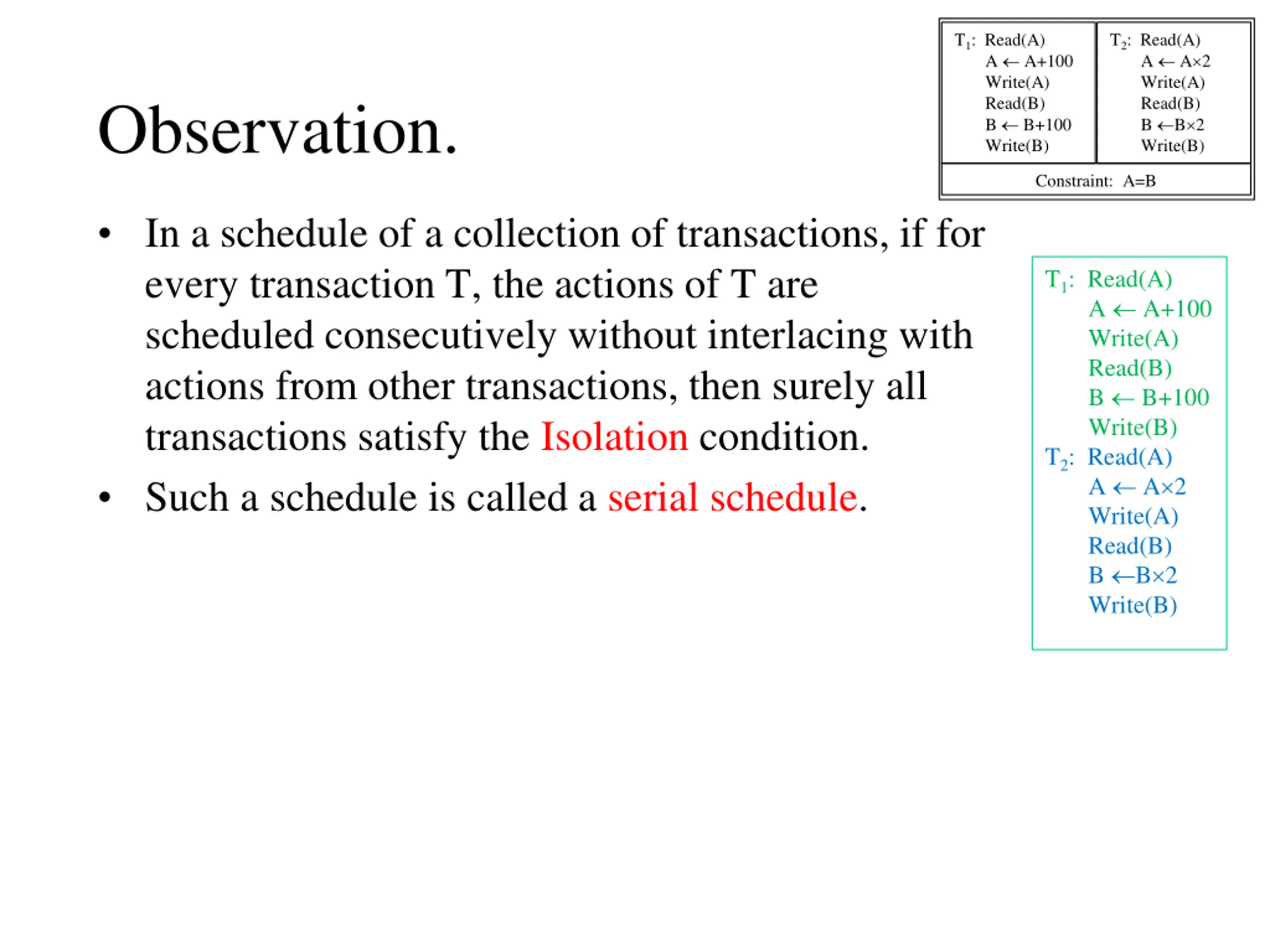

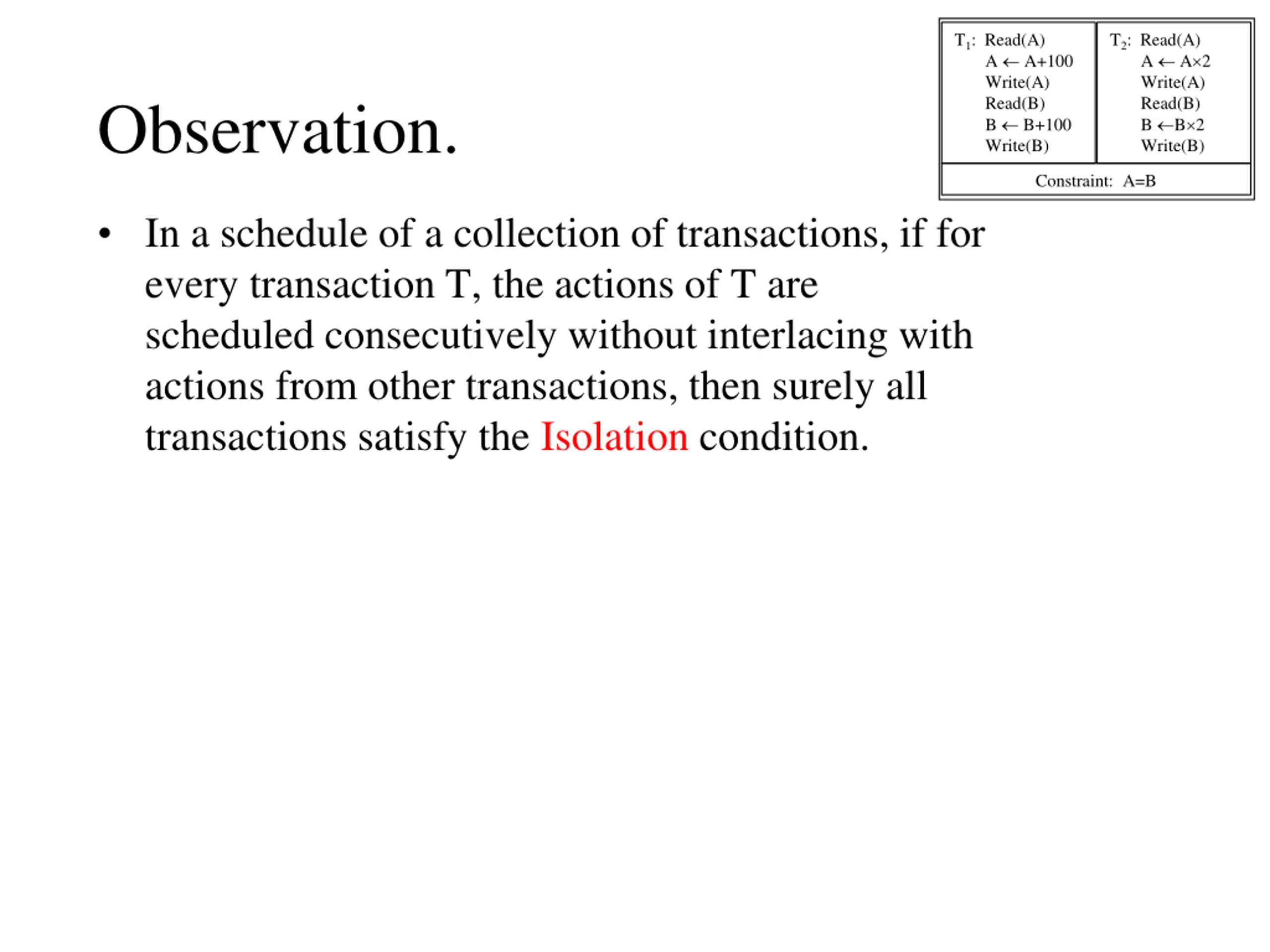

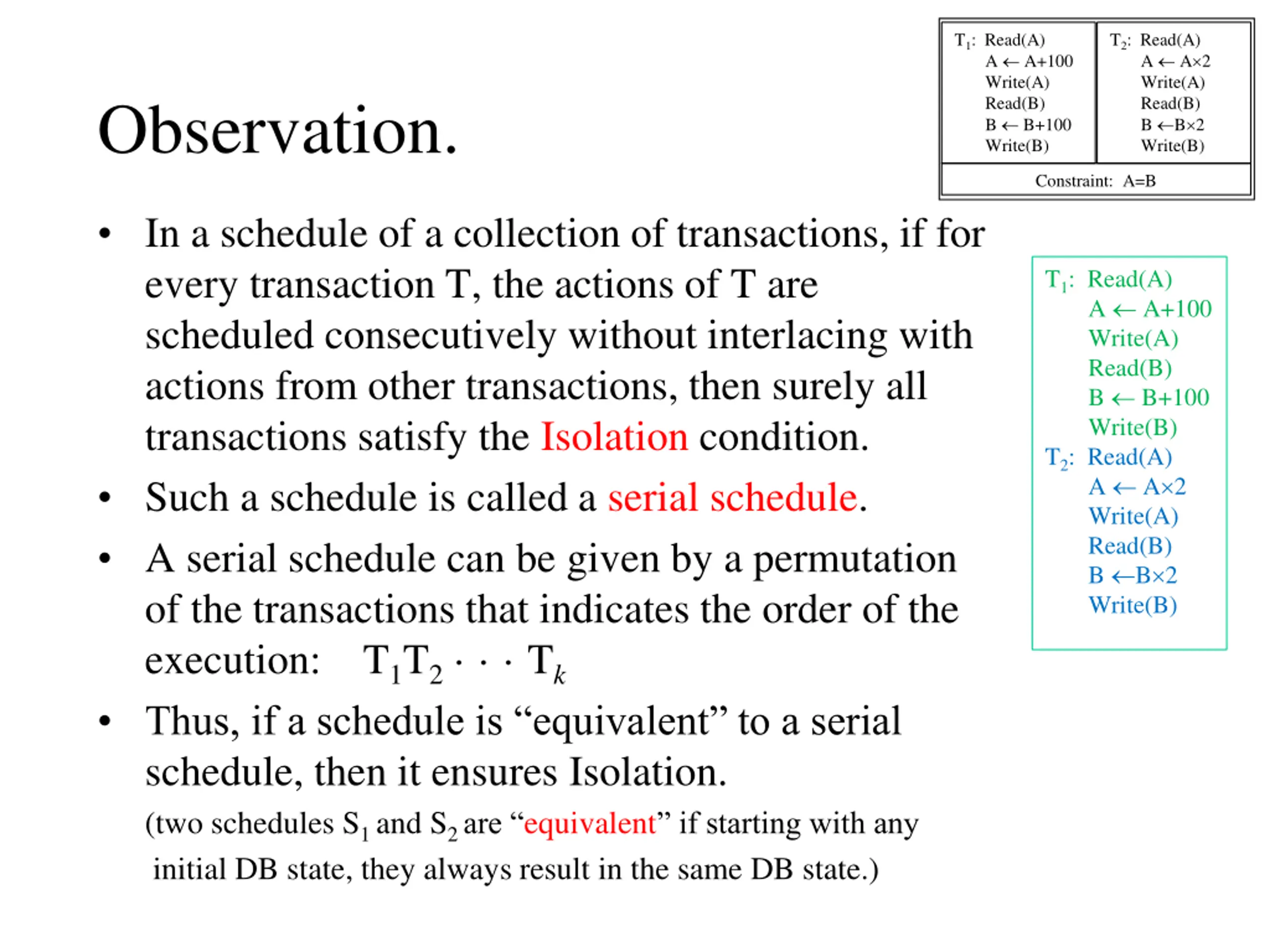

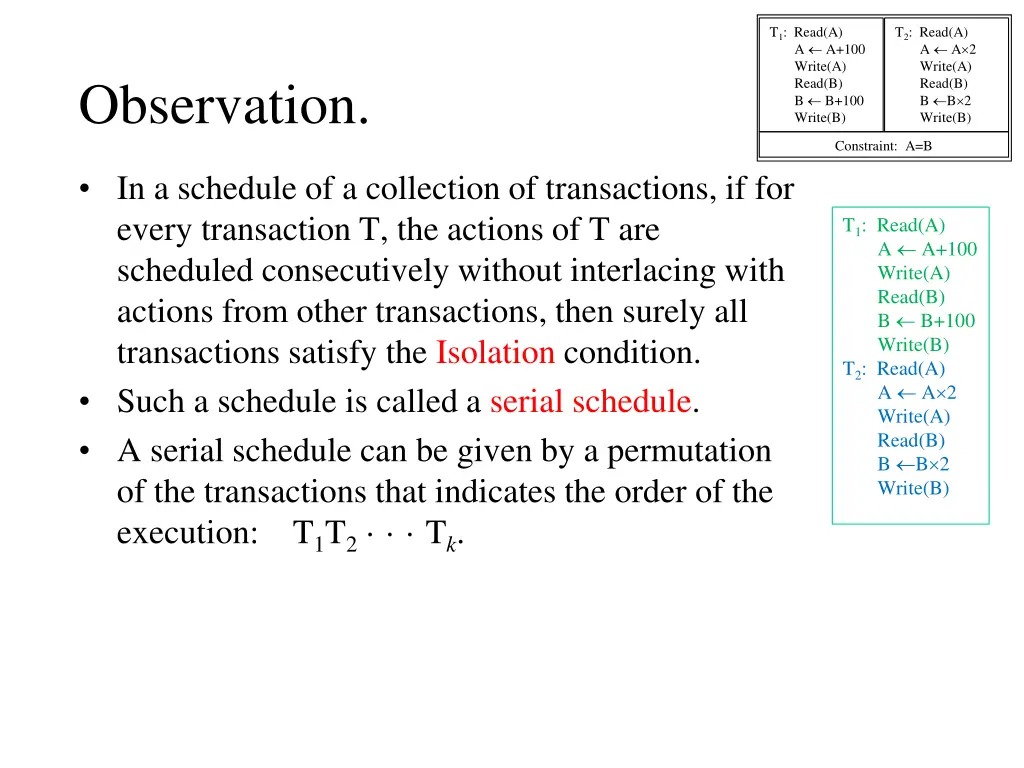

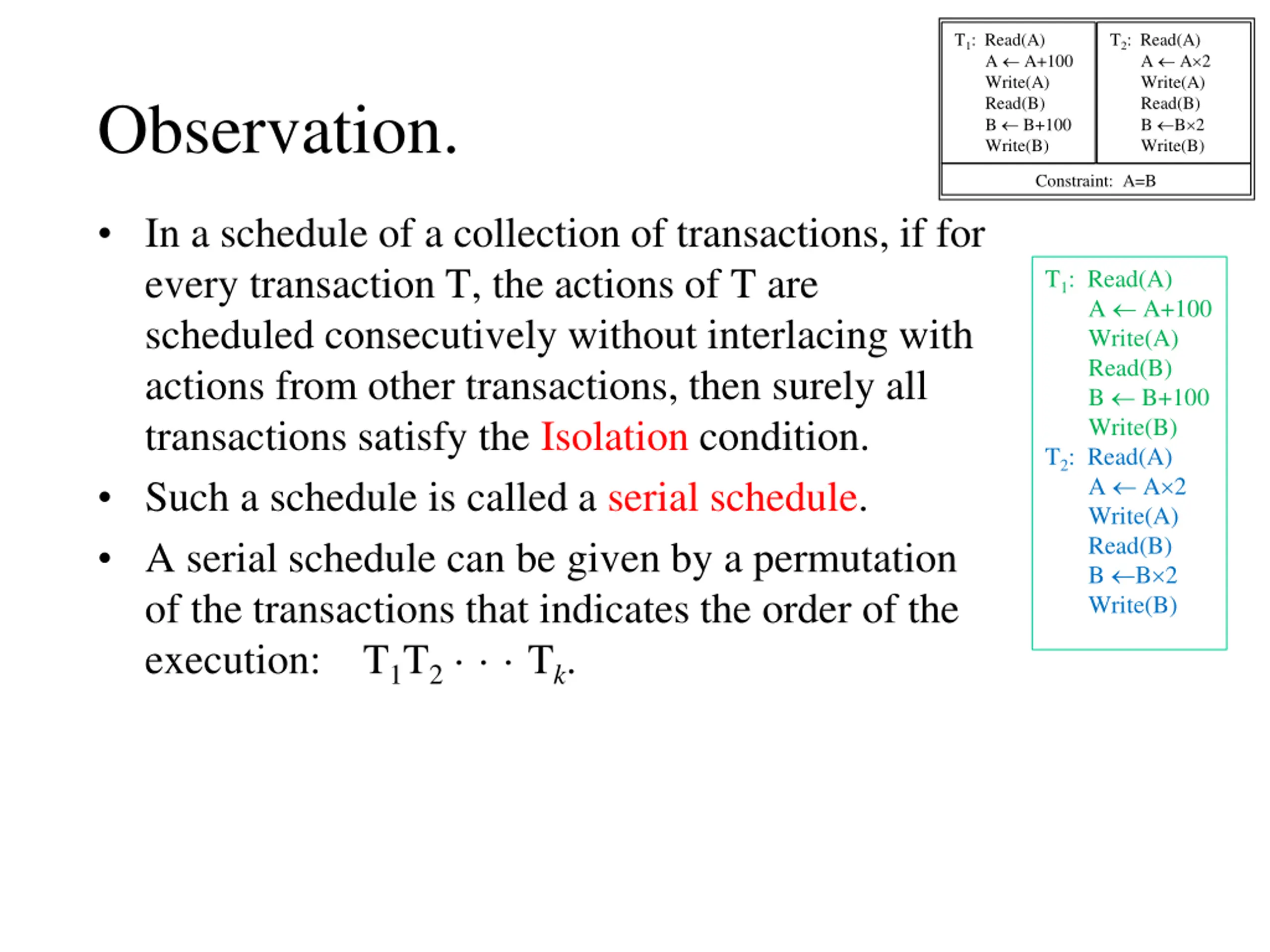

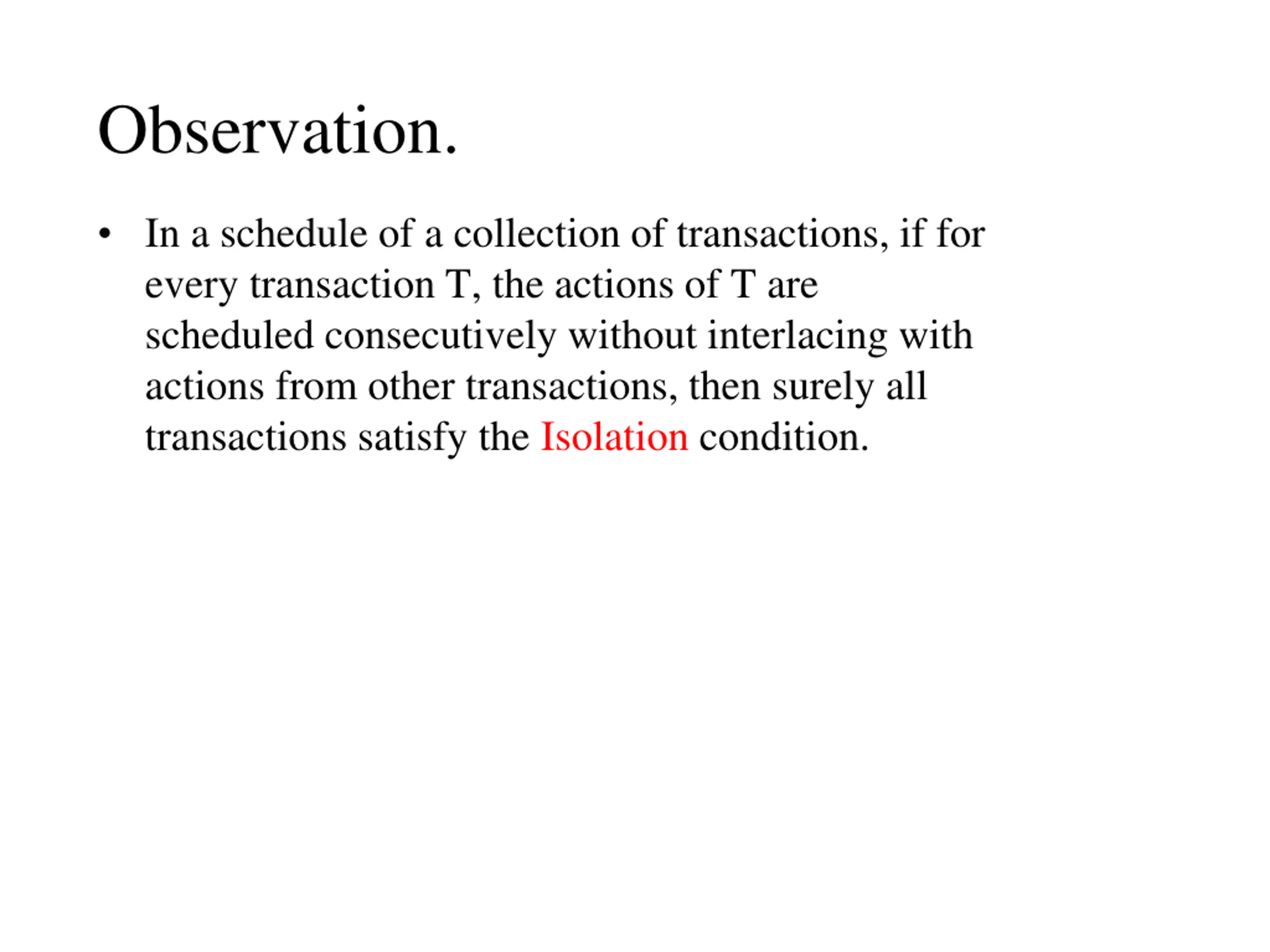

  17. Observation. In a schedule of a collection of transactions, if for every transaction T, the actions of T are scheduled consecutively without interlacing with actions from other transactions, then surely all transactions satisfy the Isolation condition.

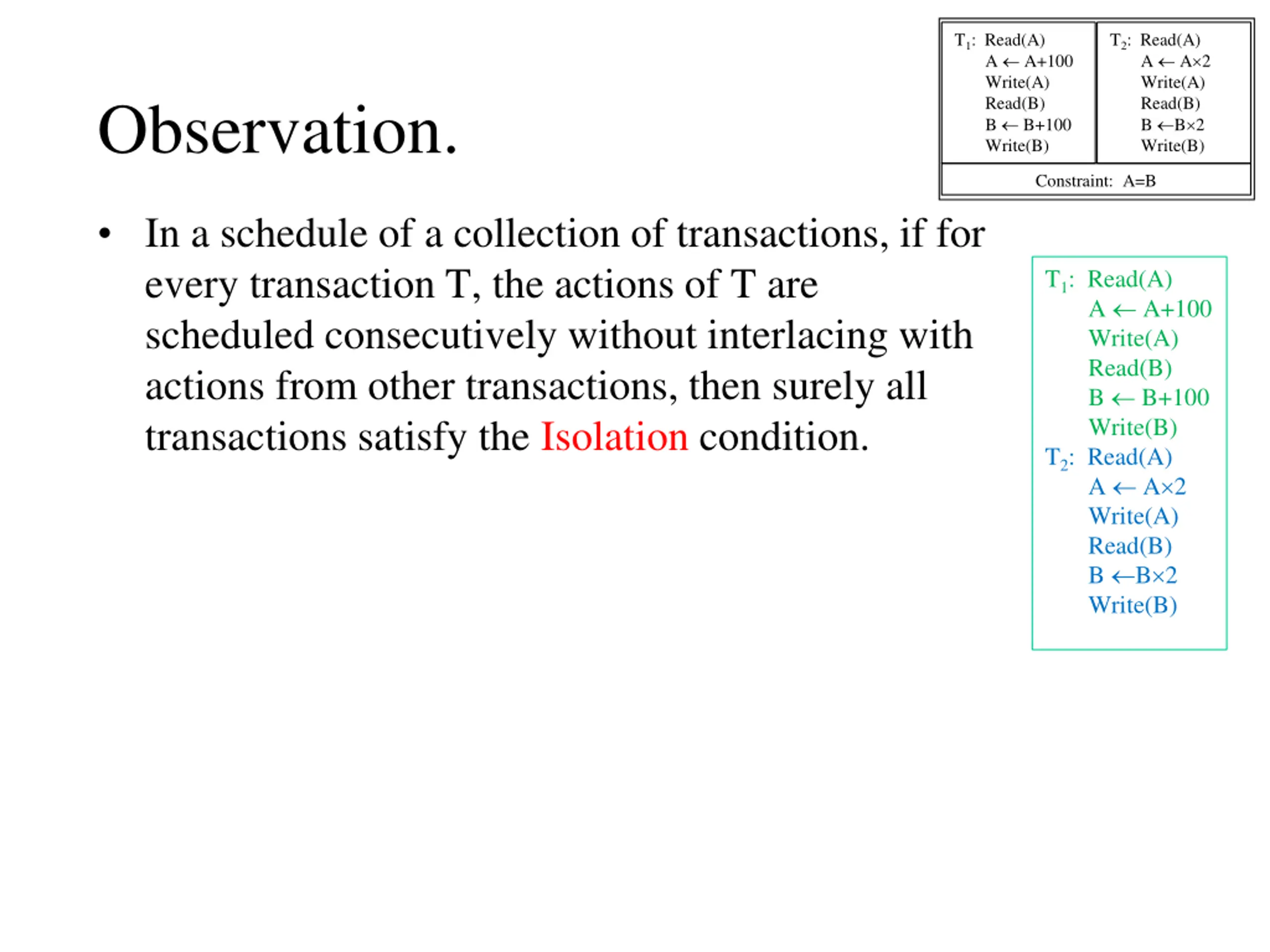

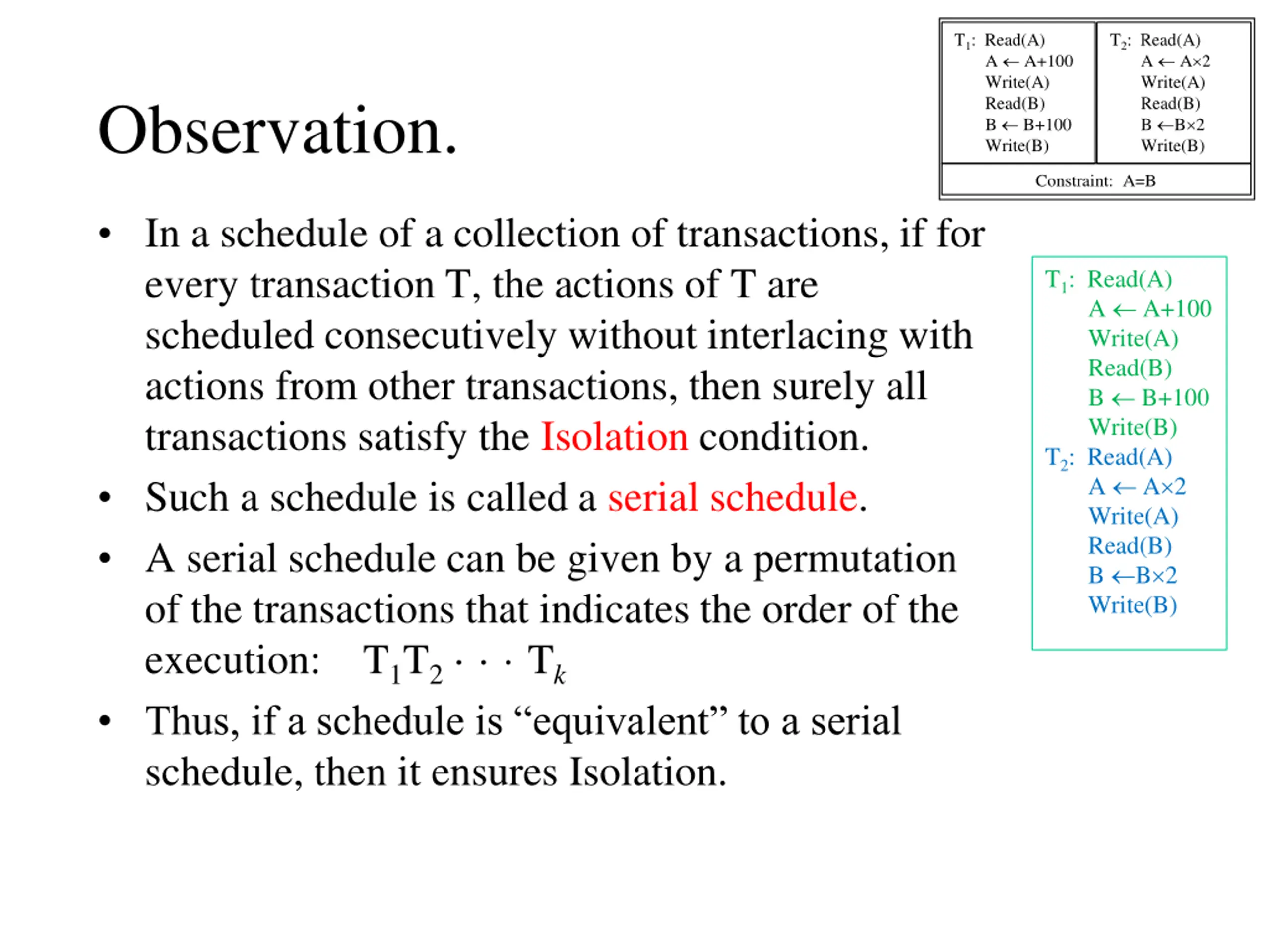

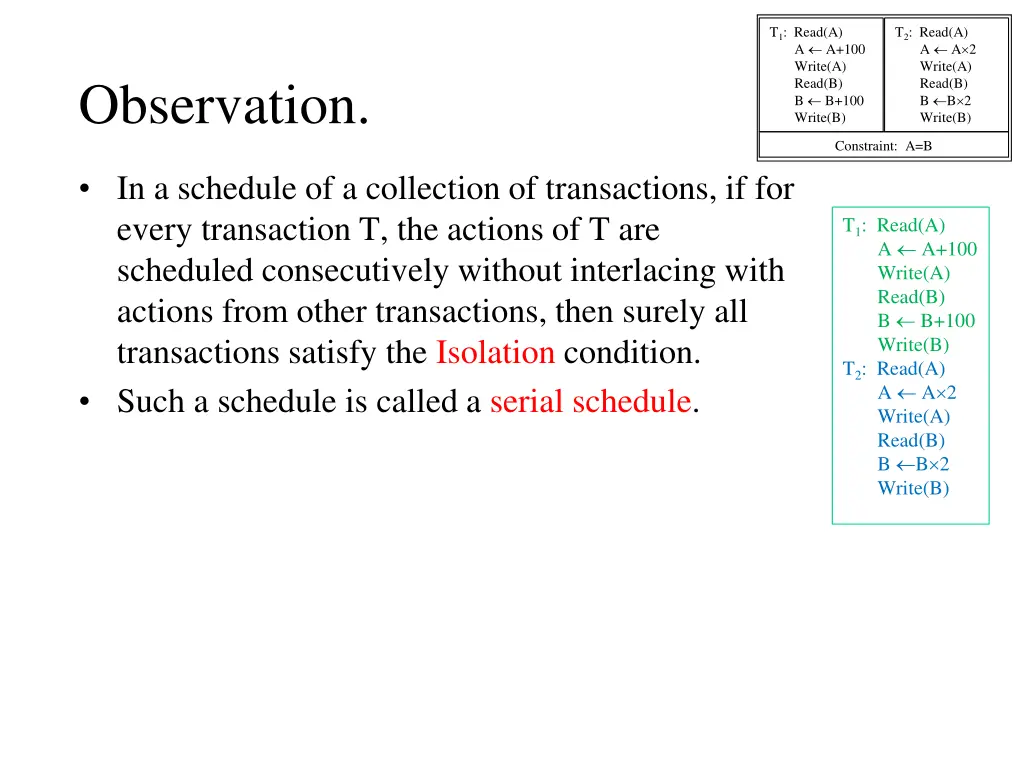

  18. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B) Observation. Constraint: A=B In a schedule of a collection of transactions, if for every transaction T, the actions of T are scheduled consecutively without interlacing with actions from other transactions, then surely all transactions satisfy the Isolation condition.

  19. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B) Observation. Constraint: A=B In a schedule of a collection of transactions, if for every transaction T, the actions of T are scheduled consecutively without interlacing with actions from other transactions, then surely all transactions satisfy the Isolation condition. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B)

  20. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B) Observation. Constraint: A=B In a schedule of a collection of transactions, if for every transaction T, the actions of T are scheduled consecutively without interlacing with actions from other transactions, then surely all transactions satisfy the Isolation condition. Such a schedule is called a serial schedule. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B)

  21. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B) Observation. Constraint: A=B In a schedule of a collection of transactions, if for every transaction T, the actions of T are scheduled consecutively without interlacing with actions from other transactions, then surely all transactions satisfy the Isolation condition. Such a schedule is called a serial schedule. A serial schedule can be given by a permutation of the transactions that indicates the order of the execution: T1T2 Tk. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B)

  22. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B) Observation. Constraint: A=B In a schedule of a collection of transactions, if for every transaction T, the actions of T are scheduled consecutively without interlacing with actions from other transactions, then surely all transactions satisfy the Isolation condition. Such a schedule is called a serial schedule. A serial schedule can be given by a permutation of the transactions that indicates the order of the execution: T1T2 Tk Thus, if a schedule is equivalent to a serial schedule, then it ensures Isolation. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B)

  23. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B) Observation. Constraint: A=B In a schedule of a collection of transactions, if for every transaction T, the actions of T are scheduled consecutively without interlacing with actions from other transactions, then surely all transactions satisfy the Isolation condition. Such a schedule is called a serial schedule. A serial schedule can be given by a permutation of the transactions that indicates the order of the execution: T1T2 Tk Thus, if a schedule is equivalent to a serial schedule, then it ensures Isolation. (two schedules S1 and S2 are equivalent if starting with any initial DB state, they always result in the same DB state.) T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B)

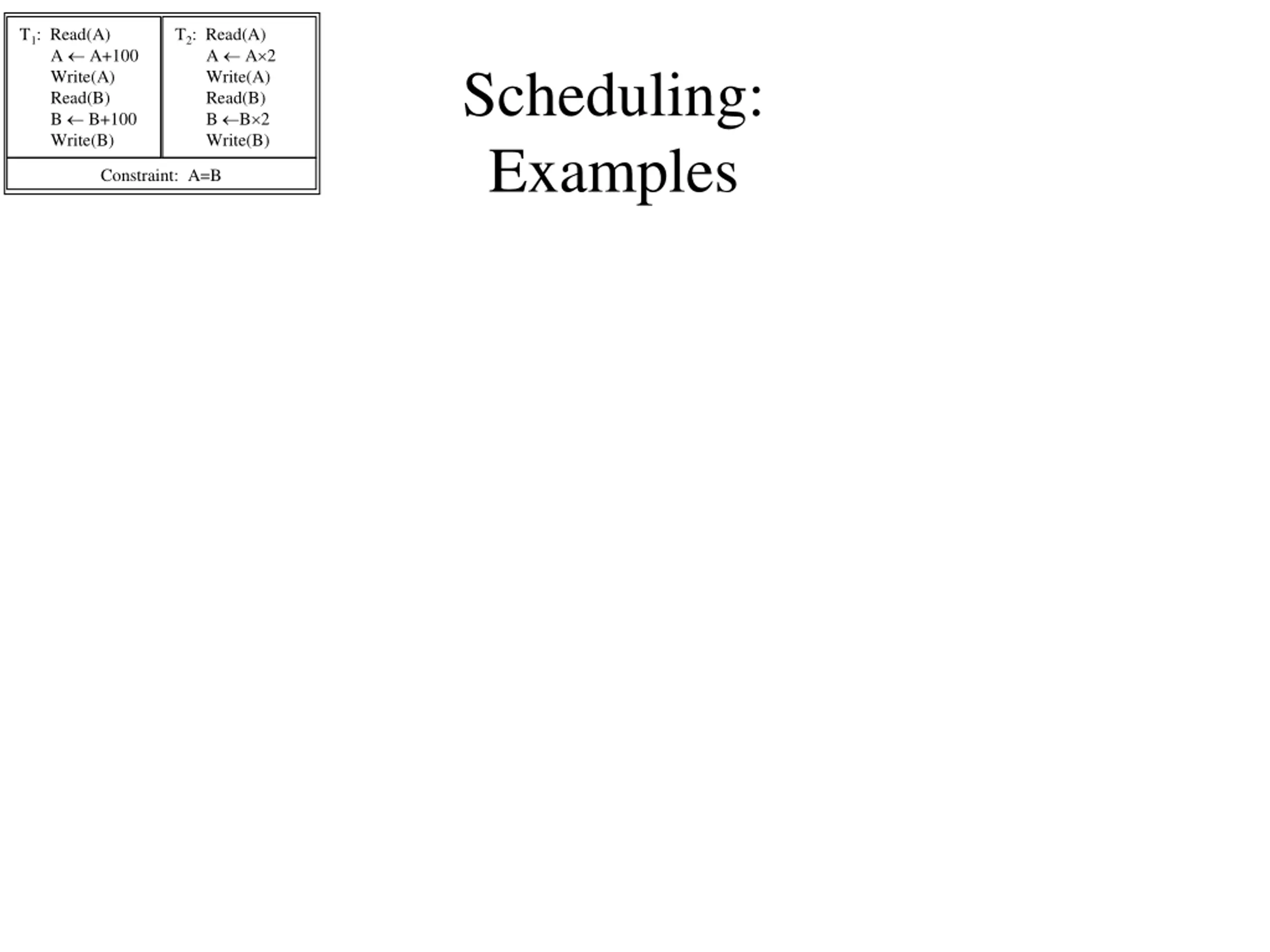

  24. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B) Scheduling: Examples Constraint: A=B

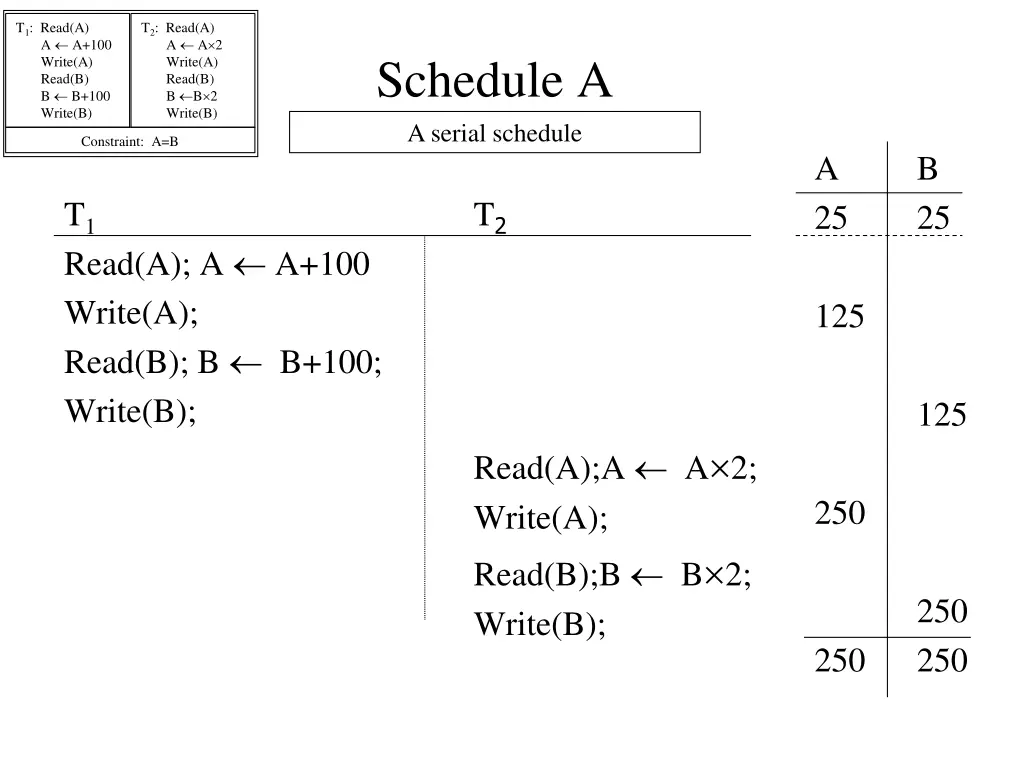

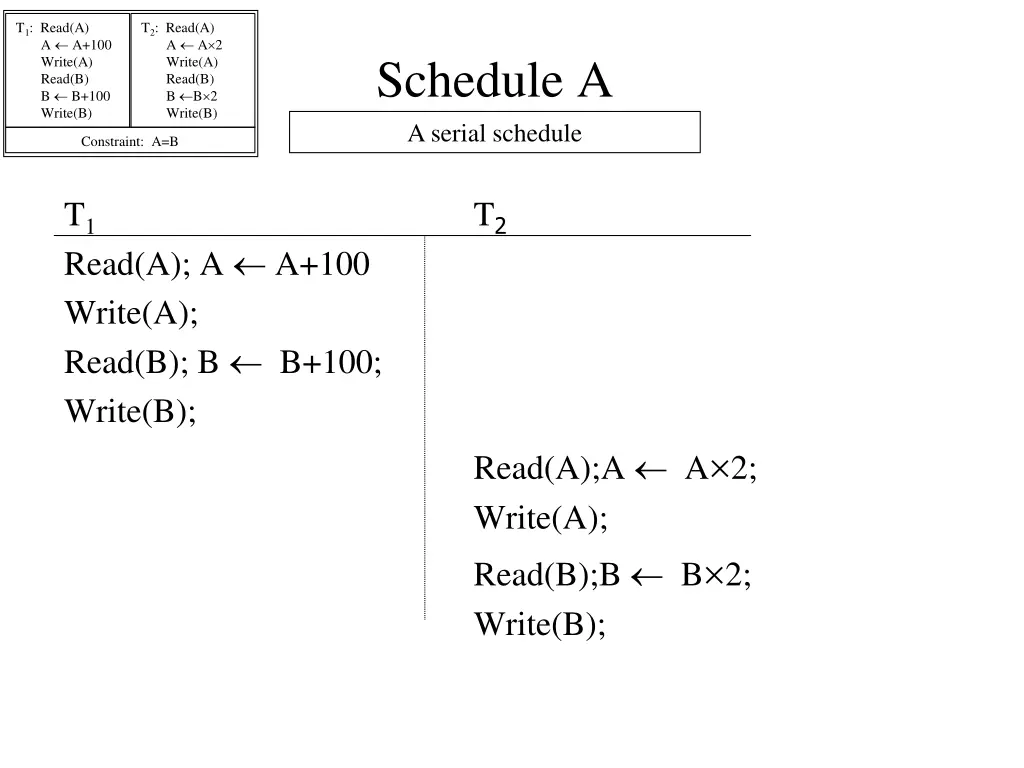

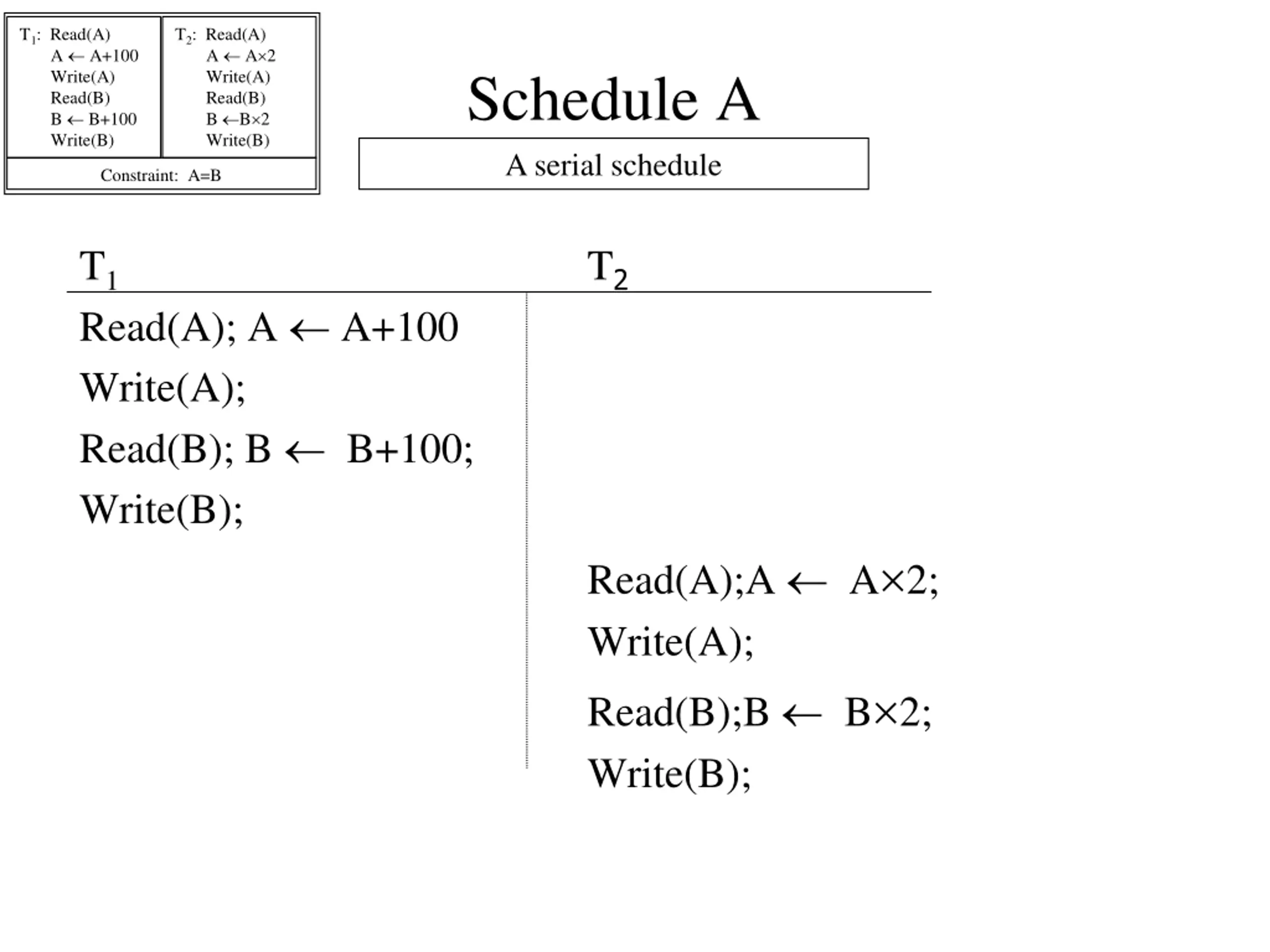

  25. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B) Schedule A A serial schedule Constraint: A=B T1 Read(A); A A+100 Write(A); Read(B); B B+100; Write(B); T2 Read(A);A A 2; Write(A); Read(B);B B 2; Write(B);

  26. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B) Schedule A A serial schedule Constraint: A=B A 25 B 25 T1 Read(A); A A+100 Write(A); Read(B); B B+100; Write(B); T2 125 125 Read(A);A A 2; Write(A); Read(B);B B 2; Write(B); 250 250 250 250

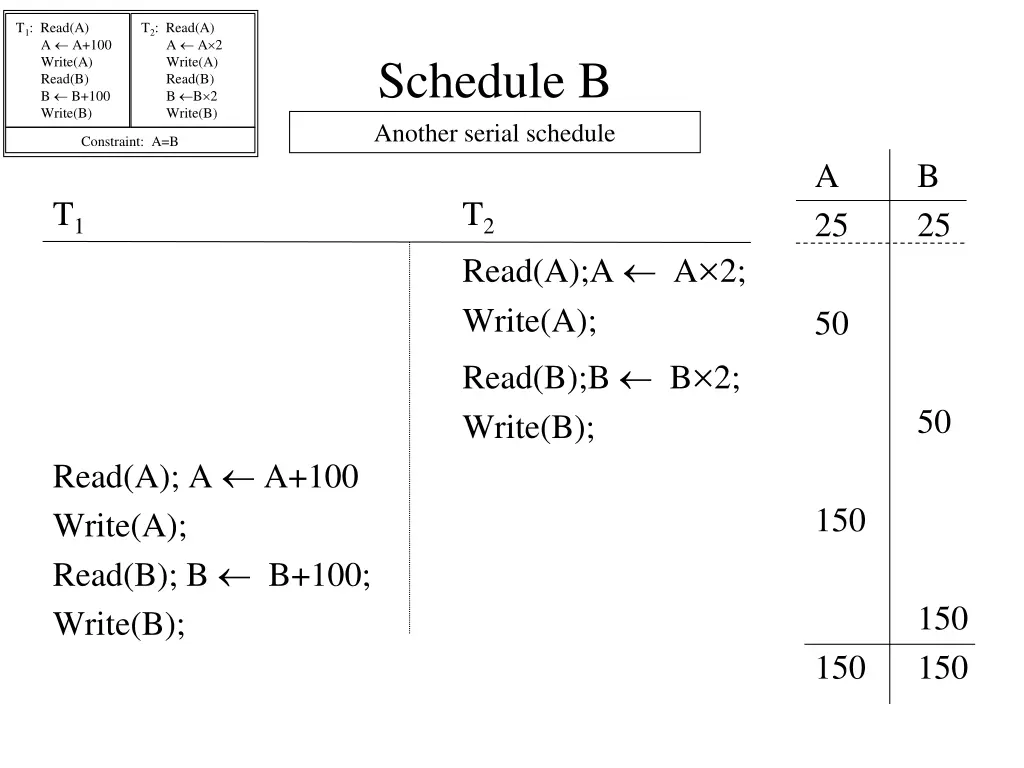

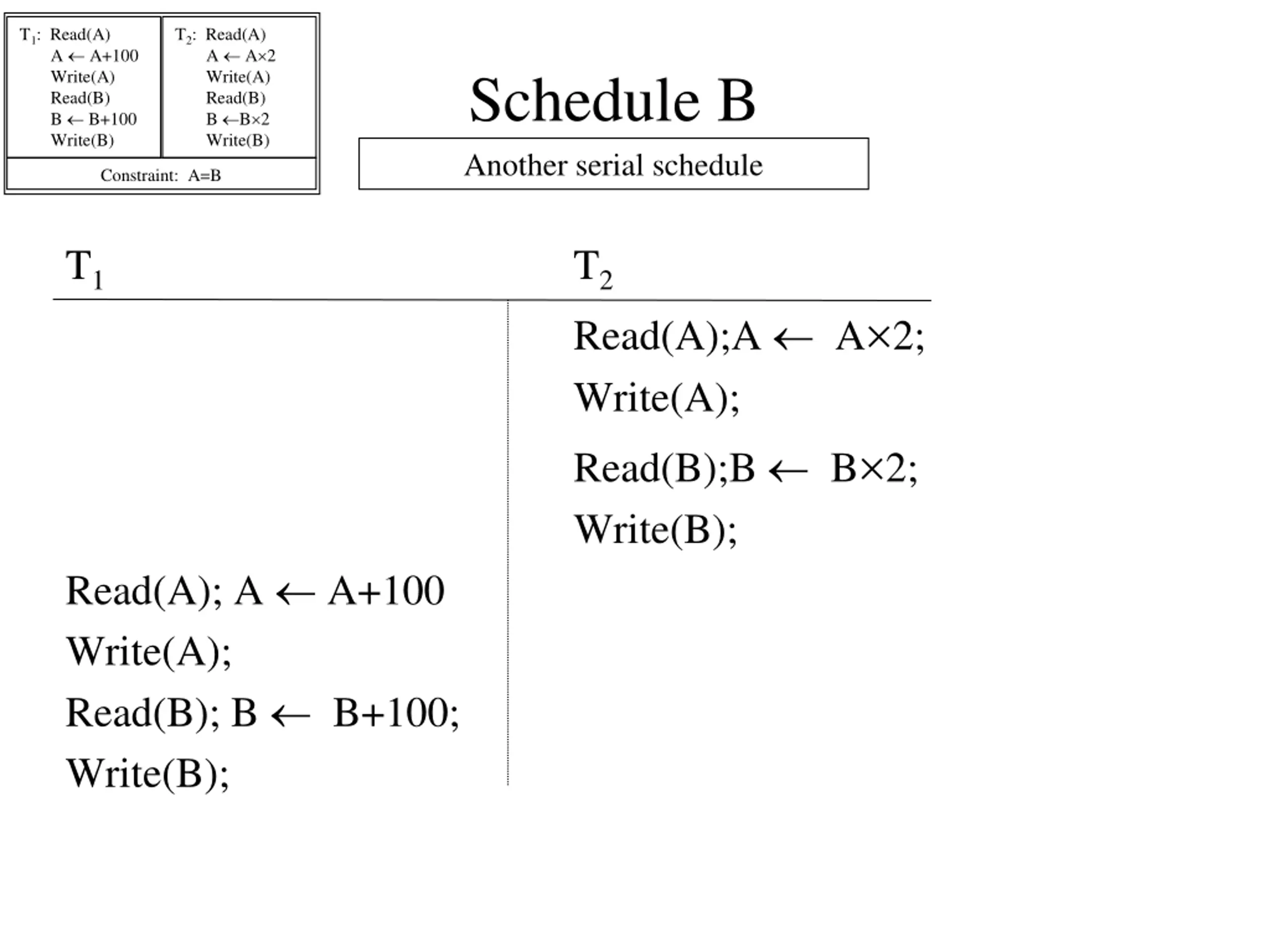

  27. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B) Schedule B Another serial schedule Constraint: A=B T1 T2 Read(A);A A 2; Write(A); Read(B);B B 2; Write(B); Read(A); A A+100 Write(A); Read(B); B B+100; Write(B);

  28. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B) Schedule B Another serial schedule Constraint: A=B A 25 B 25 T1 T2 Read(A);A A 2; Write(A); Read(B);B B 2; Write(B); 50 Read(A); A A+100 Write(A); Read(B); B B+100; Write(B); 50 150 150 150 150

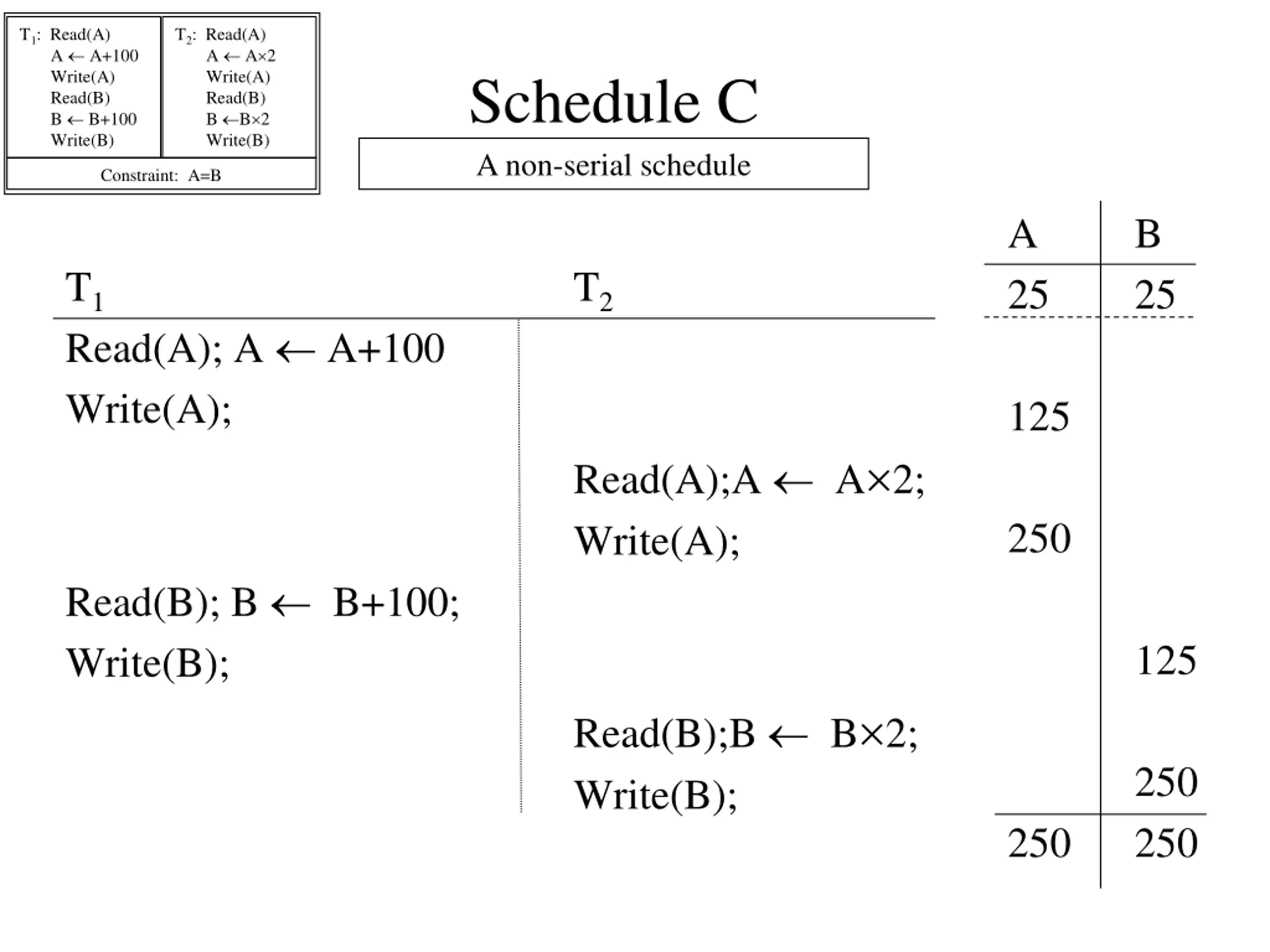

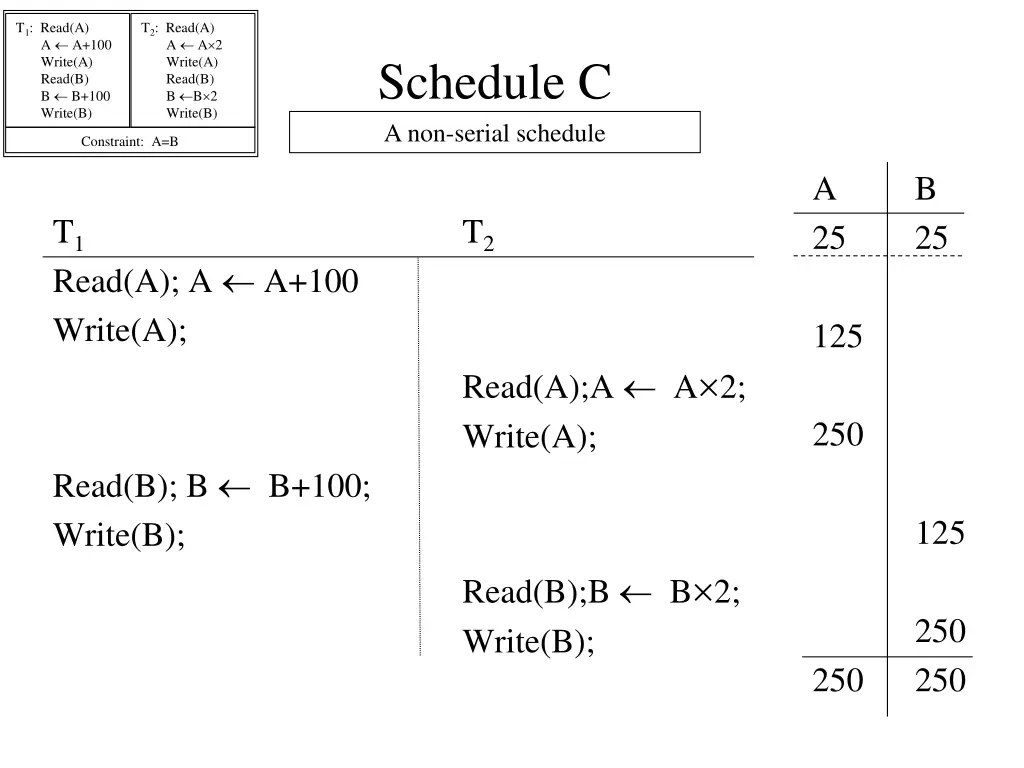

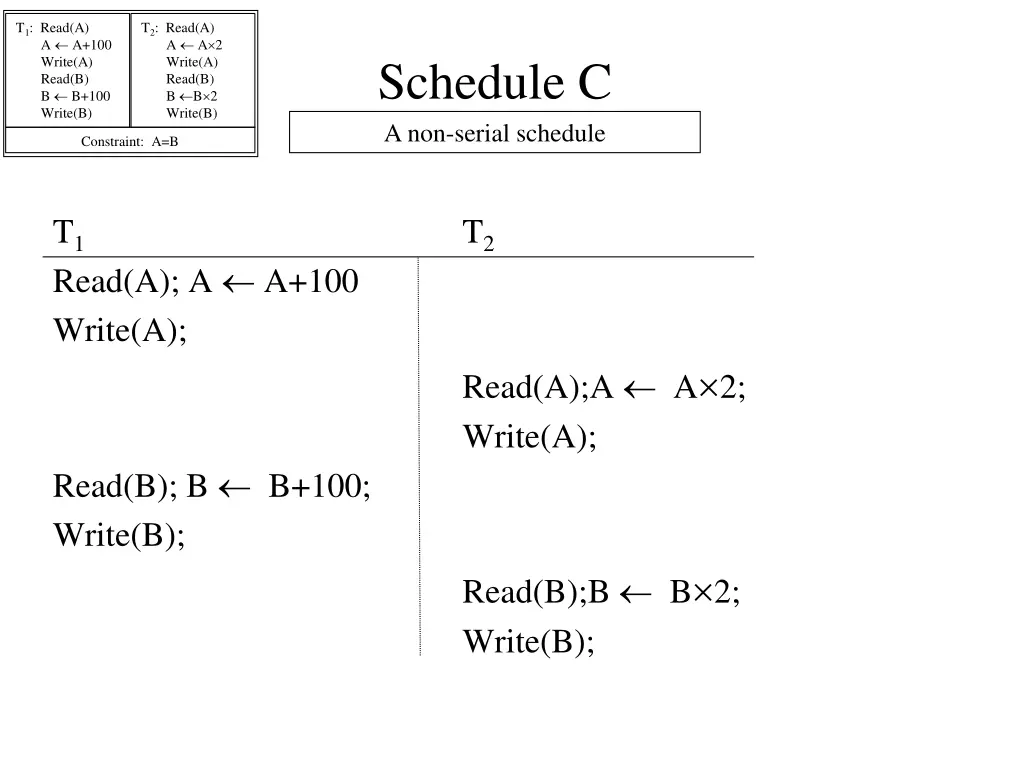

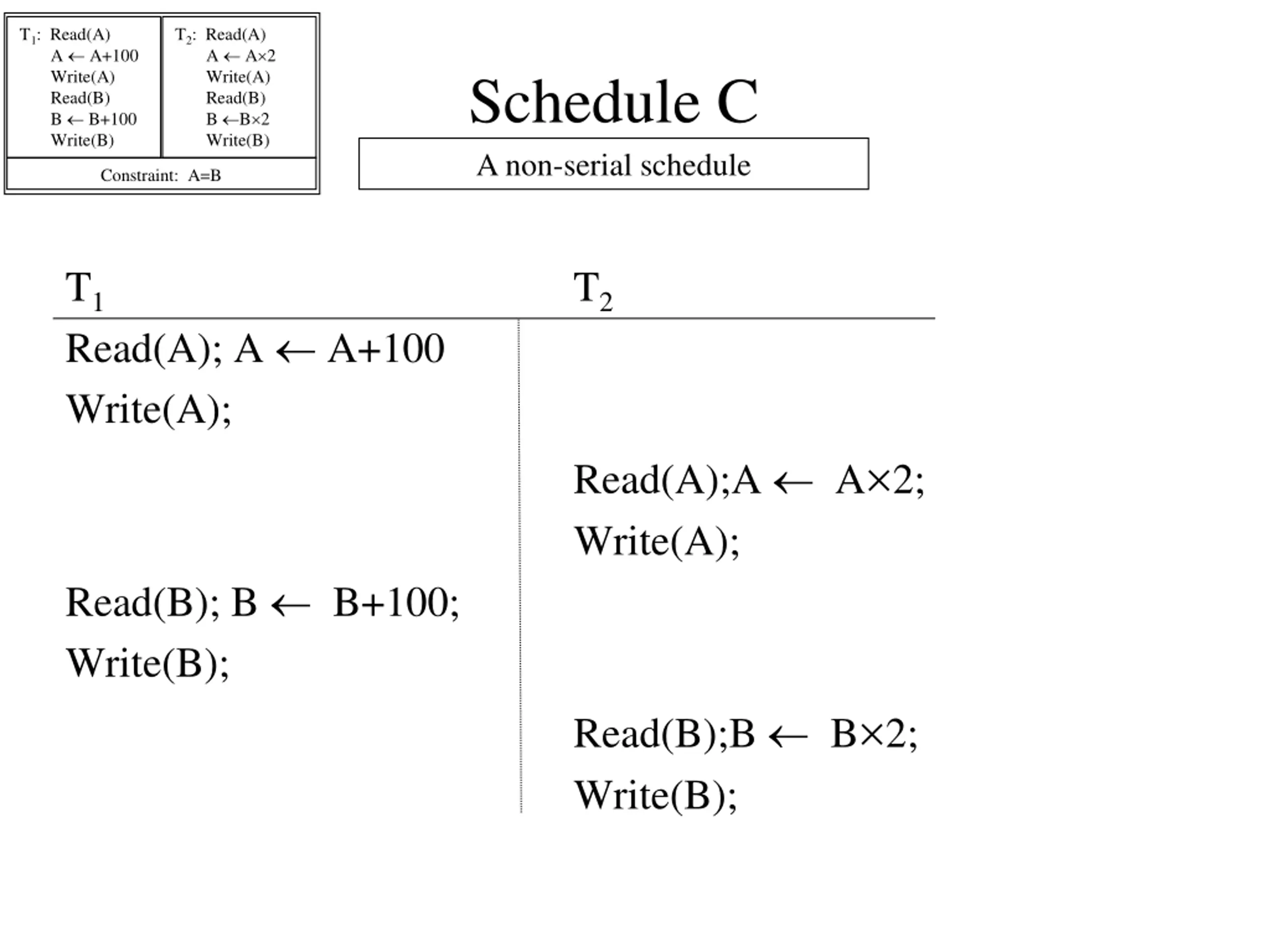

  29. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B) Schedule C A non-serial schedule Constraint: A=B T1 Read(A); A A+100 Write(A); T2 Read(A);A A 2; Write(A); Read(B); B B+100; Write(B); Read(B);B B 2; Write(B);

  30. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B) Schedule C A non-serial schedule Constraint: A=B A 25 B 25 T1 Read(A); A A+100 Write(A); T2 125 Read(A);A A 2; Write(A); Read(B); B B+100; Write(B); 250 125 Read(B);B B 2; Write(B); 250 250 250

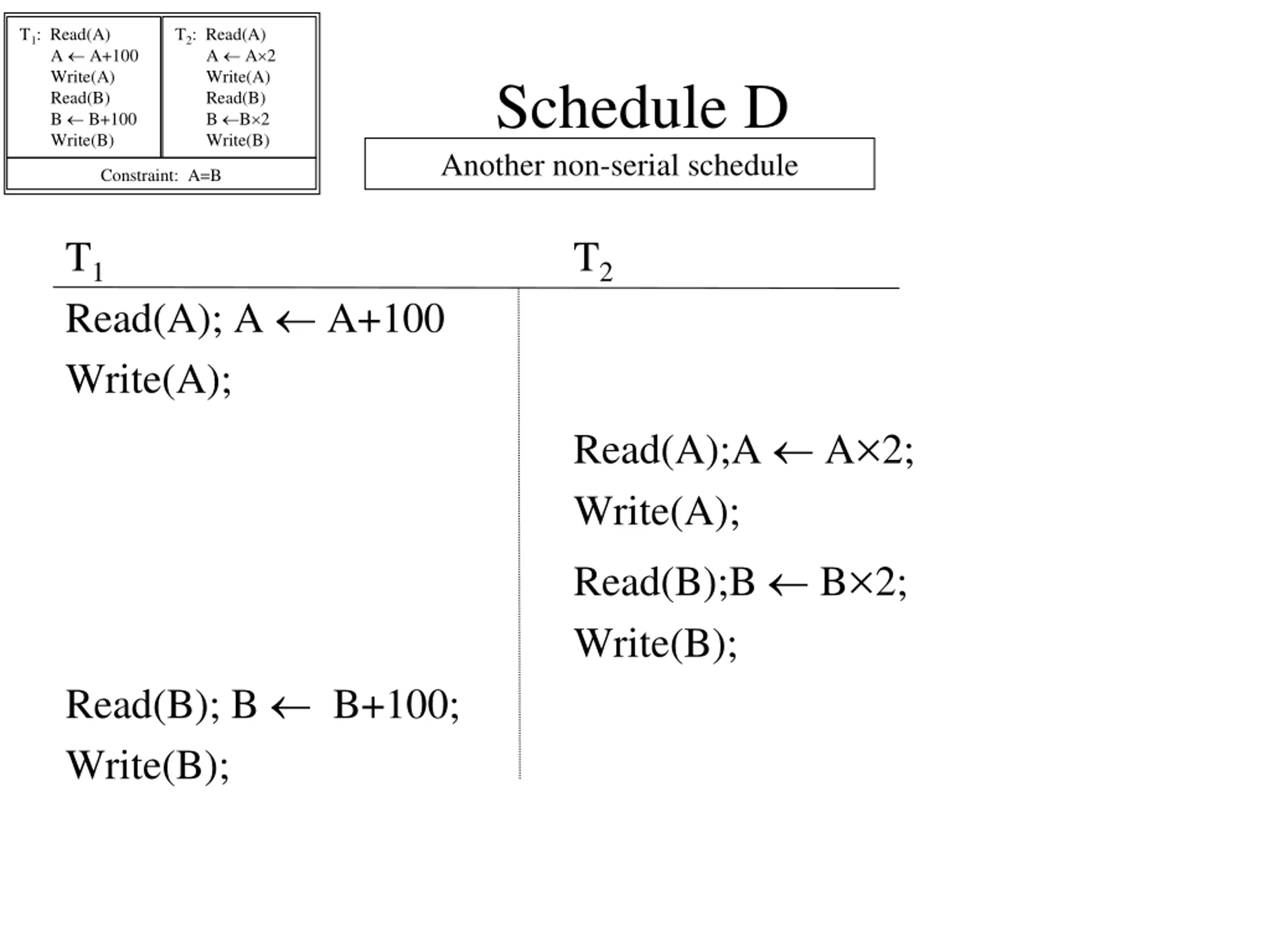

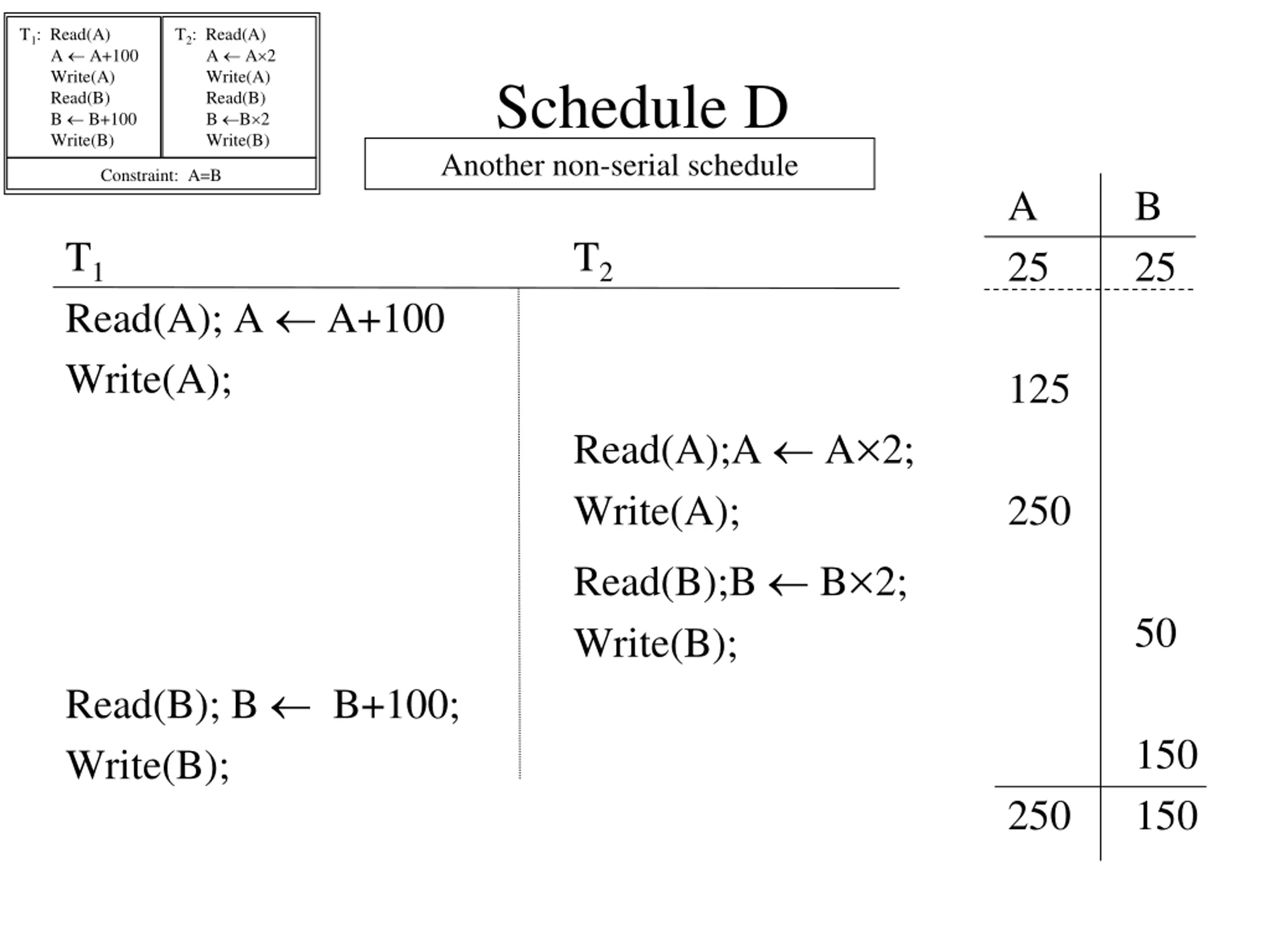

  31. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B) Schedule D Another non-serial schedule Constraint: A=B T1 Read(A); A A+100 Write(A); T2 Read(A);A A 2; Write(A); Read(B);B B 2; Write(B); Read(B); B B+100; Write(B);

  32. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B) Schedule D Another non-serial schedule Constraint: A=B A 25 B 25 T1 Read(A); A A+100 Write(A); T2 125 Read(A);A A 2; Write(A); Read(B);B B 2; Write(B); 250 Read(B); B B+100; Write(B); 50 250 150 150

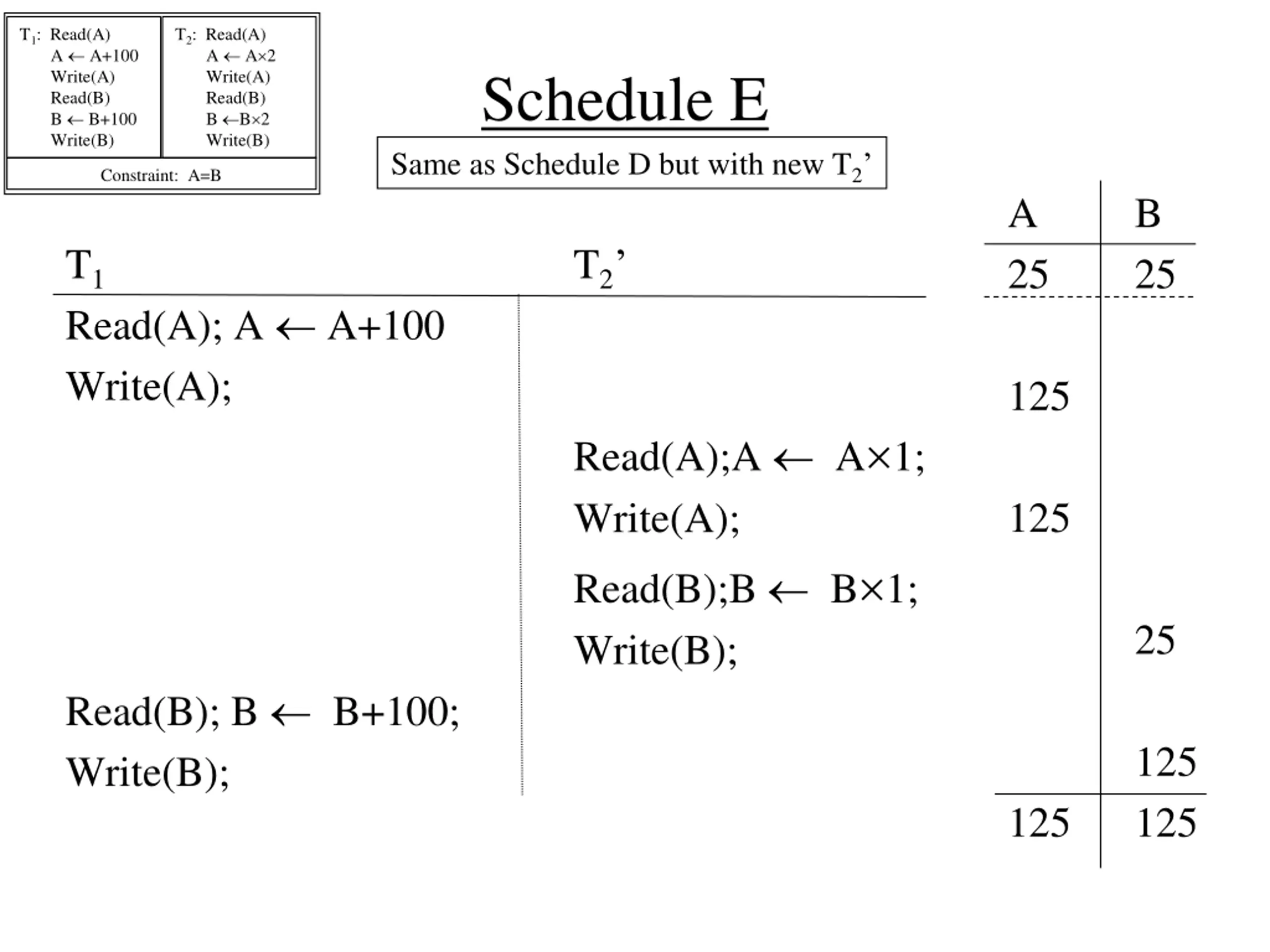

  33. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B) Schedule E Same as Schedule D but with new T2 Constraint: A=B T1 Read(A); A A+100 Write(A); T2 Read(A);A A 1; Write(A); Read(B);B B 1; Write(B); Read(B); B B+100; Write(B);

  34. T1: Read(A) A A+100 Write(A) Read(B) B B+100 Write(B) T2: Read(A) A A 2 Write(A) Read(B) B B 2 Write(B) Schedule E Same as Schedule D but with new T2 Constraint: A=B A 25 B 25 T1 Read(A); A A+100 Write(A); T2 125 Read(A);A A 1; Write(A); Read(B);B B 1; Write(B); 125 Read(B); B B+100; Write(B); 25 125 125 125

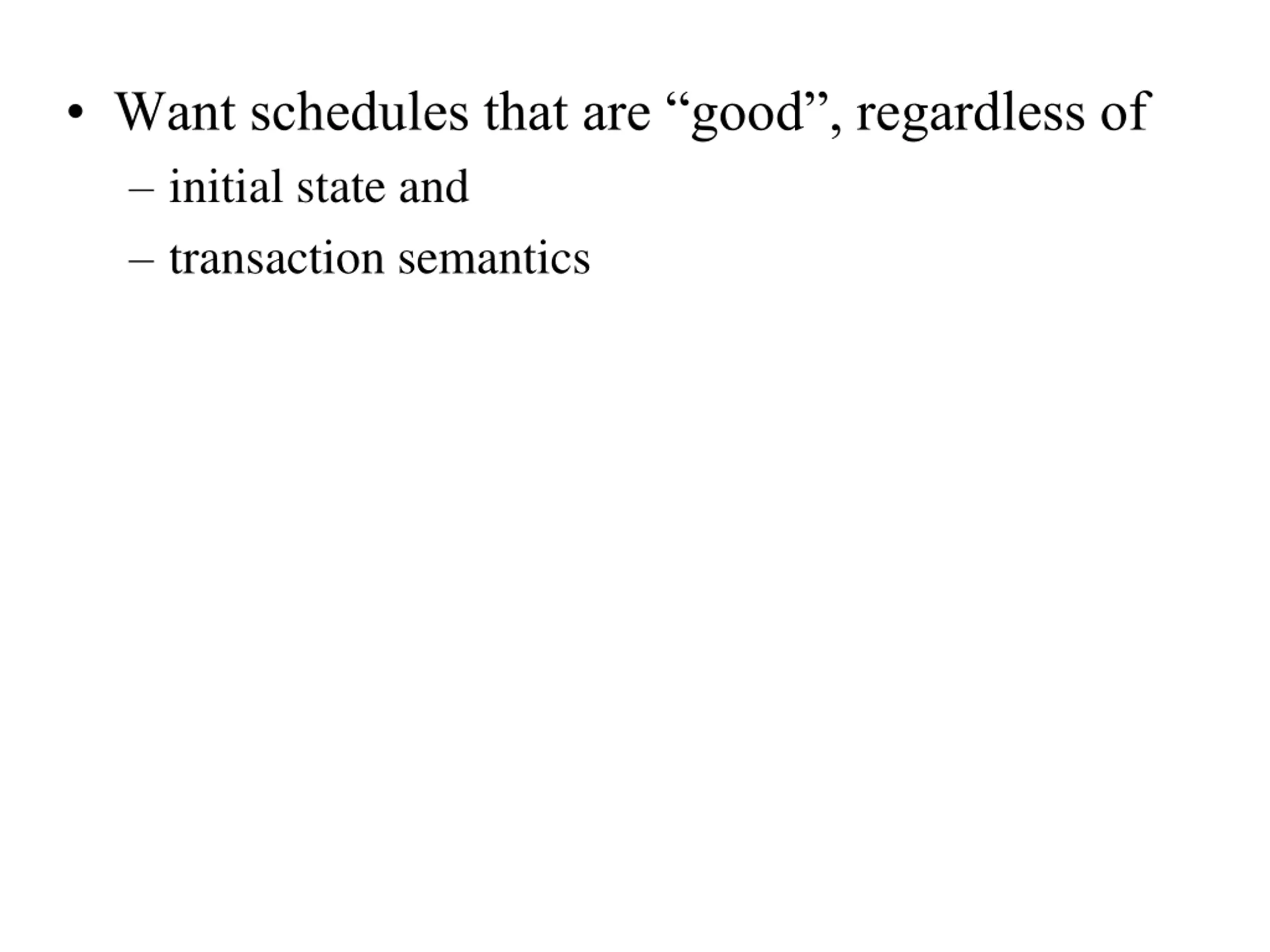

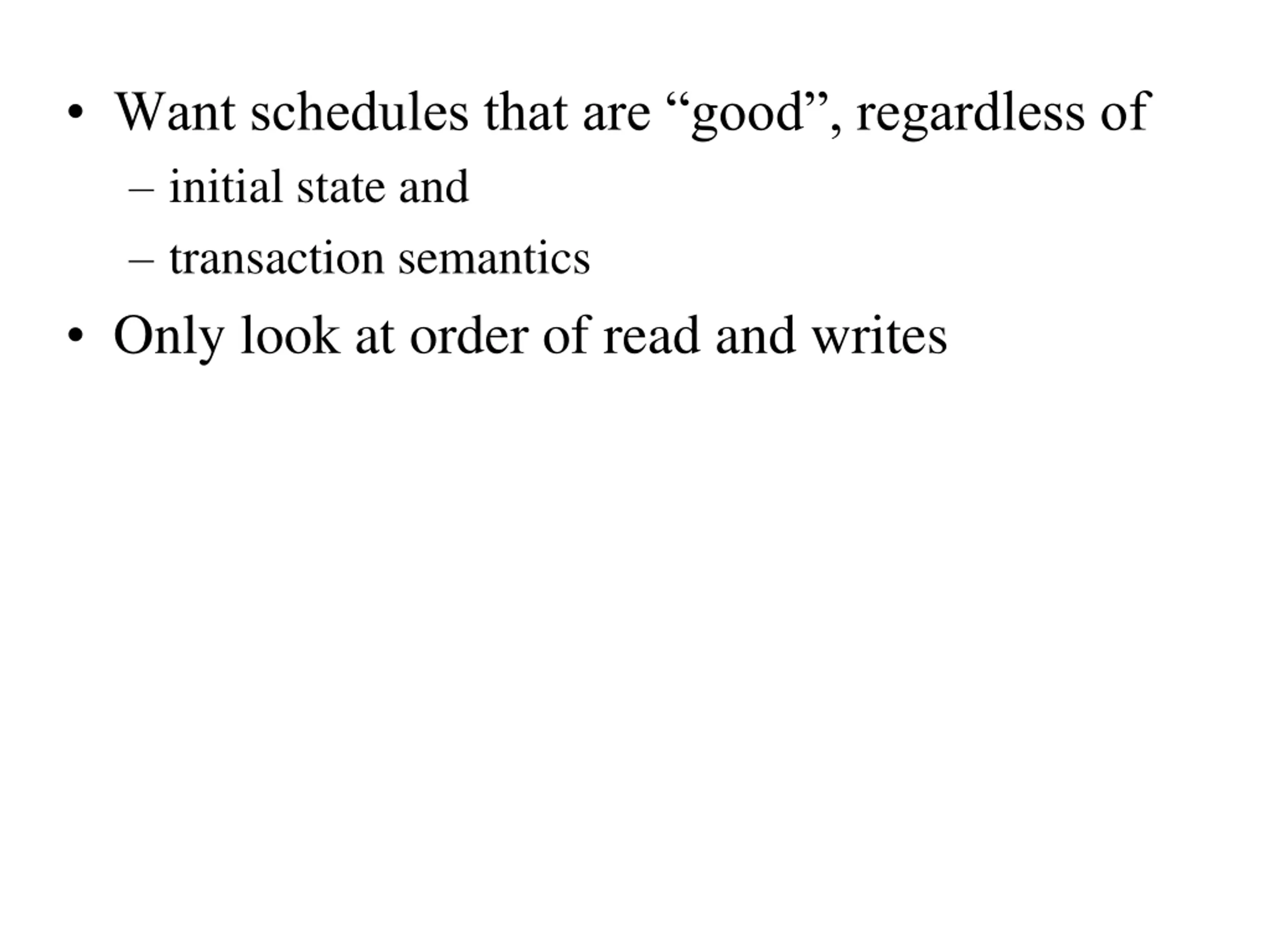

  35. Want schedules that are good, regardless of initial state and transaction semantics

  36. Want schedules that are good, regardless of initial state and transaction semantics Only look at order of read and writes

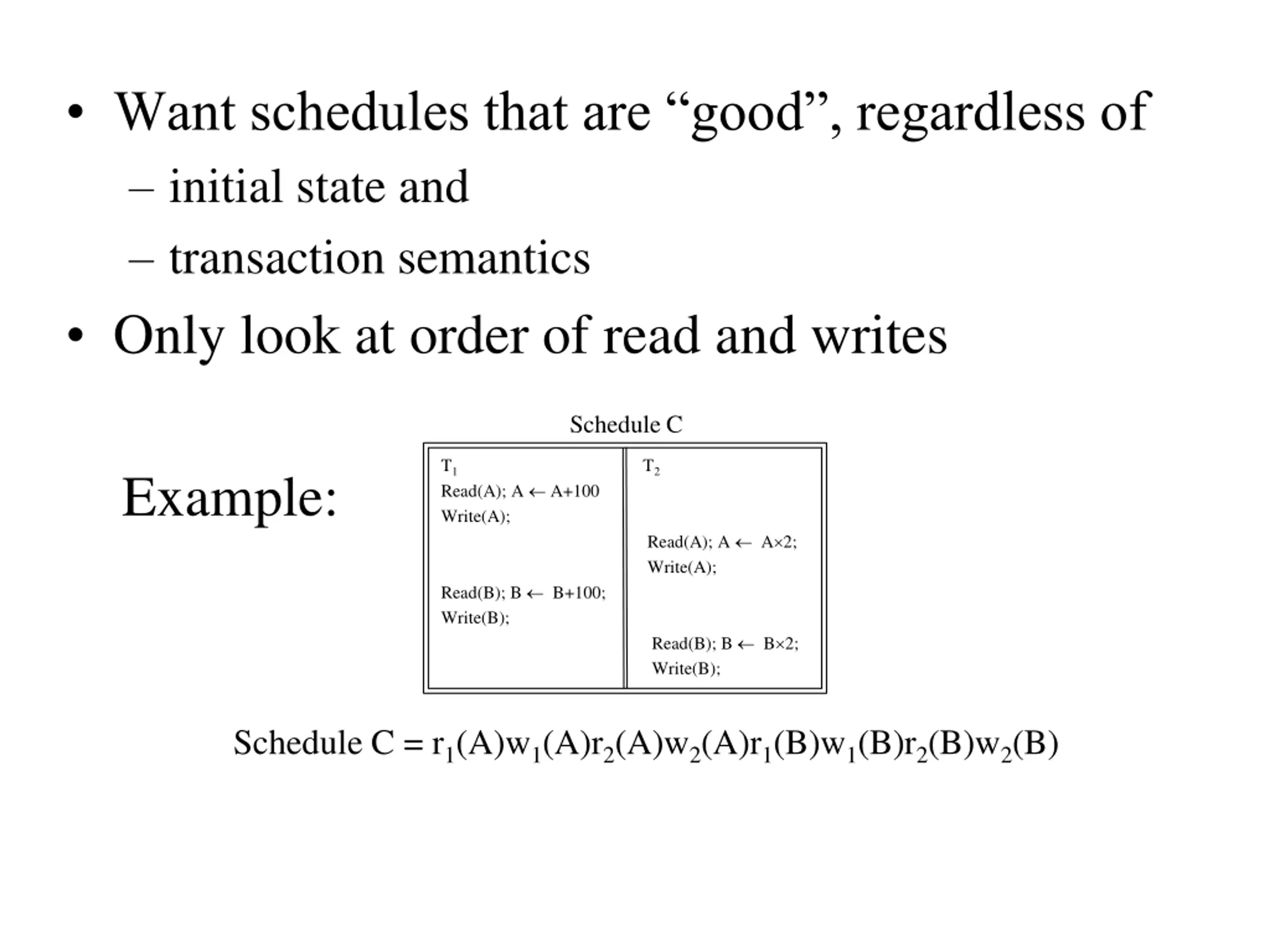

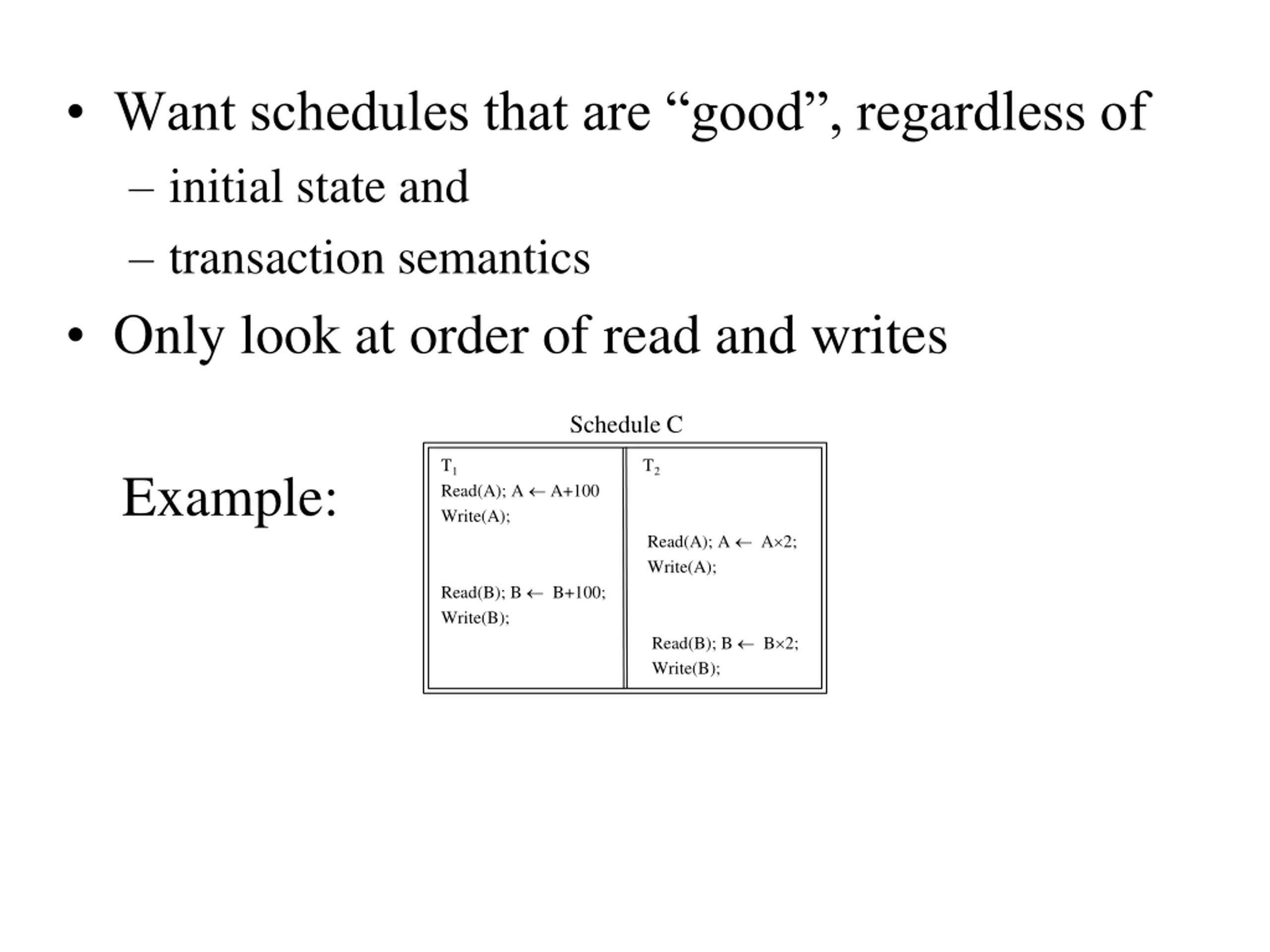

  37. Want schedules that are good, regardless of initial state and transaction semantics Only look at order of read and writes Schedule C T1 Read(A); A A+100 Write(A); Read(B); B B+100; Write(B); T2 Example: Read(A); A A 2; Write(A); Read(B); B B 2; Write(B);

  38. Want schedules that are good, regardless of initial state and transaction semantics Only look at order of read and writes Schedule C T1 Read(A); A A+100 Write(A); Read(B); B B+100; Write(B); T2 Example: Read(A); A A 2; Write(A); Read(B); B B 2; Write(B); Schedule C = r1(A)w1(A)r2(A)w2(A)r1(B)w1(B)r2(B)w2(B)

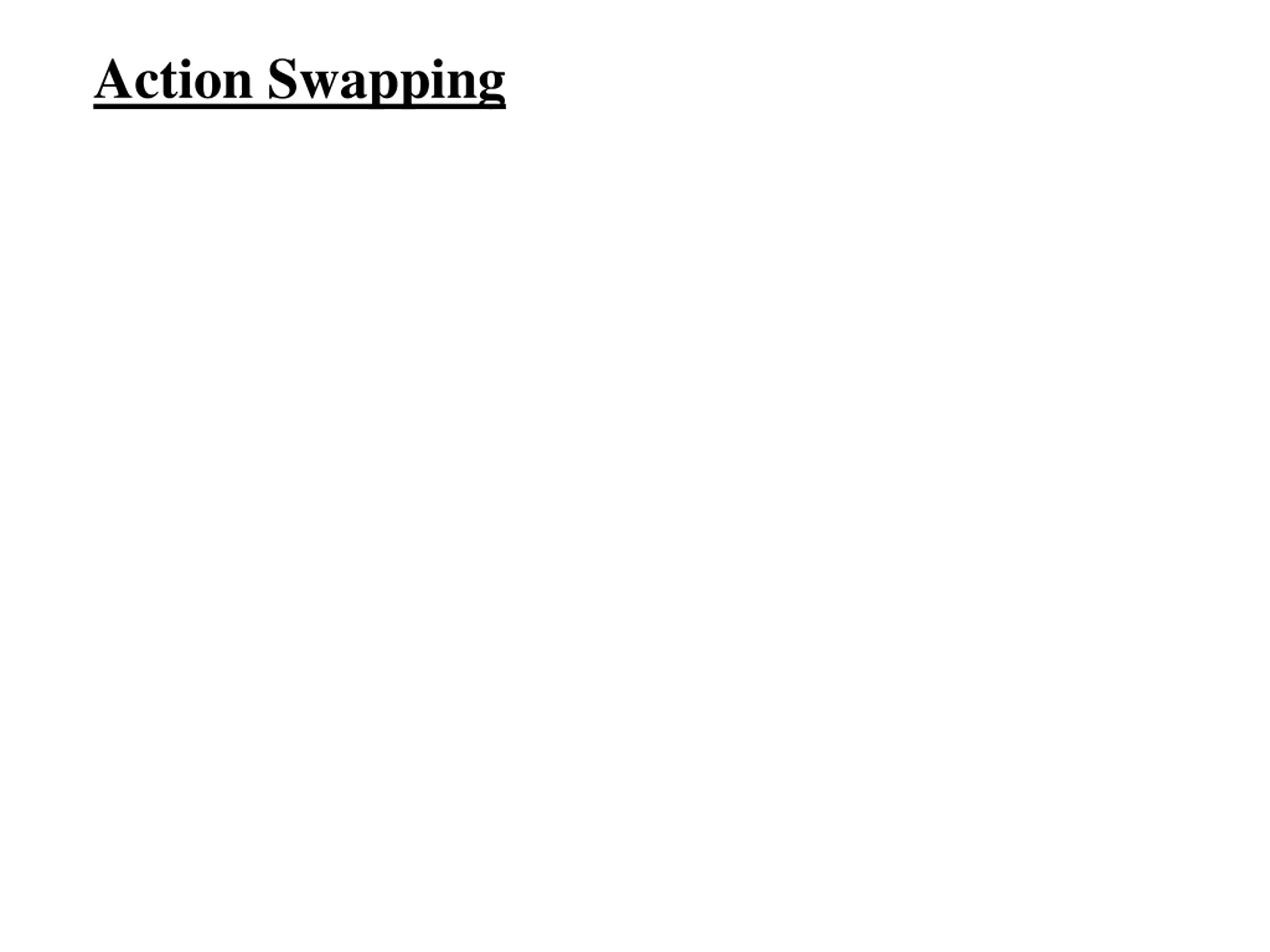

  39. Action Swapping

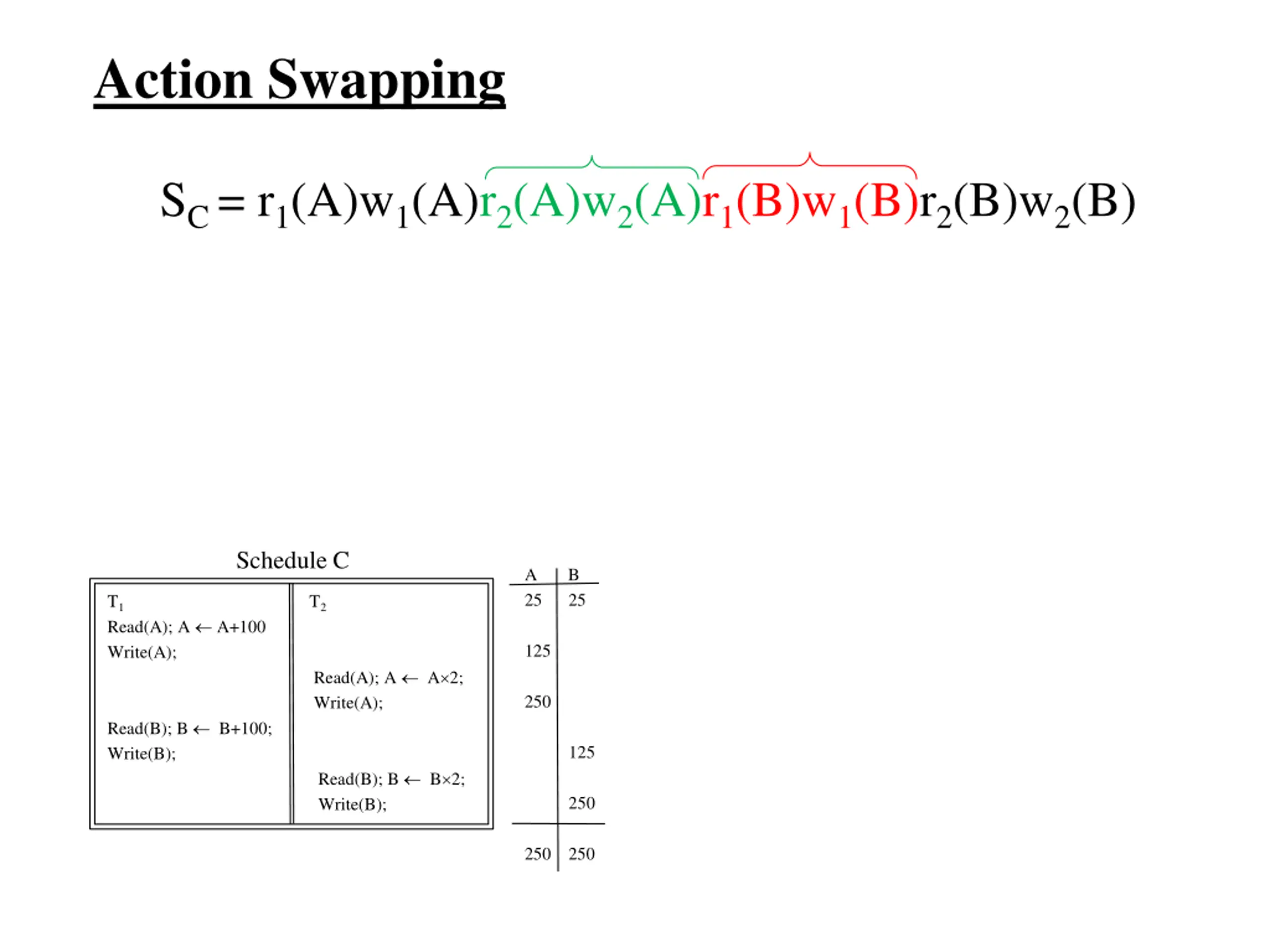

  40. Action Swapping SC = r1(A)w1(A)r2(A)w2(A)r1(B)w1(B)r2(B)w2(B) Schedule C A B 25 25 T1 Read(A); A A+100 Write(A); Read(B); B B+100; Write(B); T2 125 Read(A); A A 2; Write(A); 250 125 Read(B); B B 2; Write(B); 250 250 250

  41. Action Swapping SC = r1(A)w1(A)r2(A)w2(A)r1(B)w1(B)r2(B)w2(B) Schedule C A B 25 25 T1 Read(A); A A+100 Write(A); Read(B); B B+100; Write(B); T2 125 Read(A); A A 2; Write(A); 250 125 Read(B); B B 2; Write(B); 250 250 250

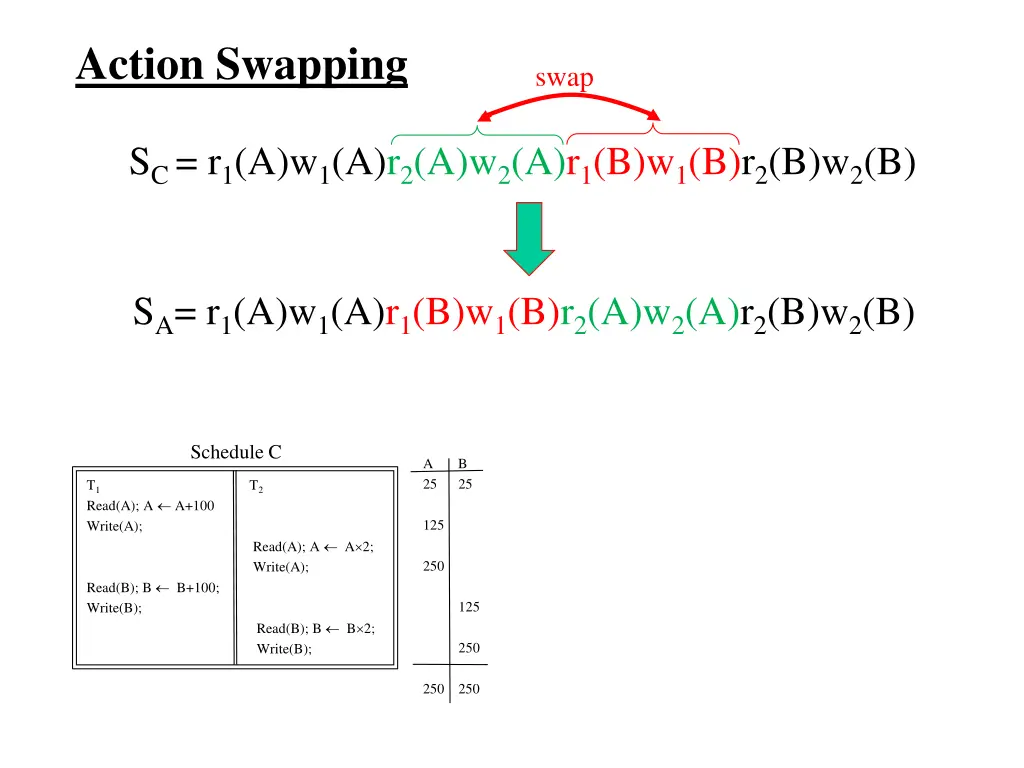

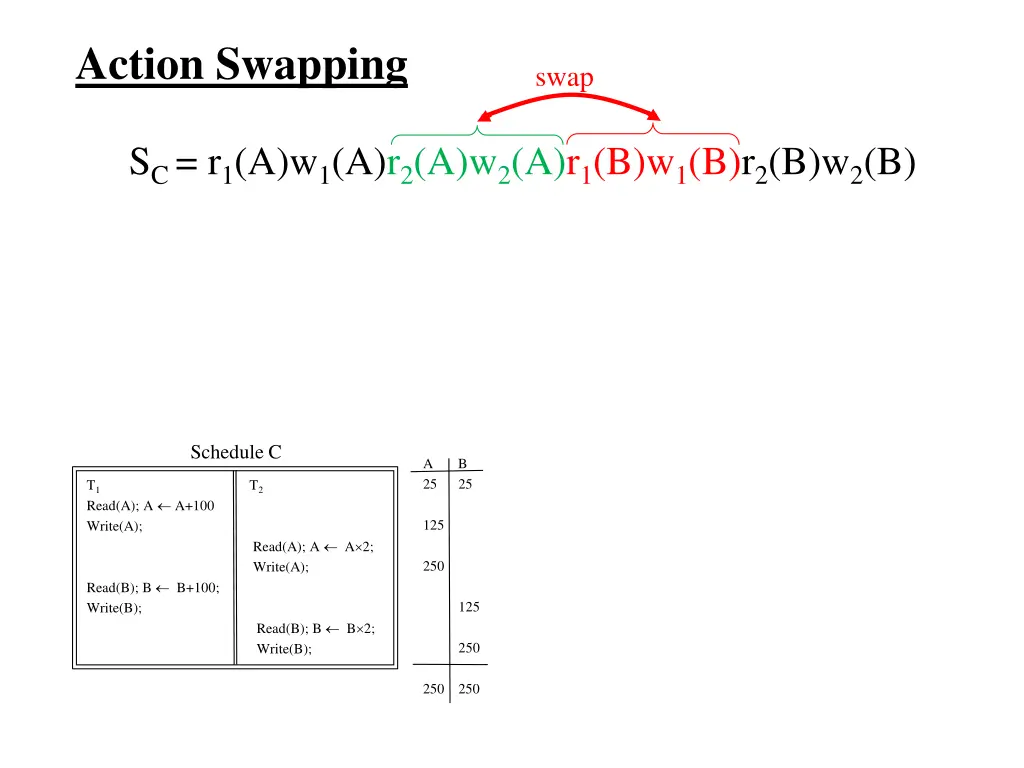

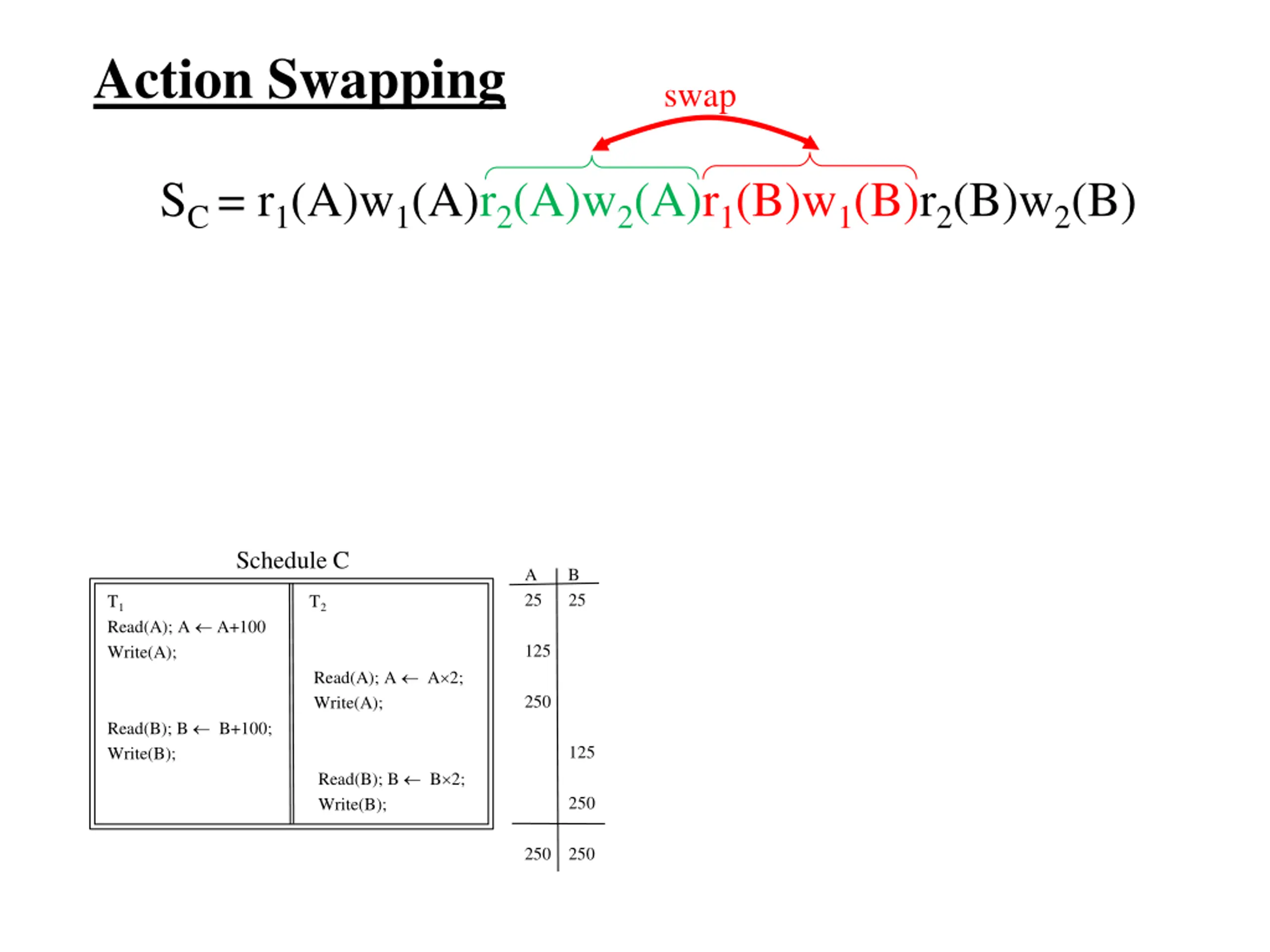

  42. Action Swapping swap SC = r1(A)w1(A)r2(A)w2(A)r1(B)w1(B)r2(B)w2(B) Schedule C A B 25 25 T1 Read(A); A A+100 Write(A); Read(B); B B+100; Write(B); T2 125 Read(A); A A 2; Write(A); 250 125 Read(B); B B 2; Write(B); 250 250 250

  43. Action Swapping swap SC = r1(A)w1(A)r2(A)w2(A)r1(B)w1(B)r2(B)w2(B) SA= r1(A)w1(A)r1(B)w1(B)r2(A)w2(A)r2(B)w2(B) Schedule C A B 25 25 T1 Read(A); A A+100 Write(A); Read(B); B B+100; Write(B); T2 125 Read(A); A A 2; Write(A); 250 125 Read(B); B B 2; Write(B); 250 250 250

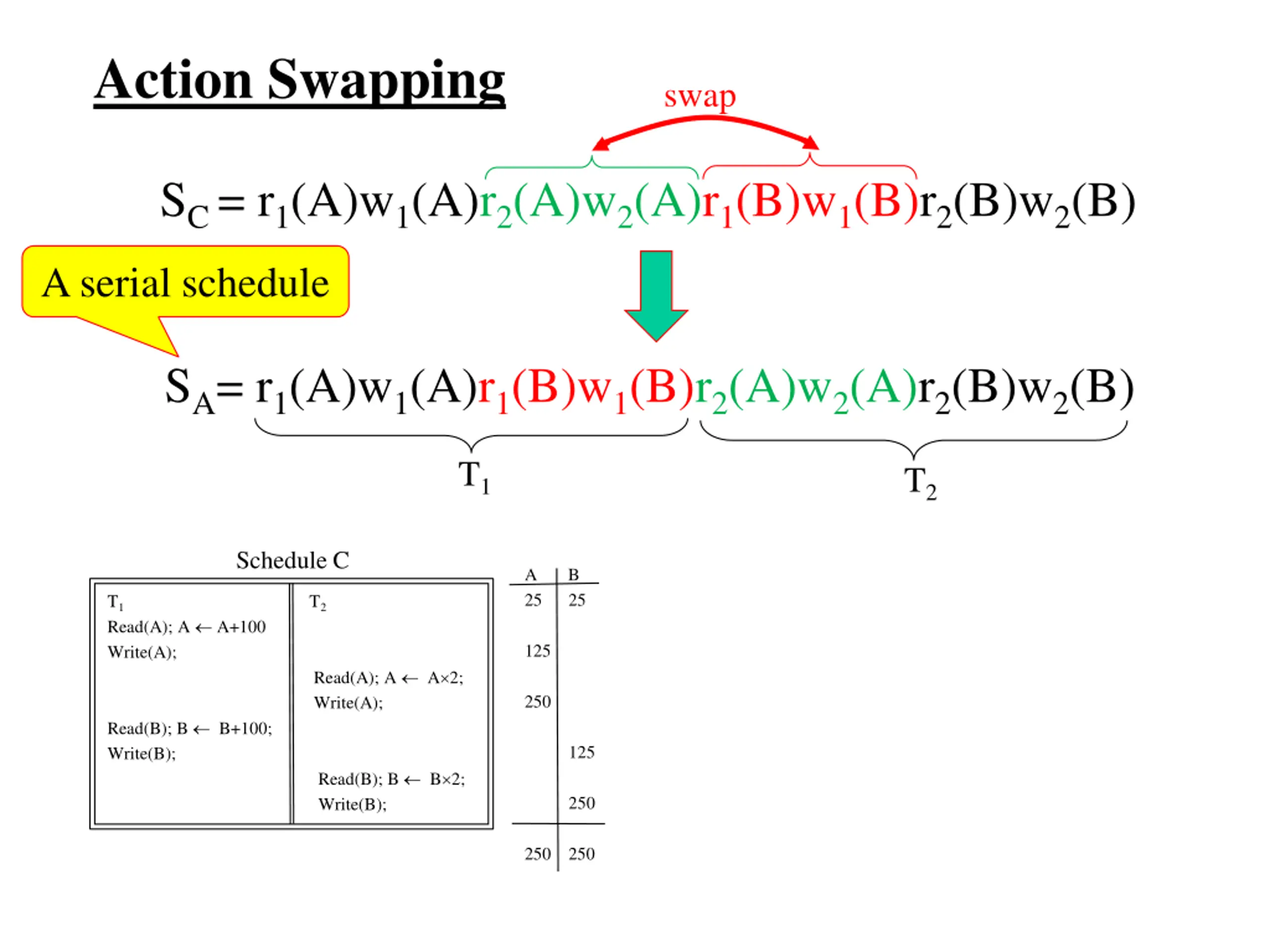

  44. Action Swapping swap SC = r1(A)w1(A)r2(A)w2(A)r1(B)w1(B)r2(B)w2(B) A serial schedule SA= r1(A)w1(A)r1(B)w1(B)r2(A)w2(A)r2(B)w2(B) T1 T2 Schedule C A B 25 25 T1 Read(A); A A+100 Write(A); Read(B); B B+100; Write(B); T2 125 Read(A); A A 2; Write(A); 250 125 Read(B); B B 2; Write(B); 250 250 250

  45. Action Swapping swap SC = r1(A)w1(A)r2(A)w2(A)r1(B)w1(B)r2(B)w2(B) A serial schedule SA= r1(A)w1(A)r1(B)w1(B)r2(A)w2(A)r2(B)w2(B) T1 T2 Schedule A Schedule C A B 25 25 A B 25 25 T1 Read(A); A A+100 Write(A); Read(B); B B+100; Write(B); T2 T1 Read(A); A A+100 Write(A); Read(B); B B+100; Write(B); T2 125 125 Read(A); A A 2; Write(A); 125 250 Read(A); A A 2; Write(A); Read(B); B B 2; Write(B); 250 125 Read(B); B B 2; Write(B); 250 250 250 250 250 250

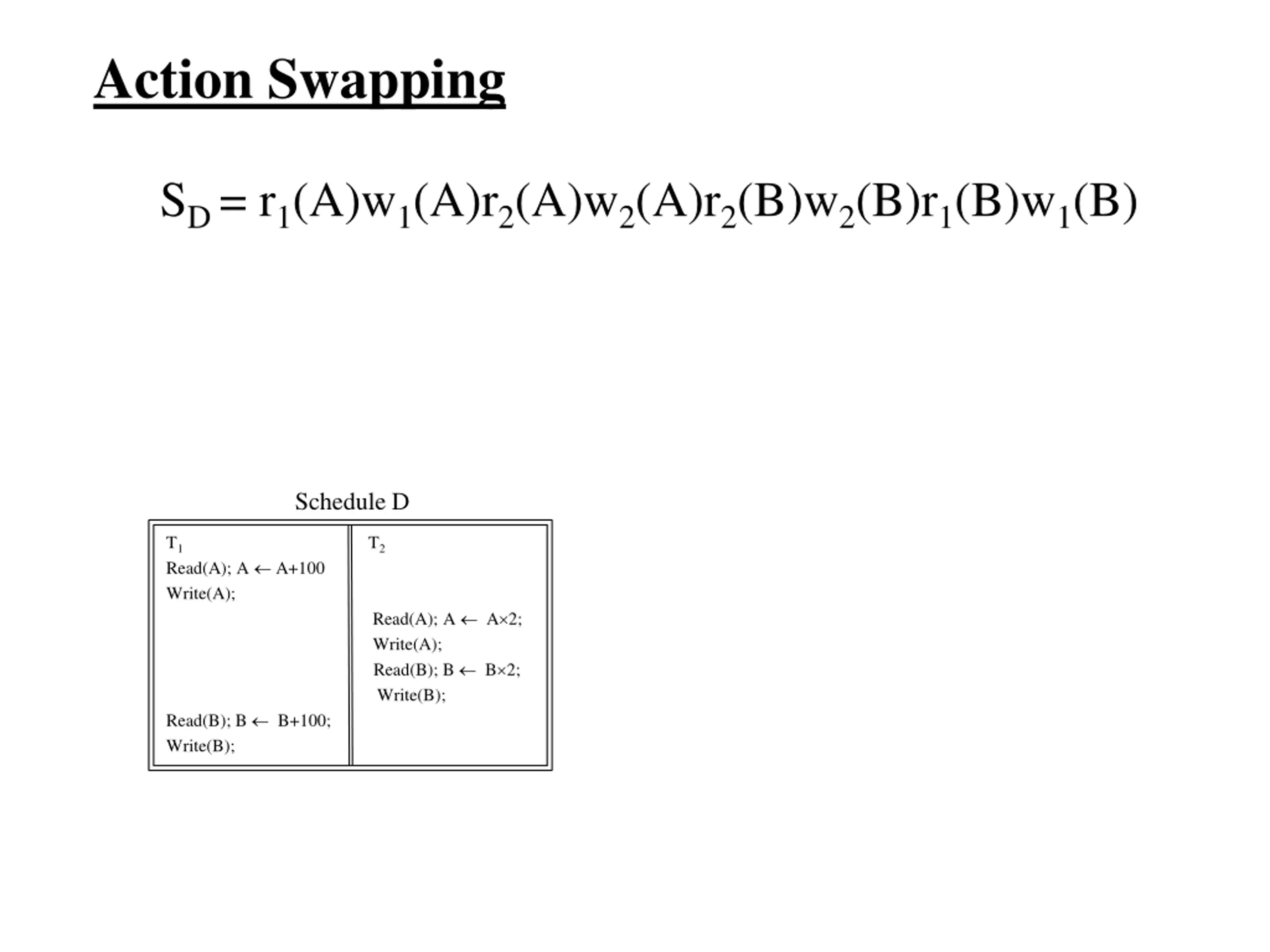

  46. Action Swapping SD = r1(A)w1(A)r2(A)w2(A)r2(B)w2(B)r1(B)w1(B) Schedule D T1 Read(A); A A+100 Write(A); Read(B); B B 2; Write(B); Read(B); B B+100; Write(B); T2 Read(A); A A 2; Write(A);

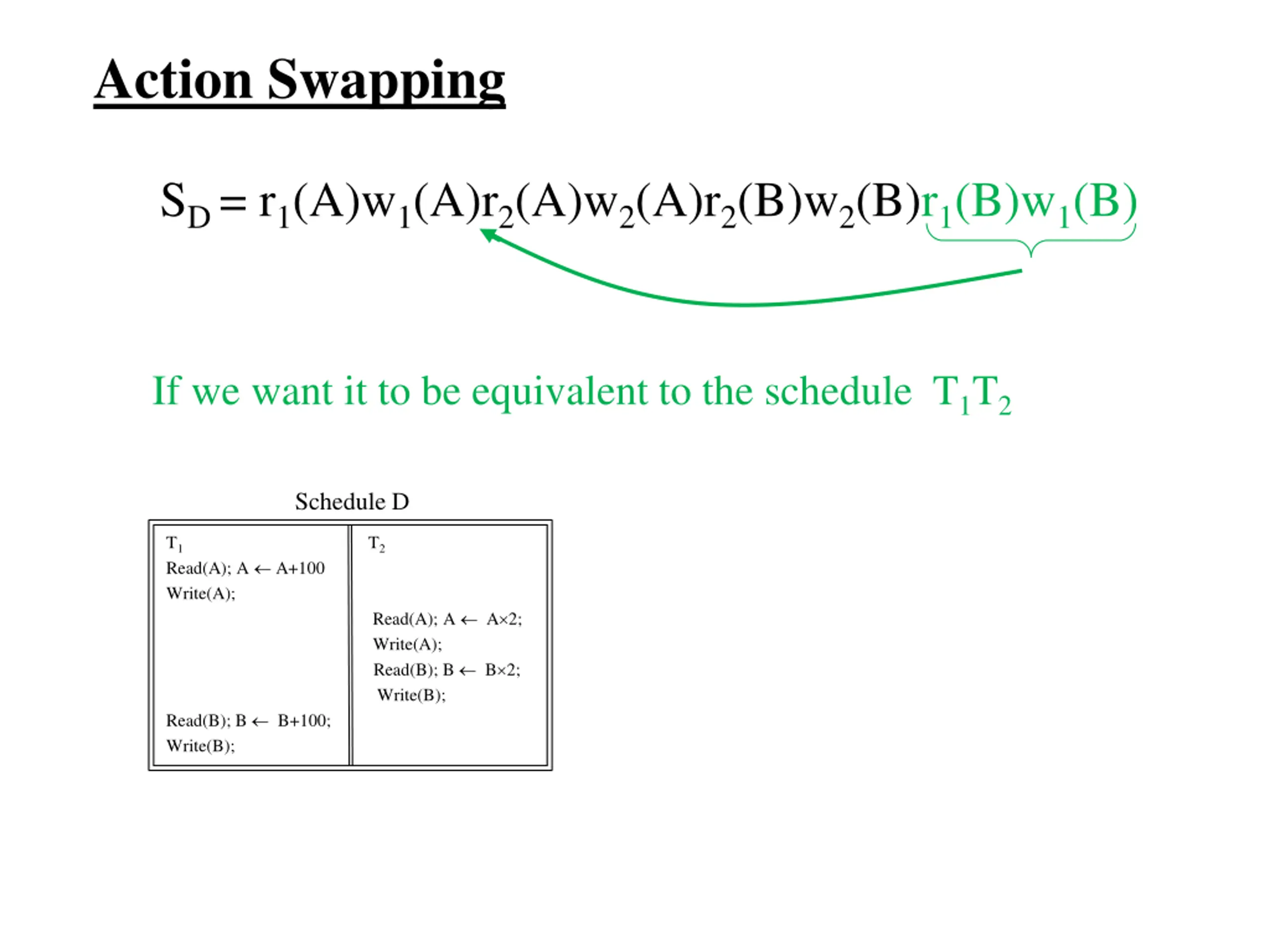

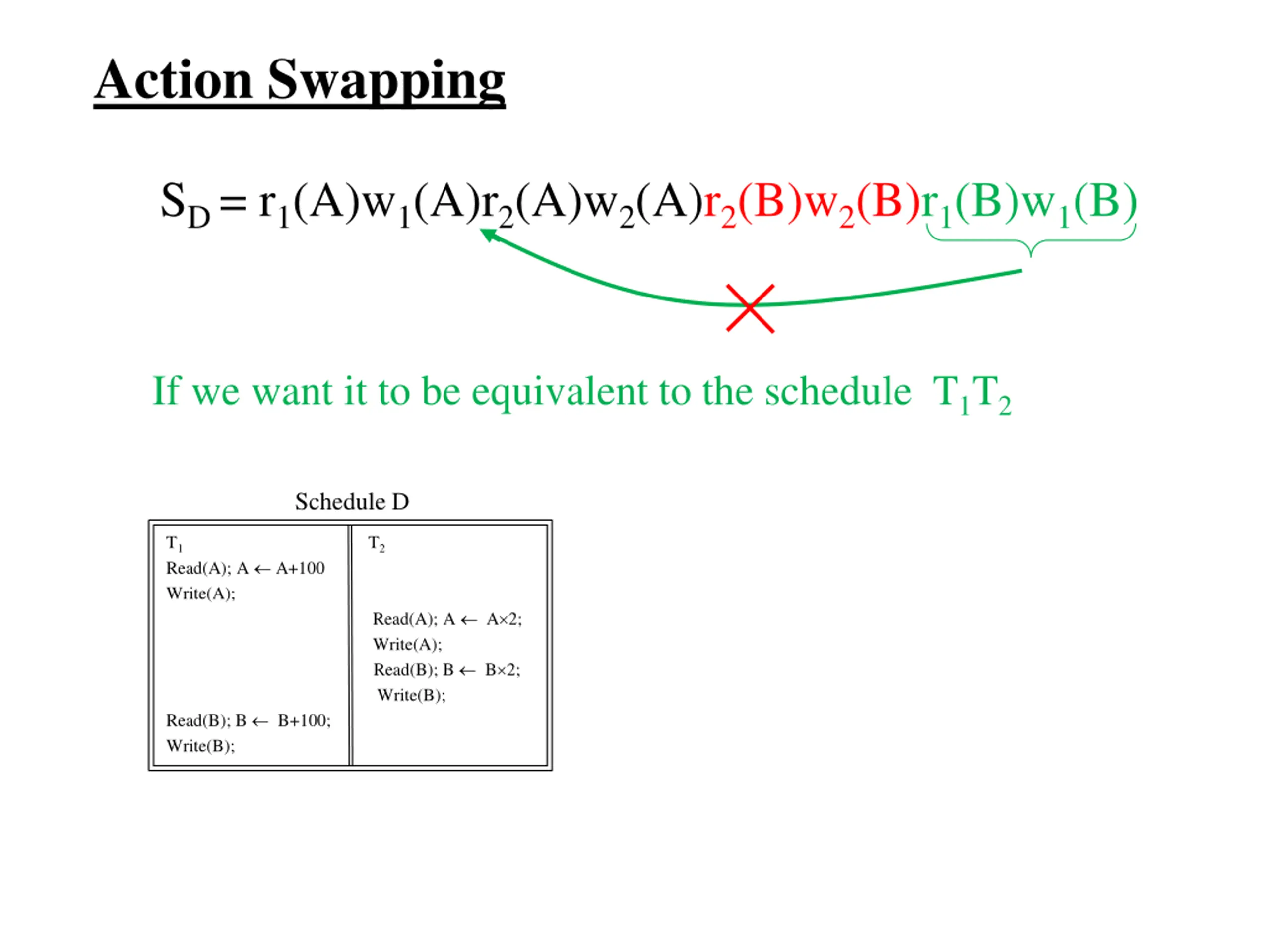

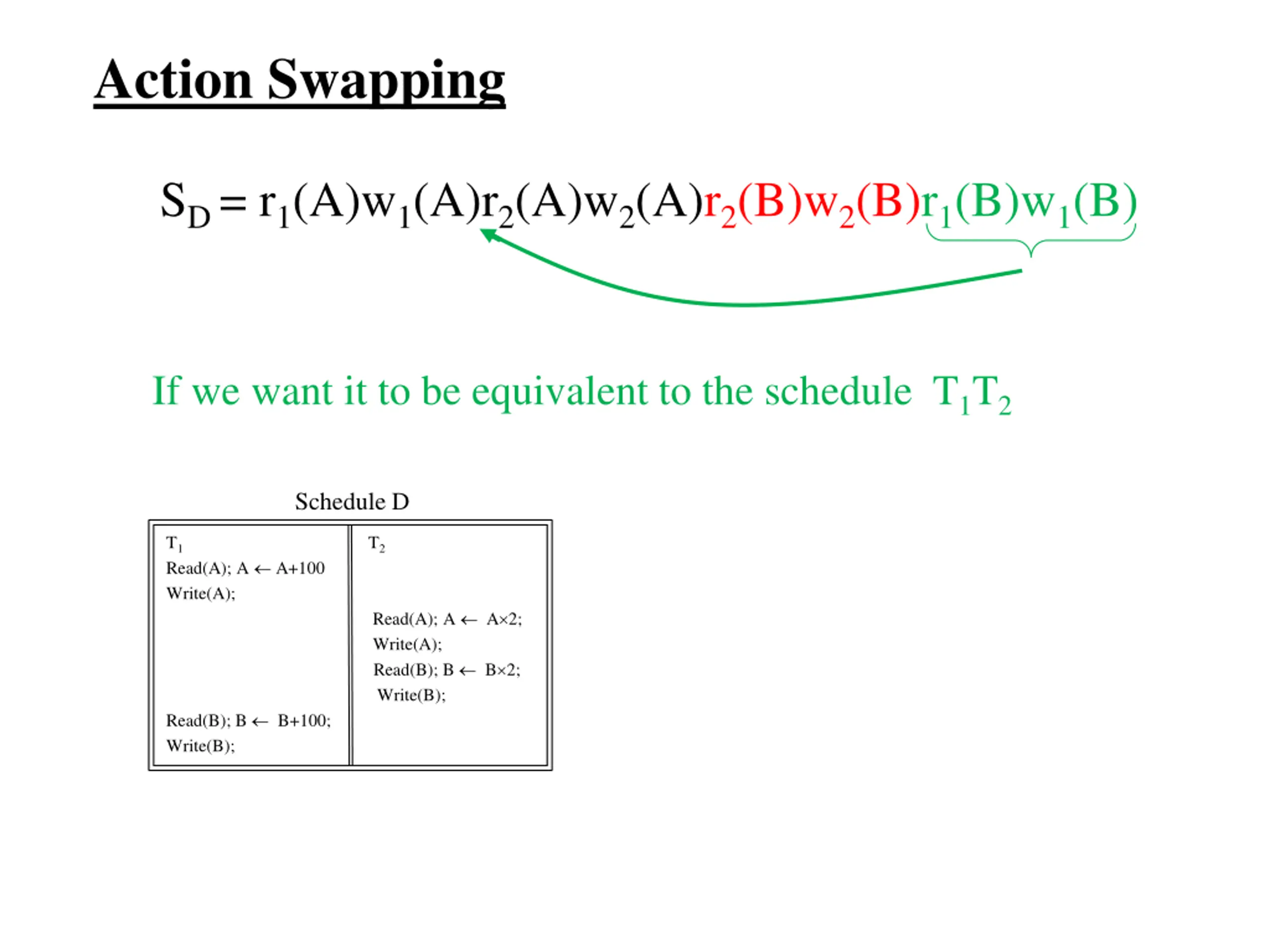

  47. Action Swapping SD = r1(A)w1(A)r2(A)w2(A)r2(B)w2(B)r1(B)w1(B) If we want it to be equivalent to the schedule T1T2 Schedule D T1 Read(A); A A+100 Write(A); Read(B); B B 2; Write(B); Read(B); B B+100; Write(B); T2 Read(A); A A 2; Write(A);

  48. Action Swapping SD = r1(A)w1(A)r2(A)w2(A)r2(B)w2(B)r1(B)w1(B) If we want it to be equivalent to the schedule T1T2 Schedule D T1 Read(A); A A+100 Write(A); Read(B); B B 2; Write(B); Read(B); B B+100; Write(B); T2 Read(A); A A 2; Write(A);

  49. Action Swapping SD = r1(A)w1(A)r2(A)w2(A)r2(B)w2(B)r1(B)w1(B) If we want it to be equivalent to the schedule T1T2 Schedule D T1 Read(A); A A+100 Write(A); Read(B); B B 2; Write(B); Read(B); B B+100; Write(B); T2 Read(A); A A 2; Write(A);

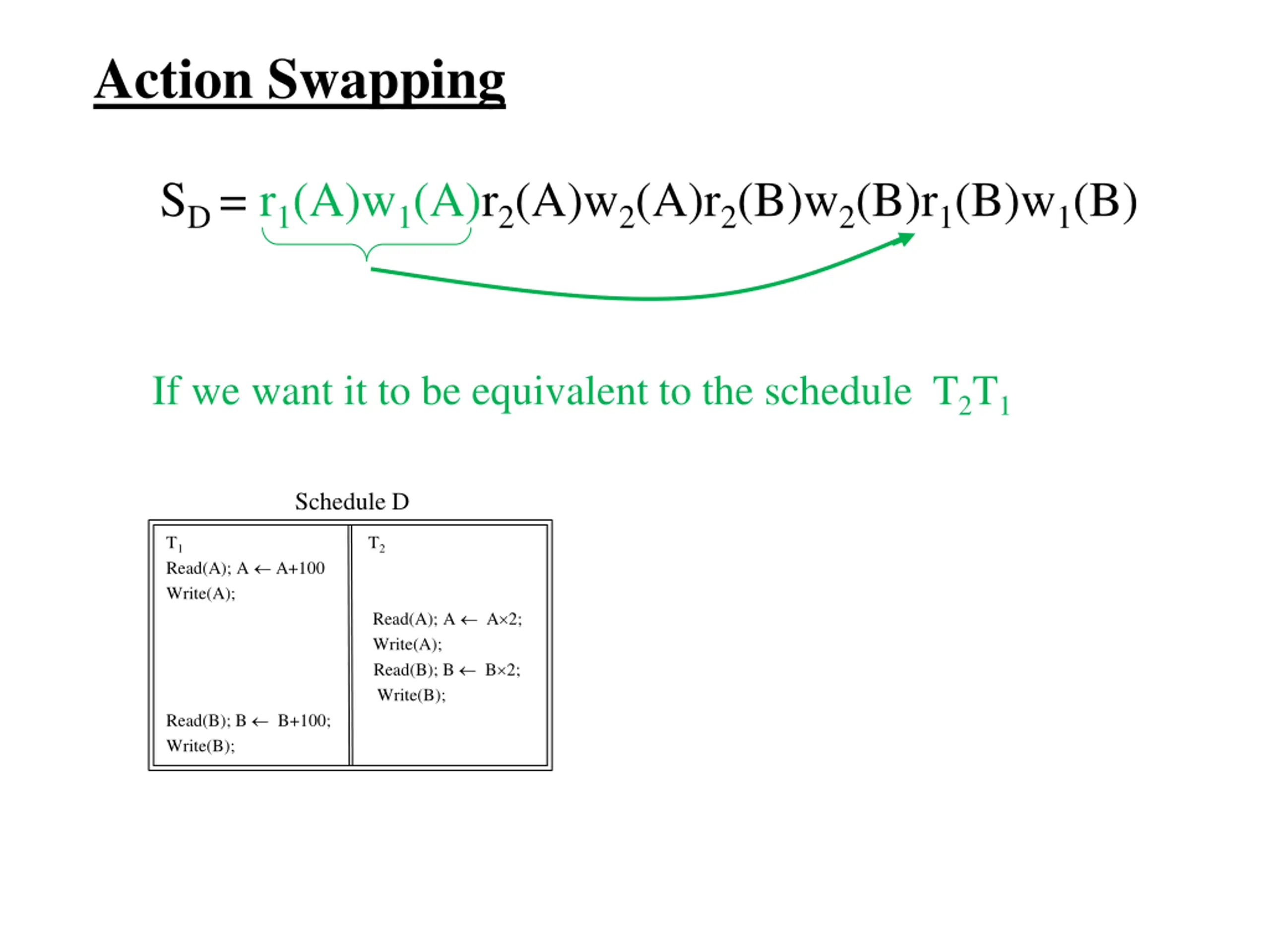

  50. Action Swapping SD = r1(A)w1(A)r2(A)w2(A)r2(B)w2(B)r1(B)w1(B) If we want it to be equivalent to the schedule T2T1 Schedule D T1 Read(A); A A+100 Write(A); Read(B); B B 2; Write(B); Read(B); B B+100; Write(B); T2 Read(A); A A 2; Write(A);
