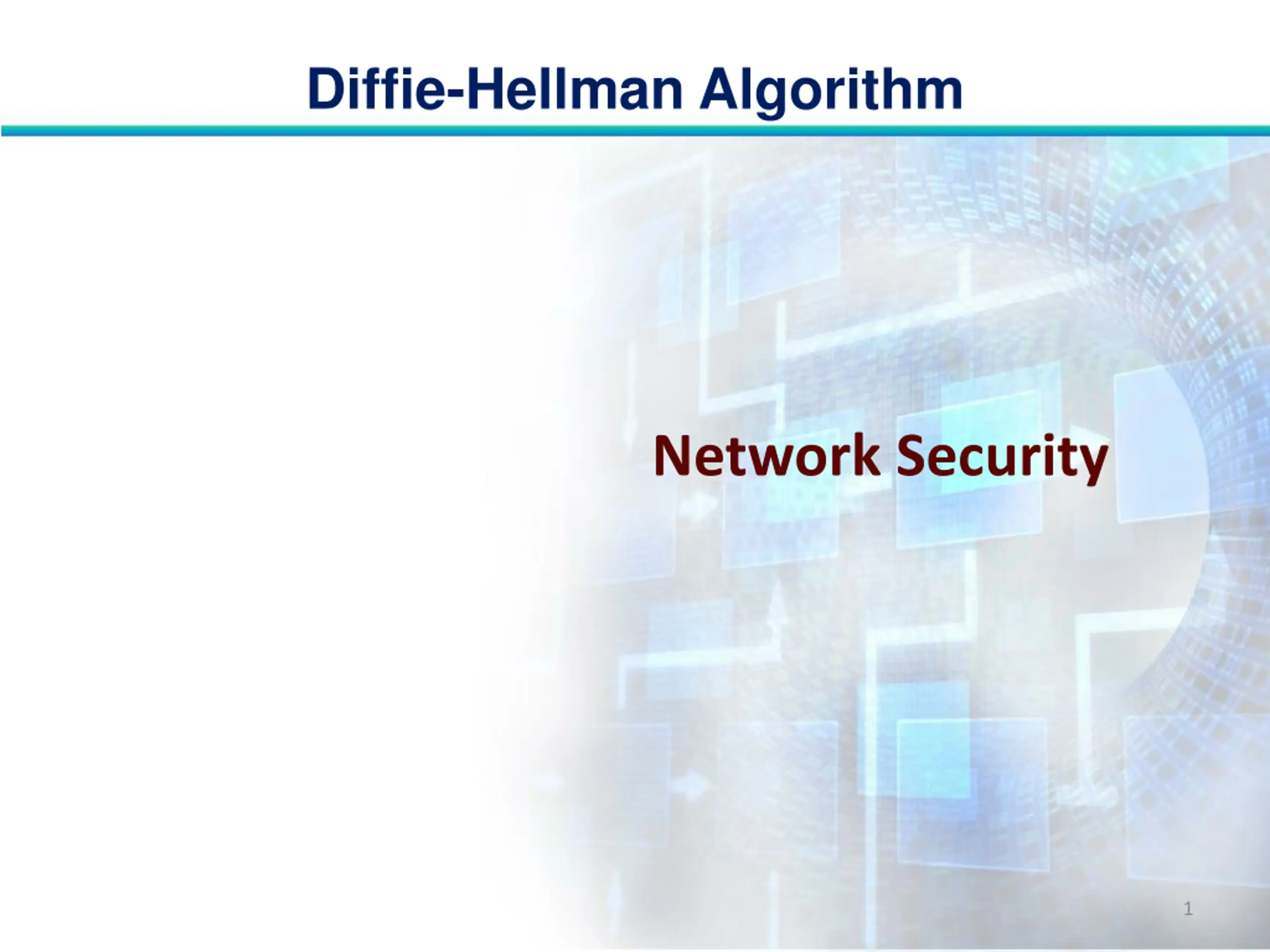

Diffie-Hellman Algorithm Network Security 1

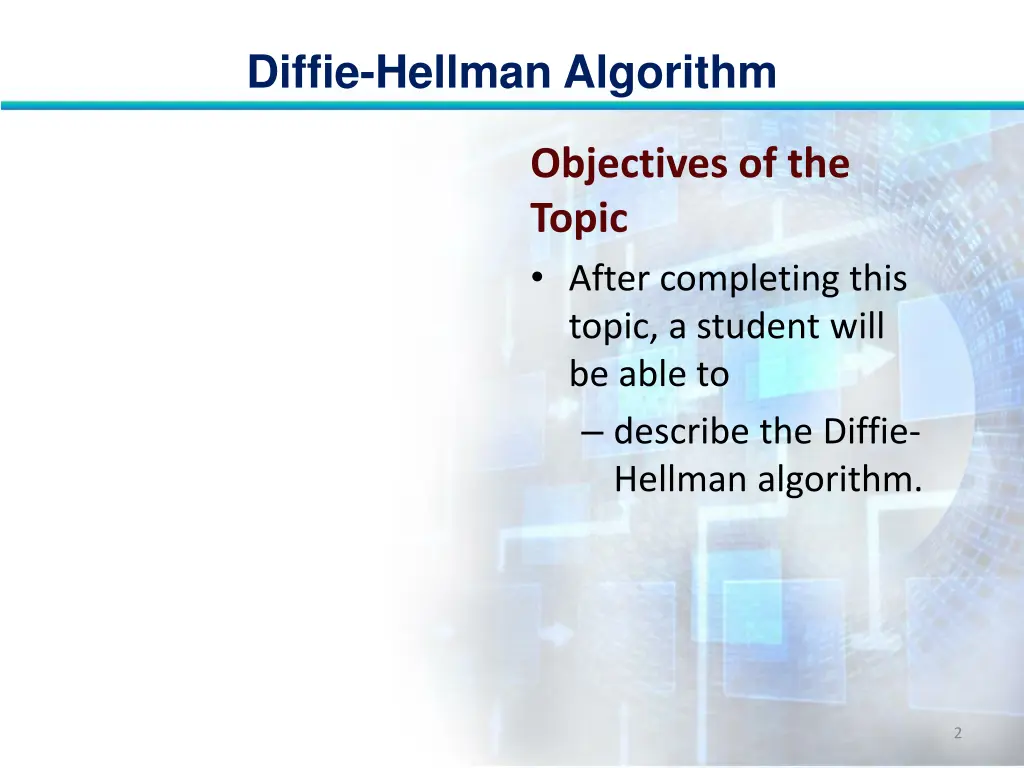

Diffie-Hellman Algorithm Objectives of the Topic After completing this topic, a student will be able to describe the Diffie- Hellman algorithm. 2

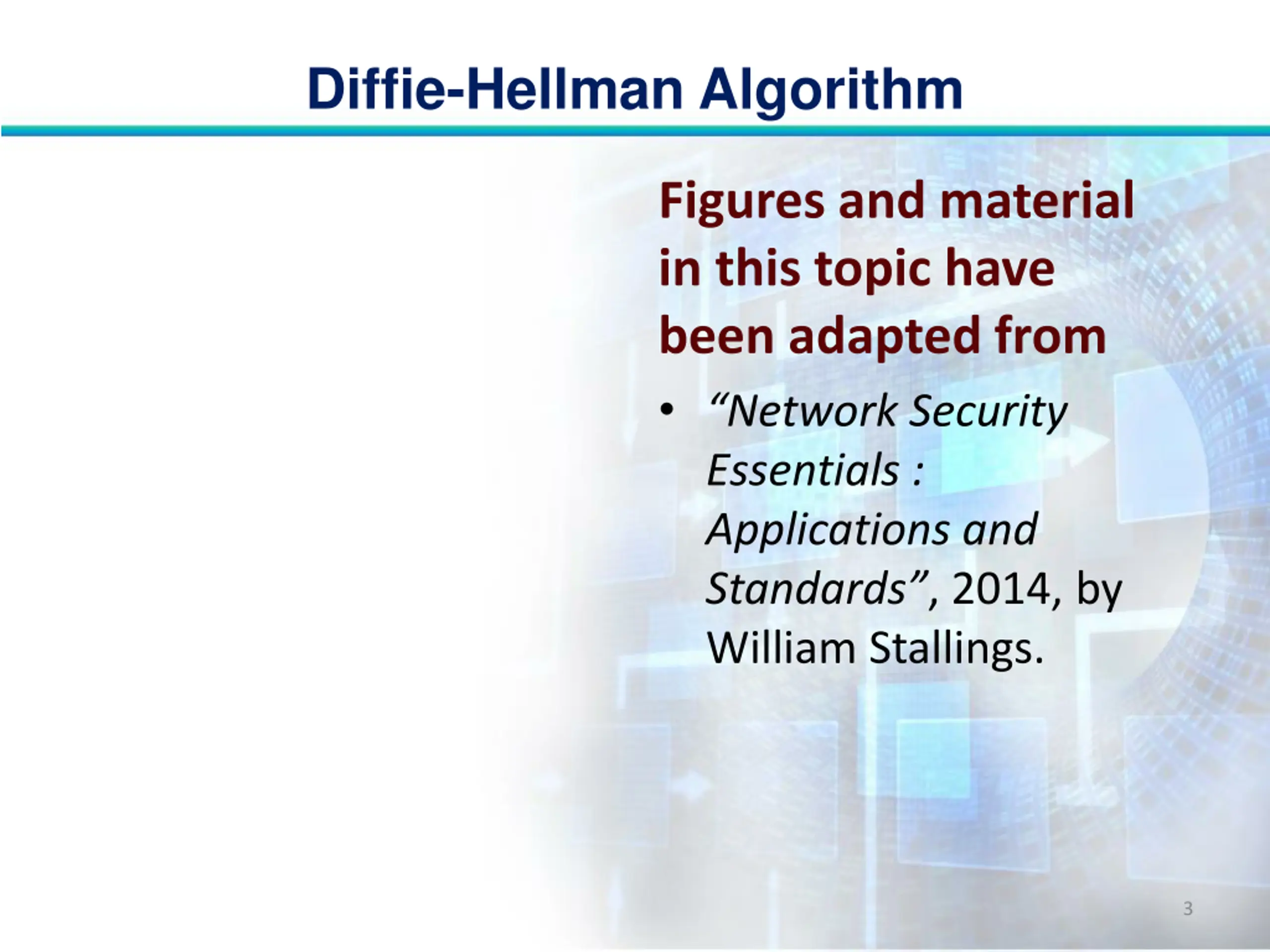

Diffie-Hellman Algorithm Figures and material in this topic have been adapted from Network Security Essentials : Applications and Standards , 2014, by William Stallings. 3

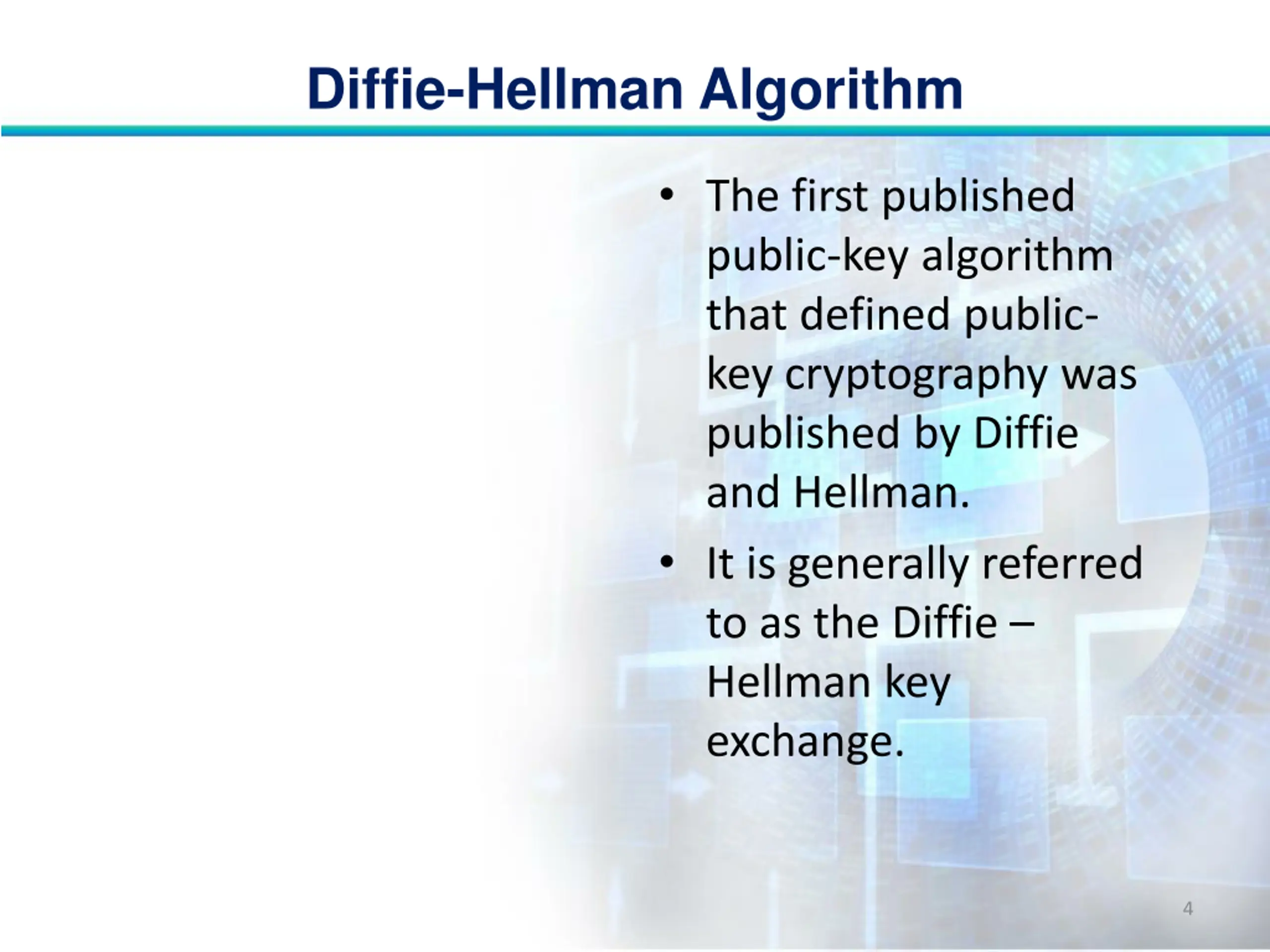

Diffie-Hellman Algorithm The first published public-key algorithm that defined public- key cryptography was published by Diffie and Hellman. It is generally referred to as the Diffie Hellman key exchange. 4

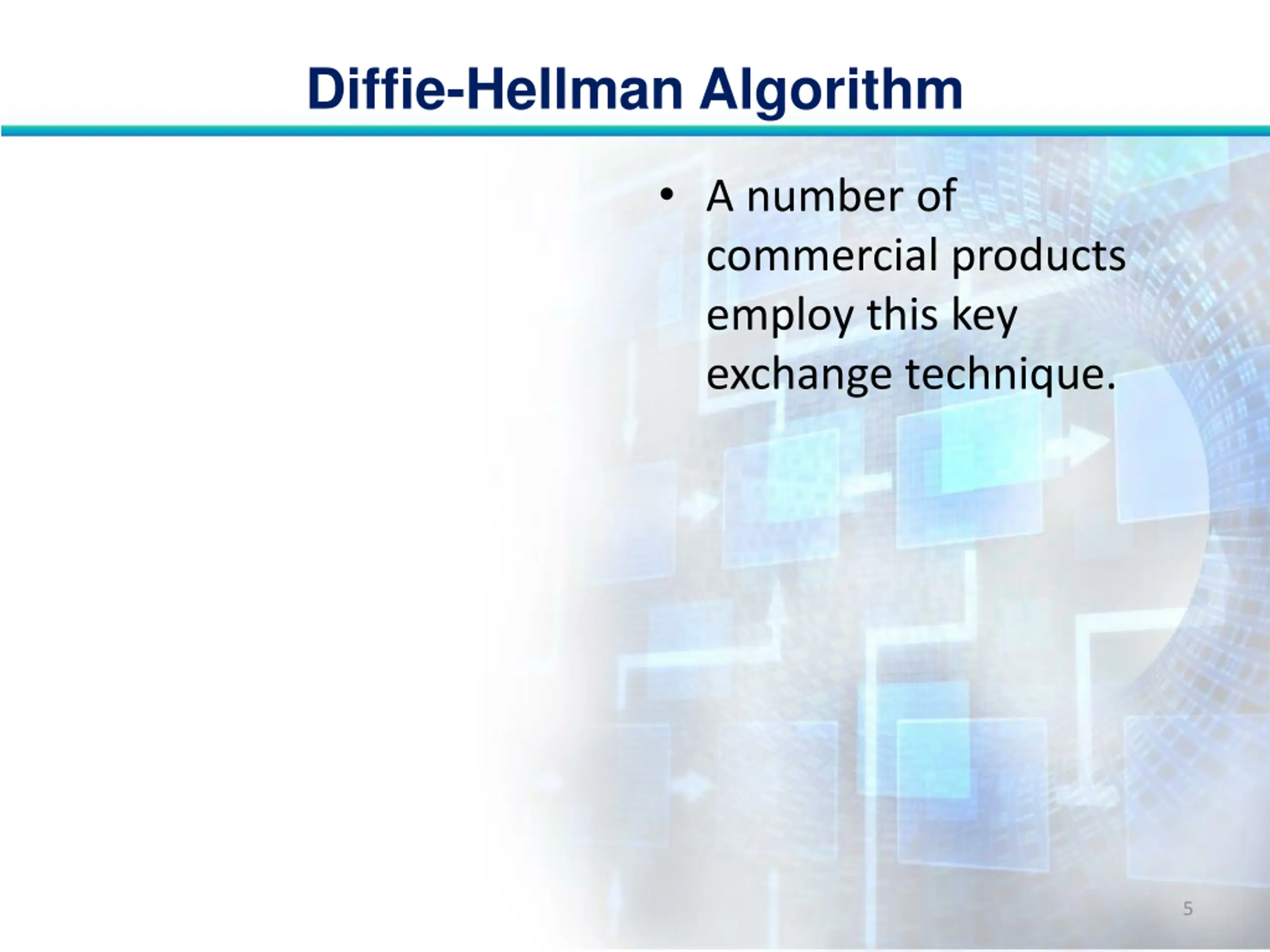

Diffie-Hellman Algorithm A number of commercial products employ this key exchange technique. 5

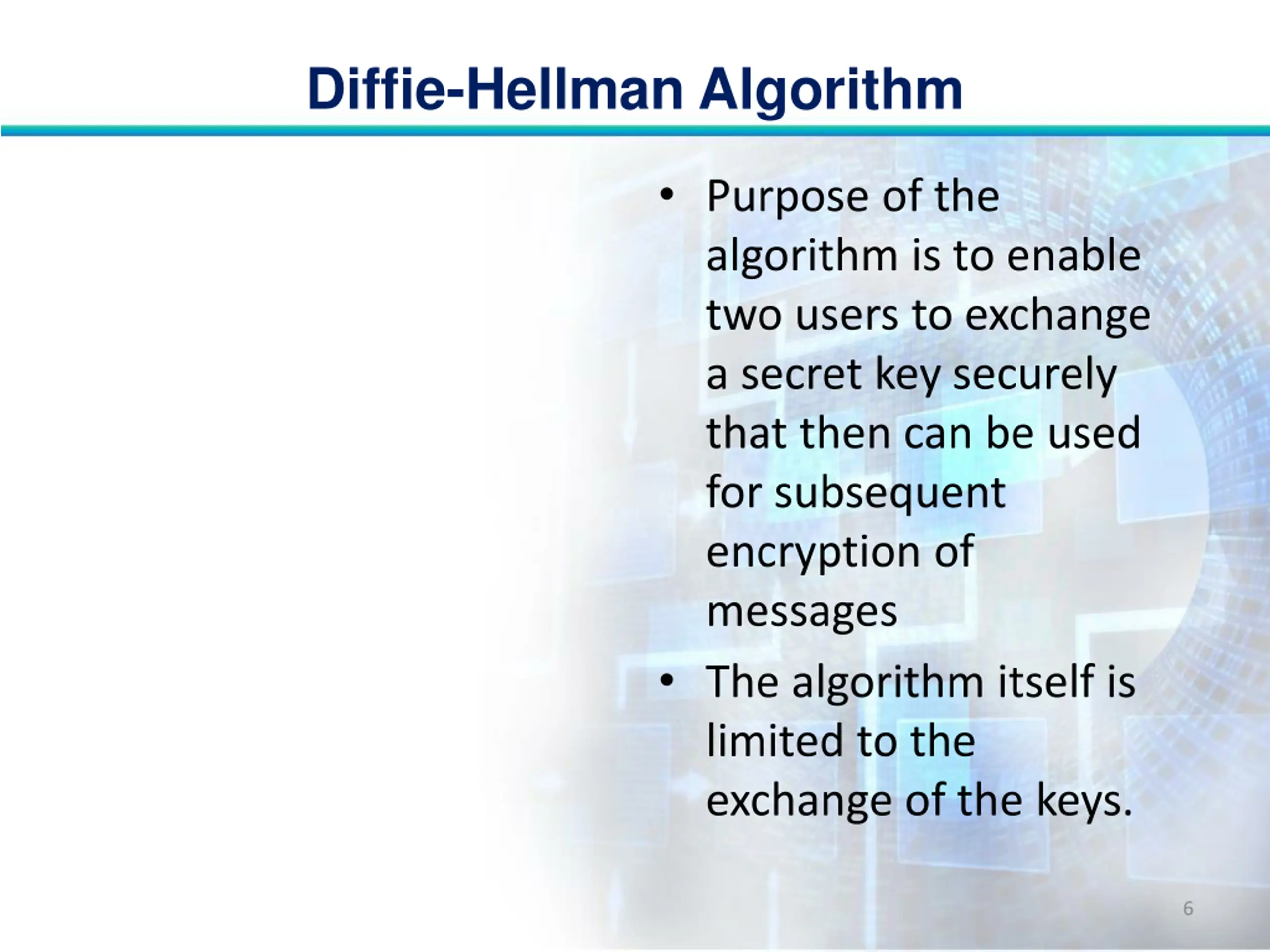

Diffie-Hellman Algorithm Purpose of the algorithm is to enable two users to exchange a secret key securely that then can be used for subsequent encryption of messages The algorithm itself is limited to the exchange of the keys. 6

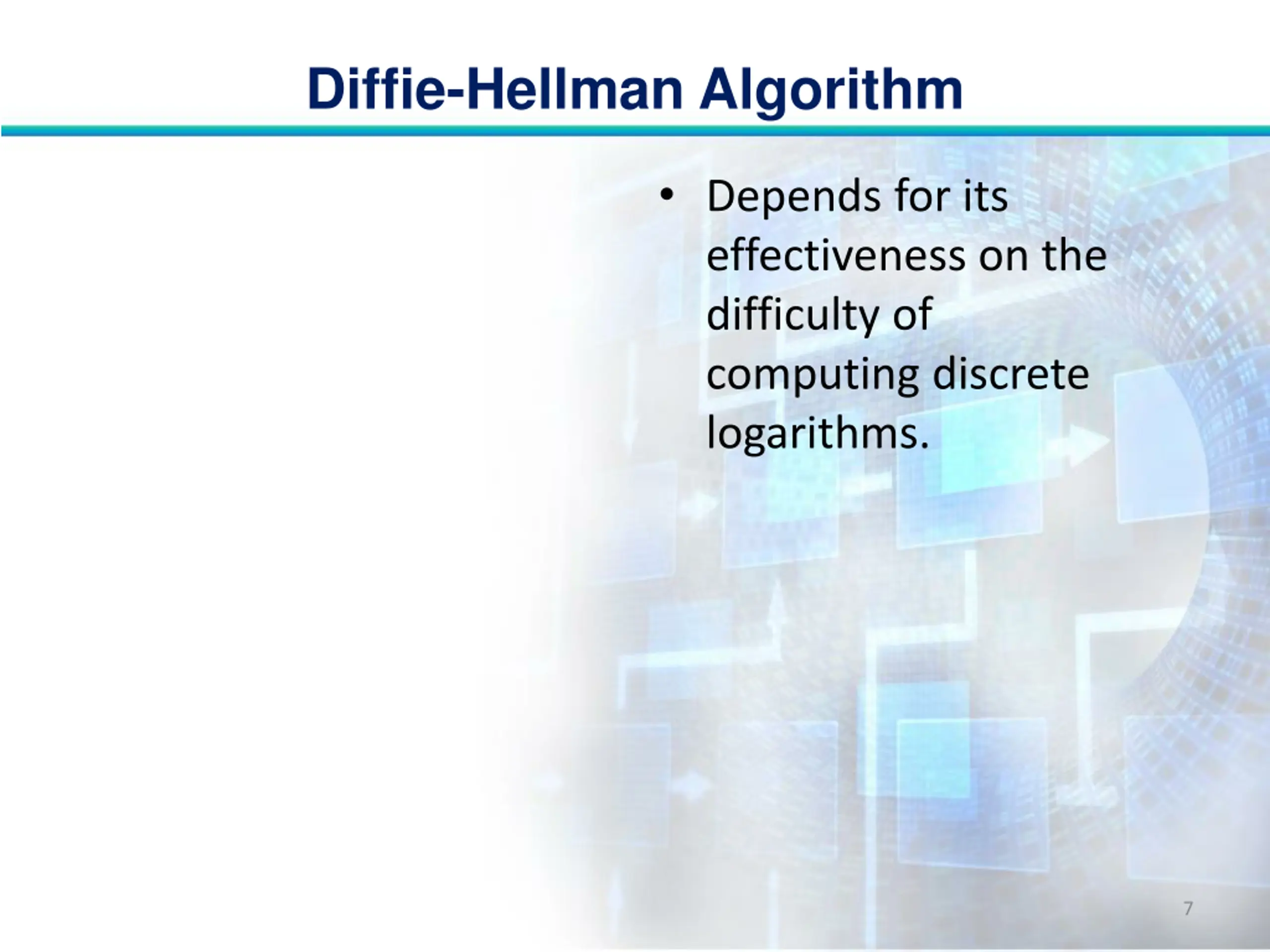

Diffie-Hellman Algorithm Depends for its effectiveness on the difficulty of computing discrete logarithms. 7

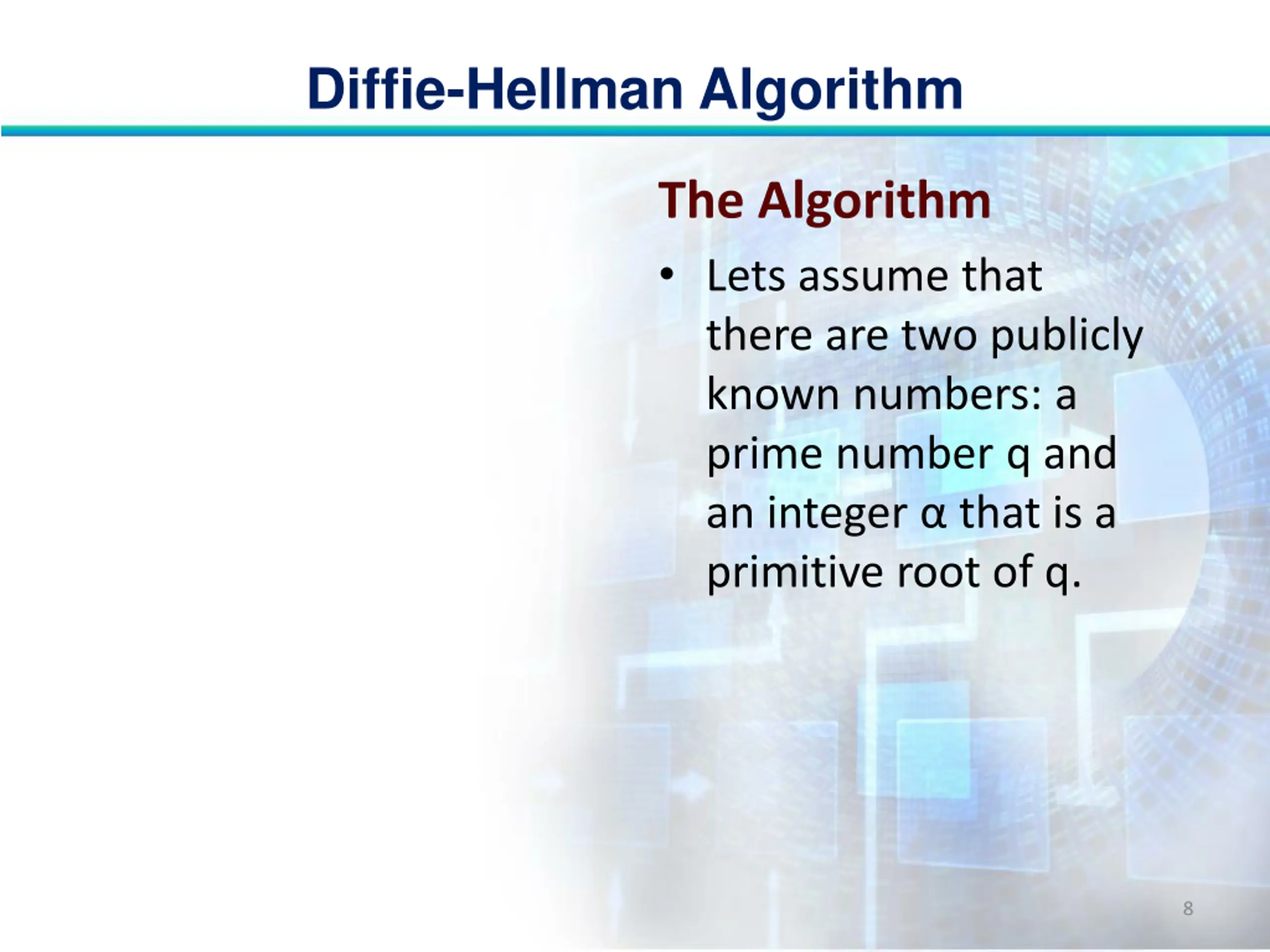

Diffie-Hellman Algorithm The Algorithm Lets assume that there are two publicly known numbers: a prime number q and an integer that is a primitive root of q. 8

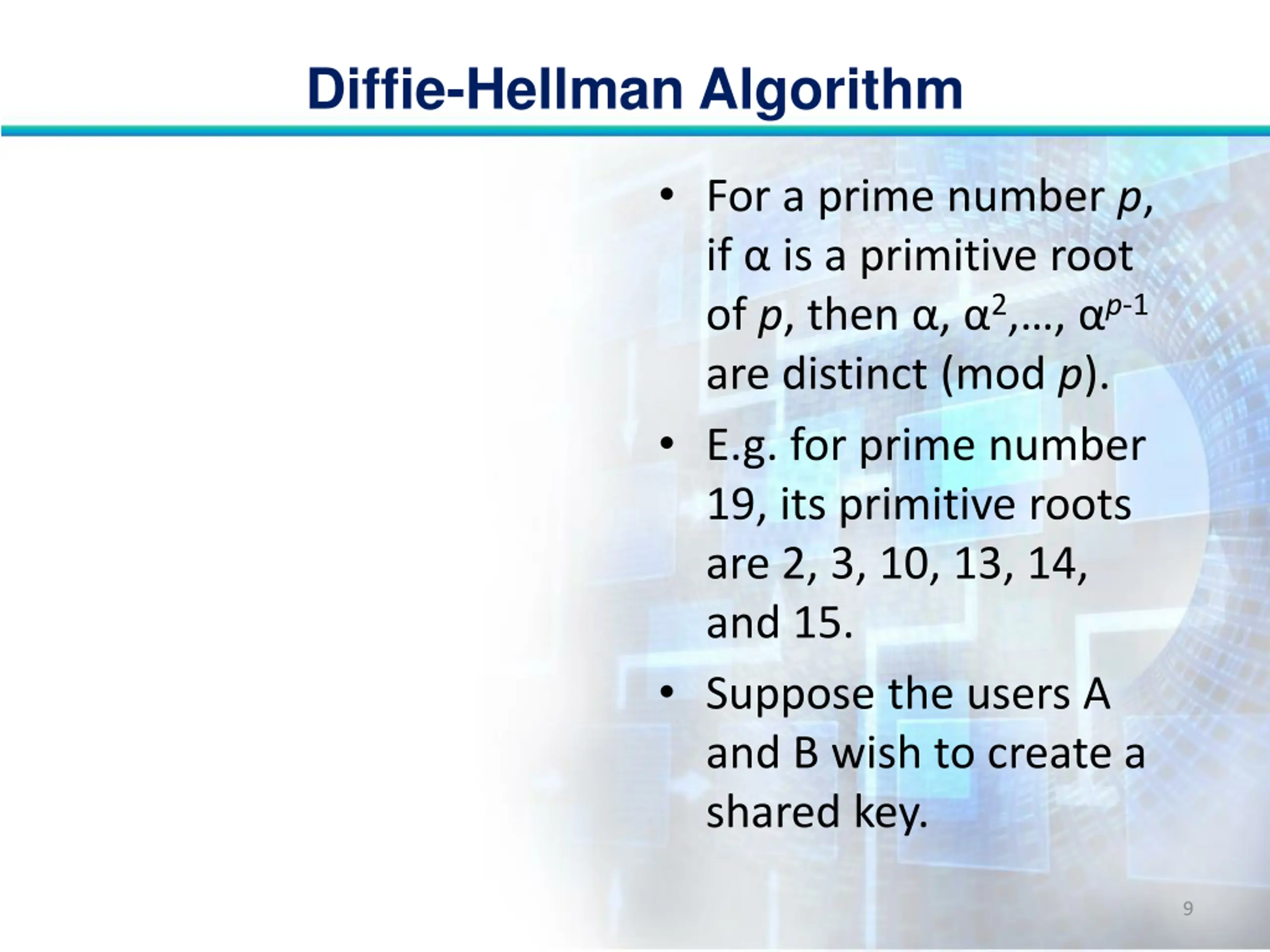

Diffie-Hellman Algorithm For a prime number p, if is a primitive root of p, then , 2, , p-1 are distinct (mod p). E.g. for prime number 19, its primitive roots are 2, 3, 10, 13, 14, and 15. Suppose the users A and B wish to create a shared key. 9

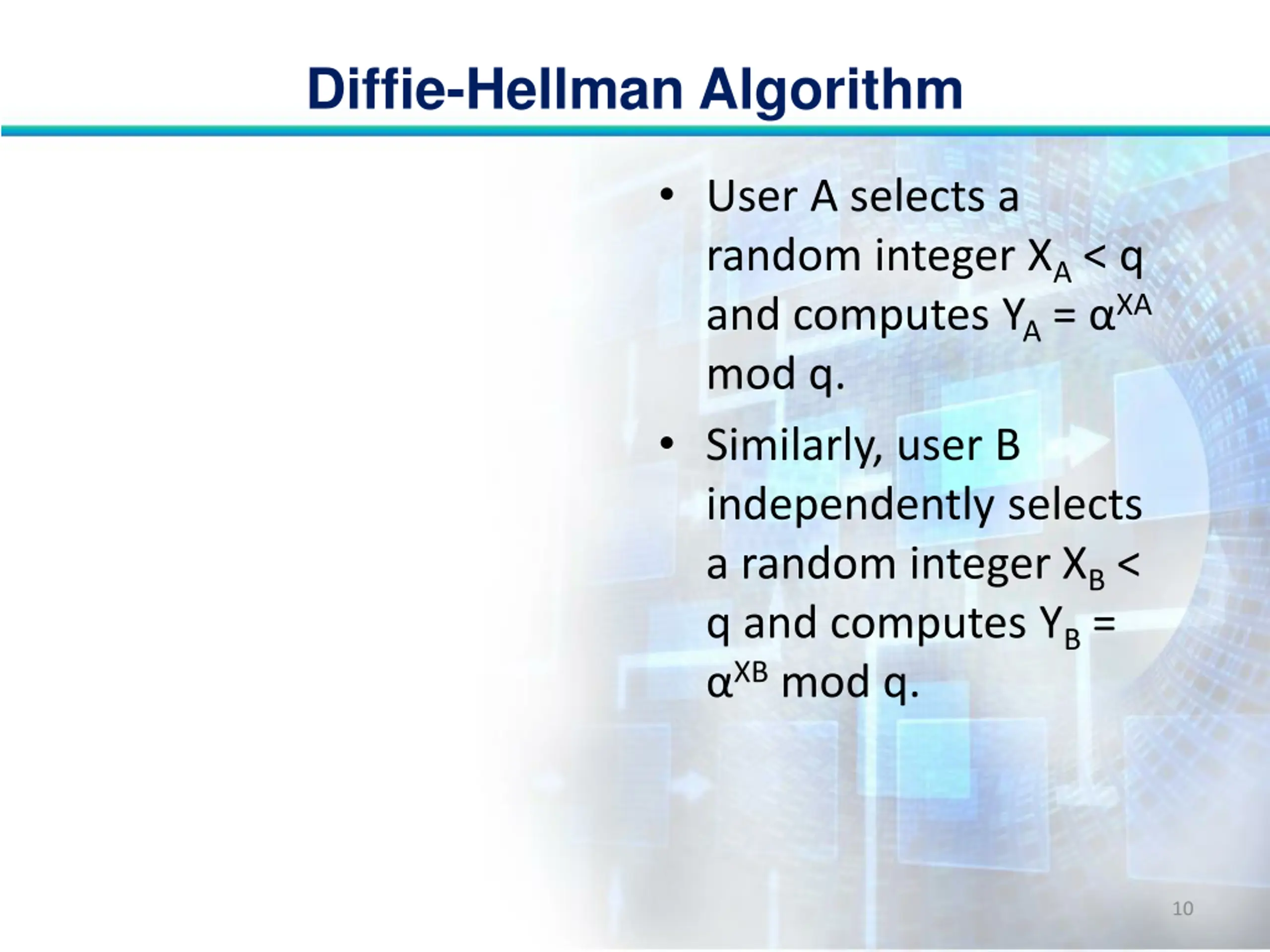

Diffie-Hellman Algorithm User A selects a random integer XA < q and computes YA = XA mod q. Similarly, user B independently selects a random integer XB < q and computes YB = XB mod q. 10

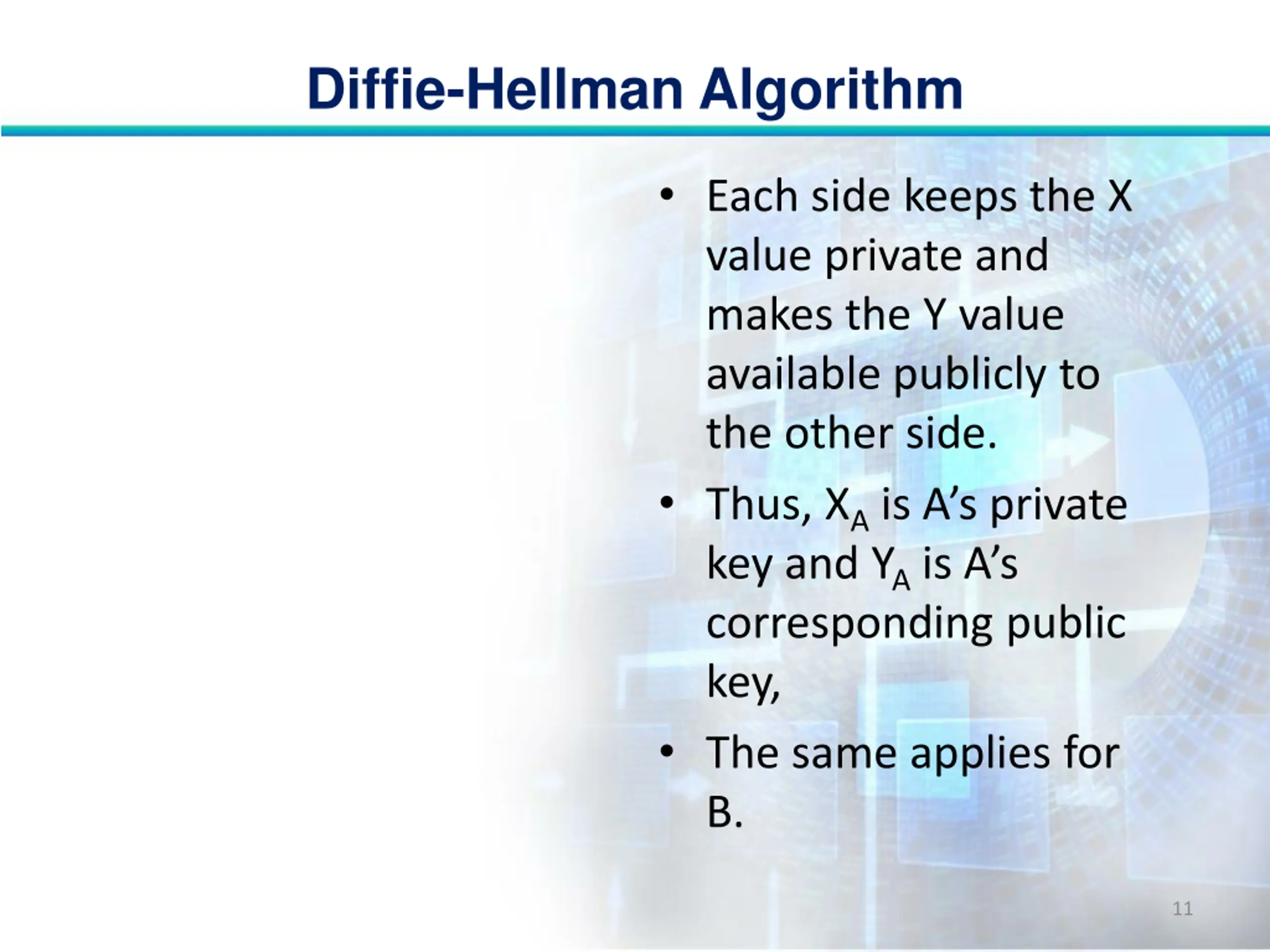

Diffie-Hellman Algorithm Each side keeps the X value private and makes the Y value available publicly to the other side. Thus, XAis A s private key and YAis A s corresponding public key, The same applies for B. 11

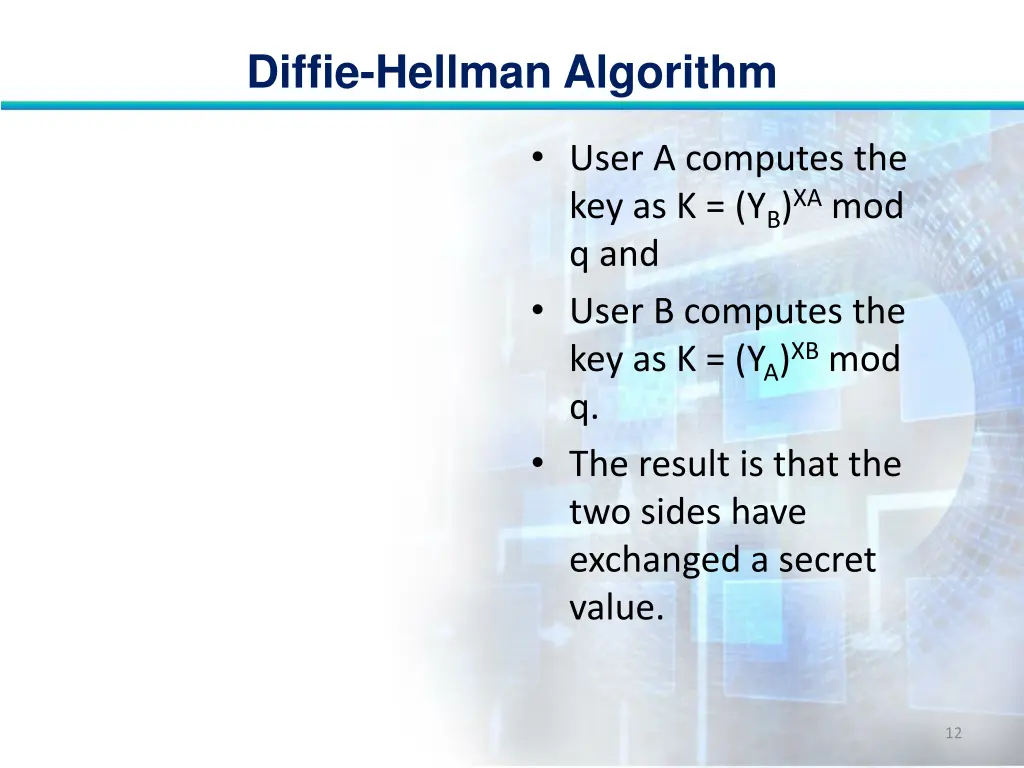

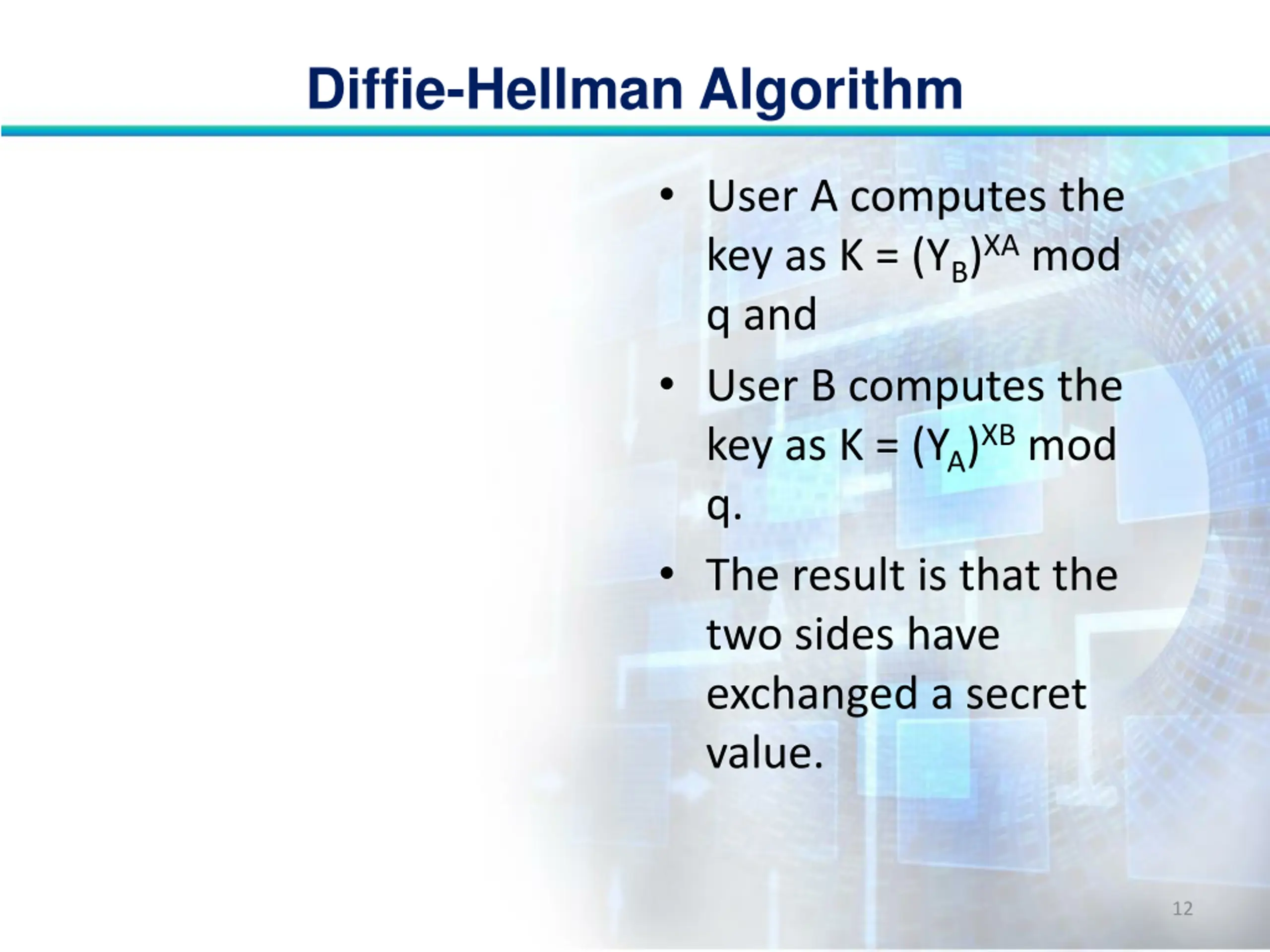

Diffie-Hellman Algorithm User A computes the key as K = (YB)XA mod q and User B computes the key as K = (YA)XB mod q. The result is that the two sides have exchanged a secret value. 12

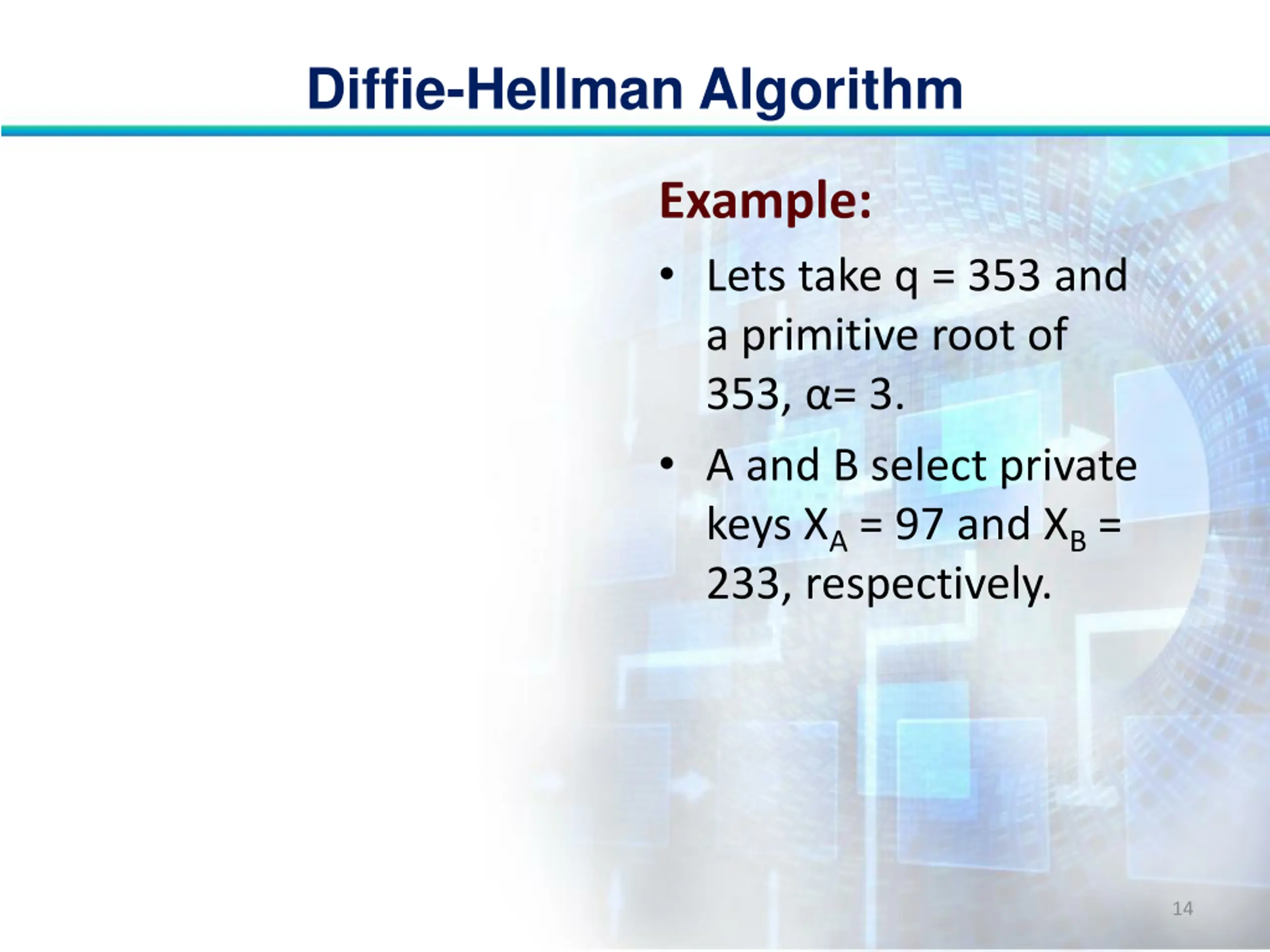

Diffie-Hellman Algorithm Example: Lets take q = 353 and a primitive root of 353, = 3. A and B select private keys XA = 97 and XB = 233, respectively. 14

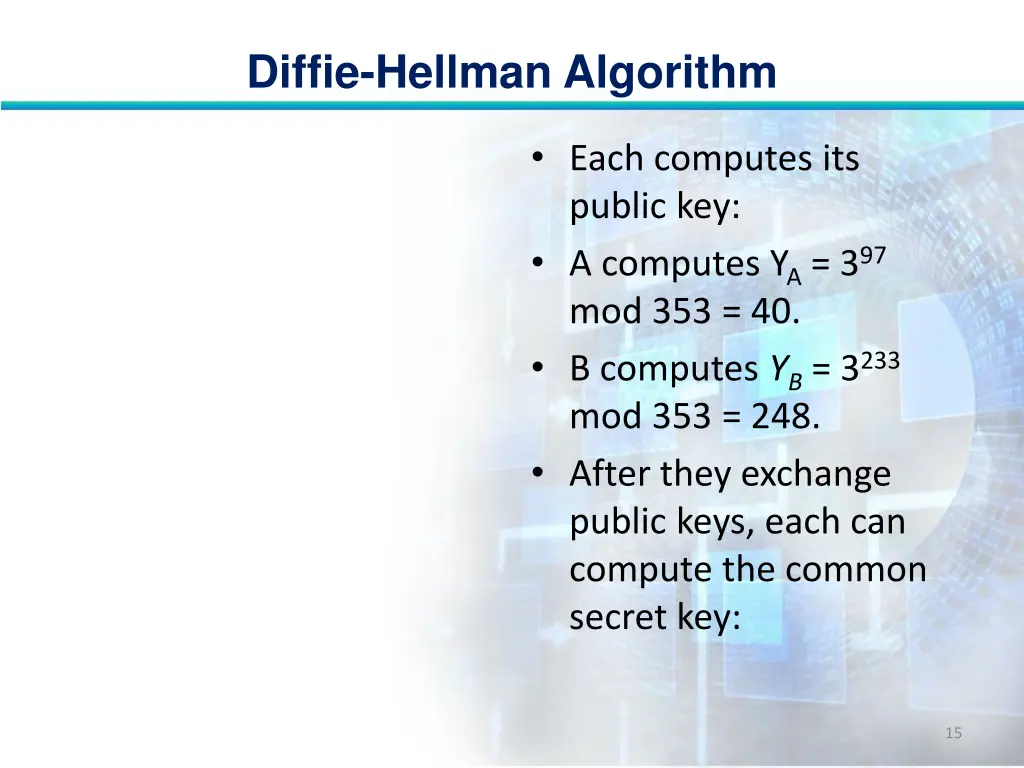

Diffie-Hellman Algorithm Each computes its public key: A computes YA= 397 mod 353 = 40. B computes YB= 3233 mod 353 = 248. After they exchange public keys, each can compute the common secret key: 15

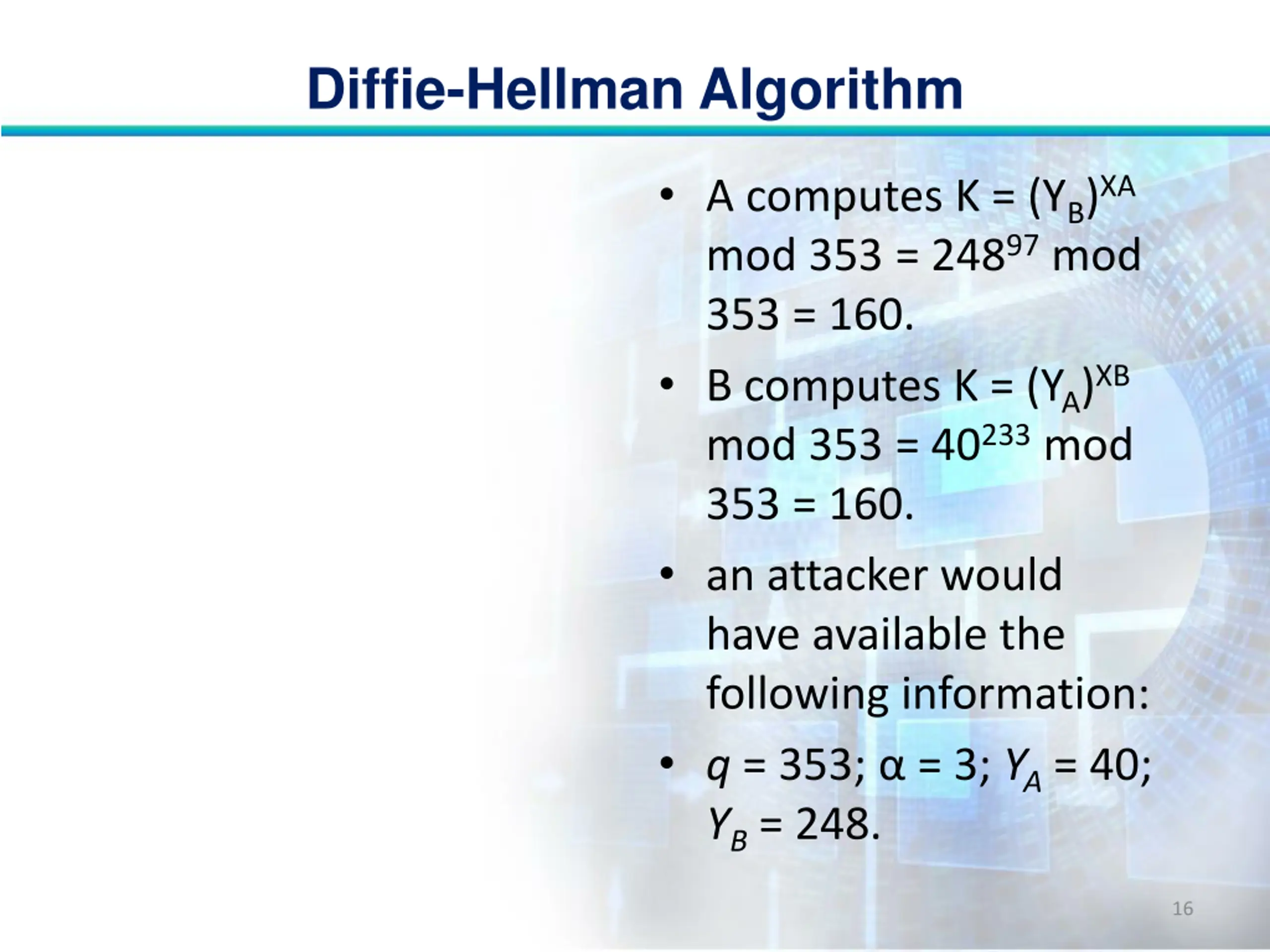

Diffie-Hellman Algorithm A computes K = (YB)XA mod 353 = 24897mod 353 = 160. B computes K = (YA)XB mod 353 = 40233mod 353 = 160. an attacker would have available the following information: q = 353; = 3; YA= 40; YB= 248. 16

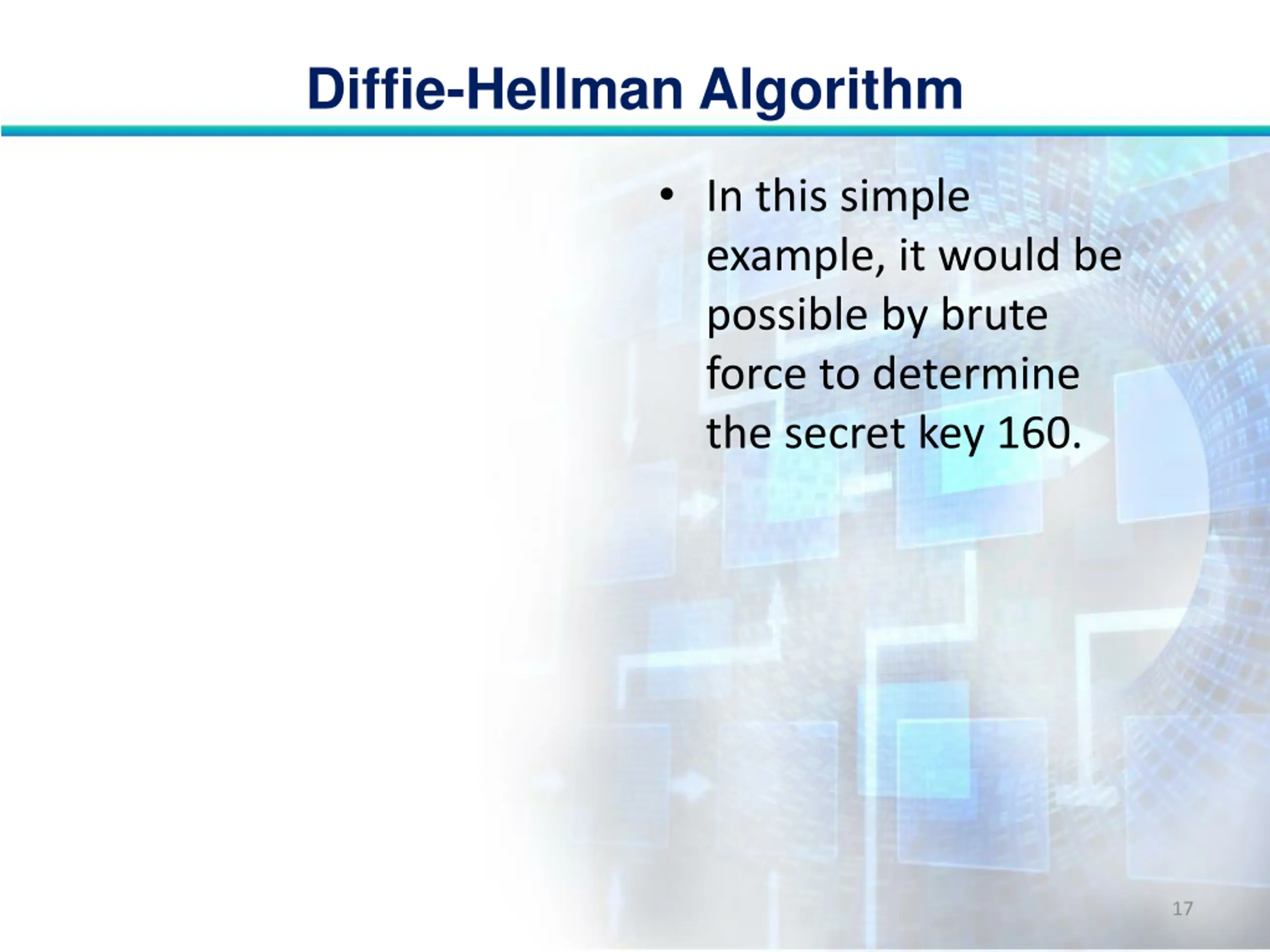

Diffie-Hellman Algorithm In this simple example, it would be possible by brute force to determine the secret key 160. 17

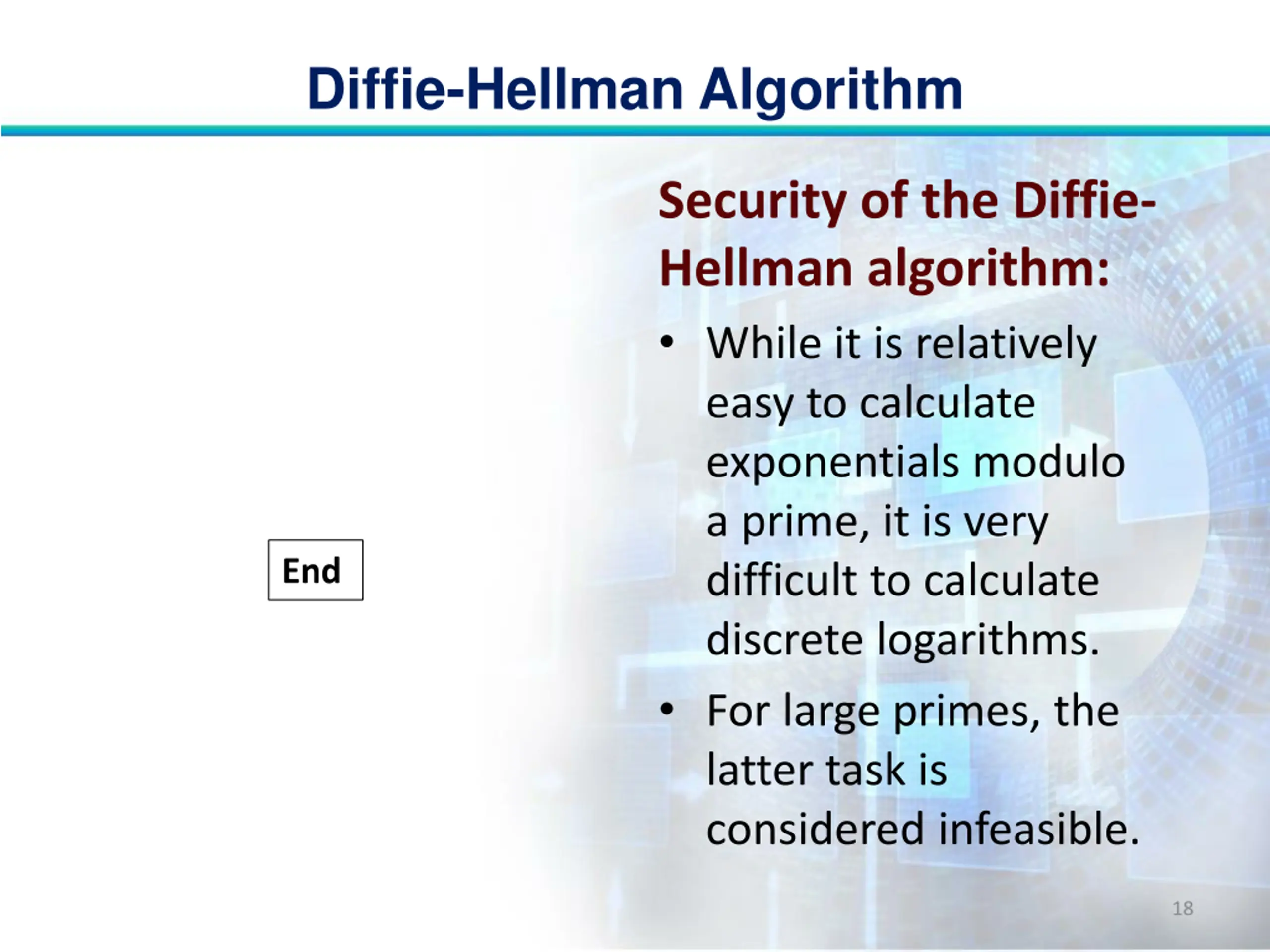

Diffie-Hellman Algorithm Security of the Diffie- Hellman algorithm: While it is relatively easy to calculate exponentials modulo a prime, it is very difficult to calculate discrete logarithms. For large primes, the latter task is considered infeasible. End 18
