Understanding Electric Charges and Fields
Delve into the world of electric charges and fields with explanations on determining charge of particles, effects of electric fields, and interactions between charged particles. Explore concepts such as field lines, induced electric fields, and particle movements in response to different charges.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

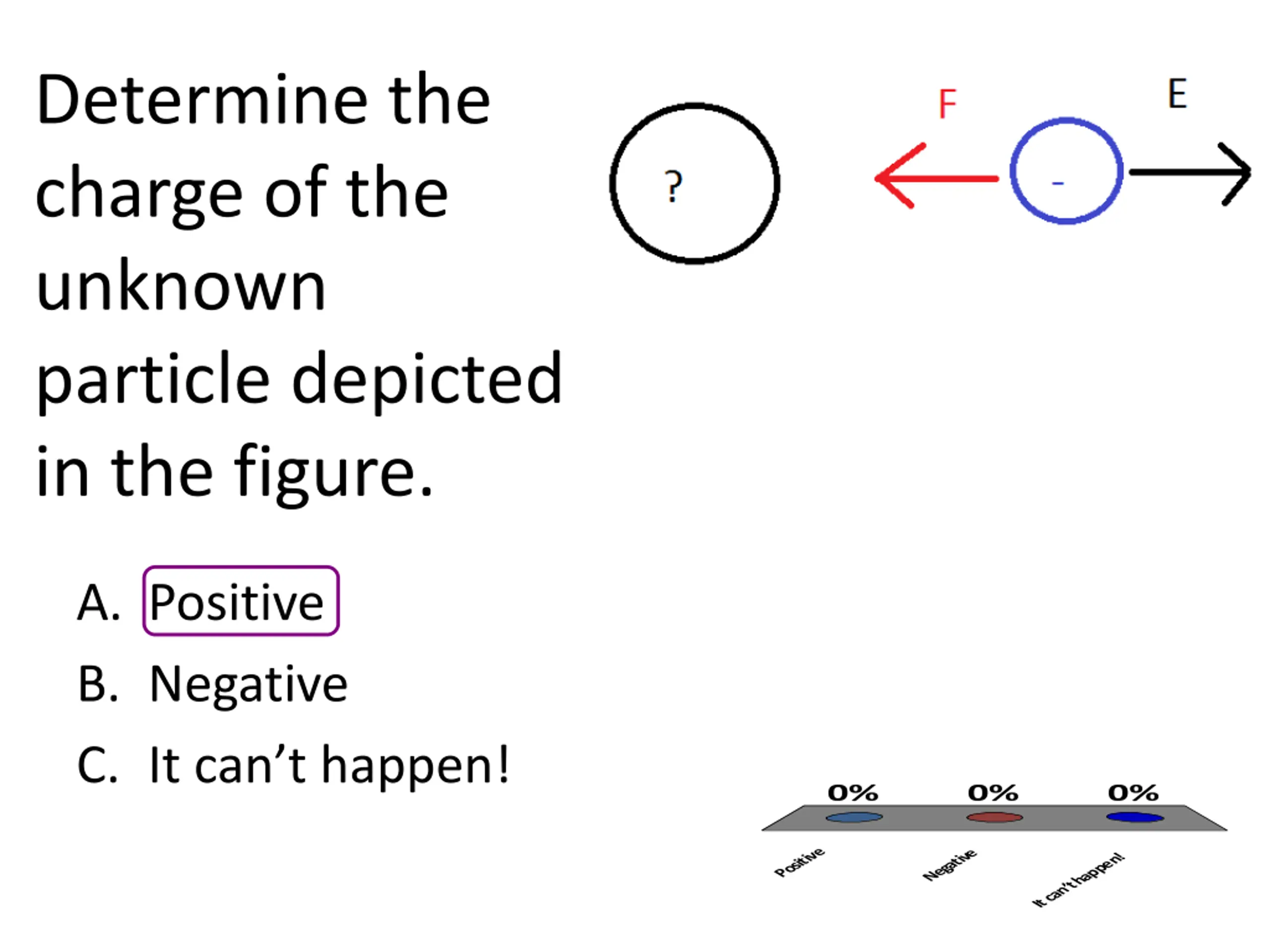

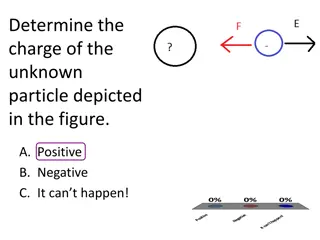

Determine the charge of the unknown particle depicted in the figure. A. Positive B. Negative C. It can t happen! 0% 0% 0% Positive Negative It can t happen!

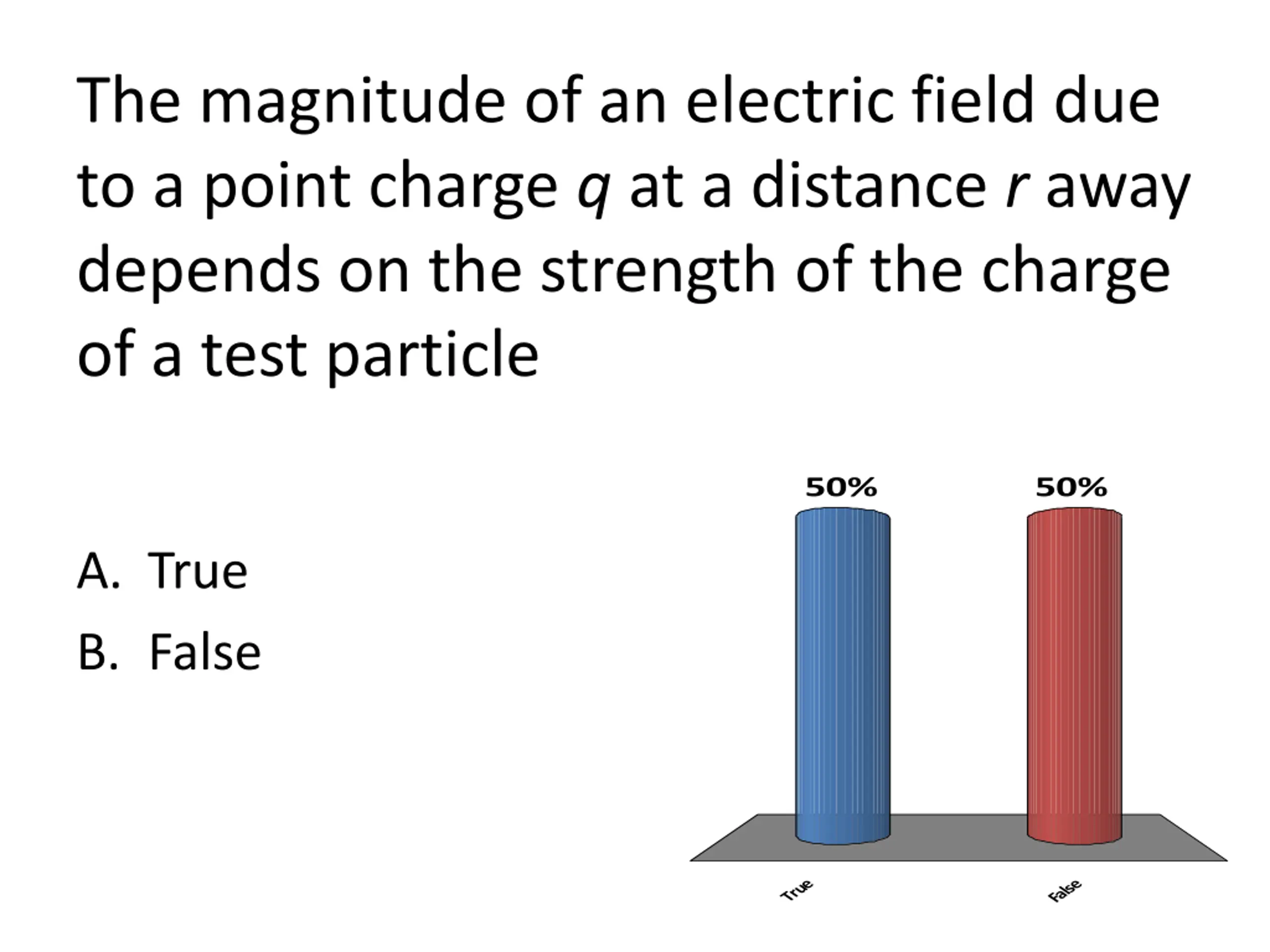

The magnitude of an electric field due to a point charge q at a distance r away depends on the strength of the charge of a test particle 50% 50% A. True B. False True False

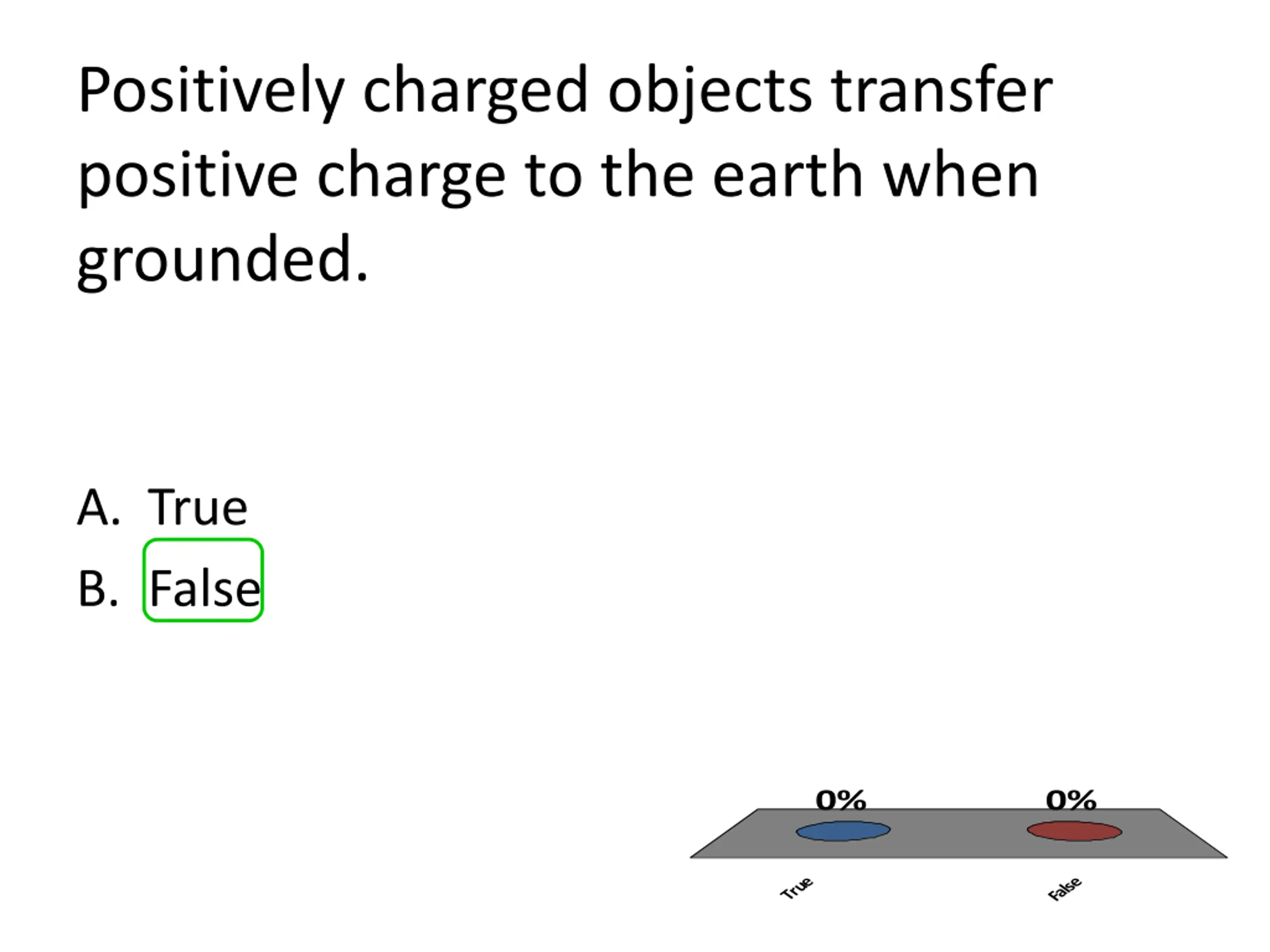

Positively charged objects transfer positive charge to the earth when grounded. A. True B. False 0% 0% True False

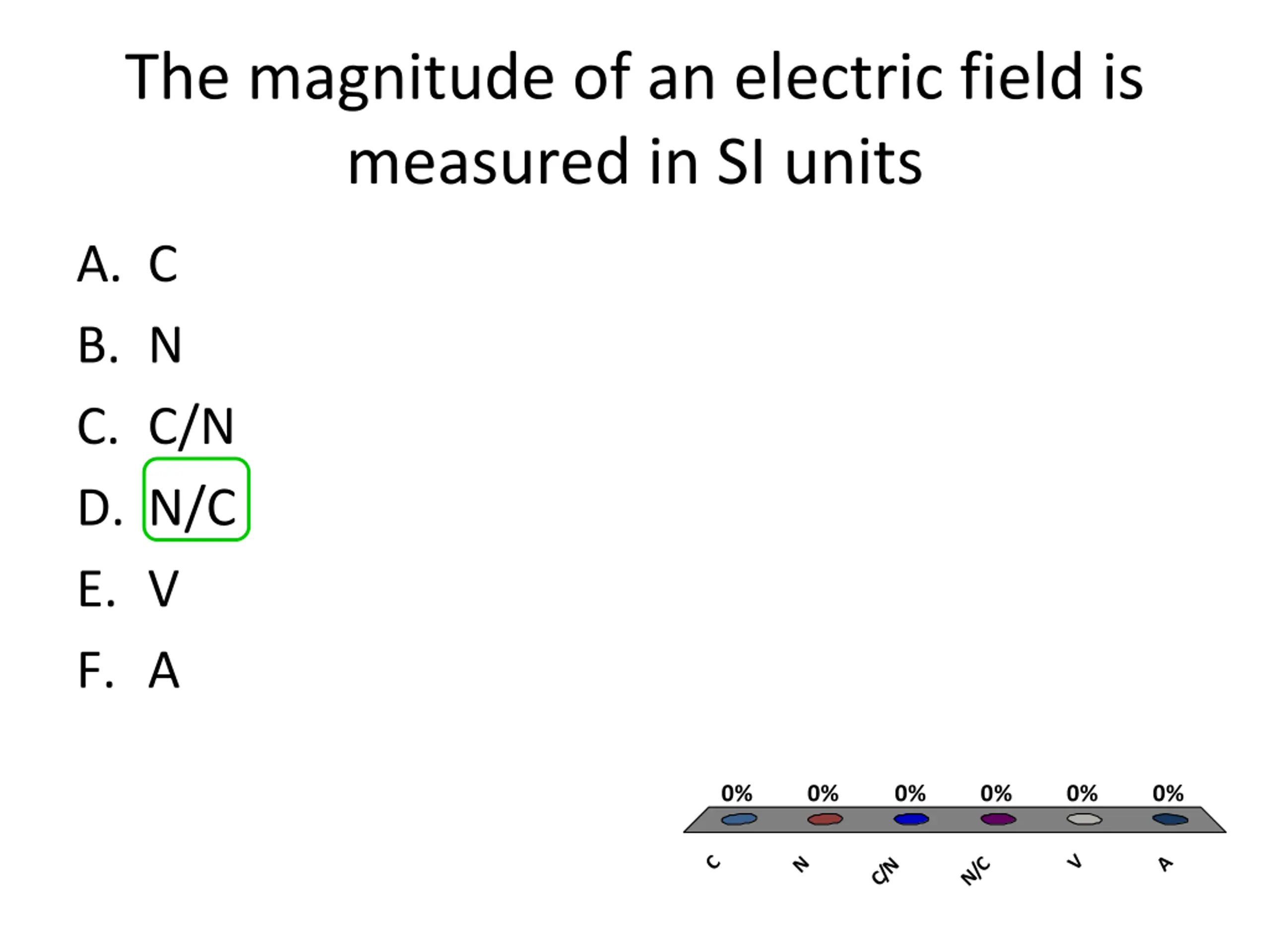

The magnitude of an electric field is measured in SI units A. C B. N C. C/N D. N/C E. V F. A 0% 0% 0% 0% 0% 0% V C A N N/C C/N

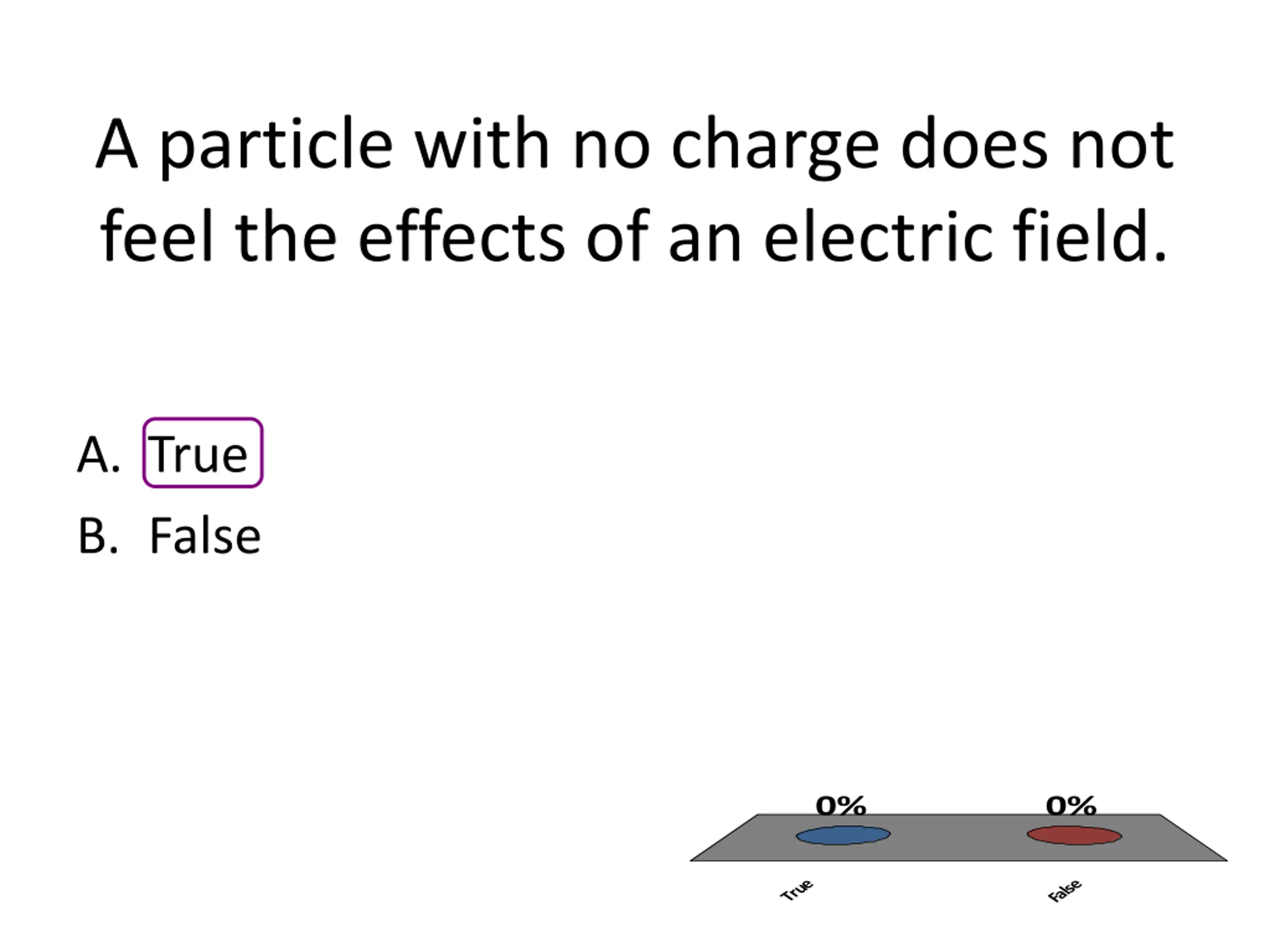

A particle with no charge does not feel the effects of an electric field. A. True B. False 0% 0% True False

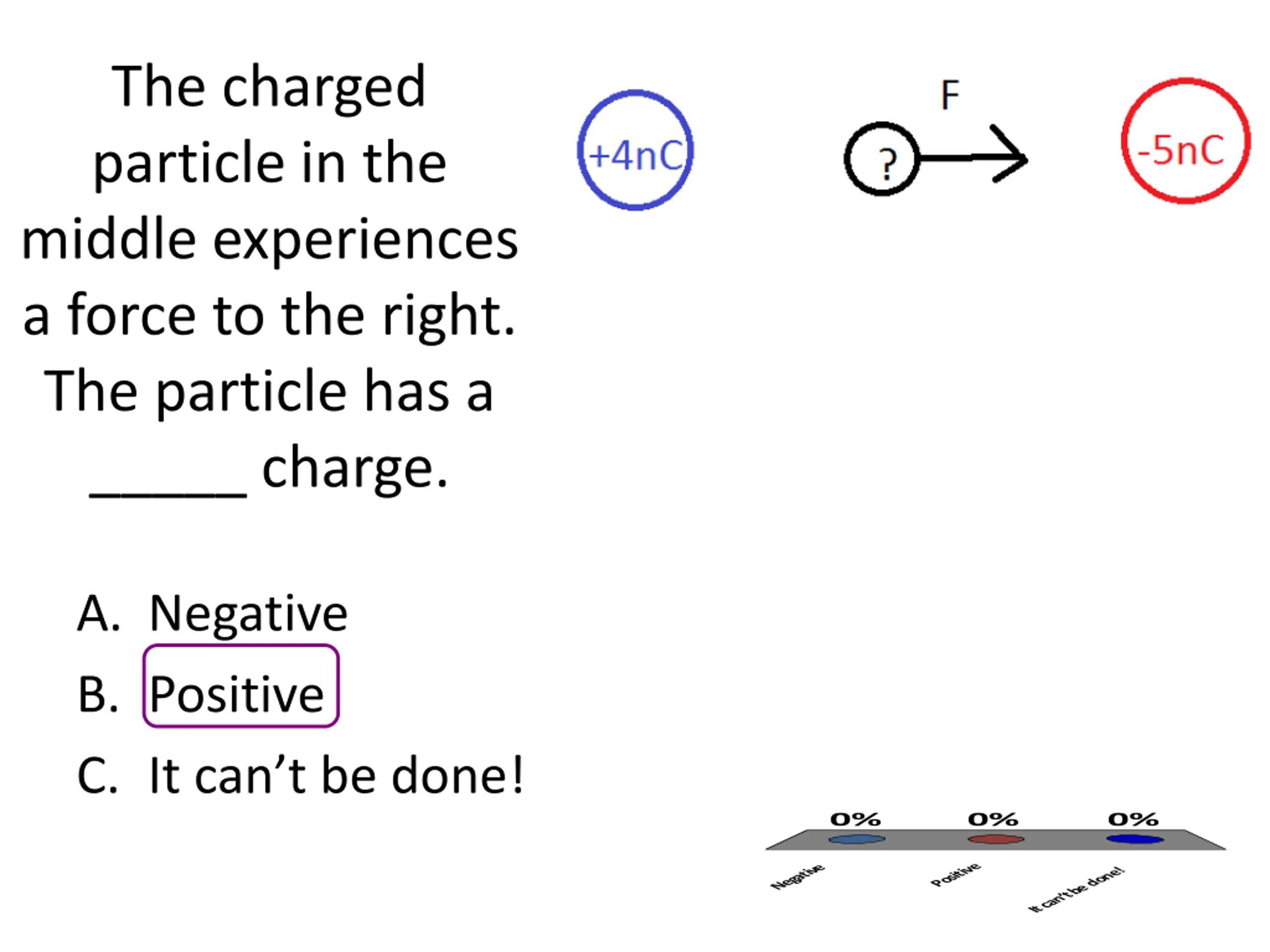

The charged particle in the middle experiences a force to the right. The particle has a _____ charge. A. Negative B. Positive C. It can t be done! 0% 0% 0% Positive Negative It can t be done!

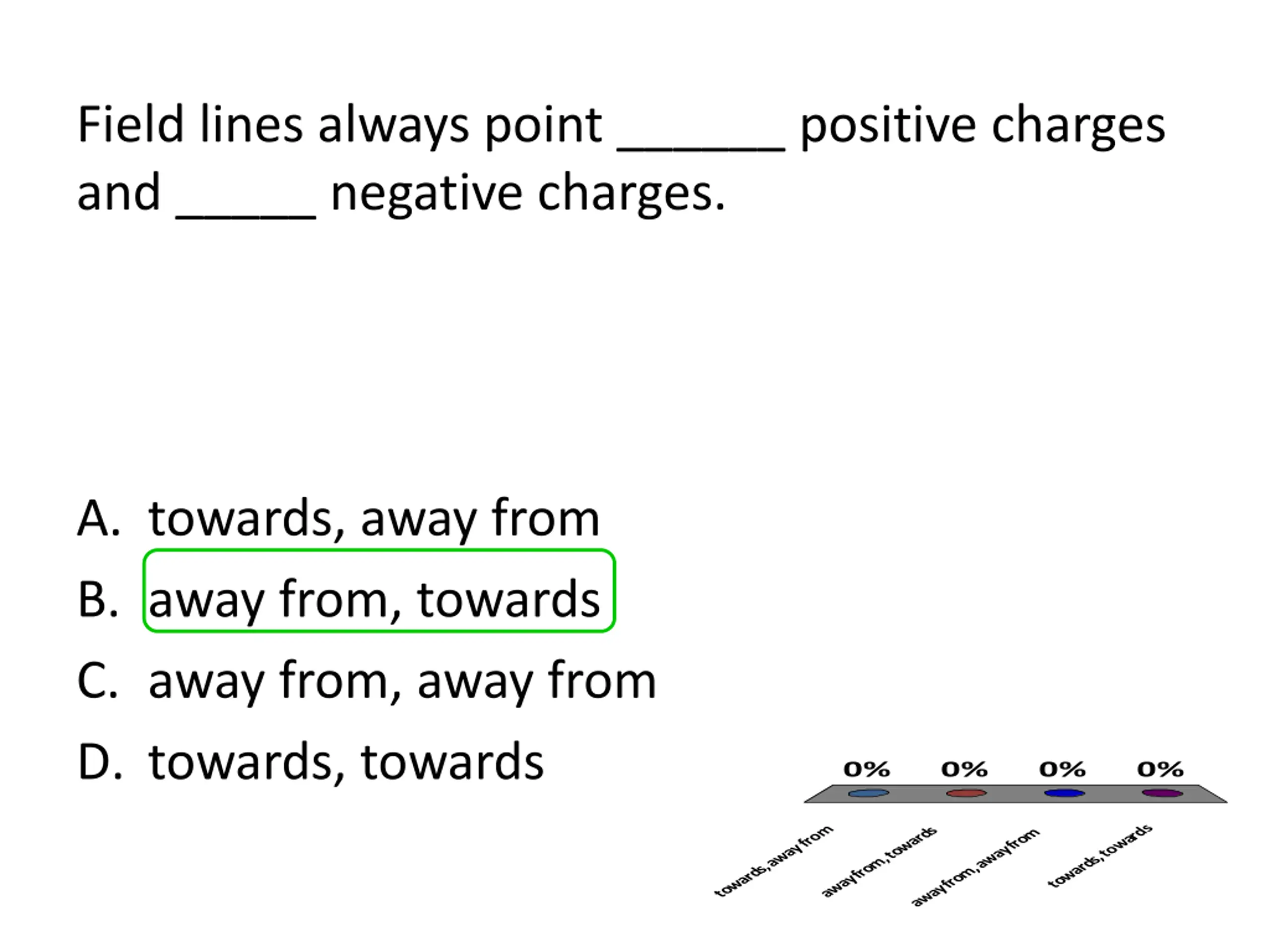

Field lines always point ______ positive charges and _____ negative charges. A. towards, away from B. away from, towards C. away from, away from D. towards, towards 0% 0% 0% 0% towards, towards towards, away from away from, towards away from, away from

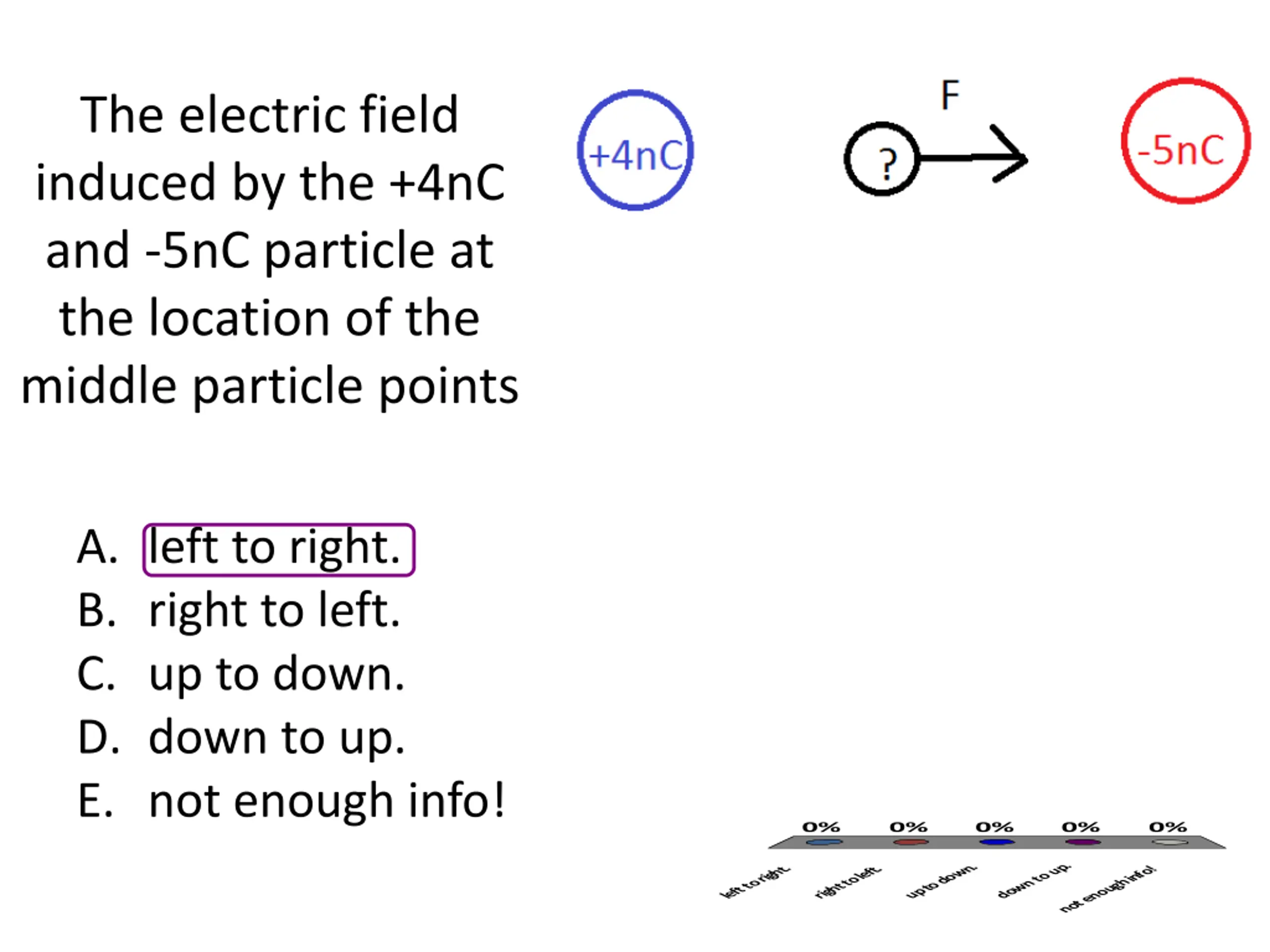

The electric field induced by the +4nC and -5nC particle at the location of the middle particle points A. left to right. B. right to left. C. up to down. D. down to up. E. not enough info! 0% 0% 0% 0% 0% down to up. up to down. left to right. right to left. not enough info!

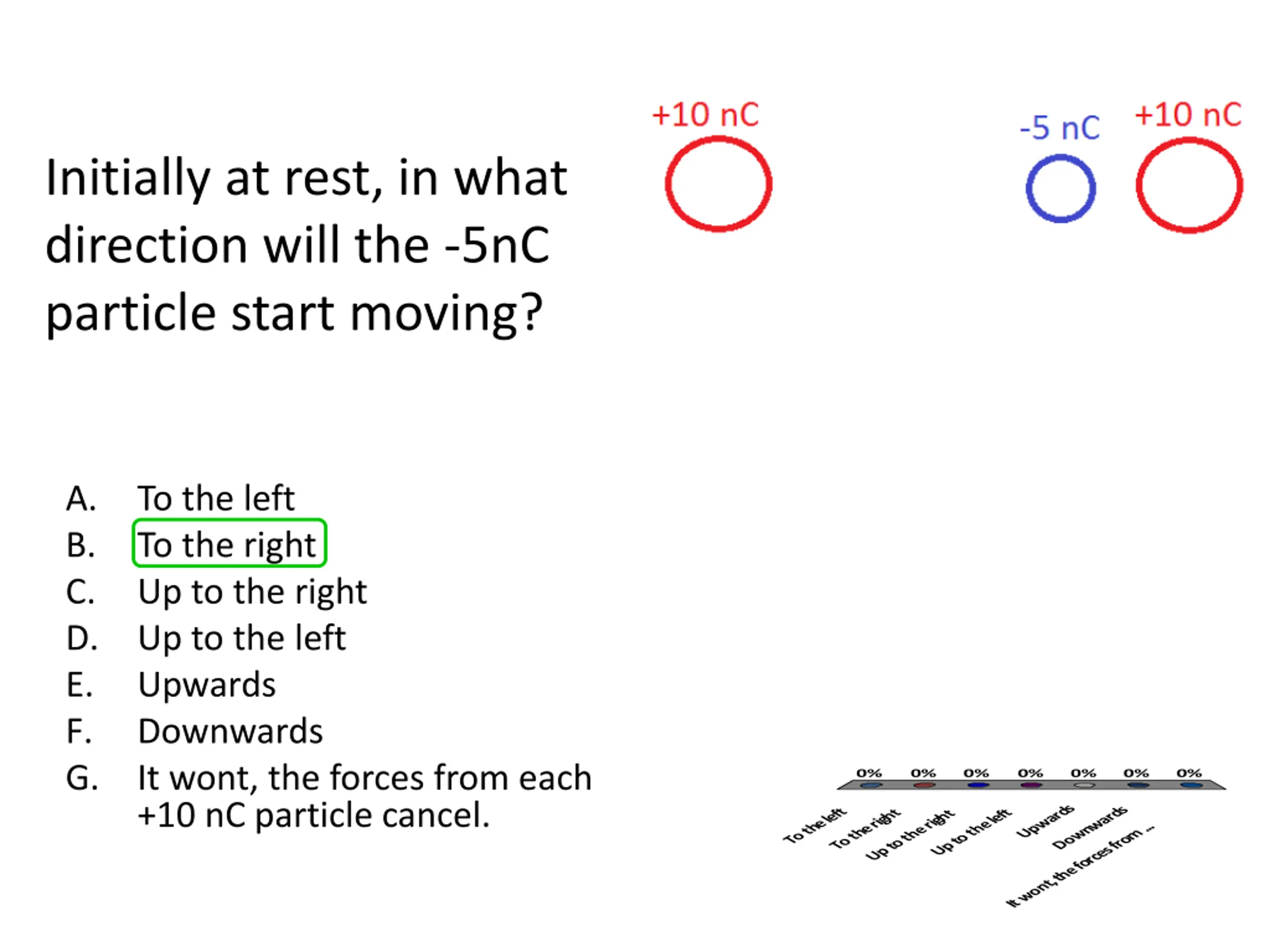

Initially at rest, in what direction will the -5nC particle start moving? A. B. C. D. E. F. G. To the left To the right Up to the right Up to the left Upwards Downwards It wont, the forces from each +10 nC particle cancel. 0% 0% 0% 0% 0% 0% 0% Upwards It wont, the forces from ... Downwards To the left To the right Up to the left Up to the right

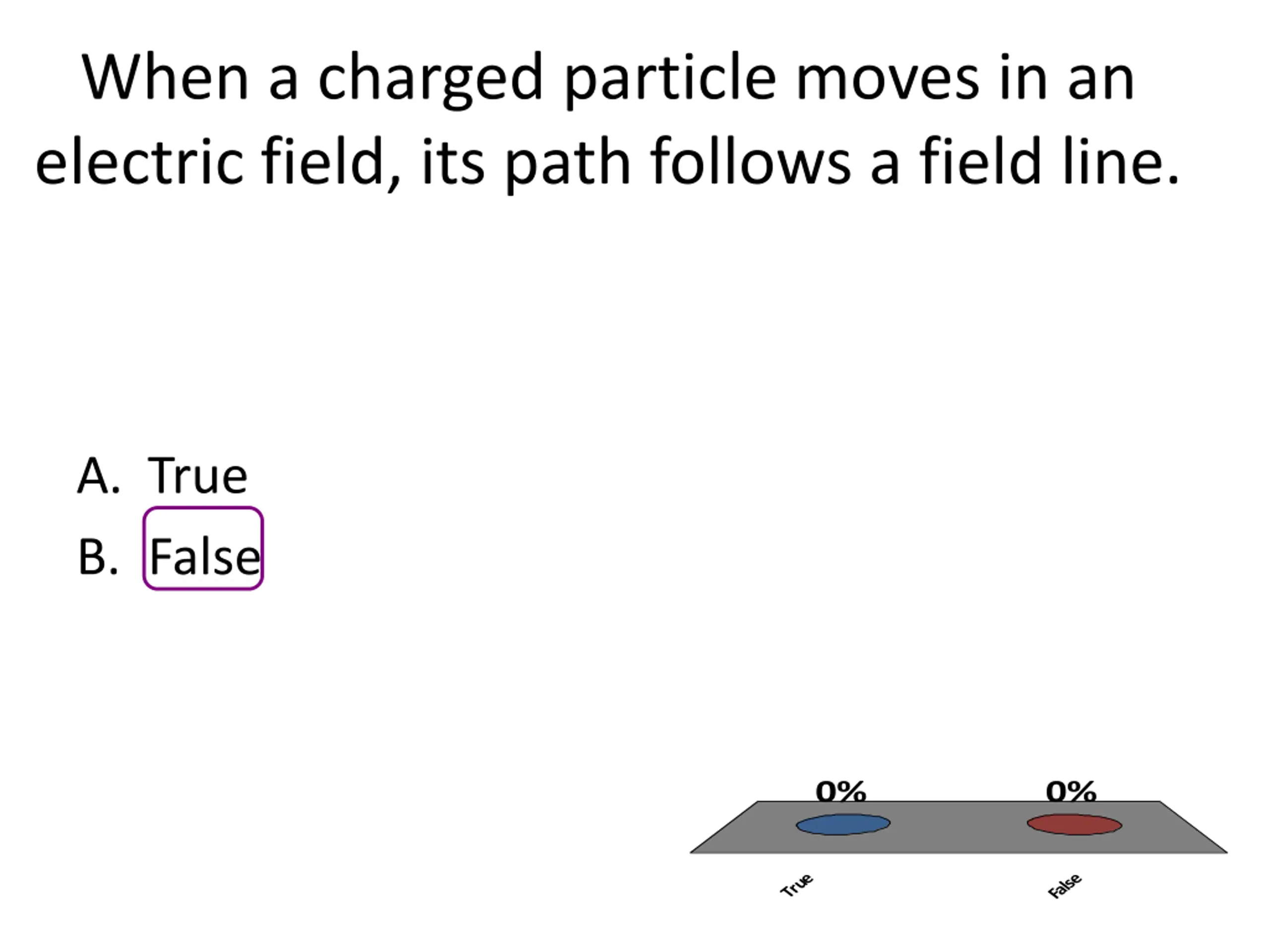

When a charged particle moves in an electric field, its path follows a field line. A. True B. False 0% 0% True False

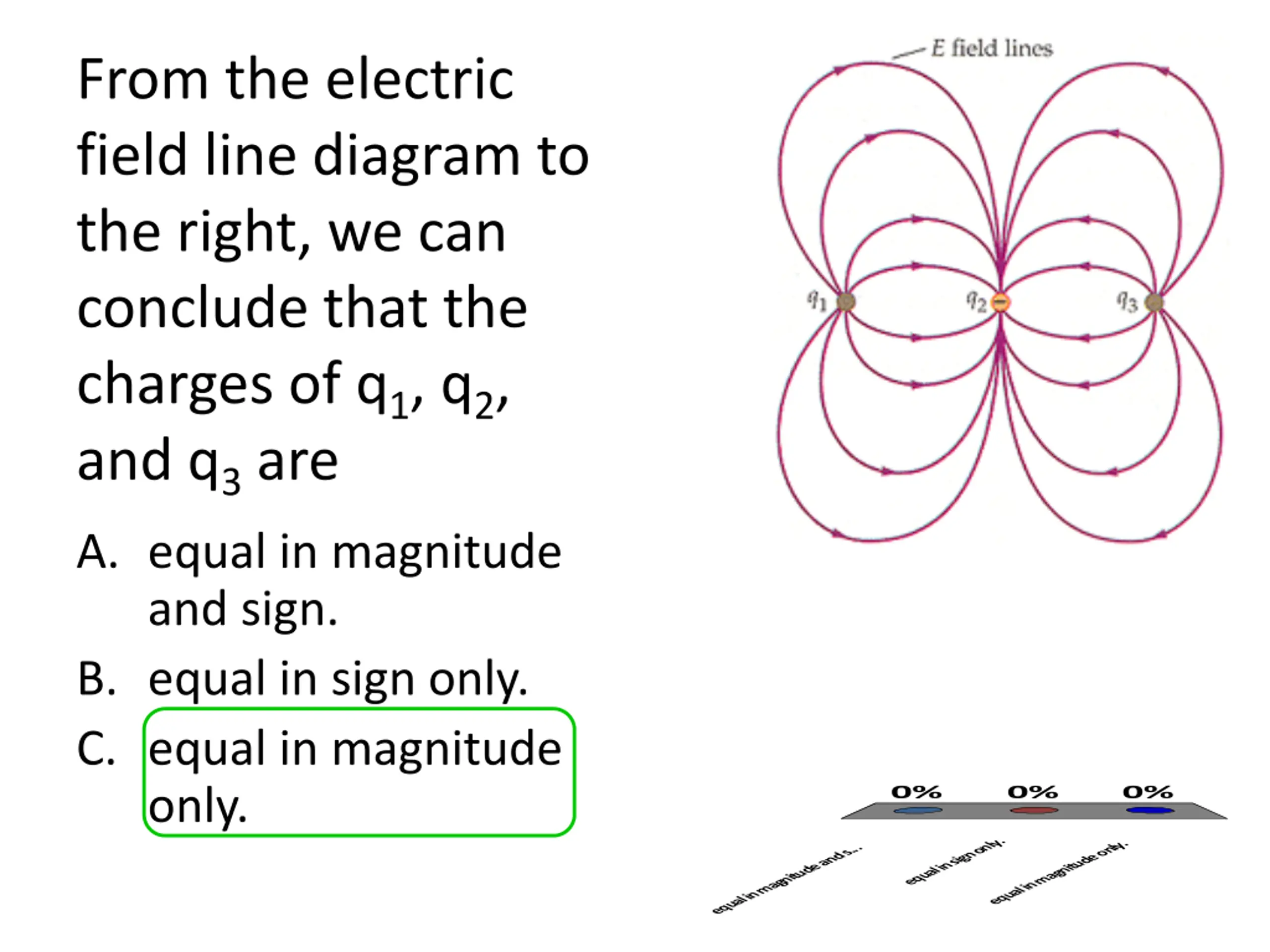

From the electric field line diagram to the right, we can conclude that the charges of q1, q2, and q3are A. equal in magnitude and sign. B. equal in sign only. C. equal in magnitude only. 0% 0% 0% equal in sign only. equal in magnitude only. equal in magnitude and s...

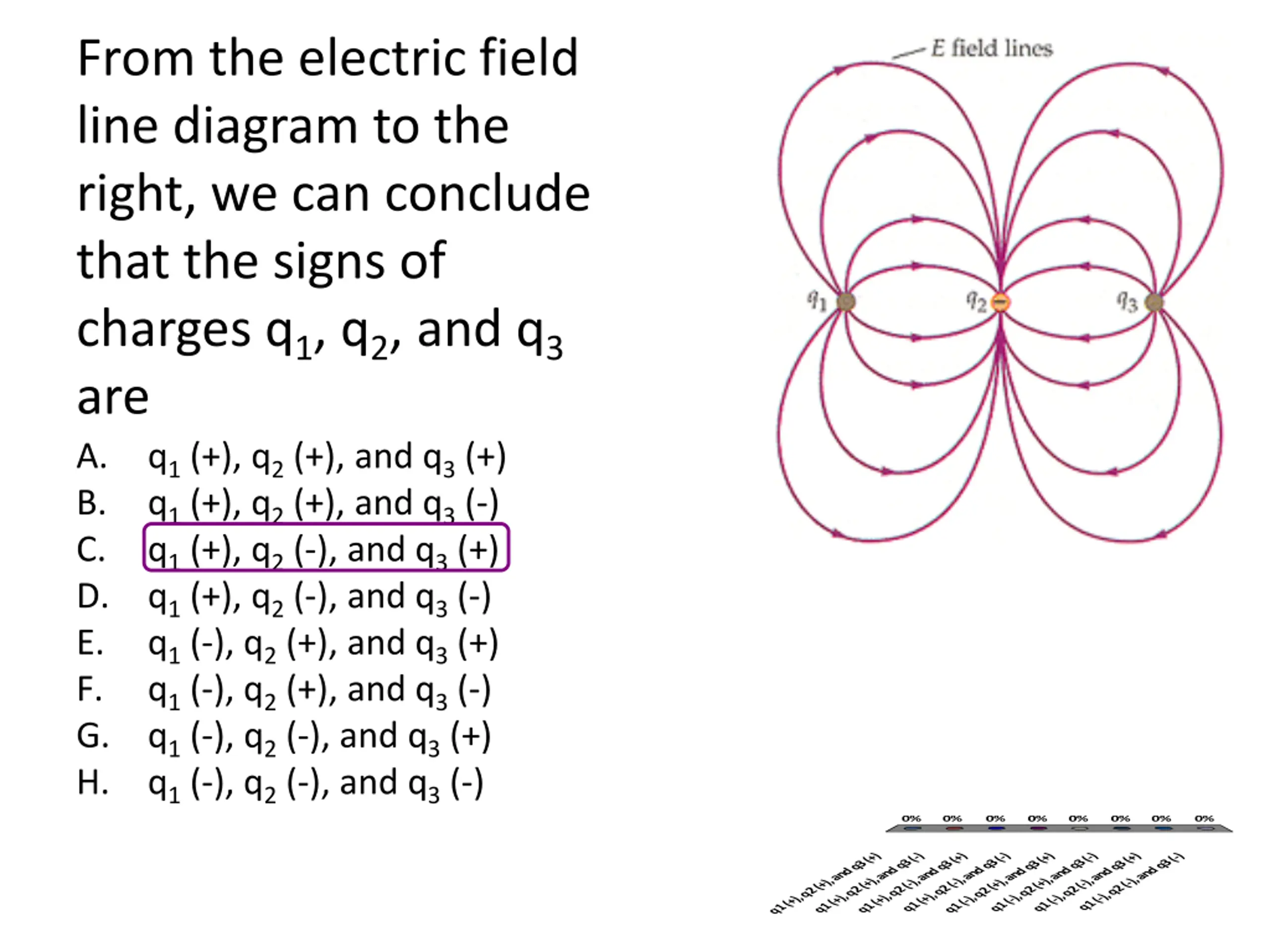

From the electric field line diagram to the right, we can conclude that the signs of charges q1, q2, and q3 are A. q1(+), q2(+), and q3(+) B. q1(+), q2(+), and q3(-) C. q1(+), q2(-), and q3(+) D. q1(+), q2(-), and q3(-) E. q1(-), q2(+), and q3(+) F. q1(-), q2(+), and q3(-) G. q1(-), q2(-), and q3(+) H. q1(-), q2(-), and q3(-) 0% 0% 0% 0% 0% 0% 0% 0% q1 (+), q2 (+), and q3 (+) q1 (+), q2 (+), and q3 (-) q1 (+), q2 (-), and q3 (+) q1 (-), q2 (+), and q3 (+) q1 (+), q2 (-), and q3 (-) q1 (-), q2 (+), and q3 (-) q1 (-), q2 (-), and q3 (+) q1 (-), q2 (-), and q3 (-)
