Understanding Electrocardiograms: Leads, Waves, and Interpretation
"Learn about Electrocardiograms (ECGs or EKGs), a diagnostic test for heart health, including the different types of leads, ECG wave shapes, and interpretations of P waves, QRS complexes, and T waves. Find out how ECGs are performed, the conditions that require an ECG, and more."
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
ECG OR EKG Electrocardiogram OR Electrocardiograph

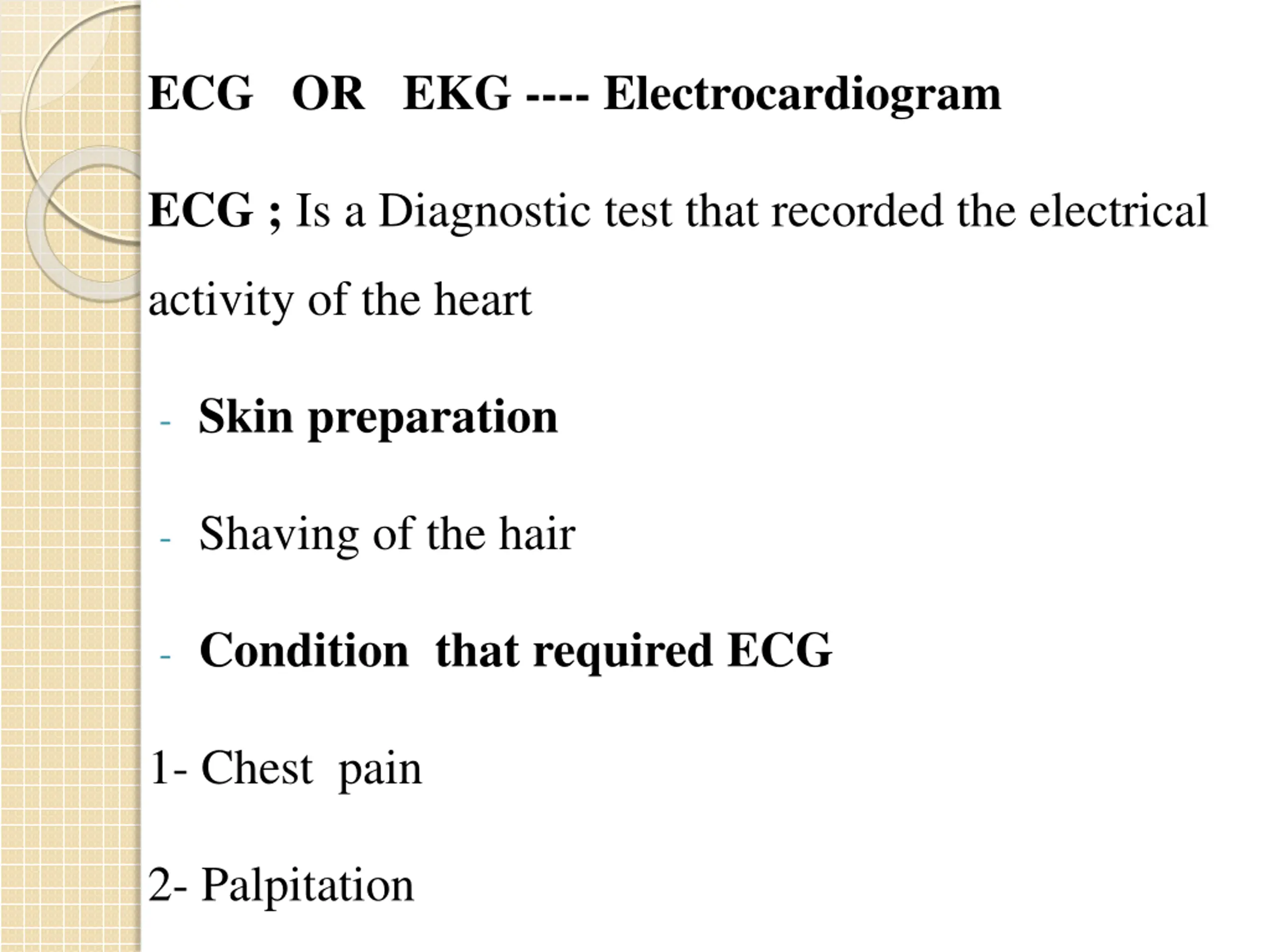

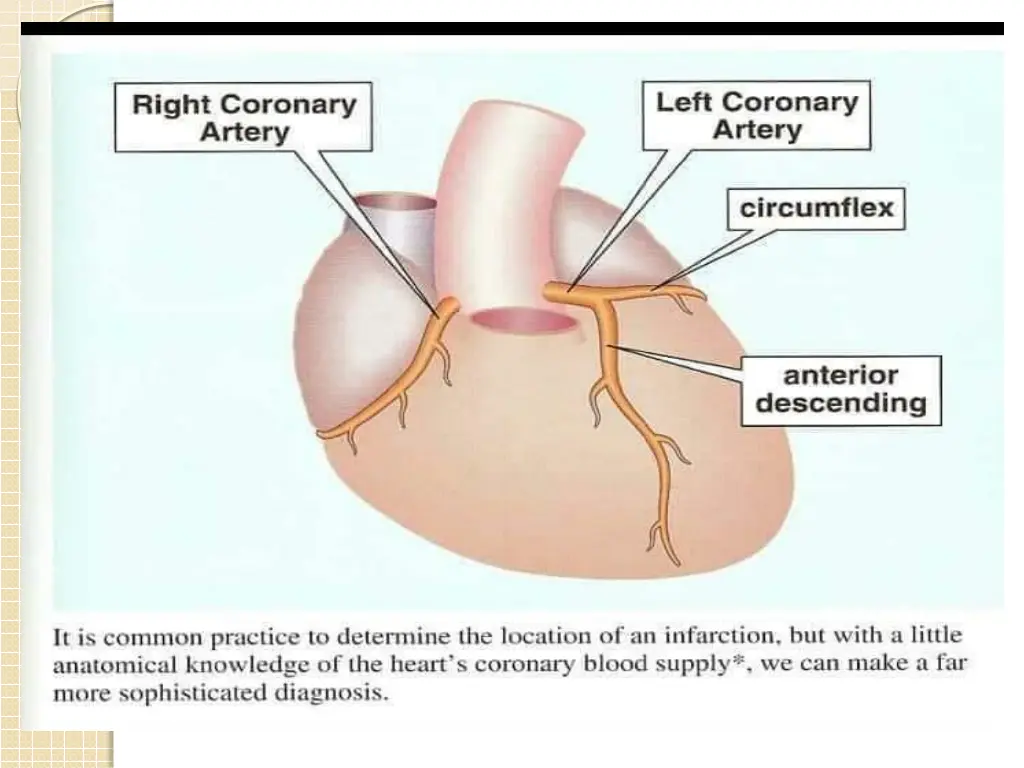

ECG OR EKG ---- Electrocardiogram ECG ; Is a Diagnostic test that recorded the electrical activity of the heart - Skin preparation - Shaving of the hair - Condition that required ECG 1- Chest pain 2- Palpitation

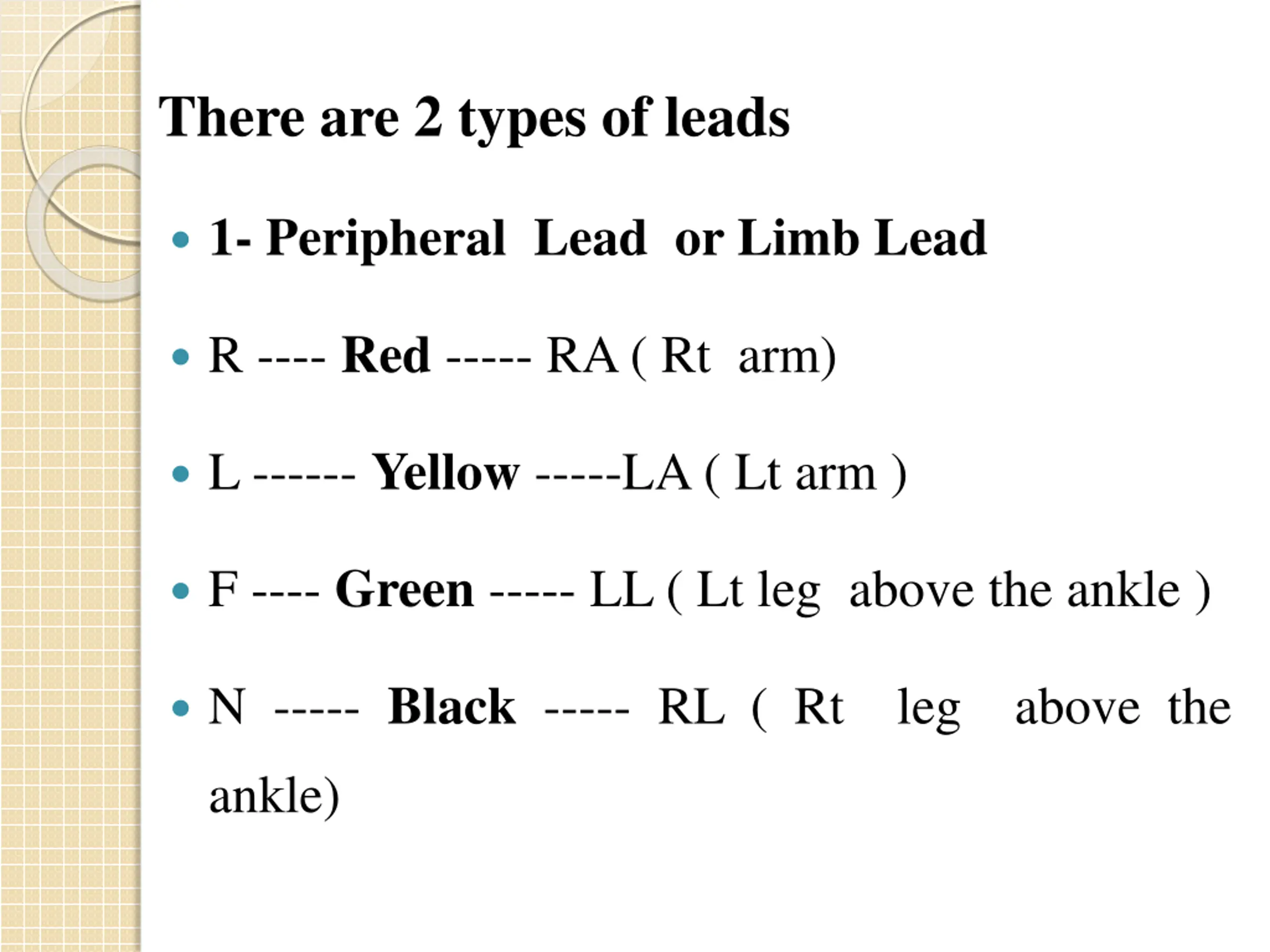

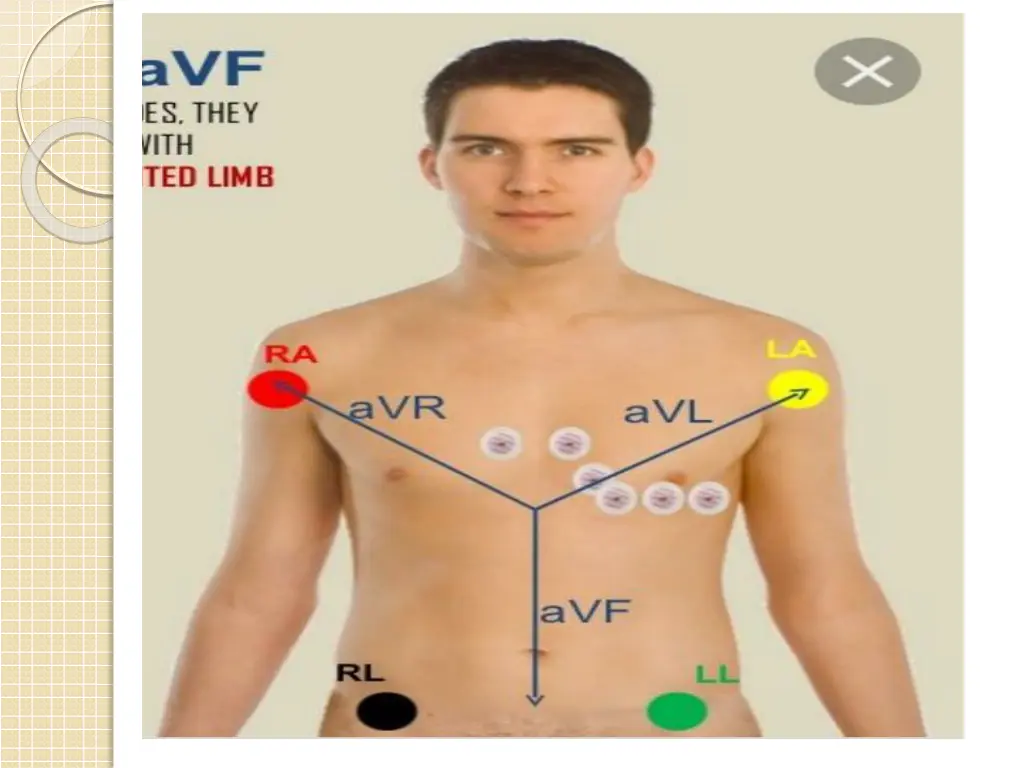

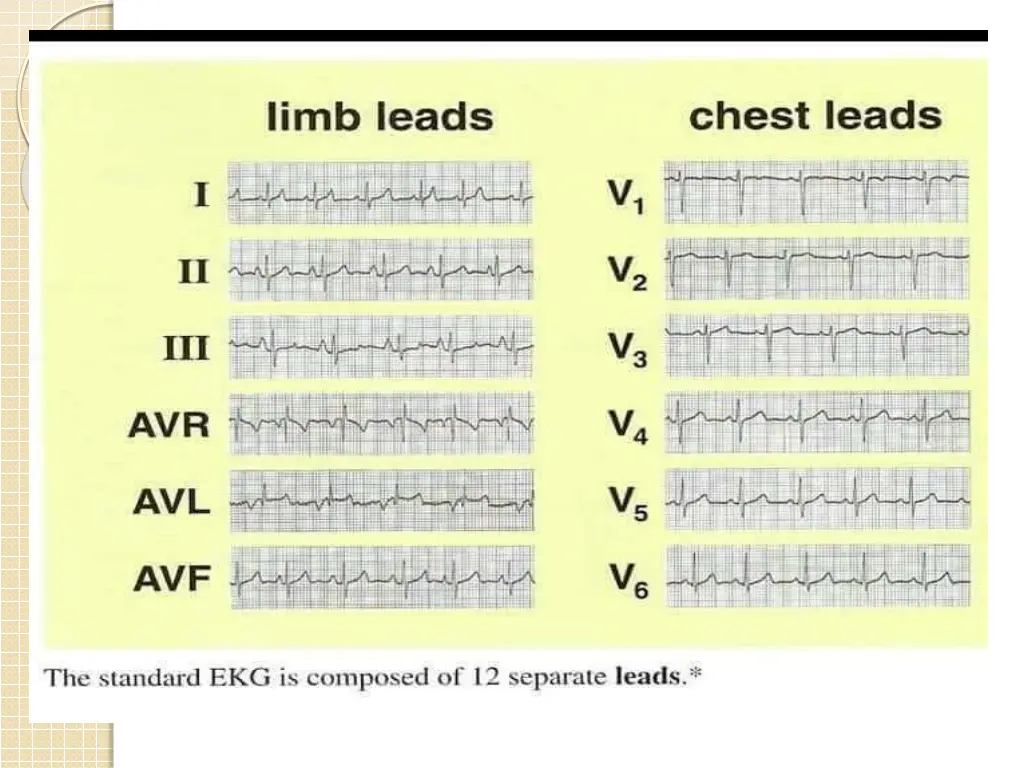

There are 2 types of leads 1- Peripheral Lead or Limb Lead R ---- Red ----- RA( Rt arm) L ------ Yellow -----LA ( Lt arm ) F ---- Green ----- LL ( Lt leg above the ankle ) N ----- Black ----- RL ( Rt leg above the ankle)

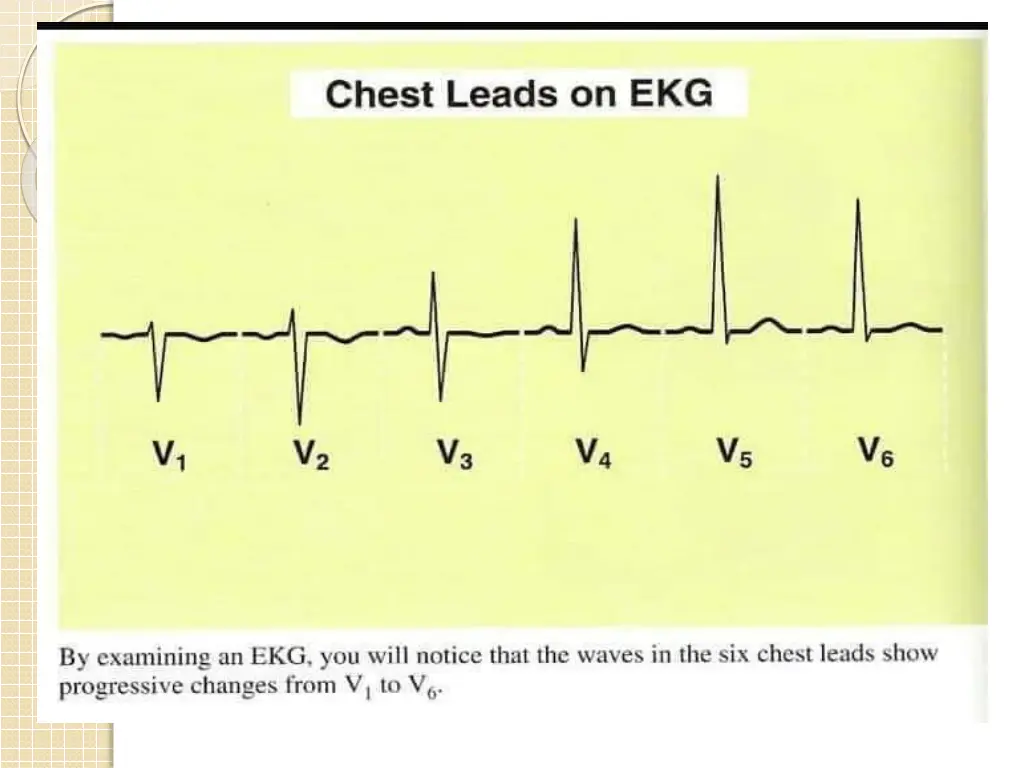

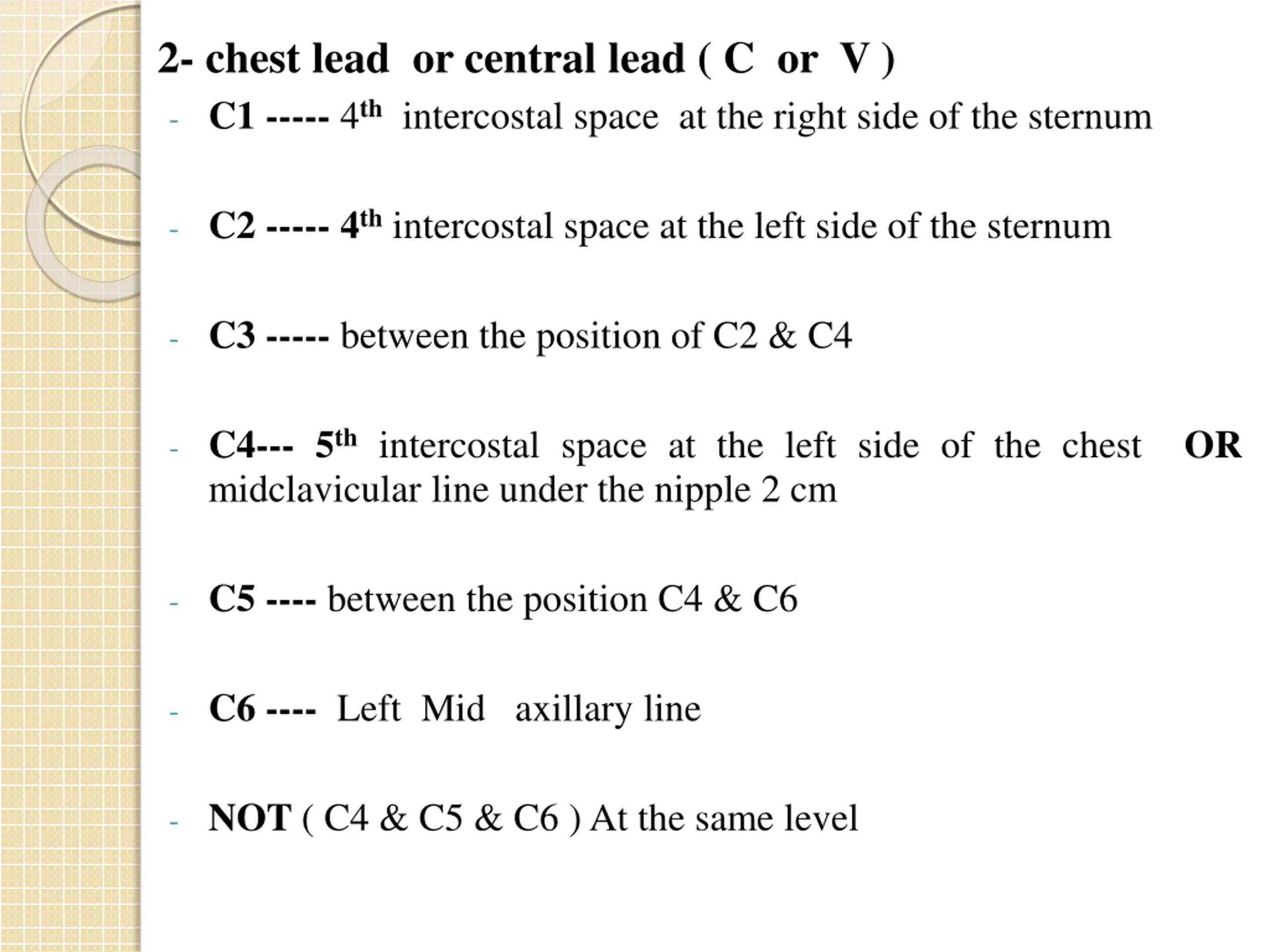

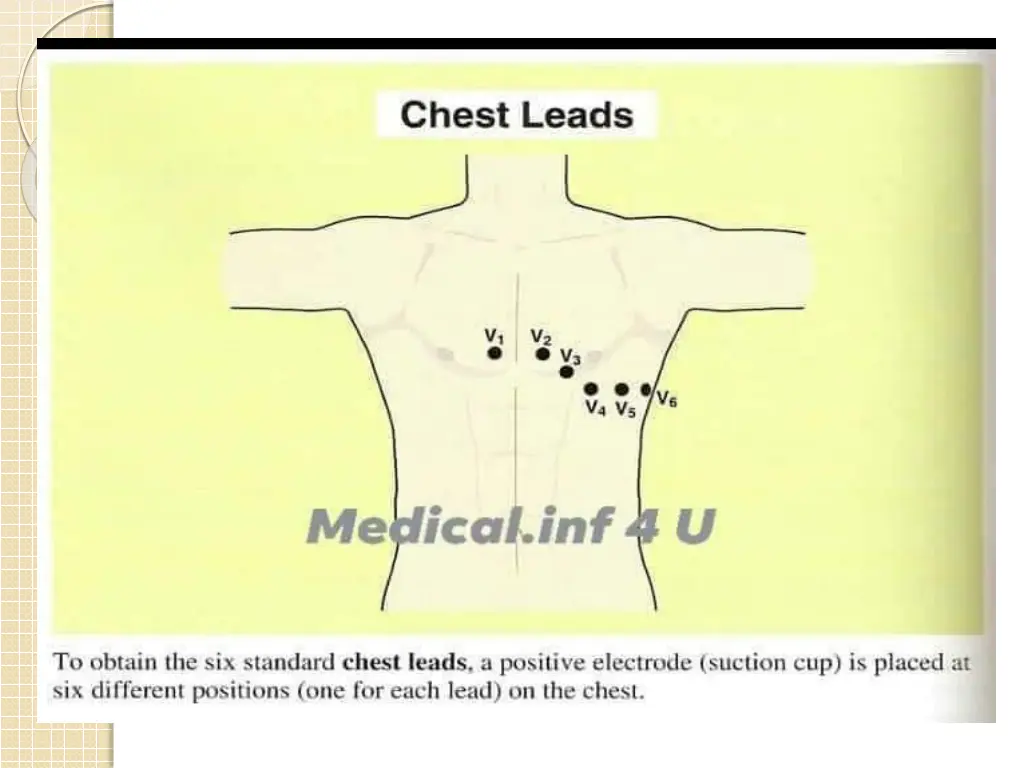

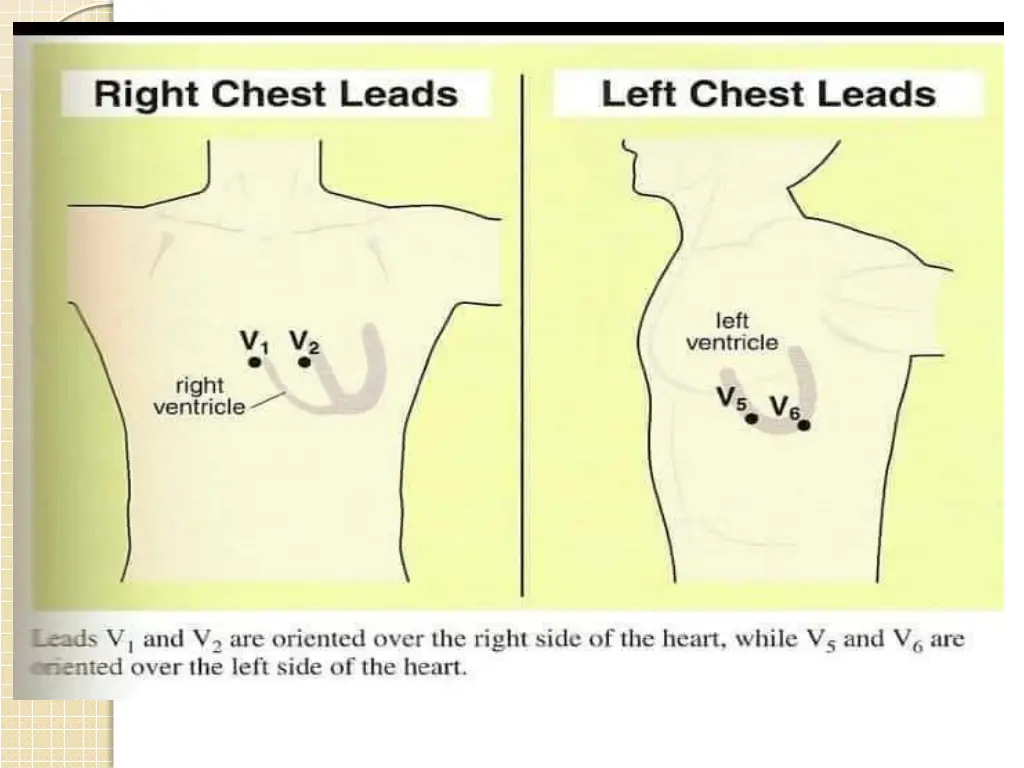

2- chest lead or central lead ( C or V ) - C1 ----- 4thintercostal space at the right side of the sternum - C2 ----- 4thintercostal space at the left side of the sternum - C3 ----- between the position of C2 & C4 - C4--- 5thintercostal space at the left side of the chest OR midclavicular line under the nipple 2 cm - C5 ---- between the position C4 & C6 - C6 ---- Left Mid axillary line - NOT ( C4 & C5 & C6 ) At the same level

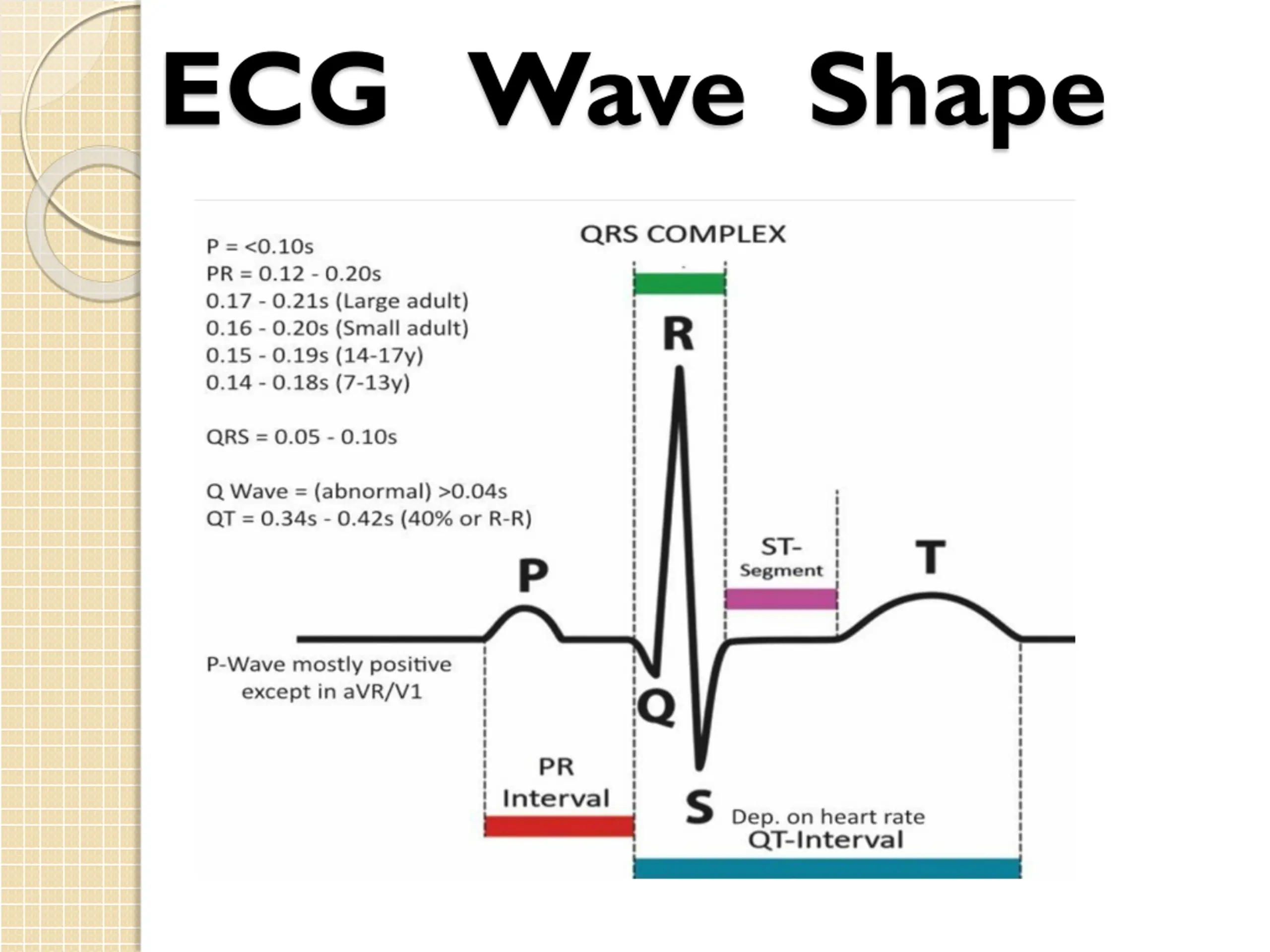

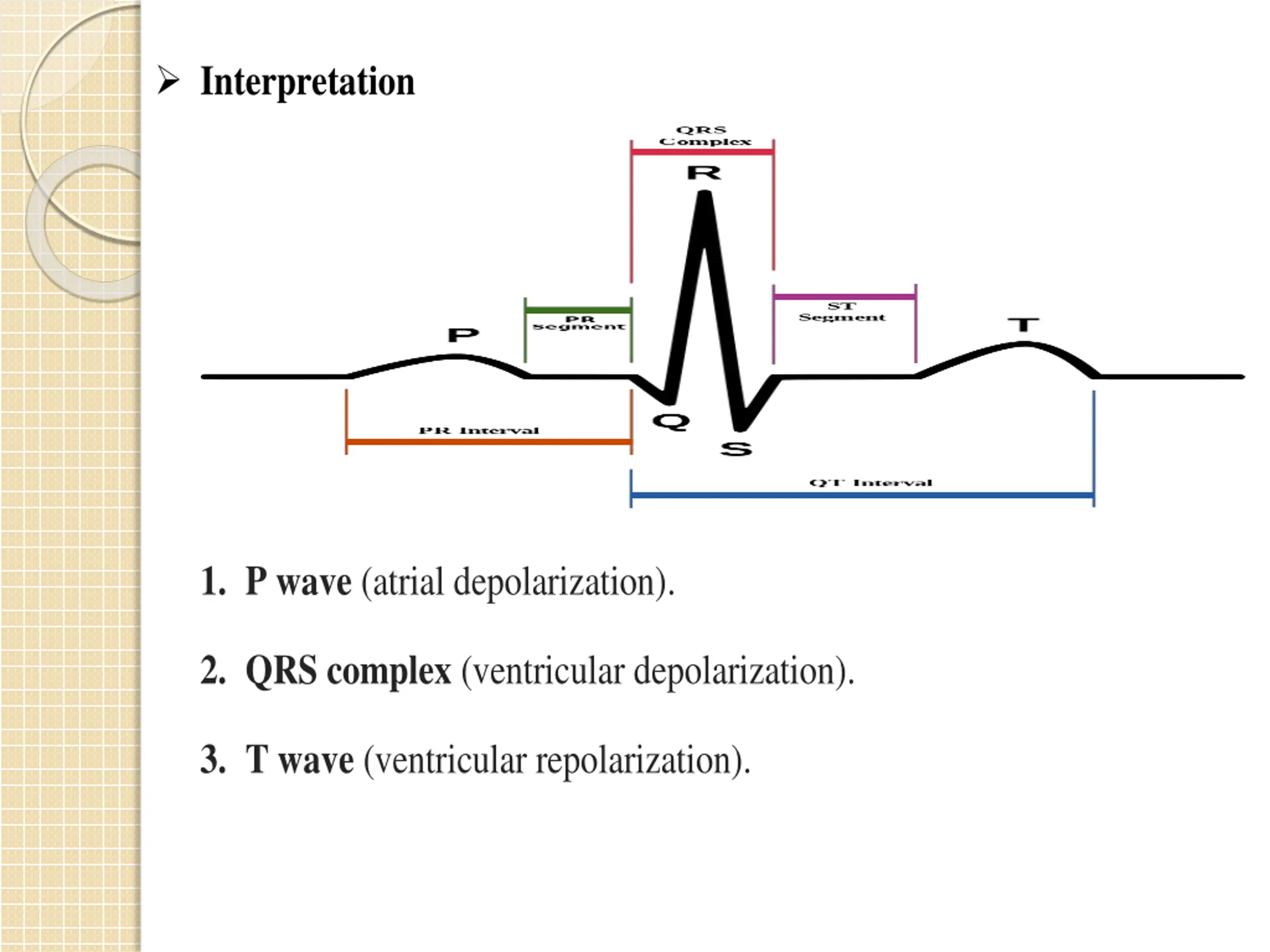

Interpretation 1.P wave (atrial depolarization). 2.QRS complex (ventricular depolarization). 3.T wave (ventricular repolarization).
