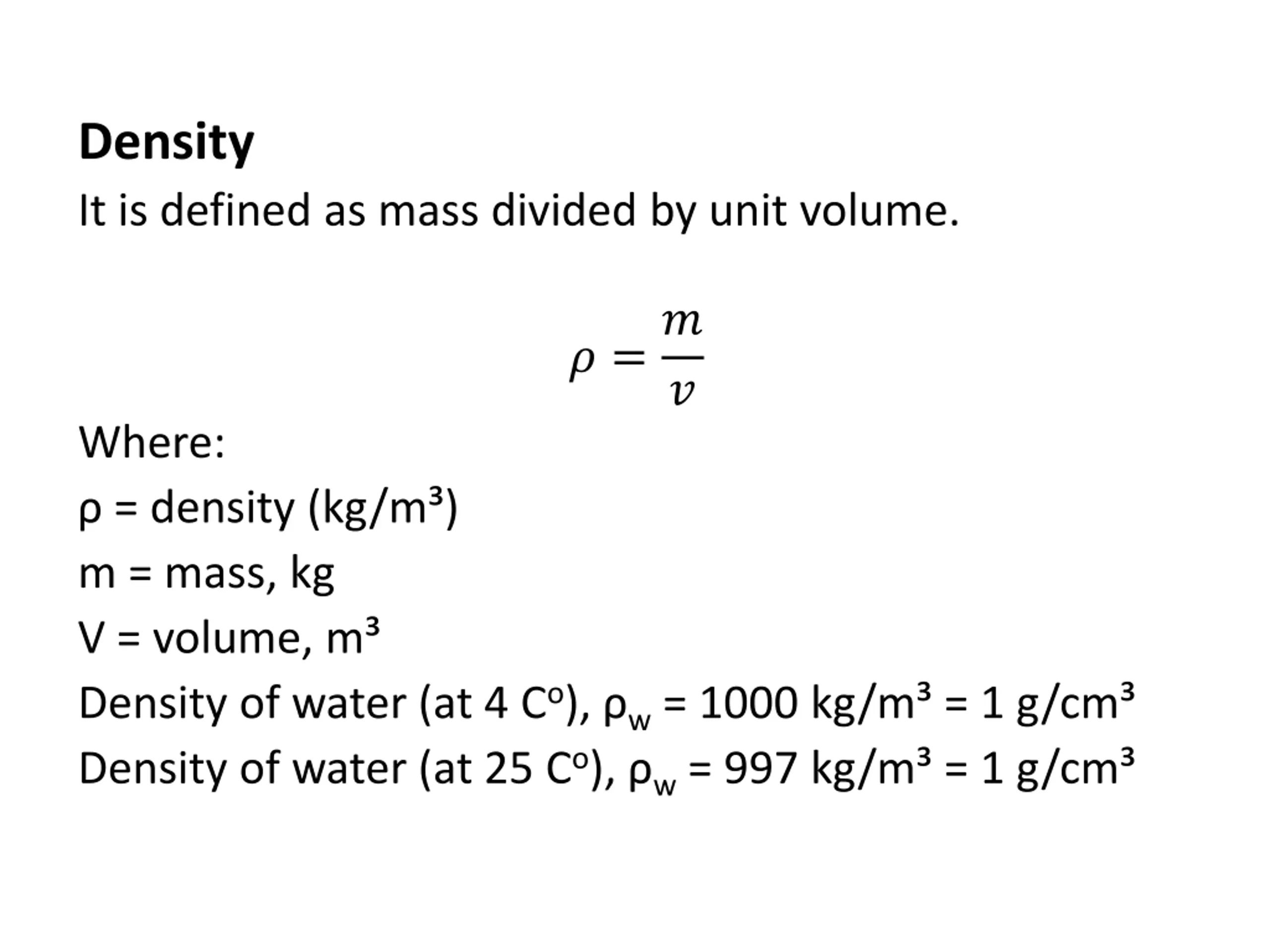

Density It is defined as mass divided by unit volume. ? =? ? Where: = density (kg/m ) m = mass, kg V = volume, m Density of water (at 4 Co), w= 1000 kg/m = 1 g/cm Density of water (at 25 Co), w= 997 kg/m = 1 g/cm

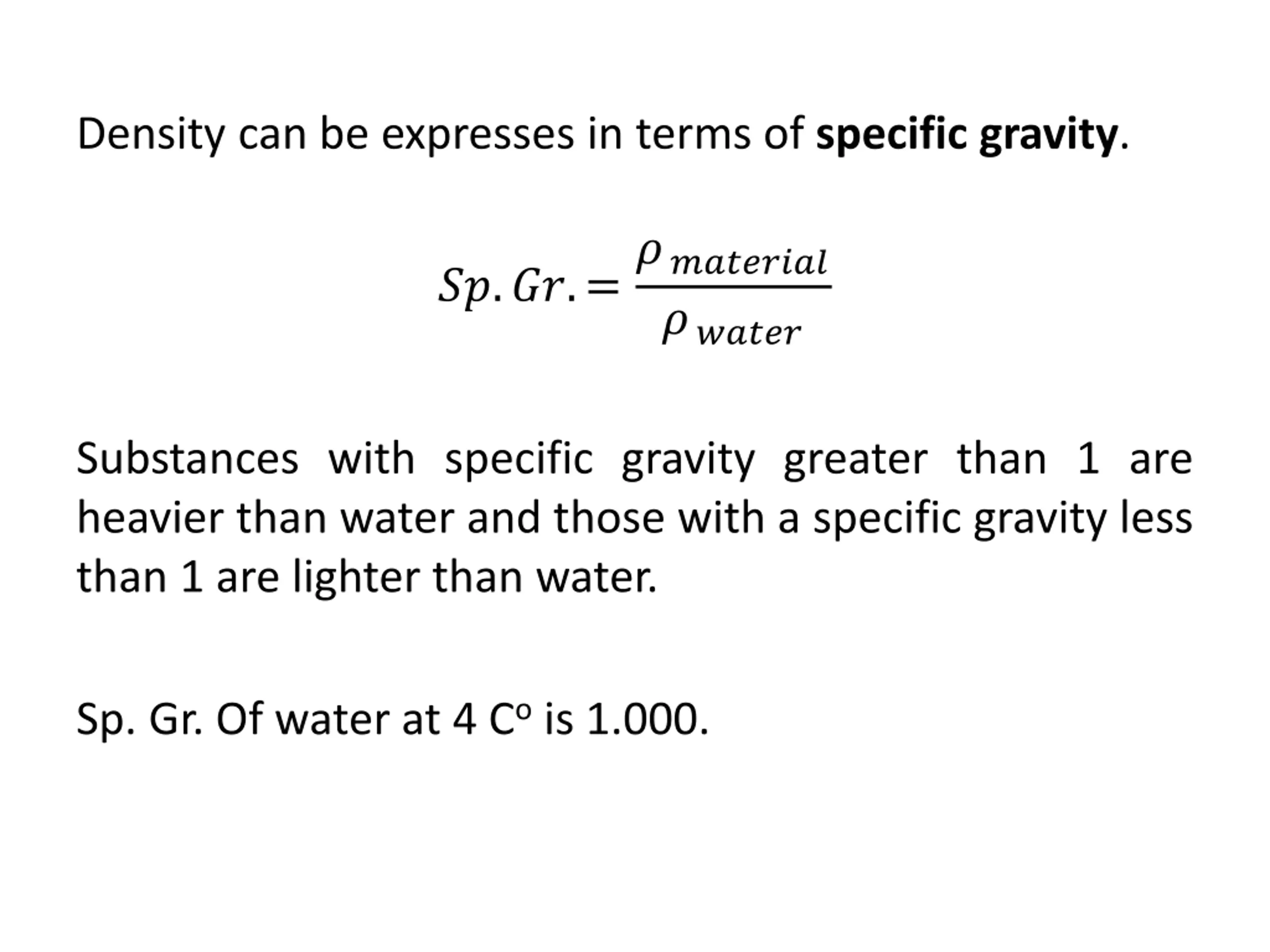

Density can be expresses in terms of specific gravity. ??.??.=????????? ?????? Substances with specific gravity greater than 1 are heavier than water and those with a specific gravity less than 1 are lighter than water. Sp. Gr. Of water at 4 Cois 1.000.

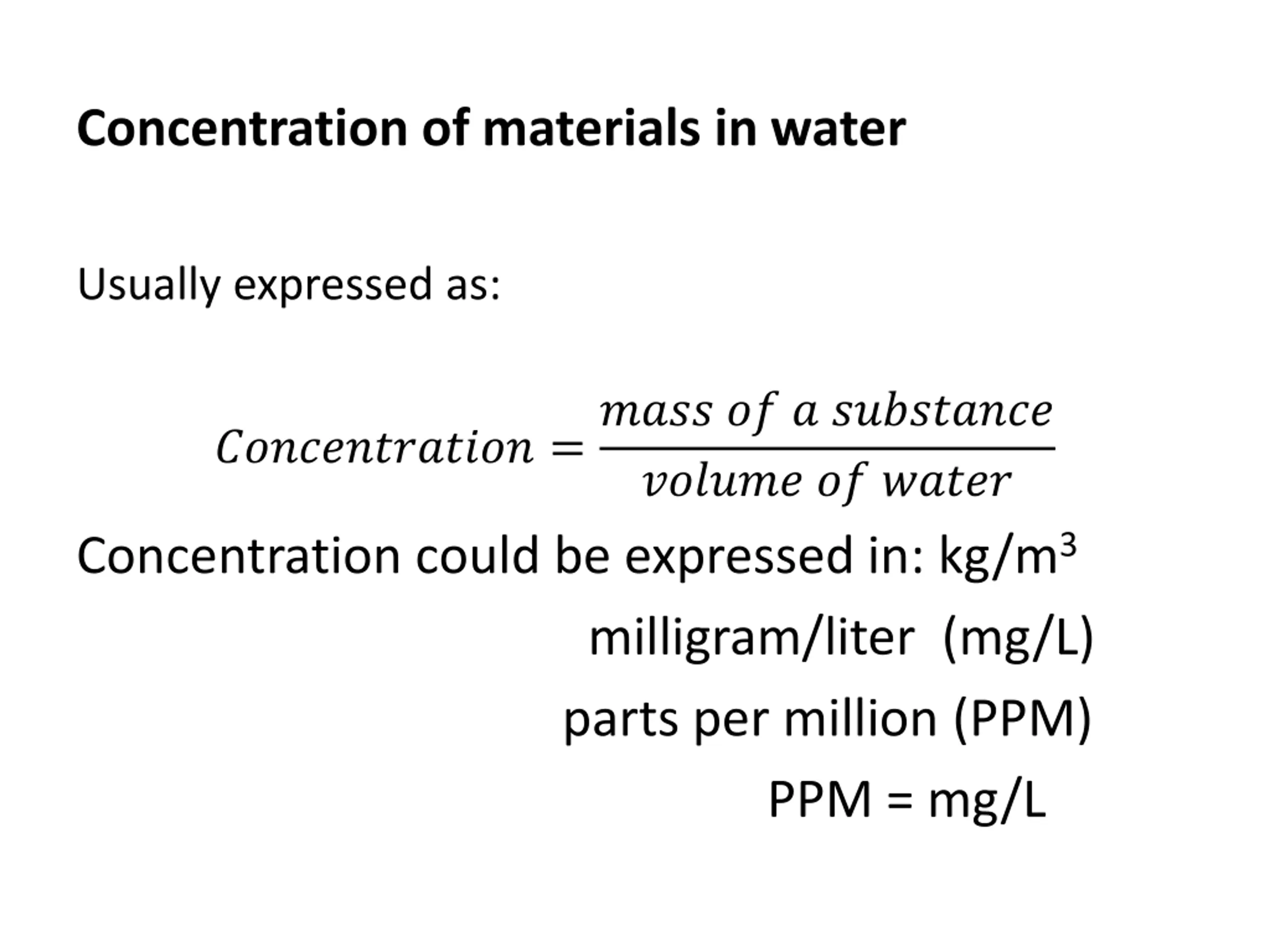

Concentration of materials in water Usually expressed as: ????????????? =???? ?? ? ????????? ?????? ?? ????? Concentration could be expressed in: kg/m3 milligram/liter (mg/L) parts per million (PPM) PPM = mg/L

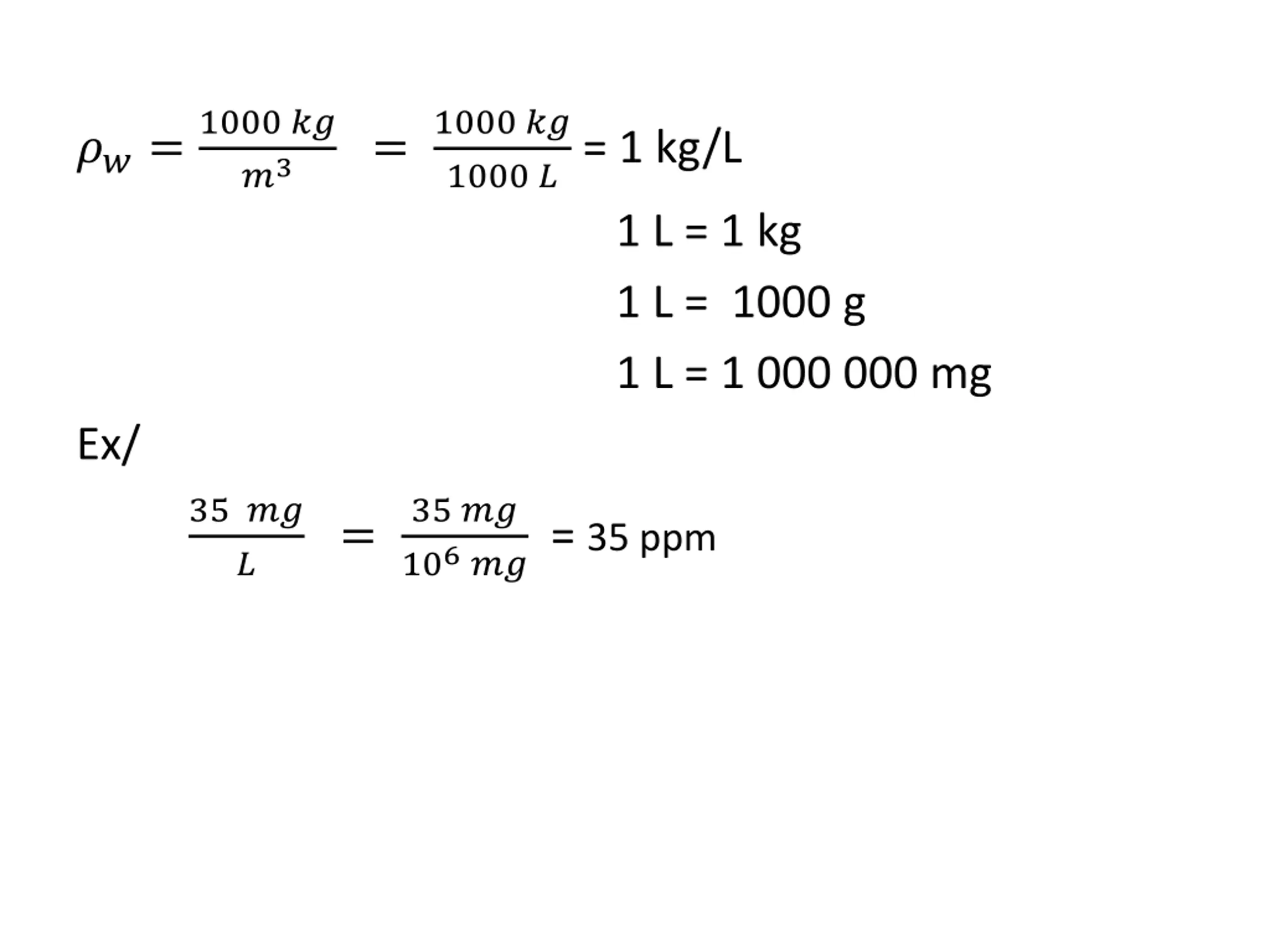

??=1000 ?? 1000 ?? 1000 ?= 1 kg/L = ?3 1 L = 1 kg 1 L = 1000 g 1 L = 1 000 000 mg Ex/ 35 ?? ? 35 ?? 106??= 35 ppm =

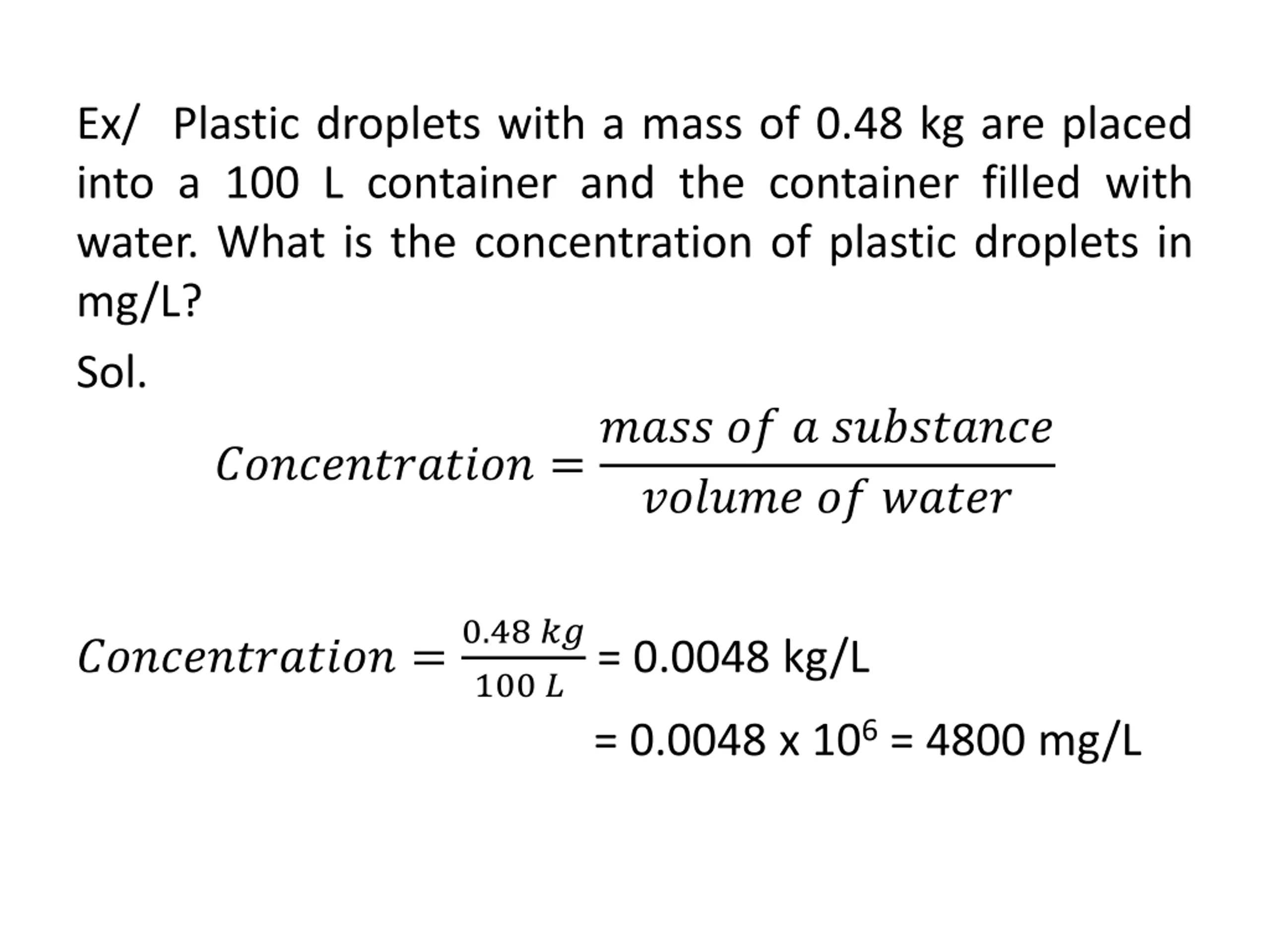

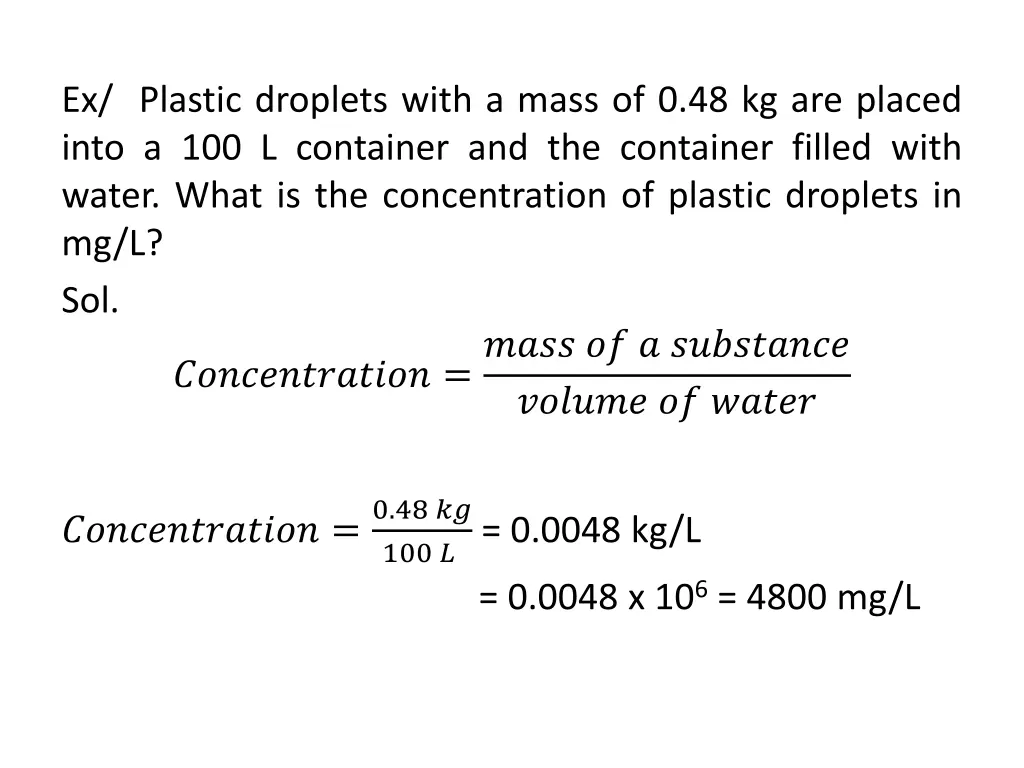

Ex/ Plastic droplets with a mass of 0.48 kg are placed into a 100 L container and the container filled with water. What is the concentration of plastic droplets in mg/L? Sol. ????????????? =???? ?? ? ????????? ?????? ?? ????? ????????????? =0.48 ?? 100 ?= 0.0048 kg/L = 0.0048 x 106= 4800 mg/L

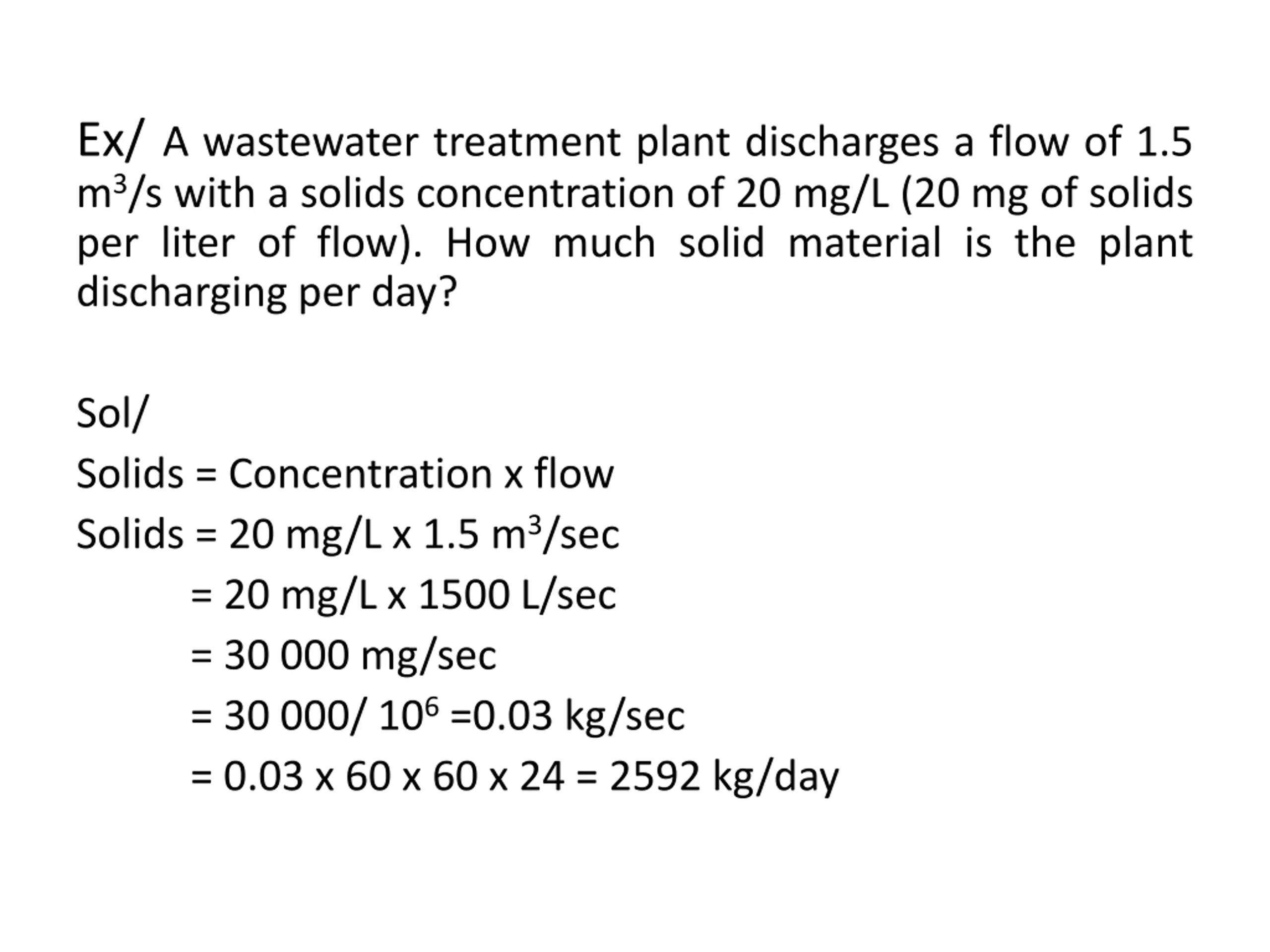

Ex/ A wastewater treatment plant discharges a flow of 1.5 m3/s with a solids concentration of 20 mg/L (20 mg of solids per liter of flow). How much solid material is the plant discharging per day? Sol/ Solids = Concentration x flow Solids = 20 mg/L x 1.5 m3/sec = 20 mg/L x 1500 L/sec = 30 000 mg/sec = 30 000/ 106=0.03 kg/sec = 0.03 x 60 x 60 x 24 = 2592 kg/day

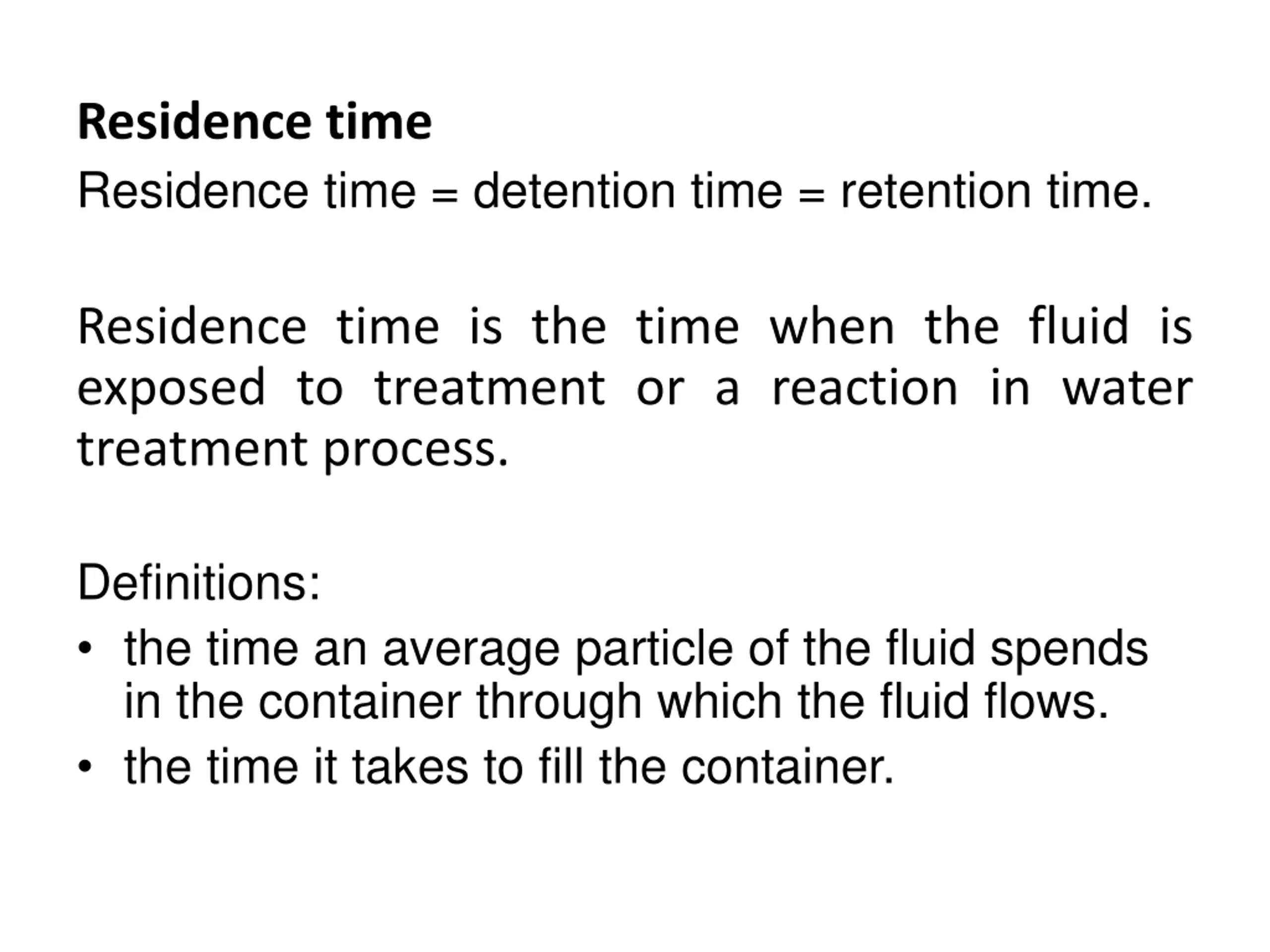

Residence time Residence time = detention time = retention time. Residence time is the time when the fluid is exposed to treatment or a reaction in water treatment process. Definitions: the time an average particle of the fluid spends in the container through which the fluid flows. the time it takes to fill the container.
When a fluid flows through a container, how long does the average particle of fluid stay in the container? The average residence time (t) is: ? =? ? V: volume of the tank. Q: flow rate.

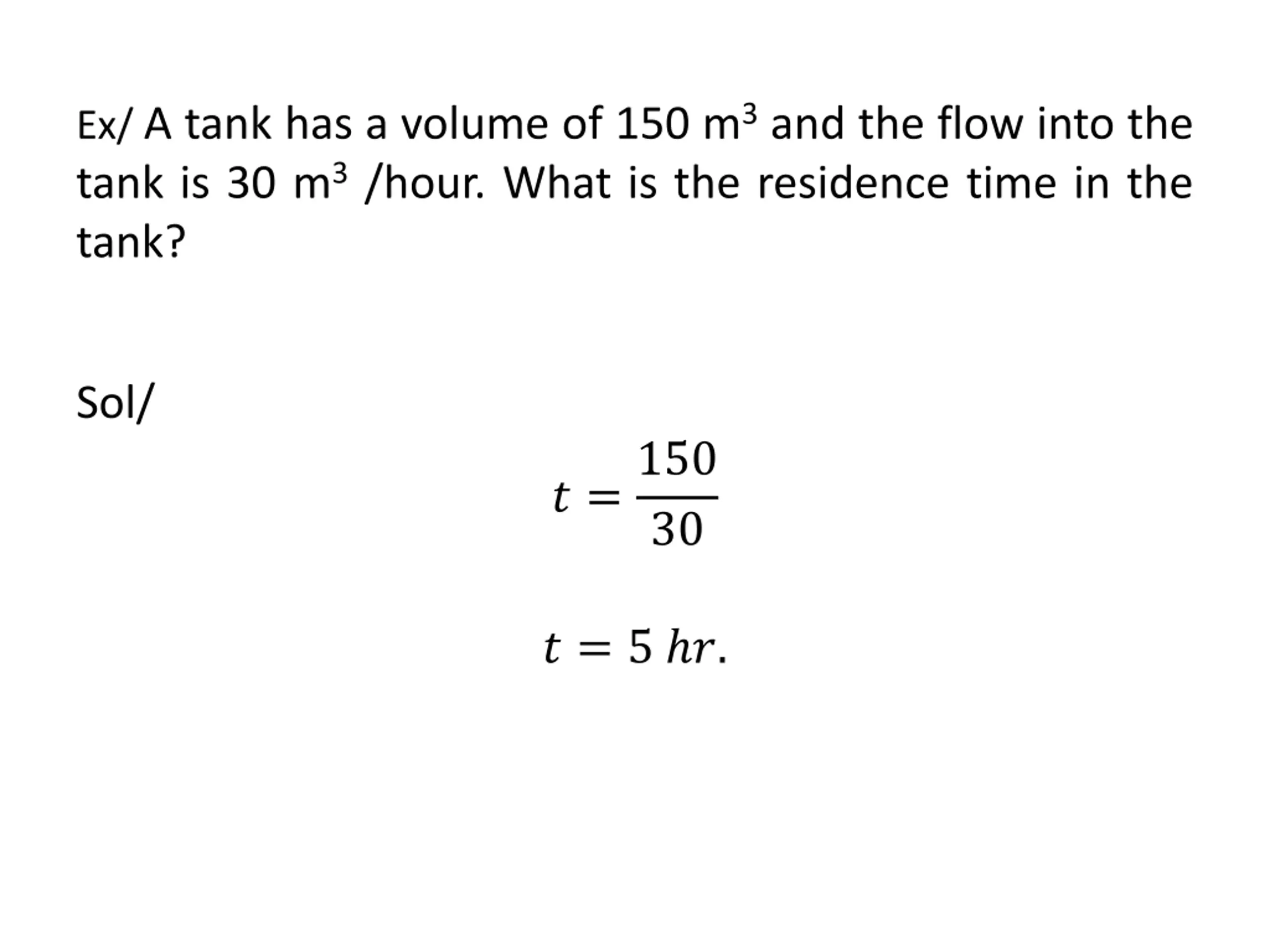

Ex/ A tank has a volume of 150 m3and the flow into the tank is 30 m3/hour. What is the residence time in the tank? Sol/ ? =150 30 ? = 5 ?.
