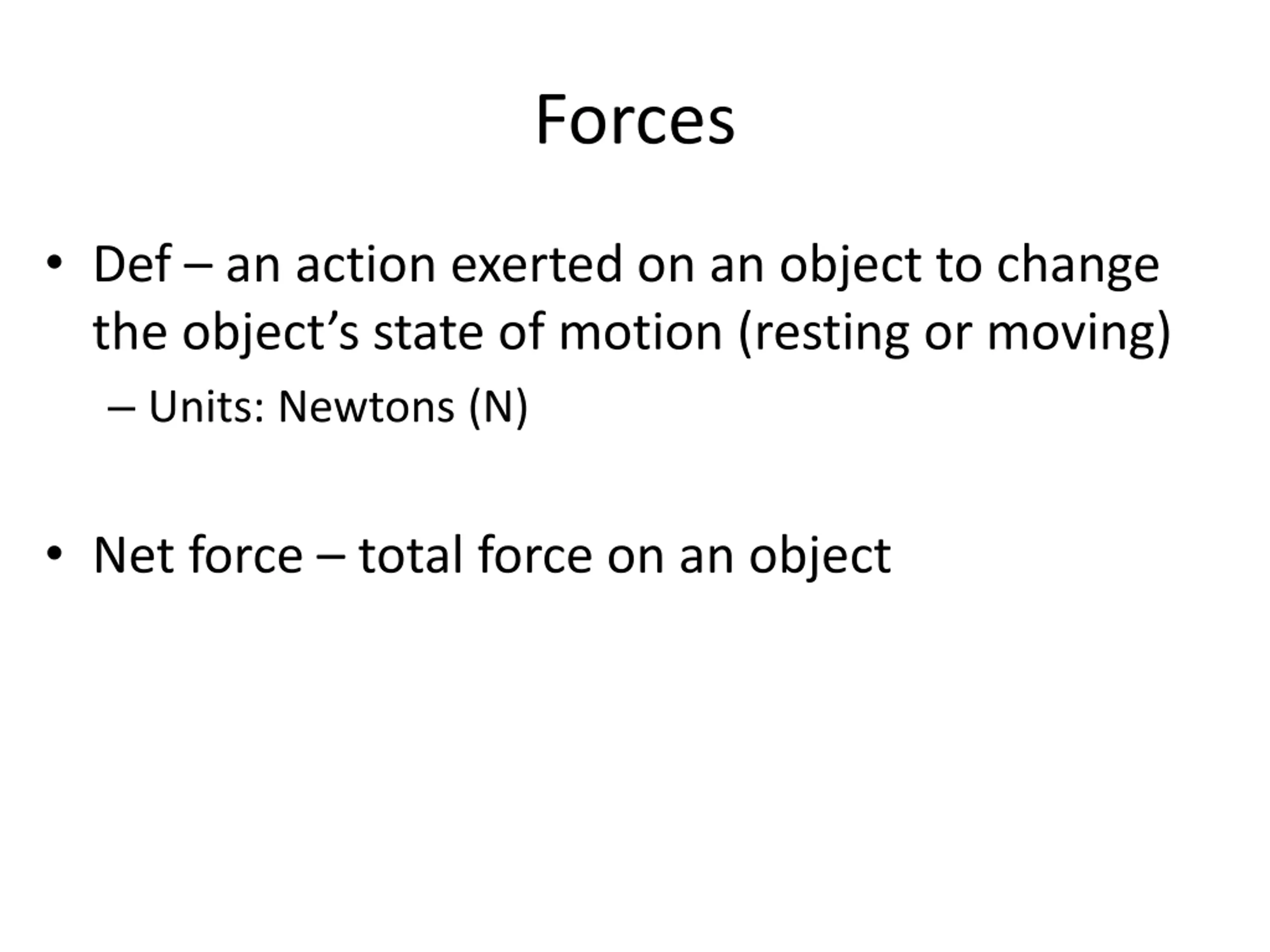

Forces Def an action exerted on an object to change the object s state of motion (resting or moving) Units: Newtons (N) Net force total force on an object

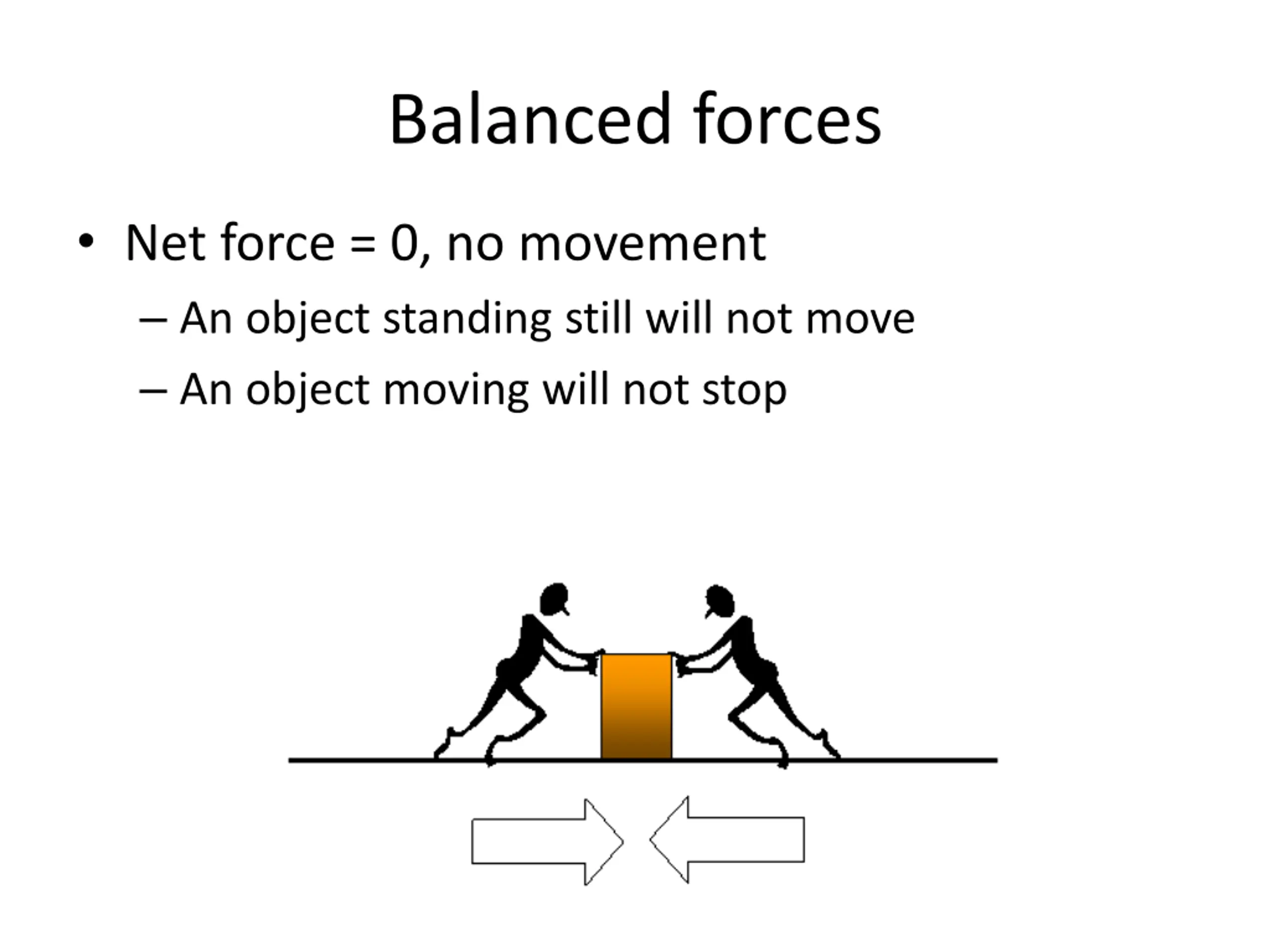

Balanced forces Net force = 0, no movement An object standing still will not move An object moving will not stop

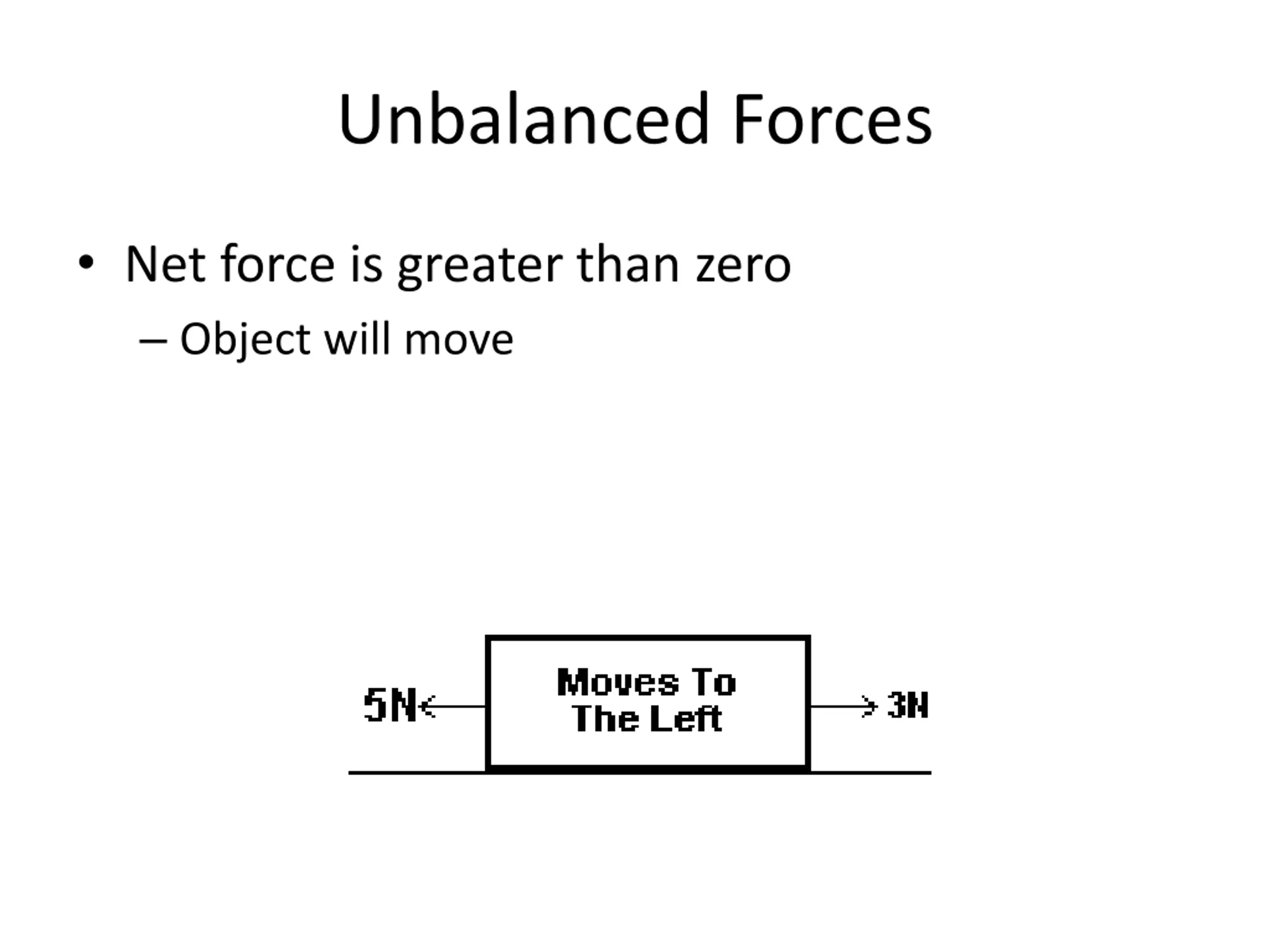

Unbalanced Forces Net force is greater than zero Object will move

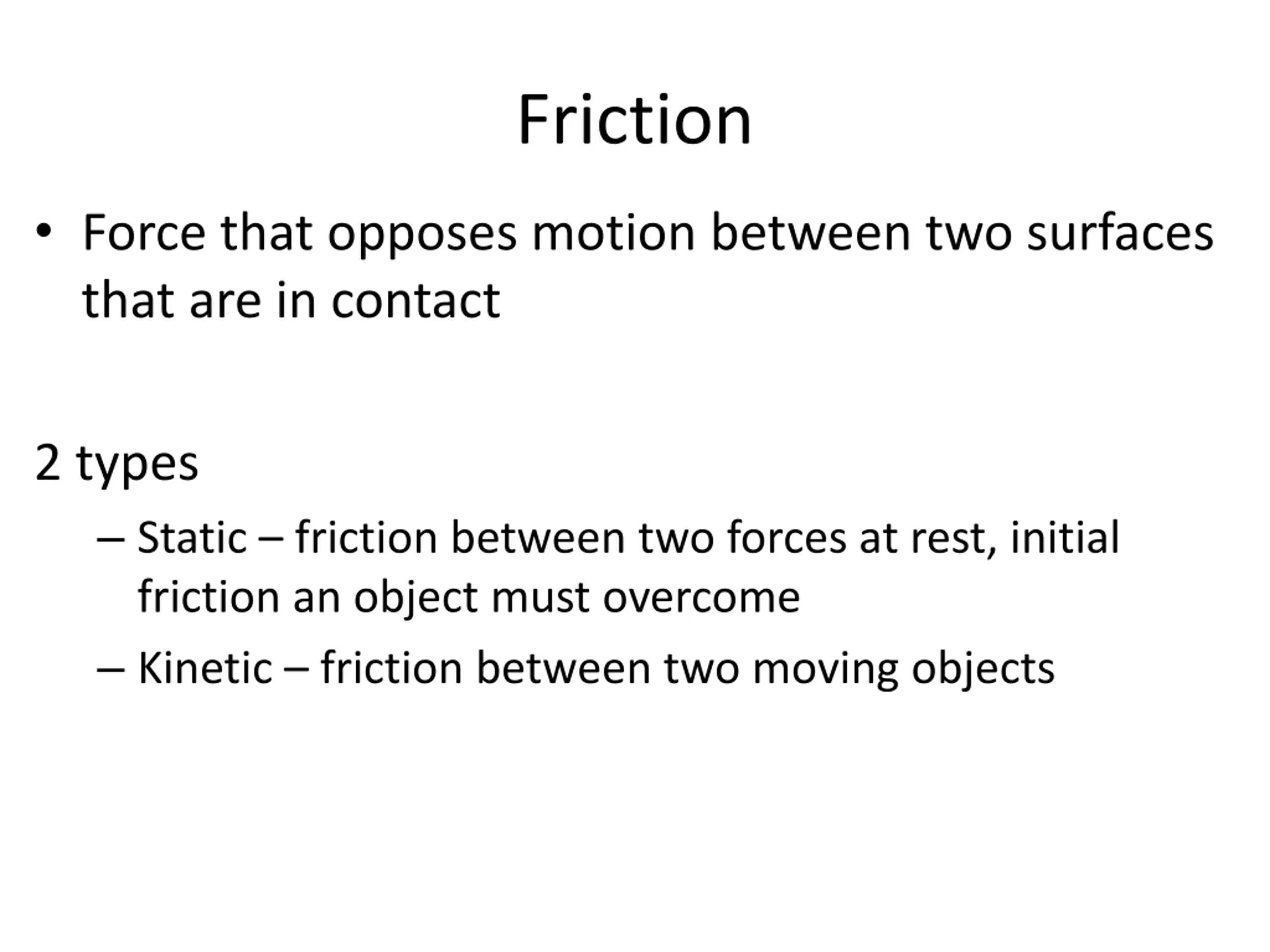

Friction Force that opposes motion between two surfaces that are in contact 2 types Static friction between two forces at rest, initial friction an object must overcome Kinetic friction between two moving objects

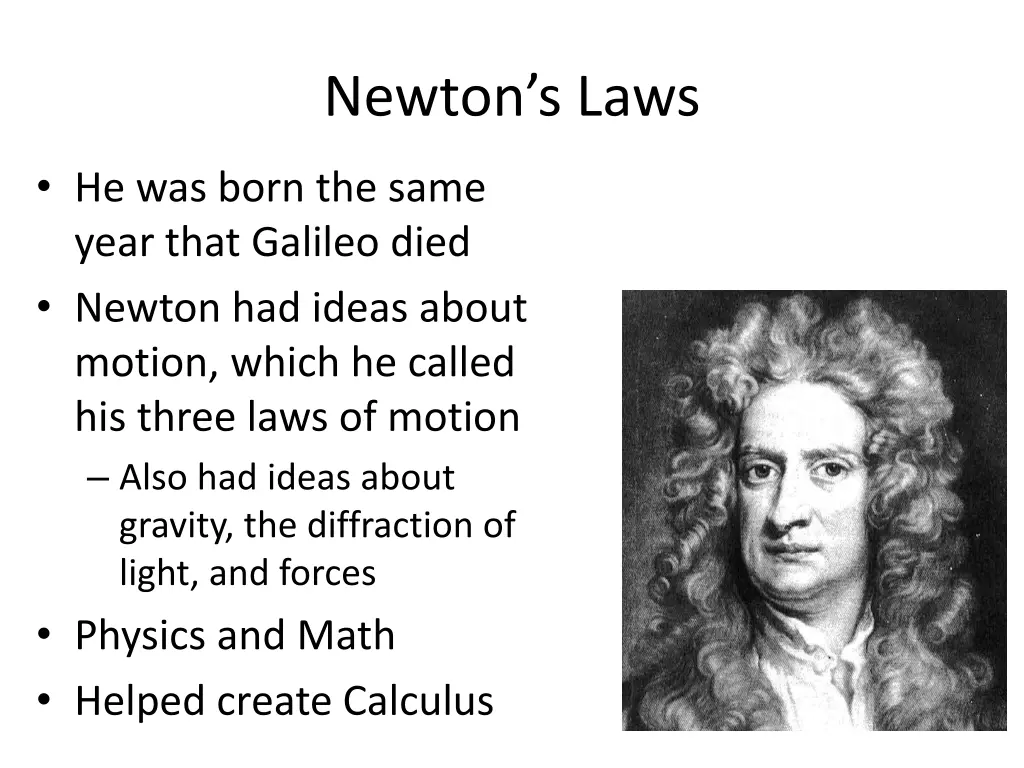

Newtons Laws He was born the same year that Galileo died Newton had ideas about motion, which he called his three laws of motion Also had ideas about gravity, the diffraction of light, and forces Physics and Math Helped create Calculus

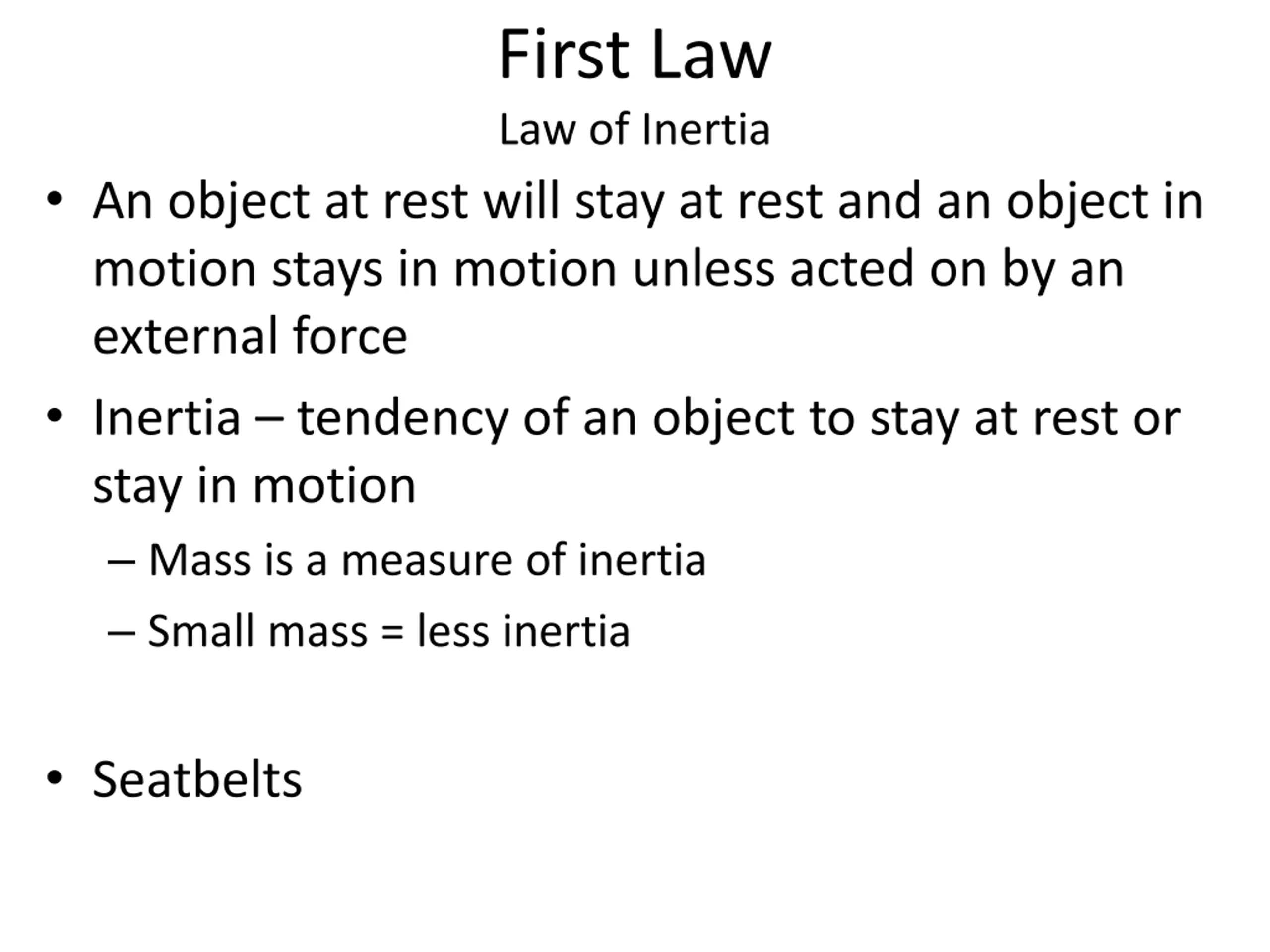

First Law Law of Inertia An object at rest will stay at rest and an object in motion stays in motion unless acted on by an external force Inertia tendency of an object to stay at rest or stay in motion Mass is a measure of inertia Small mass = less inertia Seatbelts

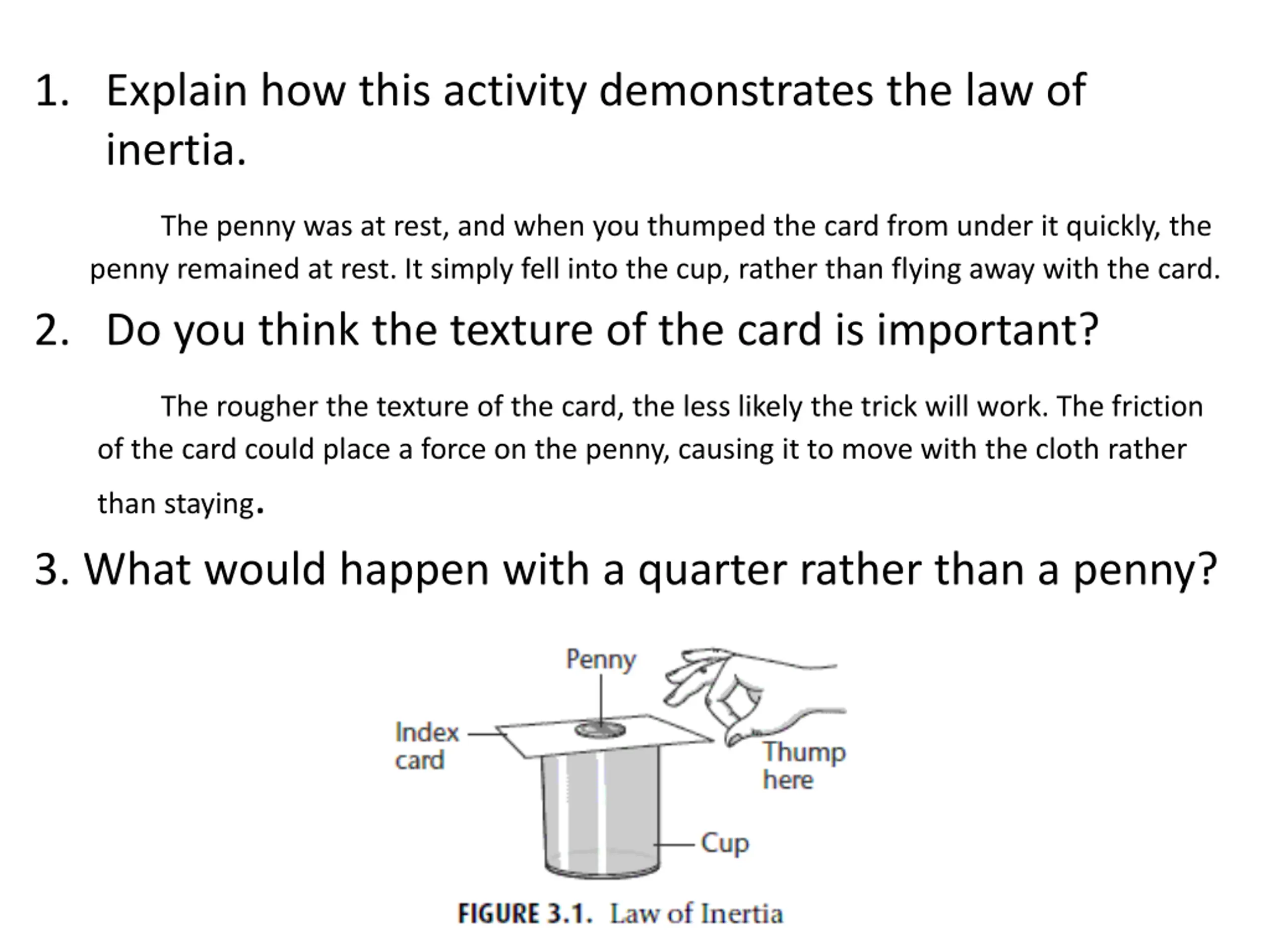

1. Explain how this activity demonstrates the law of inertia. The penny was at rest, and when you thumped the card from under it quickly, the penny remained at rest. It simply fell into the cup, rather than flying away with the card. 2. Do you think the texture of the card is important? The rougher the texture of the card, the less likely the trick will work. The friction of the card could place a force on the penny, causing it to move with the cloth rather than staying. 3. What would happen with a quarter rather than a penny?

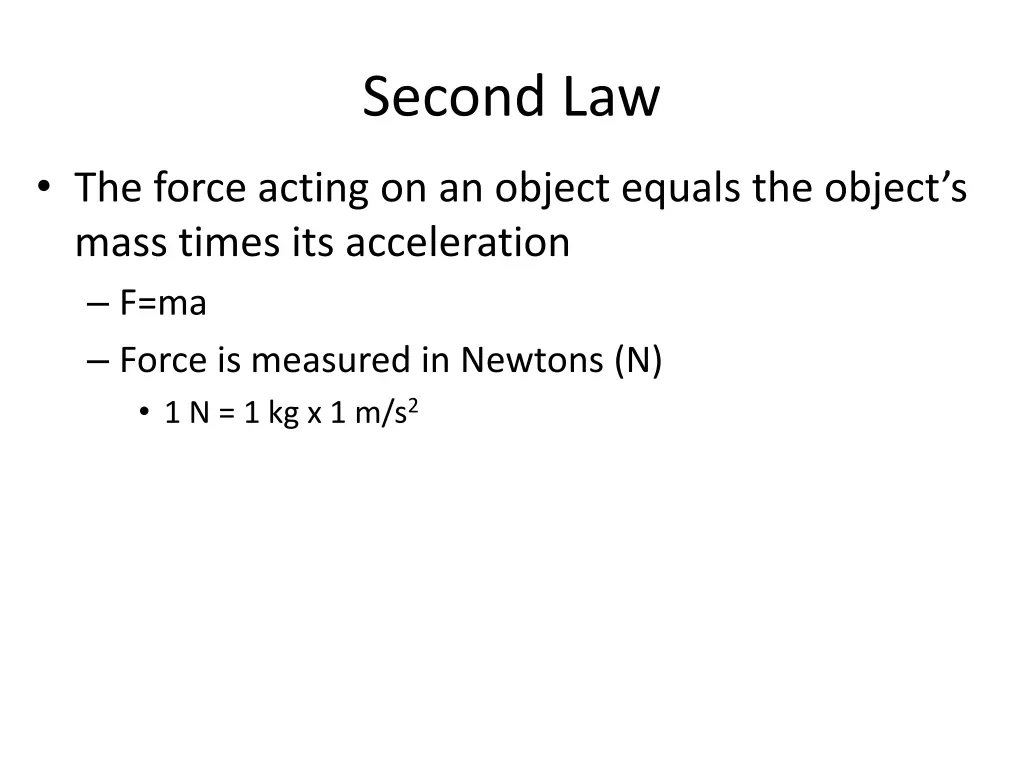

Second Law The force acting on an object equals the object s mass times its acceleration F=ma Force is measured in Newtons (N) 1 N = 1 kg x 1 m/s2

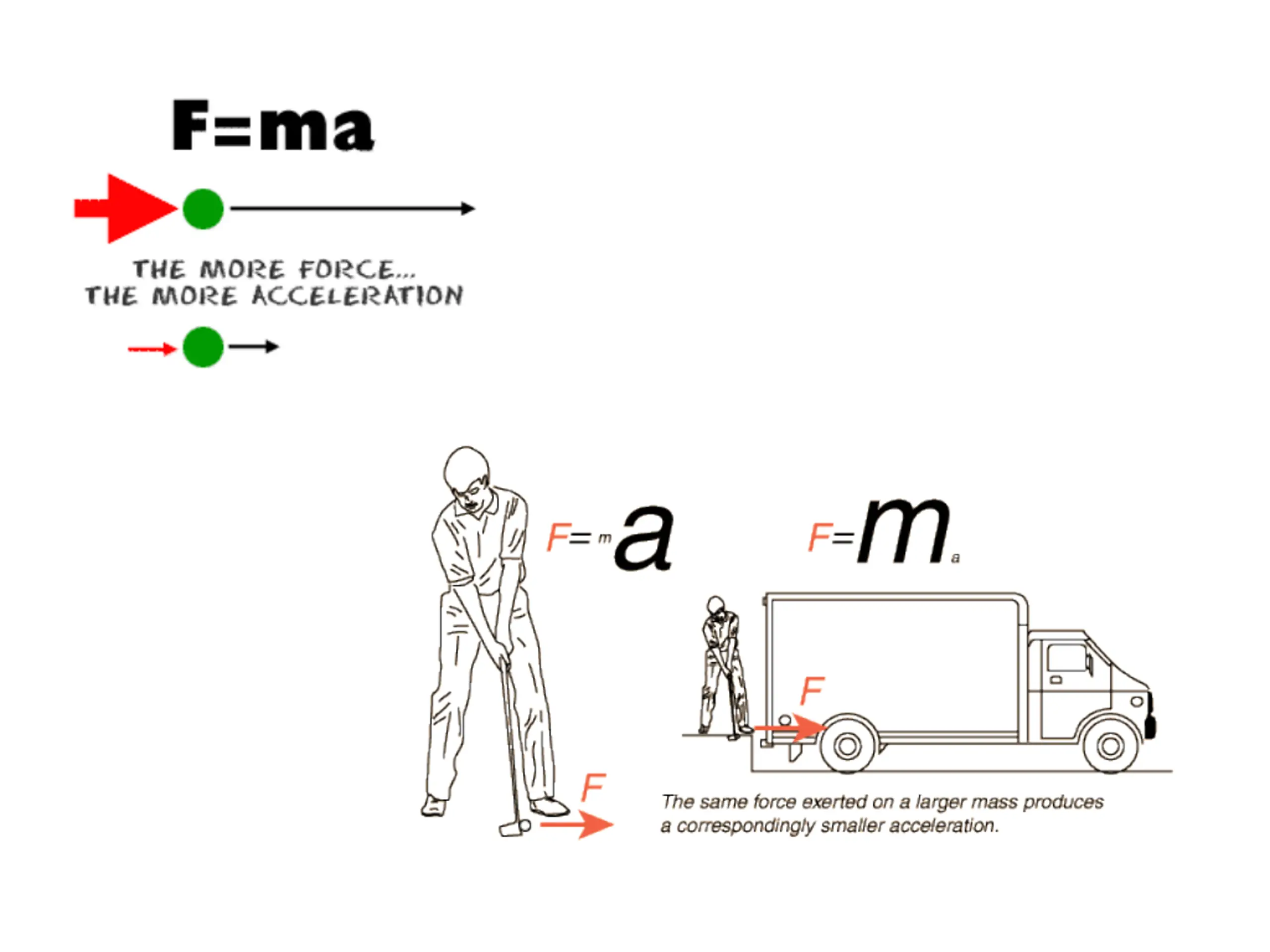

http://www.physics4kids.com/files/art/motion_laws2_240x180.gifhttp://www.physics4kids.com/files/art/motion_laws2_240x180.gif http://hyperphysics.phy-astr.gsu.edu/hbase/imgmec/fmaill.gif

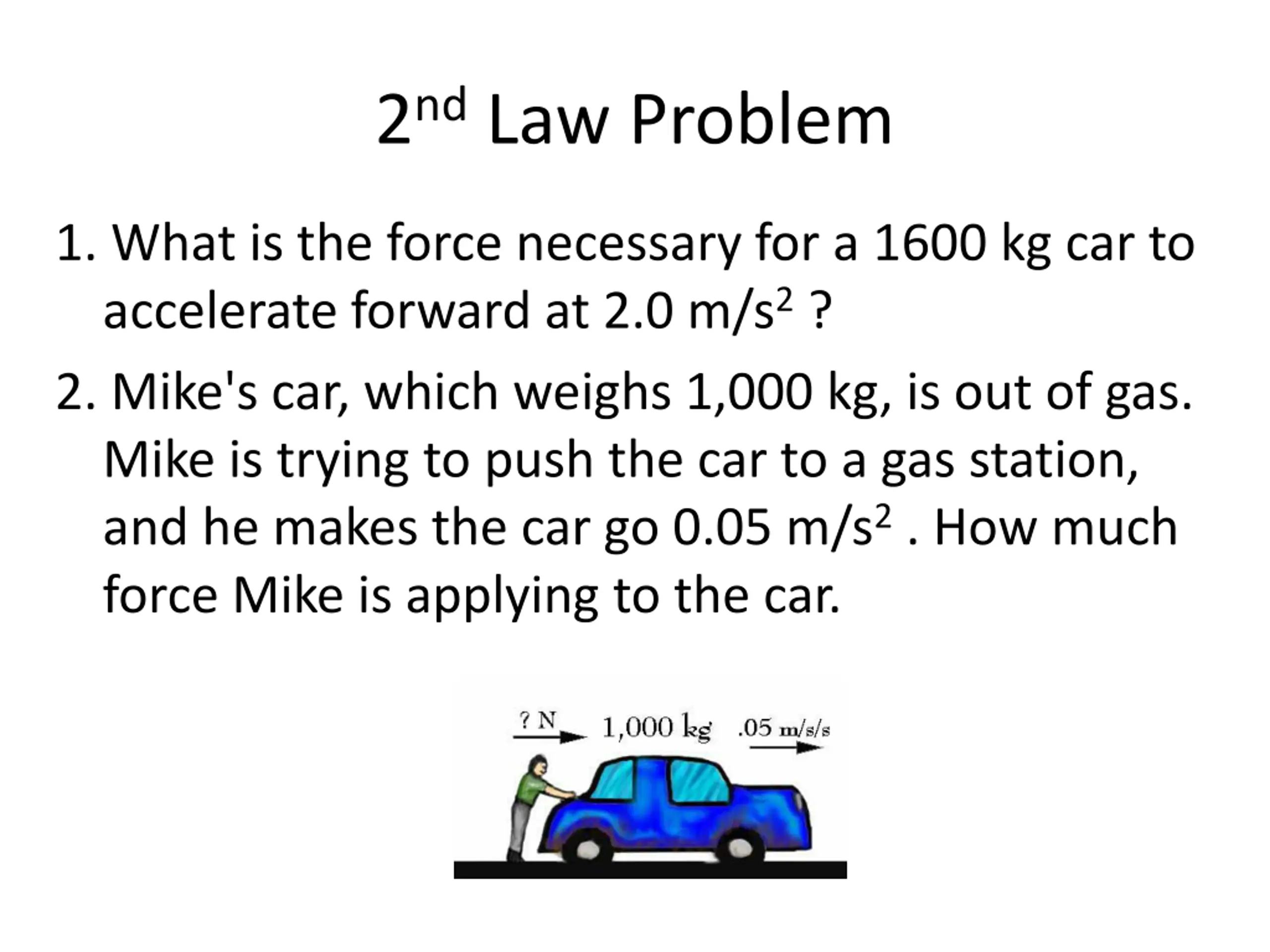

2ndLaw Problem 1. What is the force necessary for a 1600 kg car to accelerate forward at 2.0 m/s2? 2. Mike's car, which weighs 1,000 kg, is out of gas. Mike is trying to push the car to a gas station, and he makes the car go 0.05 m/s2. How much force Mike is applying to the car.

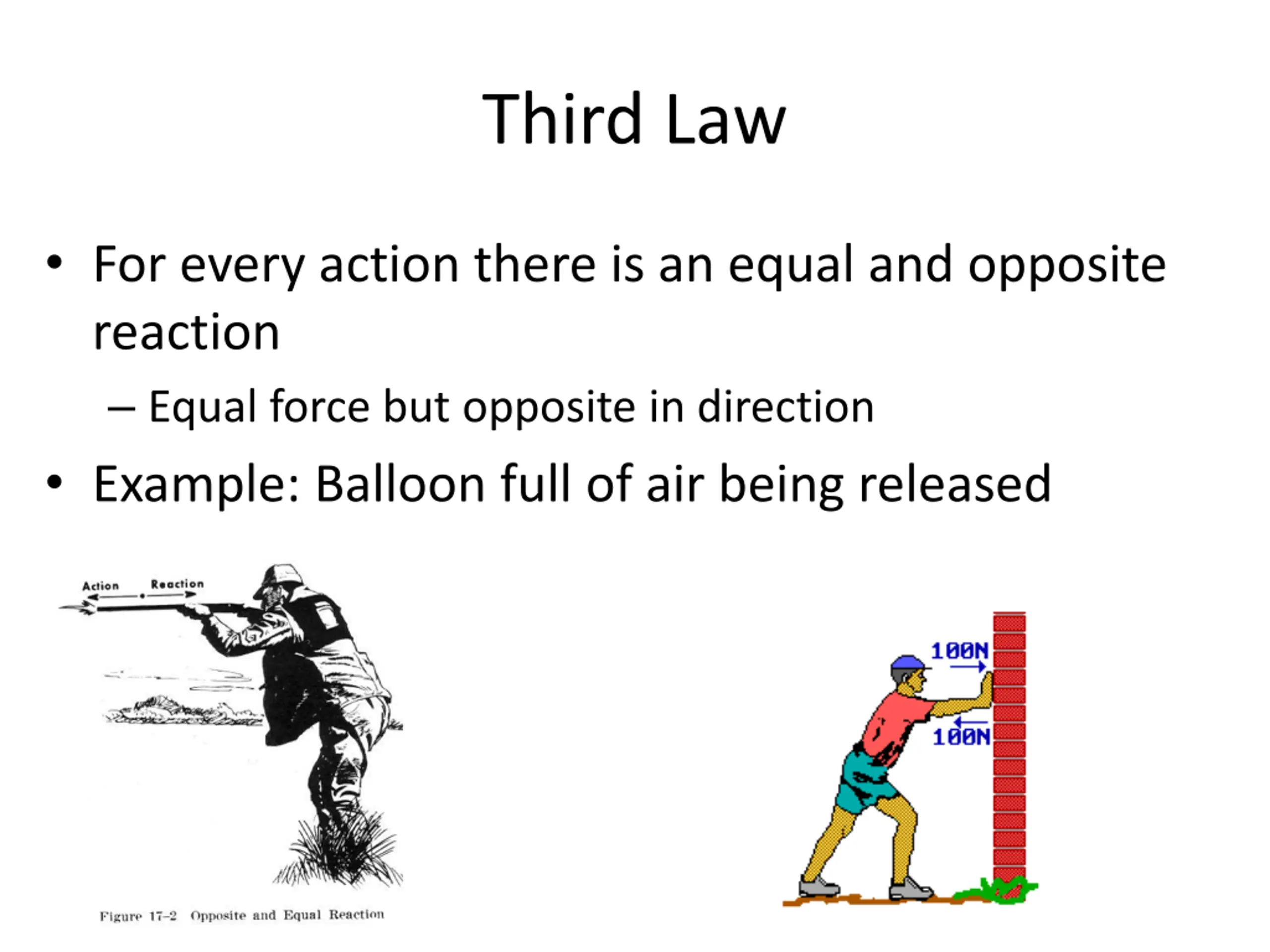

Third Law For every action there is an equal and opposite reaction Equal force but opposite in direction Example: Balloon full of air being released http://avstop.com/ac/flighttrainghandbook/imagebh1.jpg http://www.physchem.co.za/OB11-mec/graphics/law3_f1.gif

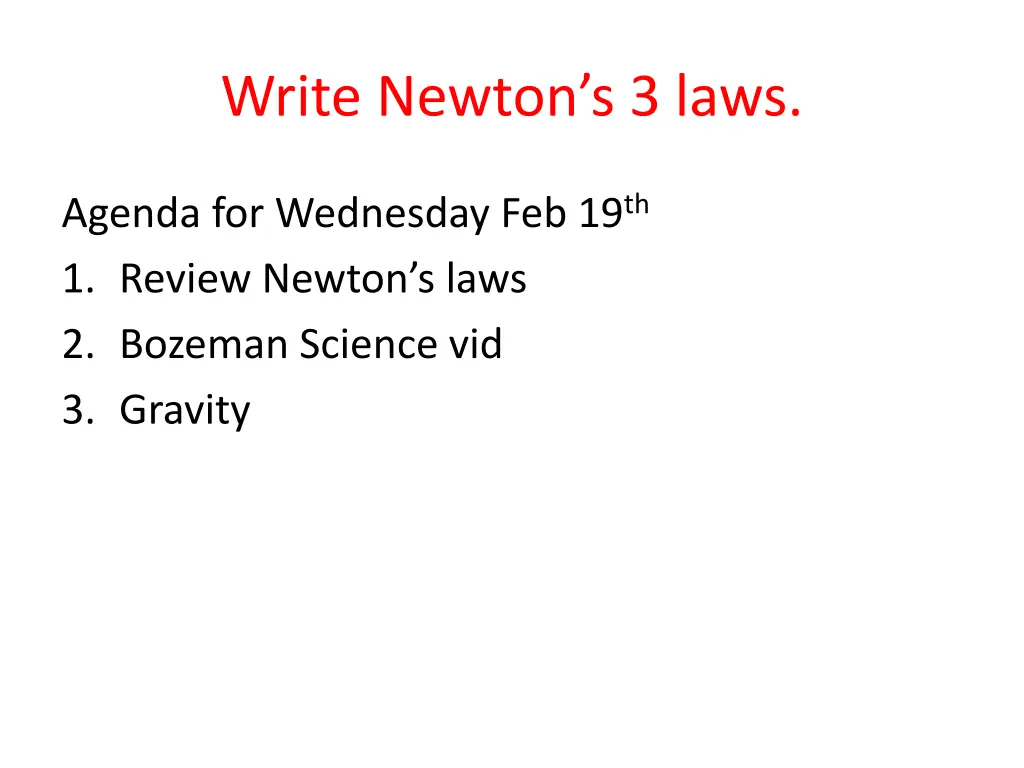

Write Newtons 3 laws. Agenda for Wednesday Feb 19th 1. Review Newton s laws 2. Bozeman Science vid 3. Gravity

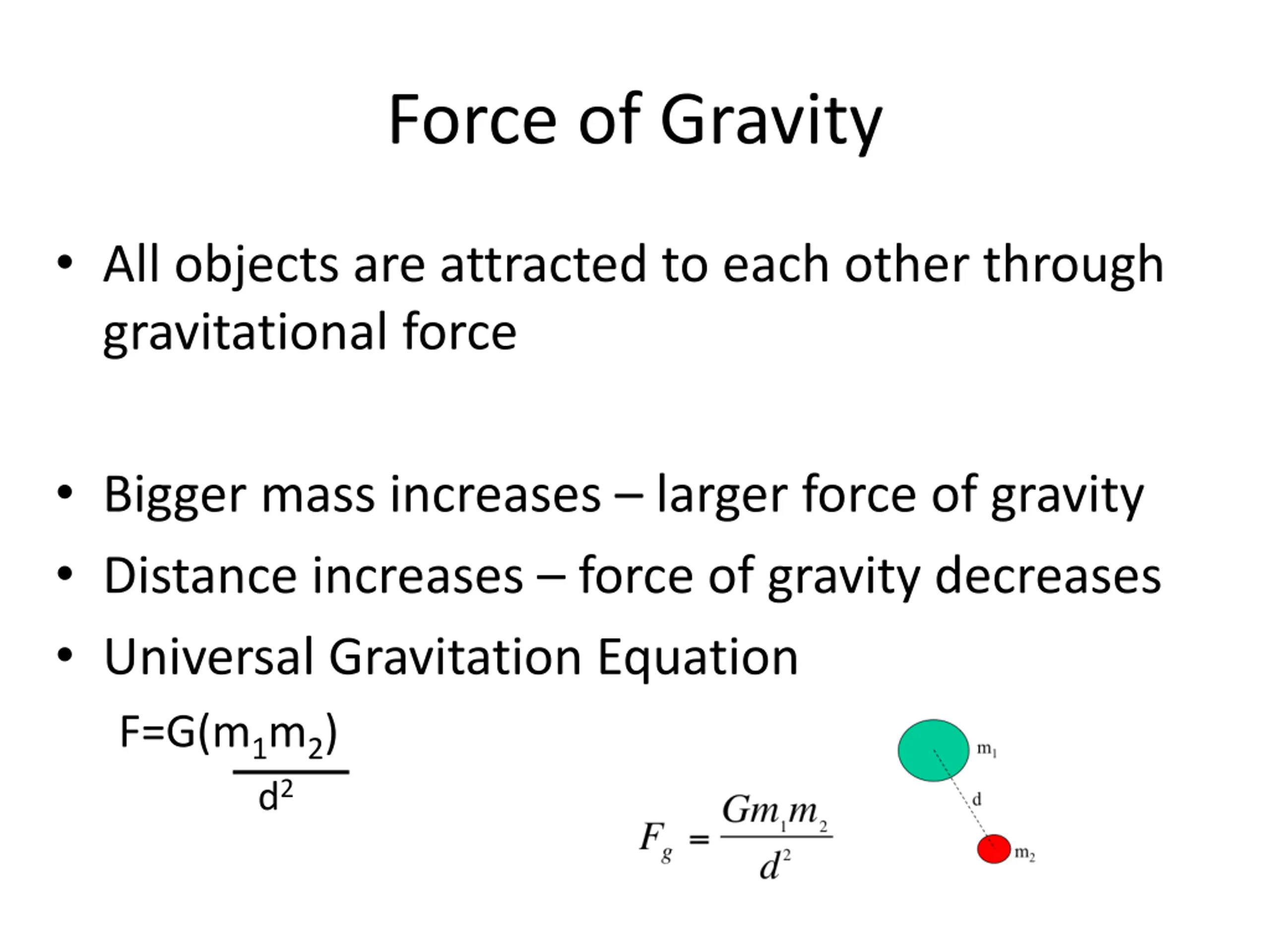

Force of Gravity All objects are attracted to each other through gravitational force Bigger mass increases larger force of gravity Distance increases force of gravity decreases Universal Gravitation Equation F=G(m1m2) d2 http://physics.highpoint.edu/~mdewitt/phy1050/images/week2/law-of-gravitation.png

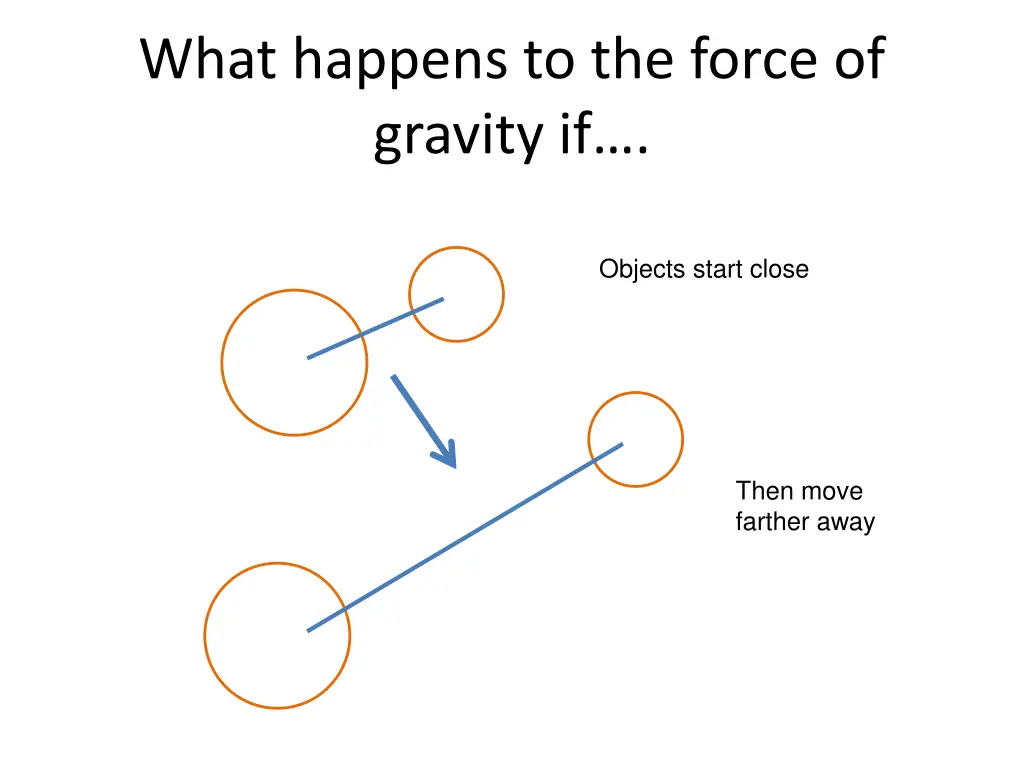

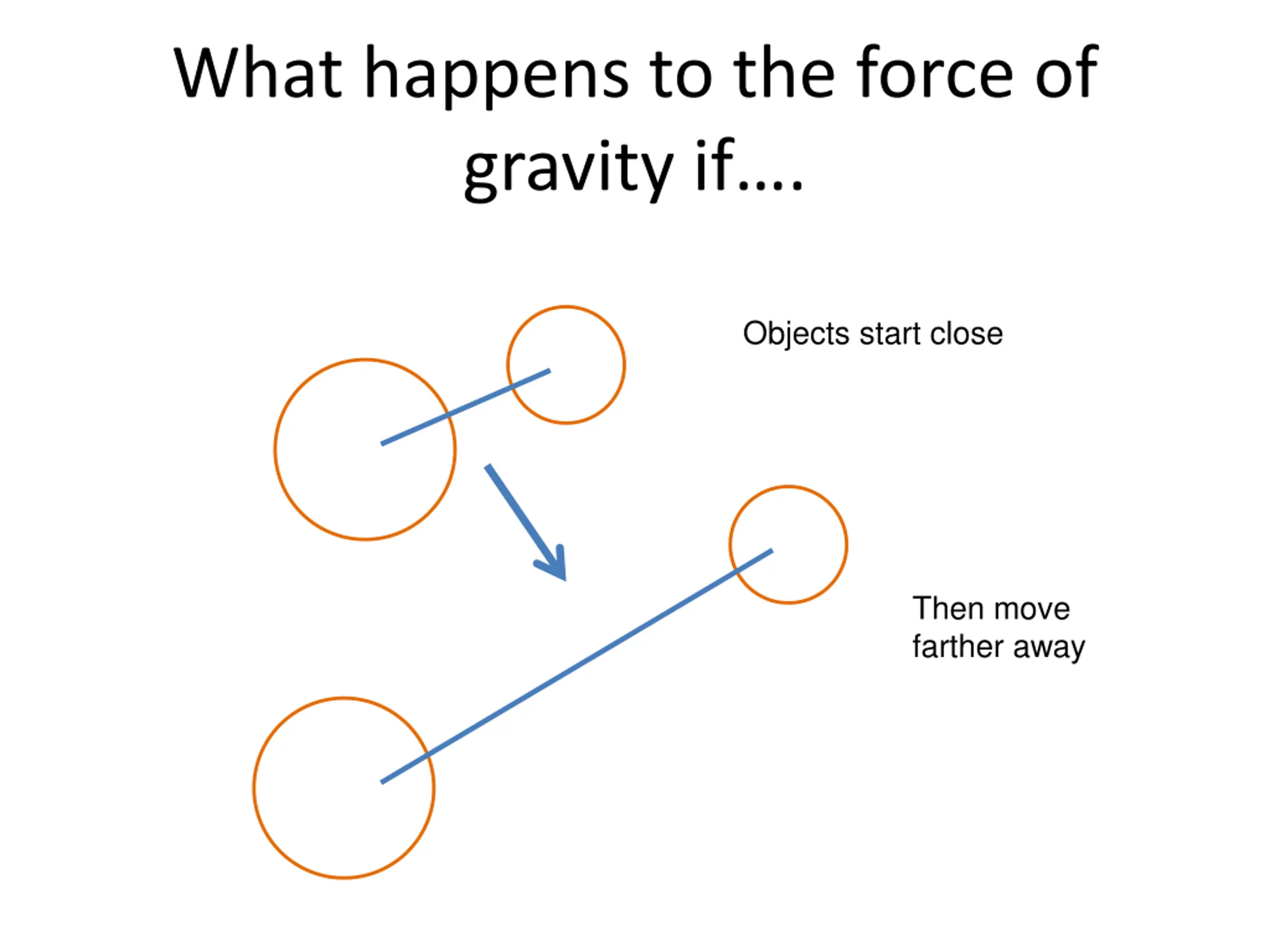

What happens to the force of gravity if . Objects start close Then move farther away

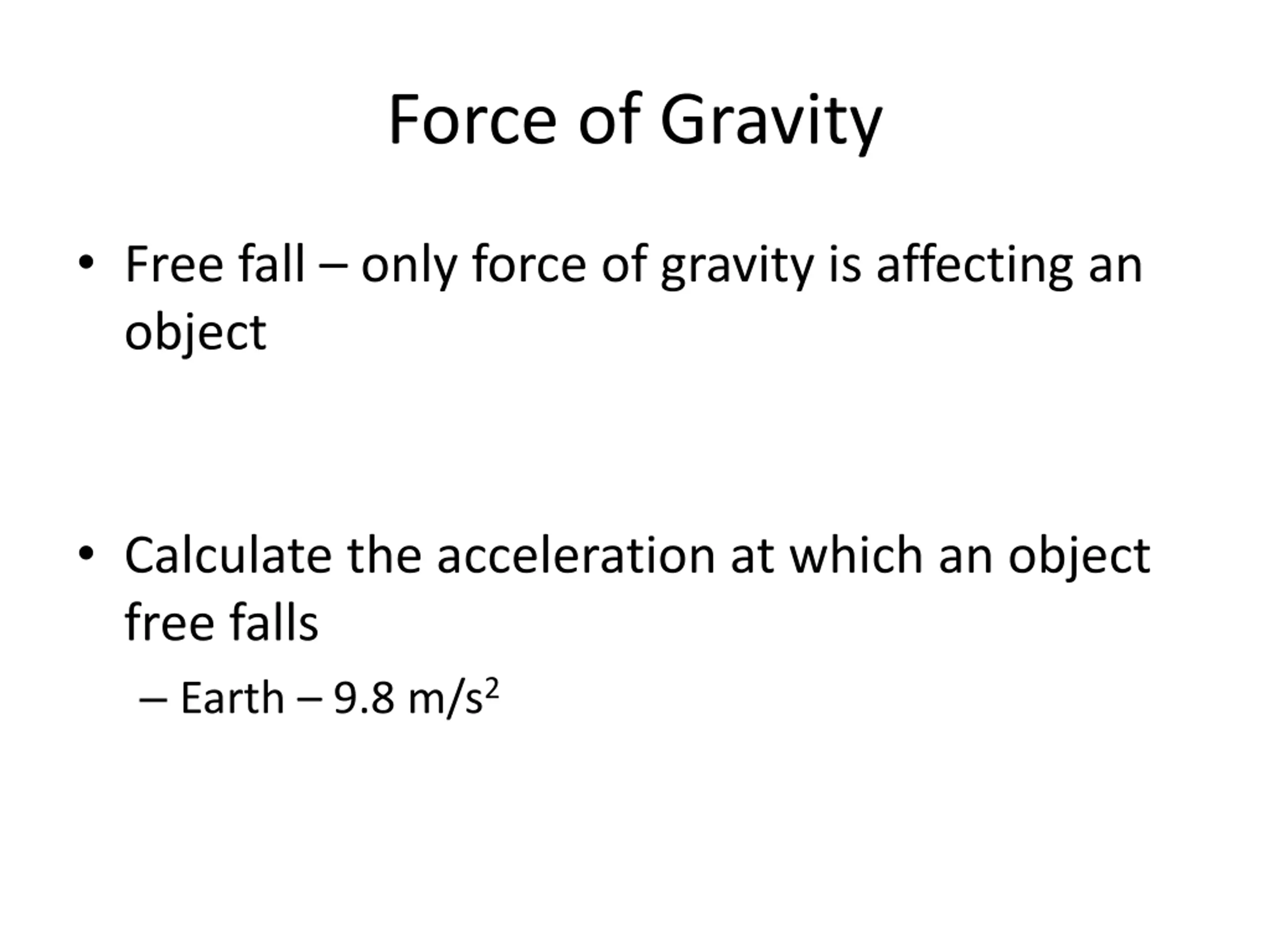

Force of Gravity Free fall only force of gravity is affecting an object Calculate the acceleration at which an object free falls Earth 9.8 m/s2

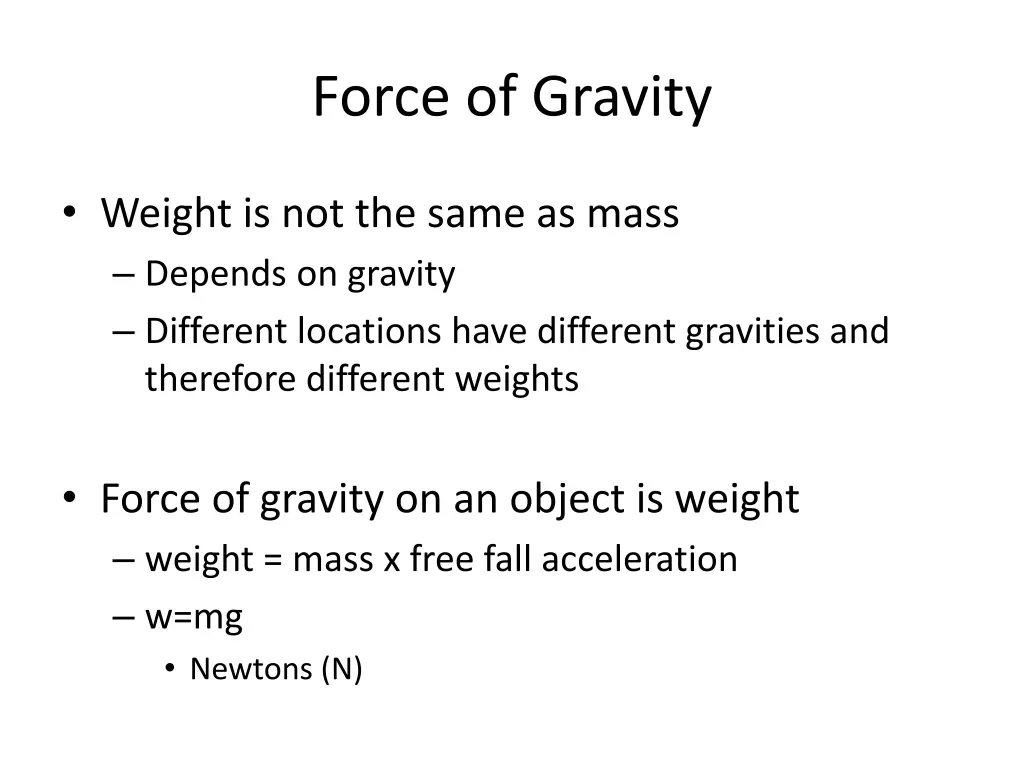

Force of Gravity Weight is not the same as mass Depends on gravity Different locations have different gravities and therefore different weights Force of gravity on an object is weight weight = mass x free fall acceleration w=mg Newtons (N)

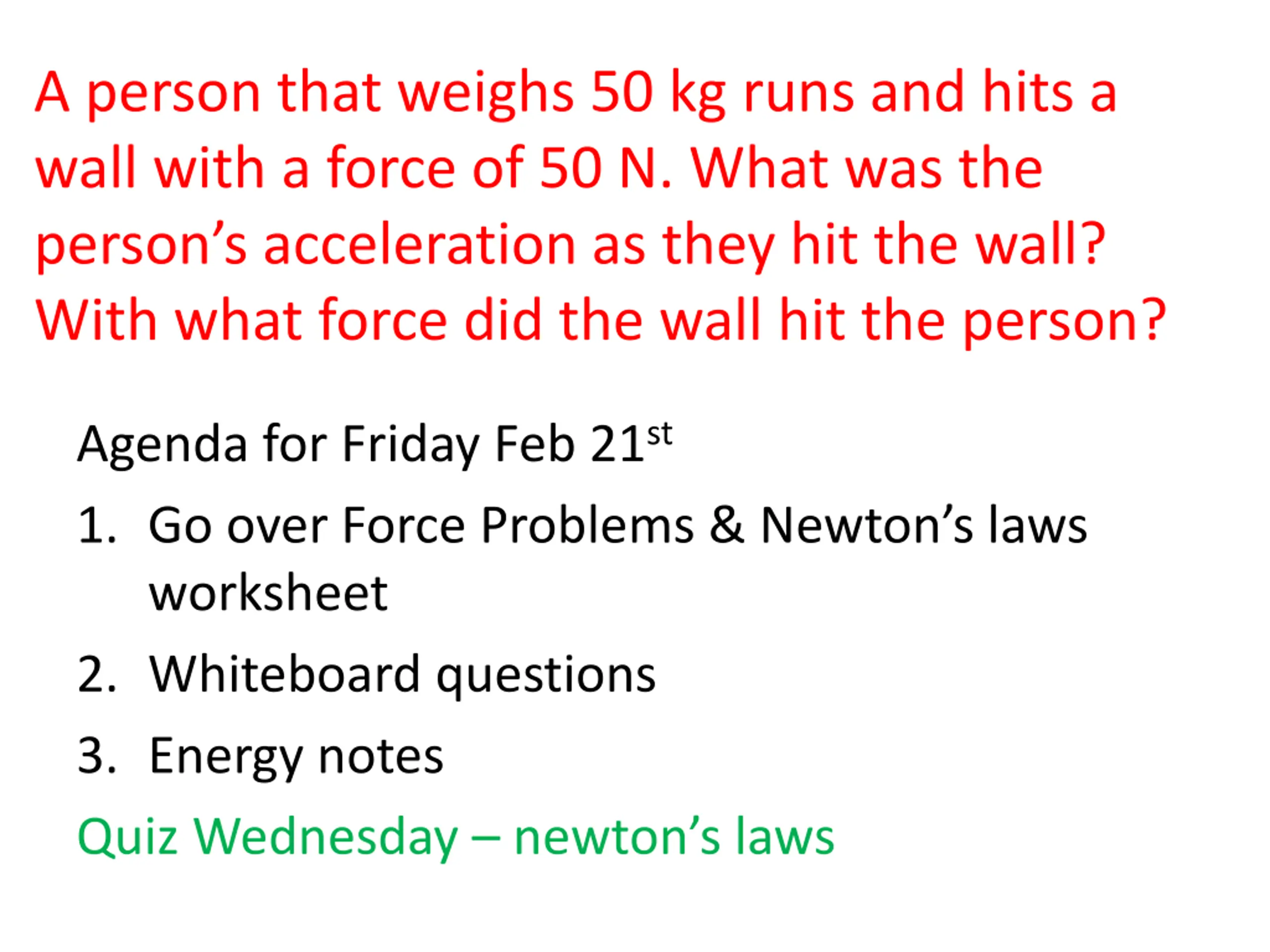

A person that weighs 50 kg runs and hits a wall with a force of 50 N. What was the person s acceleration as they hit the wall? With what force did the wall hit the person? Agenda for Friday Feb 21st 1. Go over Force Problems & Newton s laws worksheet 2. Whiteboard questions 3. Energy notes Quiz Wednesday newton s laws

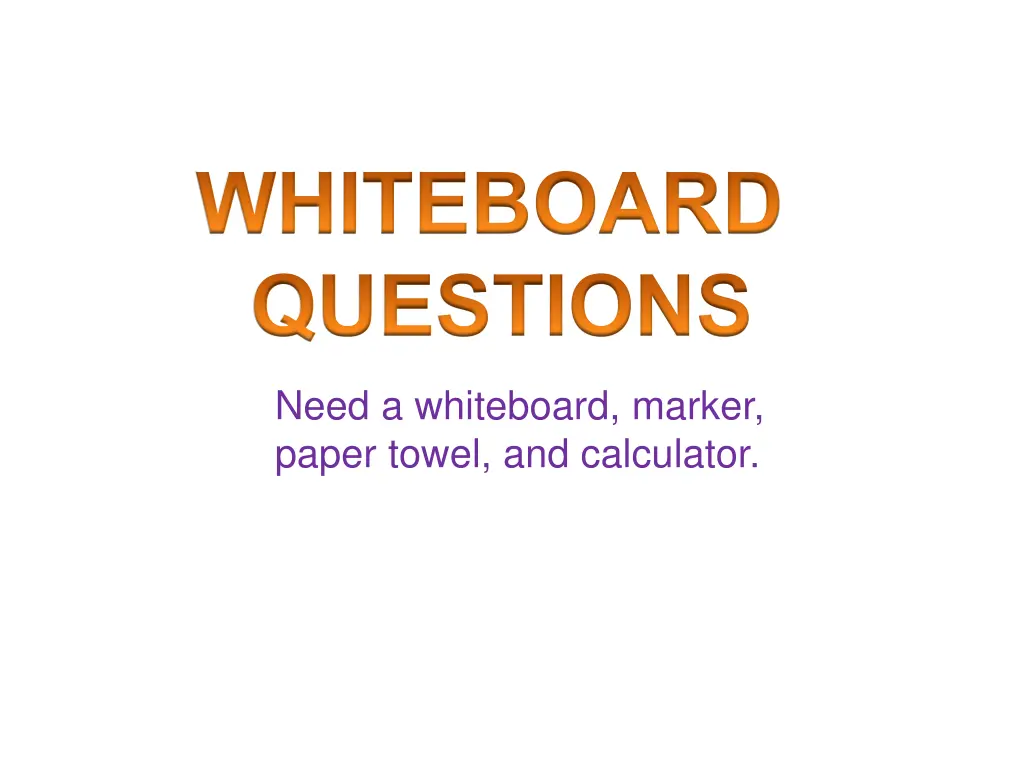

WHITEBOARD QUESTIONS Need a whiteboard, marker, paper towel, and calculator.

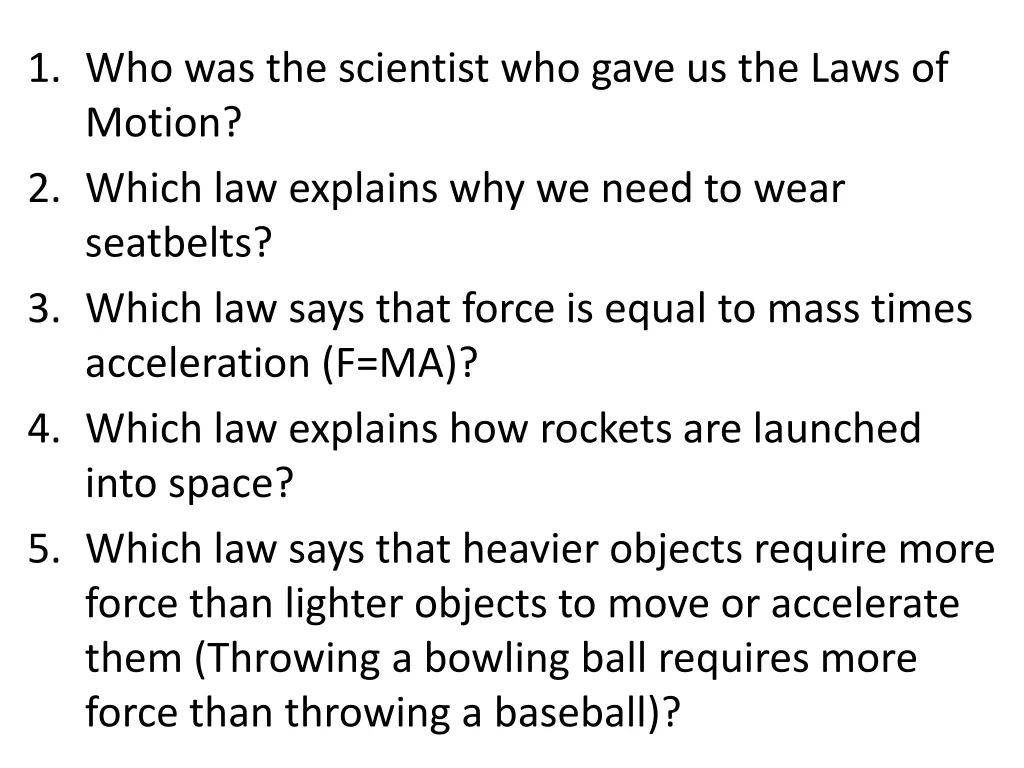

1. Who was the scientist who gave us the Laws of Motion? 2. Which law explains why we need to wear seatbelts? 3. Which law says that force is equal to mass times acceleration (F=MA)? 4. Which law explains how rockets are launched into space? 5. Which law says that heavier objects require more force than lighter objects to move or accelerate them (Throwing a bowling ball requires more force than throwing a baseball)?

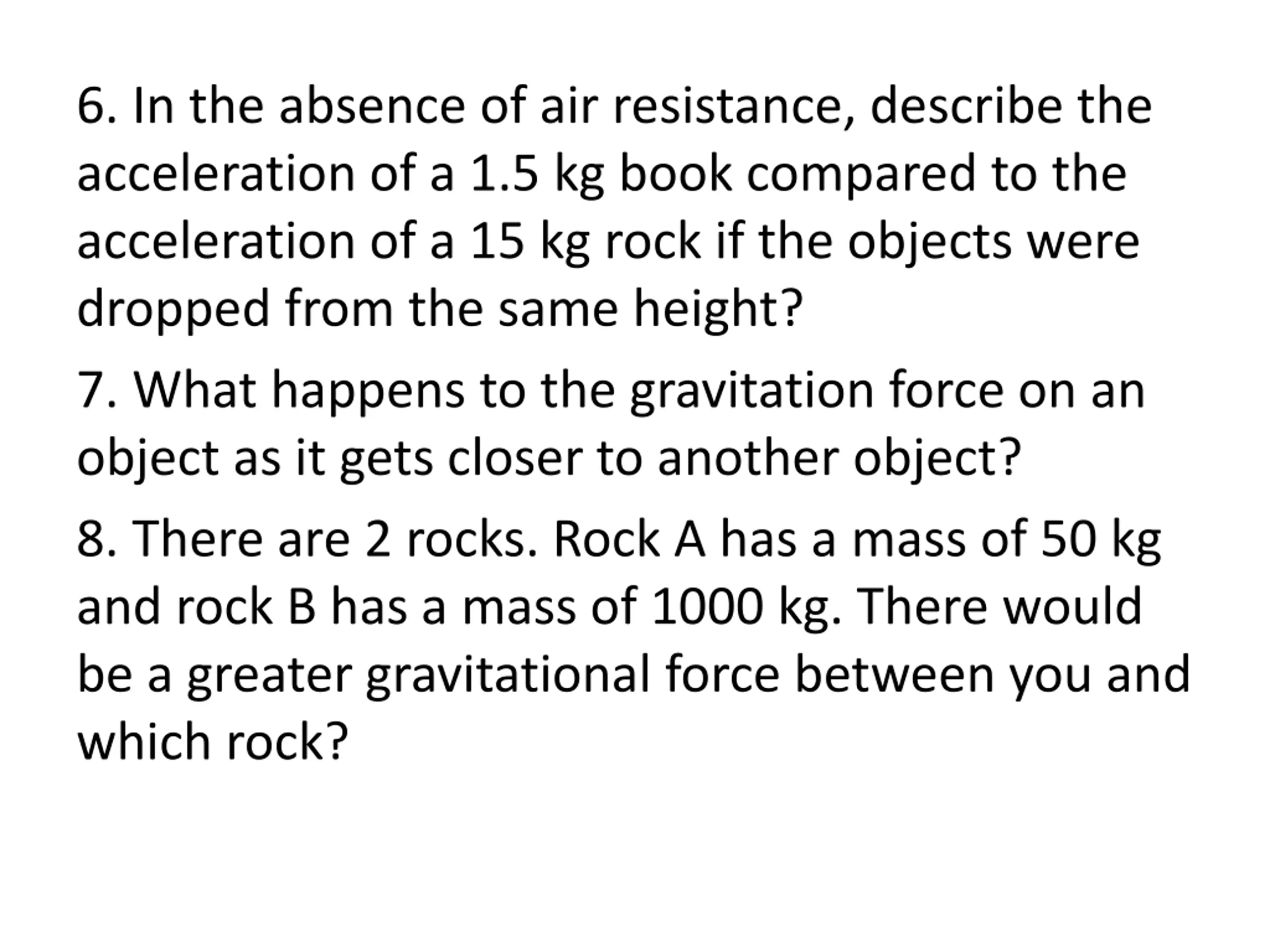

6. In the absence of air resistance, describe the acceleration of a 1.5 kg book compared to the acceleration of a 15 kg rock if the objects were dropped from the same height? 7. What happens to the gravitation force on an object as it gets closer to another object? 8. There are 2 rocks. Rock A has a mass of 50 kg and rock B has a mass of 1000 kg. There would be a greater gravitational force between you and which rock?

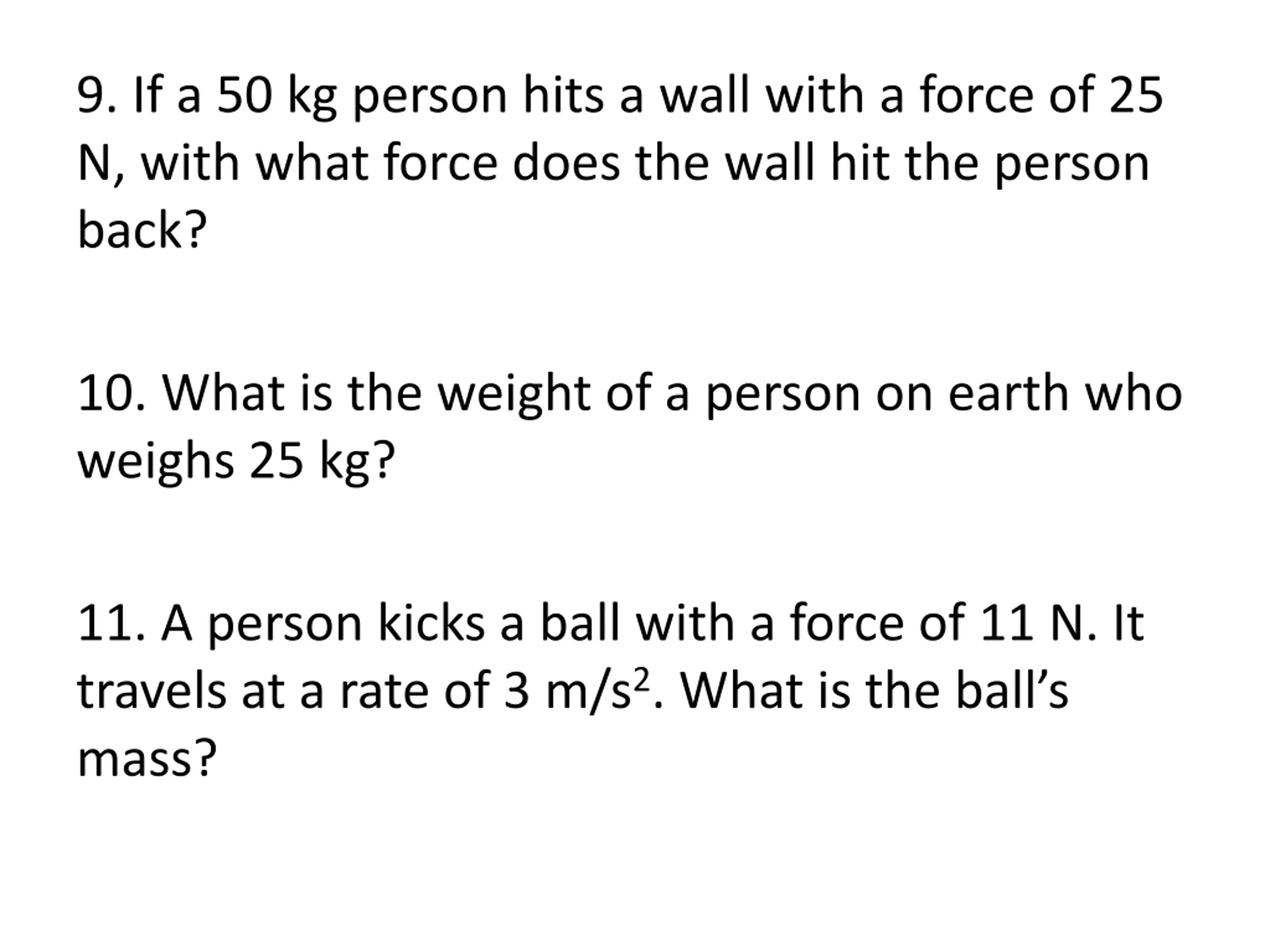

9. If a 50 kg person hits a wall with a force of 25 N, with what force does the wall hit the person back? 10. What is the weight of a person on earth who weighs 25 kg? 11. A person kicks a ball with a force of 11 N. It travels at a rate of 3 m/s2. What is the ball s mass?

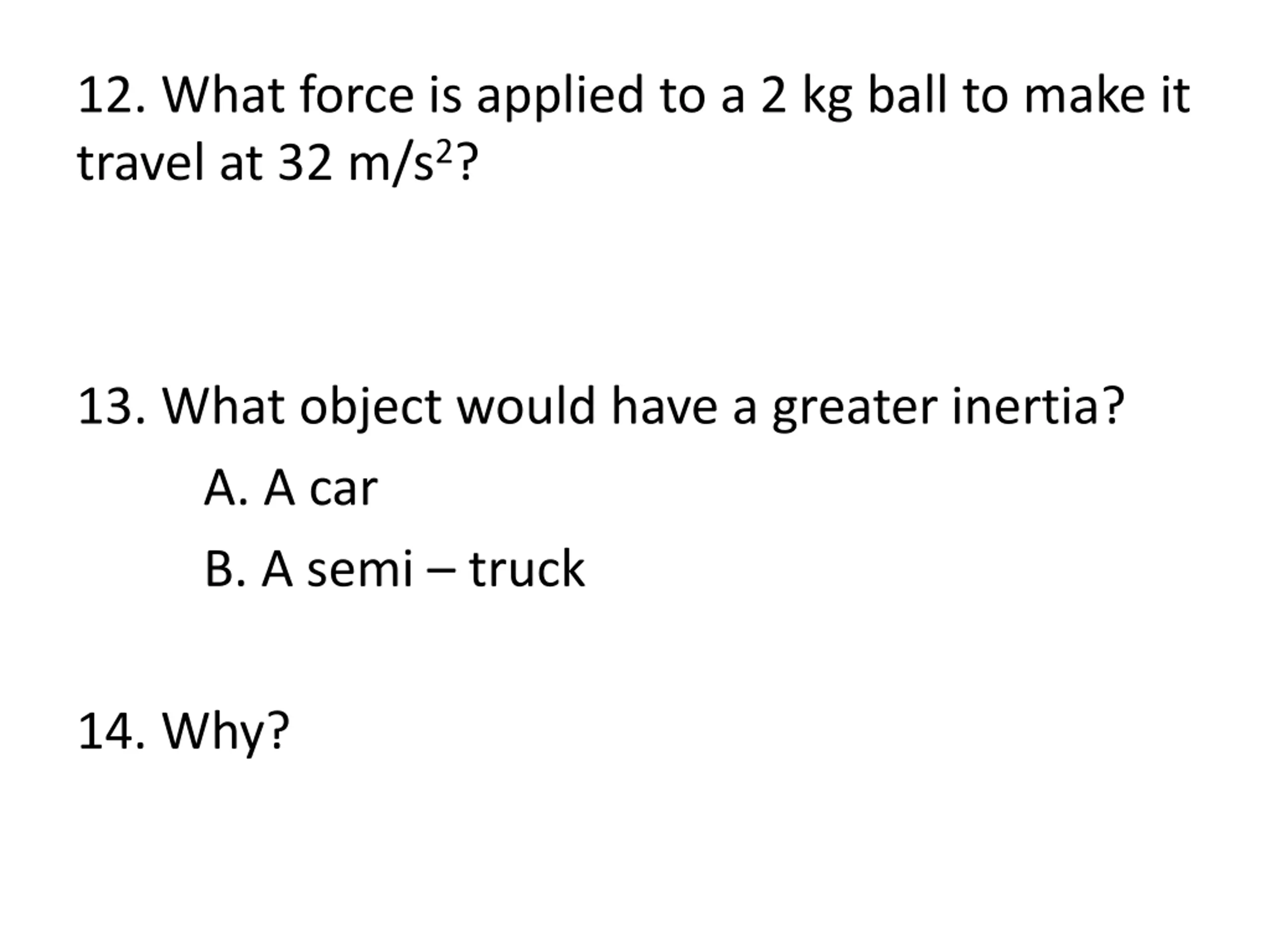

12. What force is applied to a 2 kg ball to make it travel at 32 m/s2? 13. What object would have a greater inertia? A. A car B. A semi truck 14. Why?

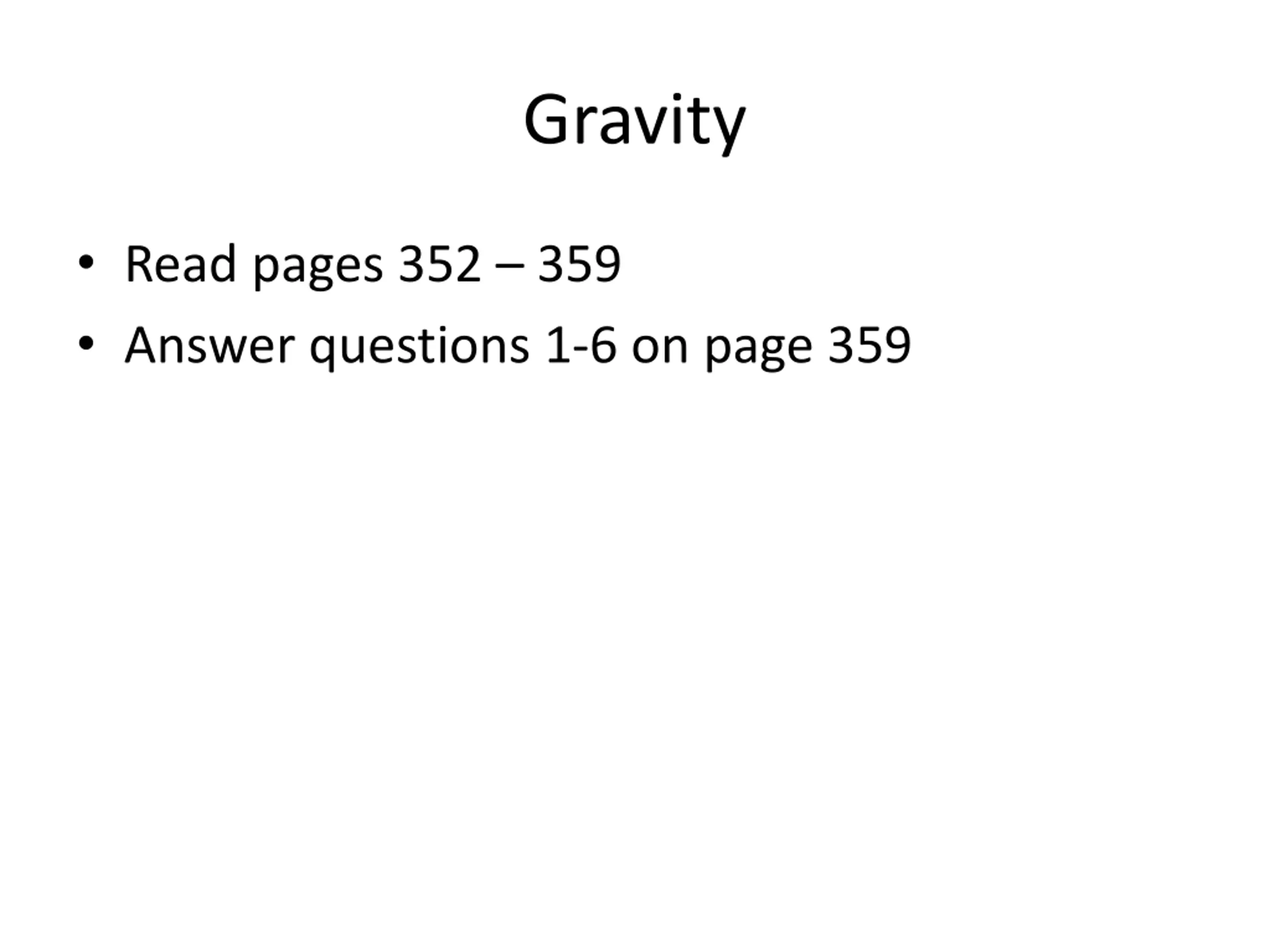

Gravity Read pages 352 359 Answer questions 1-6 on page 359

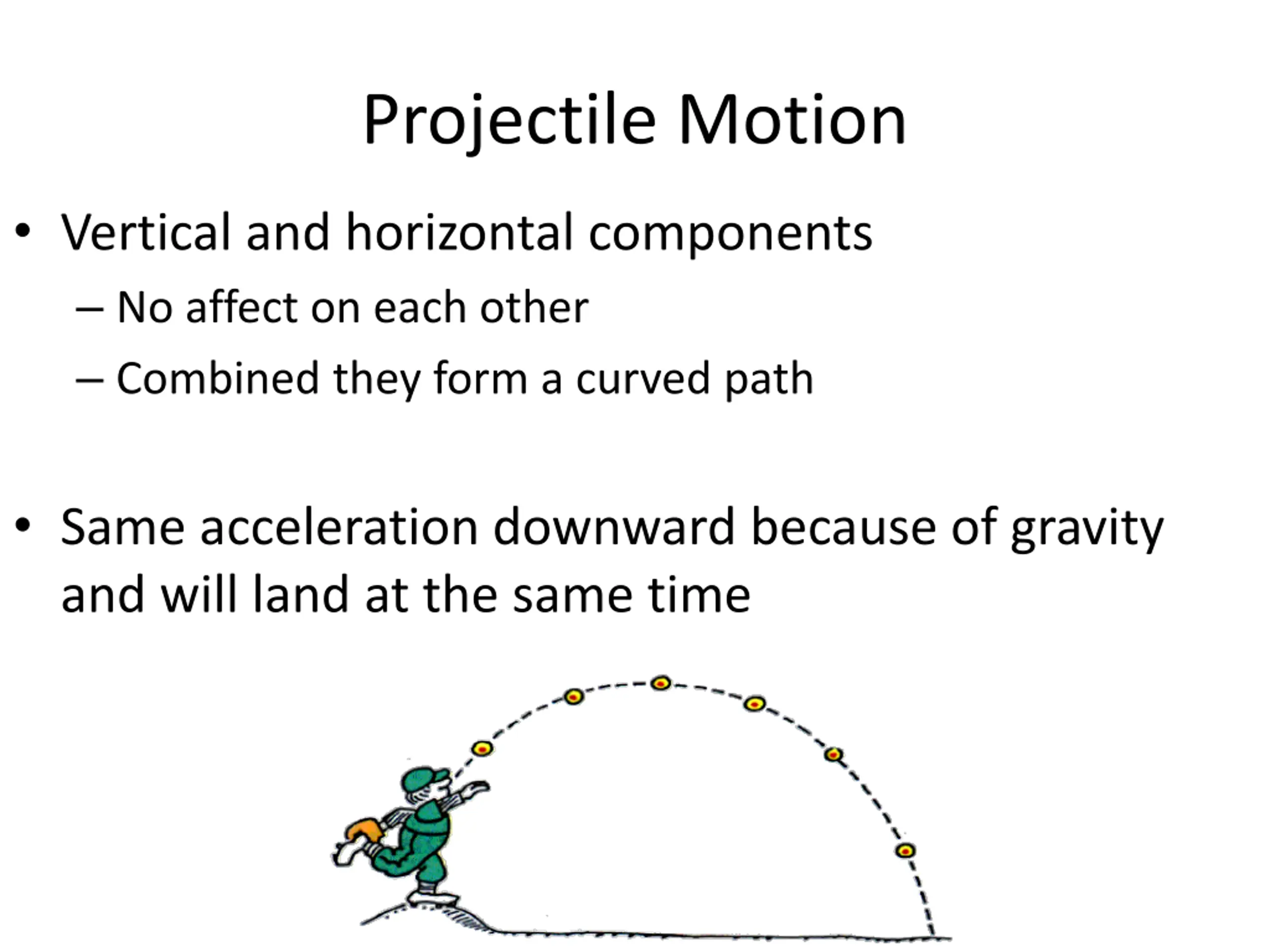

Projectile Motion Vertical and horizontal components No affect on each other Combined they form a curved path Same acceleration downward because of gravity and will land at the same time

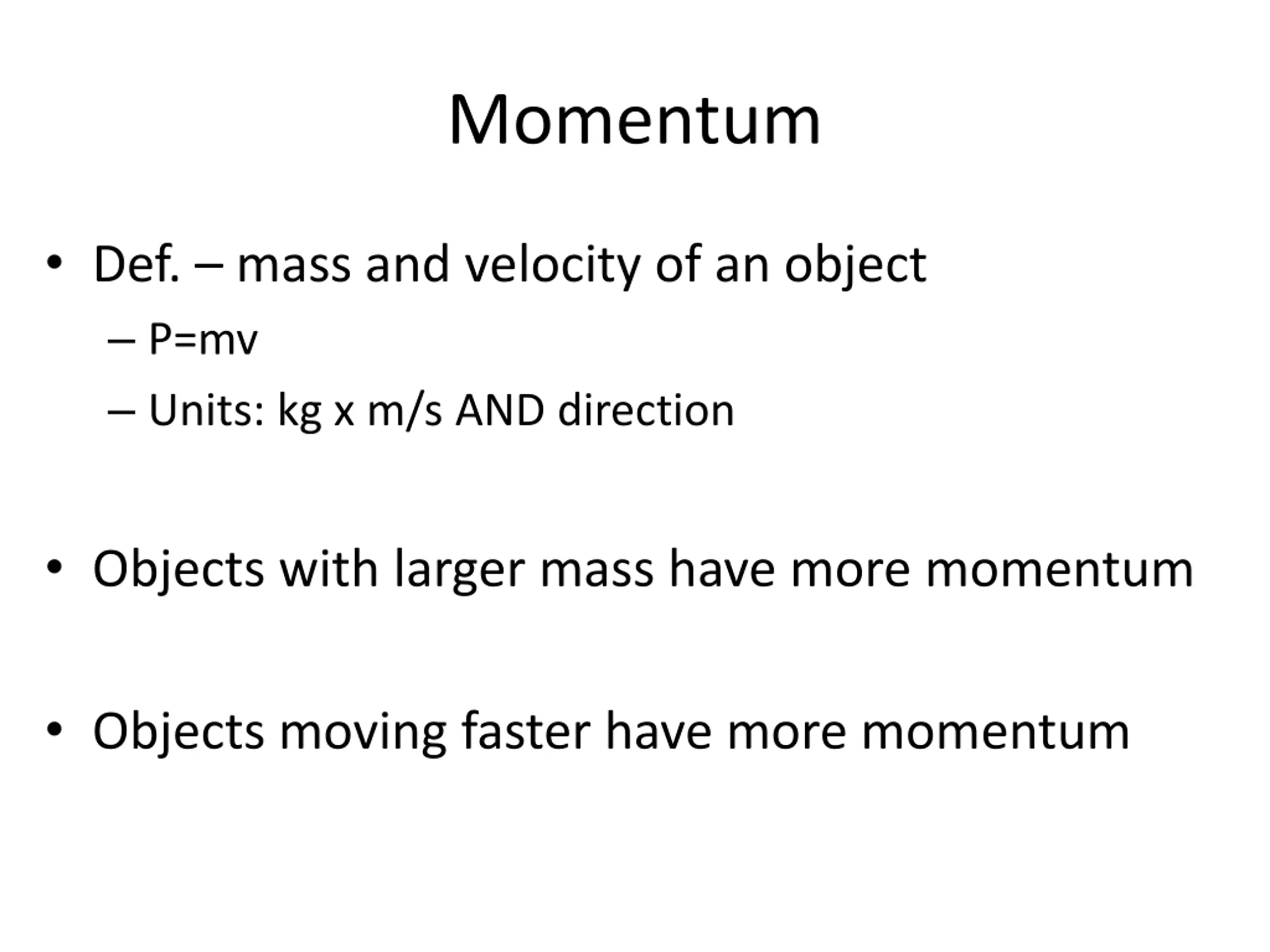

Momentum Def. mass and velocity of an object P=mv Units: kg x m/s AND direction Objects with larger mass have more momentum Objects moving faster have more momentum

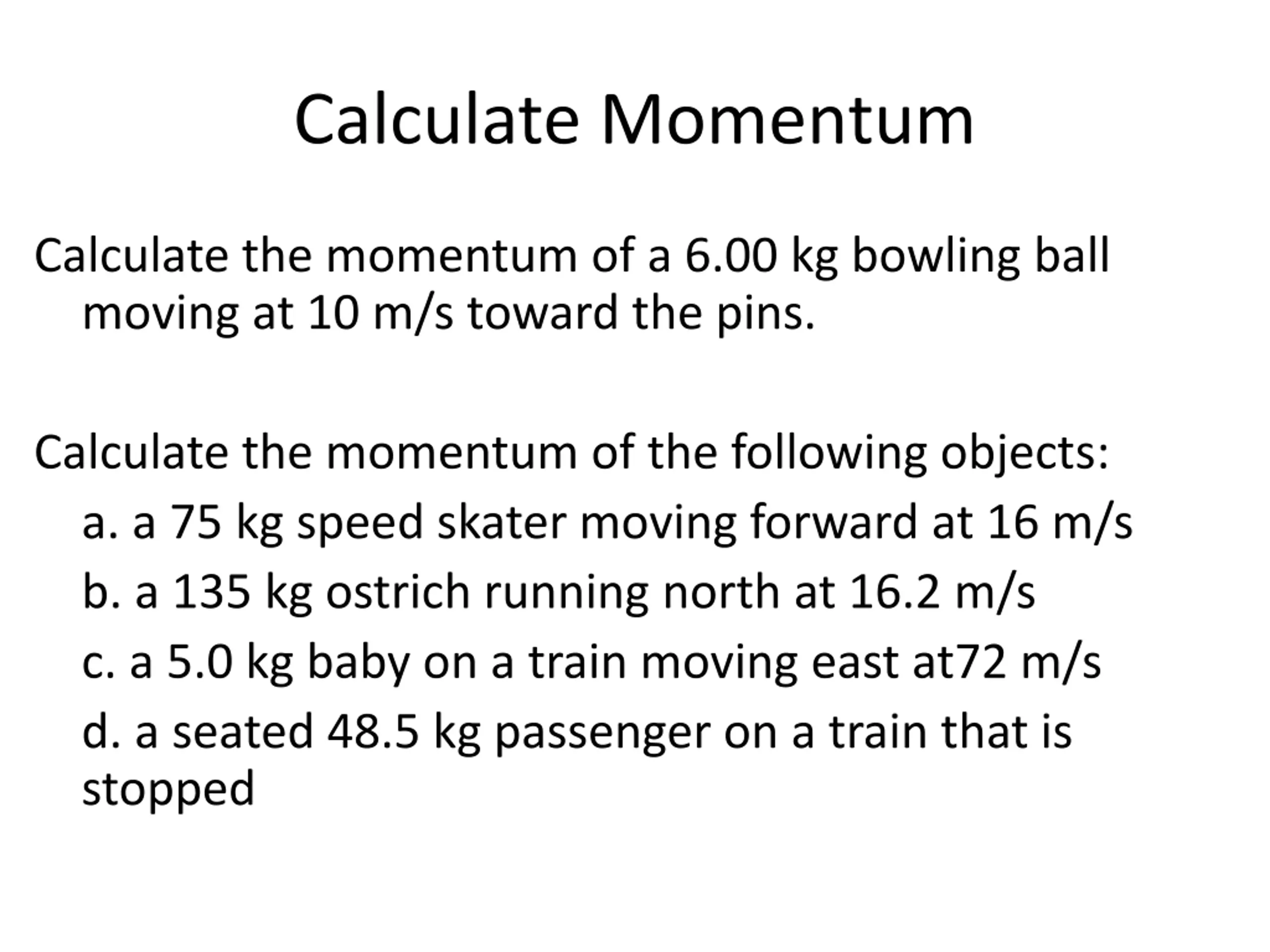

Calculate Momentum Calculate the momentum of a 6.00 kg bowling ball moving at 10 m/s toward the pins. Calculate the momentum of the following objects: a. a 75 kg speed skater moving forward at 16 m/s b. a 135 kg ostrich running north at 16.2 m/s c. a 5.0 kg baby on a train moving east at72 m/s d. a seated 48.5 kg passenger on a train that is stopped

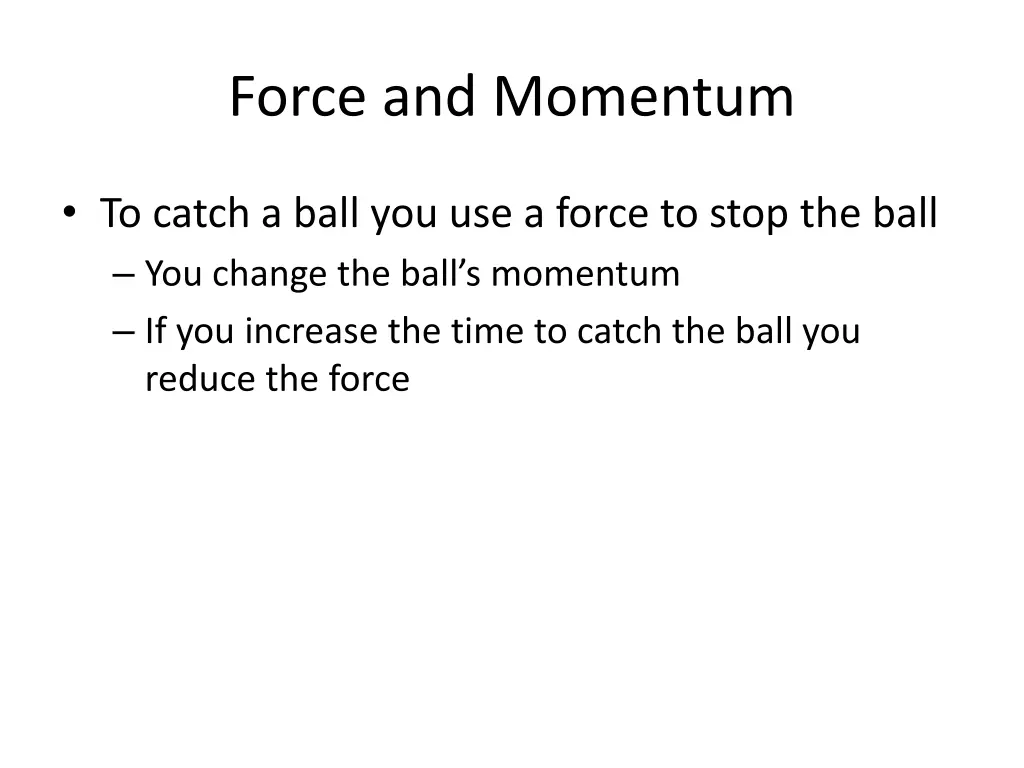

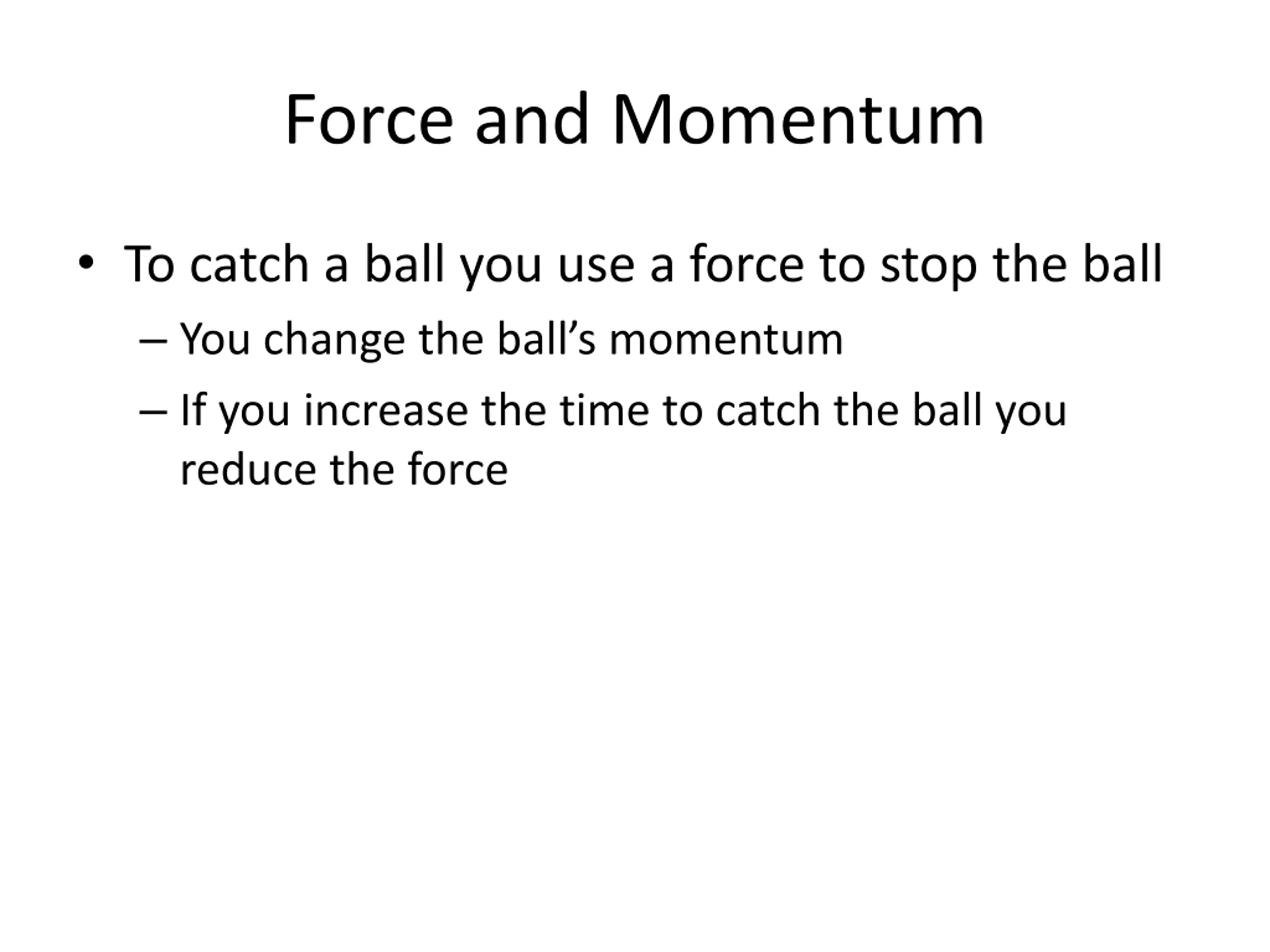

Force and Momentum To catch a ball you use a force to stop the ball You change the ball s momentum If you increase the time to catch the ball you reduce the force

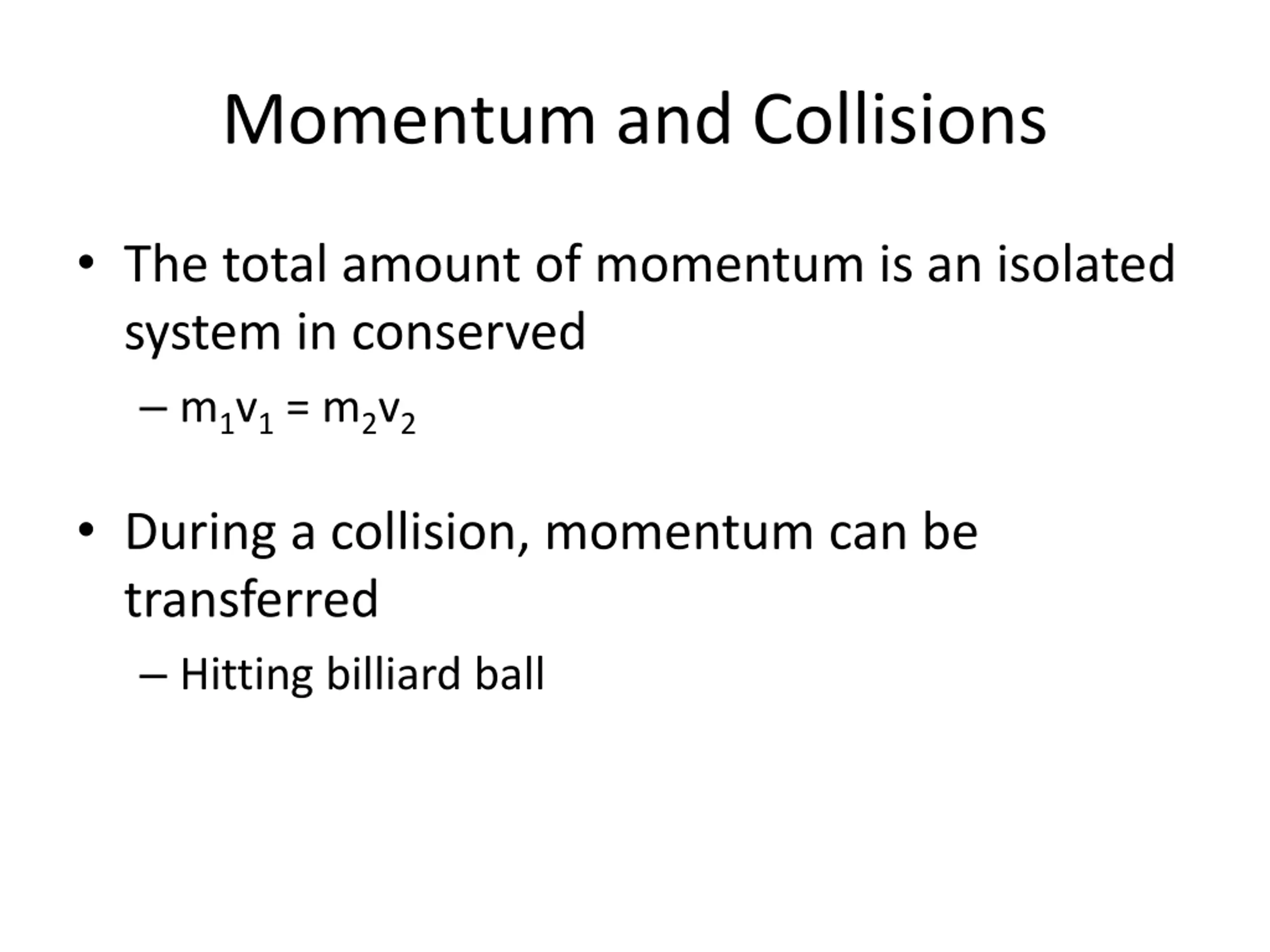

Momentum and Collisions The total amount of momentum is an isolated system in conserved m1v1 = m2v2 During a collision, momentum can be transferred Hitting billiard ball
