Understanding Language Translation in Computer Science

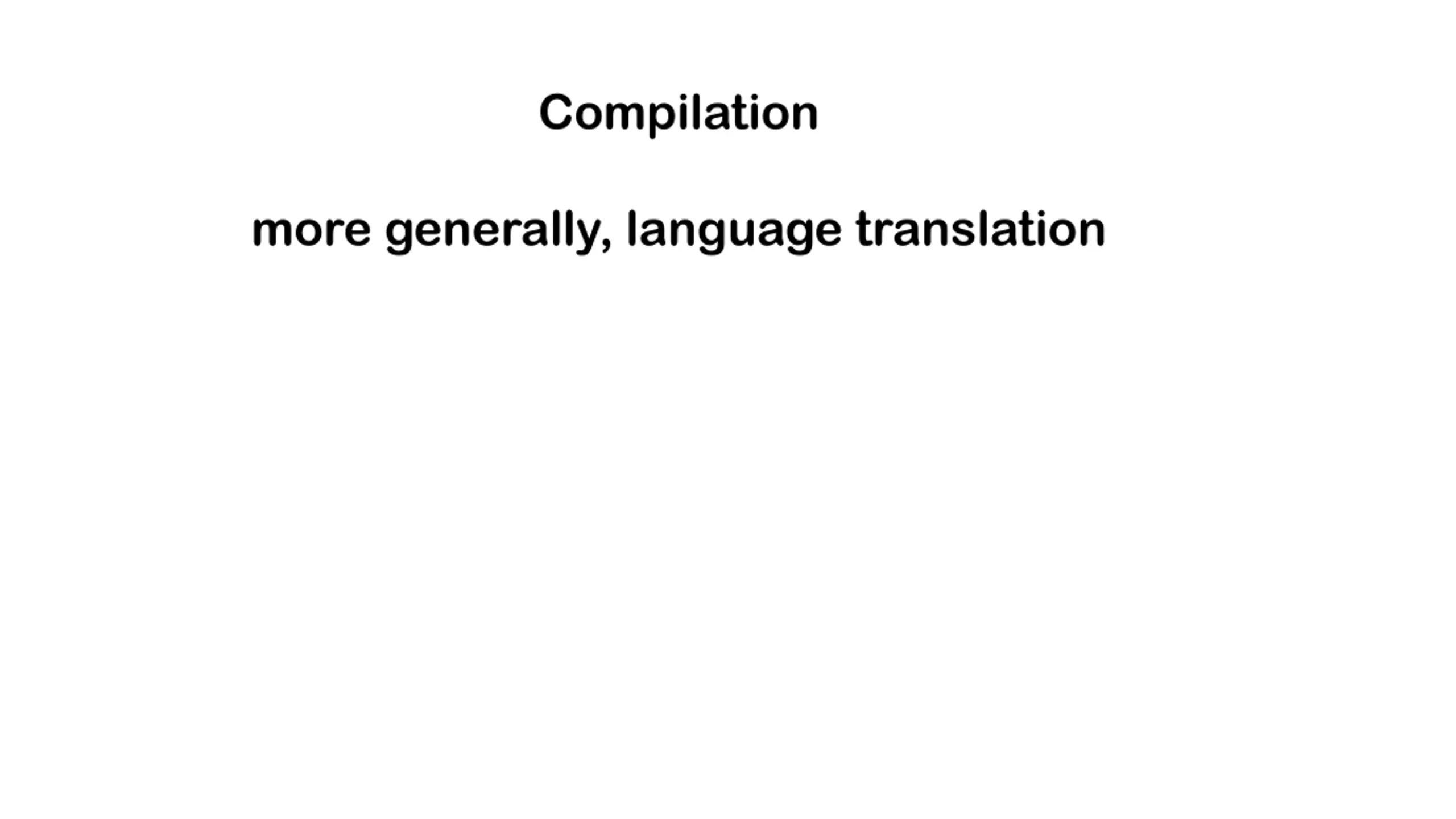

Compilation more generally, language translation

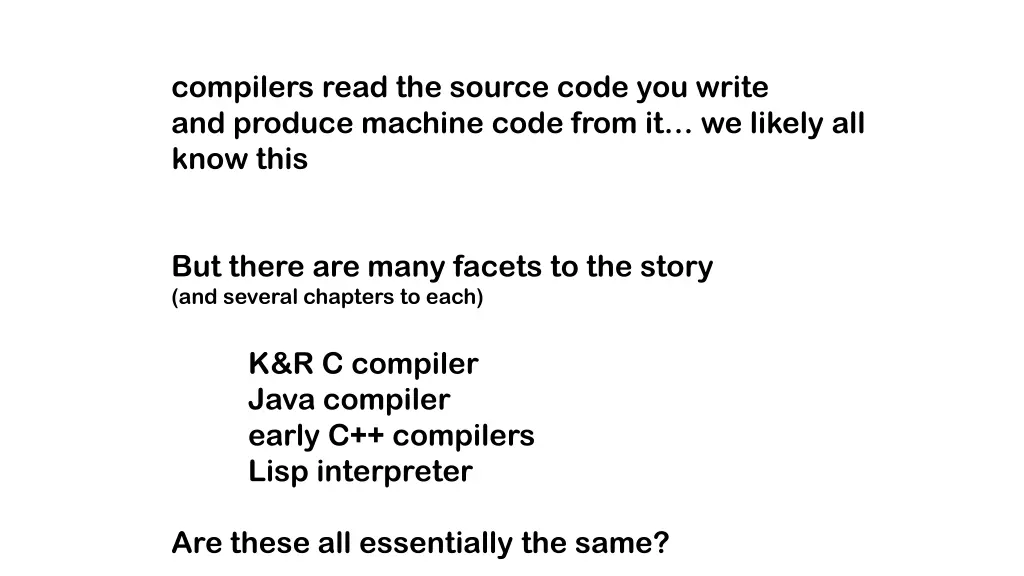

compilers read the source code you write and produce machine code from it we likely all know this But there are many facets to the story (and several chapters to each) K&R C compiler Java compiler early C++ compilers Lisp interpreter Are these all essentially the same?

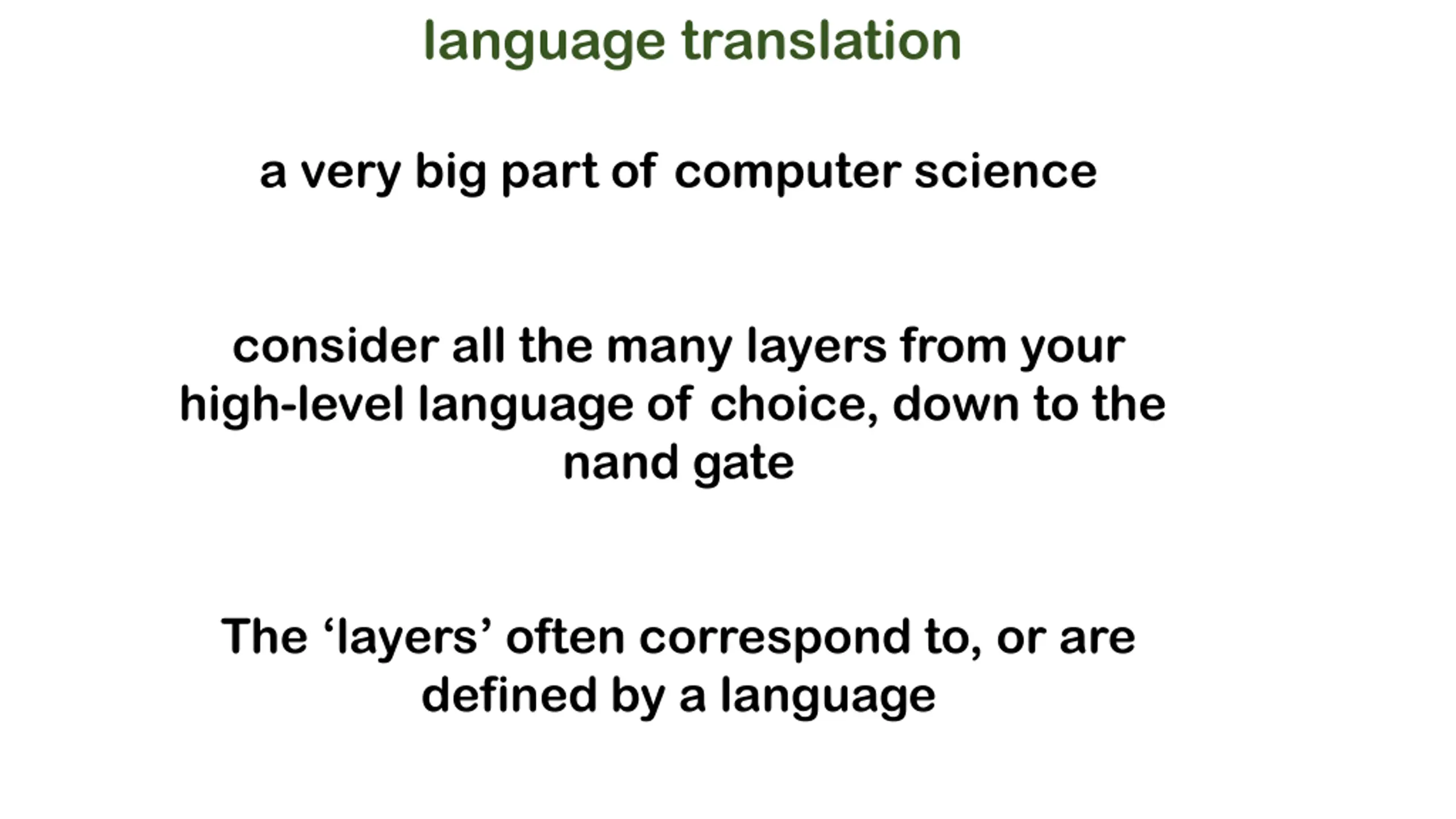

language translation a very big part of computer science consider all the many layers from your high-level language of choice, down to the nand gate The layers often correspond to, or are defined by a language

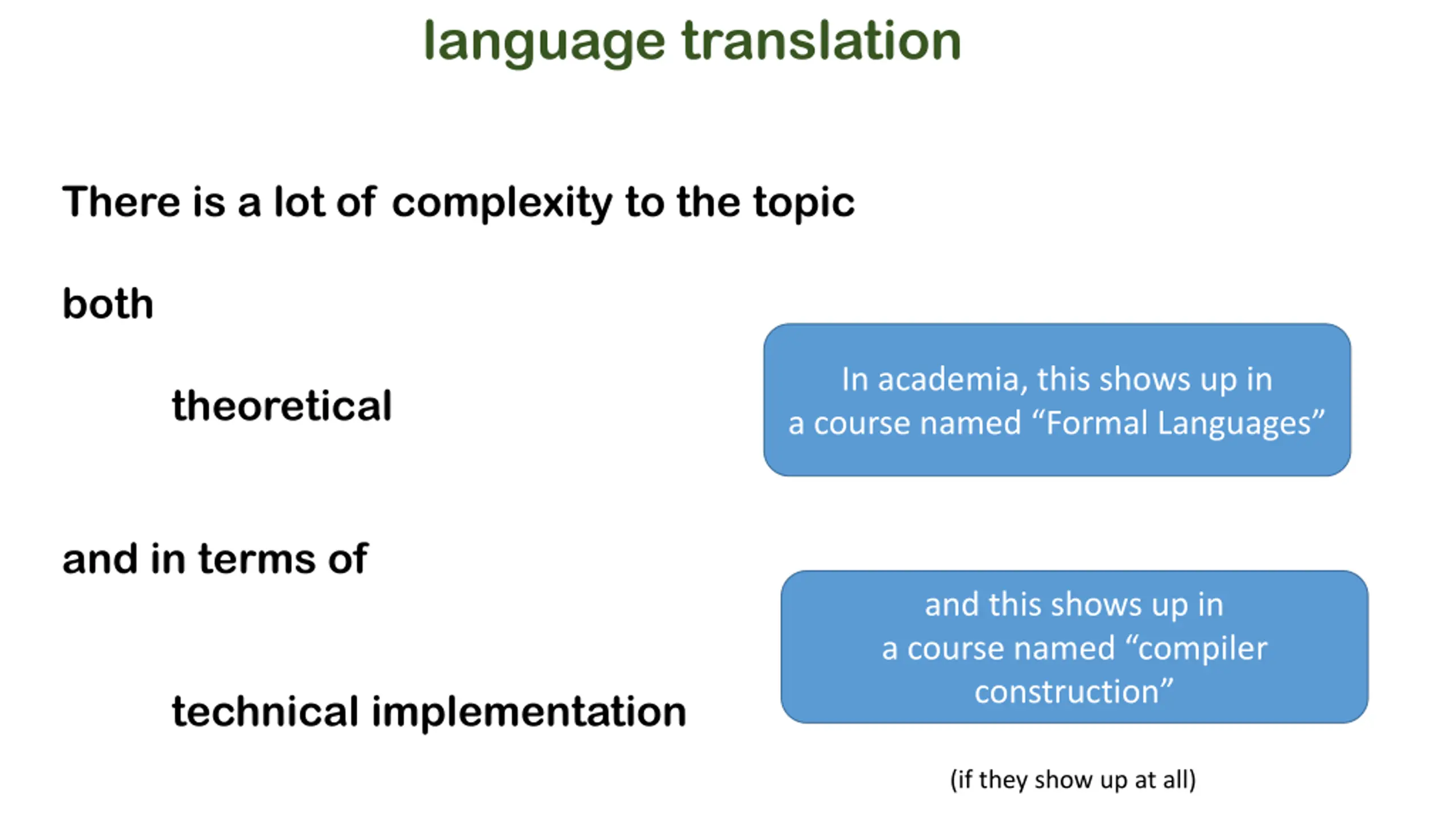

language translation There is a lot of complexity to the topic both In academia, this shows up in a course named Formal Languages theoretical and in terms of and this shows up in a course named compiler construction technical implementation (if they show up at all)

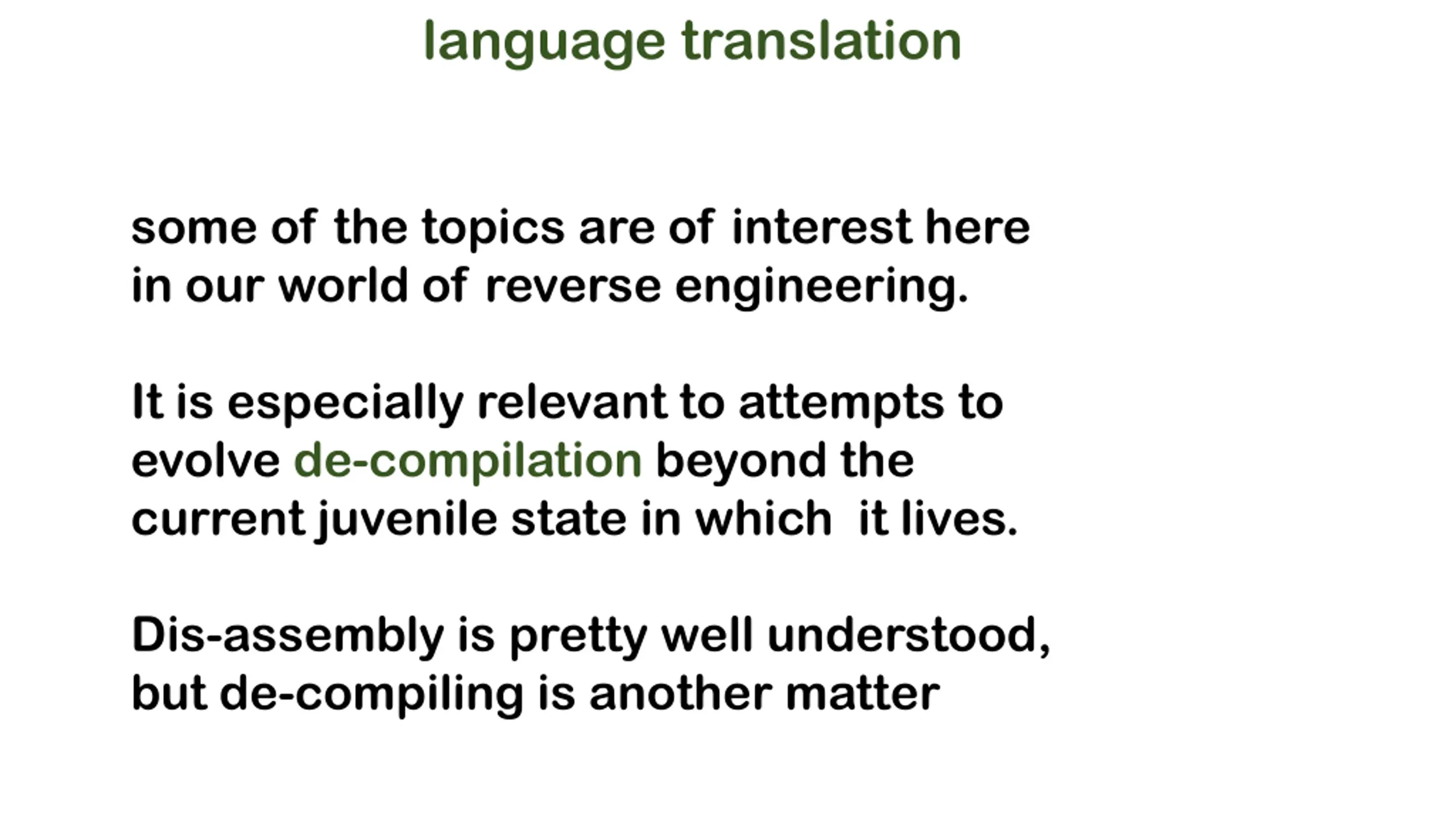

language translation some of the topics are of interest here in our world of reverse engineering. It is especially relevant to attempts to evolve de-compilation beyond the current juvenile state in which it lives. Dis-assembly is pretty well understood, but de-compiling is another matter

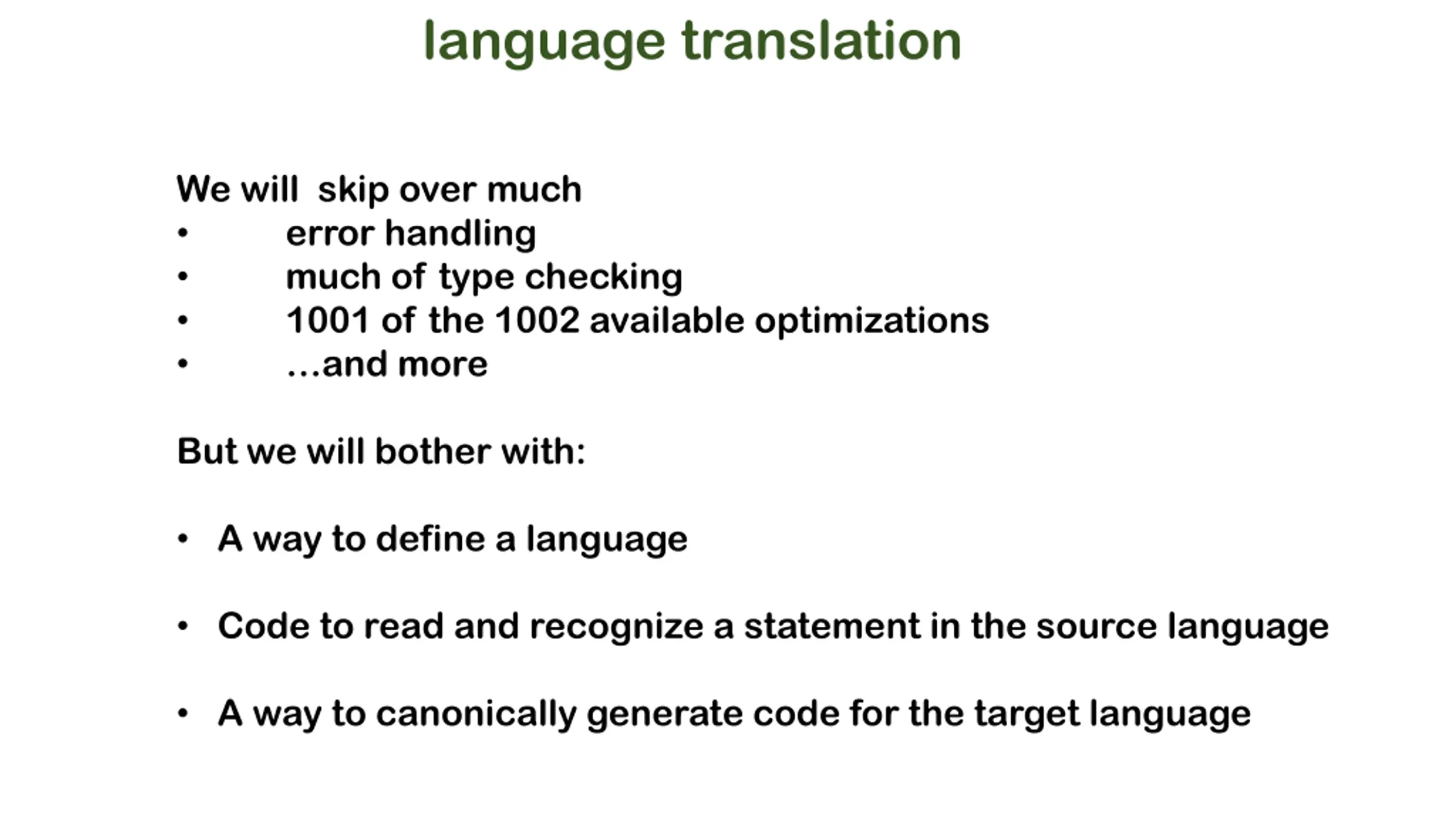

language translation We will skip over much error handling much of type checking 1001 of the 1002 available optimizations and more But we will bother with: A way to define a language Code to read and recognize a statement in the source language A way to canonically generate code for the target language

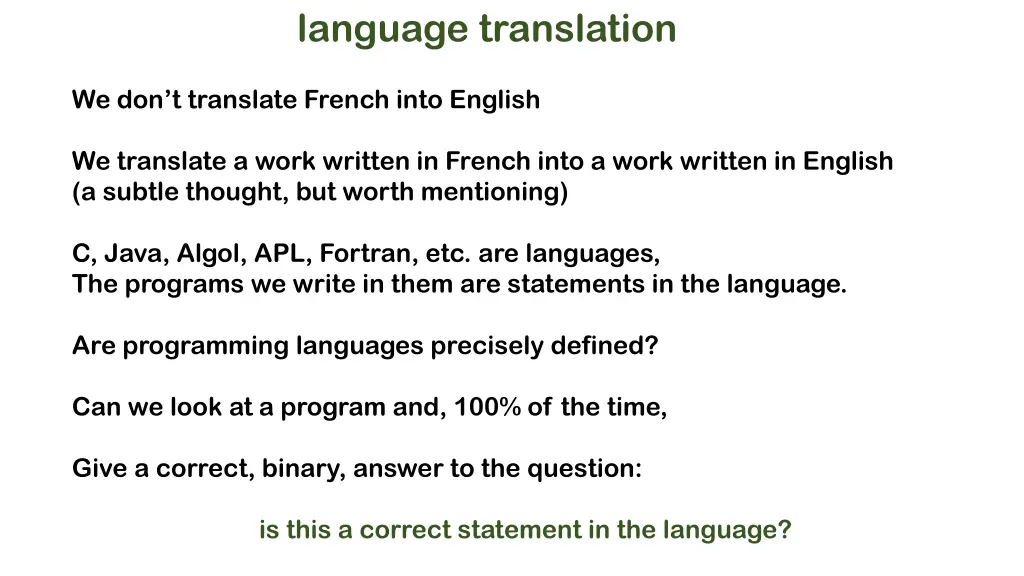

language translation We don t translate French into English We translate a work written in French into a work written in English (a subtle thought, but worth mentioning) C, Java, Algol, APL, Fortran, etc. are languages, The programs we write in them are statements in the language. Are programming languages precisely defined? Can we look at a program and, 100% of the time, Give a correct, binary, answer to the question: is this a correct statement in the language?

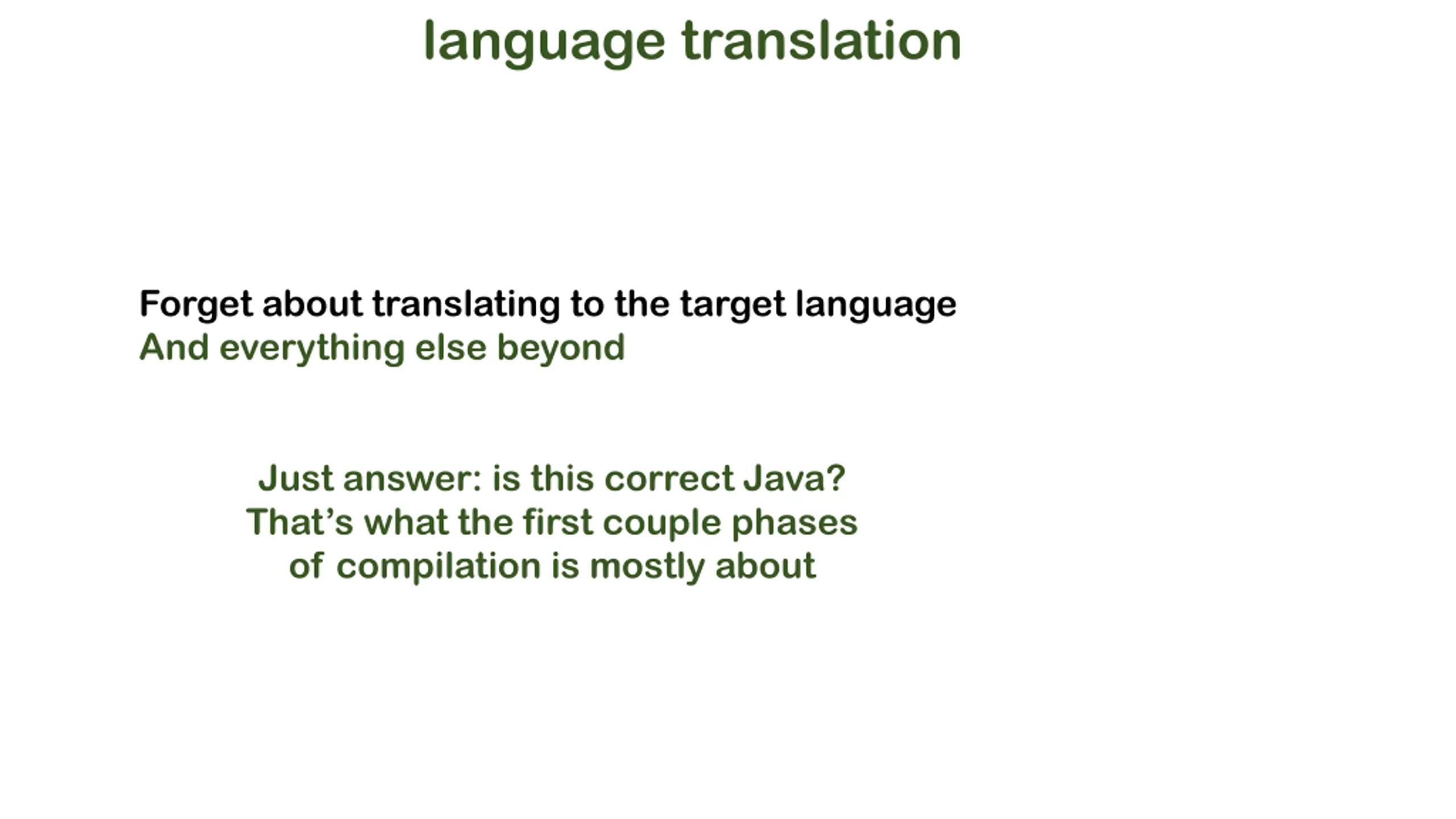

language translation Forget about translating to the target language And everything else beyond Just answer: is this correct Java? That s what the first couple phases of compilation is mostly about

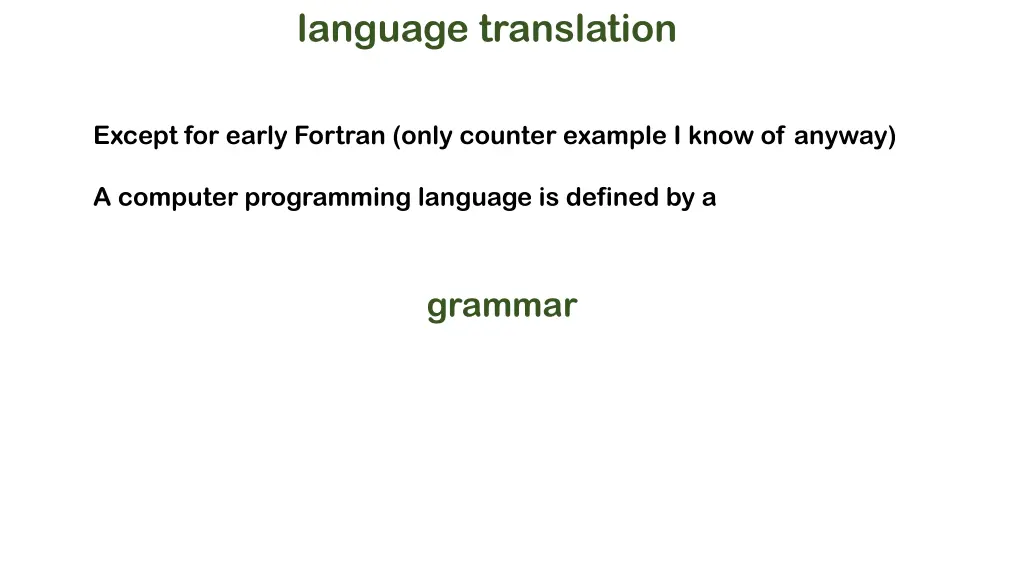

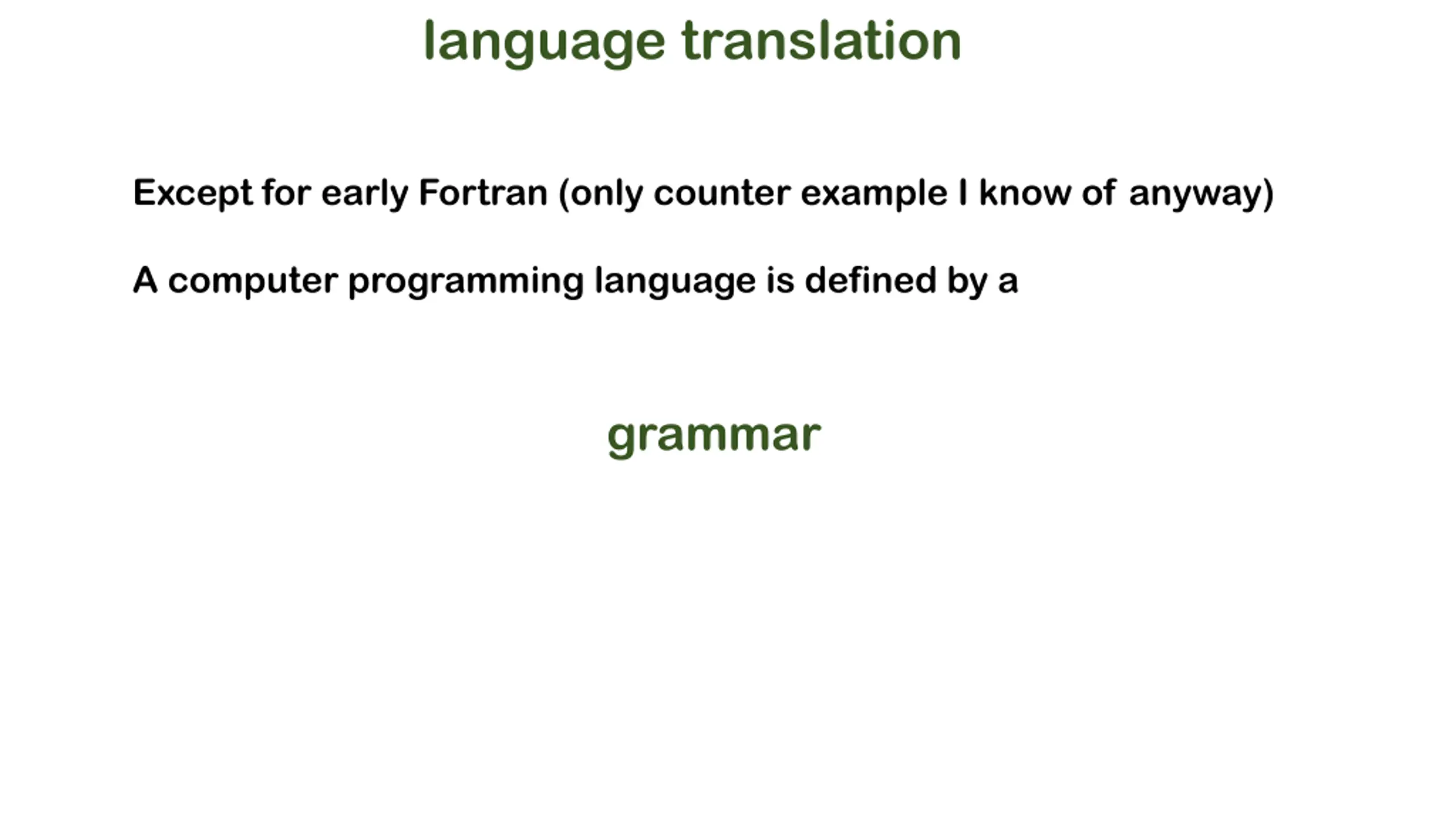

language translation Except for early Fortran (only counter example I know of anyway) A computer programming language is defined by a grammar

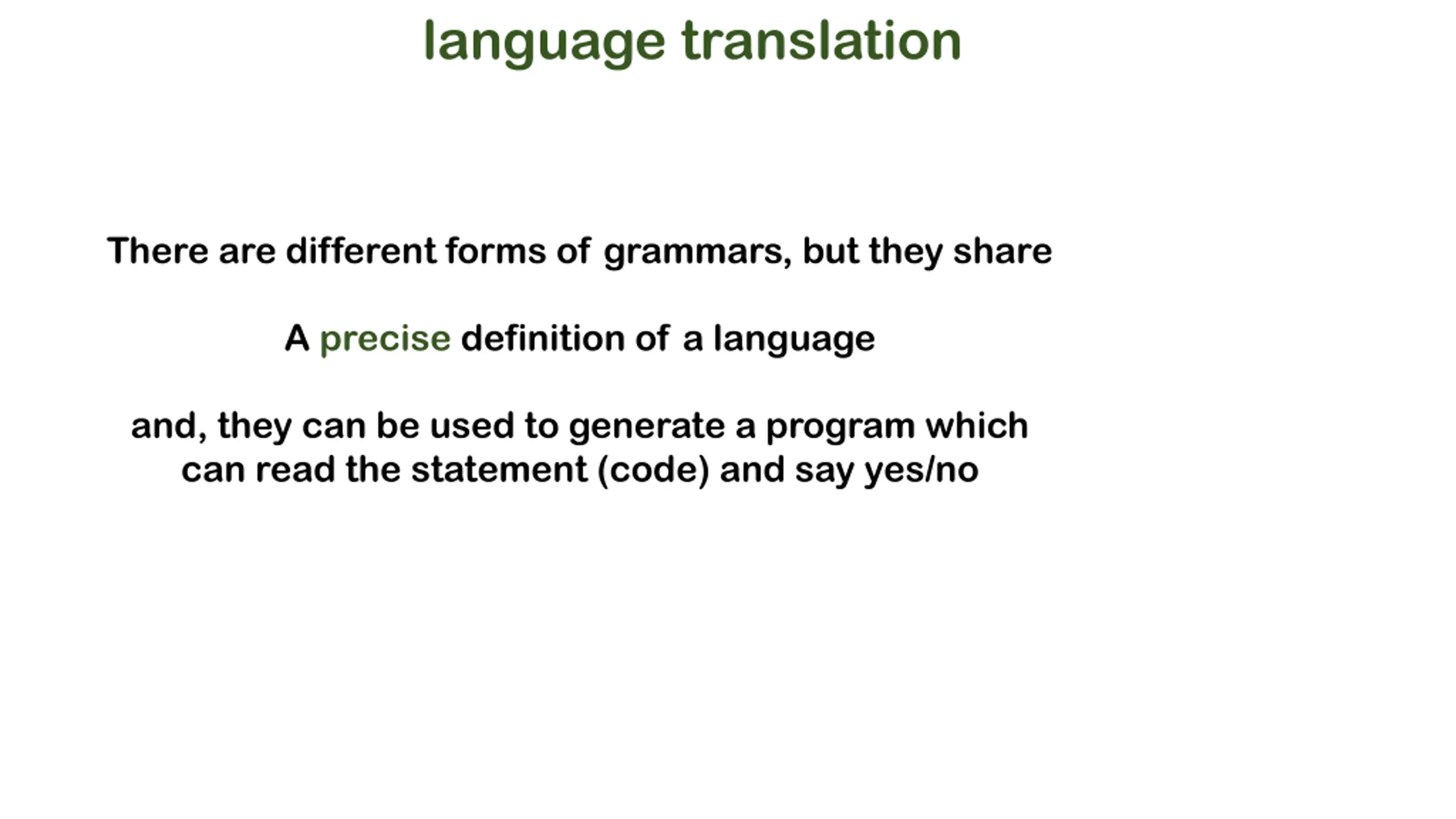

language translation There are different forms of grammars, but they share A precise definition of a language and, they can be used to generate a program which can read the statement (code) and say yes/no

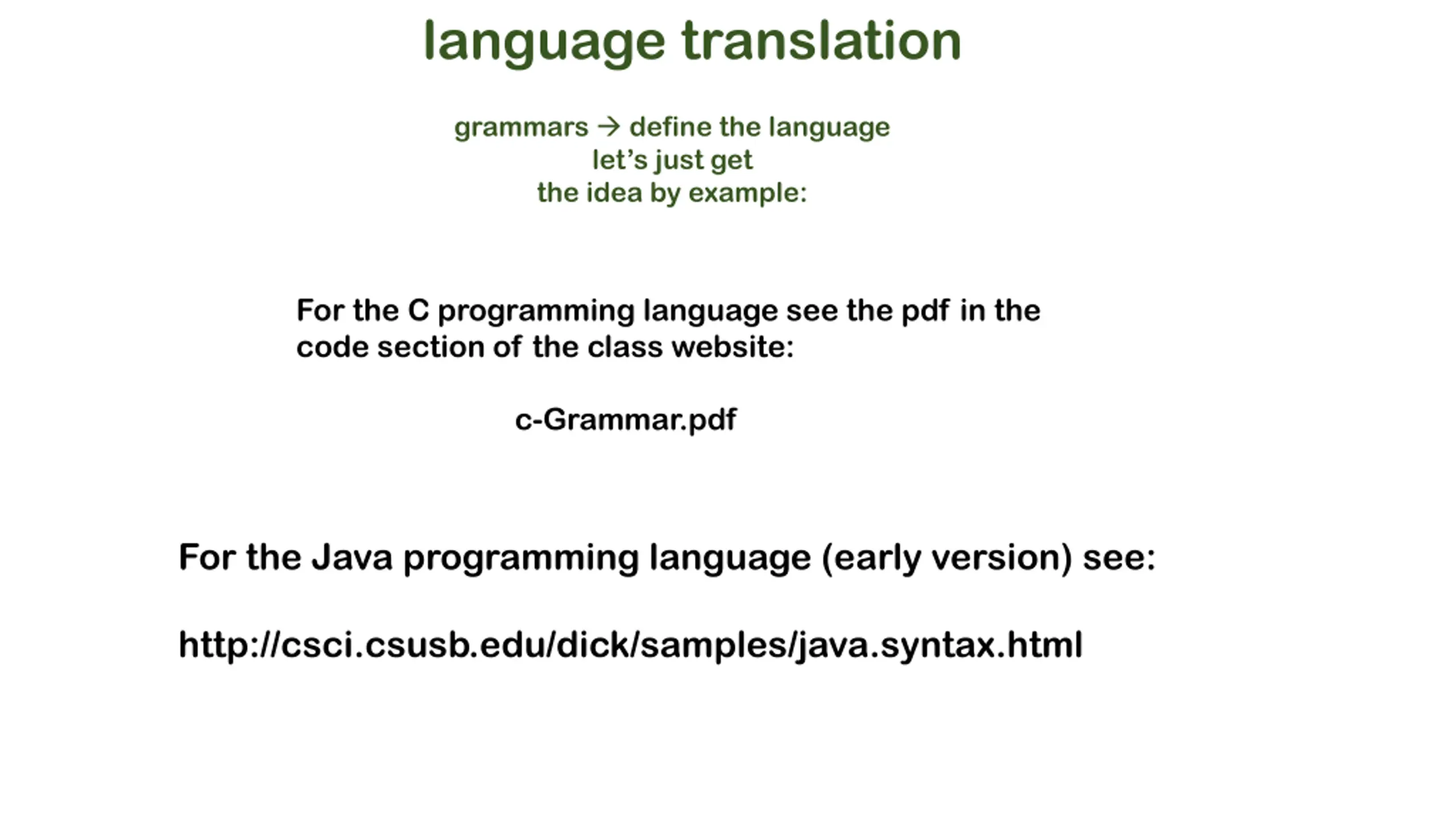

language translation grammars define the language let s just get the idea by example: For the C programming language see the pdf in the code section of the class website: c-Grammar.pdf For the Java programming language (early version) see: http://csci.csusb.edu/dick/samples/java.syntax.html

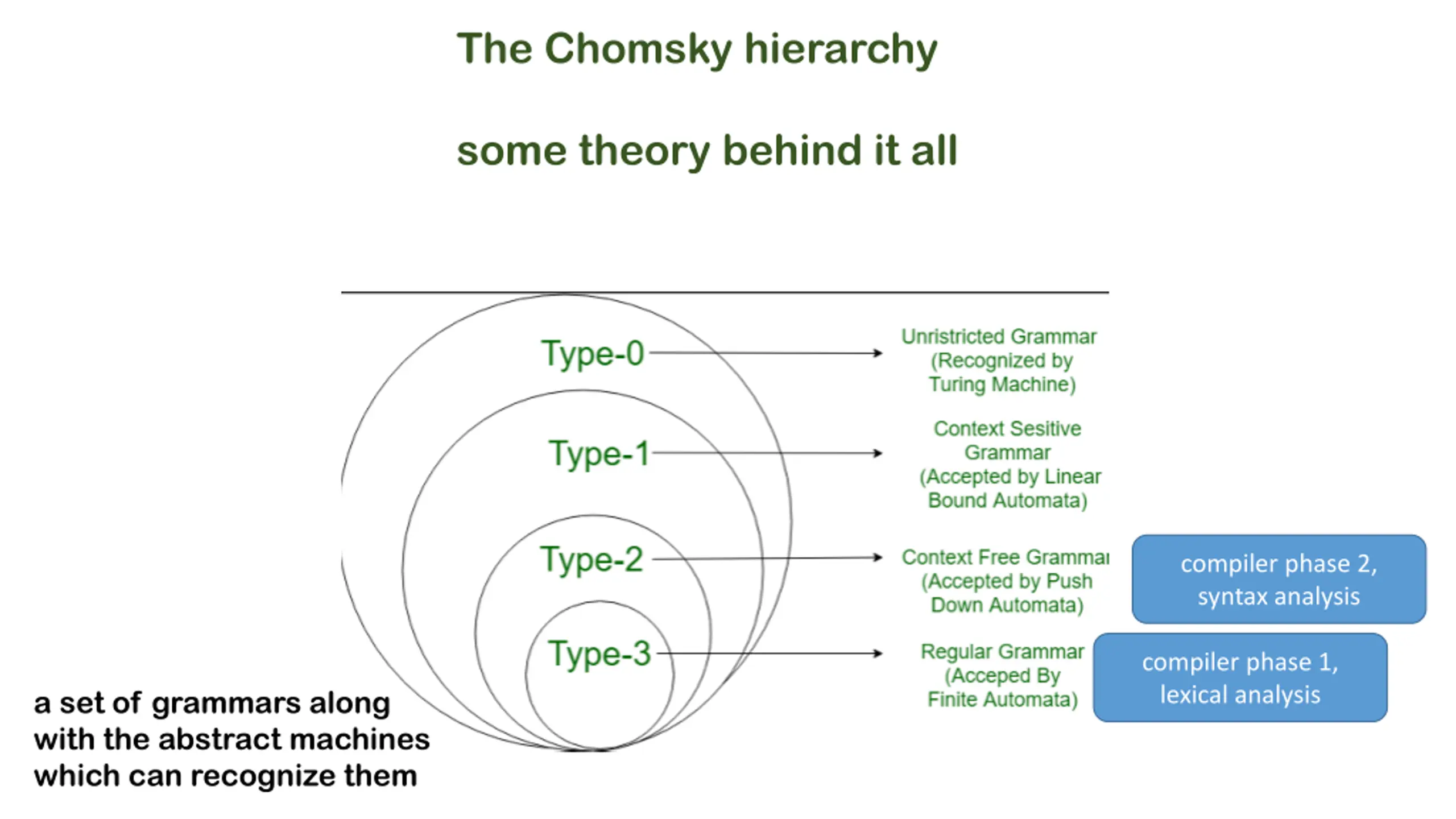

The Chomsky hierarchy some theory behind it all compiler phase 2, syntax analysis compiler phase 1, lexical analysis a set of grammars along with the abstract machines which can recognize them

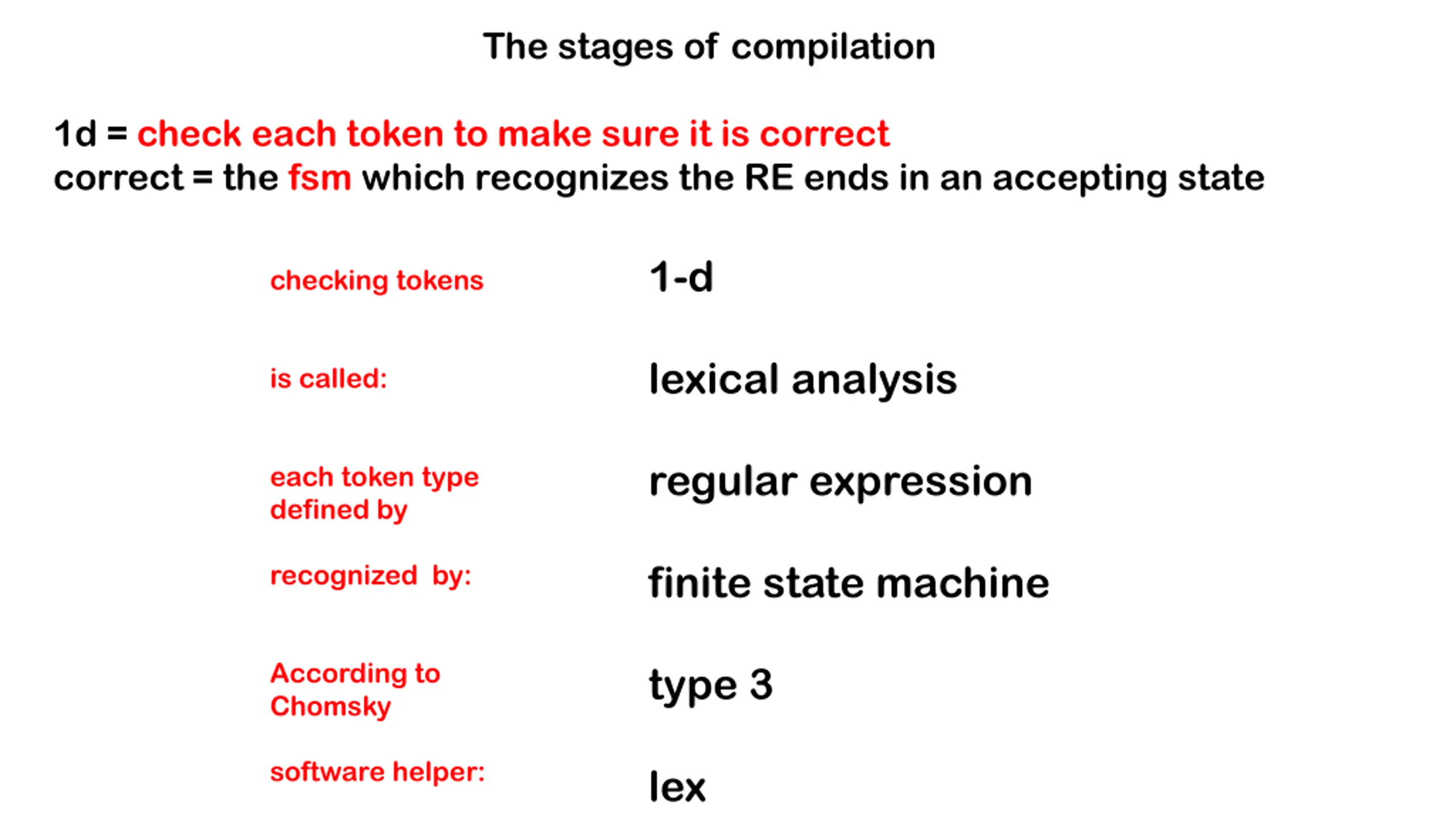

The stages of compilation 1d = check each token to make sure it is correct correct = the fsm which recognizes the RE ends in an accepting state 1-d checking tokens lexical analysis is called: regular expression each token type defined by finite state machine recognized by: According to Chomsky type 3 software helper: lex

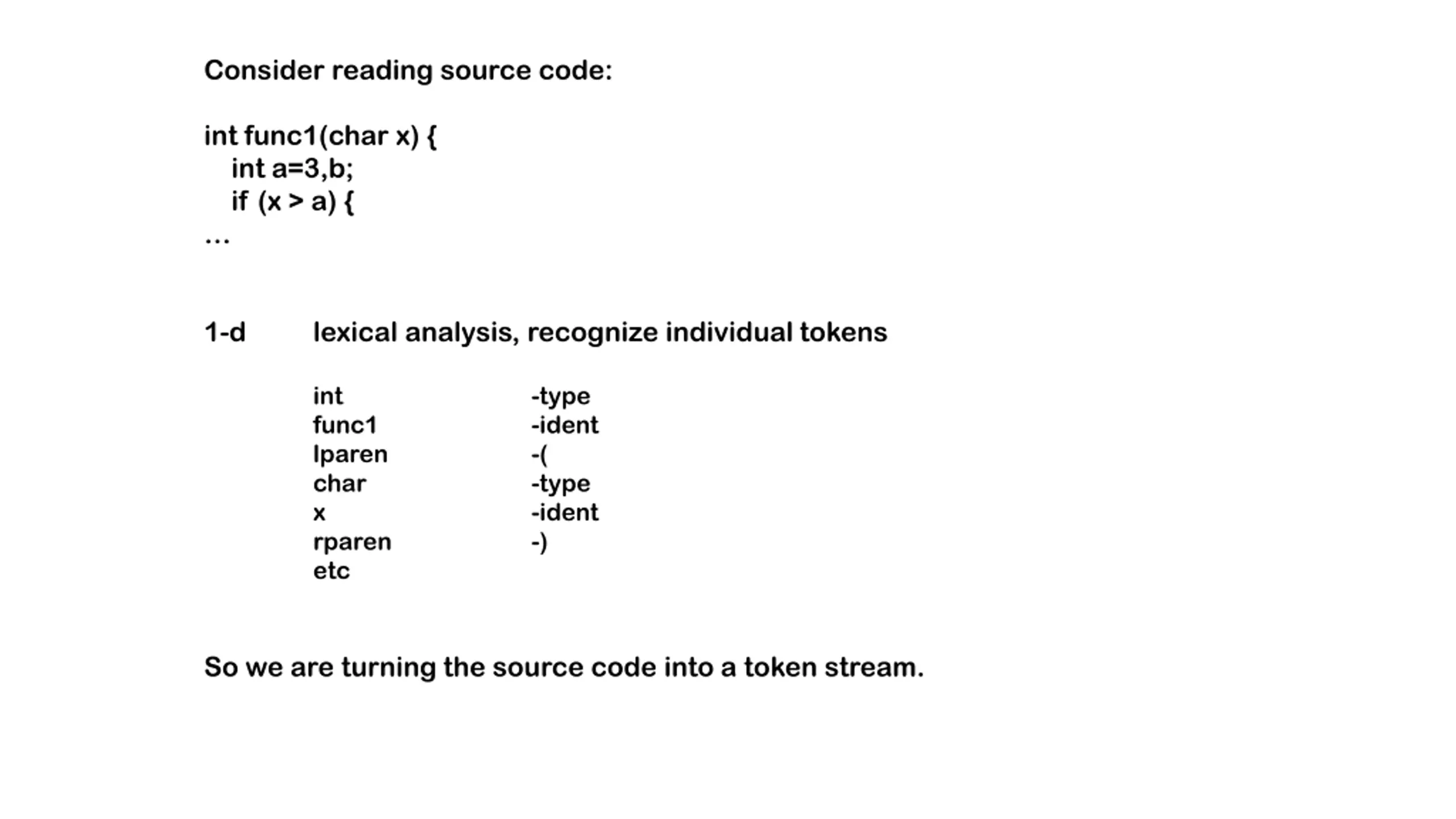

Consider reading source code: int func1(char x) { int a=3,b; if (x > a) { 1-d lexical analysis, recognize individual tokens int func1 lparen char x rparen etc -type -ident -( -type -ident -) So we are turning the source code into a token stream.

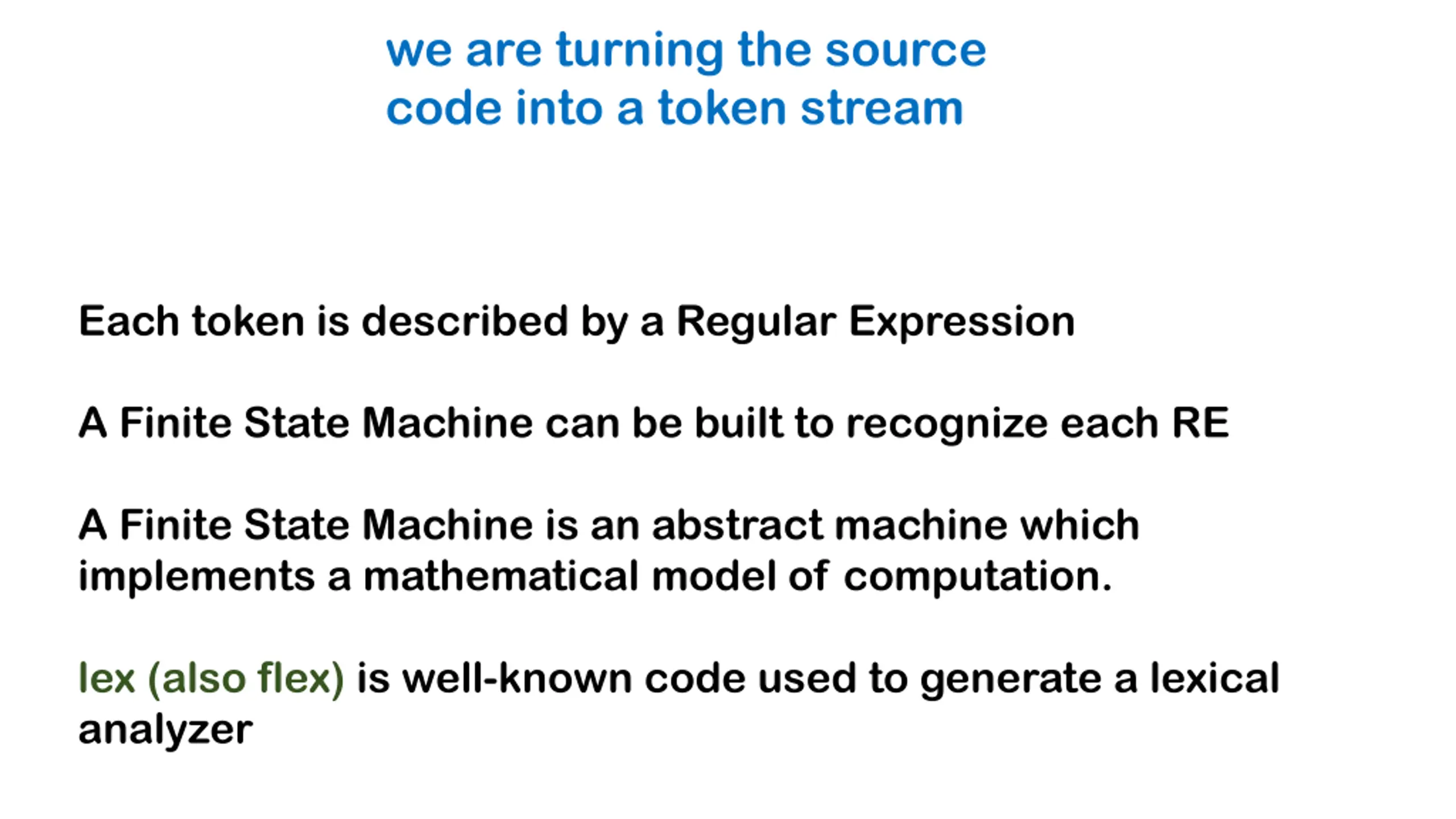

we are turning the source code into a token stream Each token is described by a Regular Expression A Finite State Machine can be built to recognize each RE A Finite State Machine is an abstract machine which implements a mathematical model of computation. lex (also flex) is well-known code used to generate a lexical analyzer

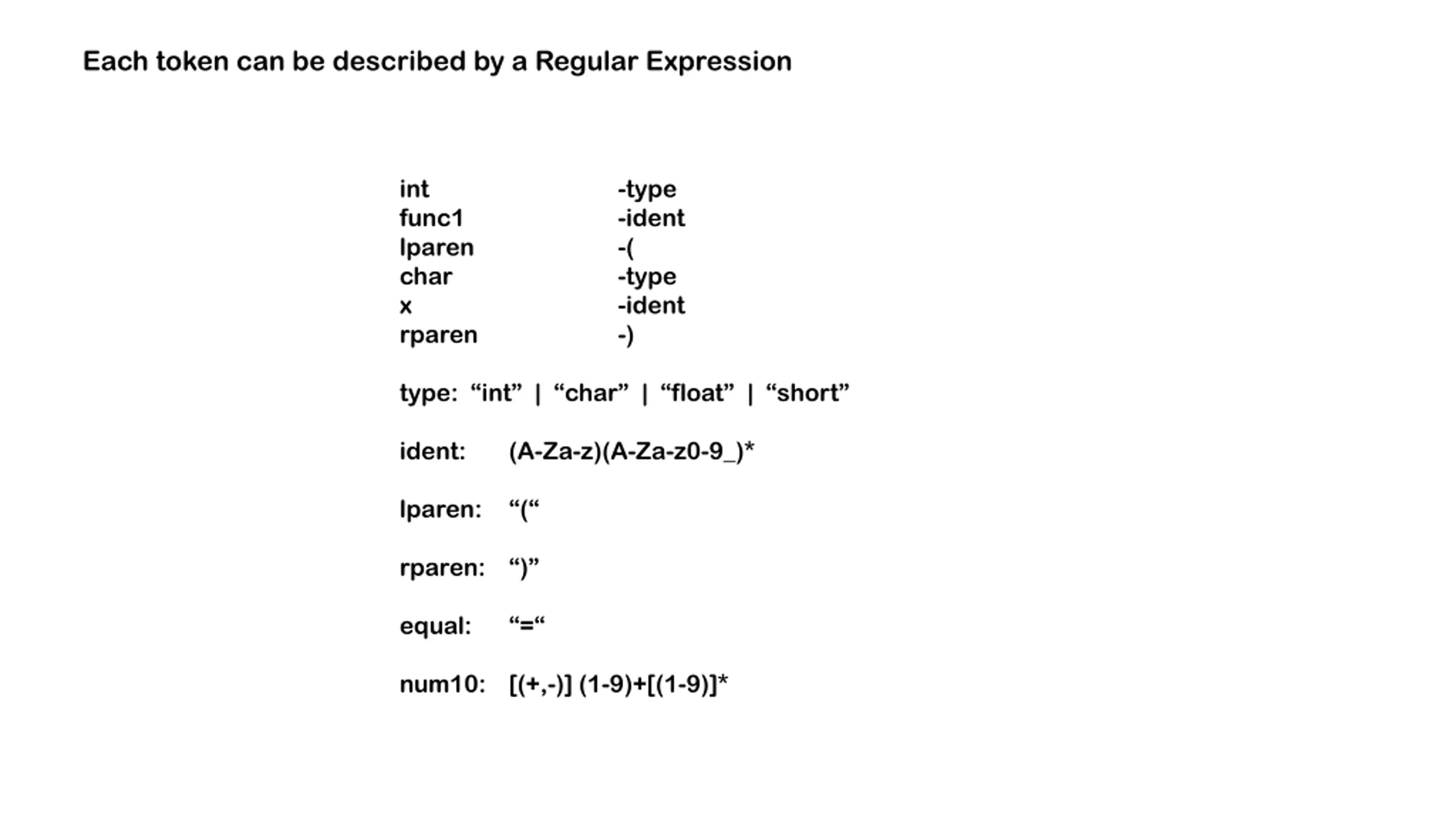

Each token can be described by a Regular Expression int func1 lparen char x rparen -type -ident -( -type -ident -) type: int | char | float | short ident: (A-Za-z)(A-Za-z0-9_)* lparen: ( rparen: ) equal: = num10: [(+,-)] (1-9)+[(1-9)]*

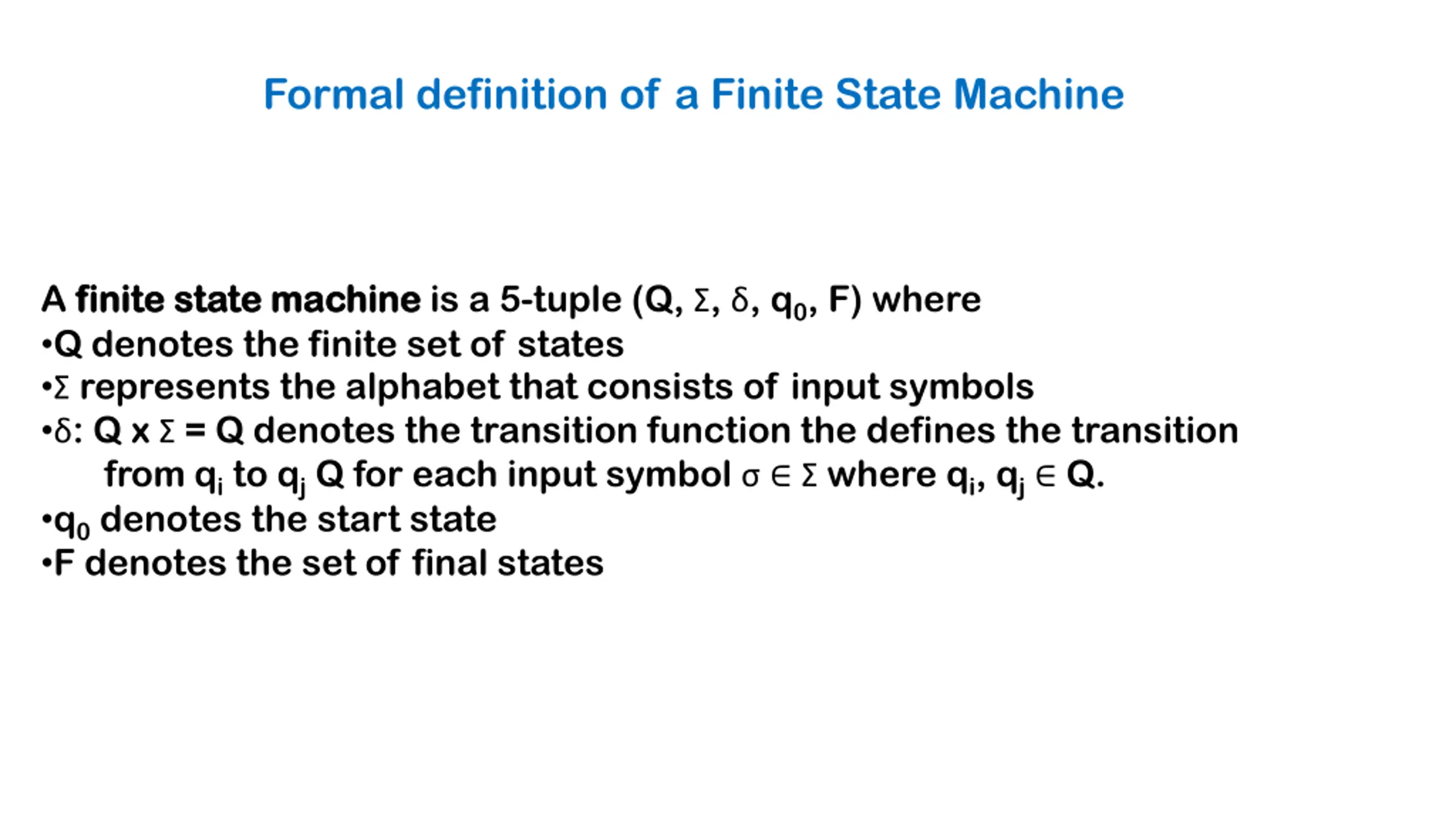

Formal definition of a Finite State Machine A finite finite state Q denotes the finite set of states represents the alphabet that consists of input symbols : Q x = Q denotes the transition function the defines the transition from qito qjQ for each input symbol where qi, qj Q. q0denotes the start state F denotes the set of final states state machine machine is a 5-tuple (Q, , , q0, F) where

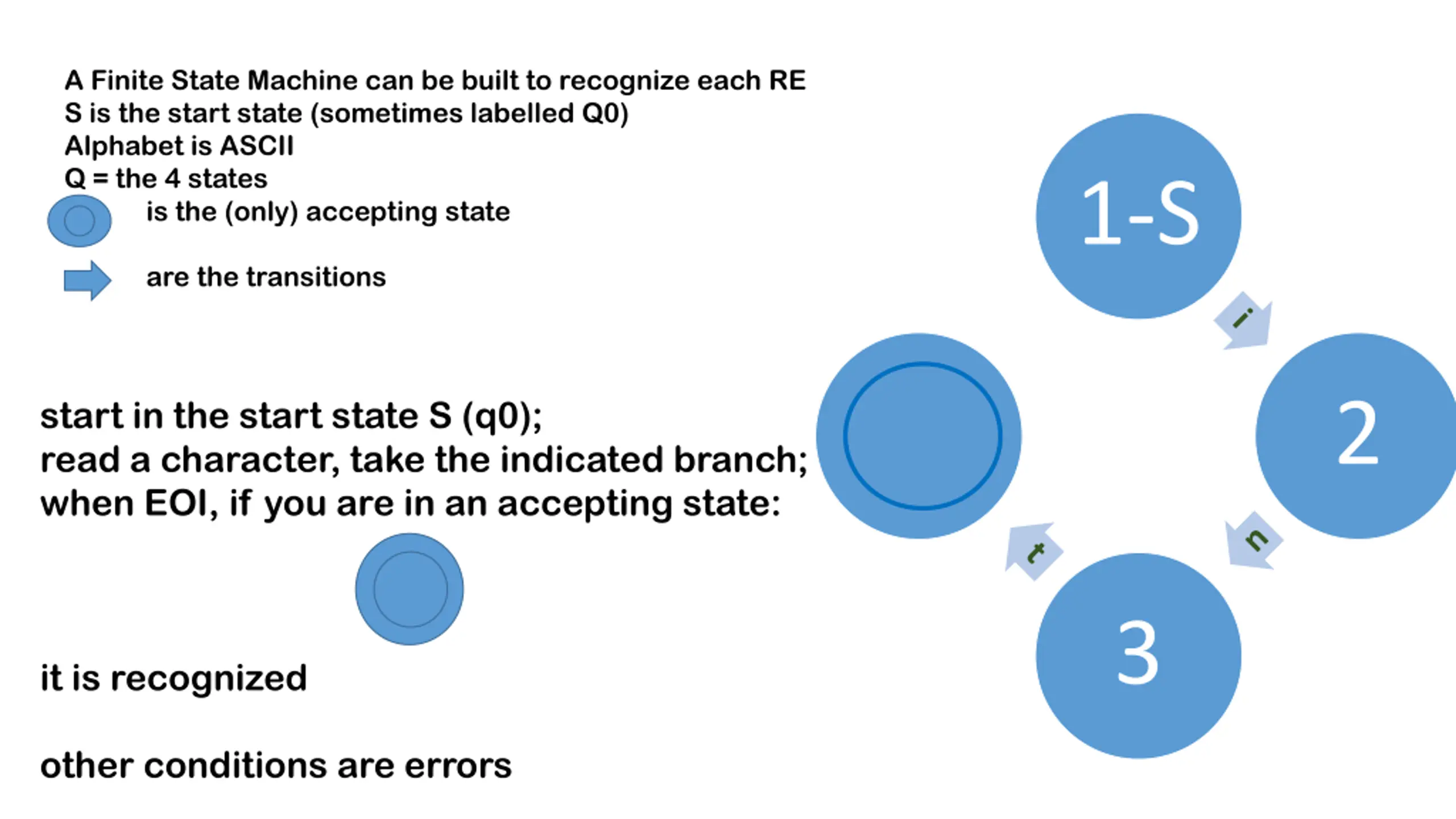

A Finite State Machine can be built to recognize each RE S is the start state (sometimes labelled Q0) Alphabet is ASCII Q = the 4 states is the (only) accepting state 1-S are the transitions A 2 start in the start state S (q0); read a character, take the indicated branch; when EOI, if you are in an accepting state: 3 it is recognized other conditions are errors

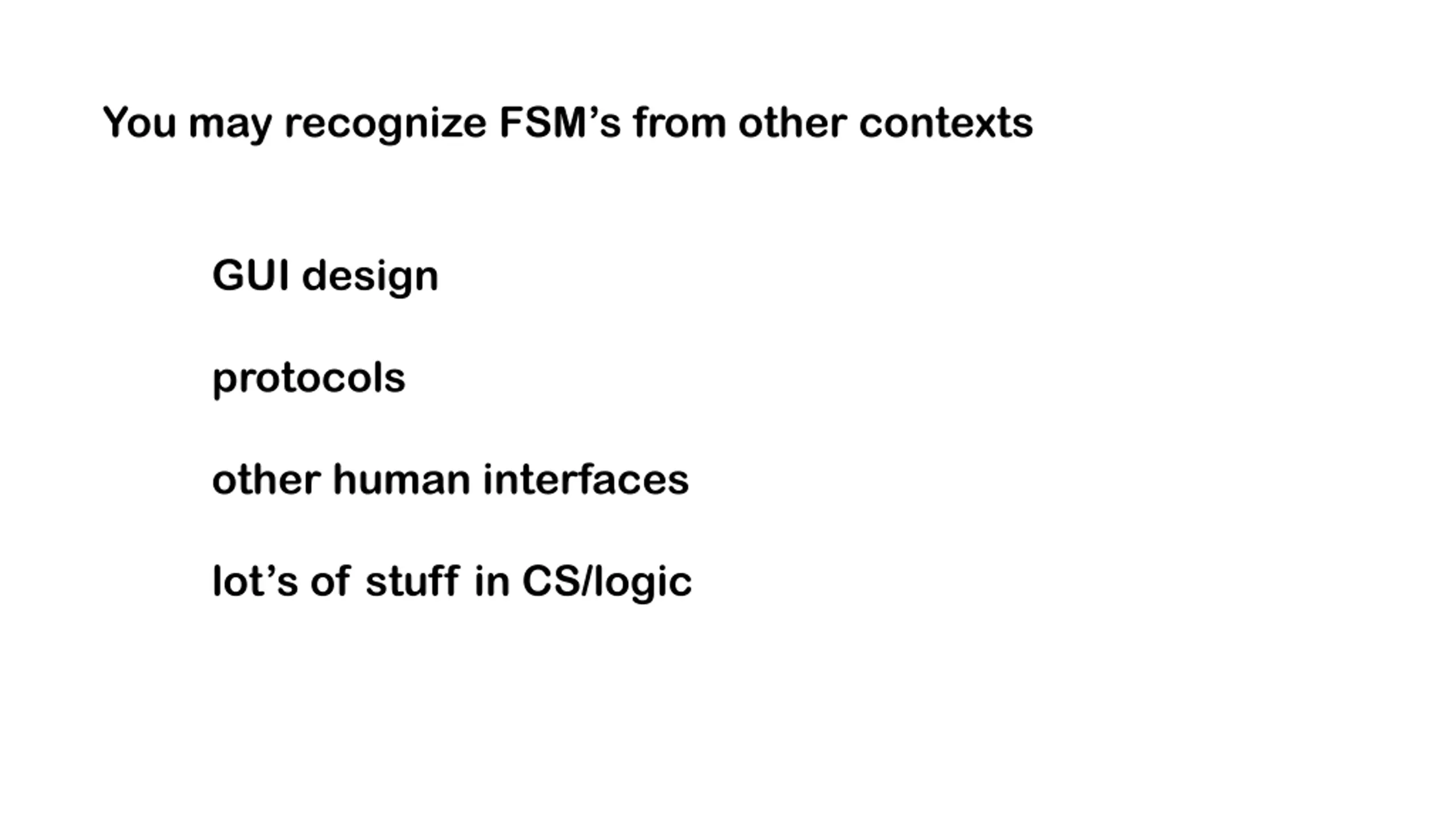

You may recognize FSMs from other contexts GUI design protocols other human interfaces lot s of stuff in CS/logic

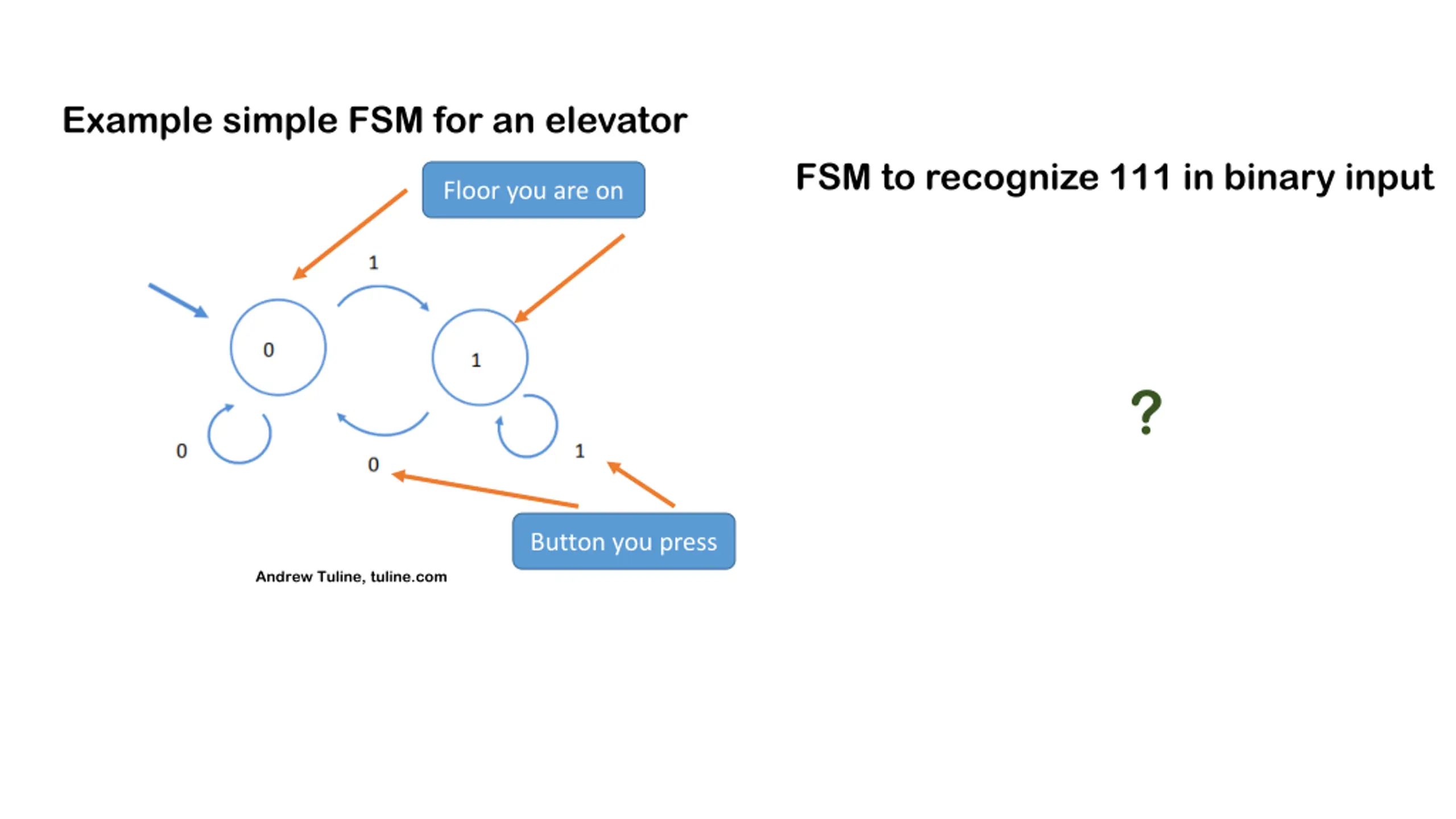

Example simple FSM for an elevator FSM to recognize 111 in binary input Floor you are on ? Button you press Andrew Tuline, tuline.com

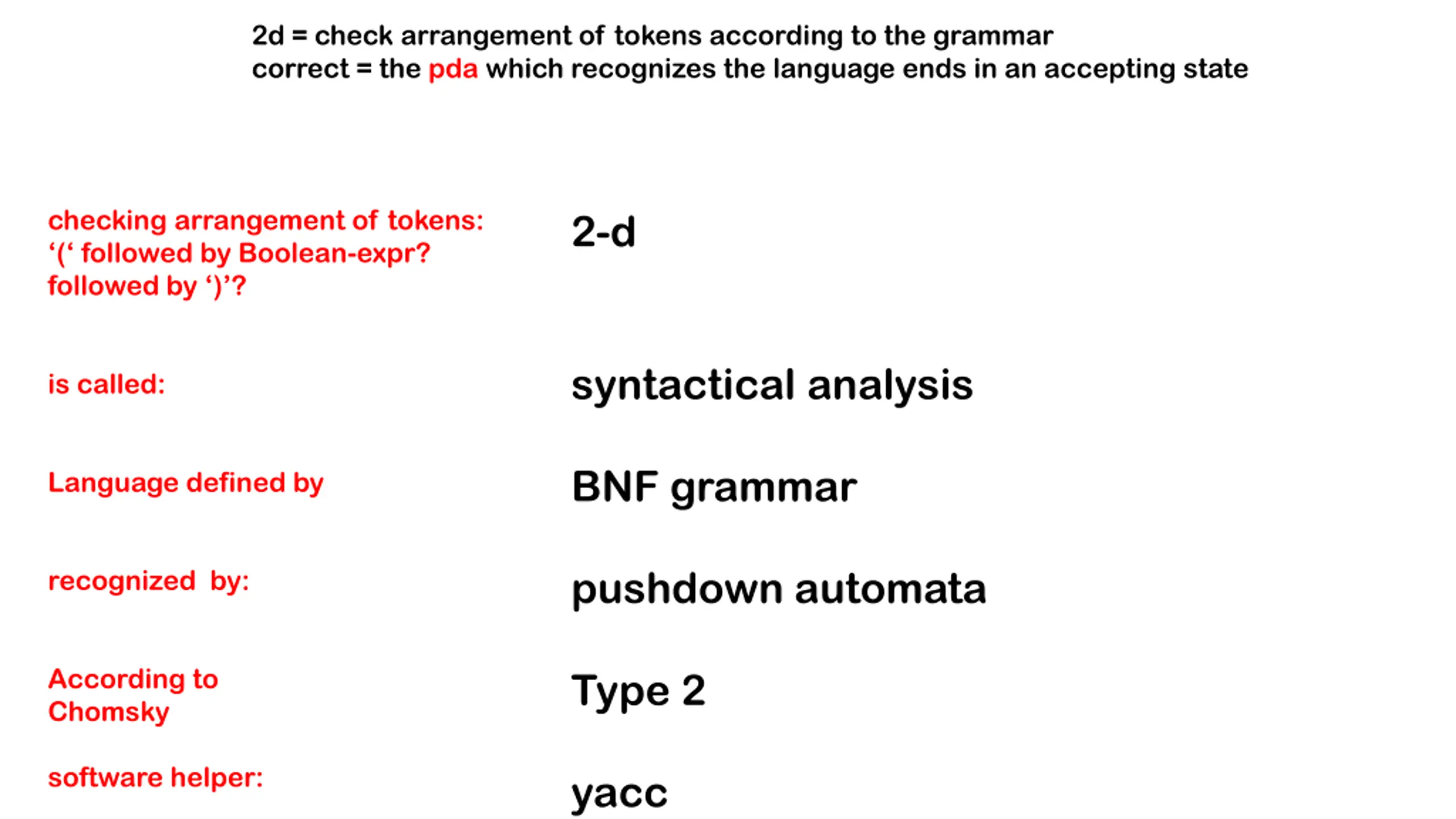

2d = check arrangement of tokens according to the grammar correct = the pda which recognizes the language ends in an accepting state checking arrangement of tokens: ( followed by Boolean-expr? followed by ) ? 2-d syntactical analysis is called: BNF grammar Language defined by pushdown automata recognized by: According to Chomsky Type 2 software helper: yacc

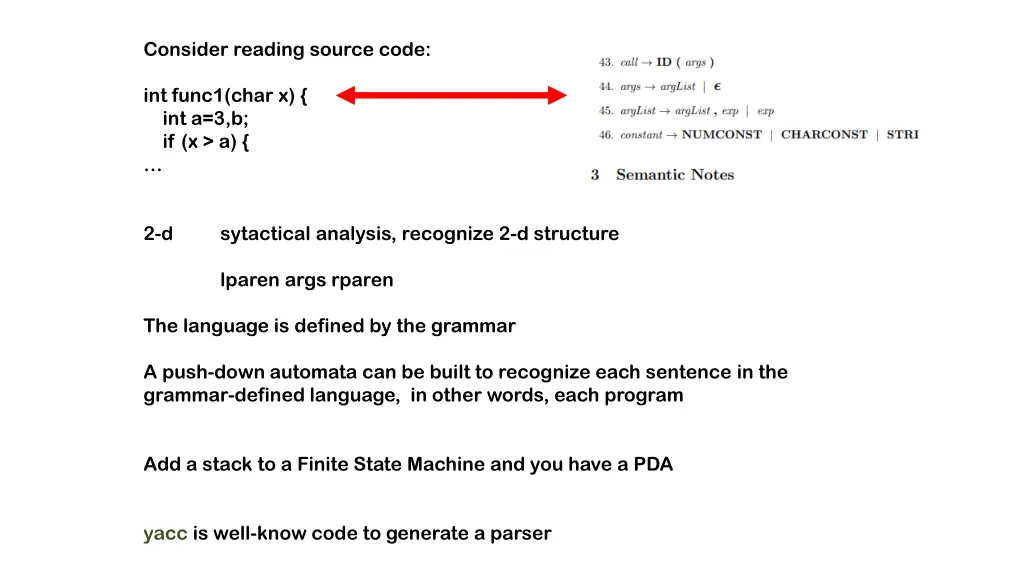

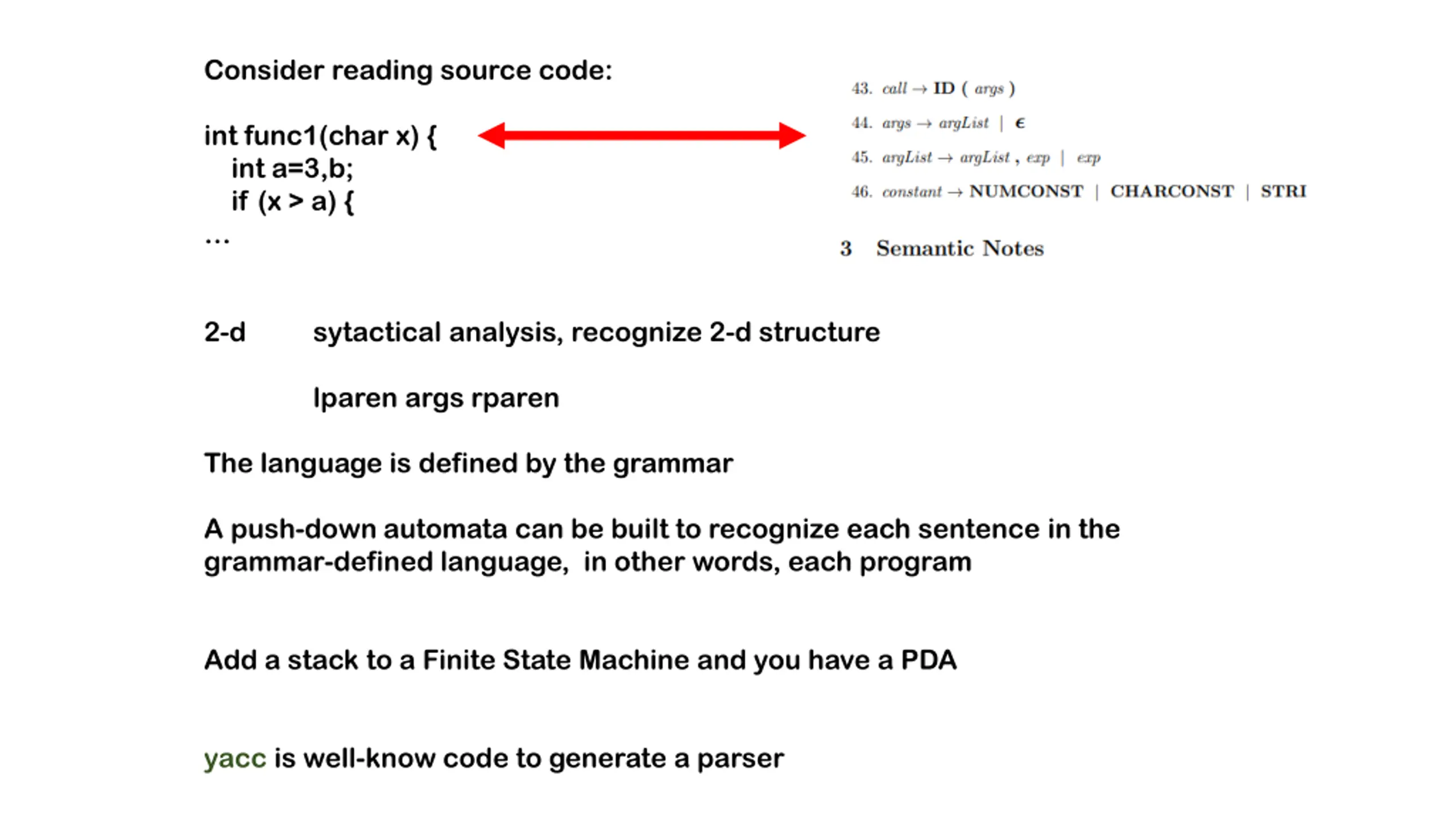

Consider reading source code: int func1(char x) { int a=3,b; if (x > a) { 2-d sytactical analysis, recognize 2-d structure lparen args rparen The language is defined by the grammar A push-down automata can be built to recognize each sentence in the grammar-defined language, in other words, each program Add a stack to a Finite State Machine and you have a PDA yacc is well-know code to generate a parser

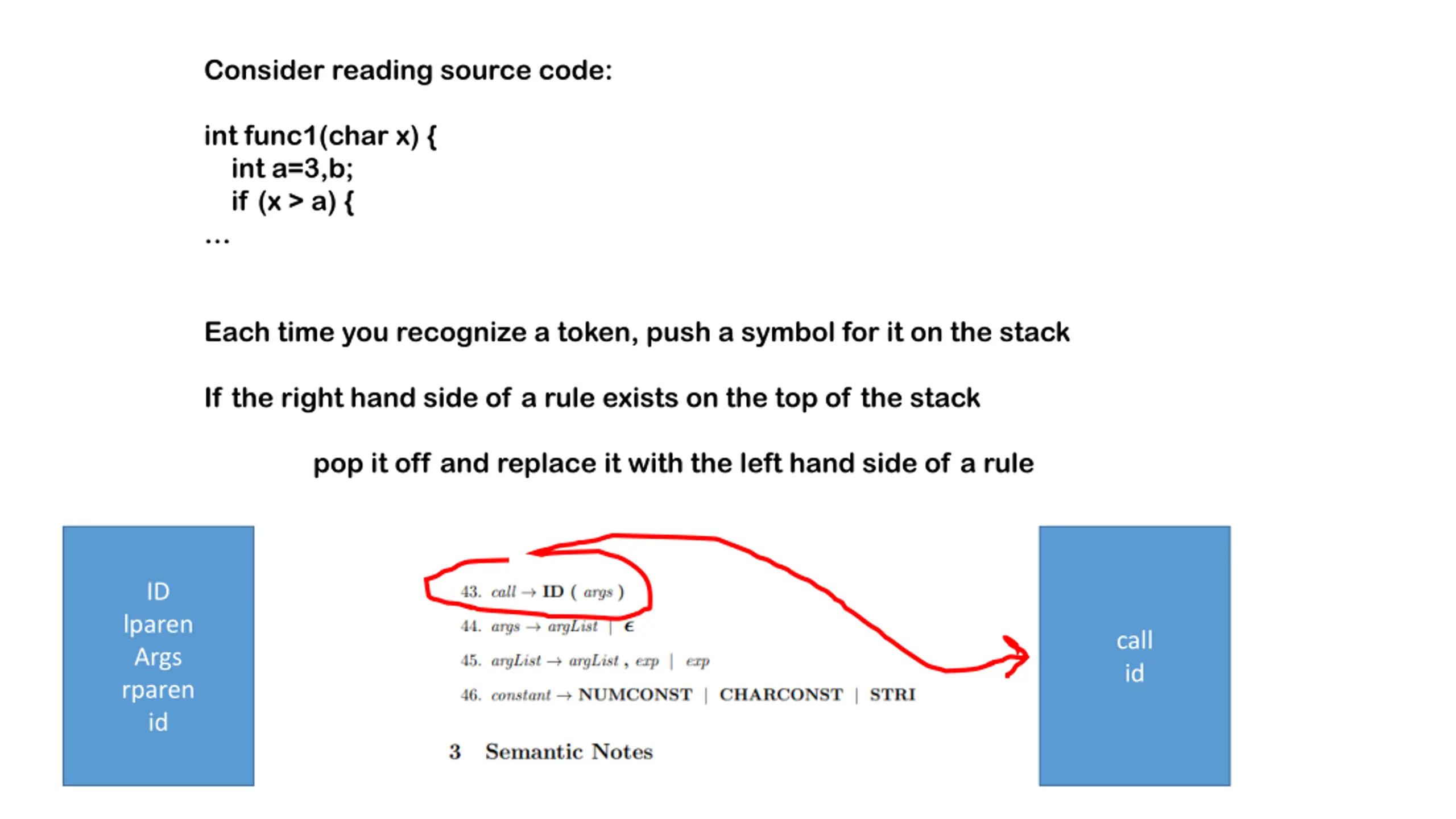

Consider reading source code: int func1(char x) { int a=3,b; if (x > a) { Each time you recognize a token, push a symbol for it on the stack If the right hand side of a rule exists on the top of the stack pop it off and replace it with the left hand side of a rule ID lparen Args rparen id call id

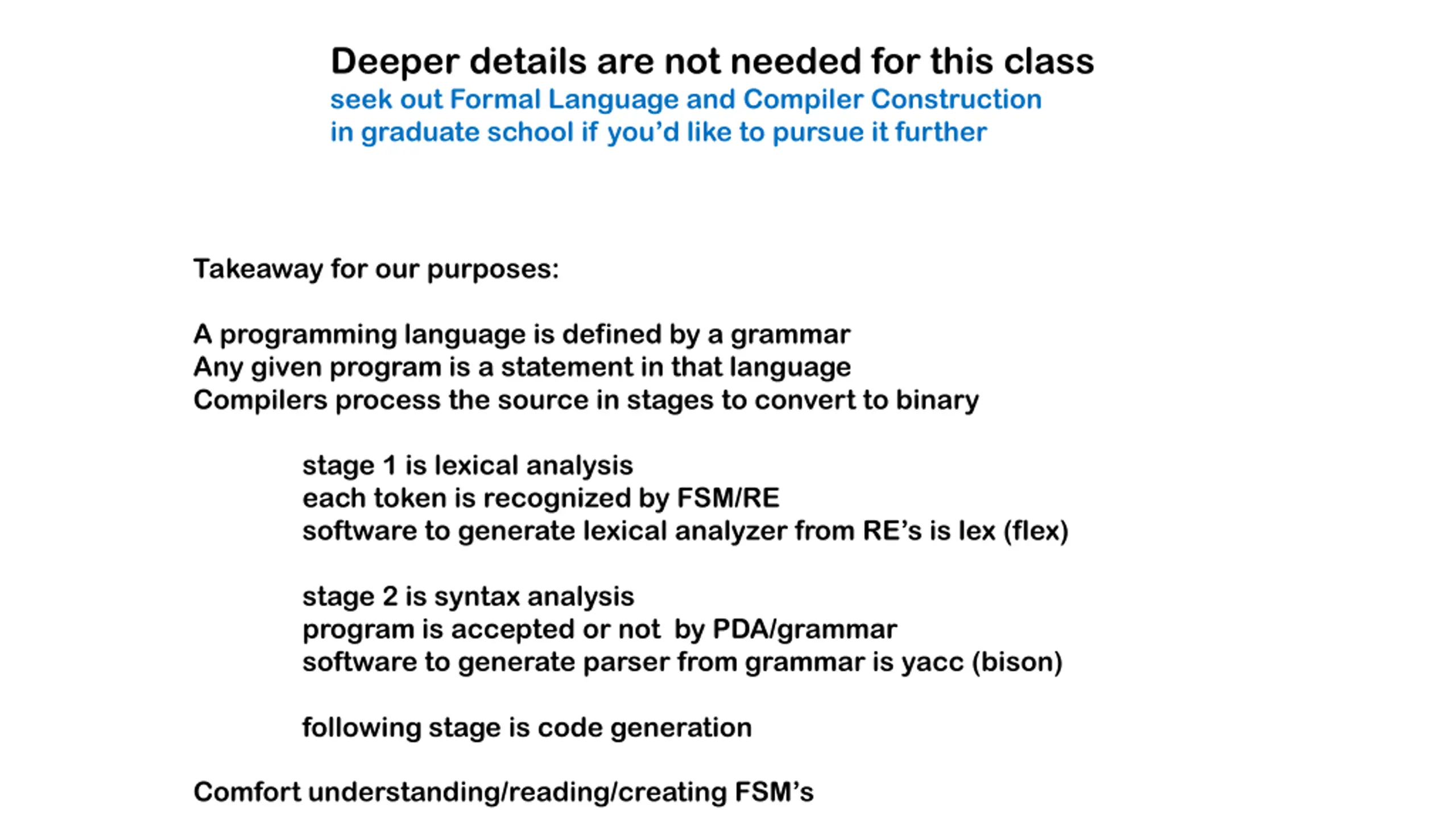

Deeper details are not needed for this class seek out Formal Language and Compiler Construction in graduate school if you d like to pursue it further Takeaway for our purposes: A programming language is defined by a grammar Any given program is a statement in that language Compilers process the source in stages to convert to binary stage 1 is lexical analysis each token is recognized by FSM/RE software to generate lexical analyzer from RE s is lex (flex) stage 2 is syntax analysis program is accepted or not by PDA/grammar software to generate parser from grammar is yacc (bison) following stage is code generation Comfort understanding/reading/creating FSM s

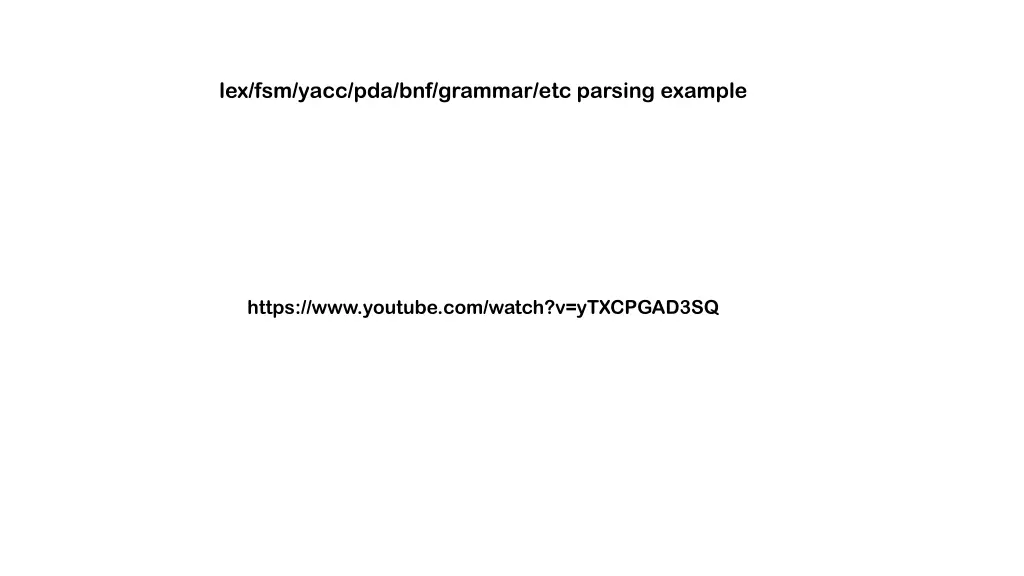

lex/fsm/yacc/pda/bnf/grammar/etc parsing example https://www.youtube.com/watch?v=yTXCPGAD3SQ
