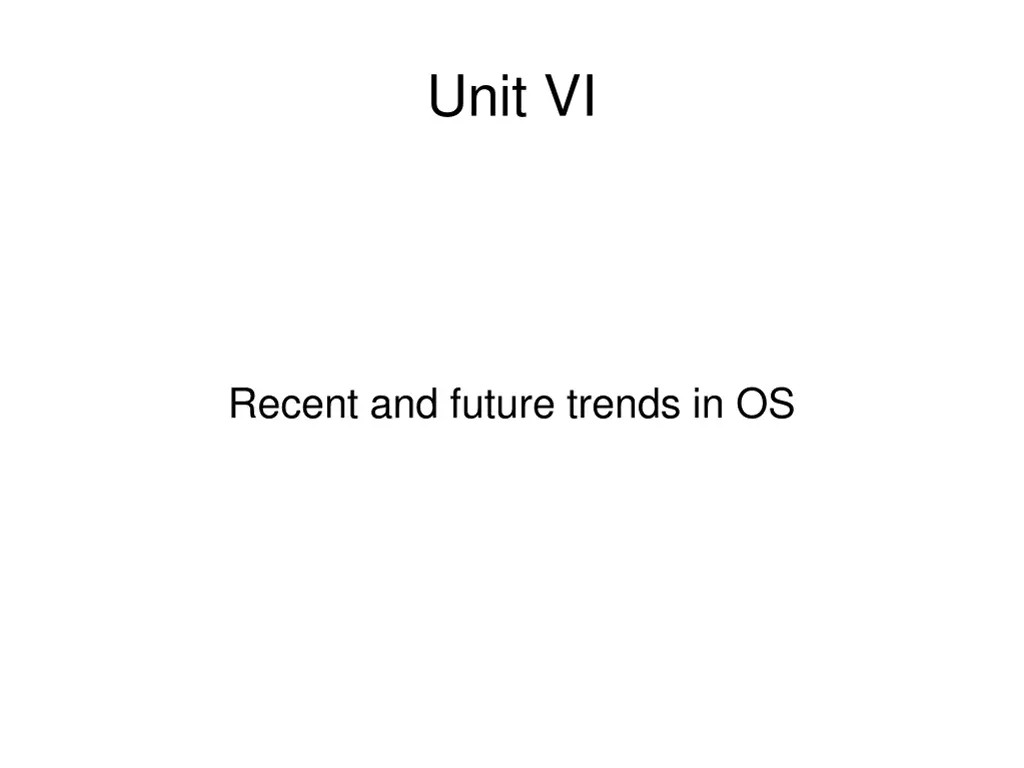

Unit VI Recent and future trends in OS

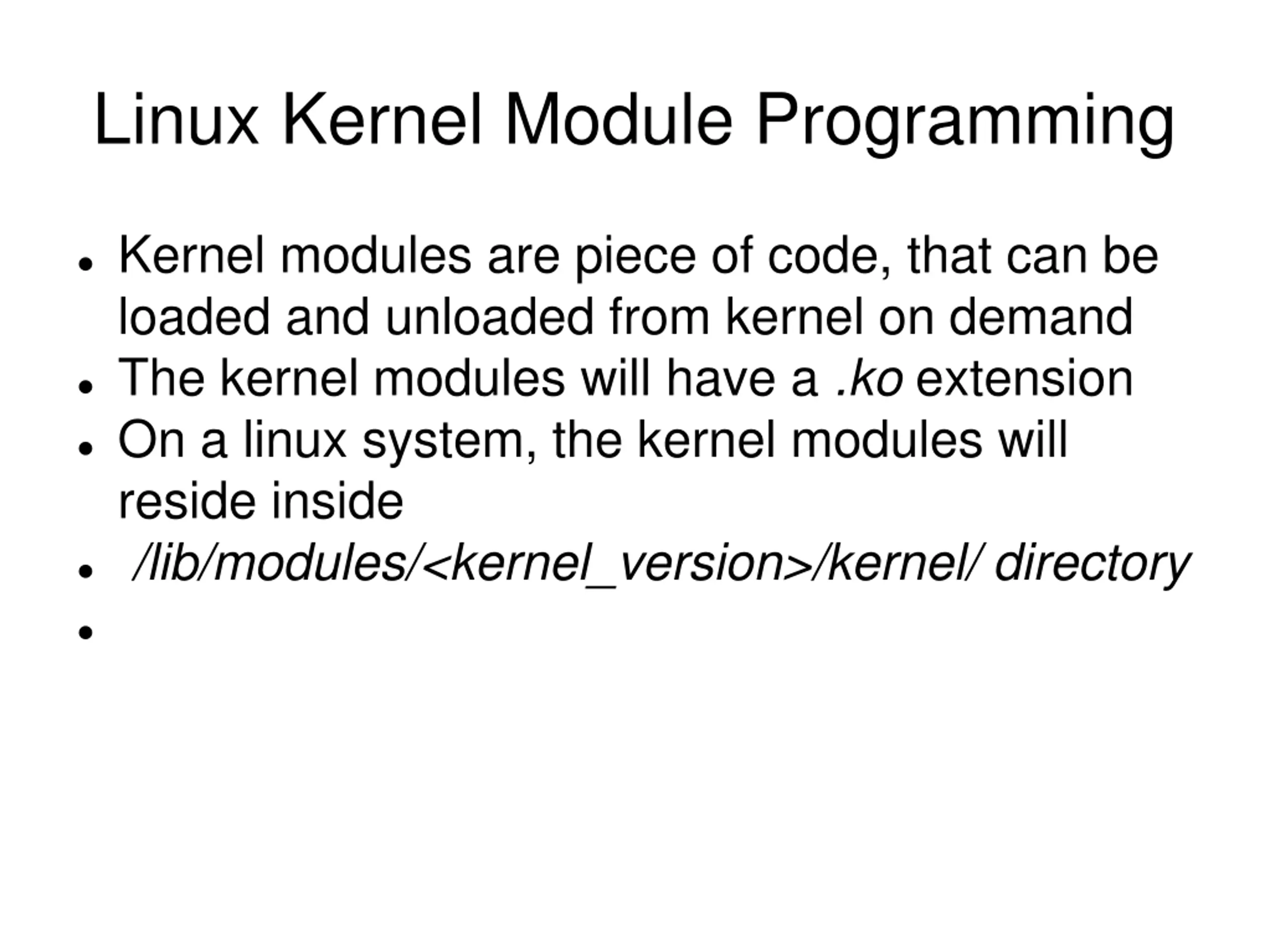

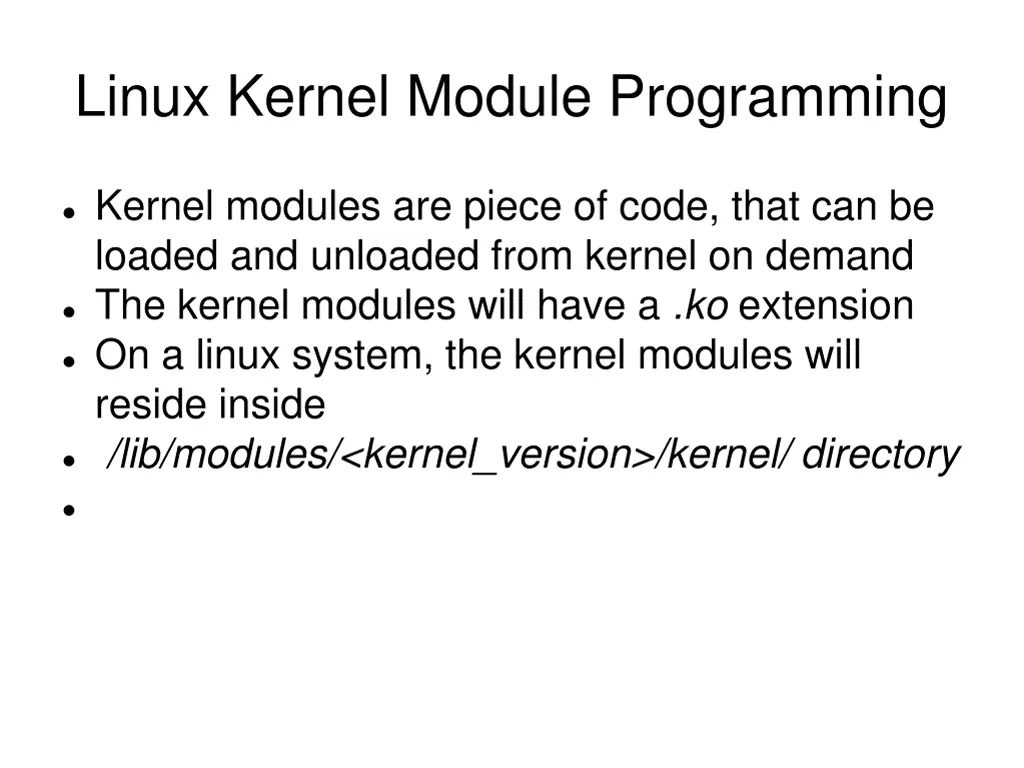

Linux Kernel Module Programming Kernel modules are piece of code, that can be loaded and unloaded from kernel on demand The kernel modules will have a .ko extension On a linux system, the kernel modules will reside inside /lib/modules/<kernel_version>/kernel/ directory

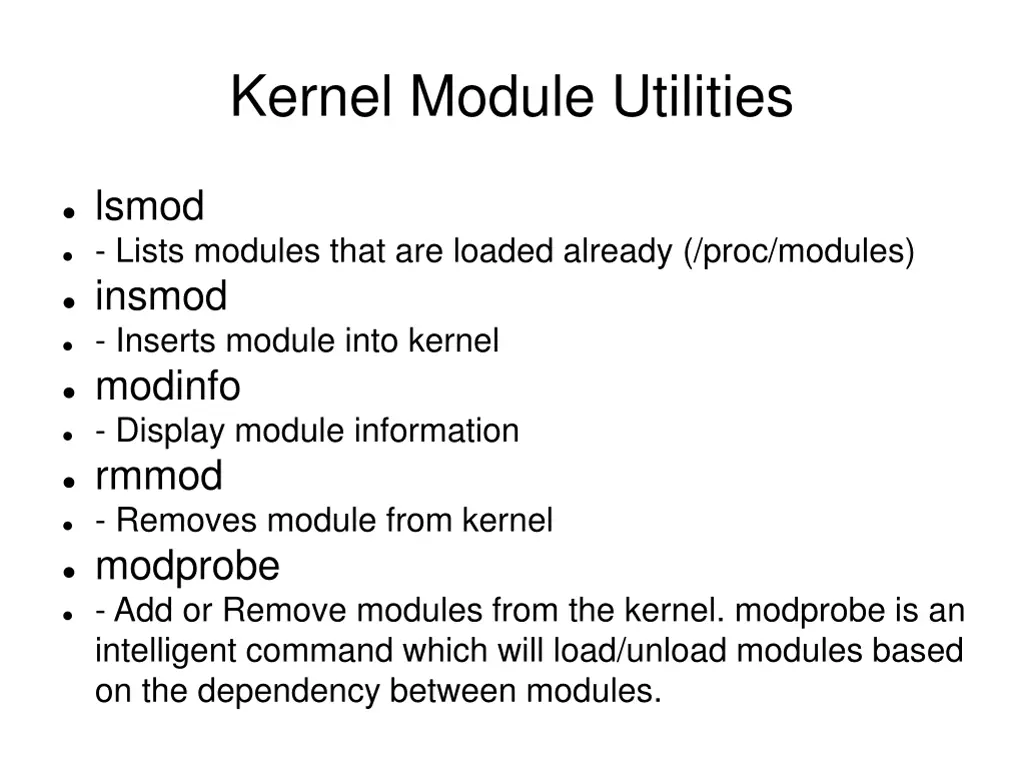

Kernel Module Utilities lsmod - Lists modules that are loaded already (/proc/modules) insmod - Inserts module into kernel modinfo - Display module information rmmod - Removes module from kernel modprobe - Add or Remove modules from the kernel. modprobe is an intelligent command which will load/unload modules based on the dependency between modules.

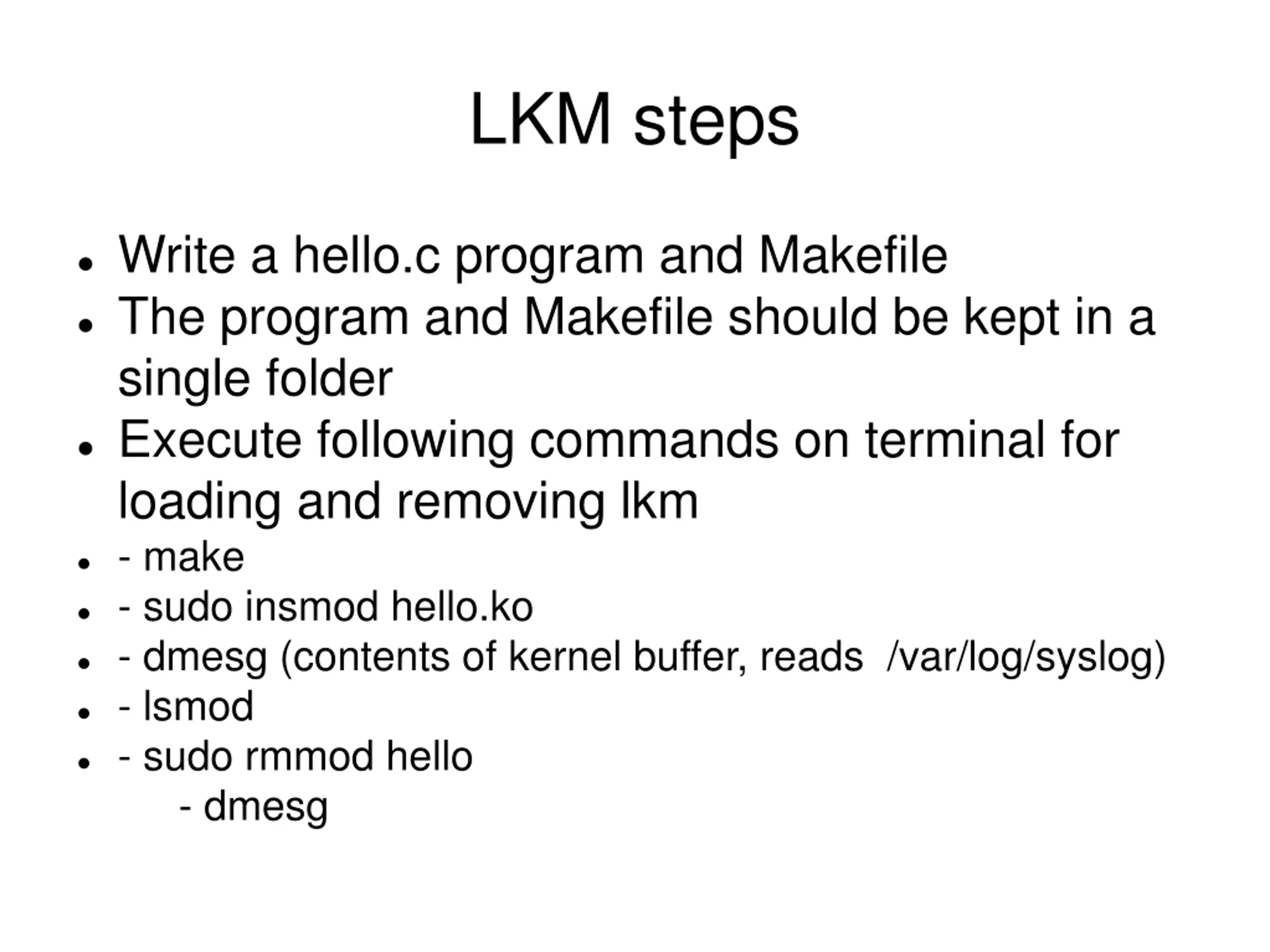

LKM steps Write a hello.c program and Makefile The program and Makefile should be kept in a single folder Execute following commands on terminal for loading and removing lkm - make - sudo insmod hello.ko - dmesg (contents of kernel buffer, reads /var/log/syslog) - lsmod - sudo rmmod hello - dmesg

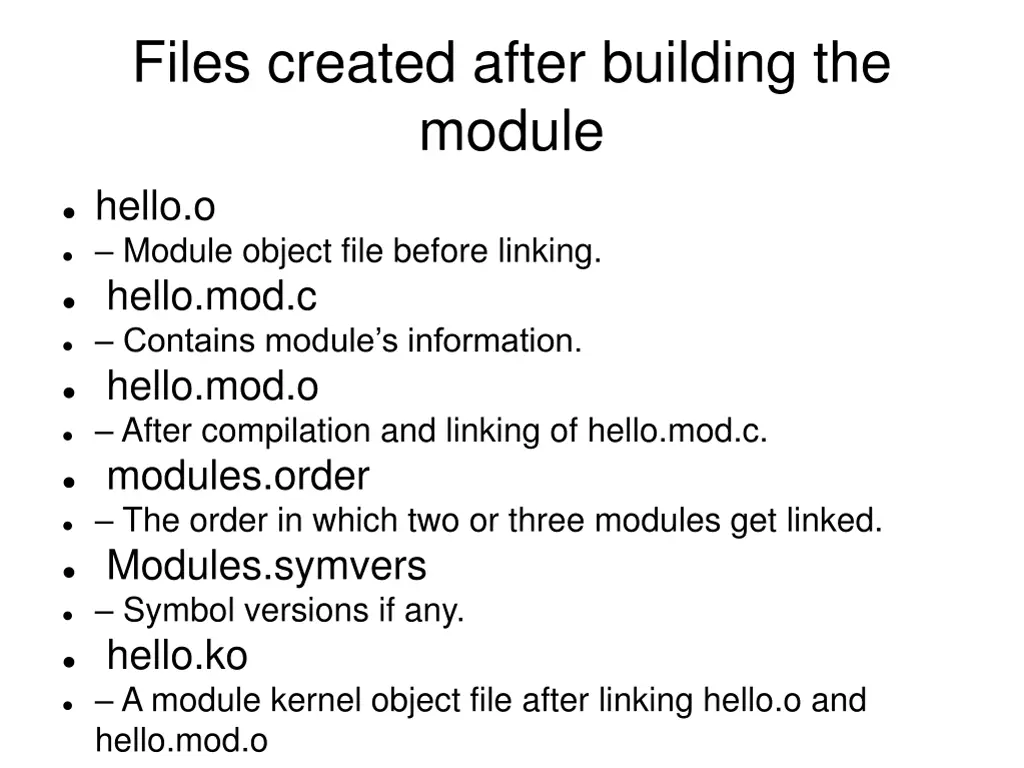

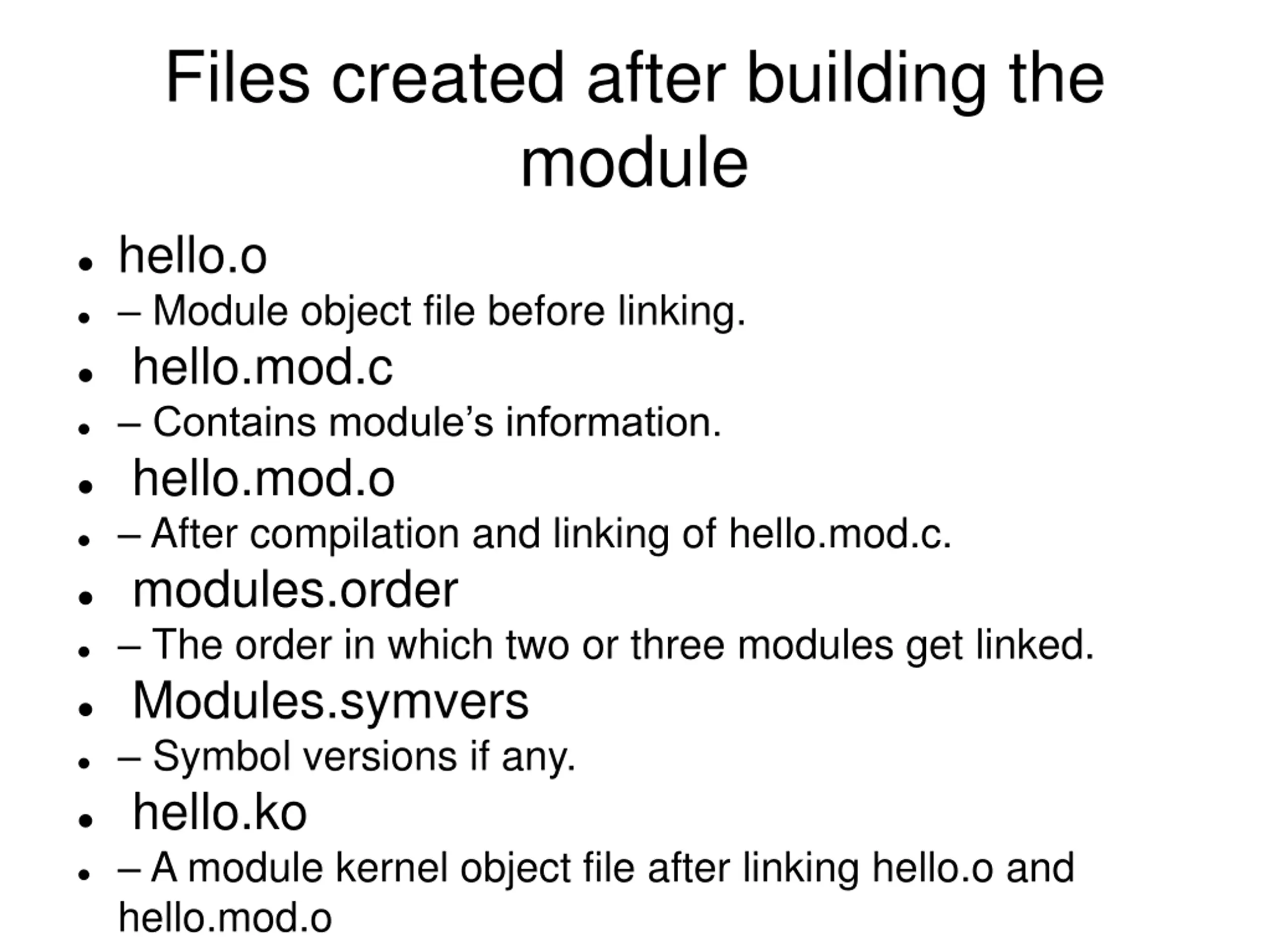

Files created after building the module hello.o Module object file before linking. hello.mod.c Contains module s information. hello.mod.o After compilation and linking of hello.mod.c. modules.order The order in which two or three modules get linked. Modules.symvers Symbol versions if any. hello.ko A module kernel object file after linking hello.o and hello.mod.o

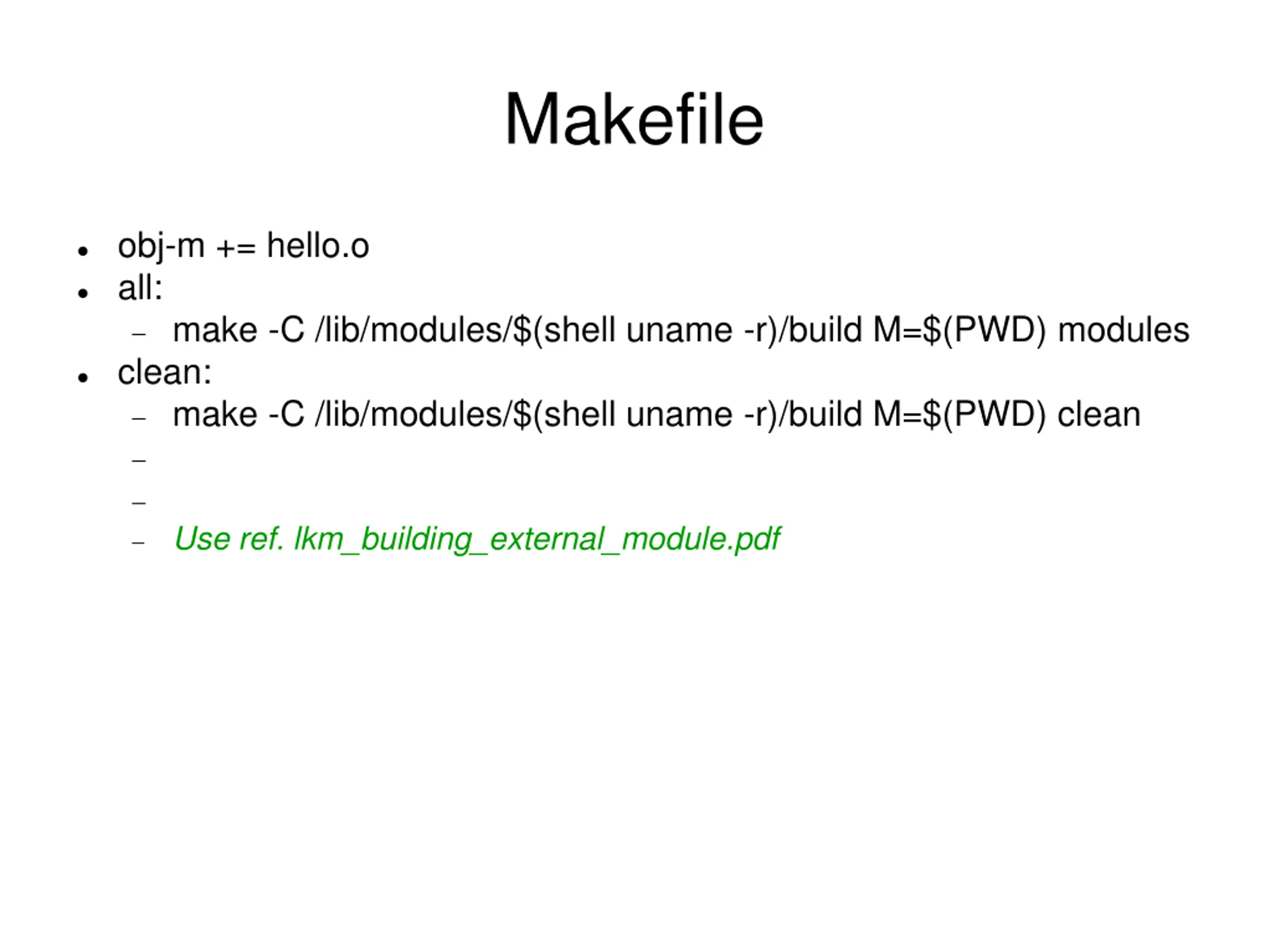

Makefile obj-m += hello.o all: make -C /lib/modules/$(shell uname -r)/build M=$(PWD) modules clean: make -C /lib/modules/$(shell uname -r)/build M=$(PWD) clean Use ref. lkm_building_external_module.pdf

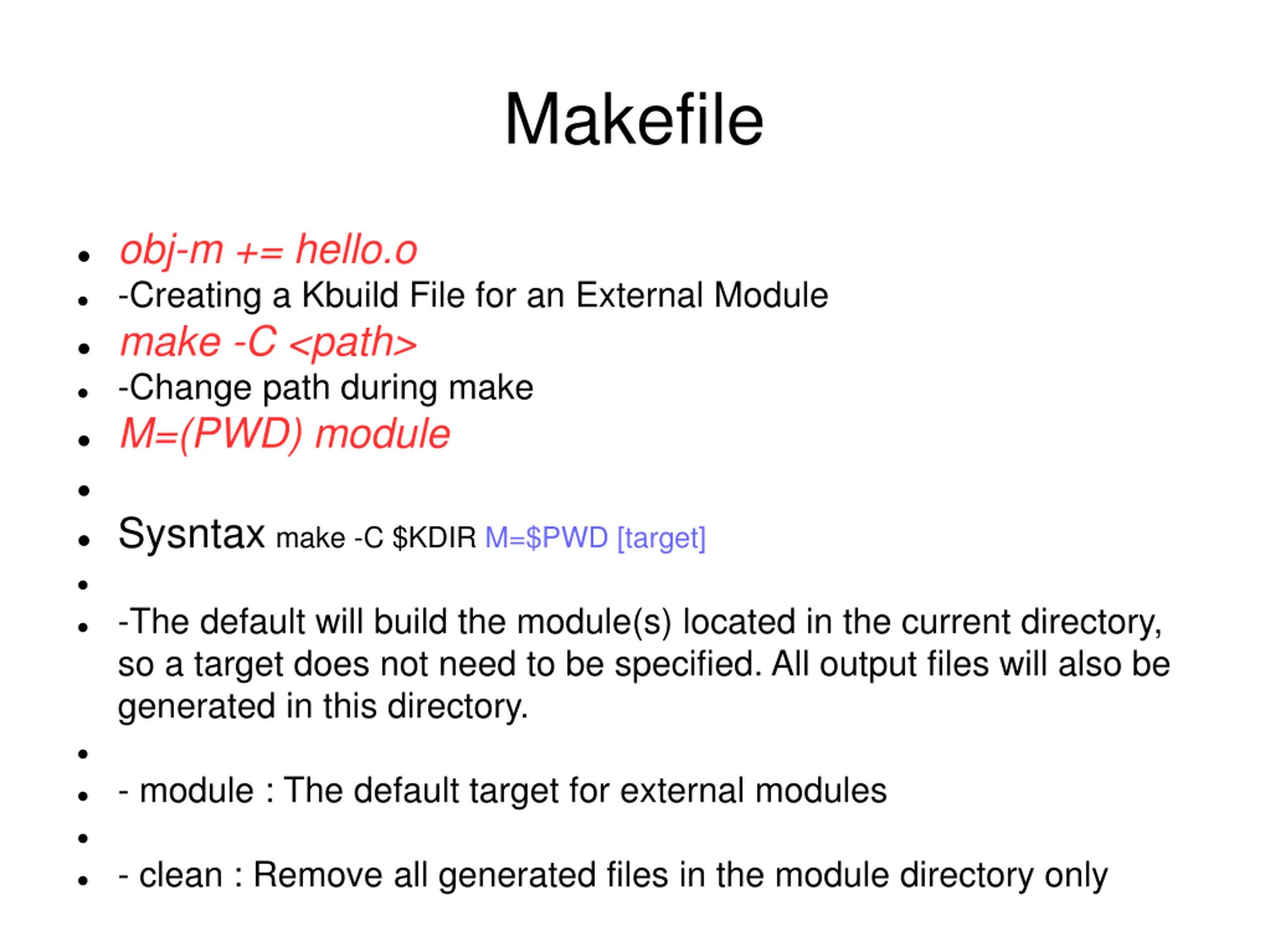

Makefile obj-m += hello.o -Creating a Kbuild File for an External Module make -C <path> -Change path during make M=(PWD) module Sysntaxmake -C $KDIR M=$PWD [target] -The default will build the module(s) located in the current directory, so a target does not need to be specified. All output files will also be generated in this directory. - module : The default target for external modules - clean : Remove all generated files in the module directory only

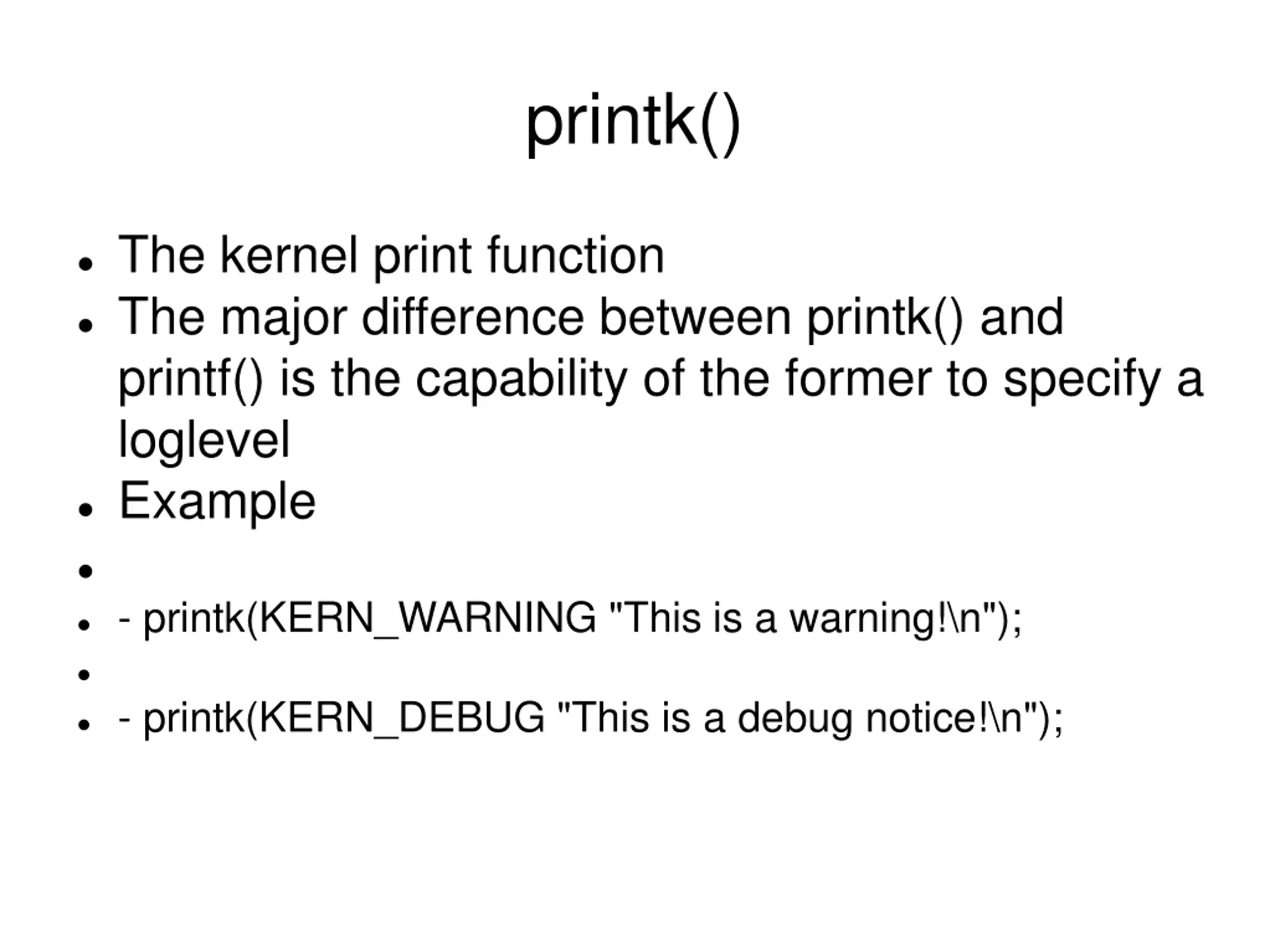

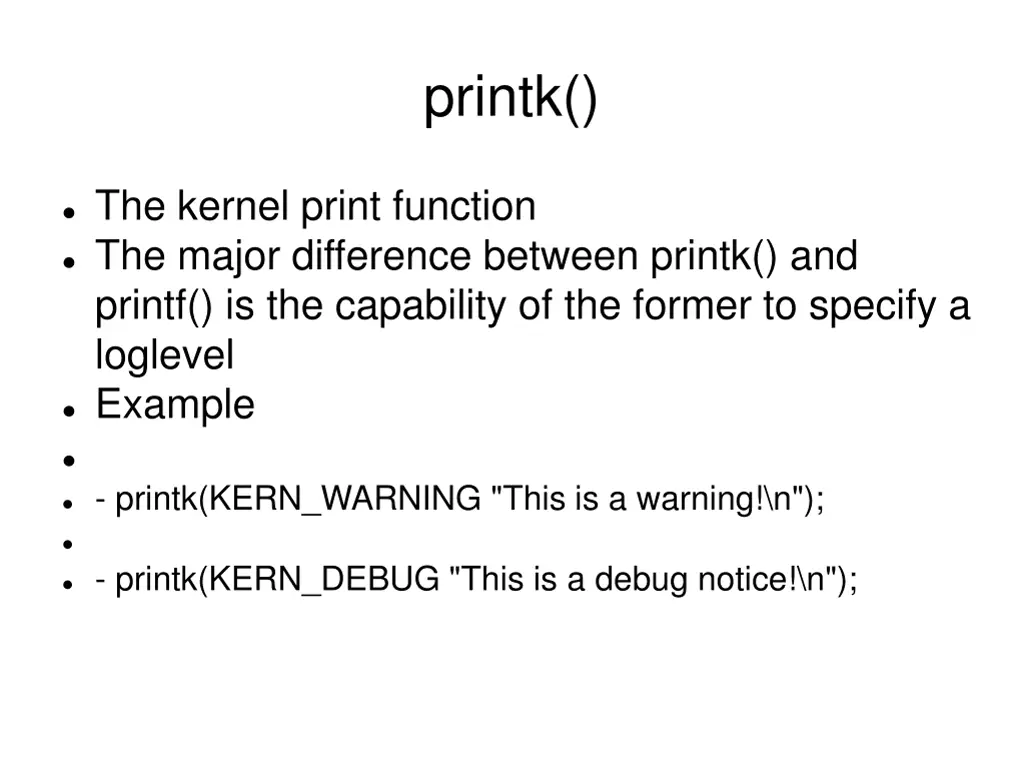

printk() The kernel print function The major difference between printk() and printf() is the capability of the former to specify a loglevel Example - printk(KERN_WARNING "This is a warning!\n"); - printk(KERN_DEBUG "This is a debug notice!\n");

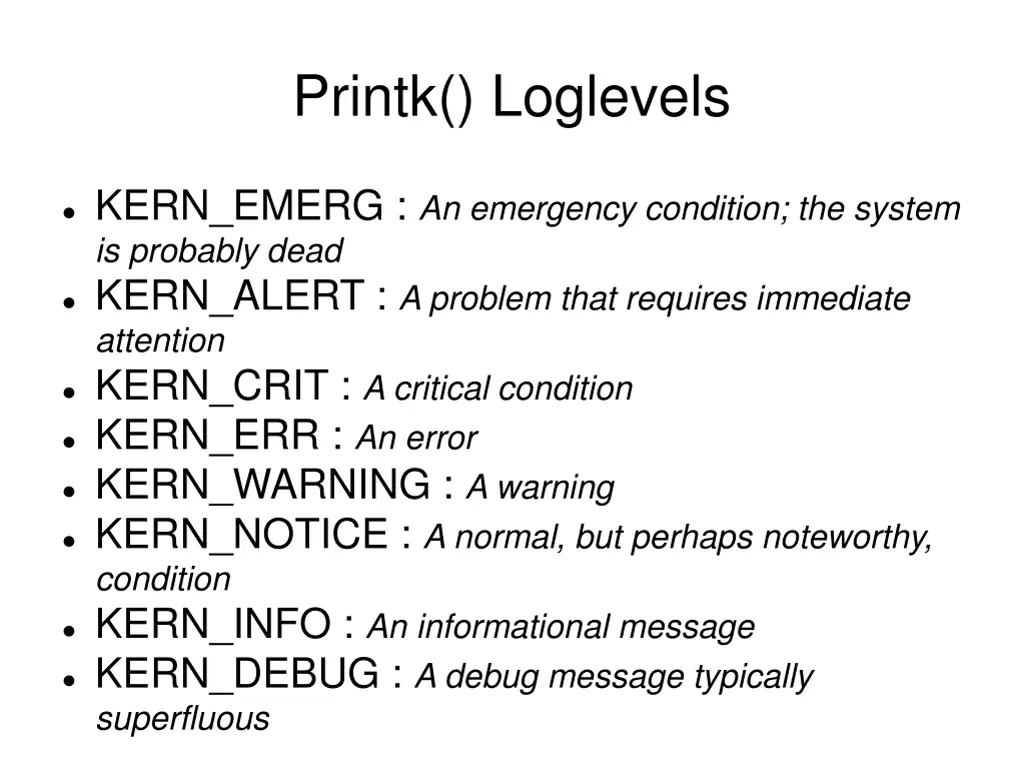

Printk() Loglevels KERN_EMERG : An emergency condition; the system is probably dead KERN_ALERT : A problem that requires immediate attention KERN_CRIT : A critical condition KERN_ERR : An error KERN_WARNING : A warning KERN_NOTICE : A normal, but perhaps noteworthy, condition KERN_INFO : An informational message KERN_DEBUG : A debug message typically superfluous

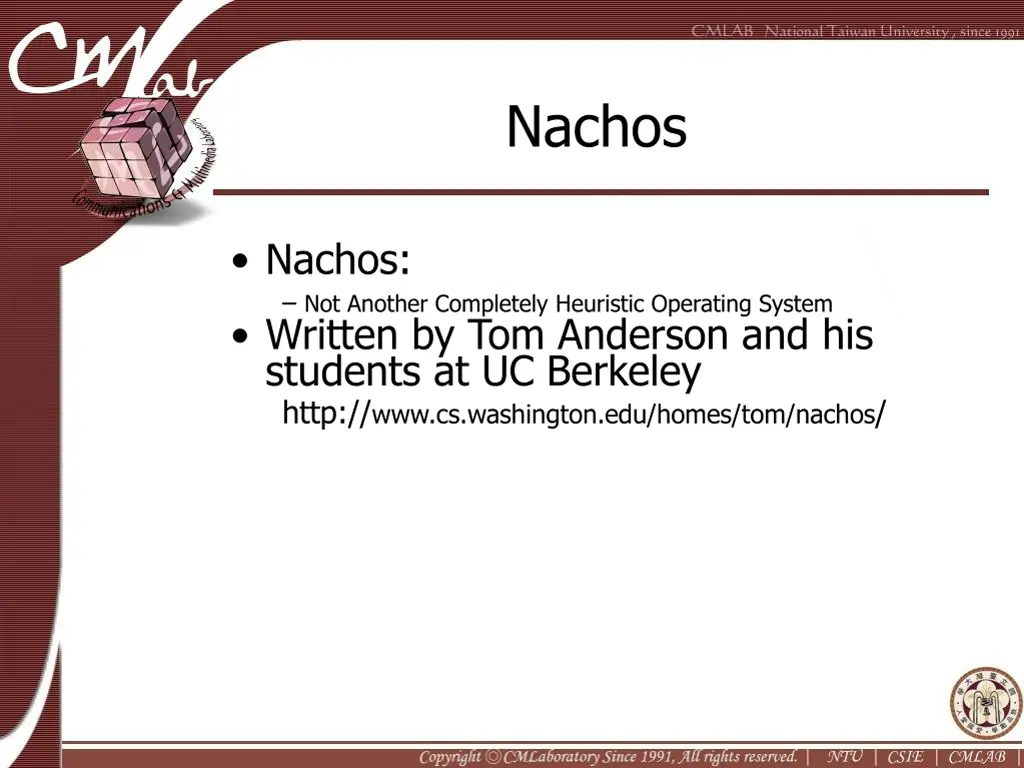

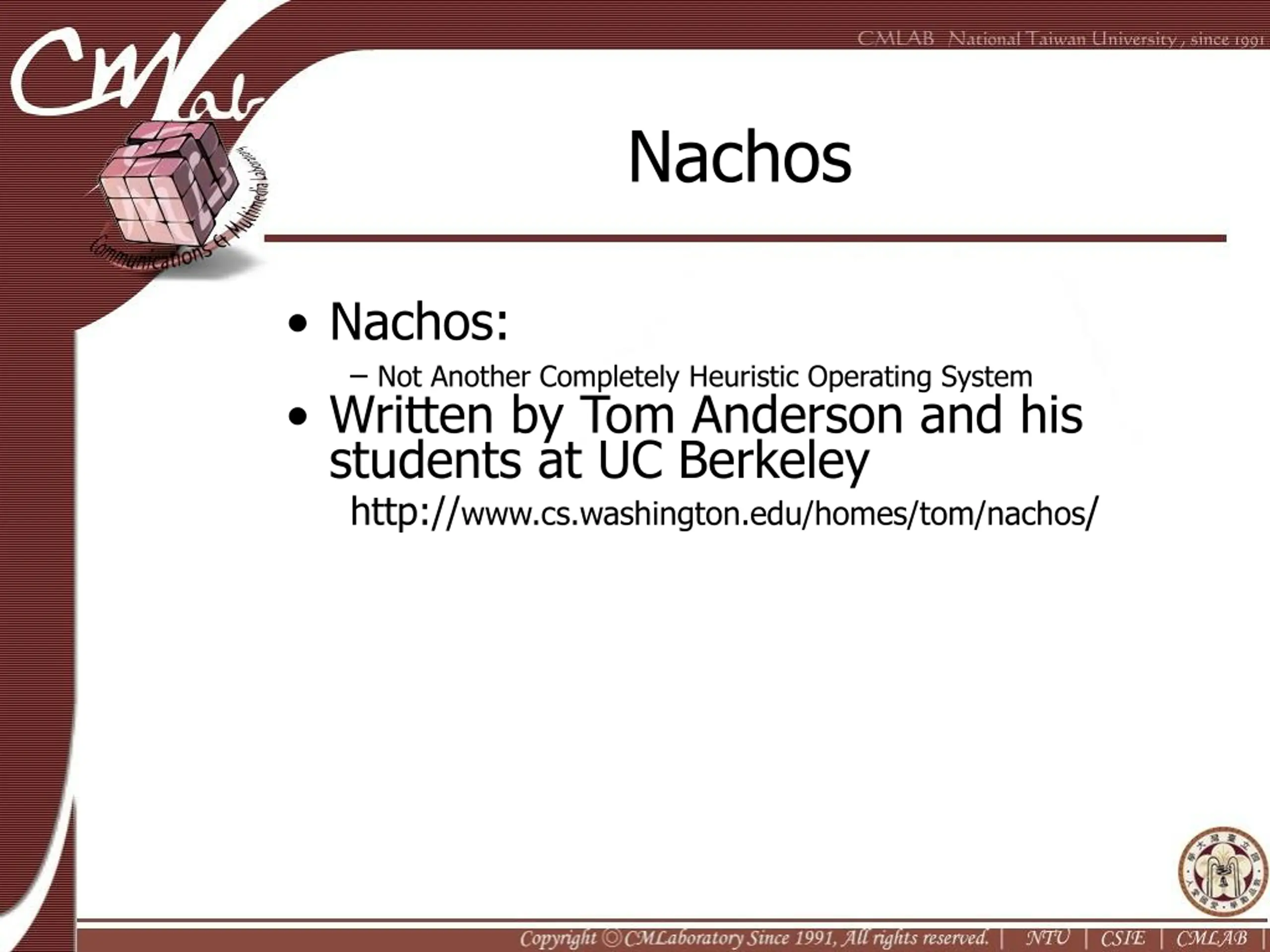

Nachos Nachos: Not Another Completely Heuristic Operating System Written by Tom Anderson and his students at UC Berkeley http://www.cs.washington.edu/homes/tom/nachos/

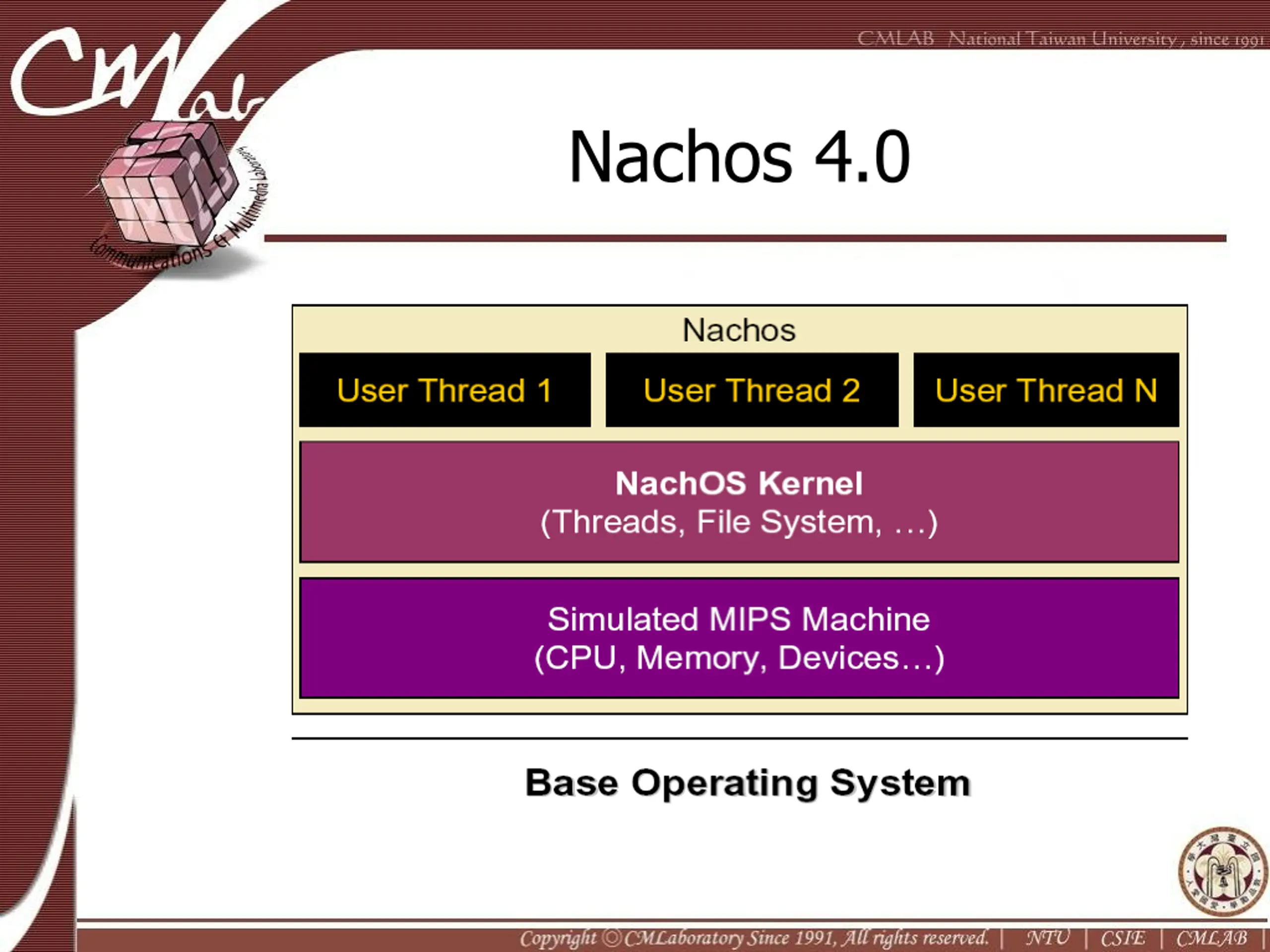

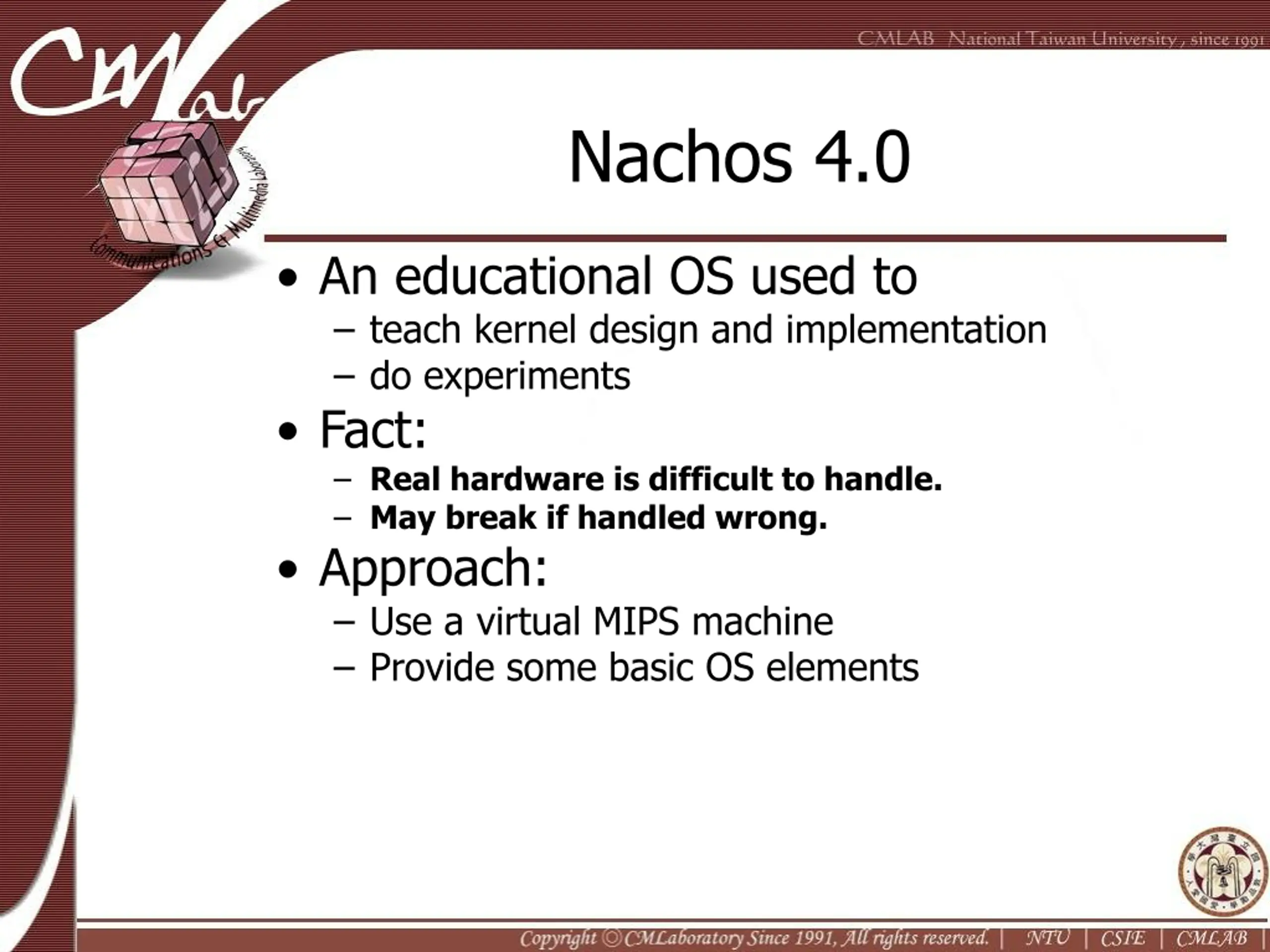

Nachos 4.0 An educational OS used to teach kernel design and implementation do experiments Fact: Real hardware is difficult to handle. May break if handled wrong. Approach: Use a virtual MIPS machine Provide some basic OS elements

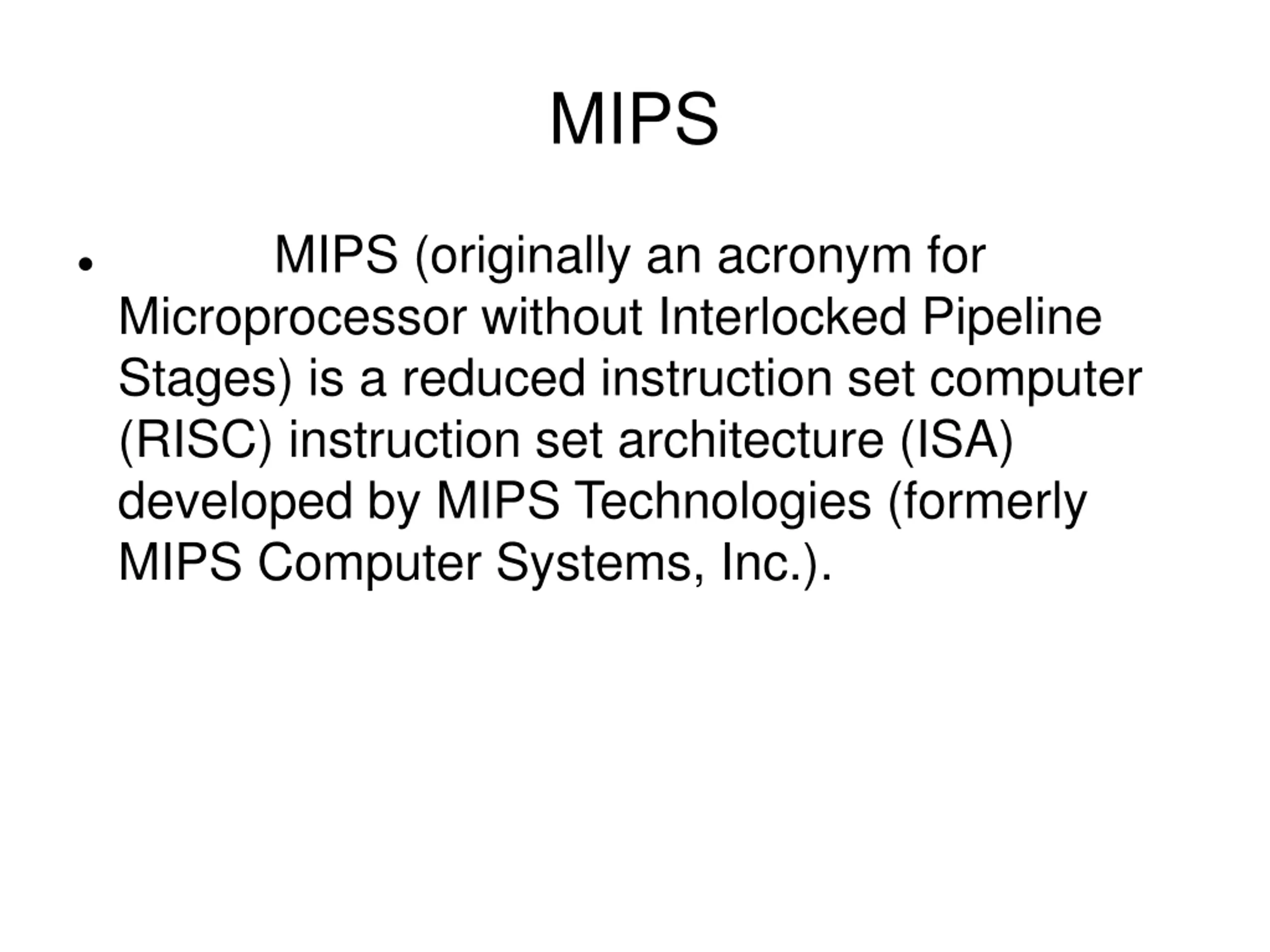

MIPS MIPS (originally an acronym for Microprocessor without Interlocked Pipeline Stages) is a reduced instruction set computer (RISC) instruction set architecture (ISA) developed by MIPS Technologies (formerly MIPS Computer Systems, Inc.).
