Presentation Transcript

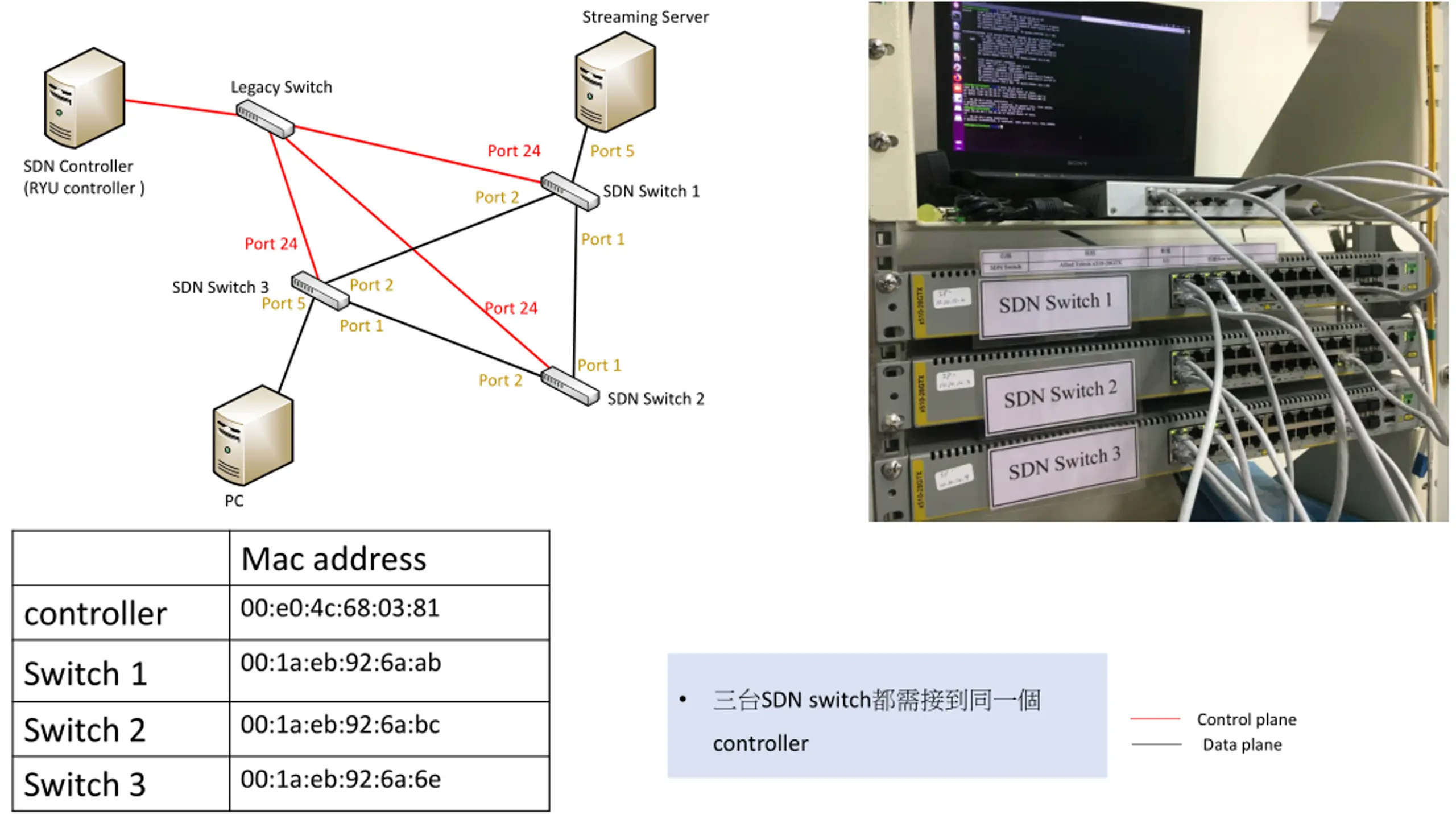

Streaming Server Legacy Switch Port 24 Port 5 SDN Controller (RYU controller ) SDN Switch 1 Port 2 Port 1 Port 24 Port 2 SDN Switch 3 Port 5 Port 24 Port 1 Port 1 Port 2 SDN Switch 2 PC Mac address 00:e0:4c:68:03:81 controller 00:1a:eb:92:6a:ab Switch 1 SDN switch Control plane Data plane 00:1a:eb:92:6a:bc Switch 2 Switch 3 controller 00:1a:eb:92:6a:6e

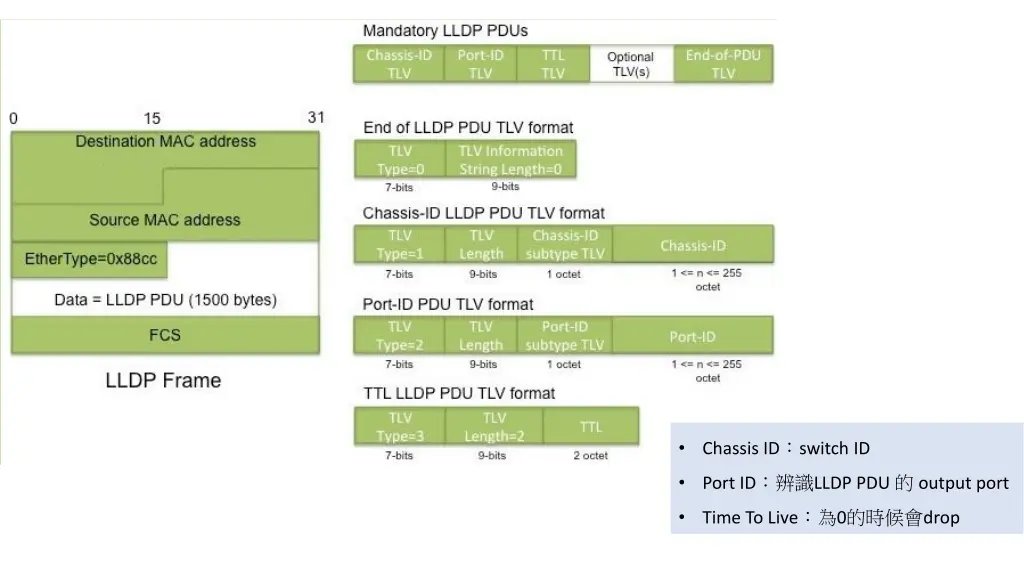

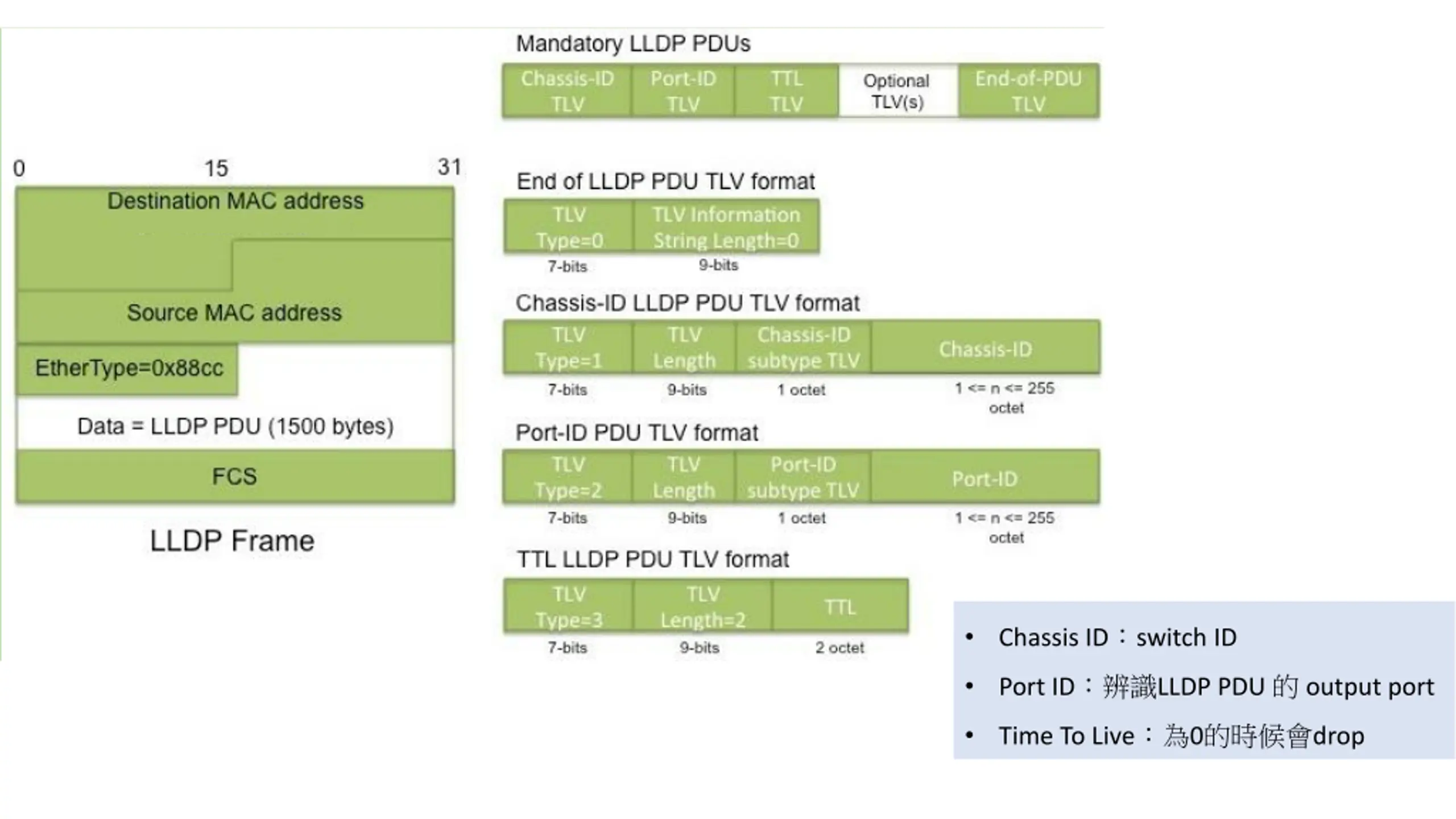

LLDP Frame Chassis ID switch ID Port ID LLDP PDU output port Time To Live 0 drop

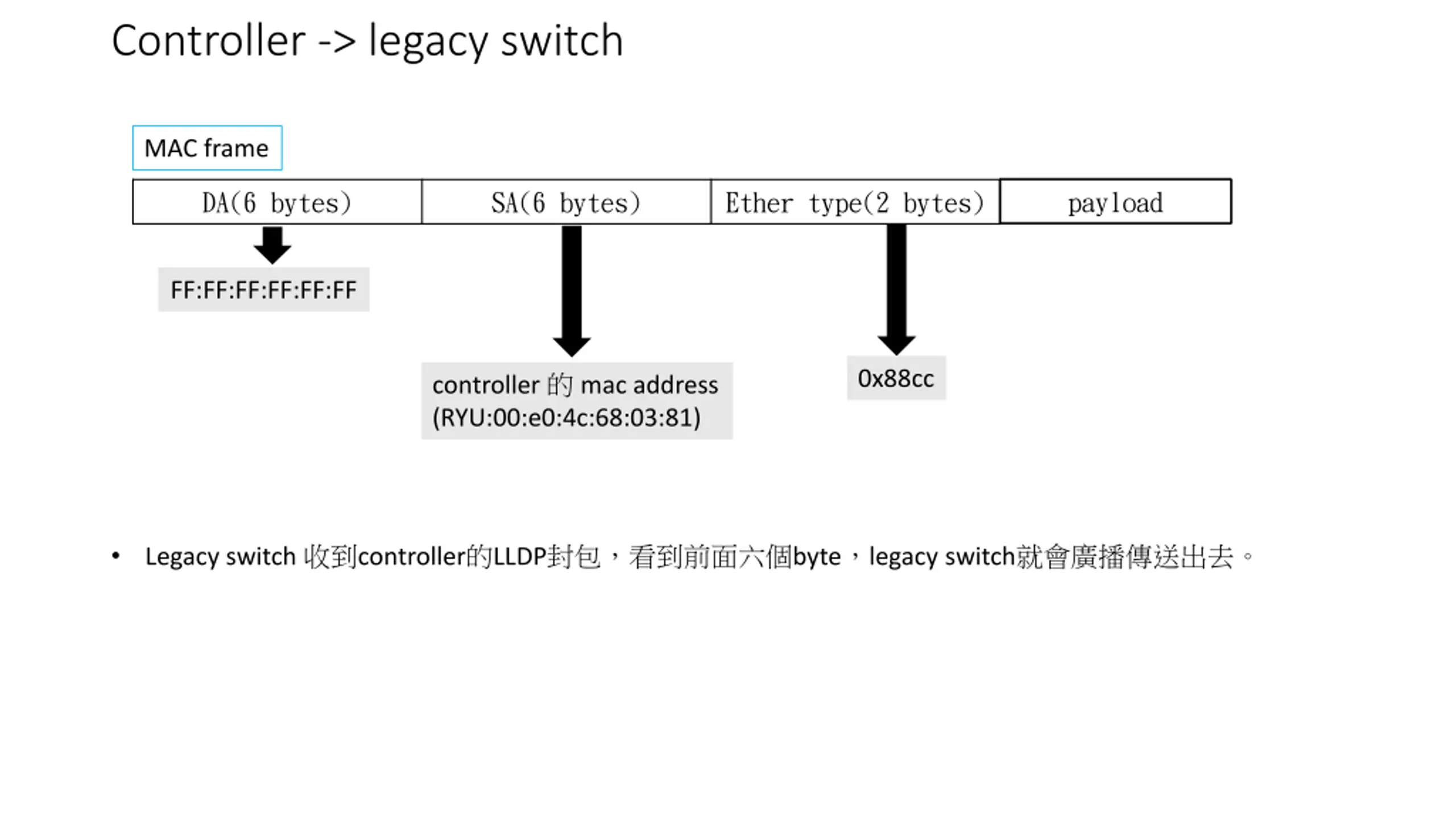

Controller -> legacy switch MAC frame payload DA(6 bytes) SA(6 bytes) Ether type(2 bytes) FF:FF:FF:FF:FF:FF 0x88cc controller mac address (RYU:00:e0:4c:68:03:81) Legacy switch controller LLDP byte legacy switch

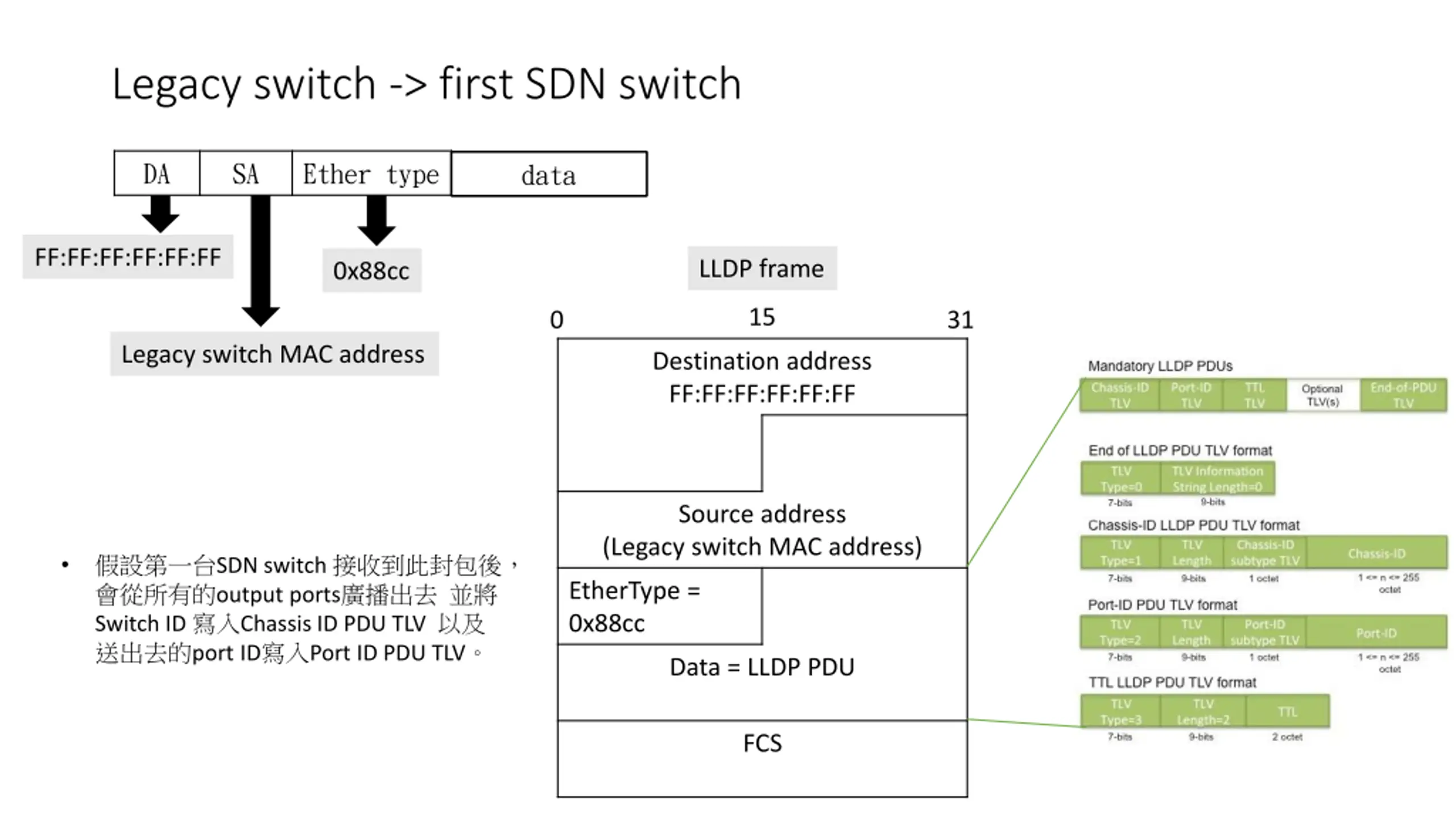

Legacy switch -> first SDN switch DA SA Ether type data FF:FF:FF:FF:FF:FF LLDP frame 0x88cc 15 0 31 Legacy switch MAC address Destination address FF:FF:FF:FF:FF:FF Source address (Legacy switch MAC address) SDN switch output ports Switch ID Chassis ID PDU TLV port ID Port ID PDU TLV EtherType = 0x88cc Data = LLDP PDU FCS

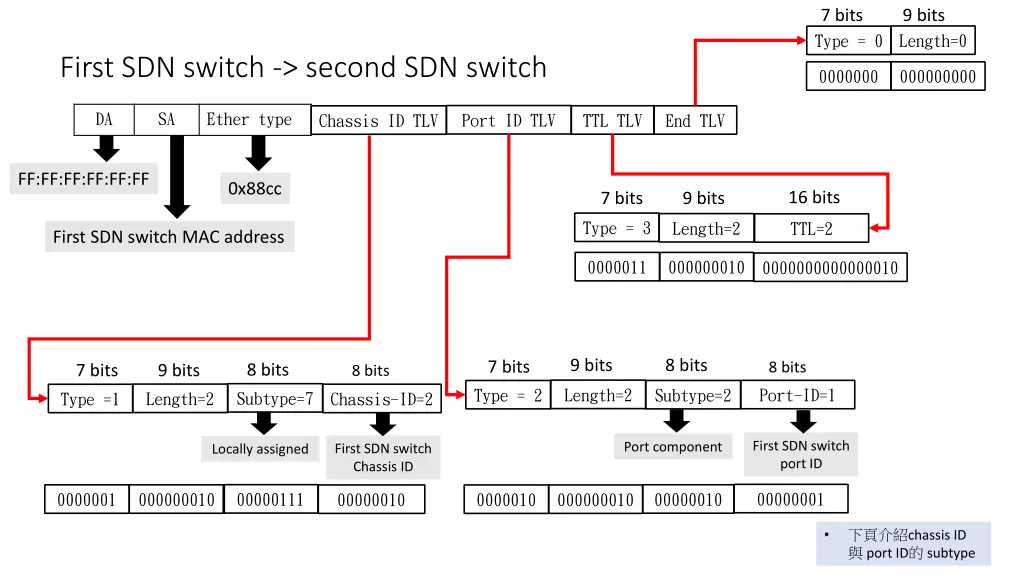

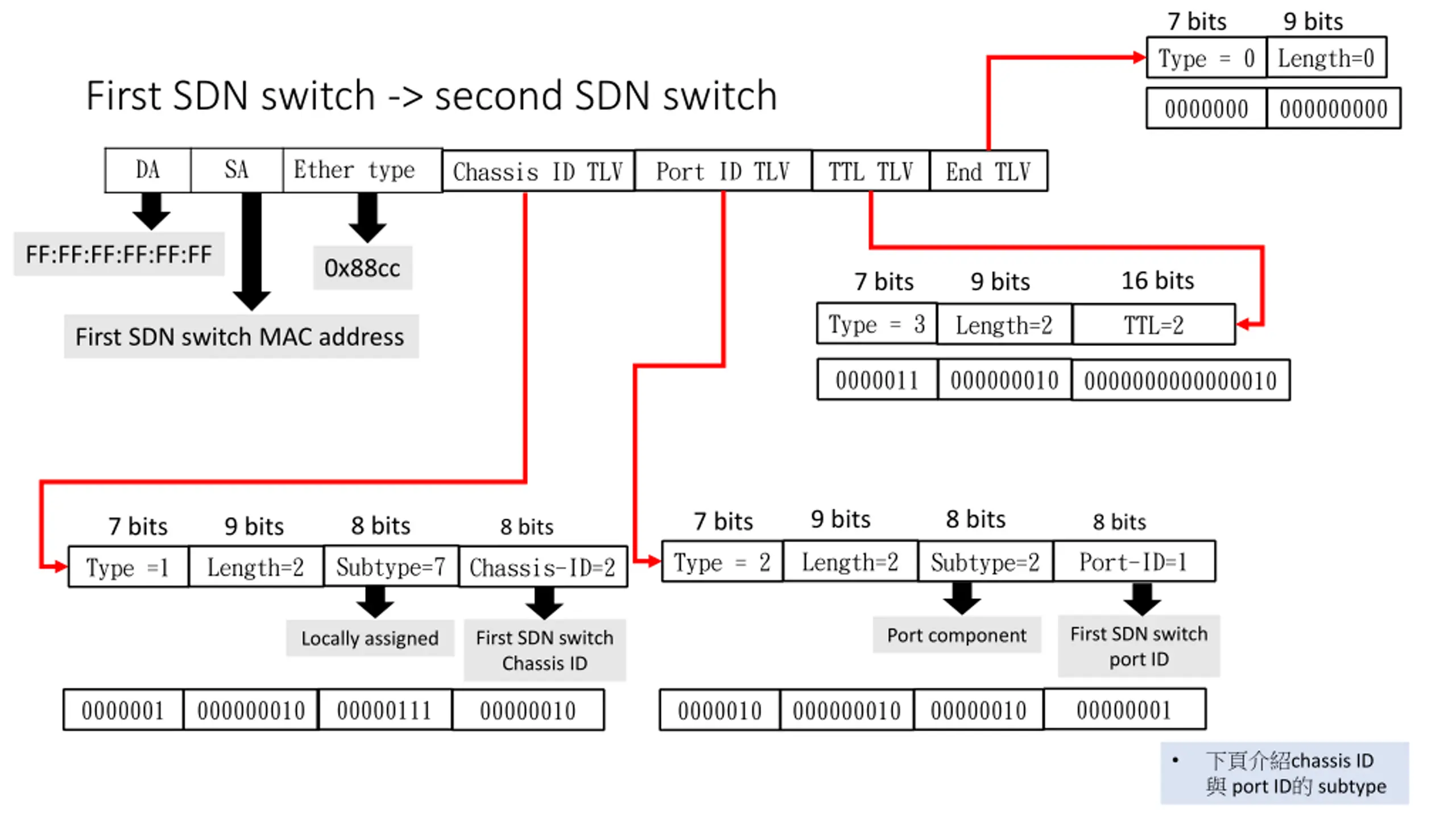

7 bits 9 bits Length=0 Type = 0 First SDN switch -> second SDN switch 0000000 000000000 DA SA Ether type Port ID TLV TTL TLV End TLV Chassis ID TLV FF:FF:FF:FF:FF:FF 0x88cc 16 bits 7 bits 9 bits Type = 3 Length=2 TTL=2 First SDN switch MAC address 0000011 000000010 0000000000000010 9 bits 8 bits 7 bits 8 bits 8 bits 7 bits 9 bits 8 bits Length=2 Port-ID=1 Type = 2 Subtype=2 Subtype=7 Length=2 Chassis-ID=2 Type =1 First SDN switch port ID Port component First SDN switch Chassis ID Locally assigned 00000001 00000111 00000010 0000001 000000010 0000010 000000010 00000010 chassis ID port ID subtype

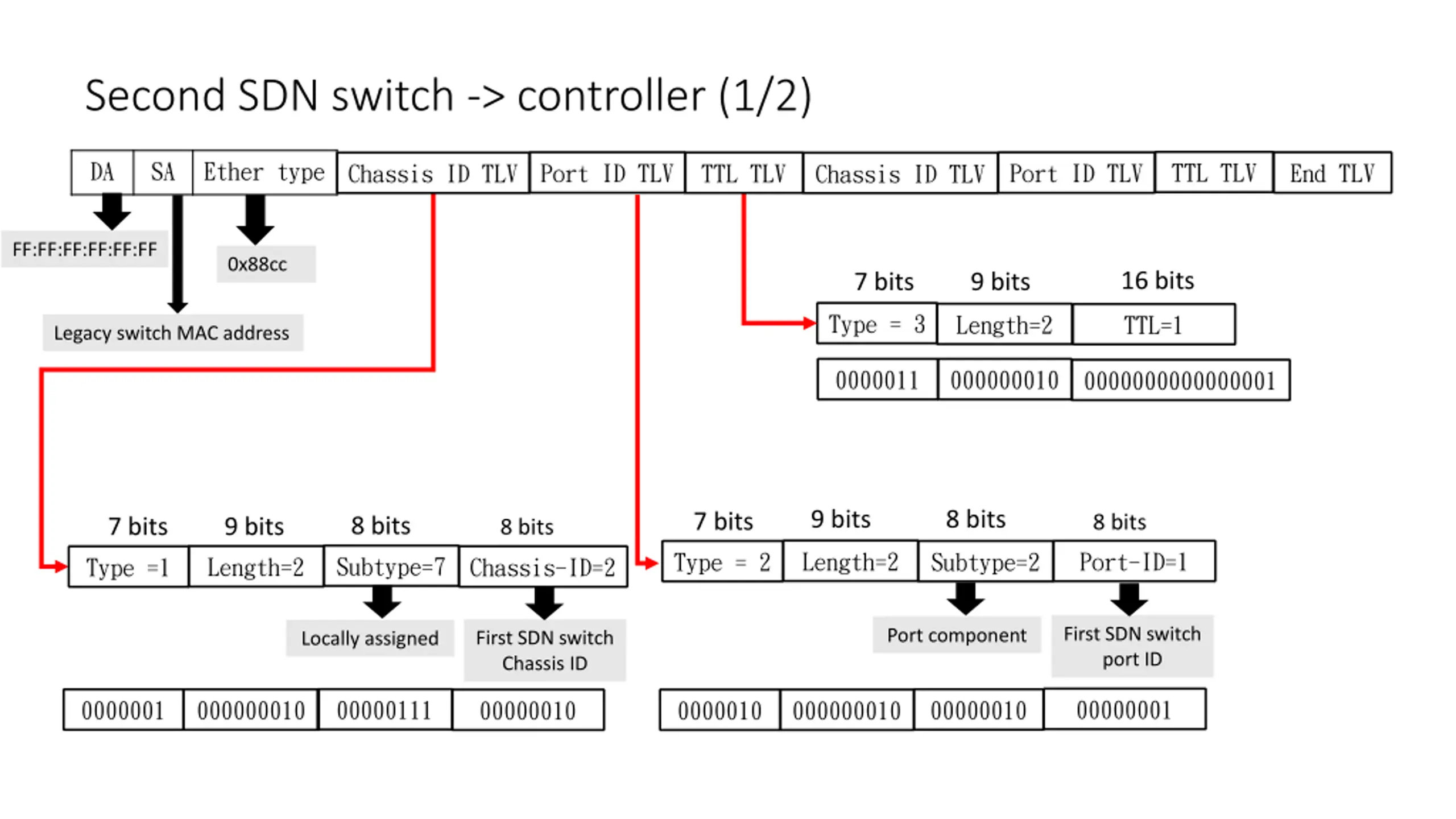

Second SDN switch -> controller (1/2) DA SA Ether type TTL TLV Port ID TLV End TLV Port ID TLV TTL TLV Chassis ID TLV Chassis ID TLV FF:FF:FF:FF:FF:FF 0x88cc 16 bits 7 bits 9 bits Type = 3 Length=2 TTL=1 Legacy switch MAC address 0000011 000000010 0000000000000001 9 bits 8 bits 7 bits 8 bits 8 bits 7 bits 9 bits 8 bits Length=2 Port-ID=1 Type = 2 Subtype=2 Subtype=7 Length=2 Chassis-ID=2 Type =1 First SDN switch port ID Port component First SDN switch Chassis ID Locally assigned 00000001 00000111 00000010 0000001 000000010 0000010 000000010 00000010

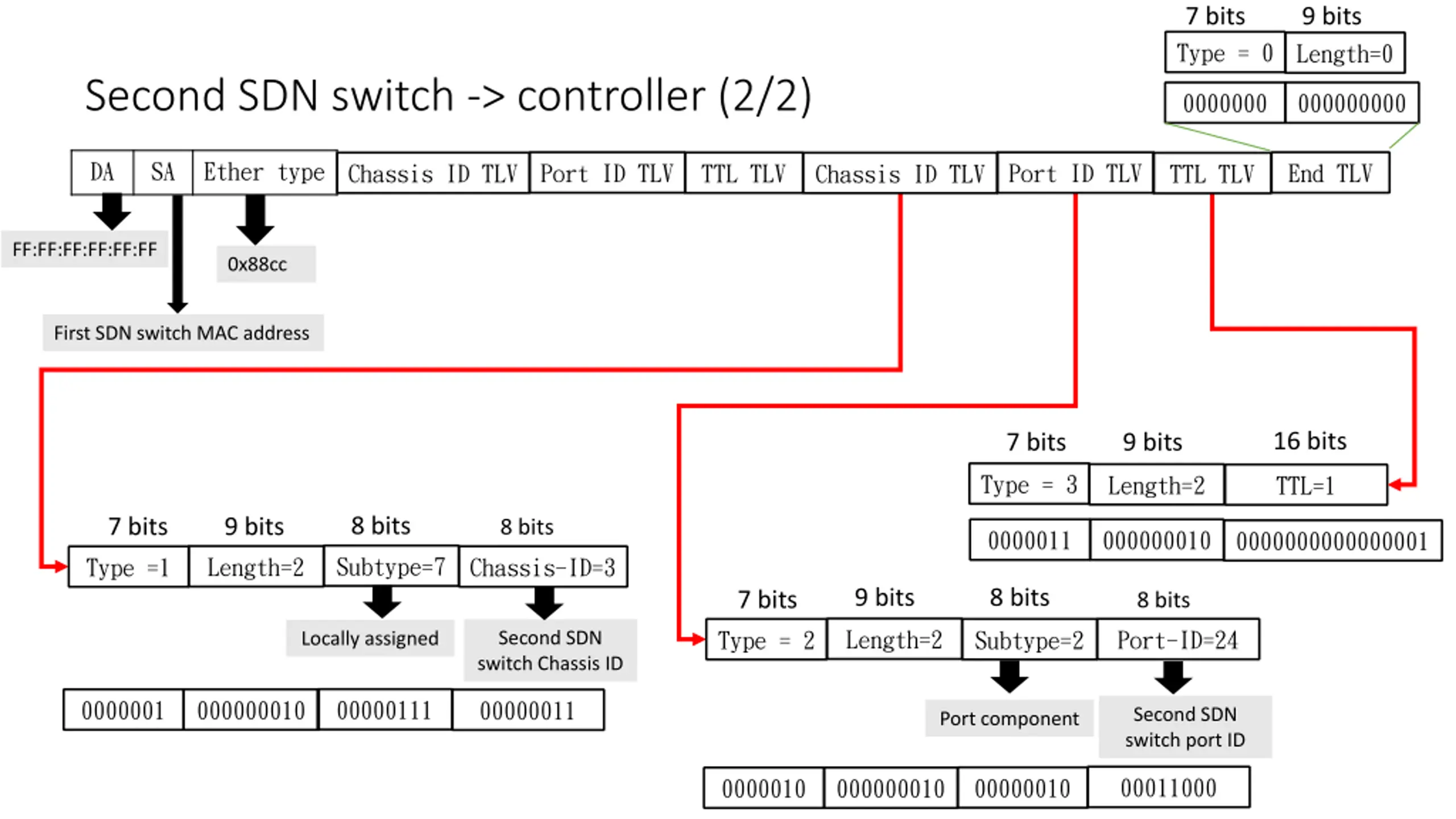

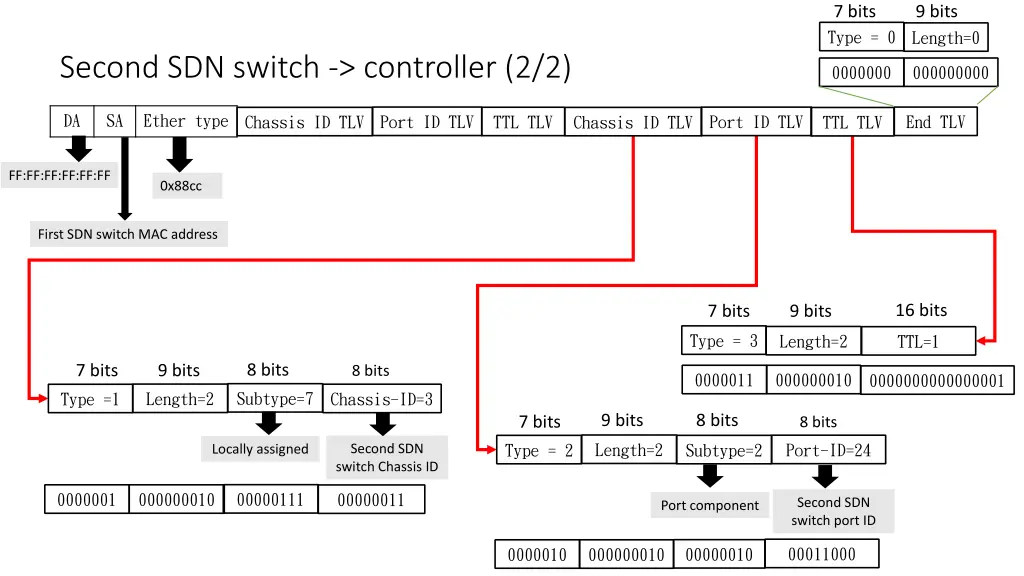

7 bits 9 bits Type = 0 Length=0 Second SDN switch -> controller (2/2) 0000000 000000000 DA SA Ether type Port ID TLV End TLV Port ID TLV TTL TLV Chassis ID TLV Chassis ID TLV TTL TLV FF:FF:FF:FF:FF:FF 0x88cc First SDN switch MAC address 16 bits 7 bits 9 bits Type = 3 Length=2 TTL=1 8 bits 7 bits 9 bits 8 bits 0000011 000000010 0000000000000001 Subtype=7 Length=2 Chassis-ID=3 Type =1 9 bits 8 bits 7 bits 8 bits Length=2 Port-ID=24 Second SDN switch Chassis ID Type = 2 Subtype=2 Locally assigned 00000111 0000001 000000010 00000011 Second SDN switch port ID Port component 00011000 00000010 0000010 000000010

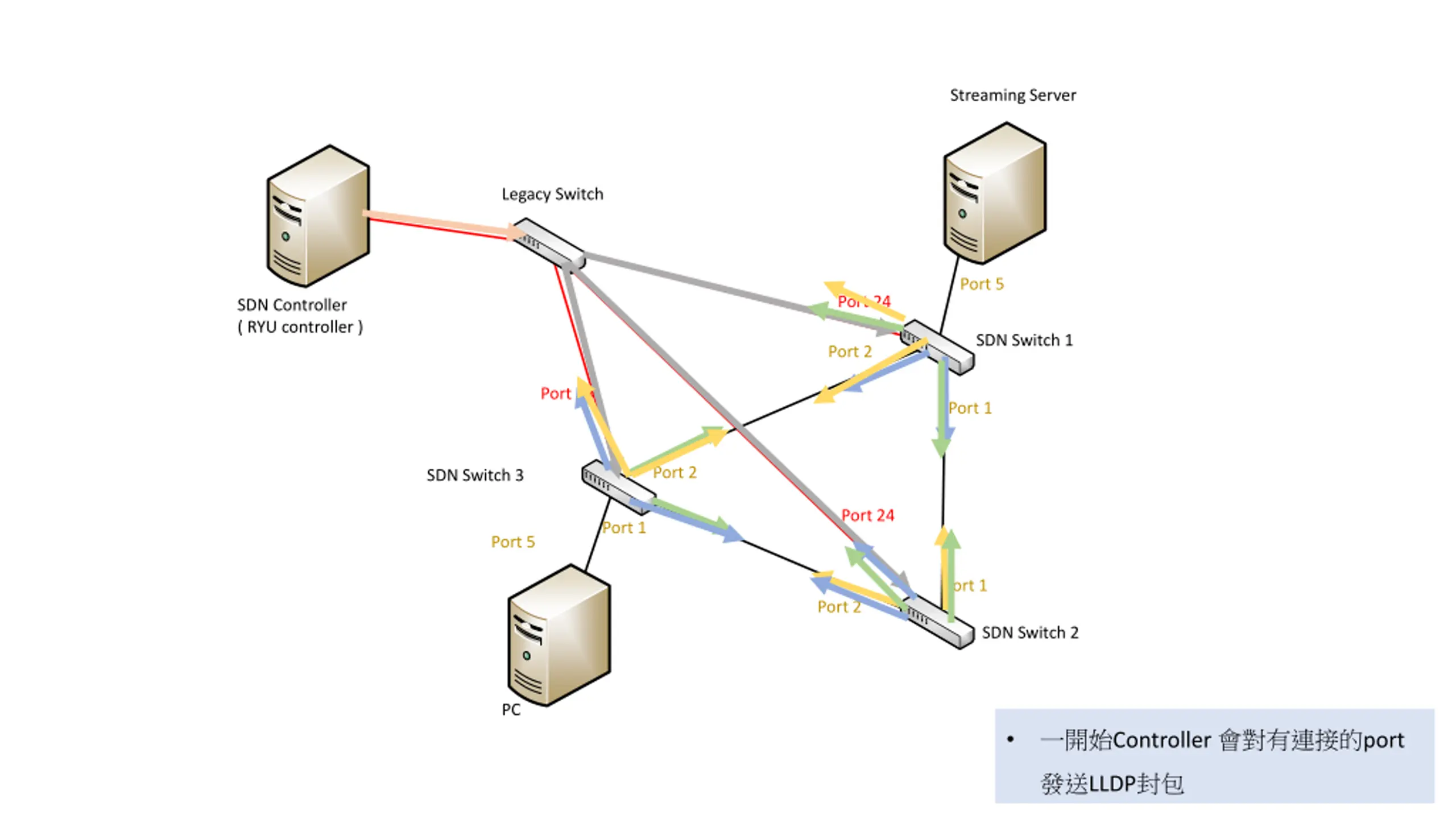

Streaming Server Legacy Switch Port 5 Port 24 SDN Controller ( RYU controller ) SDN Switch 1 Port 2 Port 24 Port 1 Port 2 SDN Switch 3 Port 24 Port 1 Port 5 Port 1 Port 2 SDN Switch 2 PC Controller port LLDP

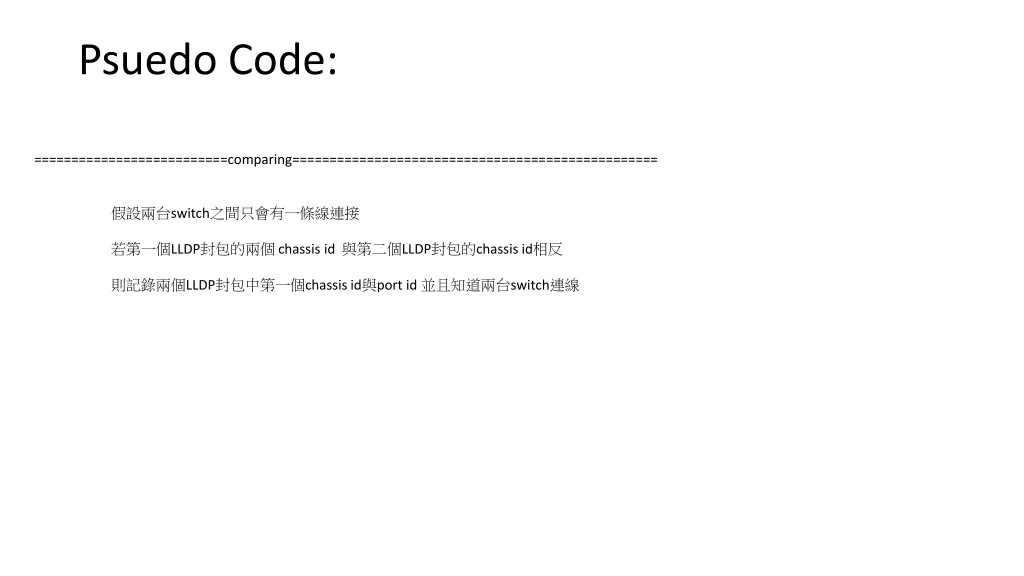

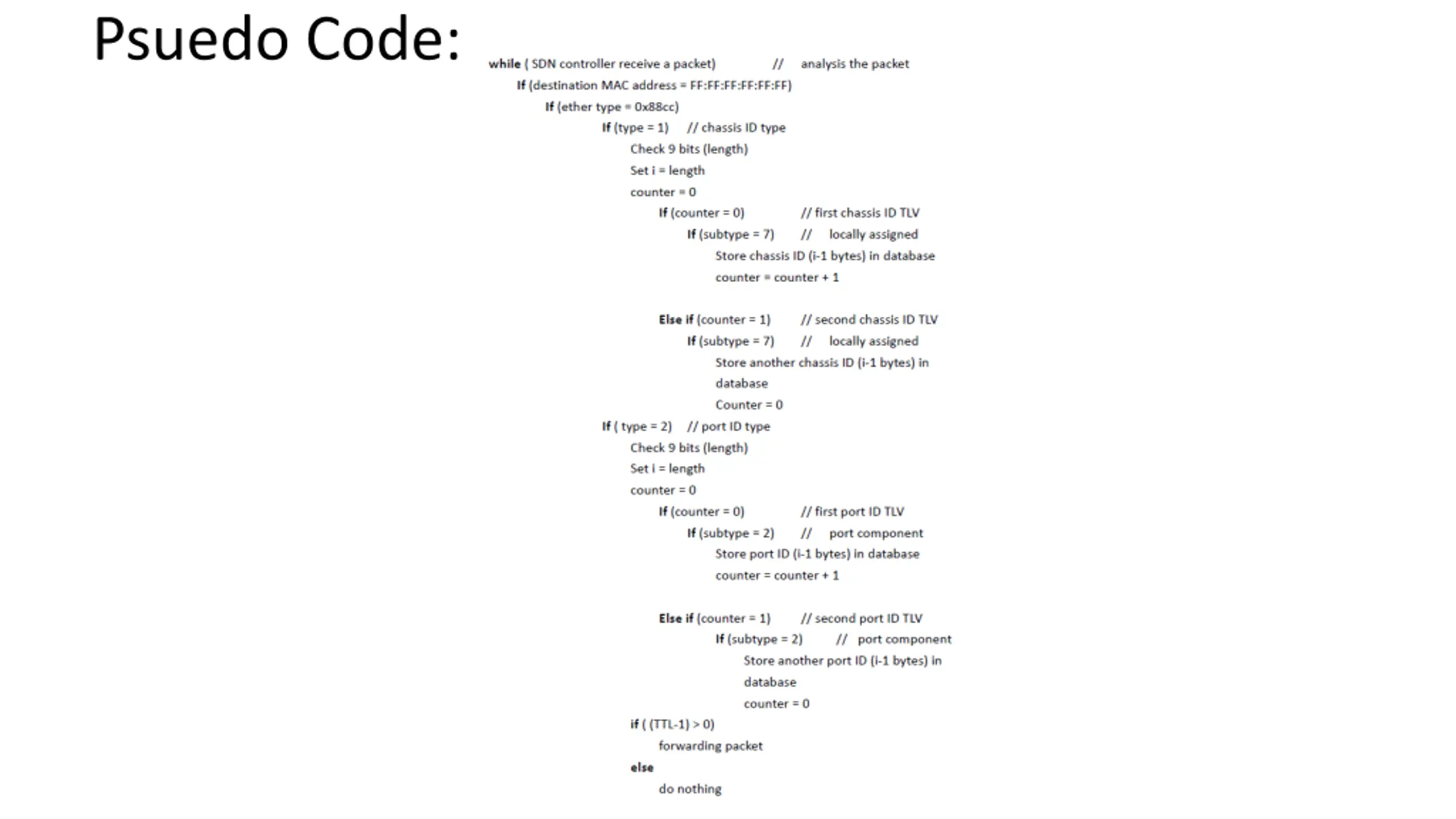

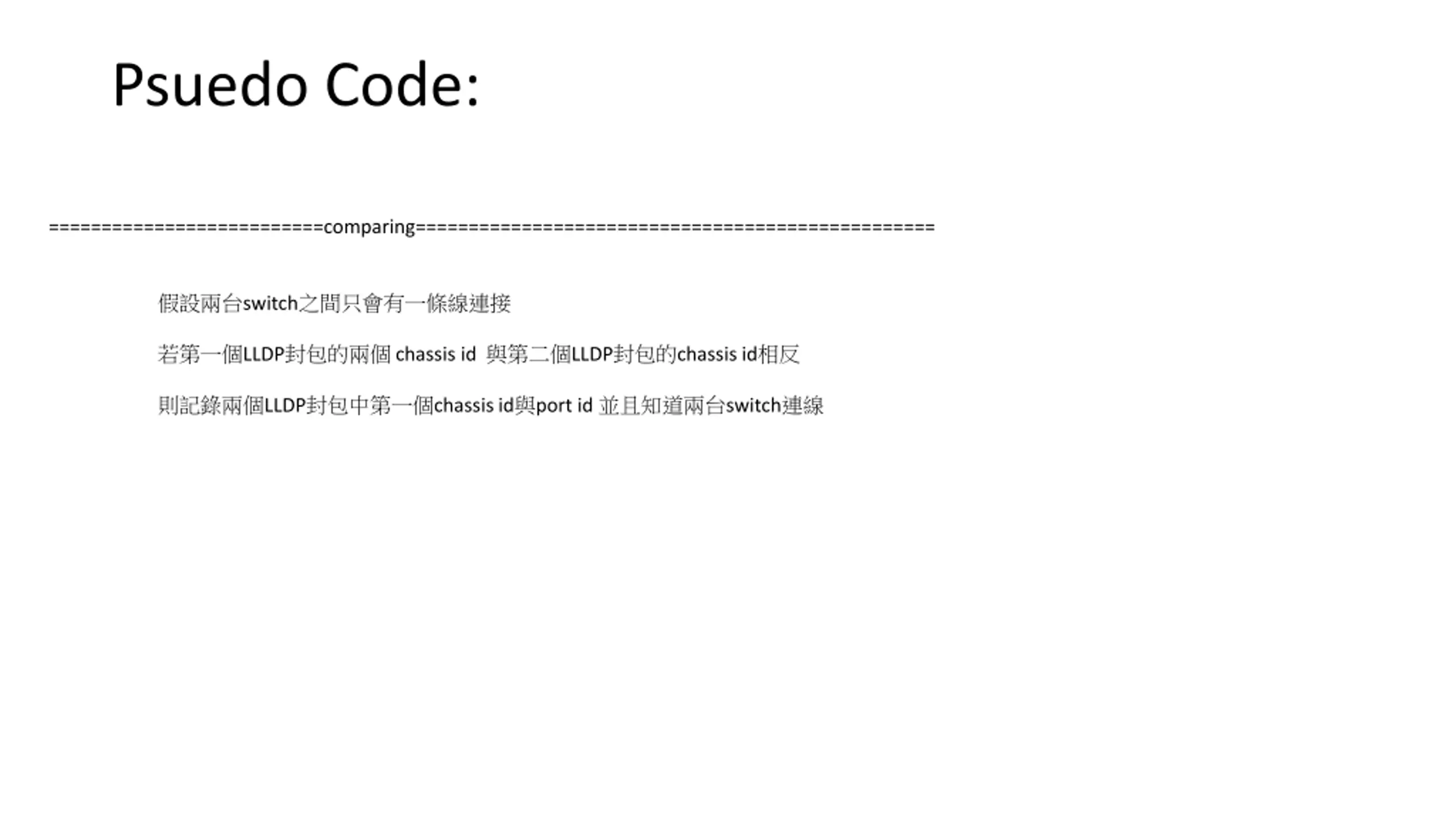

Psuedo Code: ==========================comparing================================================= switch LLDP chassis id LLDP chassis id LLDP chassis id port id switch
