Understanding PageRank and HITS Algorithms

Mathematical View of PageRank & HITs Apr 6, 2012 Heegook Jun

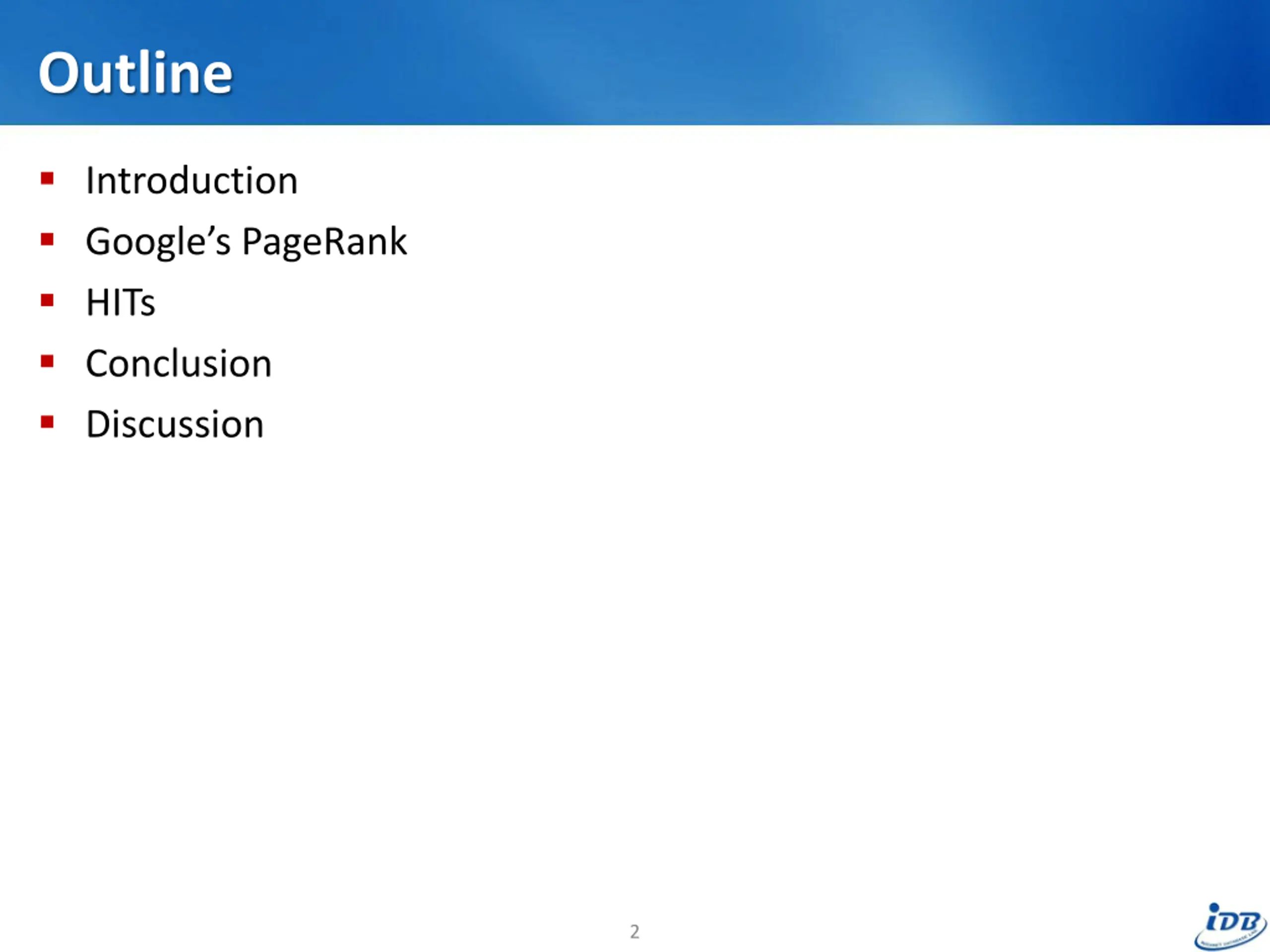

Outline Introduction Google s PageRank HITs Conclusion Discussion 2

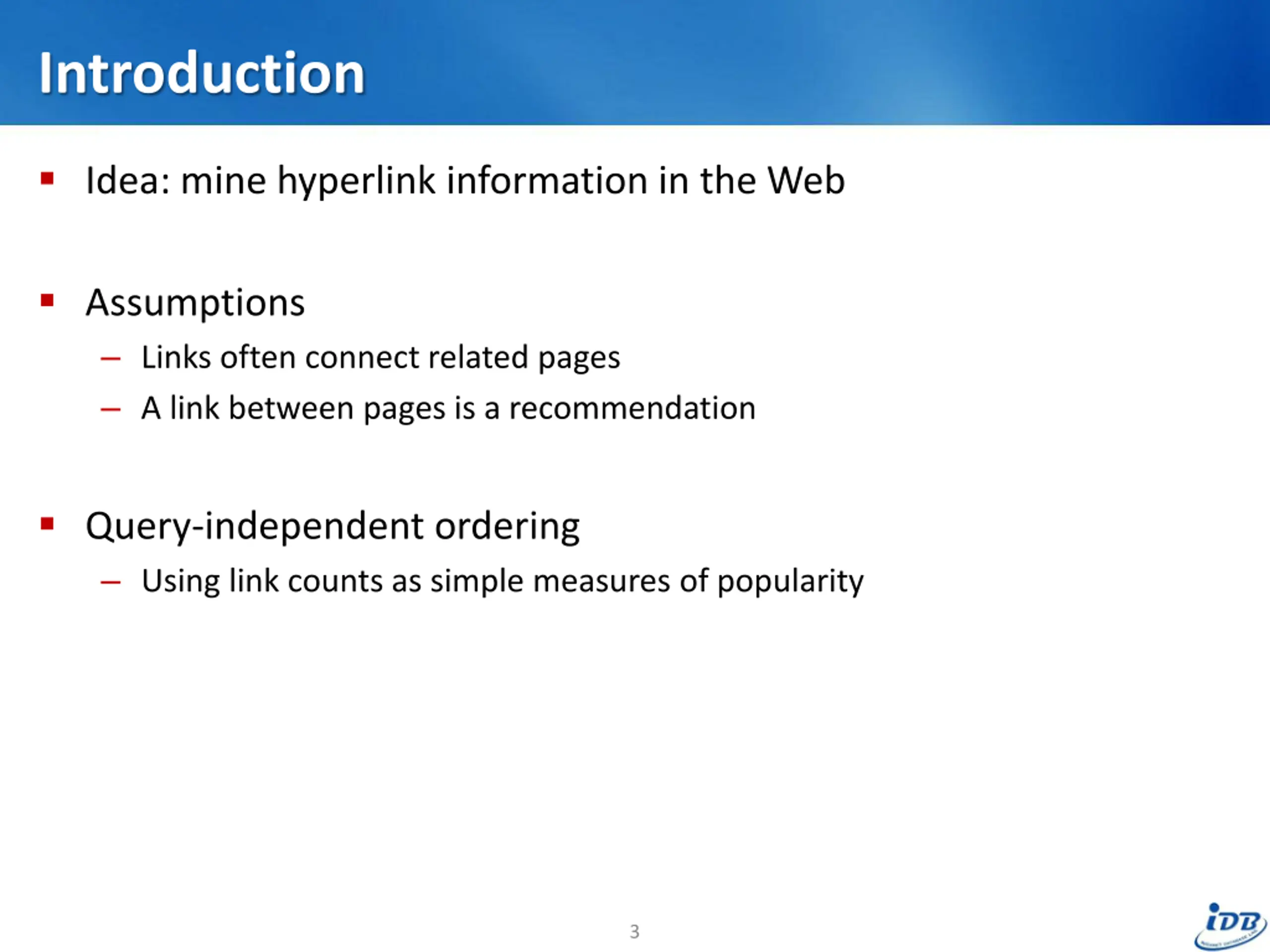

Introduction Idea: mine hyperlink information in the Web Assumptions Links often connect related pages A link between pages is a recommendation Query-independent ordering Using link counts as simple measures of popularity 3

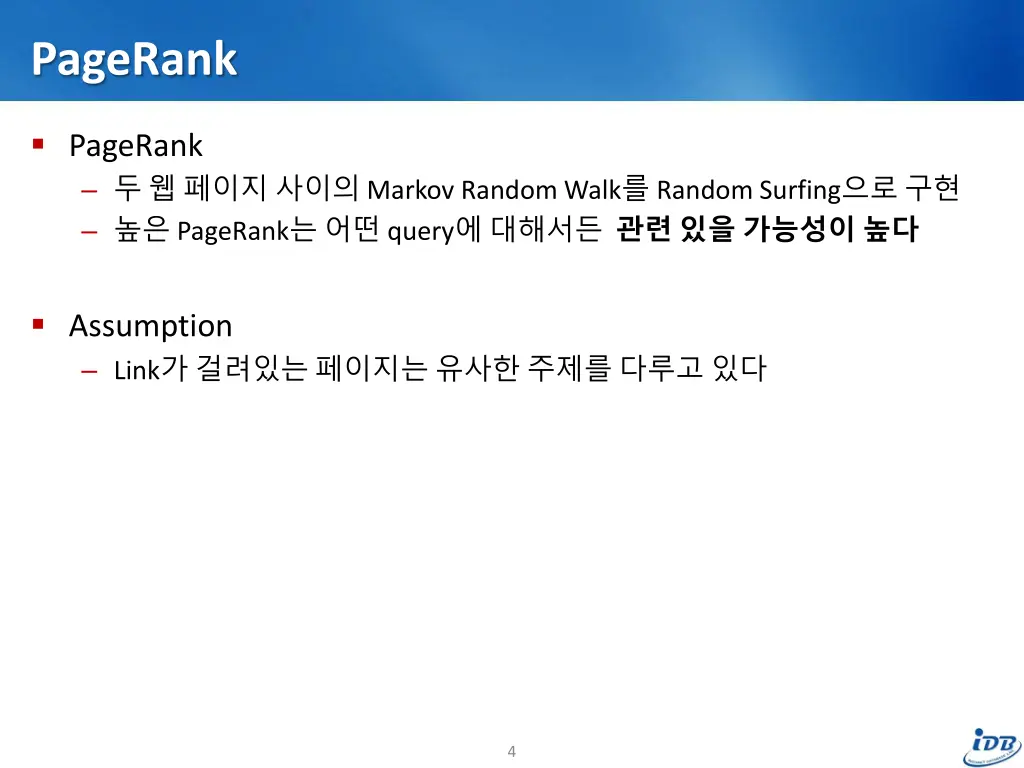

PageRank PageRank Markov Random Walk Random Surfing PageRank query Assumption Link 4

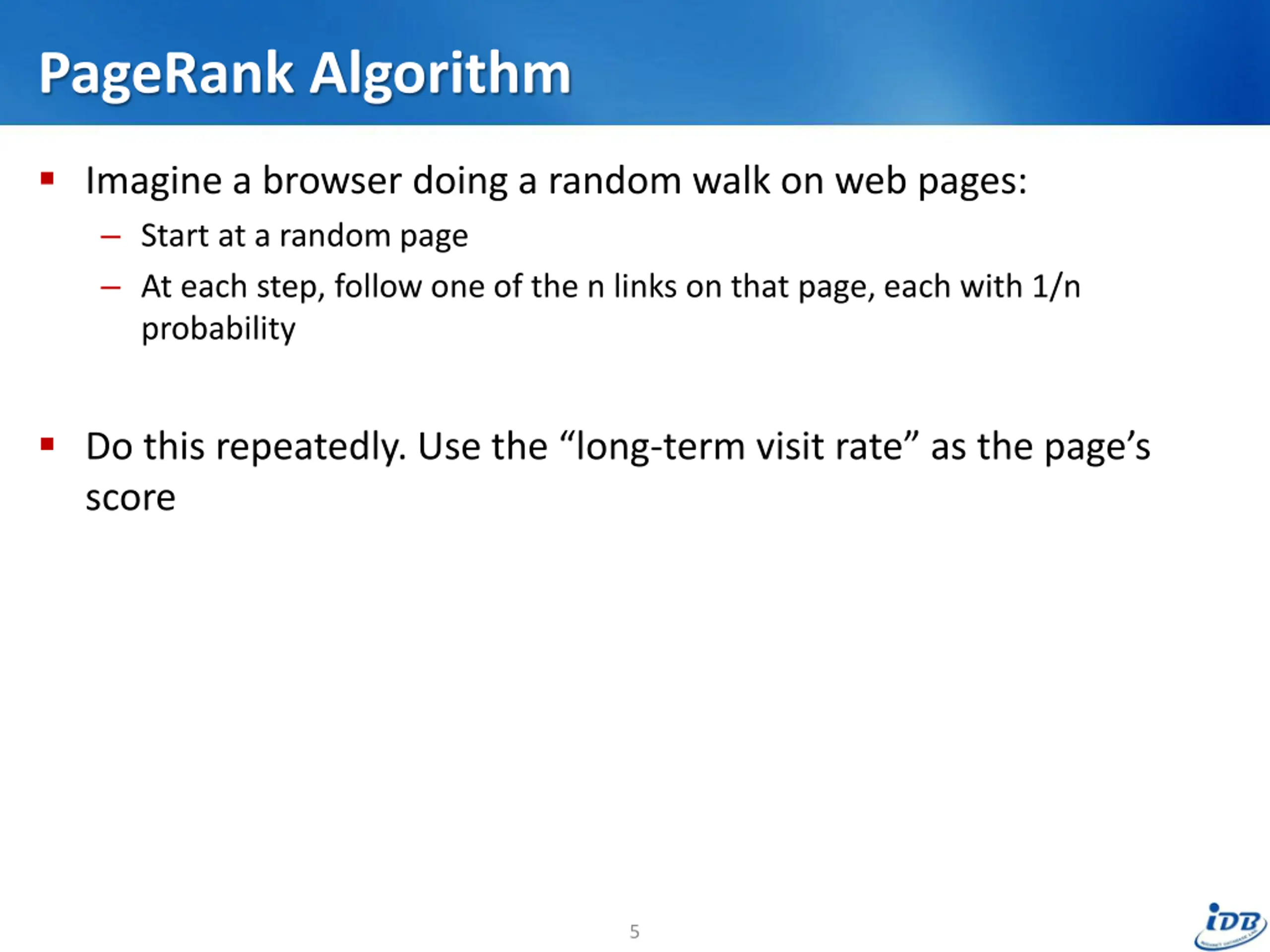

PageRank Algorithm Imagine a browser doing a random walk on web pages: Start at a random page At each step, follow one of the n links on that page, each with 1/n probability Do this repeatedly. Use the long-term visit rate as the page s score 5

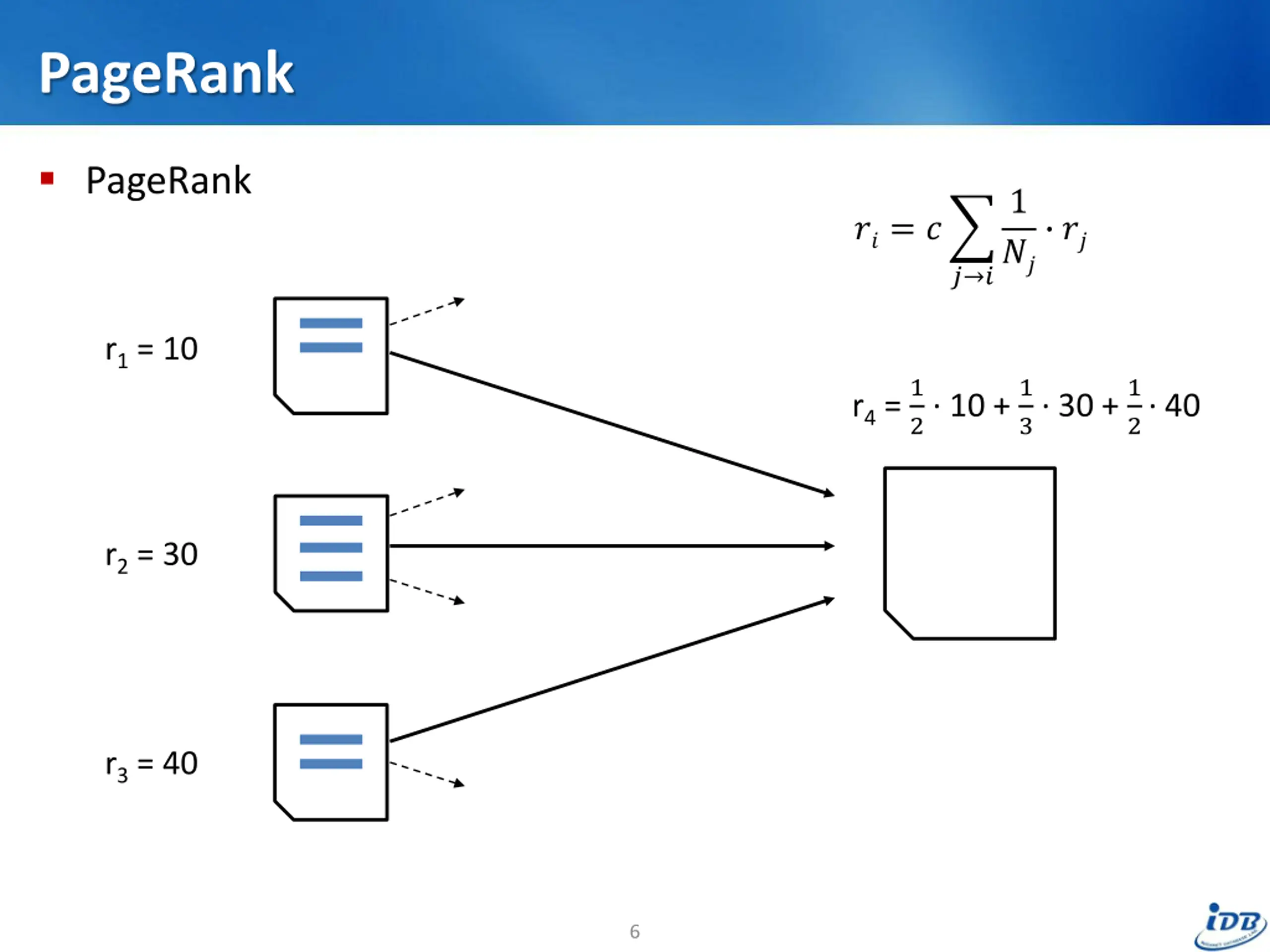

PageRank PageRank 1 ?? ??= ? ?? ? ? r1= 10 r4= 1 2 10 + 1 3 30 + 1 2 40 r2= 30 r3= 40 6

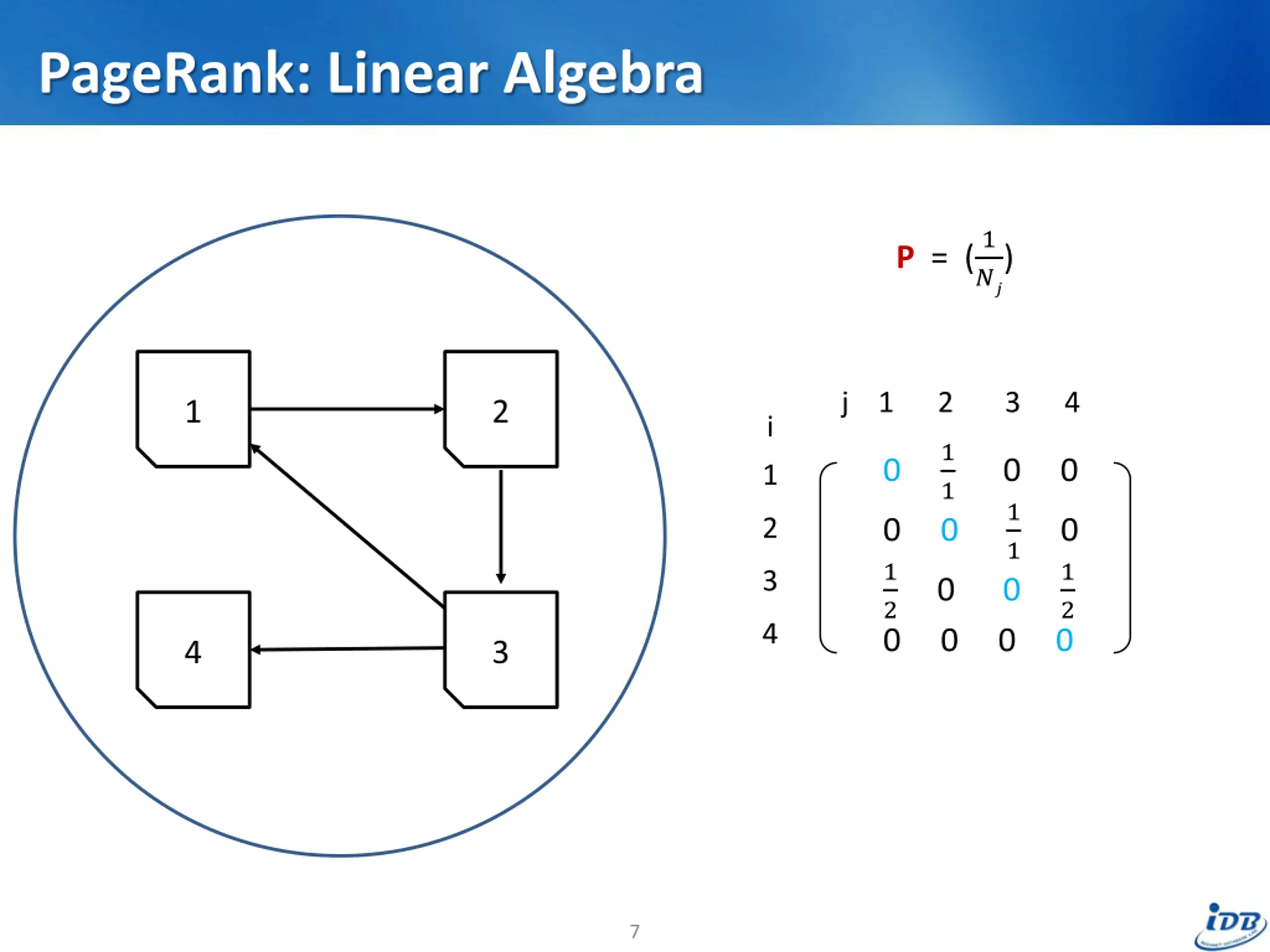

PageRank: Linear Algebra P = (1 ??) j 1 2 3 4 1 2 i 1 1 0 0 0 1 1 1 2 0 0 1 2 0 0 0 0 0 1 2 3 0 0 4 4 3 7

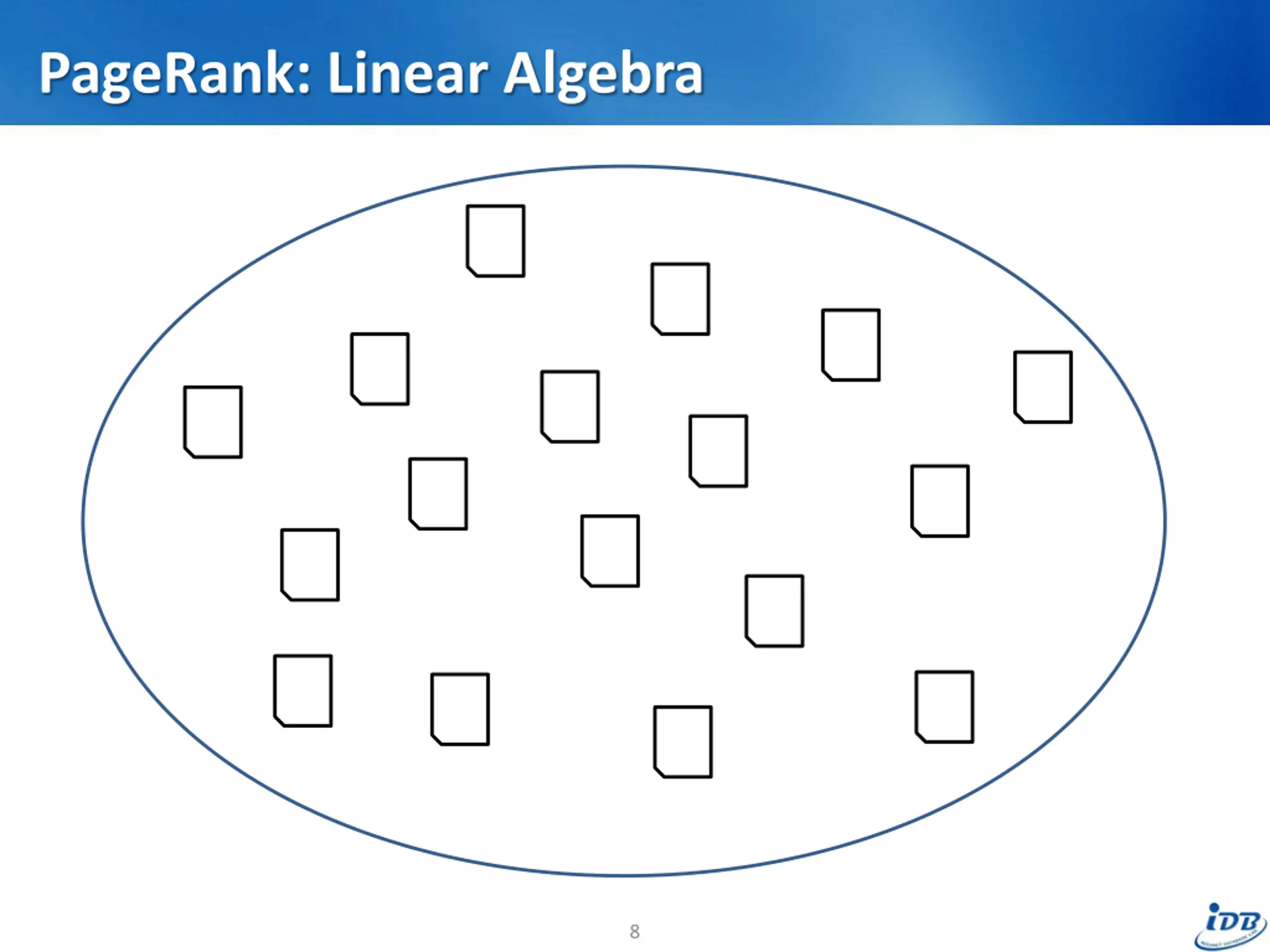

PageRank: Linear Algebra 8

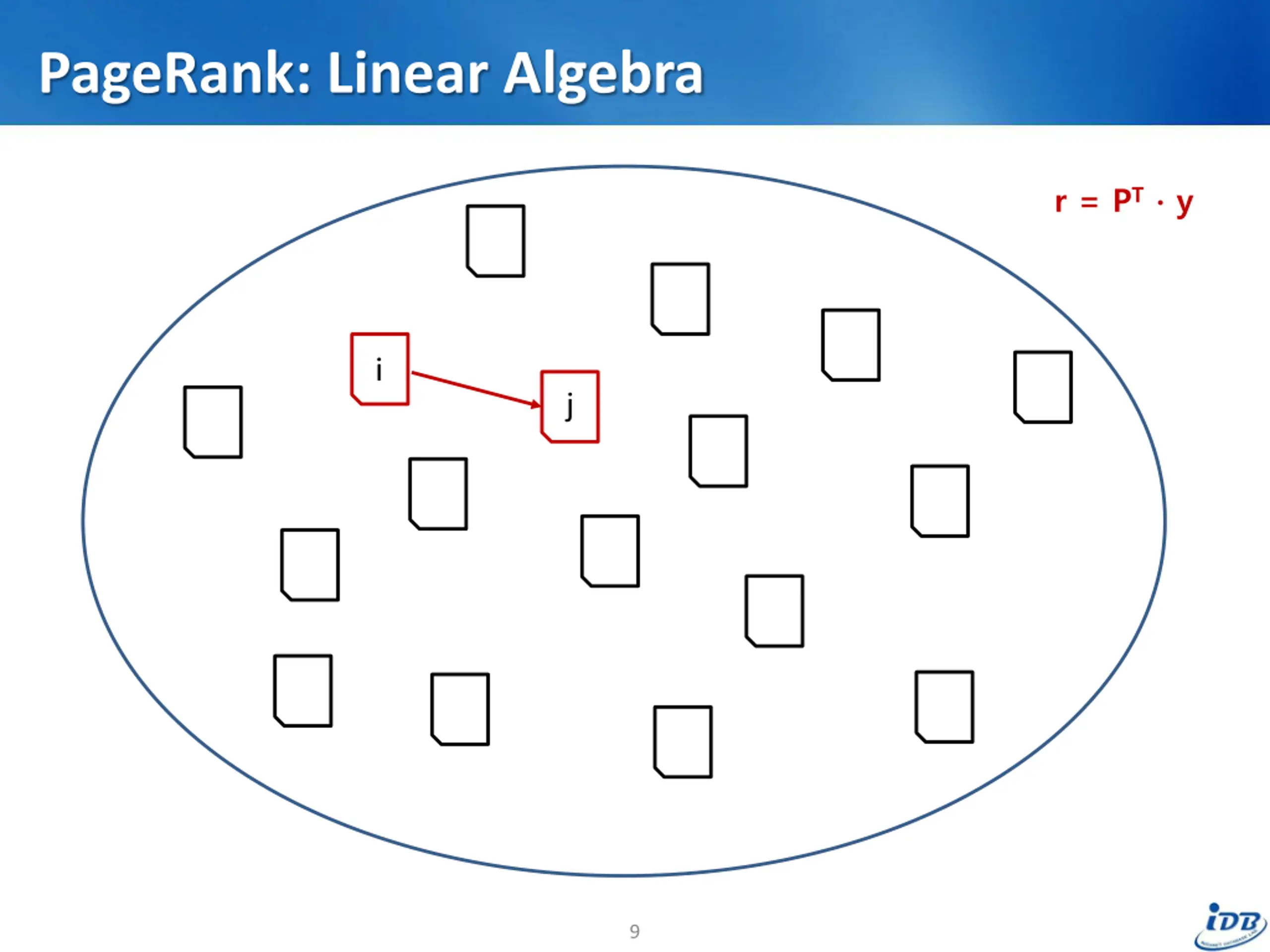

PageRank: Linear Algebra r = PT y i j 9

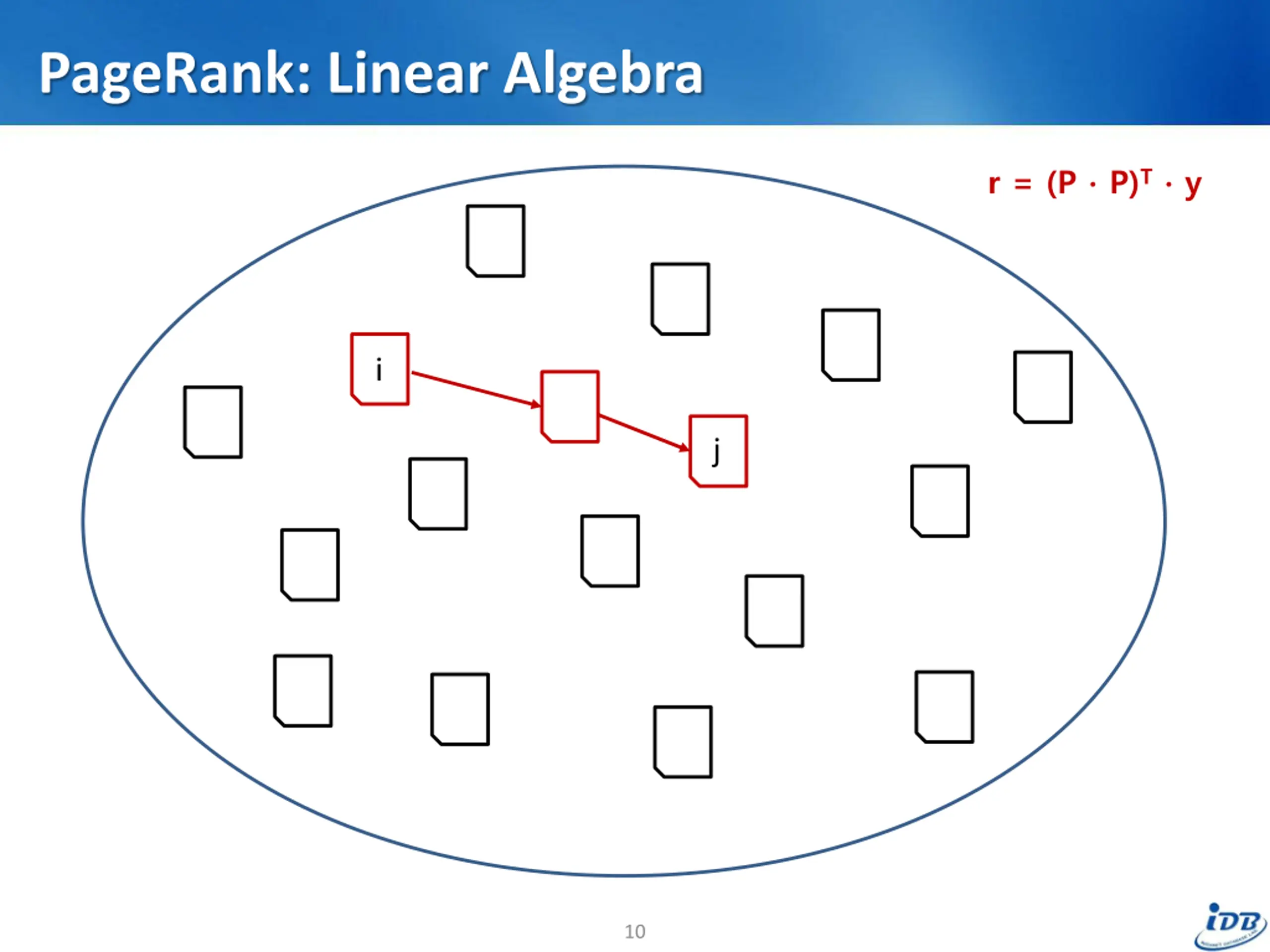

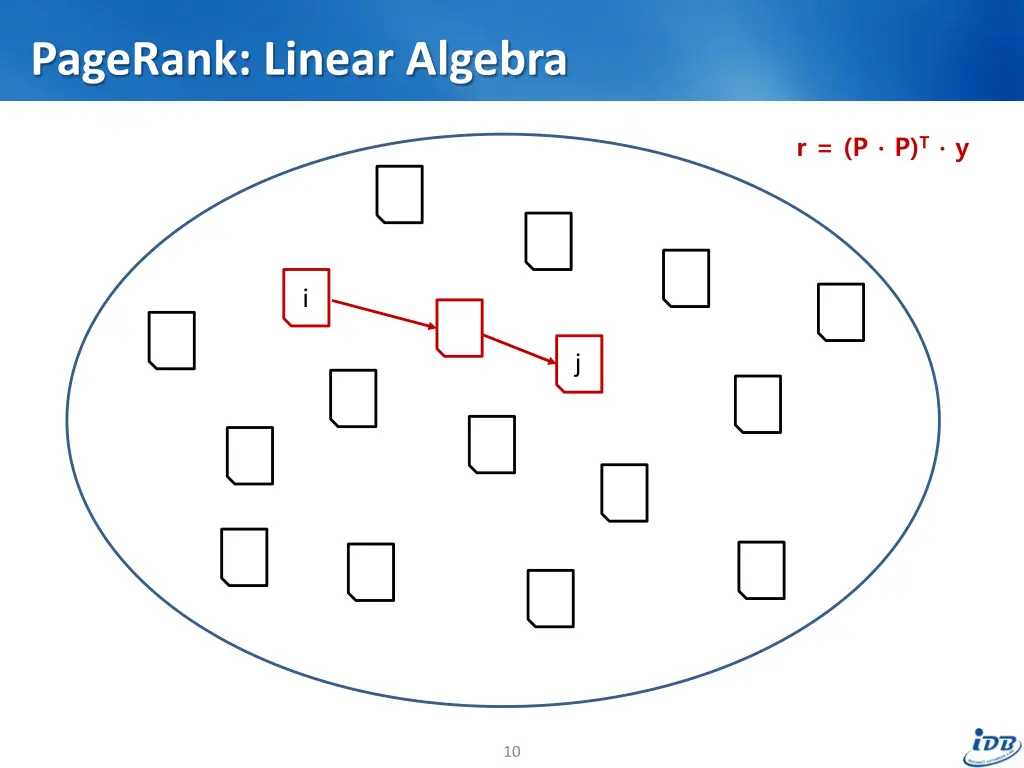

PageRank: Linear Algebra r = (P P)T y i j 10

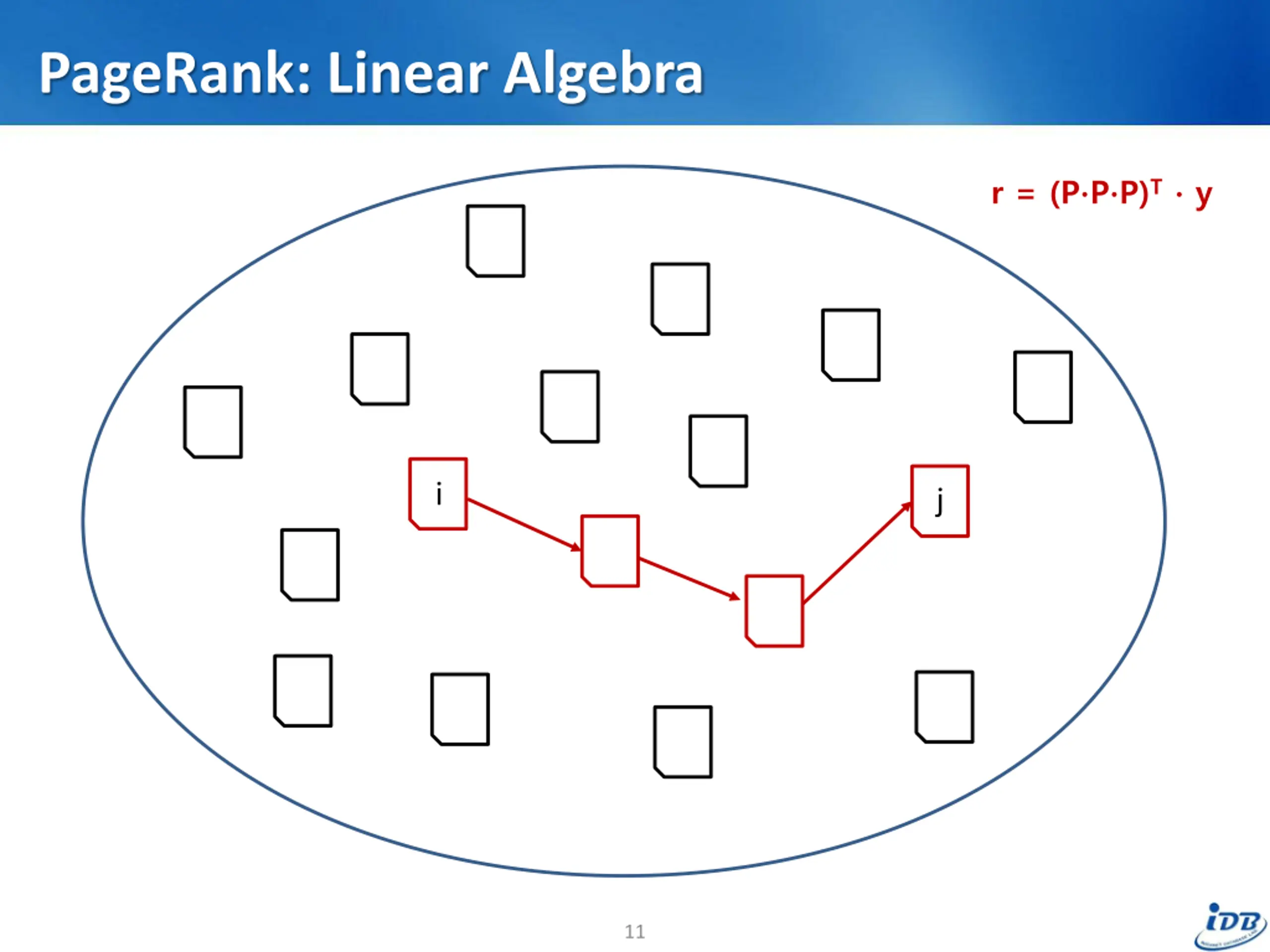

PageRank: Linear Algebra r = (P P P)T y i j 11

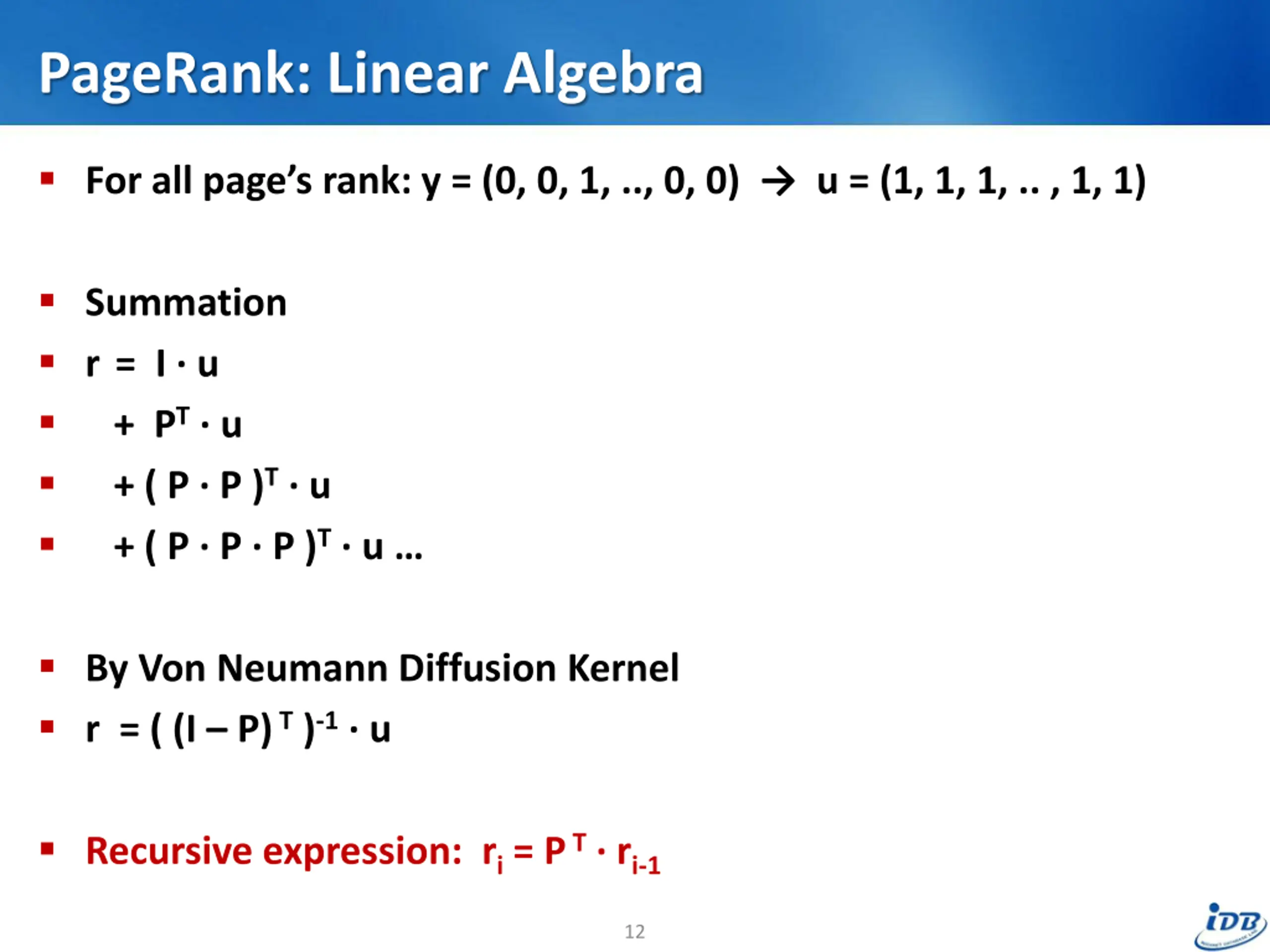

PageRank: Linear Algebra For all page s rank: y = (0, 0, 1, .., 0, 0) u = (1, 1, 1, .. , 1, 1) Summation r = I u + PT u + ( P P )T u + ( P P P )T u By Von Neumann Diffusion Kernel r = ( (I P)T)-1 u Recursive expression: ri= PT ri-1 12

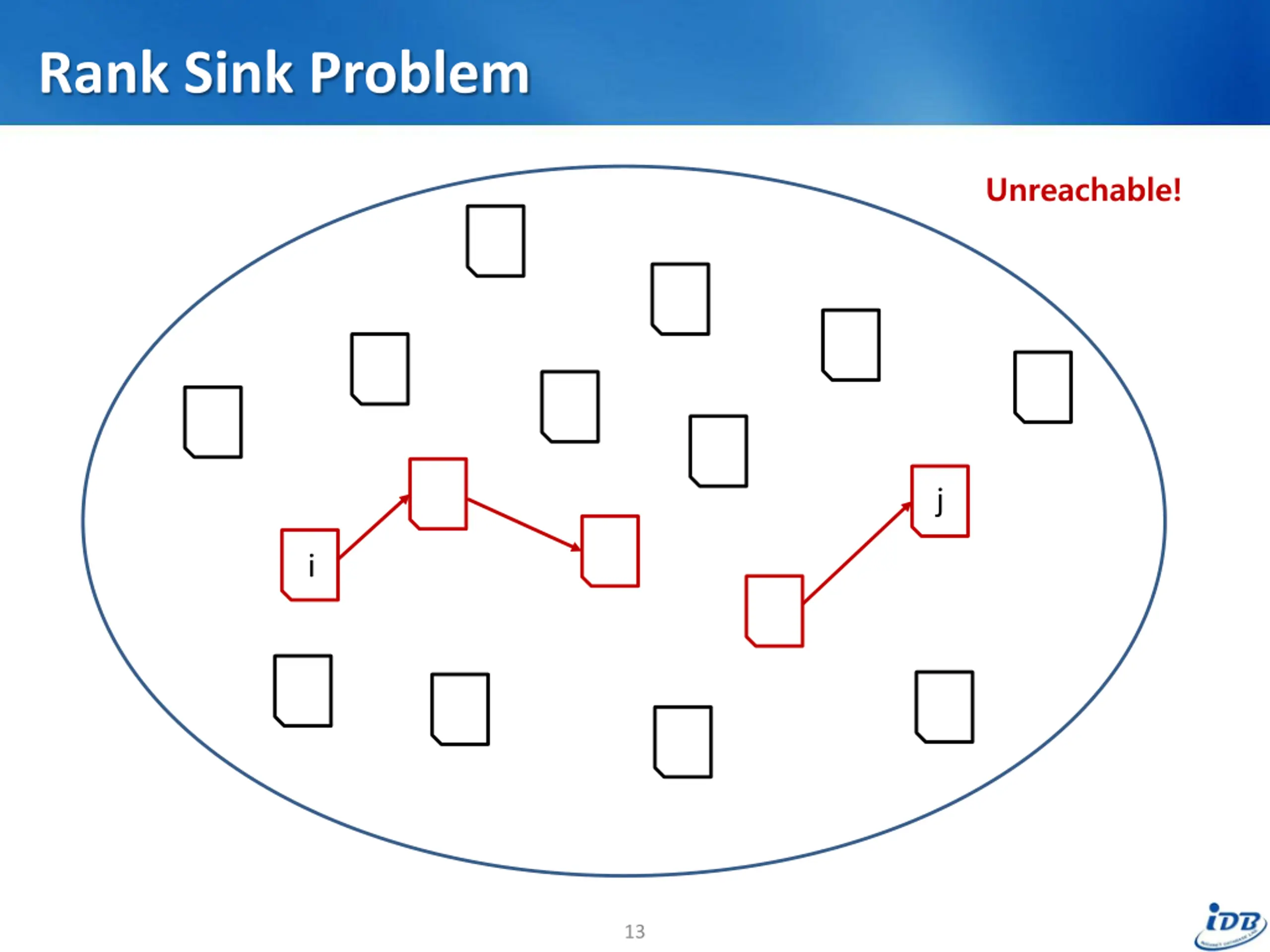

Rank Sink Problem Unreachable! j i 13

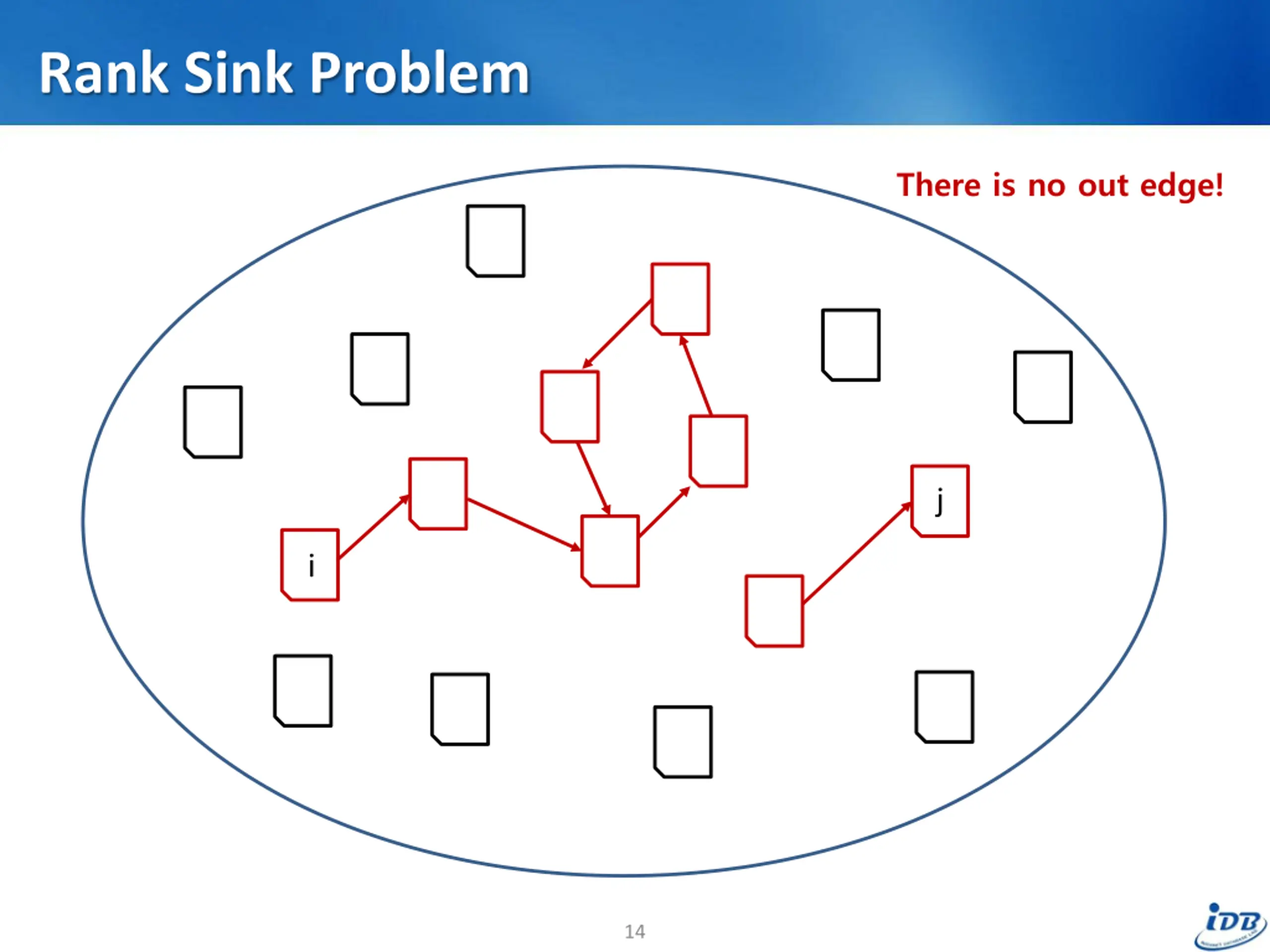

Rank Sink Problem There is no out edge! j i 14

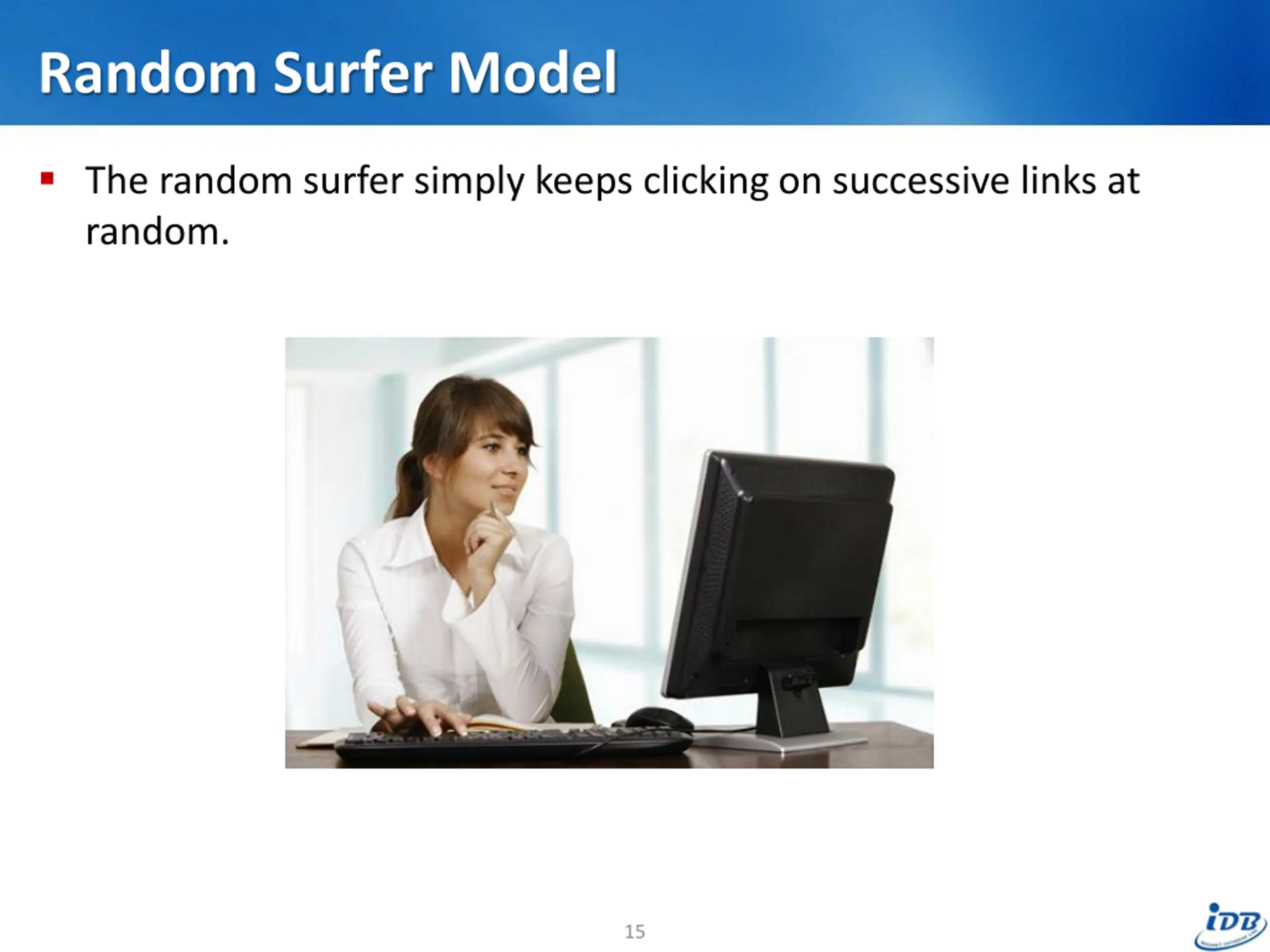

Random Surfer Model The random surfer simply keeps clicking on successive links at random. 15

Random Surfer Model If a real web surfer ever gets into a small loop of web pages, it is unlikely that the surfer will continue in the loop forever. j i 16

Random Surfer Model Instead, the surfer will jump to some other page. j i i 17

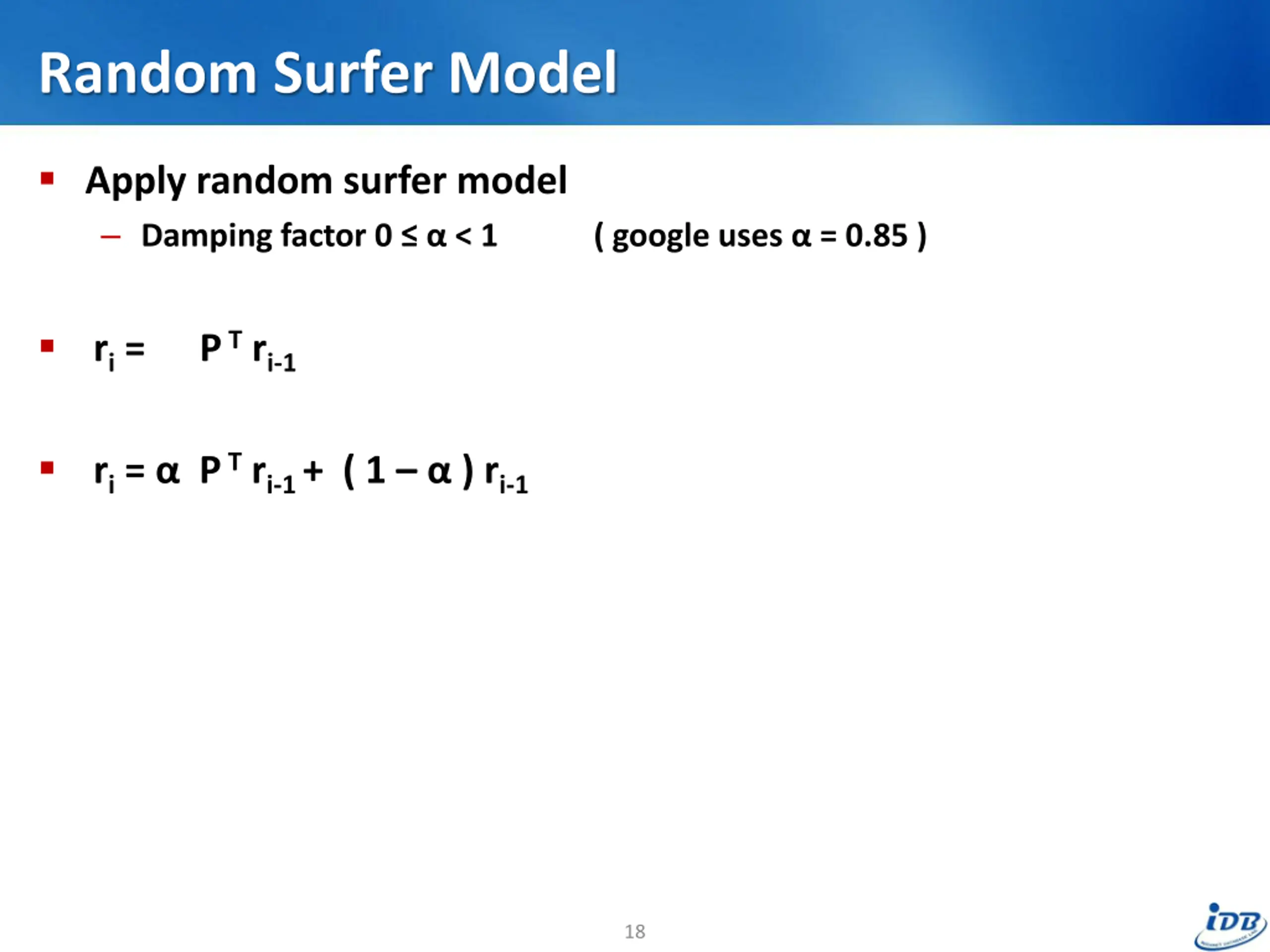

Random Surfer Model Apply random surfer model Damping factor 0 < 1 ( google uses = 0.85 ) ri= PTri-1 ri= PTri-1 + ( 1 ) ri-1 18

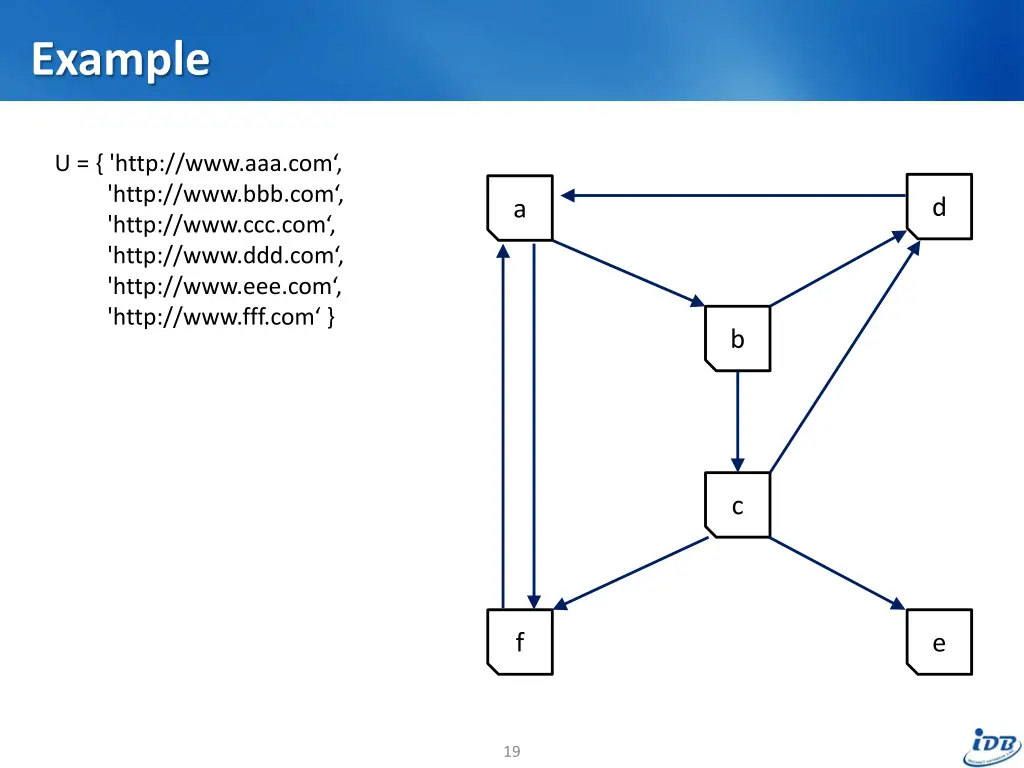

Example U = { 'http://www.aaa.com , 'http://www.bbb.com , 'http://www.ccc.com , 'http://www.ddd.com , 'http://www.eee.com , 'http://www.fff.com } d a b c f e 19

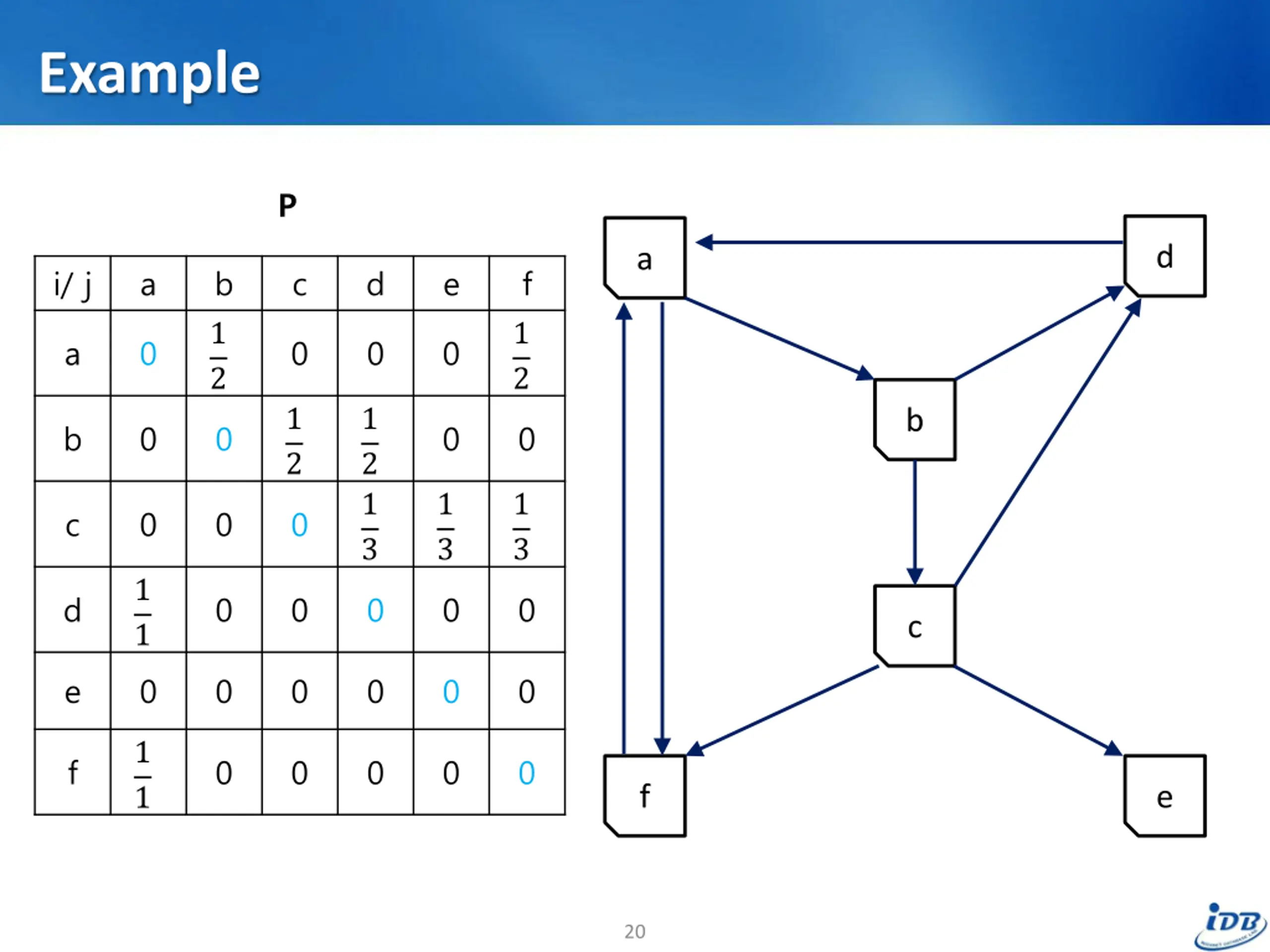

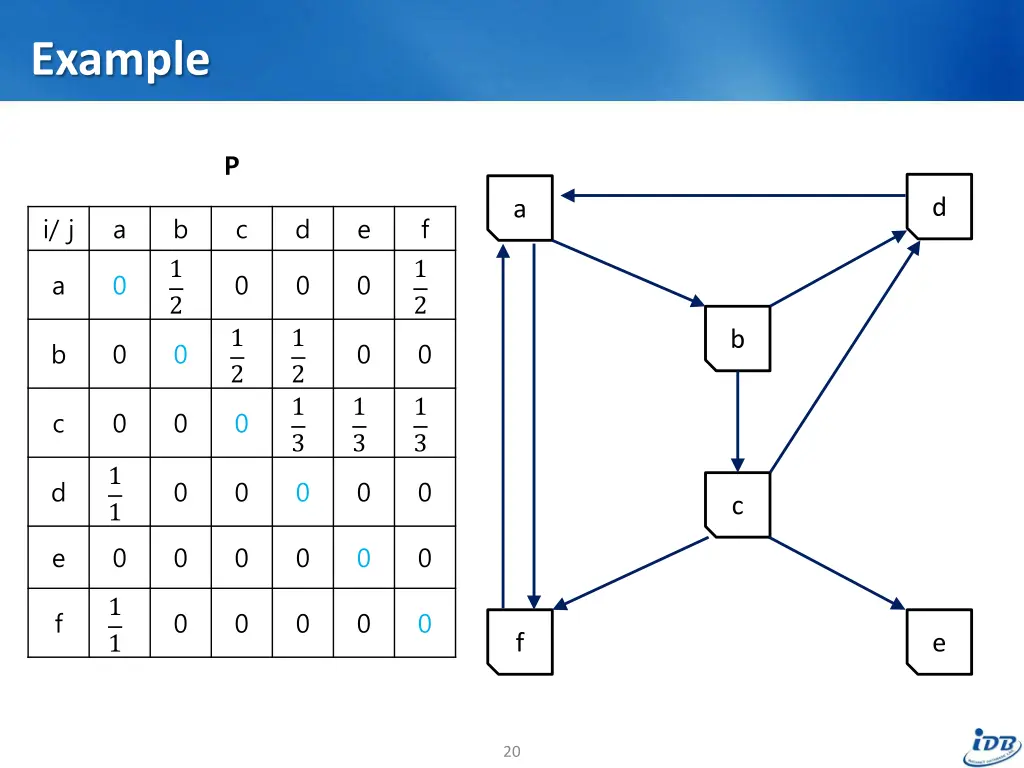

Example P d a i/ j a b 1 2 c d e f 1 2 a 0 0 0 0 1 2 1 2 1 3 b b 0 0 0 0 1 3 1 3 c 0 0 0 1 1 d 0 0 0 0 0 c e 0 0 0 0 0 0 1 1 f 0 0 0 0 0 f e 20

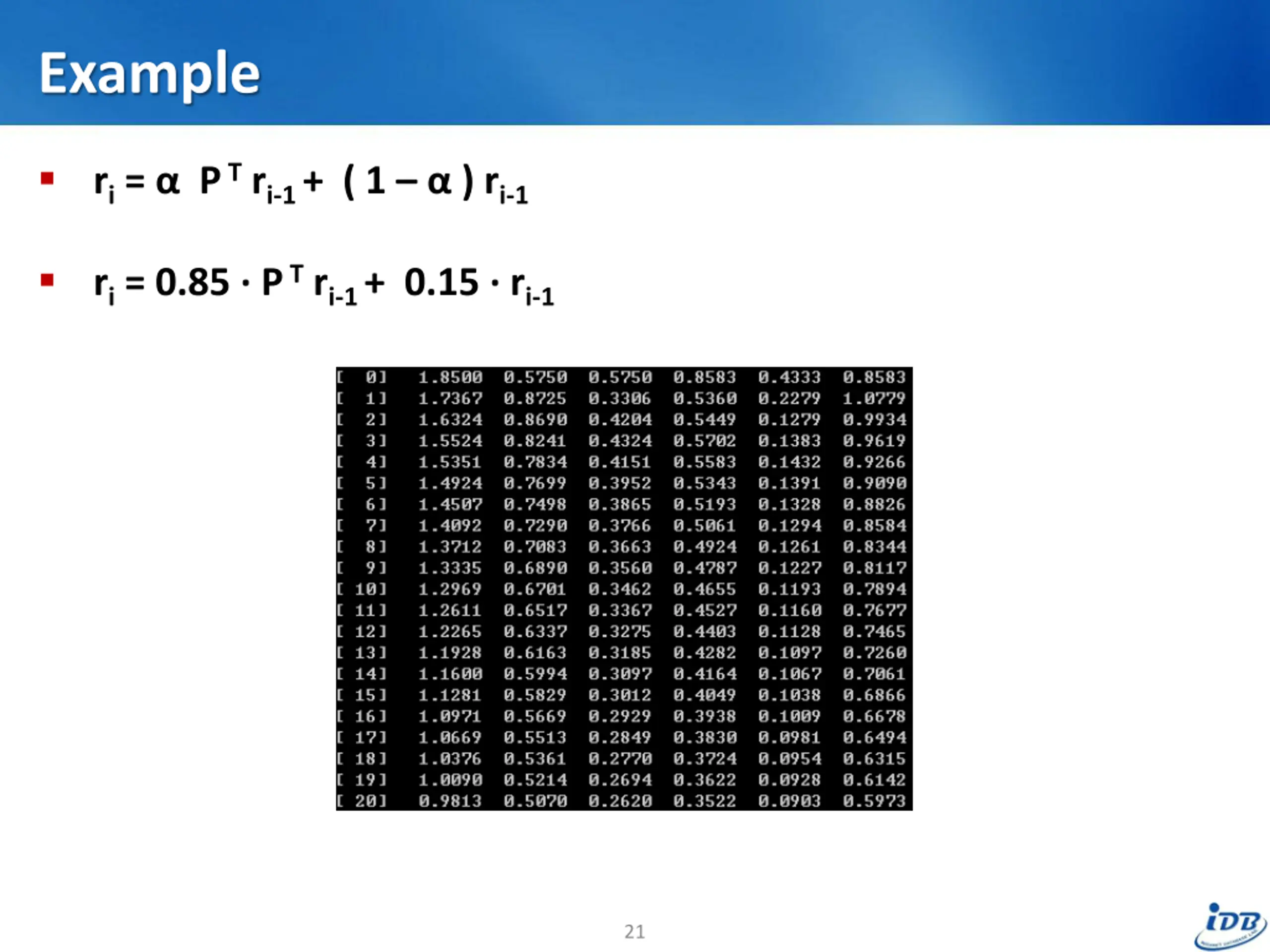

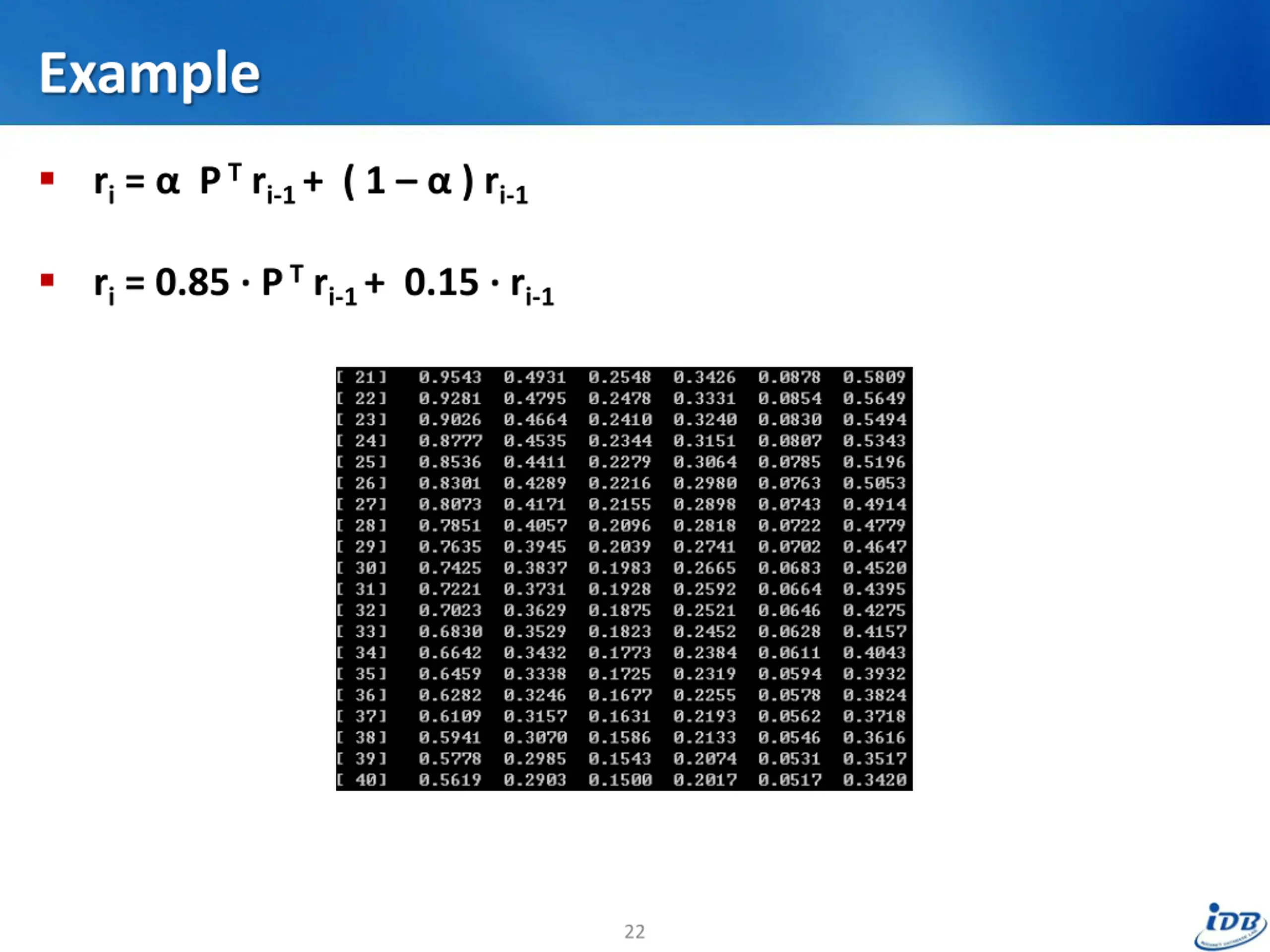

Example ri= PTri-1 + ( 1 ) ri-1 ri= 0.85 PTri-1 + 0.15 ri-1 21

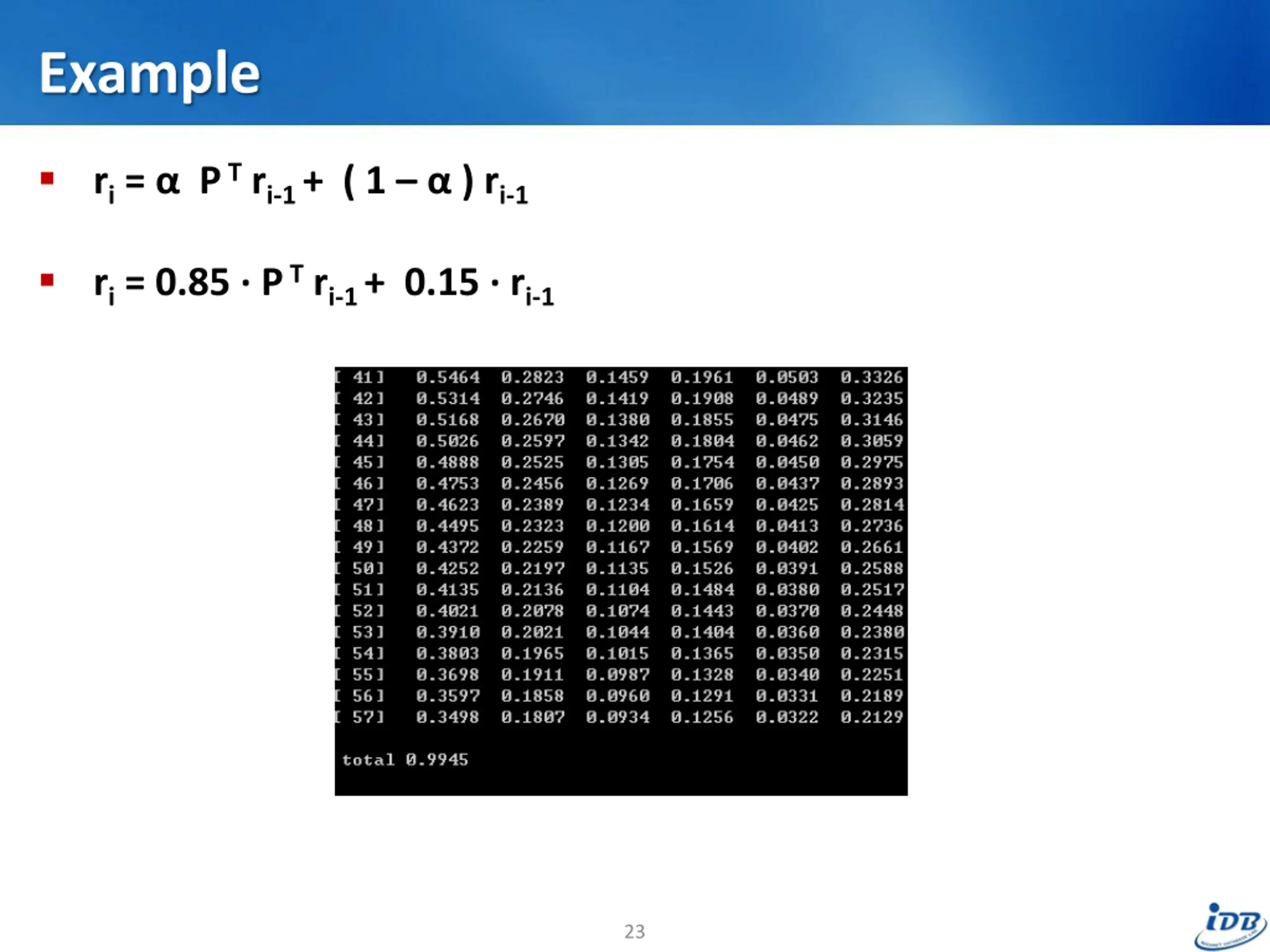

Example ri= PTri-1 + ( 1 ) ri-1 ri= 0.85 PTri-1 + 0.15 ri-1 22

Example ri= PTri-1 + ( 1 ) ri-1 ri= 0.85 PTri-1 + 0.15 ri-1 23

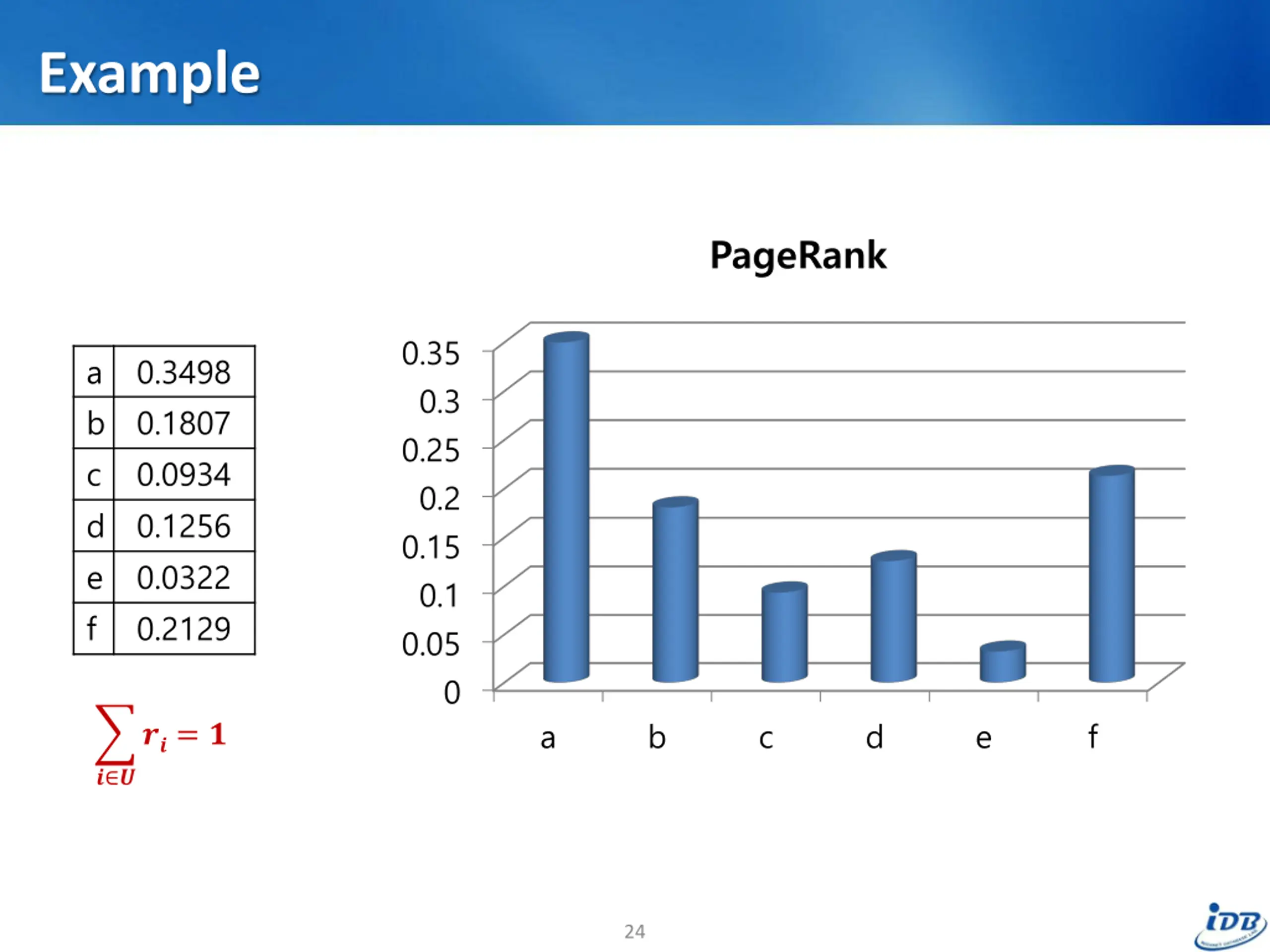

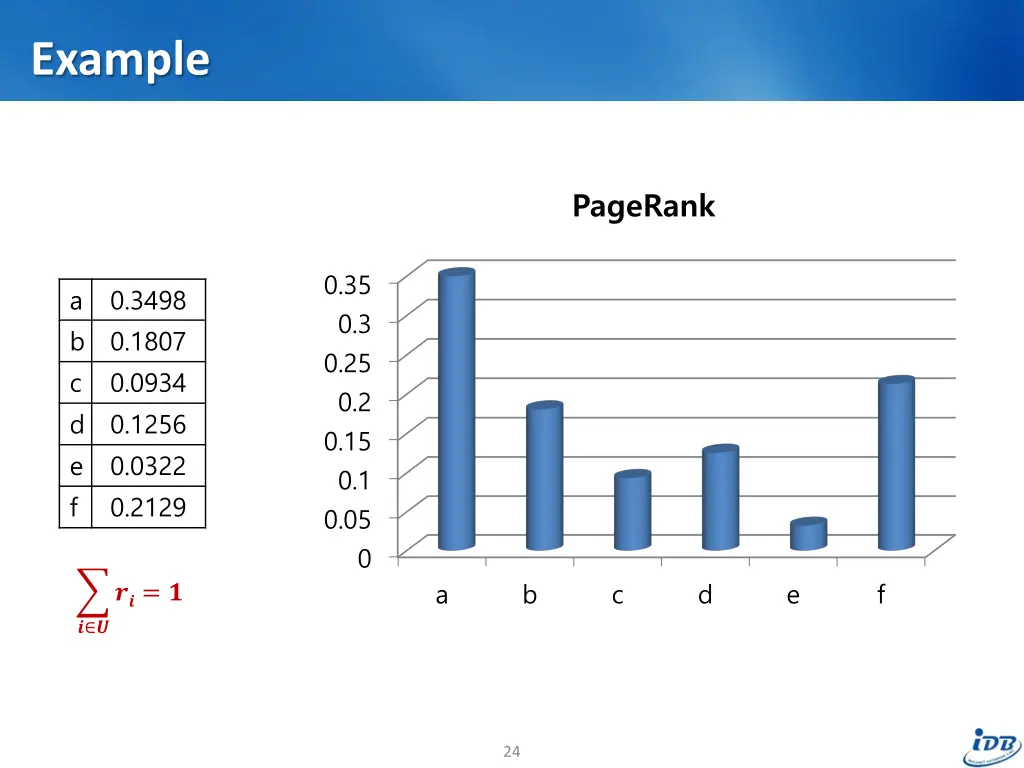

Example PageRank 0.35 a b c d e f 0.3498 0.1807 0.0934 0.1256 0.0322 0.2129 0.3 0.25 0.2 0.15 0.1 0.05 0 a b c d e f ??= ? ? ? 24

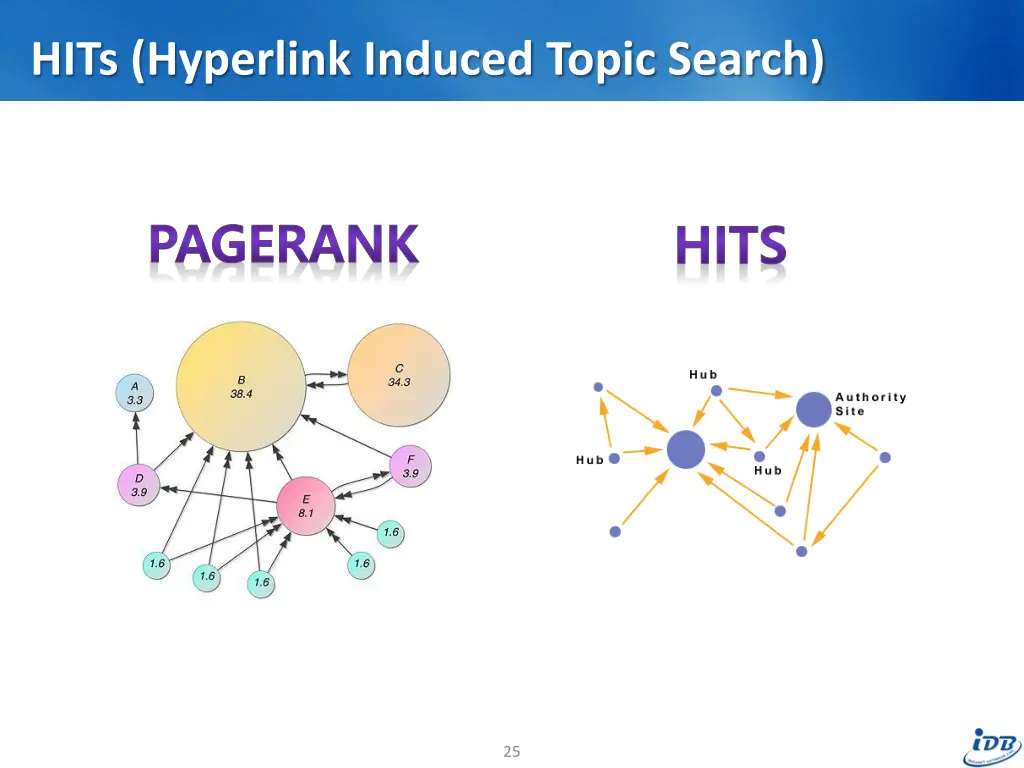

HITs (Hyperlink Induced Topic Search) PAGERANK HITS 25

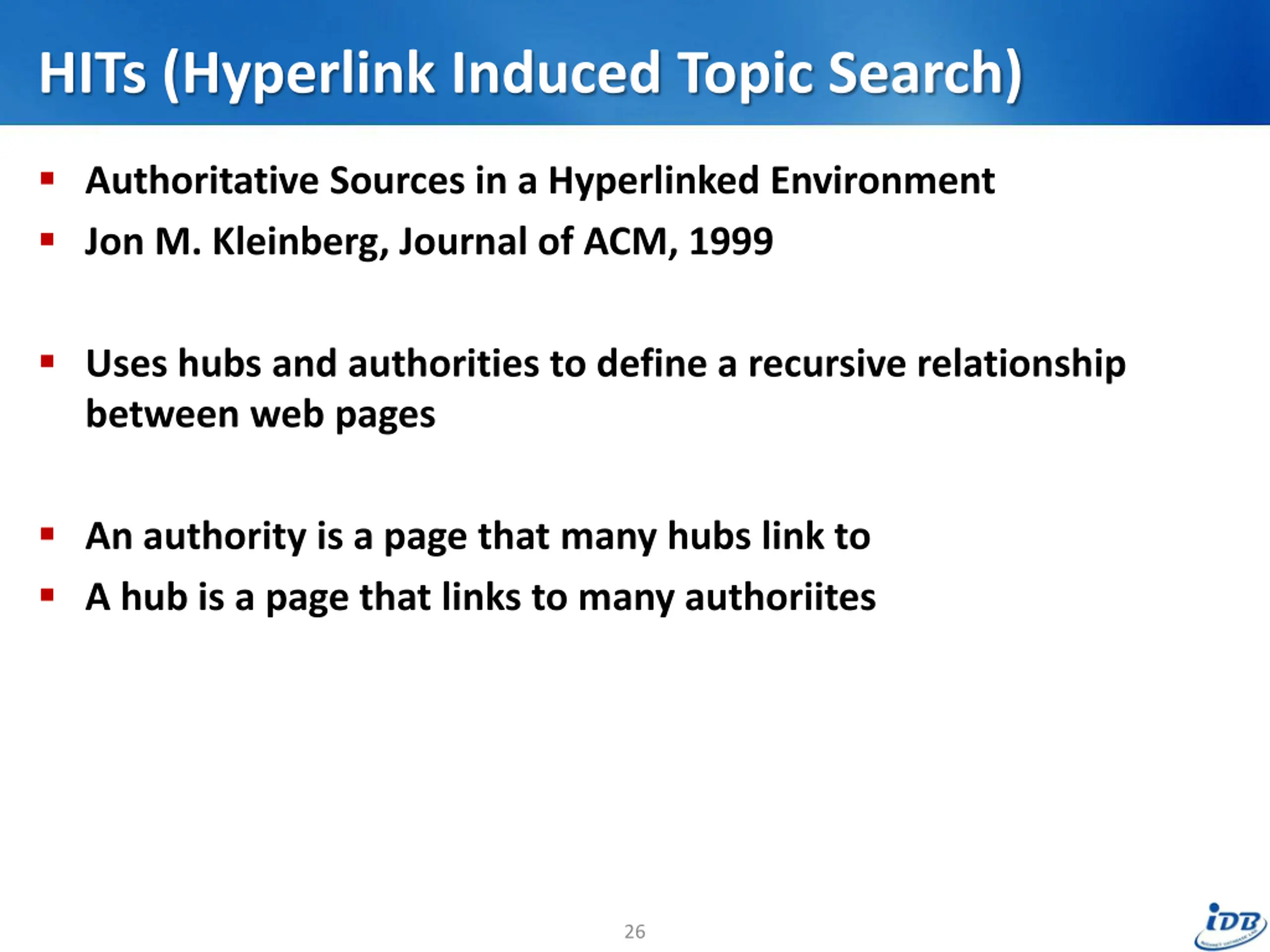

HITs (Hyperlink Induced Topic Search) Authoritative Sources in a Hyperlinked Environment Jon M. Kleinberg, Journal of ACM, 1999 Uses hubs and authorities to define a recursive relationship between web pages An authority is a page that many hubs link to A hub is a page that links to many authoriites 26

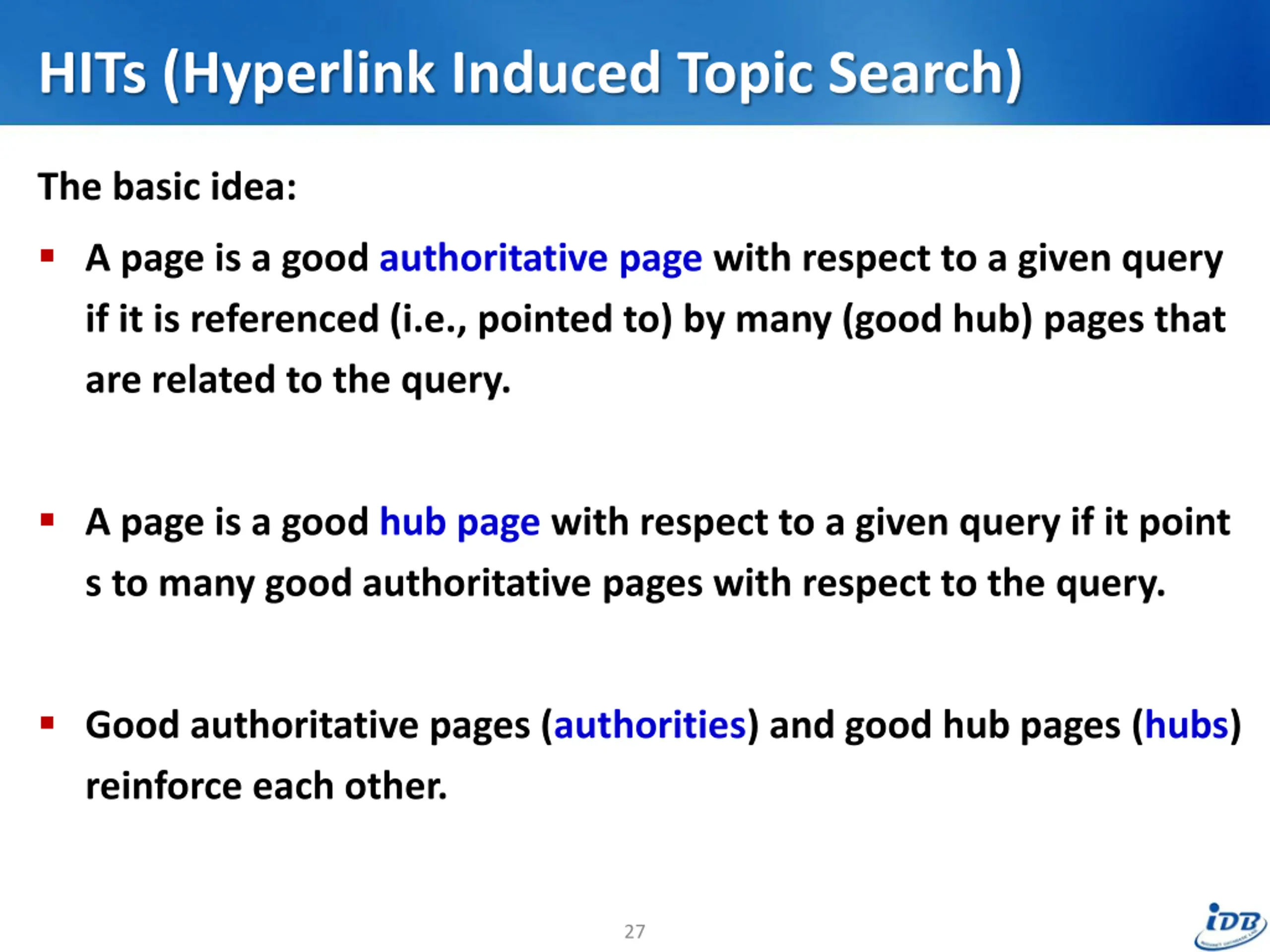

HITs (Hyperlink Induced Topic Search) The basic idea: A page is a good authoritative page with respect to a given query if it is referenced (i.e., pointed to) by many (good hub) pages that are related to the query. A page is a good hub page with respect to a given query if it point s to many good authoritative pages with respect to the query. Good authoritative pages (authorities) and good hub pages (hubs) reinforce each other. 27

Example: Authority B A Authority 28

Example: Hub A Hub B 29

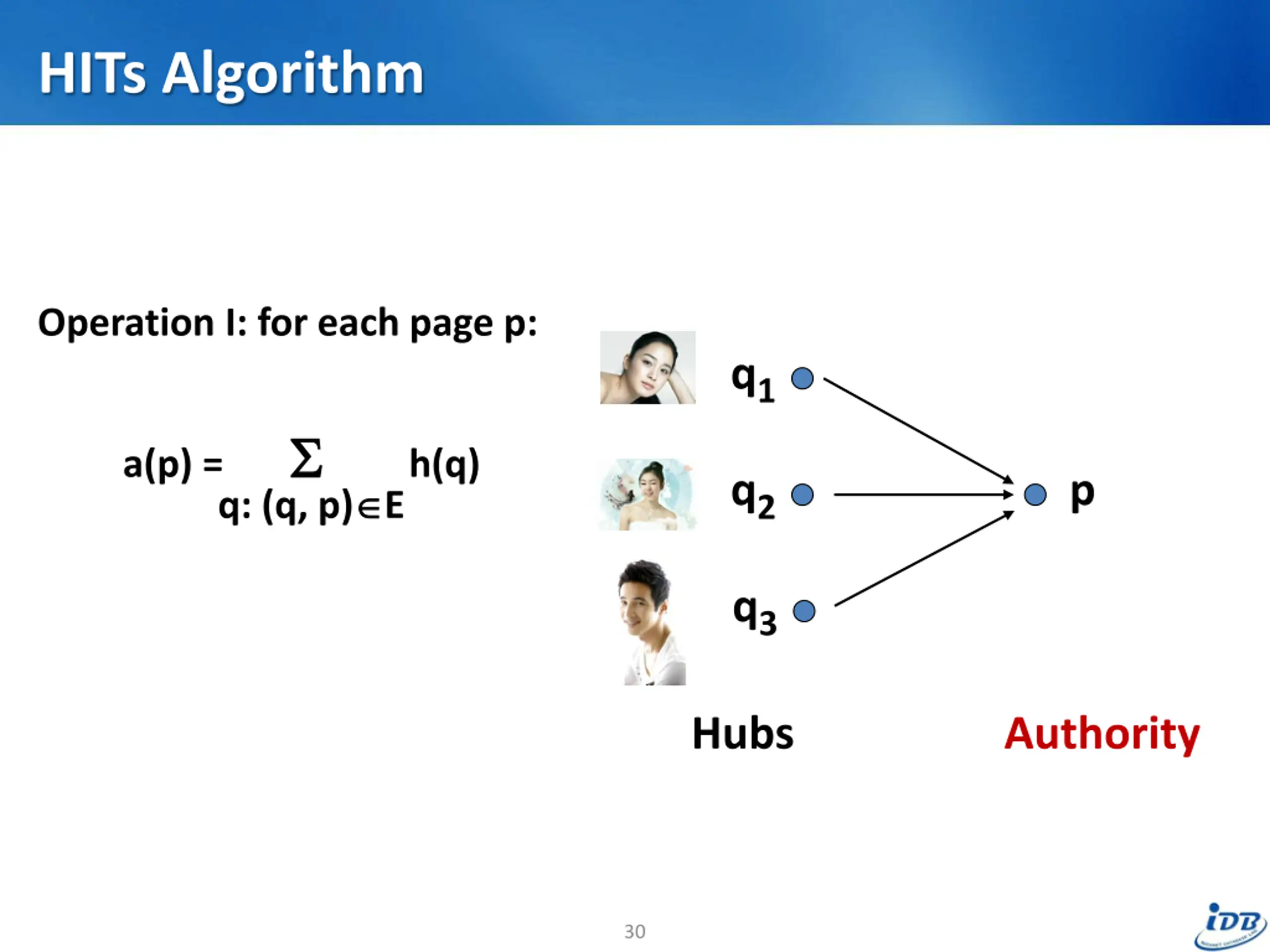

HITs Algorithm Operation I: for each page p: q1 a(p) = q: (q, p) E h(q) q2 p q3 Hubs Authority 30

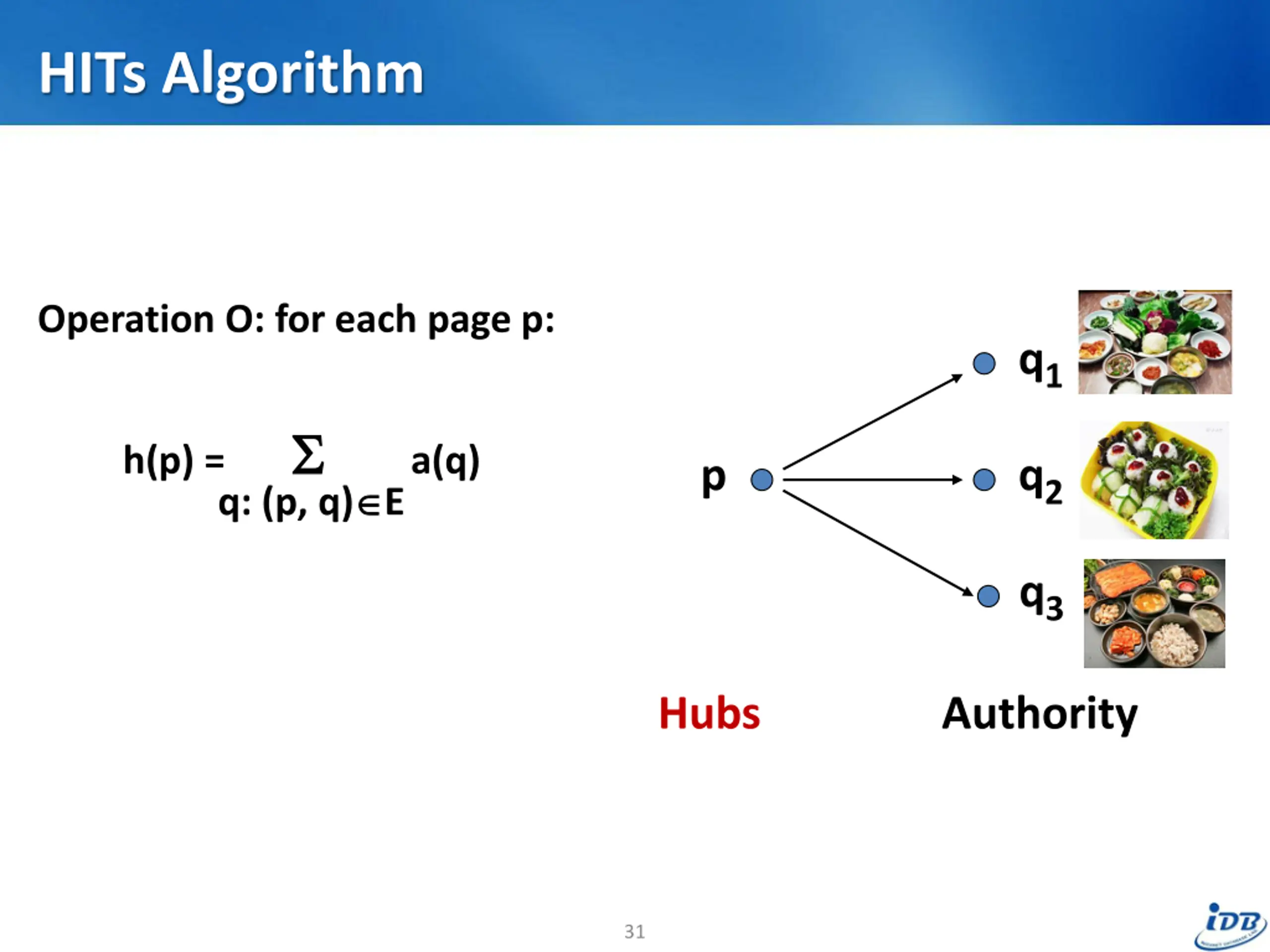

HITs Algorithm Operation O: for each page p: q1 h(p) = q: (p, q) E a(q) p q2 q3 Hubs Authority 31

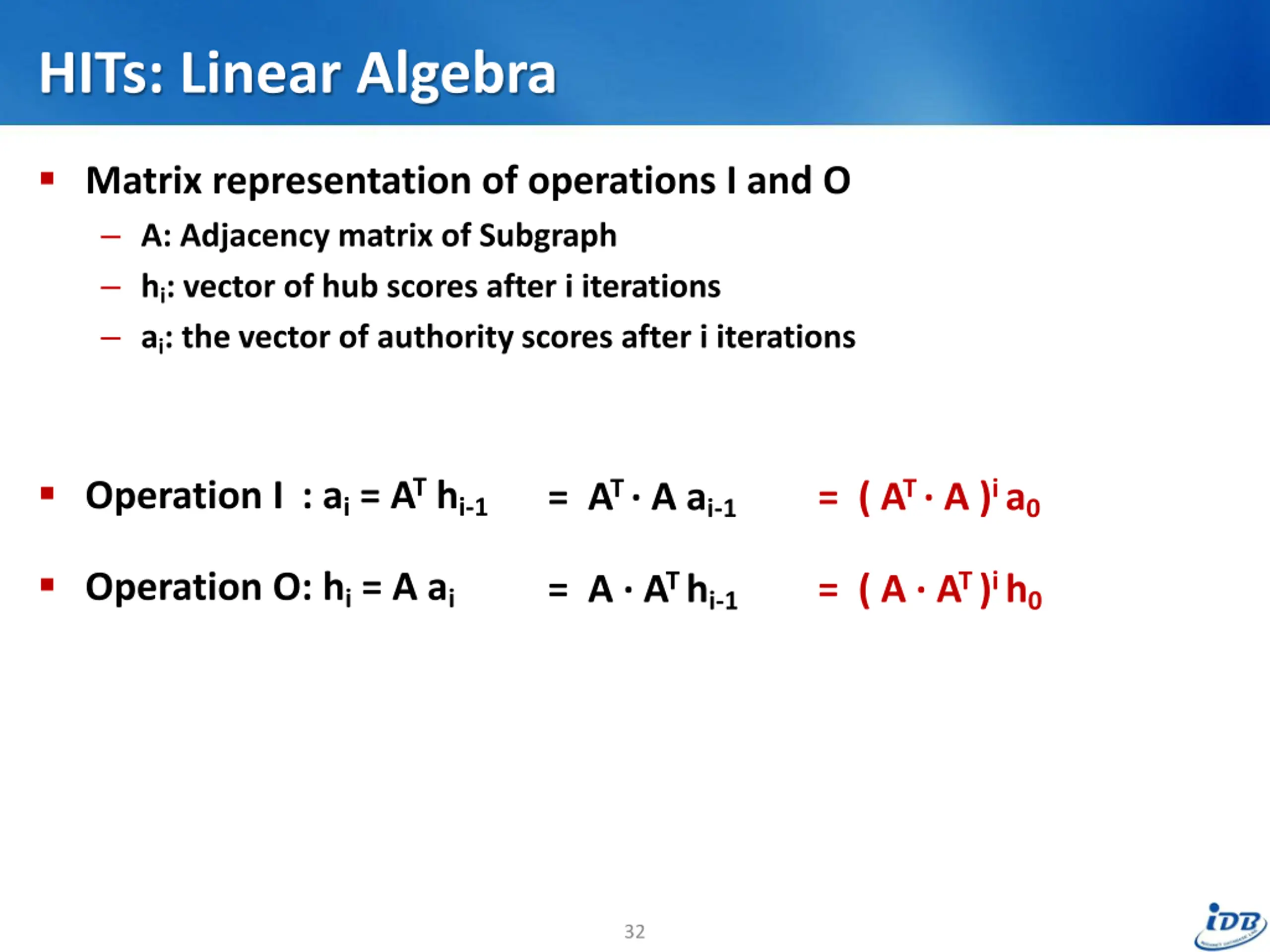

HITs: Linear Algebra Matrix representation of operations I and O A: Adjacency matrix of Subgraph hi: vector of hub scores after i iterations ai: the vector of authority scores after i iterations Operation I : ai= AThi-1 = AT A ai-1 = ( AT A )i a0 Operation O: hi= A ai = A AT hi-1 = ( A AT )i h0 32

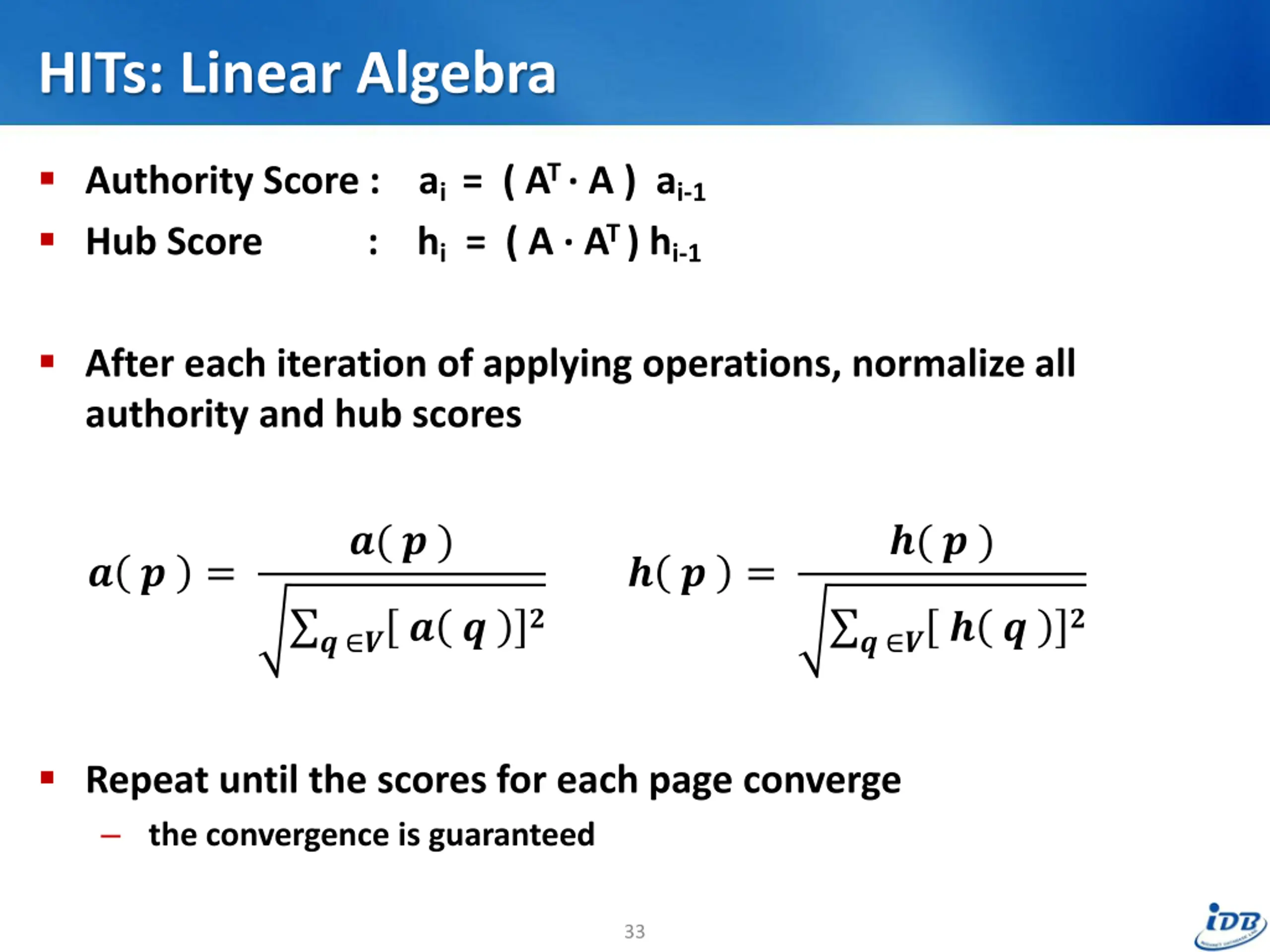

HITs: Linear Algebra Authority Score : ai= ( AT A ) ai-1 Hub Score : hi= ( A AT ) hi-1 After each iteration of applying operations, normalize all authority and hub scores ?( ? ) ?( ? ) ? ? = ? ? = ? ?? ? ? ?? ? ? ? Repeat until the scores for each page converge the convergence is guaranteed 33

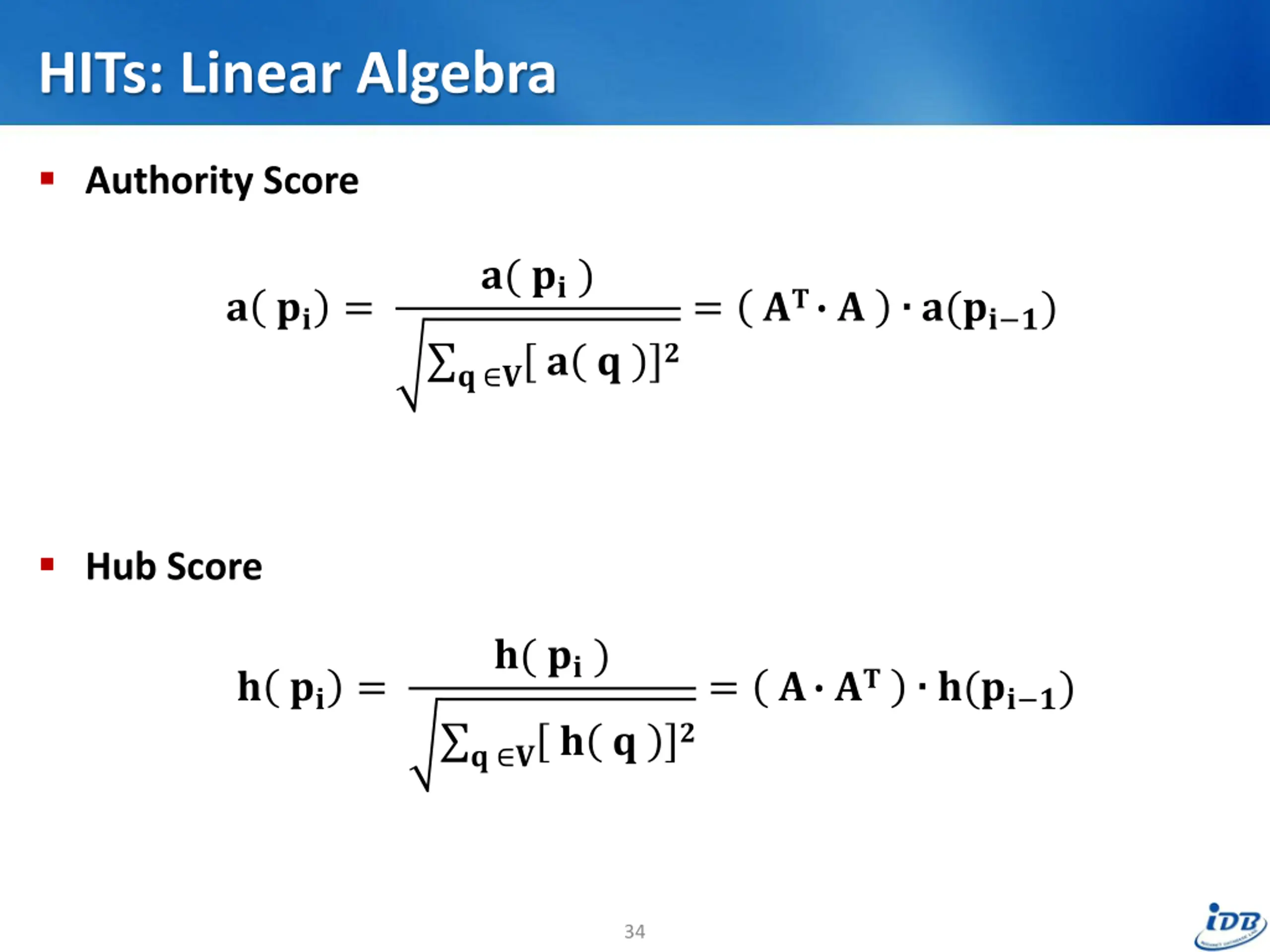

HITs: Linear Algebra Authority Score ?( ??) ?? ? ?(?? ?) ? ?? = = ? ?? ? ? Hub Score ?( ??) ? ?? ? ?? = = ?(?? ?) ? ?? ? ? 34

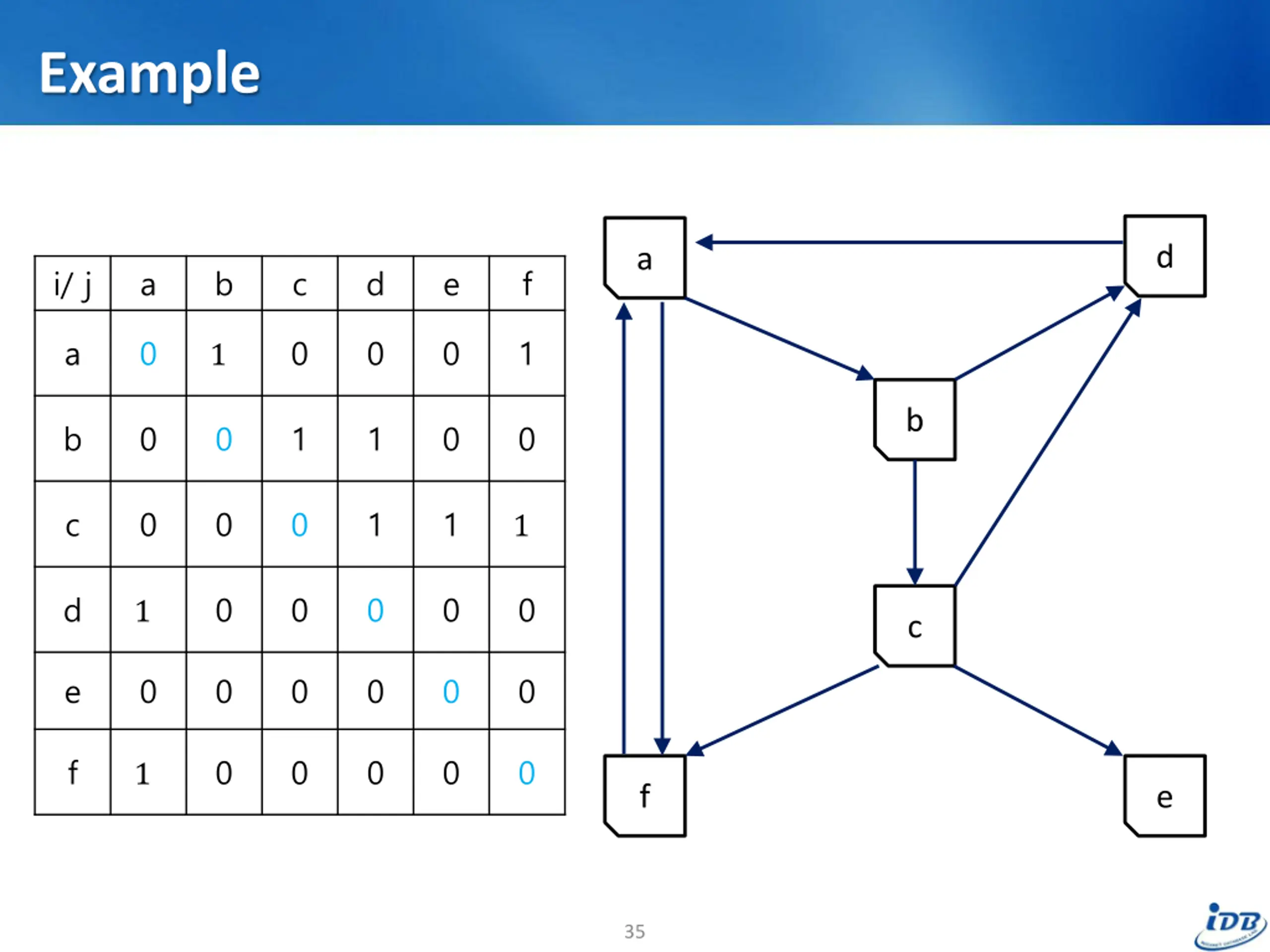

Example d a i/ j a b c d e f a 0 0 0 0 1 1 b b 0 0 1 1 0 0 c 0 0 0 1 1 1 d 0 0 0 0 0 1 c e 0 0 0 0 0 0 f 0 0 0 0 0 1 f e 35

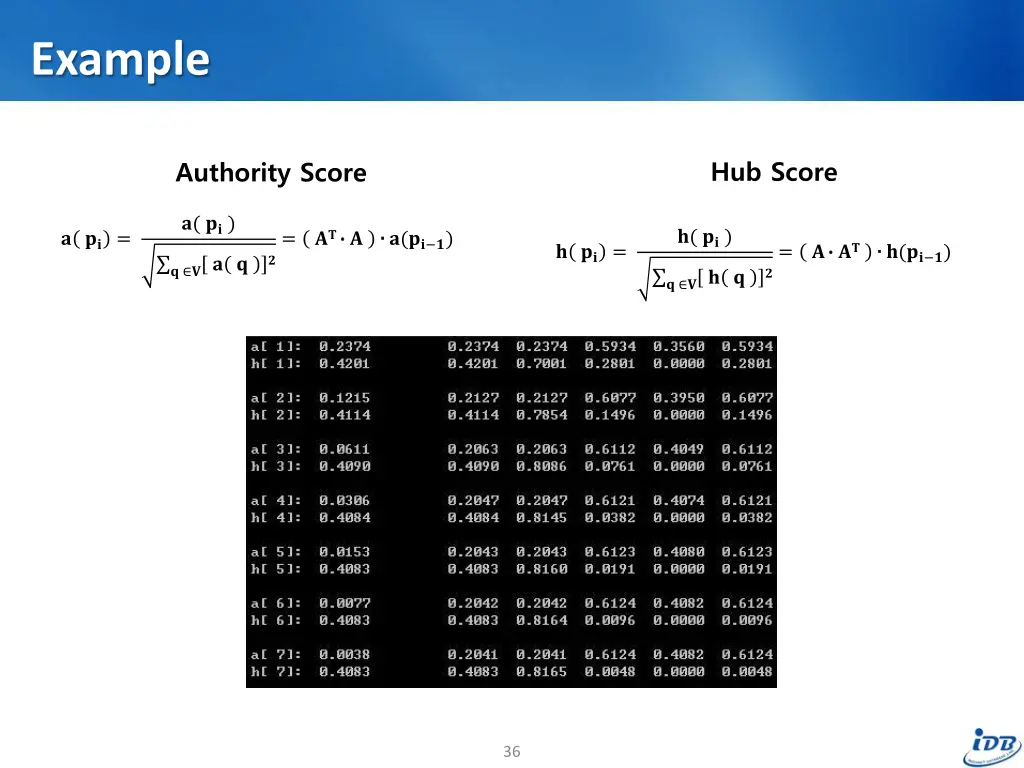

Example Hub Score Authority Score ?( ??) ?( ??) ?? ? ?(?? ?) ? ?? = = ? ?? ?(?? ?) ? ?? = = ? ? ?? ? ? ? ?? ? 36

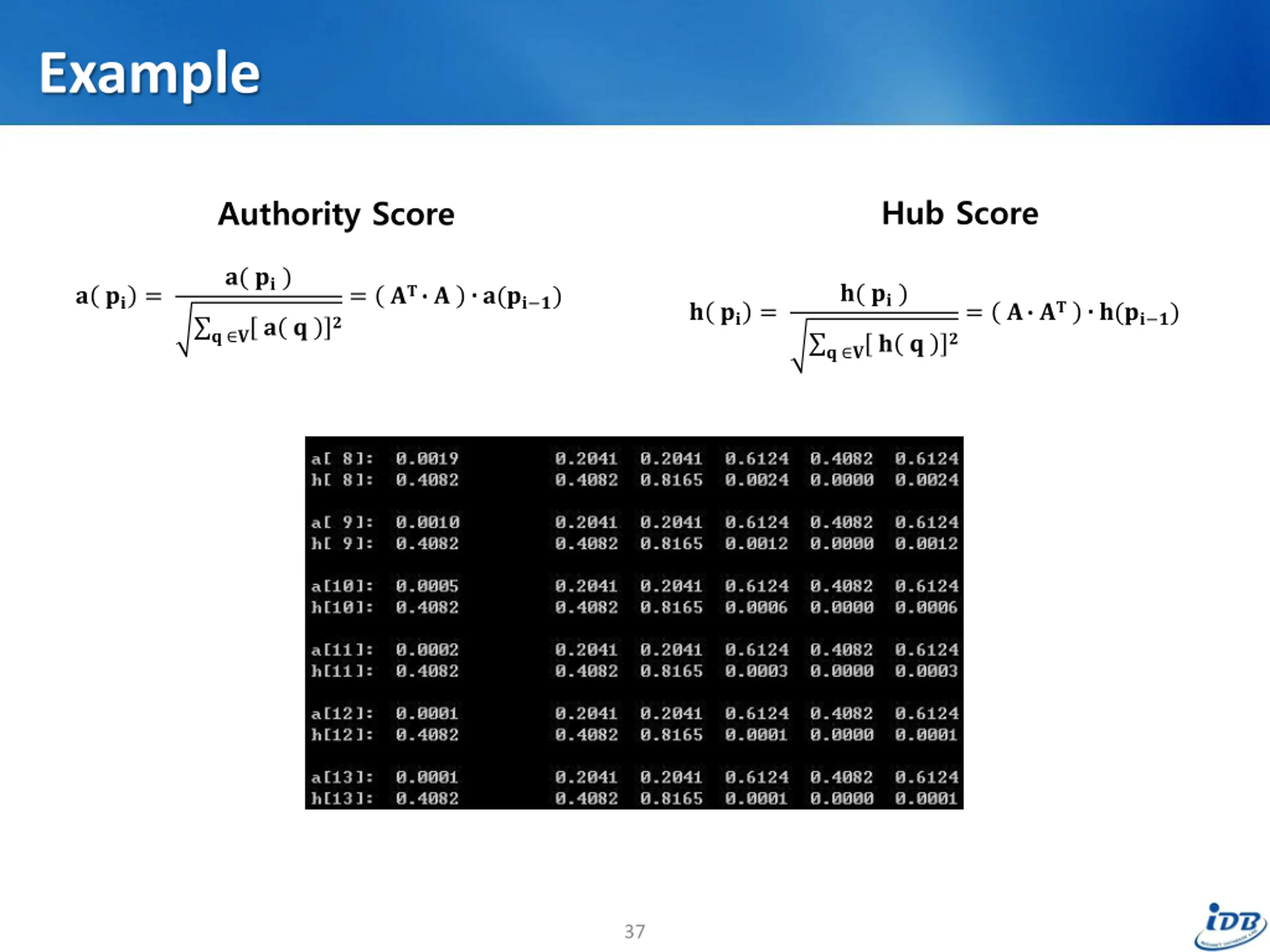

Example Hub Score Authority Score ?( ??) ?( ??) ?? ? ?(?? ?) ? ?? = = ? ?? ?(?? ?) ? ?? = = ? ? ?? ? ? ? ?? ? 37

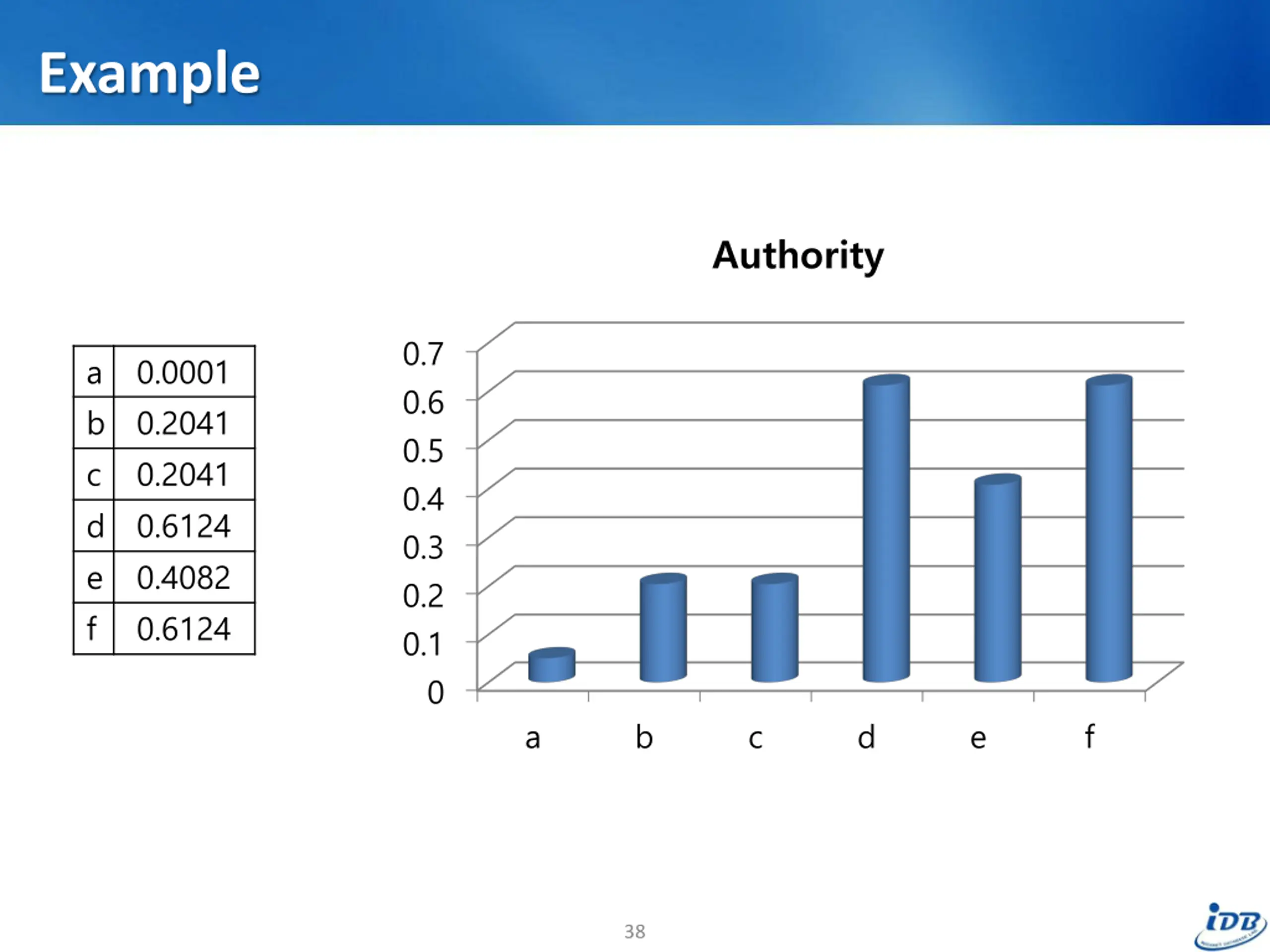

Example Authority 0.7 a b c d e f 0.0001 0.2041 0.2041 0.6124 0.4082 0.6124 0.6 0.5 0.4 0.3 0.2 0.1 0 a b c d e f 38

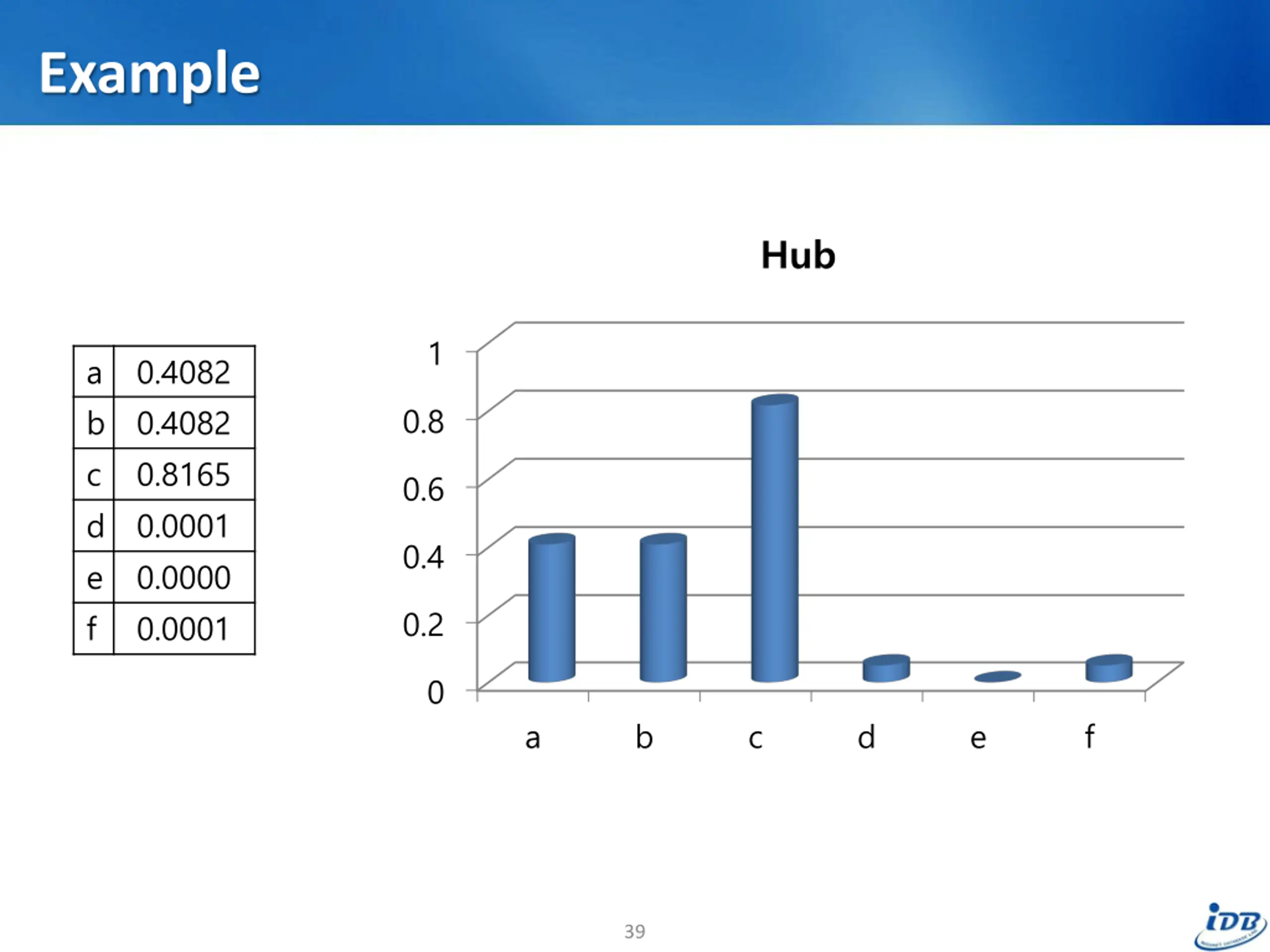

Example Hub 1 a b c d e f 0.4082 0.4082 0.8165 0.0001 0.0000 0.0001 0.8 0.6 0.4 0.2 0 a b c d e f 39

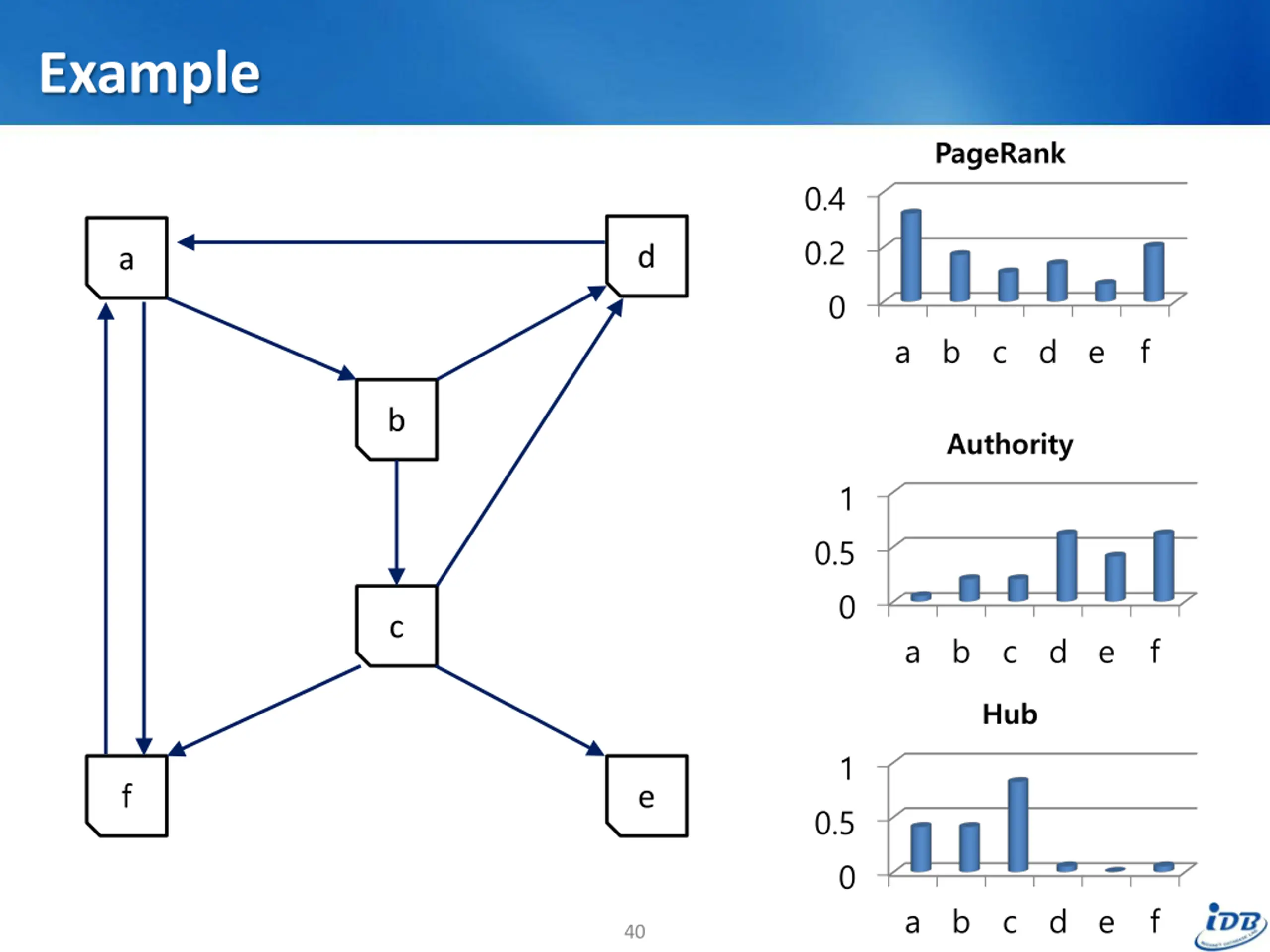

Example PageRank 0.4 0.2 d a 0 a b c d e f b Authority 1 0.5 0 c a b c d e f Hub 1 f e 0.5 0 a b c d e f 40

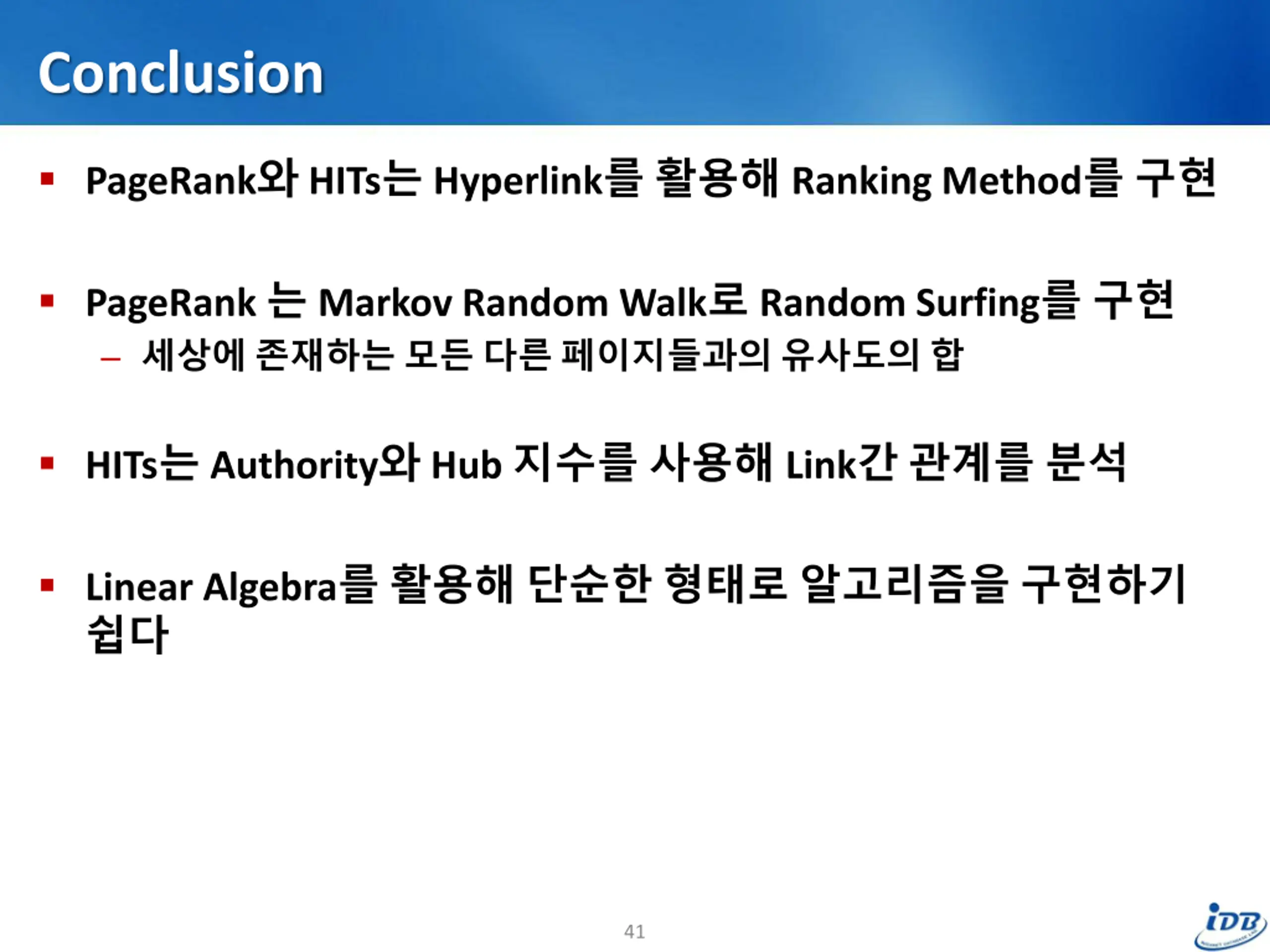

Conclusion PageRank HITs Hyperlink Ranking Method PageRank Markov Random Walk Random Surfing HITs Authority Hub Link Linear Algebra 41

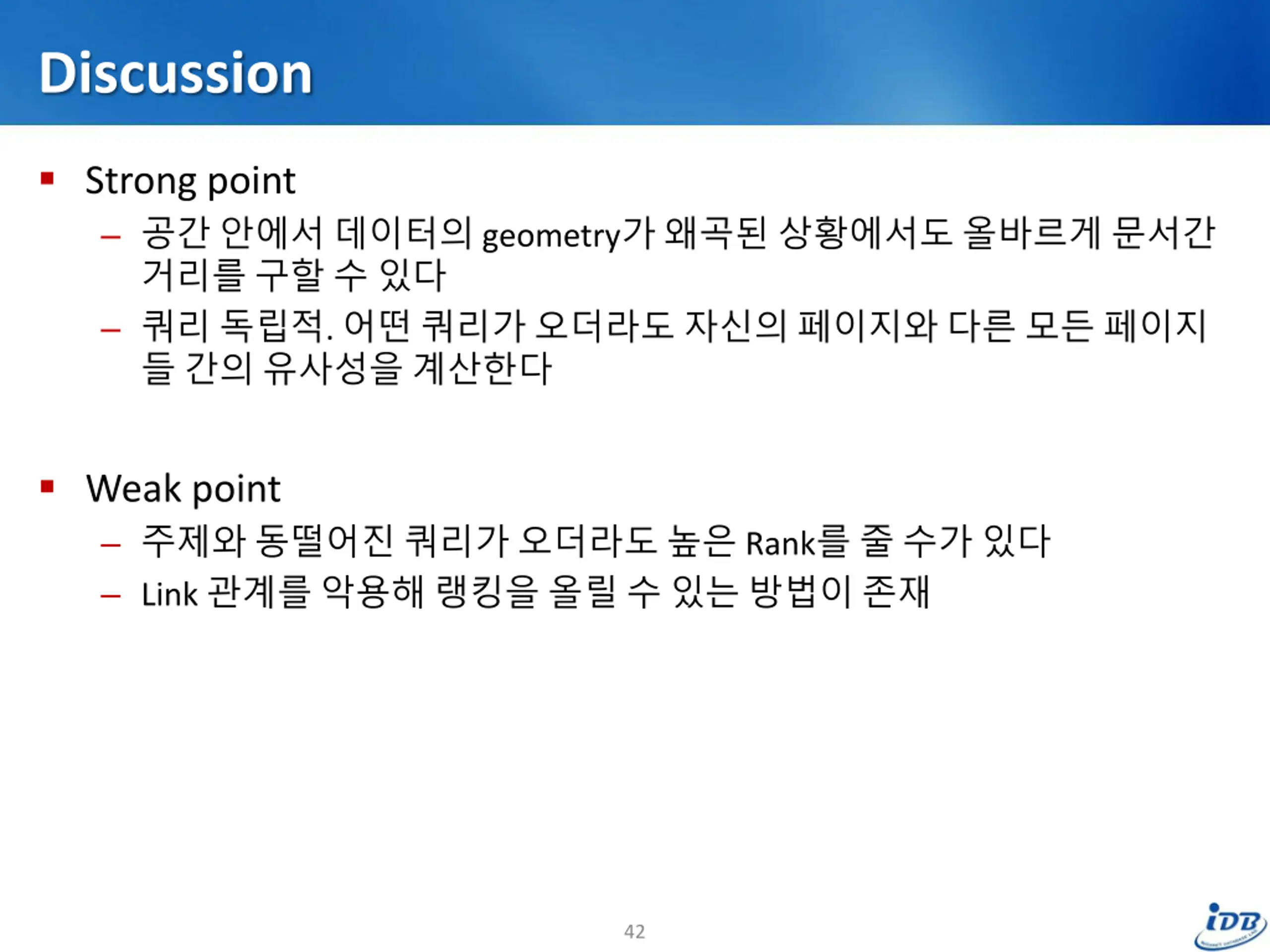

Discussion Strong point geometry . Weak point Rank Link 42

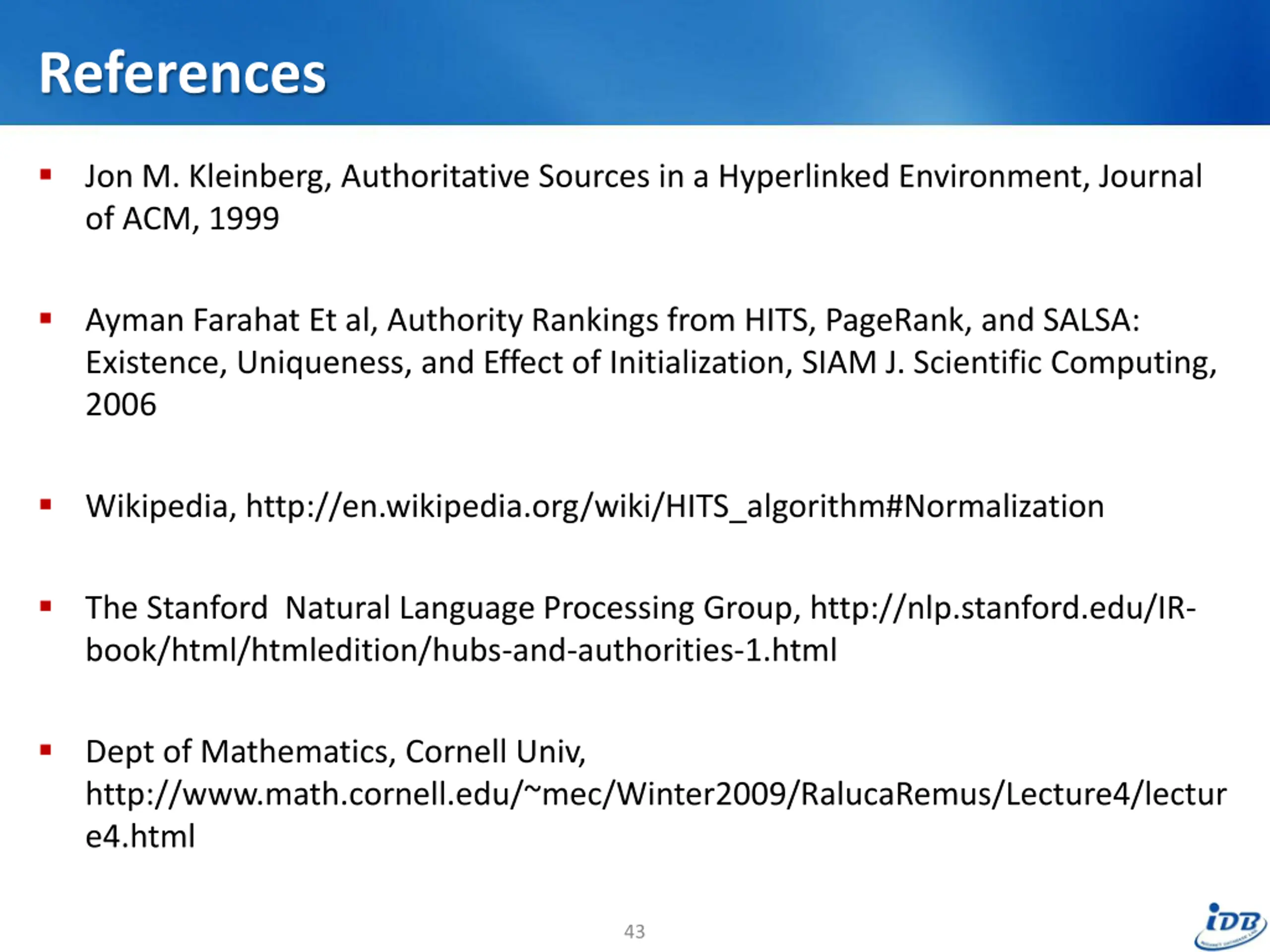

References Jon M. Kleinberg, Authoritative Sources in a Hyperlinked Environment, Journal of ACM, 1999 Ayman Farahat Et al, Authority Rankings from HITS, PageRank, and SALSA: Existence, Uniqueness, and Effect of Initialization, SIAM J. Scientific Computing, 2006 Wikipedia, http://en.wikipedia.org/wiki/HITS_algorithm#Normalization The Stanford Natural Language Processing Group, http://nlp.stanford.edu/IR- book/html/htmledition/hubs-and-authorities-1.html Dept of Mathematics, Cornell Univ, http://www.math.cornell.edu/~mec/Winter2009/RalucaRemus/Lecture4/lectur e4.html 43
