Understanding Phase Continuity and Power Consistency in Cellular Networks
Explore the detailed discussions from the 3GPP TSG-RAN-WG4 electronic meeting regarding phase continuity and power consistency for PUCCH and PUSCH repetition. Key points include maintaining phase continuity across repetitions, studying off-power requirements, and ensuring power consistency between PUCCH and PUSCH transmissions. Dive into the technical aspects and considerations for optimizing network performance.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

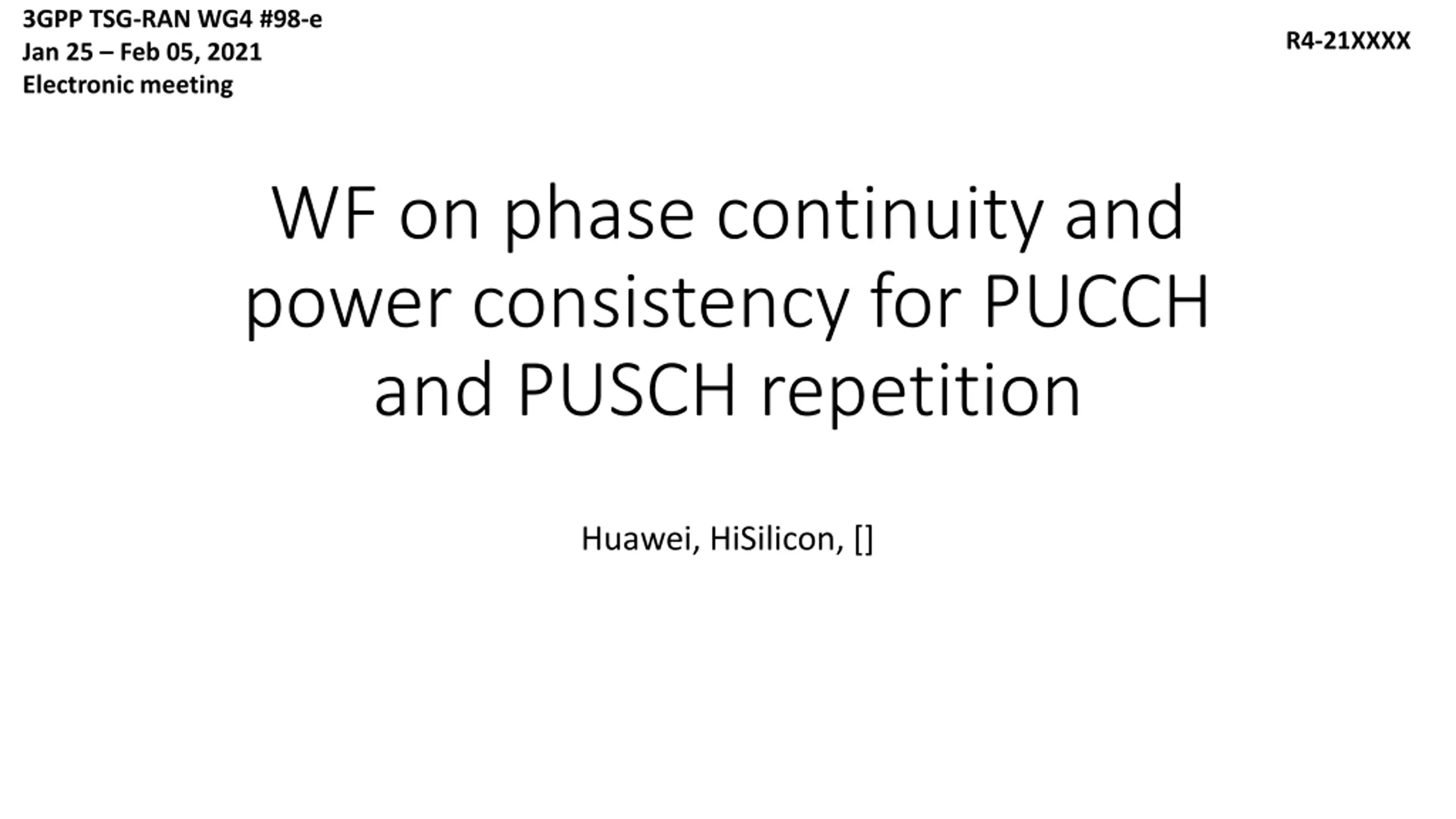

3GPP TSG-RAN WG4 #98-e Jan 25 Feb 05, 2021 Electronic meeting R4-21XXXX WF on phase continuity and power consistency for PUCCH and PUSCH repetition Huawei, HiSilicon, []

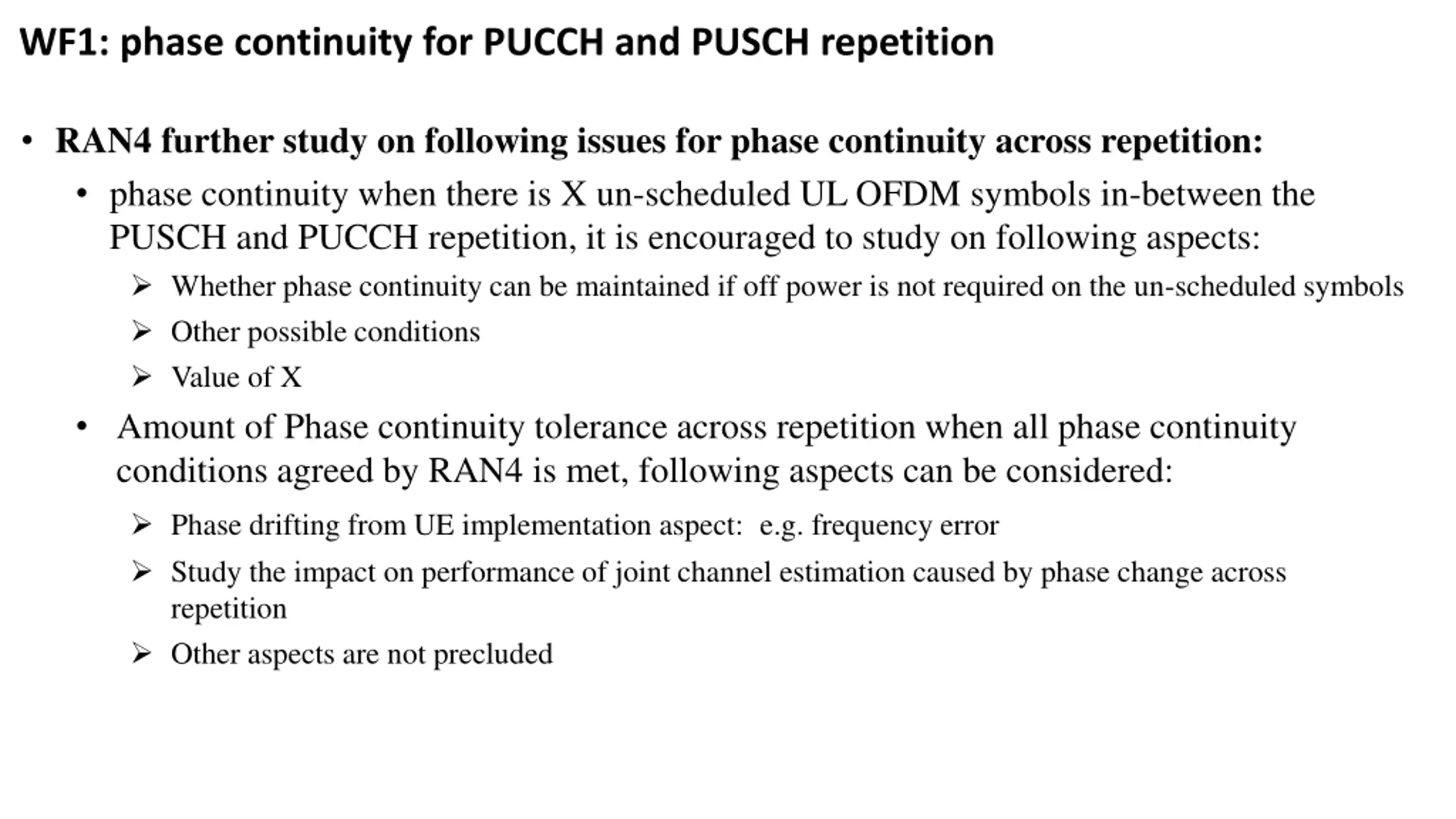

WF1: phase continuity for PUCCH and PUSCH repetition RAN4 further study on following issues for phase continuity across repetition: phase continuity when there is X un-scheduled UL OFDM symbols in-between the PUSCH and PUCCH repetition, it is encouraged to study on following aspects: Whether phase continuity can be maintained if off power is not required on the un-scheduled symbols Other possible conditions Value of X Amount of Phase continuity tolerance across repetition when all phase continuity conditions agreed by RAN4 is met, following aspects can be considered: Phase drifting from UE implementation aspect: e.g. frequency error Study the impact on performance of joint channel estimation caused by phase change across repetition Other aspects are not precluded

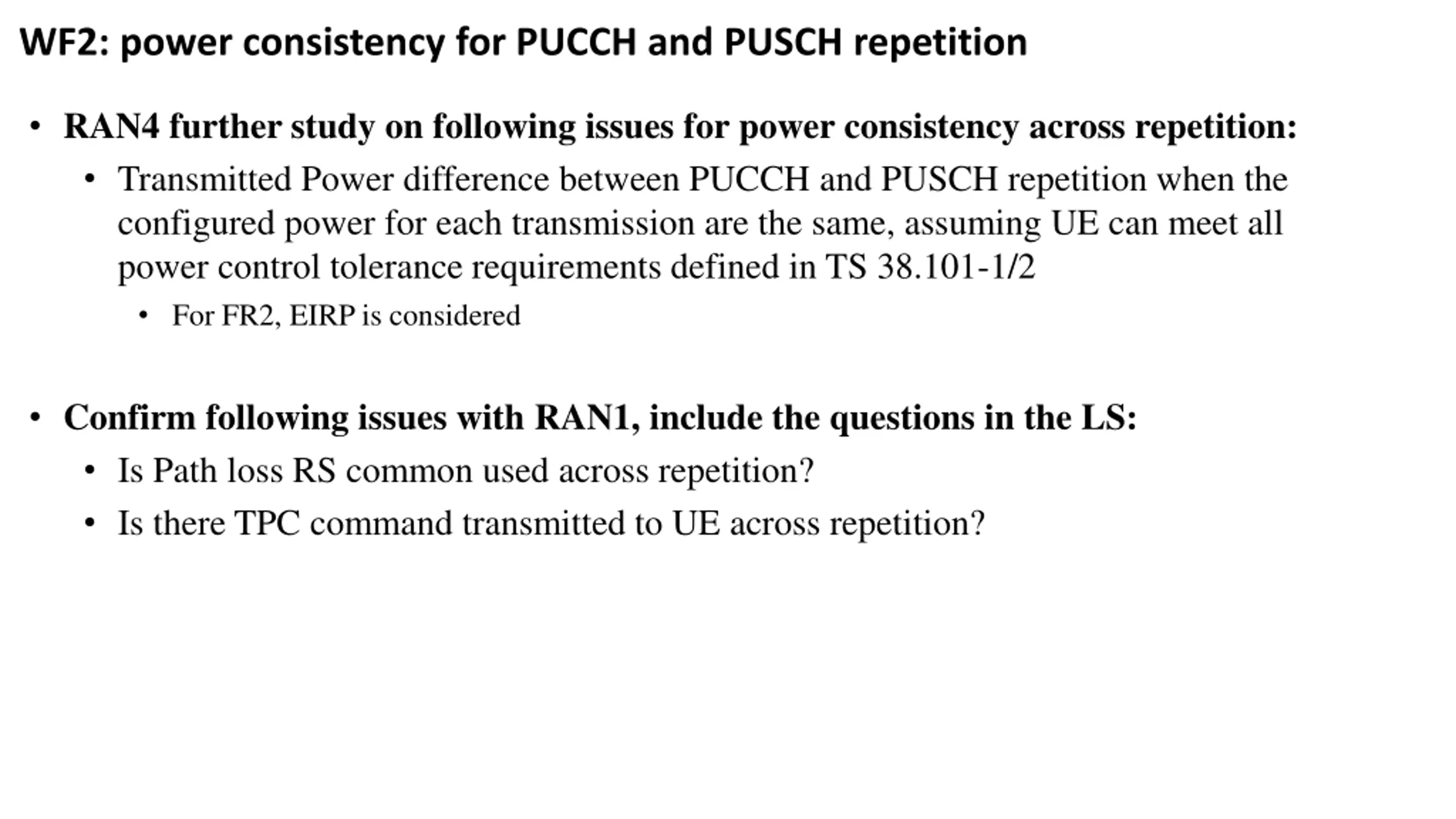

WF2: power consistency for PUCCH and PUSCH repetition RAN4 further study on following issues for power consistency across repetition: Transmitted Power difference between PUCCH and PUSCH repetition when the configured power for each transmission are the same, assuming UE can meet all power control tolerance requirements defined in TS 38.101-1/2 For FR2, EIRP is considered Confirm following issues with RAN1, include the questions in the LS: Is Path loss RS common used across repetition? Is there TPC command transmitted to UE across repetition?
