Understanding Pressure in Thermodynamics
"Learn about pressure as a state property in thermodynamics, its definition, measuring methods like manometers and barometers, and essential concepts related to pressure units. Enhance your knowledge of this key thermodynamic parameter."
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

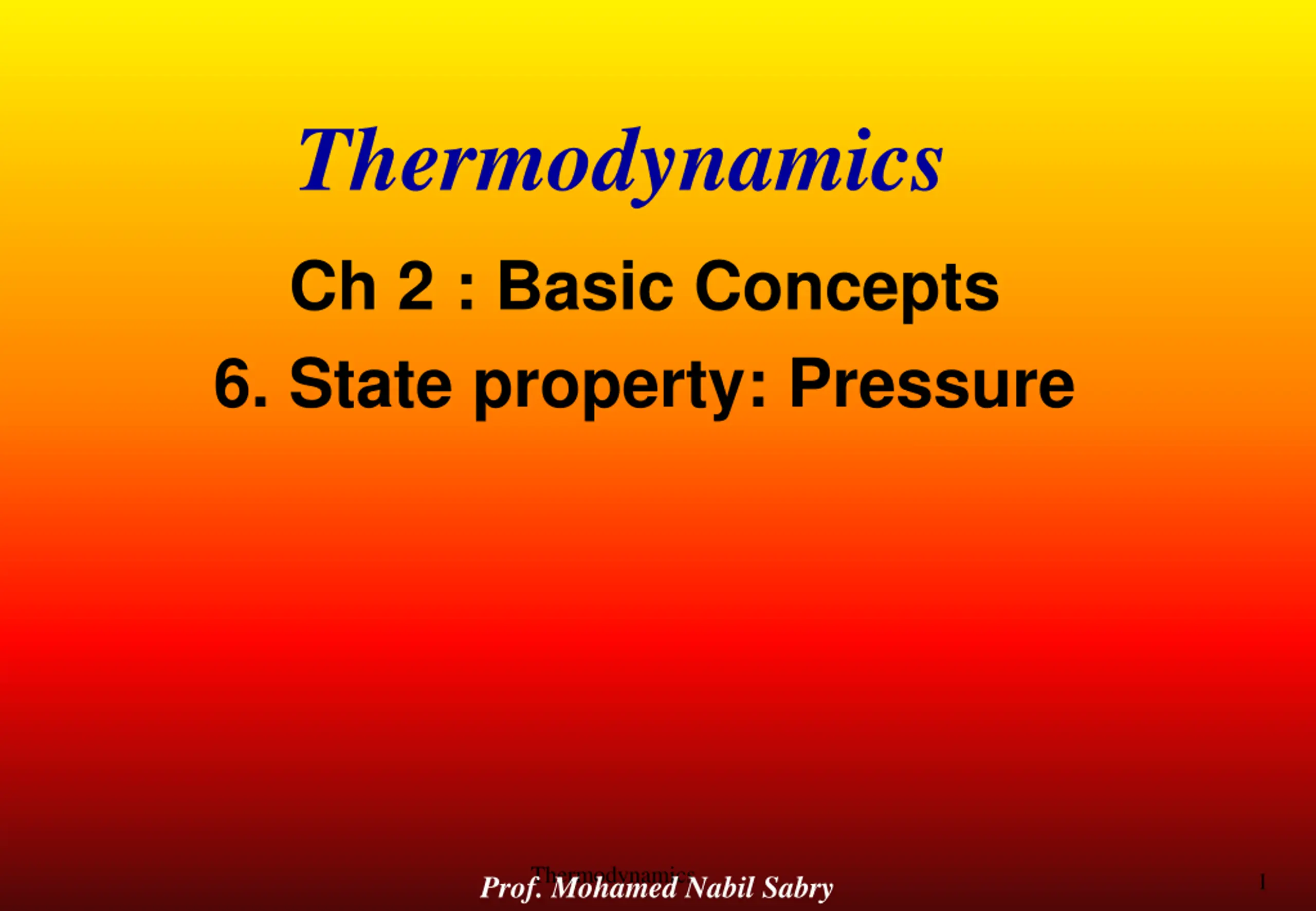

Thermodynamics Ch 2 : Basic Concepts 6. State property: Pressure Thermodynamics Prof. Mohamed Nabil Sabry 1

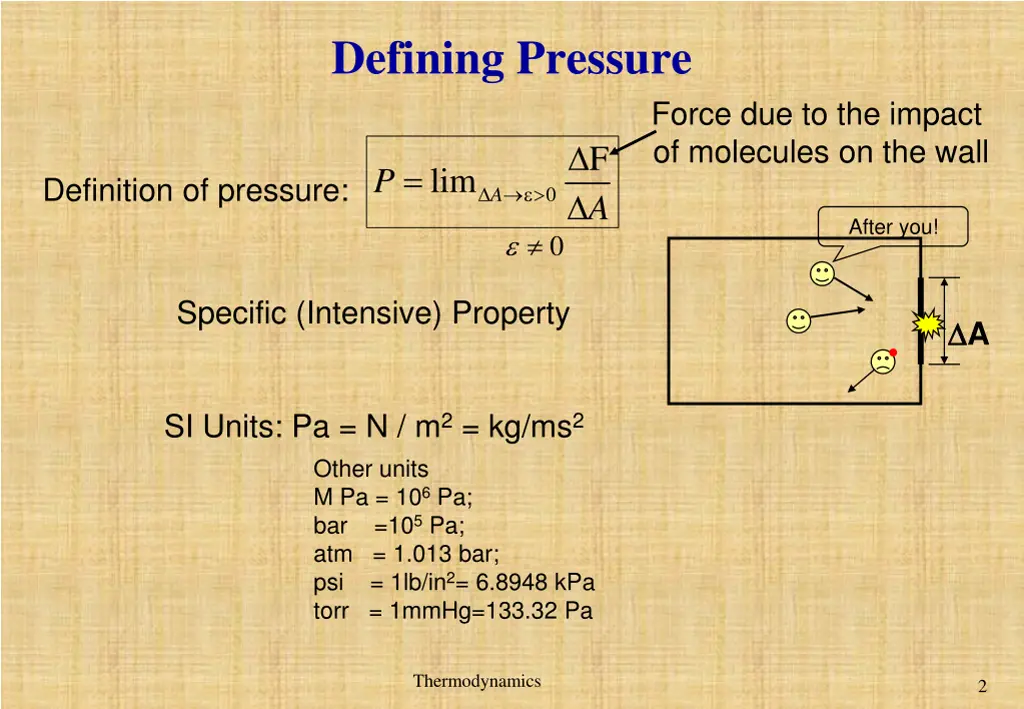

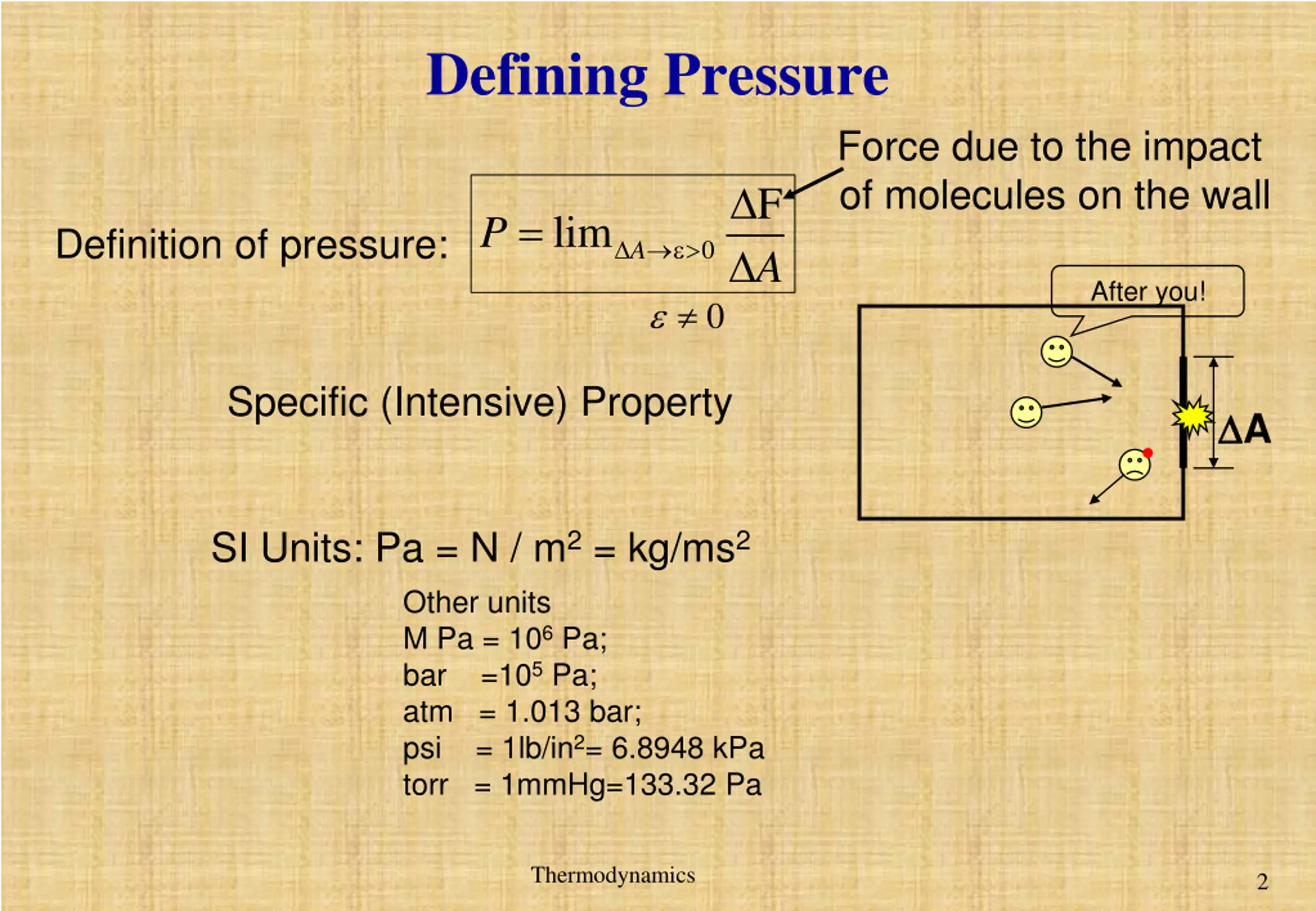

Defining Pressure Force due to the impact of molecules on the wall F A = limA P Definition of pressure: 0 After you! 0 Specific (Intensive) Property A SI Units: Pa = N / m2 = kg/ms2 Other units M Pa = 106 Pa; bar =105 Pa; atm = 1.013 bar; psi = 1lb/in2= 6.8948 kPa torr = 1mmHg=133.32 Pa Thermodynamics 2

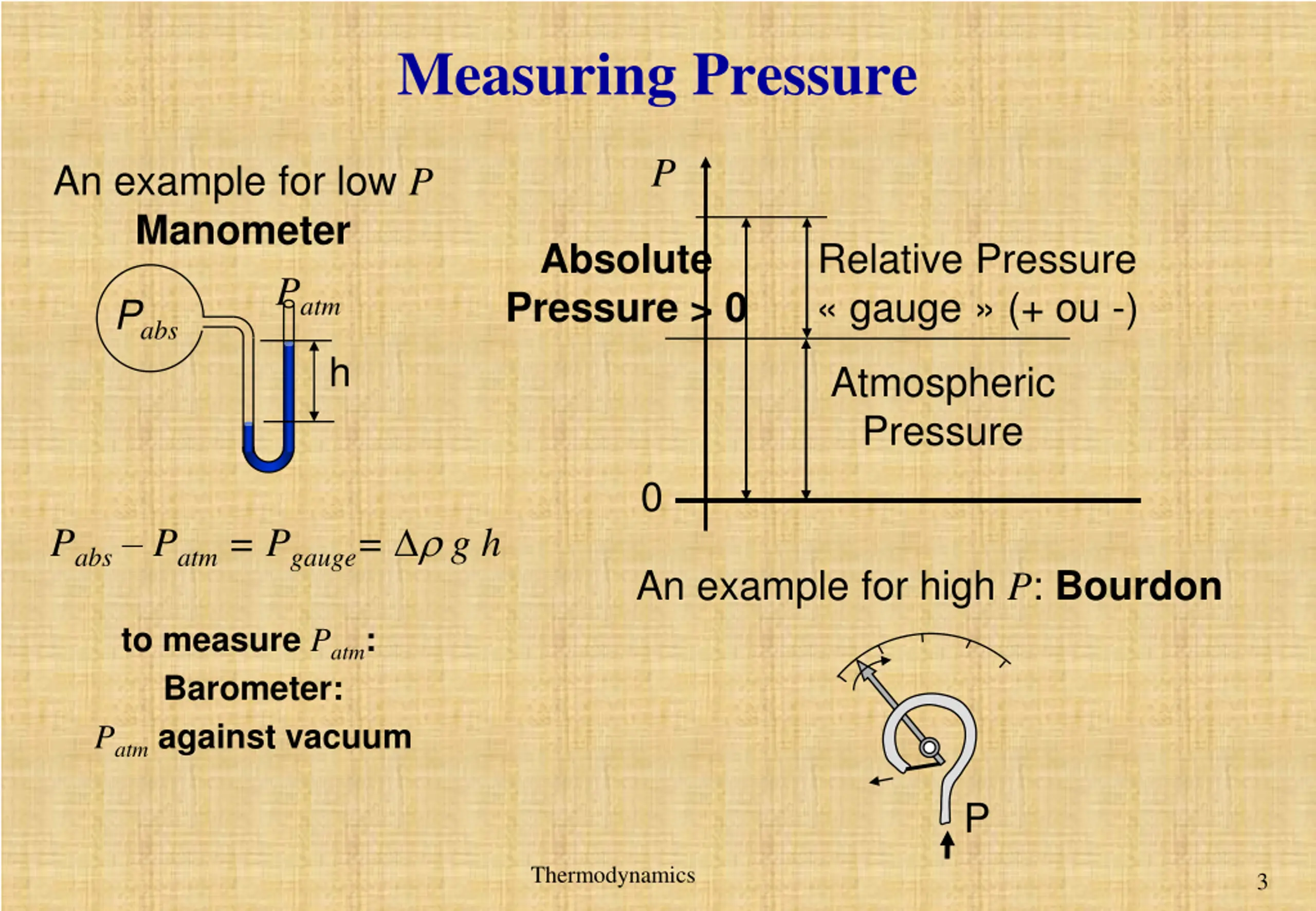

Measuring Pressure P An example for low P Manometer Relative Pressure gauge (+ ou -) Absolute Pressure > 0 Patm Pabs h Atmospheric Pressure 0 Pabs Patm = Pgauge= g h An example for high P: Bourdon to measure Patm: Barometer: Patm against vacuum P Thermodynamics 3

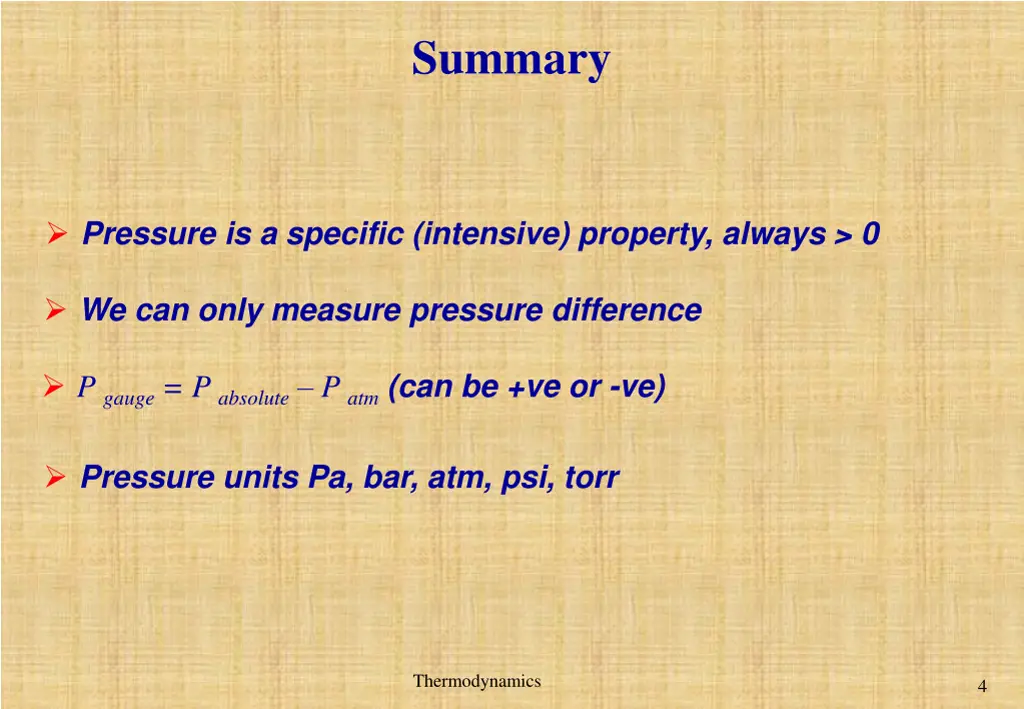

Summary Pressure is a specific (intensive) property, always > 0 We can only measure pressure difference P gauge = P absolute P atm(can be +ve or -ve) Pressure units Pa, bar, atm, psi, torr Thermodynamics 4
