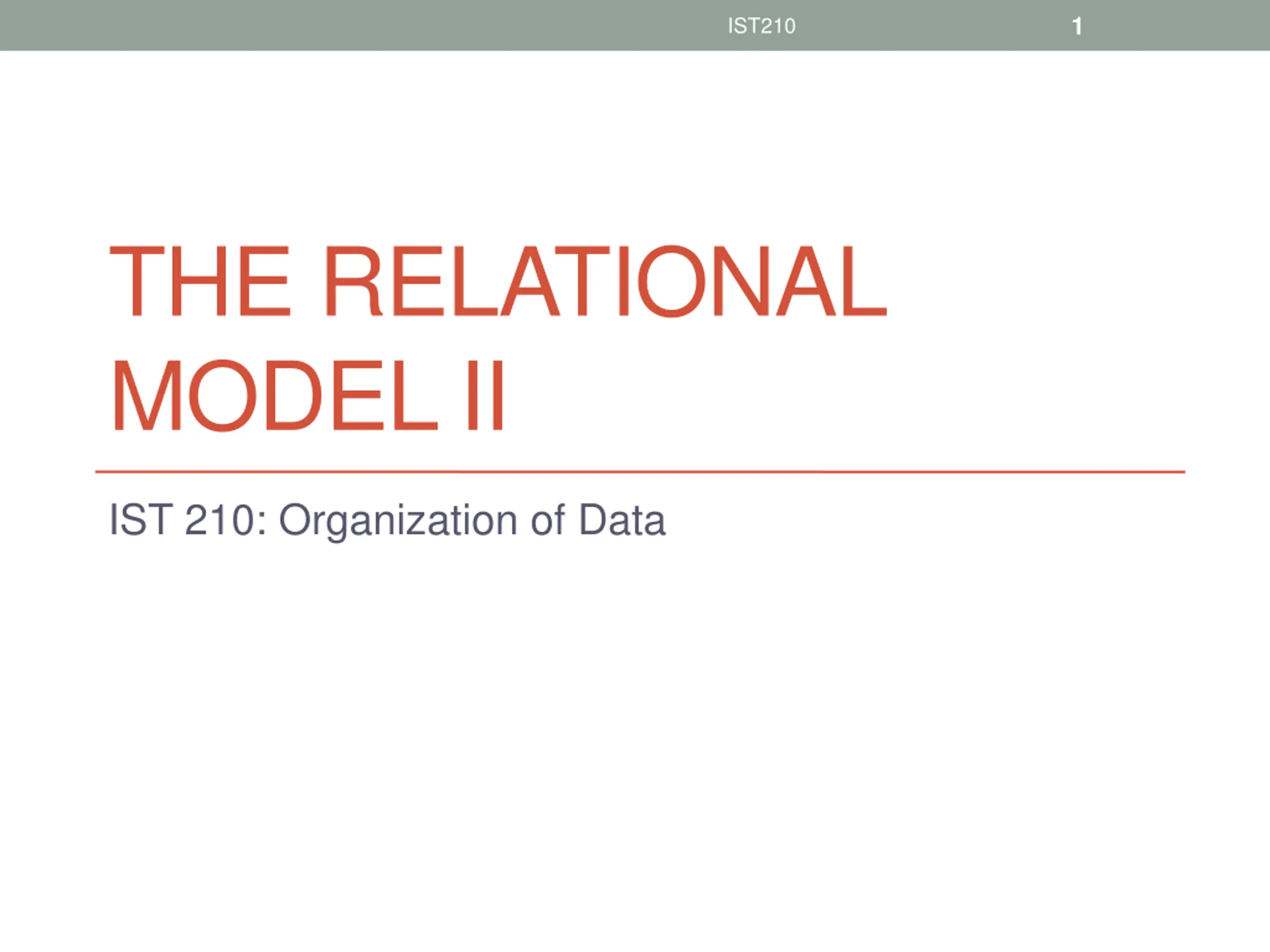

  1. 1 IST210 THE RELATIONAL MODEL II IST 210: Organization of Data

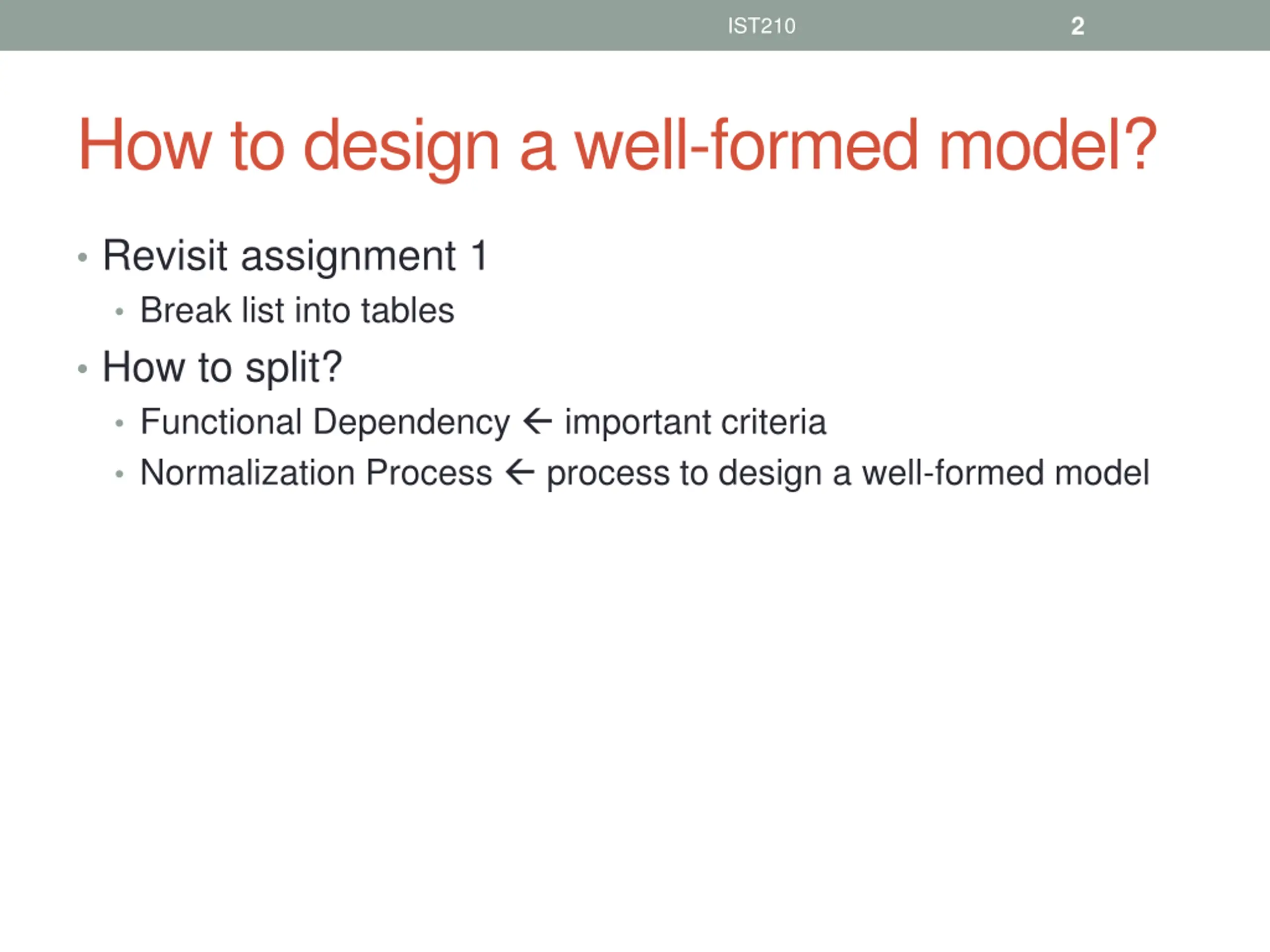

  2. 2 IST210 How to design a well-formed model? Revisit assignment 1 Break list into tables How to split? Functional Dependency important criteria Normalization Process process to design a well-formed model

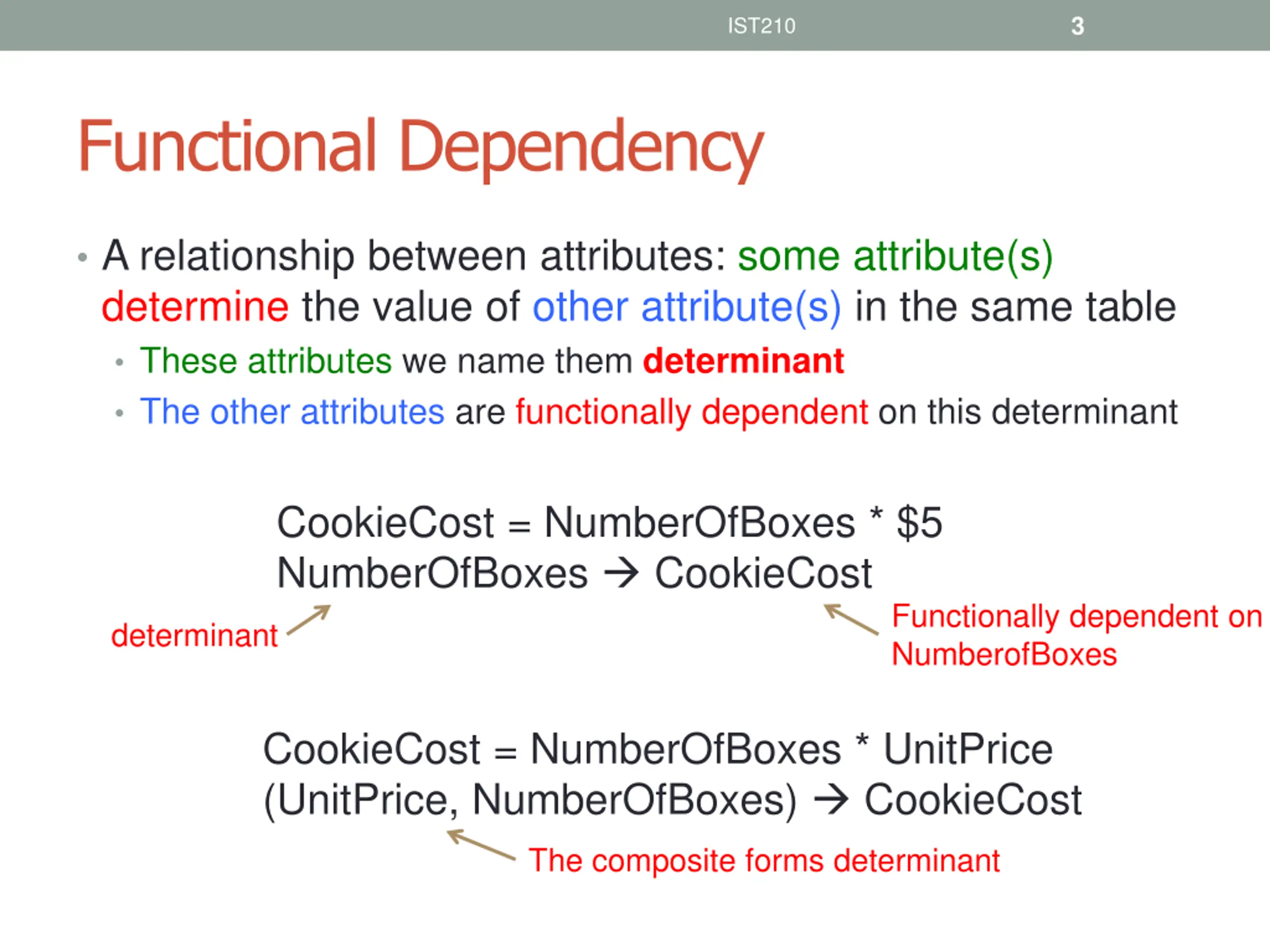

  3. 3 IST210 Functional Dependency A relationship between attributes: some attribute(s) determine the value of other attribute(s) in the same table These attributes we name them determinant The other attributes are functionally dependent on this determinant CookieCost = NumberOfBoxes * $5 NumberOfBoxes CookieCost Functionally dependent on NumberofBoxes determinant CookieCost = NumberOfBoxes * UnitPrice (UnitPrice, NumberOfBoxes) CookieCost The composite forms determinant

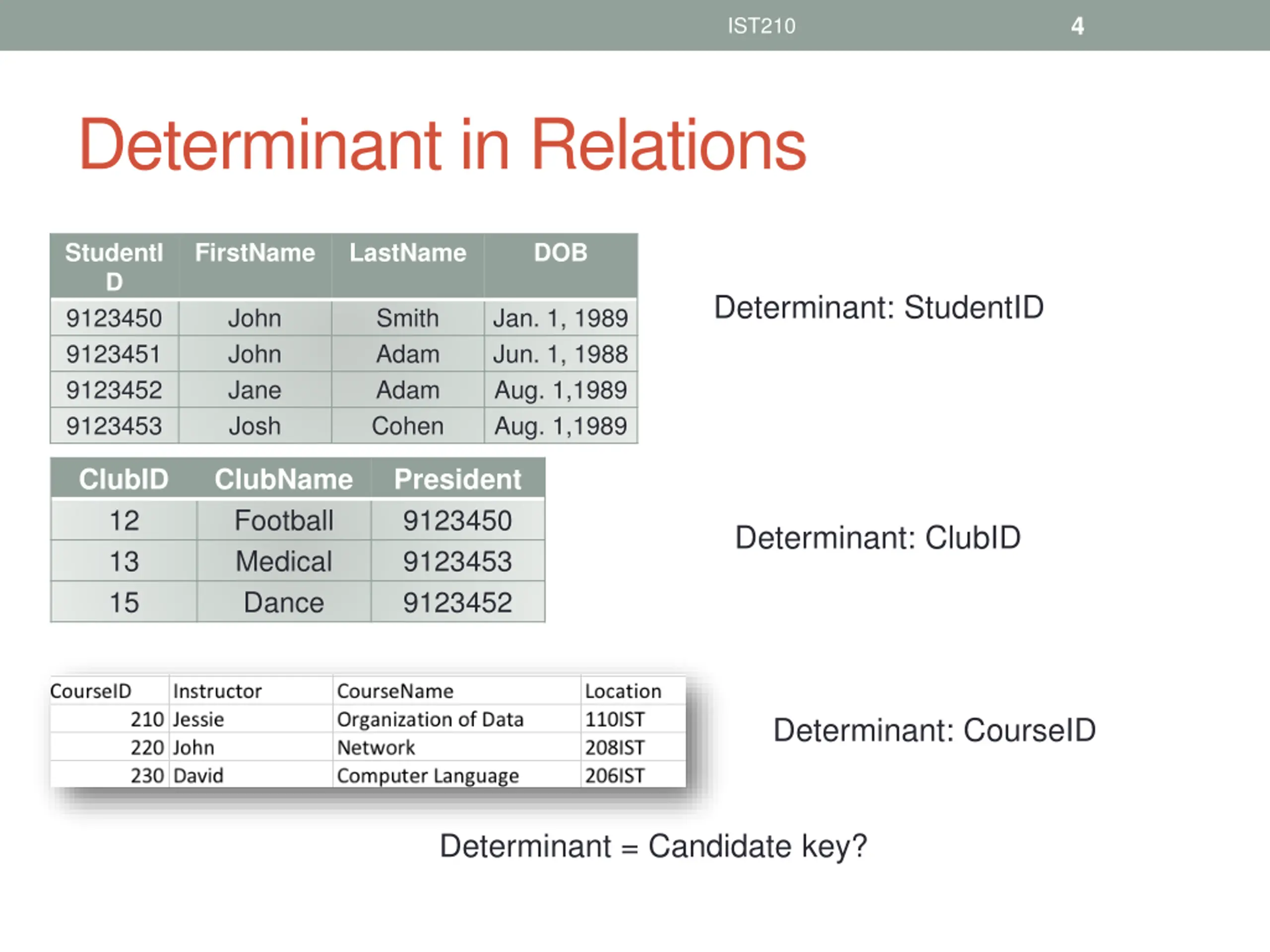

  4. 4 IST210 Determinant in Relations StudentI D 9123450 9123451 9123452 9123453 FirstName LastName DOB Determinant: StudentID John John Jane Josh Smith Adam Adam Cohen Jan. 1, 1989 Jun. 1, 1988 Aug. 1,1989 Aug. 1,1989 ClubID 12 13 15 ClubName Football Medical Dance President 9123450 9123453 9123452 Determinant: ClubID Determinant: CourseID Determinant = Candidate key?

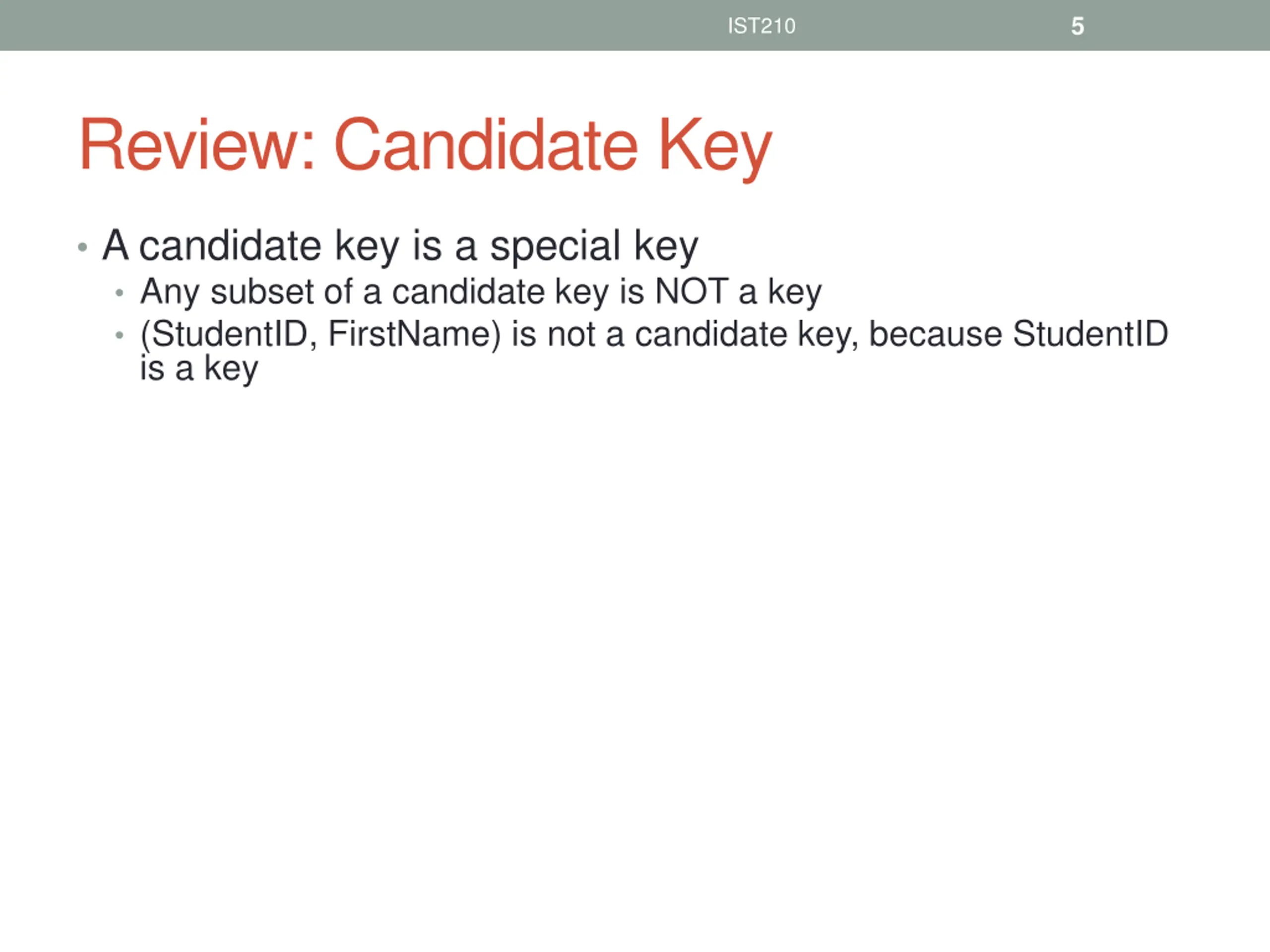

  5. 5 IST210 Review: Candidate Key A candidate key is a special key Any subset of a candidate key is NOT a key (StudentID, FirstName) is not a candidate key, because StudentID is a key

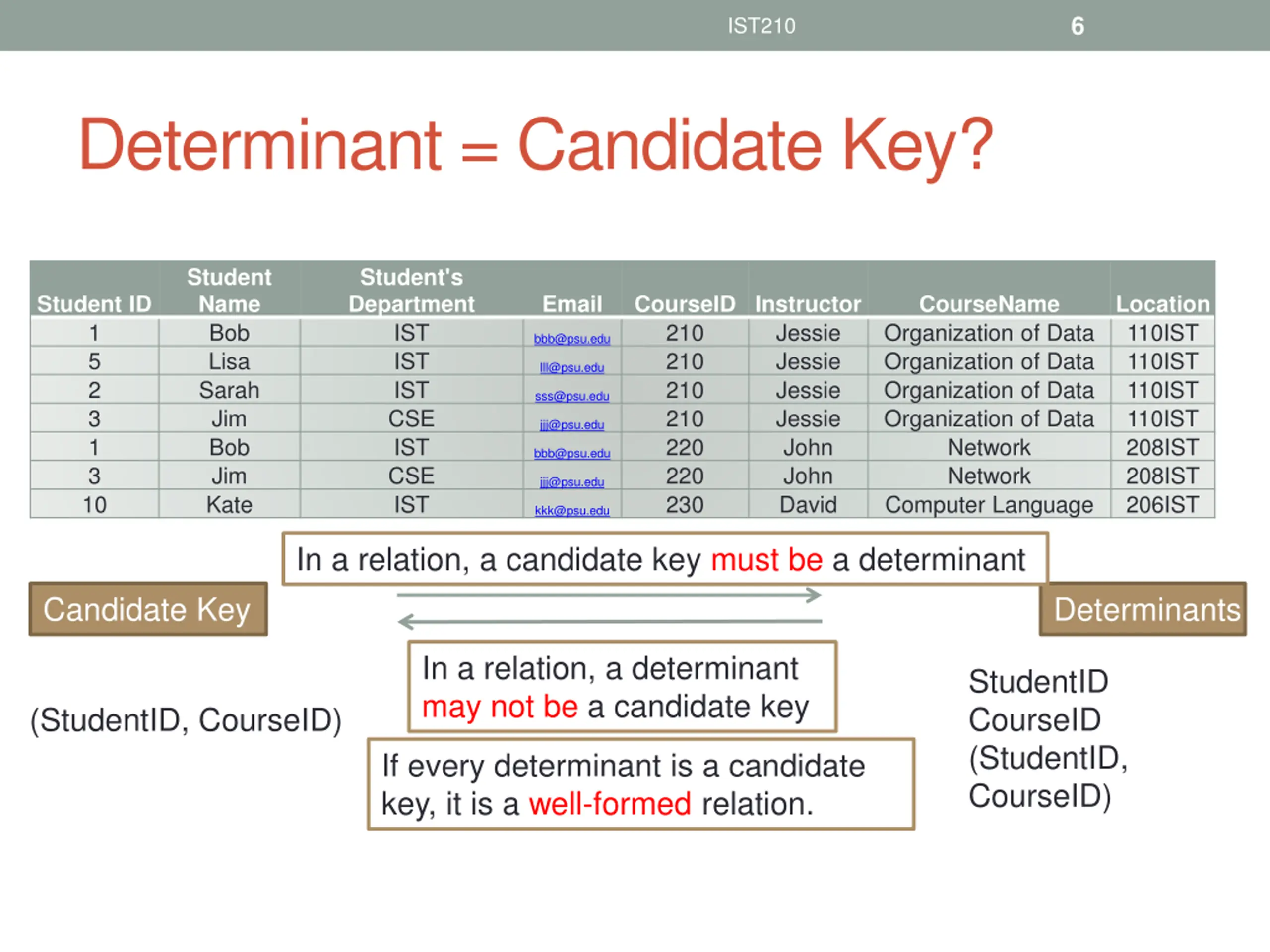

  6. 6 IST210 Determinant = Candidate Key? Student Name Bob Lisa Sarah Jim Bob Jim Kate Student's Department IST IST IST CSE IST CSE IST Student ID 1 5 2 3 1 3 10 Email CourseID Instructor 210 210 210 210 220 220 230 CourseName Organization of Data Organization of Data Organization of Data Organization of Data Network Network Computer Language Location 110IST 110IST 110IST 110IST 208IST 208IST 206IST Jessie Jessie Jessie Jessie John John David bbb@psu.edu lll@psu.edu sss@psu.edu jjj@psu.edu bbb@psu.edu jjj@psu.edu kkk@psu.edu In a relation, a candidate key must be a determinant Candidate Key Determinants In a relation, a determinant may not be a candidate key StudentID CourseID (StudentID, CourseID) (StudentID, CourseID) If every determinant is a candidate key, it is a well-formed relation.

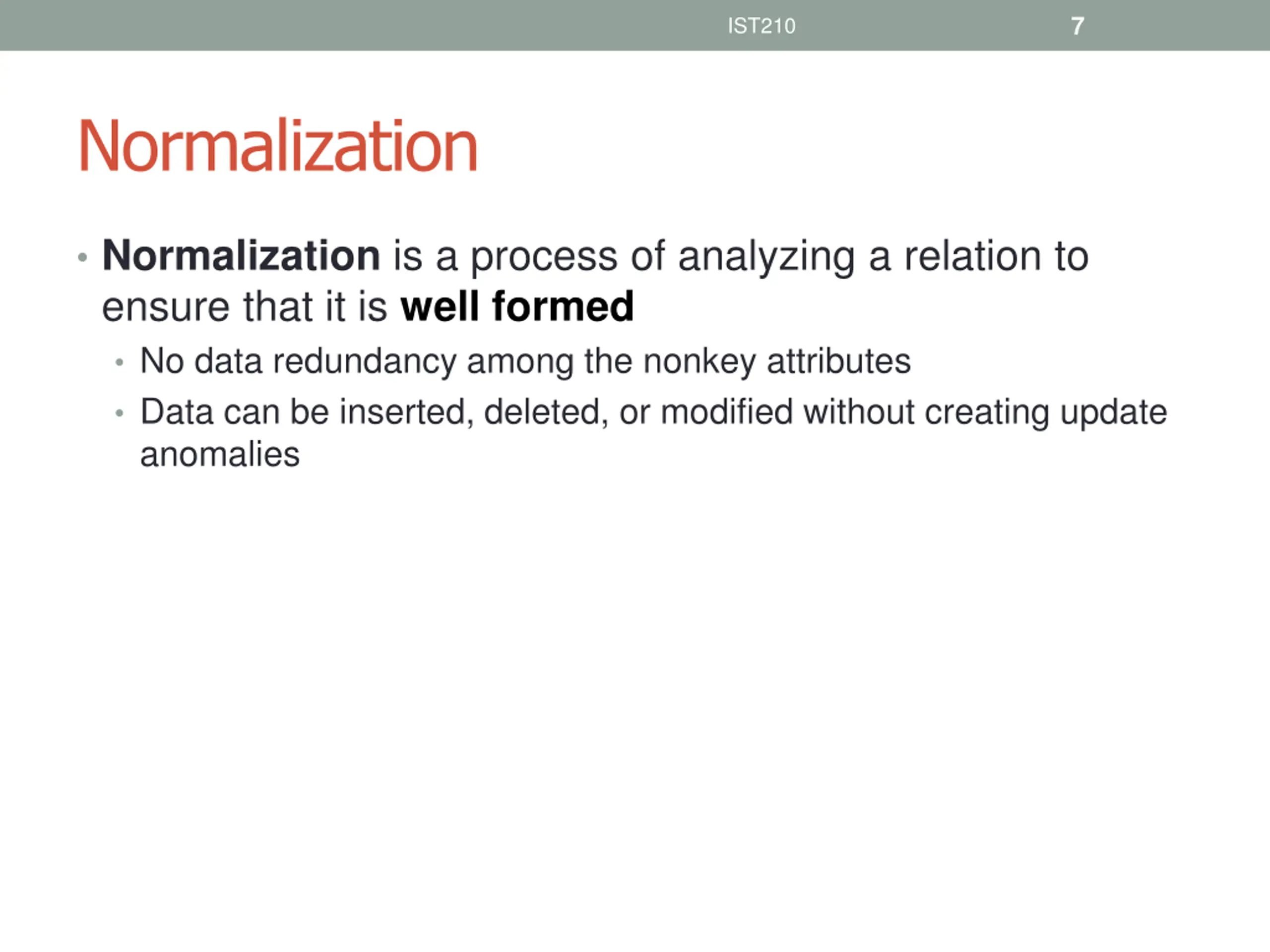

  7. 7 IST210 Normalization Normalization is a process of analyzing a relation to ensure that it is well formed No data redundancy among the nonkey attributes Data can be inserted, deleted, or modified without creating update anomalies

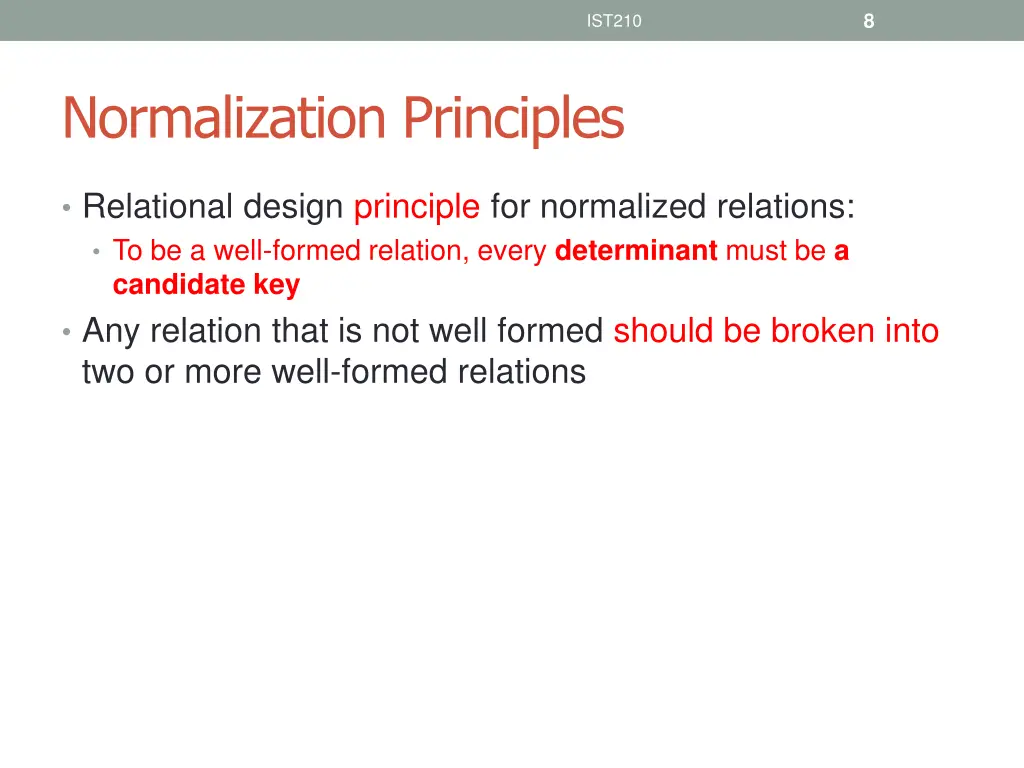

  8. 8 IST210 Normalization Principles Relational design principle for normalized relations: To be a well-formed relation, every determinant must be a candidate key Any relation that is not well formed should be broken into two or more well-formed relations

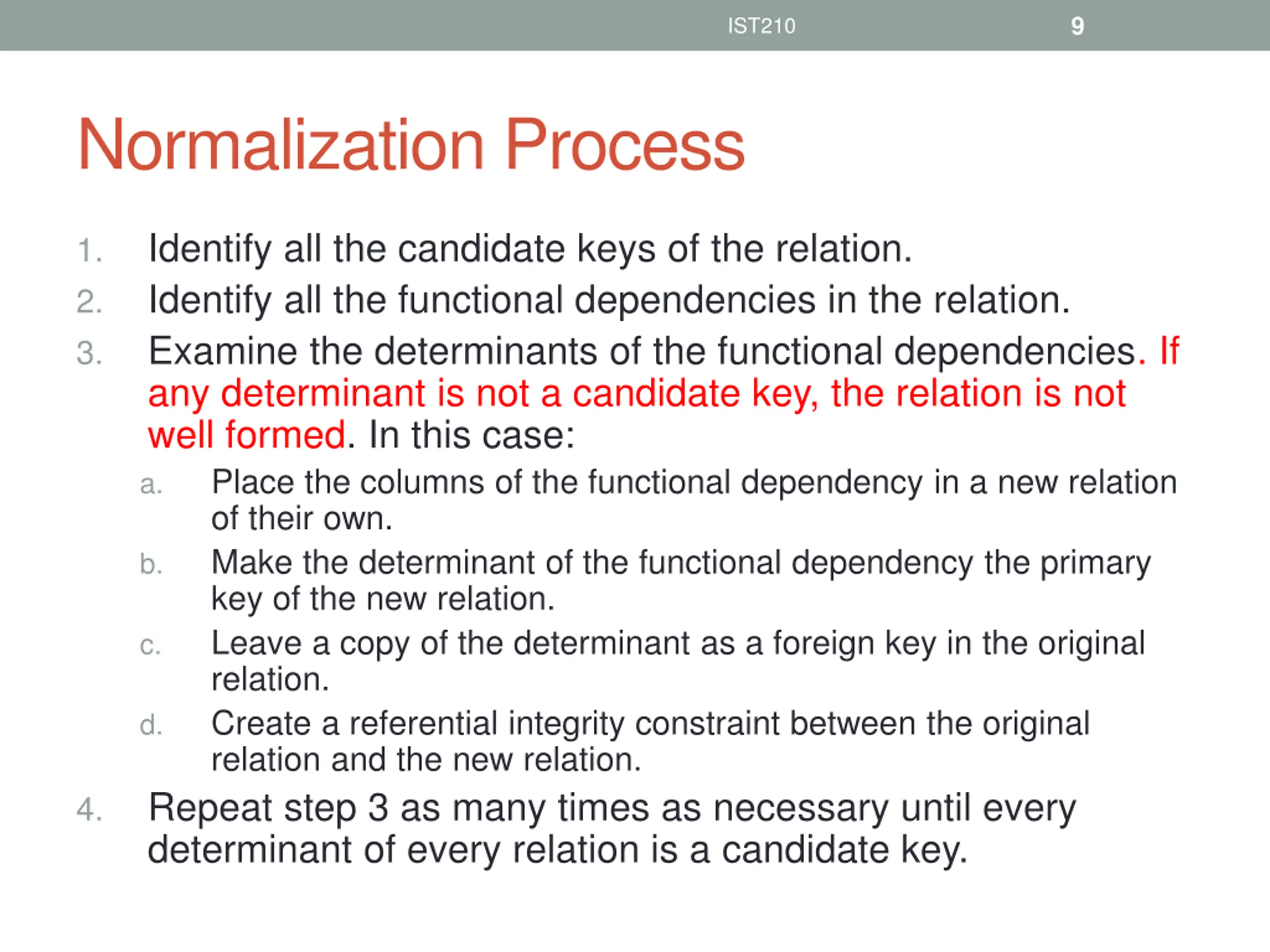

  9. 9 IST210 Normalization Process Identify all the candidate keys of the relation. Identify all the functional dependencies in the relation. Examine the determinants of the functional dependencies. If any determinant is not a candidate key, the relation is not well formed. In this case: a. Place the columns of the functional dependency in a new relation of their own. b. Make the determinant of the functional dependency the primary key of the new relation. c. Leave a copy of the determinant as a foreign key in the original relation. d. Create a referential integrity constraint between the original relation and the new relation. Repeat step 3 as many times as necessary until every determinant of every relation is a candidate key. 1. 2. 3. 4.

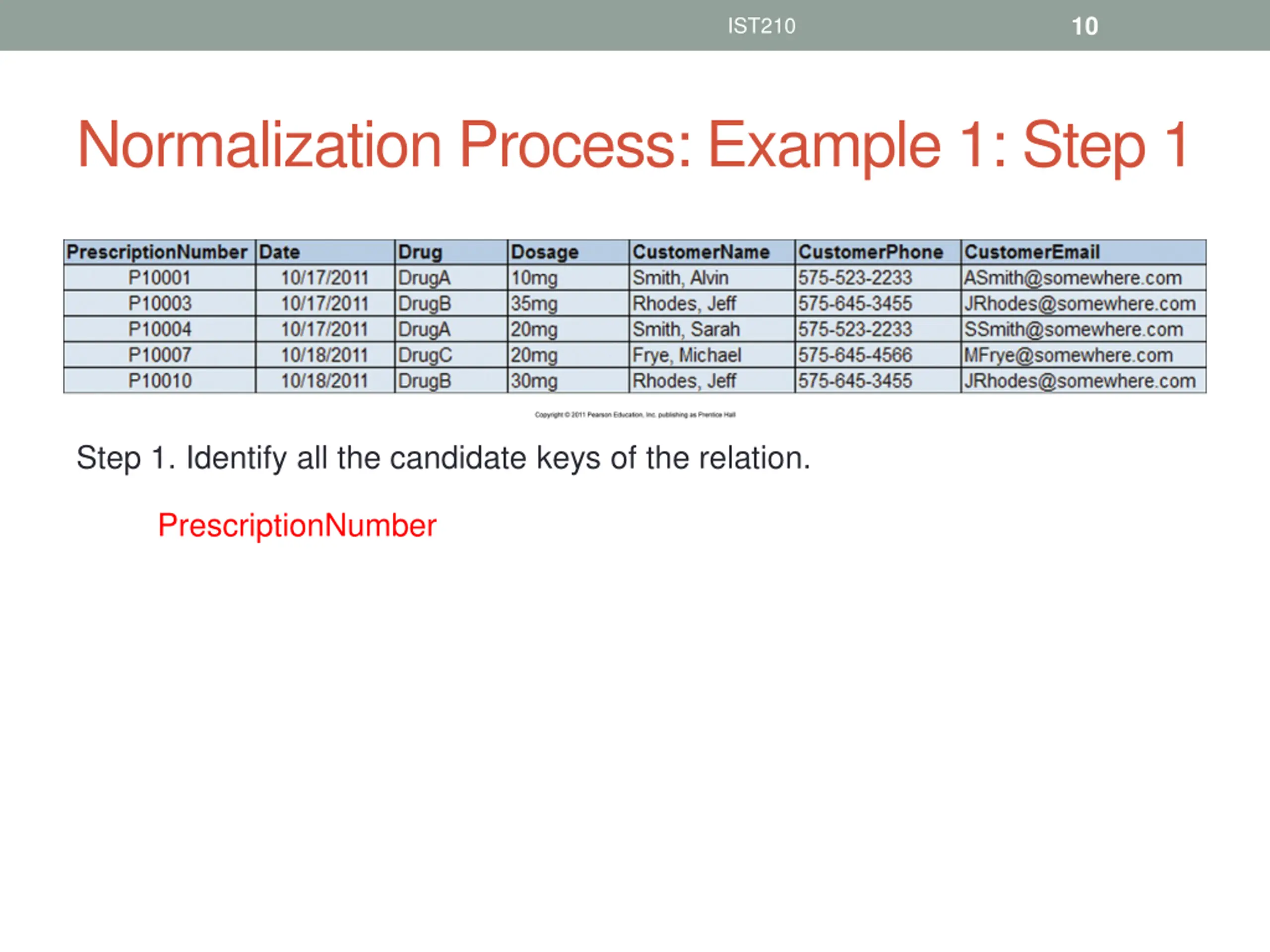

  10. 10 IST210 Normalization Process: Example 1: Step 1 Step 1. Identify all the candidate keys of the relation. PrescriptionNumber

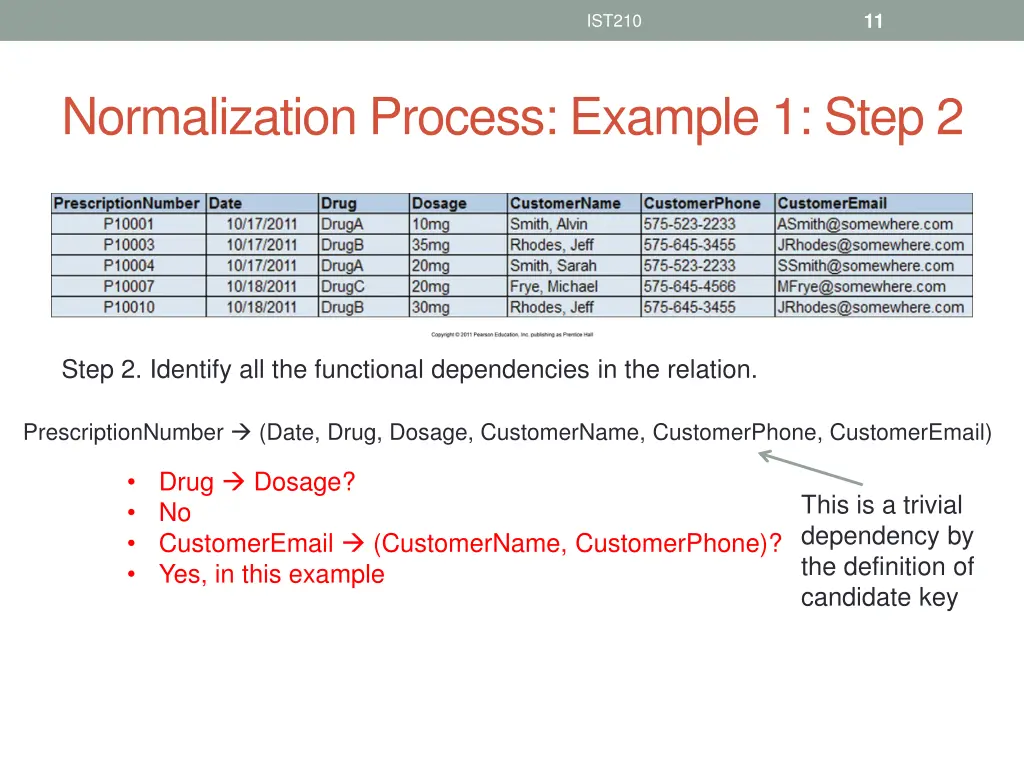

  11. 11 IST210 Normalization Process: Example 1: Step 2 Step 2. Identify all the functional dependencies in the relation. PrescriptionNumber (Date, Drug, Dosage, CustomerName, CustomerPhone, CustomerEmail) Drug Dosage? No CustomerEmail (CustomerName, CustomerPhone)? Yes, in this example This is a trivial dependency by the definition of candidate key

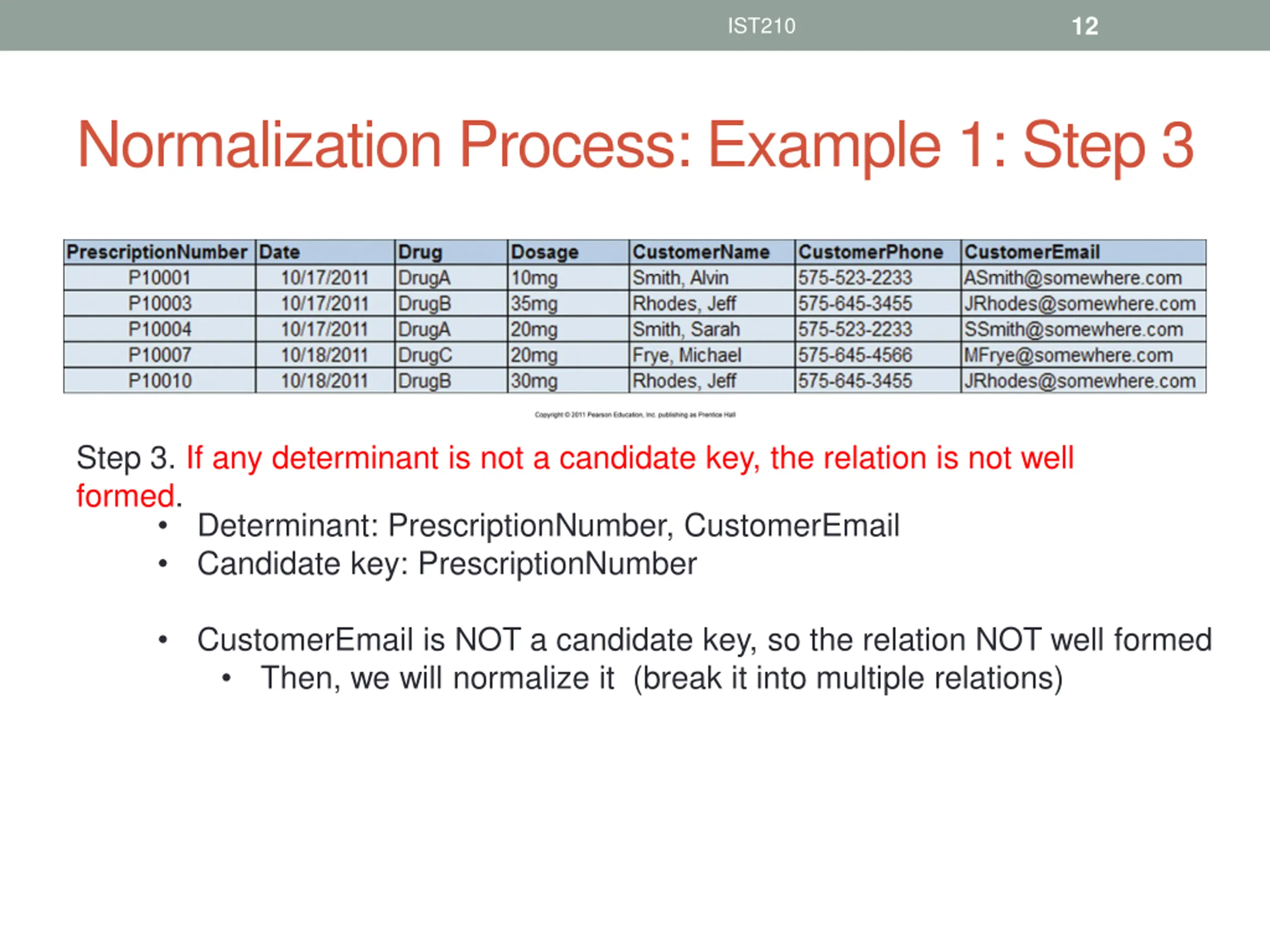

  12. 12 IST210 Normalization Process: Example 1: Step 3 Step 3. If any determinant is not a candidate key, the relation is not well formed. Determinant: PrescriptionNumber, CustomerEmail Candidate key: PrescriptionNumber CustomerEmail is NOT a candidate key, so the relation NOT well formed Then, we will normalize it (break it into multiple relations)

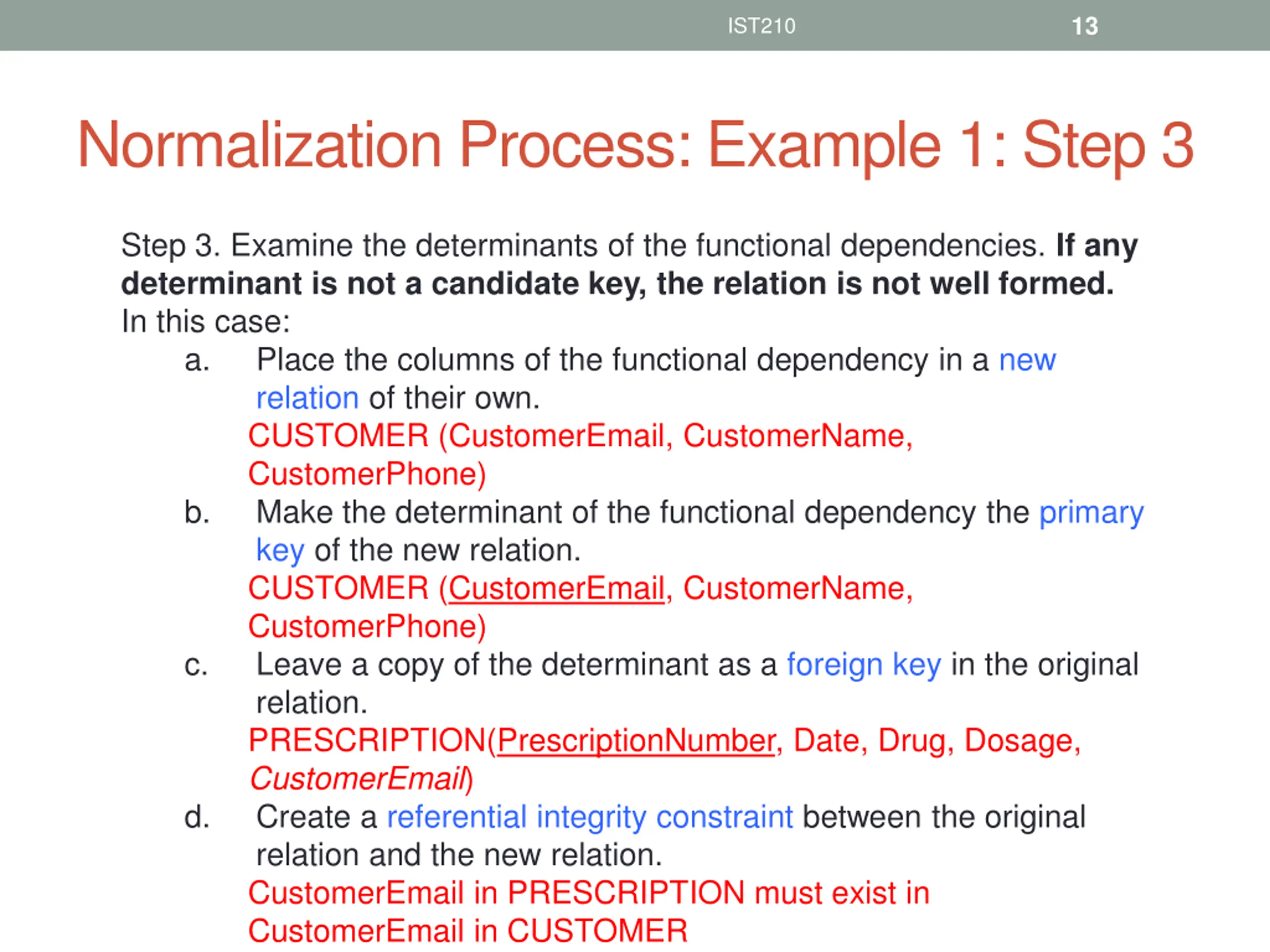

  13. 13 IST210 Normalization Process: Example 1: Step 3 Step 3. Examine the determinants of the functional dependencies. If any determinant is not a candidate key, the relation is not well formed. In this case: a. Place the columns of the functional dependency in a new relation of their own. CUSTOMER (CustomerEmail, CustomerName, CustomerPhone) b. Make the determinant of the functional dependency the primary key of the new relation. CUSTOMER (CustomerEmail, CustomerName, CustomerPhone) c. Leave a copy of the determinant as a foreign key in the original relation. PRESCRIPTION(PrescriptionNumber, Date, Drug, Dosage, CustomerEmail) d. Create a referential integrity constraint between the original relation and the new relation. CustomerEmail in PRESCRIPTION must exist in CustomerEmail in CUSTOMER

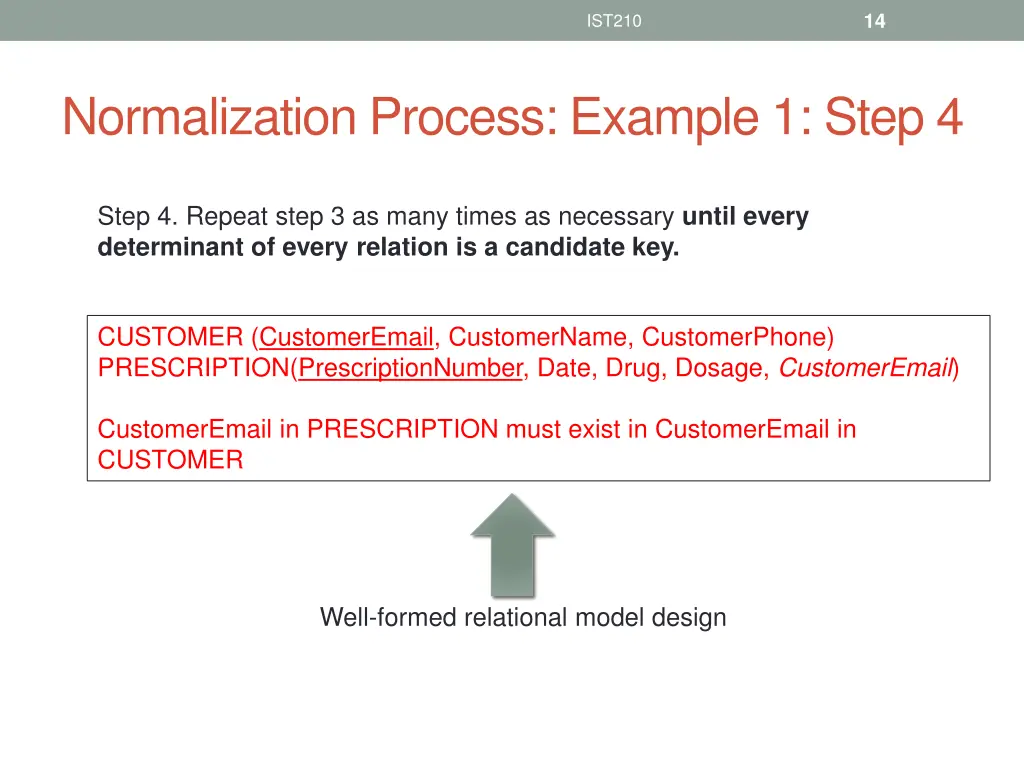

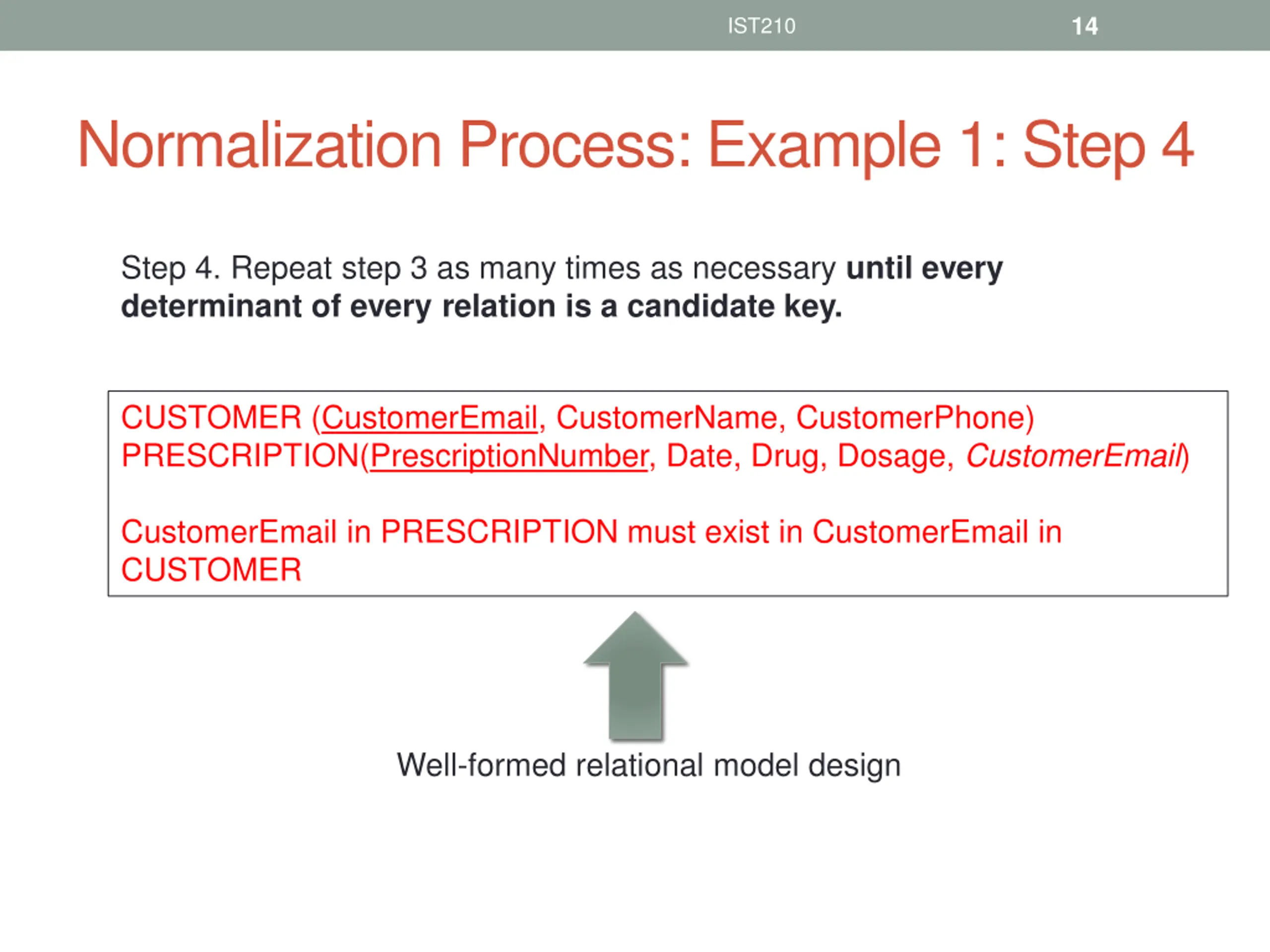

  14. 14 IST210 Normalization Process: Example 1: Step 4 Step 4. Repeat step 3 as many times as necessary until every determinant of every relation is a candidate key. CUSTOMER (CustomerEmail, CustomerName, CustomerPhone) PRESCRIPTION(PrescriptionNumber, Date, Drug, Dosage, CustomerEmail) CustomerEmail in PRESCRIPTION must exist in CustomerEmail in CUSTOMER Well-formed relational model design

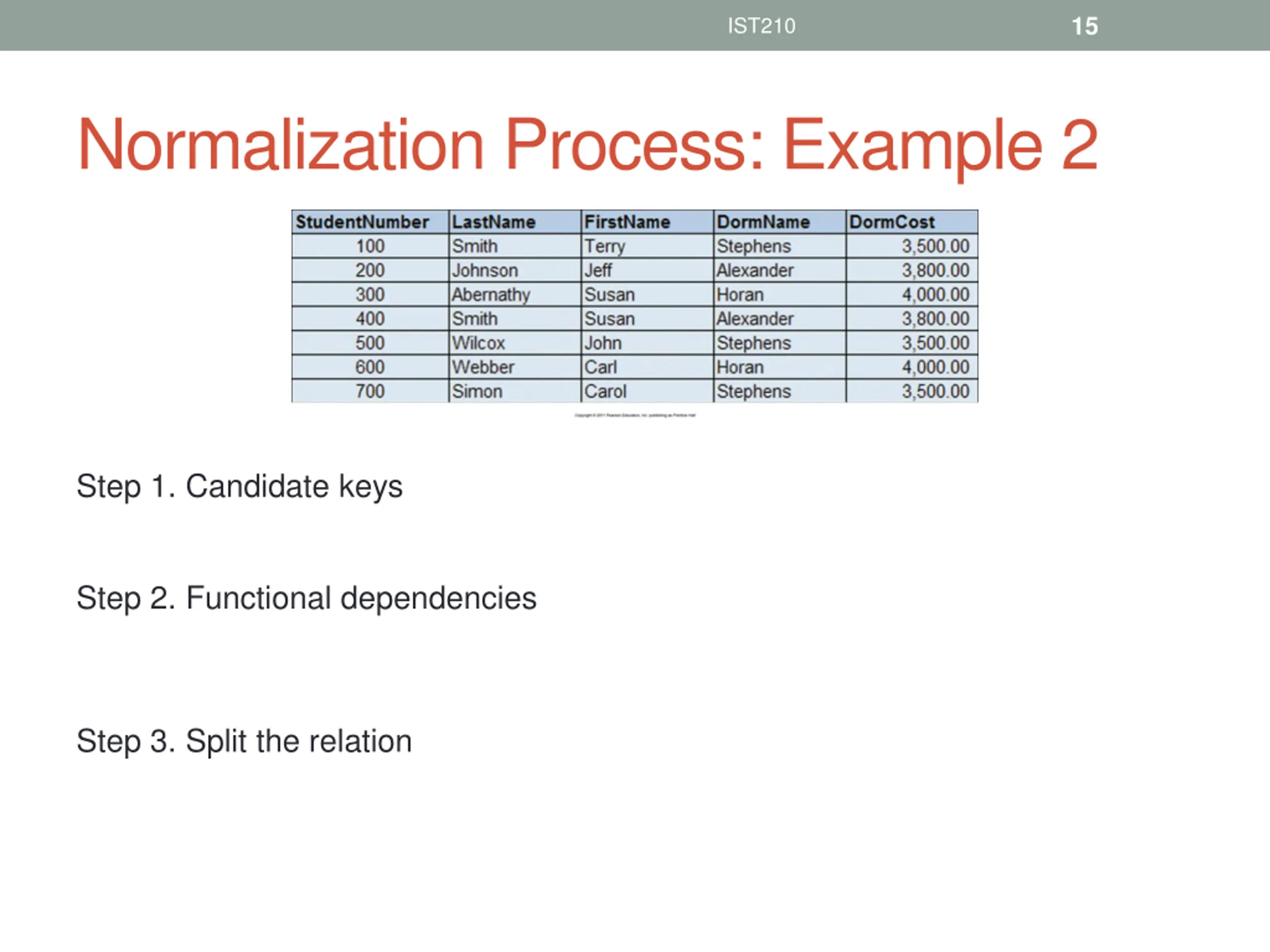

  15. 15 IST210 Normalization Process: Example 2 Step 1. Candidate keys Step 2. Functional dependencies Step 3. Split the relation

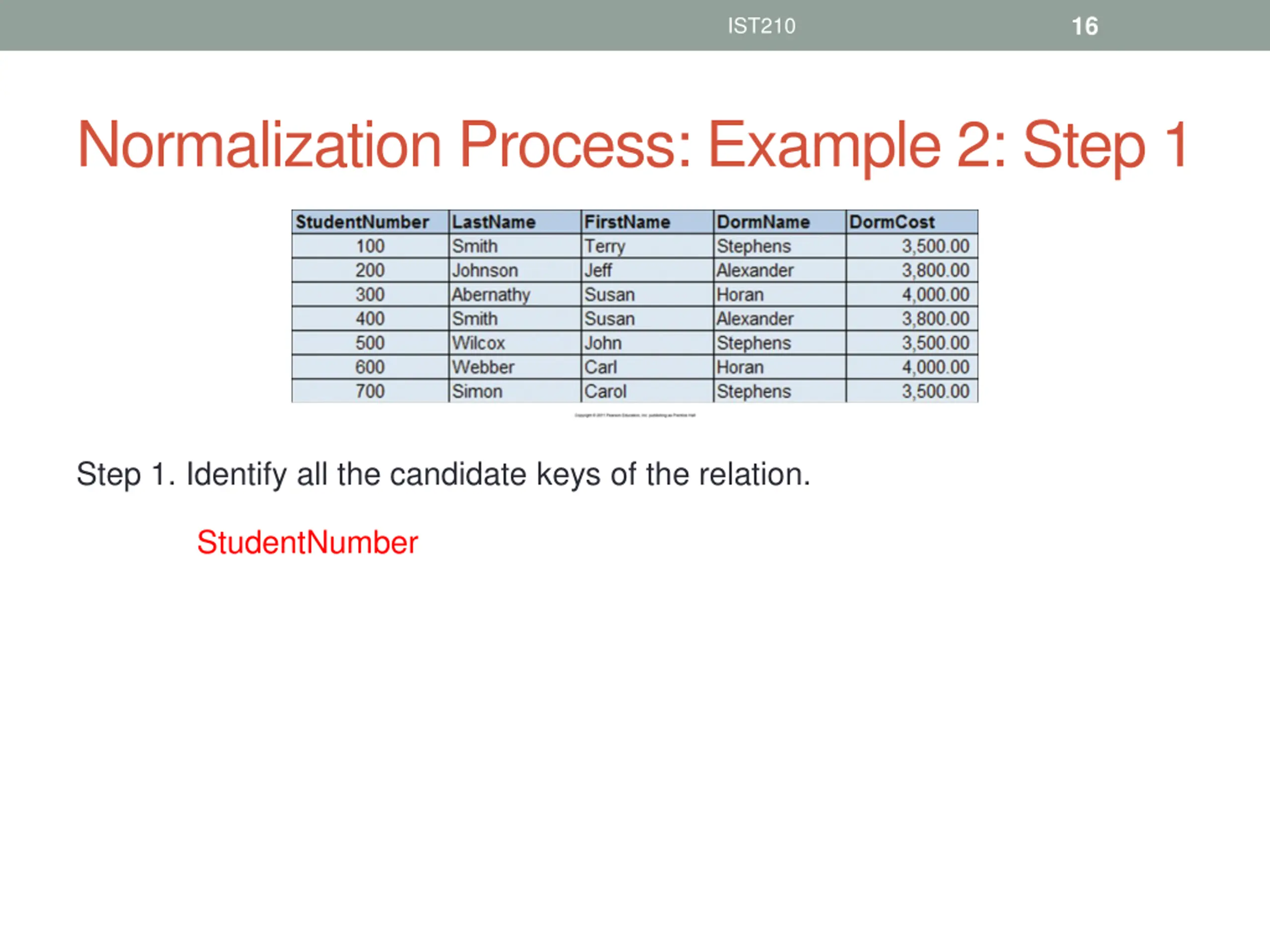

  16. 16 IST210 Normalization Process: Example 2: Step 1 Step 1. Identify all the candidate keys of the relation. StudentNumber

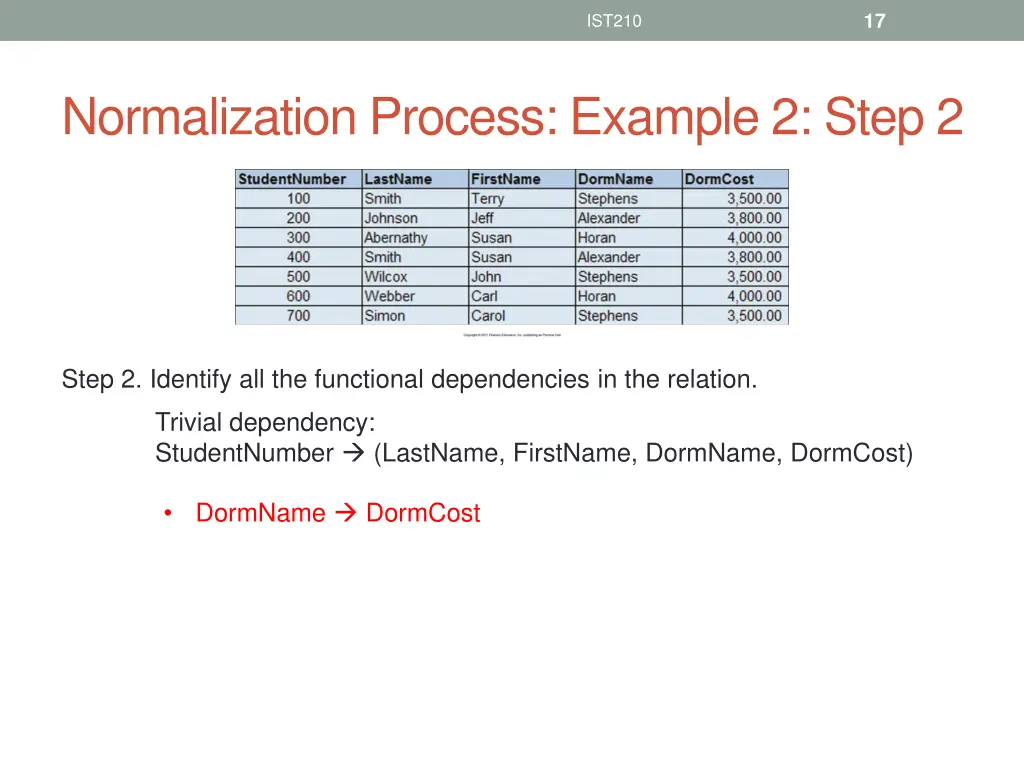

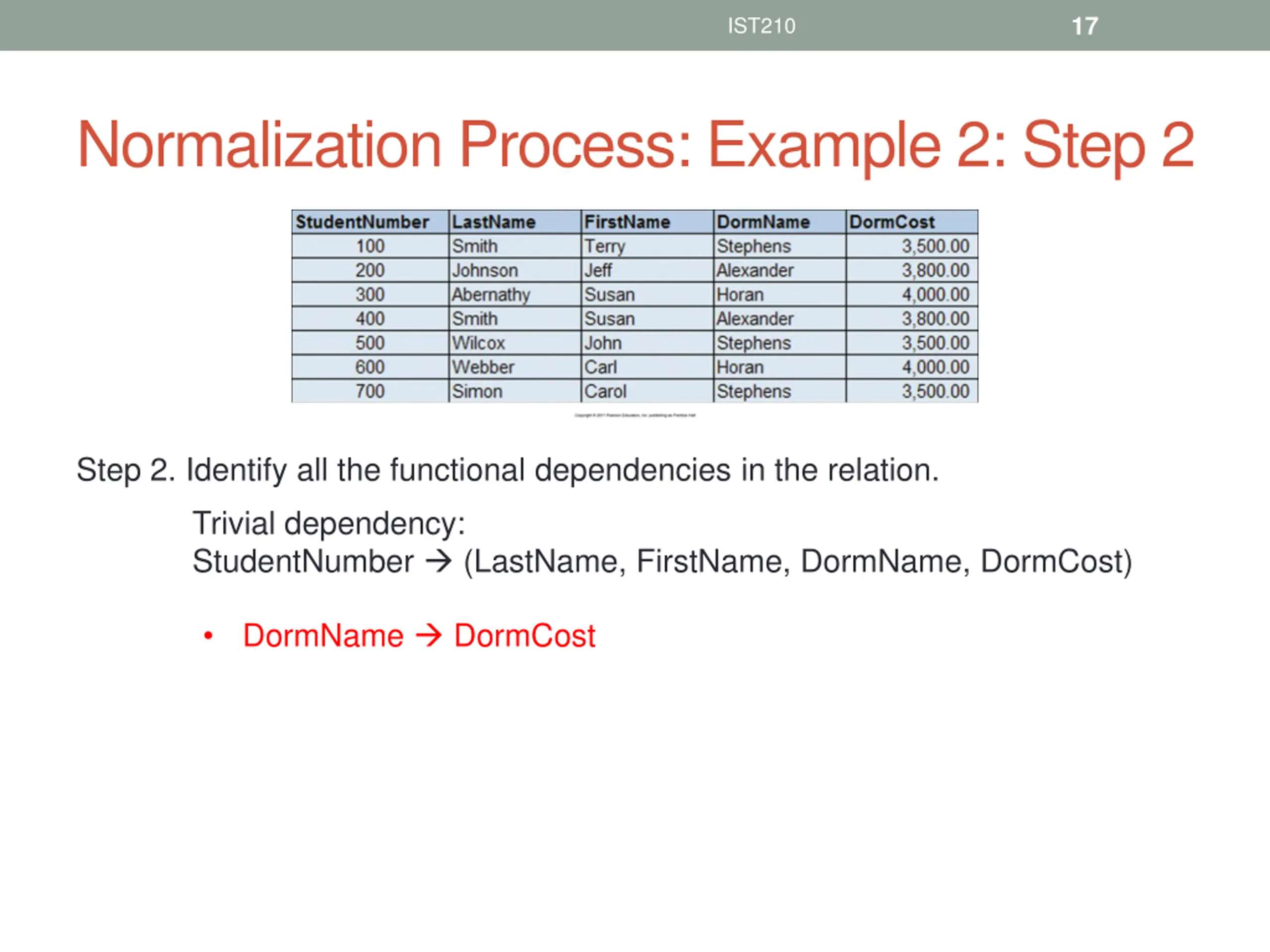

  17. 17 IST210 Normalization Process: Example 2: Step 2 Step 2. Identify all the functional dependencies in the relation. Trivial dependency: StudentNumber (LastName, FirstName, DormName, DormCost) DormName DormCost

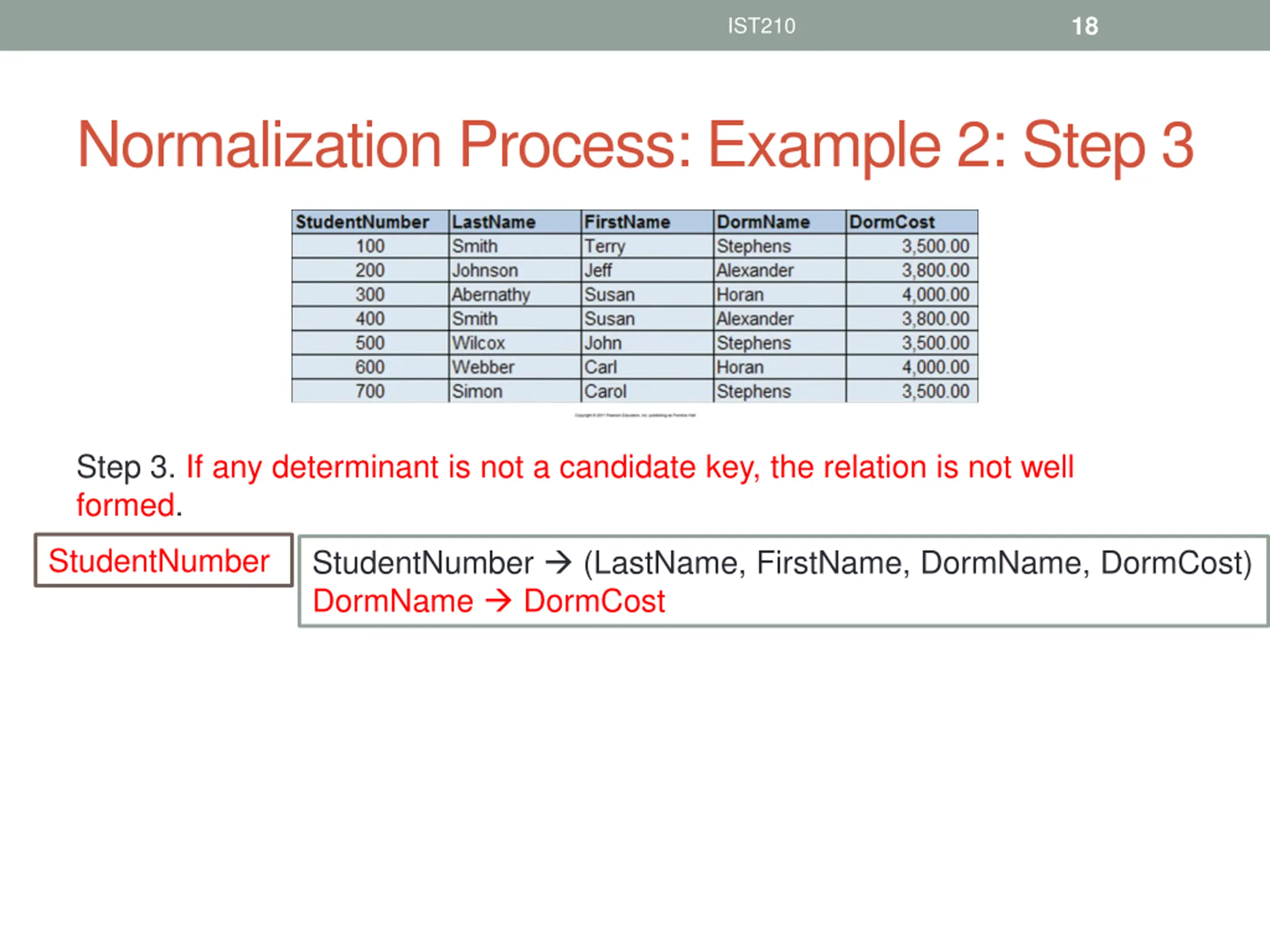

  18. 18 IST210 Normalization Process: Example 2: Step 3 Step 3. If any determinant is not a candidate key, the relation is not well formed. StudentNumber StudentNumber (LastName, FirstName, DormName, DormCost) DormName DormCost

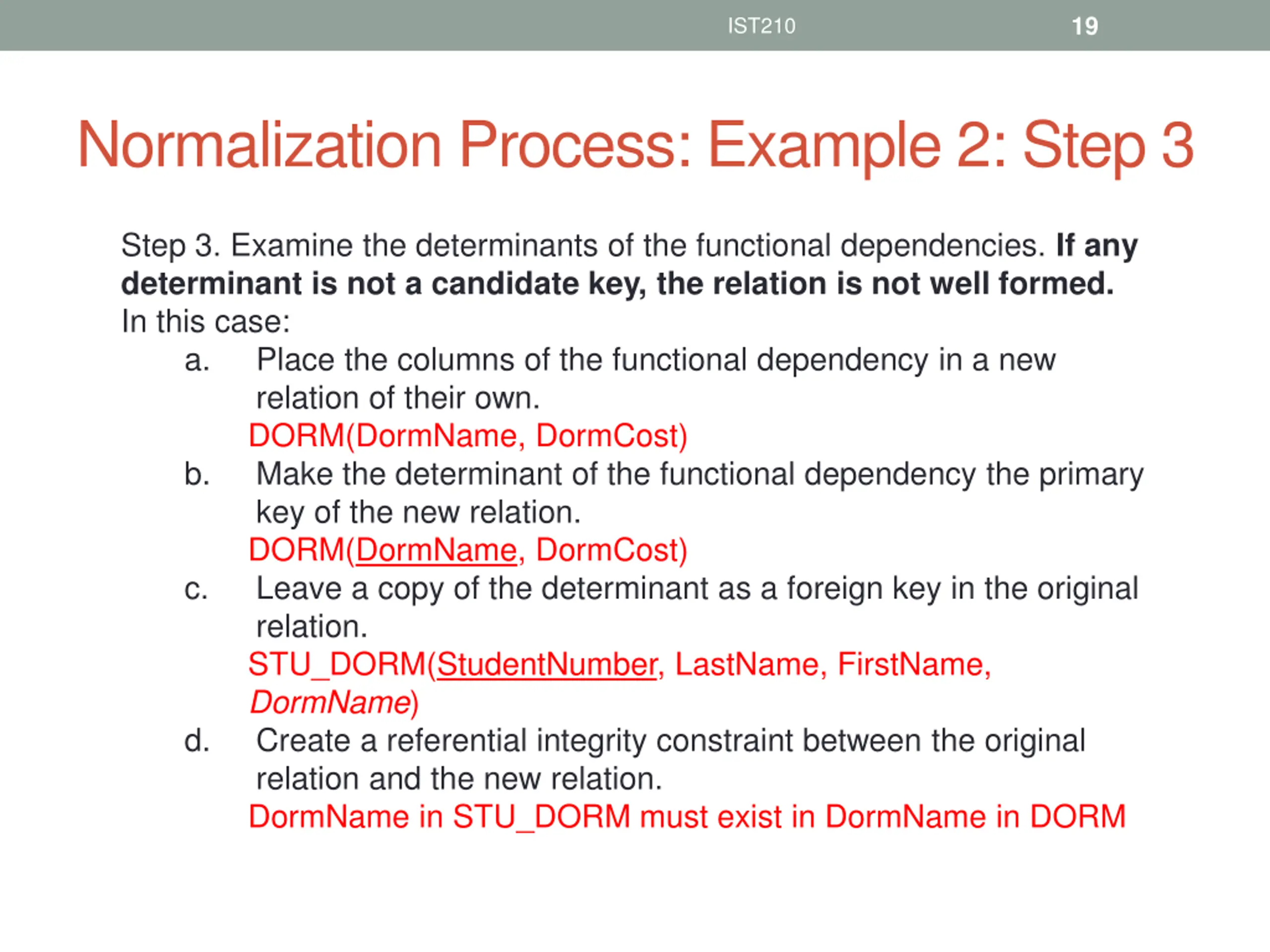

  19. 19 IST210 Normalization Process: Example 2: Step 3 Step 3. Examine the determinants of the functional dependencies. If any determinant is not a candidate key, the relation is not well formed. In this case: a. Place the columns of the functional dependency in a new relation of their own. DORM(DormName, DormCost) b. Make the determinant of the functional dependency the primary key of the new relation. DORM(DormName, DormCost) c. Leave a copy of the determinant as a foreign key in the original relation. STU_DORM(StudentNumber, LastName, FirstName, DormName) d. Create a referential integrity constraint between the original relation and the new relation. DormName in STU_DORM must exist in DormName in DORM

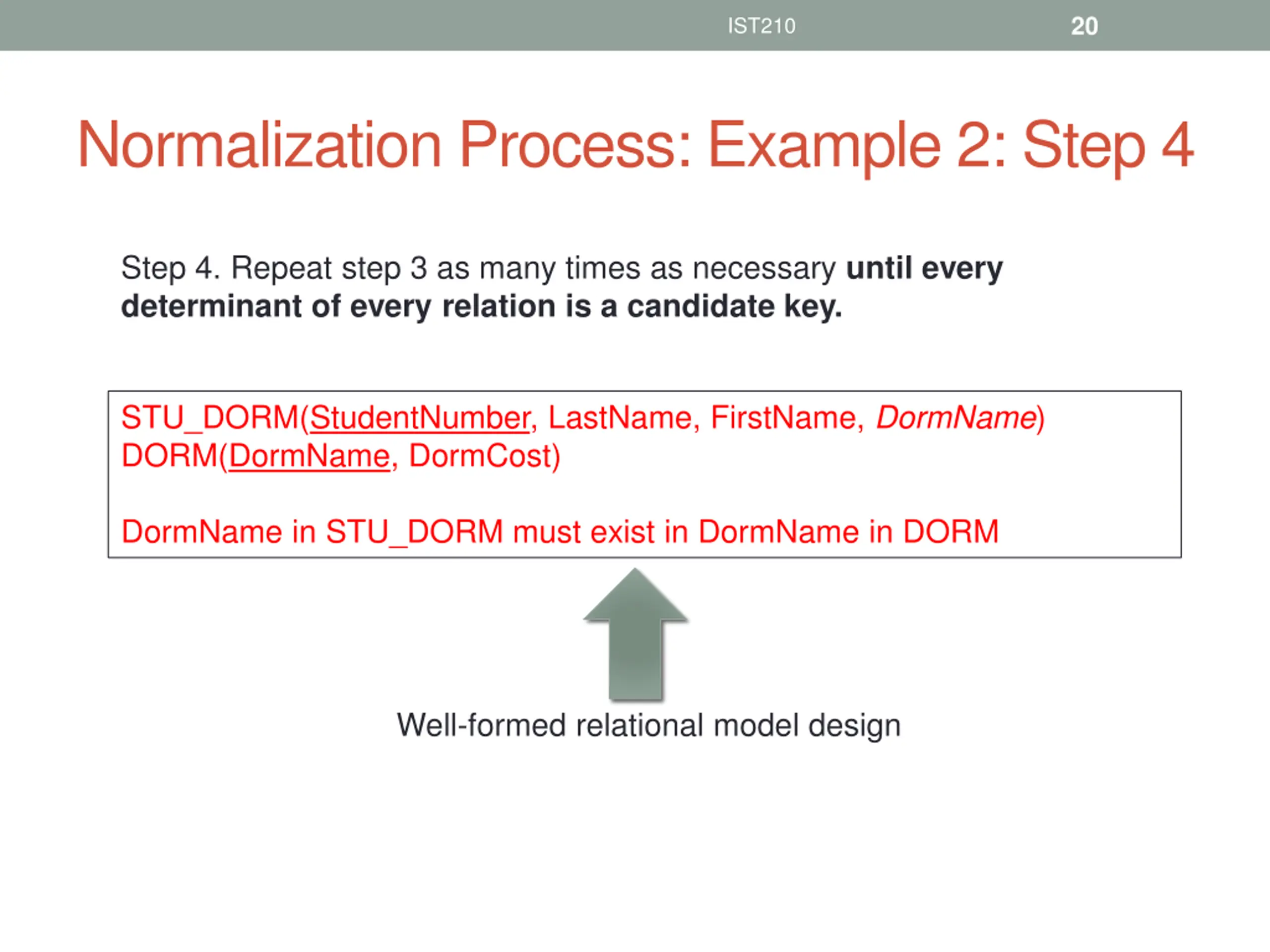

  20. 20 IST210 Normalization Process: Example 2: Step 4 Step 4. Repeat step 3 as many times as necessary until every determinant of every relation is a candidate key. STU_DORM(StudentNumber, LastName, FirstName, DormName) DORM(DormName, DormCost) DormName in STU_DORM must exist in DormName in DORM Well-formed relational model design

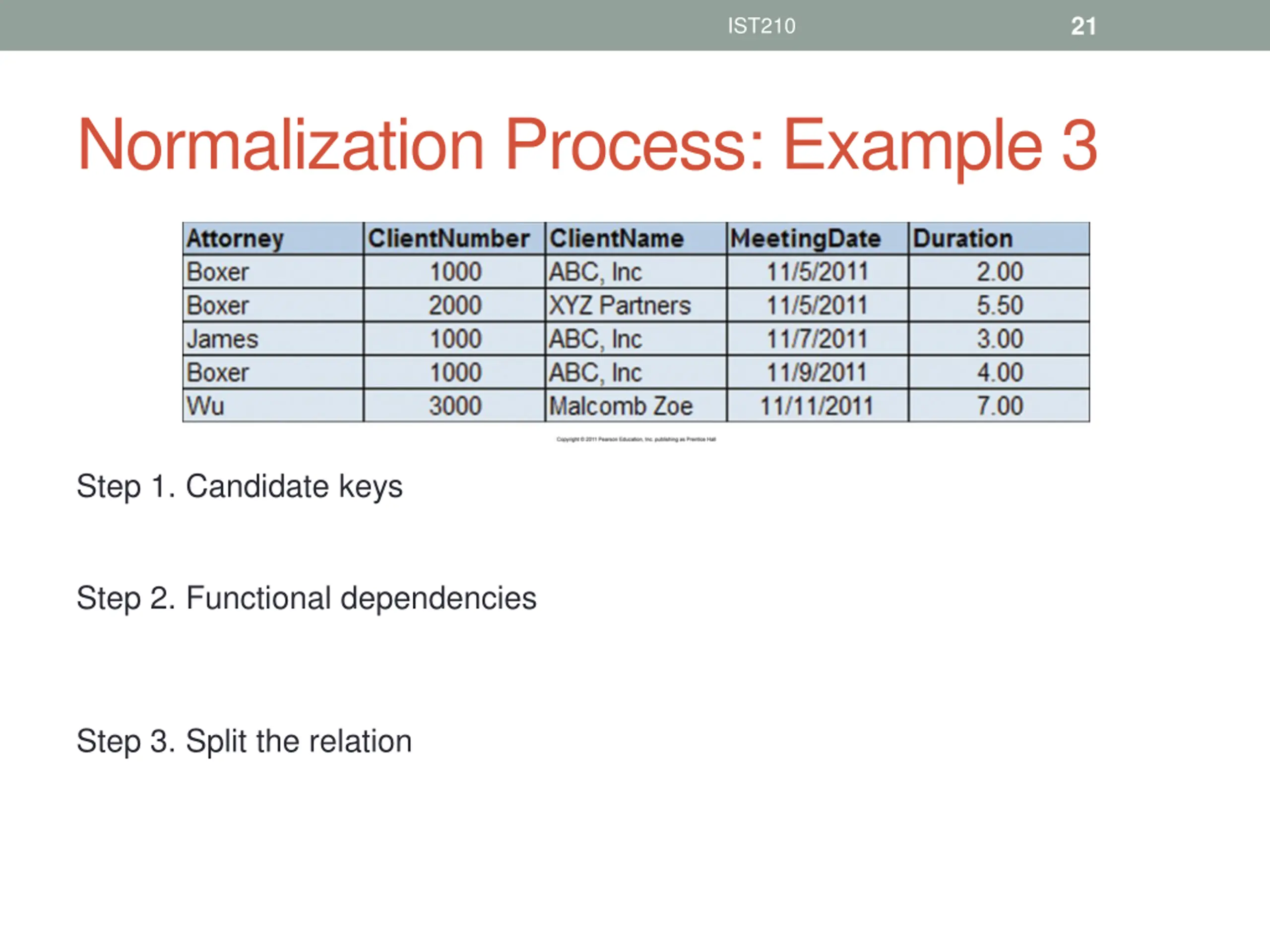

  21. 21 IST210 Normalization Process: Example 3 Step 1. Candidate keys Step 2. Functional dependencies Step 3. Split the relation

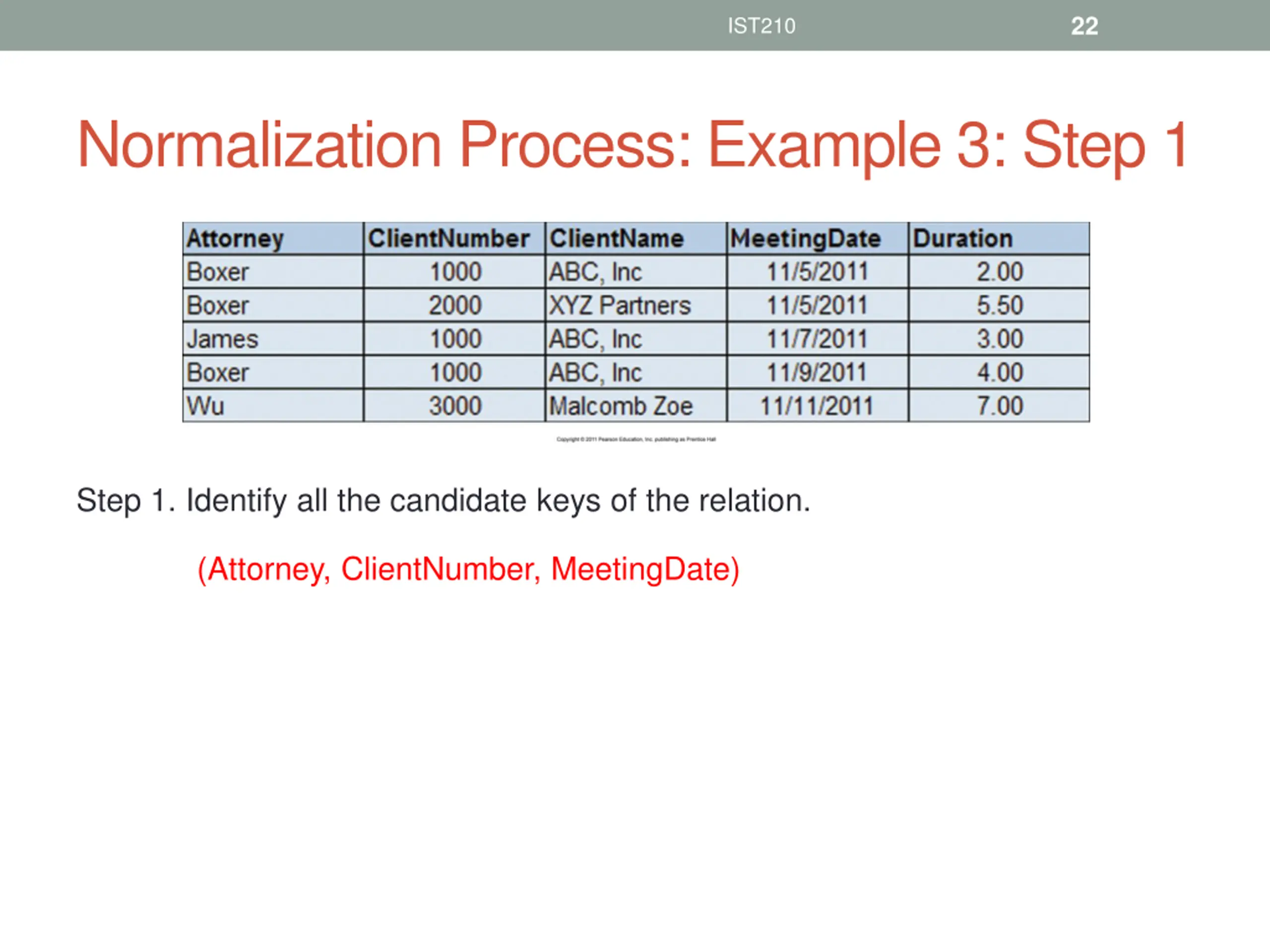

  22. 22 IST210 Normalization Process: Example 3: Step 1 Step 1. Identify all the candidate keys of the relation. (Attorney, ClientNumber, MeetingDate)

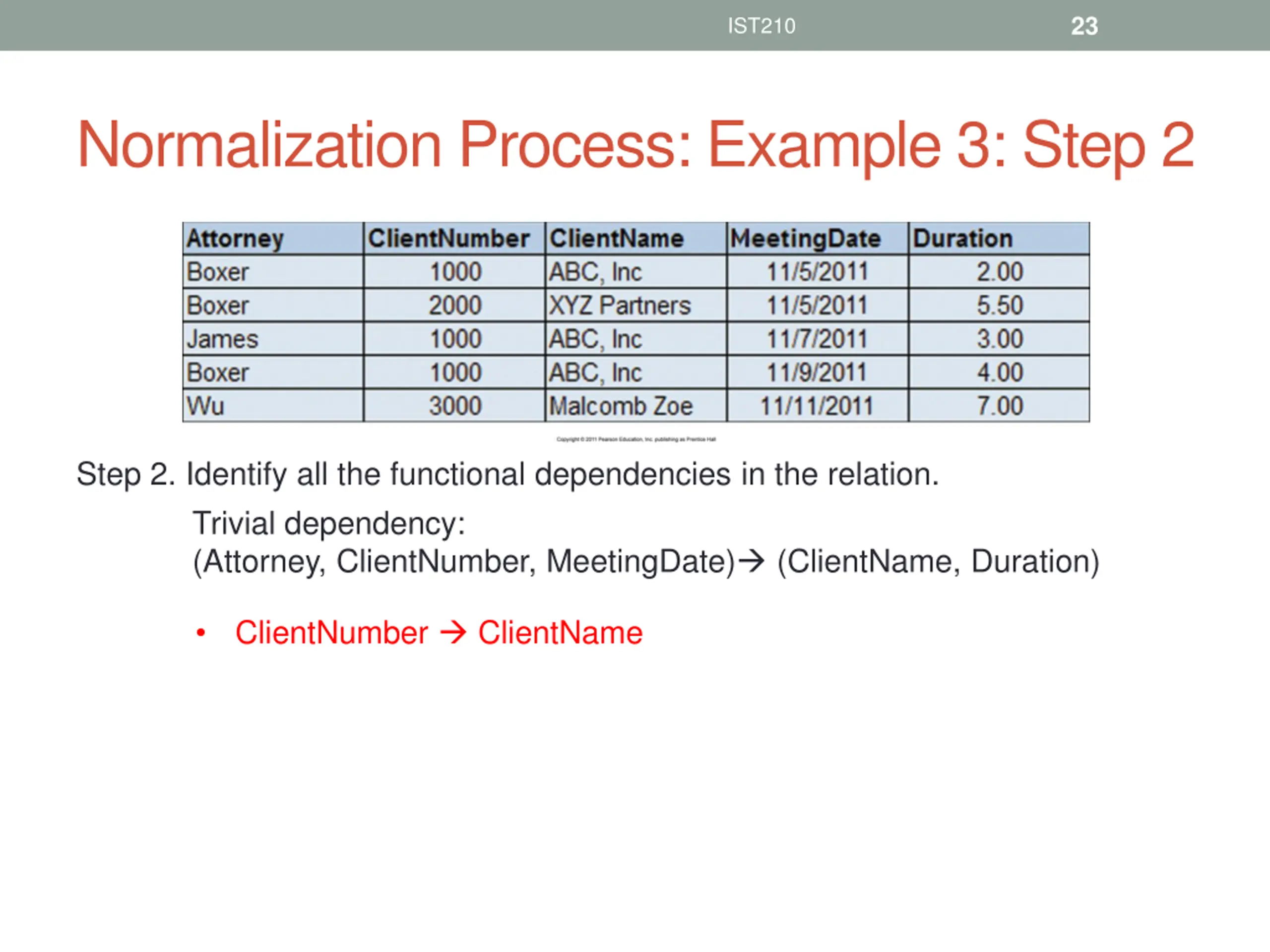

  23. 23 IST210 Normalization Process: Example 3: Step 2 Step 2. Identify all the functional dependencies in the relation. Trivial dependency: (Attorney, ClientNumber, MeetingDate) (ClientName, Duration) ClientNumber ClientName

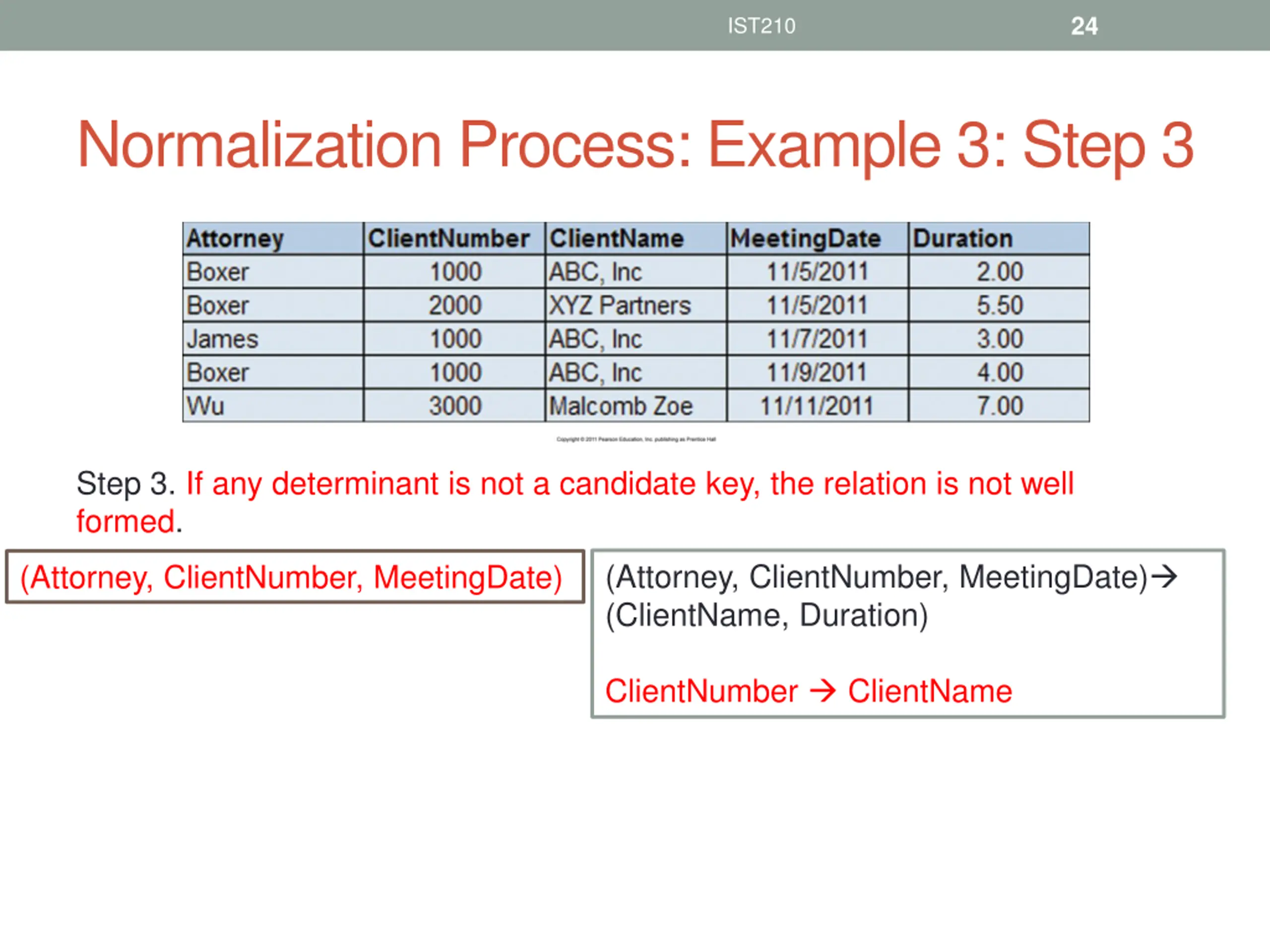

  24. 24 IST210 Normalization Process: Example 3: Step 3 Step 3. If any determinant is not a candidate key, the relation is not well formed. (Attorney, ClientNumber, MeetingDate) (ClientName, Duration) (Attorney, ClientNumber, MeetingDate) ClientNumber ClientName

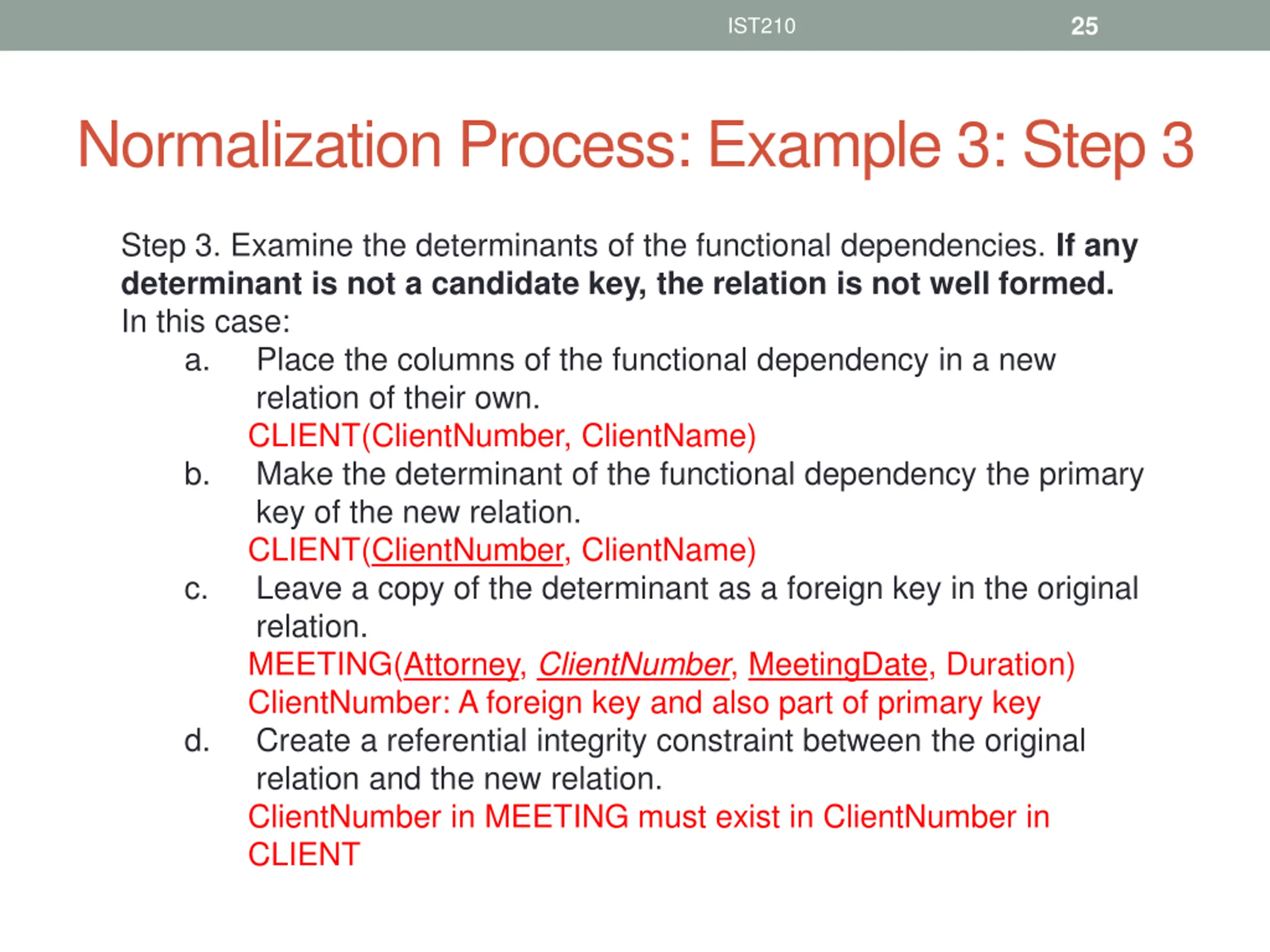

  25. 25 IST210 Normalization Process: Example 3: Step 3 Step 3. Examine the determinants of the functional dependencies. If any determinant is not a candidate key, the relation is not well formed. In this case: a. Place the columns of the functional dependency in a new relation of their own. CLIENT(ClientNumber, ClientName) b. Make the determinant of the functional dependency the primary key of the new relation. CLIENT(ClientNumber, ClientName) c. Leave a copy of the determinant as a foreign key in the original relation. MEETING(Attorney, ClientNumber, MeetingDate, Duration) ClientNumber: A foreign key and also part of primary key d. Create a referential integrity constraint between the original relation and the new relation. ClientNumber in MEETING must exist in ClientNumber in CLIENT

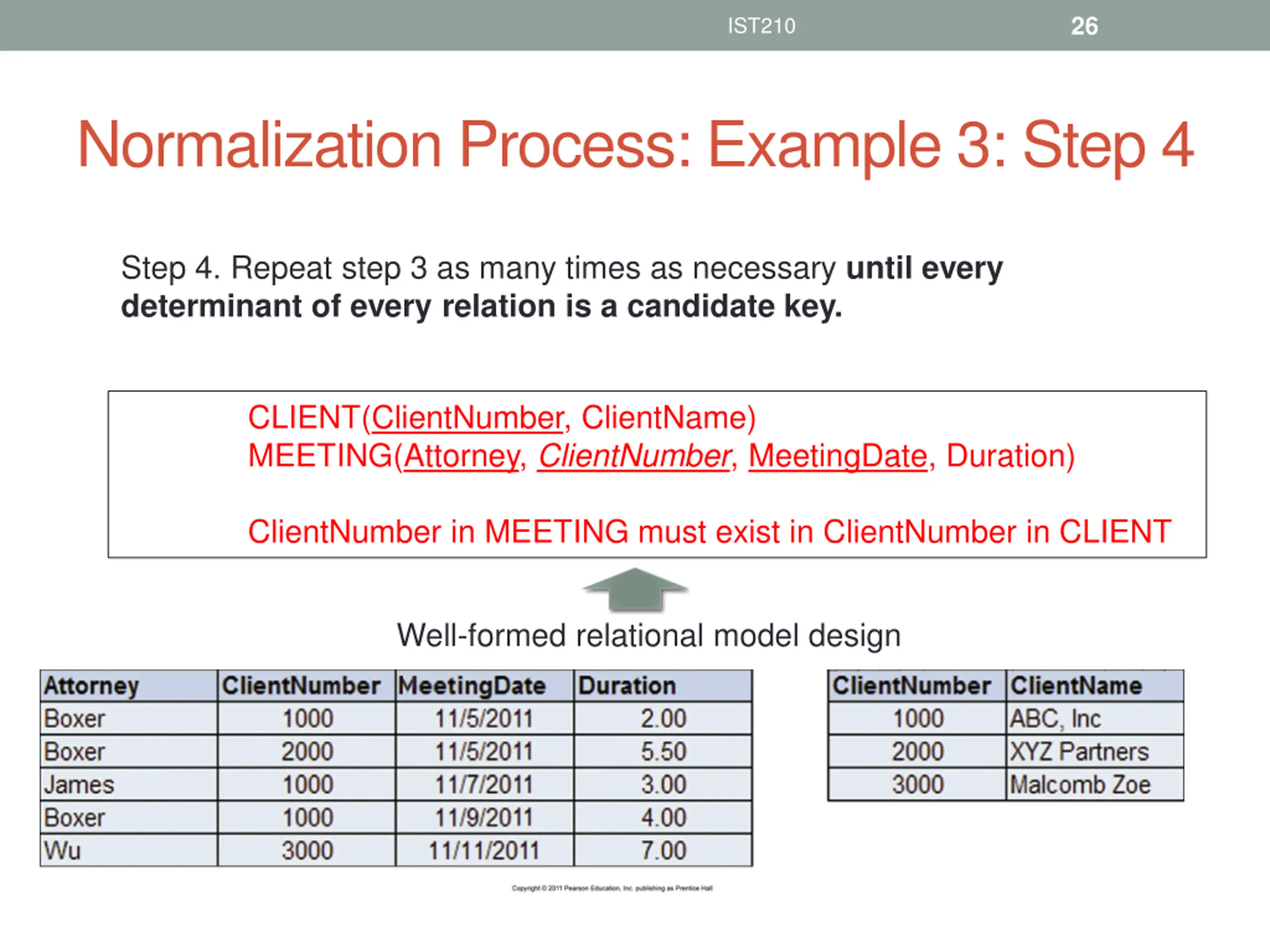

  26. 26 IST210 Normalization Process: Example 3: Step 4 Step 4. Repeat step 3 as many times as necessary until every determinant of every relation is a candidate key. CLIENT(ClientNumber, ClientName) MEETING(Attorney, ClientNumber, MeetingDate, Duration) ClientNumber in MEETING must exist in ClientNumber in CLIENT Well-formed relational model design

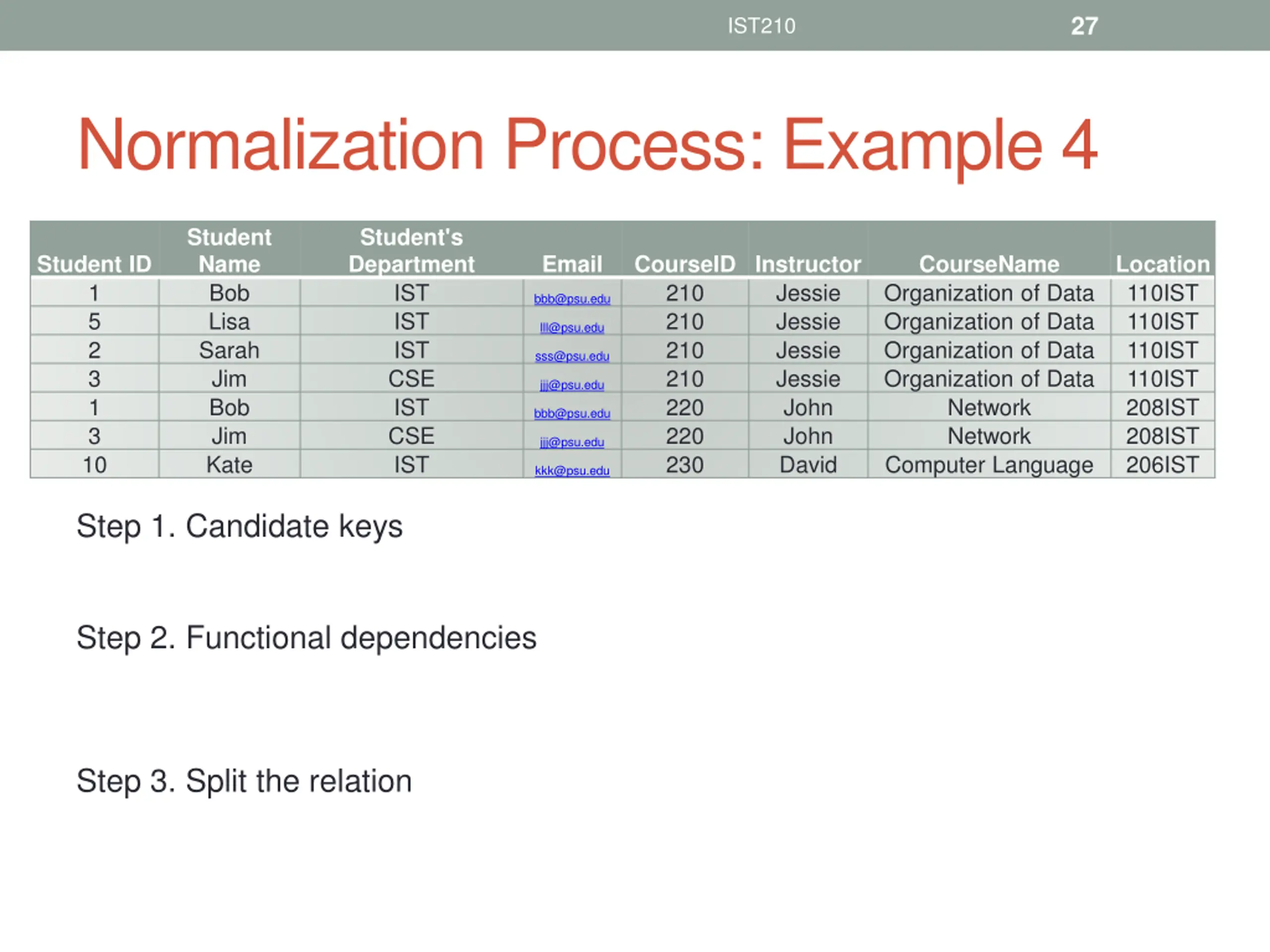

  27. 27 IST210 Normalization Process: Example 4 Student Name Bob Lisa Sarah Jim Bob Jim Kate Student's Department IST IST IST CSE IST CSE IST Student ID 1 5 2 3 1 3 10 Email CourseID Instructor 210 210 210 210 220 220 230 CourseName Organization of Data Organization of Data Organization of Data Organization of Data Network Network Computer Language Location 110IST 110IST 110IST 110IST 208IST 208IST 206IST Jessie Jessie Jessie Jessie John John David bbb@psu.edu lll@psu.edu sss@psu.edu jjj@psu.edu bbb@psu.edu jjj@psu.edu kkk@psu.edu Step 1. Candidate keys Step 2. Functional dependencies Step 3. Split the relation

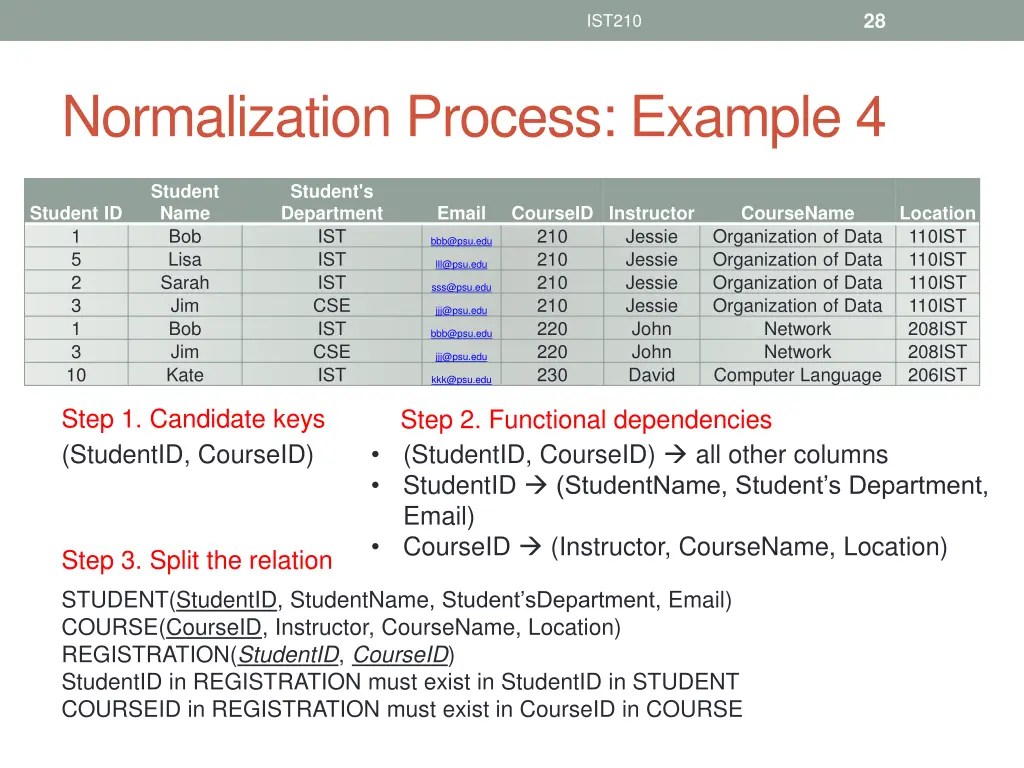

  28. 28 IST210 Normalization Process: Example 4 Student Name Bob Lisa Sarah Jim Bob Jim Kate Student's Department IST IST IST CSE IST CSE IST Student ID 1 5 2 3 1 3 10 Email CourseID Instructor 210 210 210 210 220 220 230 CourseName Organization of Data Organization of Data Organization of Data Organization of Data Network Network Computer Language Location 110IST 110IST 110IST 110IST 208IST 208IST 206IST Jessie Jessie Jessie Jessie John John David bbb@psu.edu lll@psu.edu sss@psu.edu jjj@psu.edu bbb@psu.edu jjj@psu.edu kkk@psu.edu Step 1. Candidate keys (StudentID, CourseID) Step 2. Functional dependencies (StudentID, CourseID) all other columns StudentID (StudentName, Student s Department, Email) CourseID (Instructor, CourseName, Location) Step 3. Split the relation STUDENT(StudentID, StudentName, Student sDepartment, Email) COURSE(CourseID, Instructor, CourseName, Location) REGISTRATION(StudentID, CourseID) StudentID in REGISTRATION must exist in StudentID in STUDENT COURSEID in REGISTRATION must exist in CourseID in COURSE

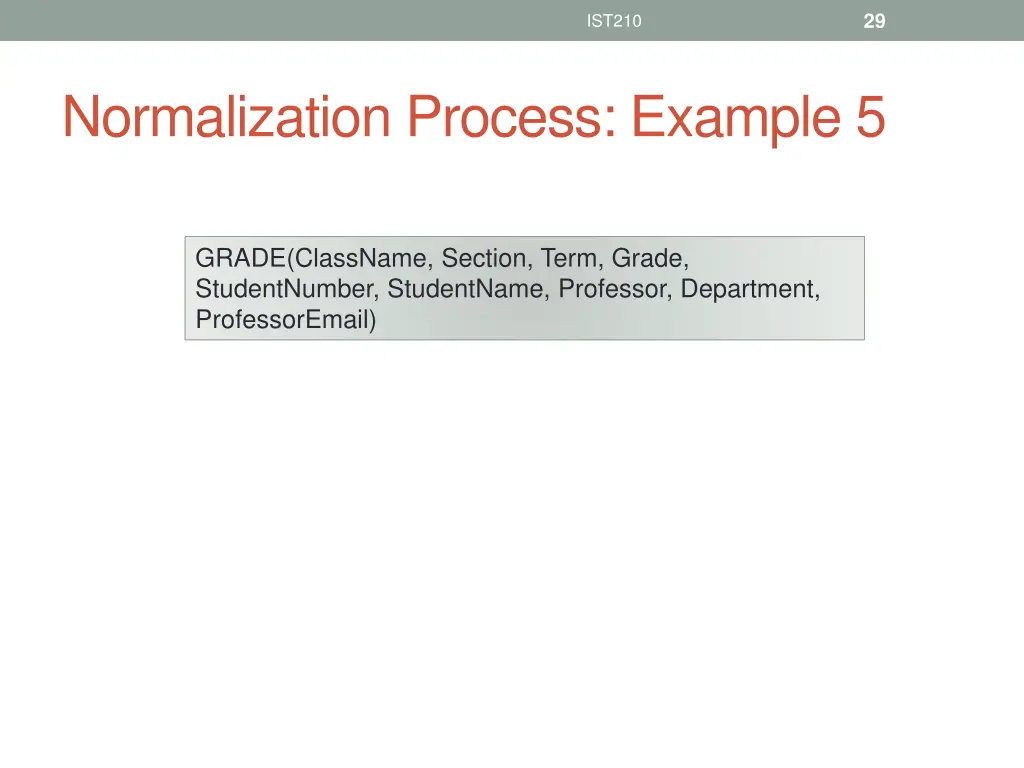

  29. 29 IST210 Normalization Process: Example 5 GRADE(ClassName, Section, Term, Grade, StudentNumber, StudentName, Professor, Department, ProfessorEmail)

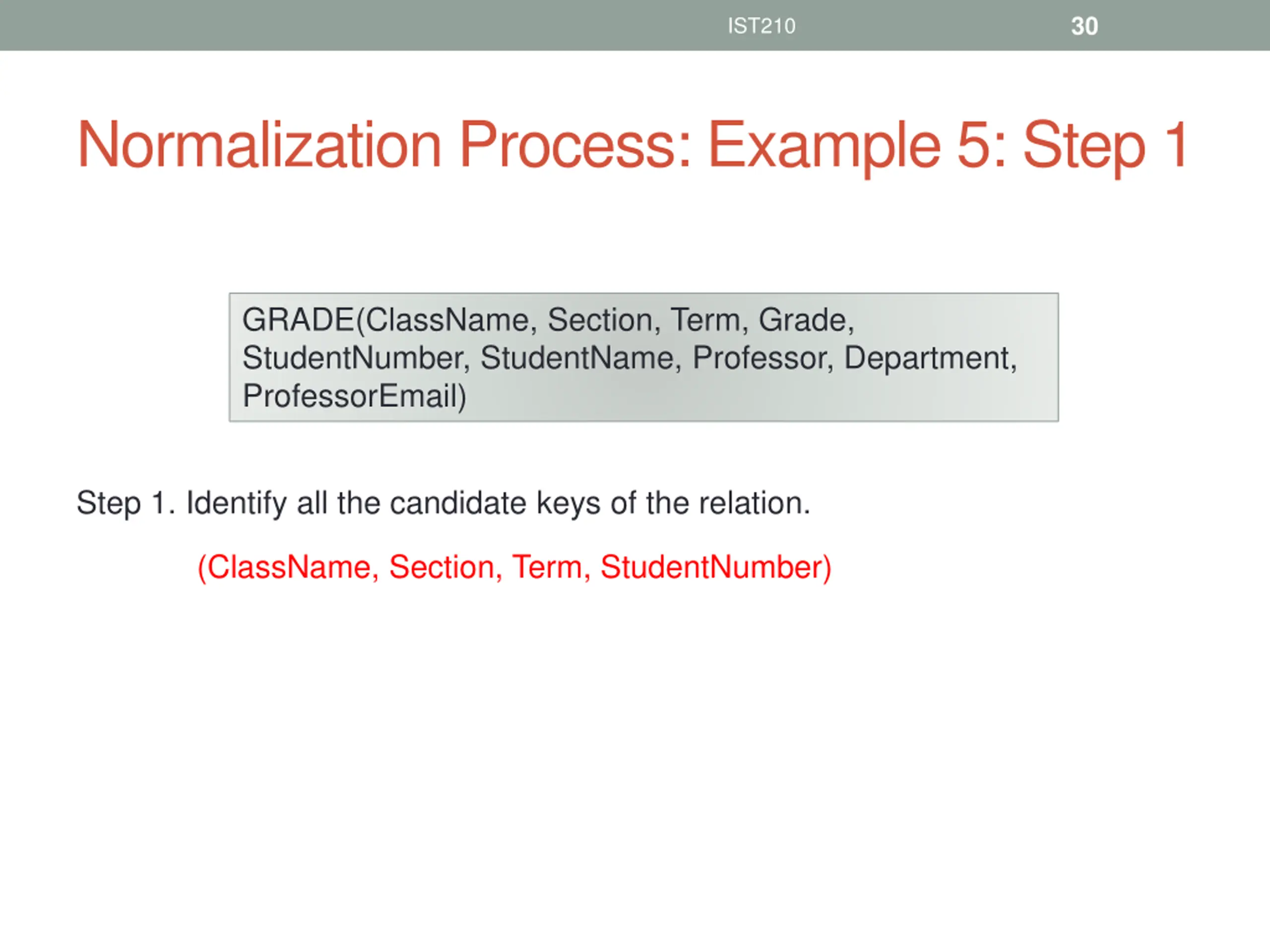

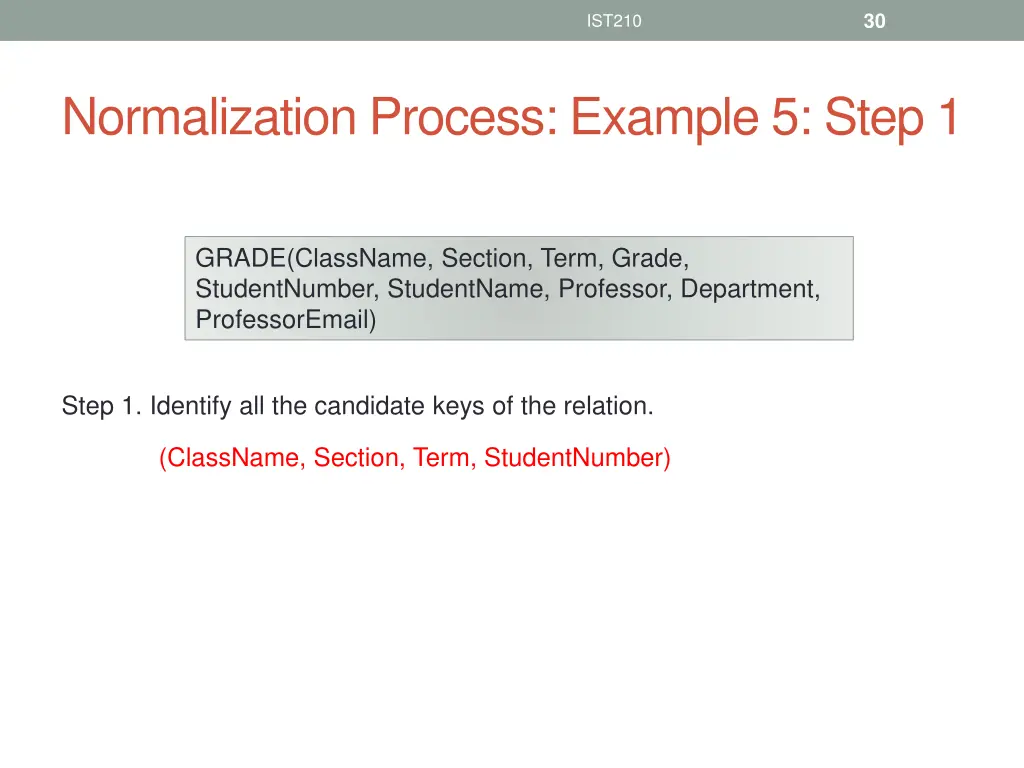

  30. 30 IST210 Normalization Process: Example 5: Step 1 GRADE(ClassName, Section, Term, Grade, StudentNumber, StudentName, Professor, Department, ProfessorEmail) Step 1. Identify all the candidate keys of the relation. (ClassName, Section, Term, StudentNumber)

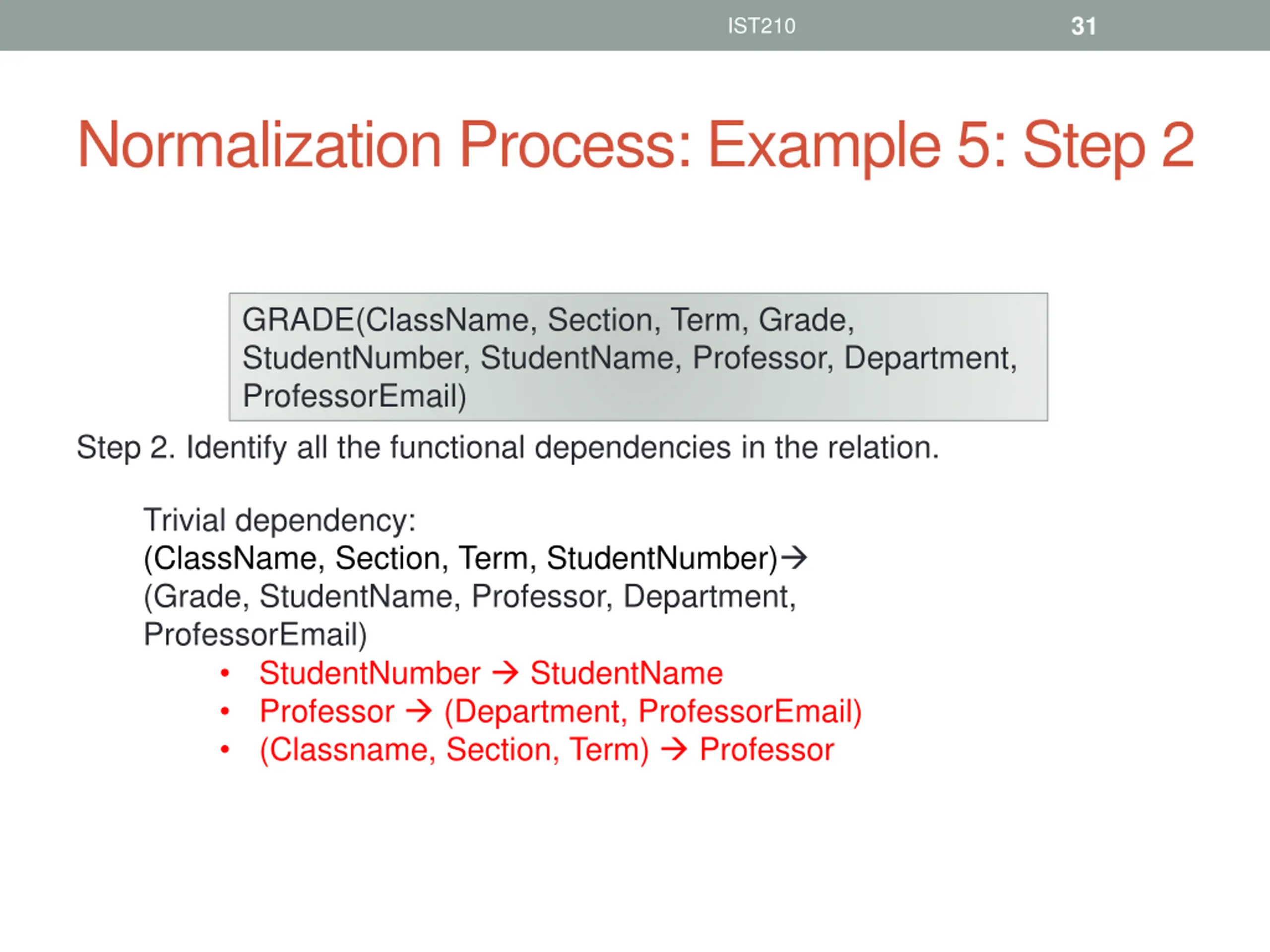

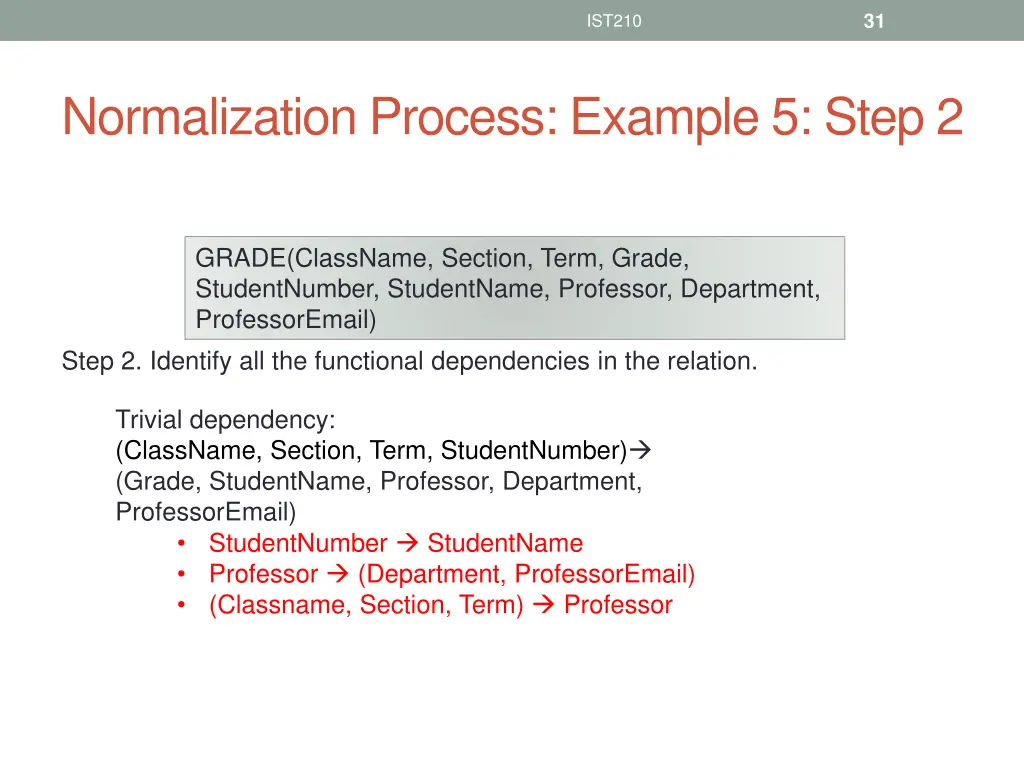

  31. 31 IST210 Normalization Process: Example 5: Step 2 GRADE(ClassName, Section, Term, Grade, StudentNumber, StudentName, Professor, Department, ProfessorEmail) Step 2. Identify all the functional dependencies in the relation. Trivial dependency: (ClassName, Section, Term, StudentNumber) (Grade, StudentName, Professor, Department, ProfessorEmail) StudentNumber StudentName Professor (Department, ProfessorEmail) (Classname, Section, Term) Professor

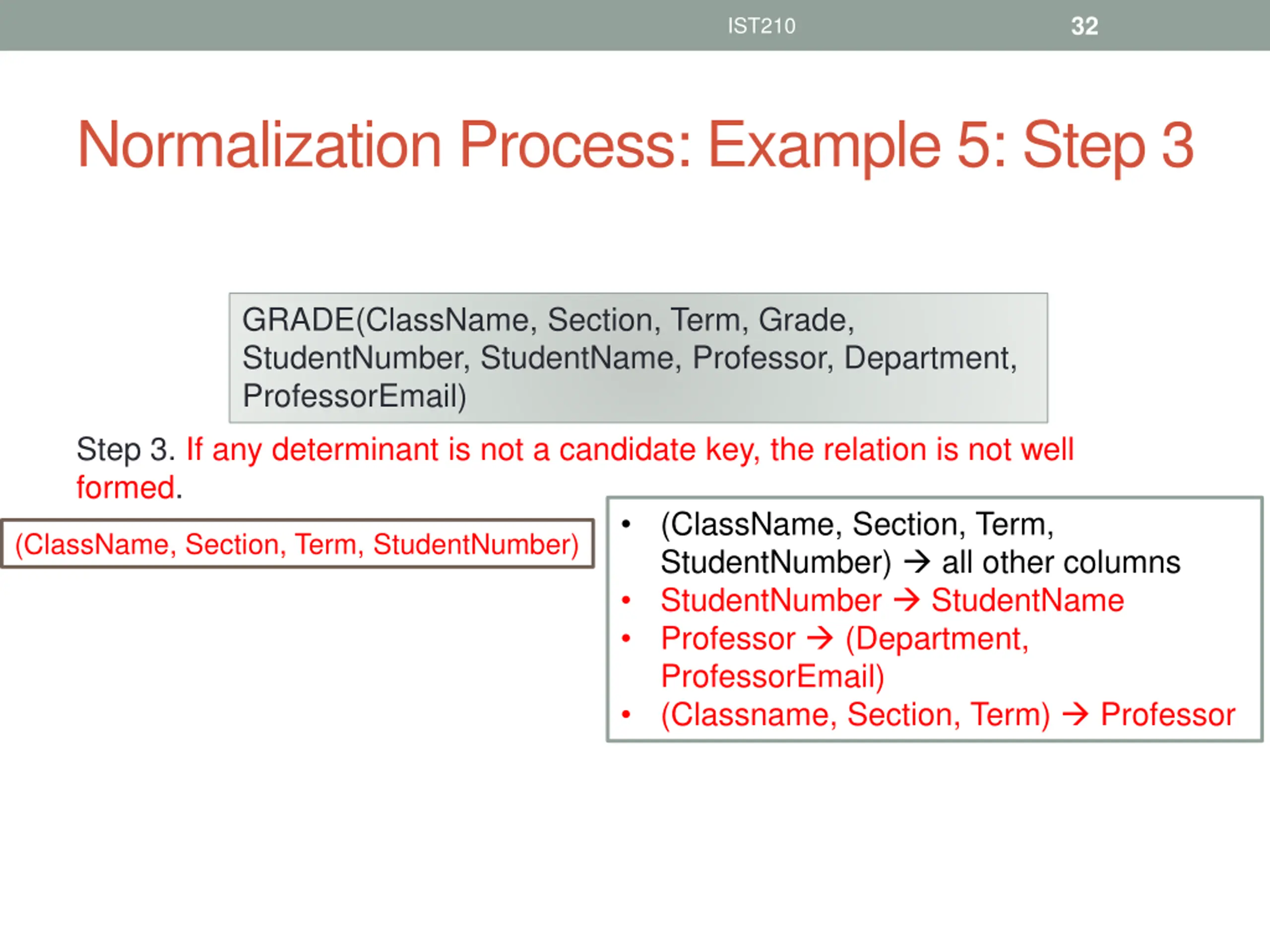

  32. 32 IST210 Normalization Process: Example 5: Step 3 GRADE(ClassName, Section, Term, Grade, StudentNumber, StudentName, Professor, Department, ProfessorEmail) Step 3. If any determinant is not a candidate key, the relation is not well formed. (ClassName, Section, Term, StudentNumber) all other columns StudentNumber StudentName Professor (Department, ProfessorEmail) (Classname, Section, Term) Professor (ClassName, Section, Term, StudentNumber)

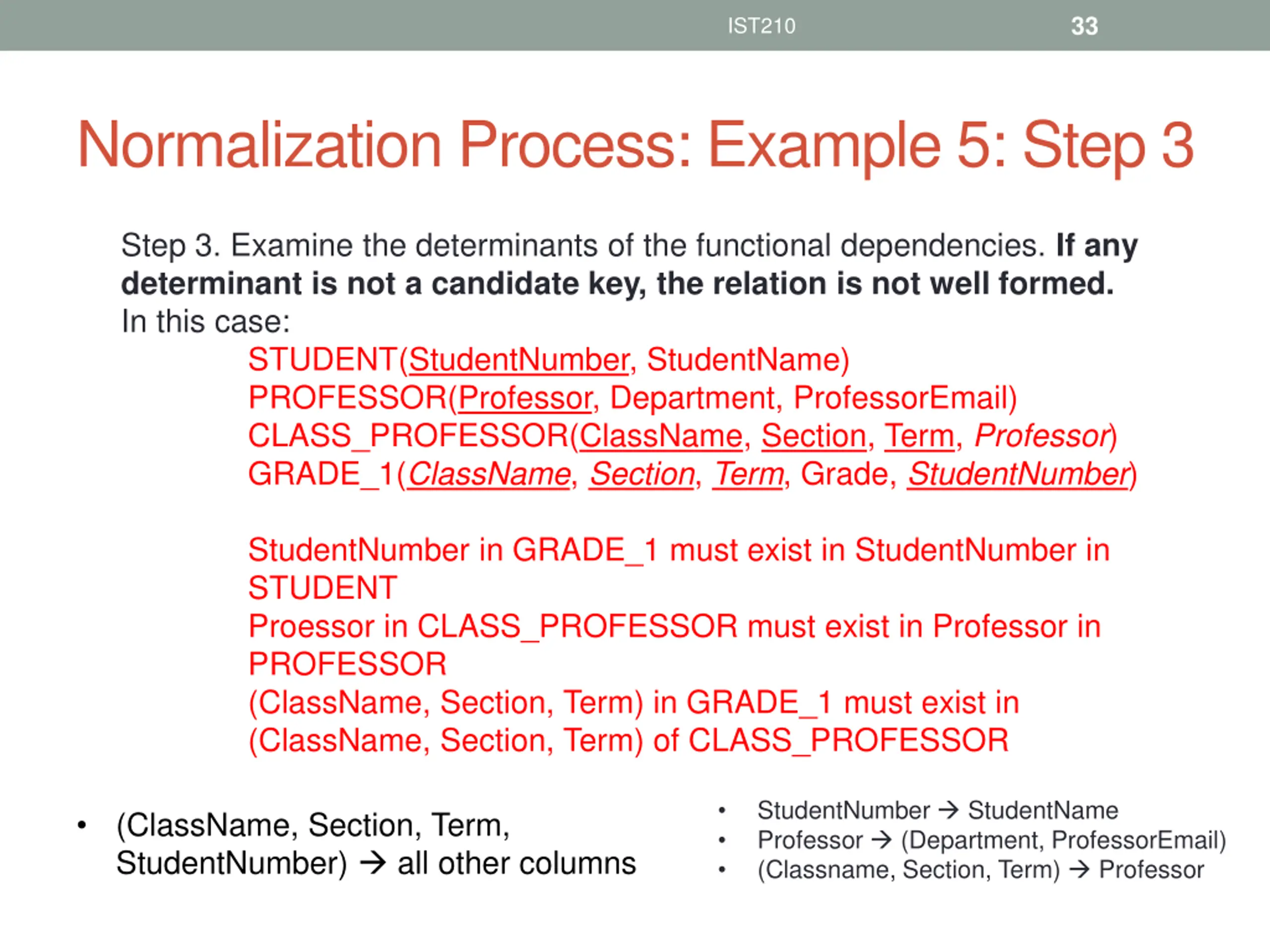

  33. 33 IST210 Normalization Process: Example 5: Step 3 Step 3. Examine the determinants of the functional dependencies. If any determinant is not a candidate key, the relation is not well formed. In this case: STUDENT(StudentNumber, StudentName) PROFESSOR(Professor, Department, ProfessorEmail) CLASS_PROFESSOR(ClassName, Section, Term, Professor) GRADE_1(ClassName, Section, Term, Grade, StudentNumber) StudentNumber in GRADE_1 must exist in StudentNumber in STUDENT Proessor in CLASS_PROFESSOR must exist in Professor in PROFESSOR (ClassName, Section, Term) in GRADE_1 must exist in (ClassName, Section, Term) of CLASS_PROFESSOR StudentNumber StudentName Professor (Department, ProfessorEmail) (Classname, Section, Term) Professor (ClassName, Section, Term, StudentNumber) all other columns

  34. 40 IST210 Review Question A relation is well-formed if A. Every determinant is a candidate key. B. Every candidate key is a determinant.

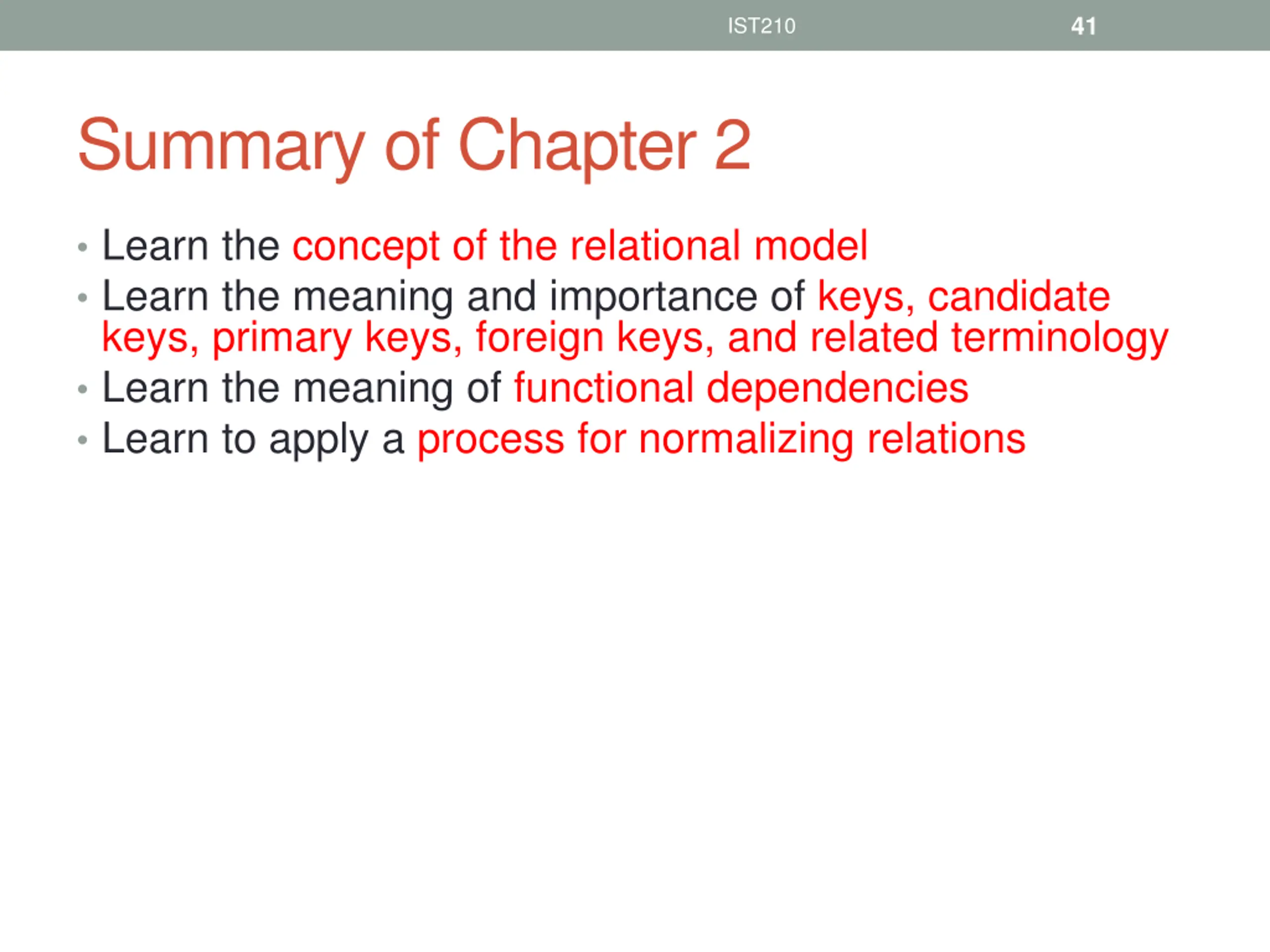

  35. 41 IST210 Summary of Chapter 2 Learn the concept of the relational model Learn the meaning and importance of keys, candidate keys, primary keys, foreign keys, and related terminology Learn the meaning of functional dependencies Learn to apply a process for normalizing relations

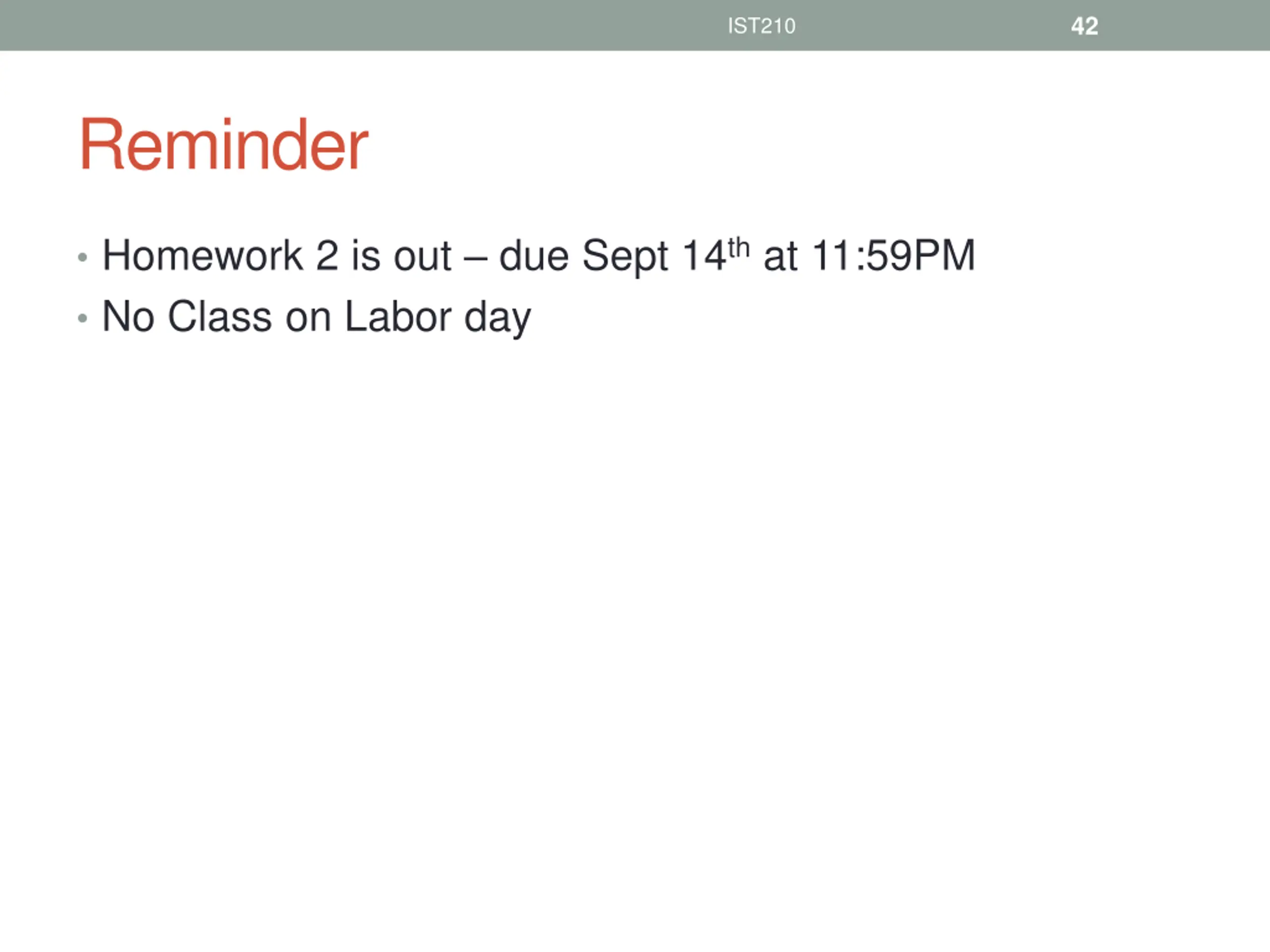

  36. 42 IST210 Reminder Homework 2 is out due Sept 14th at 11:59PM No Class on Labor day
