  1. Dueling Algorithm

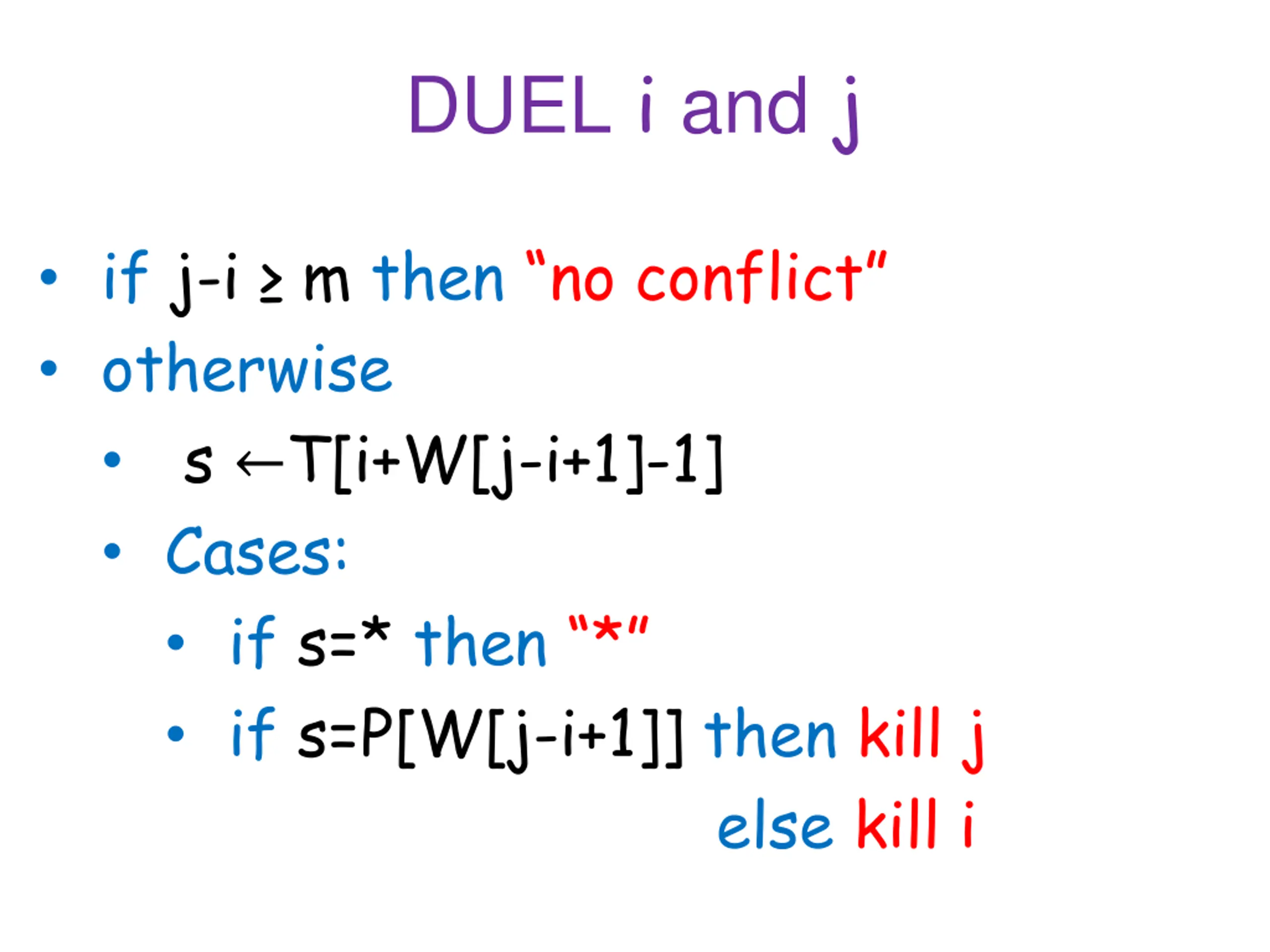

  2. DUEL i and j if j-i m then no conflict otherwise s T[i+W[j-i+1]-1] Cases: if s=* then * if s=P[W[j-i+1]] then kill j else kill i

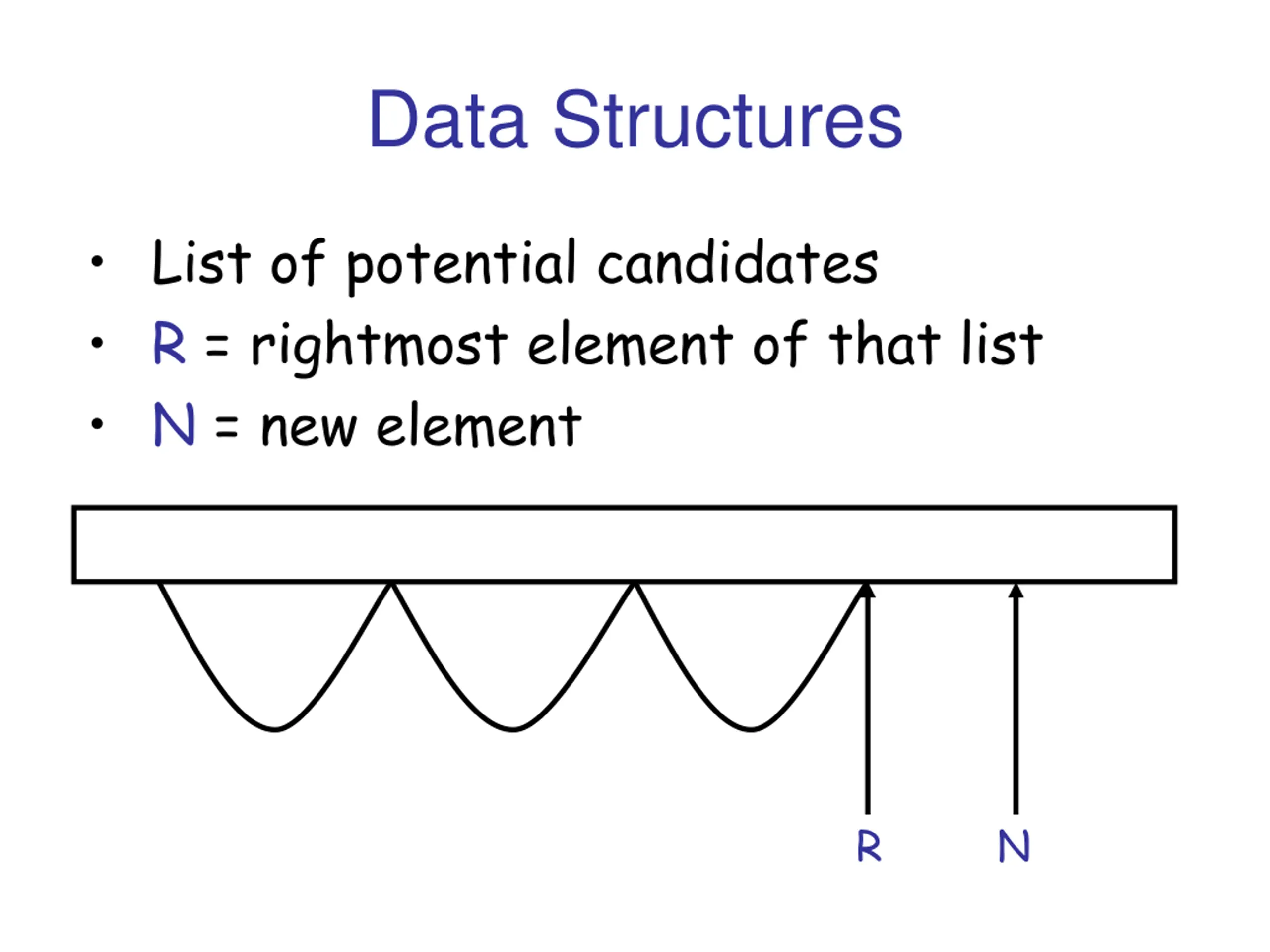

  3. Data Structures List of potential candidates R = rightmost element of that list N = new element R N

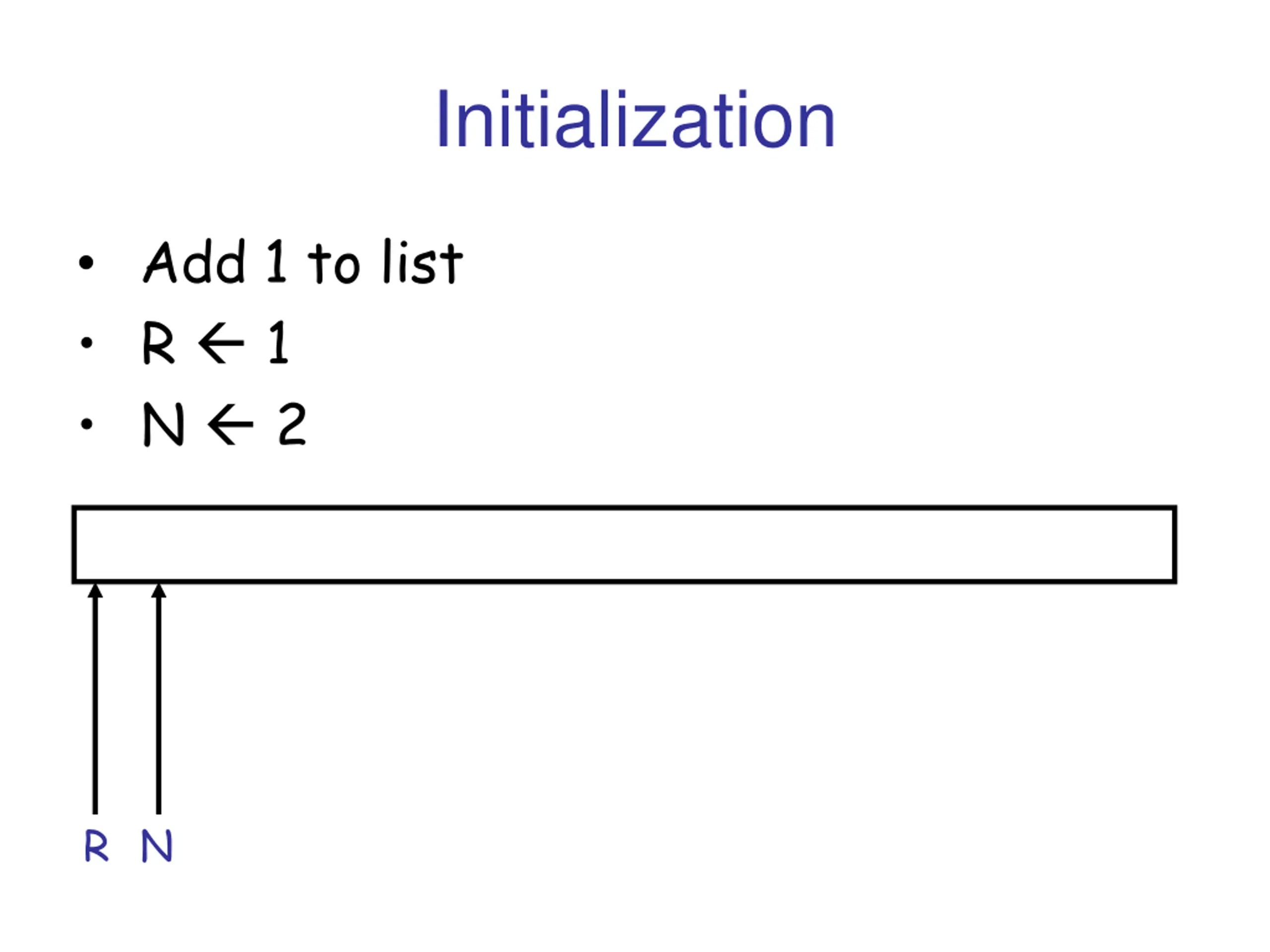

  4. Initialization Add 1 to list R 1 N 2 R N

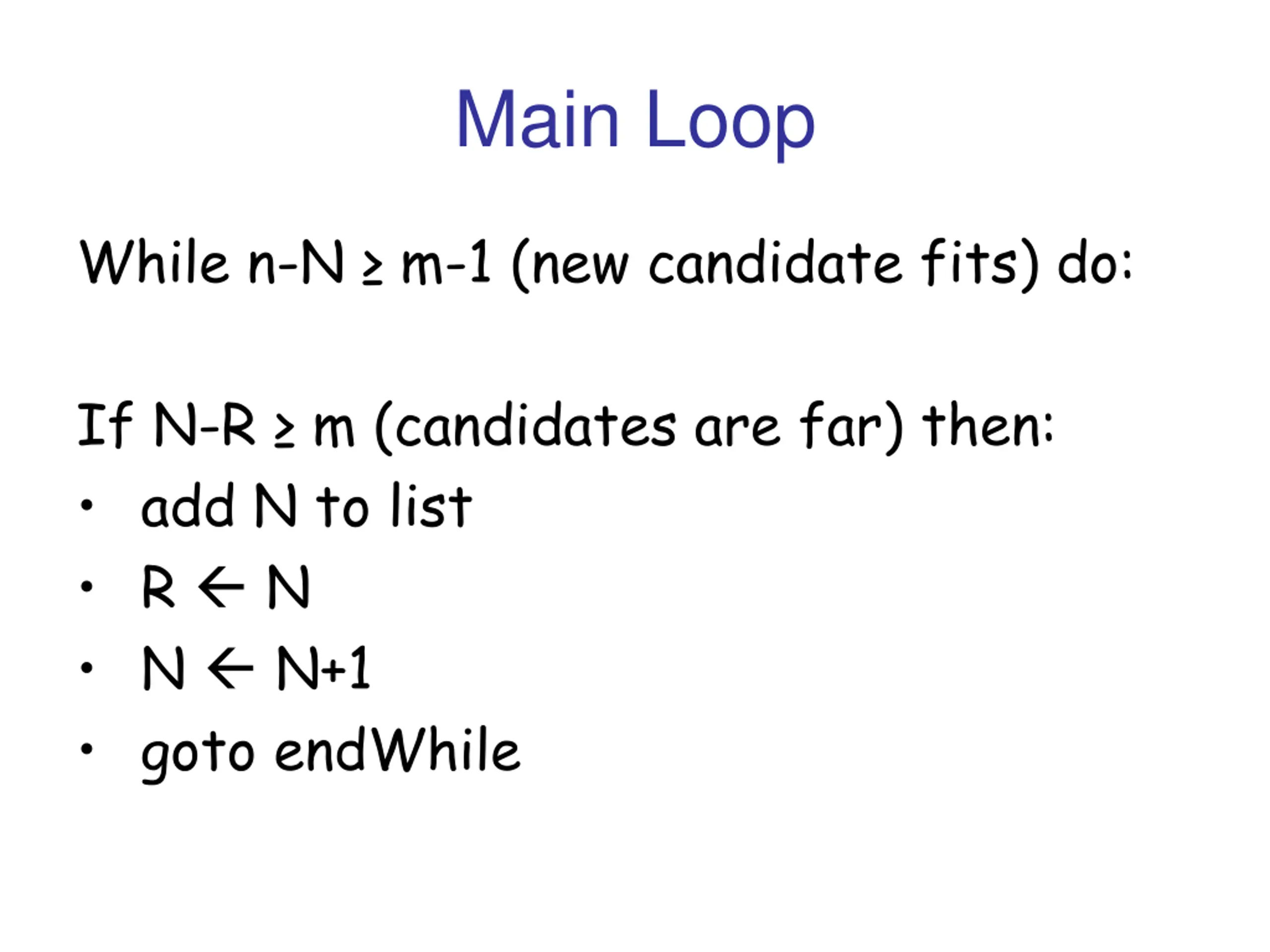

  5. Main Loop While n-N m-1 (new candidate fits) do: If N-R m (candidates are far) then: add N to list R N N N+1 goto endWhile

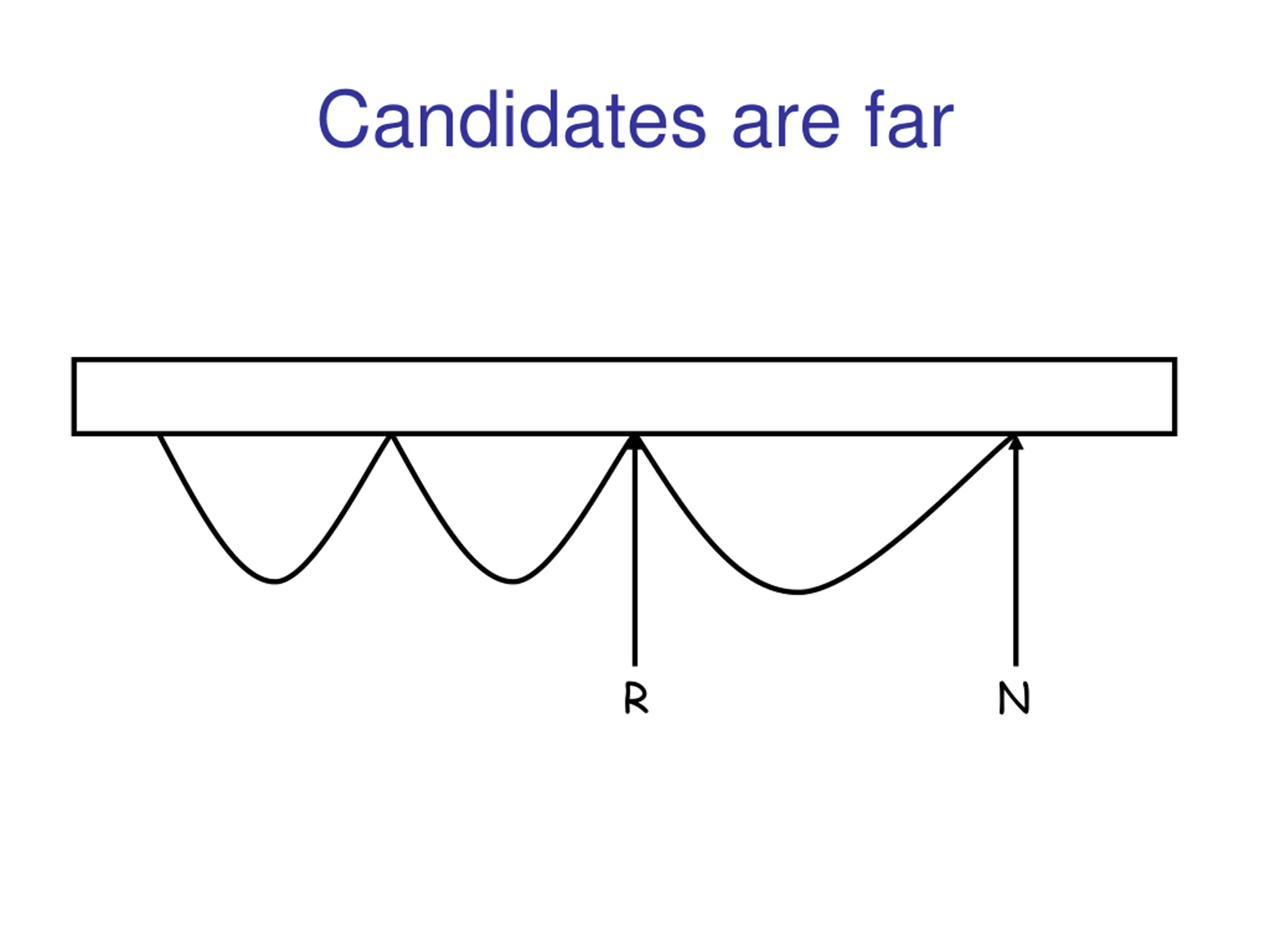

  6. Candidates are far R N

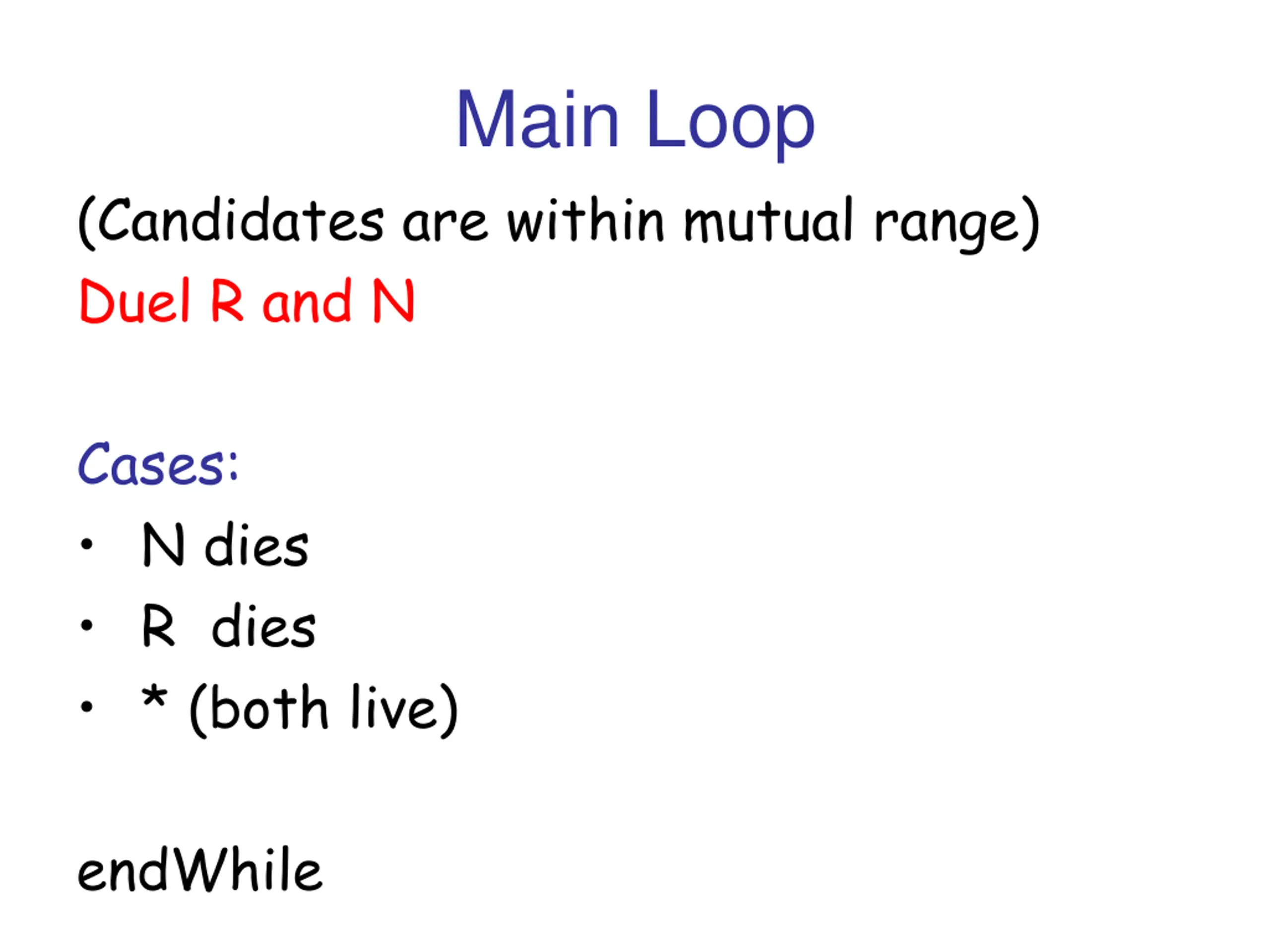

  7. Main Loop (Candidates are within mutual range) Duel R and N Cases: N dies R dies * (both live) endWhile

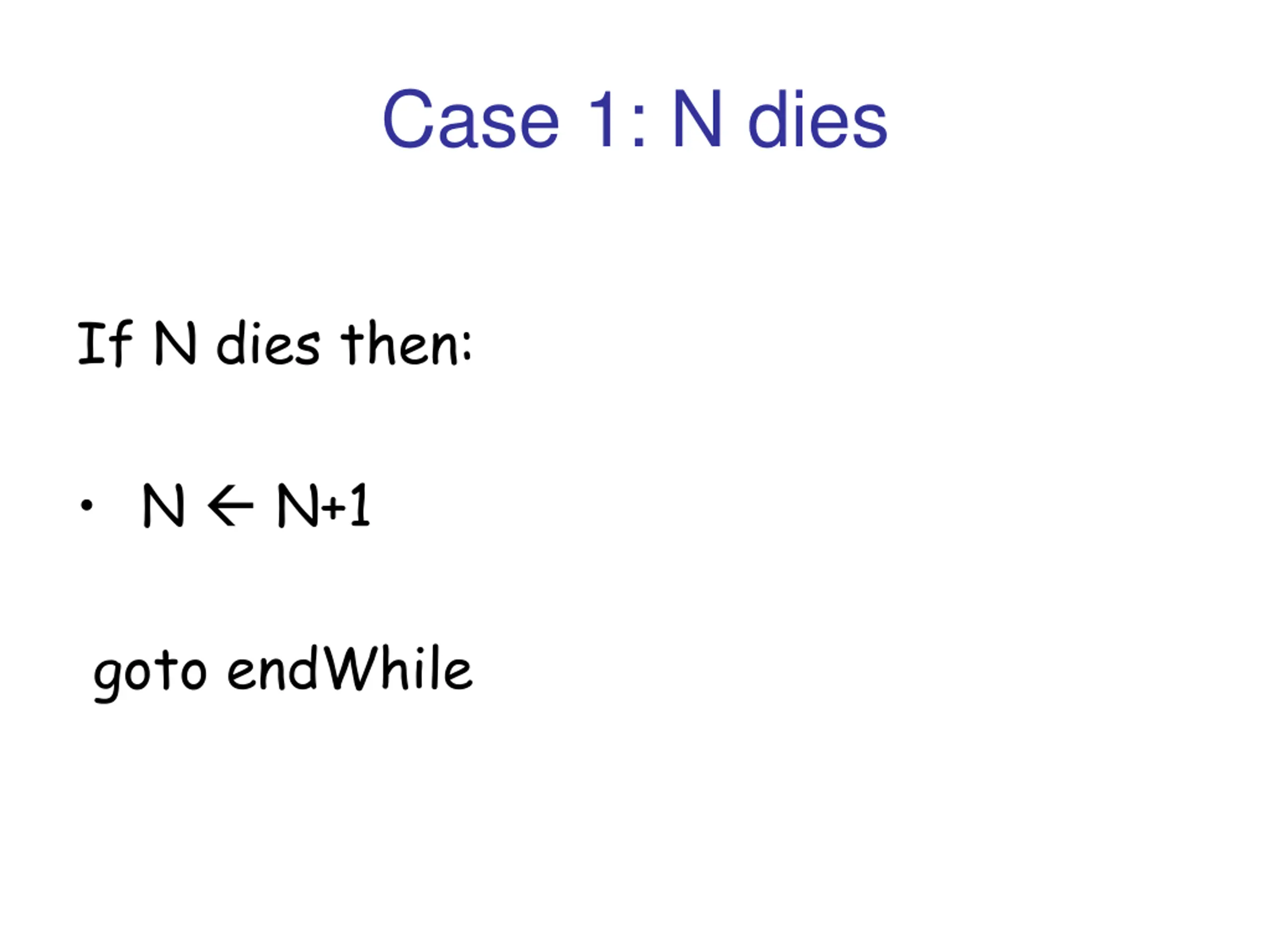

  8. Case 1: N dies If N dies then: N N+1 goto endWhile

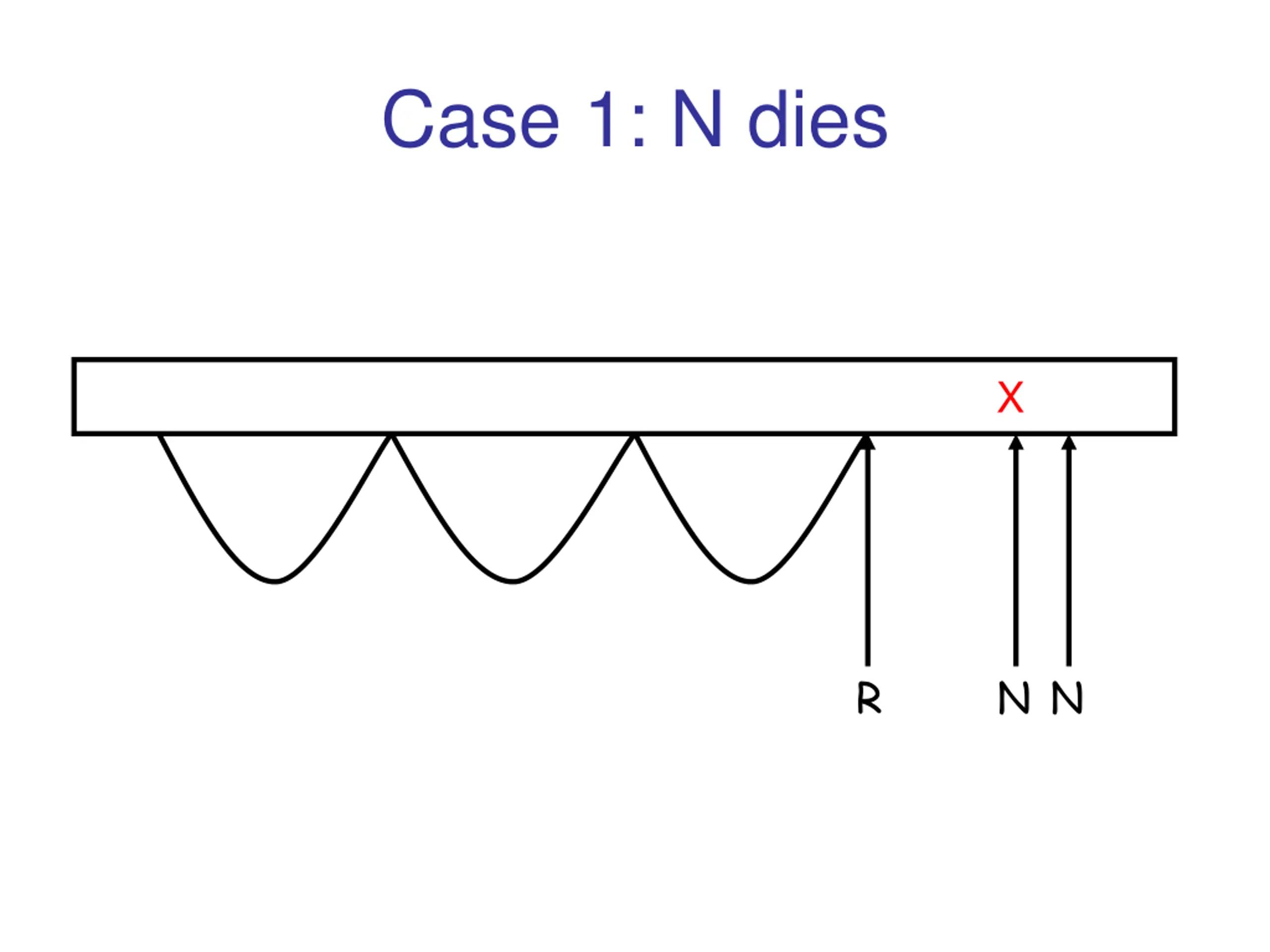

  9. Case 1: N dies X R N N

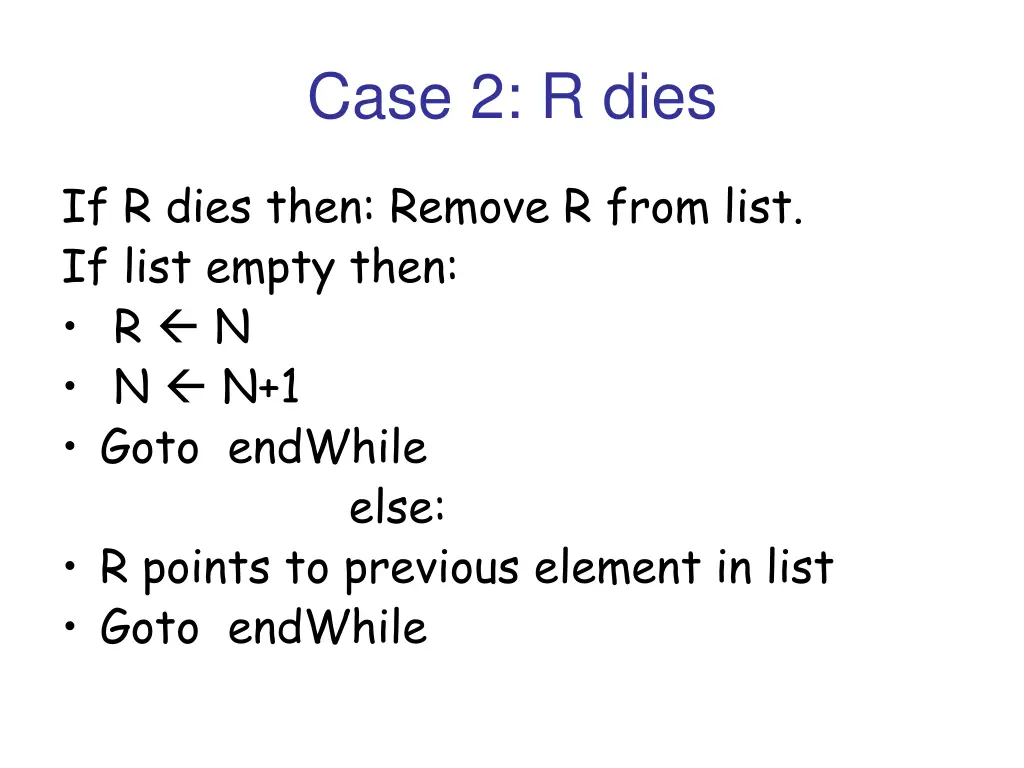

  10. Case 2: R dies If R dies then: Remove R from list. If list empty then: R N N N+1 Goto endWhile else: R points to previous element in list Goto endWhile

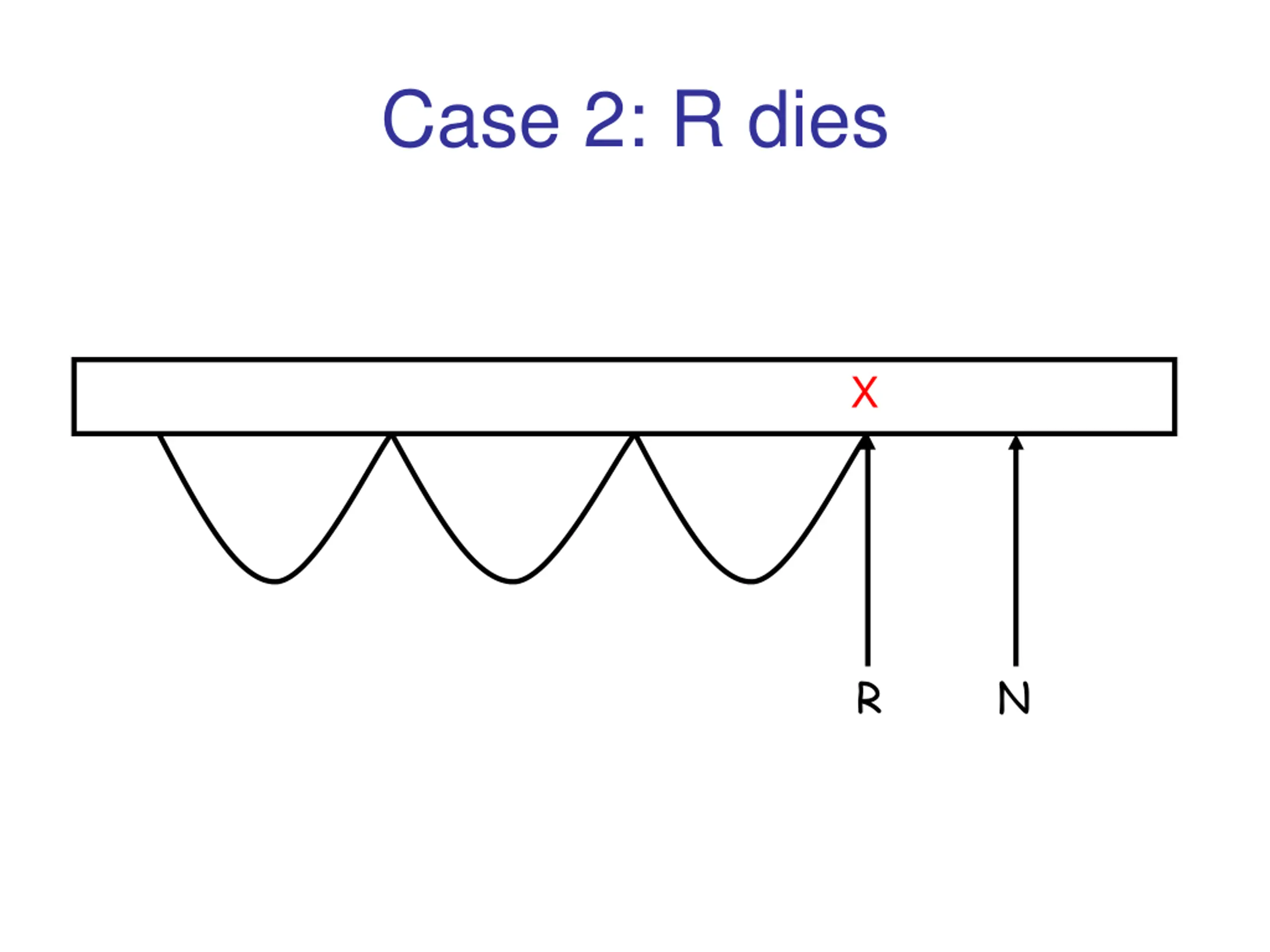

  11. Case 2: R dies X R N

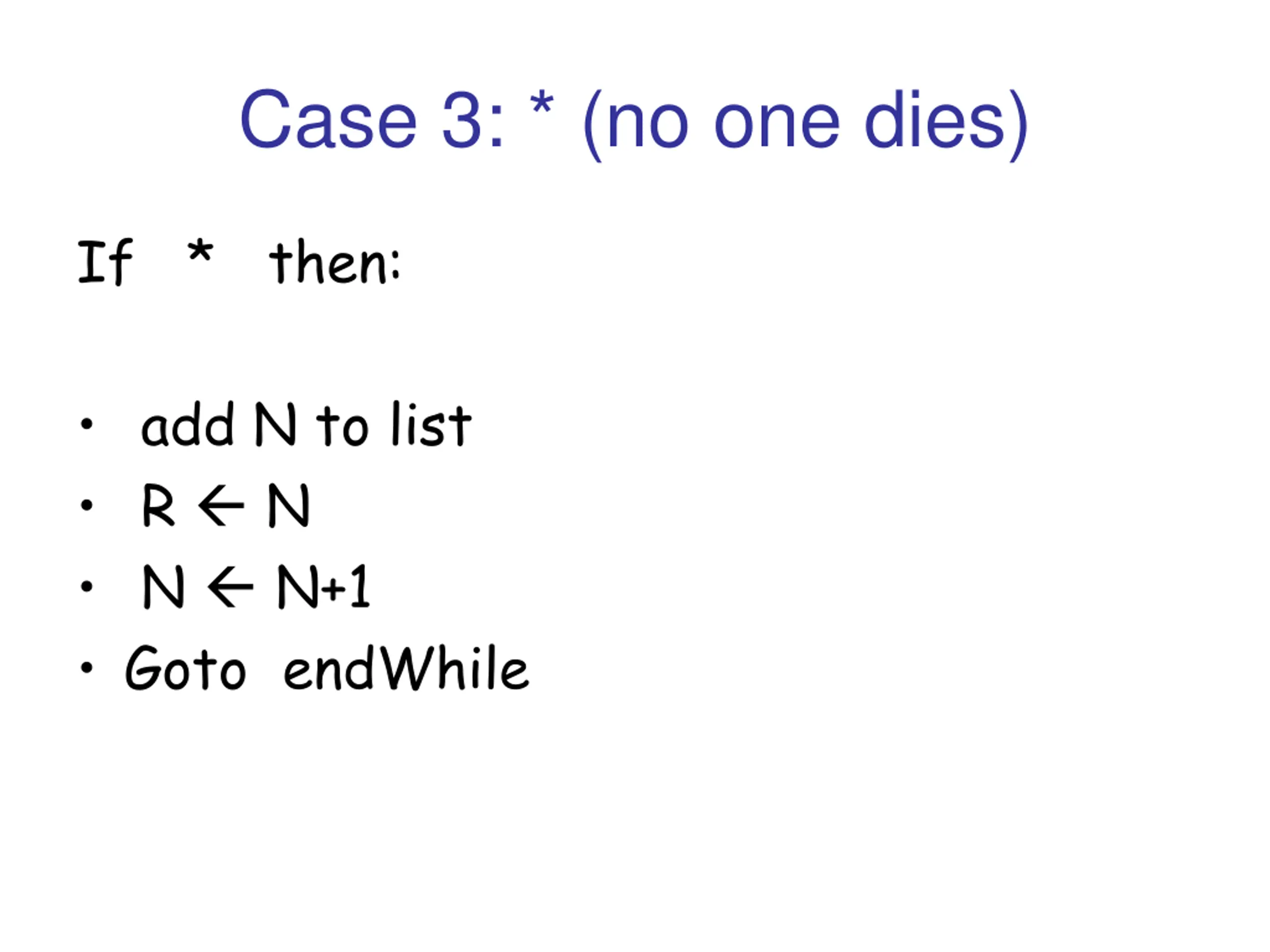

  12. Case 3: * (no one dies) If * then: add N to list R N N N+1 Goto endWhile

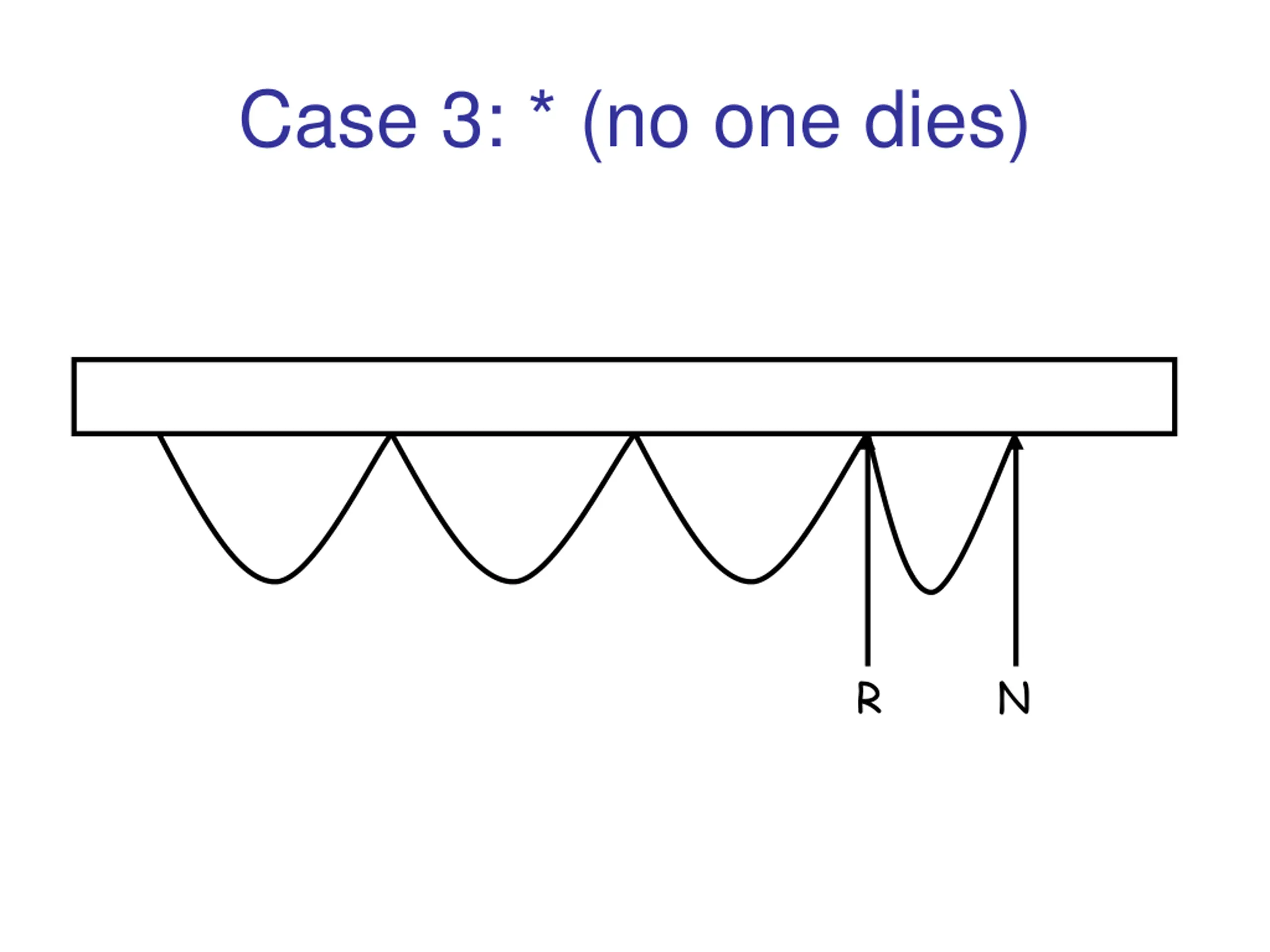

  13. Case 3: * (no one dies) R N

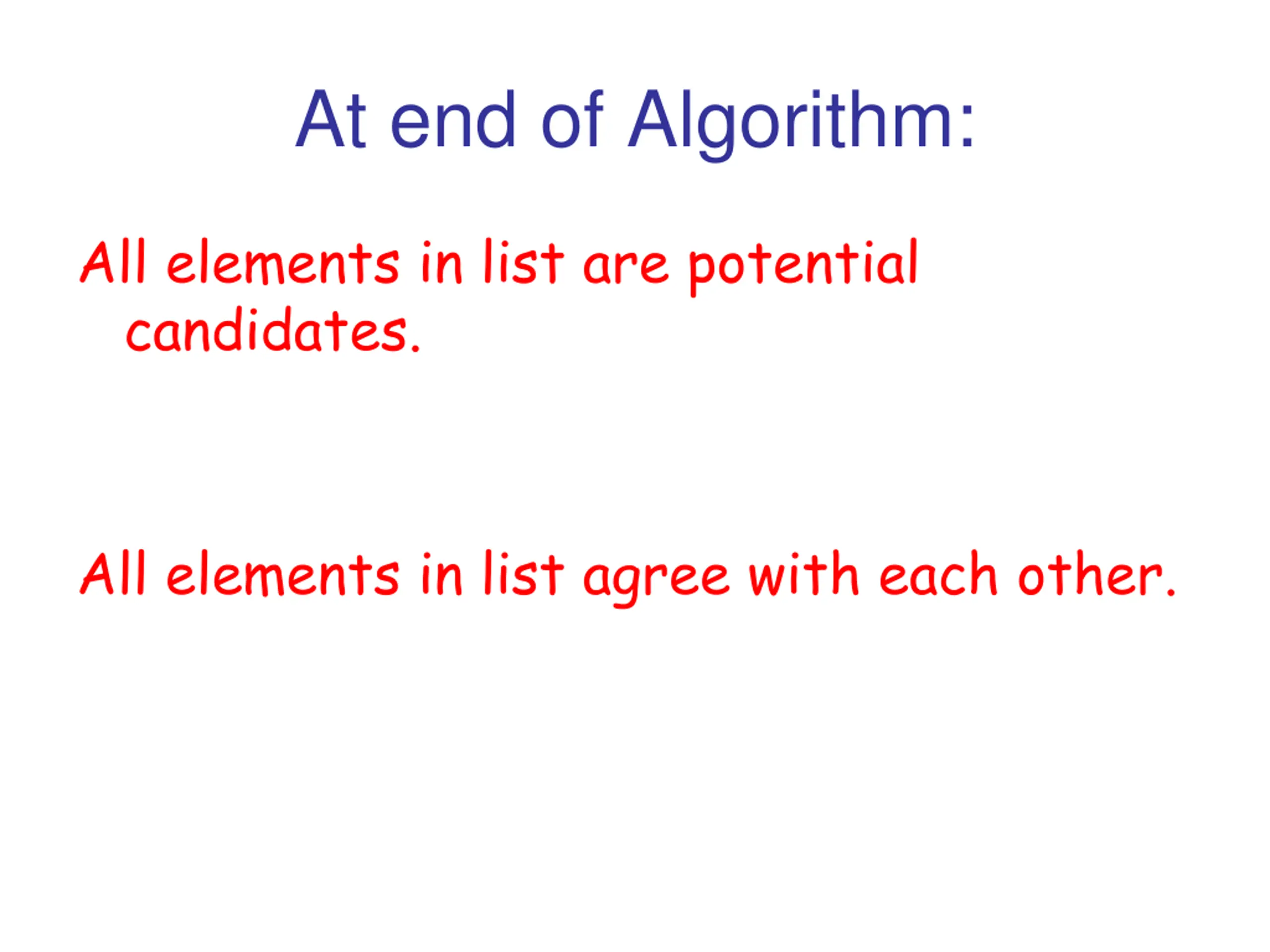

  14. At end of Algorithm: All elements in list are potential candidates. All elements in list agree with each other.
