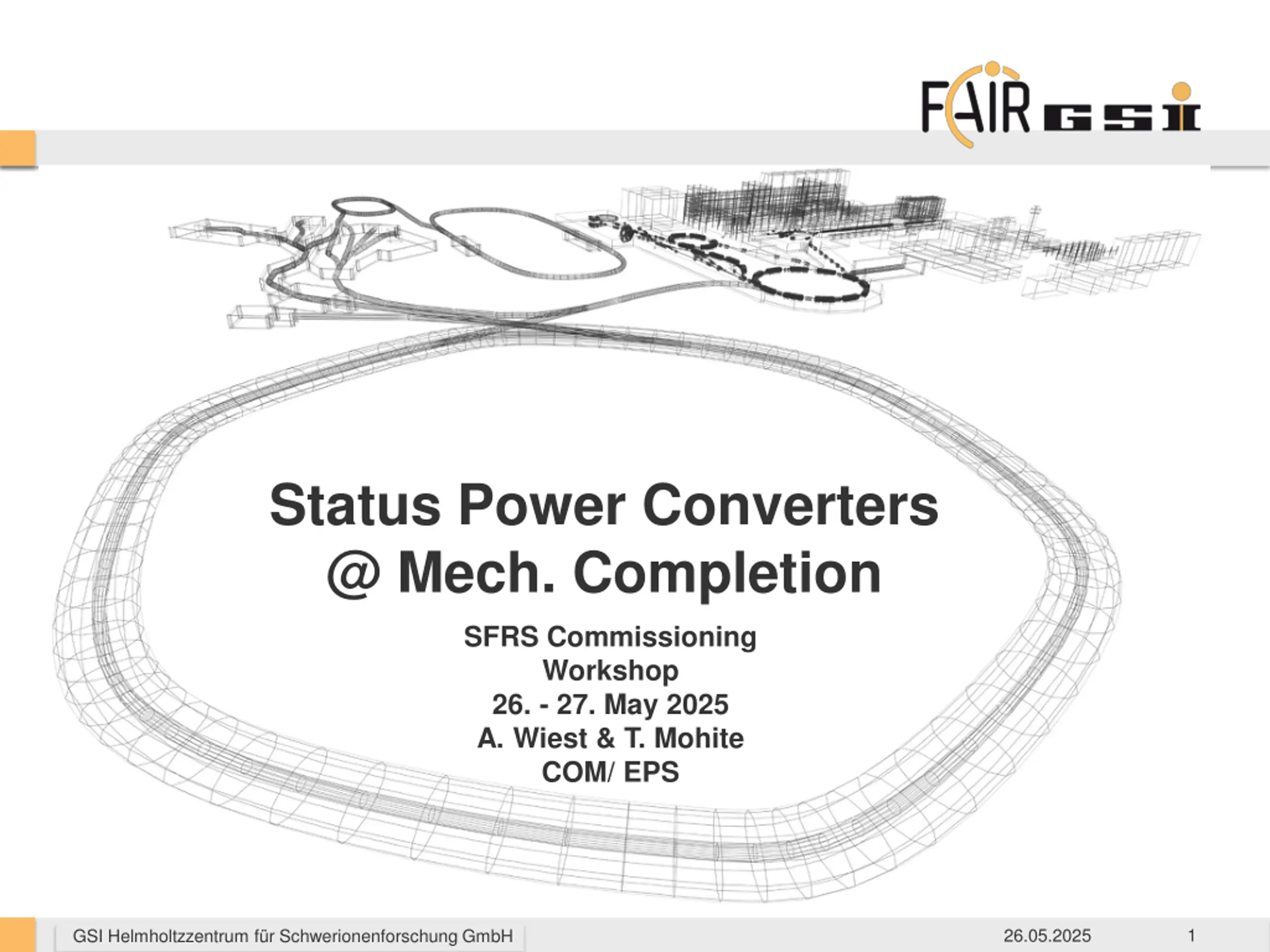

Status Power Converters @ Mech. Completion SFRS Commissioning Workshop 26. - 27. May 2025 A. Wiest & T. Mohite COM/ EPS 1 26.05.2025 GSI Helmholtzzentrum f r Schwerionenforschung GmbH GSI Helmholtzzentrum f r Schwerionenforschung GmbH

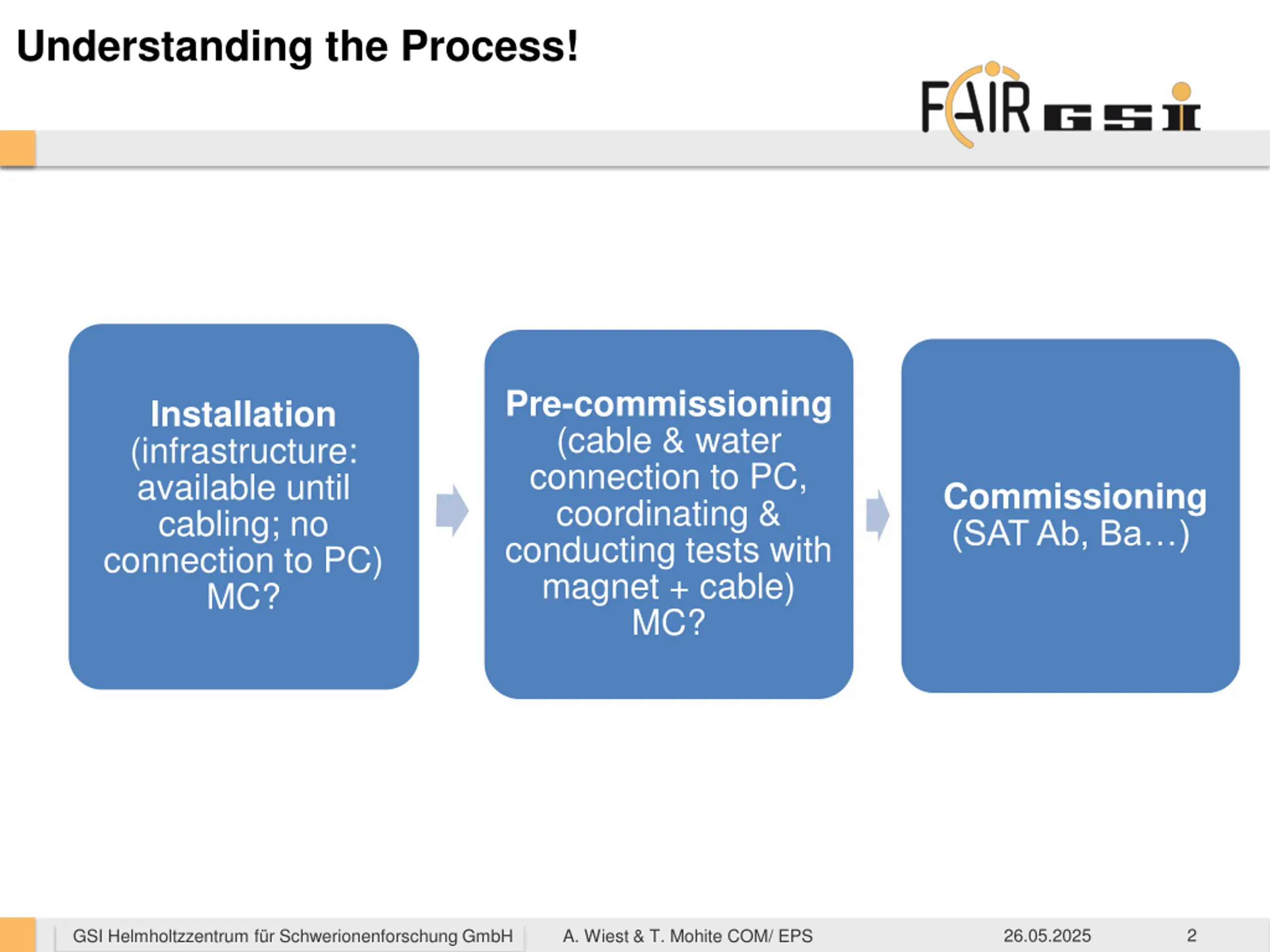

Understanding the Process! Pre-commissioning (cable & water connection to PC, coordinating & conducting tests with magnet + cable) MC? Installation (infrastructure: available until cabling; no connection to PC) MC? Commissioning (SAT Ab, Ba ) 2 26.05.2025 A. Wiest & T. Mohite COM/ EPS GSI Helmholtzzentrum f r Schwerionenforschung GmbH GSI Helmholtzzentrum f r Schwerionenforschung GmbH

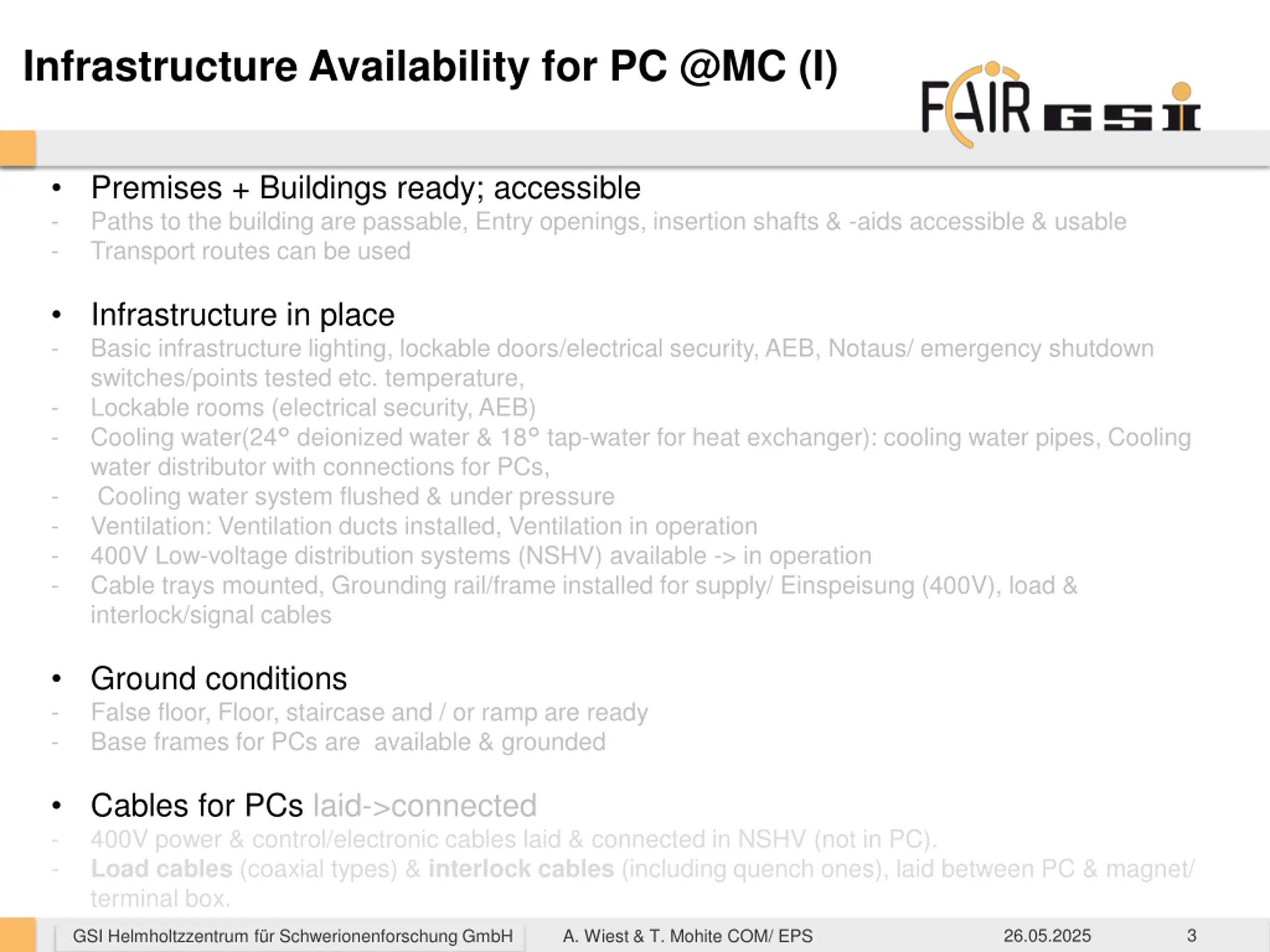

Infrastructure Availability for PC @MC (I) Premises + Buildings ready; accessible Paths to the building are passable, Entry openings, insertion shafts & -aids accessible & usable Transport routes can be used - - Infrastructure in place Basic infrastructure lighting, lockable doors/electrical security, AEB, Notaus/ emergency shutdown switches/points tested etc. temperature, Lockable rooms (electrical security, AEB) Cooling water(24 deionized water & 18 tap-water for heat exchanger): cooling water pipes, Cooling water distributor with connections for PCs, Cooling water system flushed & under pressure Ventilation: Ventilation ducts installed, Ventilation in operation 400V Low-voltage distribution systems (NSHV) available -> in operation Cable trays mounted, Grounding rail/frame installed for supply/ Einspeisung (400V), load & interlock/signal cables - - - - - - - Ground conditions False floor, Floor, staircase and / or ramp are ready Base frames for PCs are available & grounded - - Cables for PCs laid->connected 400V power & control/electronic cables laid & connected in NSHV (not in PC). Load cables (coaxial types) & interlock cables (including quench ones), laid between PC & magnet/ terminal box. - - 3 26.05.2025 A. Wiest & T. Mohite COM/ EPS GSI Helmholtzzentrum f r Schwerionenforschung GmbH GSI Helmholtzzentrum f r Schwerionenforschung GmbH

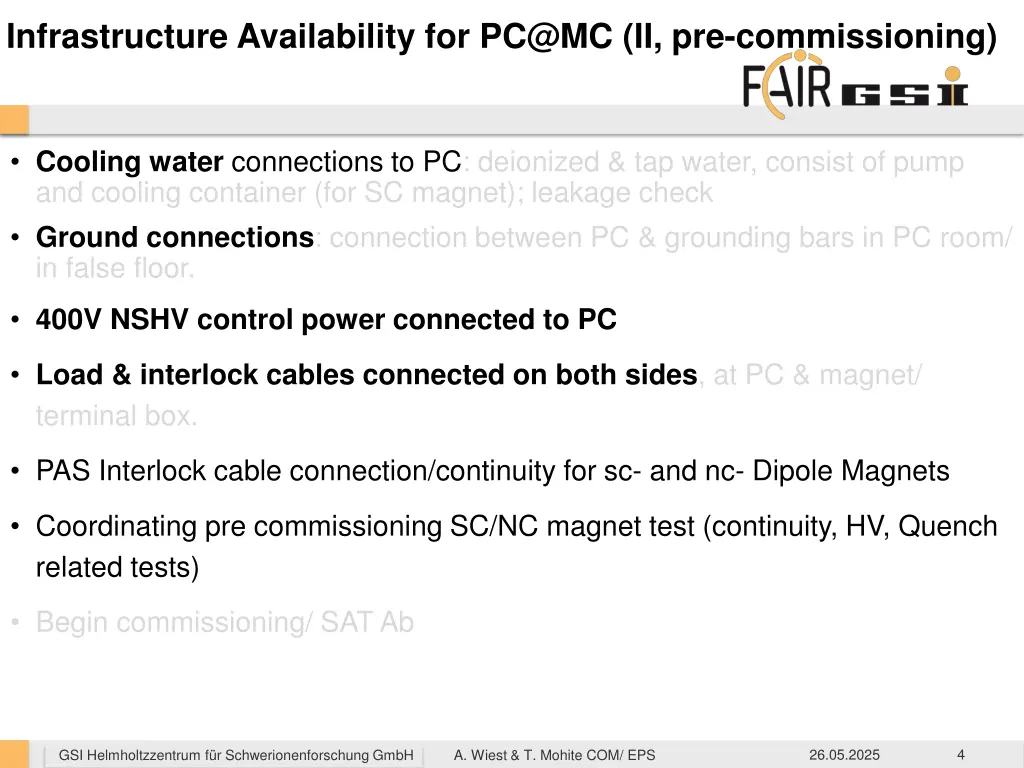

Infrastructure Availability for PC@MC (II, pre-commissioning) Cooling water connections to PC: deionized & tap water, consist of pump and cooling container (for SC magnet); leakage check Ground connections: connection between PC & grounding bars in PC room/ in false floor. 400V NSHV control power connected to PC Load & interlock cables connected on both sides, at PC & magnet/ terminal box. PAS Interlock cable connection/continuity for sc- and nc- Dipole Magnets Coordinating pre commissioning SC/NC magnet test (continuity, HV, Quench related tests) Begin commissioning/ SAT Ab 4 26.05.2025 A. Wiest & T. Mohite COM/ EPS GSI Helmholtzzentrum f r Schwerionenforschung GmbH GSI Helmholtzzentrum f r Schwerionenforschung GmbH

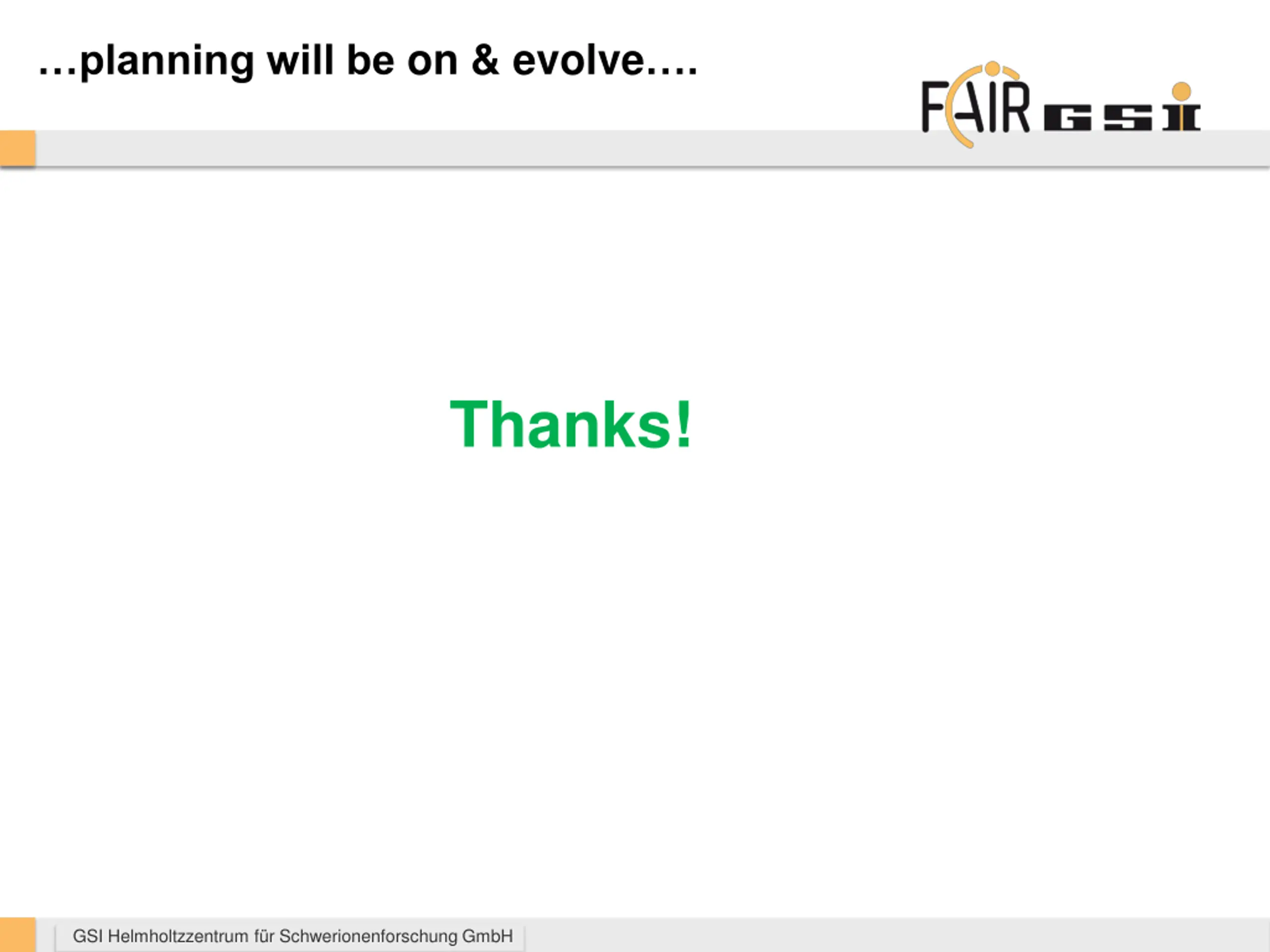

planning will be on & evolve. Thanks! GSI Helmholtzzentrum f r Schwerionenforschung GmbH GSI Helmholtzzentrum f r Schwerionenforschung GmbH
