DWIN T5L DGUS Unicode Font Display

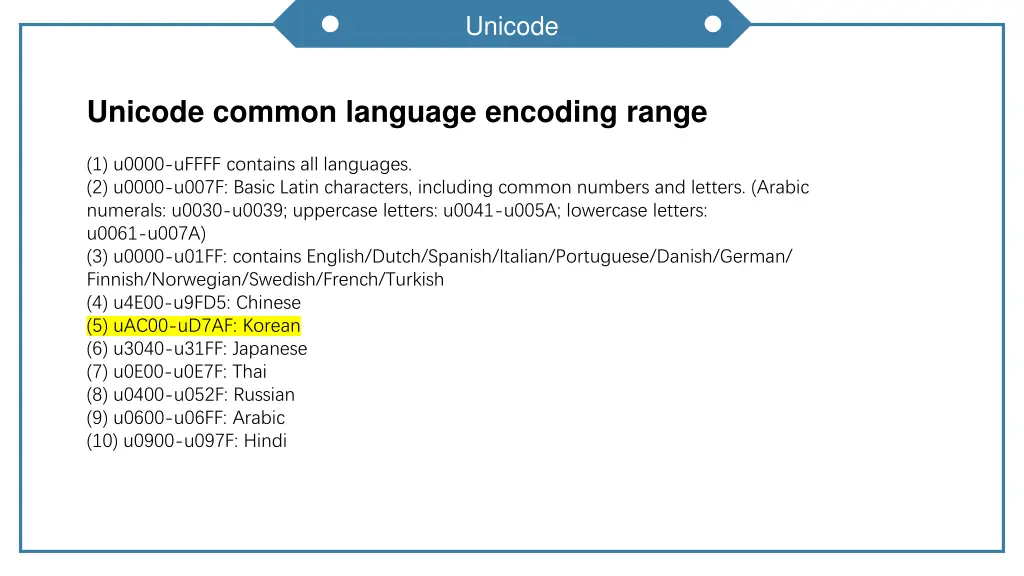

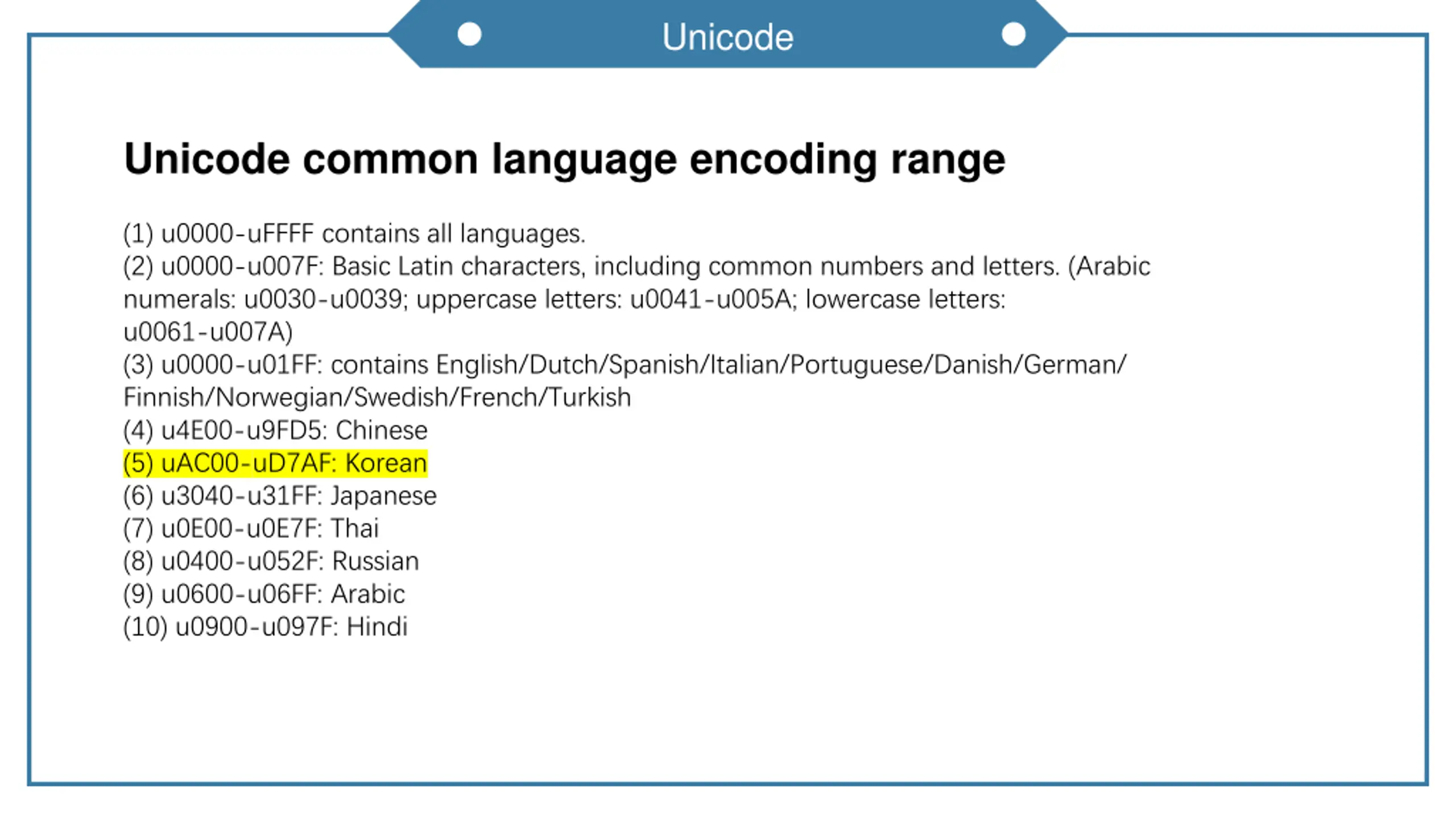

Unicode Unicode common language encoding range (1) u0000-uFFFF contains all languages. (2) u0000-u007F: Basic Latin characters, including common numbers and letters. (Arabic numerals: u0030-u0039; uppercase letters: u0041-u005A; lowercase letters: u0061-u007A) (3) u0000-u01FF: contains English/Dutch/Spanish/Italian/Portuguese/Danish/German/ Finnish/Norwegian/Swedish/French/Turkish (4) u4E00-u9FD5: Chinese (5) uAC00-uD7AF: Korean (6) u3040-u31FF: Japanese (7) u0E00-u0E7F: Thai (8) u0400-u052F: Russian (9) u0600-u06FF: Arabic (10) u0900-u097F: Hindi

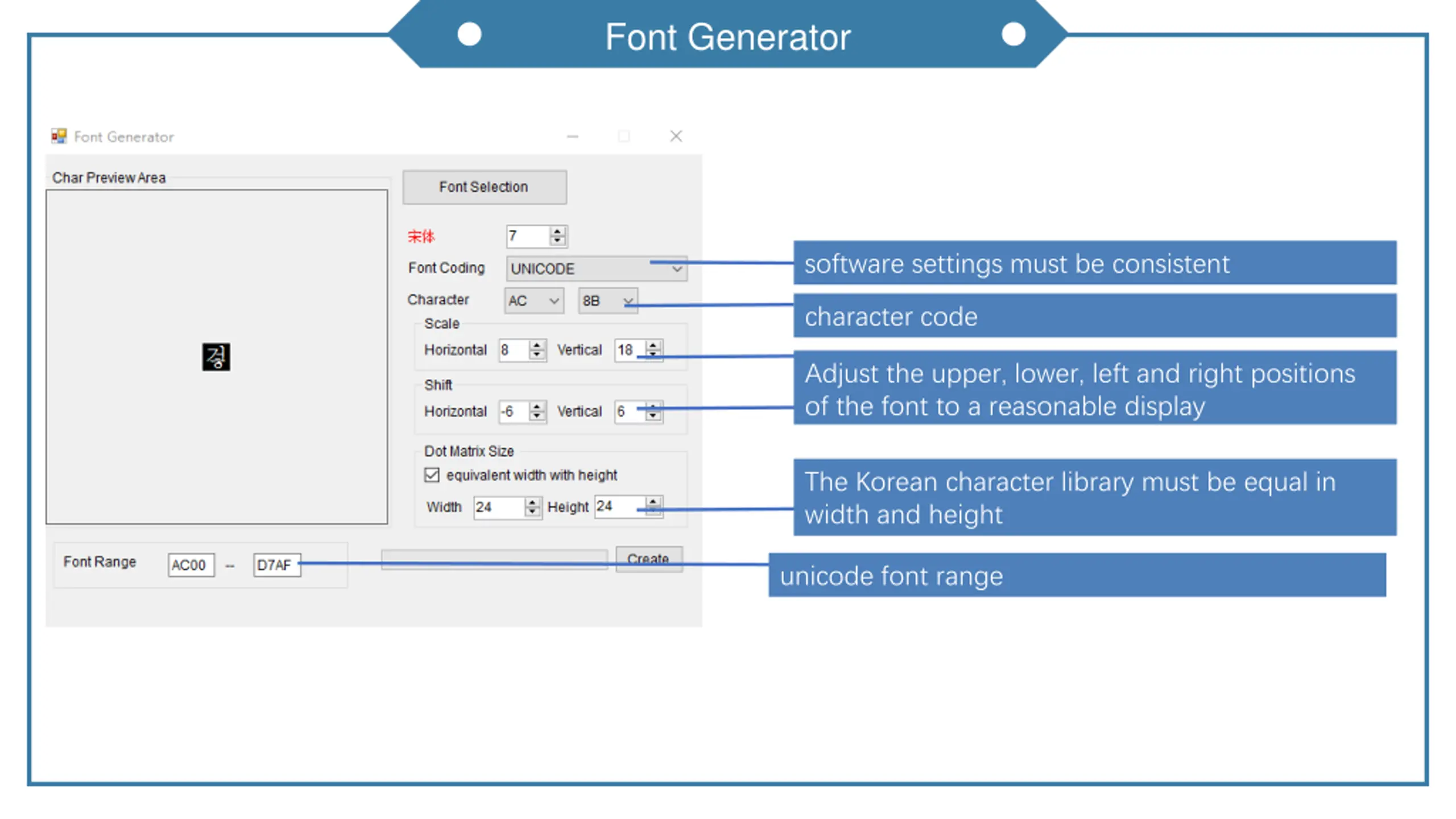

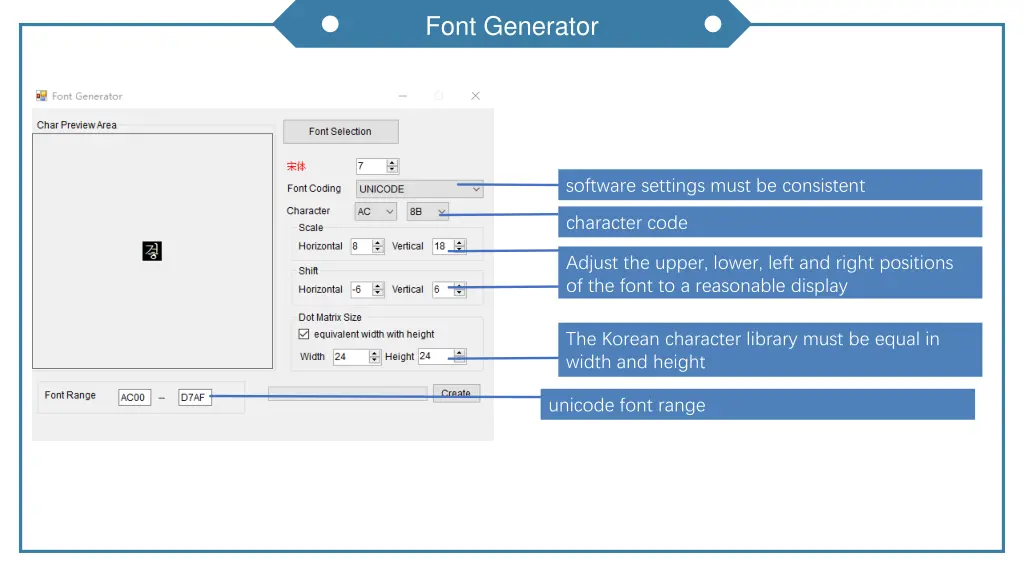

Font Generator software settings must be consistent character code Adjust the upper, lower, left and right positions of the font to a reasonable display The Korean character library must be equal in width and height unicode font range

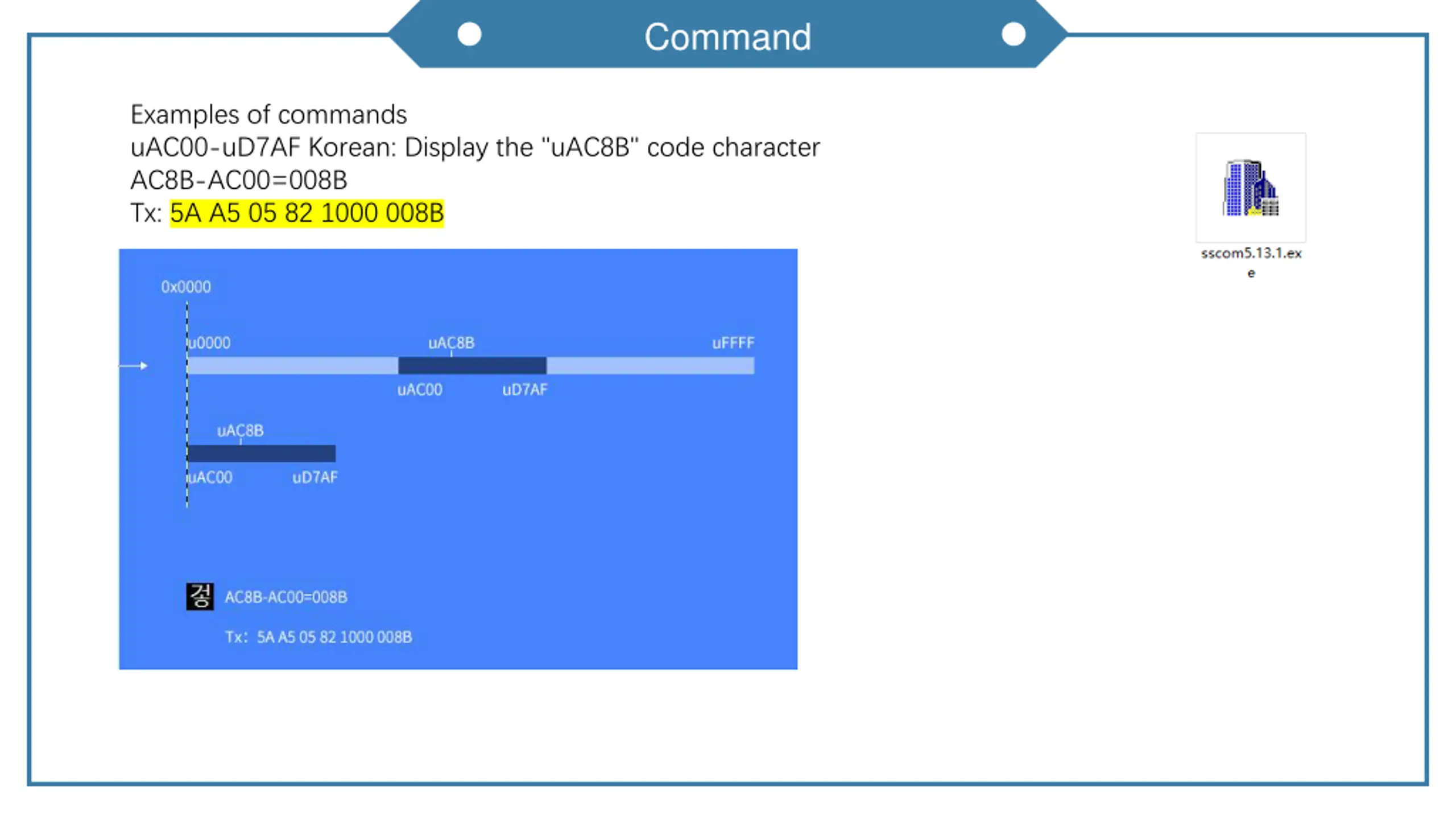

Command Examples of commands uAC00-uD7AF Korean: Display the "uAC8B" code character AC8B-AC00=008B Tx: 5A A5 05 82 1000 008B

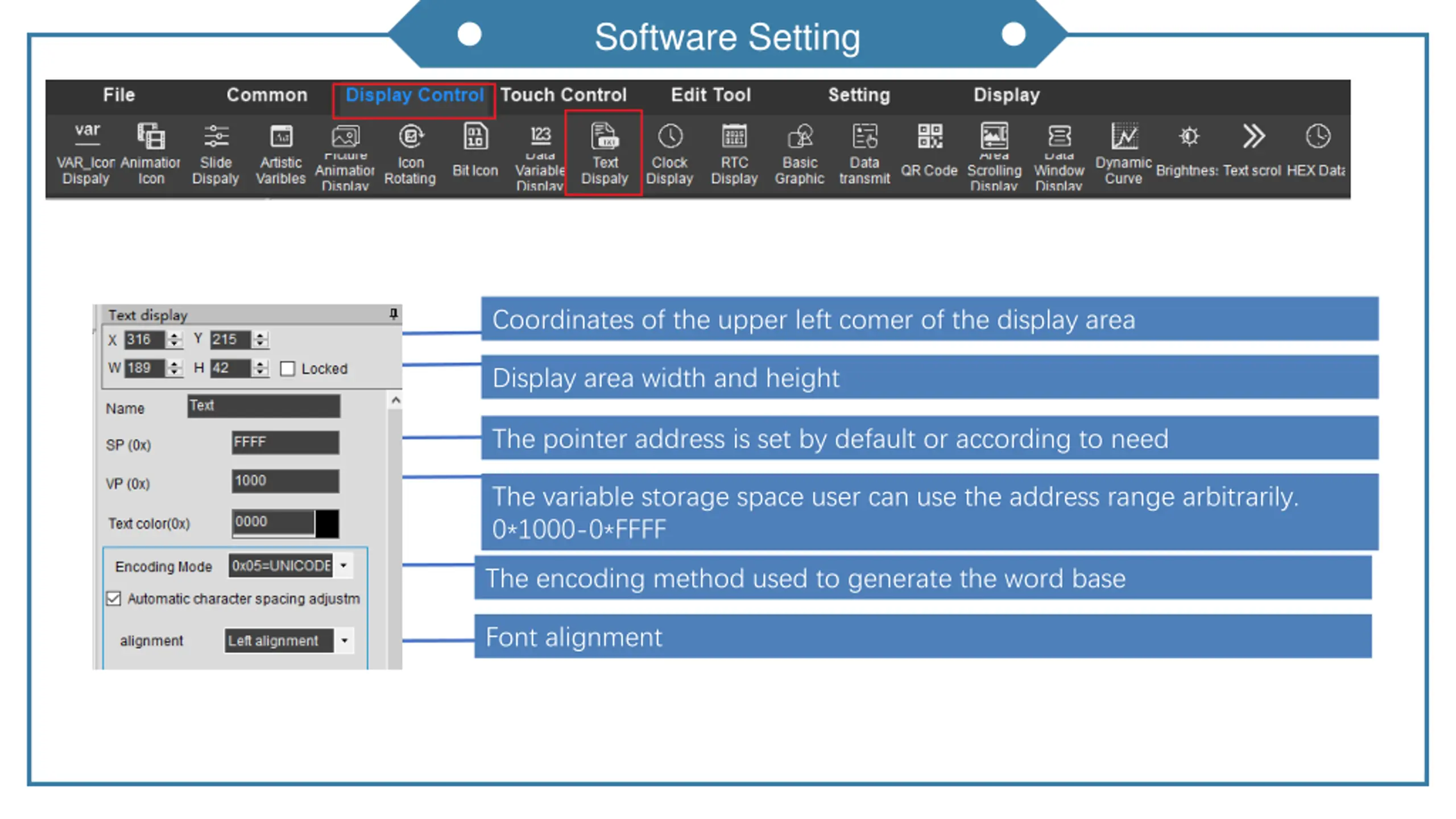

Software Setting Coordinates of the upper left comer of the display area Display area width and height The pointer address is set by default or according to need The variable storage space user can use the address range arbitrarily. 0*1000-0*FFFF The encoding method used to generate the word base Font alignment

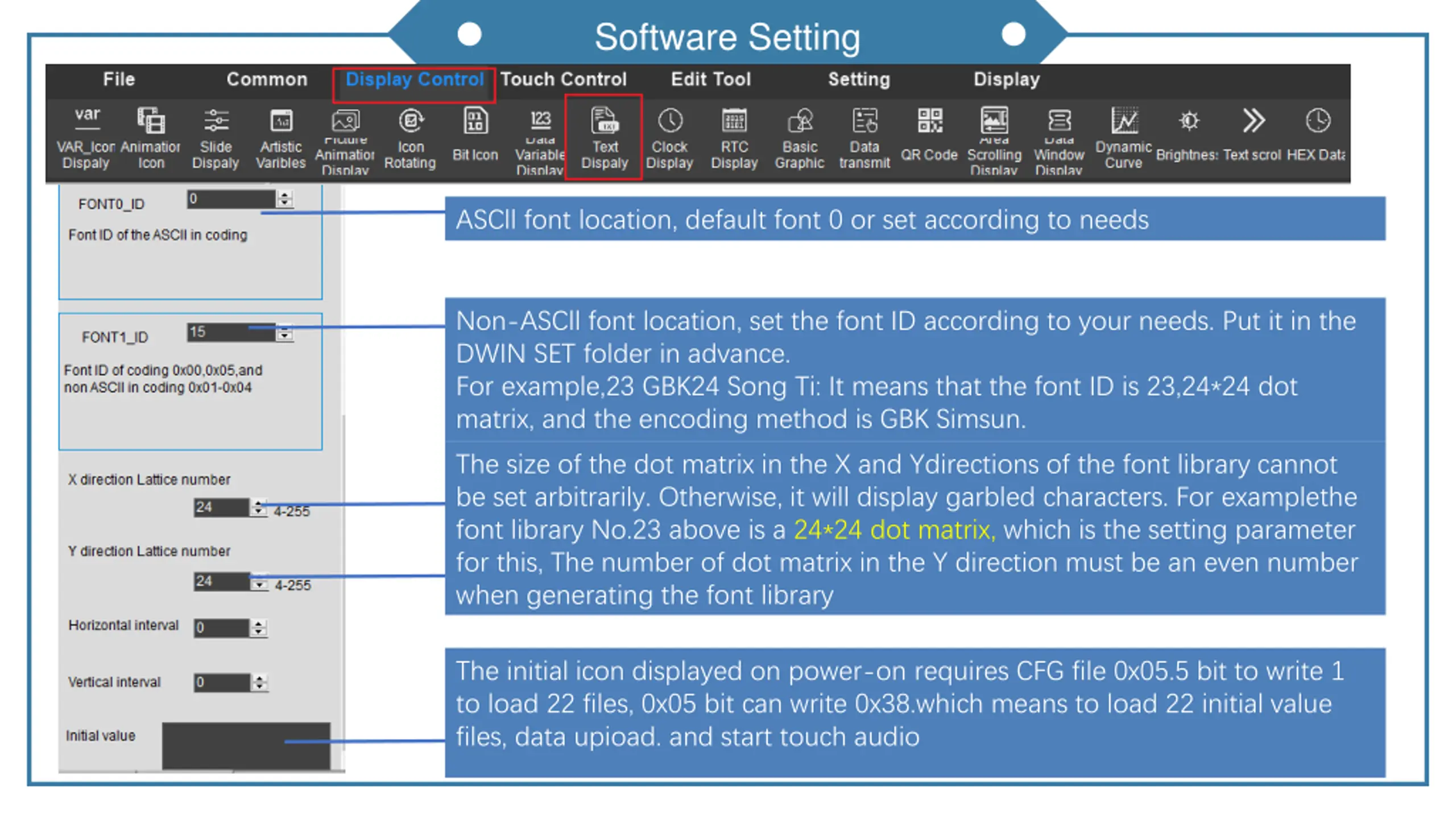

Software Setting ASCll font location, default font 0 or set according to needs Non-ASCll font location, set the font ID according to your needs. Put it in the DWIN SET folder in advance. For example,23 GBK24 Song Ti: It means that the font ID is 23,24*24 dot matrix, and the encoding method is GBK Simsun. The size of the dot matrix in the X and Ydirections of the font library cannot be set arbitrarily. Otherwise, it will display garbled characters. For examplethe font library No.23 above is a 24*24 dot matrix, which is the setting parameter for this, The number of dot matrix in the Y direction must be an even number when generating the font library The initial icon displayed on power-on requires CFG file 0x05.5 bit to write 1 to load 22 files, 0x05 bit can write 0x38.which means to load 22 initial value files, data upioad. and start touch audio
