Instant Profiling: Instrumentation Sampling for Profiling Datacenter Applications Hyoun Kyu Cho1, Tipp Moseley2, Richard Hank2, Derek Bruening2, Scott Mahlke1 1University of Michigan 2Google 1

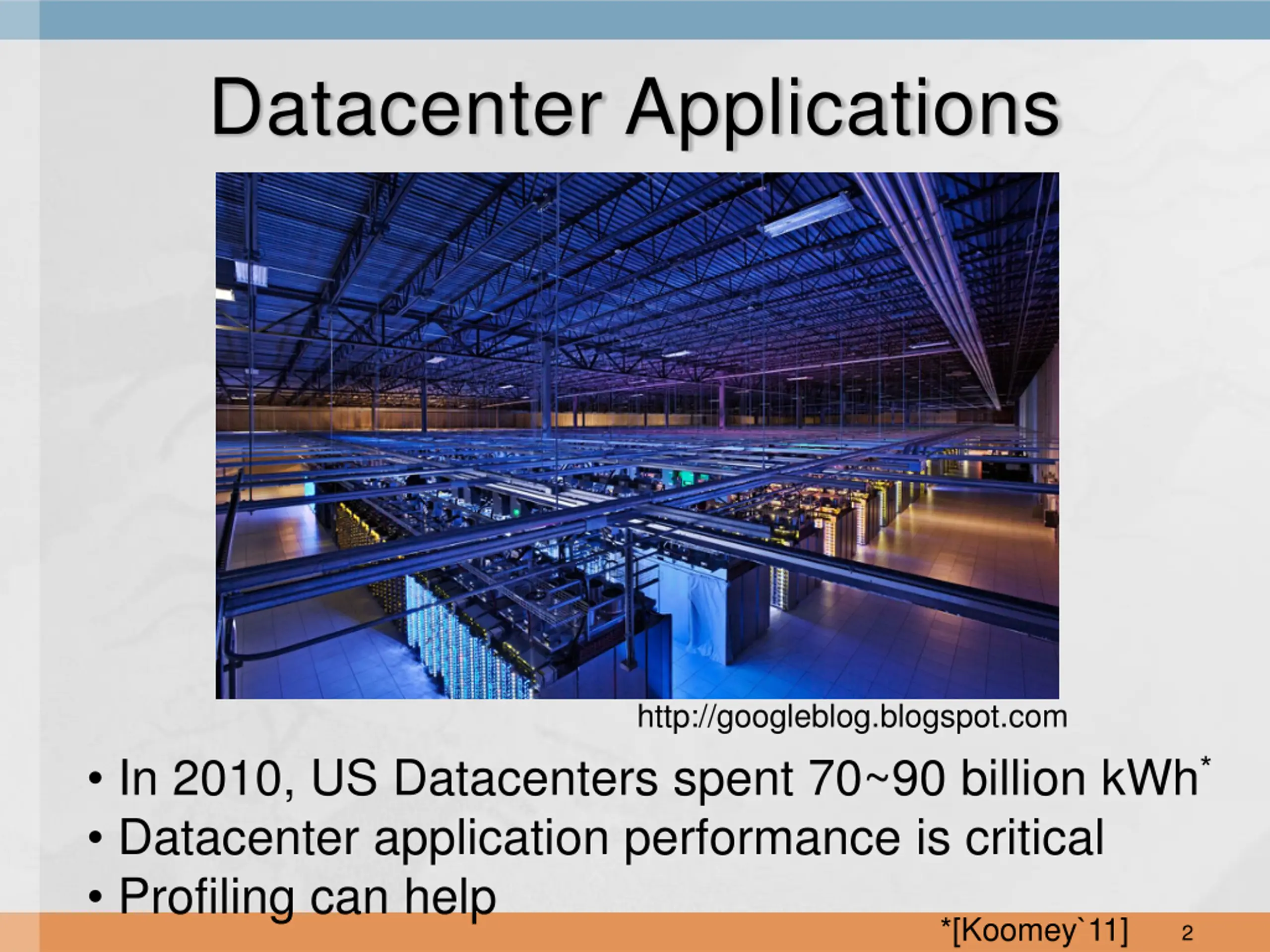

Datacenter Applications http://googleblog.blogspot.com In 2010, US Datacenters spent 70~90 billion kWh* Datacenter application performance is critical Profiling can help *[Koomey`11] 2

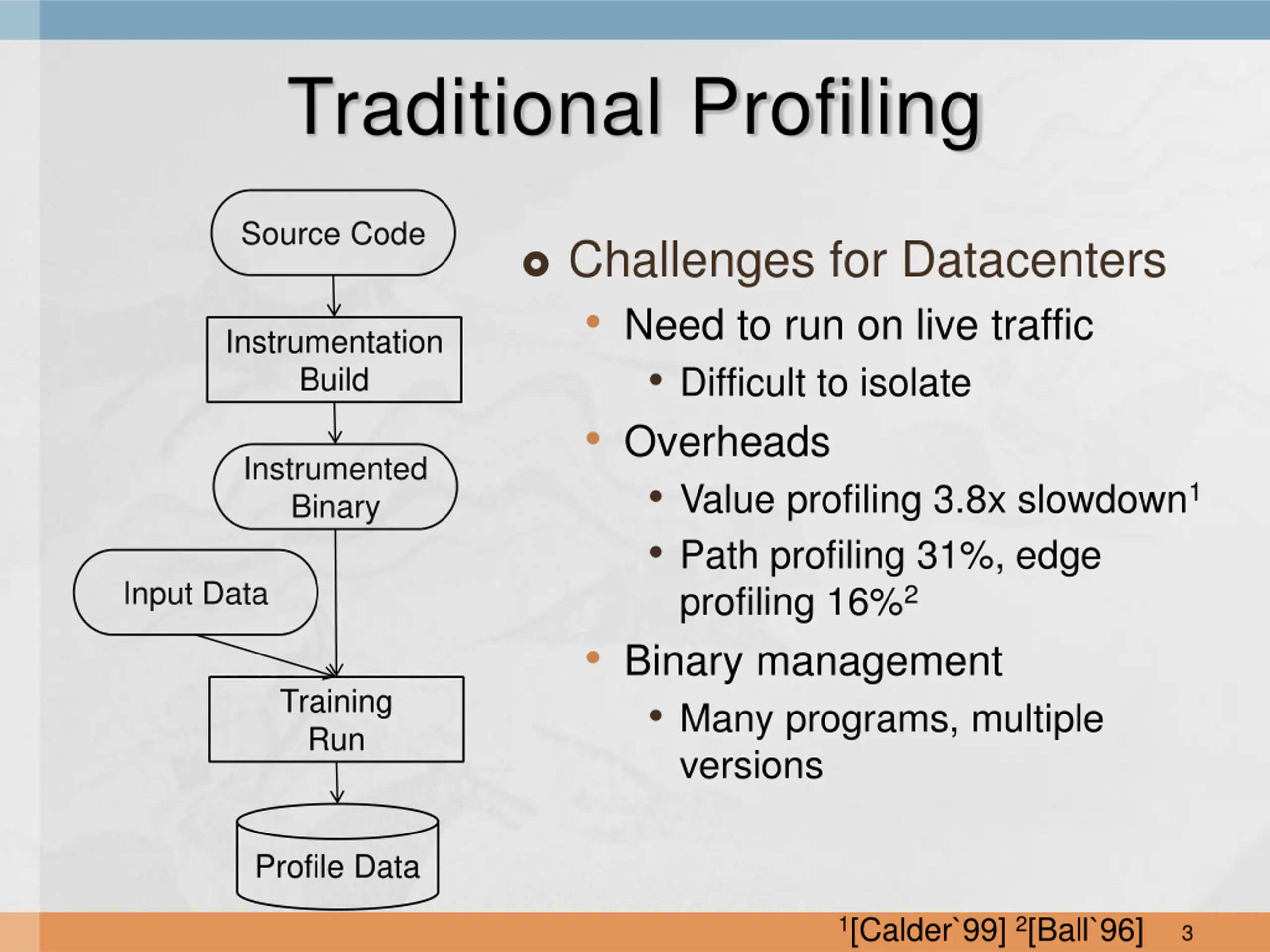

Traditional Profiling Source Code Challenges for Datacenters Need to run on live traffic Difficult to isolate Overheads Value profiling 3.8x slowdown1 Path profiling 31%, edge profiling 16%2 Binary management Many programs, multiple versions Instrumentation Build Instrumented Binary Input Data Training Run Profile Data 1[Calder`99] 2[Ball`96] 3

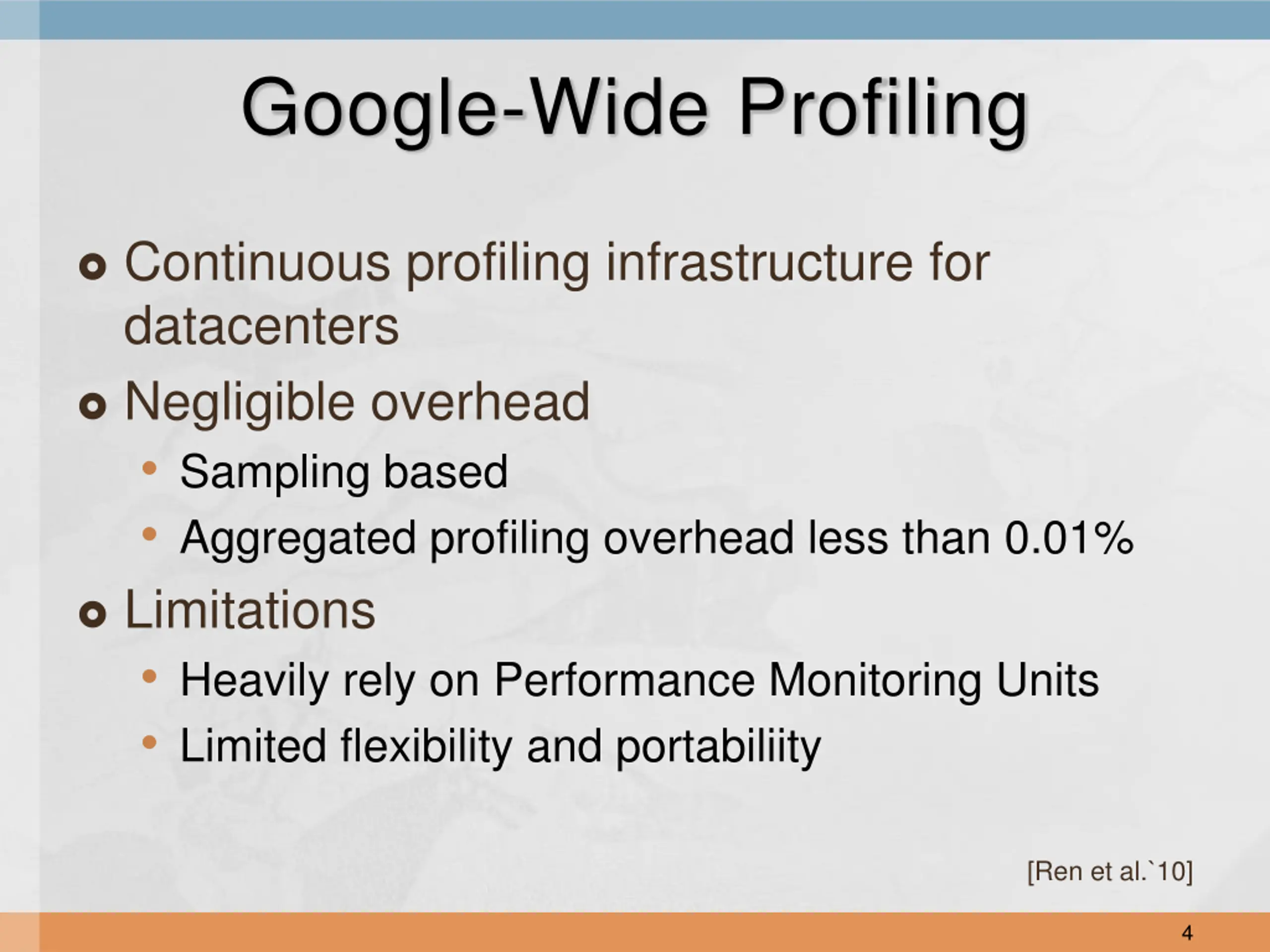

Google-Wide Profiling Continuous profiling infrastructure for datacenters Negligible overhead Sampling based Aggregated profiling overhead less than 0.01% Limitations Heavily rely on Performance Monitoring Units Limited flexibility and portabiliity [Ren et al.`10] 4

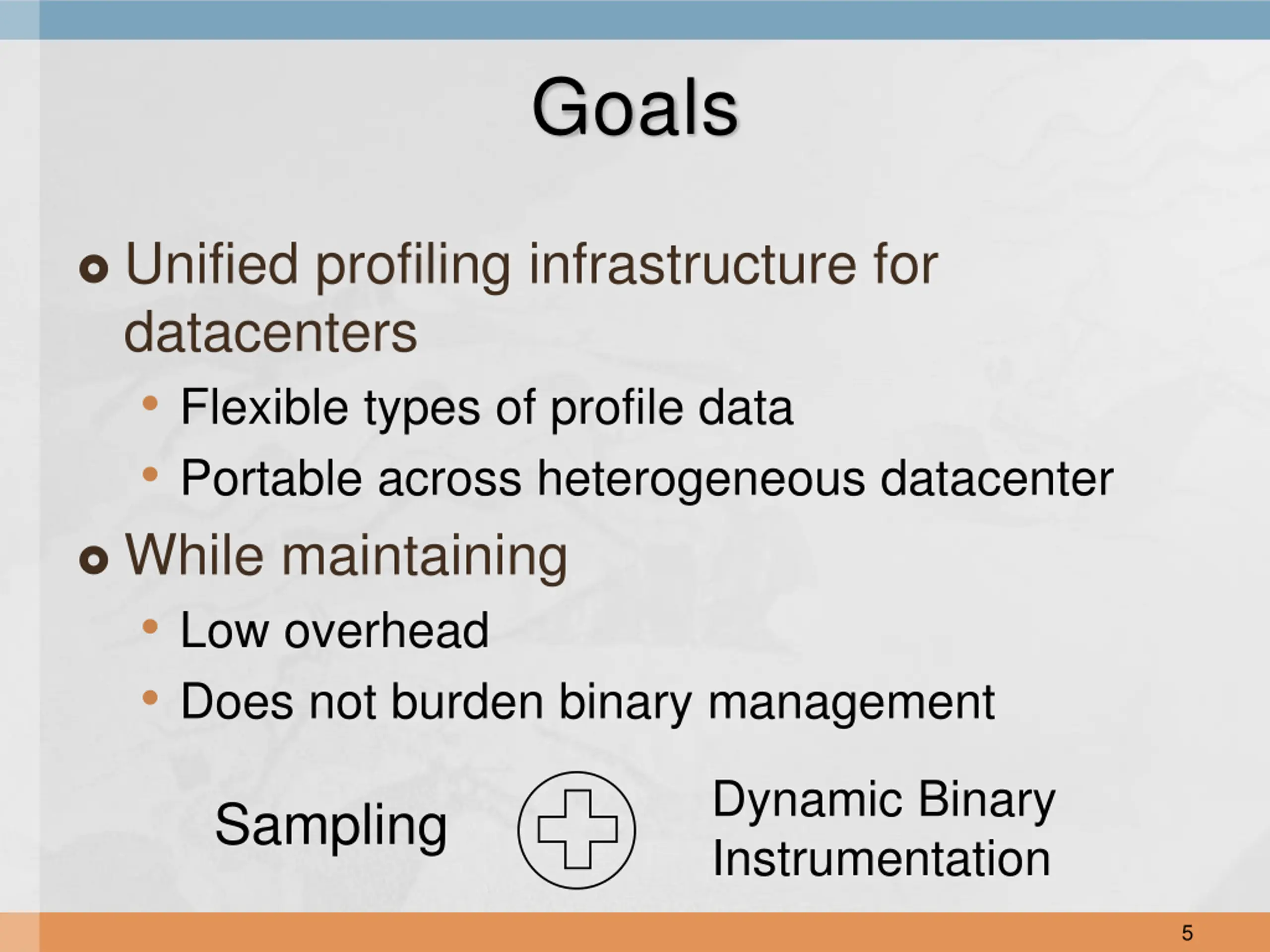

Goals Unified profiling infrastructure for datacenters Flexible types of profile data Portable across heterogeneous datacenter While maintaining Low overhead Does not burden binary management Dynamic Binary Instrumentation Sampling 5

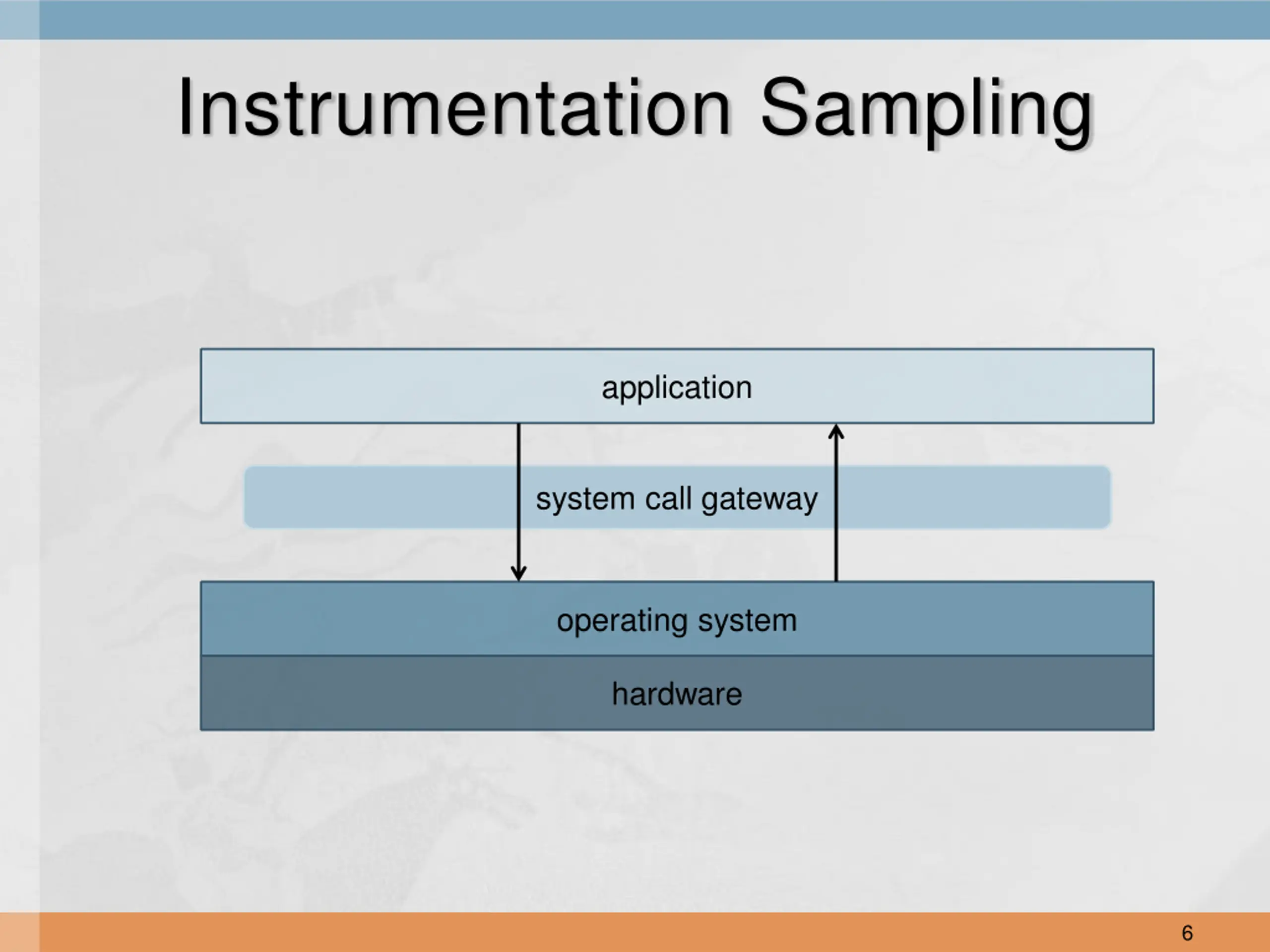

Instrumentation Sampling application system call gateway operating system hardware 6

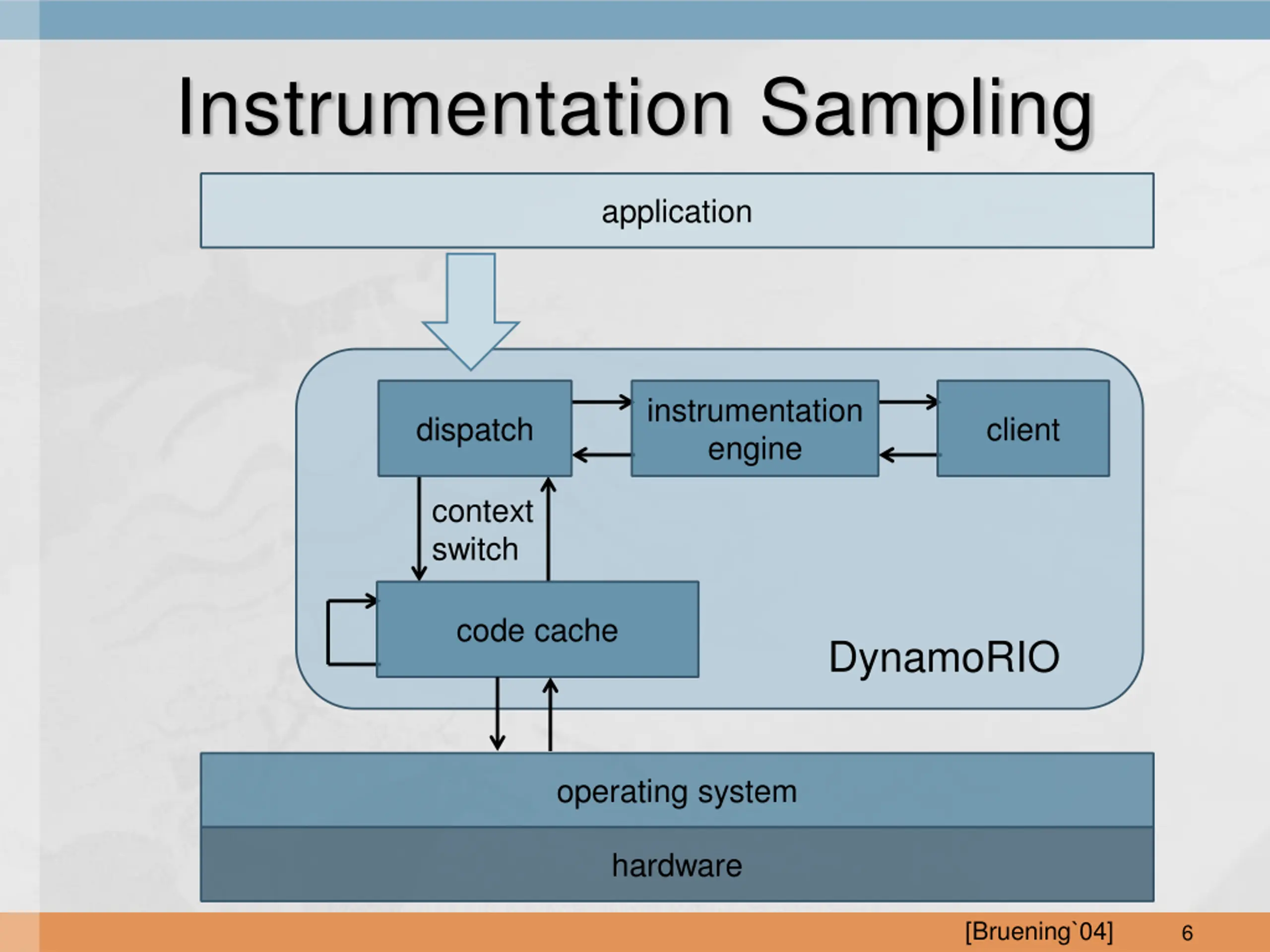

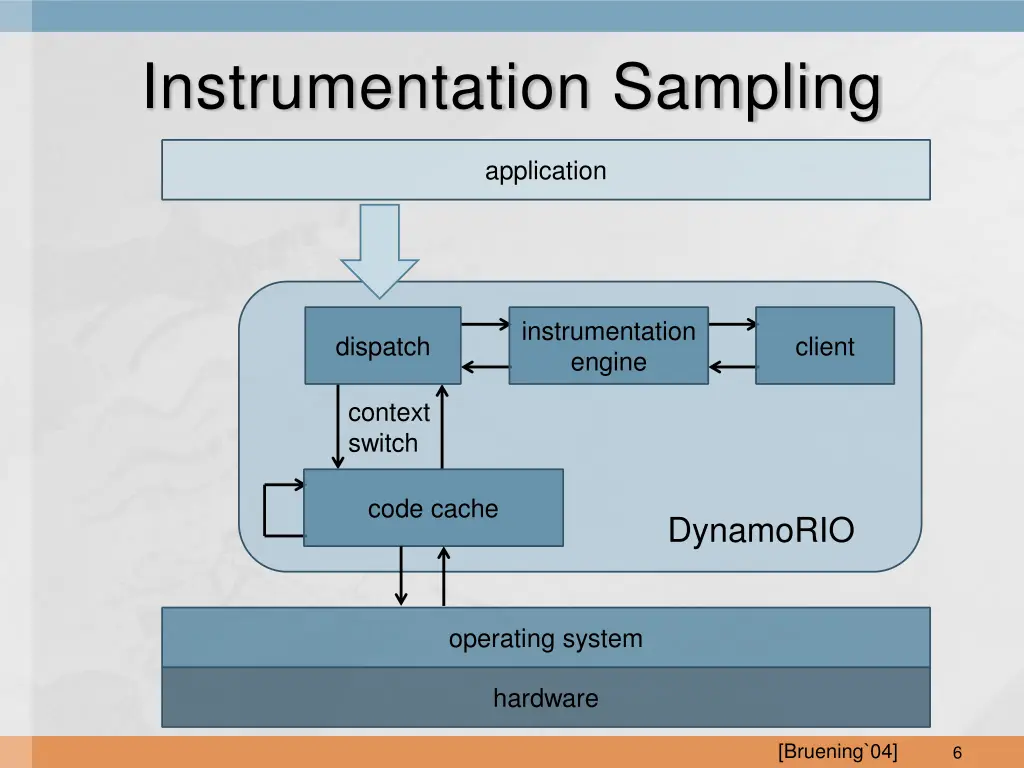

Instrumentation Sampling application instrumentation engine dispatch client context switch code cache DynamoRIO operating system hardware [Bruening`04] 6

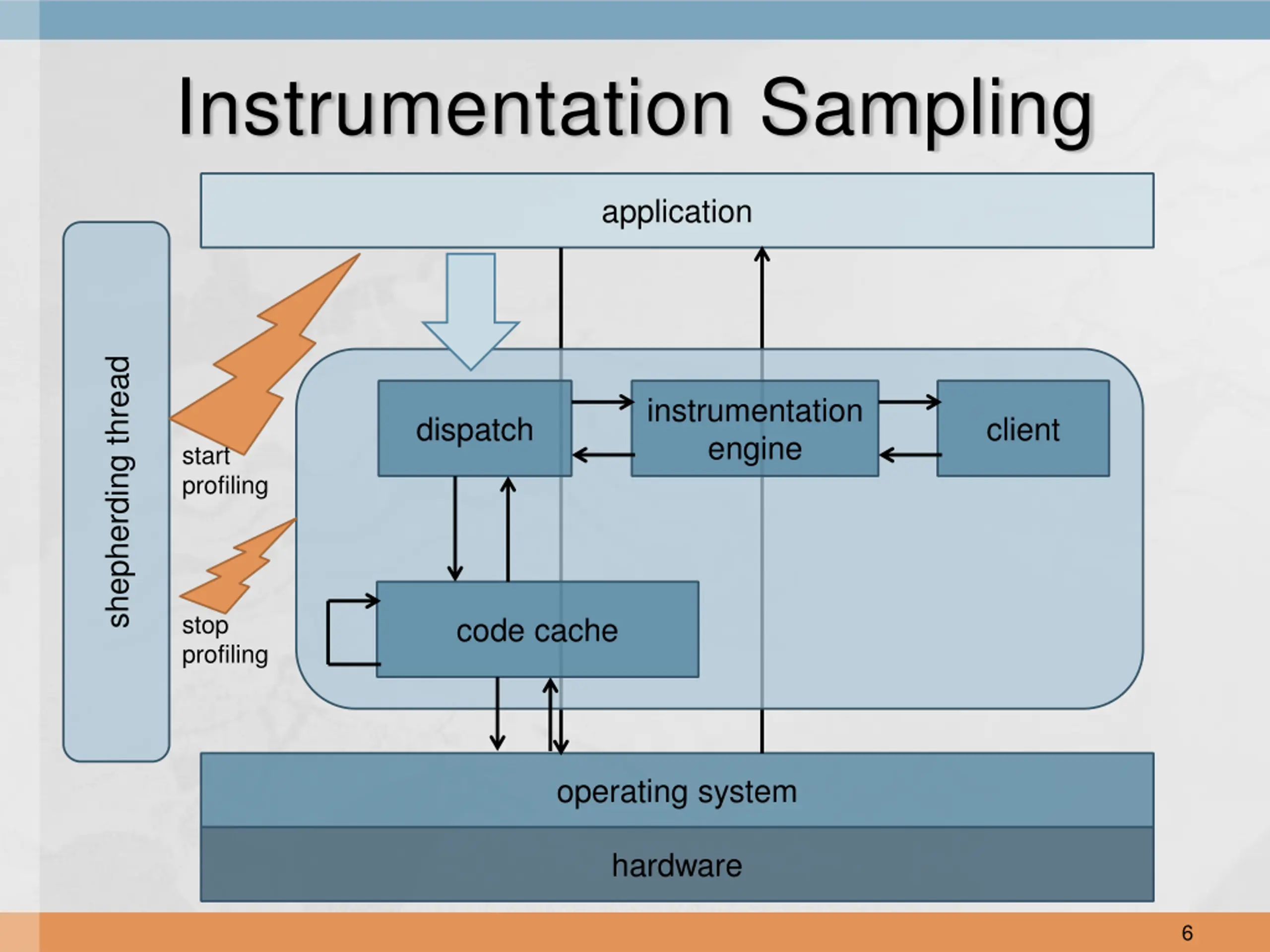

Instrumentation Sampling application shepherding thread instrumentation engine dispatch client start profiling stop profiling code cache operating system hardware 6

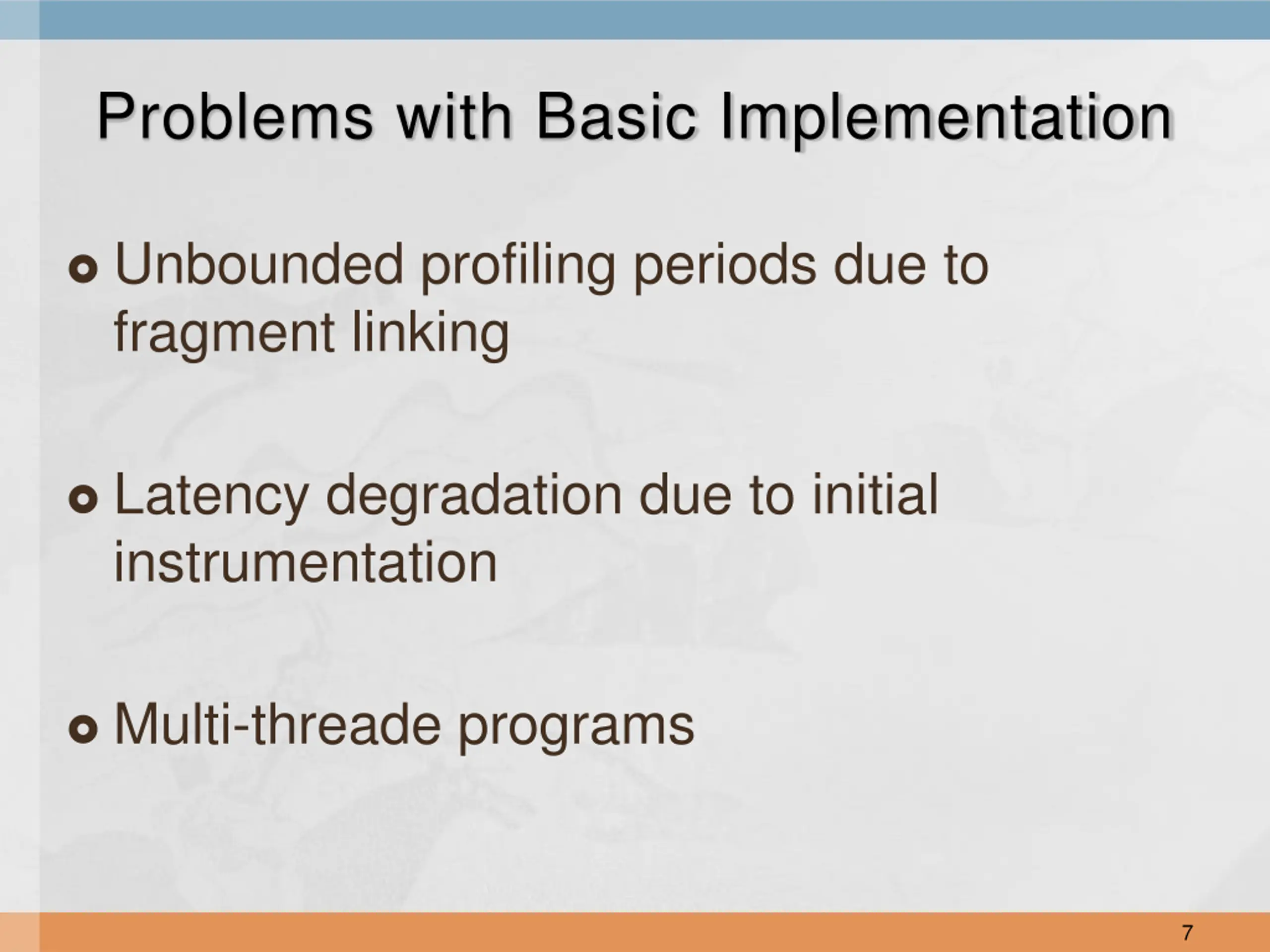

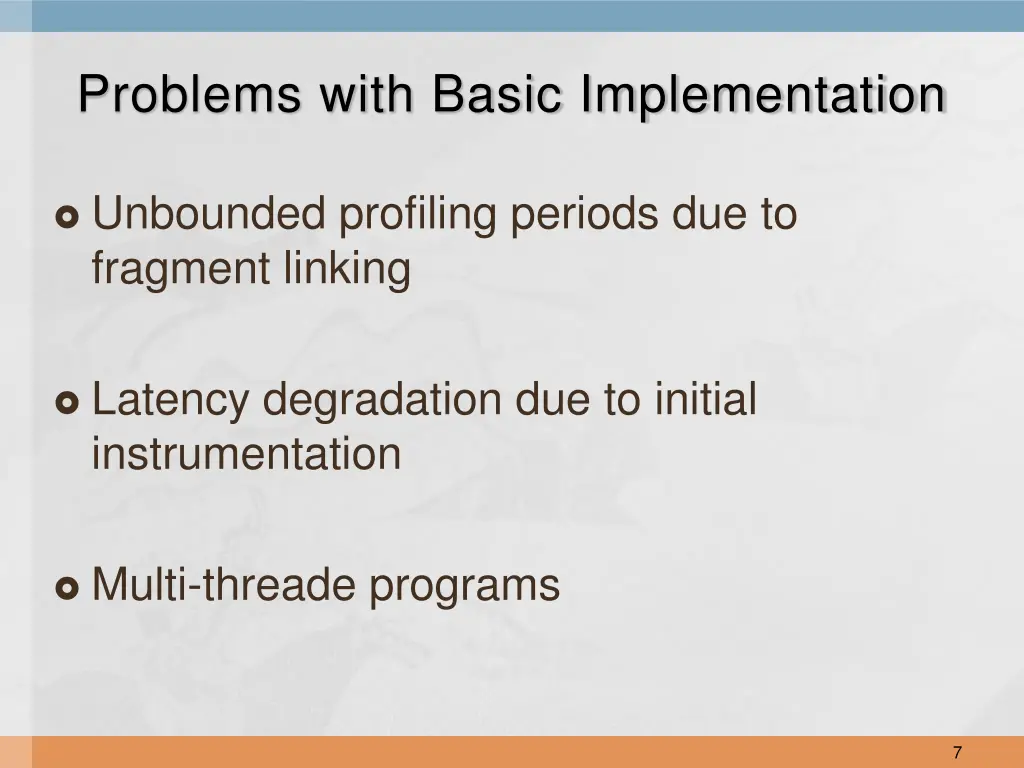

Problems with Basic Implementation Unbounded profiling periods due to fragment linking Latency degradation due to initial instrumentation Multi-threade programs 7

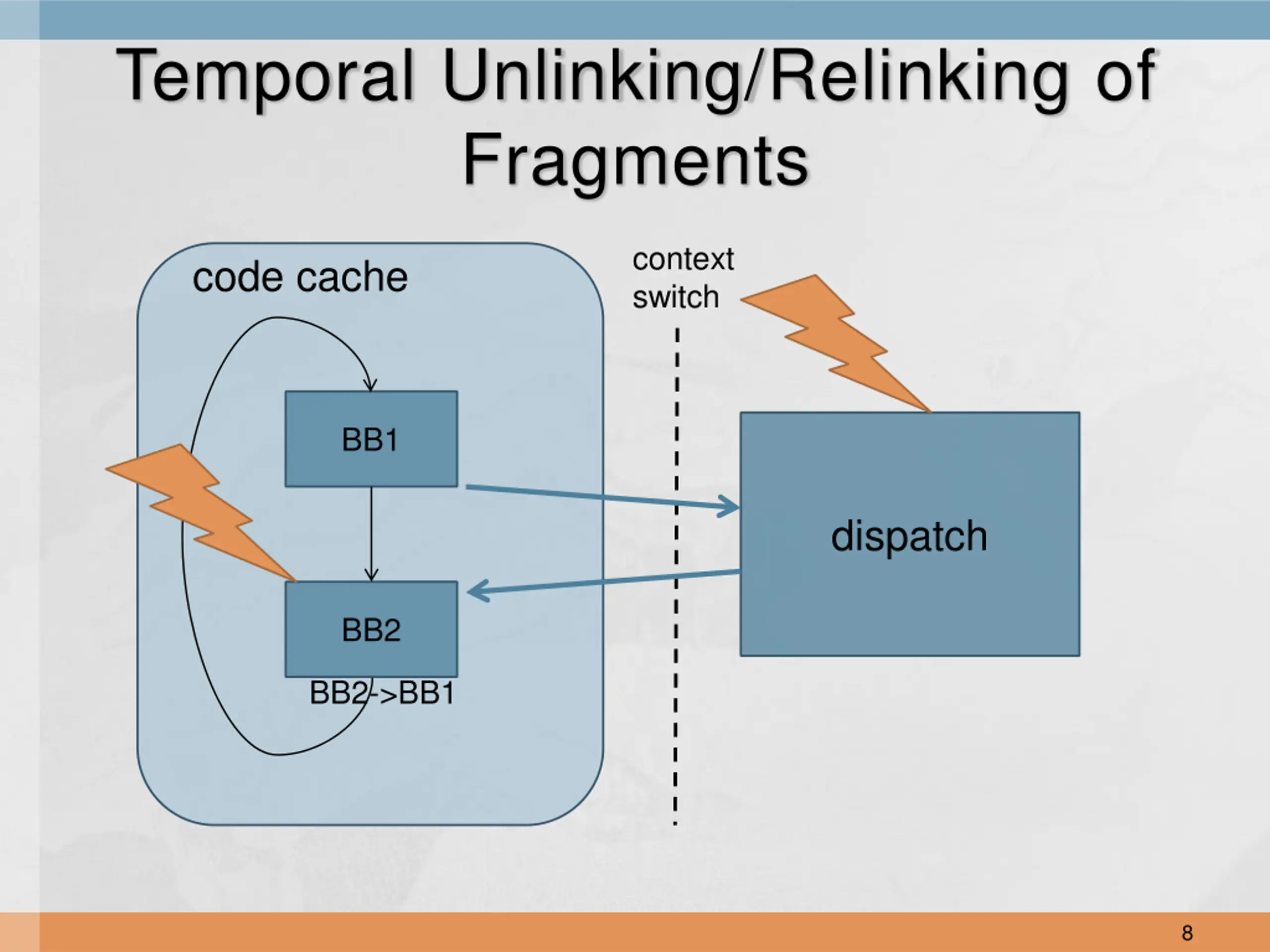

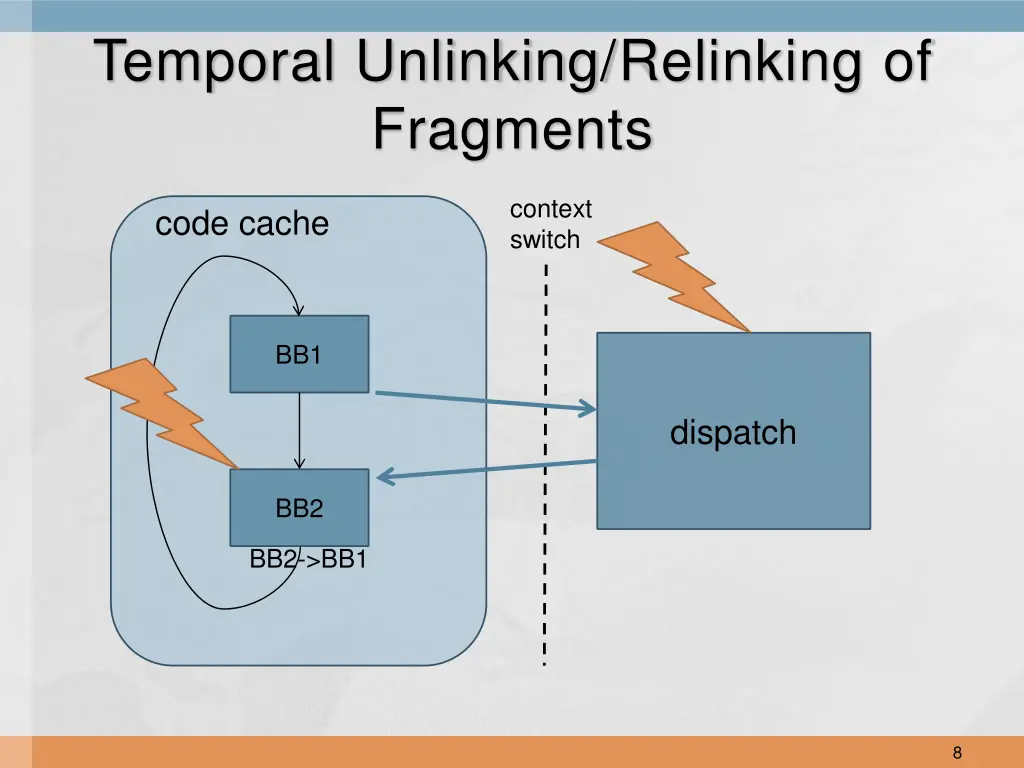

Temporal Unlinking/Relinking of Fragments context switch code cache BB1 dispatch BB2 BB2->BB1 8

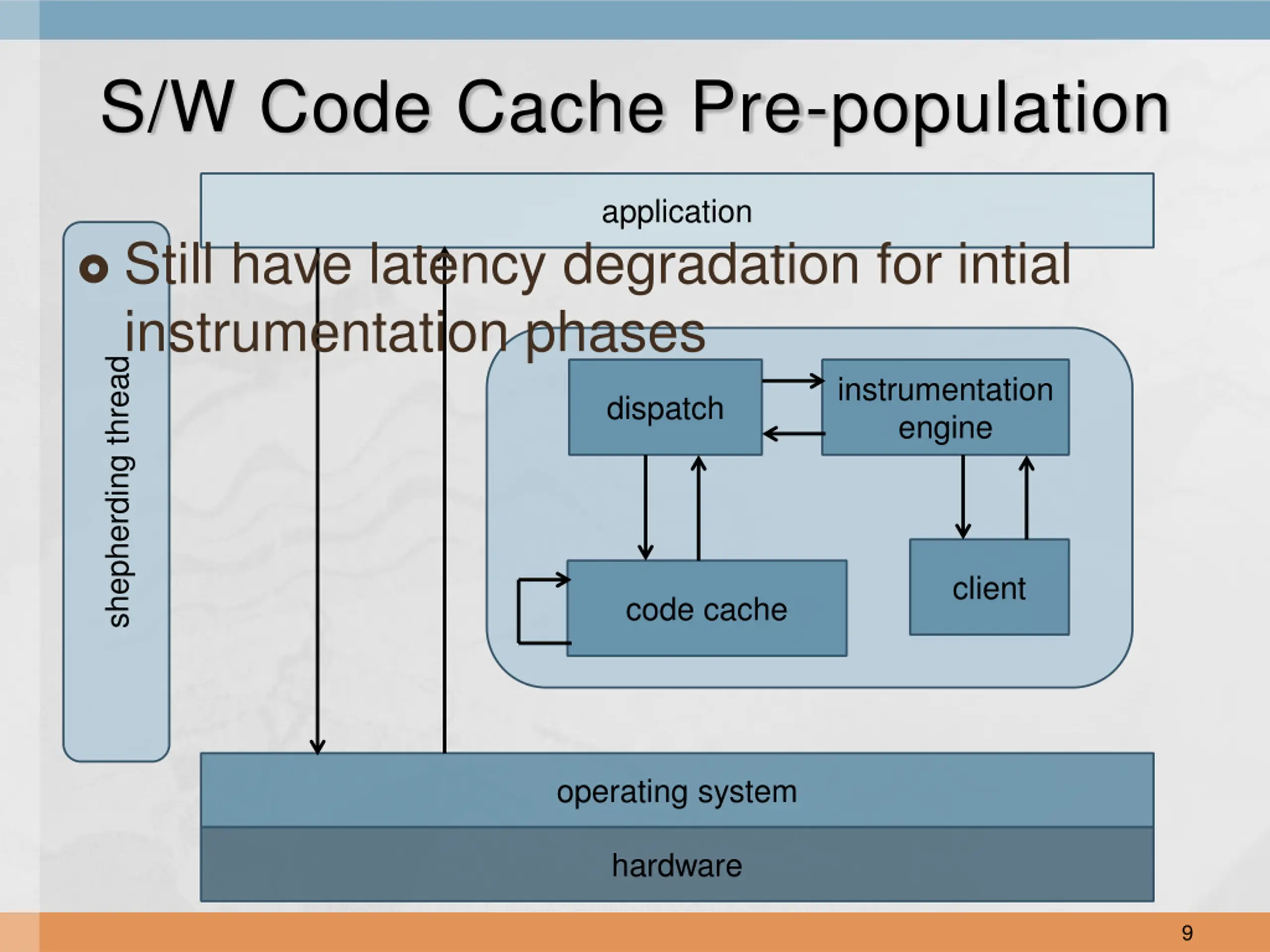

S/W Code Cache Pre-population application Still have latency degradation for intial instrumentation phases shepherding thread instrumentation engine dispatch client code cache operating system hardware 9

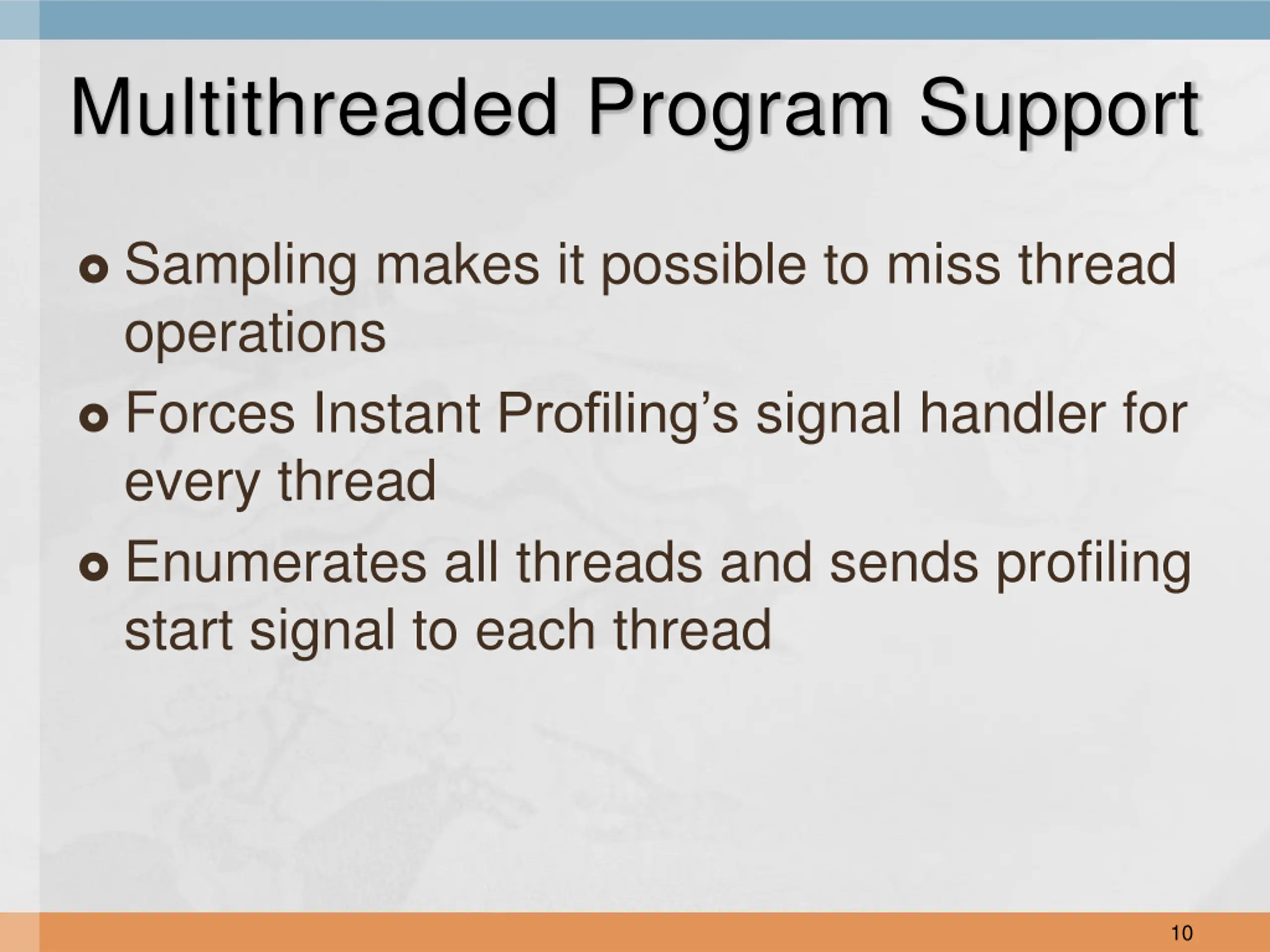

Multithreaded Program Support Sampling makes it possible to miss thread operations Forces Instant Profiling s signal handler for every thread Enumerates all threads and sends profiling start signal to each thread 10

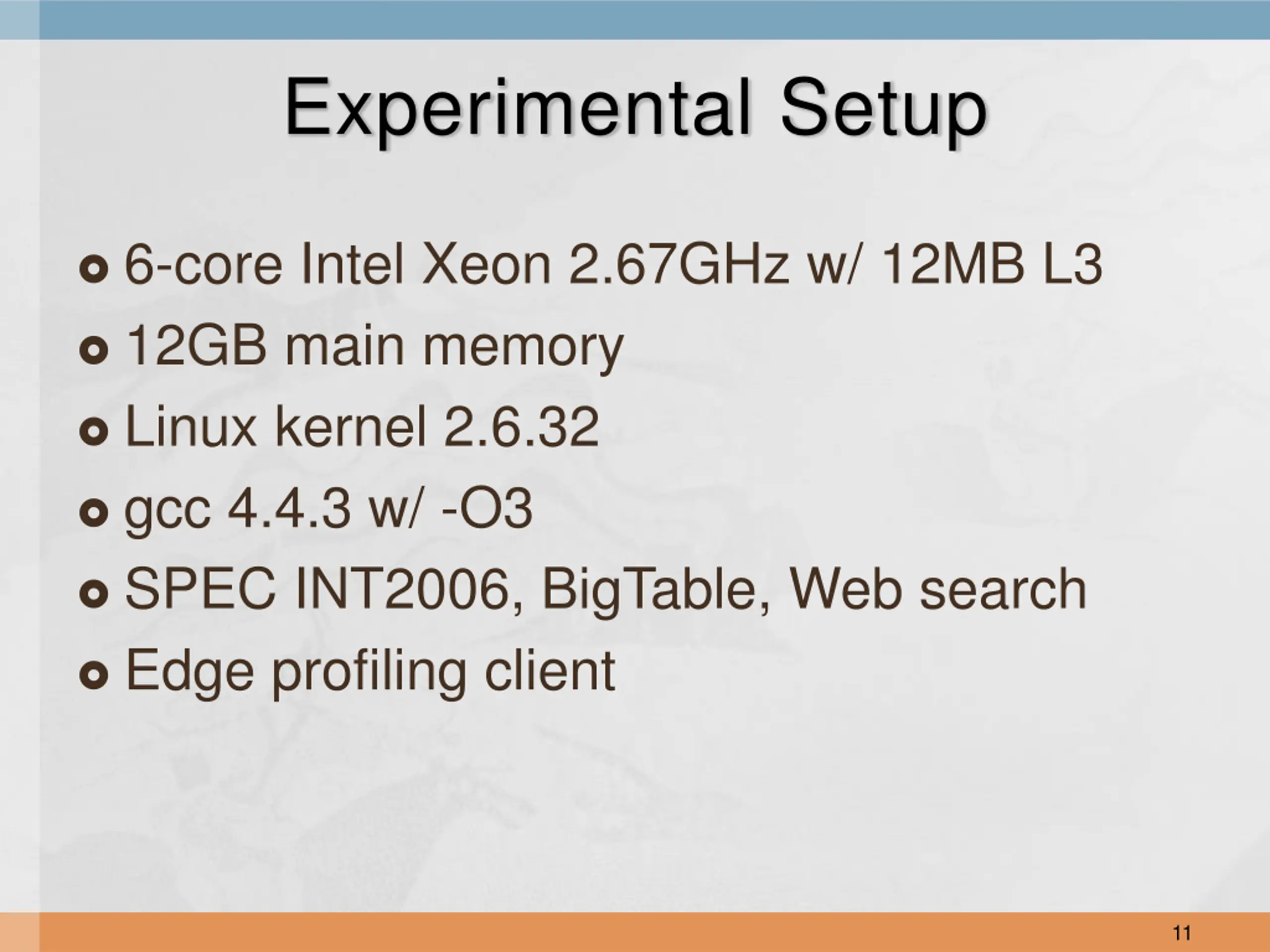

Experimental Setup 6-core Intel Xeon 2.67GHz w/ 12MB L3 12GB main memory Linux kernel 2.6.32 gcc 4.4.3 w/ -O3 SPEC INT2006, BigTable, Web search Edge profiling client 11

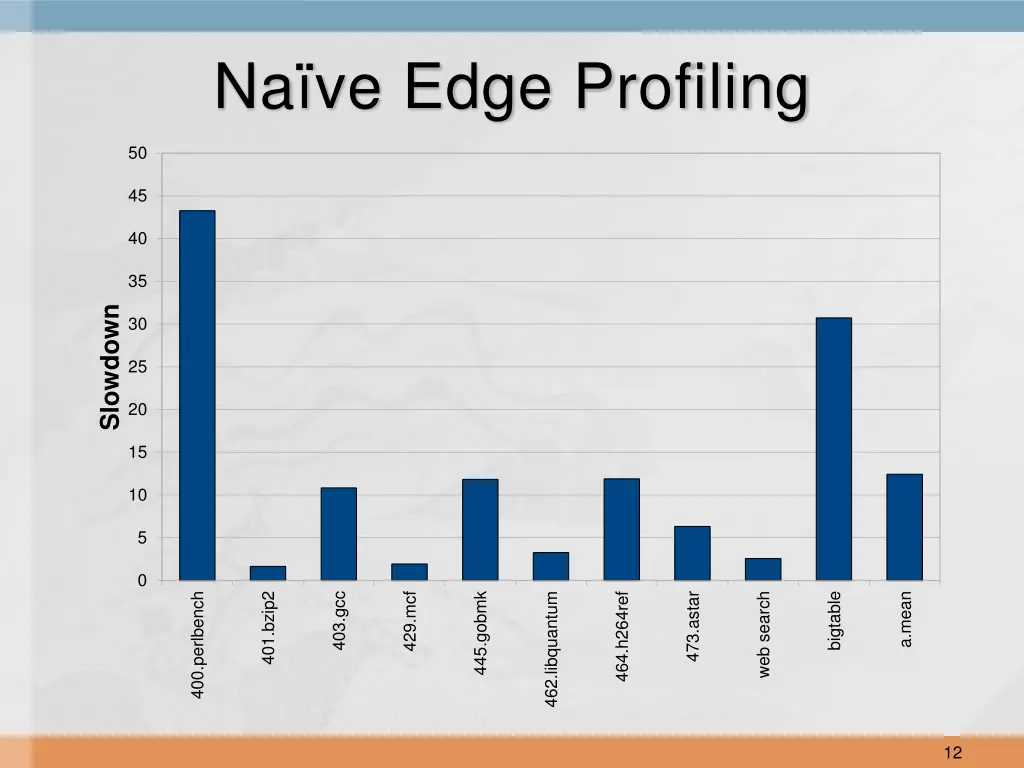

Nave Edge Profiling 50 45 40 35 Slowdown 30 25 20 15 10 5 0 web search bigtable 473.astar 429.mcf 462.libquantum a.mean 445.gobmk 401.bzip2 403.gcc 464.h264ref 400.perlbench 12

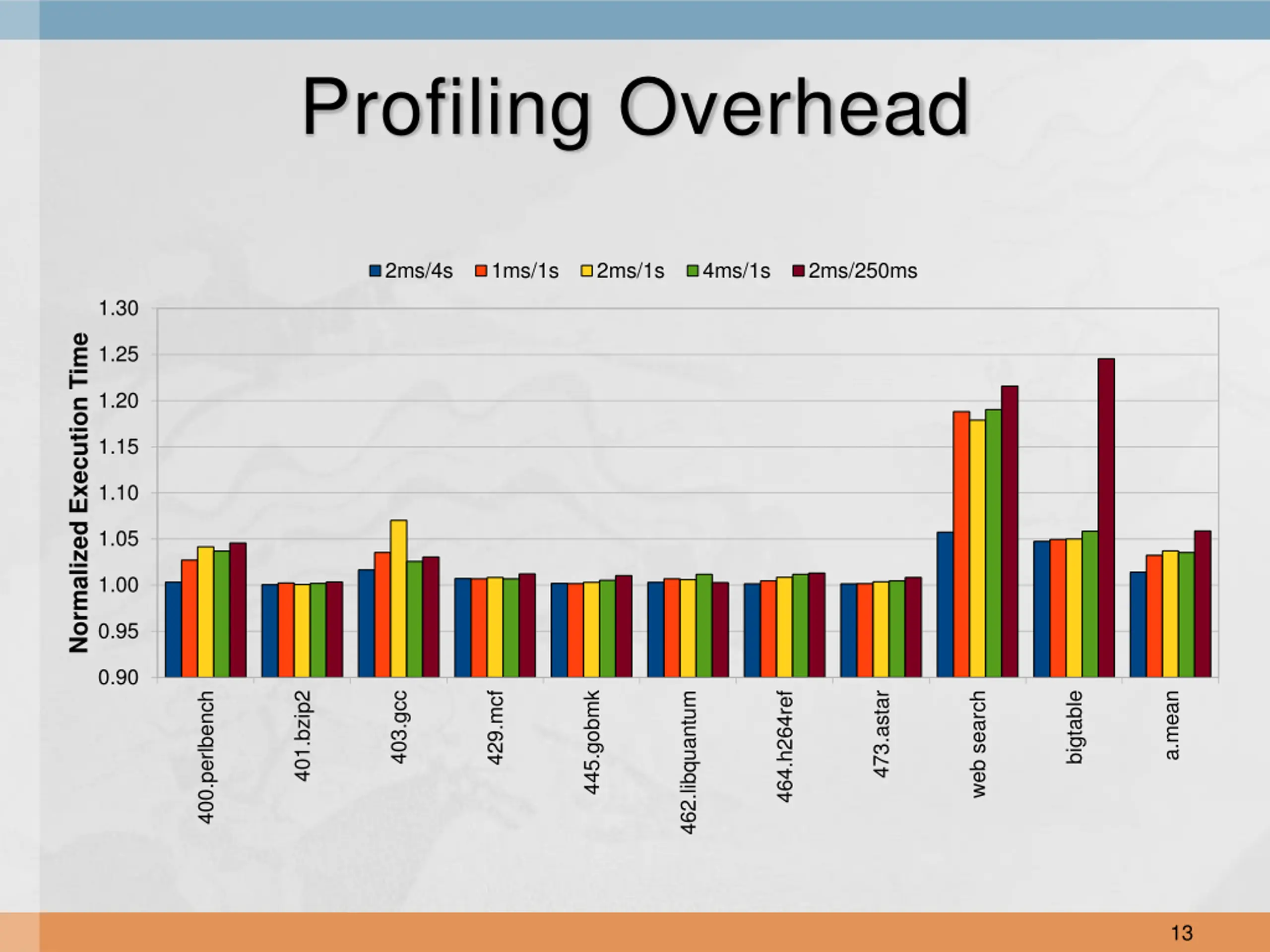

Profiling Overhead 2ms/4s 1ms/1s 2ms/1s 4ms/1s 2ms/250ms 1.30 Normalized Execution Time 1.25 1.20 1.15 1.10 1.05 1.00 0.95 0.90 web search bigtable 473.astar 429.mcf 445.gobmk 462.libquantum a.mean 401.bzip2 403.gcc 464.h264ref 400.perlbench 13

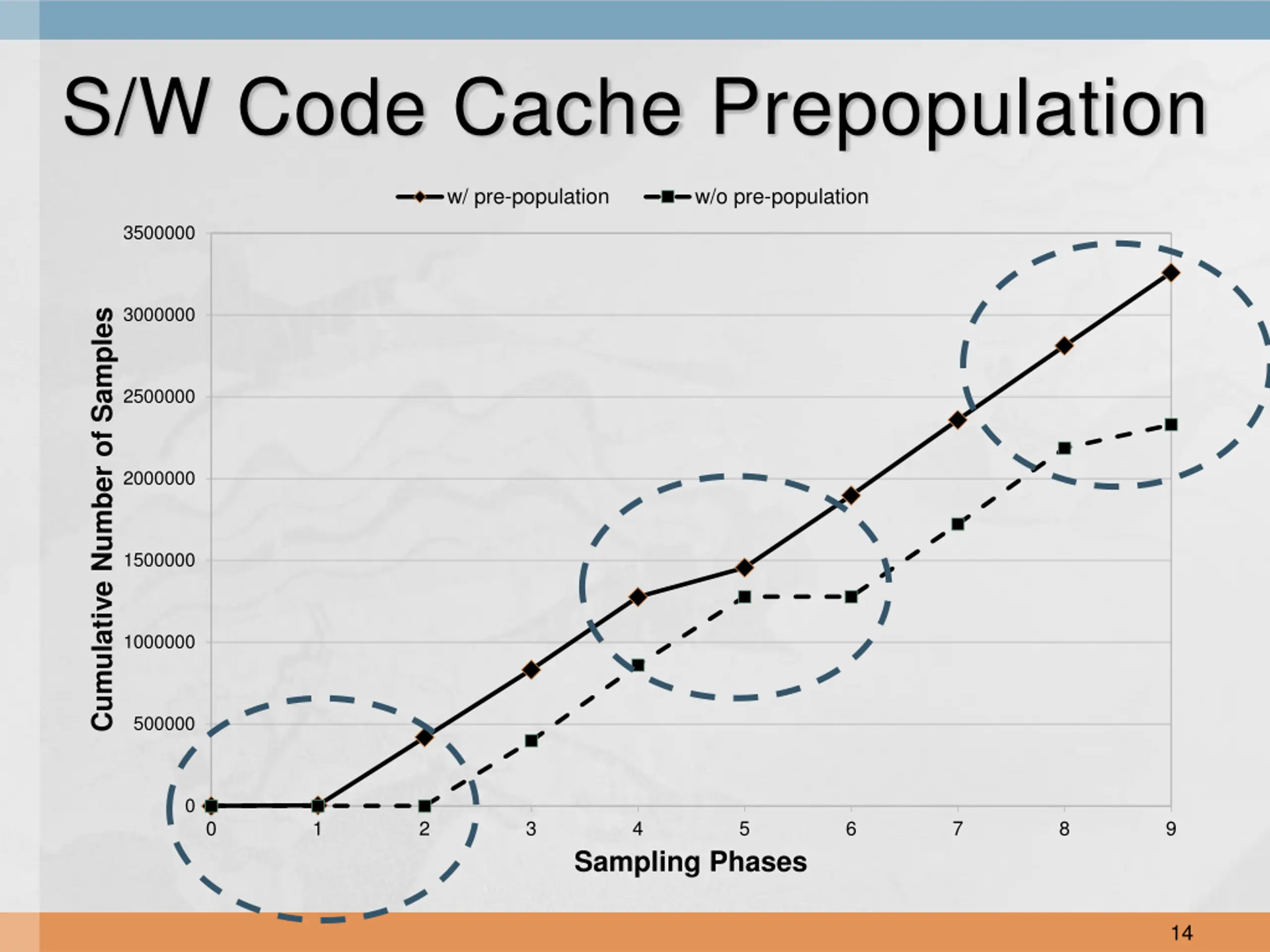

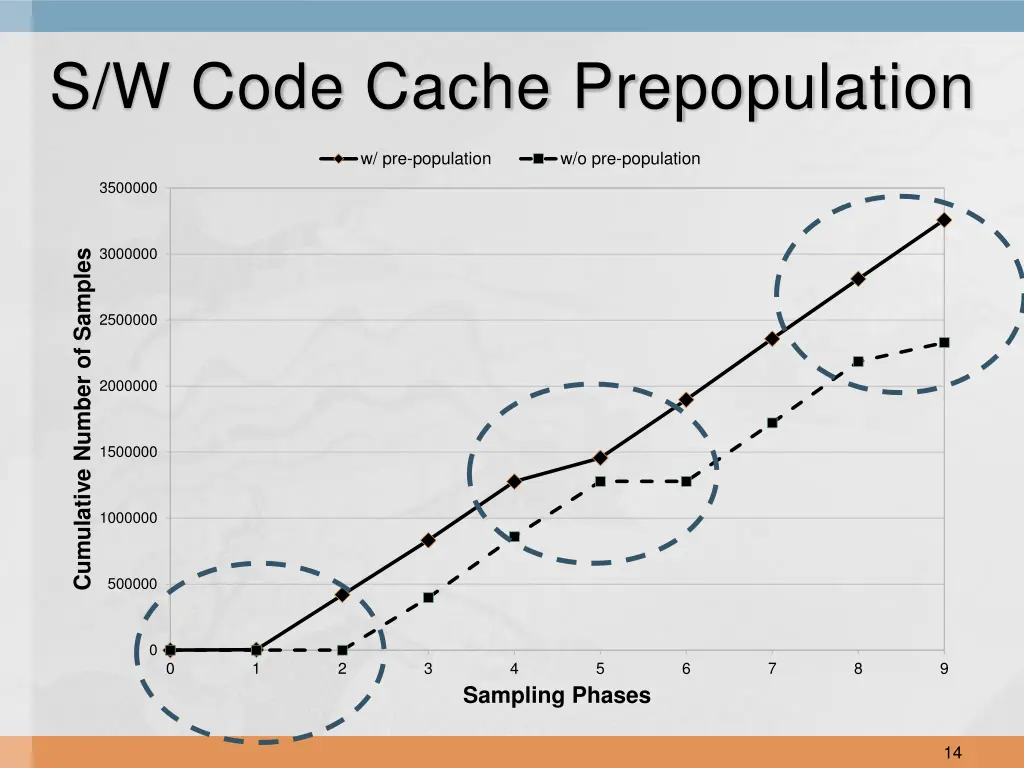

S/W Code Cache Prepopulation w/ pre-population w/o pre-population 3500000 3000000 Cumulative Number of Samples 2500000 2000000 1500000 1000000 500000 0 0 1 2 3 4 5 6 7 8 9 Sampling Phases 14

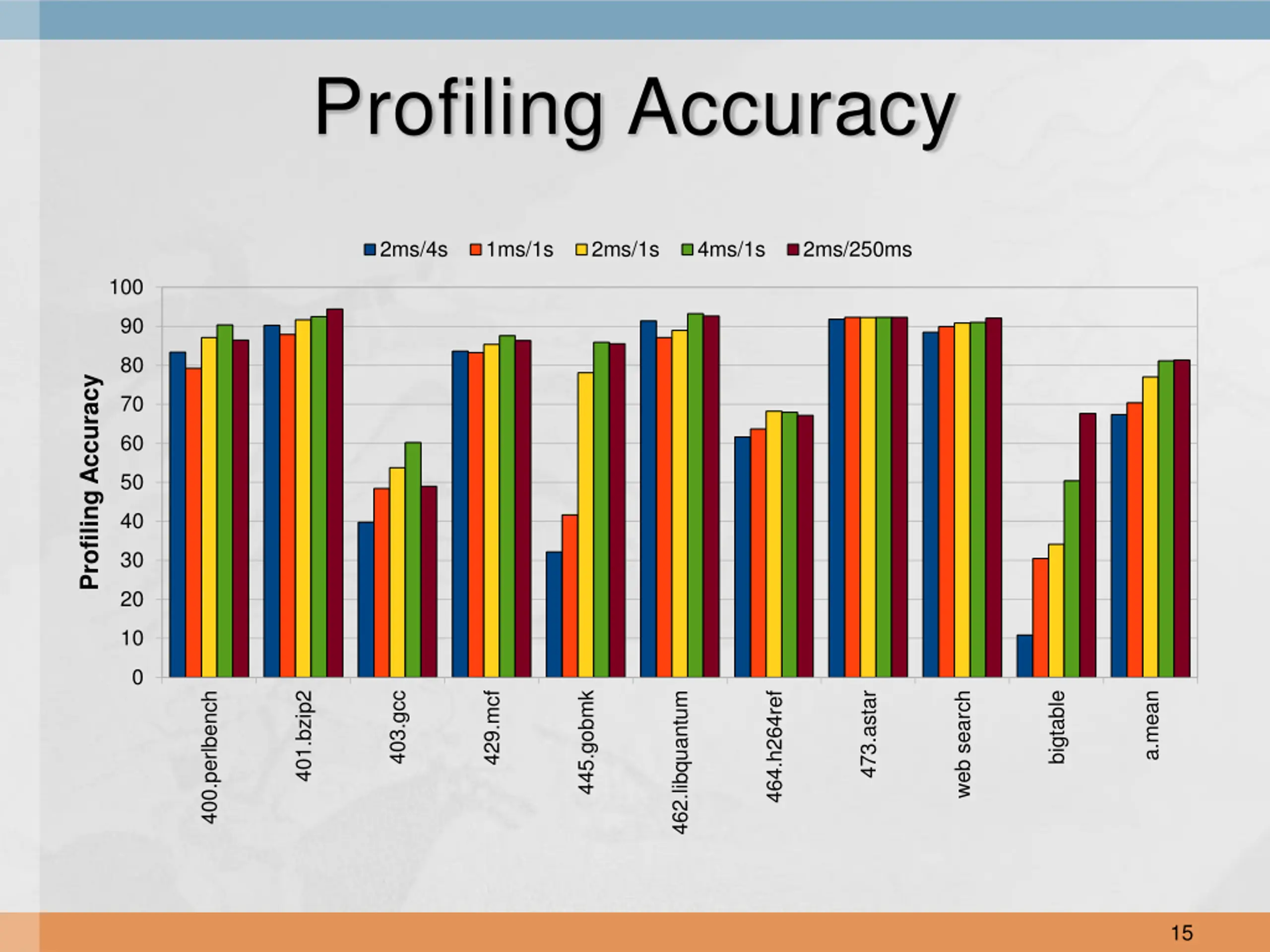

Profiling Accuracy 2ms/4s 1ms/1s 2ms/1s 4ms/1s 2ms/250ms 100 90 80 Profiling Accuracy 70 60 50 40 30 20 10 0 web search bigtable 473.astar 429.mcf 445.gobmk 462.libquantum a.mean 401.bzip2 403.gcc 464.h264ref 400.perlbench 15

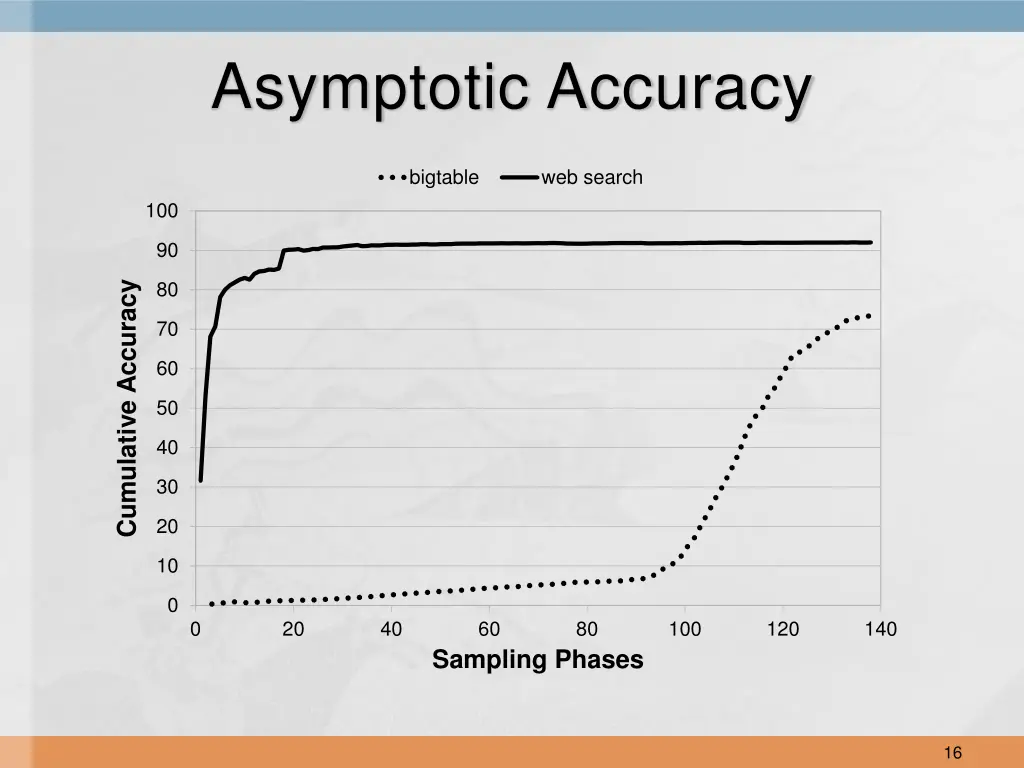

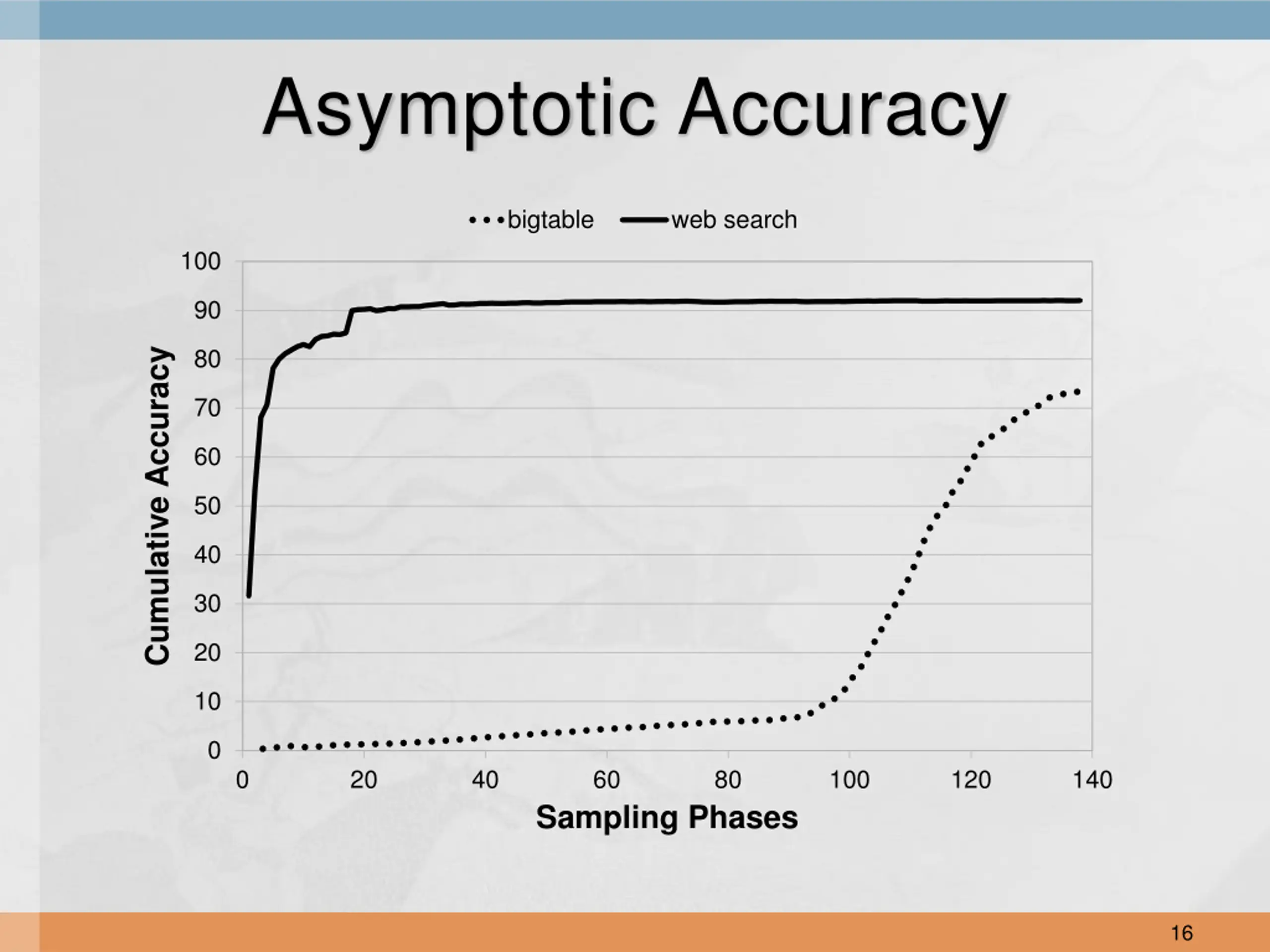

Asymptotic Accuracy bigtable web search 100 90 80 Cumulative Accuracy 70 60 50 40 30 20 10 0 0 20 40 60 80 100 120 140 Sampling Phases 16

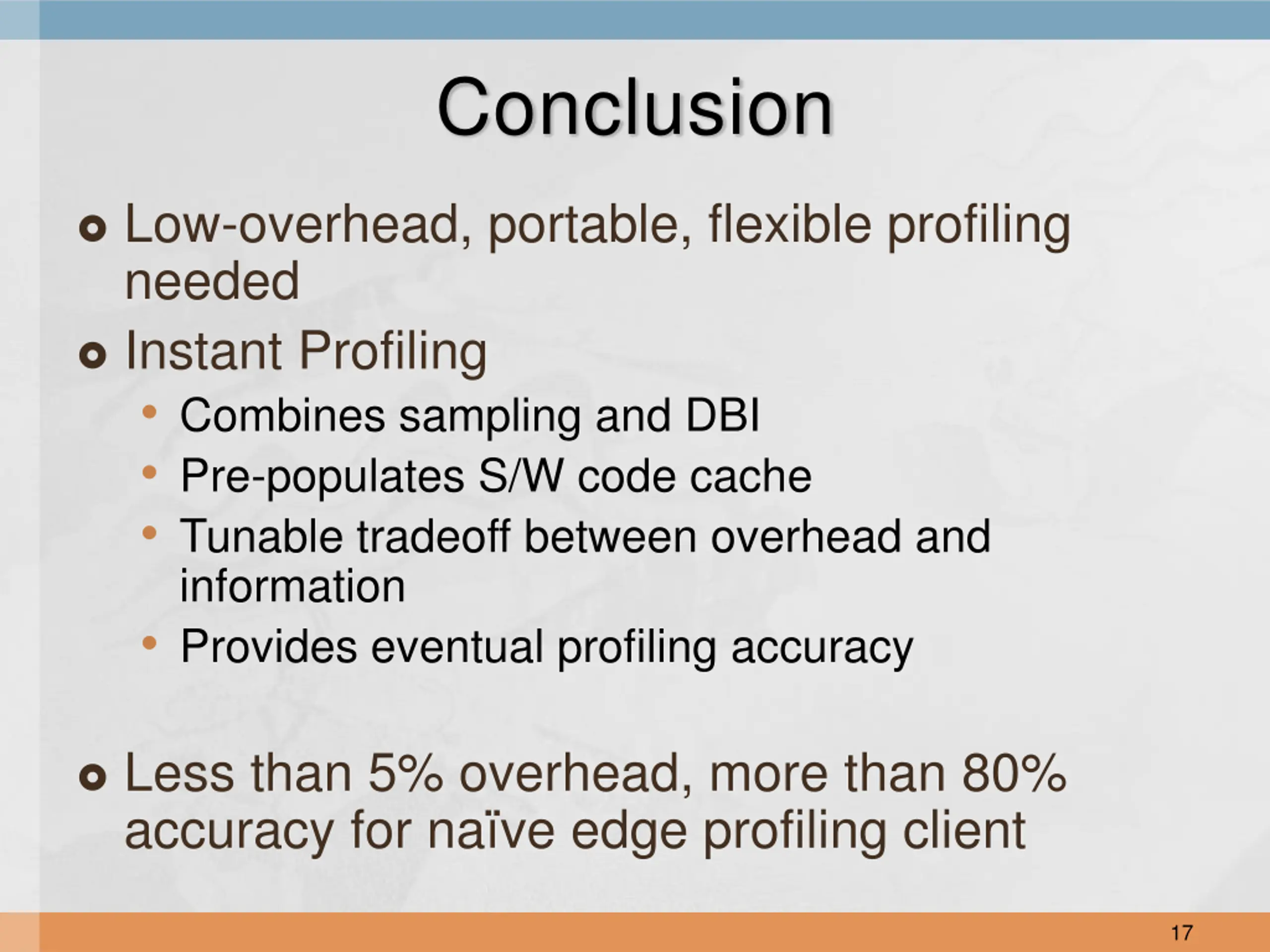

Conclusion Low-overhead, portable, flexible profiling needed Instant Profiling Combines sampling and DBI Pre-populates S/W code cache Tunable tradeoff between overhead and information Provides eventual profiling accuracy Less than 5% overhead, more than 80% accuracy for na ve edge profiling client 17

Thank you! 18
