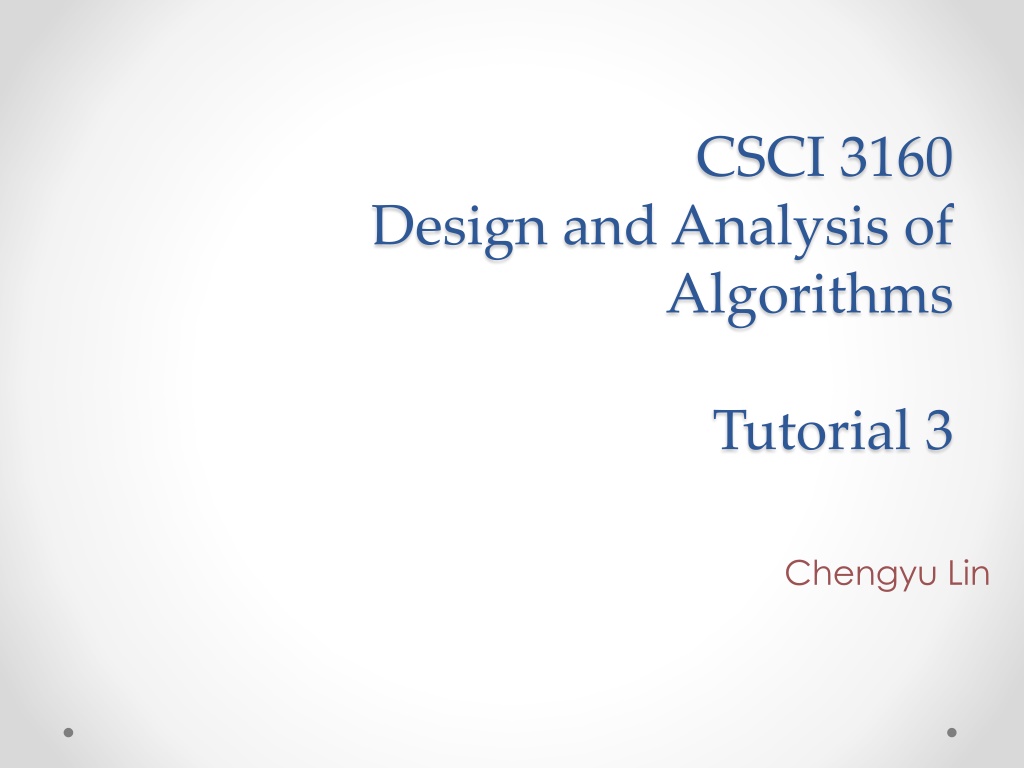

CSCI 3160 Design and Analysis of Algorithms Tutorial 3 Chengyu Lin

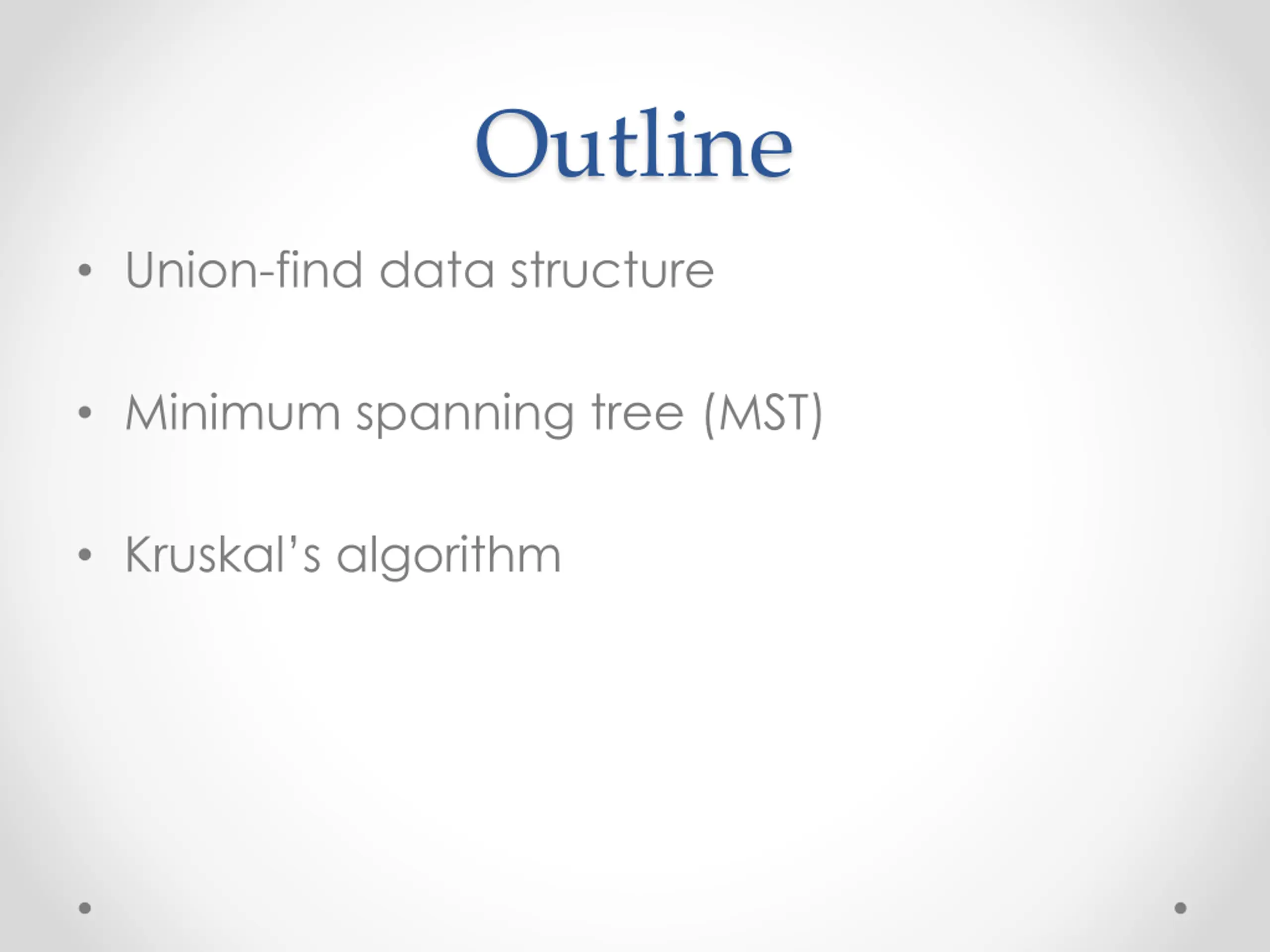

Outline Union-find data structure Minimum spanning tree (MST) Kruskal s algorithm

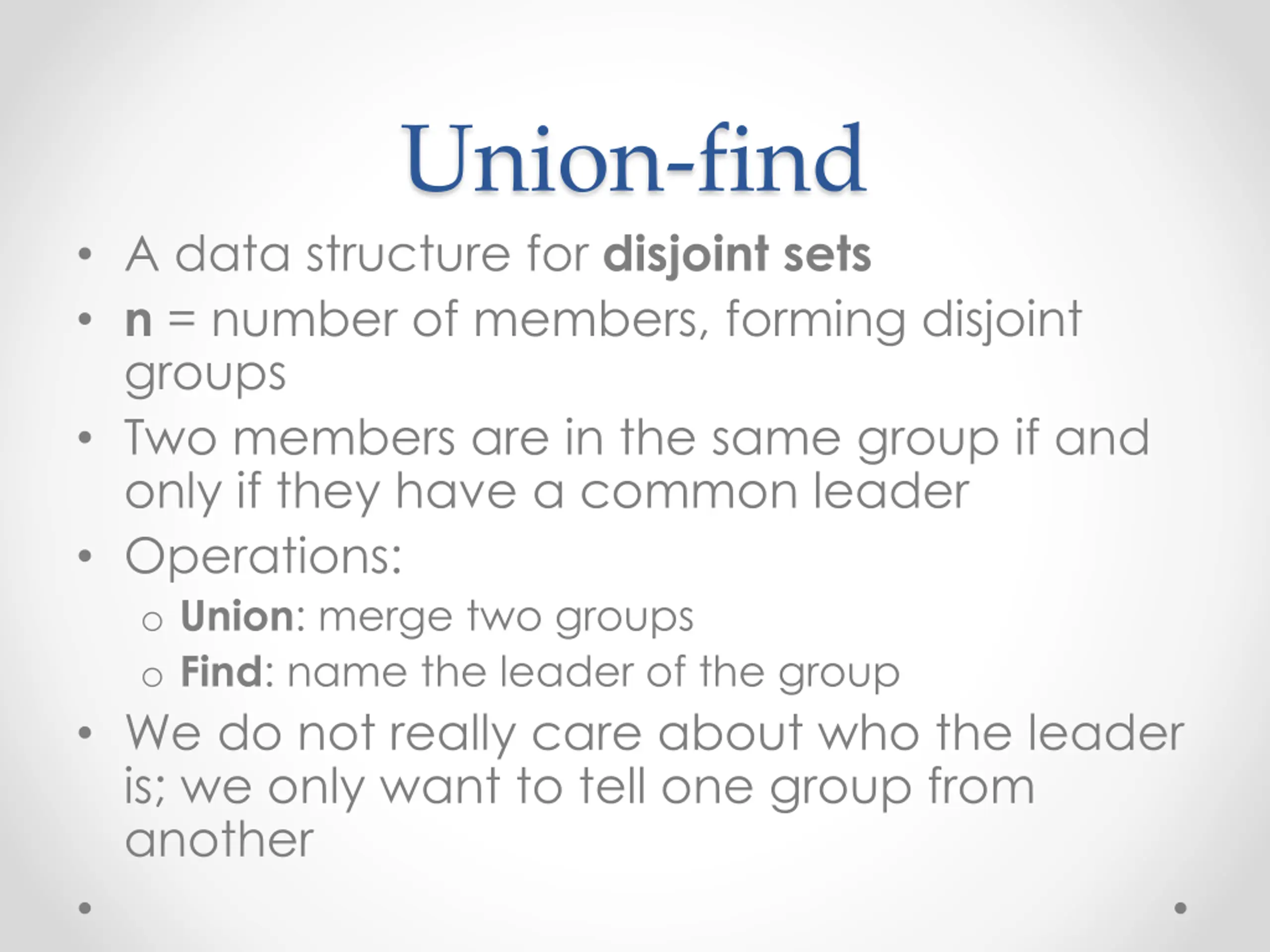

Union-find A data structure for disjoint sets n = number of members, forming disjoint groups Two members are in the same group if and only if they have a common leader Operations: o Union: merge two groups o Find: name the leader of the group We do not really care about who the leader is; we only want to tell one group from another

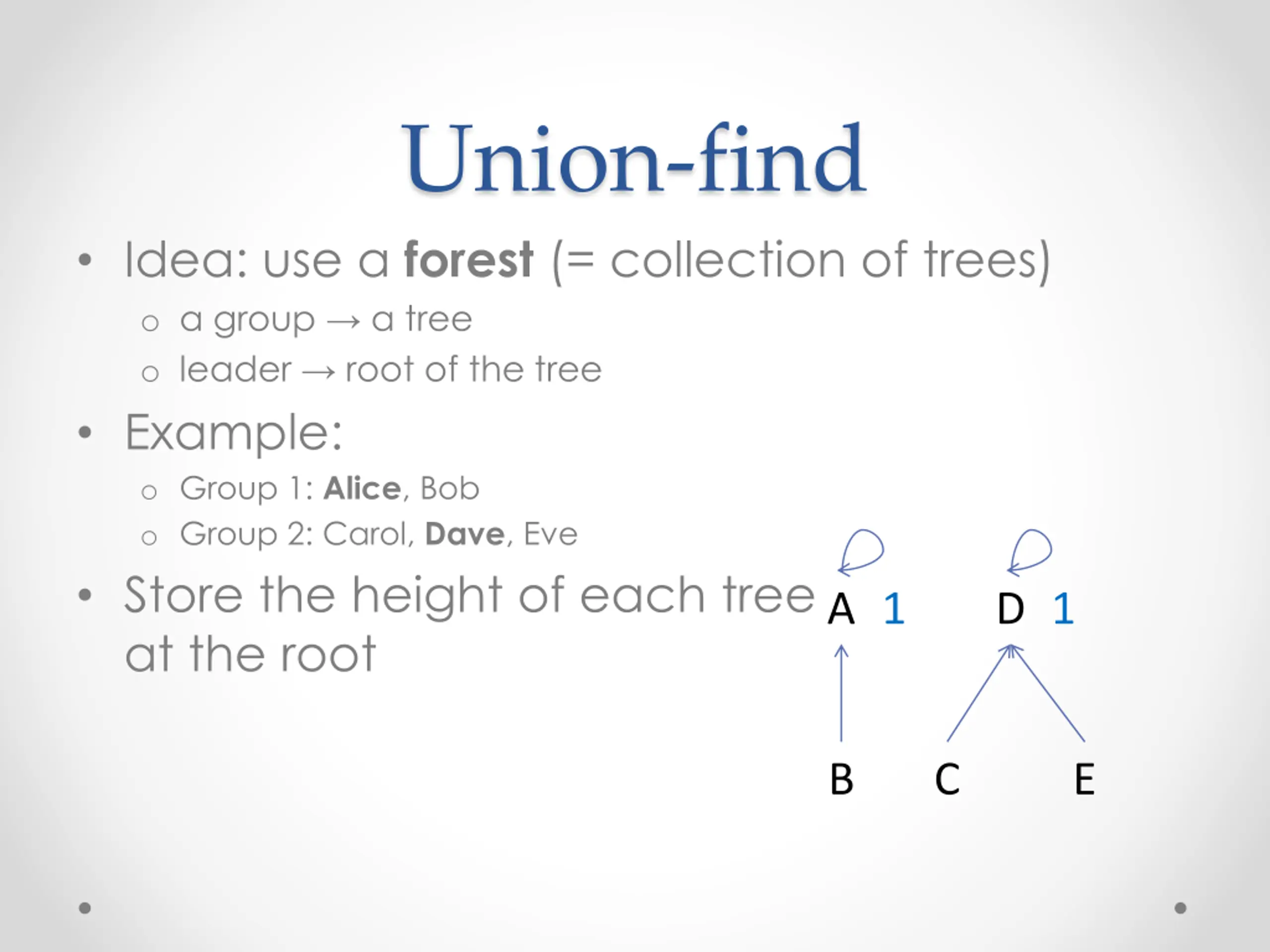

Union-find Idea: use a forest (= collection of trees) o a group a tree o leader root of the tree Example: o Group 1: Alice, Bob o Group 2: Carol, Dave, Eve Store the height of each tree at the root A 1 D 1 B C E

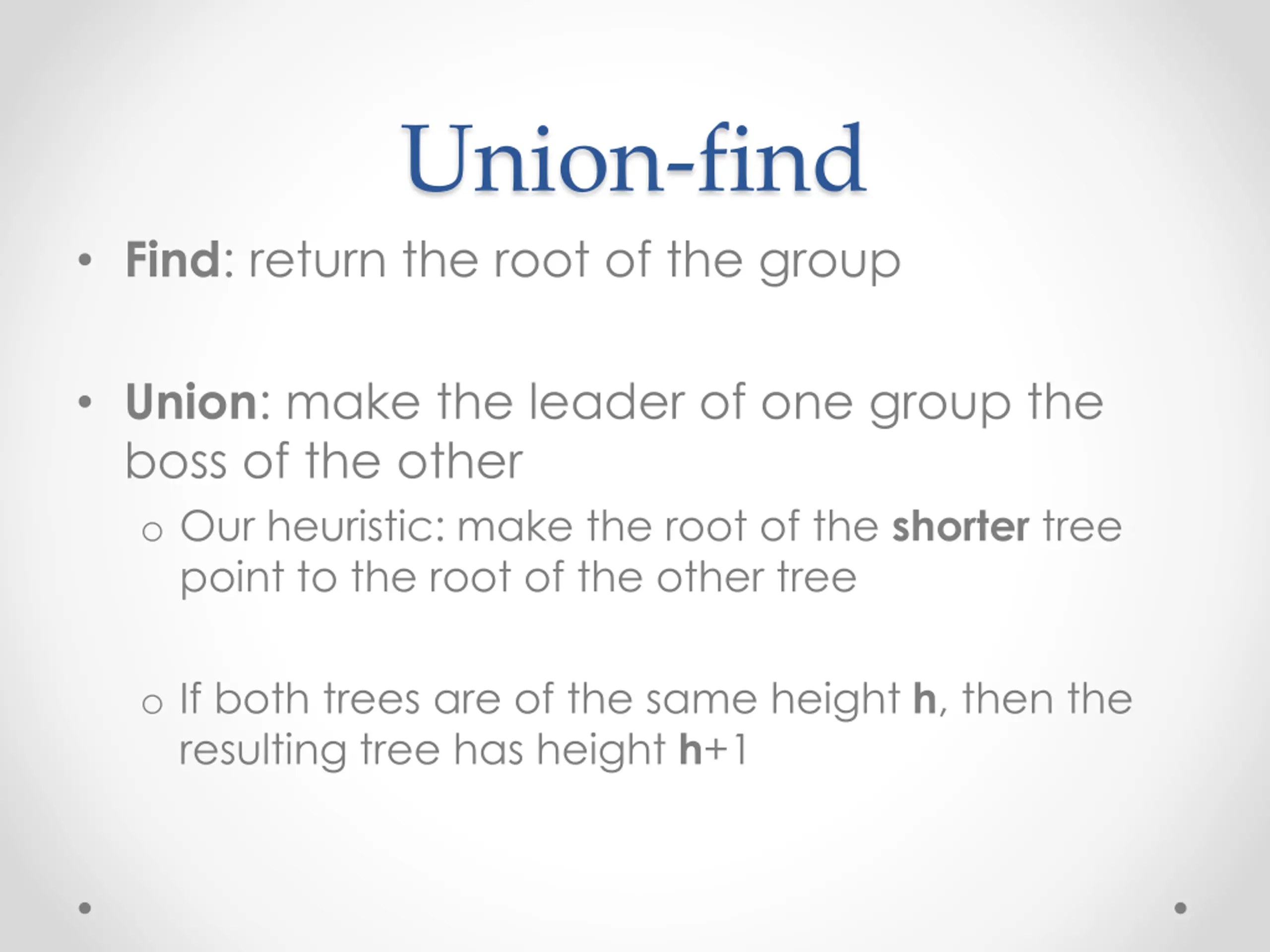

Union-find Find: return the root of the group Union: make the leader of one group the boss of the other o Our heuristic: make the root of the shorter tree point to the root of the other tree o If both trees are of the same height h, then the resulting tree has height h+1

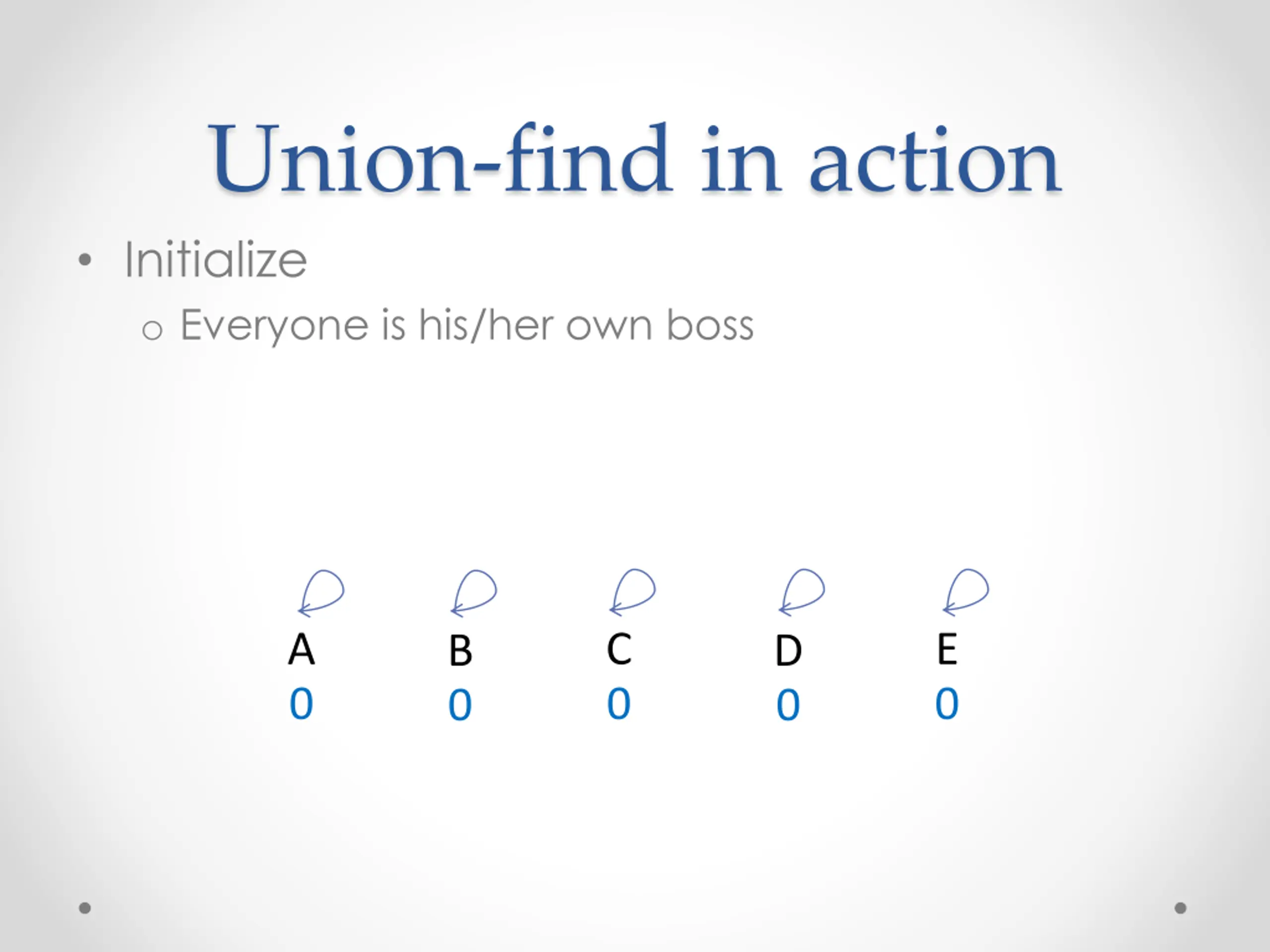

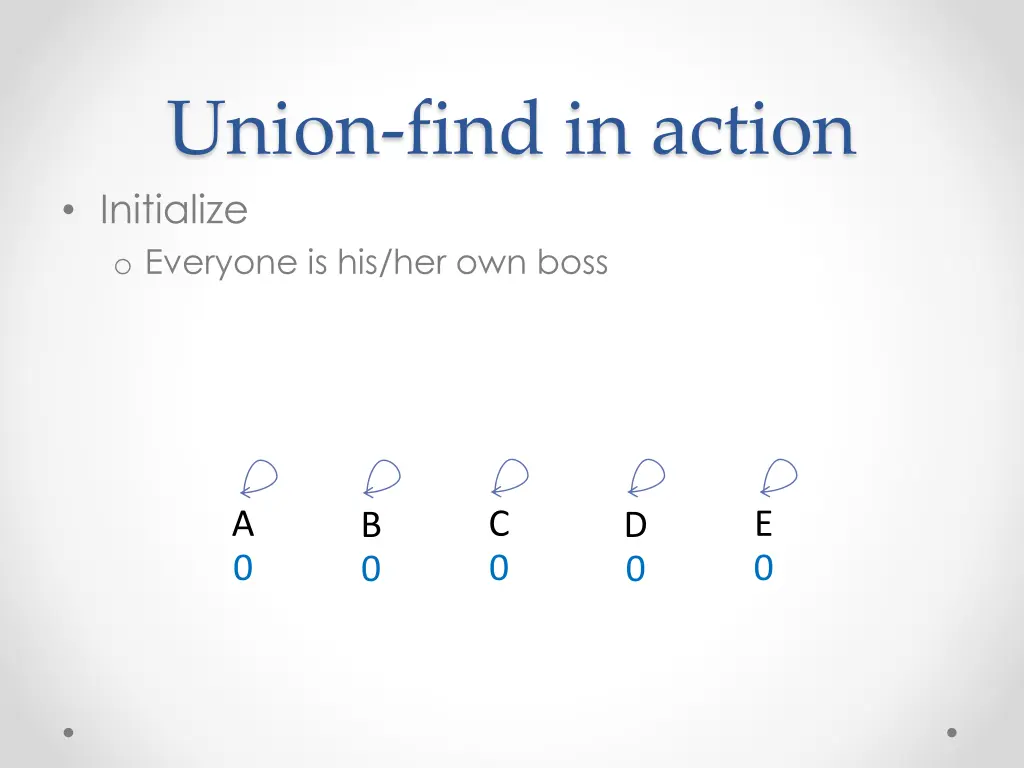

Union-find in action Initialize o Everyone is his/her own boss A 0 C 0 E 0 B 0 D 0

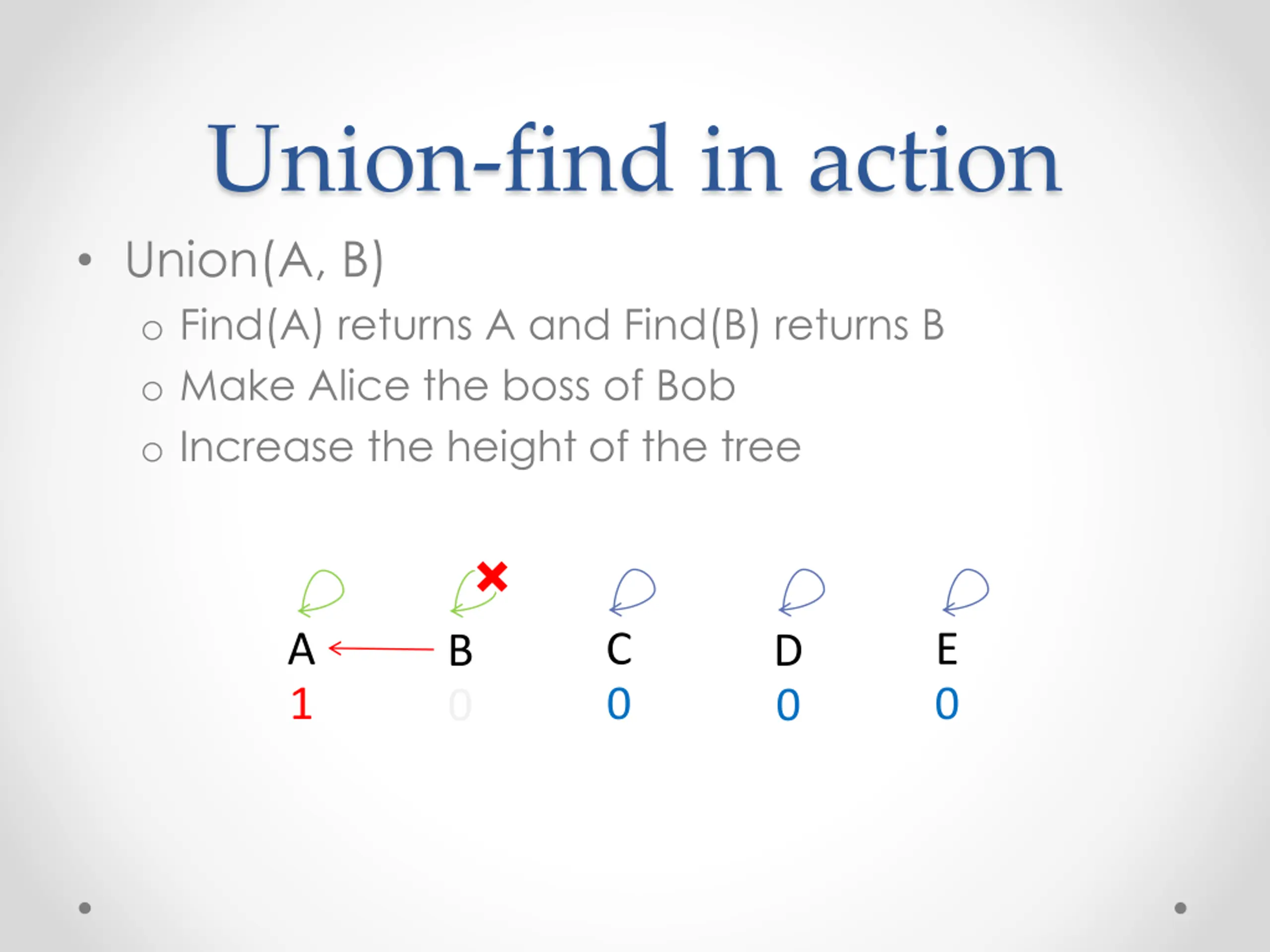

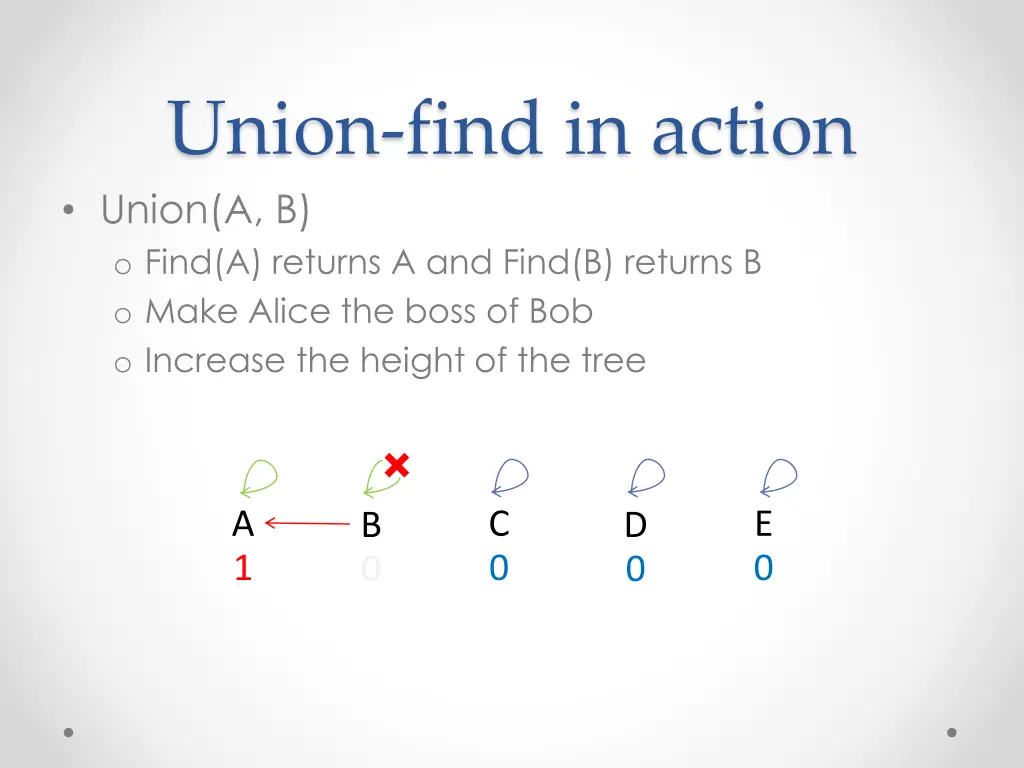

Union-find in action Union(A, B) o Find(A) returns A and Find(B) returns B o Make Alice the boss of Bob o Increase the height of the tree A 1 C 0 E 0 B 0 D 0

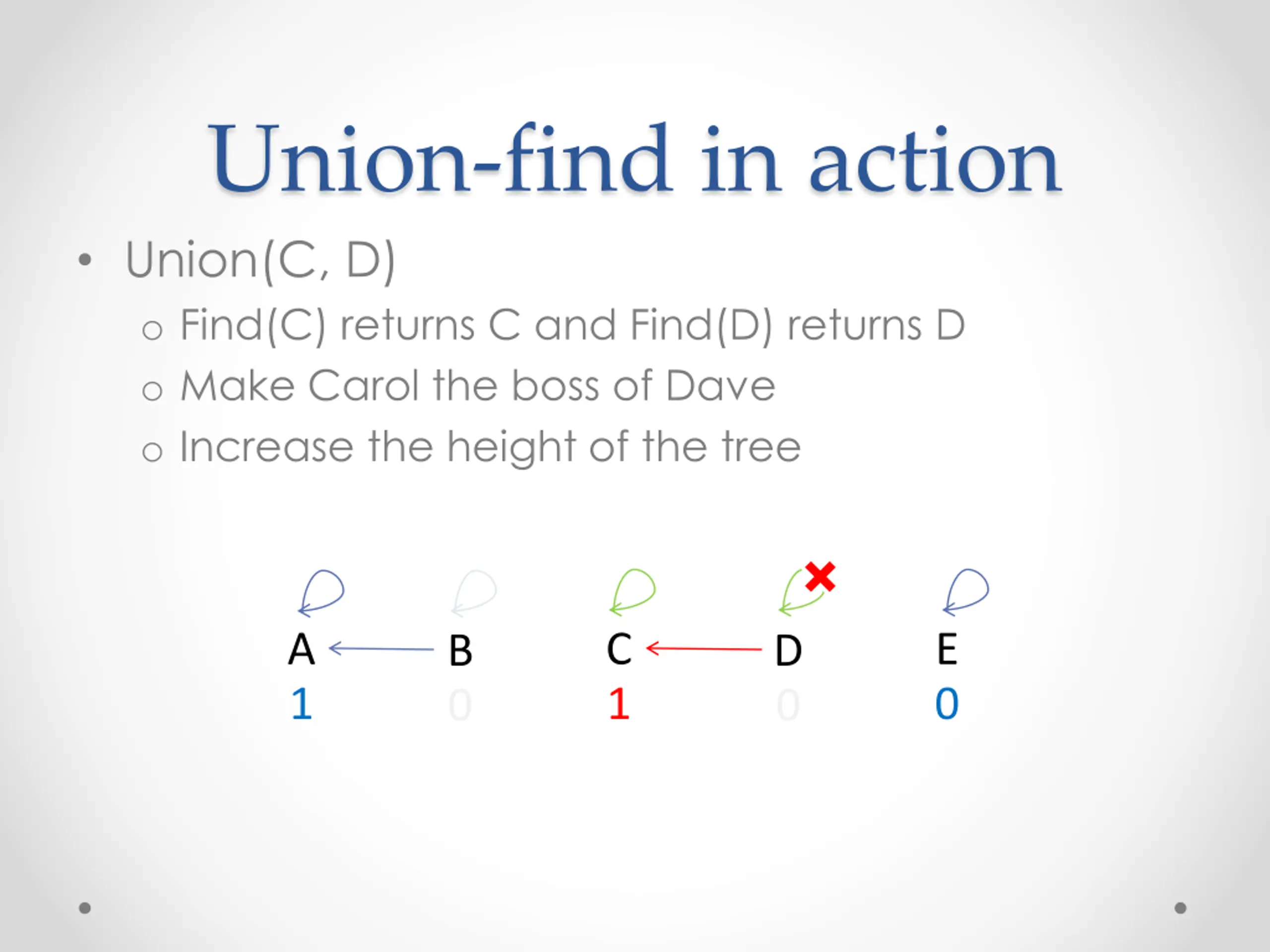

Union-find in action Union(C, D) o Find(C) returns C and Find(D) returns D o Make Carol the boss of Dave o Increase the height of the tree A 1 C 1 E 0 B 0 D 0

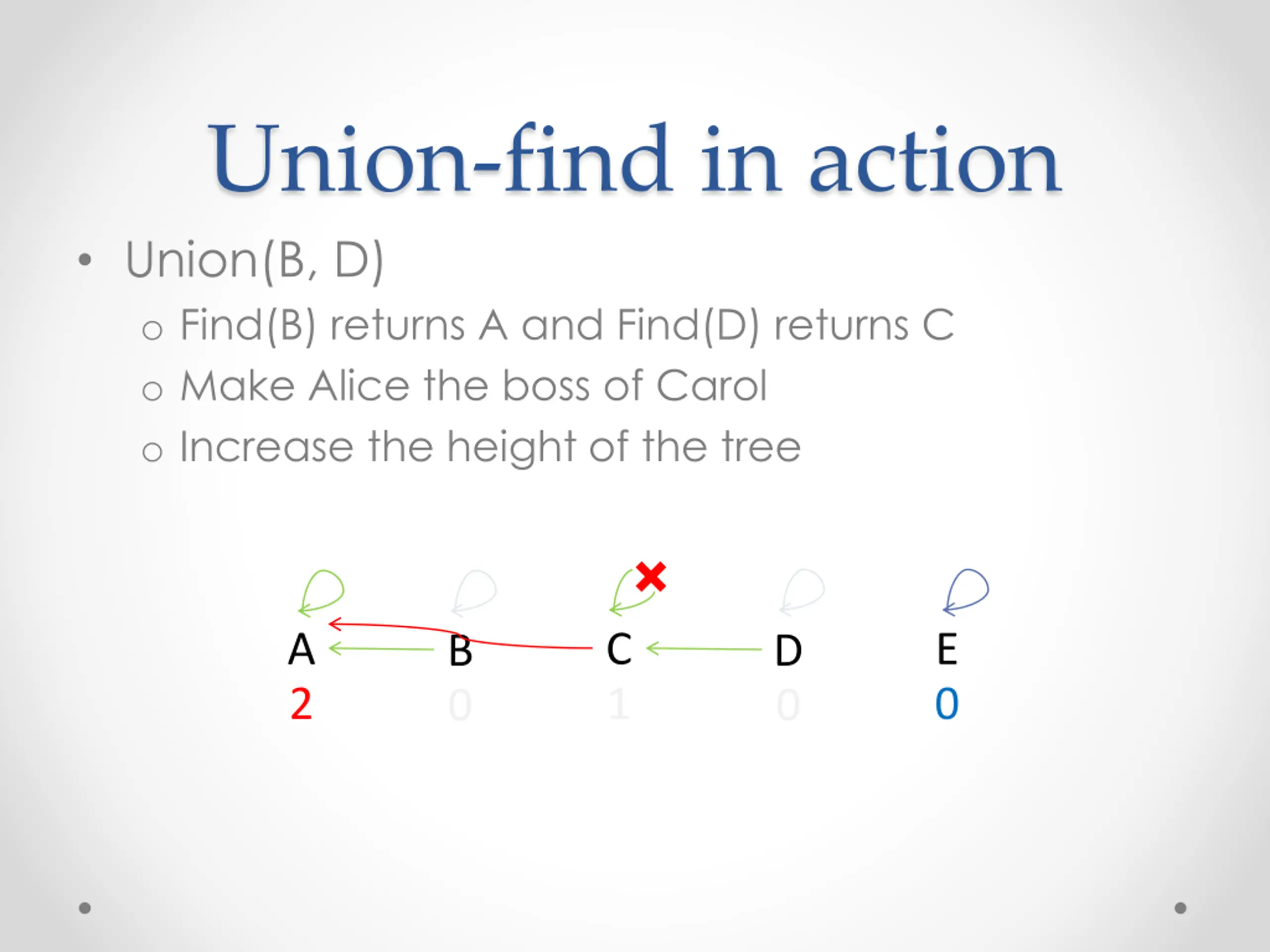

Union-find in action Union(B, D) o Find(B) returns A and Find(D) returns C o Make Alice the boss of Carol o Increase the height of the tree A 2 C 1 E 0 B 0 D 0
Your turn Find(C)? A 2 C 1 E 0 B 0 D 0

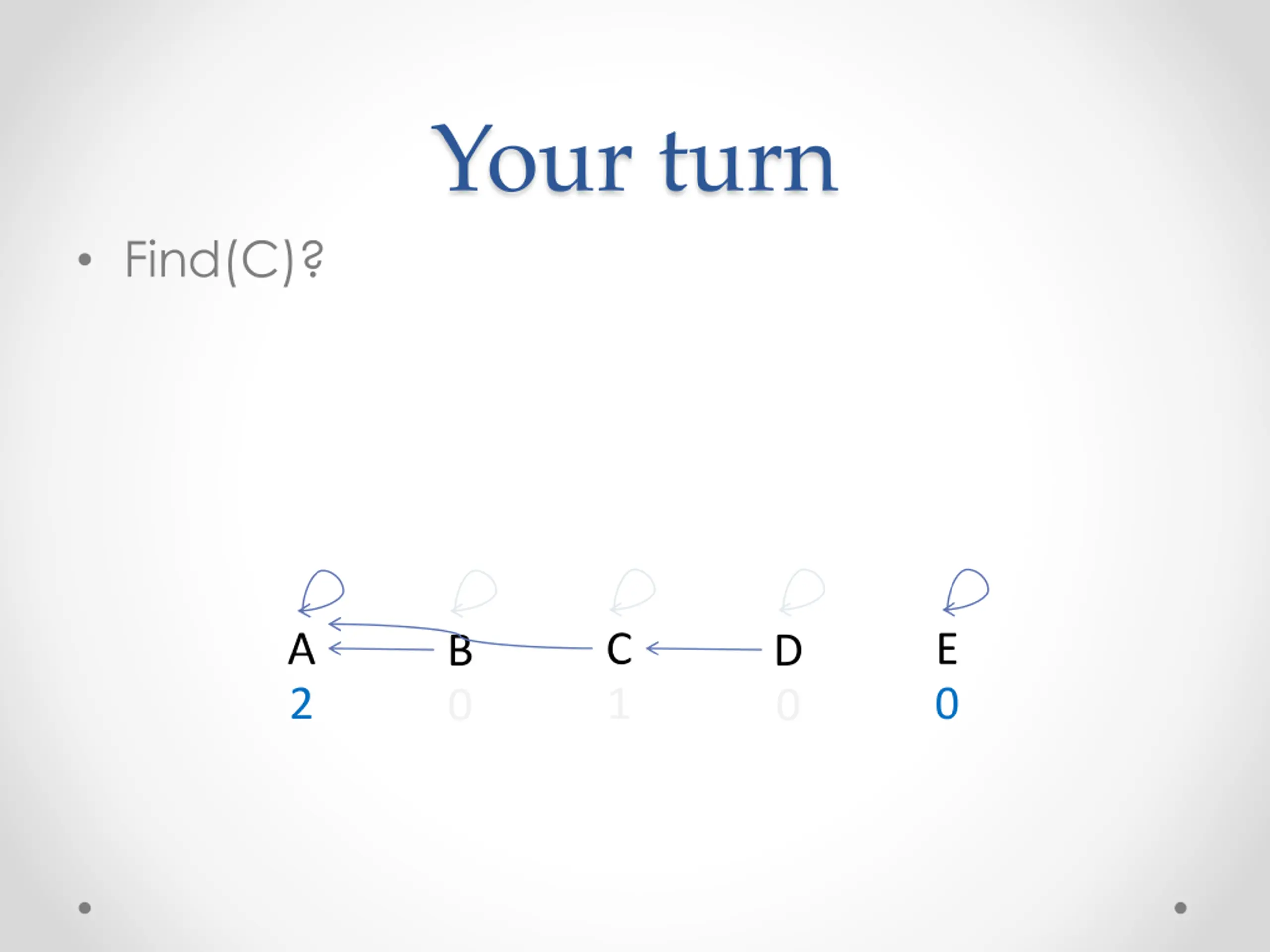

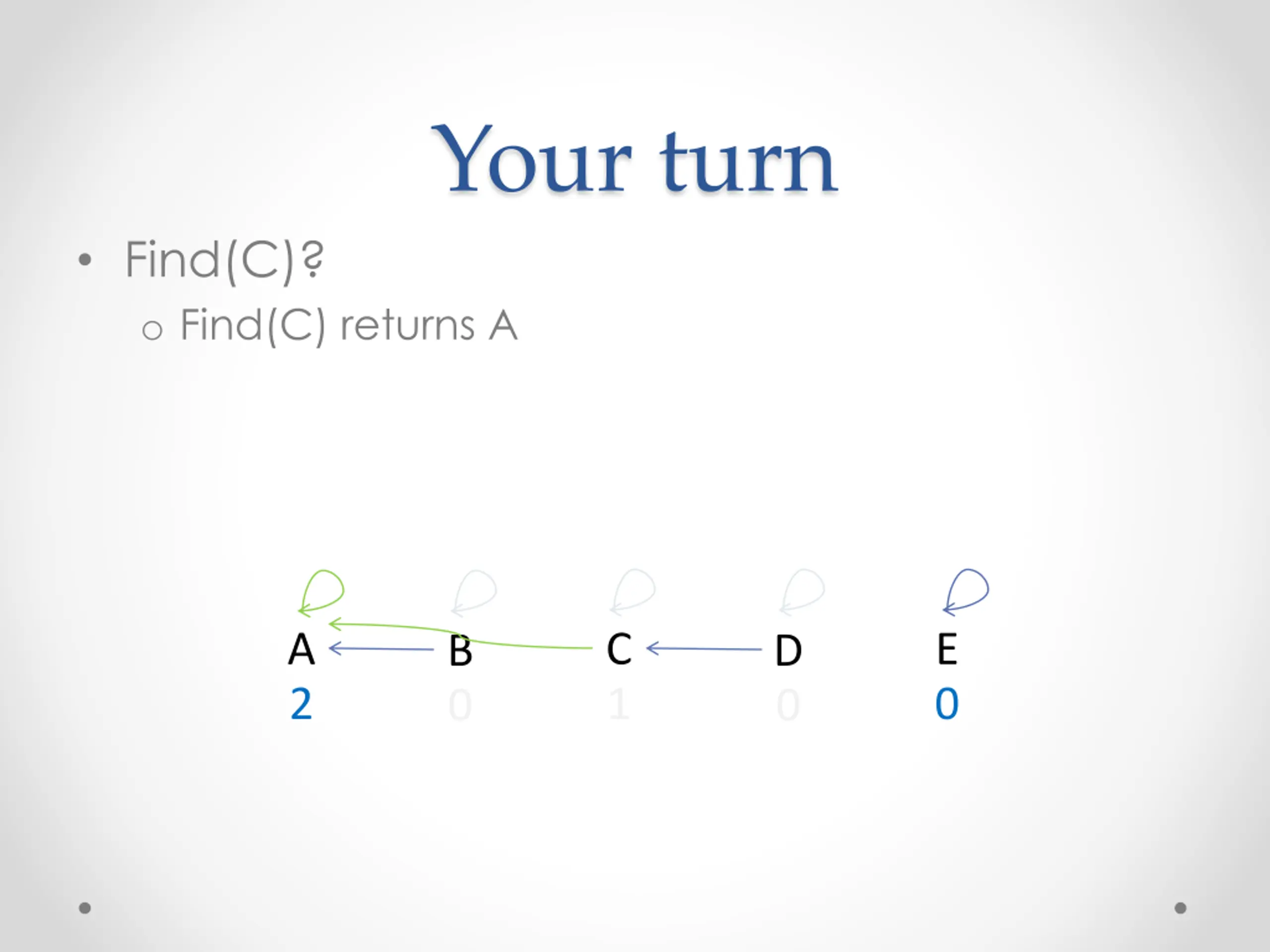

Your turn Find(C)? o Find(C) returns A A 2 C 1 E 0 B 0 D 0

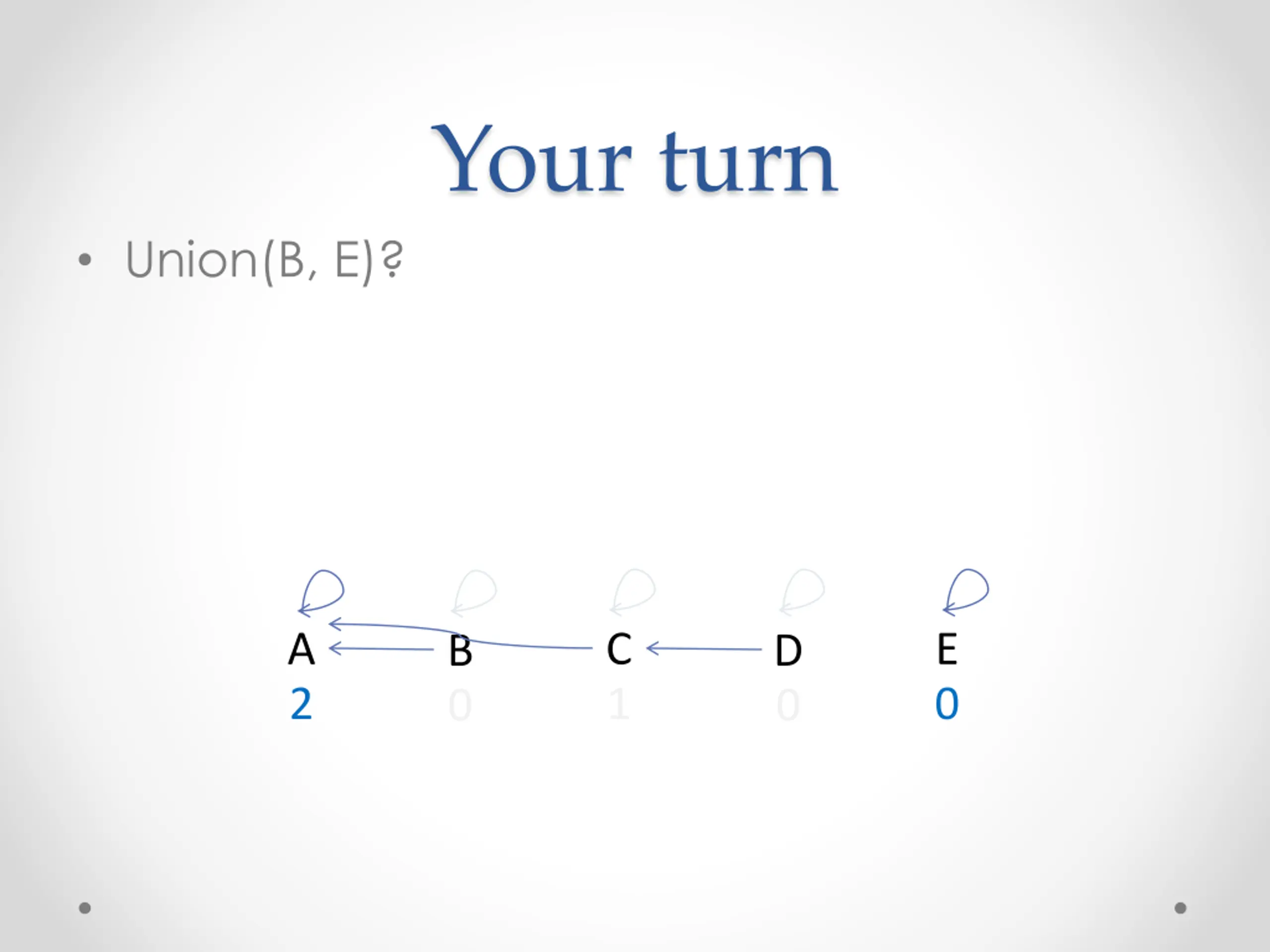

Your turn Union(B, E)? A 2 C 1 E 0 B 0 D 0

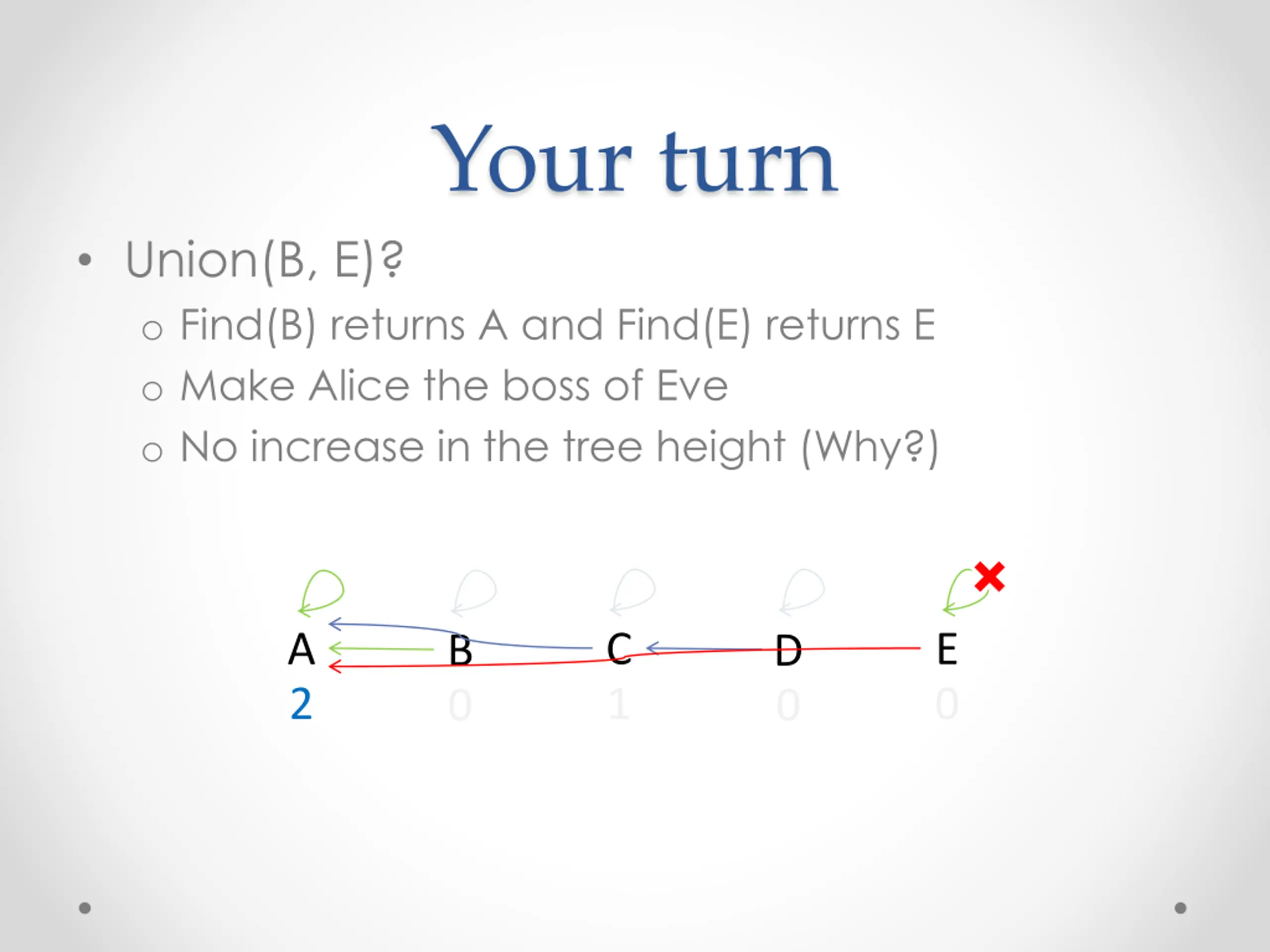

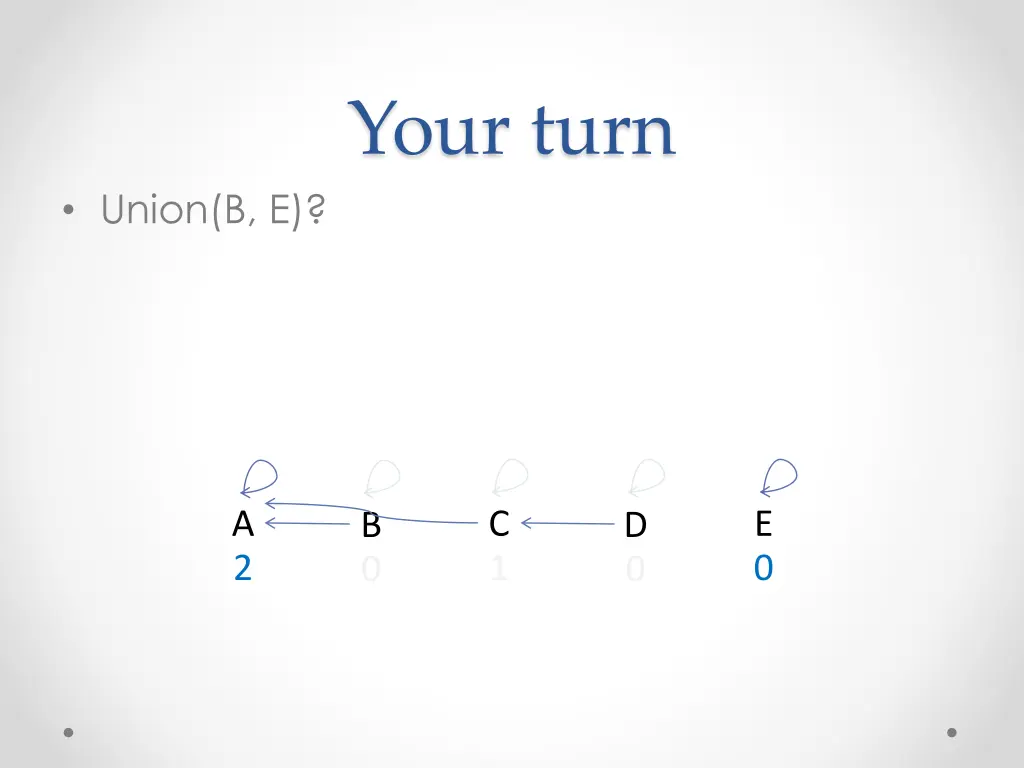

Your turn Union(B, E)? o Find(B) returns A and Find(E) returns E o Make Alice the boss of Eve o No increase in the tree height (Why?) A 2 C 1 E 0 B 0 D 0

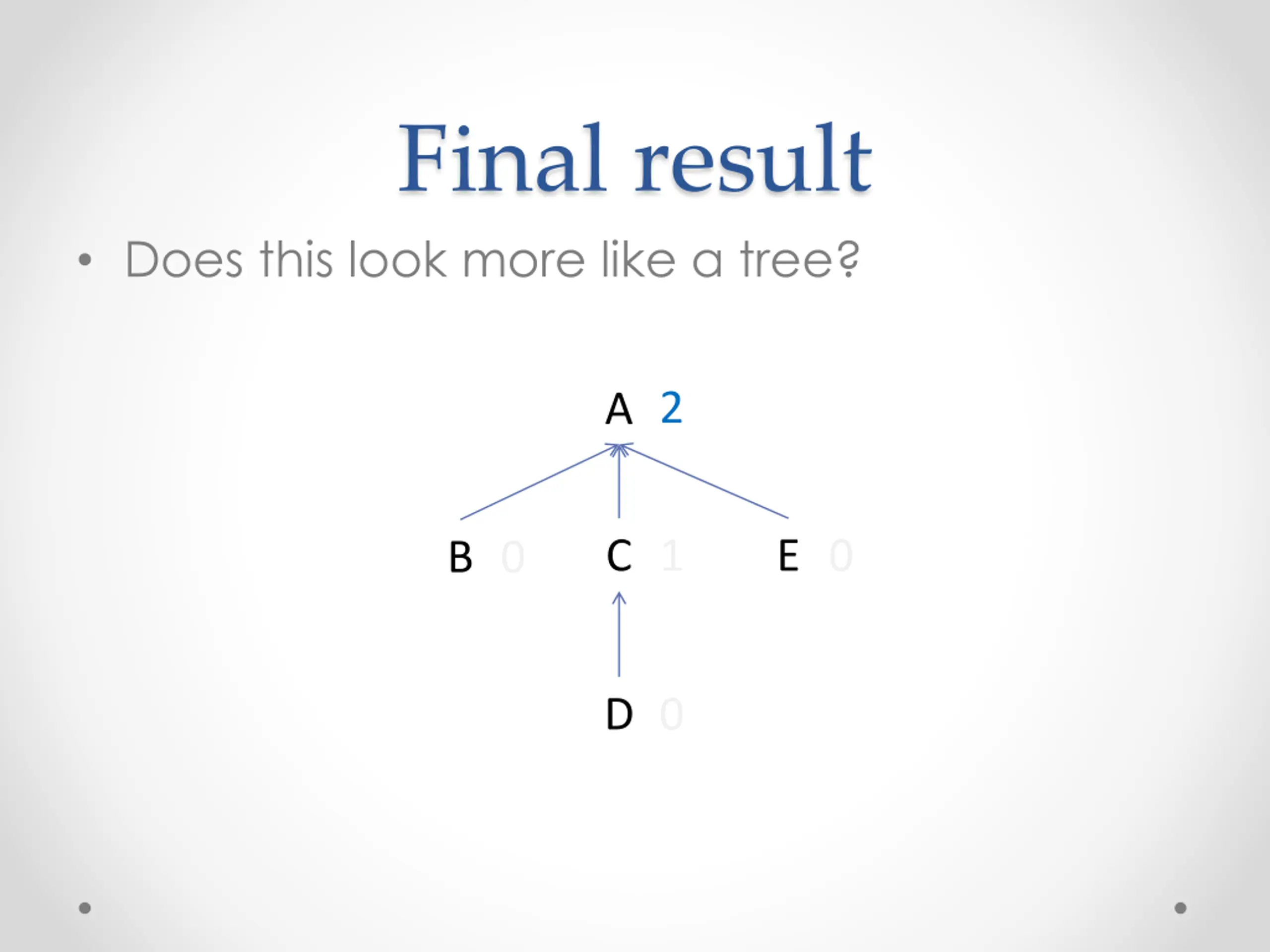

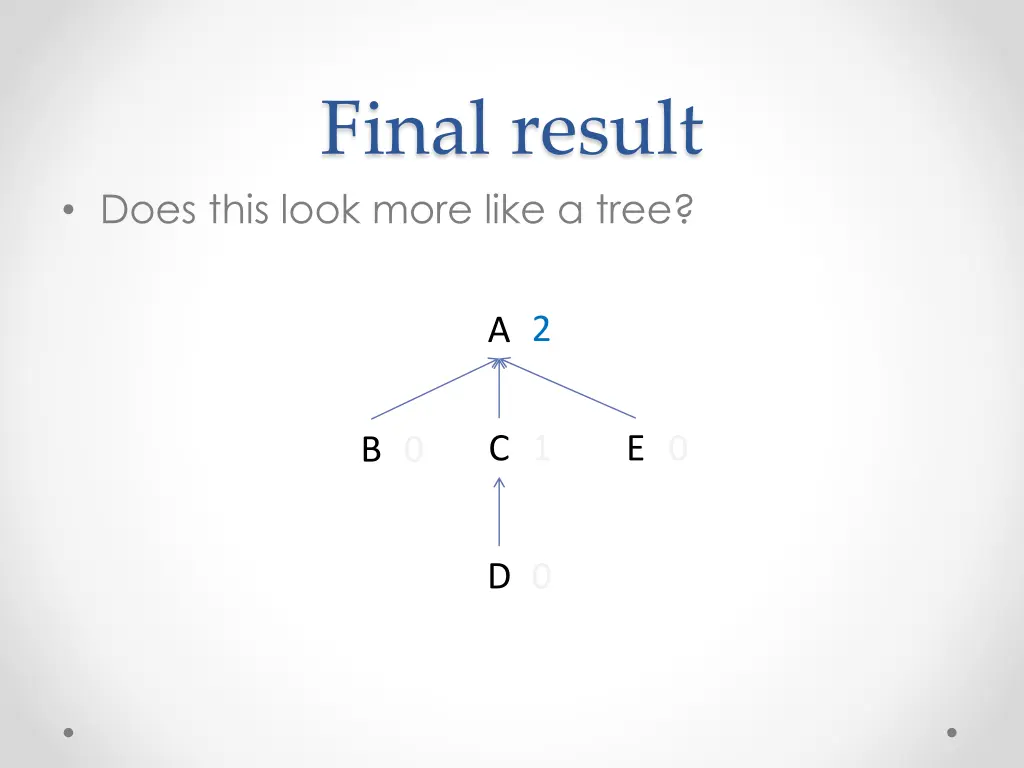

Final result Does this look more like a tree? 2 A C 1 E 0 B 0 D 0

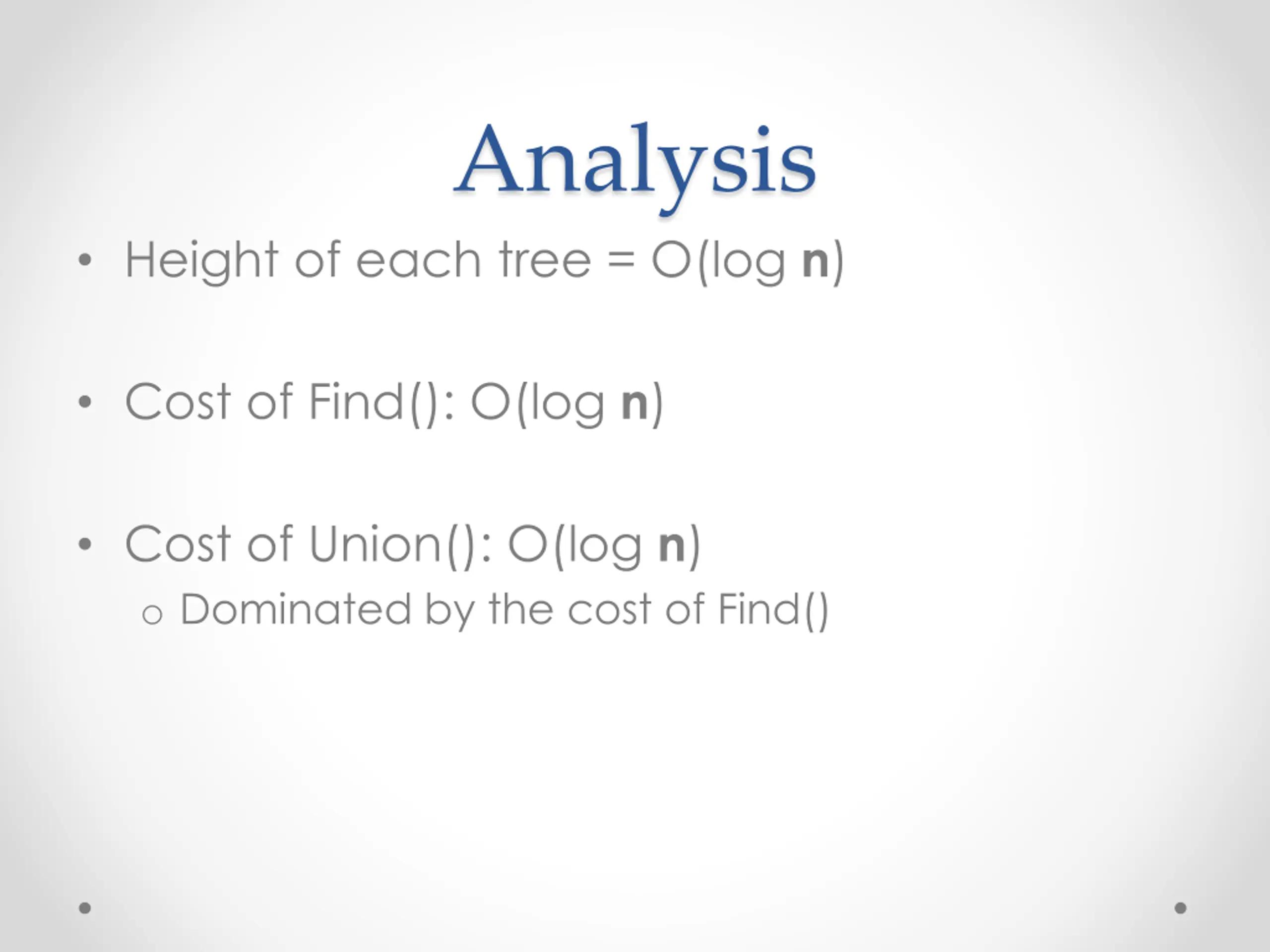

Analysis Height of each tree = O(log n) Cost of Find(): O(log n) Cost of Union(): O(log n) o Dominated by the cost of Find()

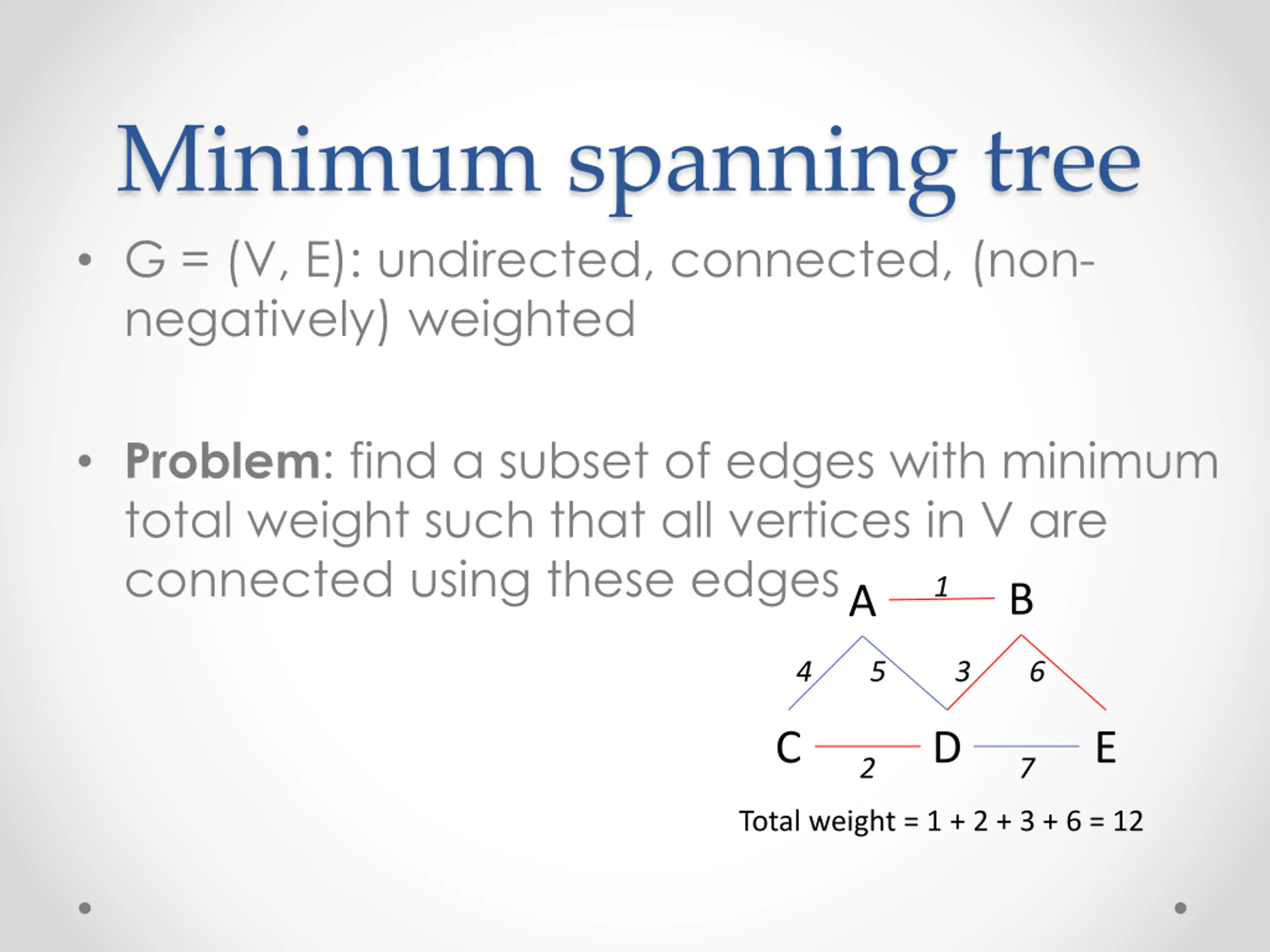

Minimum spanning tree G = (V, E): undirected, connected, (non- negatively) weighted Problem: find a subset of edges with minimum total weight such that all vertices in V are connected using these edgesA 1 B 4 5 3 6 C D E 2 7 Total weight = 1 + 2 + 3 + 6 = 12

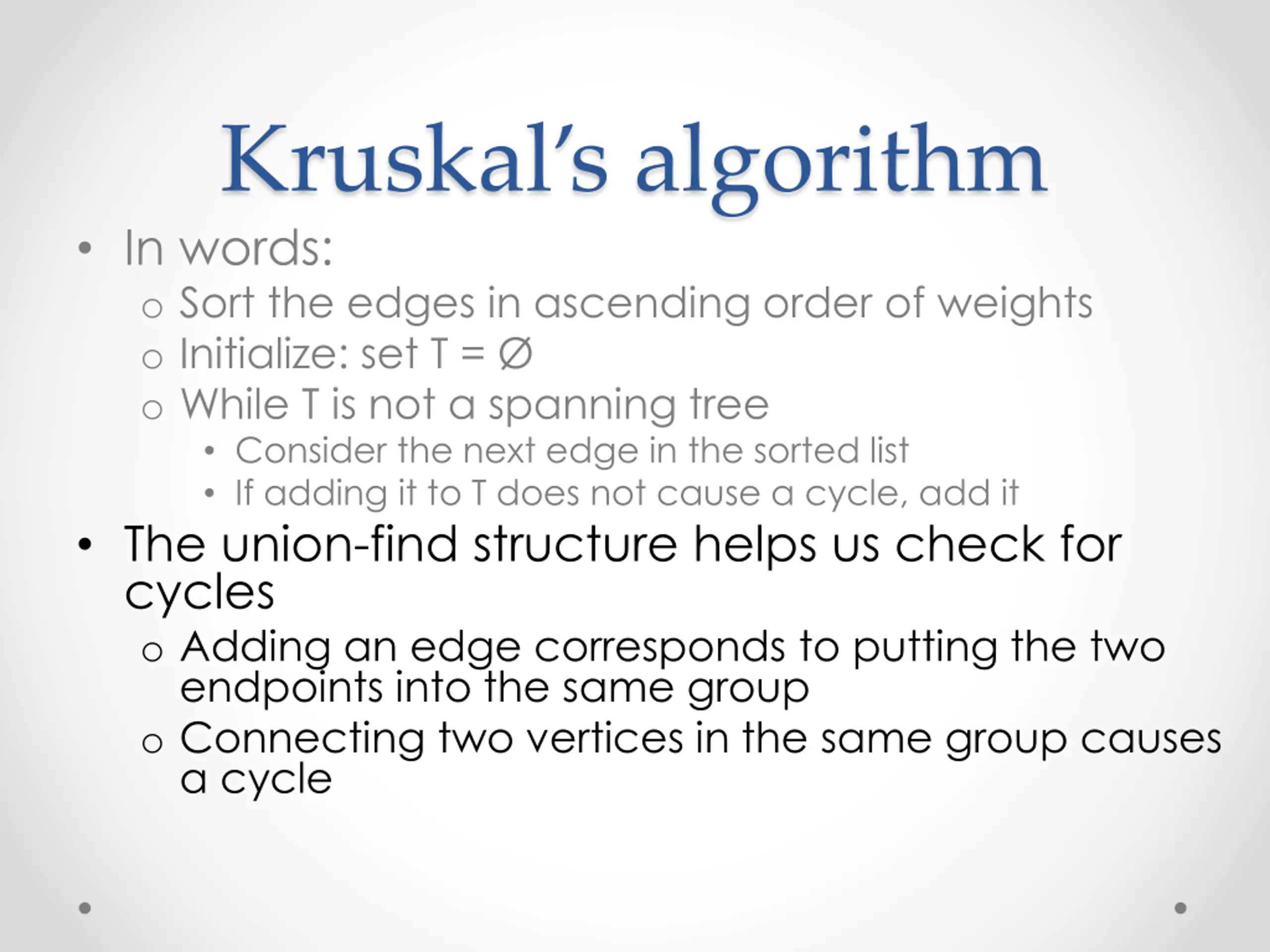

Kruskals algorithm In words: o Sort the edges in ascending order of weights o Initialize: set T = o While T is not a spanning tree Consider the next edge in the sorted list If adding it to T does not cause a cycle, add it The union-find structure helps us check for cycles o Adding an edge corresponds to putting the two endpoints into the same group o Connecting two vertices in the same group causes a cycle

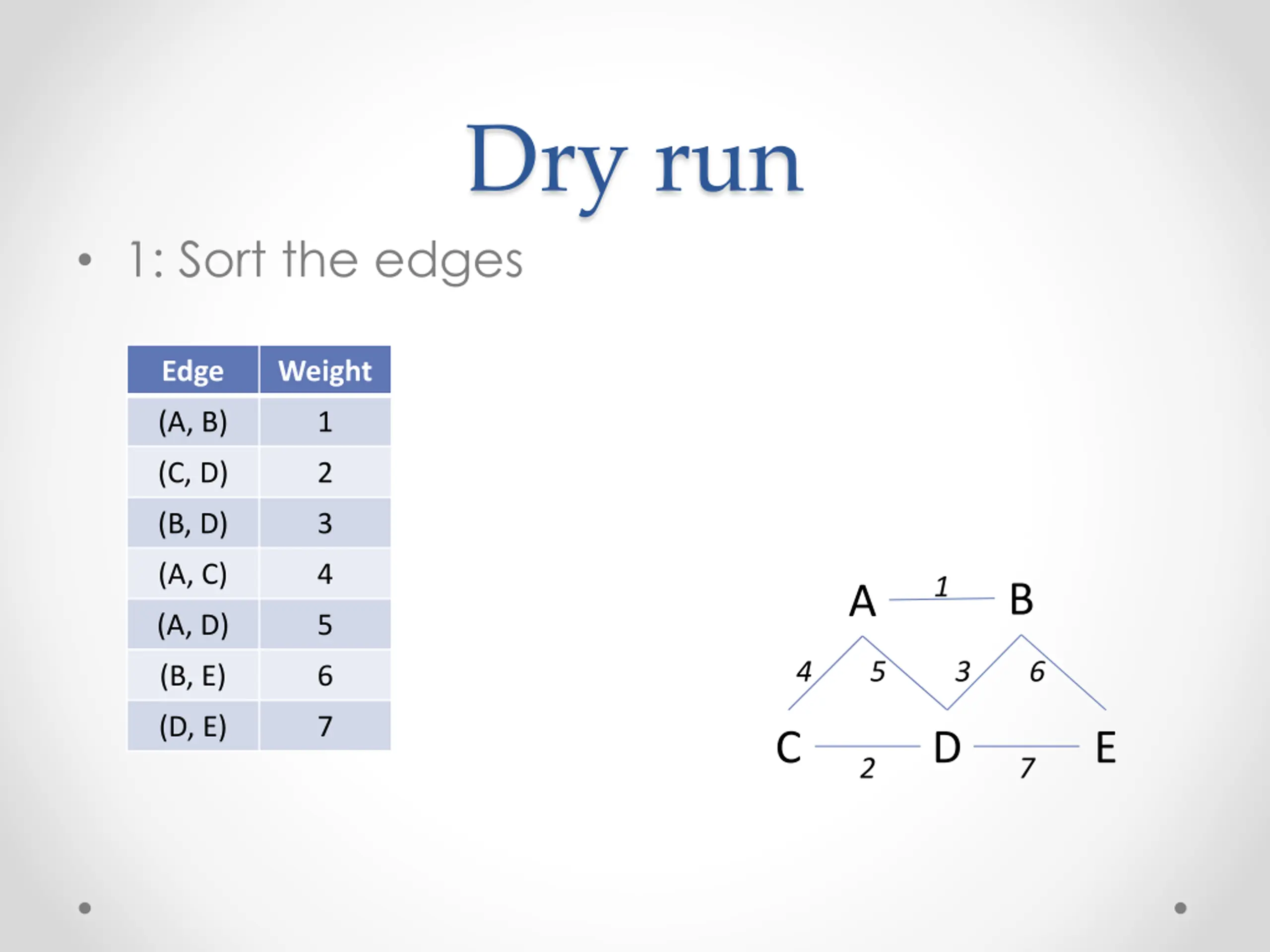

Dry run 1: Sort the edges Edge Weight (A, B) 1 (C, D) 2 (B, D) 3 (A, C) 4 1 B A (A, D) 5 4 5 3 6 (B, E) 6 (D, E) 7 C D E 2 7

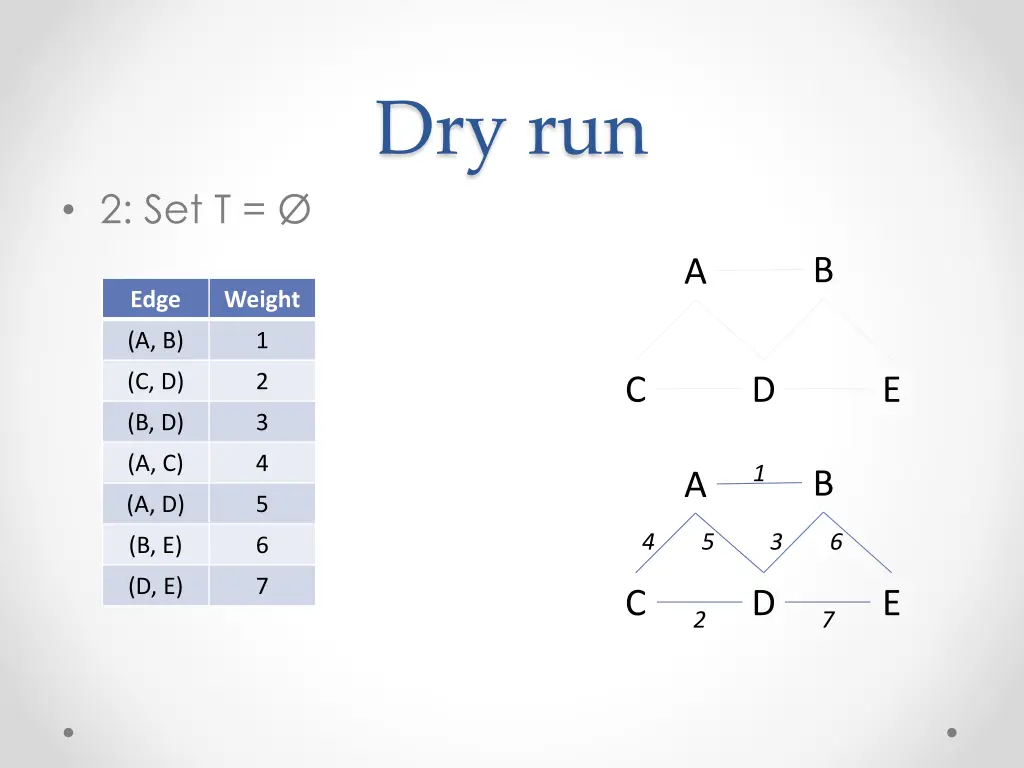

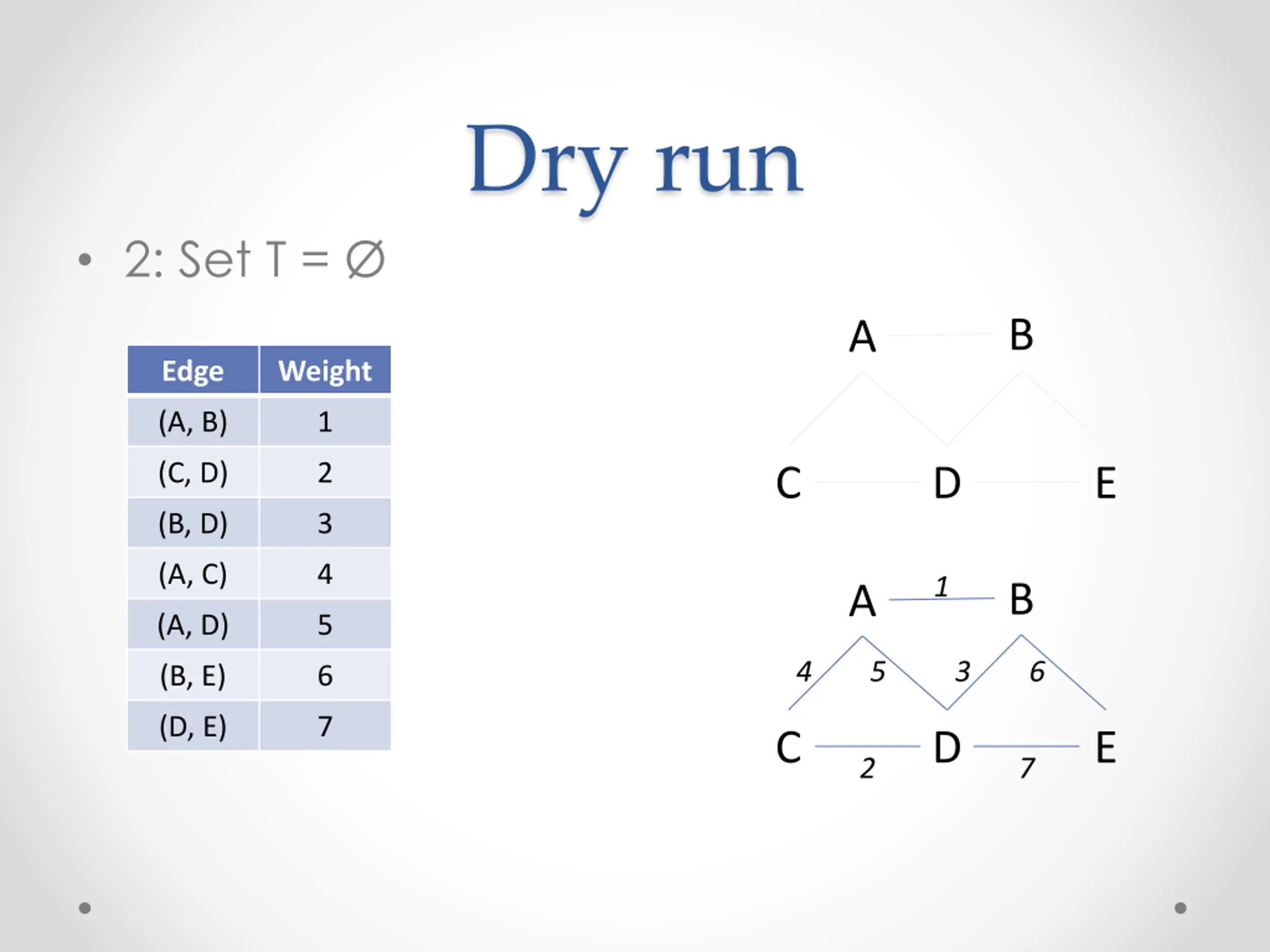

Dry run 2: Set T = B A Edge Weight (A, B) 1 (C, D) 2 C D E (B, D) 3 (A, C) 4 1 B A (A, D) 5 4 5 3 6 (B, E) 6 (D, E) 7 C D E 2 7

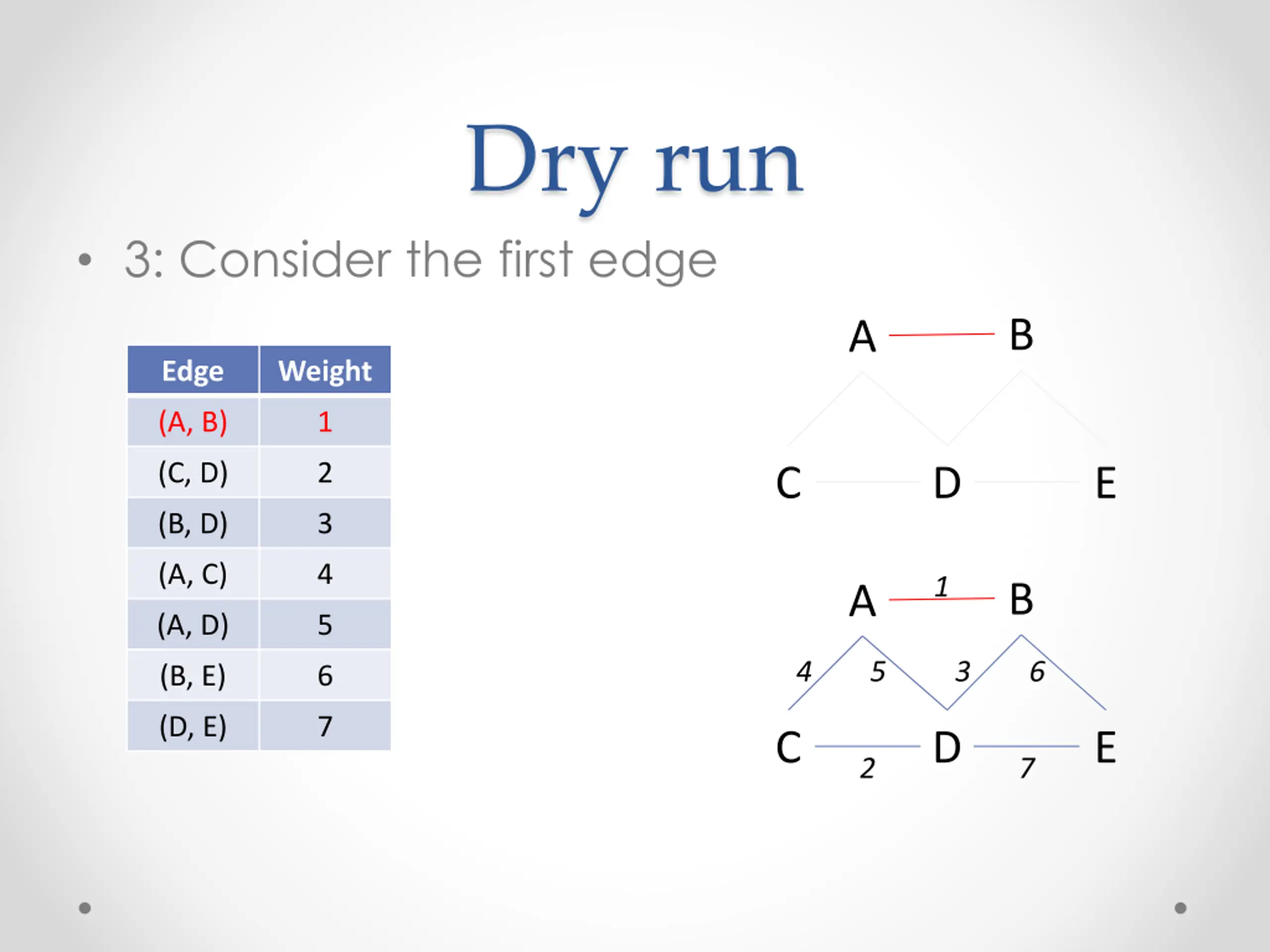

Dry run 3: Consider the first edge B A Edge Weight (A, B) 1 (C, D) 2 C D E (B, D) 3 (A, C) 4 1 B A (A, D) 5 4 5 3 6 (B, E) 6 (D, E) 7 C D E 2 7

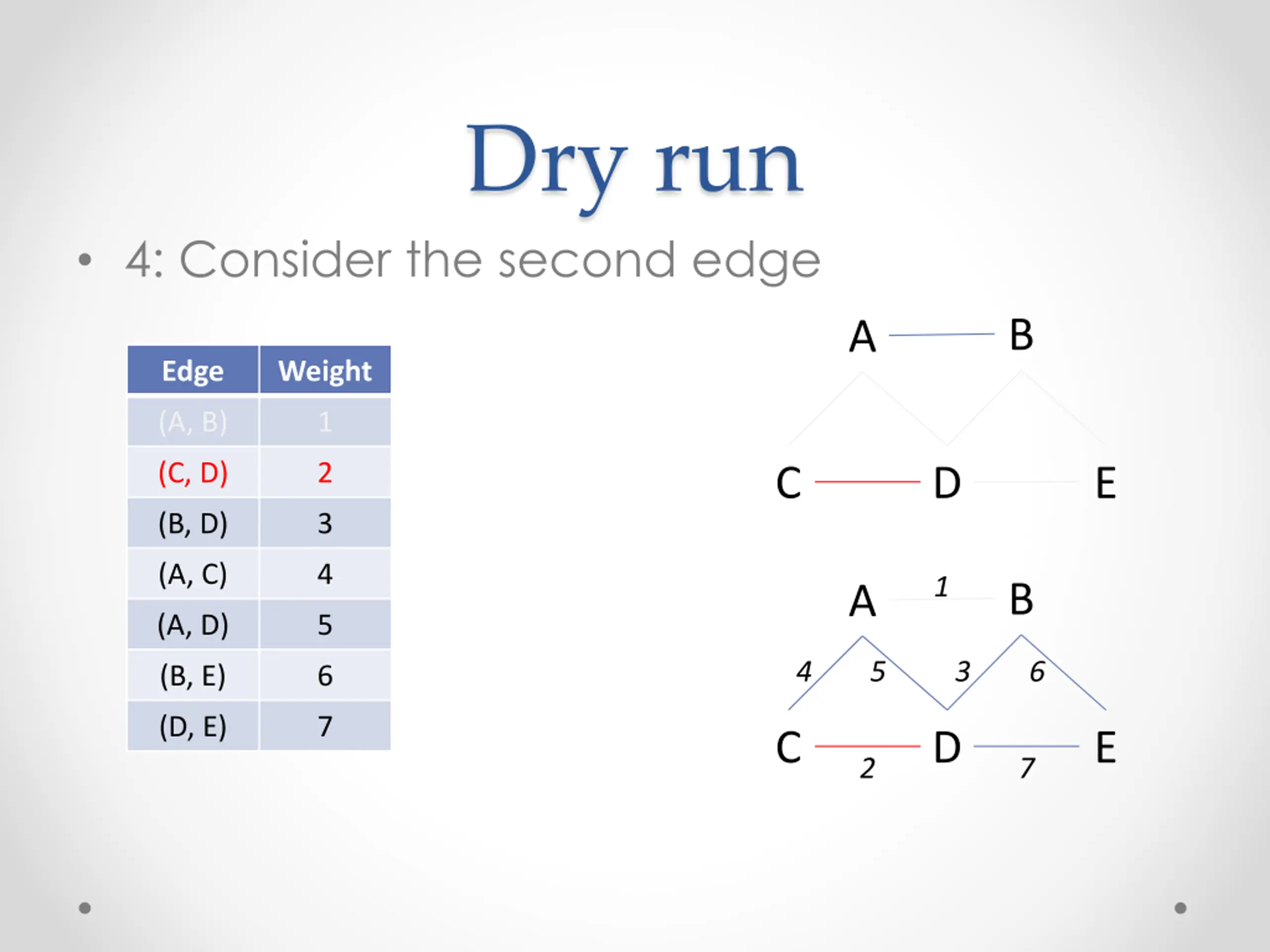

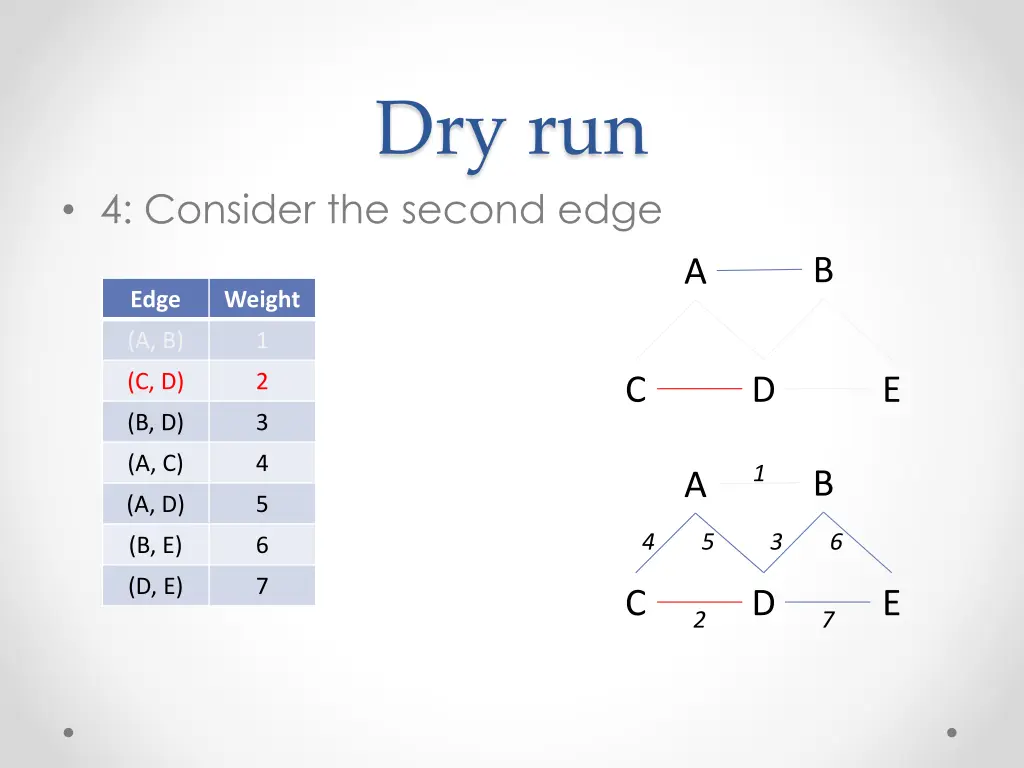

Dry run 4: Consider the second edge B A Edge Weight (A, B) 1 (C, D) 2 C D E (B, D) 3 (A, C) 4 1 B A (A, D) 5 4 5 3 6 (B, E) 6 (D, E) 7 C D E 2 7

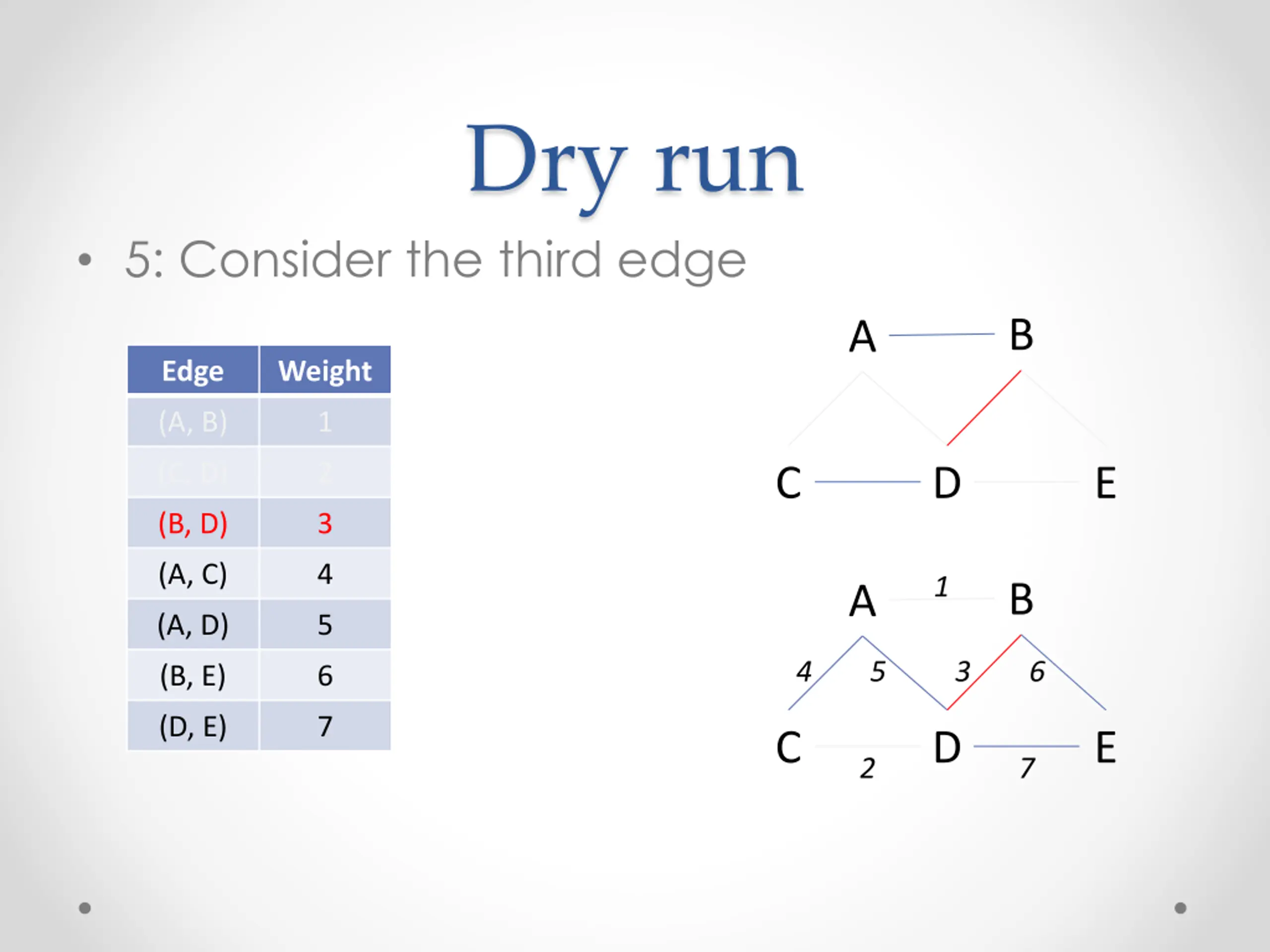

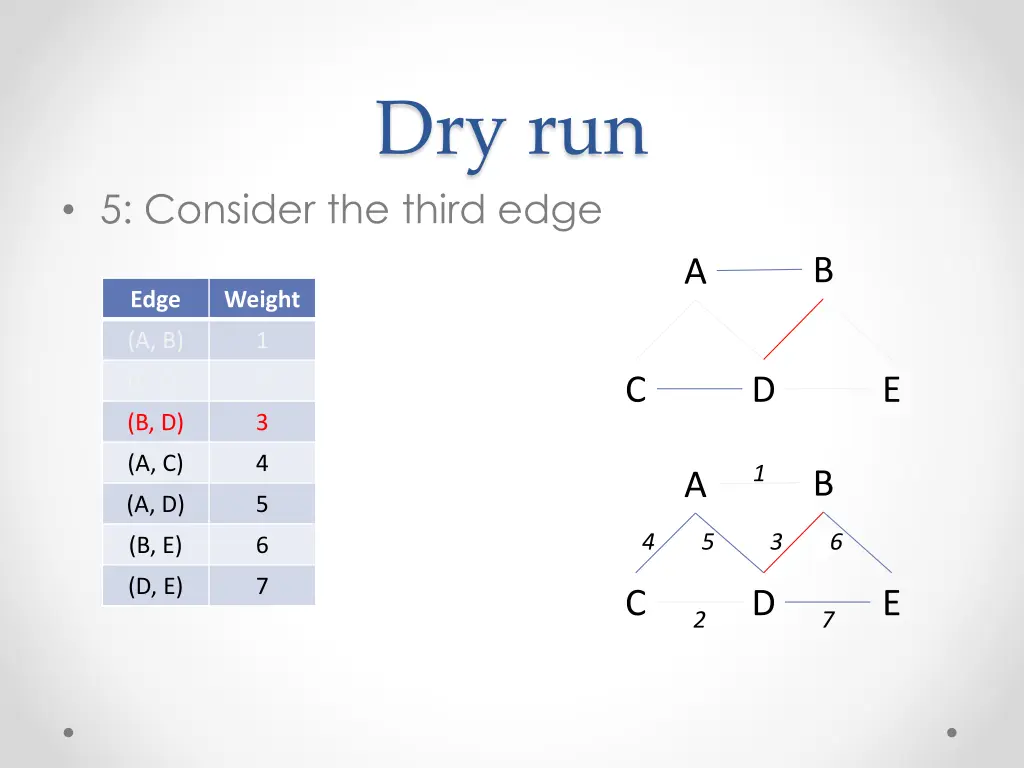

Dry run 5: Consider the third edge B A Edge Weight (A, B) 1 (C, D) 2 C D E (B, D) 3 (A, C) 4 1 B A (A, D) 5 4 5 3 6 (B, E) 6 (D, E) 7 C D E 2 7

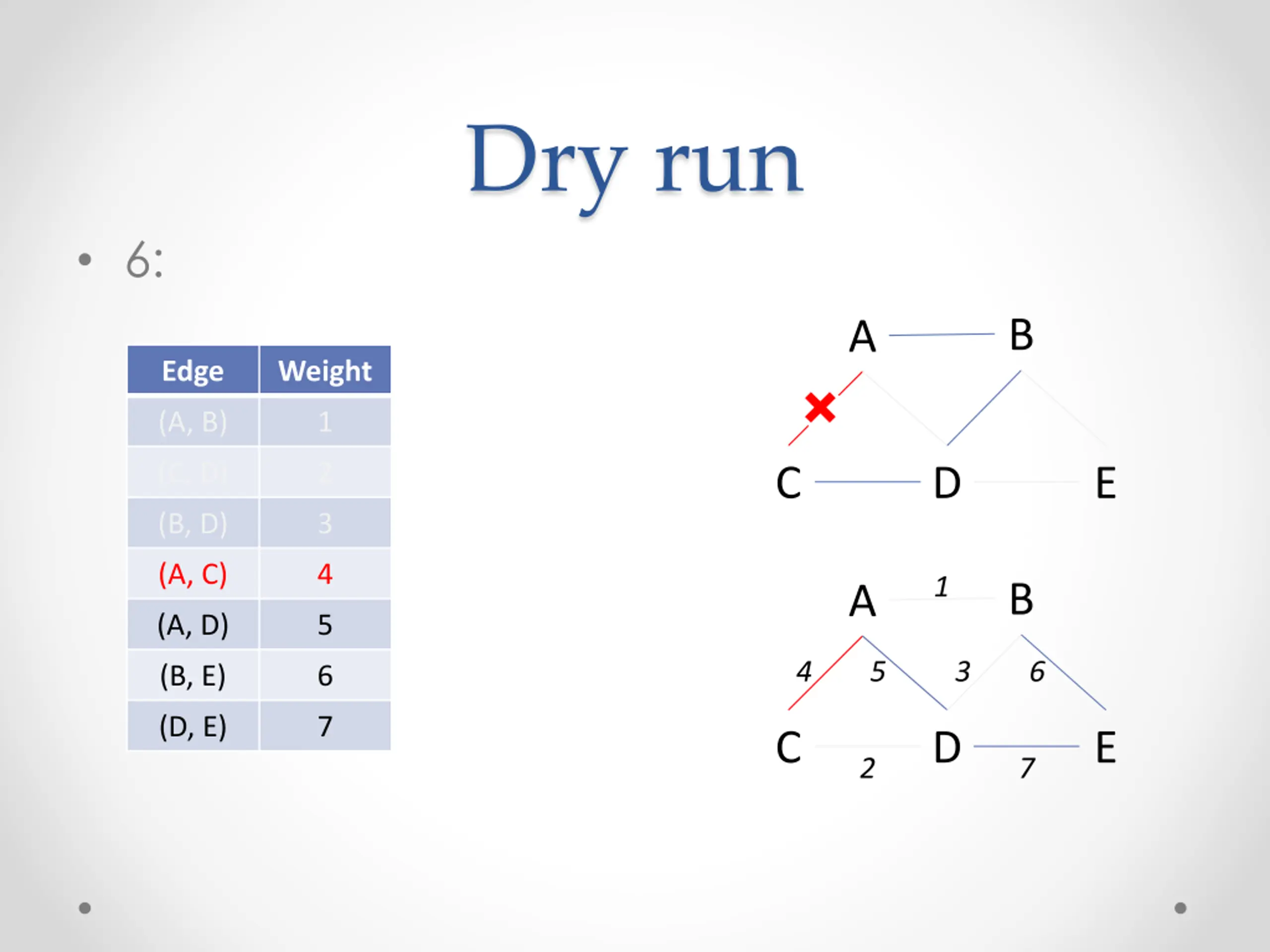

Dry run 6: B A Edge Weight (A, B) 1 (C, D) 2 C D E (B, D) 3 (A, C) 4 1 B A (A, D) 5 4 5 3 6 (B, E) 6 (D, E) 7 C D E 2 7

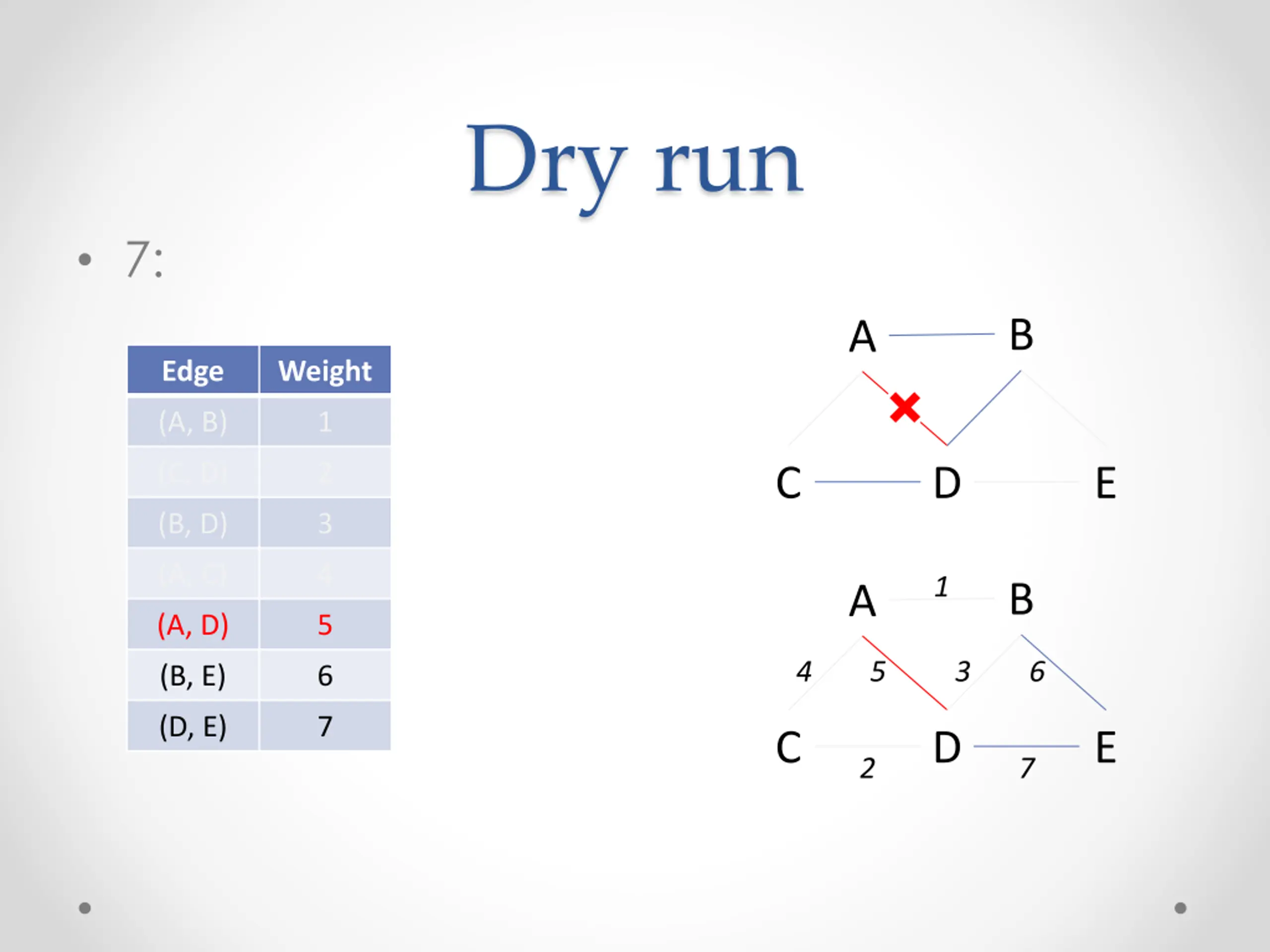

Dry run 7: B A Edge Weight (A, B) 1 (C, D) 2 C D E (B, D) 3 (A, C) 4 1 B A (A, D) 5 4 5 3 6 (B, E) 6 (D, E) 7 C D E 2 7

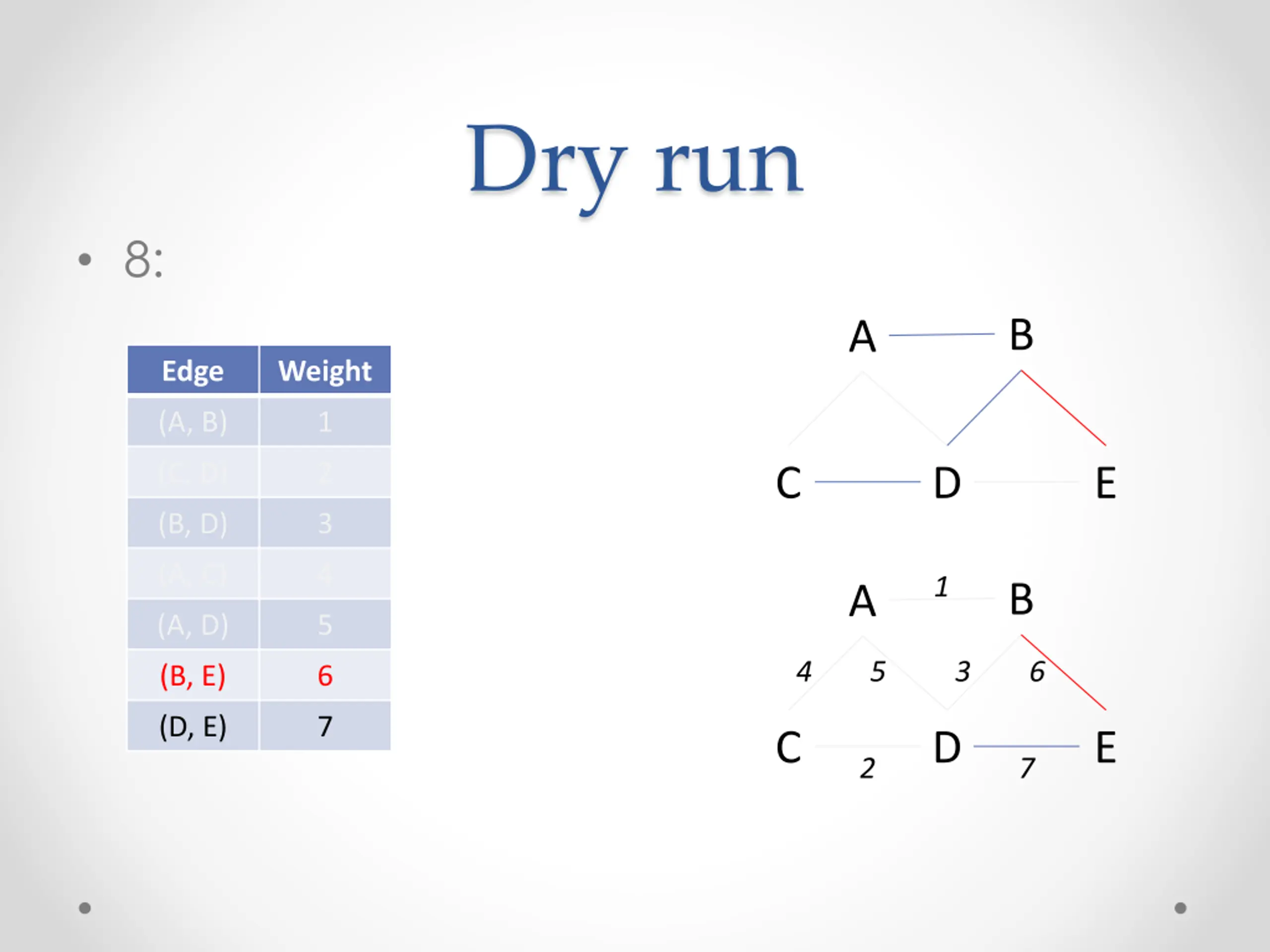

Dry run 8: B A Edge Weight (A, B) 1 (C, D) 2 C D E (B, D) 3 (A, C) 4 1 B A (A, D) 5 4 5 3 6 (B, E) 6 (D, E) 7 C D E 2 7

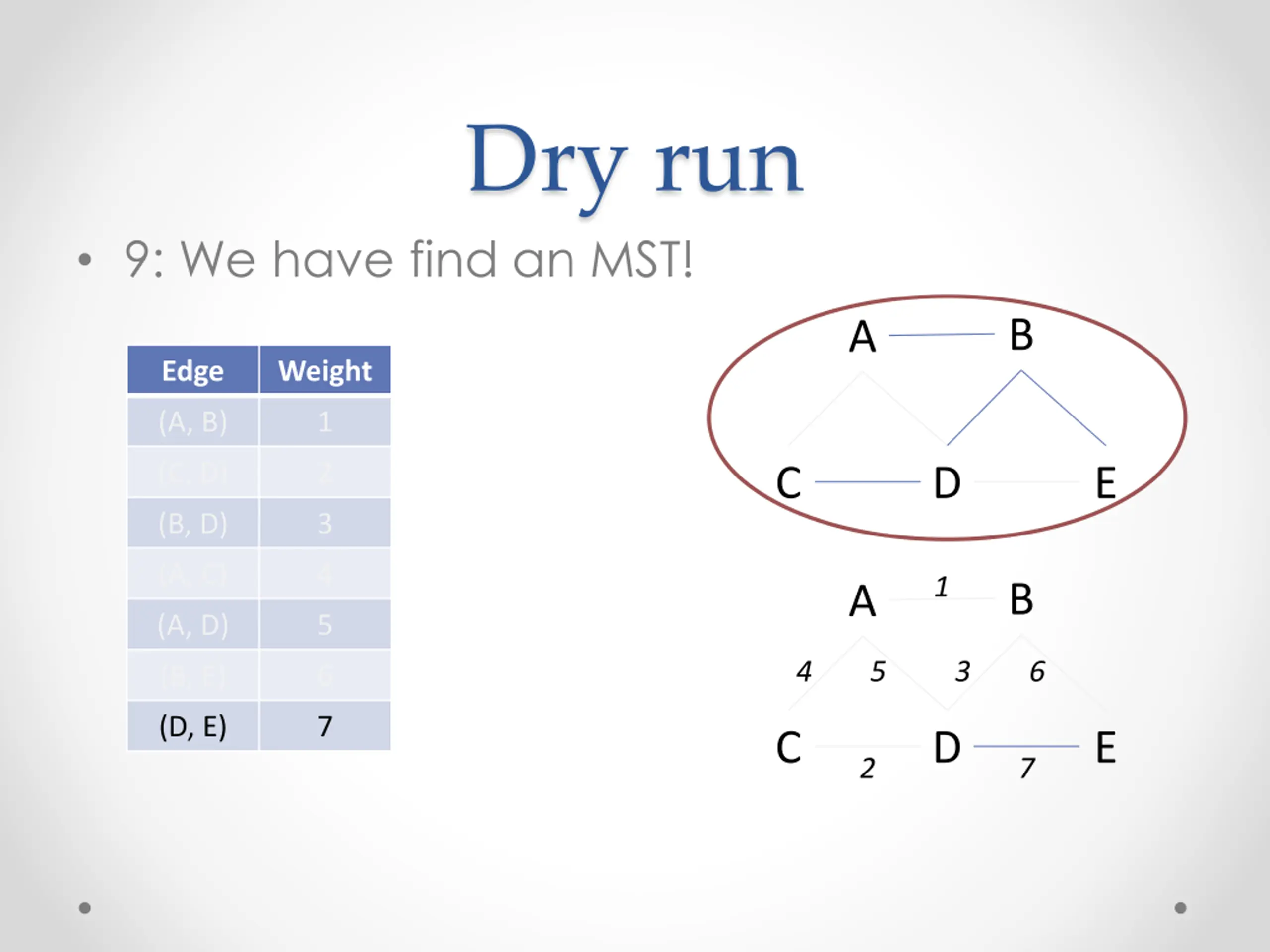

Dry run 9: We have find an MST! B A Edge Weight (A, B) 1 (C, D) 2 C D E (B, D) 3 (A, C) 4 1 B A (A, D) 5 4 5 3 6 (B, E) 6 (D, E) 7 C D E 2 7

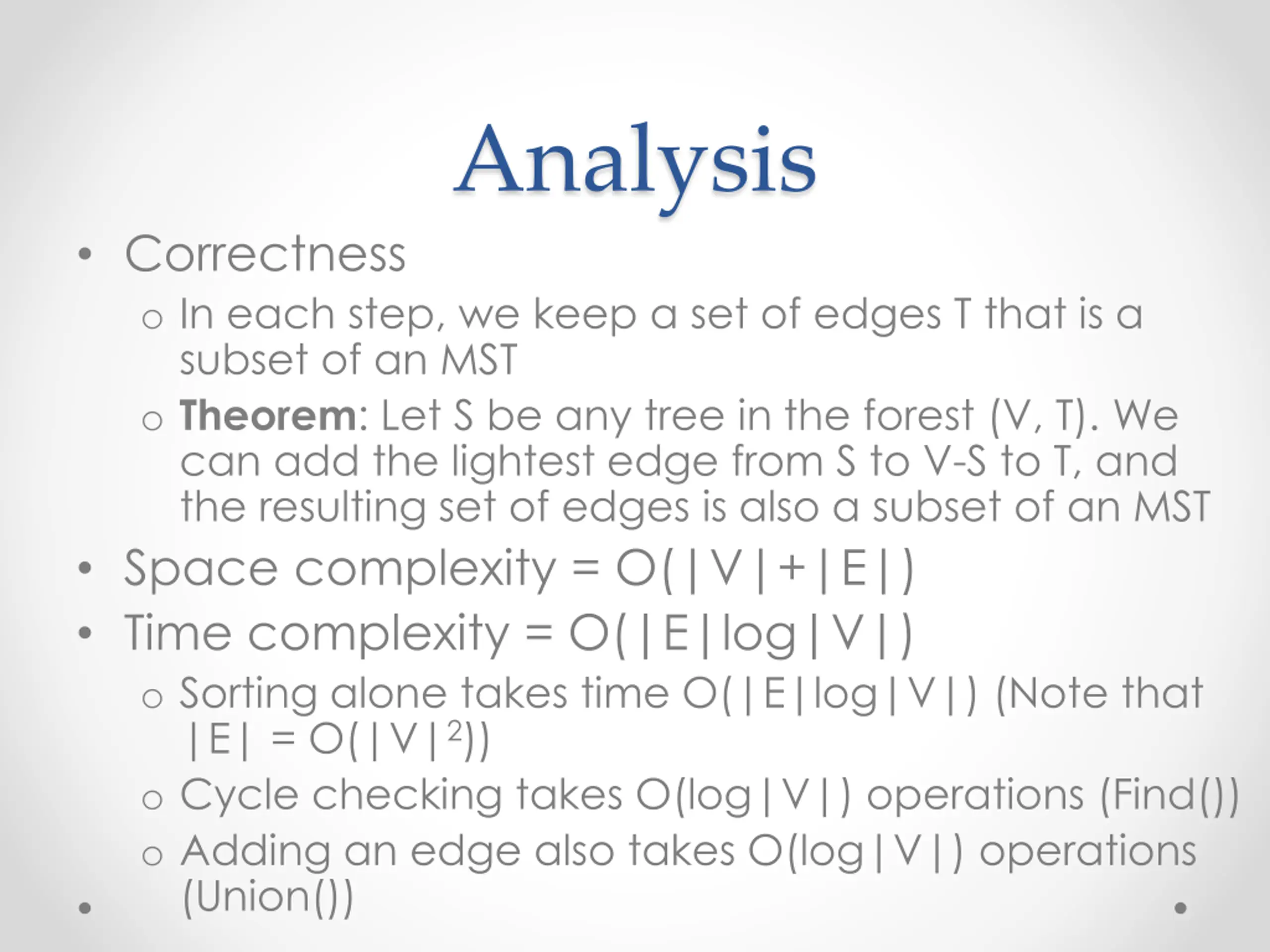

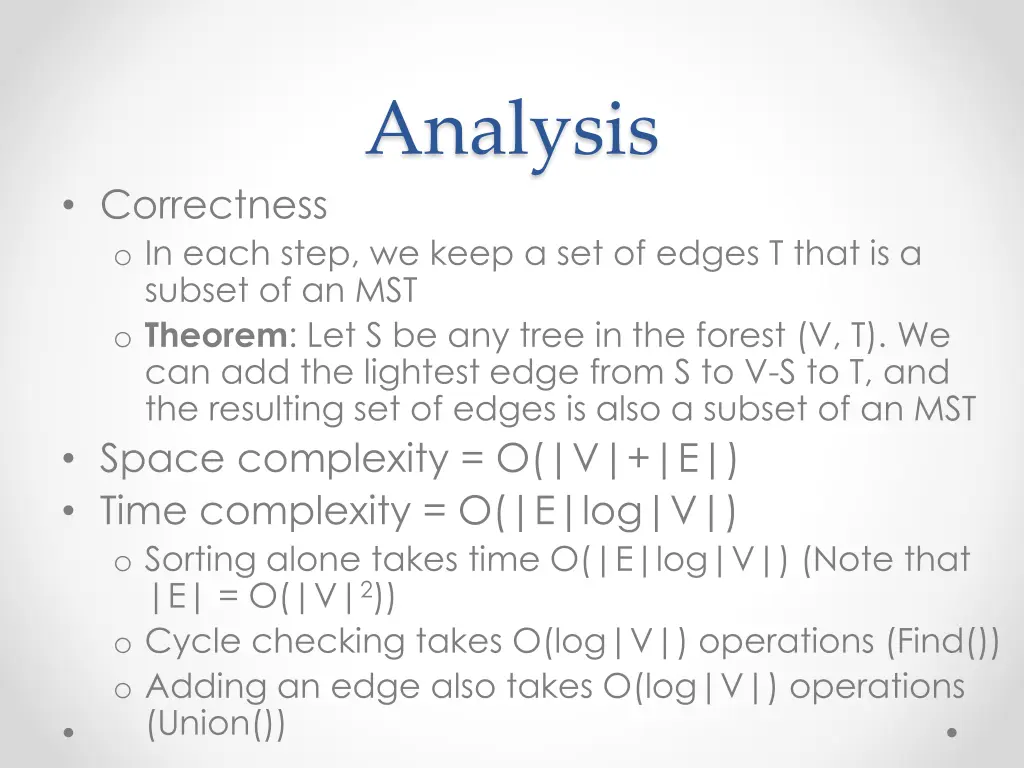

Analysis Correctness o In each step, we keep a set of edges T that is a subset of an MST o Theorem: Let S be any tree in the forest (V, T). We can add the lightest edge from S to V-S to T, and the resulting set of edges is also a subset of an MST Space complexity = O(|V|+|E|) Time complexity = O(|E|log|V|) o Sorting alone takes time O(|E|log|V|) (Note that |E| = O(|V|2)) o Cycle checking takes O(log|V|) operations (Find()) o Adding an edge also takes O(log|V|) operations (Union())

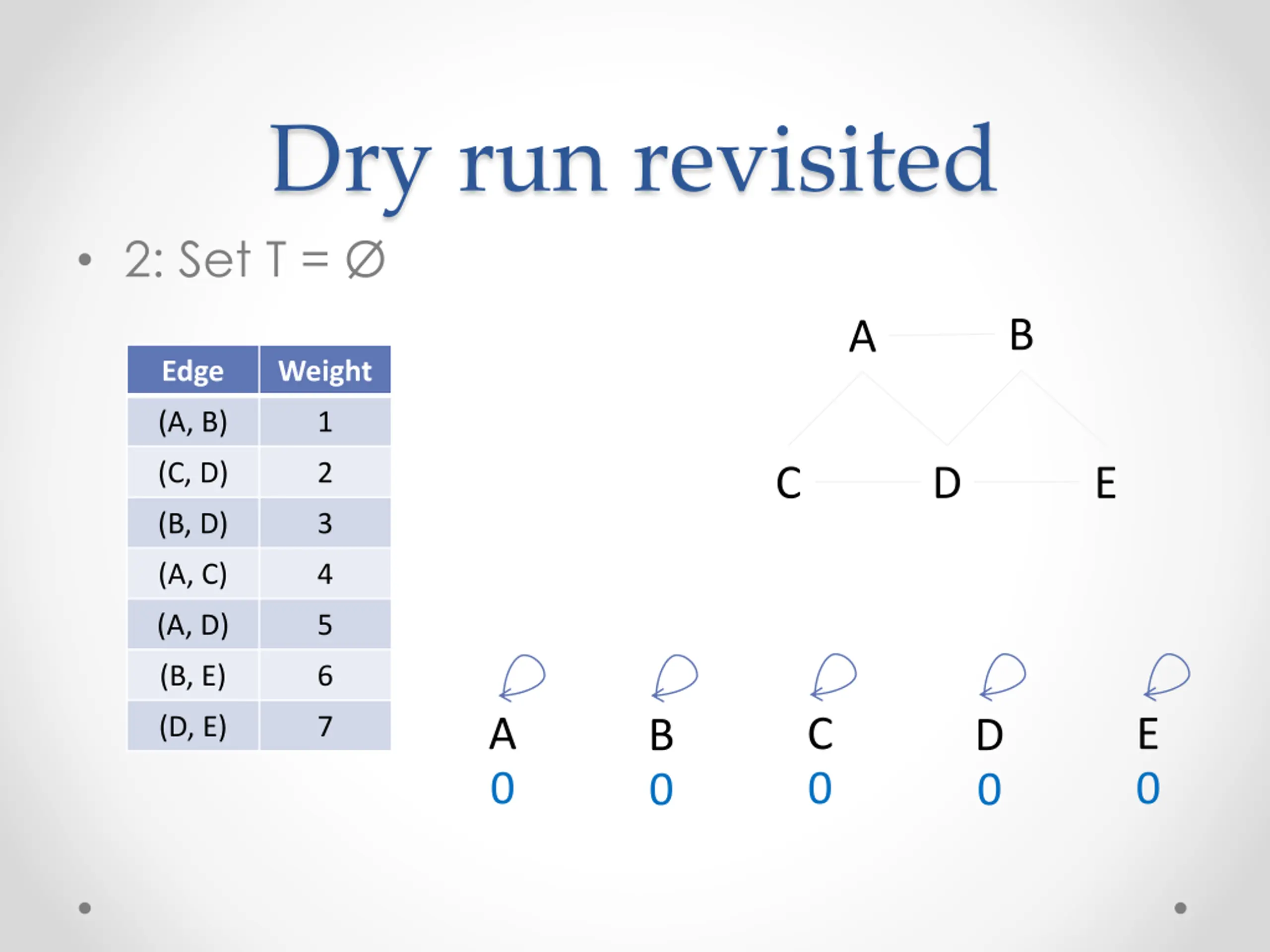

Dry run revisited 2: Set T = B A Edge Weight (A, B) 1 (C, D) 2 C D E (B, D) 3 (A, C) 4 (A, D) 5 (B, E) 6 A 0 C 0 E 0 (D, E) 7 B 0 D 0

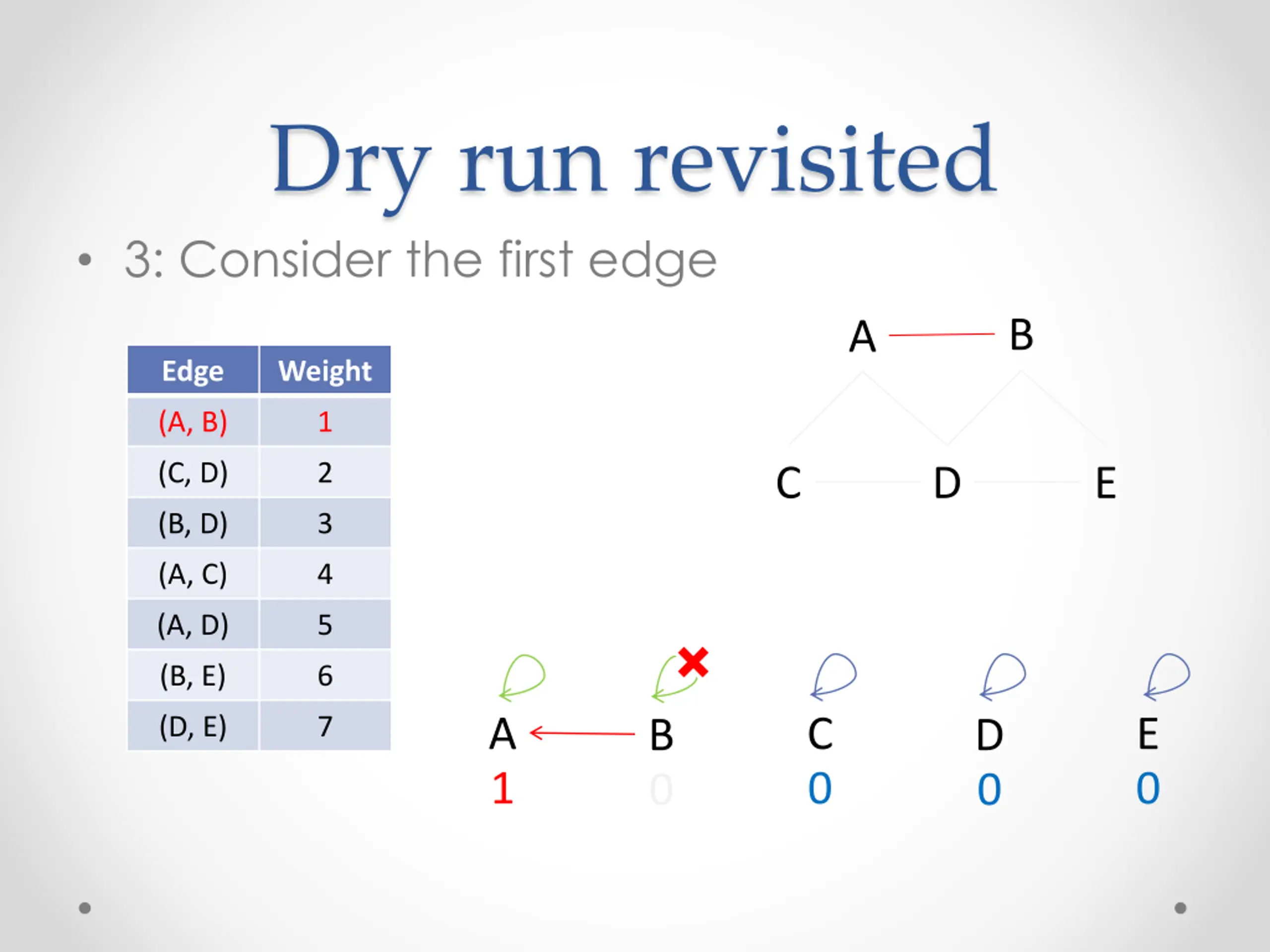

Dry run revisited 3: Consider the first edge B A Edge Weight (A, B) 1 (C, D) 2 C D E (B, D) 3 (A, C) 4 (A, D) 5 (B, E) 6 A 1 C 0 E 0 (D, E) 7 B 0 D 0

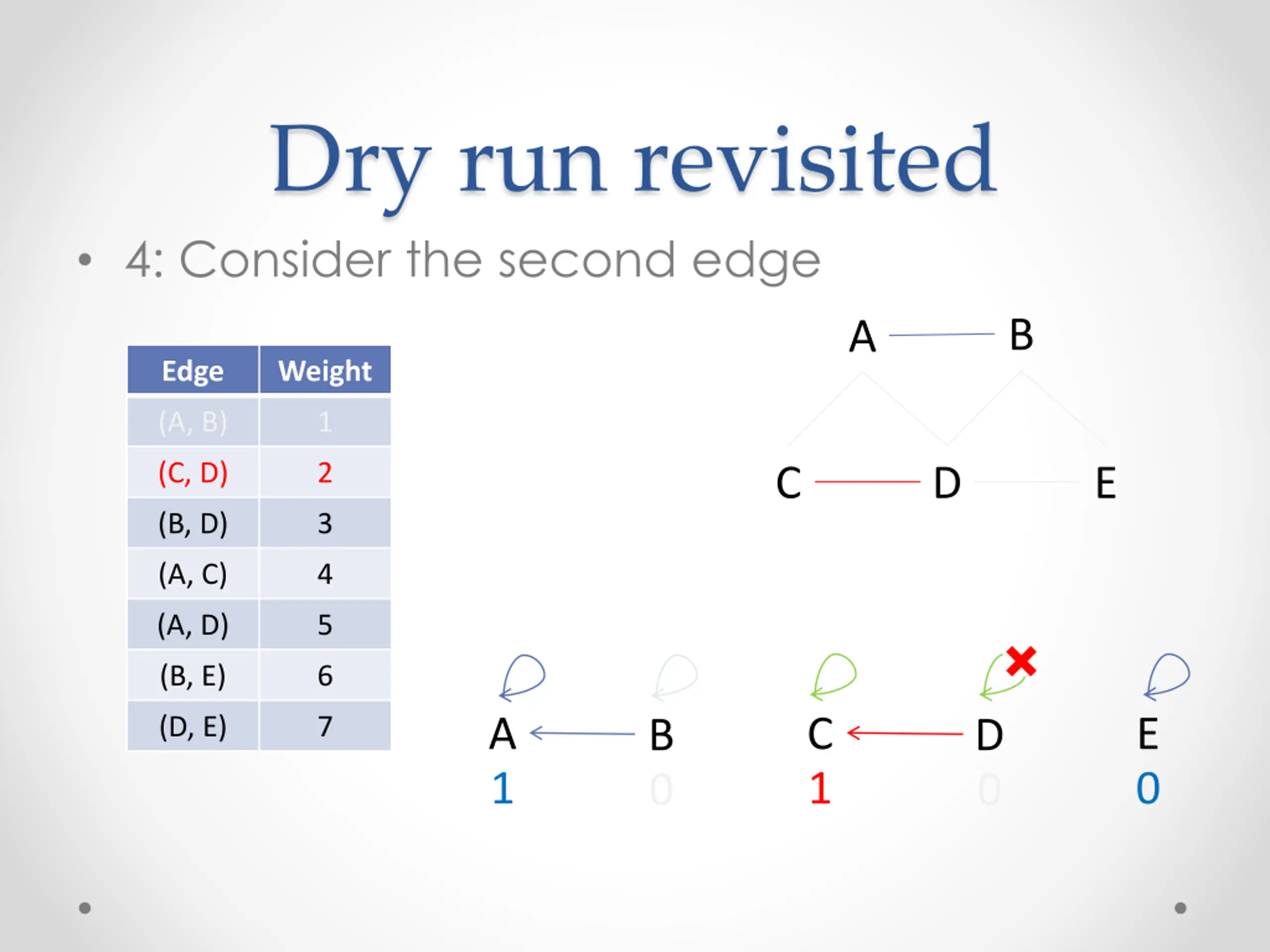

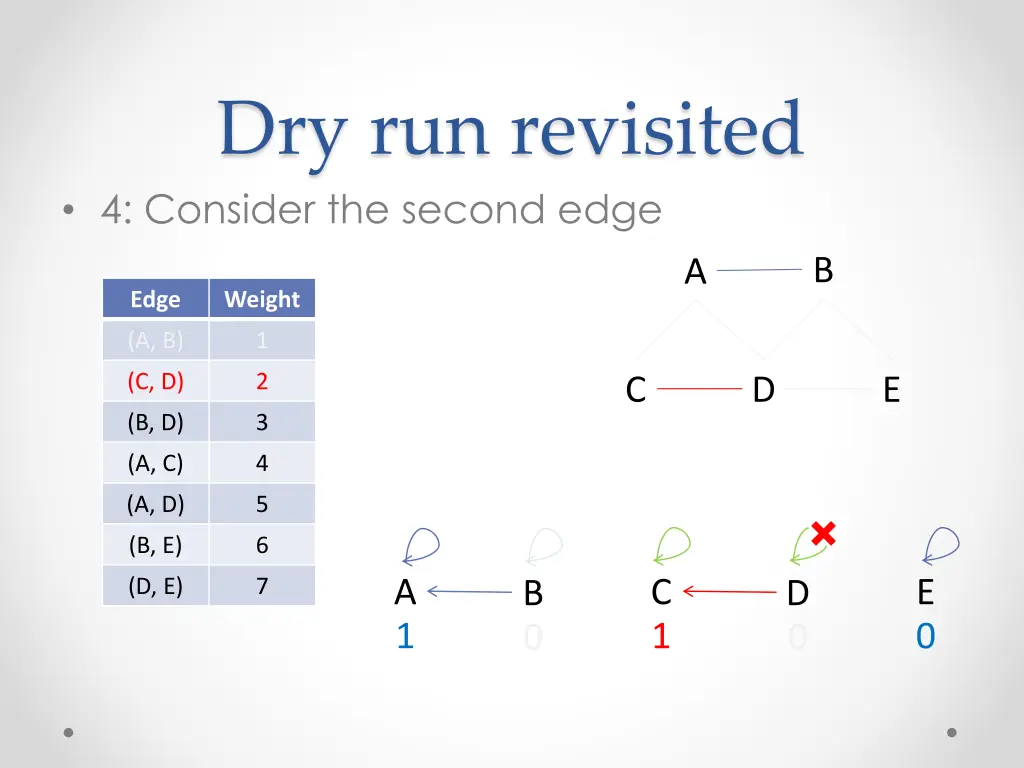

Dry run revisited 4: Consider the second edge B A Edge Weight (A, B) 1 (C, D) 2 C D E (B, D) 3 (A, C) 4 (A, D) 5 (B, E) 6 A 1 C 1 E 0 (D, E) 7 B 0 D 0

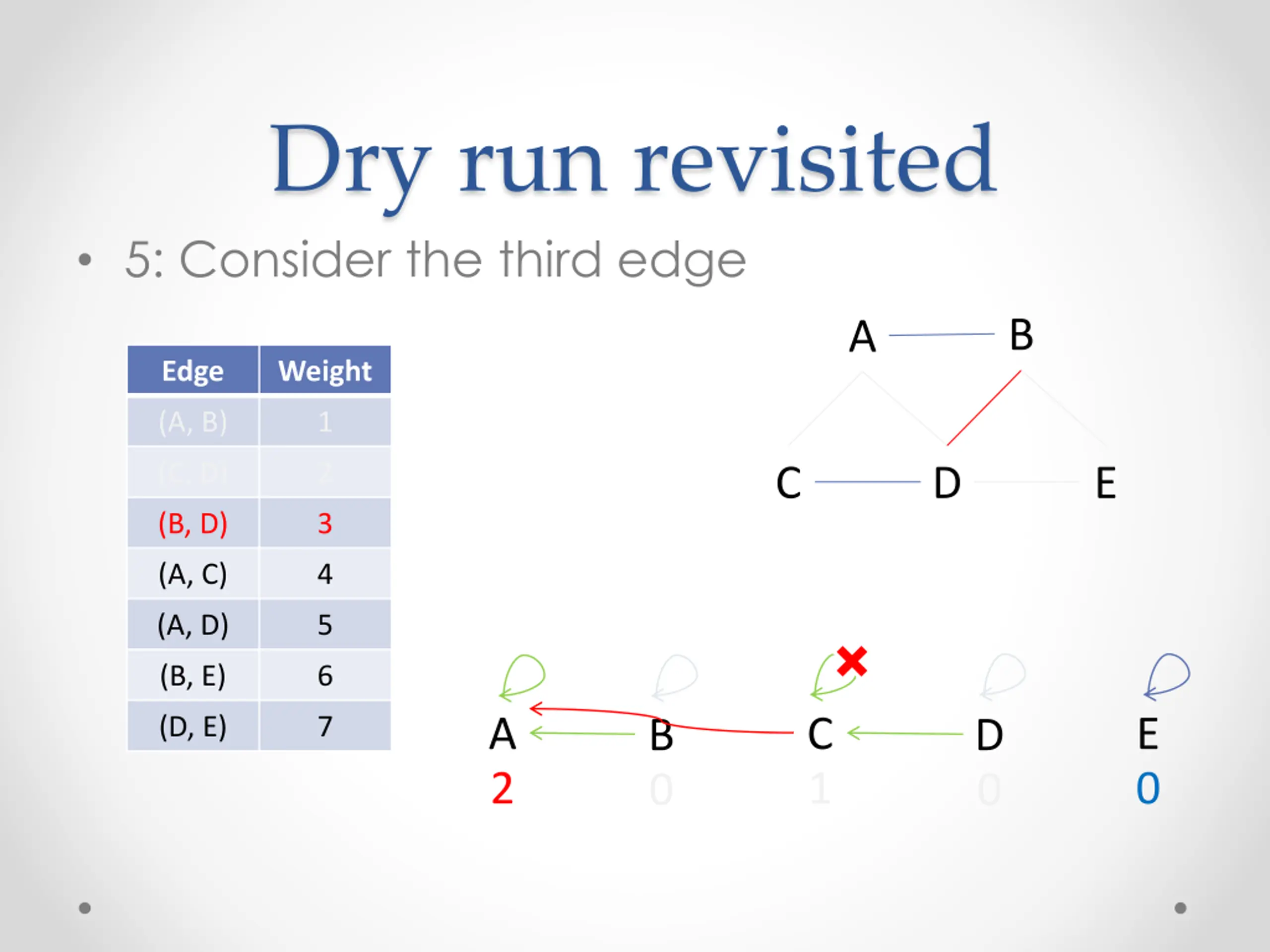

Dry run revisited 5: Consider the third edge B A Edge Weight (A, B) 1 (C, D) 2 C D E (B, D) 3 (A, C) 4 (A, D) 5 (B, E) 6 A 2 C 1 E (D, E) 7 B 0 D 0 0

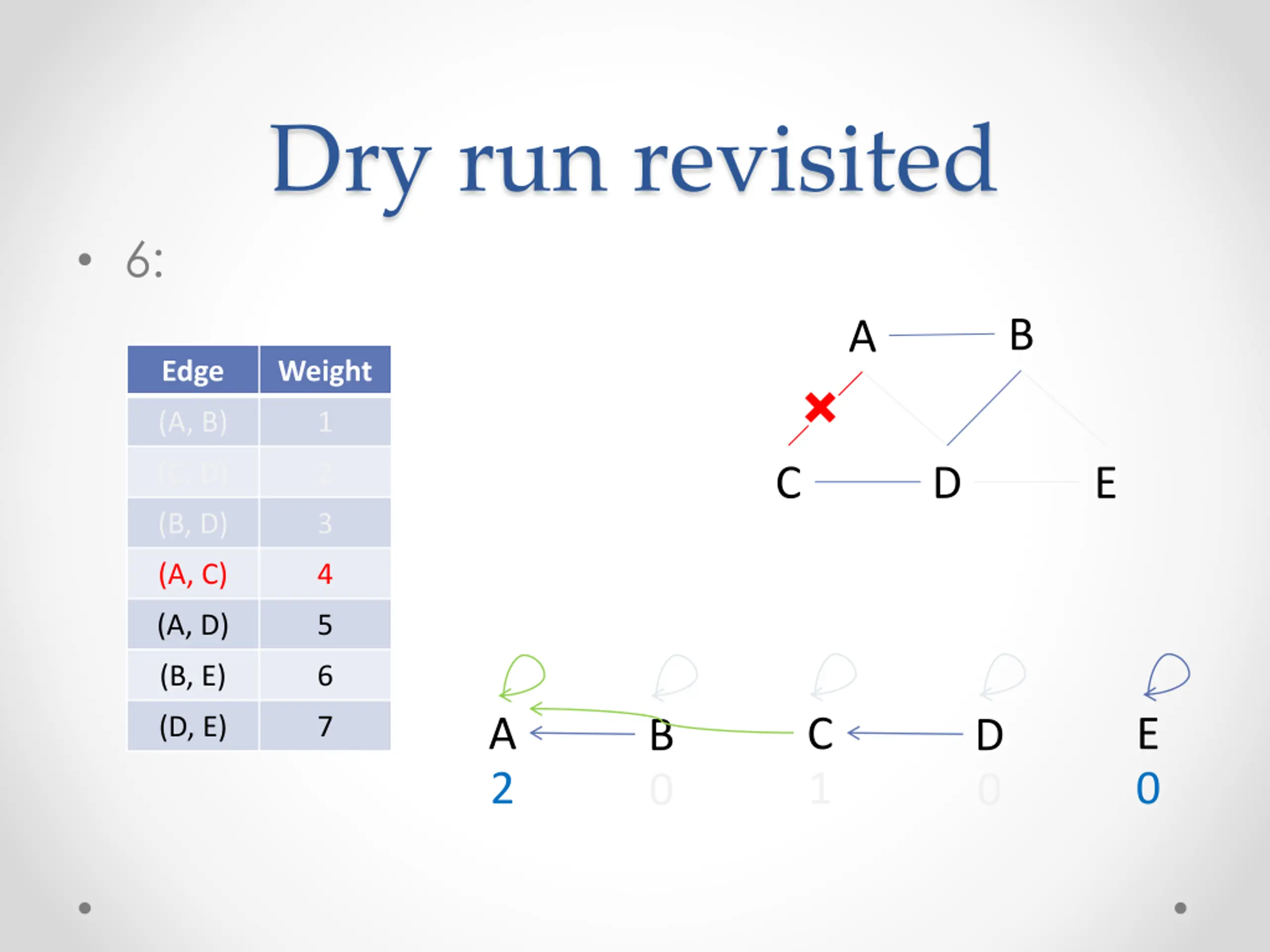

Dry run revisited 6: B A Edge Weight (A, B) 1 (C, D) 2 C D E (B, D) 3 (A, C) 4 (A, D) 5 (B, E) 6 A 2 C 1 E (D, E) 7 B 0 D 0 0

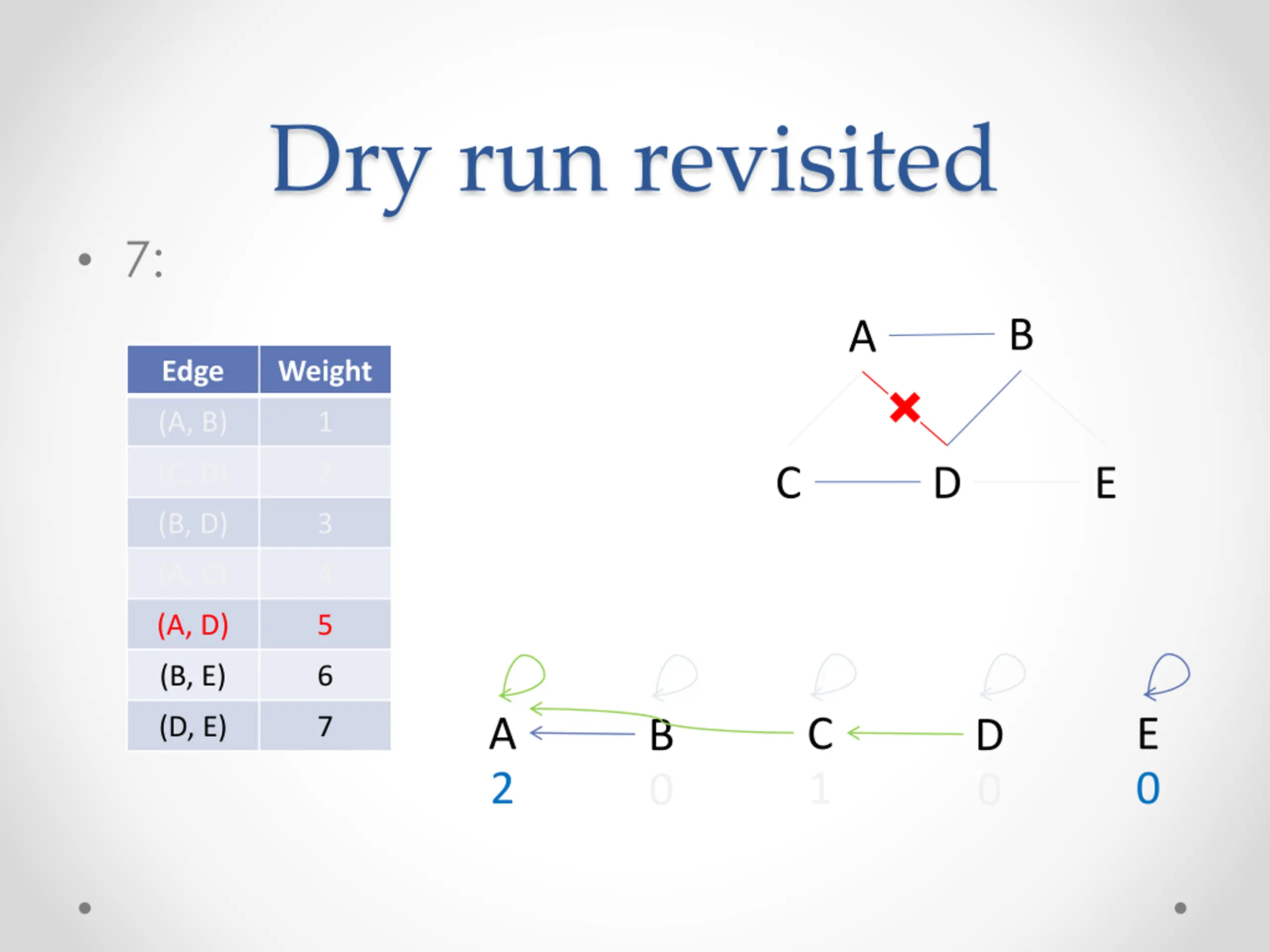

Dry run revisited 7: B A Edge Weight (A, B) 1 (C, D) 2 C D E (B, D) 3 (A, C) 4 (A, D) 5 (B, E) 6 A 2 C 1 E (D, E) 7 B 0 D 0 0

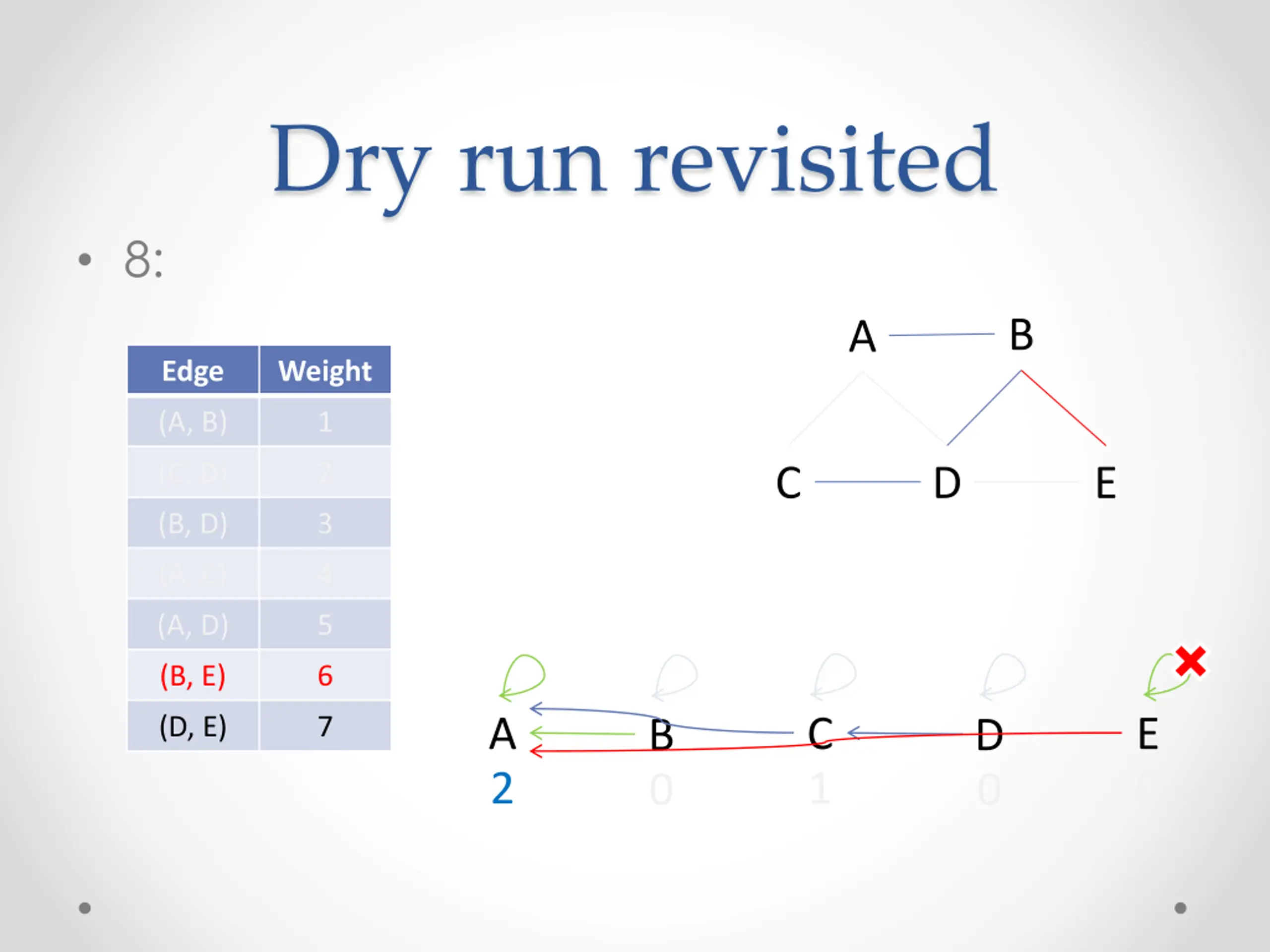

Dry run revisited 8: B A Edge Weight (A, B) 1 (C, D) 2 C D E (B, D) 3 (A, C) 4 (A, D) 5 (B, E) 6 A 2 C 1 E 0 (D, E) 7 B 0 D 0
Dry run revisited 9: We have find an MST! B A Edge Weight (A, B) 1 (C, D) 2 C D E (B, D) 3 (A, C) 4 (A, D) 5 (B, E) 6 A 2 C 1 E 0 (D, E) 7 B 0 D 0
End Questions
